MENDELSSOHN
9449106 | A8XS2 | 9449106 by ********* Last update: Tue Jun 18 2024
General Info
Ship Name:MENDELSSOHN
IMO Code:9449106
Call Sign:A8XS2
Line Operator:9449106
Class Name for Sister Ships:MSL
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,679
Centers of Gravity
LCG Values:Known
LCG Data:0%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

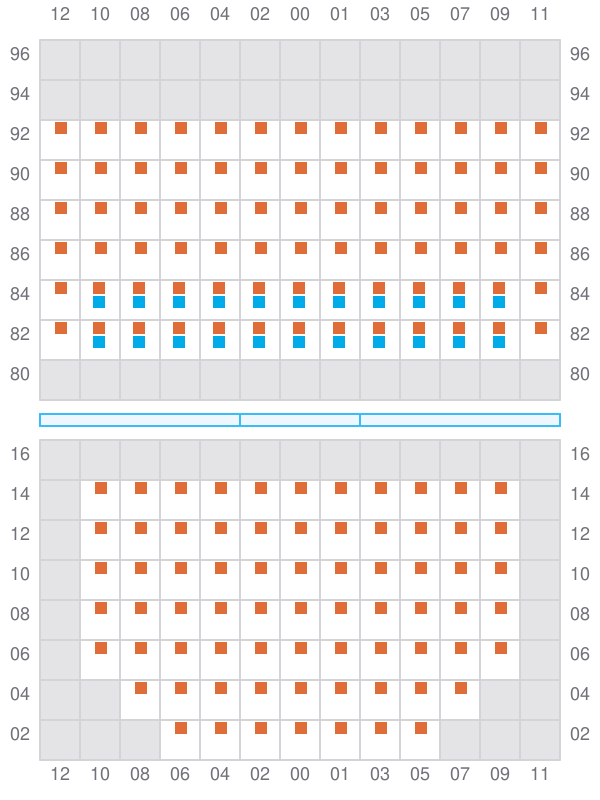

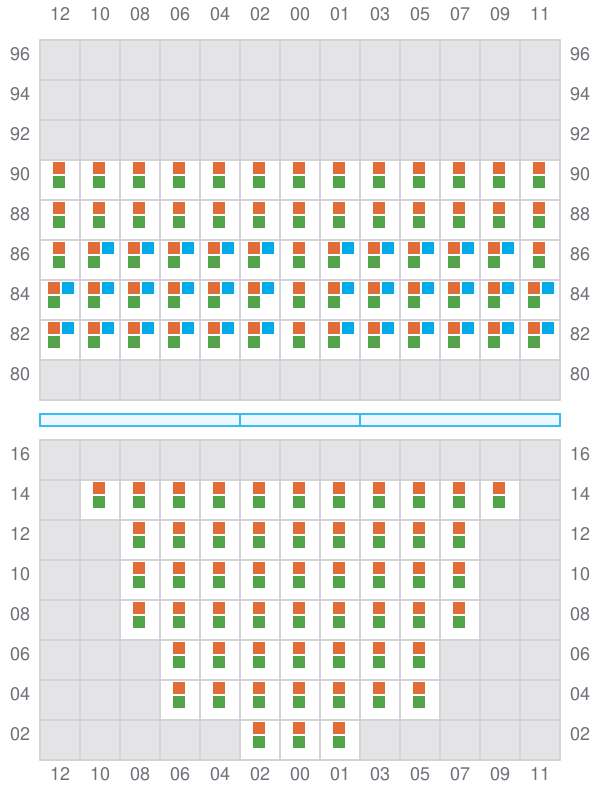

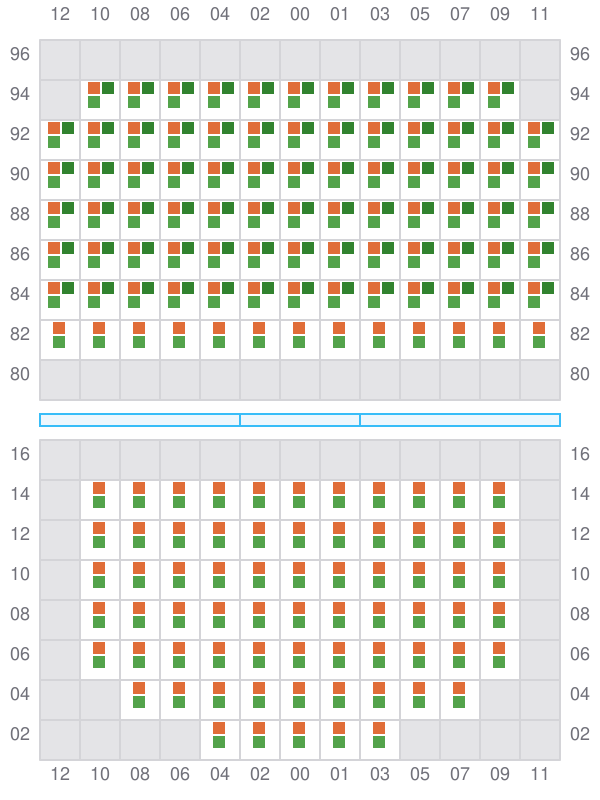

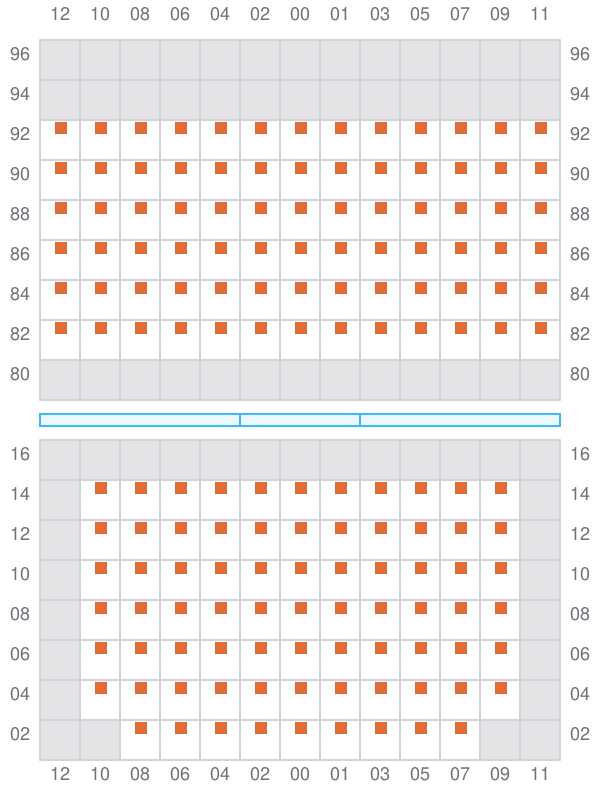

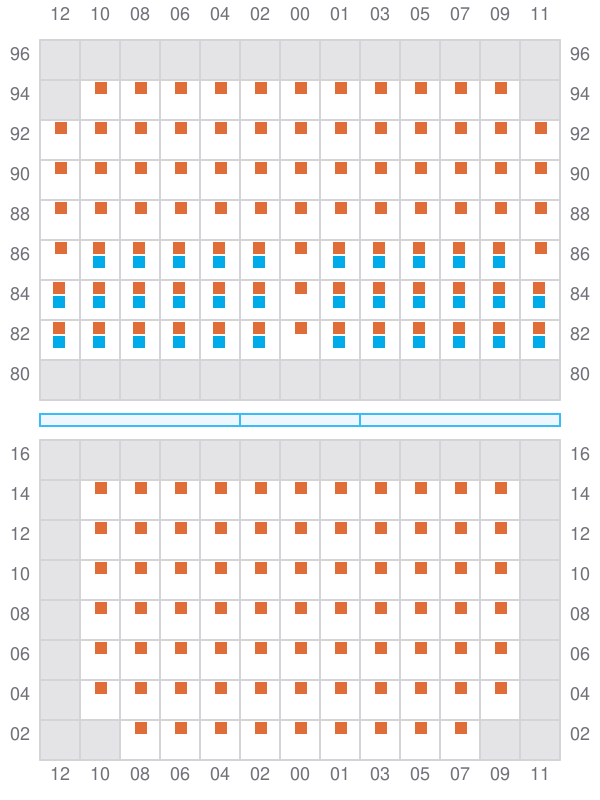

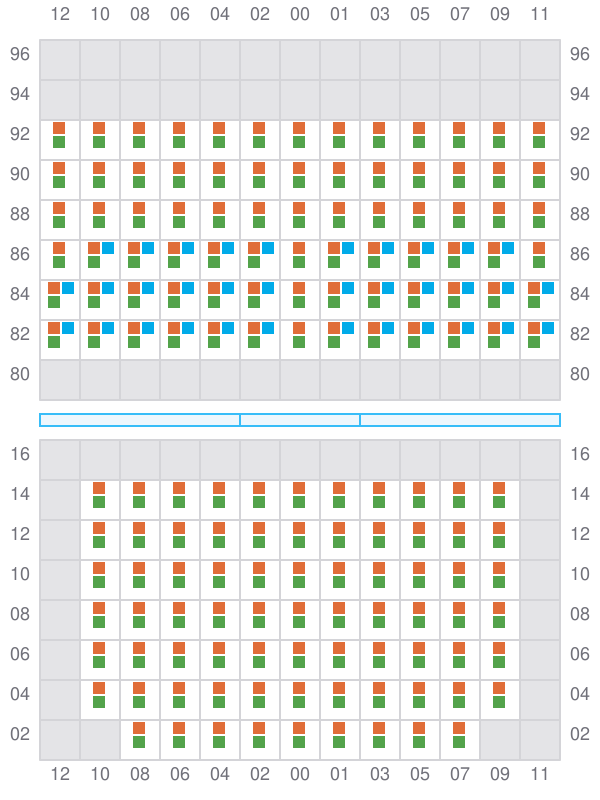

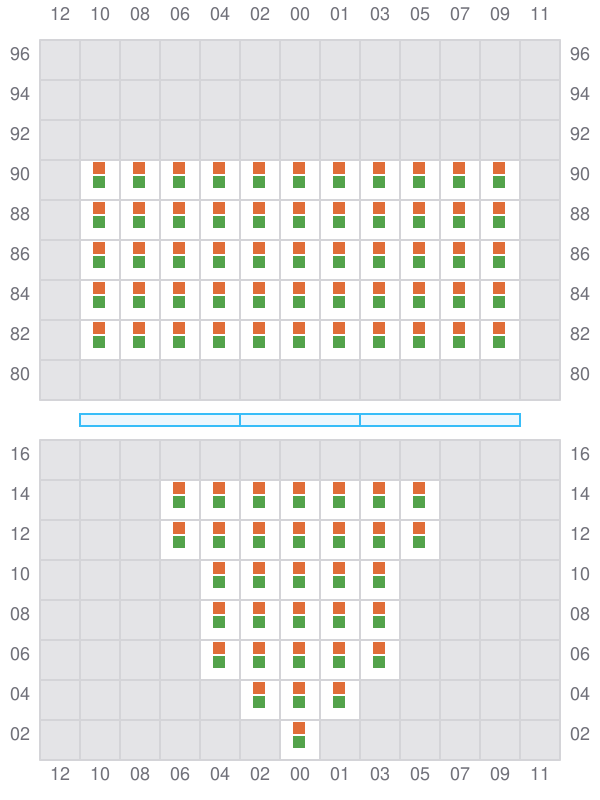

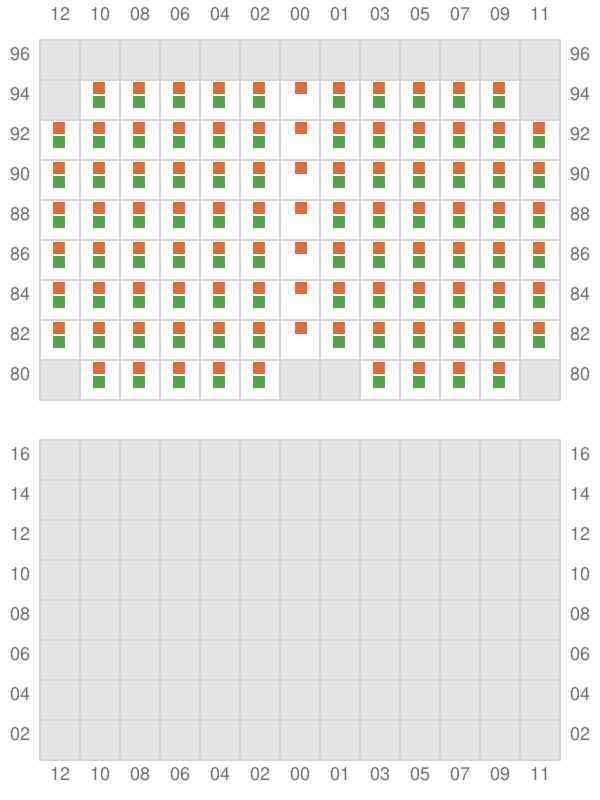

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

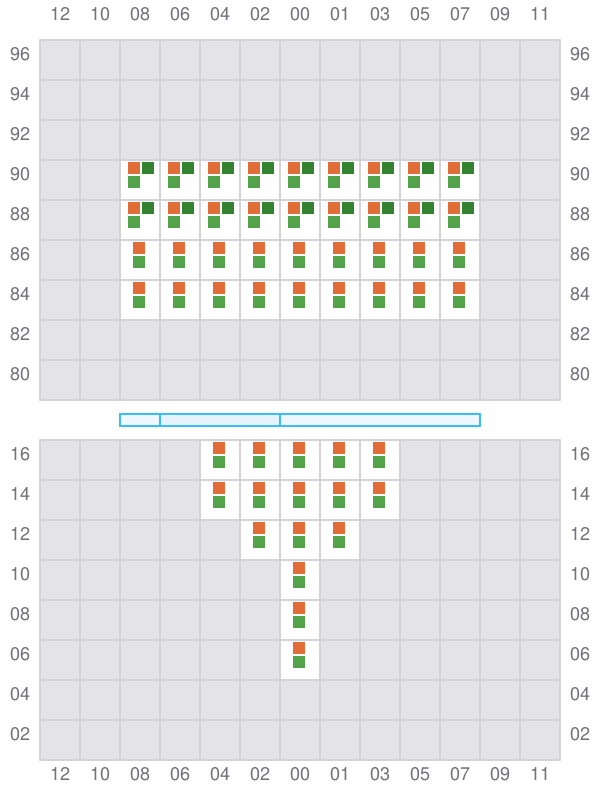

001 (002)
- →
003
- ←
005 (006)
- →

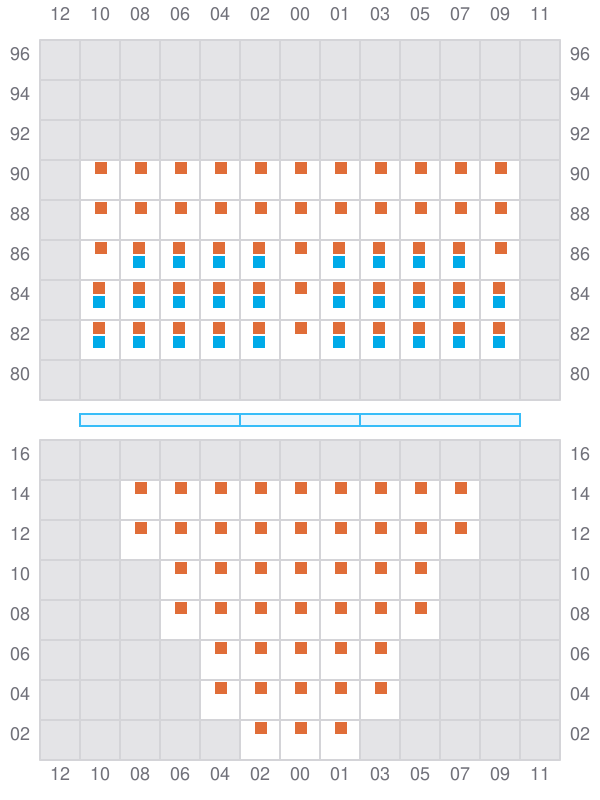

007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←

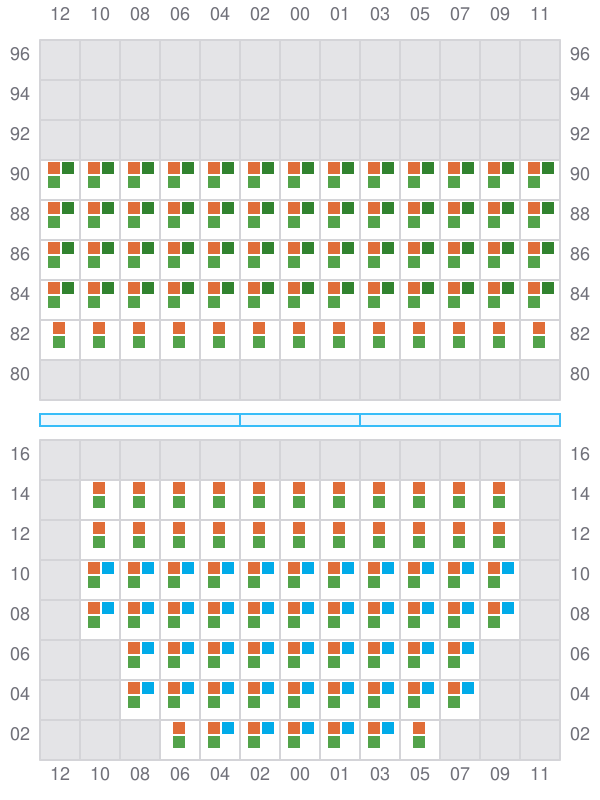

013 (014)
- →
- ? / ←
015
- ←
- → / ?

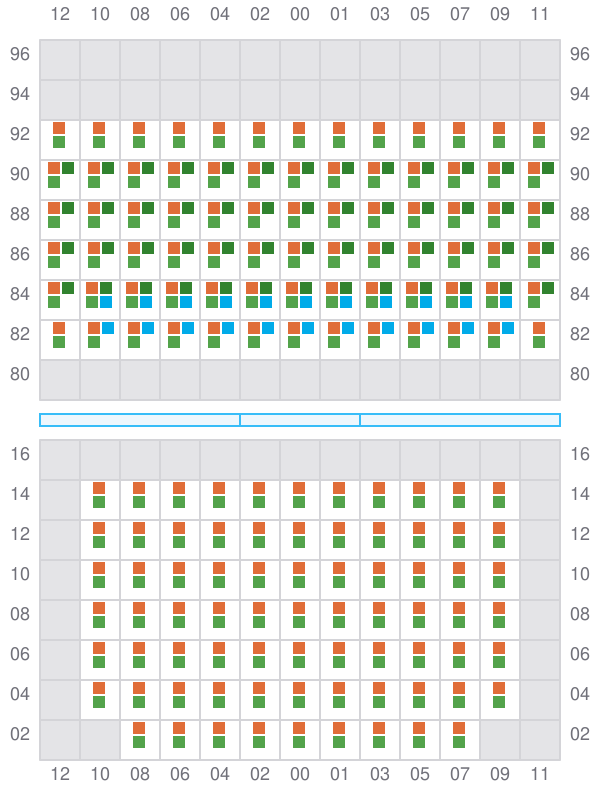

017 (018)
- →
- ← / ?
019
- ←
021 (022)
- →
- ? / ←

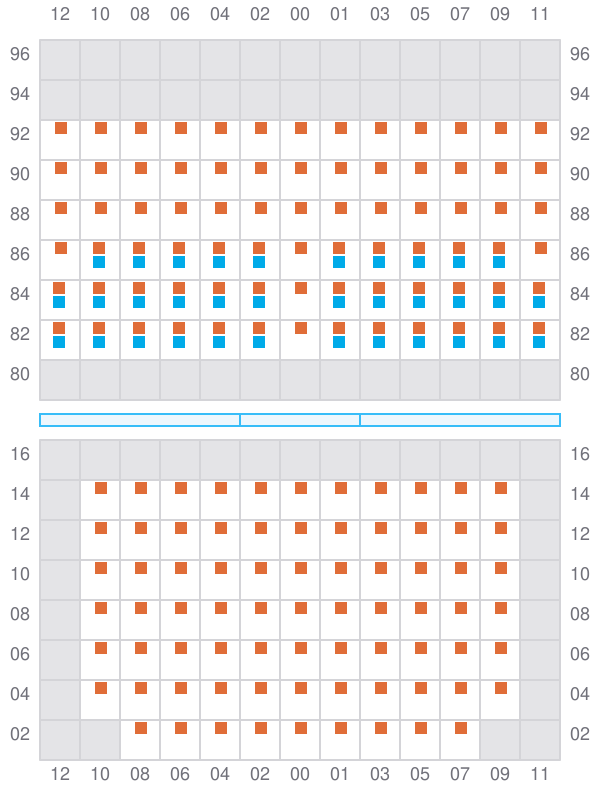

023
- ←
- → / ?
025 (026)
- →
- ← / ?

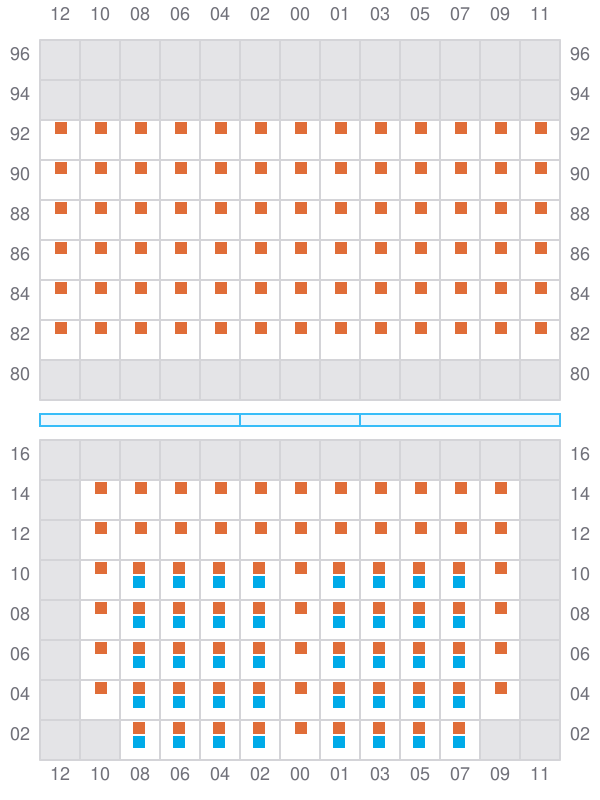

027
- ←
- ? / →

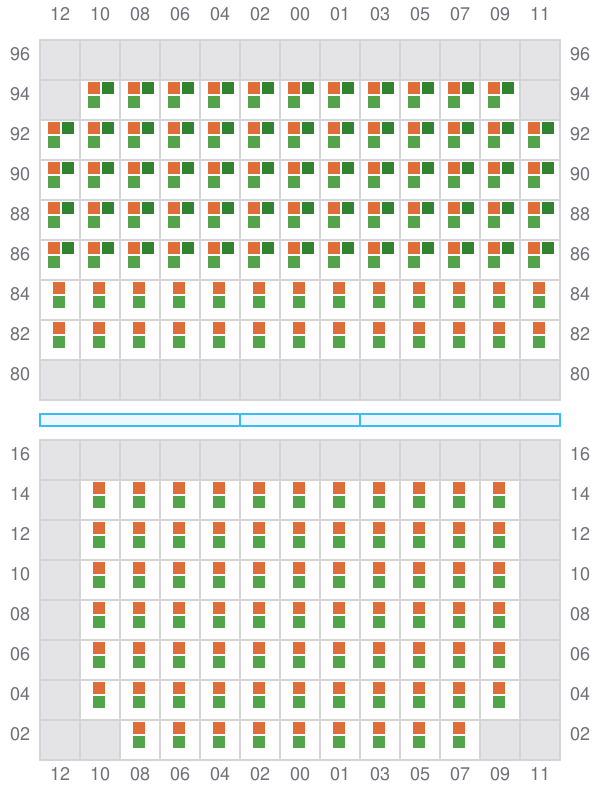

029 (030)
- →

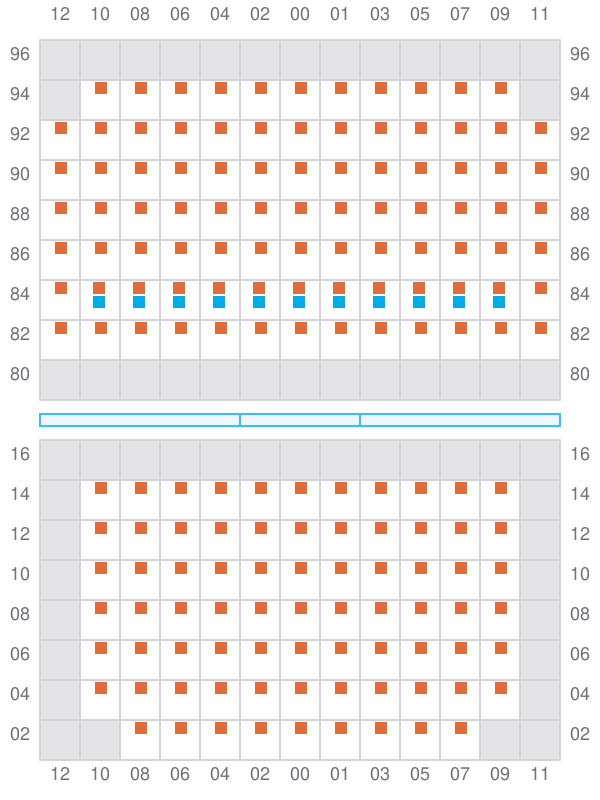

031
- ←
- → / ?

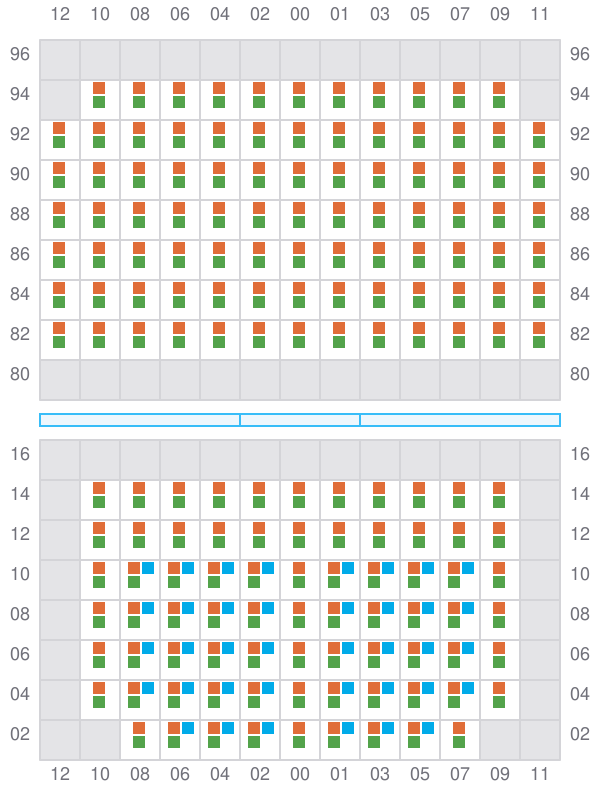

033 (034)
- →
- ? / ←
035
- ←
- → / ?
037 (038)
- →
- ← / ?
039
- ←
- ? / →
041 (042)
- →
043
- ←
- → / ?
045 (046)
- → / ?

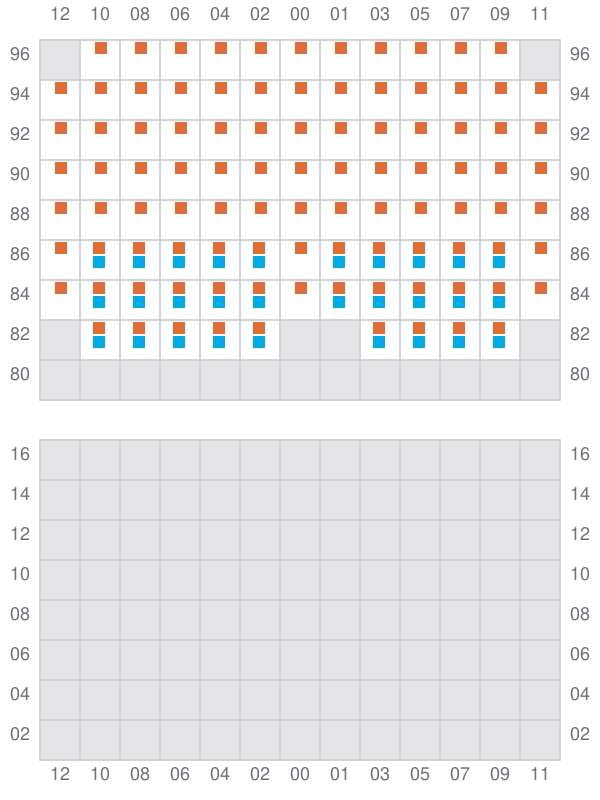

047
- ← / ?
- → / ?
049 (050)
- →
- ← / ?

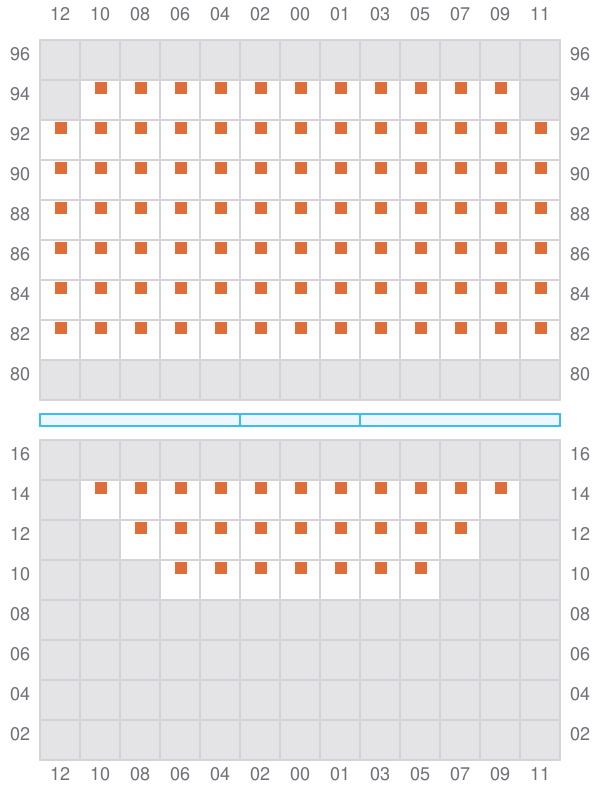

051
- ←

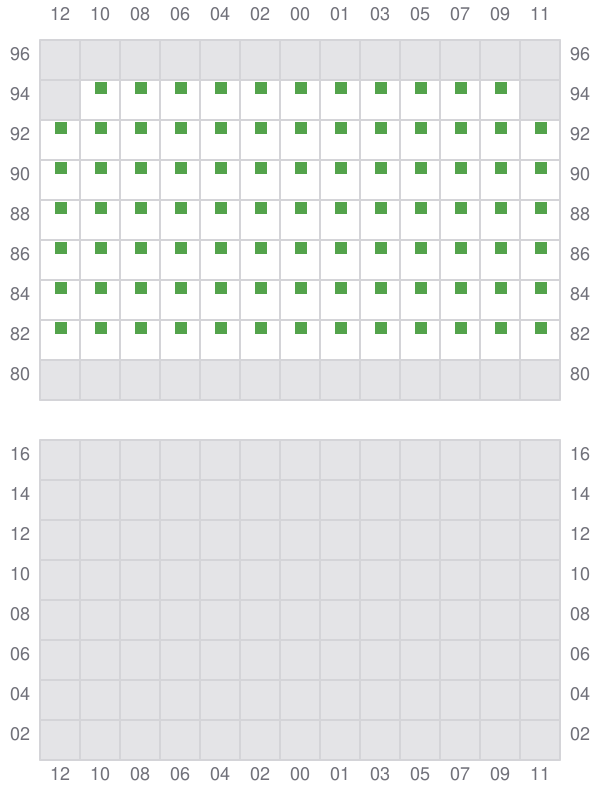

053 (054)
- → / ?
