MERATUS JAYAKARTA
9305879 | 3E2340 | 9305879 by ********* Last update: Mon Mar 18 2024

General Info

Ship Name:MERATUS JAYAKARTA
IMO Code:9305879
Call Sign:3E2340
Line Operator:9305879
Class Name for Sister Ships:99N
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,474

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

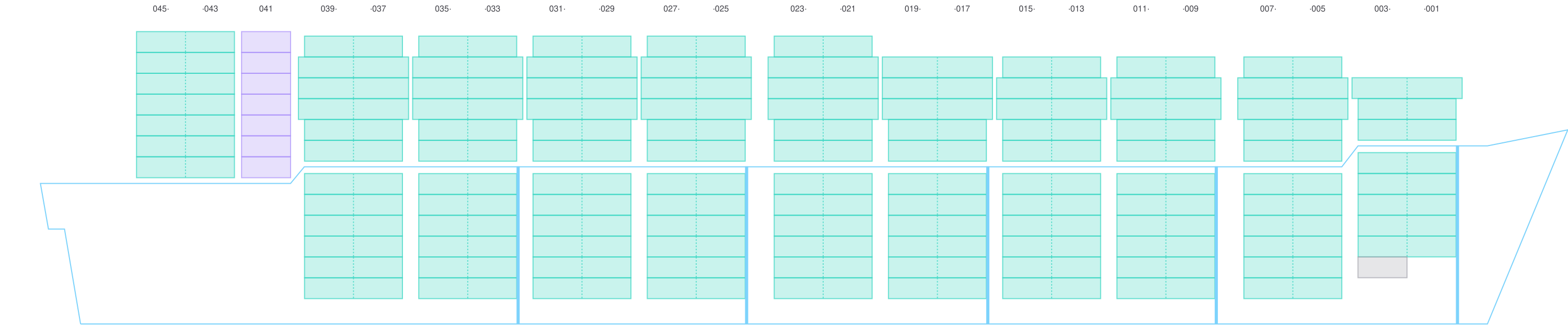

Side View

Side view of MERATUS JAYAKARTA

Hatch-Covers View

Deck view of MERATUS JAYAKARTA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

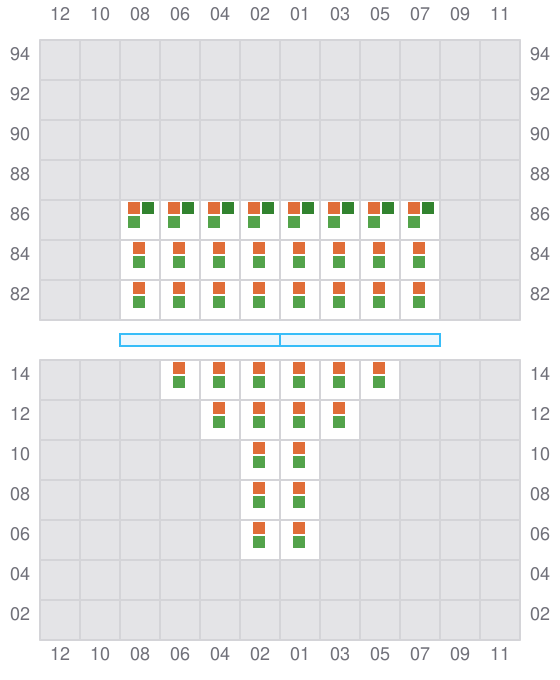

Bay 001 view and slots of MERATUS JAYAKARTA

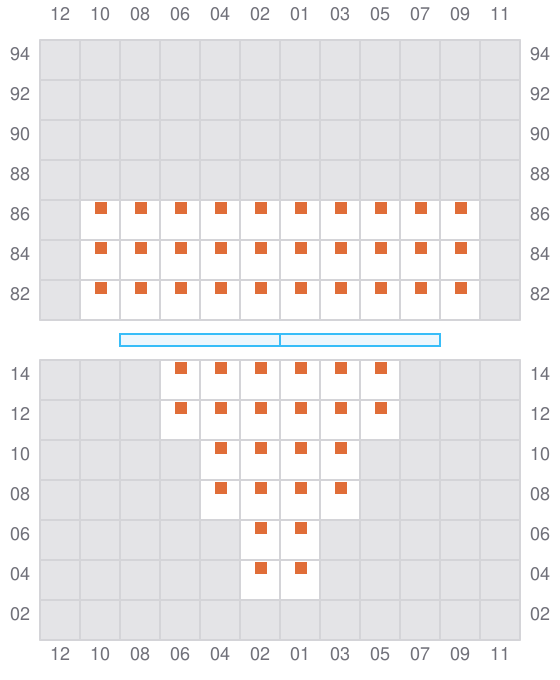

003

  • ←
Bay 003 view and slots of MERATUS JAYAKARTA

005 (006)

  • →

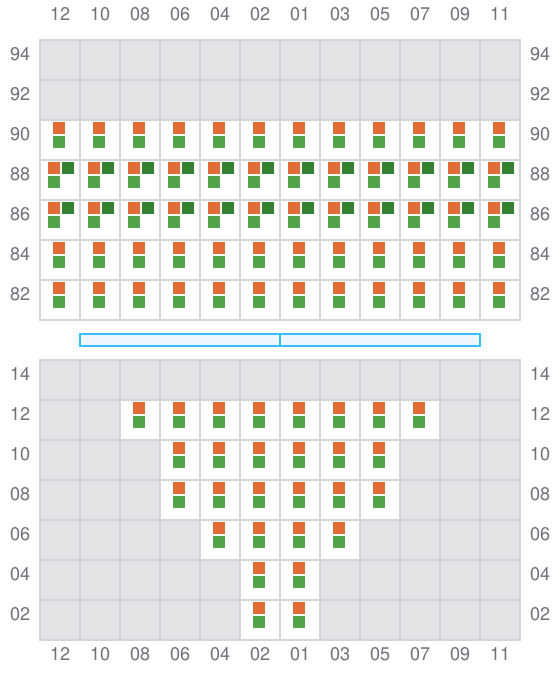

Bay 005 view and slots of MERATUS JAYAKARTA

007

  • ←
  • → / ?

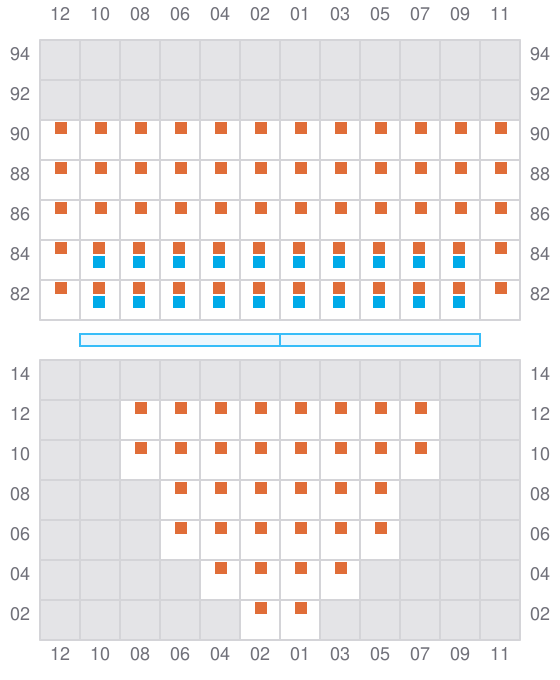

Bay 007 view and slots of MERATUS JAYAKARTA

009 (010)

  • →

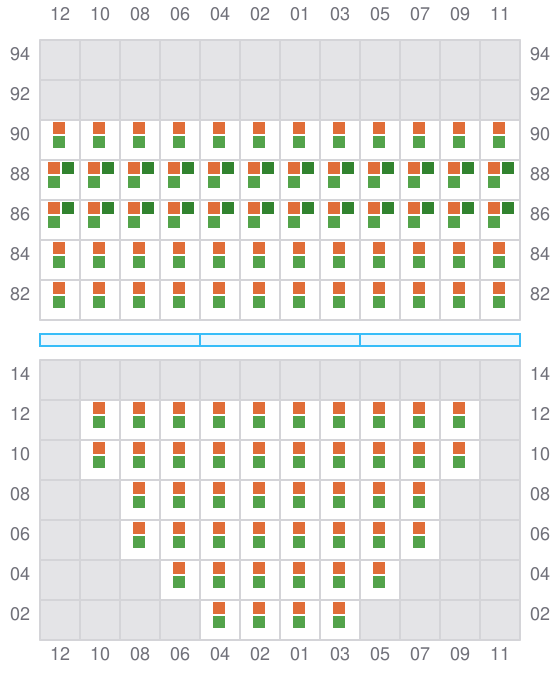

Bay 009 view and slots of MERATUS JAYAKARTA

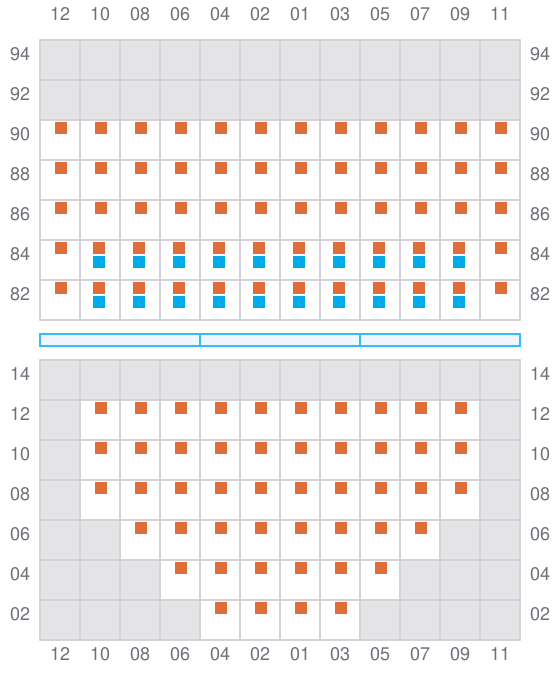

011

  • ←
  • → / ?
Bay 011 view and slots of MERATUS JAYAKARTA

013 (014)

  • →
Bay 013 view and slots of MERATUS JAYAKARTA

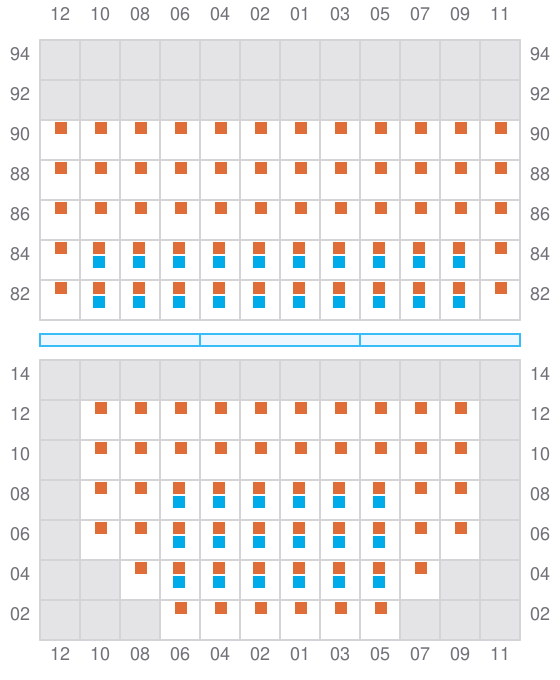

015

  • ←
  • →
Bay 015 view and slots of MERATUS JAYAKARTA

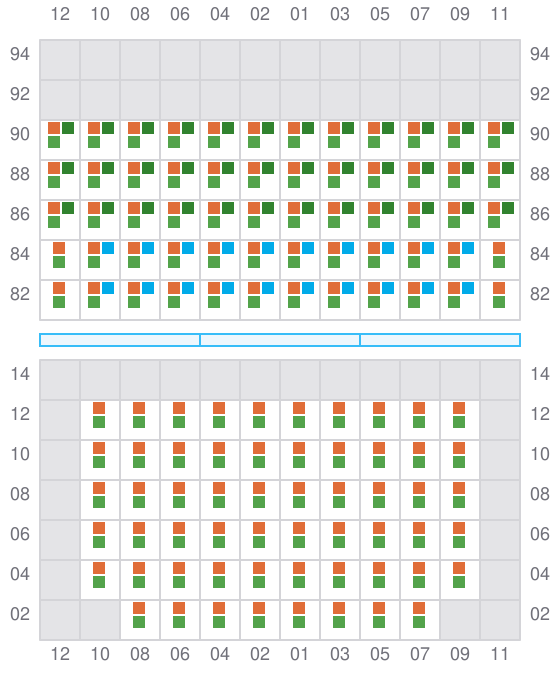

017 (018)

  • →
  • ← / ?
Bay 017 view and slots of MERATUS JAYAKARTA

019

  • ←
  • →
Bay 019 view and slots of MERATUS JAYAKARTA

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of MERATUS JAYAKARTA

023

  • ←
  • → / ?
Bay 023 view and slots of MERATUS JAYAKARTA

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of MERATUS JAYAKARTA

027

  • ←
  • → / ?
Bay 027 view and slots of MERATUS JAYAKARTA

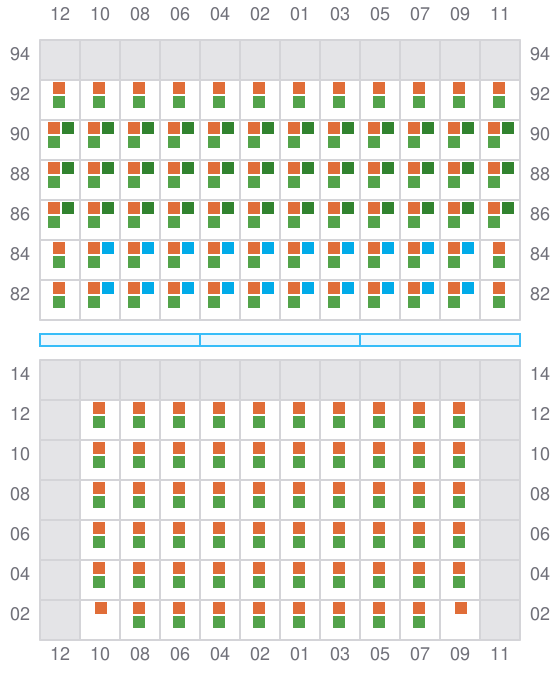

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of MERATUS JAYAKARTA

031

  • ←
  • →

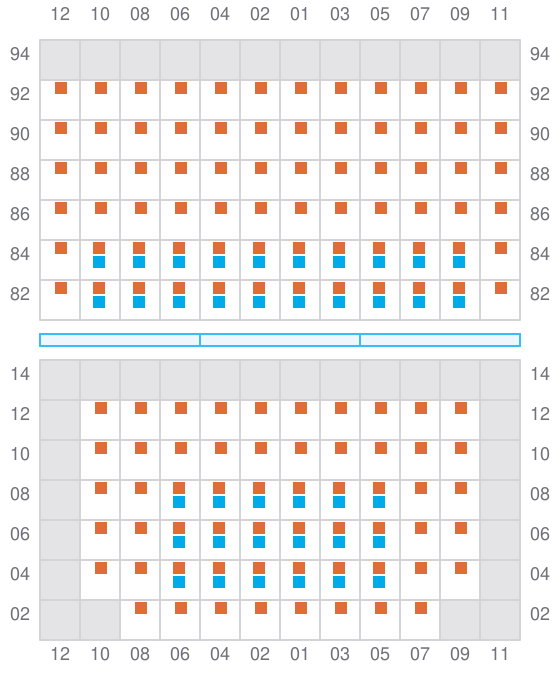

Bay 031 view and slots of MERATUS JAYAKARTA

033 (034)

  • →
  • ← / ?

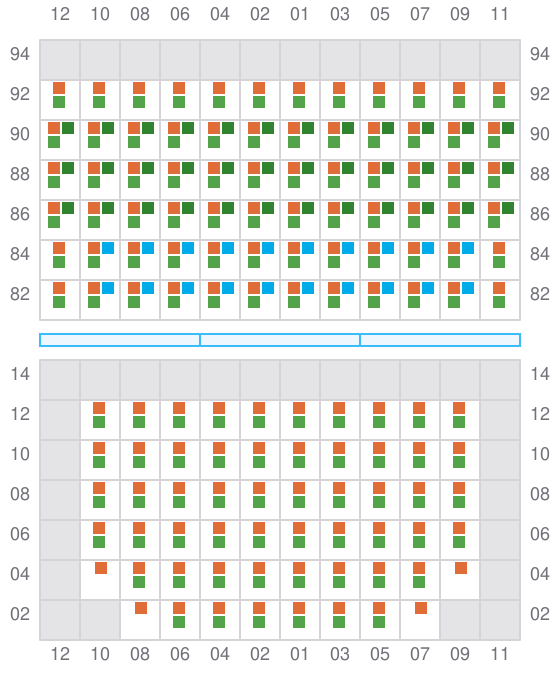

Bay 033 view and slots of MERATUS JAYAKARTA

035

  • ←
  • →
Bay 035 view and slots of MERATUS JAYAKARTA

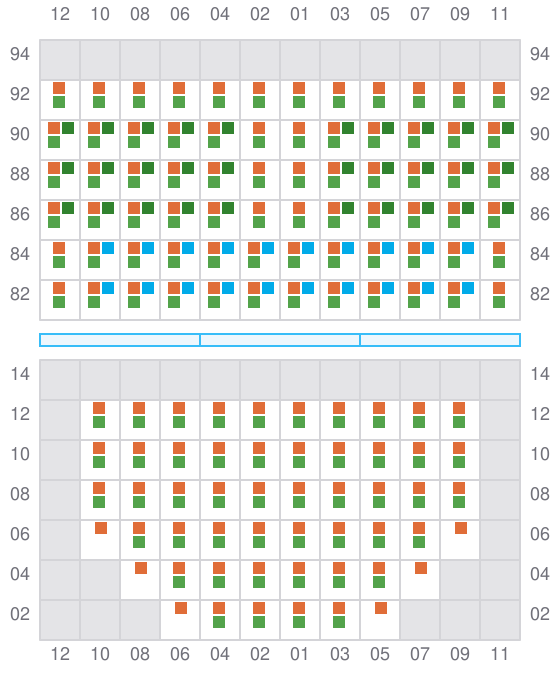

037 (038)

  • →
  • ← / ?
Bay 037 view and slots of MERATUS JAYAKARTA

039

  • ←
  • → / ?
Bay 039 view and slots of MERATUS JAYAKARTA

041

Bay 041 view and slots of MERATUS JAYAKARTA

043 (044)

  • → / ?

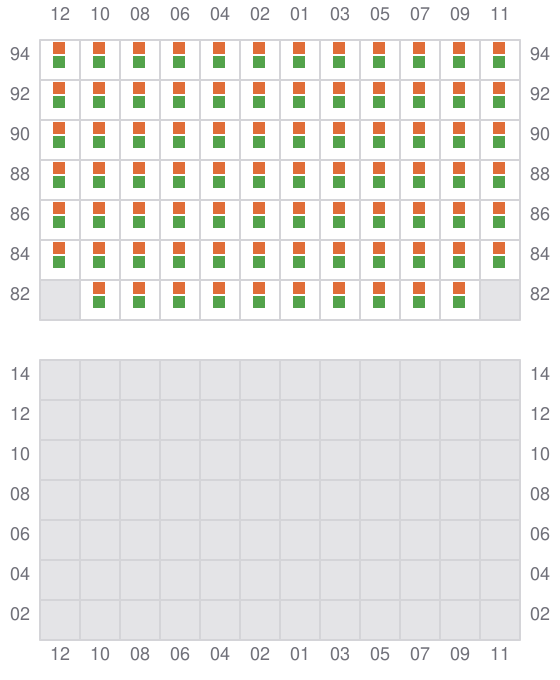

Bay 043 view and slots of MERATUS JAYAKARTA

045

  • ← / ?
  • → / ?

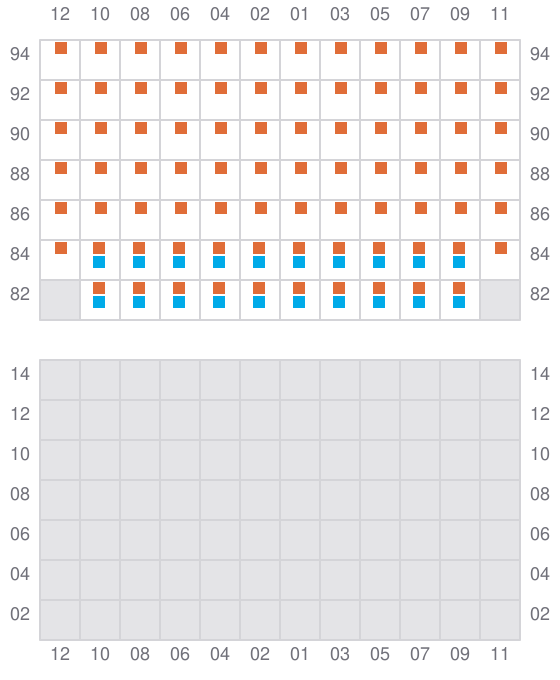

Bay 045 view and slots of MERATUS JAYAKARTA
