MERATUS JAYAWIJAYA
9305881 | 3E2248 | 9305881 by ********* Last update: Mon Mar 18 2024

General Info

Ship Name:MERATUS JAYAWIJAYA
IMO Code:9305881
Call Sign:3E2248
Line Operator:9305881
Class Name for Sister Ships:02R
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,474

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

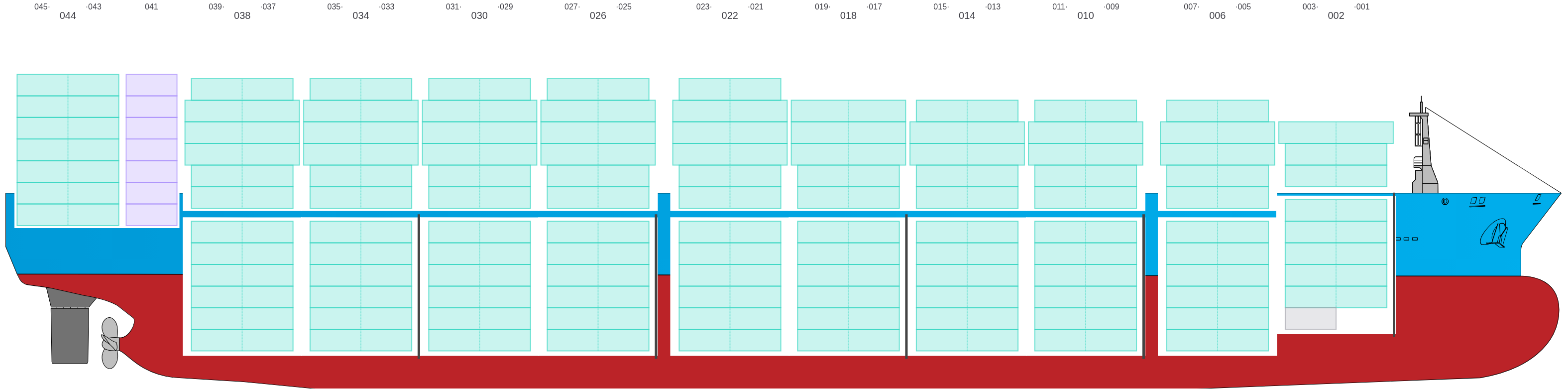

Side View

Side view of MERATUS JAYAWIJAYA

Hatch-Covers View

Deck view of MERATUS JAYAWIJAYA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

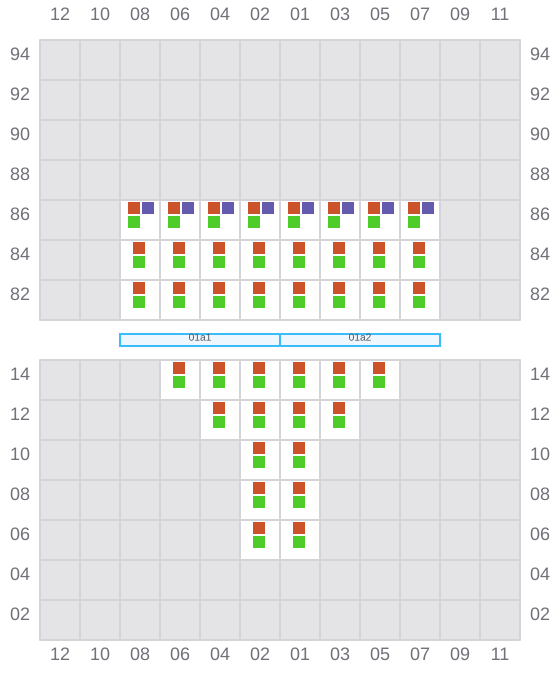

001 (002)

  • →
Bay 001 view and slots of MERATUS JAYAWIJAYA

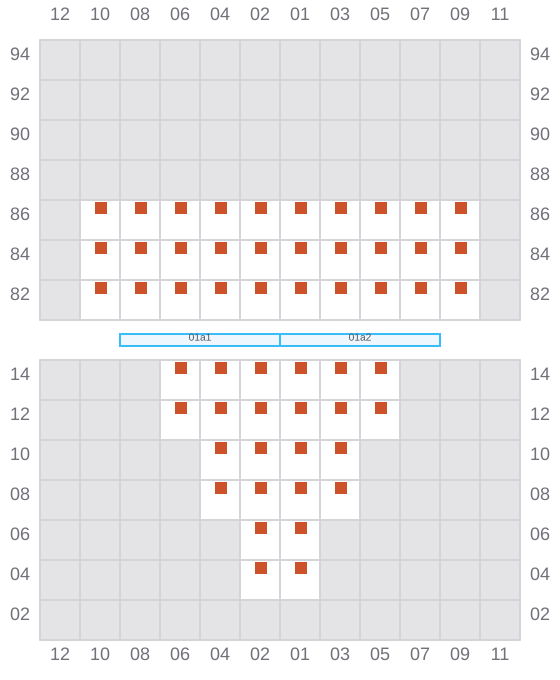

003

  • ←
Bay 003 view and slots of MERATUS JAYAWIJAYA

005 (006)

  • →

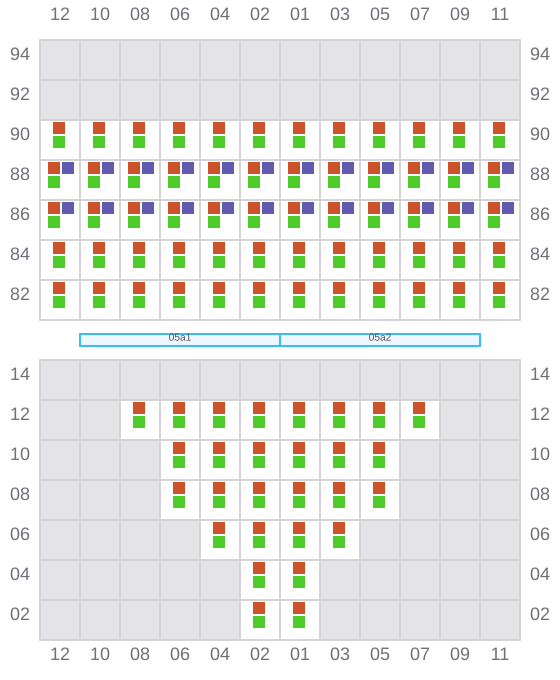

Bay 005 view and slots of MERATUS JAYAWIJAYA

007

  • ←
  • → / ?

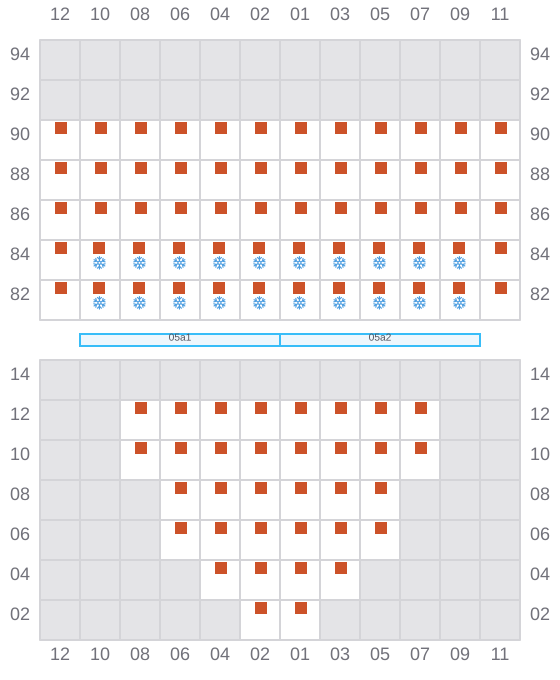

Bay 007 view and slots of MERATUS JAYAWIJAYA

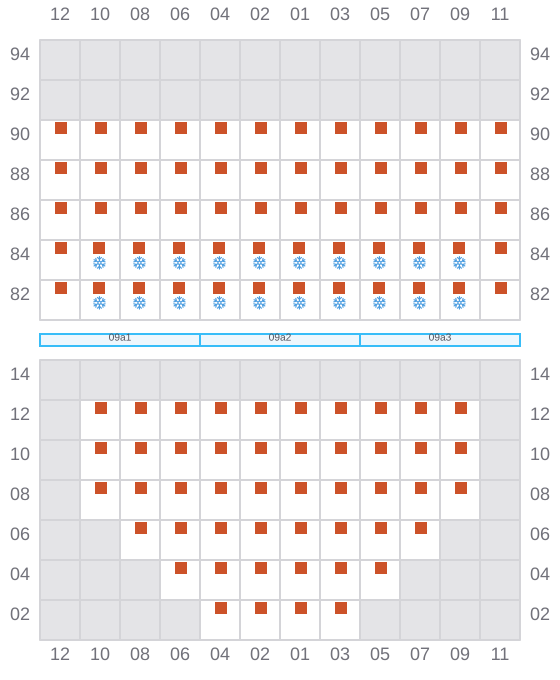

009 (010)

  • →
Bay 009 view and slots of MERATUS JAYAWIJAYA

011

  • ←
  • → / ?
Bay 011 view and slots of MERATUS JAYAWIJAYA

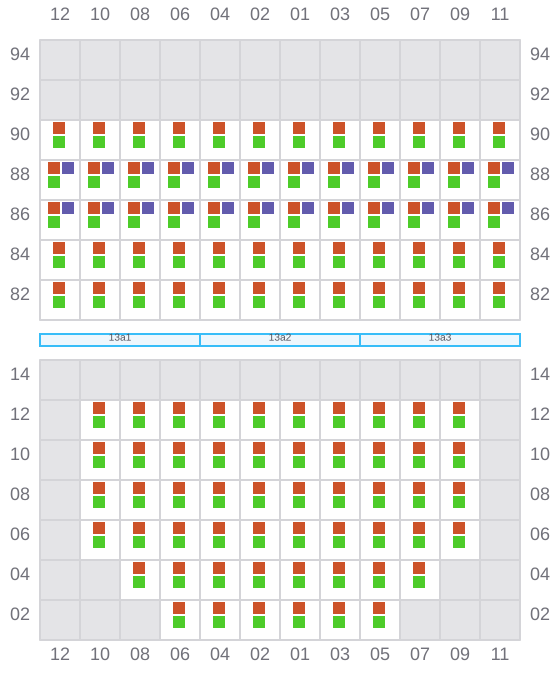

013 (014)

  • →
Bay 013 view and slots of MERATUS JAYAWIJAYA

015

  • ←
  • →

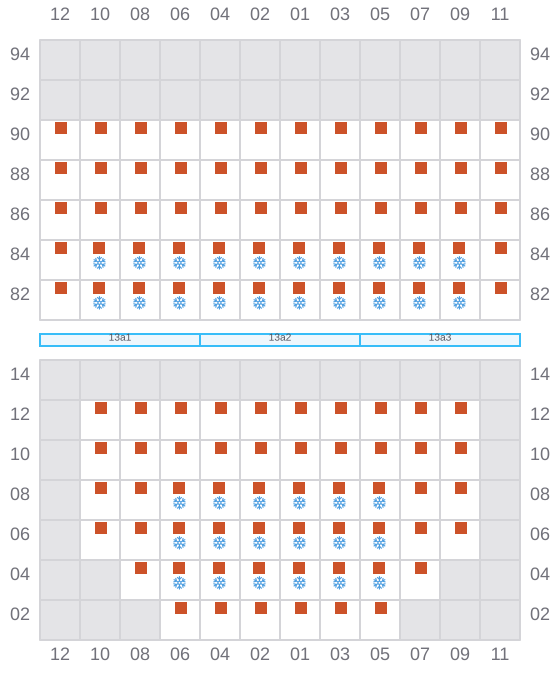

Bay 015 view and slots of MERATUS JAYAWIJAYA

017 (018)

  • →

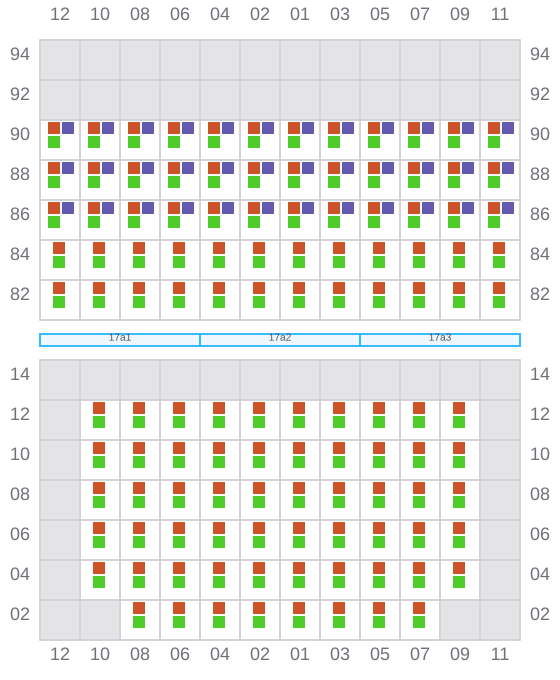

Bay 017 view and slots of MERATUS JAYAWIJAYA

019

  • ←
  • →
Bay 019 view and slots of MERATUS JAYAWIJAYA

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of MERATUS JAYAWIJAYA

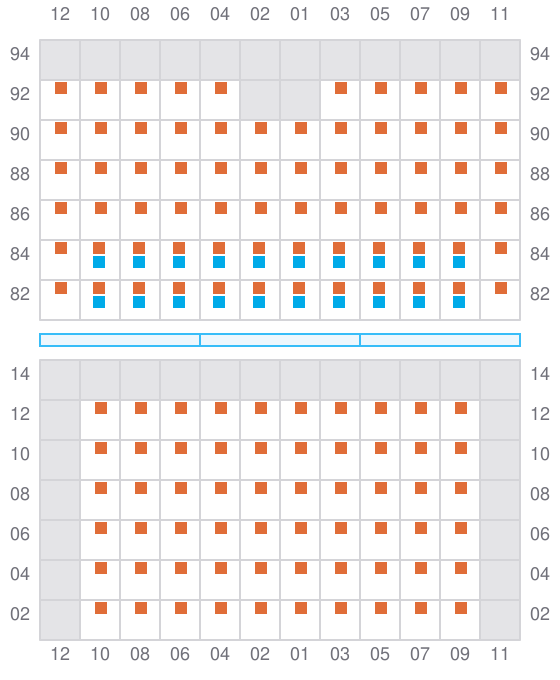

023

  • ←
  • → / ?

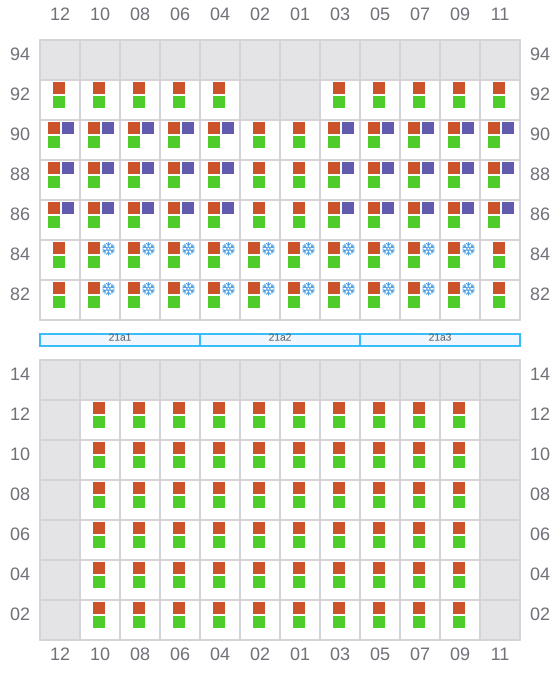

Bay 023 view and slots of MERATUS JAYAWIJAYA

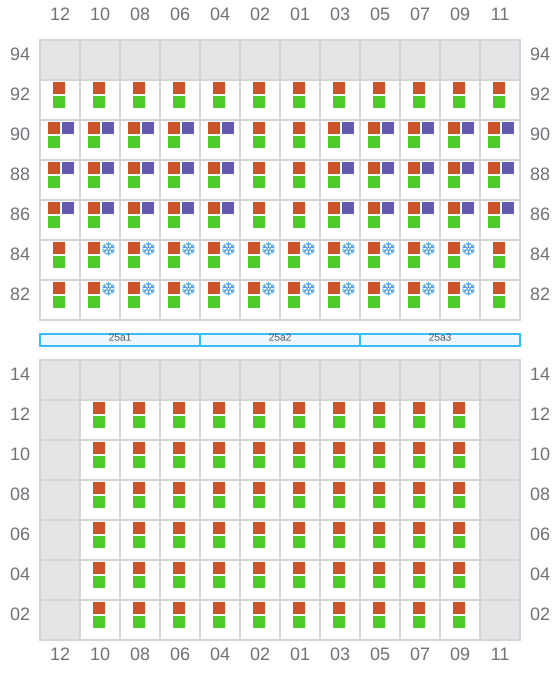

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of MERATUS JAYAWIJAYA

027

  • ←
  • → / ?
Bay 027 view and slots of MERATUS JAYAWIJAYA

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of MERATUS JAYAWIJAYA

031

  • ←
  • →

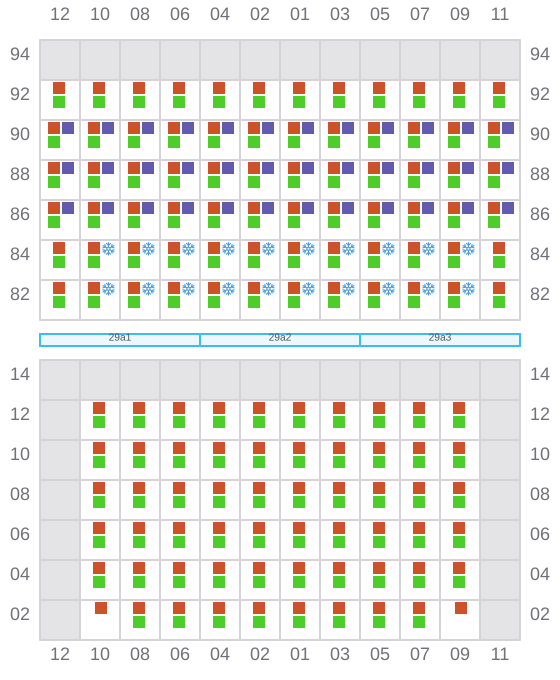

Bay 031 view and slots of MERATUS JAYAWIJAYA

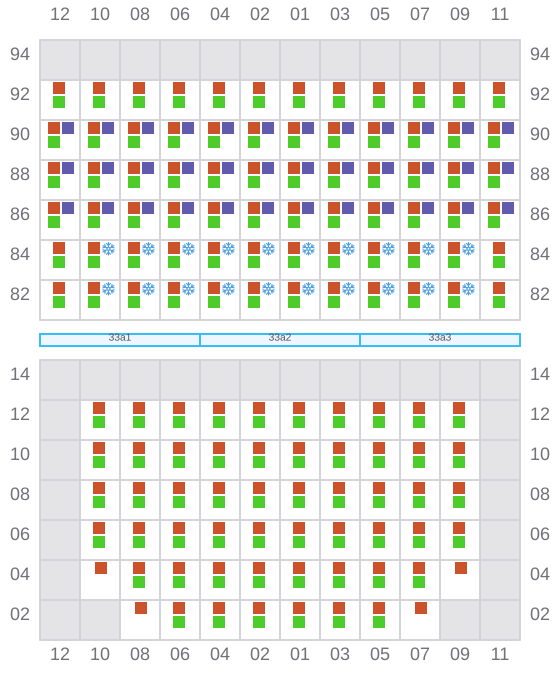

033 (034)

  • →
  • ← / ?
Bay 033 view and slots of MERATUS JAYAWIJAYA

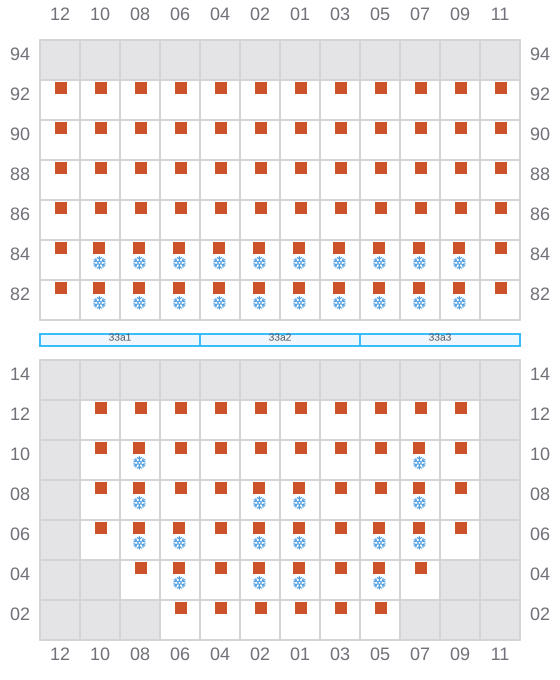

035

  • ←
  • →
Bay 035 view and slots of MERATUS JAYAWIJAYA

037 (038)

  • →
  • ← / ?

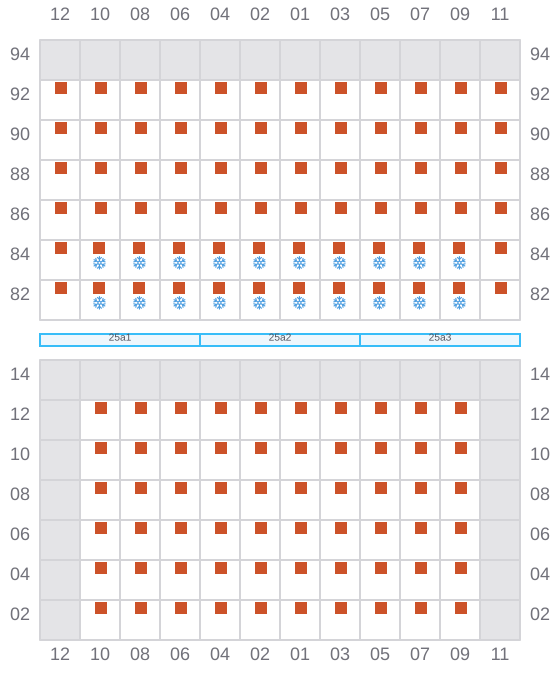

Bay 037 view and slots of MERATUS JAYAWIJAYA

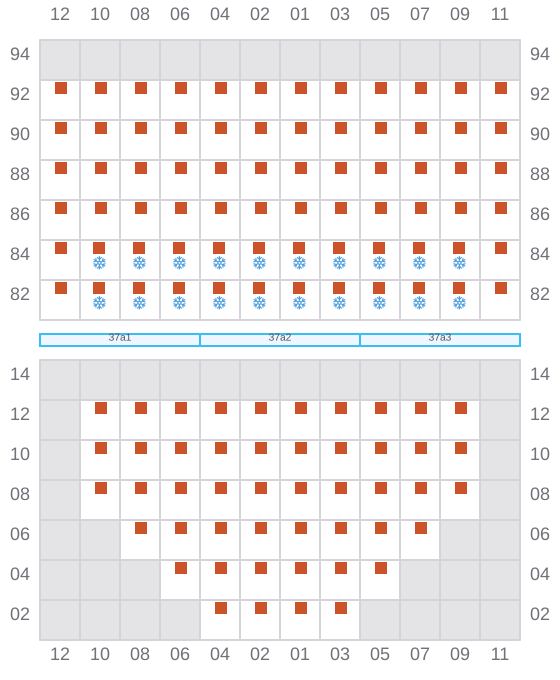

039

  • ←
  • → / ?

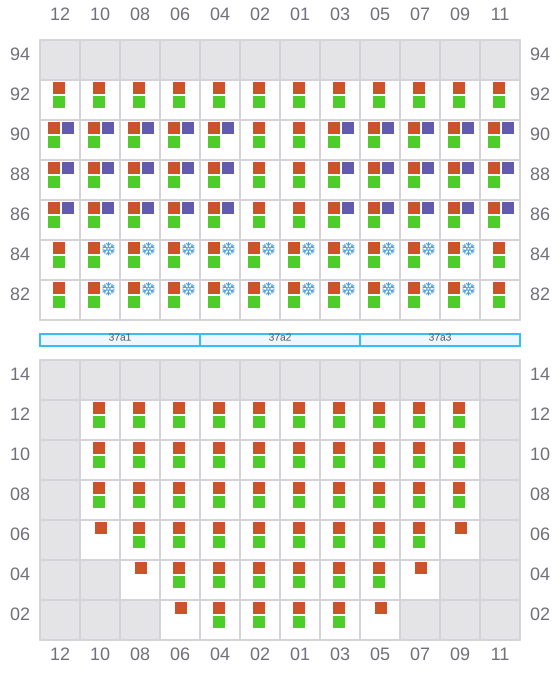

Bay 039 view and slots of MERATUS JAYAWIJAYA

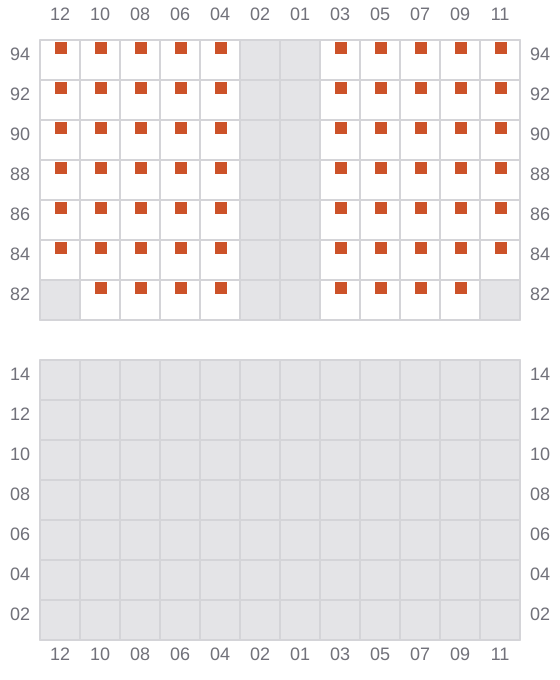

041

Bay 041 view and slots of MERATUS JAYAWIJAYA

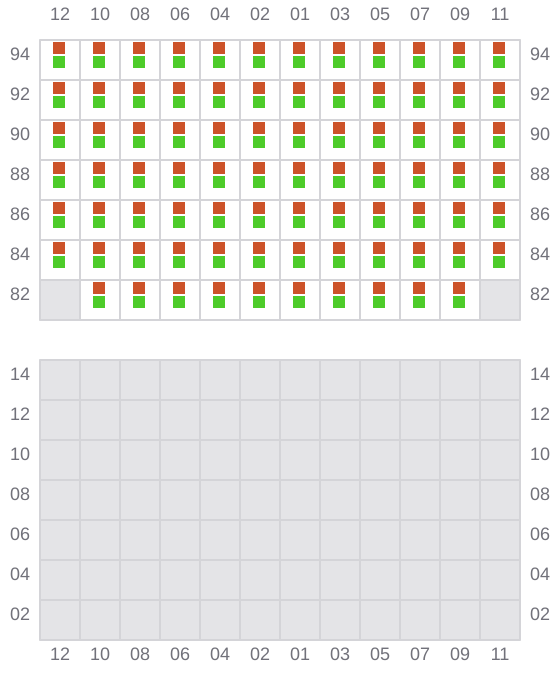

043 (044)

  • → / ?
Bay 043 view and slots of MERATUS JAYAWIJAYA

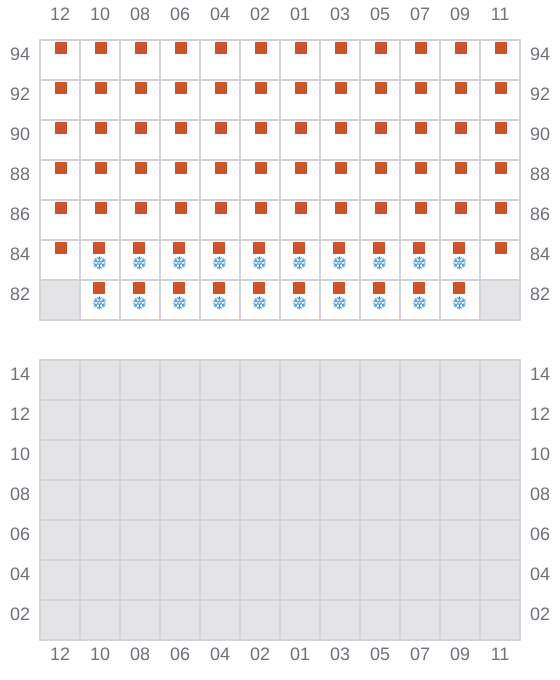

045

  • ← / ?
  • → / ?
Bay 045 view and slots of MERATUS JAYAWIJAYA
