MERATUS JIMBARAN
9213105 | YDBH2 | 9213105 by ********* Last update: Thu Mar 14 2024

General Info

Ship Name:MERATUS JIMBARAN
IMO Code:9213105
Call Sign:YDBH2
Line Operator:9213105
Class Name for Sister Ships:1L8
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:043
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,452

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

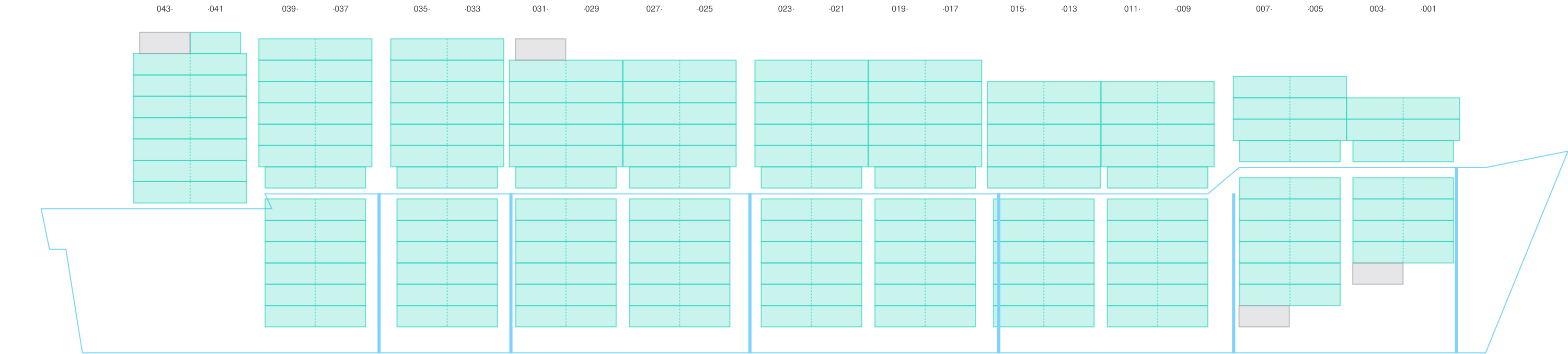

Side View

Side view of MERATUS JIMBARAN

Hatch-Covers View

Deck view of MERATUS JIMBARAN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

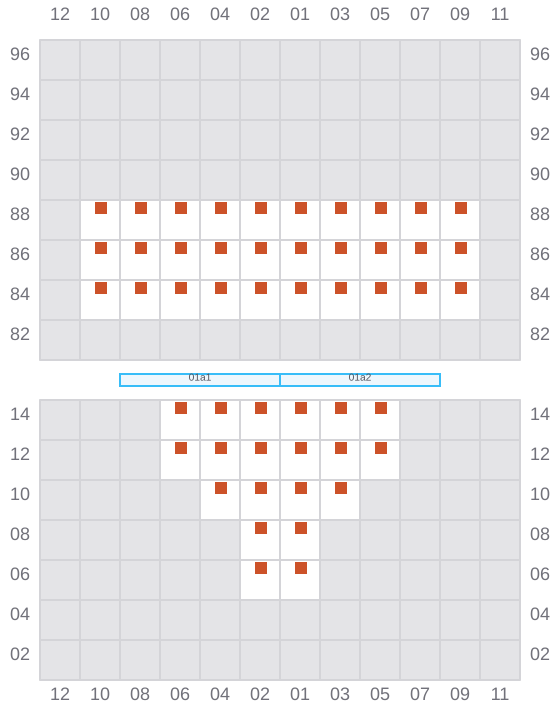

001 (002)

  • →

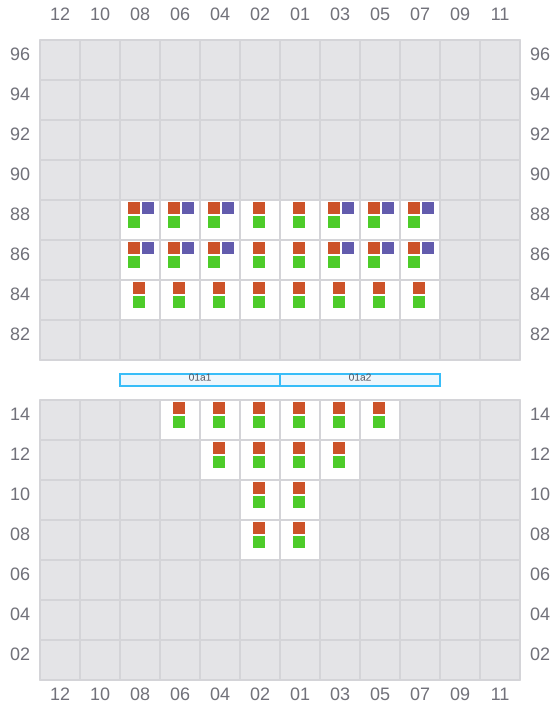

Bay 001 view and slots of MERATUS JIMBARAN

003

  • ←
Bay 003 view and slots of MERATUS JIMBARAN

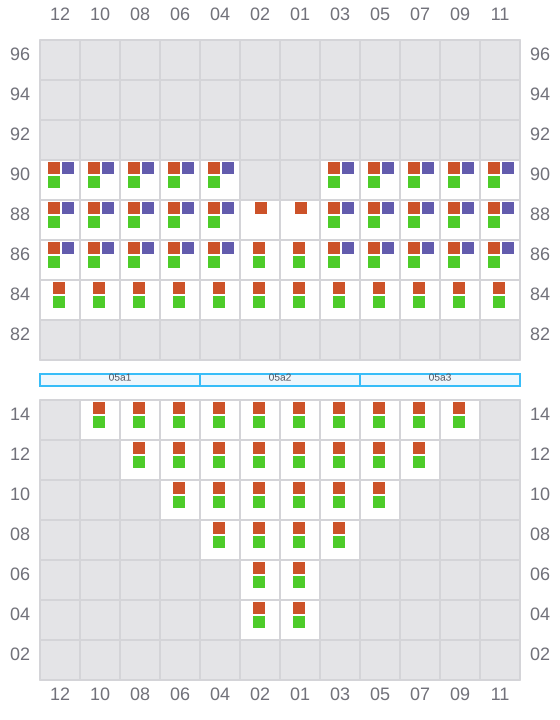

005 (006)

  • →
Bay 005 view and slots of MERATUS JIMBARAN

007

  • ←
  • → / ?
Bay 007 view and slots of MERATUS JIMBARAN

009 (010)

  • →
  • ← / ?

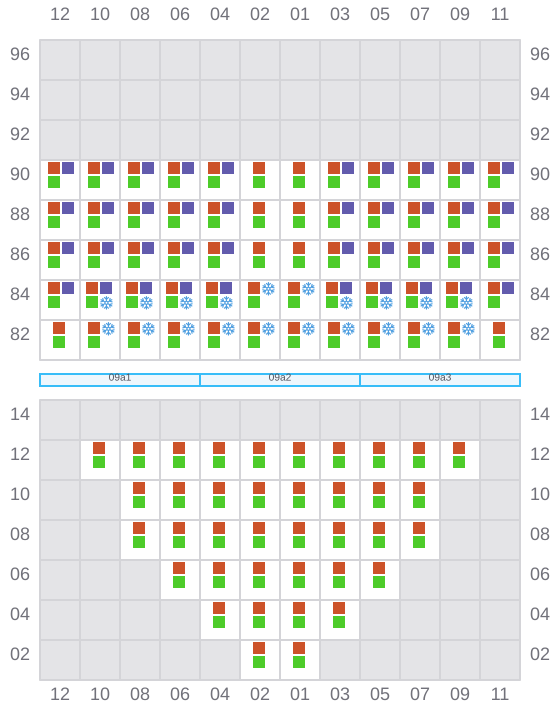

Bay 009 view and slots of MERATUS JIMBARAN

011

  • ←
  • → / ?
Bay 011 view and slots of MERATUS JIMBARAN

013 (014)

  • →

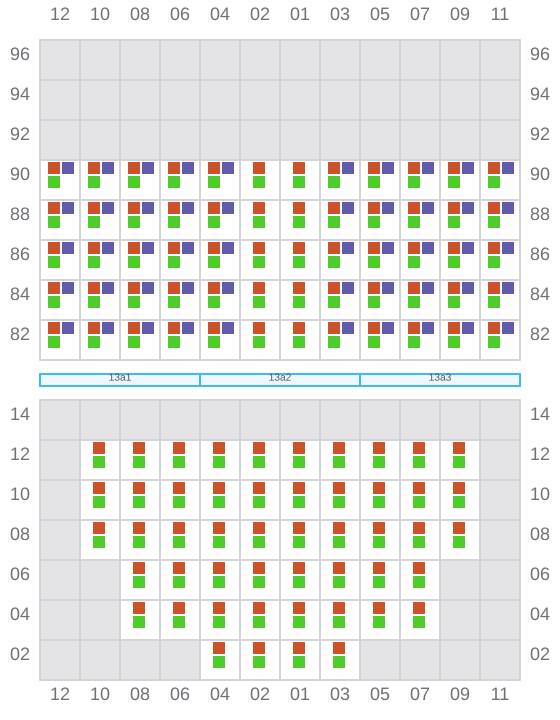

Bay 013 view and slots of MERATUS JIMBARAN

015

  • ←
  • → / ?
Bay 015 view and slots of MERATUS JIMBARAN

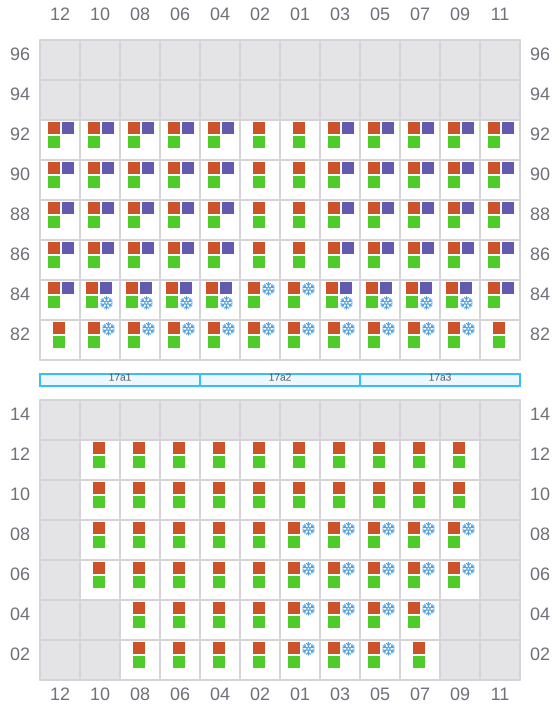

017 (018)

  • →
  • ← / ?
Bay 017 view and slots of MERATUS JIMBARAN

019

  • ←
  • → / ?
Bay 019 view and slots of MERATUS JIMBARAN

021 (022)

  • →
  • ← / ?

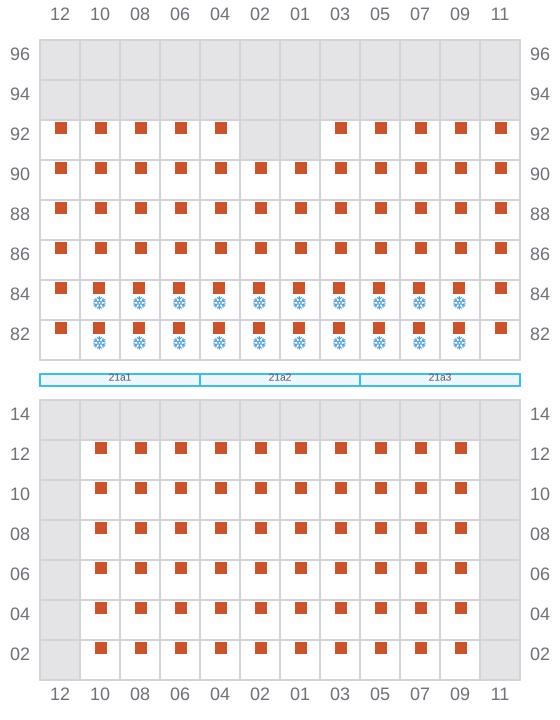

Bay 021 view and slots of MERATUS JIMBARAN

023

  • ←
  • → / ?
Bay 023 view and slots of MERATUS JIMBARAN

025 (026)

  • →
  • ← / ?

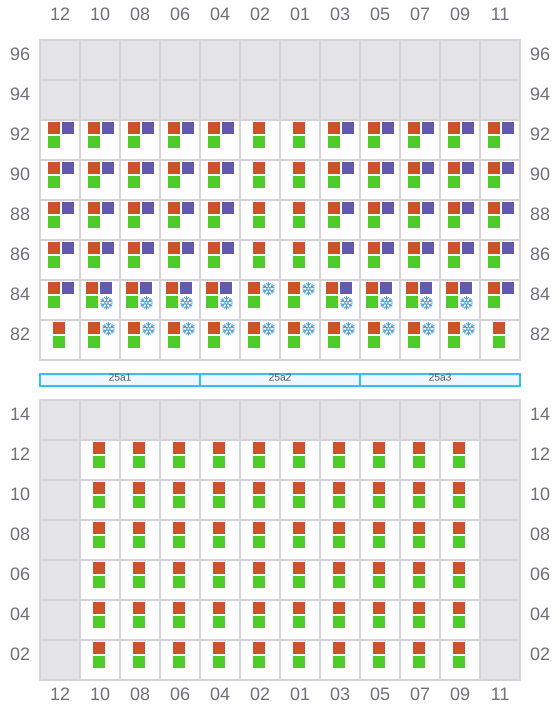

Bay 025 view and slots of MERATUS JIMBARAN

027

  • ←
  • → / ?
Bay 027 view and slots of MERATUS JIMBARAN

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of MERATUS JIMBARAN

031

  • ←
  • → / ?
Bay 031 view and slots of MERATUS JIMBARAN

033 (034)

  • →
  • ← / ?

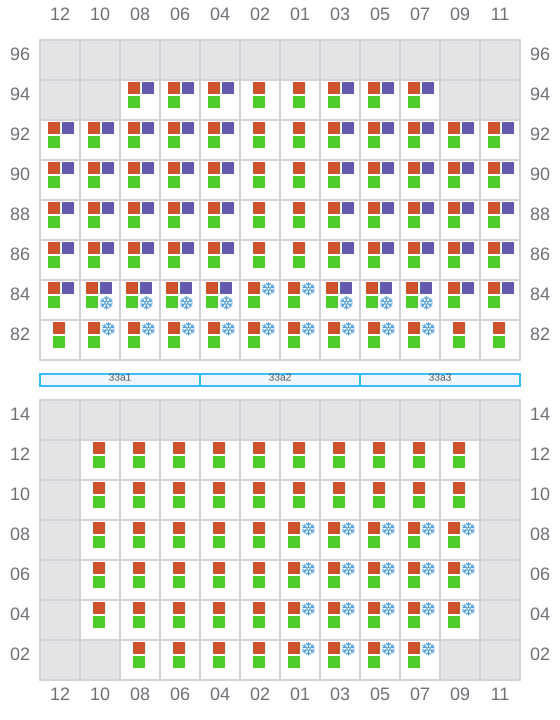

Bay 033 view and slots of MERATUS JIMBARAN

035

  • ←
  • → / ?

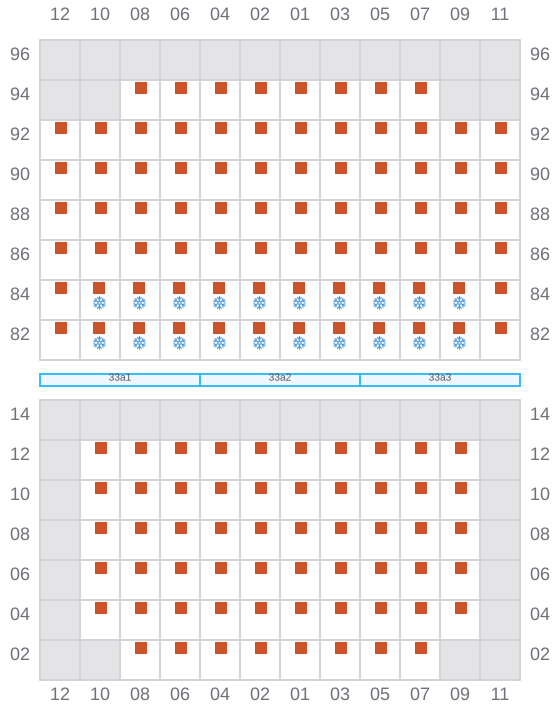

Bay 035 view and slots of MERATUS JIMBARAN

037 (038)

  • →
  • ← / ?

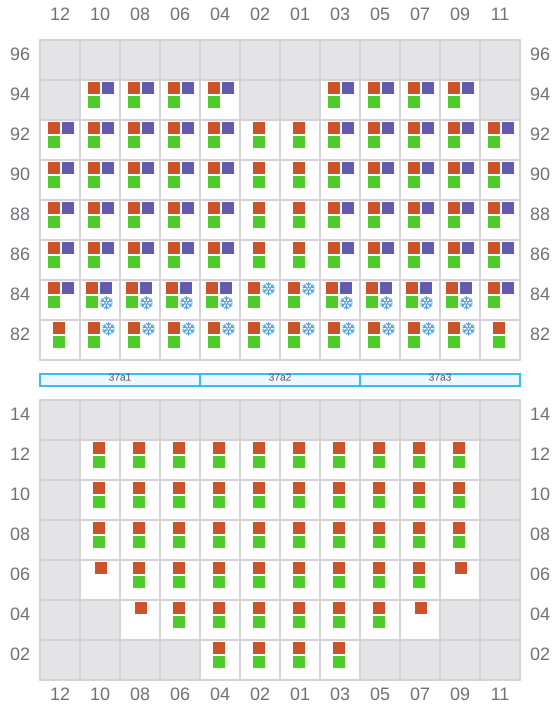

Bay 037 view and slots of MERATUS JIMBARAN

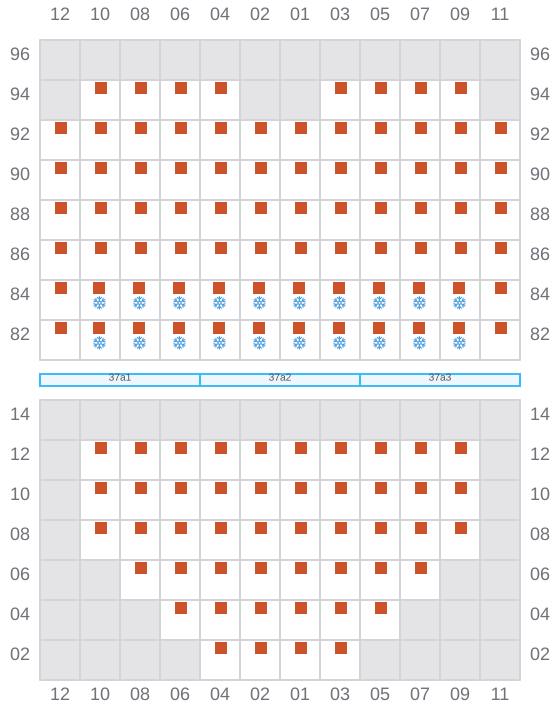

039

  • ←
Bay 039 view and slots of MERATUS JIMBARAN

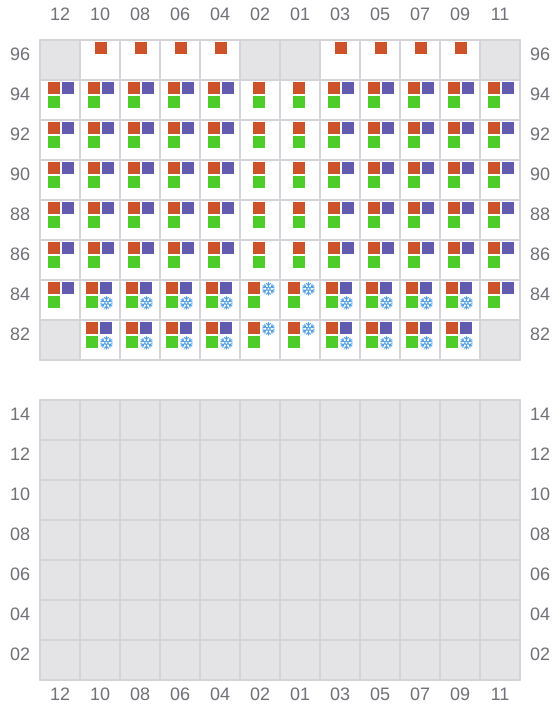

041 (042)

  • → / ?
  • ← / ?
Bay 041 view and slots of MERATUS JIMBARAN

043

  • ← / ?

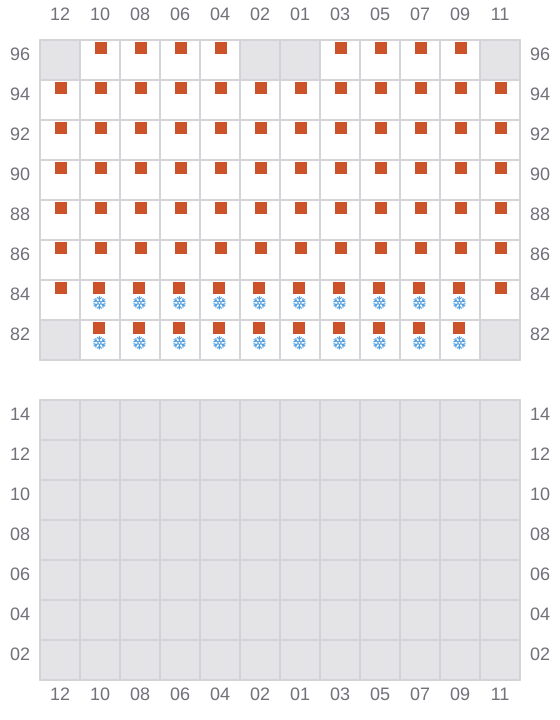

Bay 043 view and slots of MERATUS JIMBARAN
