MERATUS KUPANG
9155511 | POYB | 9155511 by ********* Last update: Tue Apr 02 2024

General Info

Ship Name:MERATUS KUPANG
IMO Code:9155511
Call Sign:POYB
Line Operator:9155511
Class Name for Sister Ships:APL
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):120.60
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:027
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:831

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MERATUS KUPANG

Hatch-Covers View

Deck view of MERATUS KUPANG

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

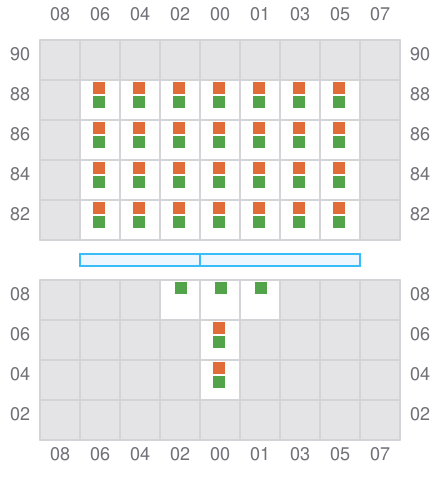

001 (002)

  • →
Bay 001 view and slots of MERATUS KUPANG

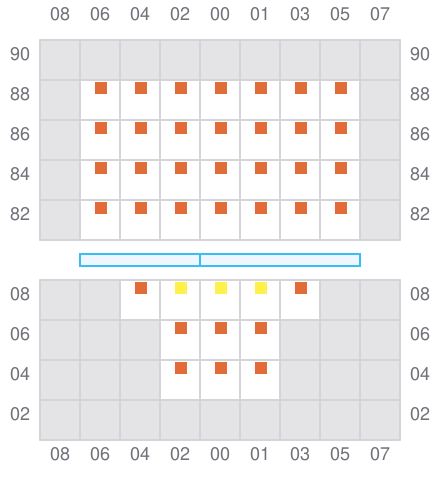

003

  • ←
  • → / ?
Bay 003 view and slots of MERATUS KUPANG

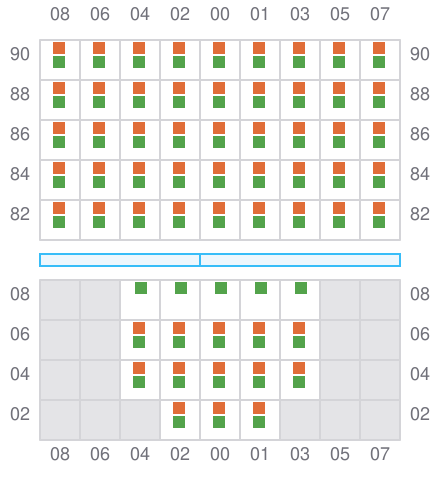

005 (006)

  • →
  • ← / ?
Bay 005 view and slots of MERATUS KUPANG

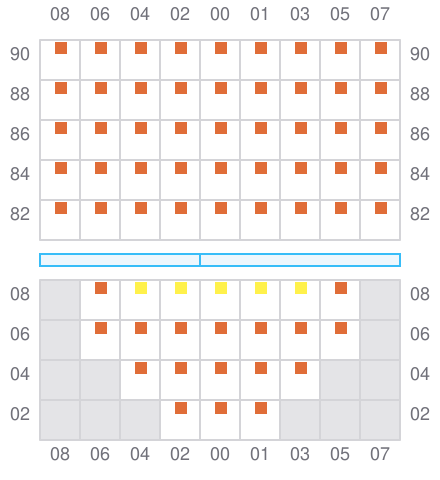

007

  • ←
  • → / ?
Bay 007 view and slots of MERATUS KUPANG

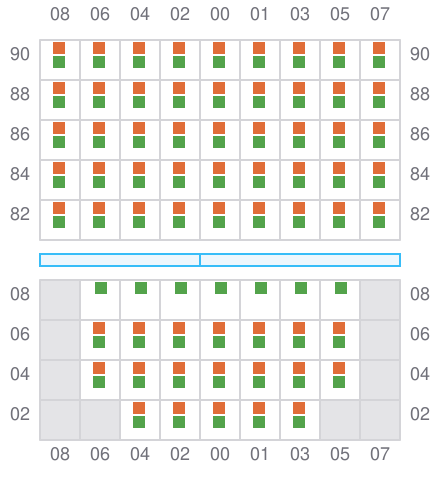

009 (010)

  • →
  • ← / ?
Bay 009 view and slots of MERATUS KUPANG

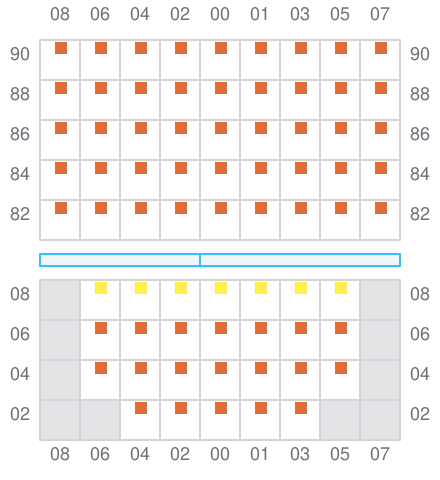

011

  • ←
Bay 011 view and slots of MERATUS KUPANG

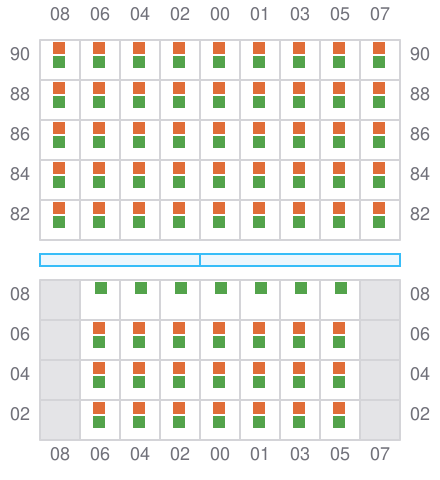

013 (014)

  • →
Bay 013 view and slots of MERATUS KUPANG

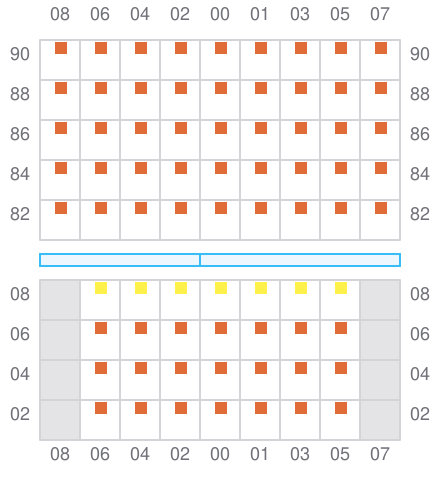

015

  • ←
  • → / ?
Bay 015 view and slots of MERATUS KUPANG

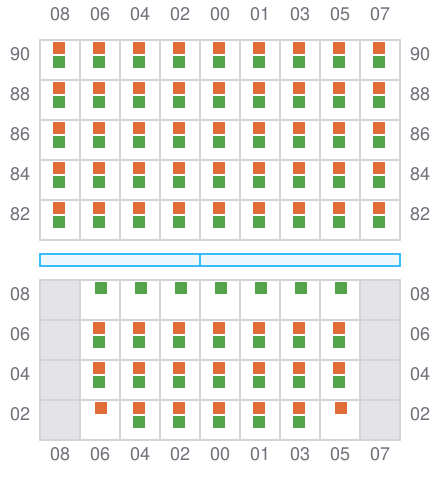

017 (018)

  • →
  • ← / ?
Bay 017 view and slots of MERATUS KUPANG

019

  • ←
Bay 019 view and slots of MERATUS KUPANG

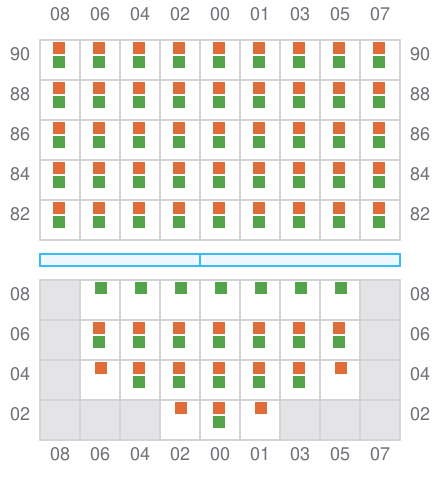

021 (022)

  • →
Bay 021 view and slots of MERATUS KUPANG

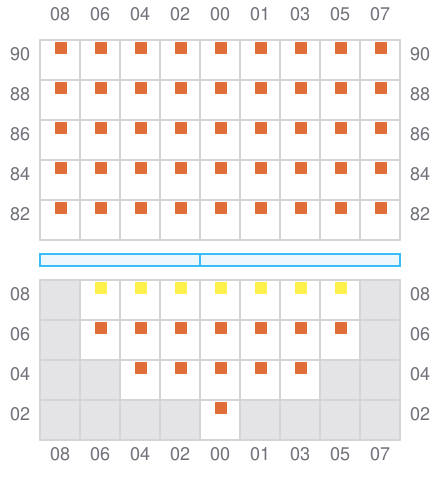

023

  • ←
  • → / ?
Bay 023 view and slots of MERATUS KUPANG

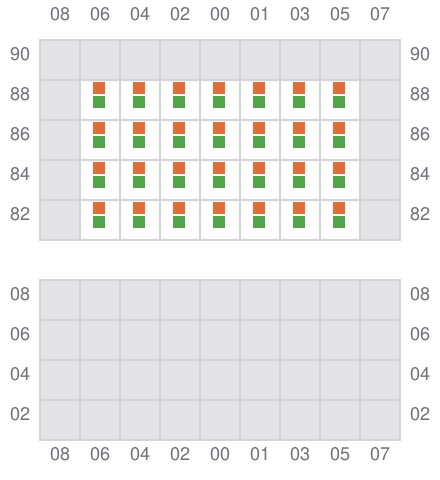

025 (026)

  • → / ?
  • ← / ?
Bay 025 view and slots of MERATUS KUPANG

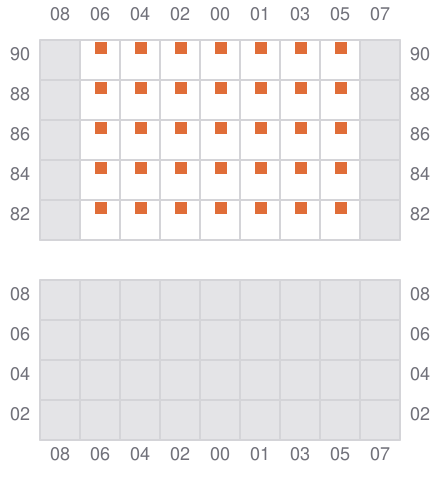

027

  • ← / ?
Bay 027 view and slots of MERATUS KUPANG
