MERATUS MALINO
9106625 | POZH | 9106625 by *********** Last update: Mon Mar 04 2024

General Info

Ship Name:MERATUS MALINO
IMO Code:9106625
Call Sign:POZH
Line Operator:9106625
Class Name for Sister Ships:79U
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):140.76
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,086

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

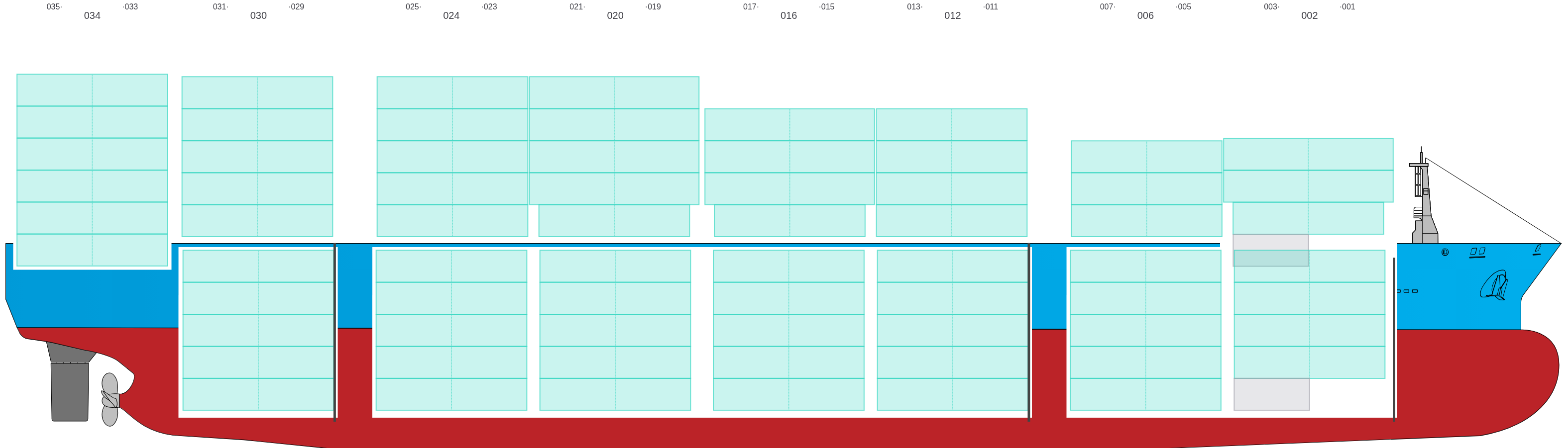

Side View

Side view of MERATUS MALINO

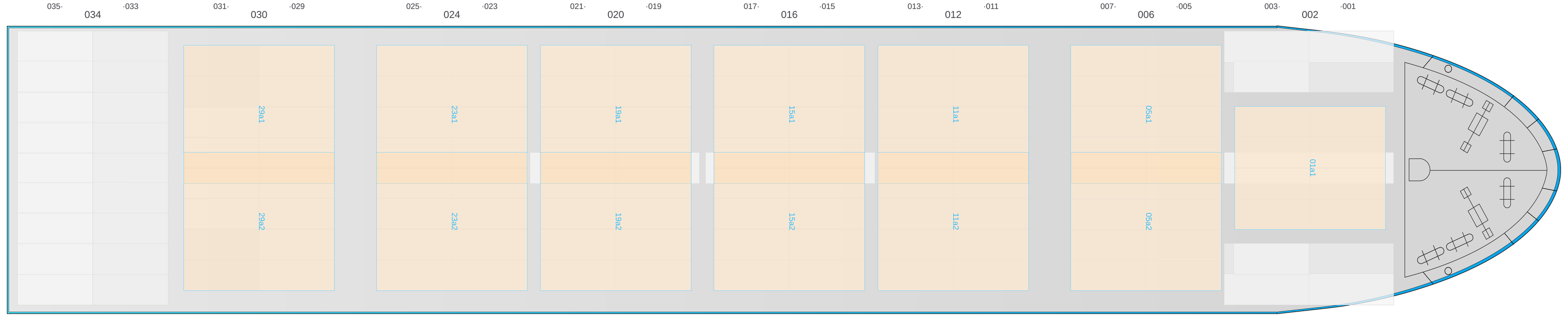

Hatch-Covers View

Deck view of MERATUS MALINO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

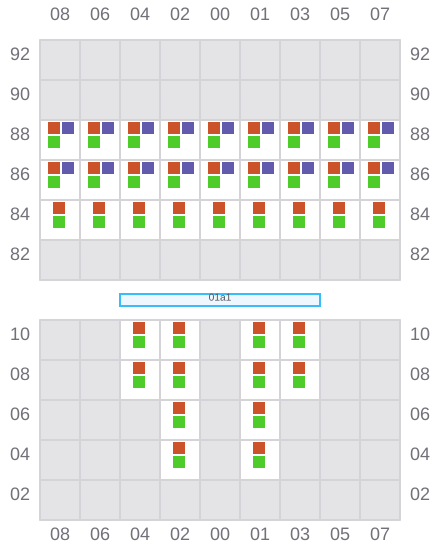

001 (002)

  • →
  • → / ?
  • ? / →

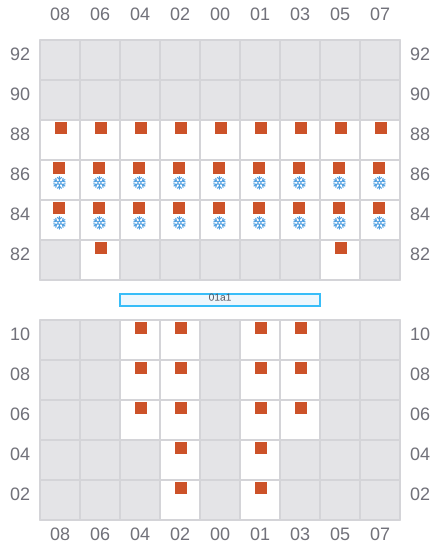

Bay 001 view and slots of MERATUS MALINO

003

  • ←
  • → / ?
  • →
Bay 003 view and slots of MERATUS MALINO

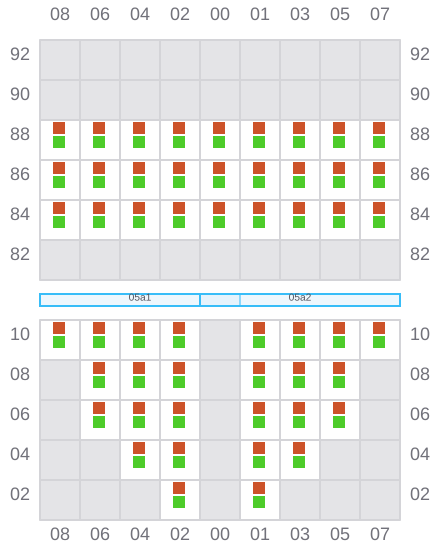

005 (006)

  • →
  • → / ?
  • ? / →
Bay 005 view and slots of MERATUS MALINO

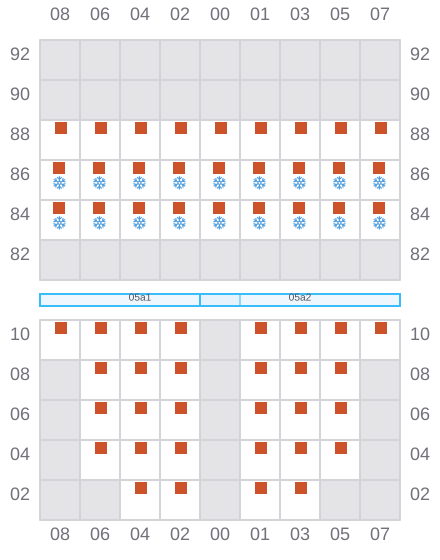

007

  • ←
  • → / ?
  • ← / →
Bay 007 view and slots of MERATUS MALINO

009

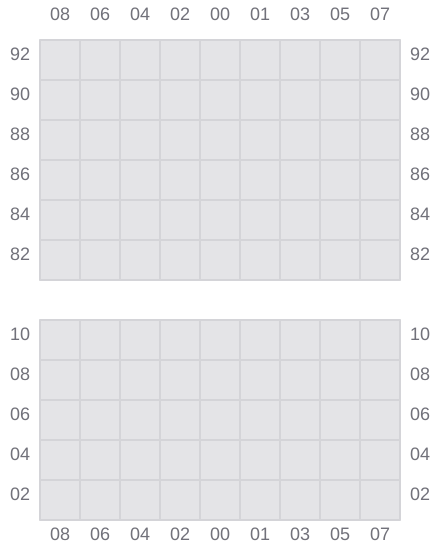

Bay 009 view and slots of MERATUS MALINO

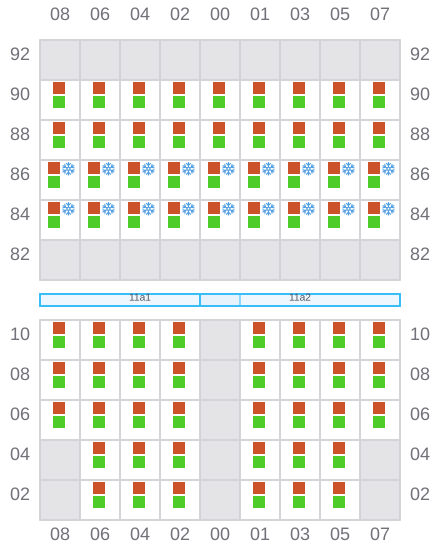

011 (012)

  • →
  • ← / ?
  • →
Bay 011 view and slots of MERATUS MALINO

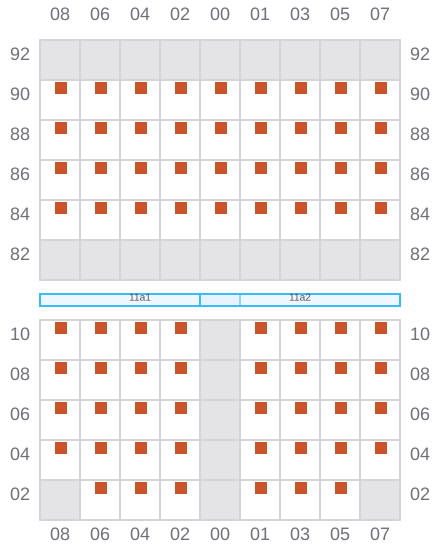

013

  • ←
  • →
Bay 013 view and slots of MERATUS MALINO

015 (016)

  • →
  • → / ?
  • ? / →

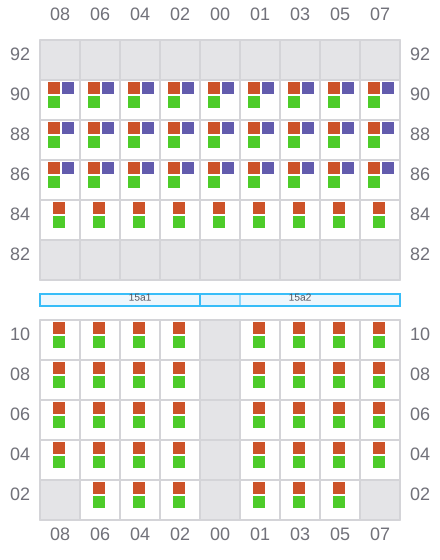

Bay 015 view and slots of MERATUS MALINO

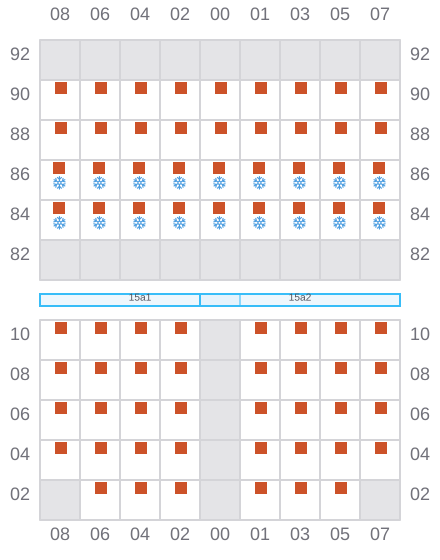

017

  • ←
  • → / ?
  • →
Bay 017 view and slots of MERATUS MALINO

019 (020)

  • →
  • ← / ?
  • →

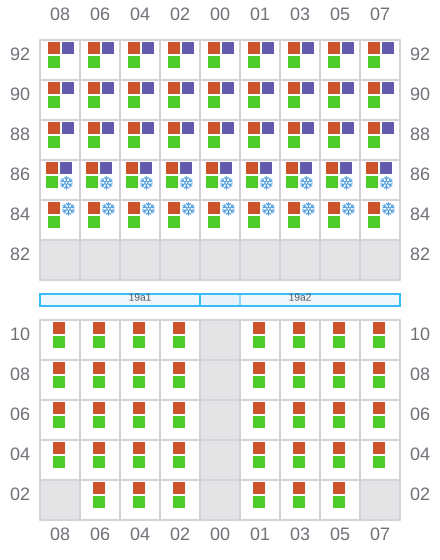

Bay 019 view and slots of MERATUS MALINO

021

  • ←
  • →

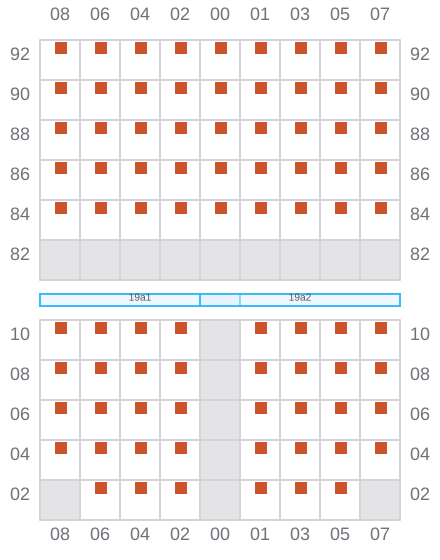

Bay 021 view and slots of MERATUS MALINO

023 (024)

  • →
  • → / ?
  • ? / →

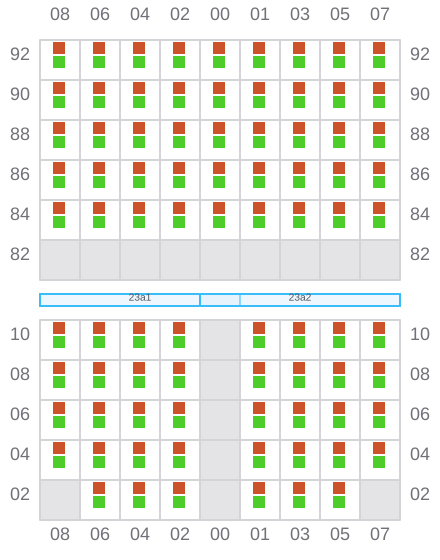

Bay 023 view and slots of MERATUS MALINO

025

  • ←
  • → / ?
  • →
Bay 025 view and slots of MERATUS MALINO

027

Bay 027 view and slots of MERATUS MALINO

029 (030)

  • →
  • ← / ?
  • →

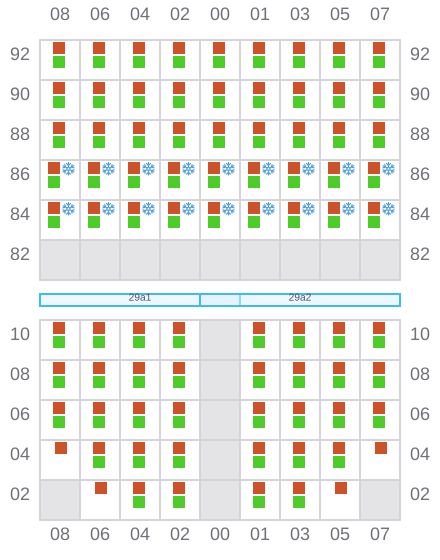

Bay 029 view and slots of MERATUS MALINO

031

  • ←
  • →

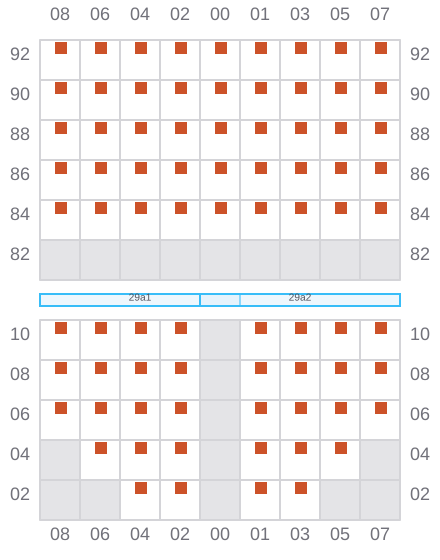

Bay 031 view and slots of MERATUS MALINO

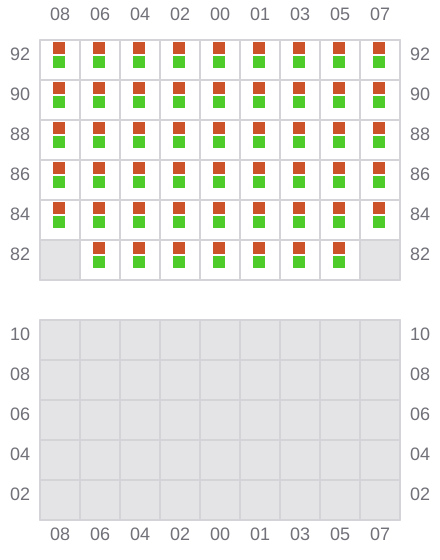

033 (034)

  • → / ?
  • → / ?
Bay 033 view and slots of MERATUS MALINO

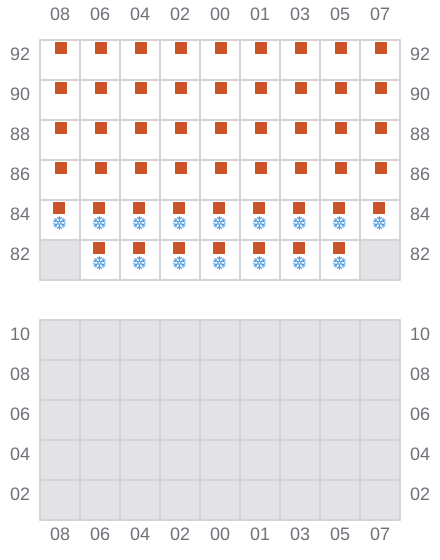

035

  • ← / ?
  • → / ?
  • → / ?
Bay 035 view and slots of MERATUS MALINO
