MERATUS MAMIRI
9106649 | PONE | 9106649 by ********* Last update: Mon Mar 18 2024
General Info
Ship Name:MERATUS MAMIRI
IMO Code:9106649
Call Sign:PONE
Line Operator:9106649
Class Name for Sister Ships:43M
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):150.00
LOA (Length Overall):150.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,086
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

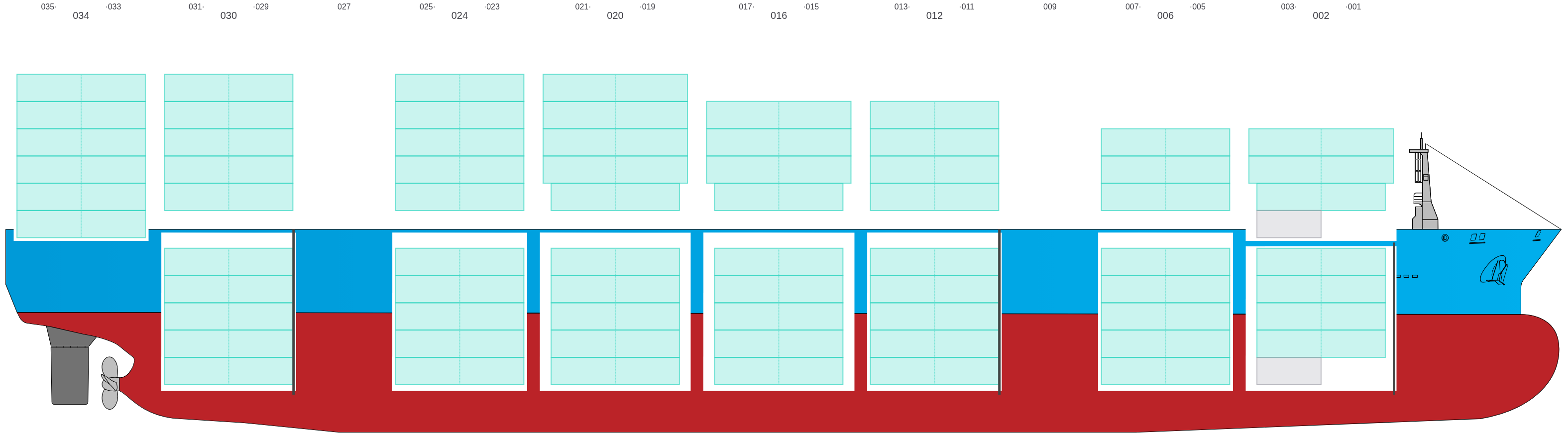

Side View

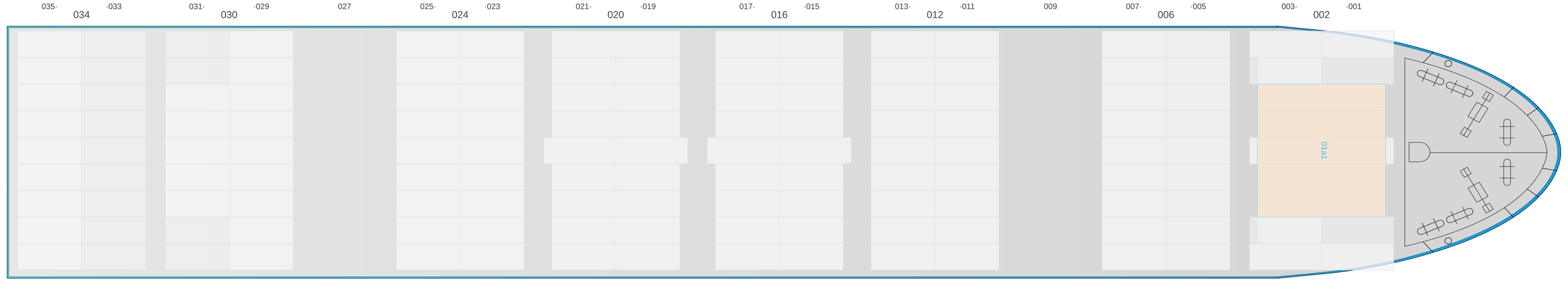

Hatch-Covers View

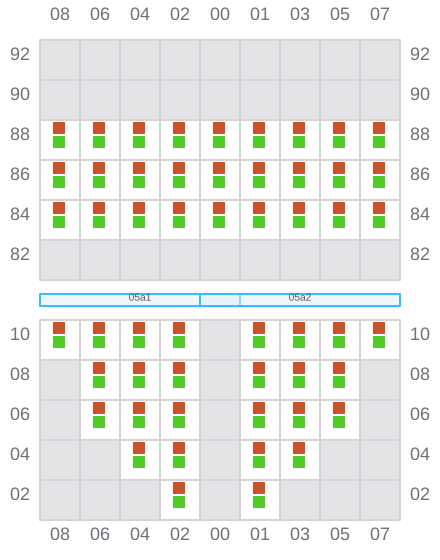

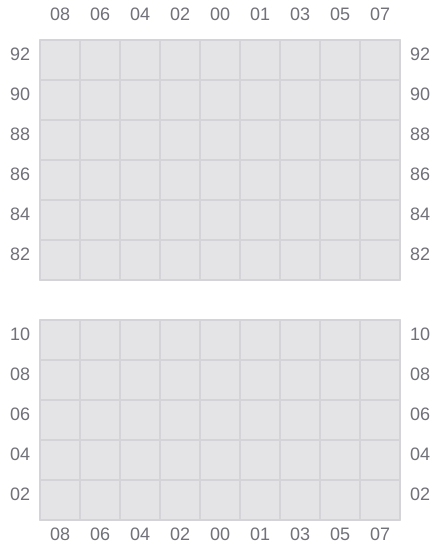

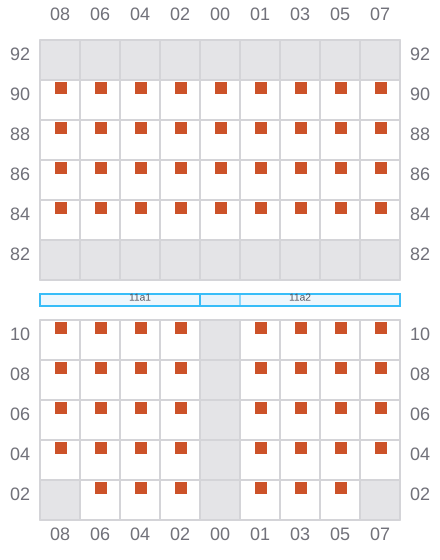

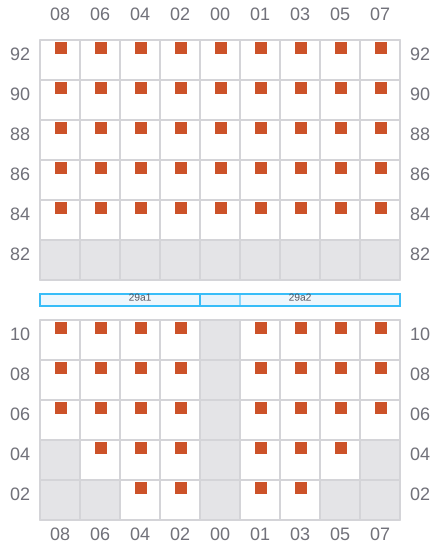

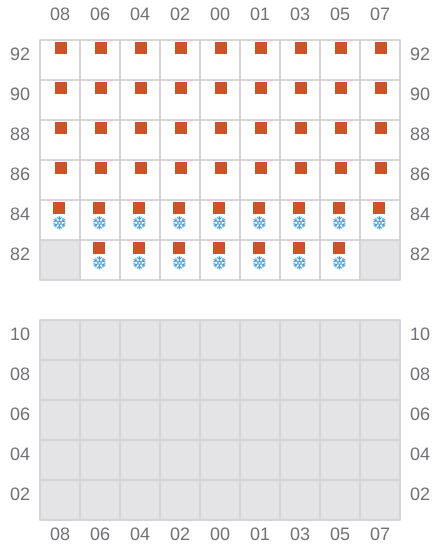

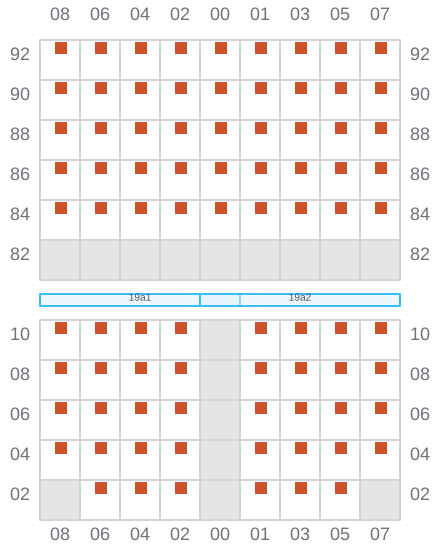

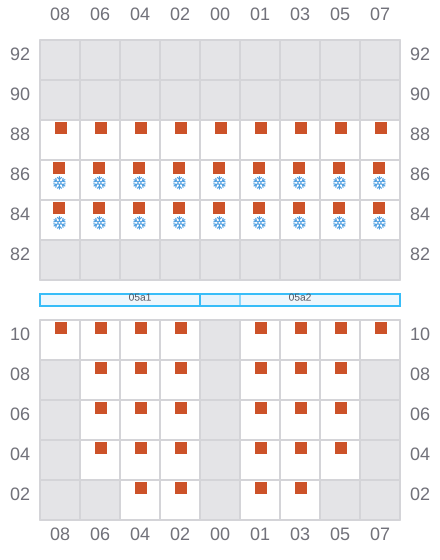

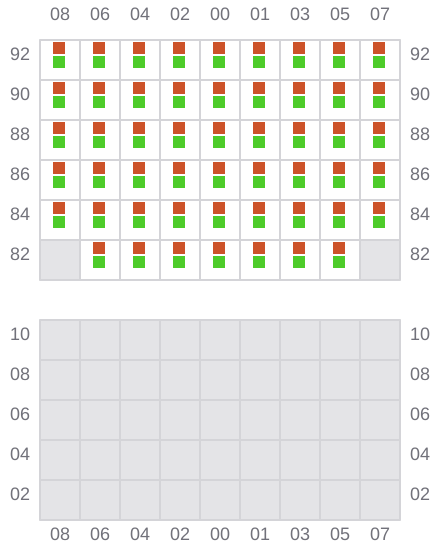

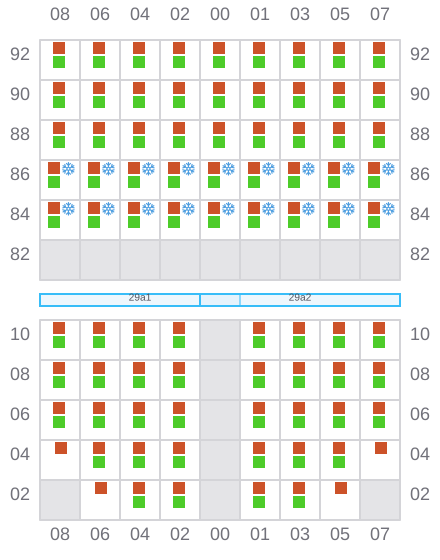

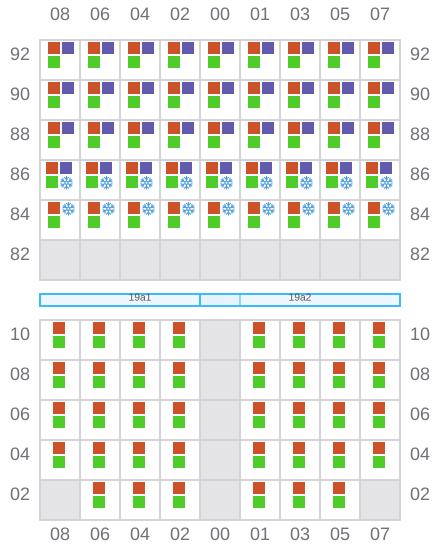

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

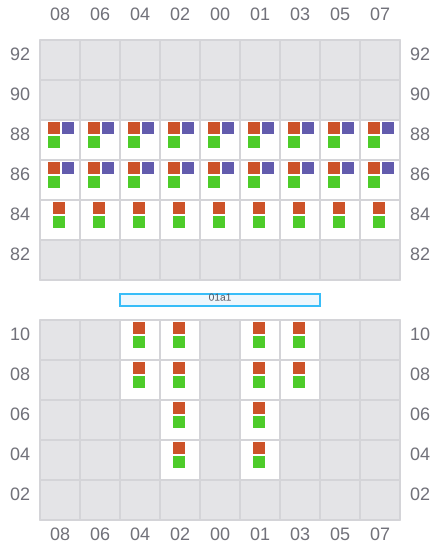

001 (002)
- →
- → / ?
- ? / →

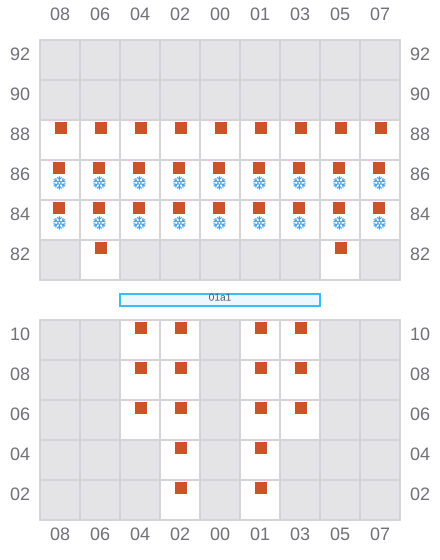

003
- ←
- → / ?
- →
005 (006)
- →
- → / ?
- ? / →
007
- ←
- → / ?
- ← / →
009

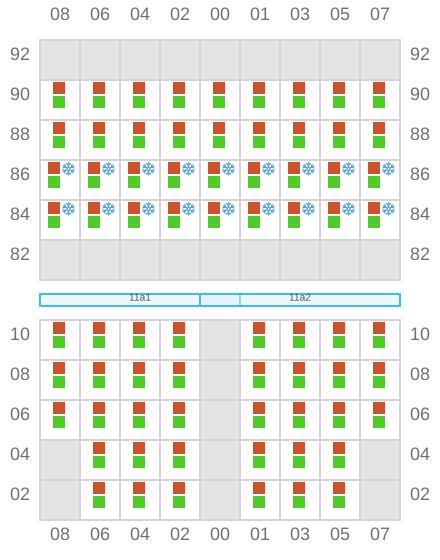

011 (012)
- →
- ← / ?
- →
013
- ←
- →
015 (016)
- →
- → / ?
- ? / →

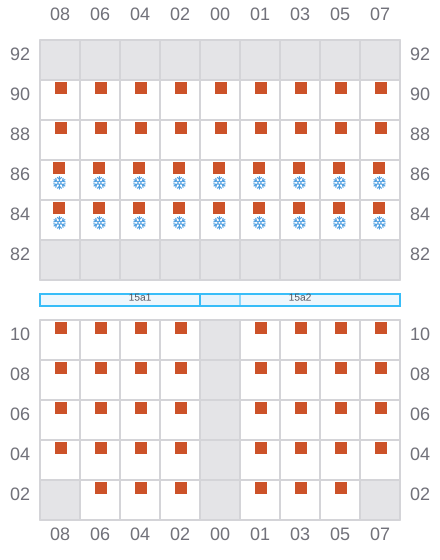

017
- ←
- → / ?
- →
019 (020)
- →
- ← / ?
- →
021
- ←
- →

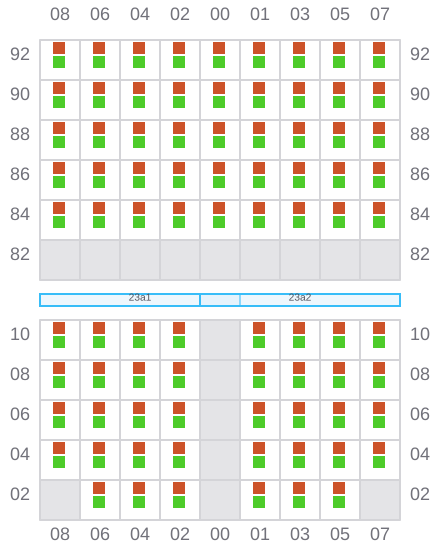

023 (024)
- →
- → / ?
- ? / →
025
- ←
- → / ?
- →
027
029 (030)
- →
- ← / ?
- →
031
- ←
- →
033 (034)
- → / ?
- → / ?
035
- ← / ?
- → / ?
- → / ?
