MERATUS MANADO
9154830 | PMTK | 9154830 by ********* Last update: Mon Mar 18 2024
General Info
Ship Name:MERATUS MANADO
IMO Code:9154830
Call Sign:PMTK
Line Operator:9154830
Class Name for Sister Ships:8Y1
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):145.00
LOA (Length Overall):145.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:850
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-sideView.png?v=1710786267645)

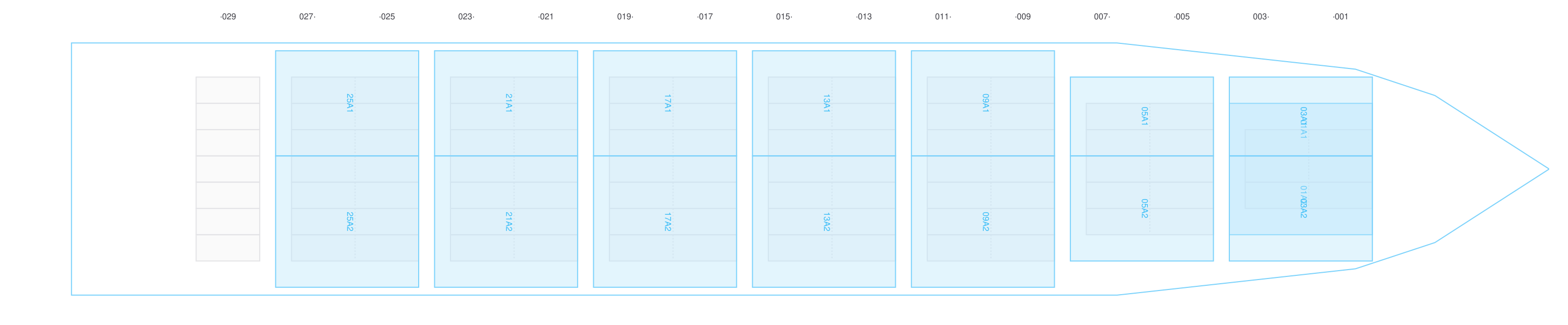

Hatch-Covers View
![Deck view of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-deckView.png?v=1710786267645)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

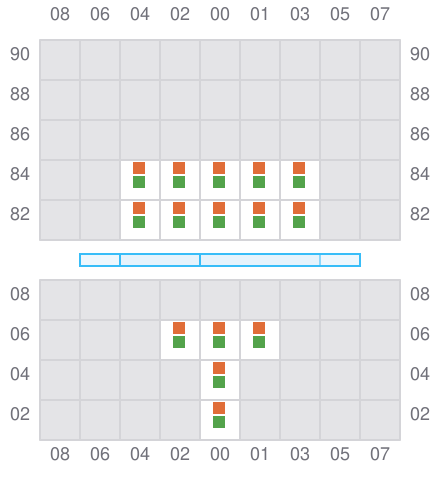

001 (002)
- →
![Bay 001 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b001.png?v=1710786267645)

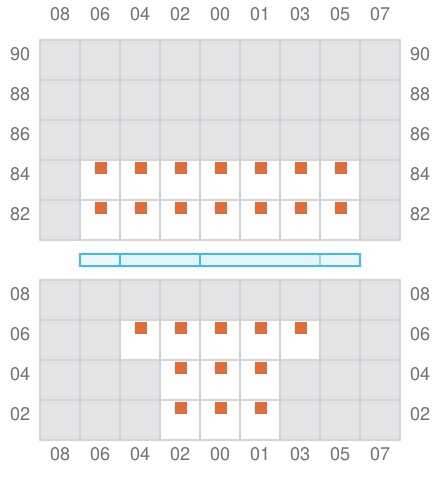

003
- ←
![Bay 003 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b003.png?v=1710786267645)

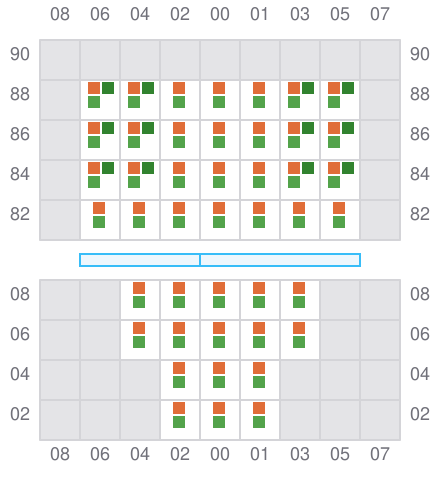

005 (006)
- →
![Bay 005 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b005.png?v=1710786267645)

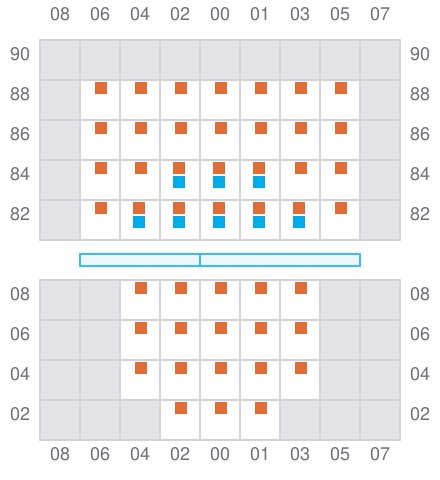

007
- ←
- → / ?
![Bay 007 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b007.png?v=1710786267645)

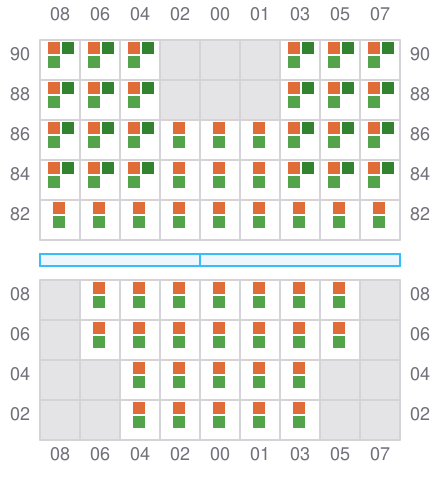

009 (010)
- →
![Bay 009 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b009.png?v=1710786267645)

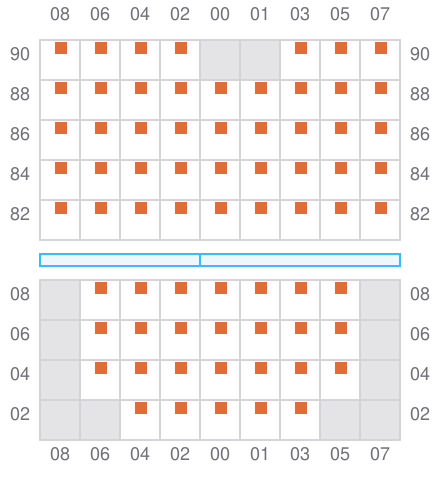

011
- ←
![Bay 011 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b011.png?v=1710786267645)

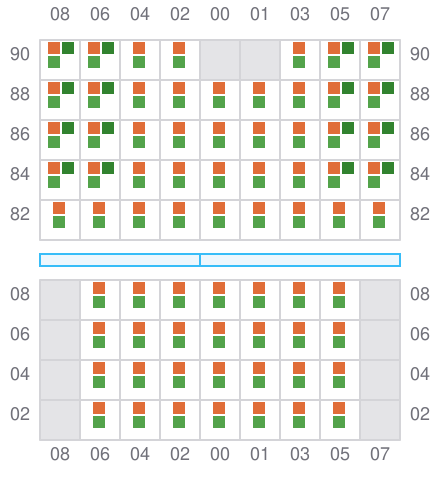

013 (014)
- →
![Bay 013 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b013.png?v=1710786267645)

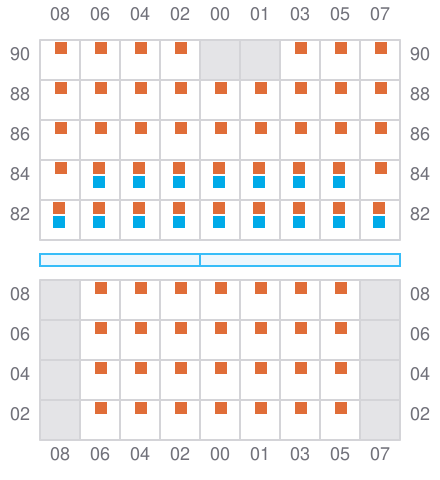

015
- ←
- → / ?
![Bay 015 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b015.png?v=1710786267645)

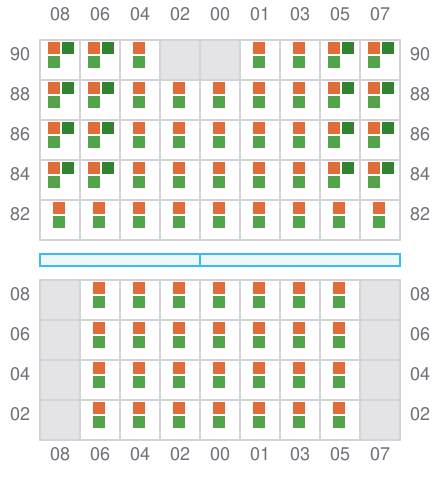

017 (018)
- →
![Bay 017 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b017.png?v=1710786267645)

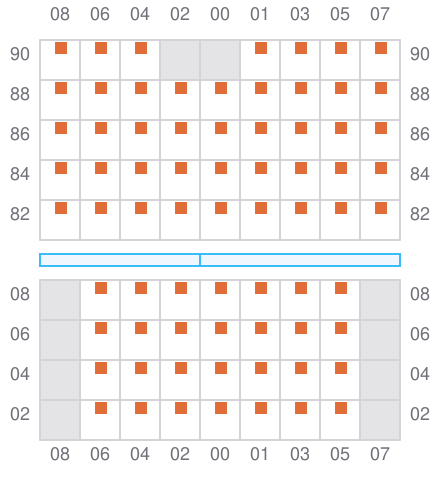

019
- ←
![Bay 019 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b019.png?v=1710786267645)

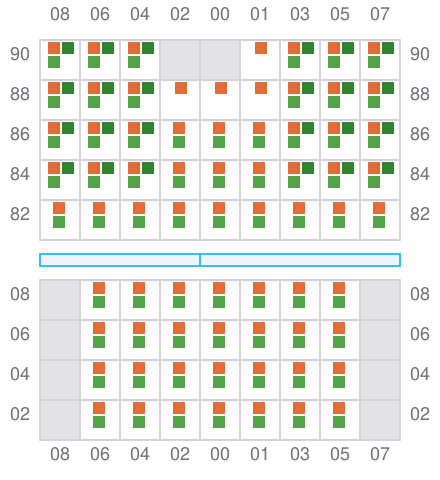

021 (022)
- →
![Bay 021 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b021.png?v=1710786267645)

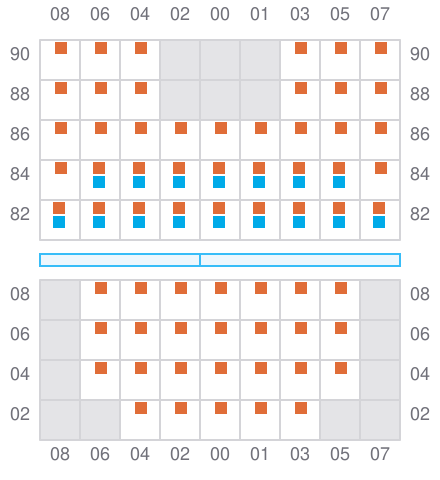

023
- ←
- → / ?
![Bay 023 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b023.png?v=1710786267645)

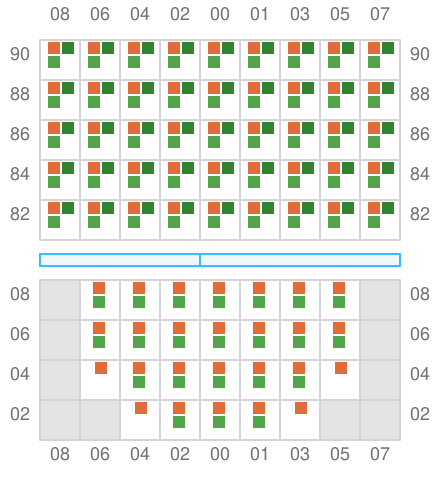

025 (026)
- →
![Bay 025 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b025.png?v=1710786267645)

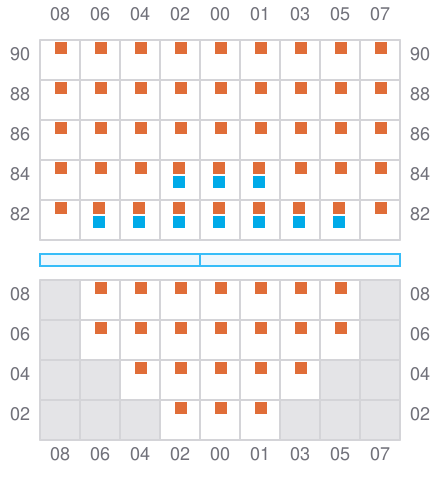

027
- ←
- → / ?
![Bay 027 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b027.png?v=1710786267645)

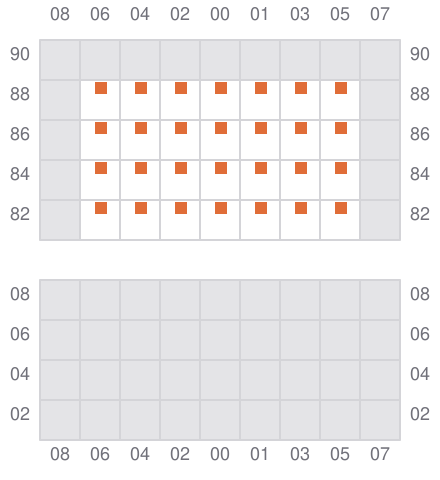

029
- → / ?
![Bay 029 view and slots of MERATUS MANADO](/vessel-images/28223a57-7b99-43e2-99af-f4081b836ad9-b029.png?v=1710786267645)
