MERATUS MEDAN 1
9146651 | PNEM | 9146651 by ********* Last update: Wed Apr 24 2024

General Info

Ship Name:MERATUS MEDAN 1

IMO Code:9146651

Call Sign:PNEM

Line Operator:9146651

Class Name for Sister Ships:MOLKAURI

Year Built:1996

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):150.00

LOA (Length Overall):161.85

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:031

Max ISO Row:10

Center Line Row:No

Max Above ISO Tier:88

Min Above ISO Tier:82

Max Below ISO Tier:10

Min Below ISO Tier:02

Total TEU:986

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

Bay 001 view and slots of MERATUS MEDAN 1

003 (002)

←
^→ / _?
→

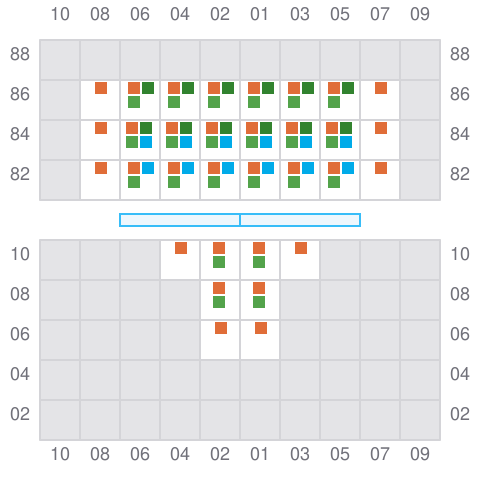

Bay 003 view and slots of MERATUS MEDAN 1

005

→
^← / _?
→

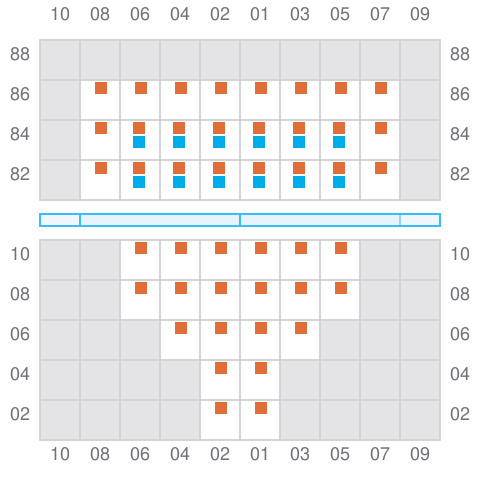

Bay 005 view and slots of MERATUS MEDAN 1

007 (006)

←
^→ / _?
→

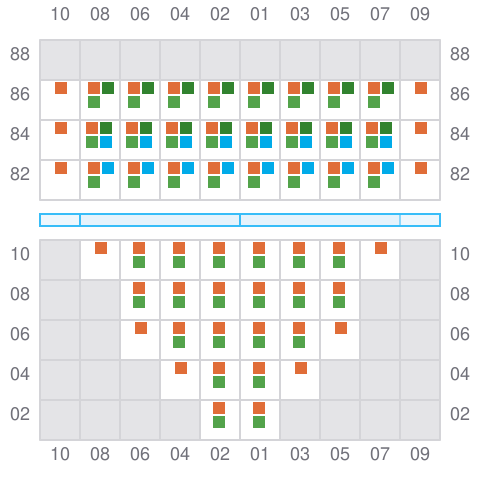

Bay 007 view and slots of MERATUS MEDAN 1

009

→
^← / _?
→

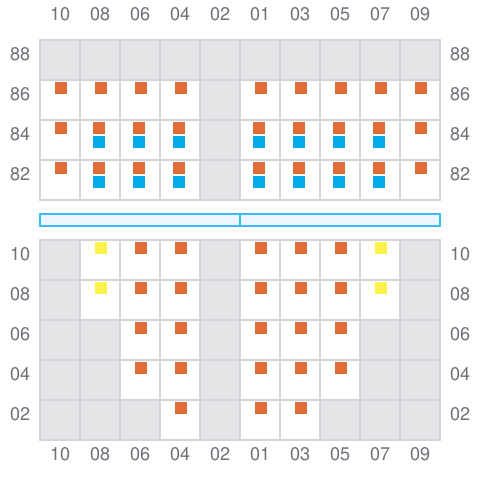

Bay 009 view and slots of MERATUS MEDAN 1

011 (010)

←
^→ / _?
→

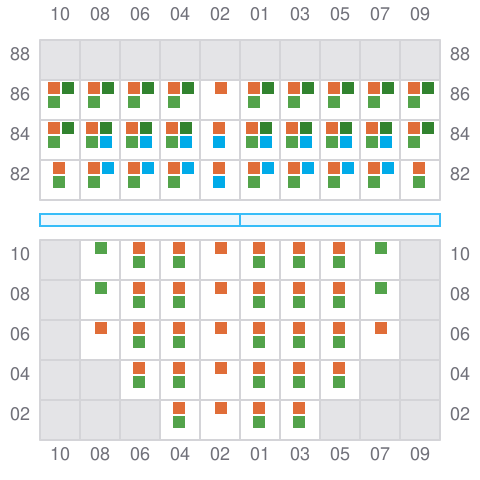

Bay 011 view and slots of MERATUS MEDAN 1

013

→
^← / _?
→

Bay 013 view and slots of MERATUS MEDAN 1

015 (014)

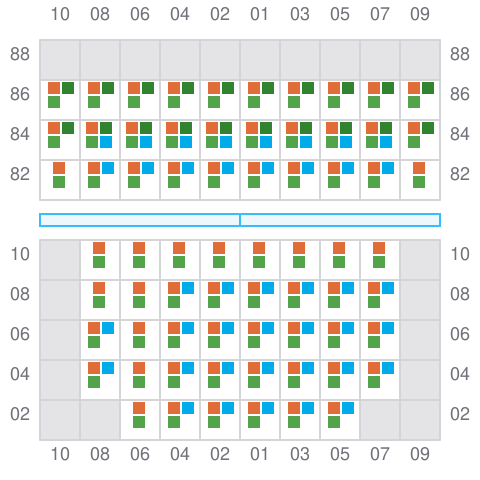

Bay 015 view and slots of MERATUS MEDAN 1

017

→
^← / _?
→

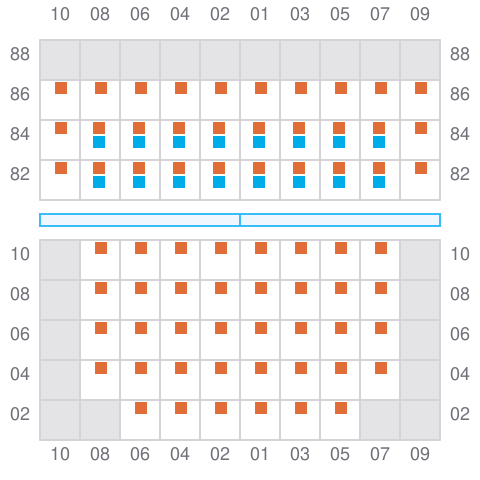

Bay 017 view and slots of MERATUS MEDAN 1

019 (018)

←
^→ / _?
→

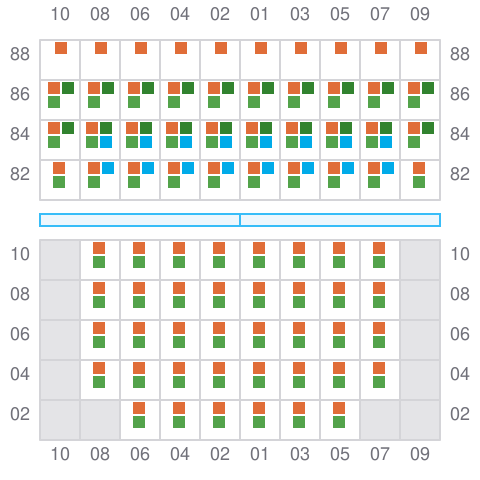

Bay 019 view and slots of MERATUS MEDAN 1

021

→
^← / _?
→

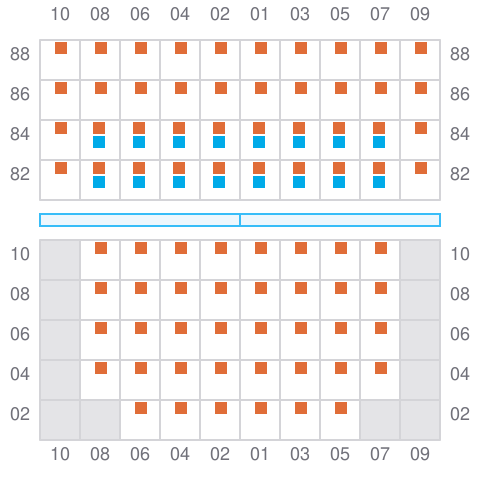

Bay 021 view and slots of MERATUS MEDAN 1

023 (022)

Bay 023 view and slots of MERATUS MEDAN 1

025

→
^← / _?
→

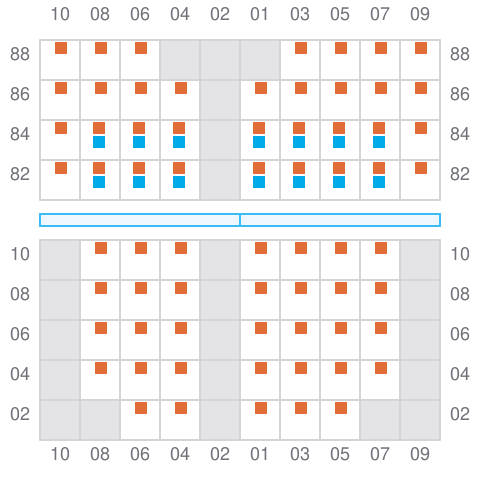

Bay 025 view and slots of MERATUS MEDAN 1

027 (026)

←
^→ / _?
→

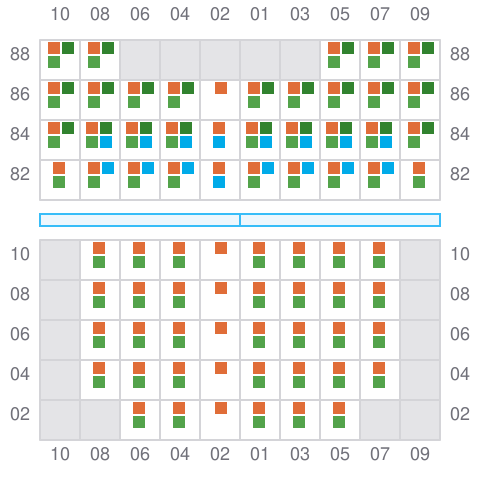

Bay 027 view and slots of MERATUS MEDAN 1

029

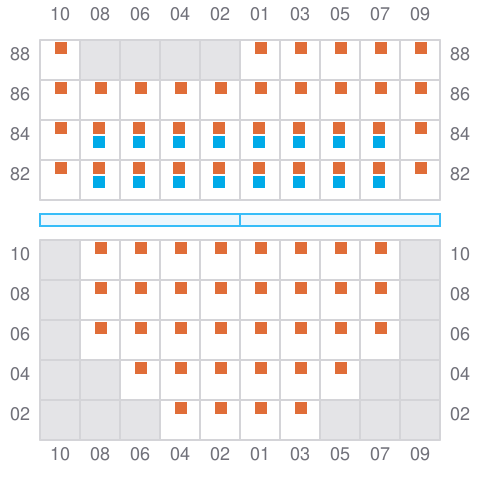

Bay 029 view and slots of MERATUS MEDAN 1

031 (030)

←
^→ / _?
→

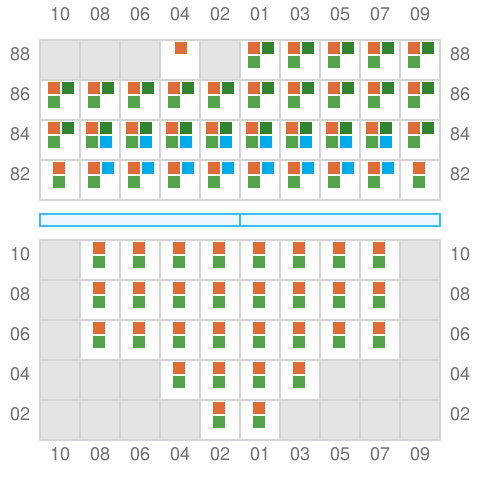

Bay 031 view and slots of MERATUS MEDAN 1
