MERATUS MEDAN 5
9178393 | 3E4973 | 9178393 by ********* Last update: Fri Jun 21 2024

General Info

Ship Name:MERATUS MEDAN 5
IMO Code:9178393
Call Sign:3E4973
Line Operator:9178393
Class Name for Sister Ships:MCC
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,566

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

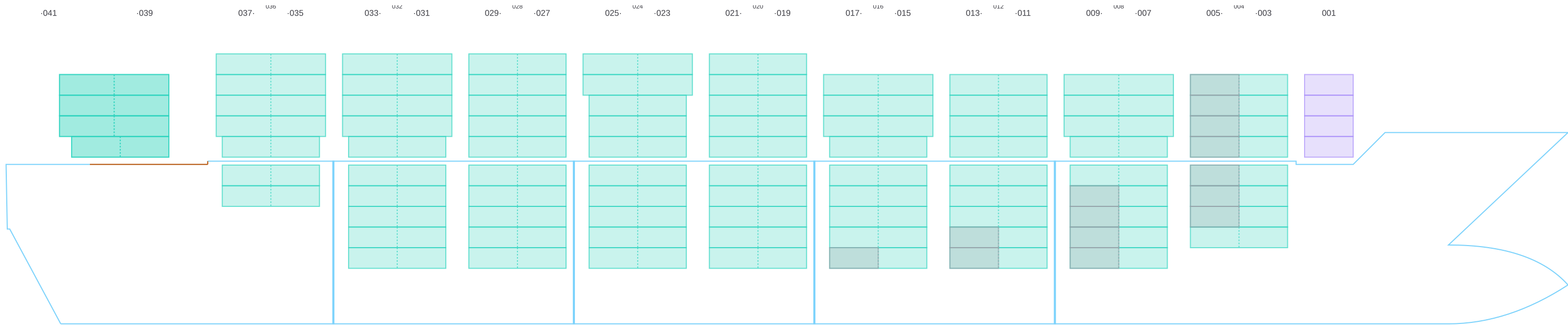

Side view of MERATUS MEDAN 5

Hatch-Covers View

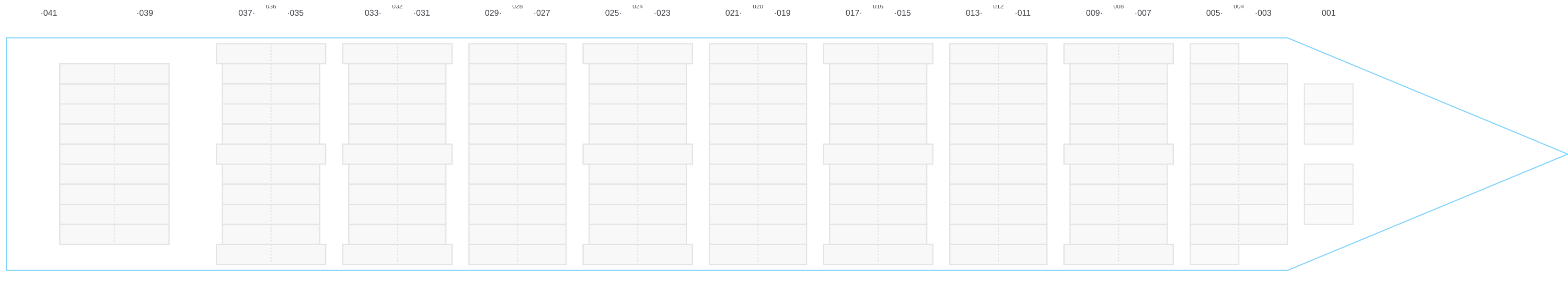

Deck view of MERATUS MEDAN 5

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

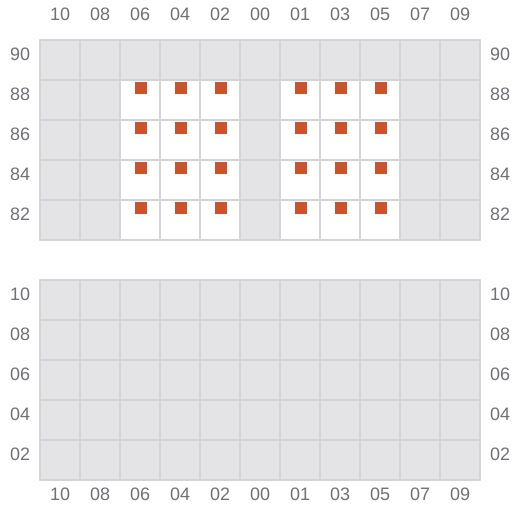

Bay 001 view and slots of MERATUS MEDAN 5

003 (004)

  • →

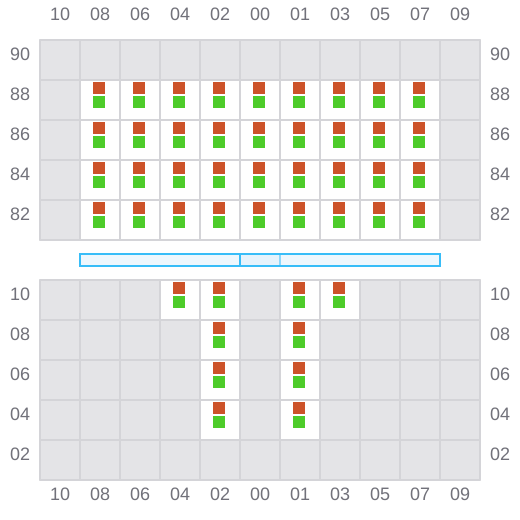

Bay 003 view and slots of MERATUS MEDAN 5

005

  • ←

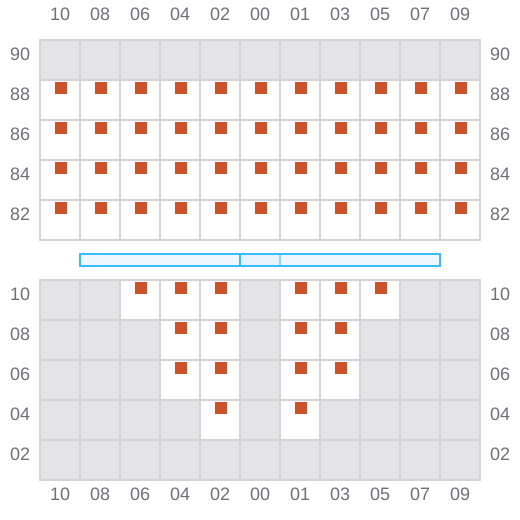

Bay 005 view and slots of MERATUS MEDAN 5

007 (008)

  • →
Bay 007 view and slots of MERATUS MEDAN 5

009

  • ←
  • → / ?

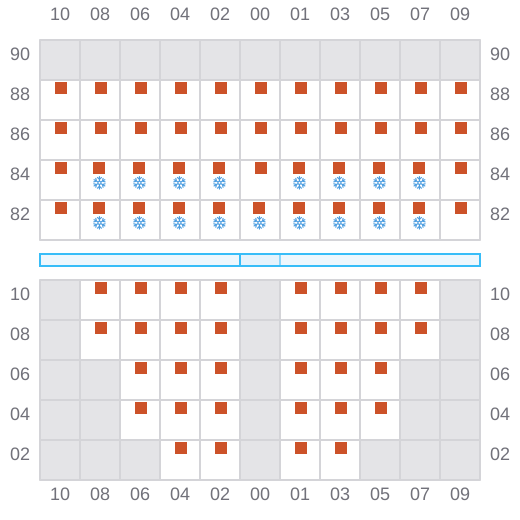

Bay 009 view and slots of MERATUS MEDAN 5

011 (012)

  • →
  • ← / ?
Bay 011 view and slots of MERATUS MEDAN 5

013

  • ←
  • → / ?

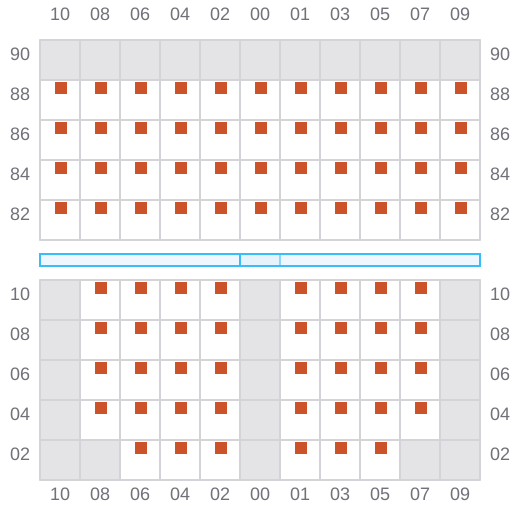

Bay 013 view and slots of MERATUS MEDAN 5

015 (016)

  • →
  • ← / ?

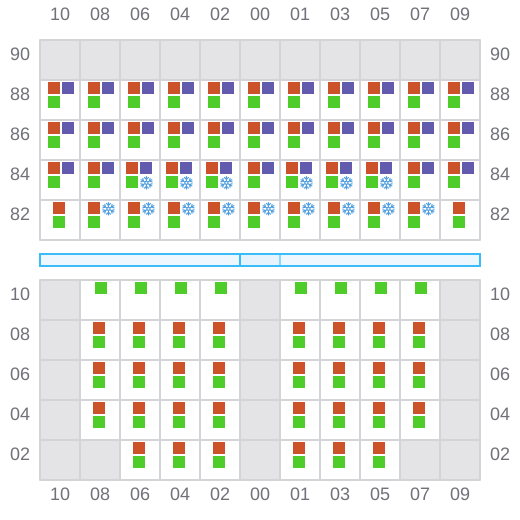

Bay 015 view and slots of MERATUS MEDAN 5

017

  • ←
Bay 017 view and slots of MERATUS MEDAN 5

019 (020)

  • →

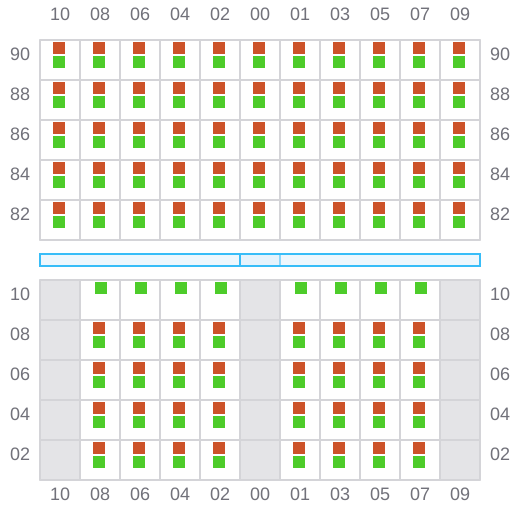

Bay 019 view and slots of MERATUS MEDAN 5

021

  • ←
  • → / ?

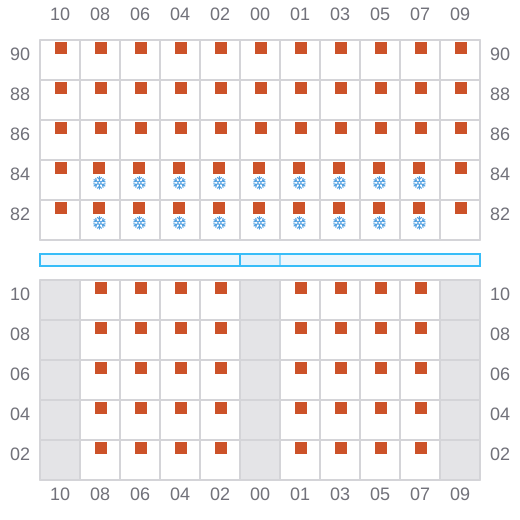

Bay 021 view and slots of MERATUS MEDAN 5

023 (024)

  • →
  • ← / ?
Bay 023 view and slots of MERATUS MEDAN 5

025

  • ←
  • → / ?
Bay 025 view and slots of MERATUS MEDAN 5

027 (028)

  • →
  • ← / ?

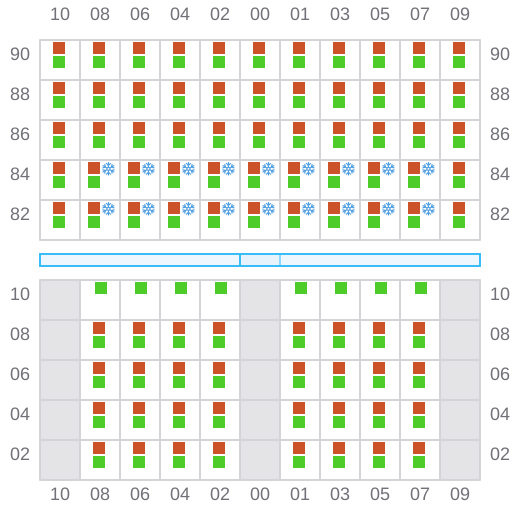

Bay 027 view and slots of MERATUS MEDAN 5

029

  • ←
  • → / ?

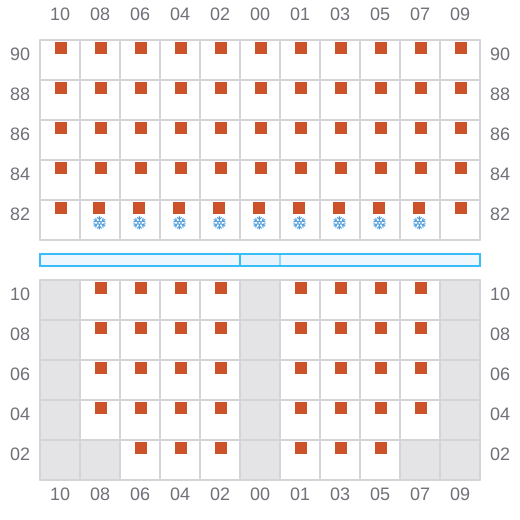

Bay 029 view and slots of MERATUS MEDAN 5

031 (032)

  • →
  • ← / ?

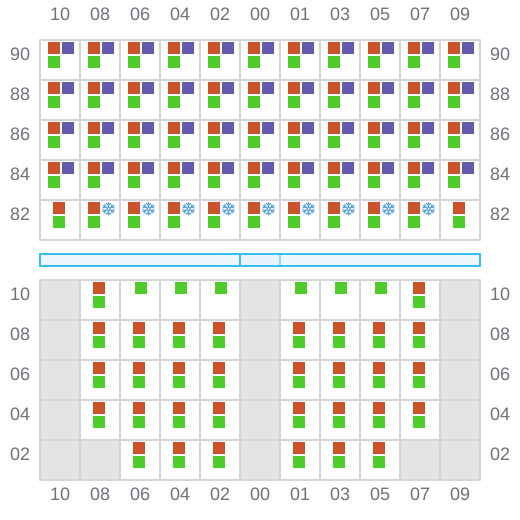

Bay 031 view and slots of MERATUS MEDAN 5

033

  • ←
  • →
Bay 033 view and slots of MERATUS MEDAN 5

035 (036)

  • →
  • ← / ?

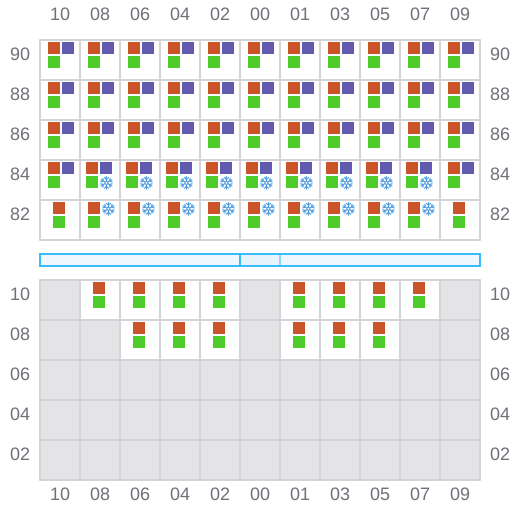

Bay 035 view and slots of MERATUS MEDAN 5

037

  • ←
  • → / ?
Bay 037 view and slots of MERATUS MEDAN 5

039 (040)

  • → / ?
Bay 039 view and slots of MERATUS MEDAN 5

041

  • → / ?
Bay 041 view and slots of MERATUS MEDAN 5
