MERATUS PALEMBANG
9371921 | POGI | 9371921 by ********* Last update: Wed Jul 17 2024

General Info

Ship Name:MERATUS PALEMBANG
IMO Code:9371921
Call Sign:POGI
Line Operator:9371921
Class Name for Sister Ships:VAL
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:027
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:626

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

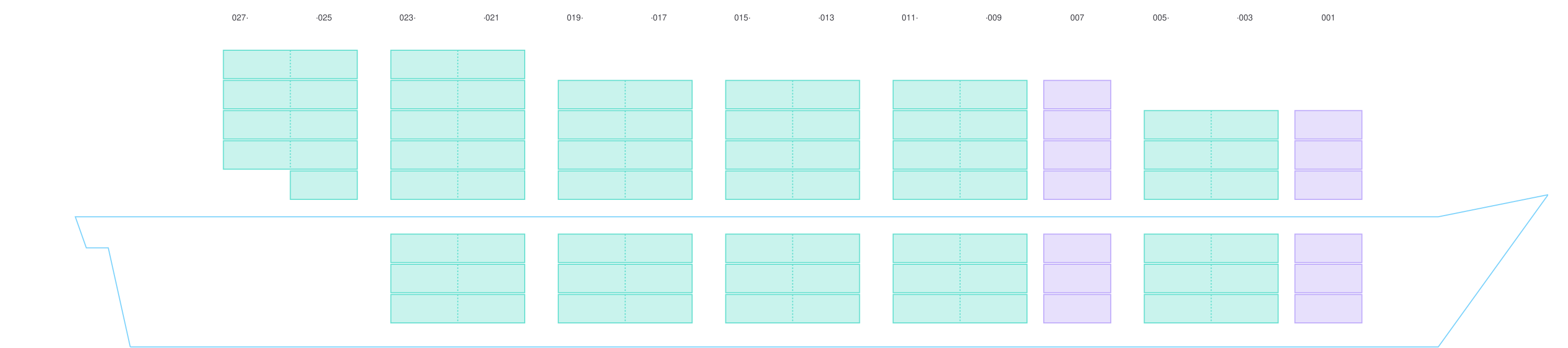

Side View

Side view of MERATUS PALEMBANG

Hatch-Covers View

Deck view of MERATUS PALEMBANG

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

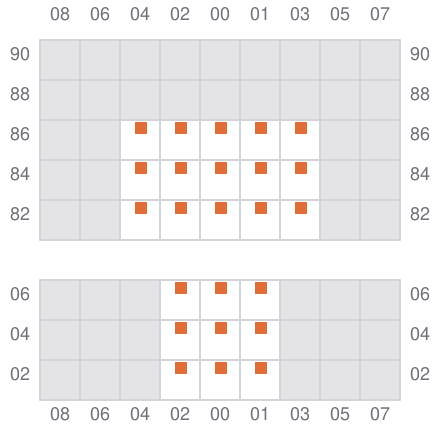

001

Bay 001 view and slots of MERATUS PALEMBANG

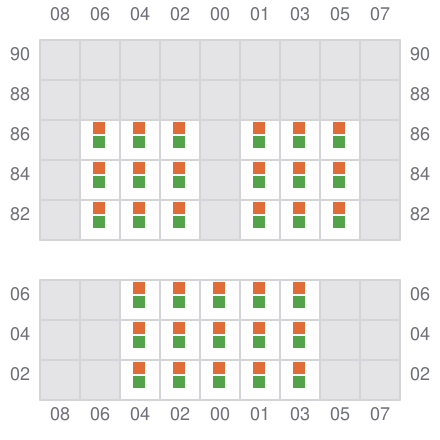

003 (004)

  • →
Bay 003 view and slots of MERATUS PALEMBANG

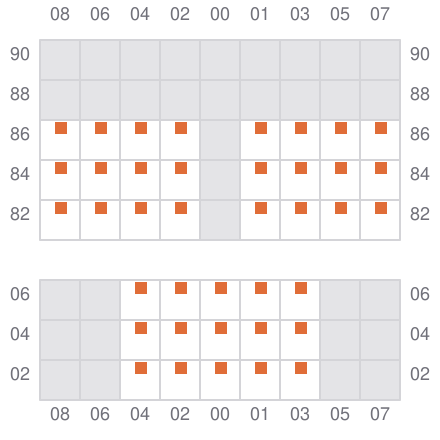

005

  • ←
Bay 005 view and slots of MERATUS PALEMBANG

007

Bay 007 view and slots of MERATUS PALEMBANG

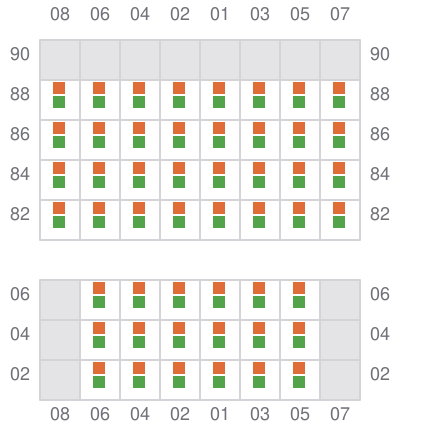

009 (010)

  • →
Bay 009 view and slots of MERATUS PALEMBANG

011

  • ←
Bay 011 view and slots of MERATUS PALEMBANG

013 (014)

  • →
Bay 013 view and slots of MERATUS PALEMBANG

015

  • ←
Bay 015 view and slots of MERATUS PALEMBANG

017 (018)

  • →
Bay 017 view and slots of MERATUS PALEMBANG

019

  • ←
Bay 019 view and slots of MERATUS PALEMBANG

021 (022)

  • →
Bay 021 view and slots of MERATUS PALEMBANG

023

  • ←
Bay 023 view and slots of MERATUS PALEMBANG

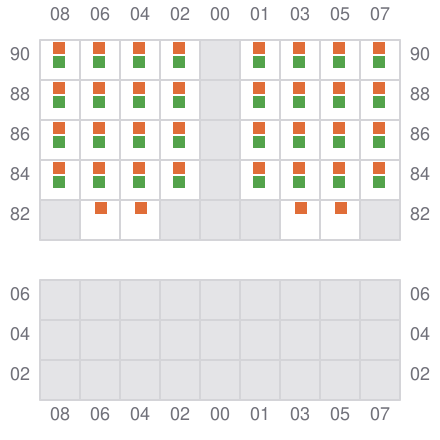

025 (026)

  • → / ?
Bay 025 view and slots of MERATUS PALEMBANG

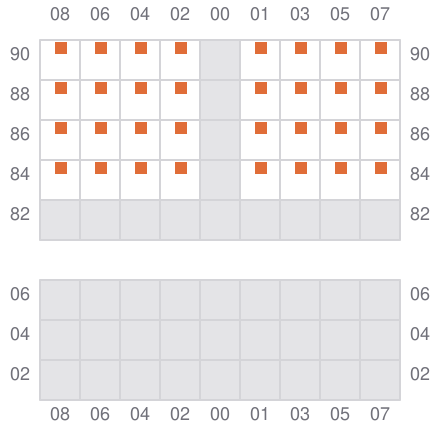

027

  • ← / ?
Bay 027 view and slots of MERATUS PALEMBANG
