MERATUS TOMINI
9374583 | 3E4971 | 9374583 by ********* Last update: Thu Aug 15 2024

General Info

Ship Name:MERATUS TOMINI
IMO Code:9374583
Call Sign:3E4971
Line Operator:9374583
Class Name for Sister Ships:MSL
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,702

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

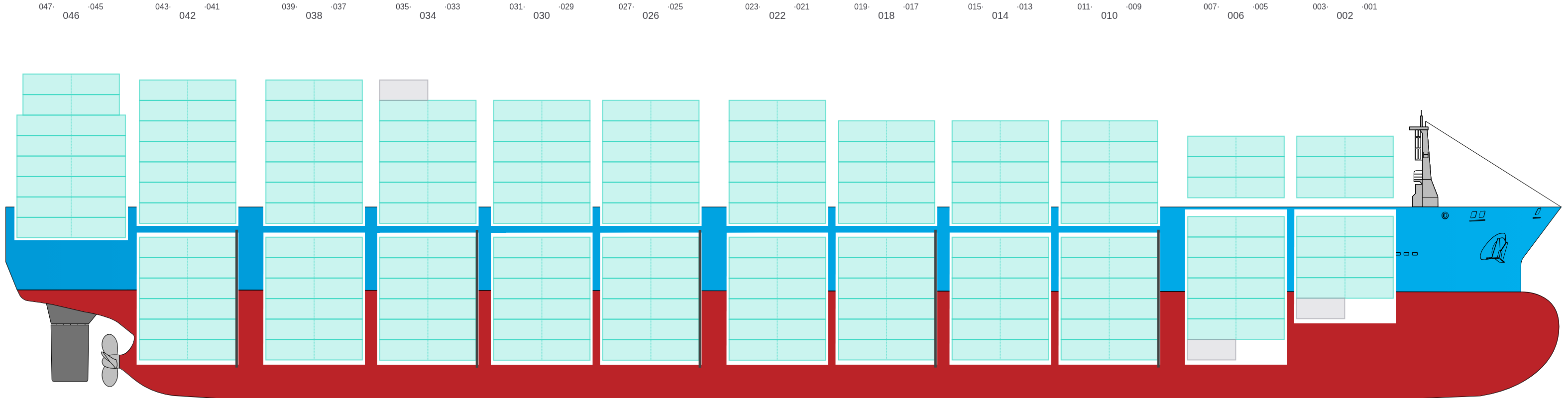

Side view of MERATUS TOMINI

Hatch-Covers View

Deck view of MERATUS TOMINI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

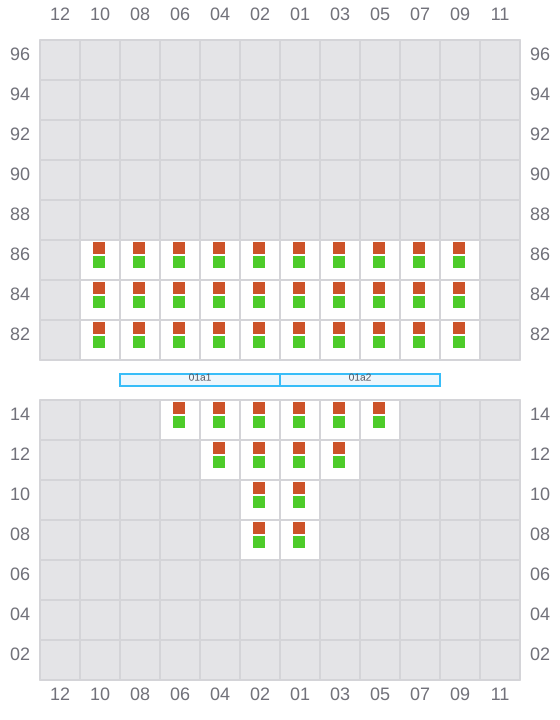

Bay 001 view and slots of MERATUS TOMINI

003

  • ←
  • → / ?

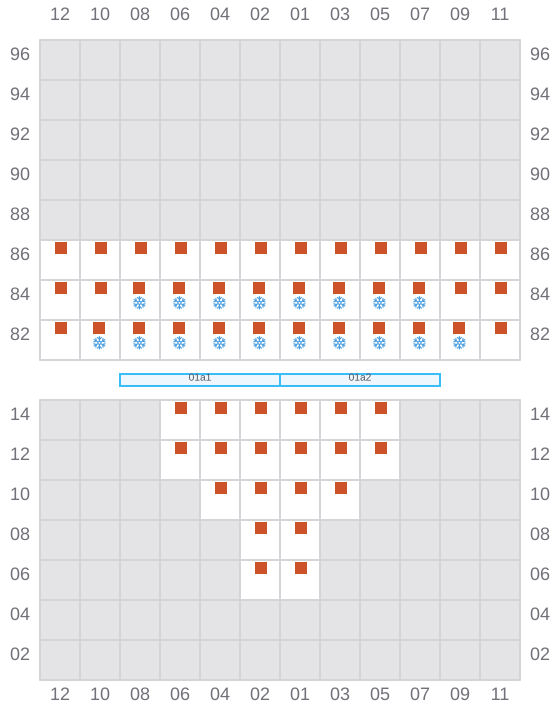

Bay 003 view and slots of MERATUS TOMINI

005 (006)

  • →

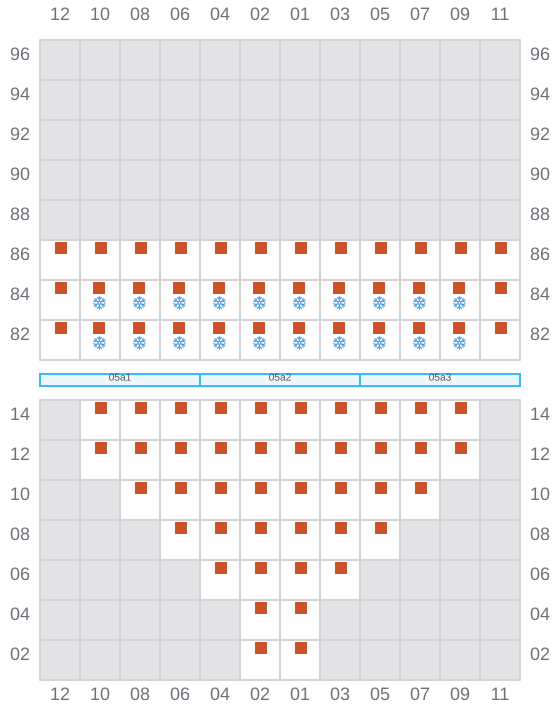

Bay 005 view and slots of MERATUS TOMINI

007

  • ←
  • → / ?
Bay 007 view and slots of MERATUS TOMINI

009 (010)

  • →
  • ← / ?

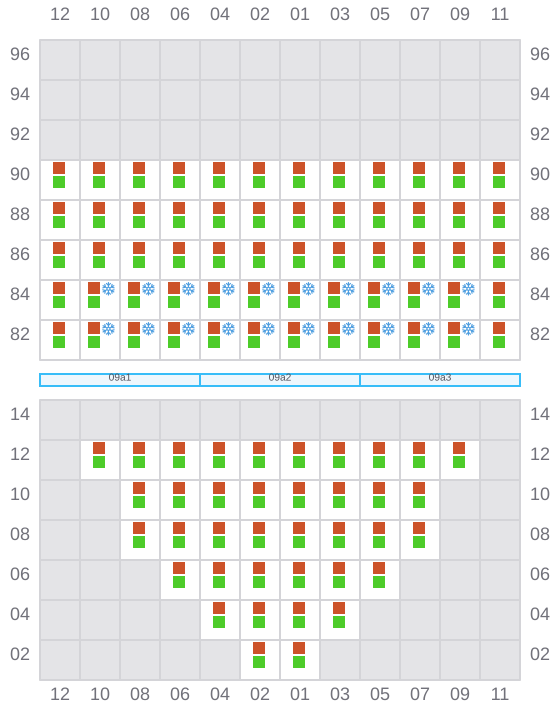

Bay 009 view and slots of MERATUS TOMINI

011

  • ←
  • → / ?

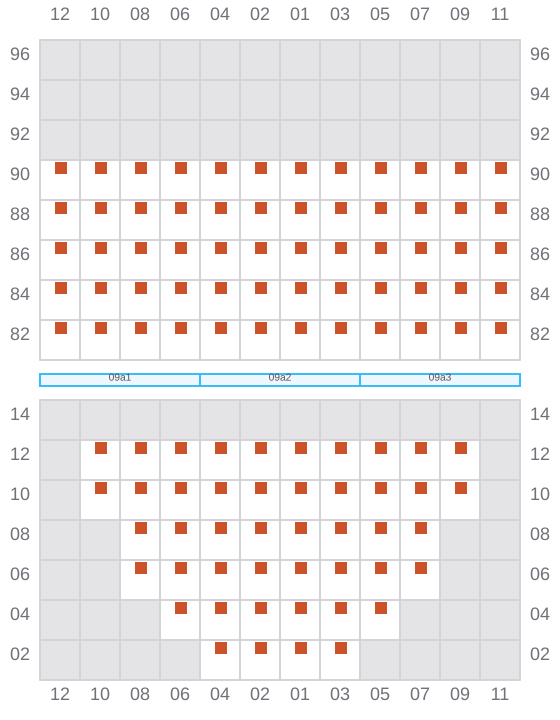

Bay 011 view and slots of MERATUS TOMINI

013 (014)

  • →

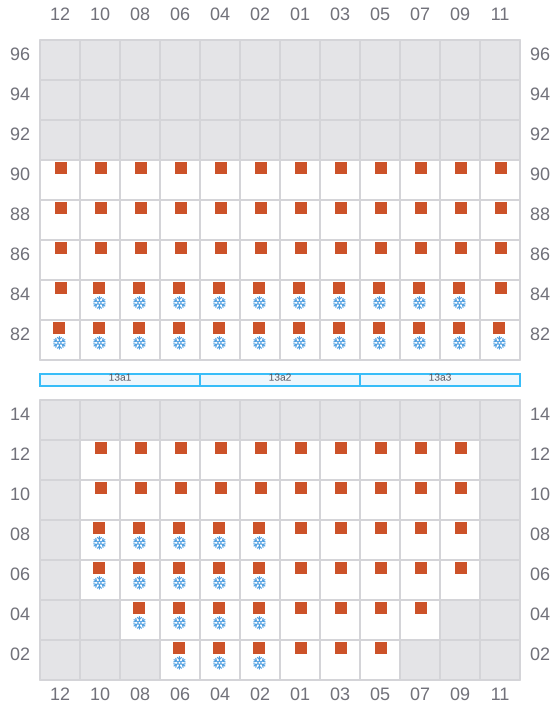

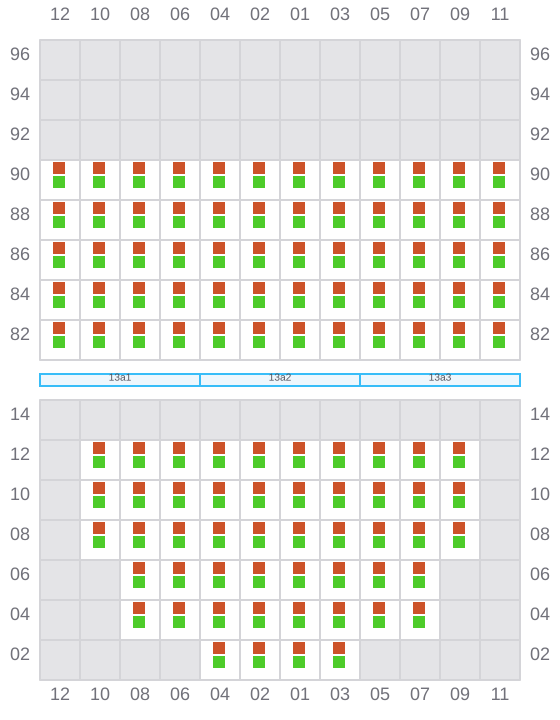

Bay 013 view and slots of MERATUS TOMINI

015

  • ←
  • →
Bay 015 view and slots of MERATUS TOMINI

017 (018)

  • →
  • ←

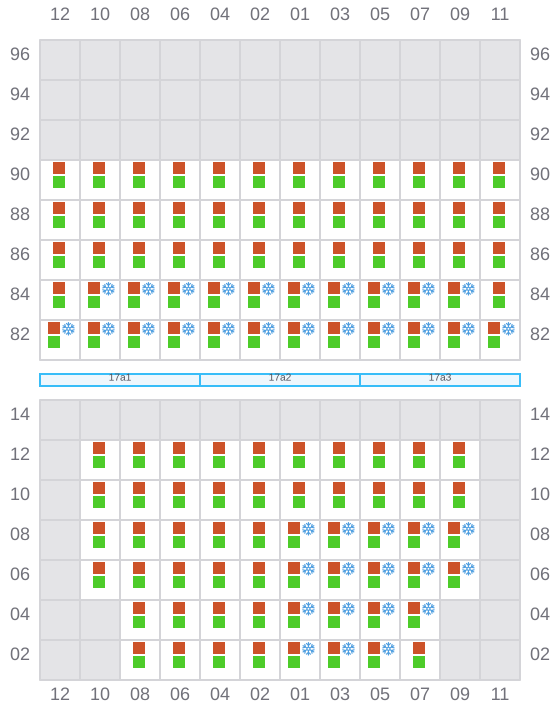

Bay 017 view and slots of MERATUS TOMINI

019

  • ←
  • → / ?

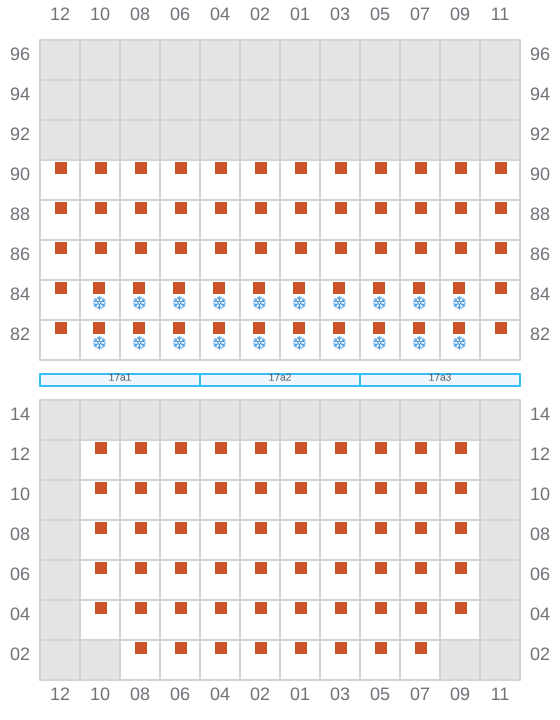

Bay 019 view and slots of MERATUS TOMINI

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of MERATUS TOMINI

023

  • ←
  • → / ?
Bay 023 view and slots of MERATUS TOMINI

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of MERATUS TOMINI

027

  • ←
  • → / ?

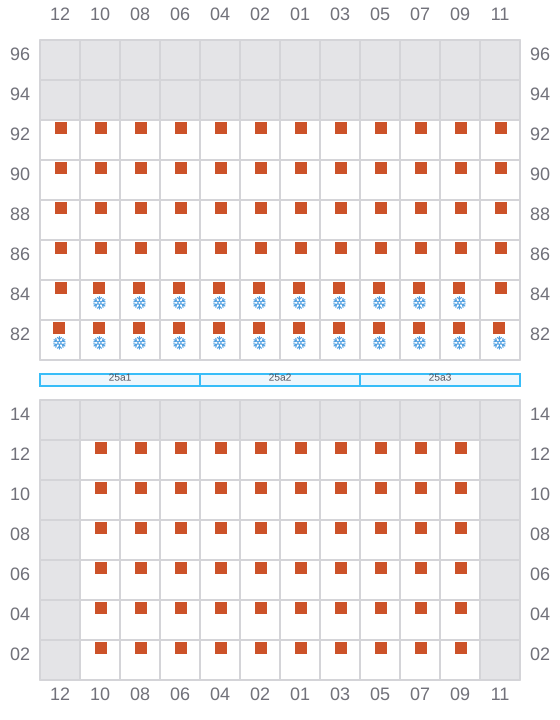

Bay 027 view and slots of MERATUS TOMINI

029 (030)

  • →
  • ← / ?

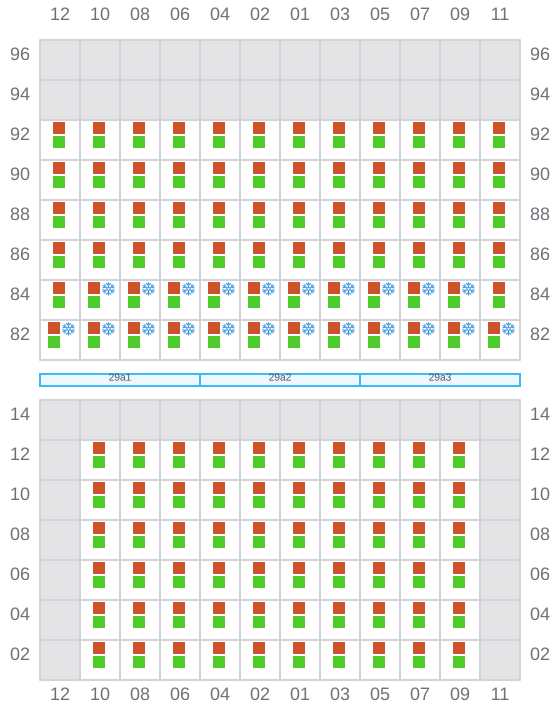

Bay 029 view and slots of MERATUS TOMINI

031

  • ←
  • →

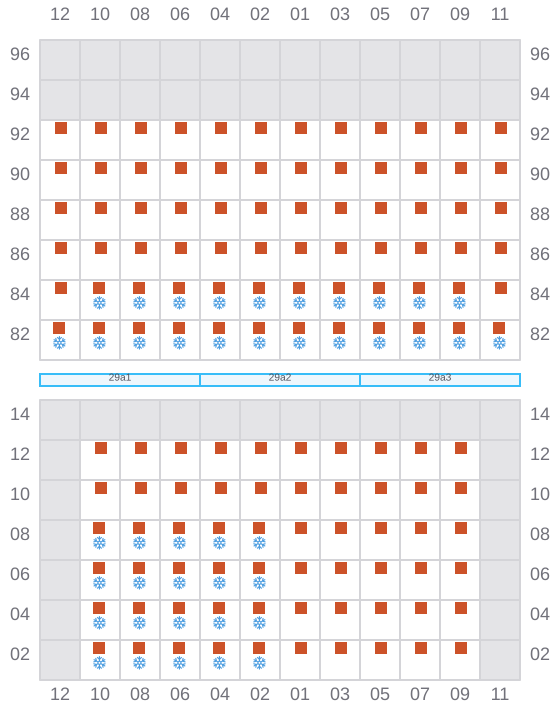

Bay 031 view and slots of MERATUS TOMINI

033 (034)

  • →
  • ←

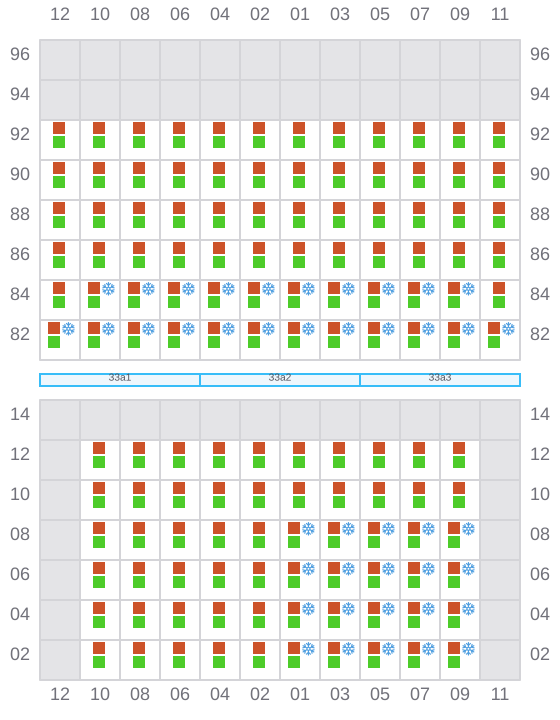

Bay 033 view and slots of MERATUS TOMINI

035

  • ←
  • → / ?

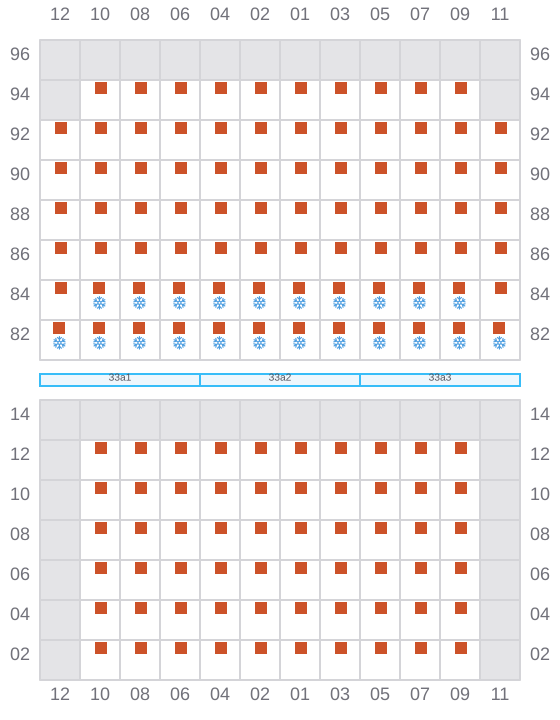

Bay 035 view and slots of MERATUS TOMINI

037 (038)

  • →
  • ←

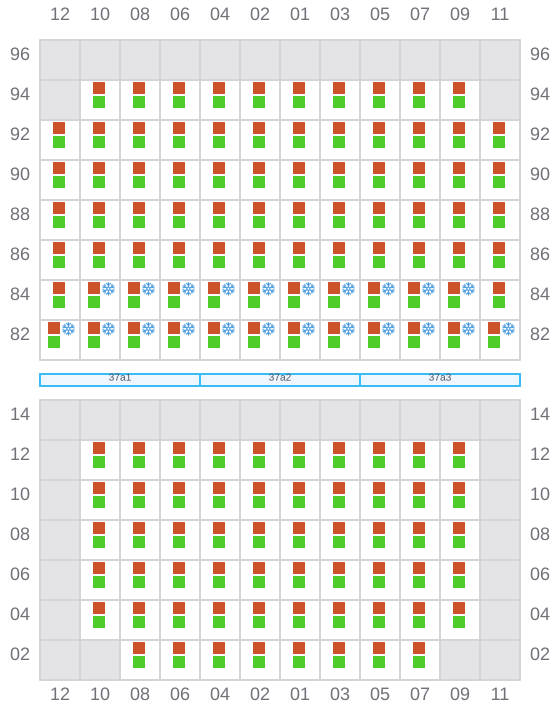

Bay 037 view and slots of MERATUS TOMINI

039

  • ←
  • → / ?
Bay 039 view and slots of MERATUS TOMINI

041 (042)

  • →
  • ← / ?

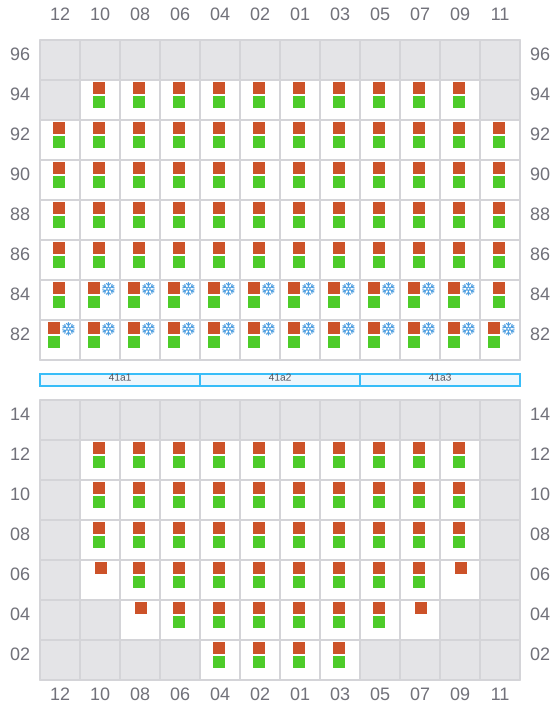

Bay 041 view and slots of MERATUS TOMINI

043

  • ←
  • → / ?

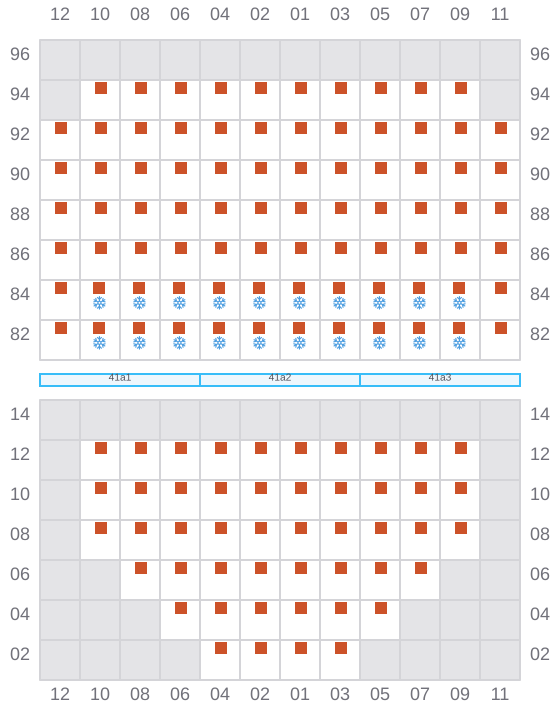

Bay 043 view and slots of MERATUS TOMINI

045 (046)

  • → / ?
  • ← / ?

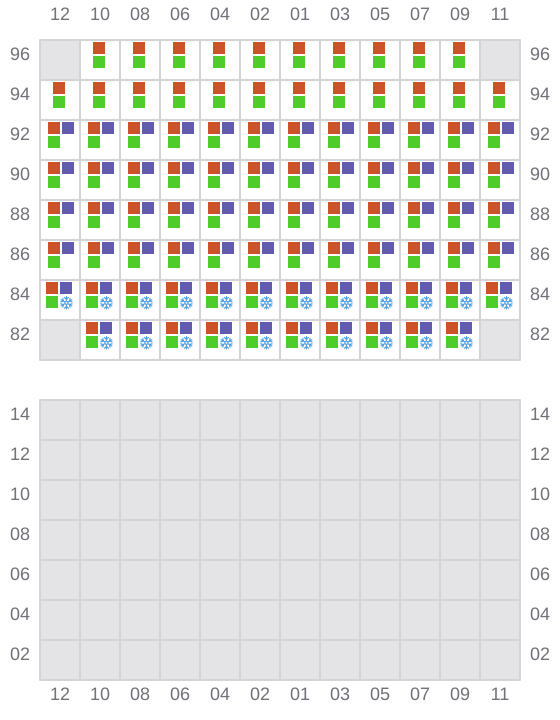

Bay 045 view and slots of MERATUS TOMINI

047

  • ← / ?
  • → / ?

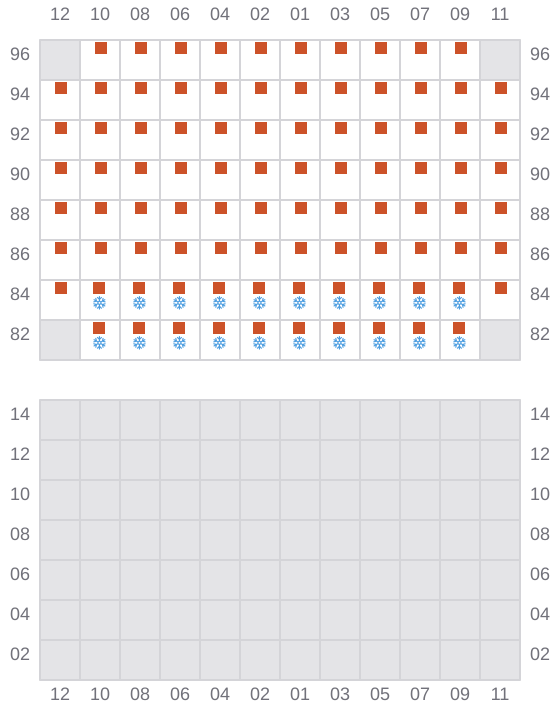

Bay 047 view and slots of MERATUS TOMINI
