MERCOSUL SANTOS
9356153 | PPUT | 9356153 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MERCOSUL SANTOS
IMO Code:9356153
Call Sign:PPUT
Line Operator:9356153
Class Name for Sister Ships:5KS
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,639

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

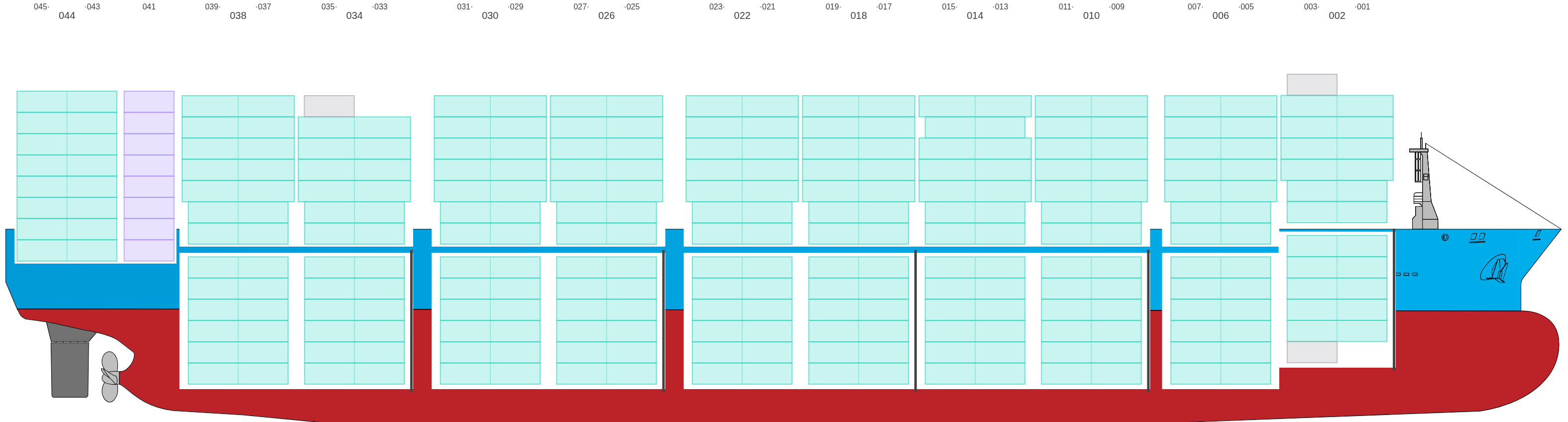

Side view of MERCOSUL SANTOS

Hatch-Covers View

Deck view of MERCOSUL SANTOS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

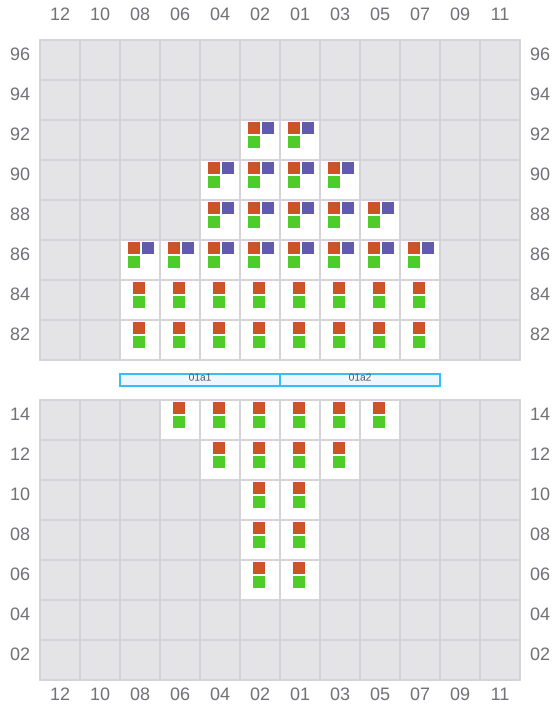

001 (002)

  • →
Bay 001 view and slots of MERCOSUL SANTOS

003

  • ←
  • → / ?

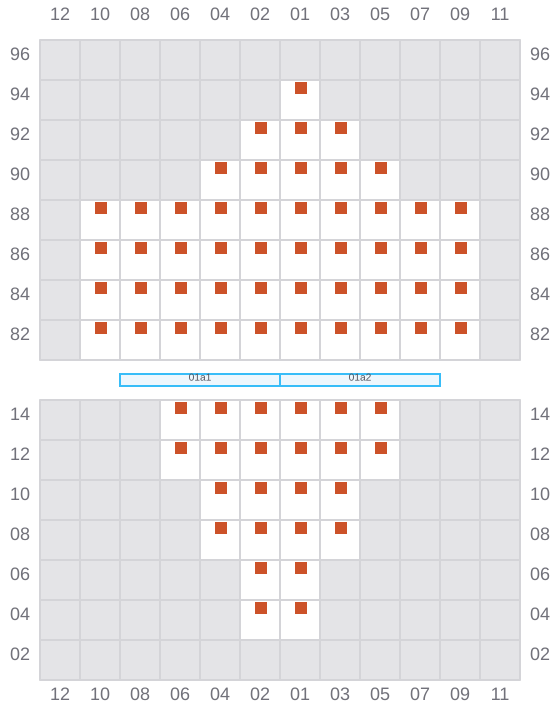

Bay 003 view and slots of MERCOSUL SANTOS

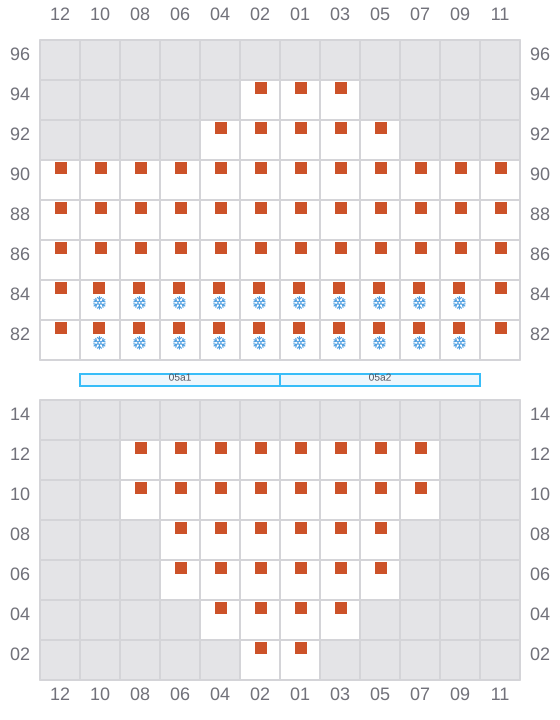

005 (006)

  • →

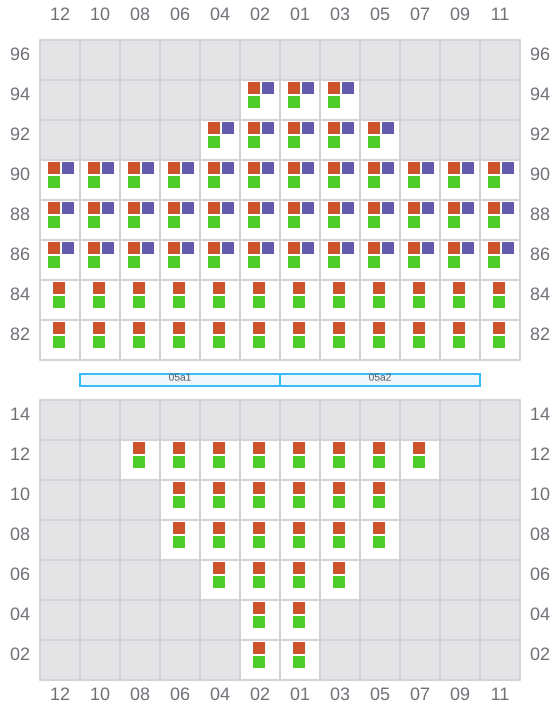

Bay 005 view and slots of MERCOSUL SANTOS

007

  • ←
  • → / ?
Bay 007 view and slots of MERCOSUL SANTOS

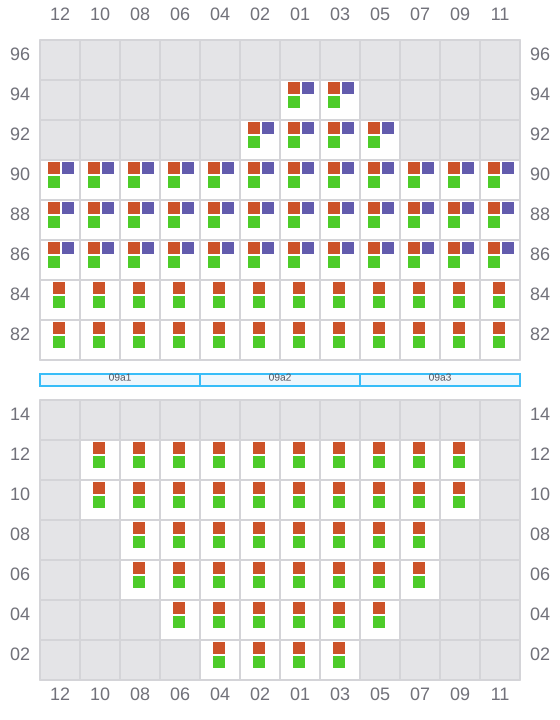

009 (010)

  • →
Bay 009 view and slots of MERCOSUL SANTOS

011

  • ←
  • → / ?

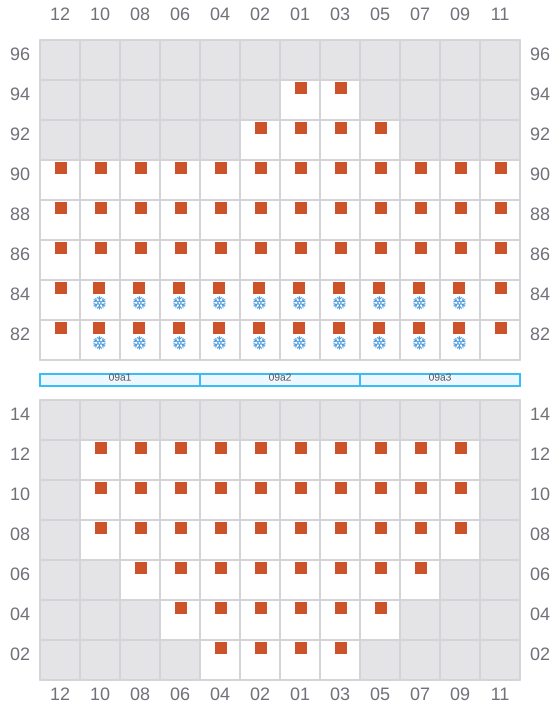

Bay 011 view and slots of MERCOSUL SANTOS

013 (014)

  • →

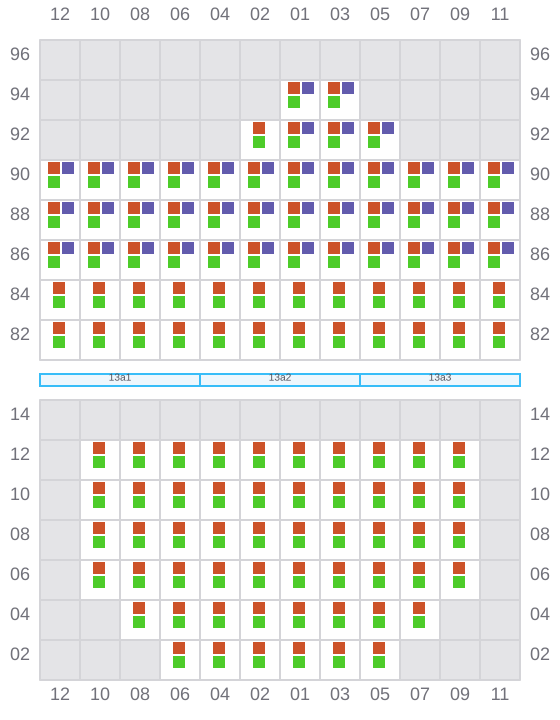

Bay 013 view and slots of MERCOSUL SANTOS

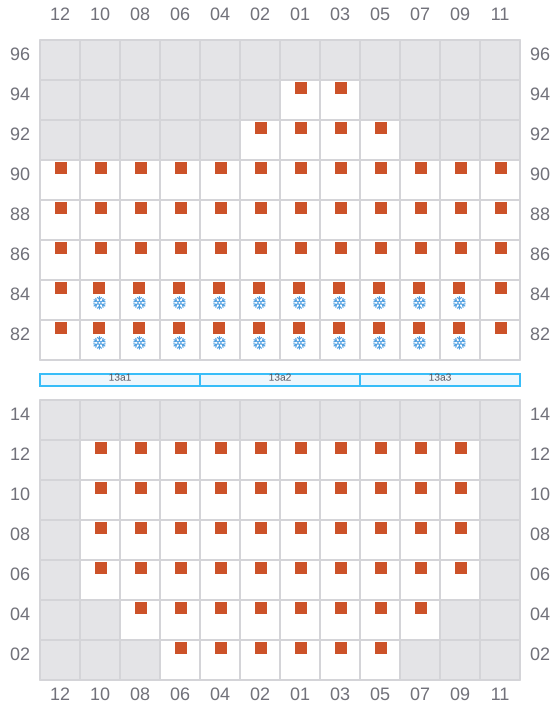

015

  • ←
  • →
Bay 015 view and slots of MERCOSUL SANTOS

017 (018)

  • →

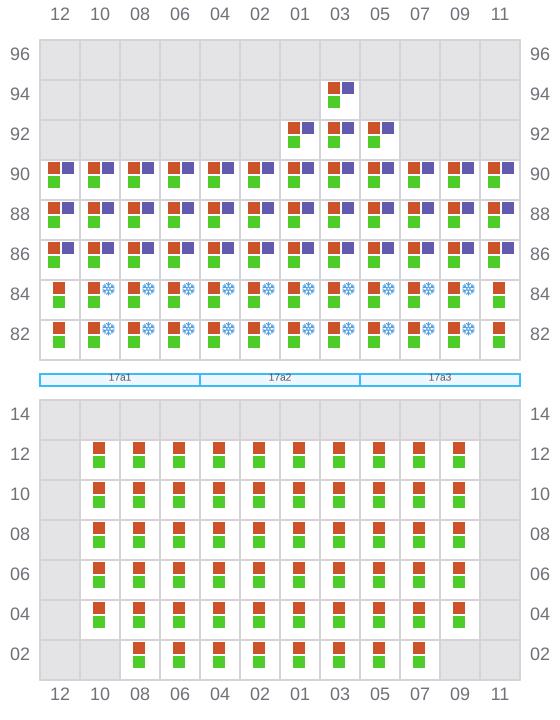

Bay 017 view and slots of MERCOSUL SANTOS

019

  • ←
  • →

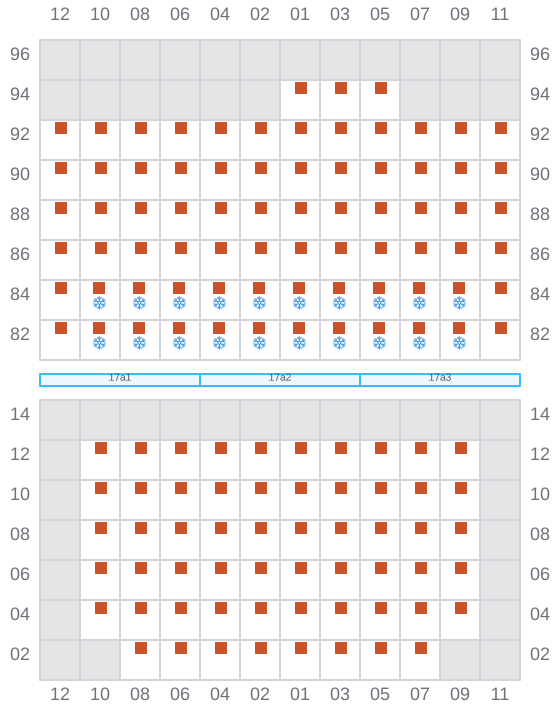

Bay 019 view and slots of MERCOSUL SANTOS

021 (022)

  • →
  • ←

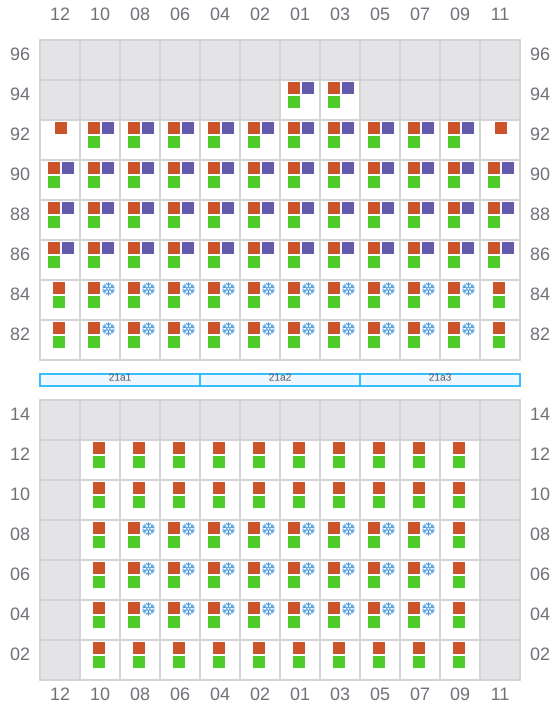

Bay 021 view and slots of MERCOSUL SANTOS

023

  • ←
  • → / ?
Bay 023 view and slots of MERCOSUL SANTOS

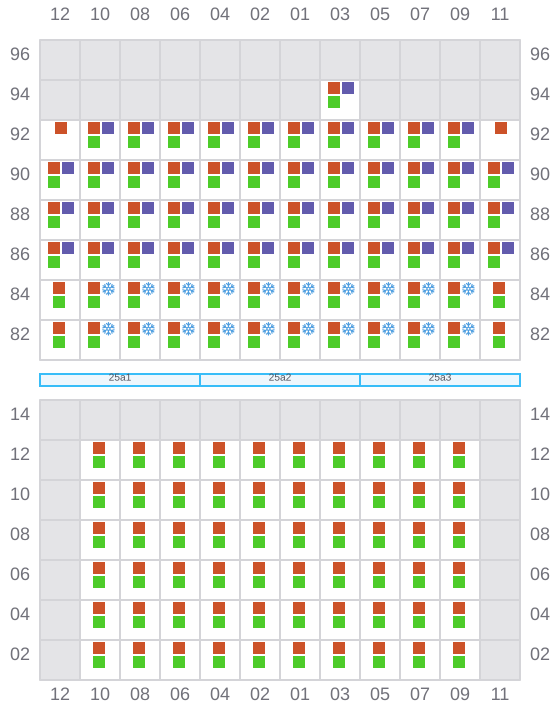

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of MERCOSUL SANTOS

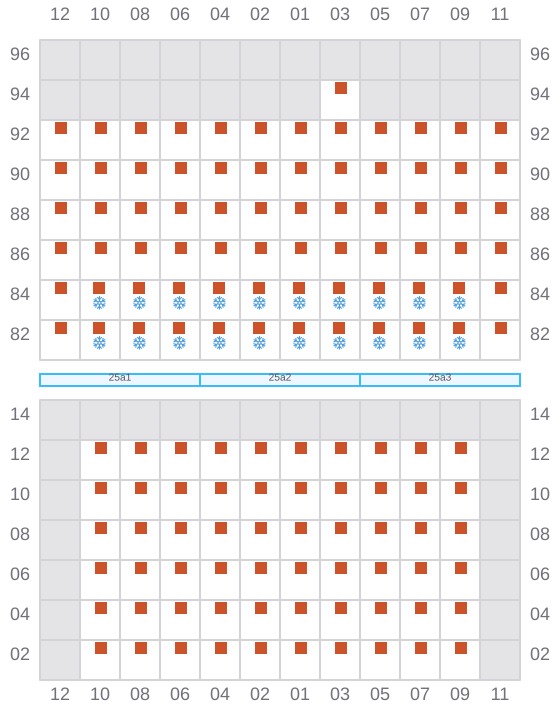

027

  • ←
  • →
Bay 027 view and slots of MERCOSUL SANTOS

029 (030)

  • →
  • ←

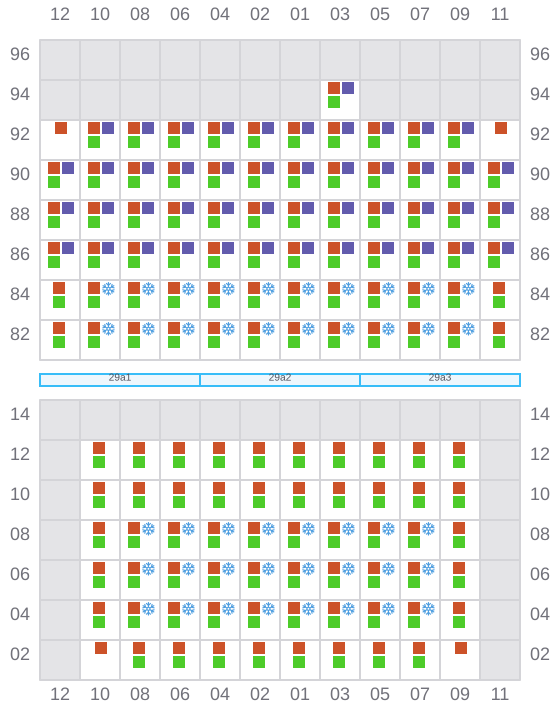

Bay 029 view and slots of MERCOSUL SANTOS

031

  • ←
  • →

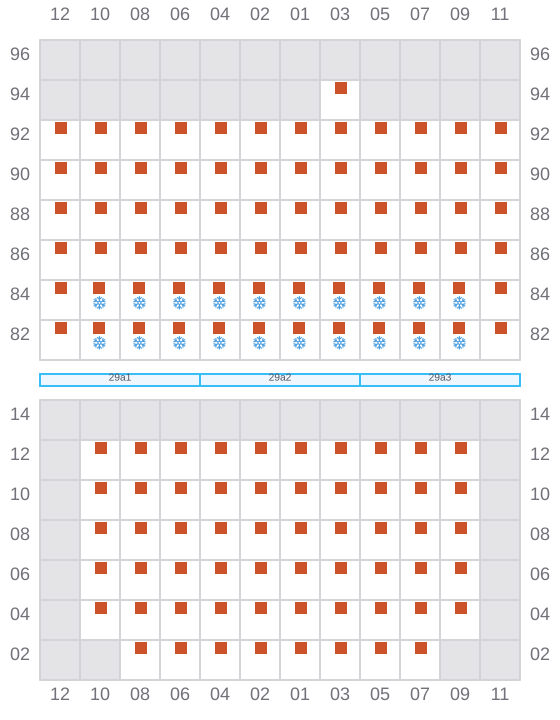

Bay 031 view and slots of MERCOSUL SANTOS

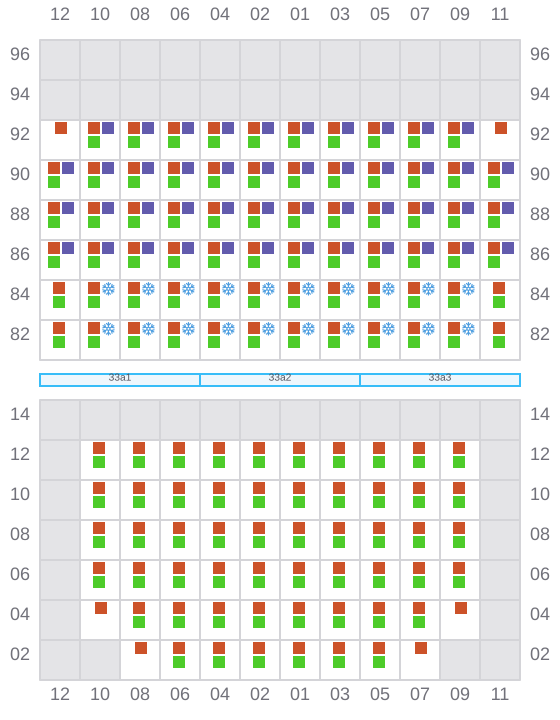

033 (034)

  • →
  • ← / ?
Bay 033 view and slots of MERCOSUL SANTOS

035

  • ←
  • →

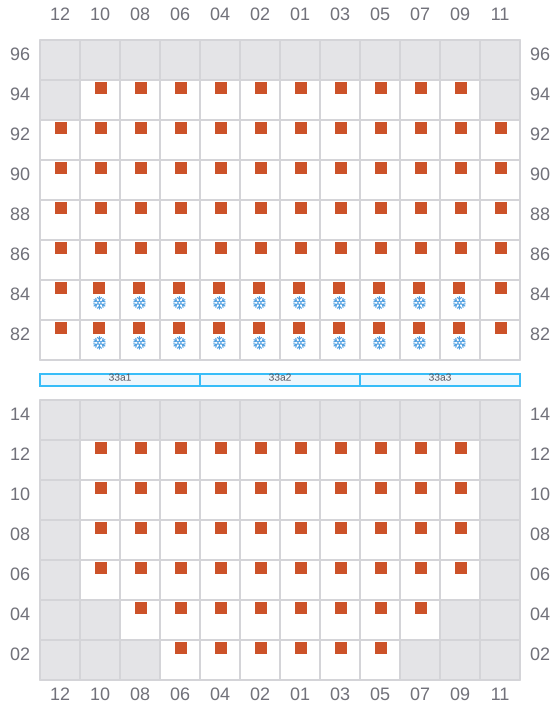

Bay 035 view and slots of MERCOSUL SANTOS

037 (038)

  • →
  • ←

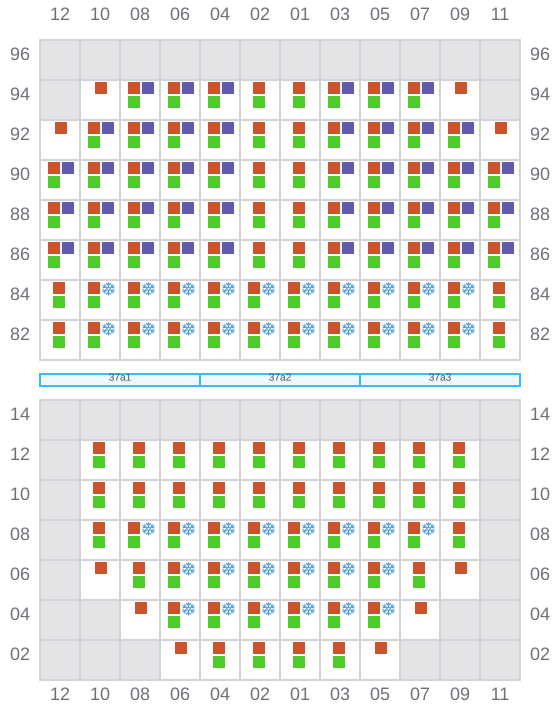

Bay 037 view and slots of MERCOSUL SANTOS

039

  • ←
  • → / ?

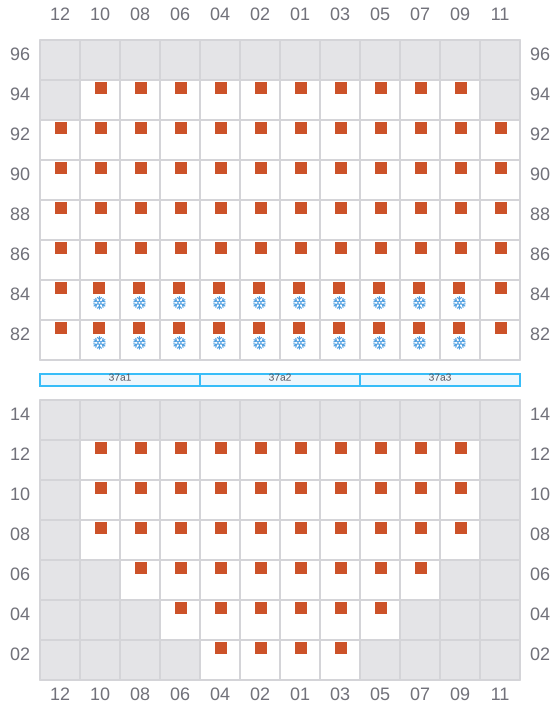

Bay 039 view and slots of MERCOSUL SANTOS

041

  • → / ?

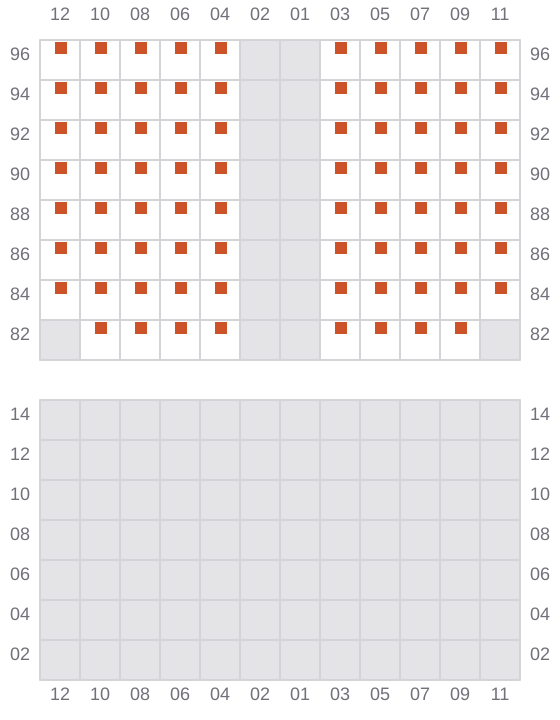

Bay 041 view and slots of MERCOSUL SANTOS

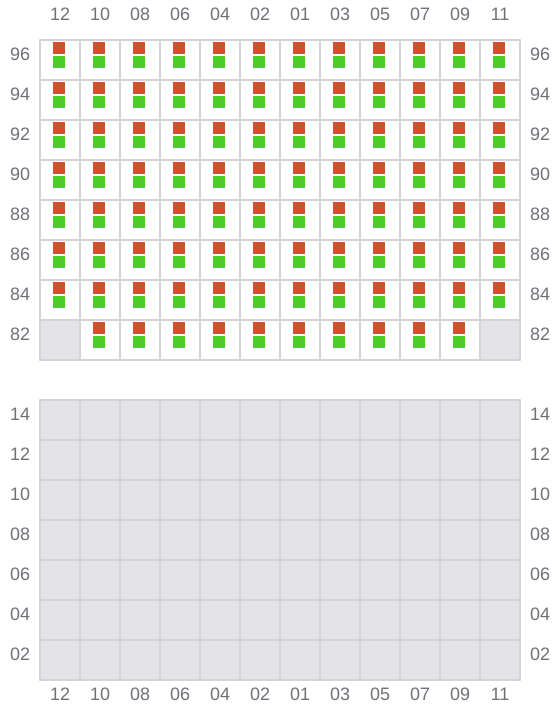

043 (044)

  • → / ?
Bay 043 view and slots of MERCOSUL SANTOS

045

  • ← / ?
  • → / ?

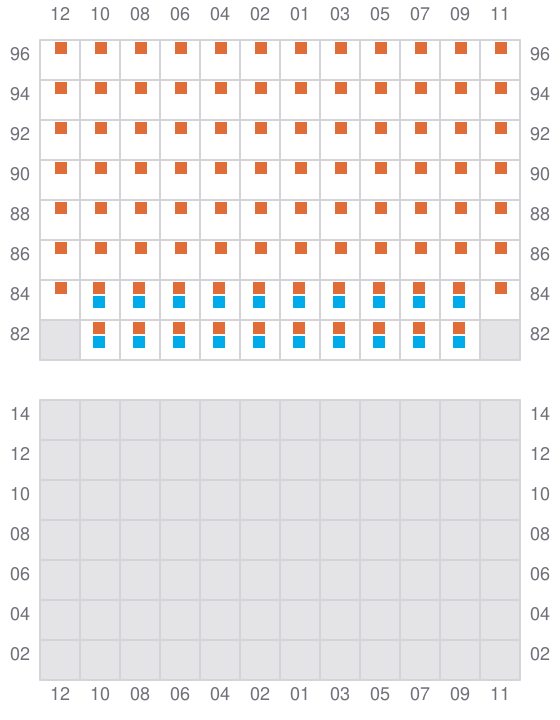

Bay 045 view and slots of MERCOSUL SANTOS
