MERIC
9118006 | T8A3660 | 9118006 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:MERIC
IMO Code:9118006
Call Sign:T8A3660
Line Operator:9118006
Class Name for Sister Ships:25Q
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:019
Max ISO Row:04
Center Line Row:Yes
Max Above ISO Tier:86
Min Above ISO Tier:82
Max Below ISO Tier:04
Min Below ISO Tier:02
Total TEU:196
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

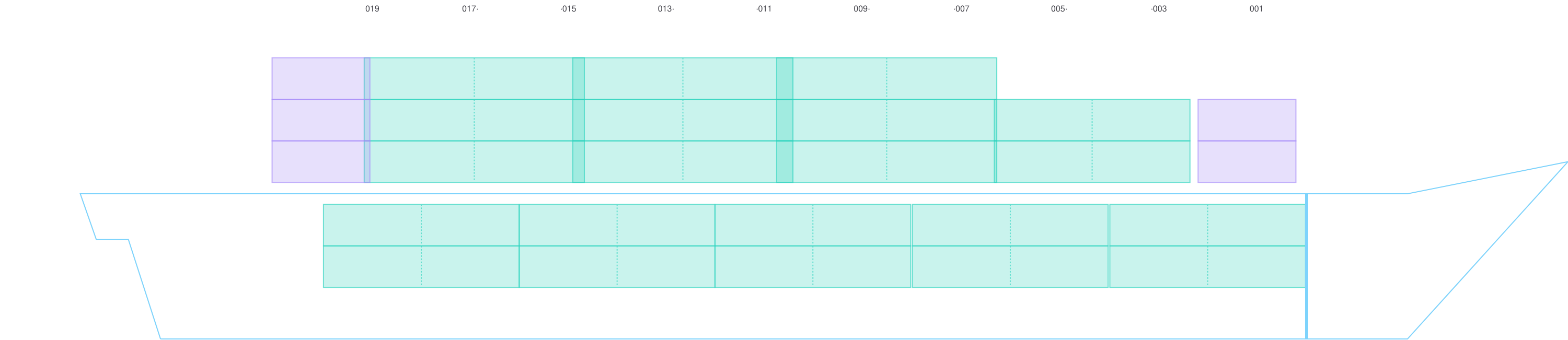

Side View

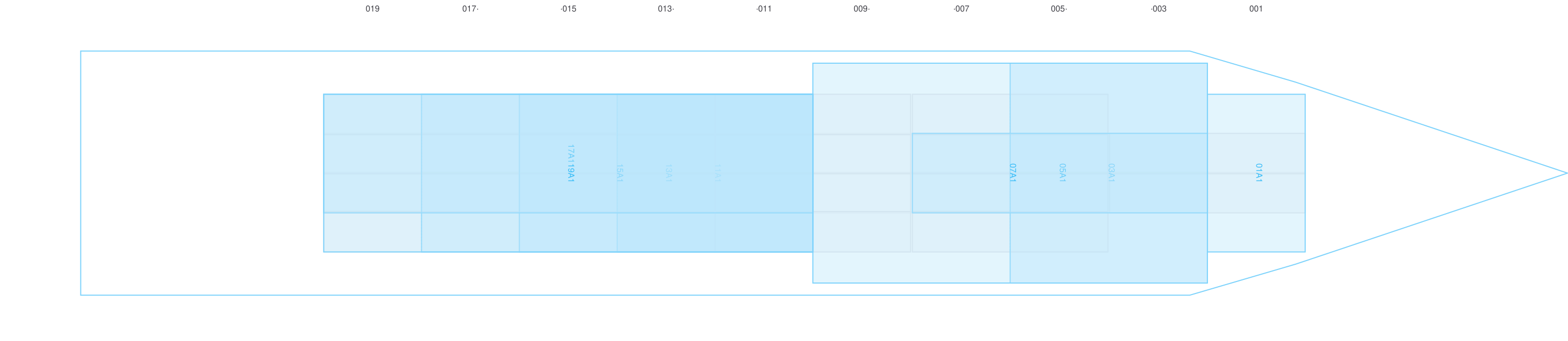

Hatch-Covers View

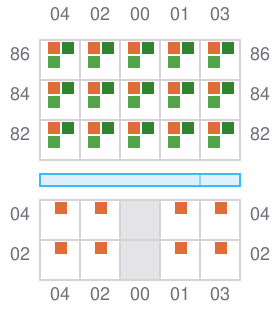

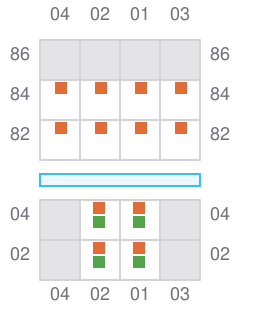

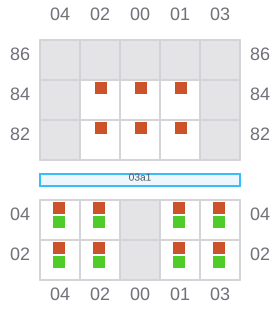

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- ? / →

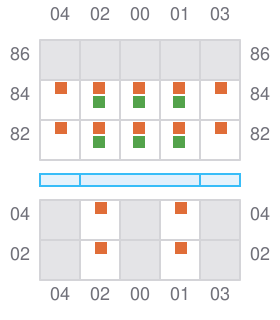

003 (004)
- → / ←
005 (006)
- ← / →

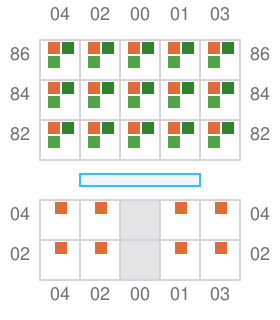

007 (008)
- → / ←
009 (010)
- ← / →
- → / ?
011 (012)
- → / ←

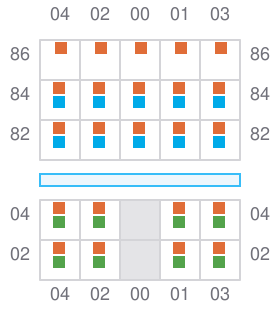

013 (014)
- ← / →
- → / ?

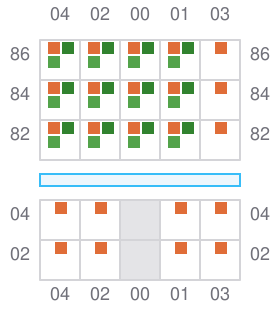

015 (016)
- → / ←

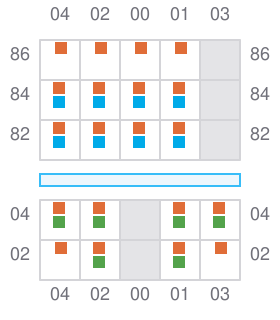

017 (018)
- ← / →
- → / ?

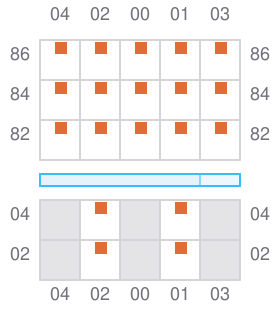

019
- ? / ←
