MERIOS
9264764 | 8PUO1 | 9264764 by ********* Last update: Sat Mar 16 2024
General Info
Ship Name:MERIOS
IMO Code:9264764
Call Sign:8PUO1
Line Operator:9264764
Class Name for Sister Ships:2NZ
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:642
Centers of Gravity
LCG Values:Known
LCG Data:0%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

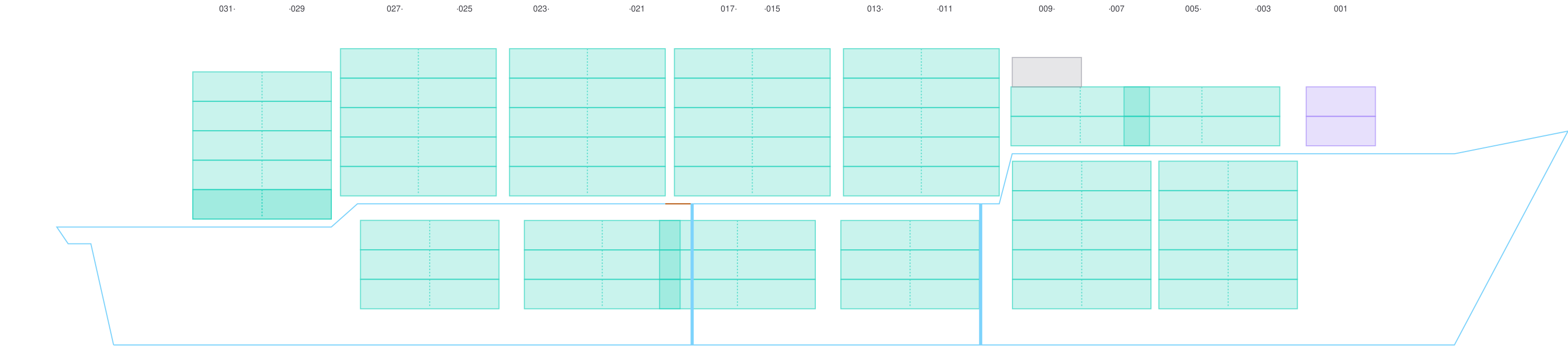

Side View
Hatch-Covers View

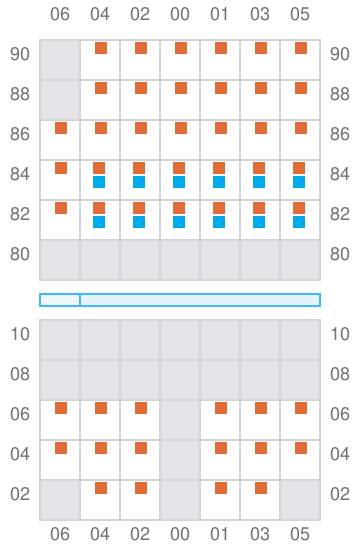

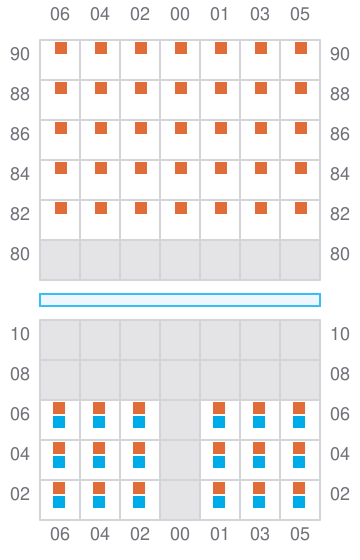

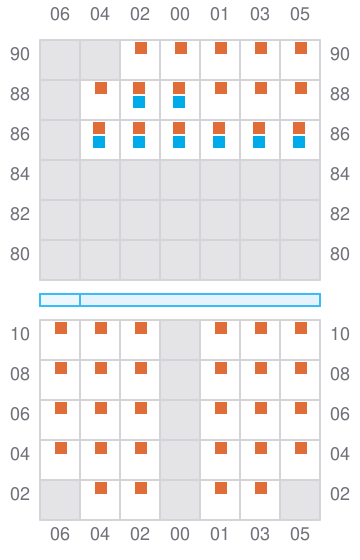

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

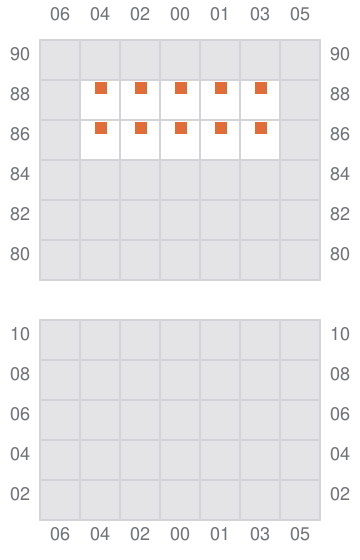

001
003 (004)
- →

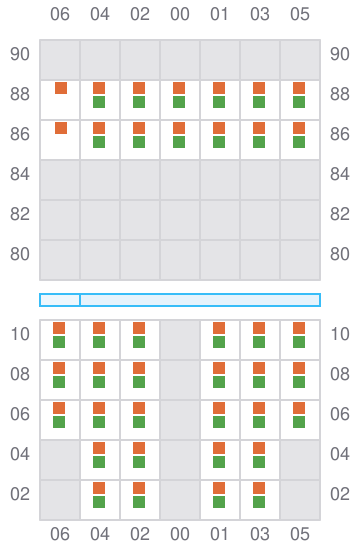

005
- ←
007 (008)
- →
- → / ?
009
- ←
- → / ?

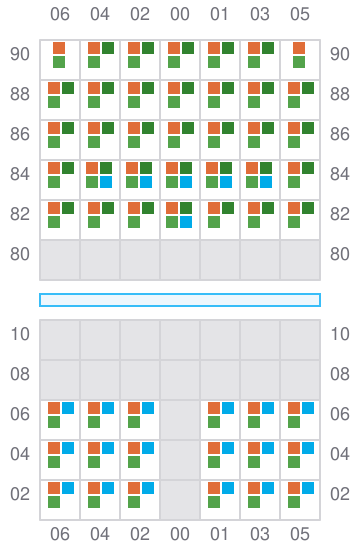

011 (012)
- →
- ← / →
013
- ←
- ? / →
015 (016)
- →

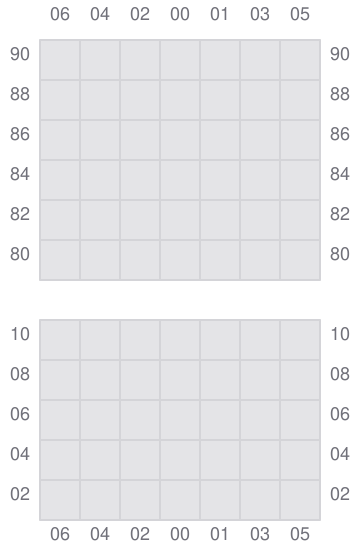

017
- ←
- → / ?
019

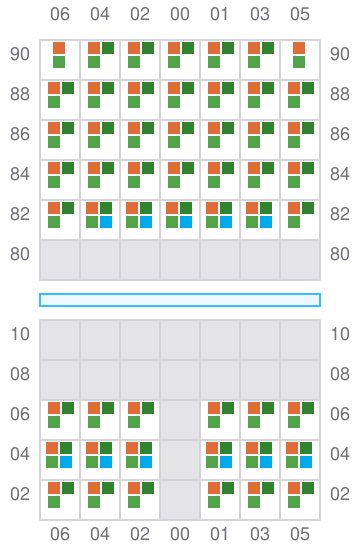

021 (022)
- →
- ← / →
023
- ←
- ? / →
025 (026)
- →
027
- ←
- → / ?

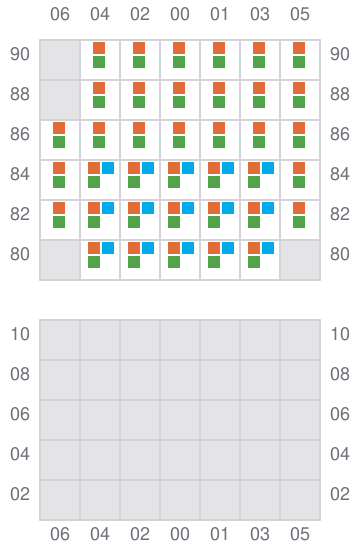

029 (030)
- → / ?
- ← / ?

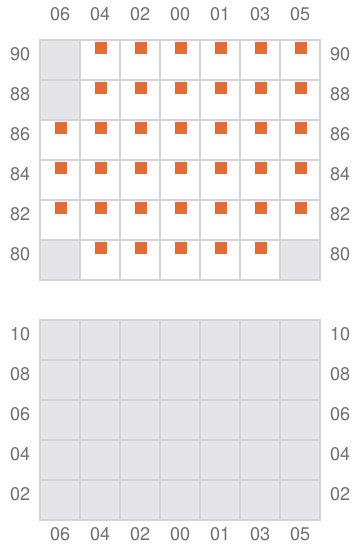

031
- ← / ?
