MH GREEN
9817353 | 9V2475 | ZIM by ************************** Last update: Sun May 28 2023
General Info
Ship Name:MH GREEN
IMO Code:9817353
Call Sign:9V2475
Line Operator:ZIM
Class Name for Sister Ships:GREE
Year Built:2021
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:043
Max ISO Row:14
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:3,194
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

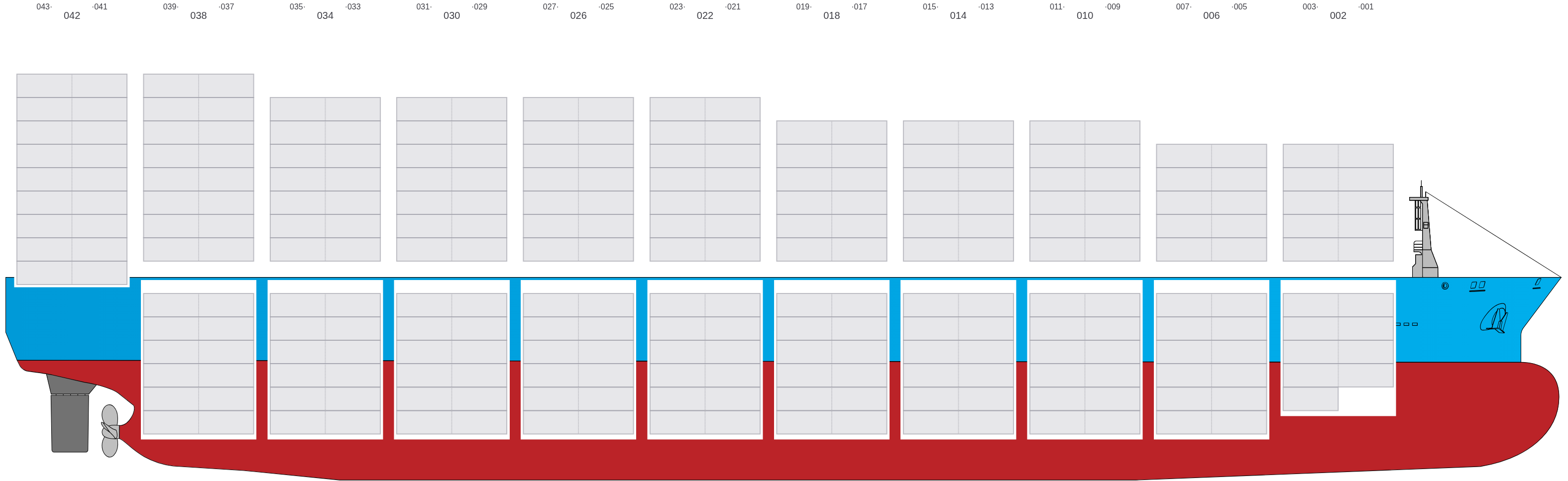

Side View
![Side view of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-sideView.png?v=1685311318279)

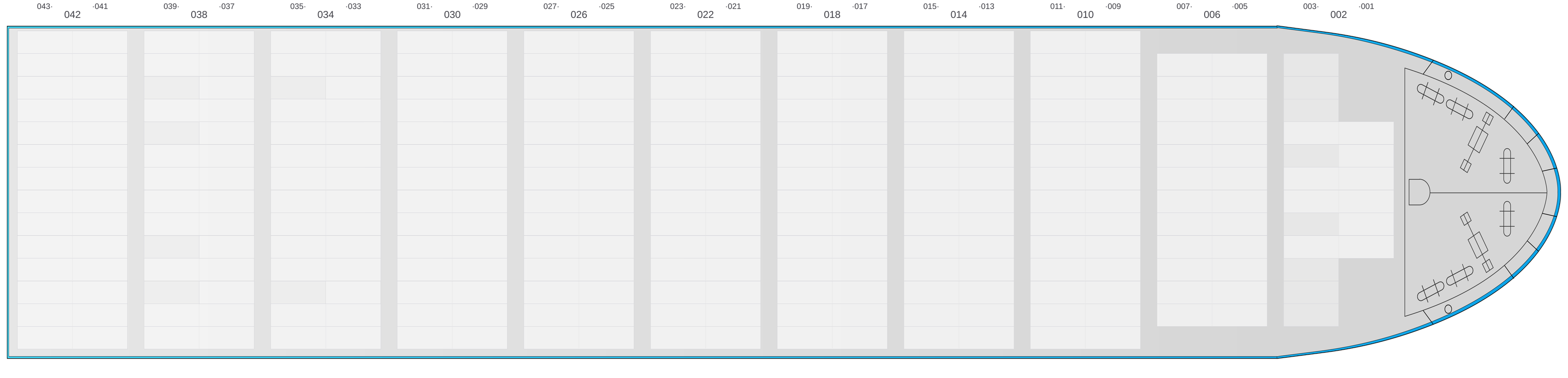

Hatch-Covers View
![Deck view of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-deckView.png?v=1685311318279)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

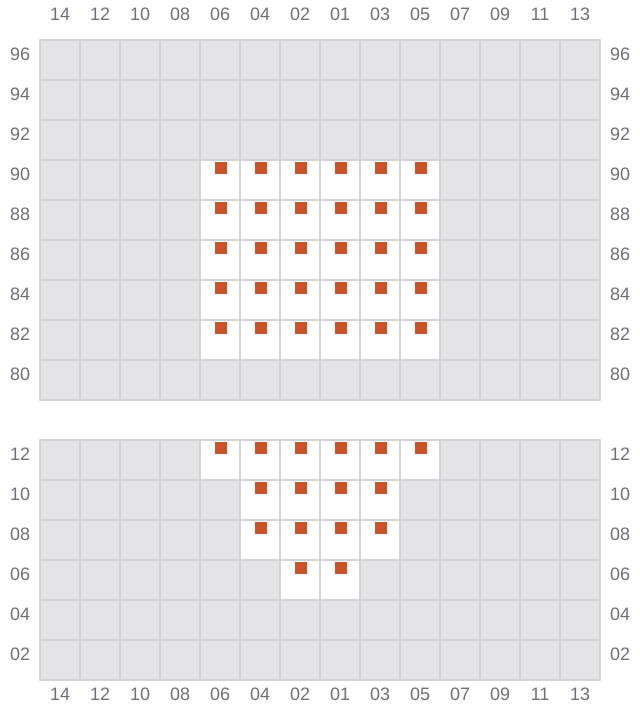

001
- →
![Bay 001 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b001.png?v=1685311318279)

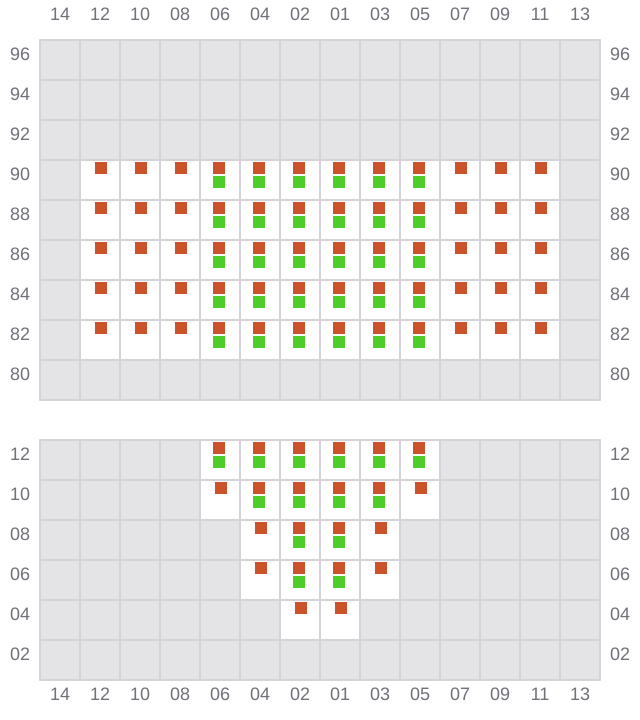

003 (002)
- ←
![Bay 003 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b003.png?v=1685311318279)

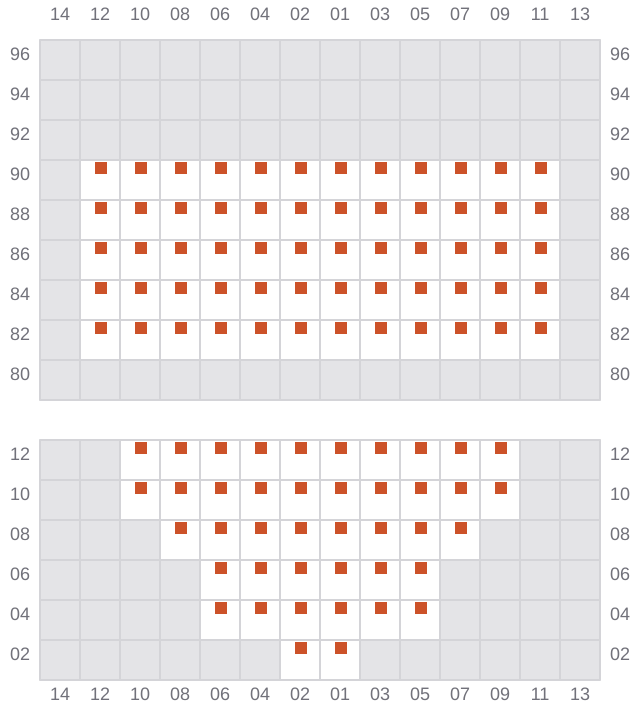

005
- →
![Bay 005 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b005.png?v=1685311318279)

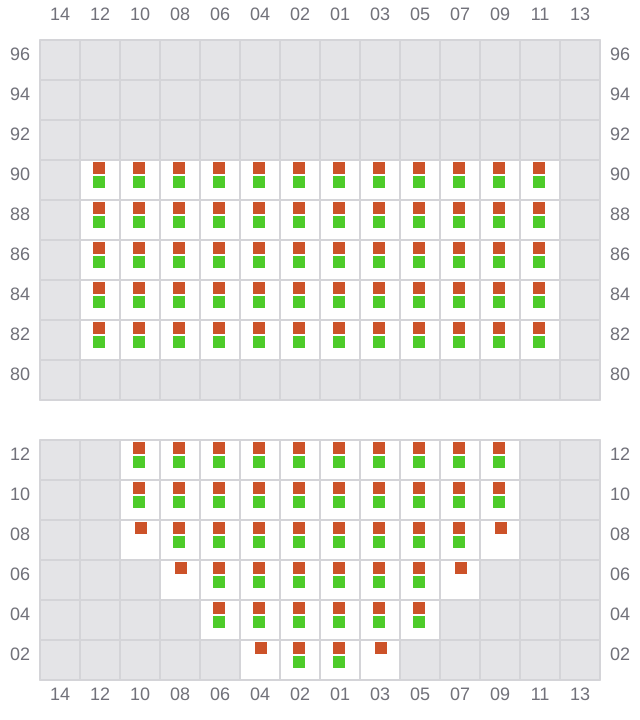

007 (006)
- ←
![Bay 007 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b007.png?v=1685311318279)

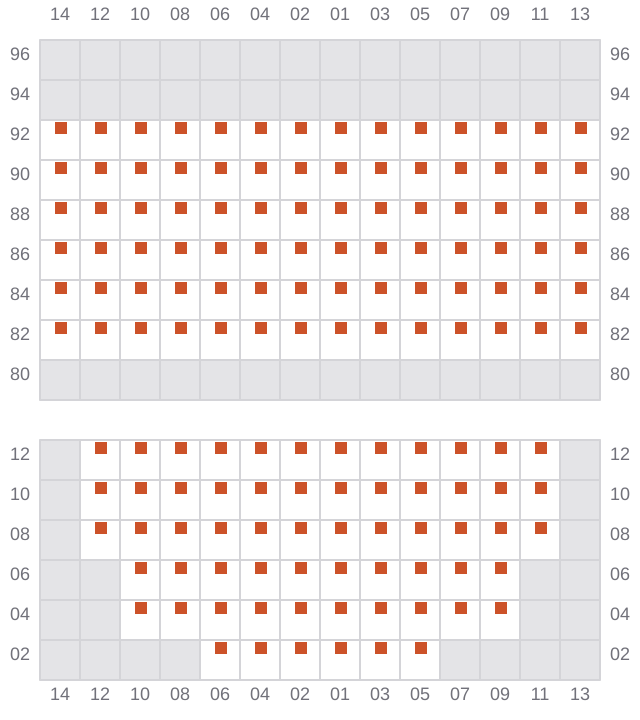

009
- →
![Bay 009 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b009.png?v=1685311318279)

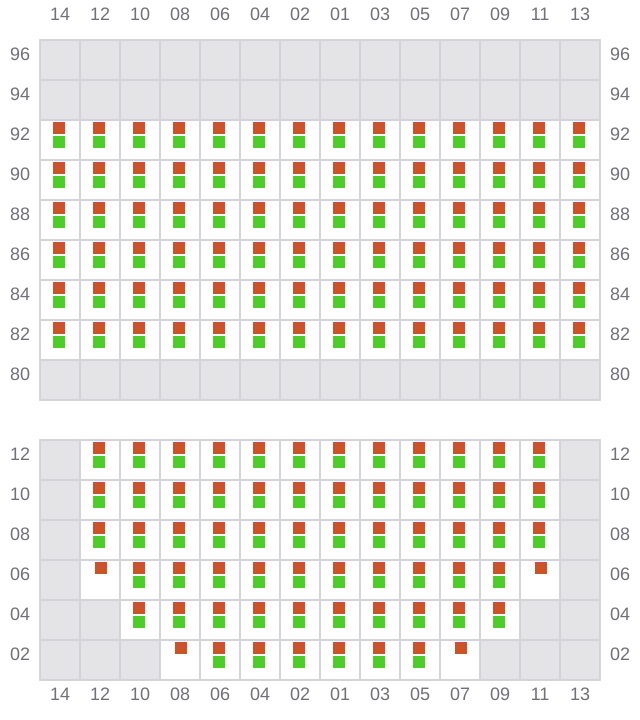

011 (010)
- ←
![Bay 011 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b011.png?v=1685311318279)
013
- →
![Bay 013 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b013.png?v=1685311318279)
015 (014)
- ←
![Bay 015 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b015.png?v=1685311318279)

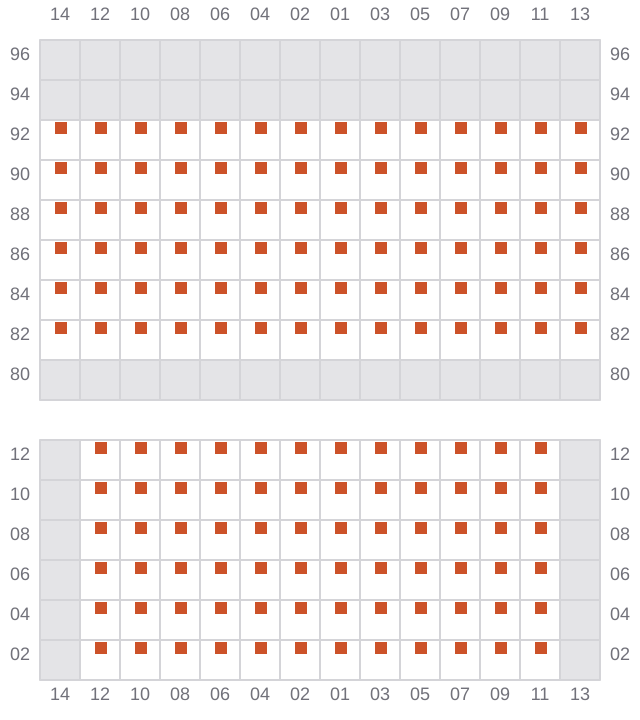

017
- →
![Bay 017 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b017.png?v=1685311318279)

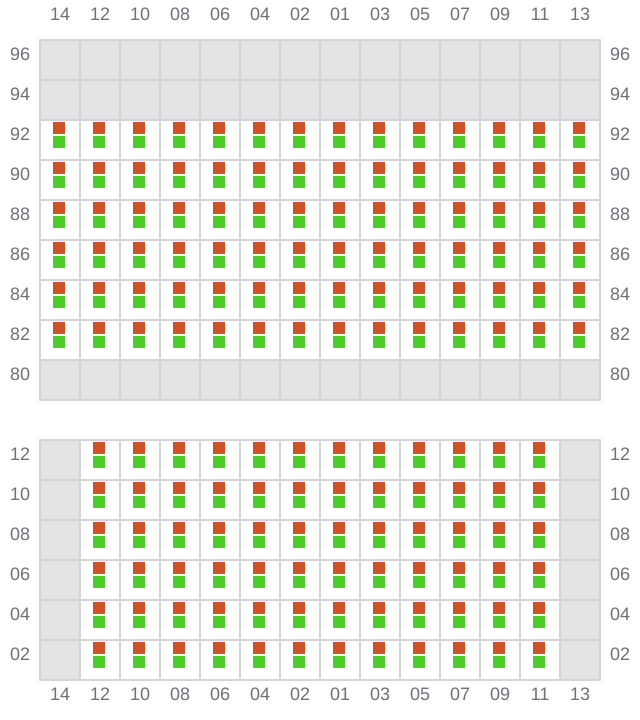

019 (018)
- ←
![Bay 019 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b019.png?v=1685311318279)
021
- →
![Bay 021 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b021.png?v=1685311318279)
023 (022)
- ←
![Bay 023 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b023.png?v=1685311318279)

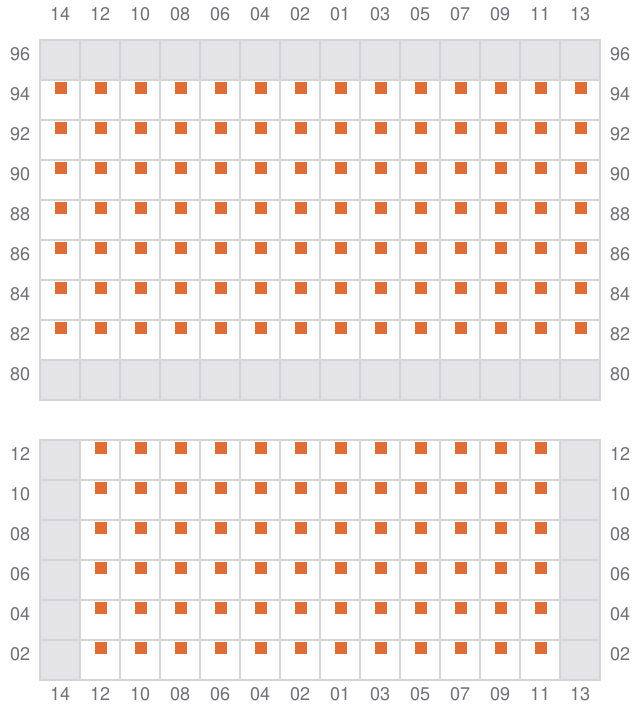

025
- →
![Bay 025 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b025.png?v=1685311318279)

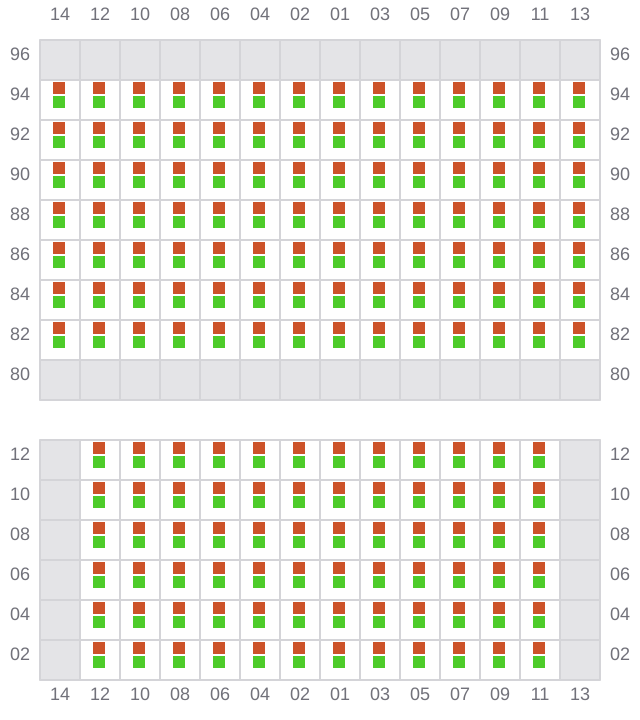

027 (026)
- ←
![Bay 027 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b027.png?v=1685311318279)

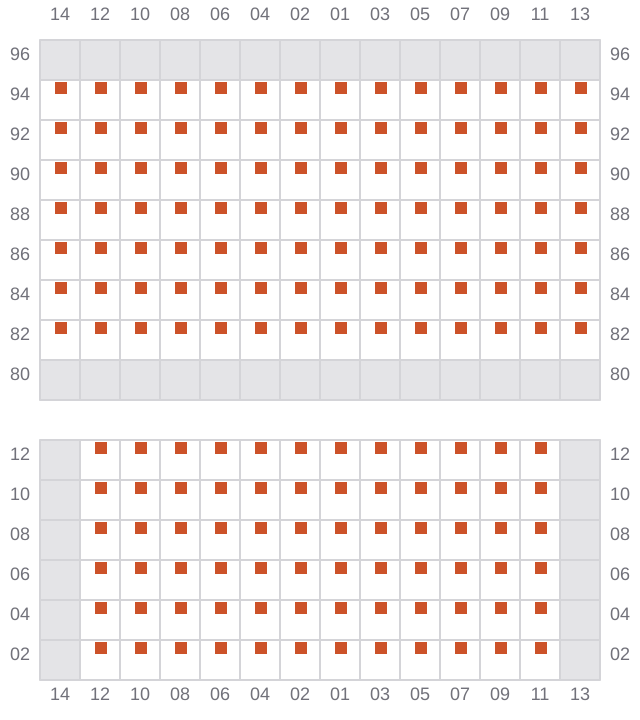

029
- →
![Bay 029 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b029.png?v=1685311318279)
031 (030)
- ←
![Bay 031 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b031.png?v=1685311318279)

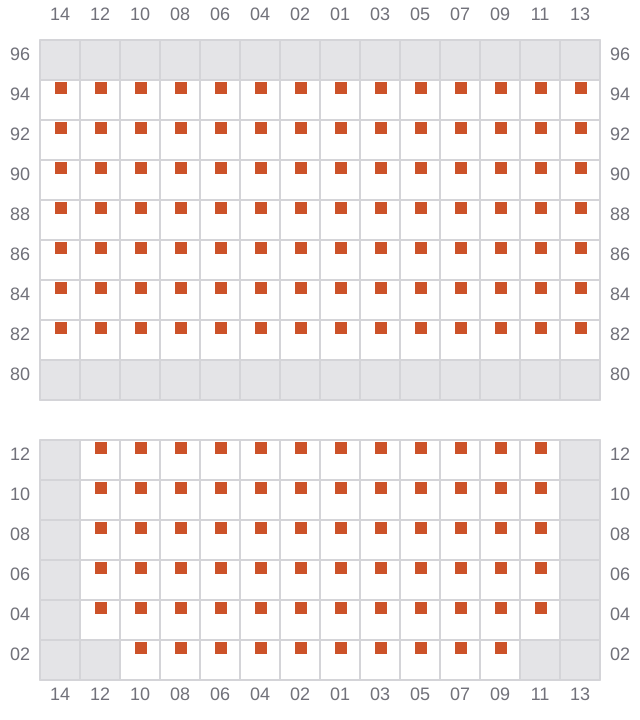

033
- →
![Bay 033 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b033.png?v=1685311318279)

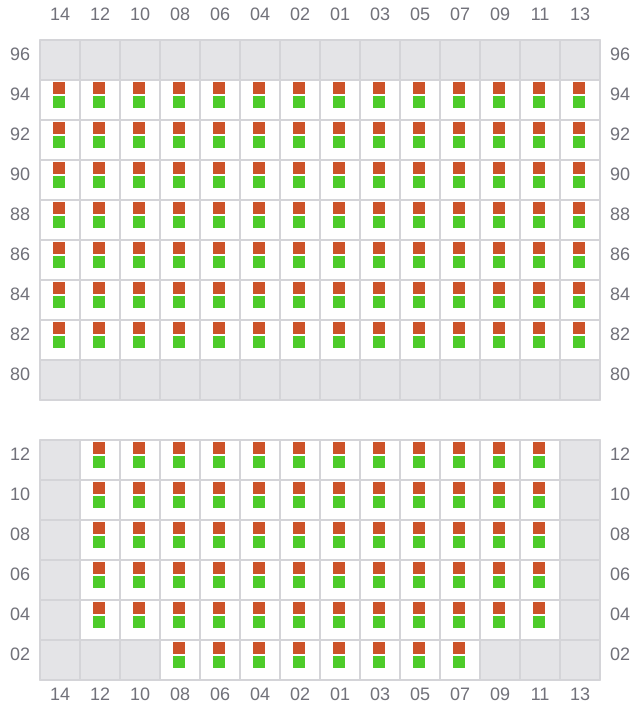

035 (034)
- ←
![Bay 035 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b035.png?v=1685311318279)
037
- →
![Bay 037 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b037.png?v=1685311318279)

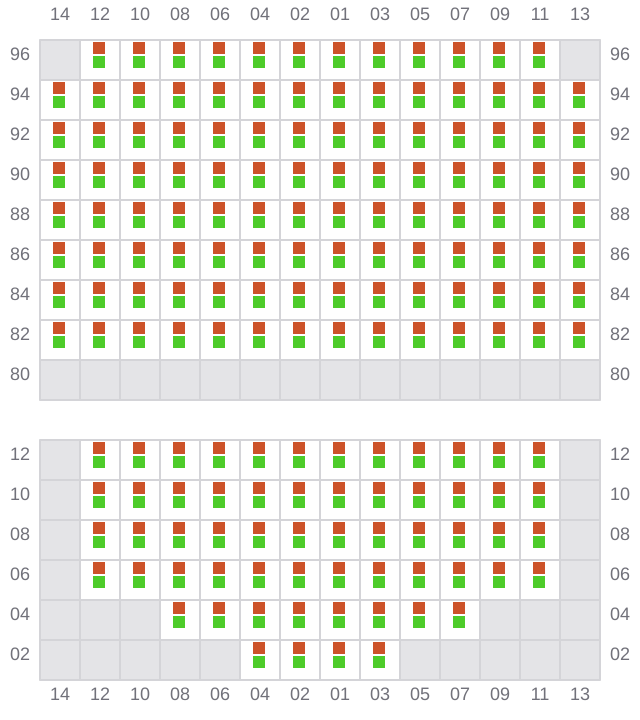

039 (038)
- ←
![Bay 039 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b039.png?v=1685311318279)

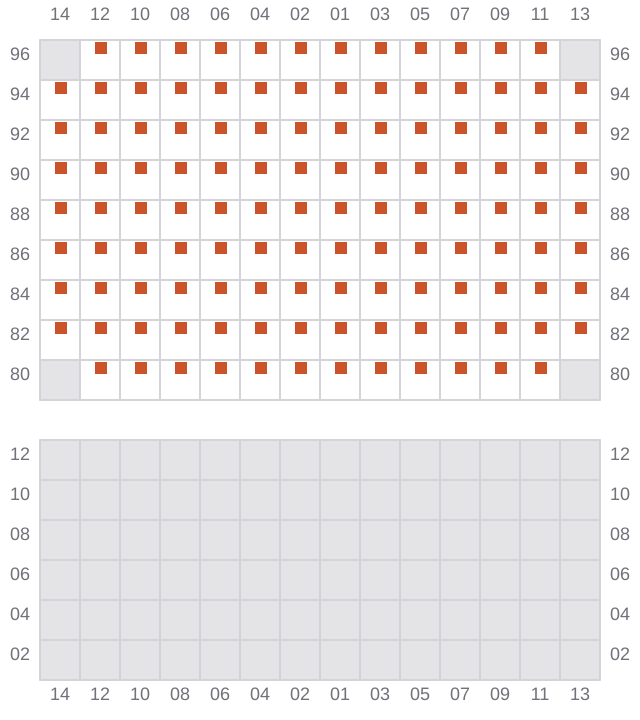

041
- → / ?
![Bay 041 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b041.png?v=1685311318279)

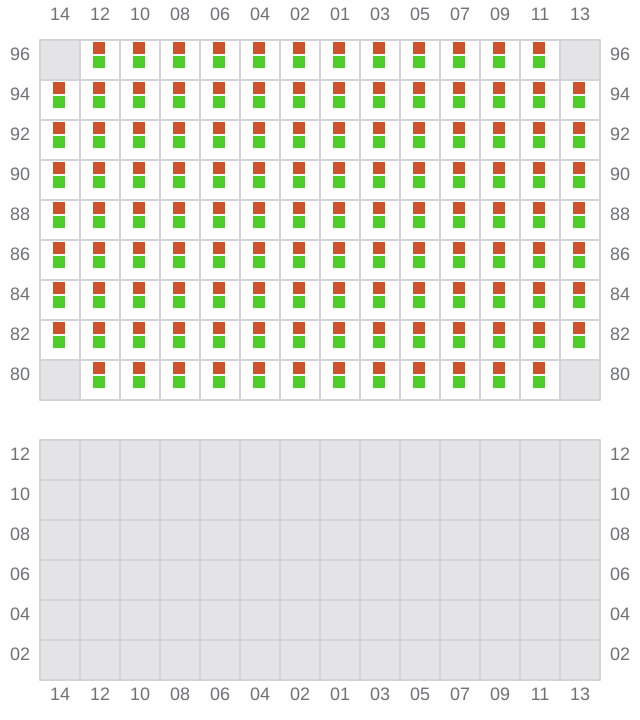

043 (042)
- ← / ?
![Bay 043 view and slots of MH GREEN](/vessel-images/07d0d374-100f-4583-a59b-9101491281bf-b043.png?v=1685311318279)
