MH PERSEUS
9967433 | 9V8721 | CMA by *********************** Last update: Thu Feb 13 2025
General Info
Ship Name:MH PERSEUS
IMO Code:9967433
Call Sign:9V8721
Line Operator:CMA
Class Name for Sister Ships:MHPS
Year Built:2023
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,060
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- →
003
- ←
- →
005 (006)
- →
- → / ?
- →

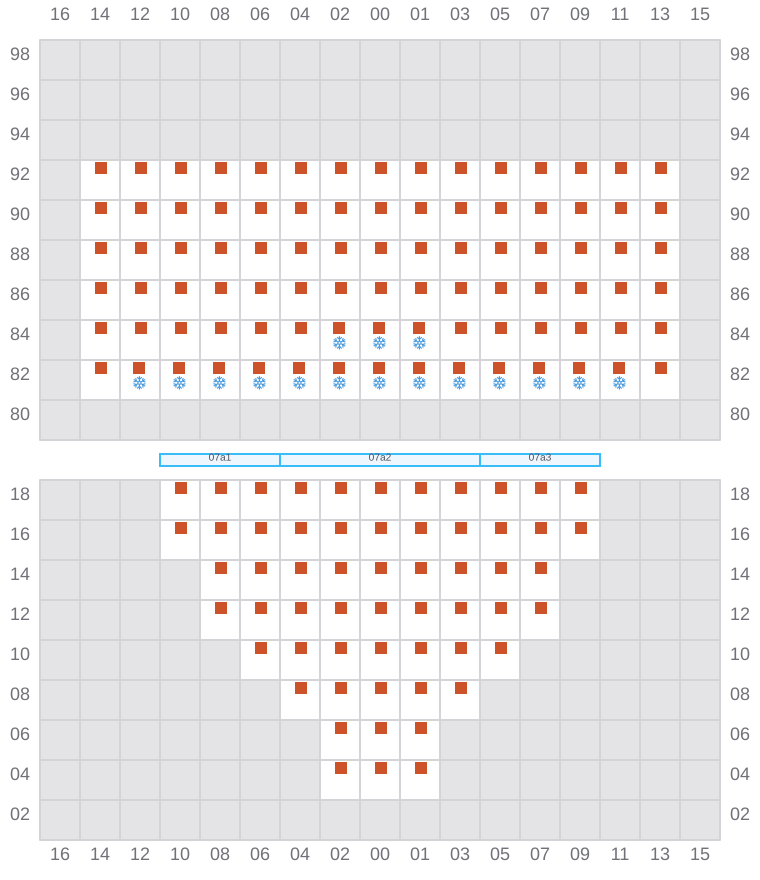

007
- ←
- → / ?
- →
009 (010)
- →
- → / ?
- →
011
- ←
- → / ?
- →
013 (014)
- →
- → / ?
- →
015
- ←
- → / ?
- →

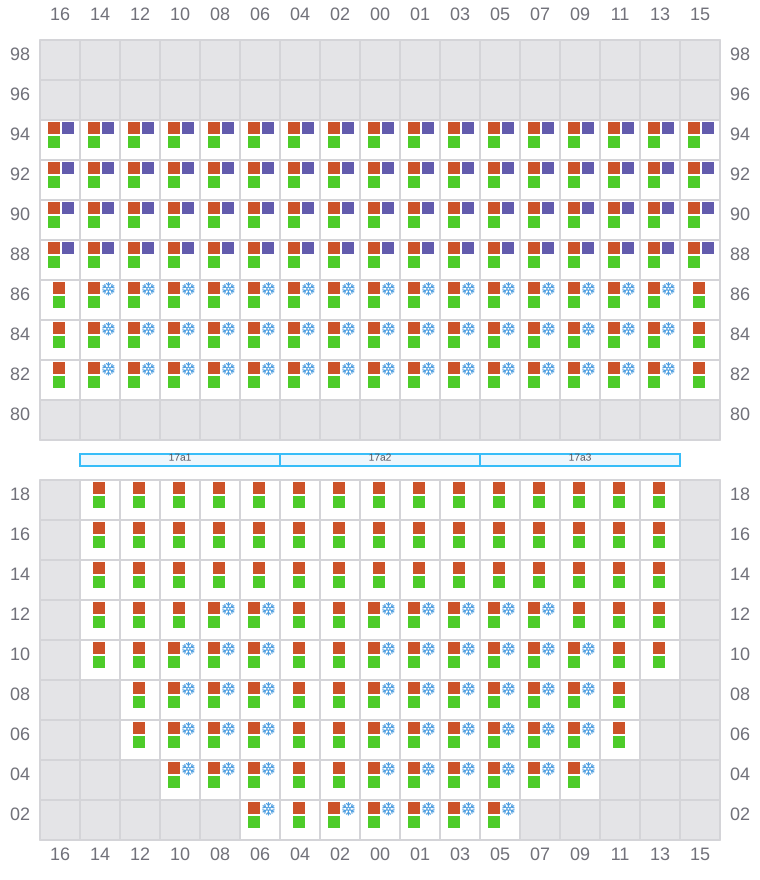

017 (018)
- →
- →
- →

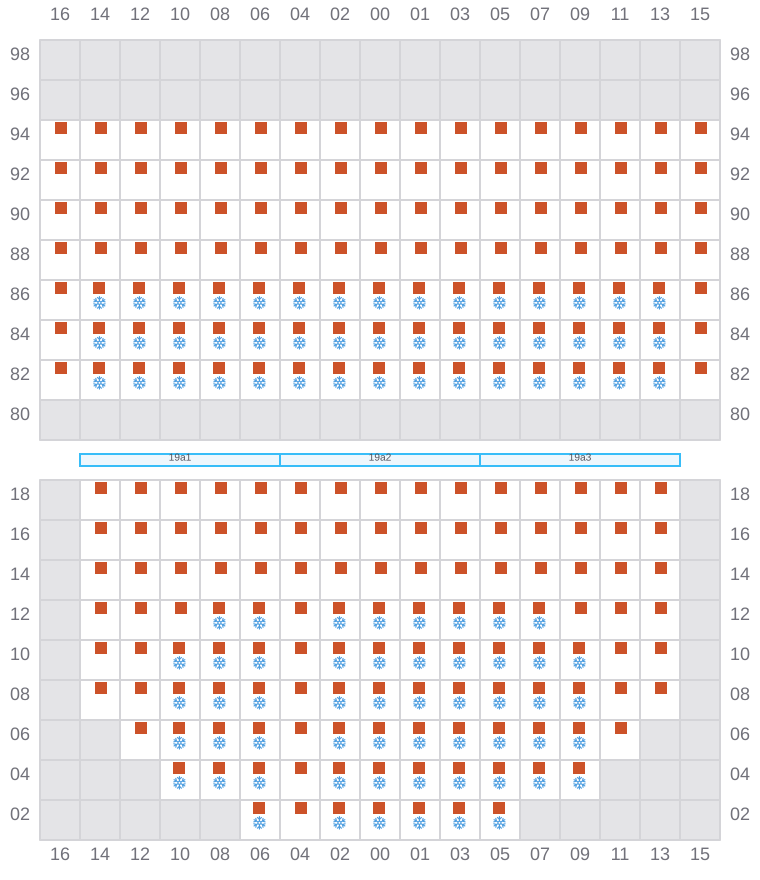

019
- ←
- →
- →
021 (022)
- →
- → / ?
- →
023
- ←
- → / ?
- →
025 (026)
- →
- →
- →

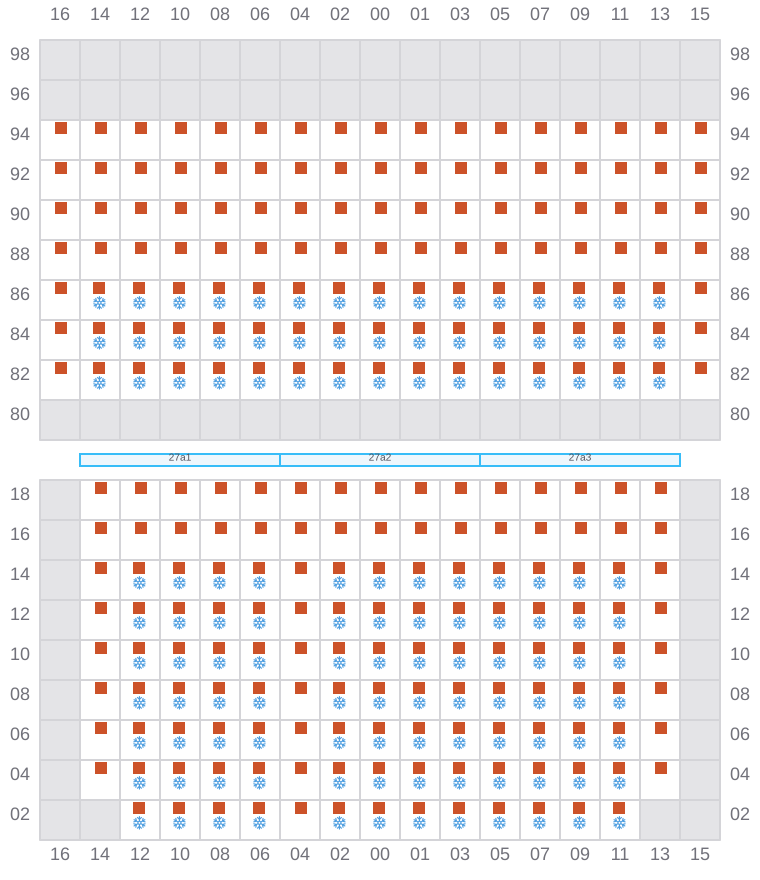

027
- ←
- →
- →
029 (030)
- →
- → / ?
- →
031
- ←
- → / ?
- →
033 (034)
- →
- →
- →
035
- ←
- →
- →
037 (038)
- →
- → / ?
- →

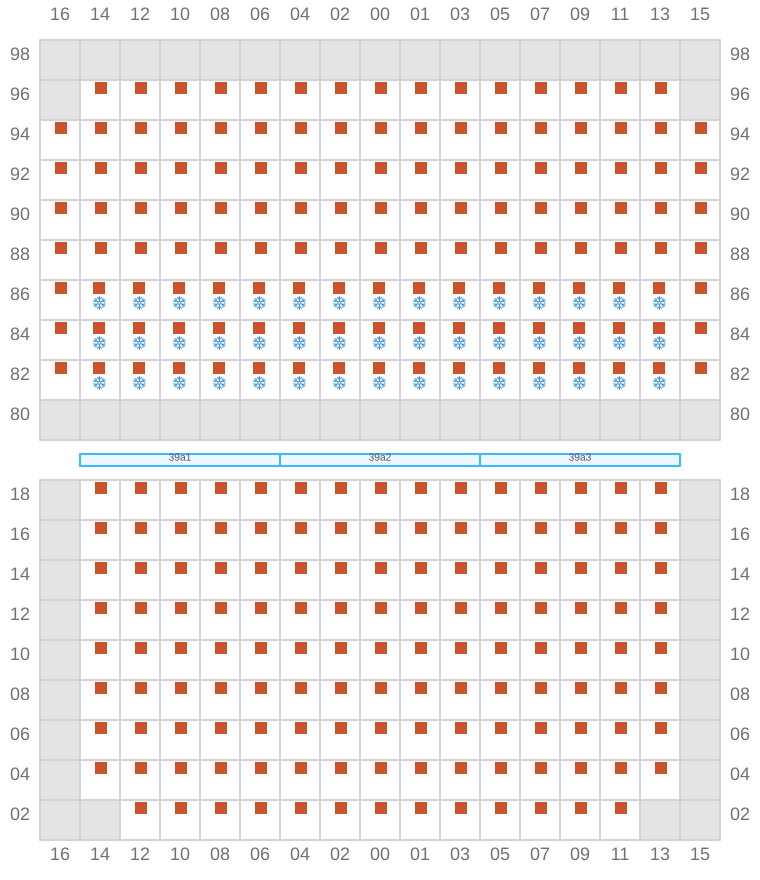

039
- ←
- → / ?
- →
041 (042)
- →
- → / ?
- →
043
- ←
- → / ?
- →
045 (046)
- →
- → / ?
- →

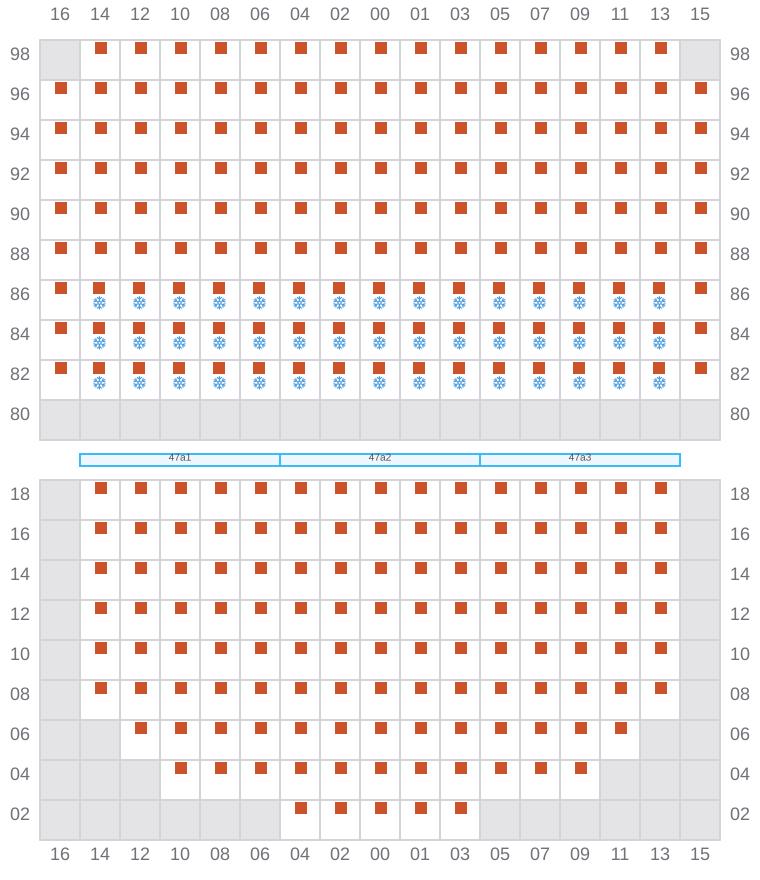

047
- ←
- → / ?
- →
049 (050)
- →
- → / ?
- →
051
- ←
- → / ?
- →
053 (054)
- →
- → / ?
- →
055
- ←
- → / ?
- →
057 (058)
- →
- → / ?
- →

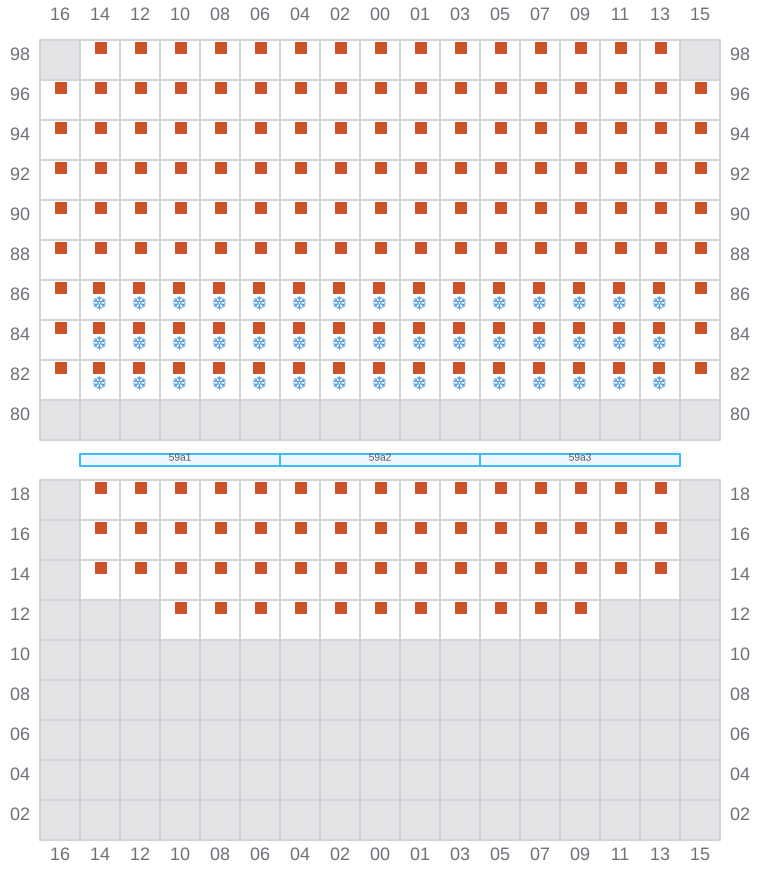

059
- ←
- → / ?
- →

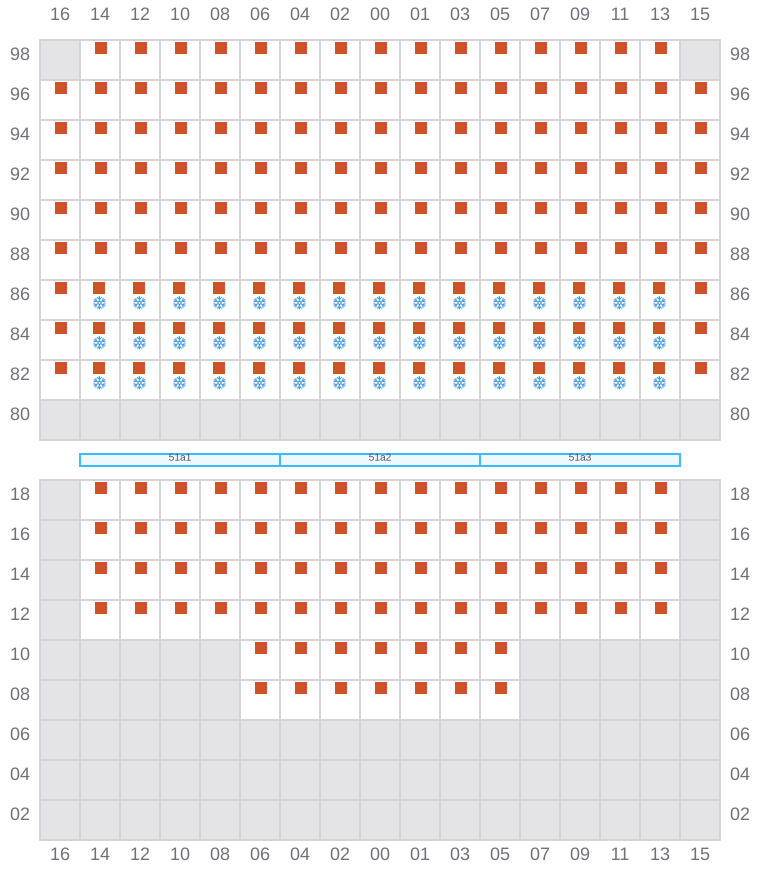

061 (062)
- → / ?
- → / ?
- → / ?
