MICRONESIAN PRIDE
9148805 | YJXB6 | 9148805 by ********* Last update: Fri Mar 08 2024

General Info

Ship Name:MICRONESIAN PRIDE
IMO Code:9148805
Call Sign:YJXB6
Line Operator:9148805
Class Name for Sister Ships:58M
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):94.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:023
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:80
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:364

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

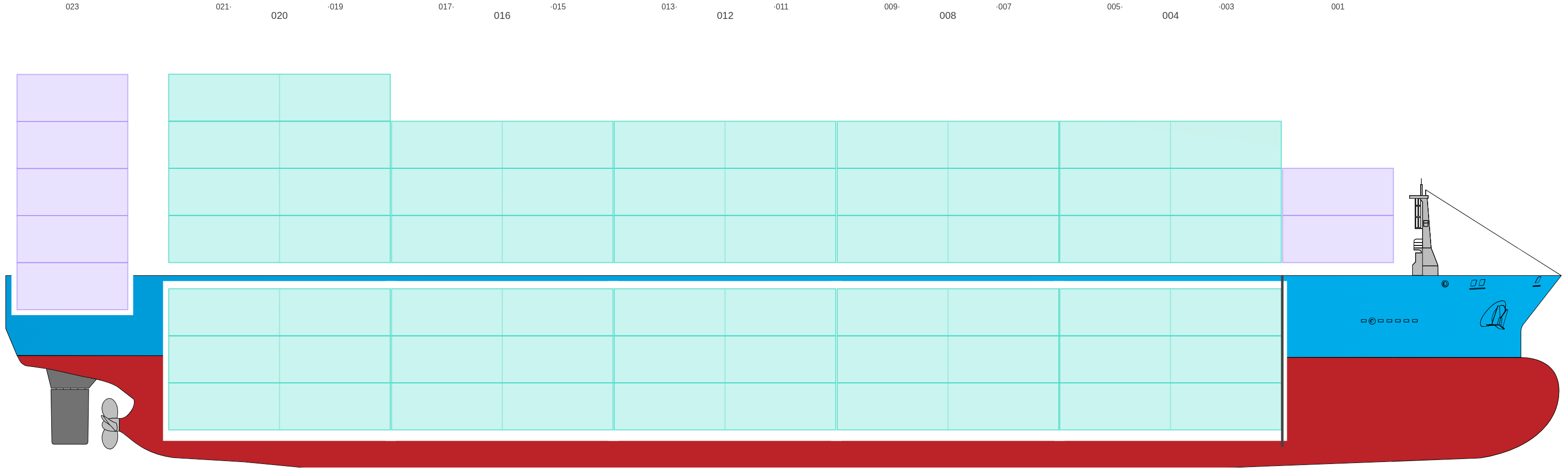

Side view of MICRONESIAN PRIDE

Hatch-Covers View

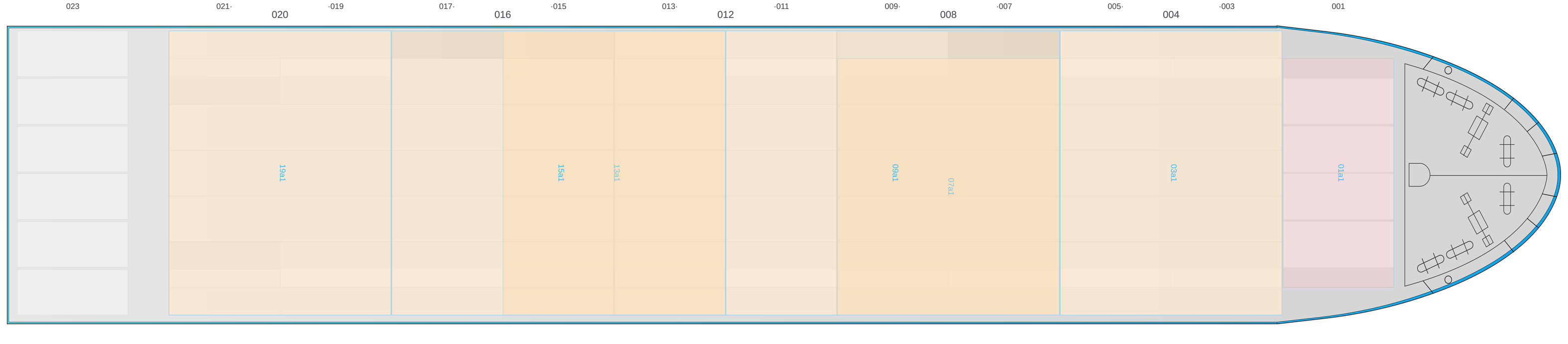

Deck view of MICRONESIAN PRIDE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

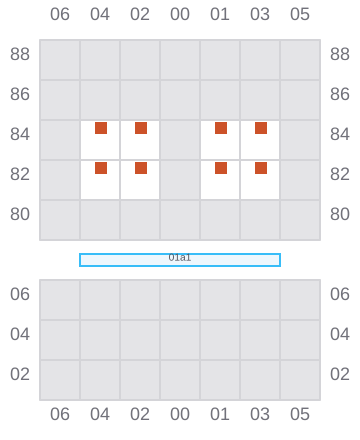

Bay 001 view and slots of MICRONESIAN PRIDE

003 (004)

  • →

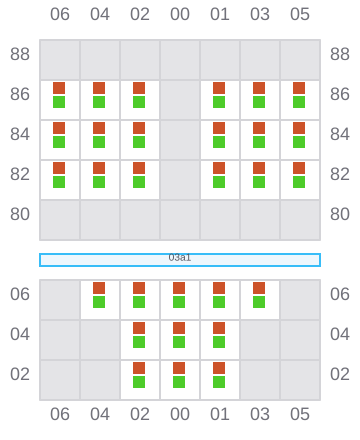

Bay 003 view and slots of MICRONESIAN PRIDE

005

  • ←
Bay 005 view and slots of MICRONESIAN PRIDE

007 (008)

  • →

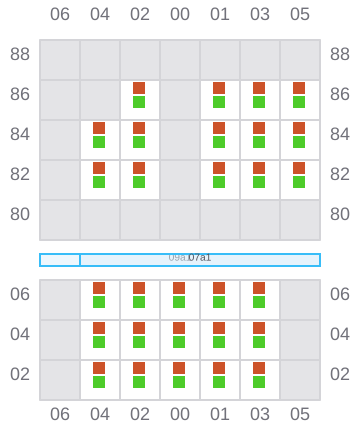

Bay 007 view and slots of MICRONESIAN PRIDE

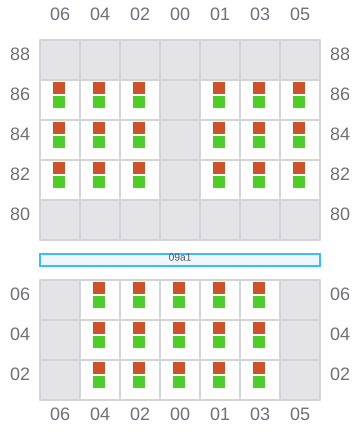

009

  • ←

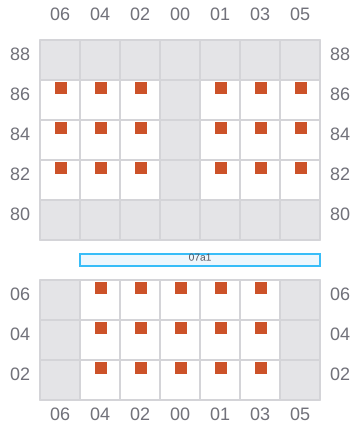

Bay 009 view and slots of MICRONESIAN PRIDE

011 (012)

  • →
Bay 011 view and slots of MICRONESIAN PRIDE

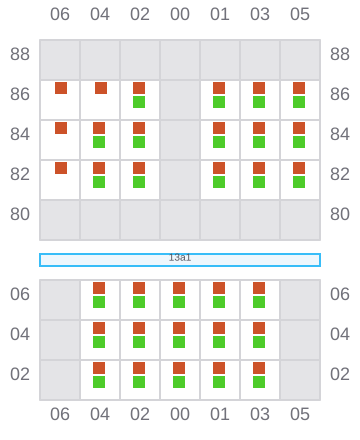

013

  • ←

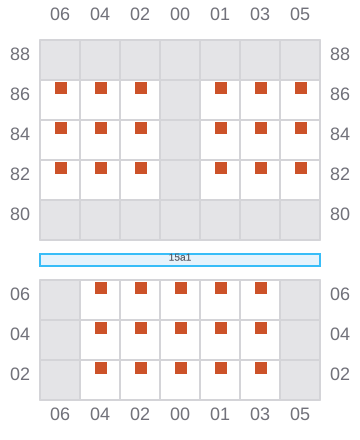

Bay 013 view and slots of MICRONESIAN PRIDE

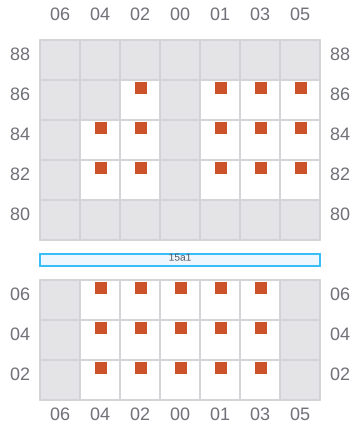

015 (016)

  • →
Bay 015 view and slots of MICRONESIAN PRIDE

017

  • ←
Bay 017 view and slots of MICRONESIAN PRIDE

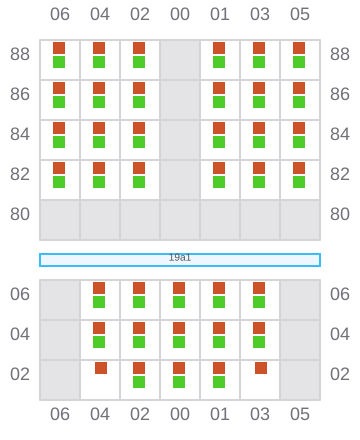

019 (020)

  • →
Bay 019 view and slots of MICRONESIAN PRIDE

021

  • ←

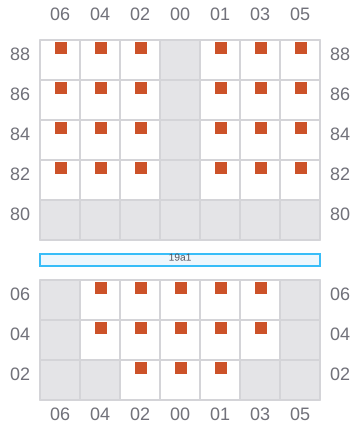

Bay 021 view and slots of MICRONESIAN PRIDE

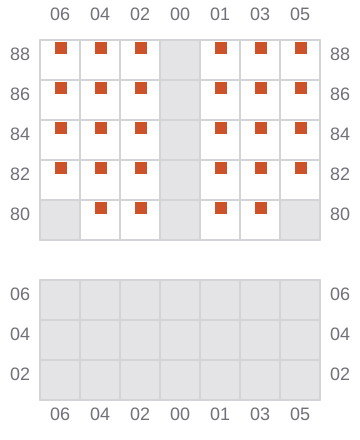

023

Bay 023 view and slots of MICRONESIAN PRIDE
