MILAN MAERSK
9778820 | OWGK2 | 9778820 by ********* Last update: Tue Jun 25 2024

General Info

Ship Name:MILAN MAERSK
IMO Code:9778820
Call Sign:OWGK2
Line Operator:9778820
Class Name for Sister Ships:MAE
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:20,200

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MILAN MAERSK

Hatch-Covers View

Deck view of MILAN MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

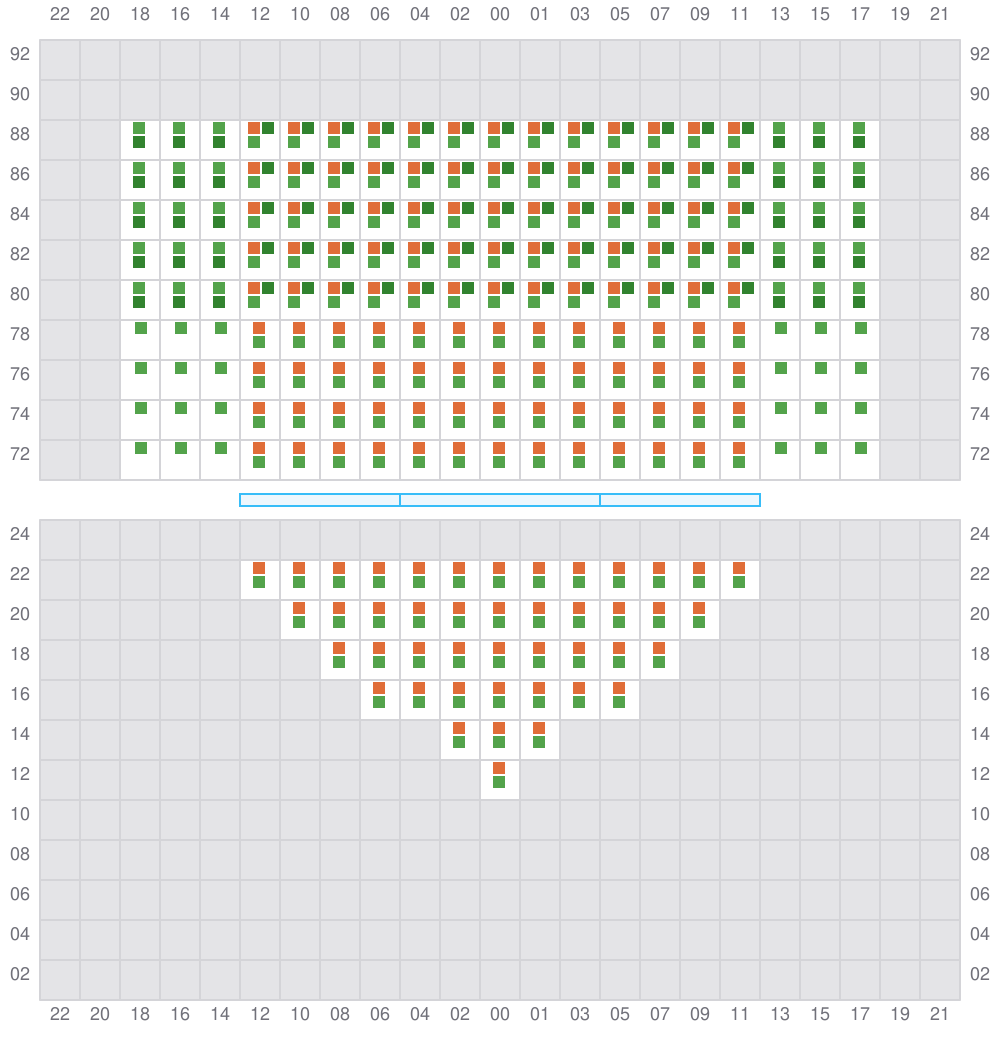

Bay 001 view and slots of MILAN MAERSK

003

  • ←

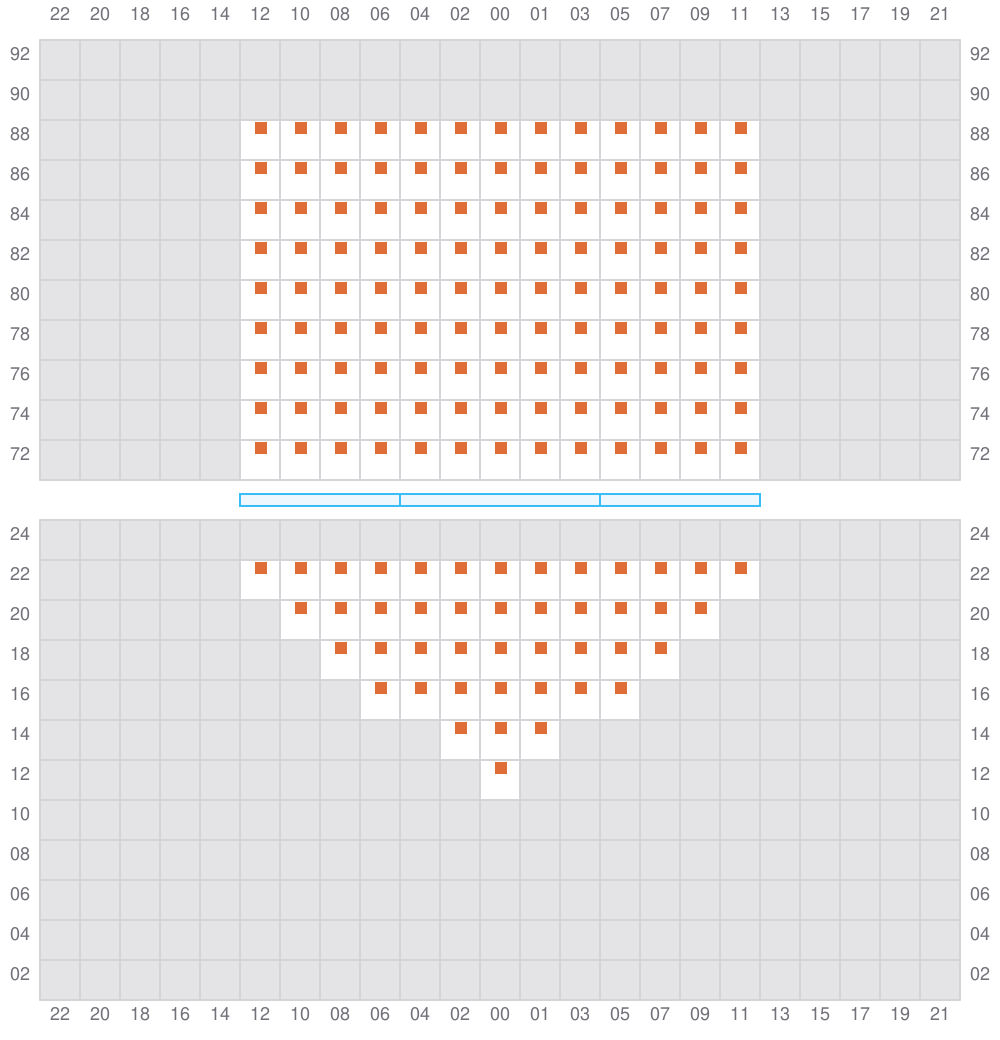

Bay 003 view and slots of MILAN MAERSK

005 (006)

  • →
Bay 005 view and slots of MILAN MAERSK

007

  • ←

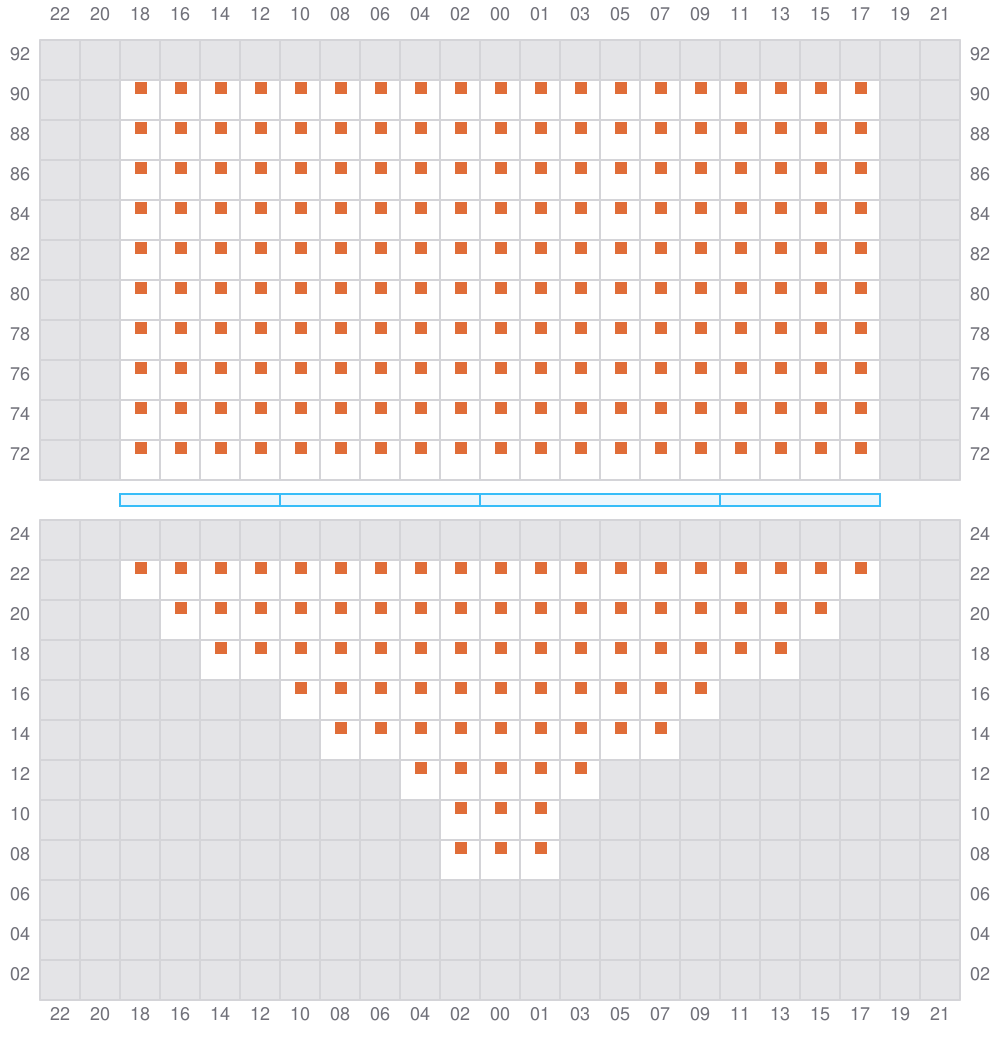

Bay 007 view and slots of MILAN MAERSK

009 (010)

  • →
Bay 009 view and slots of MILAN MAERSK

011

  • ←

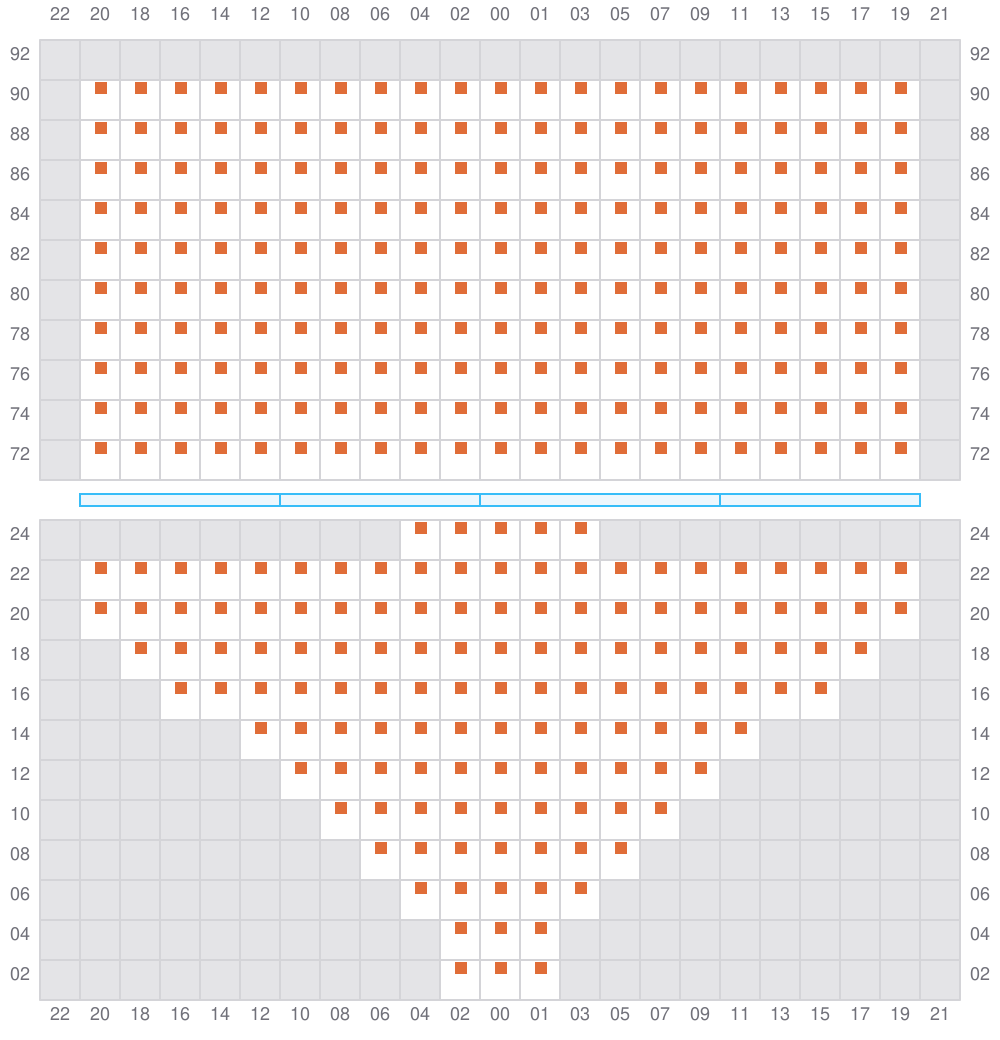

Bay 011 view and slots of MILAN MAERSK

013 (014)

  • →

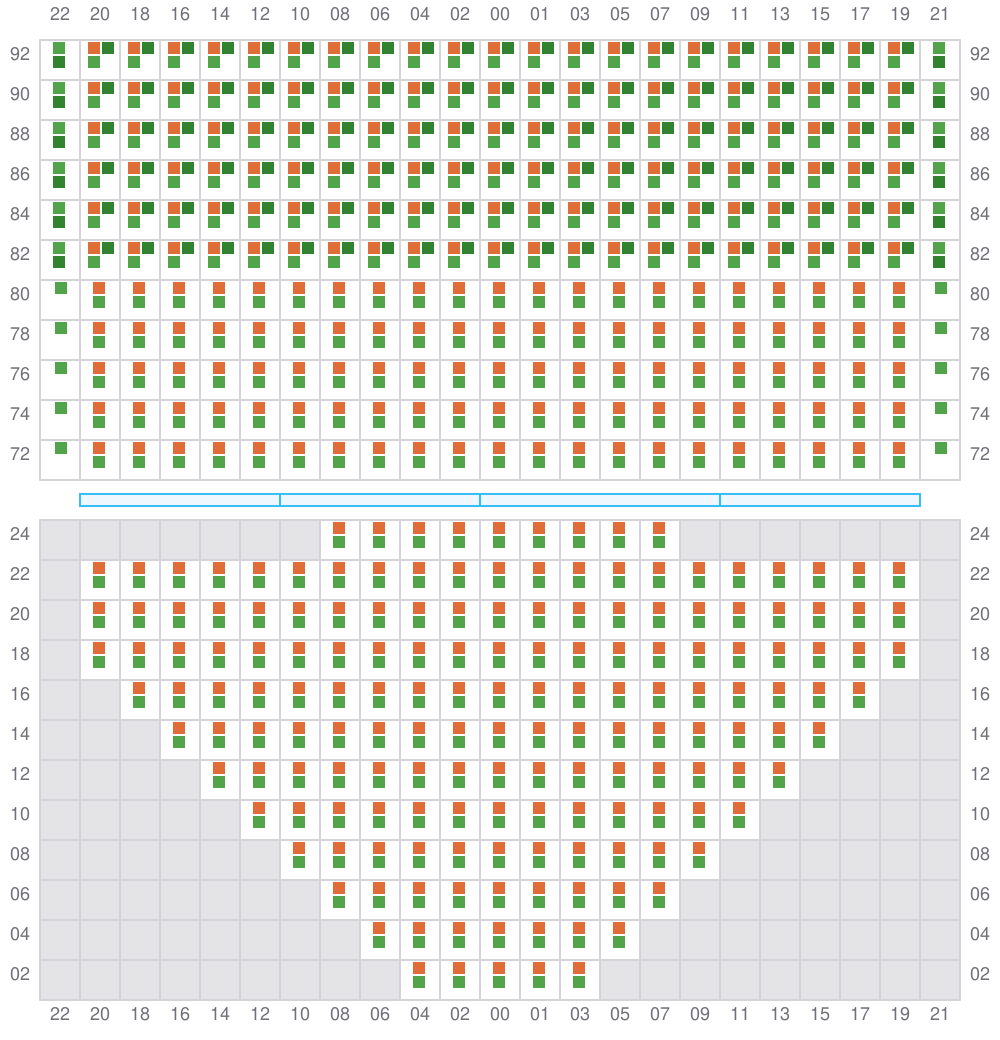

Bay 013 view and slots of MILAN MAERSK

015

  • ←

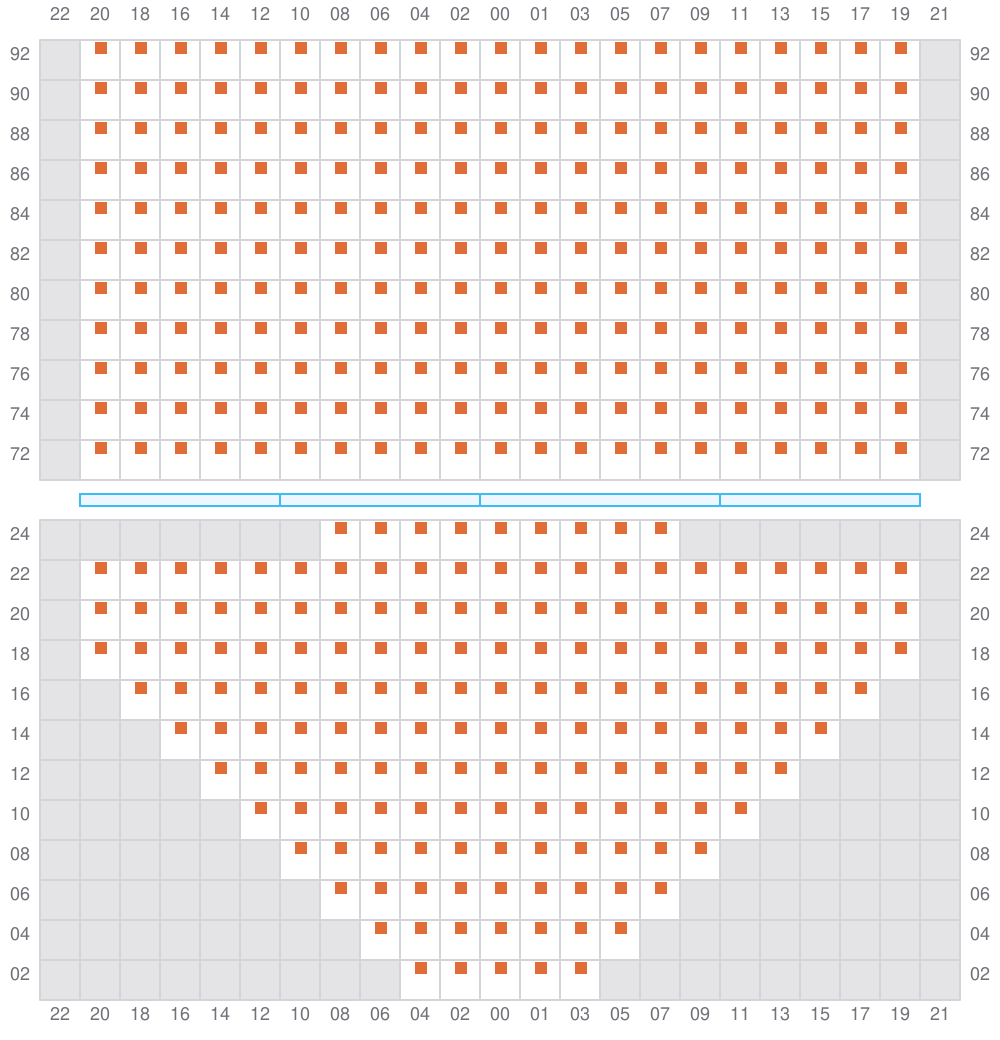

Bay 015 view and slots of MILAN MAERSK

017 (018)

  • →

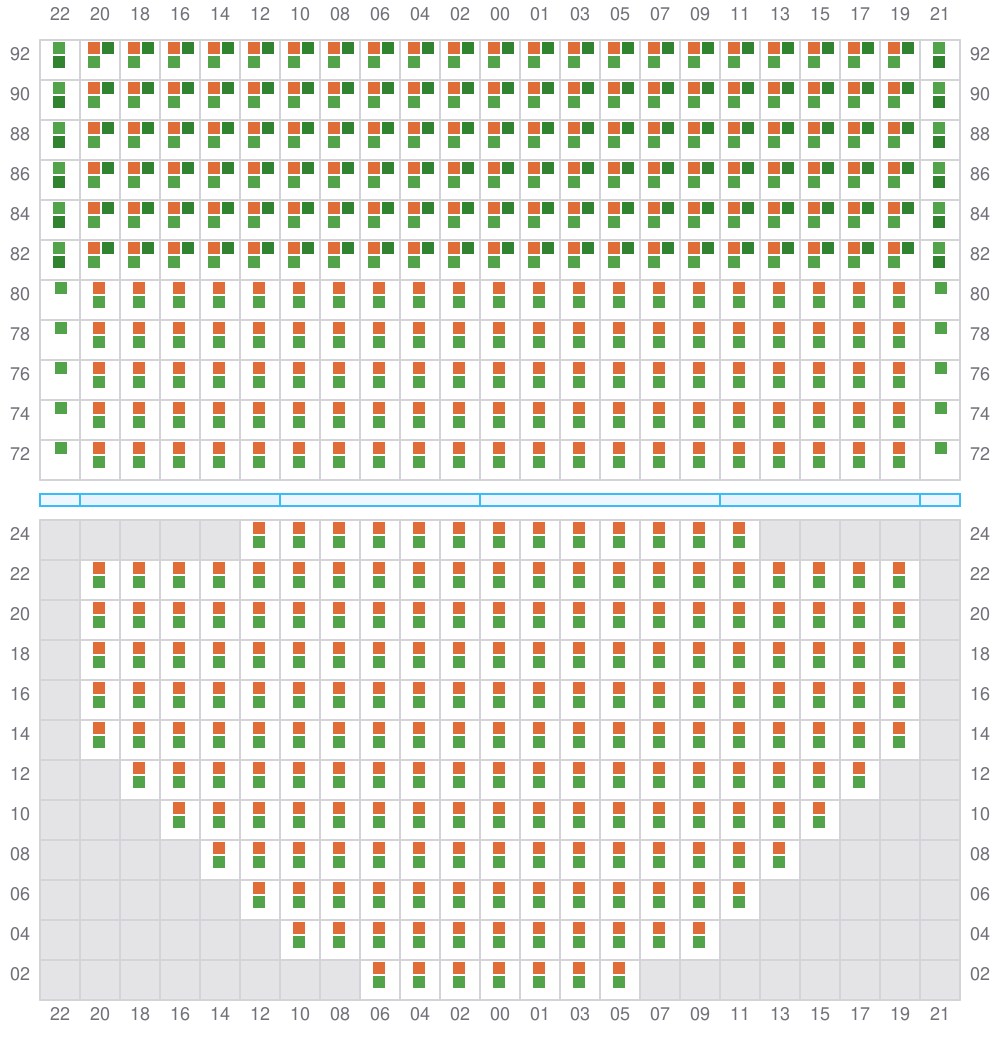

Bay 017 view and slots of MILAN MAERSK

019

  • ←

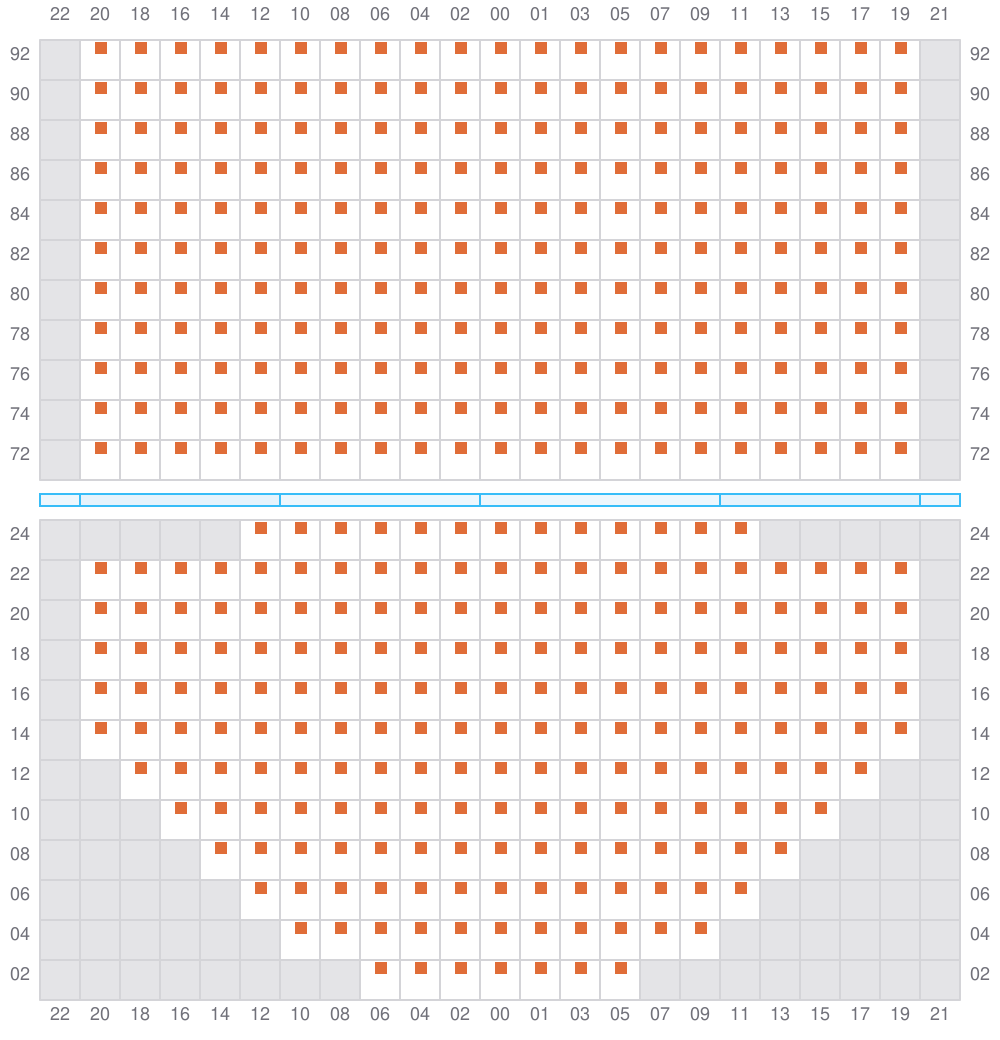

Bay 019 view and slots of MILAN MAERSK

021 (022)

  • →

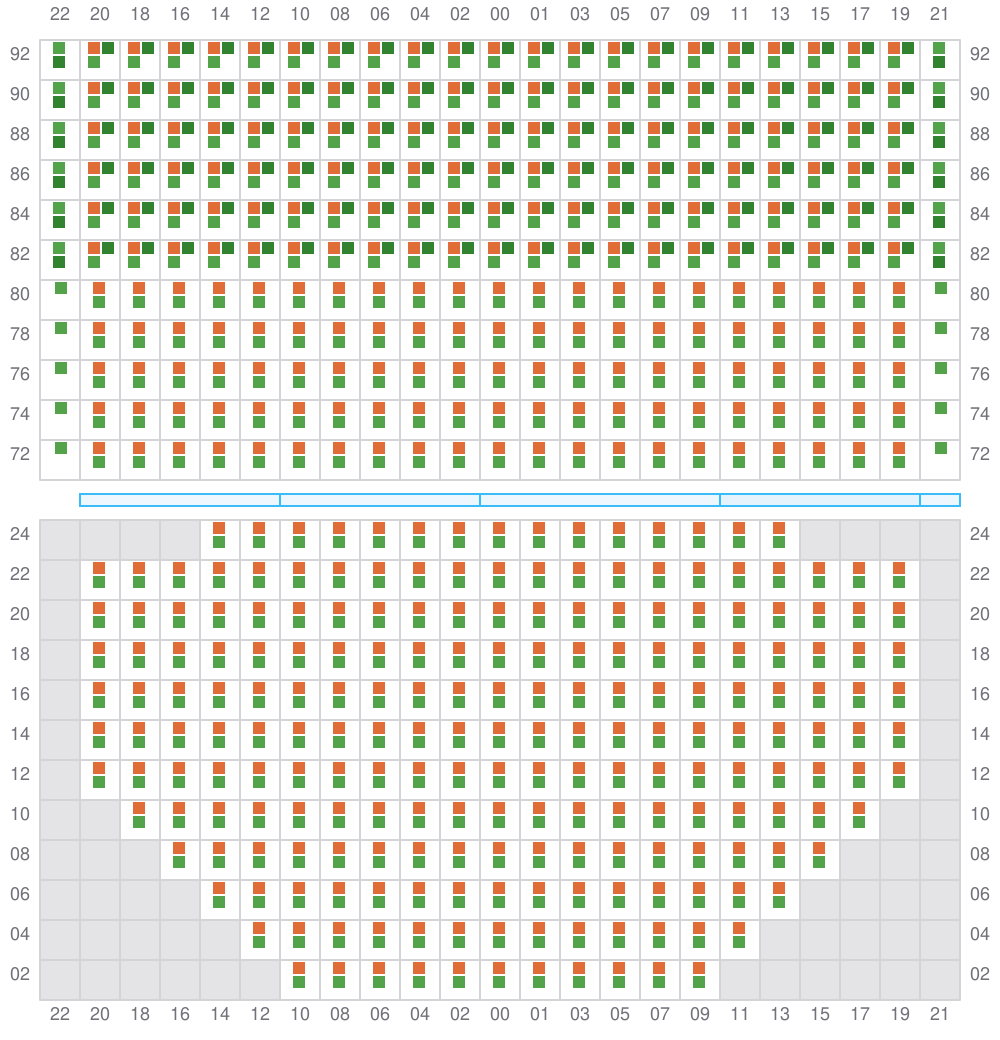

Bay 021 view and slots of MILAN MAERSK

023

  • ←

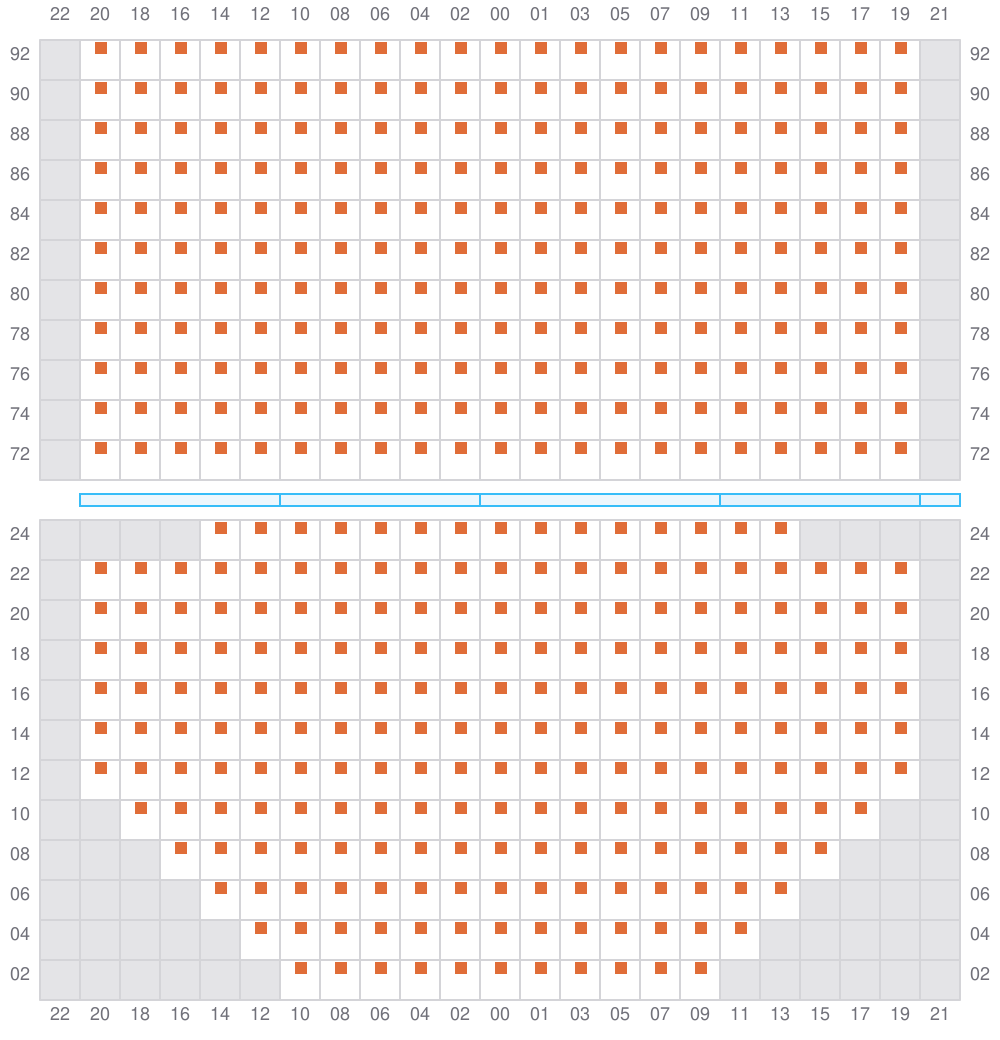

Bay 023 view and slots of MILAN MAERSK

025 (026)

  • →

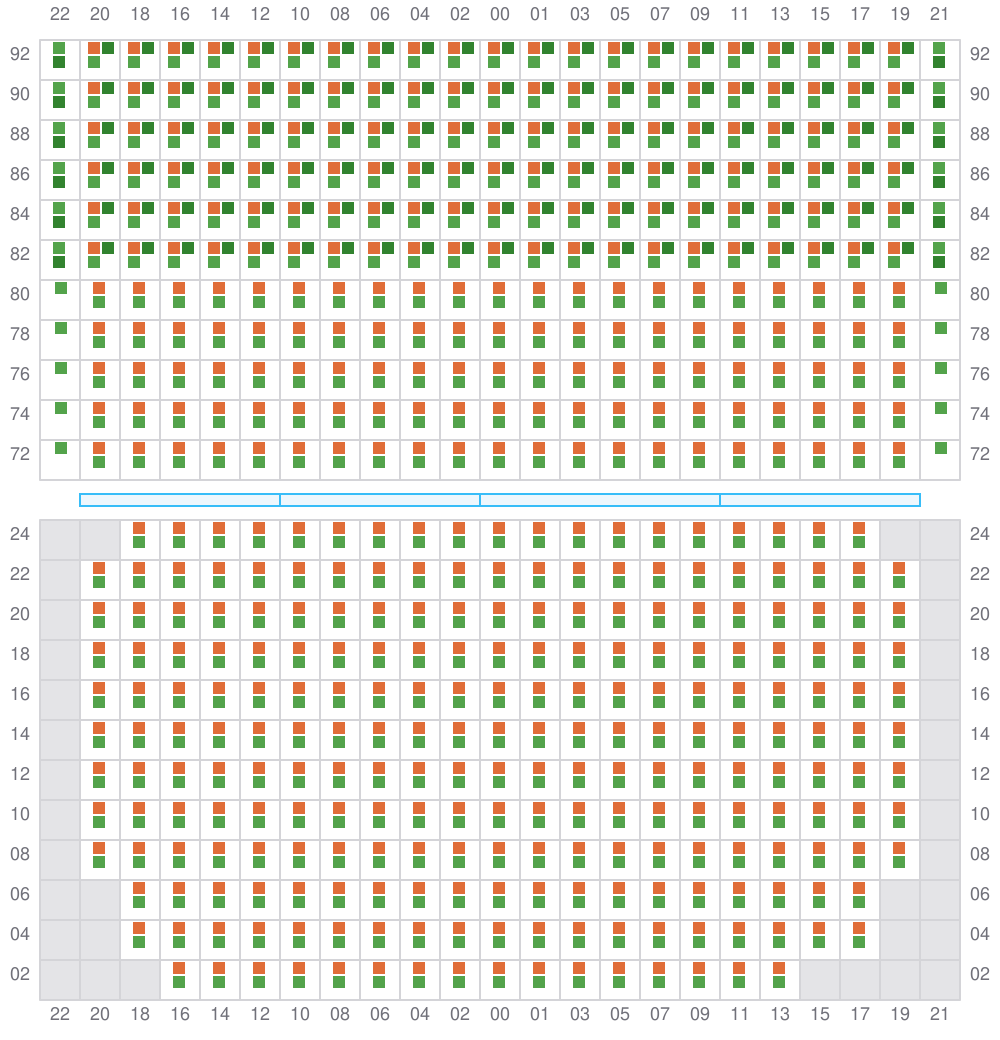

Bay 025 view and slots of MILAN MAERSK

027

  • ←
  • → / ?

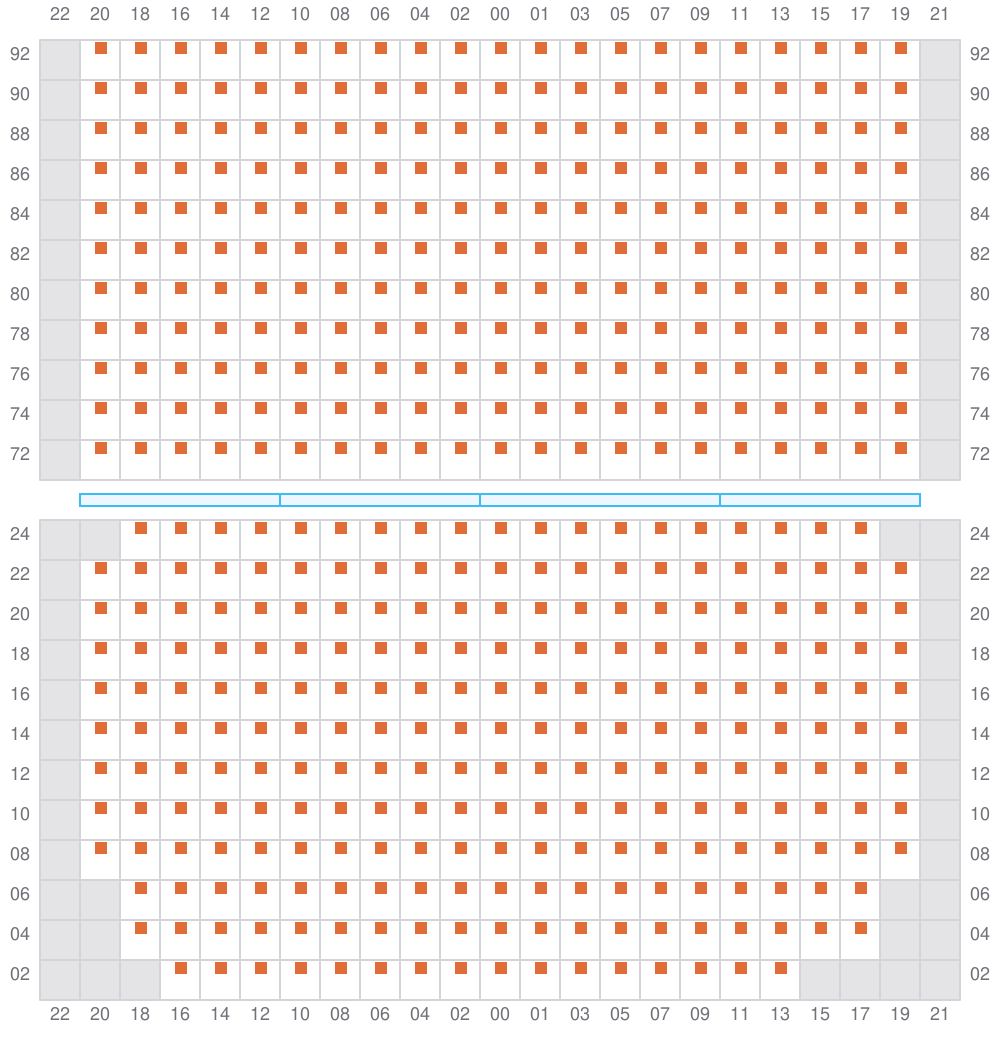

Bay 027 view and slots of MILAN MAERSK

029 (030)

  • →
Bay 029 view and slots of MILAN MAERSK

031

  • ←
  • → / ?

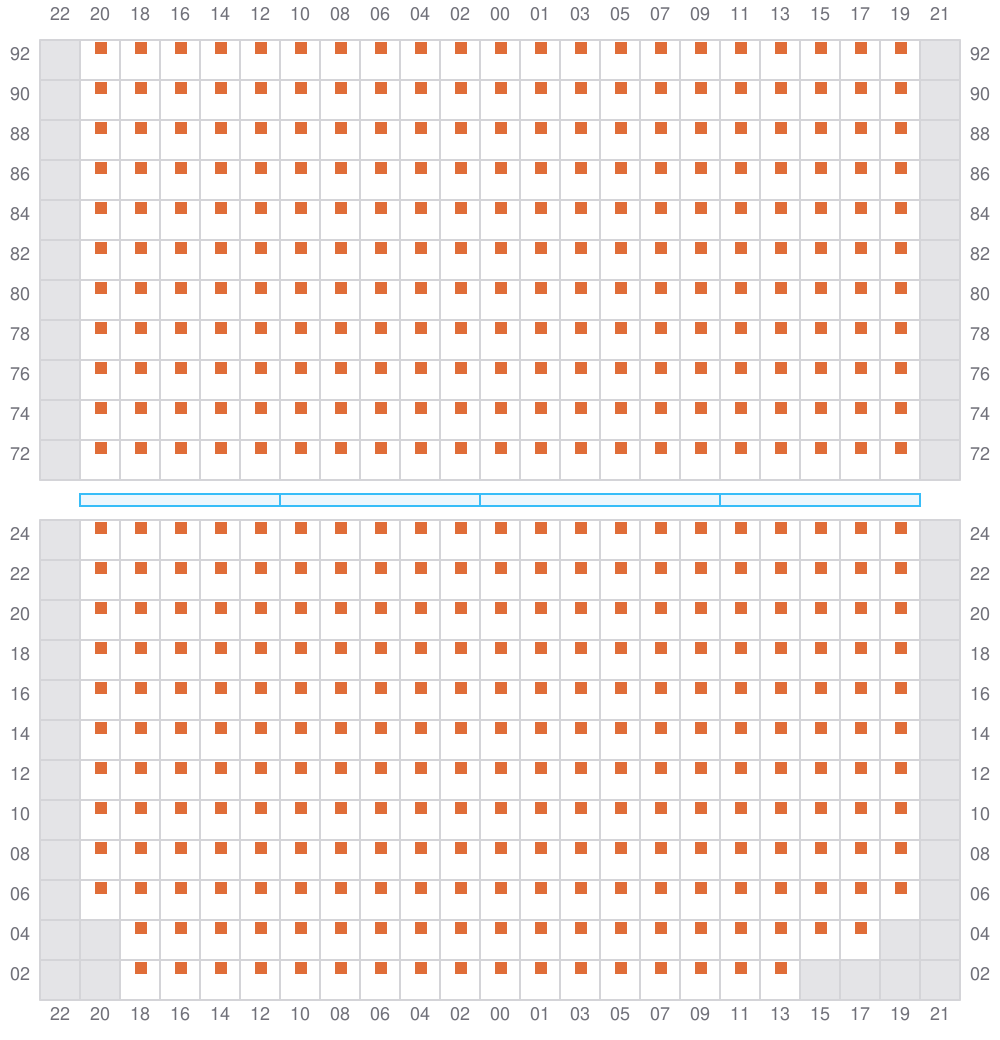

Bay 031 view and slots of MILAN MAERSK

033 (034)

  • →

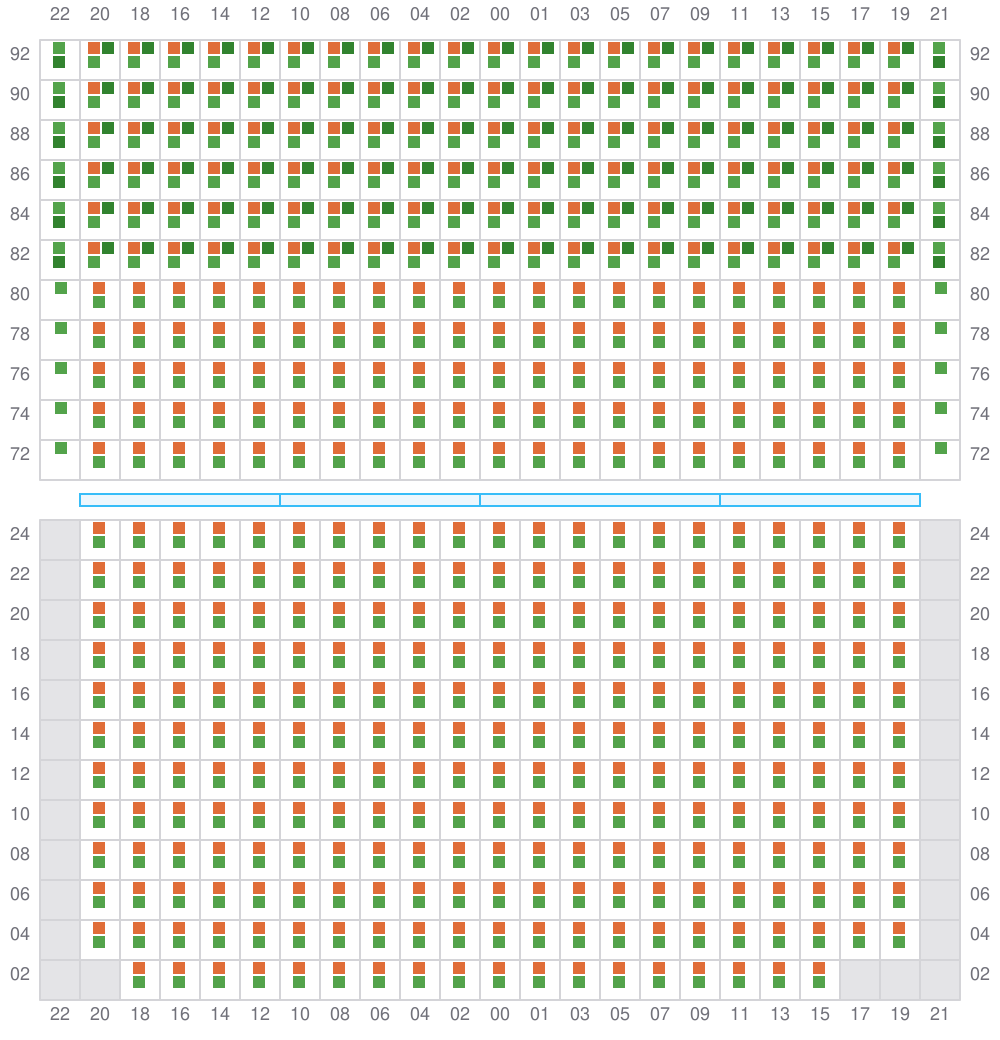

Bay 033 view and slots of MILAN MAERSK

035

  • ←
  • → / ?

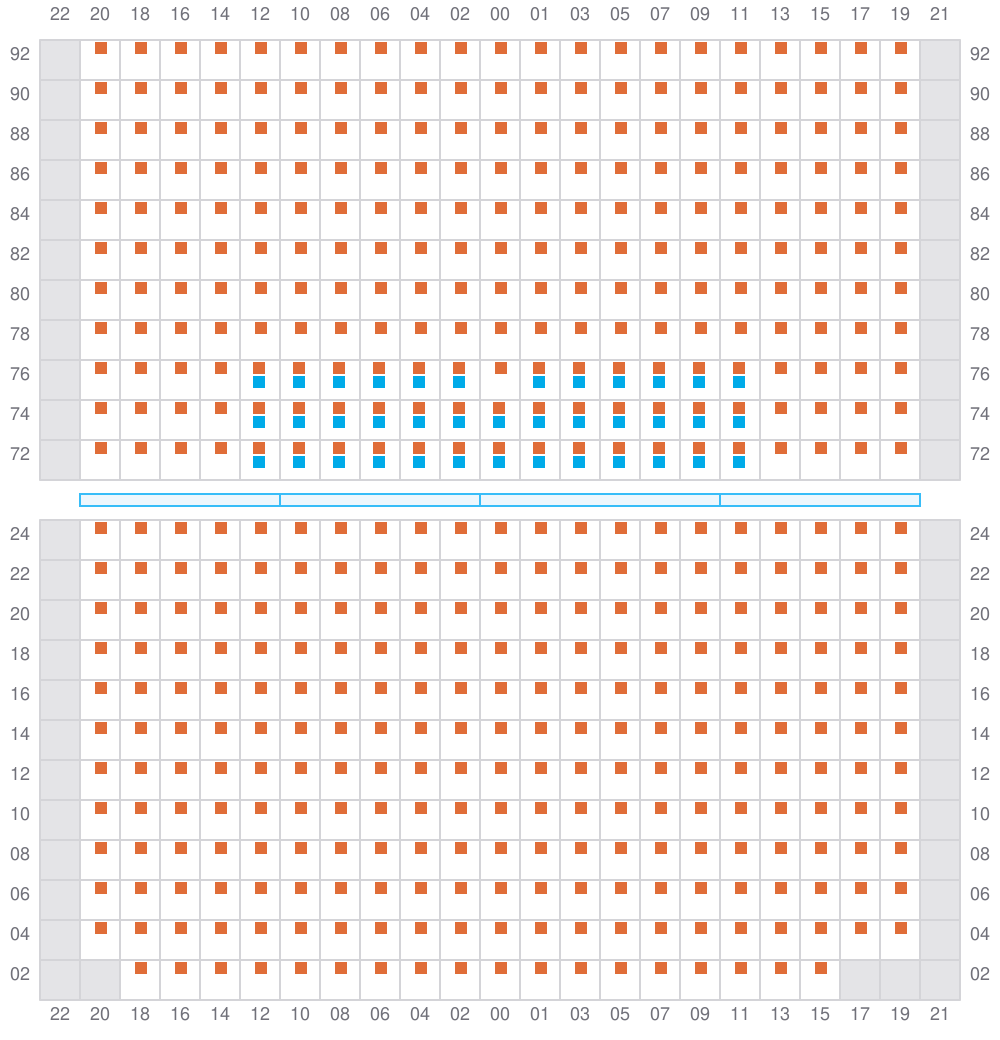

Bay 035 view and slots of MILAN MAERSK

037 (038)

  • →
Bay 037 view and slots of MILAN MAERSK

039

  • ←
  • → / ?

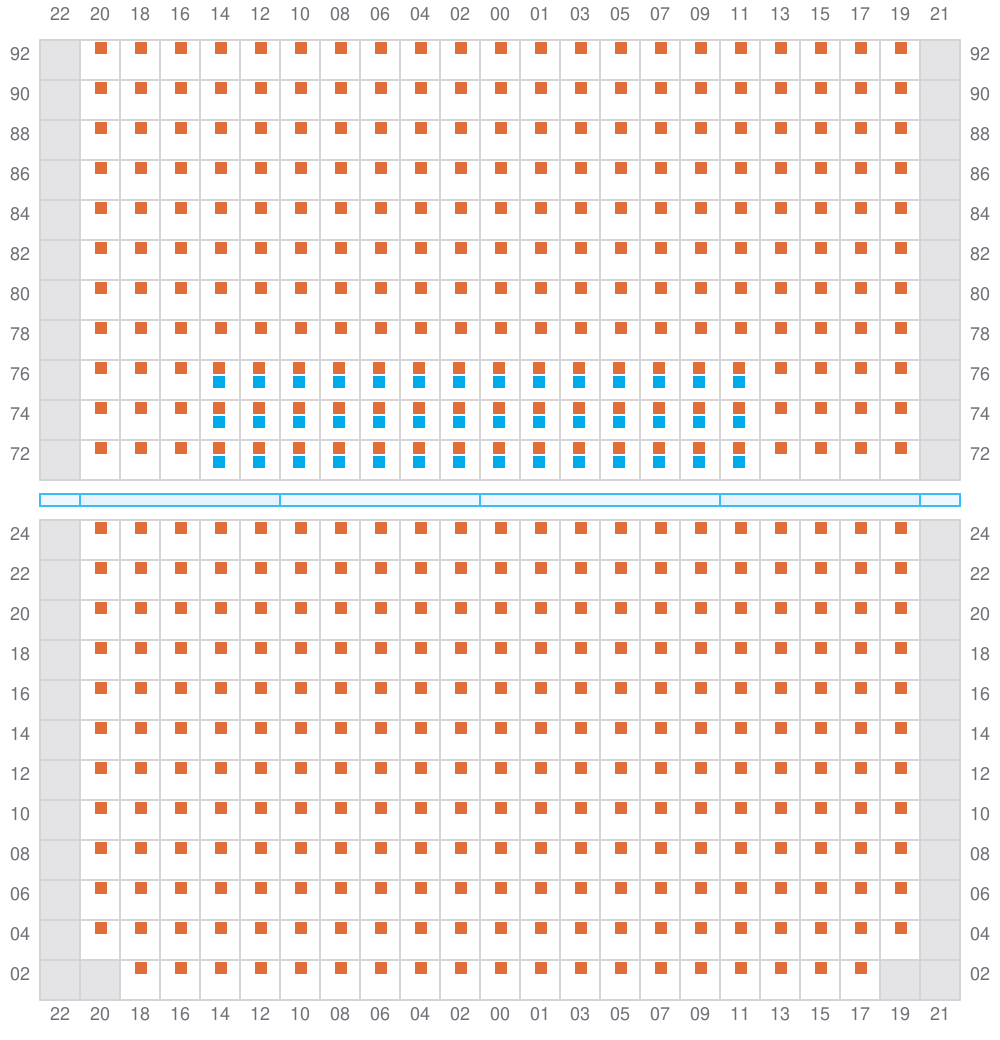

Bay 039 view and slots of MILAN MAERSK

041 (042)

  • →
Bay 041 view and slots of MILAN MAERSK

043

  • ←
  • →

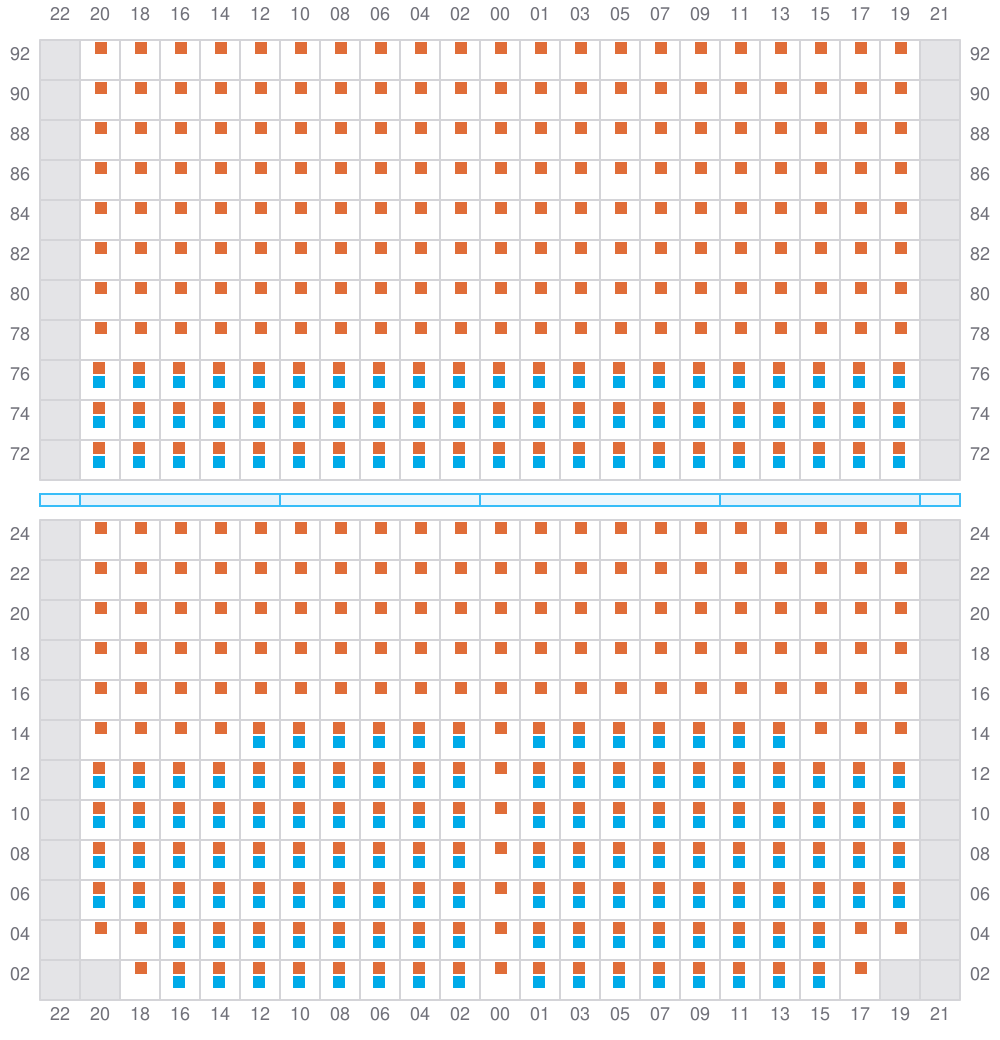

Bay 043 view and slots of MILAN MAERSK

045 (046)

  • →
Bay 045 view and slots of MILAN MAERSK

047

  • ←
  • → / ?
Bay 047 view and slots of MILAN MAERSK

049 (050)

  • →
Bay 049 view and slots of MILAN MAERSK

051

  • ←
  • →
Bay 051 view and slots of MILAN MAERSK

053 (054)

  • →
Bay 053 view and slots of MILAN MAERSK

055

  • ←
  • → / ?
Bay 055 view and slots of MILAN MAERSK

057 (058)

  • →

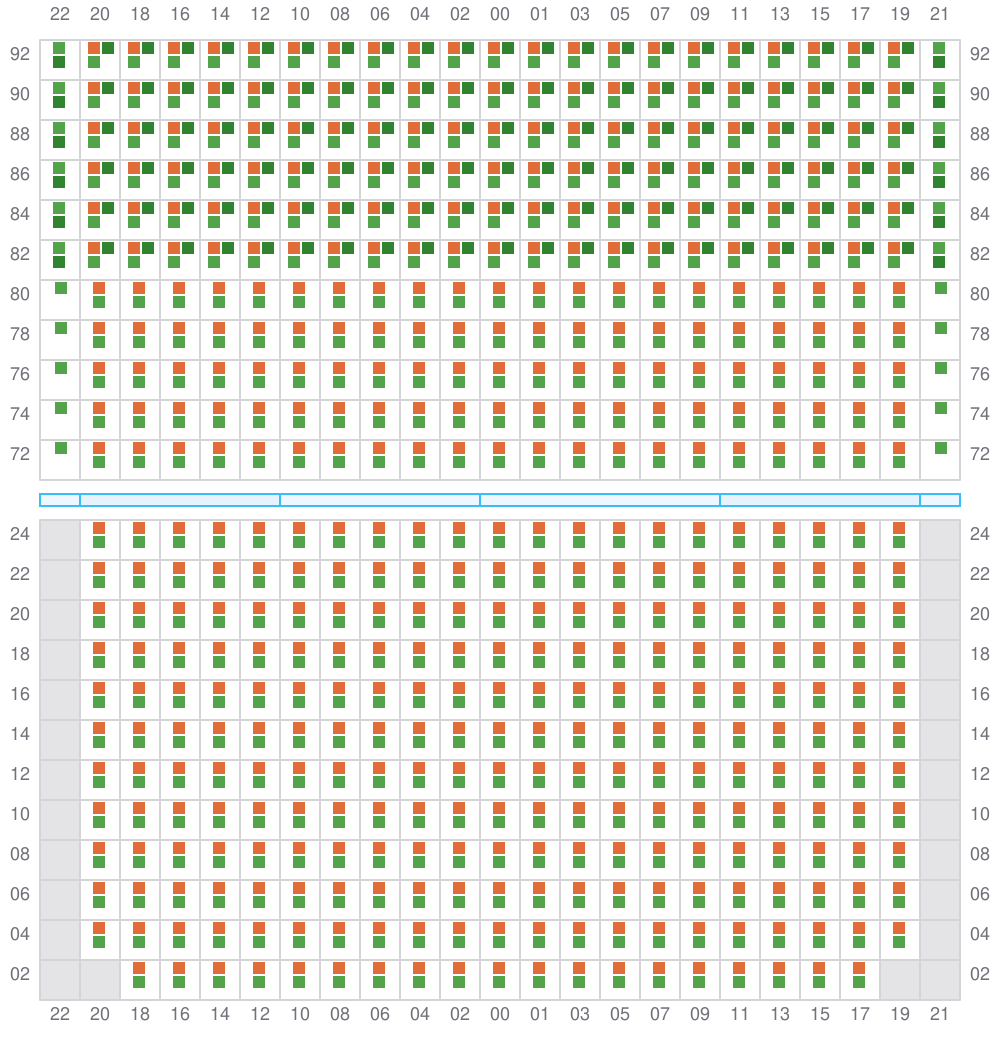

Bay 057 view and slots of MILAN MAERSK

059

  • ←
  • →
Bay 059 view and slots of MILAN MAERSK

061 (062)

  • →
Bay 061 view and slots of MILAN MAERSK

063

  • ←
  • → / ?
Bay 063 view and slots of MILAN MAERSK

065 (066)

  • →

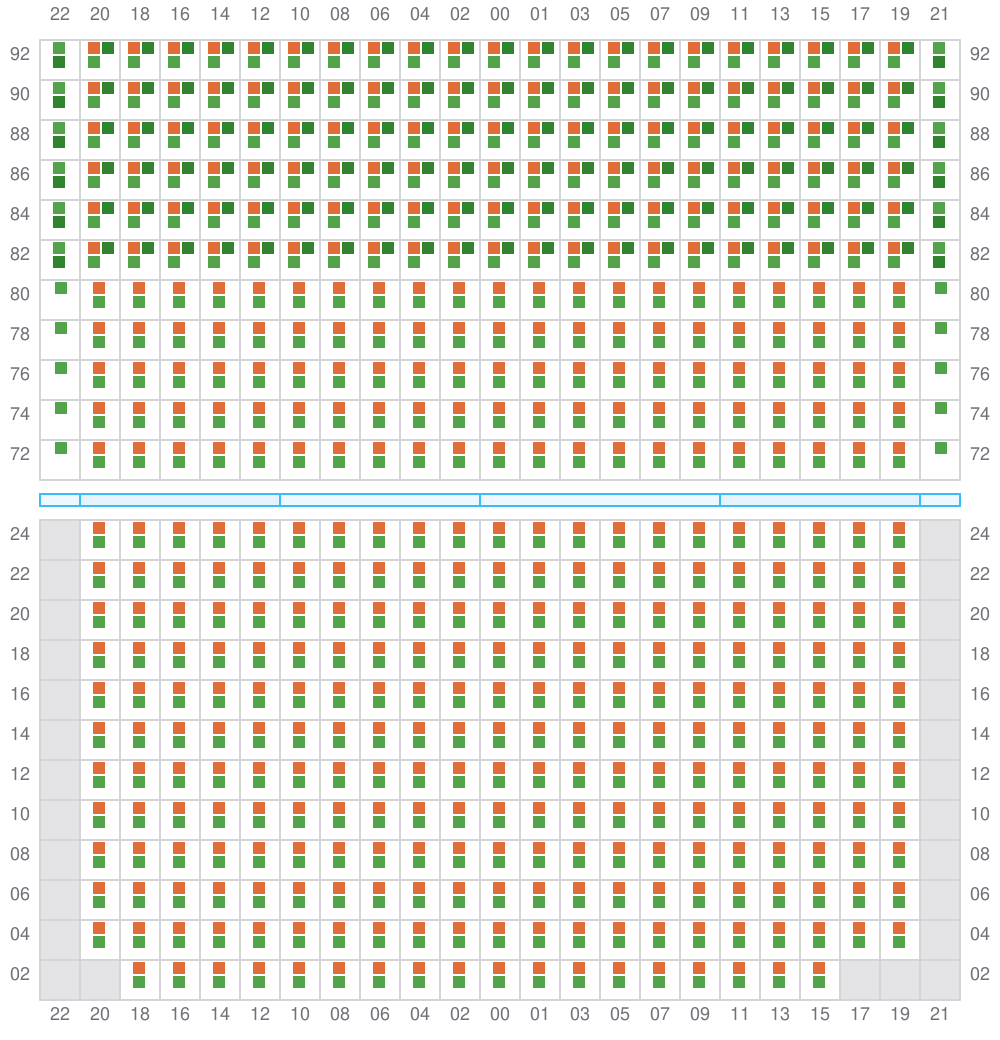

Bay 065 view and slots of MILAN MAERSK

067

  • ←
  • →
Bay 067 view and slots of MILAN MAERSK

069 (070)

  • →

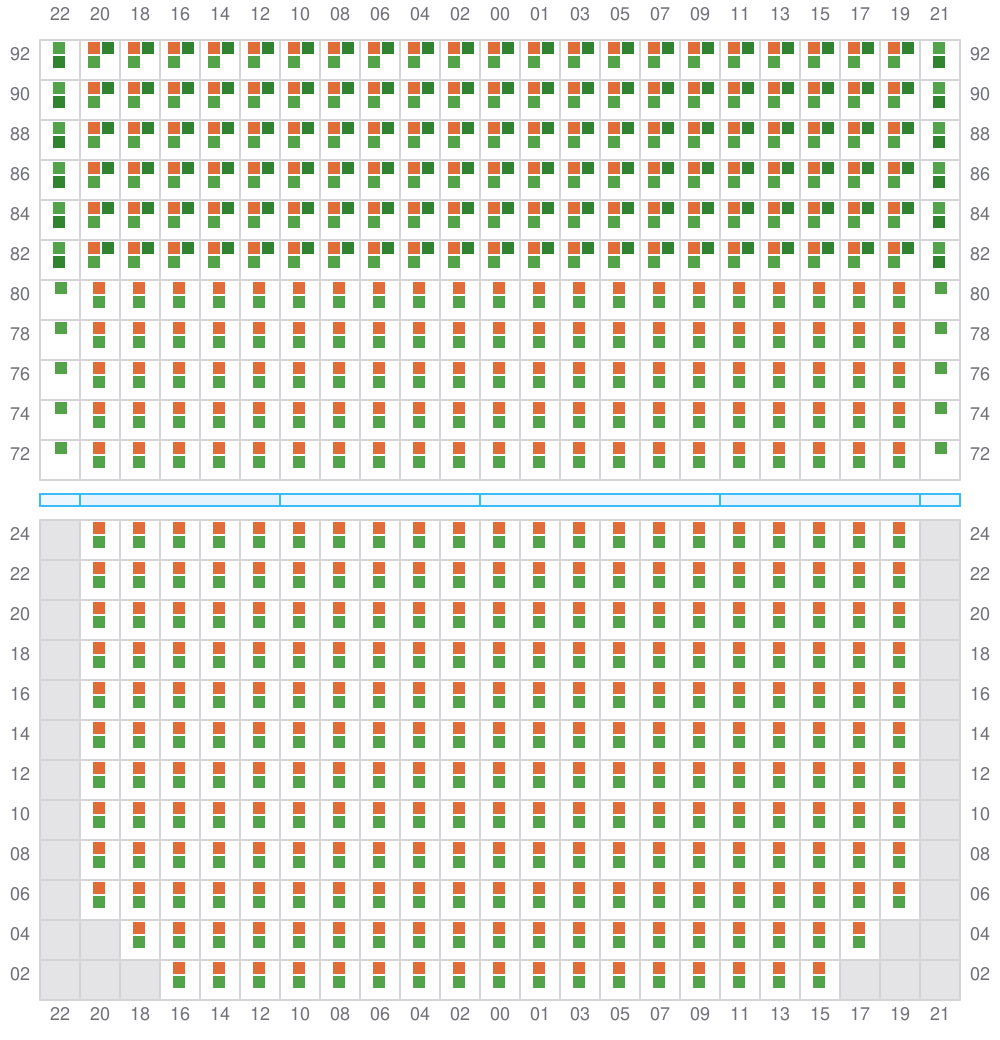

Bay 069 view and slots of MILAN MAERSK

071

  • ←
  • → / ?

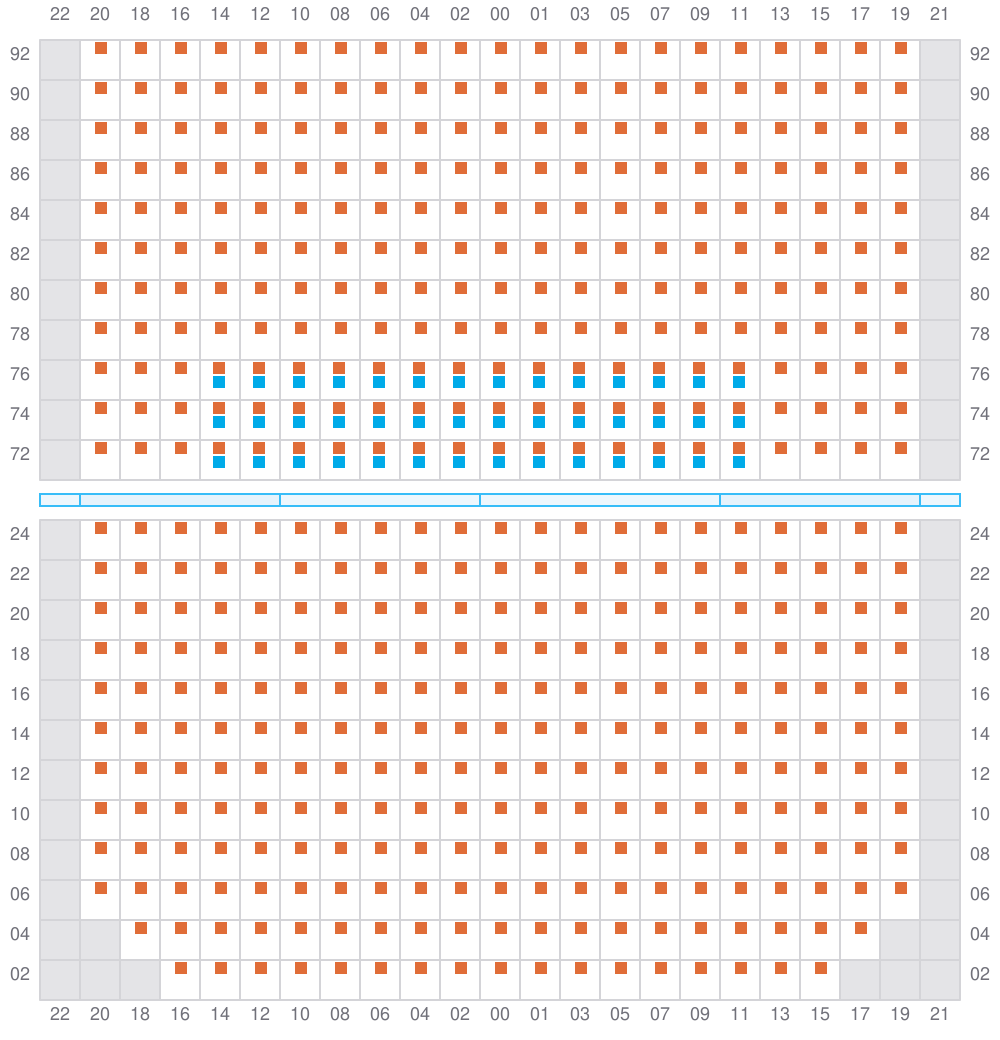

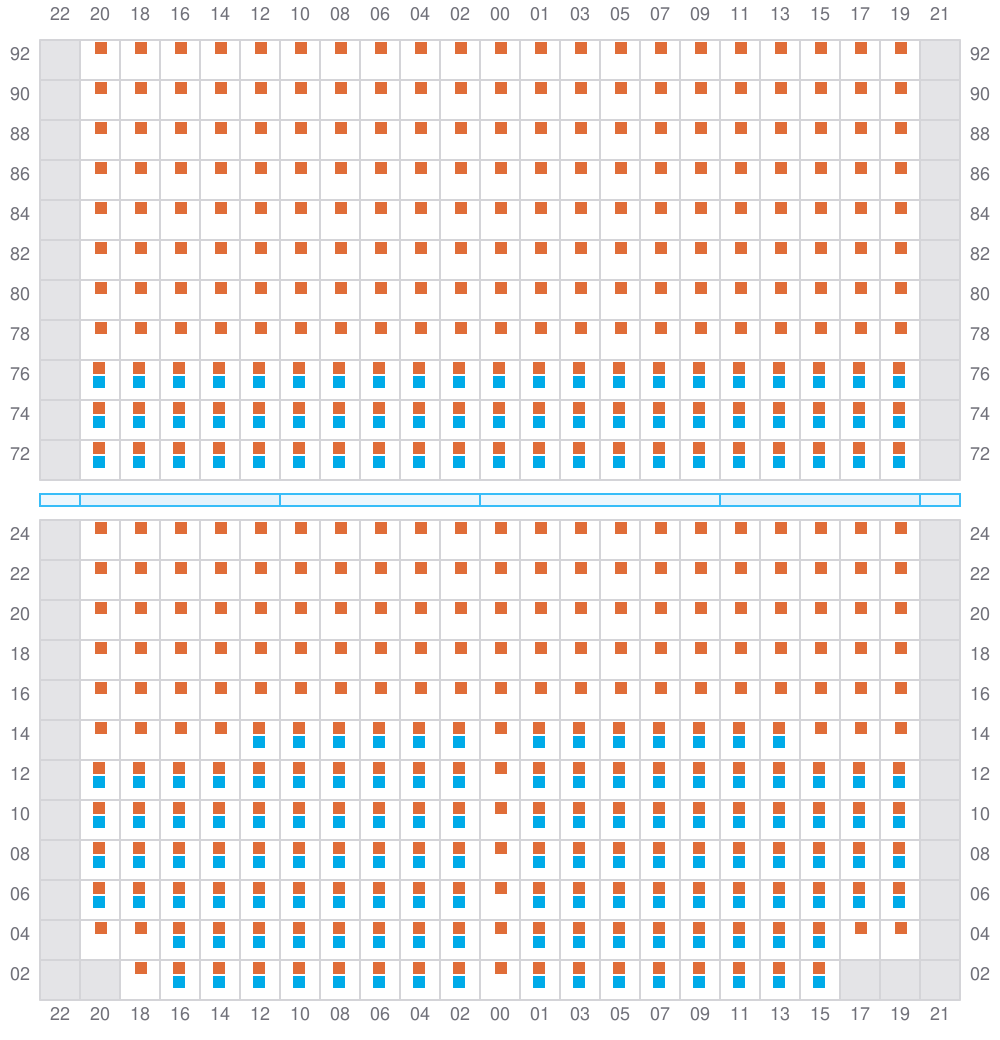

Bay 071 view and slots of MILAN MAERSK

073 (074)

  • →
Bay 073 view and slots of MILAN MAERSK

075

  • ←

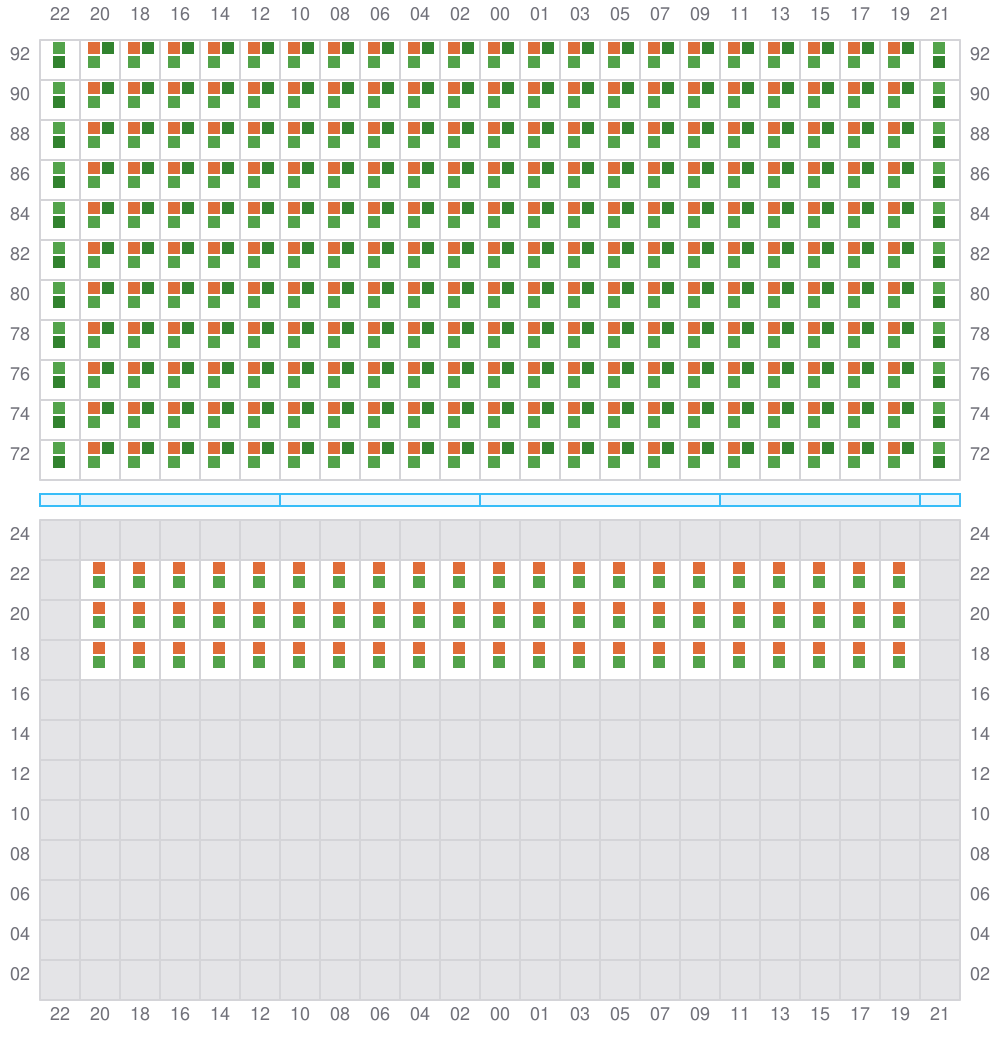

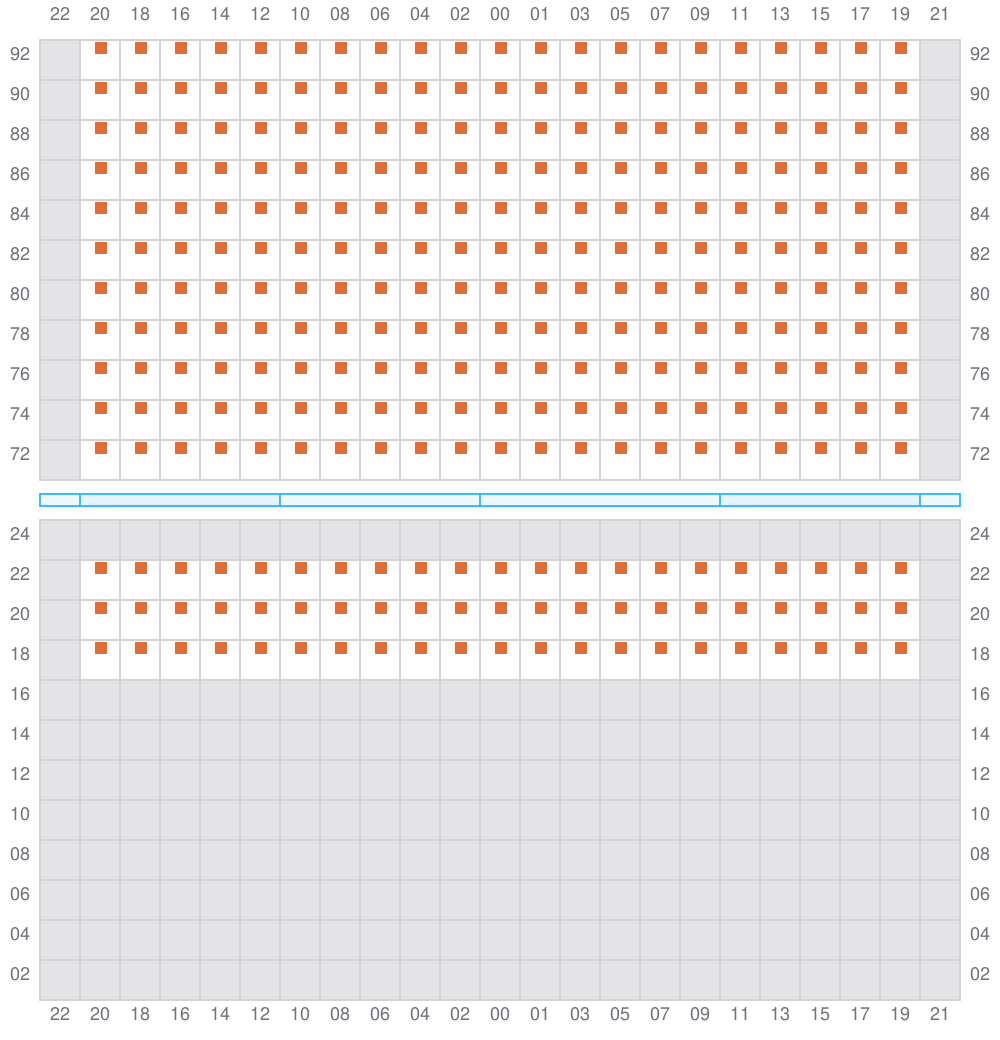

Bay 075 view and slots of MILAN MAERSK

077 (078)

  • →
  • ← / ?

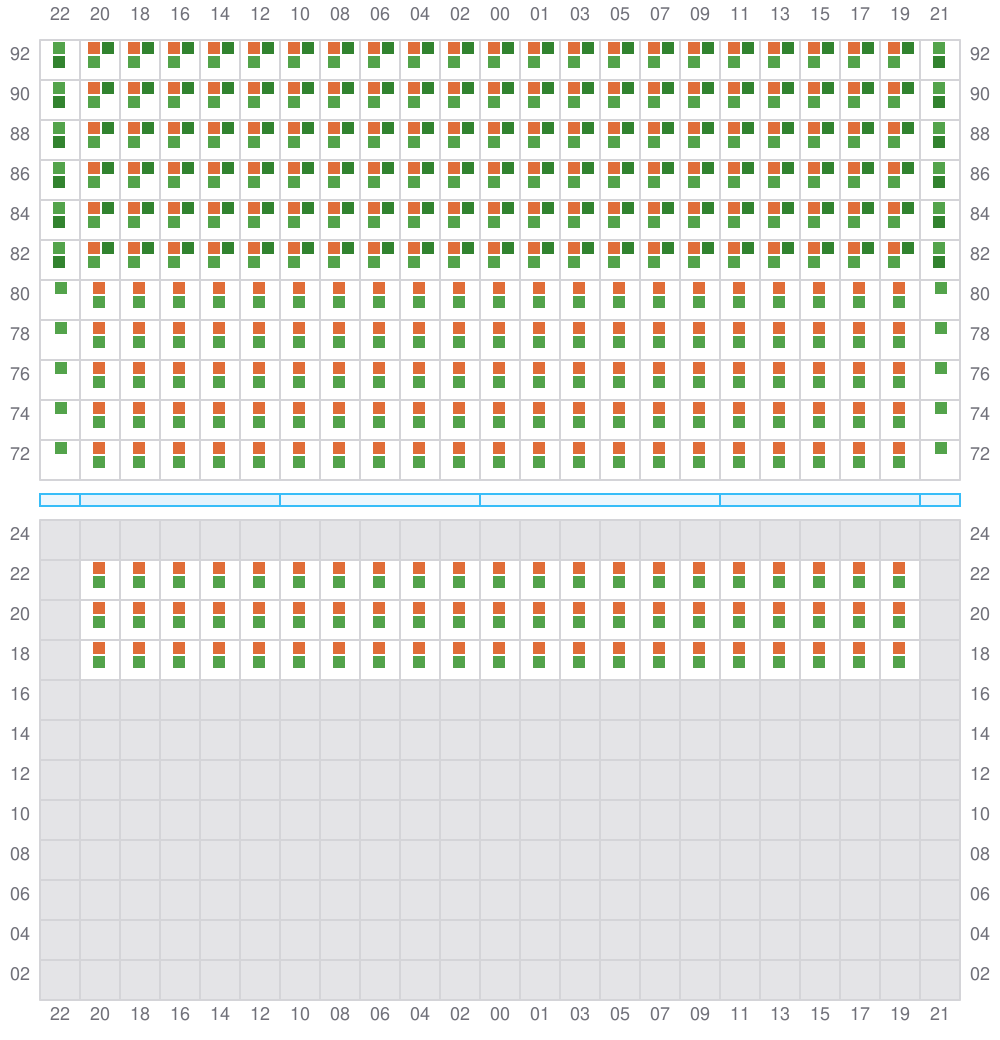

Bay 077 view and slots of MILAN MAERSK

079

  • ←
Bay 079 view and slots of MILAN MAERSK

081 (082)

  • →

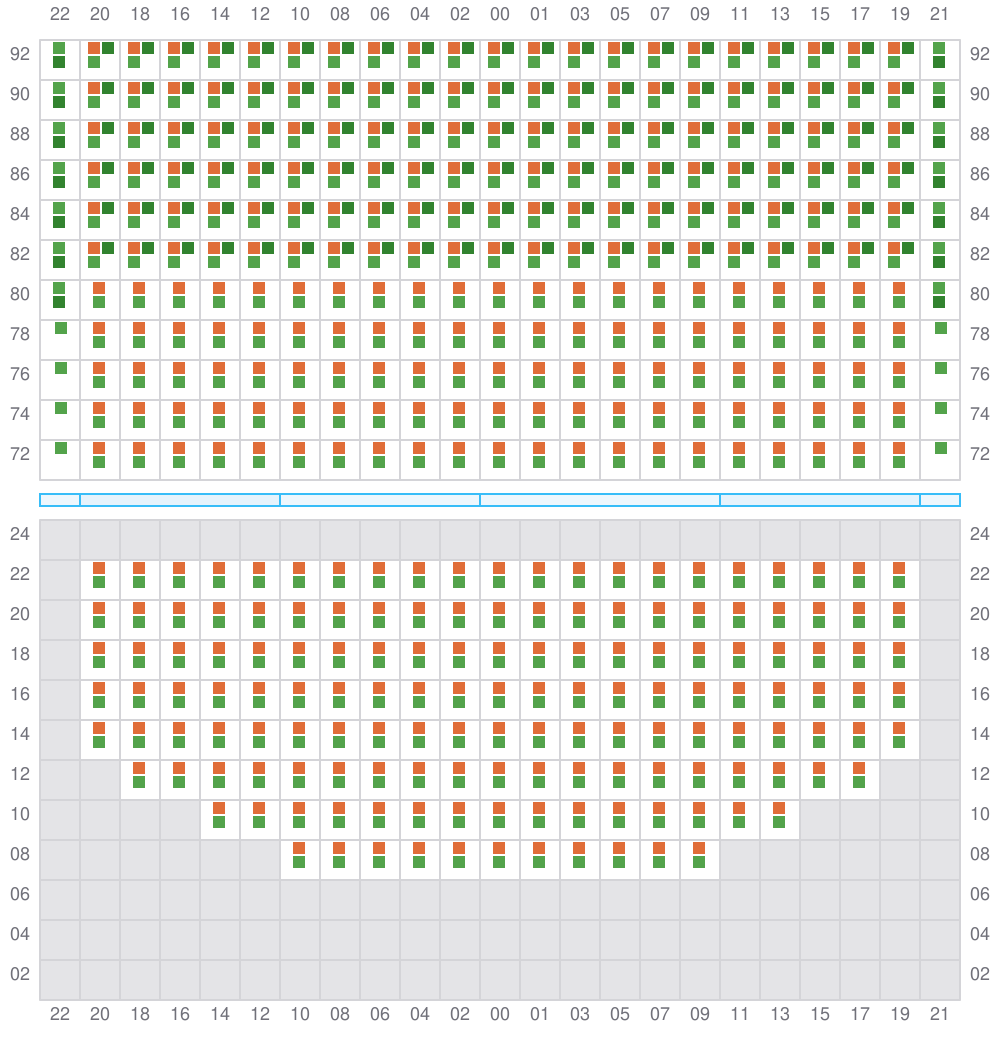

Bay 081 view and slots of MILAN MAERSK

083

  • ←

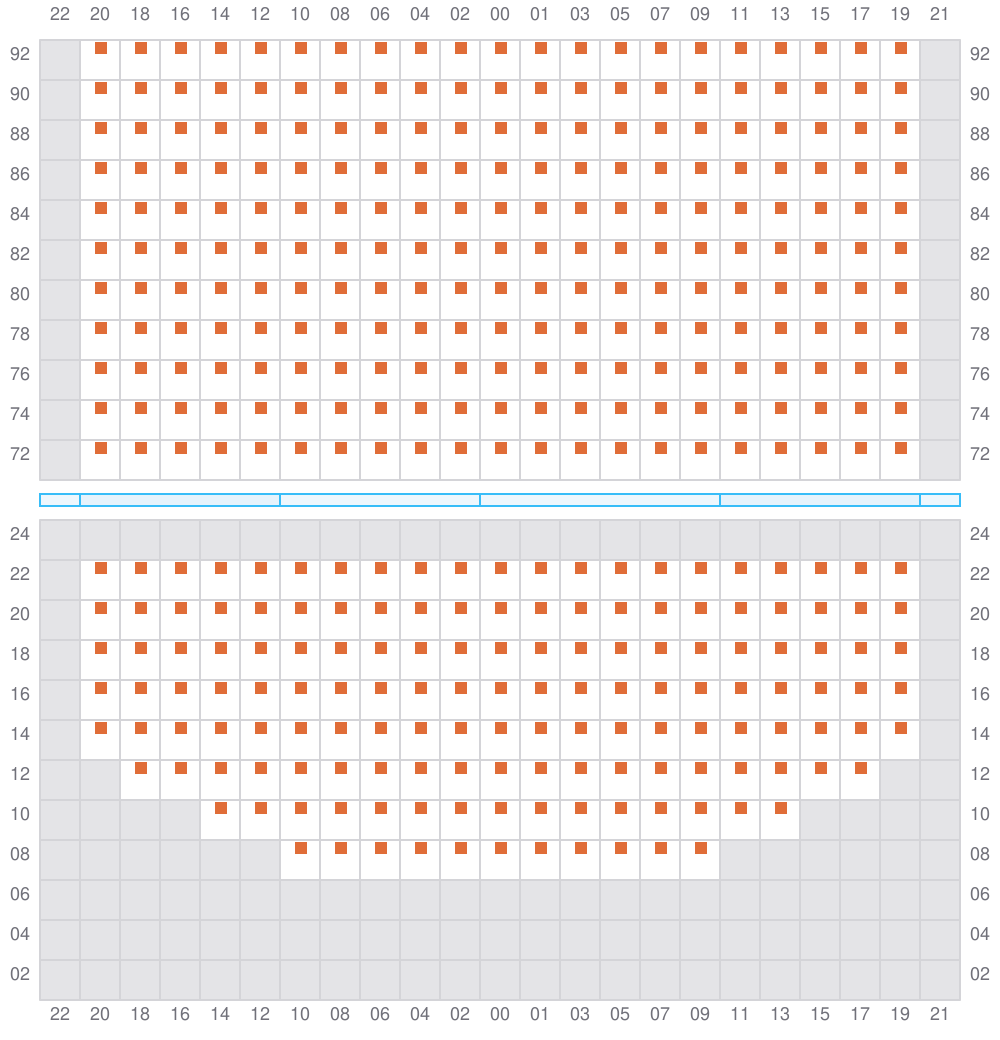

Bay 083 view and slots of MILAN MAERSK

085 (086)

  • →
Bay 085 view and slots of MILAN MAERSK

087

  • ←

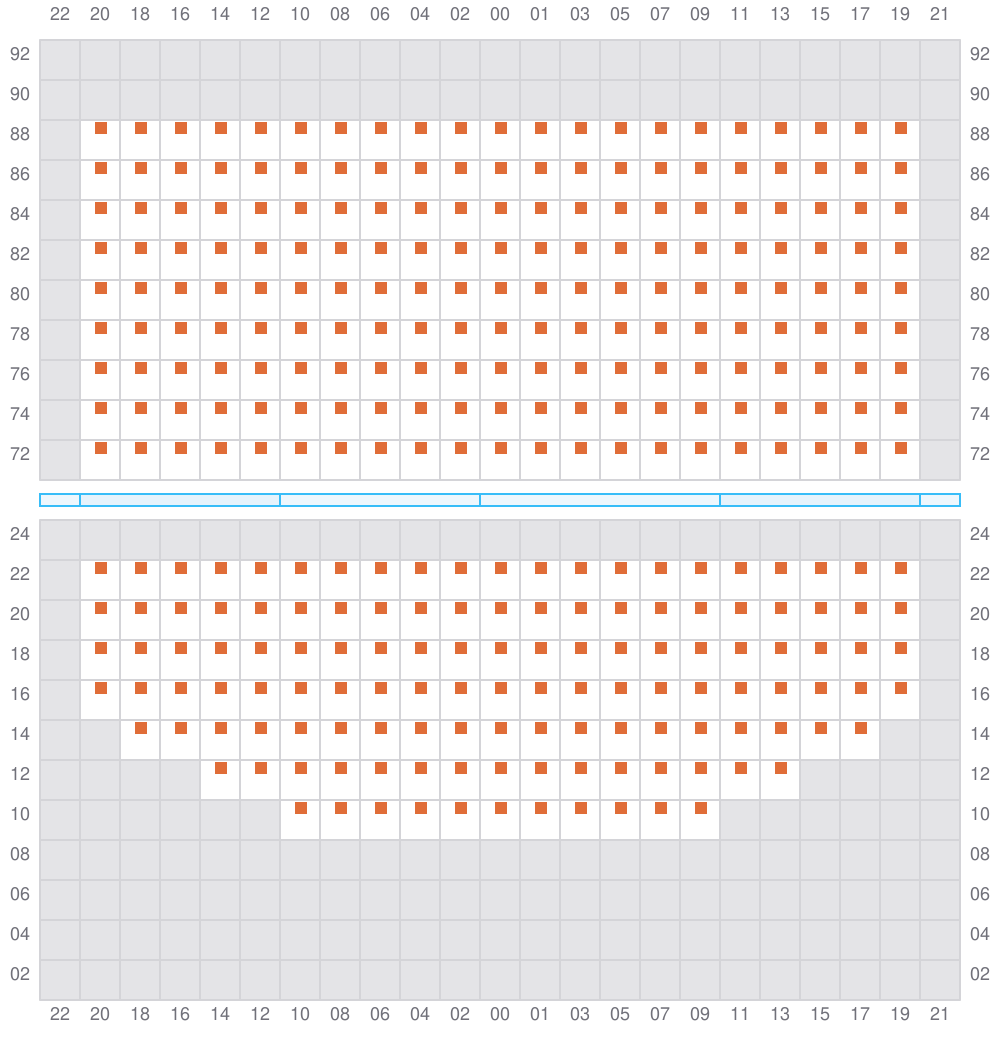

Bay 087 view and slots of MILAN MAERSK

089 (090)

  • →

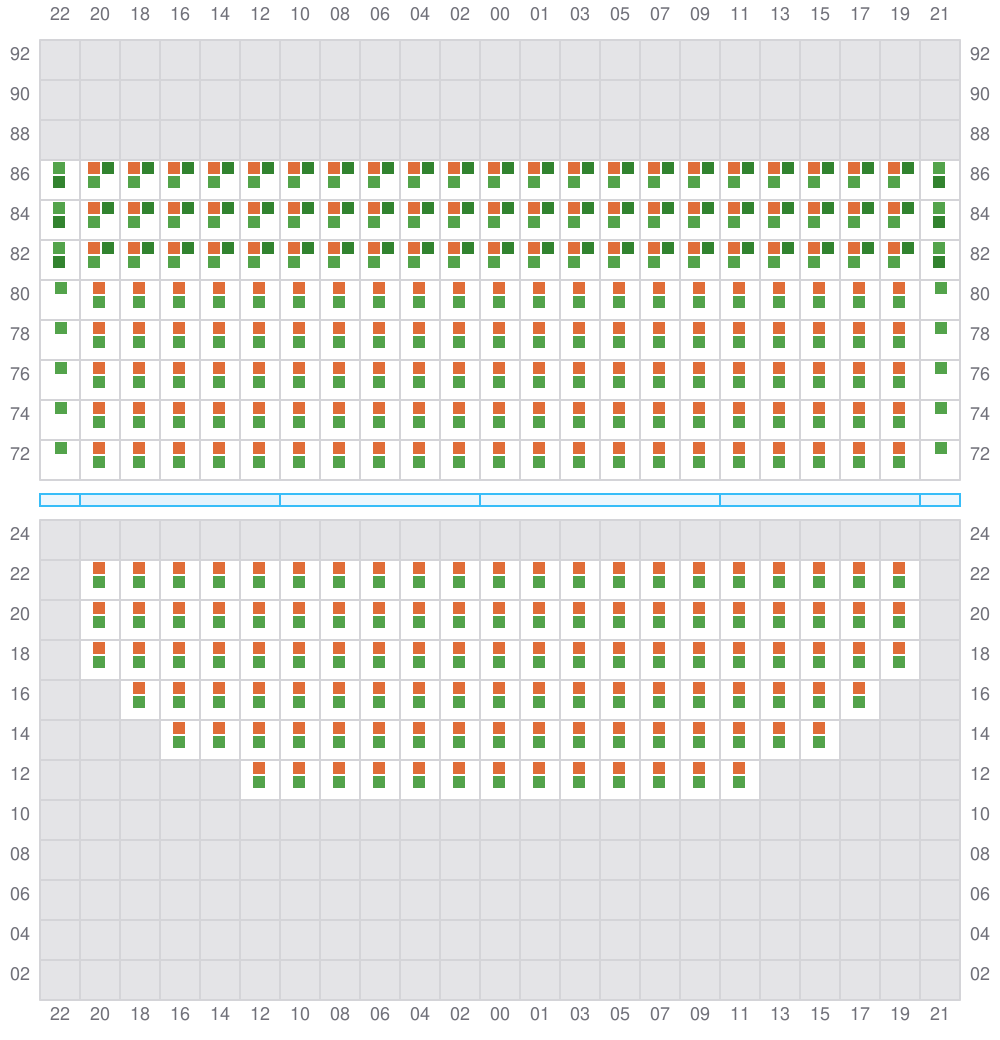

Bay 089 view and slots of MILAN MAERSK

091

  • ←

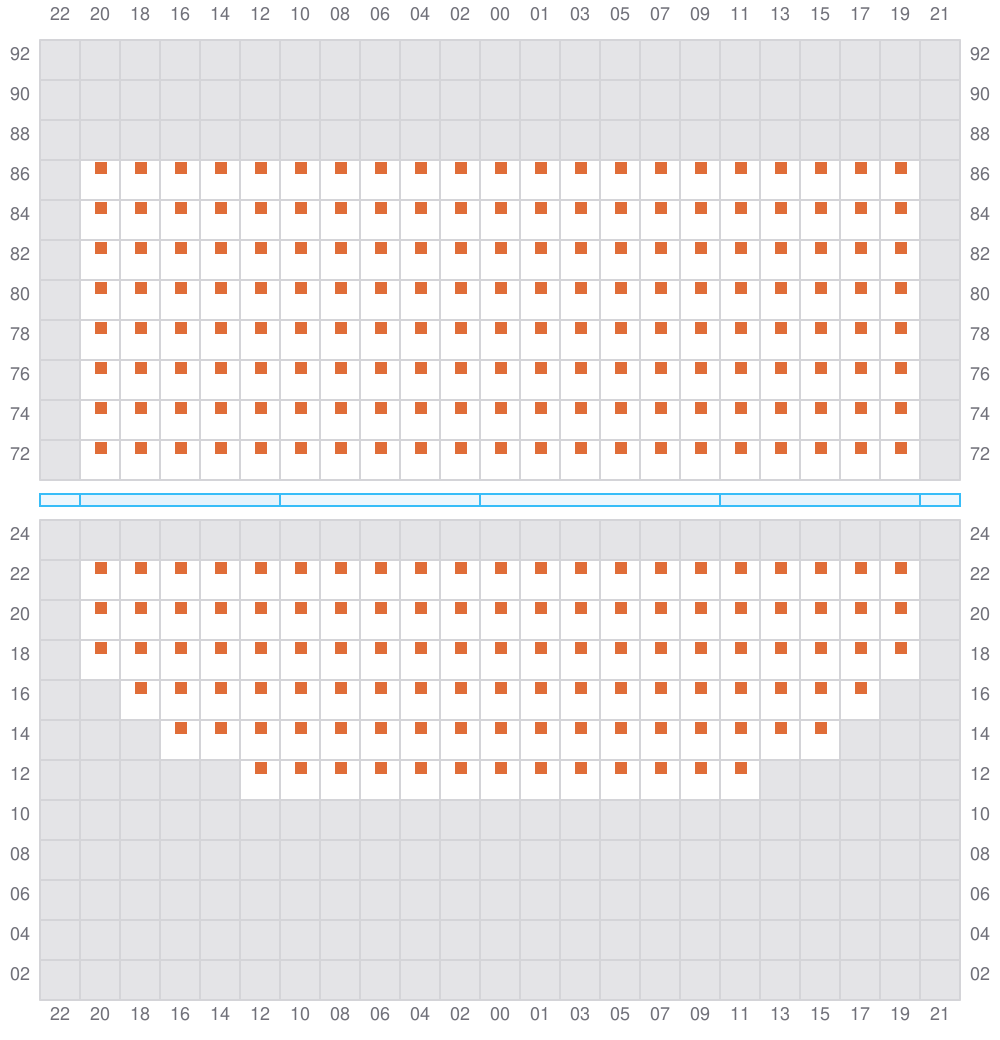

Bay 091 view and slots of MILAN MAERSK

093 (094)

  • → / ?

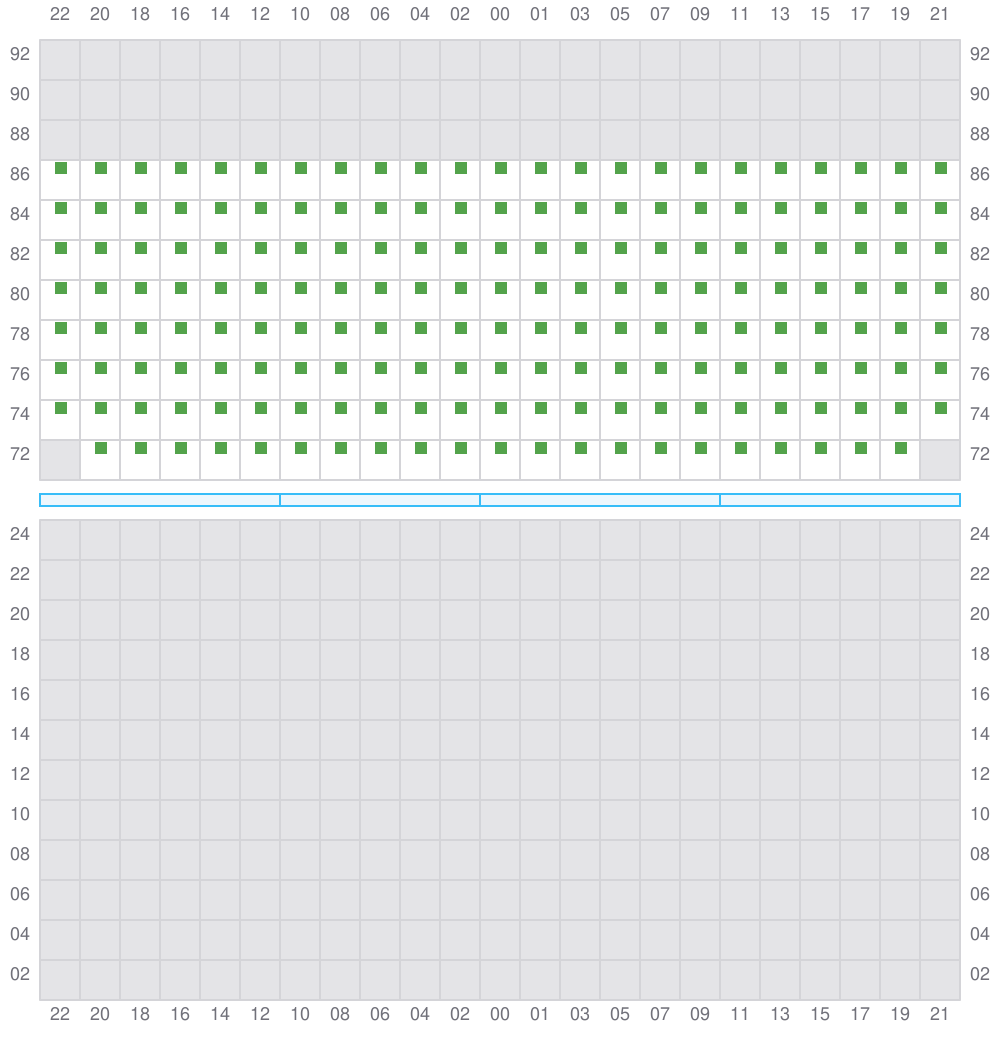

Bay 093 view and slots of MILAN MAERSK
