MINSTREL
9743497 | 9V3437 | HLC by *********************** Last update: Mon Feb 10 2025
General Info
Ship Name:MINSTREL
IMO Code:9743497
Call Sign:9V3437
Line Operator:HLC
Class Name for Sister Ships:FMSL
Year Built:2019
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:041
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,363
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

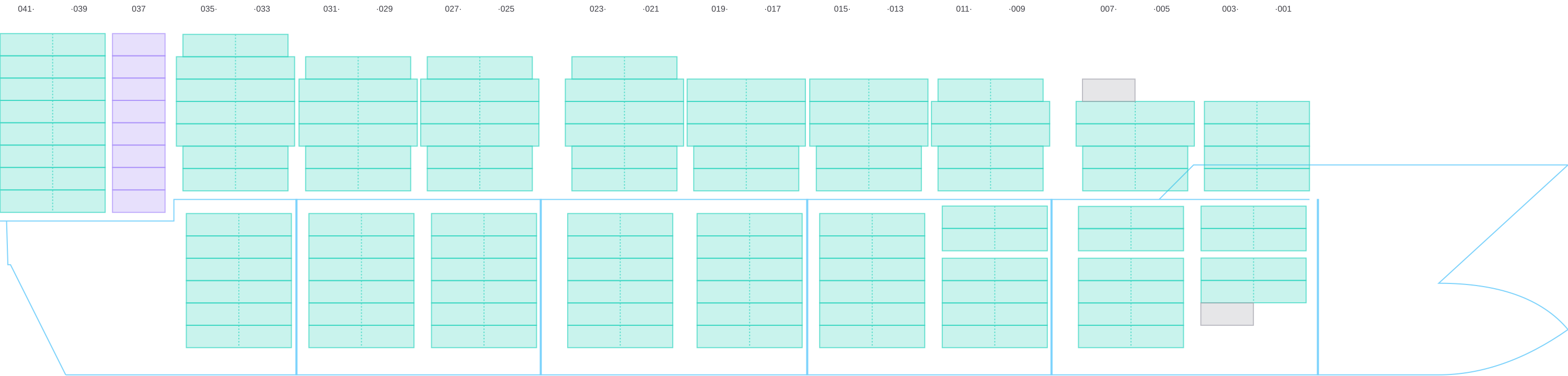

Side View

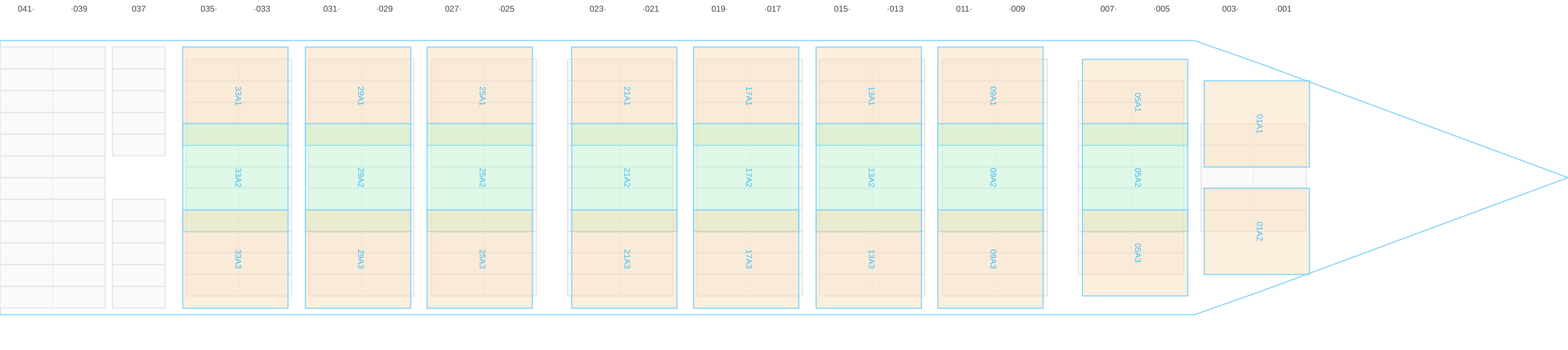

Hatch-Covers View

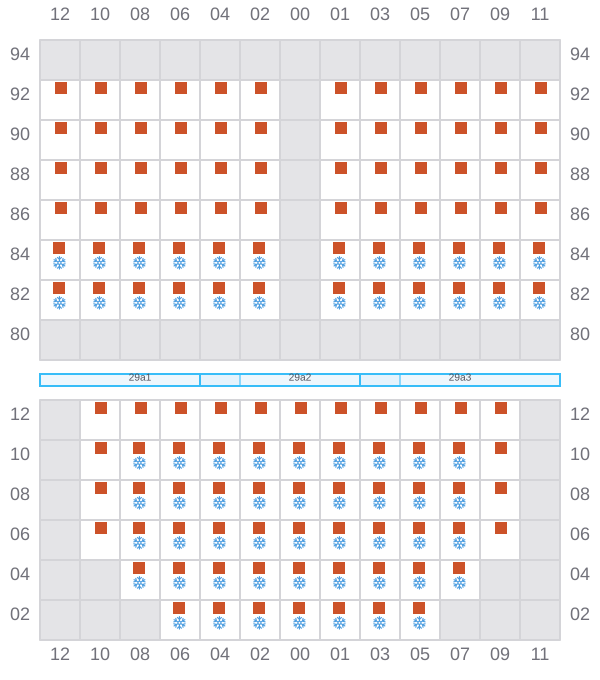

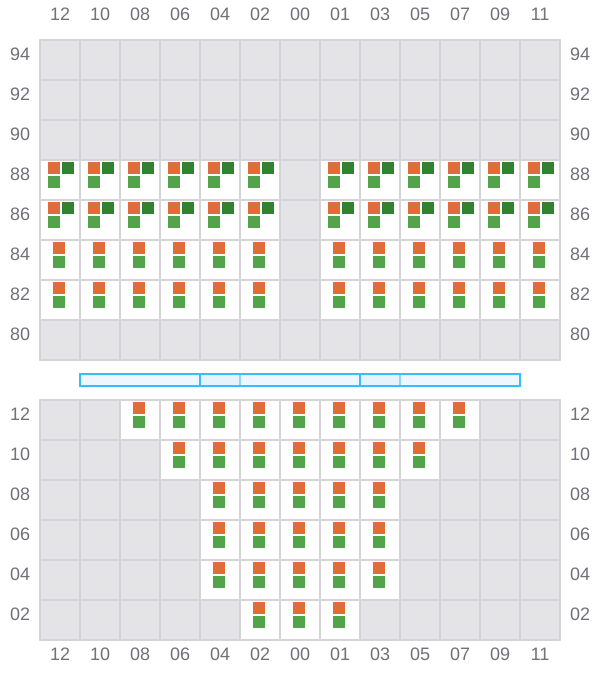

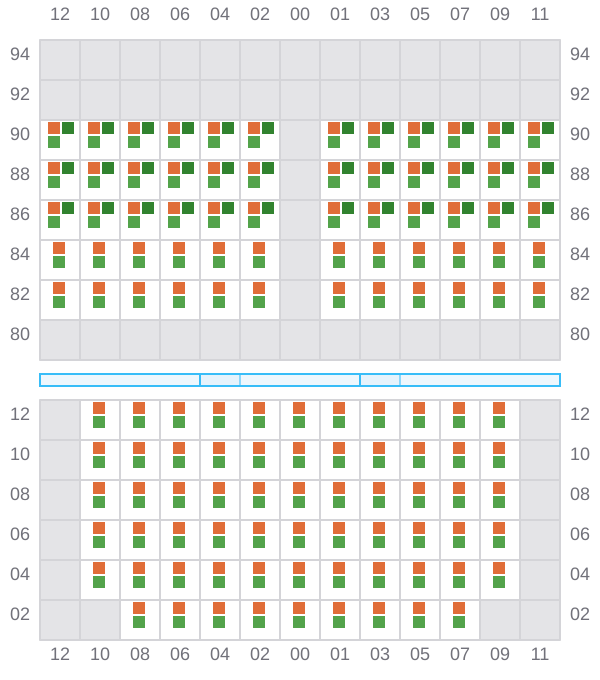

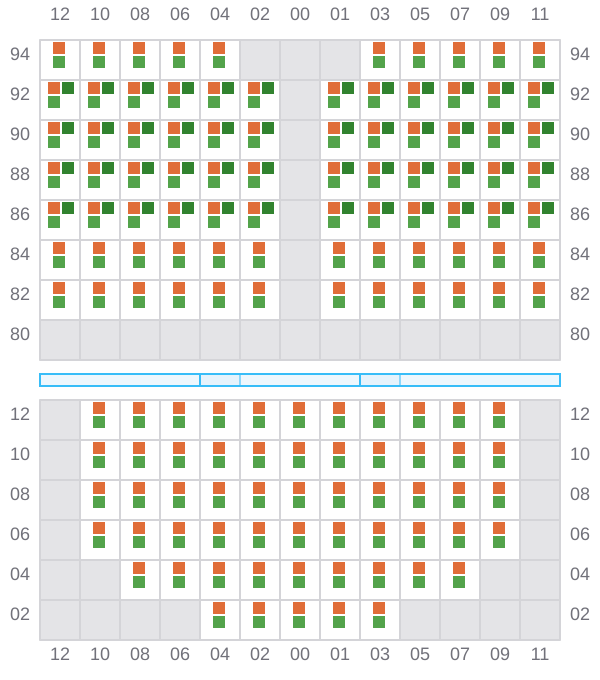

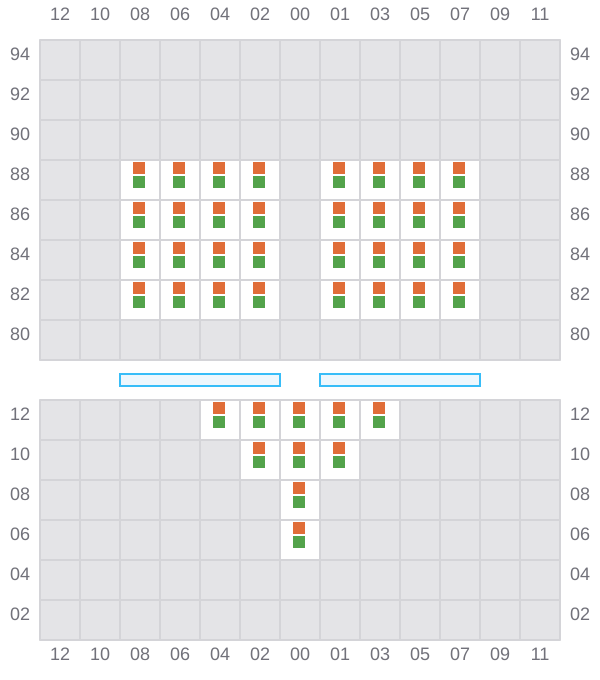

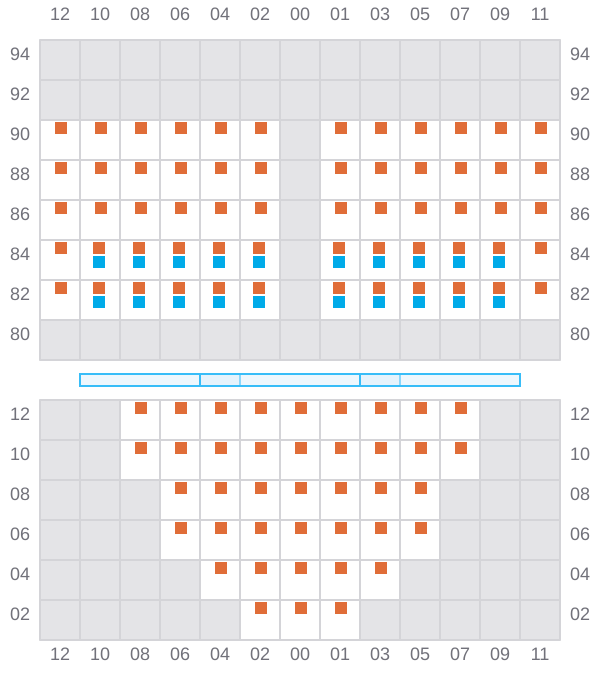

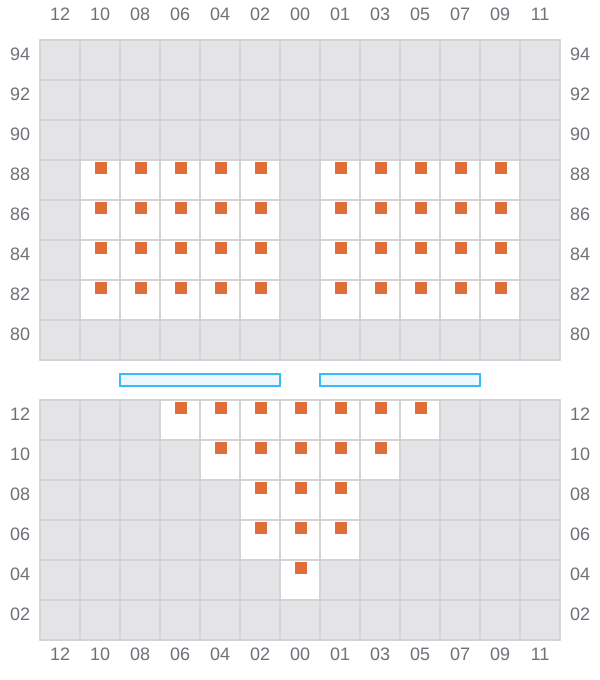

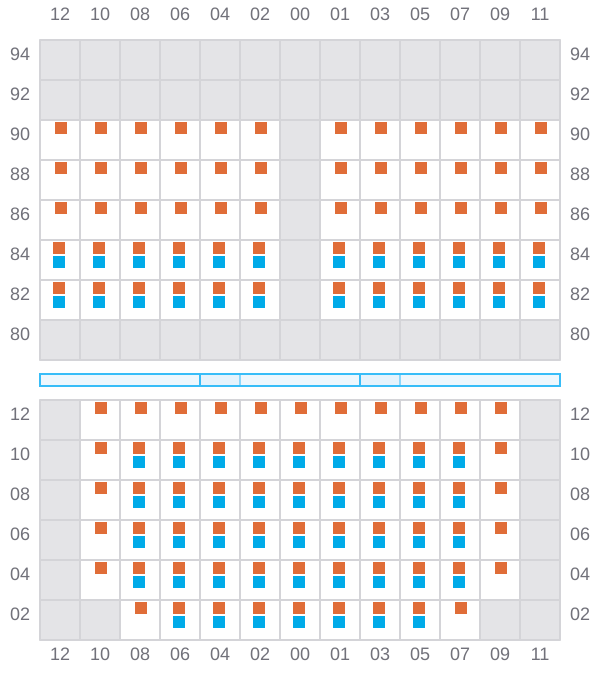

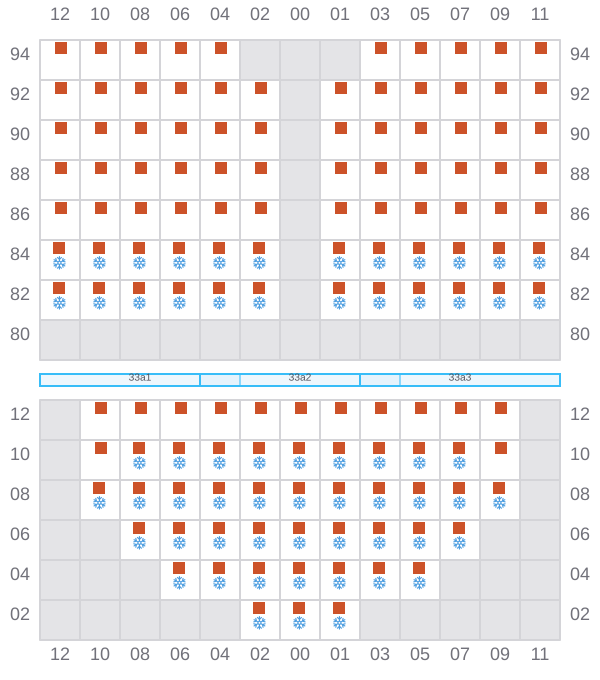

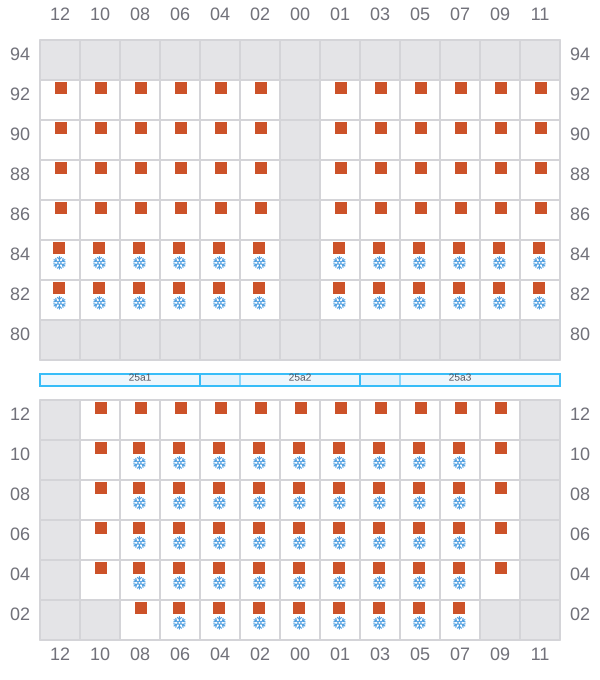

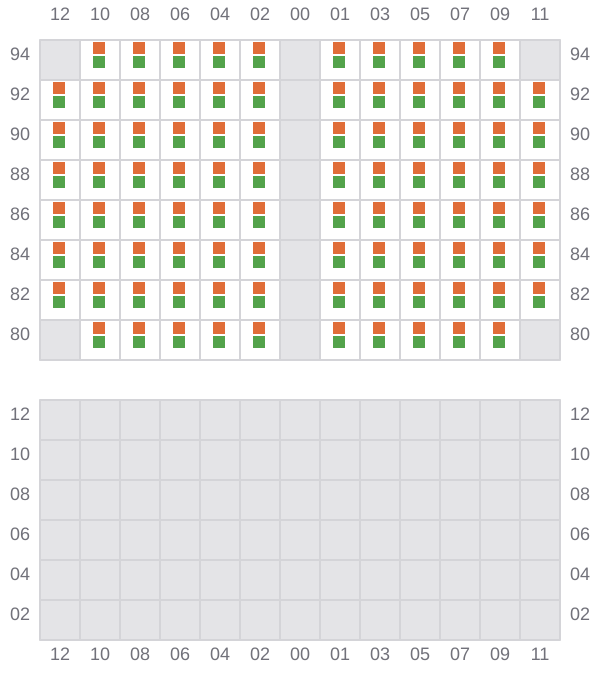

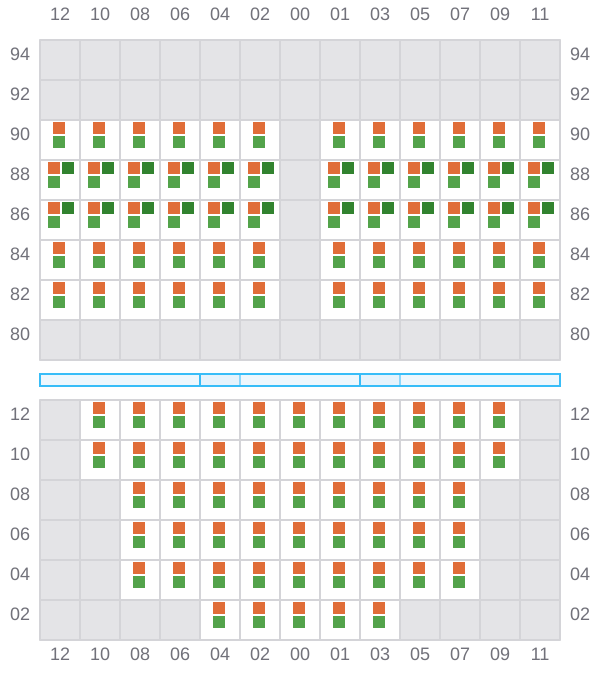

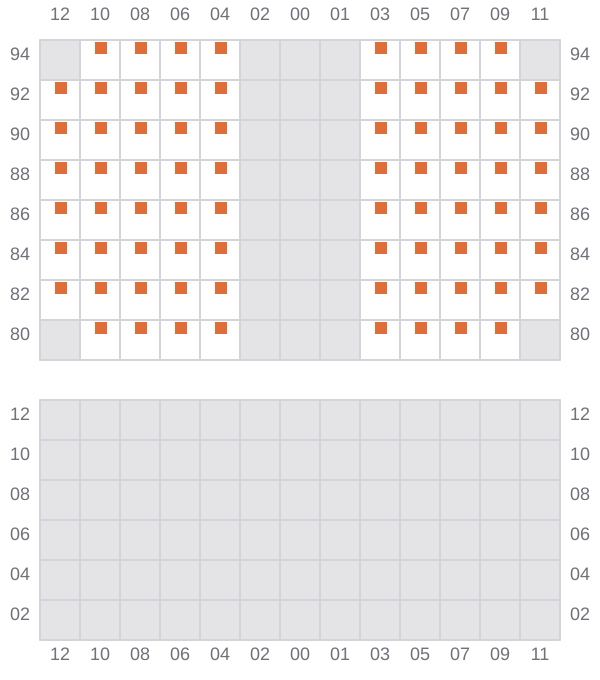

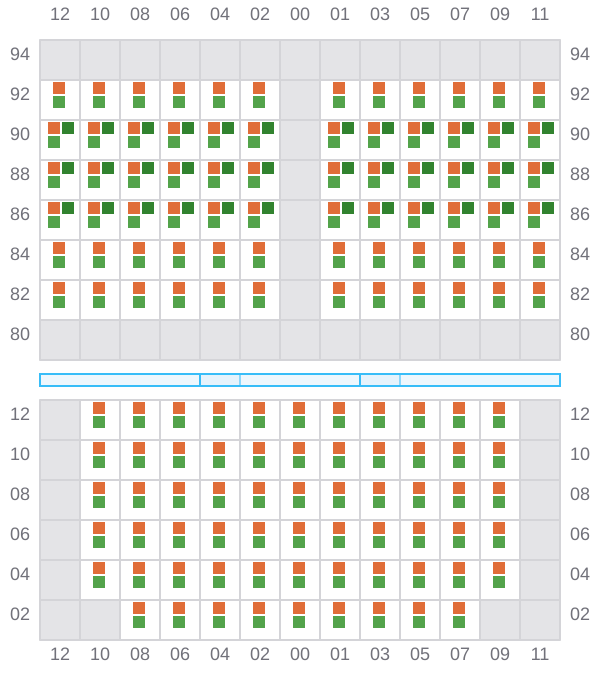

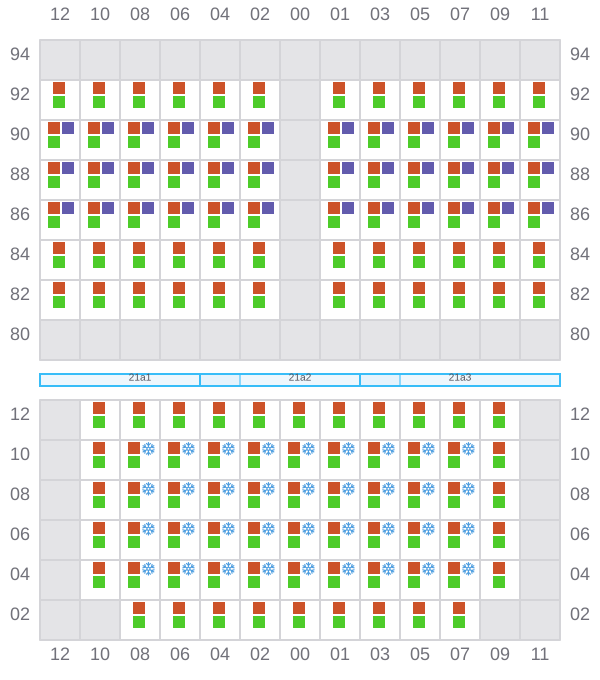

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
- →
003
- ←
- ? / →
- →
005 (006)
- →
- →
007
- ←
- →
- →
009 (010)
- →
- ? / ←
- →

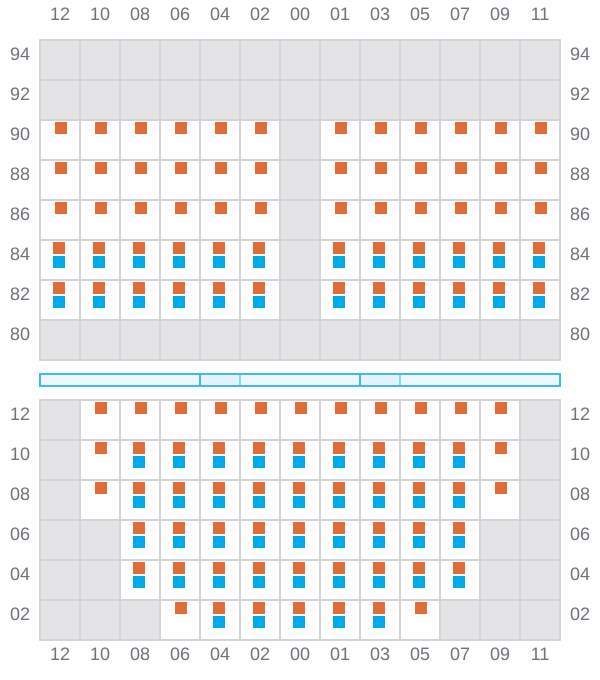

011
- ←
- →
- →
013 (014)
- →
- →
015
- ←
- →
- →
017 (018)
- →
- ? / ←
- →

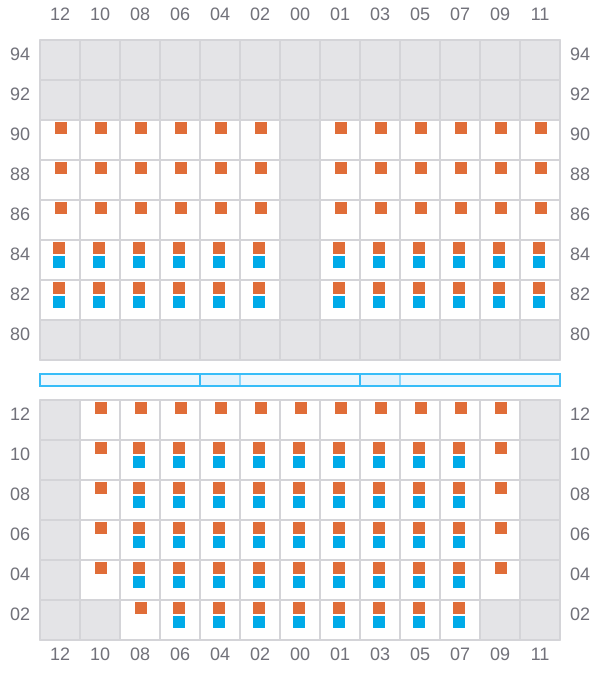

019
- ←
- →
- →
021 (022)
- →
- ? / ←
- →

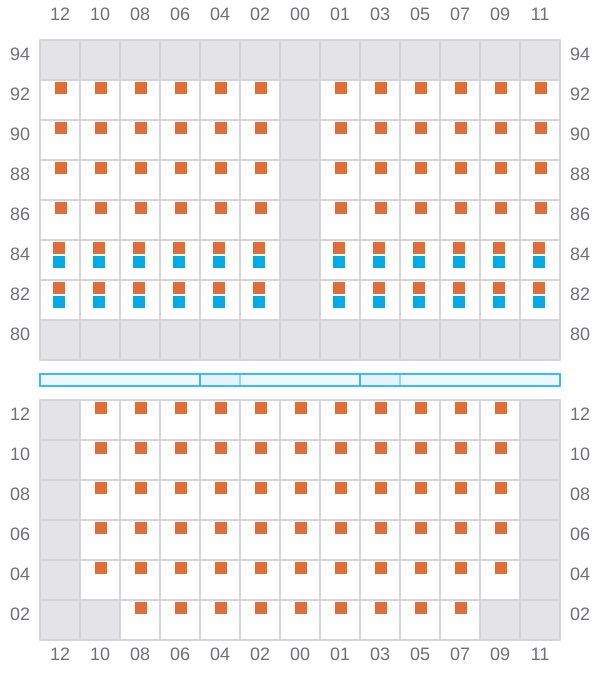

023
- ←
- →
- →
025 (026)
- →
- ? / ←
- →
027
- ←
- →
- →
029 (030)
- →
- →
031
- ←
- →
- →
033 (034)
- →
- ? / ←
- →
035
- ←
- →
- →
037
- ← / ?
- → / ?
039 (040)
- → / ?
- → / ?

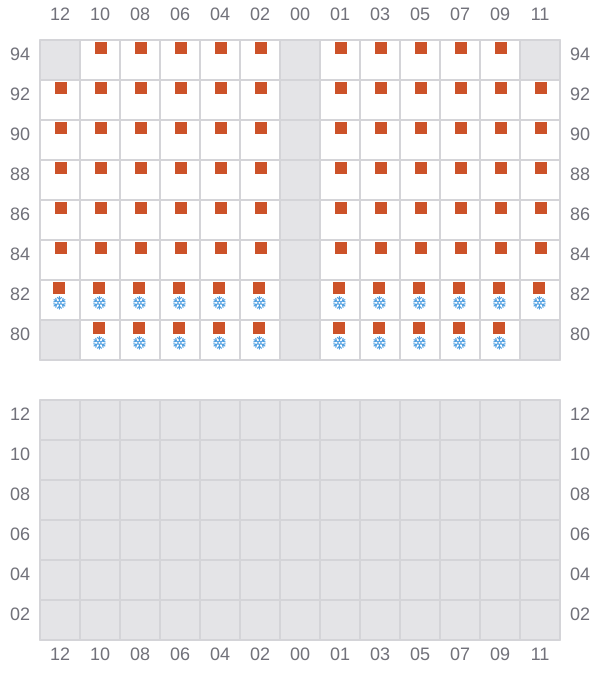

041
- ← / ?
- → / ?
- → / ?
