MITO
9319571 | CQEW9 | CMA by *********************** Last update: Thu Jan 23 2025
General Info
Ship Name:MITO
IMO Code:9319571
Call Sign:CQEW9
Line Operator:CMA
Class Name for Sister Ships:FMST
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,068
Centers of Gravity
LCG Values:Known
LCG Data:88%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

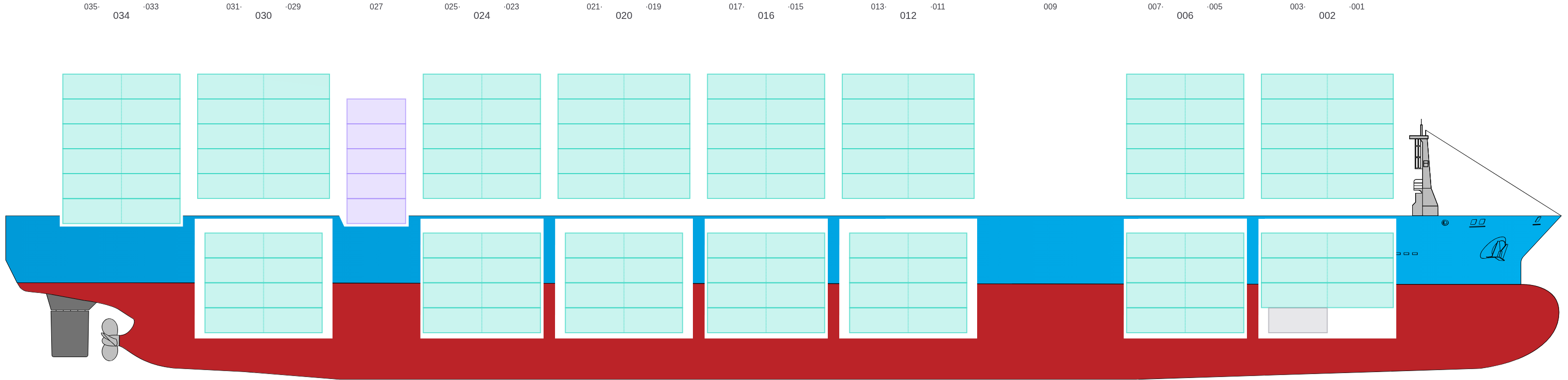

Side View

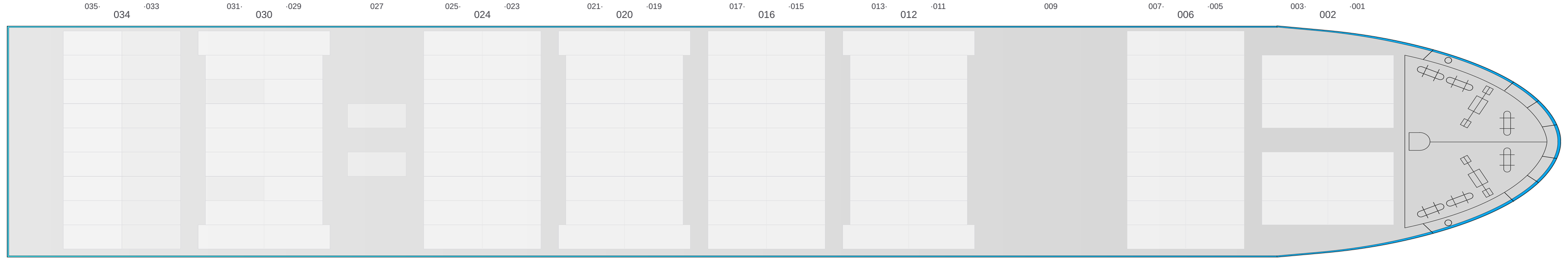

Hatch-Covers View

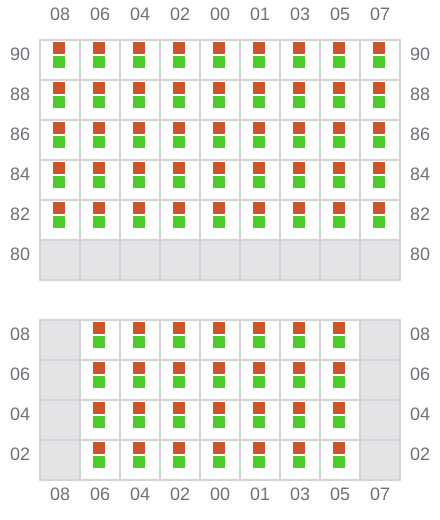

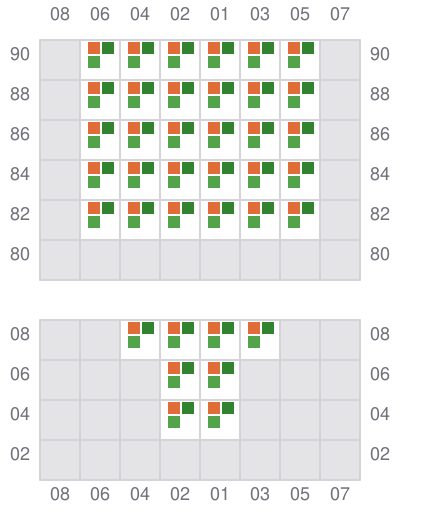

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
- ← / ?
- →

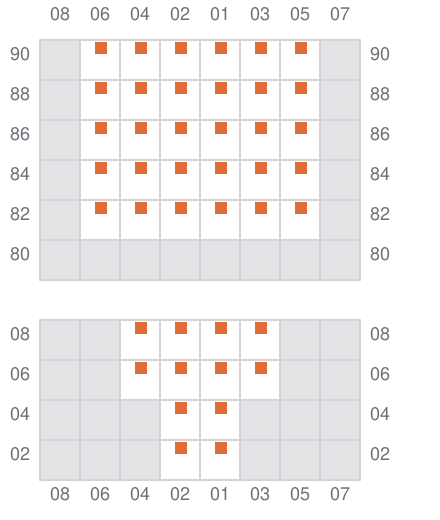

003
- ←
- →

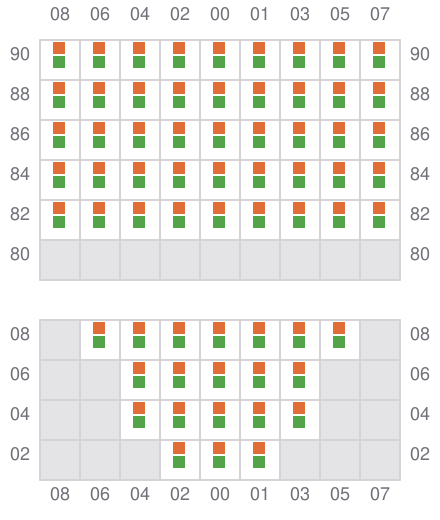

005 (006)
- →
- → / ?
- →

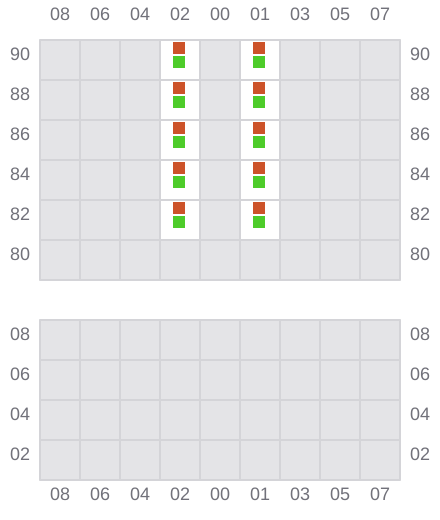

007
- ←
- →

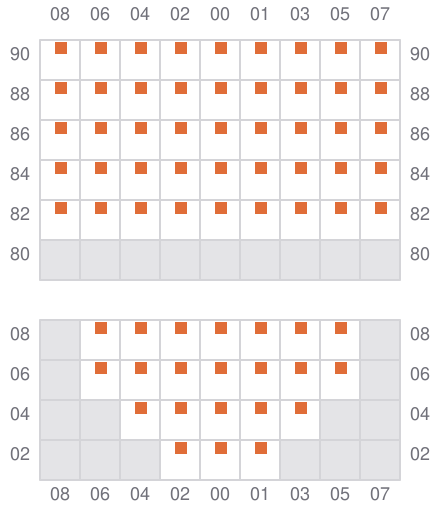

009
011 (012)
- →
- ← / ?
- →

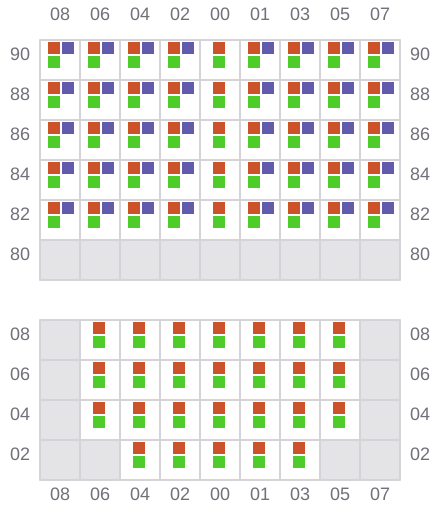

013
- ←
- →
015 (016)
- →
- →
- →

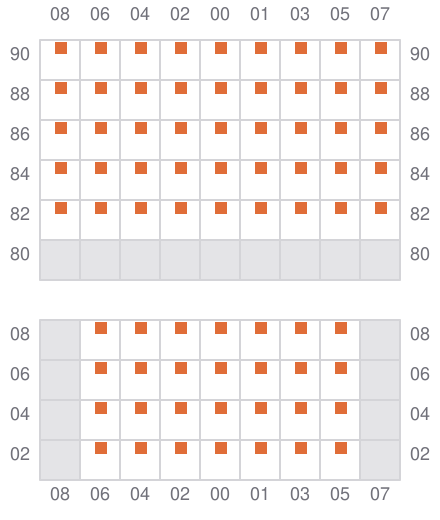

017
- ←
- →

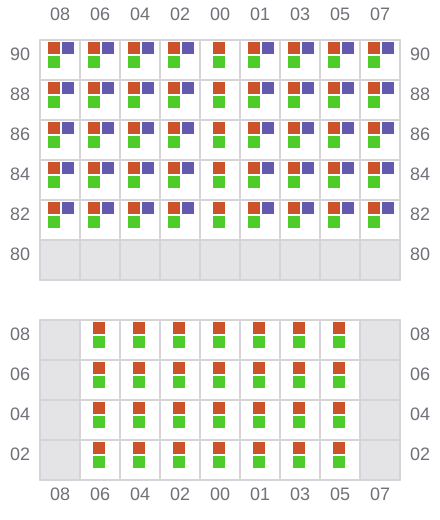

019 (020)
- →
- ←
- →

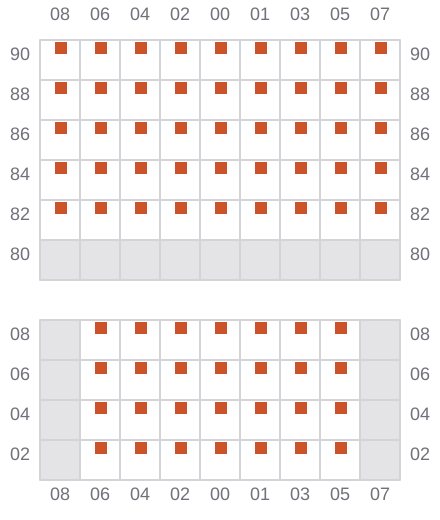

021
- ←
- →

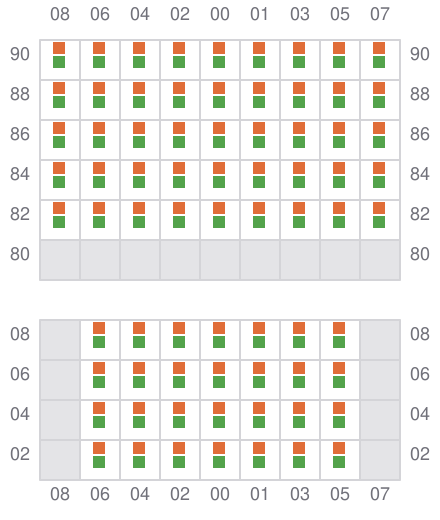

023 (024)
- →
- → / ?
- →
025
- ←
- →

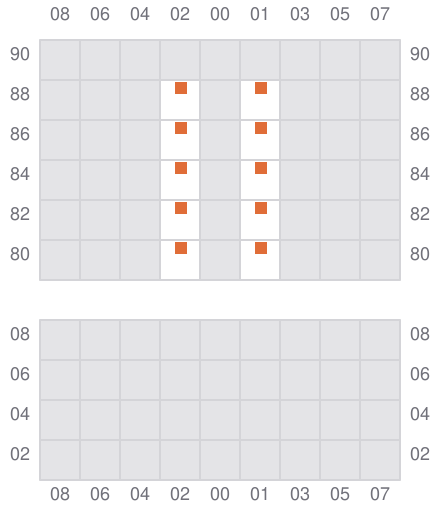

027

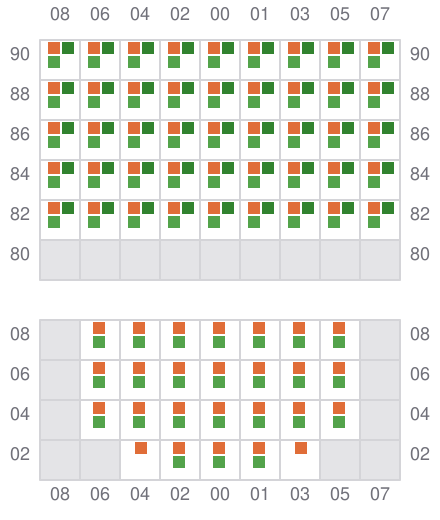

029 (030)
- →
- ← / ?
- →

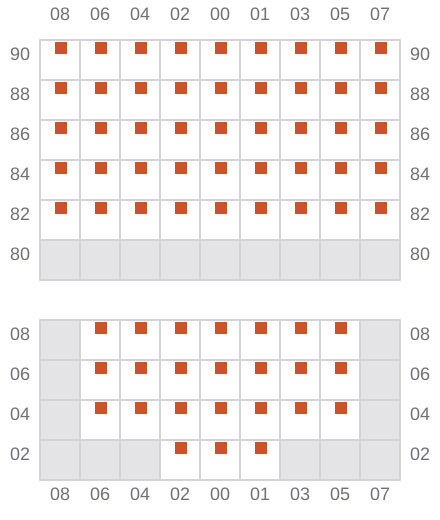

031
- ←
- →

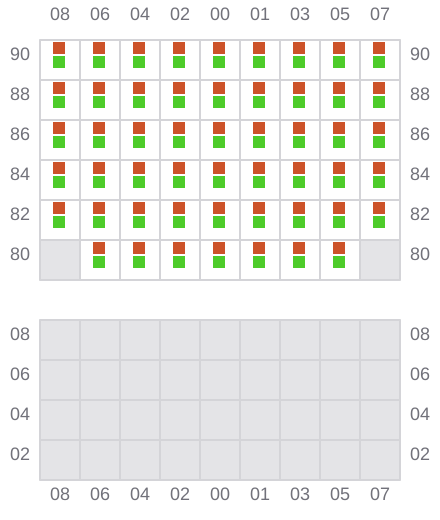

033 (034)
- → / ?
- ← / ?
- → / ?

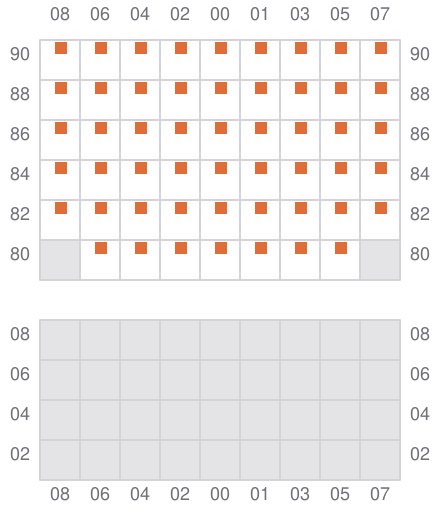

035
- ← / ?
- → / ?
