MOANA
9292151 | 5LDK2 | 9292151 by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:MOANA
IMO Code:9292151
Call Sign:5LDK2
Line Operator:9292151
Class Name for Sister Ships:99Z
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.00
LOA (Length Overall):294.05
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,027
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

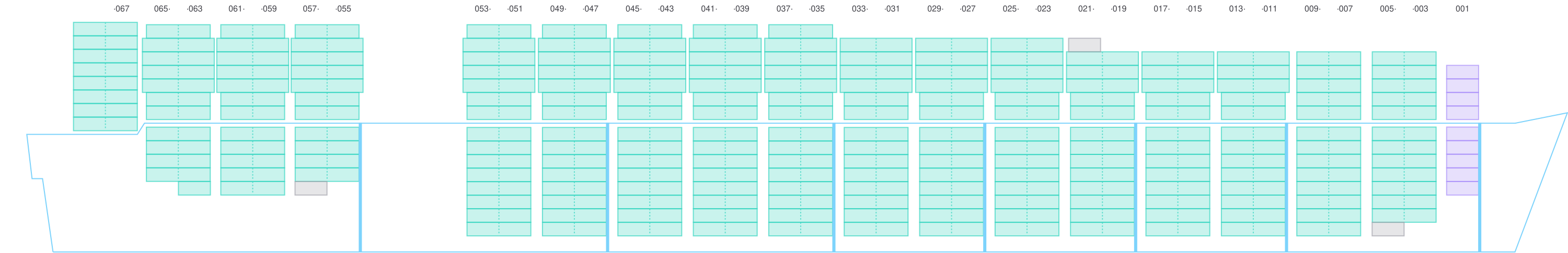

Side View

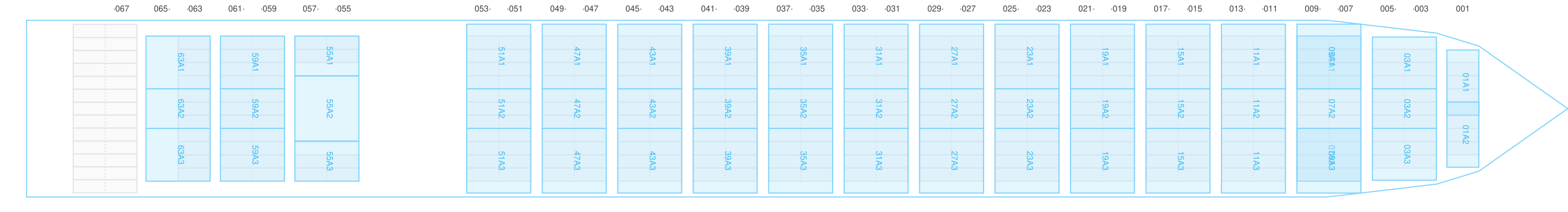

Hatch-Covers View

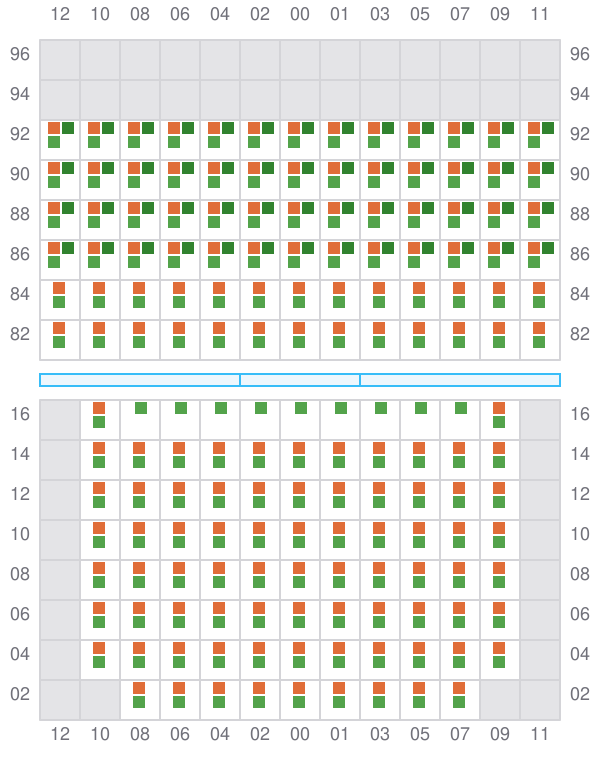

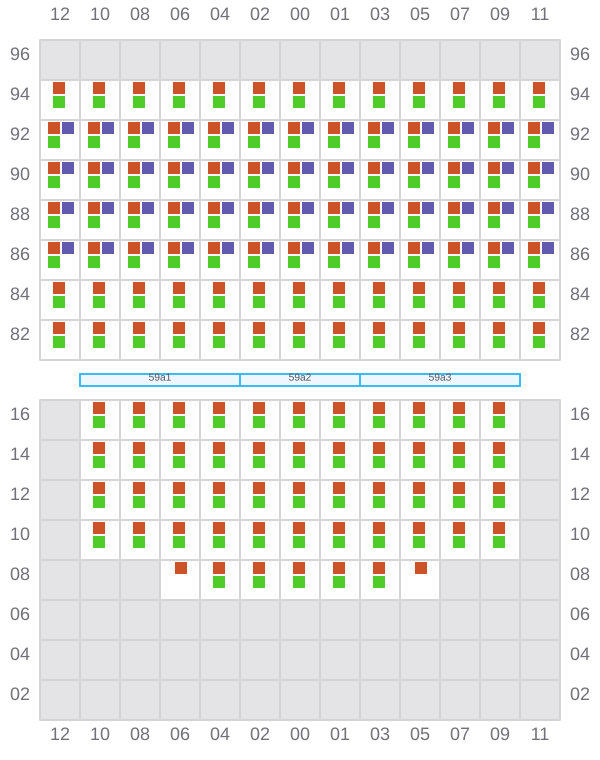

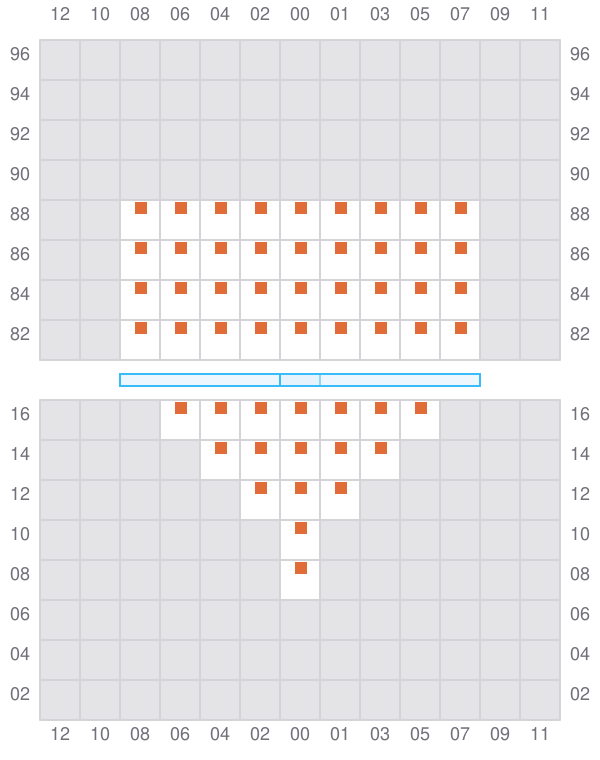

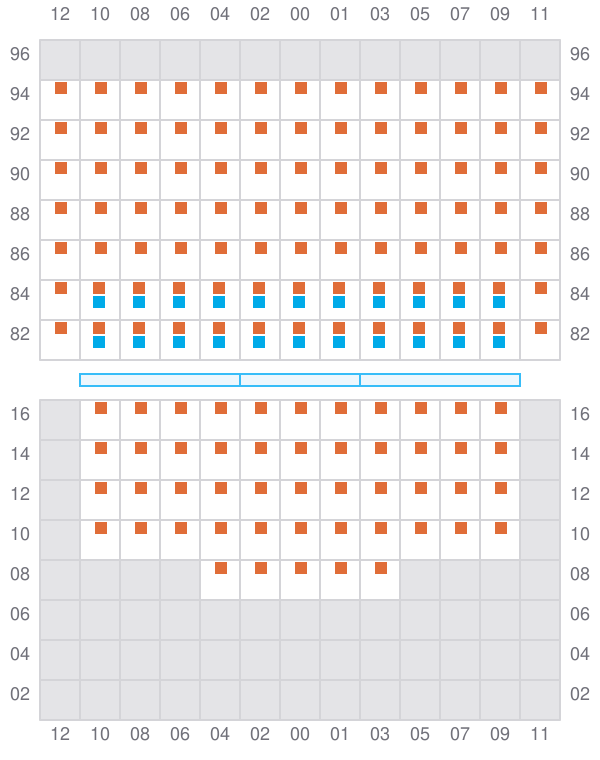

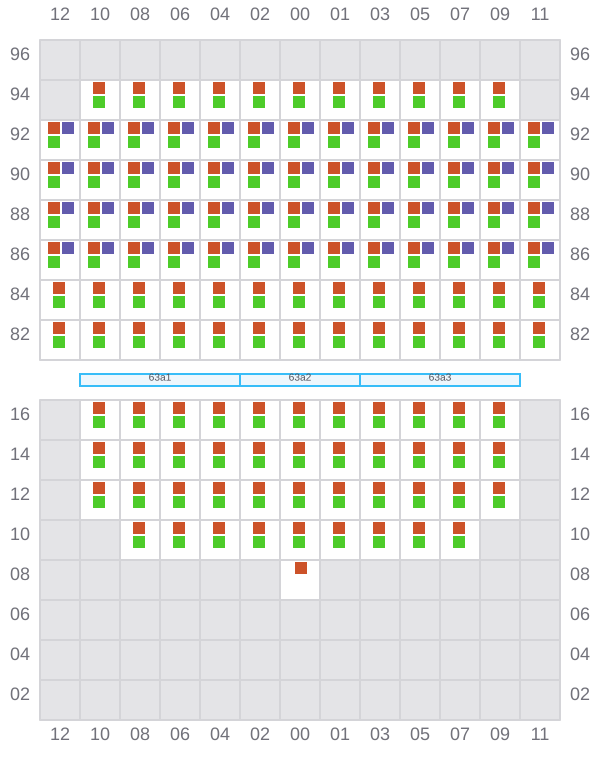

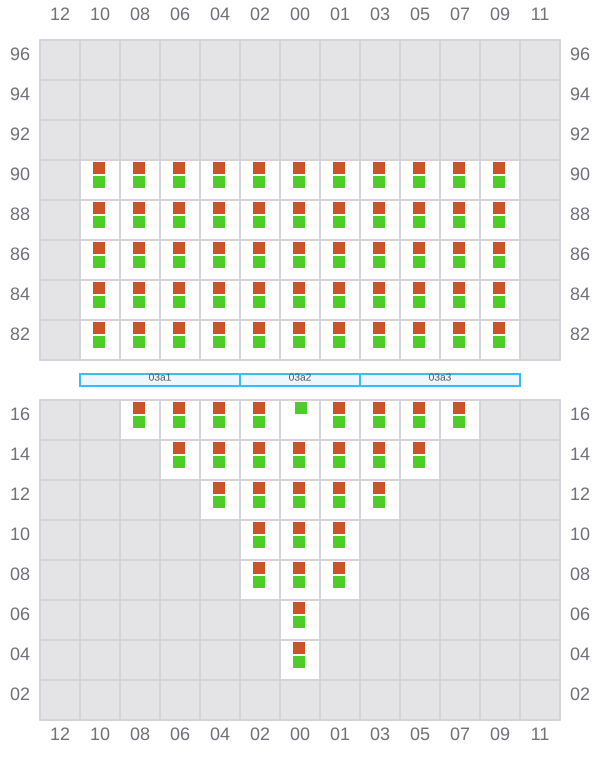

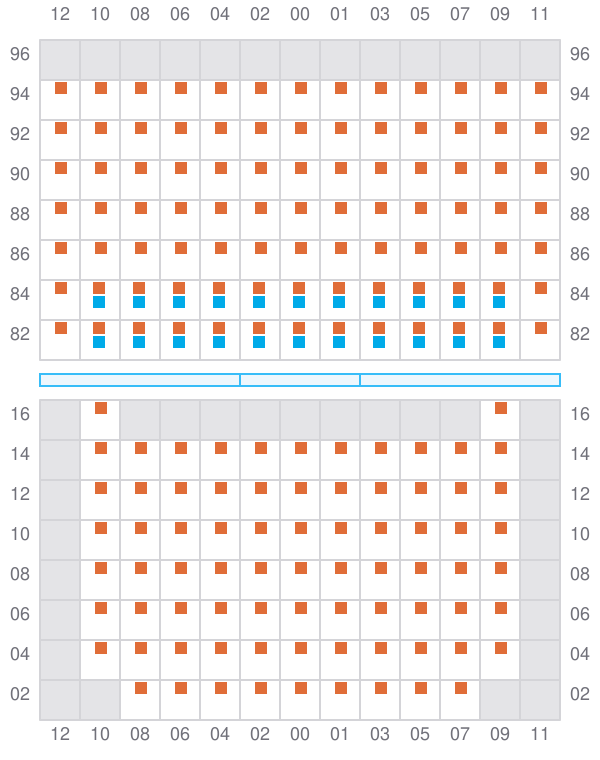

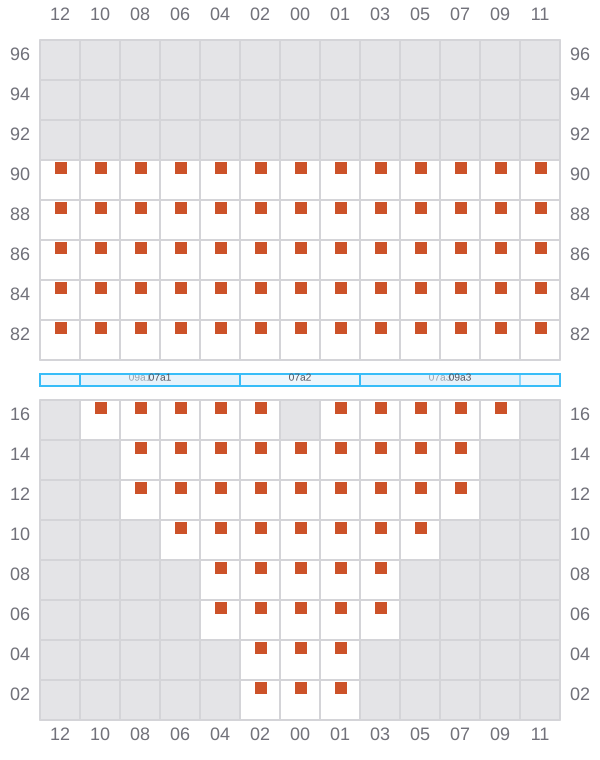

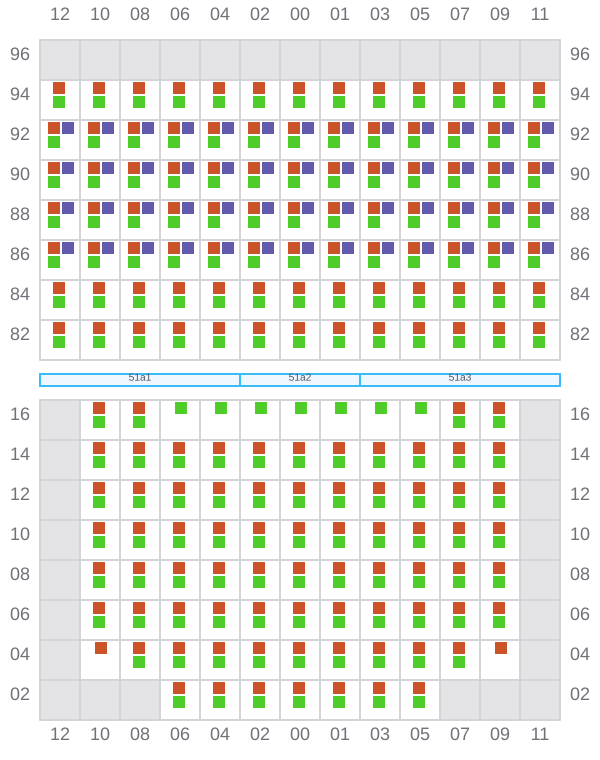

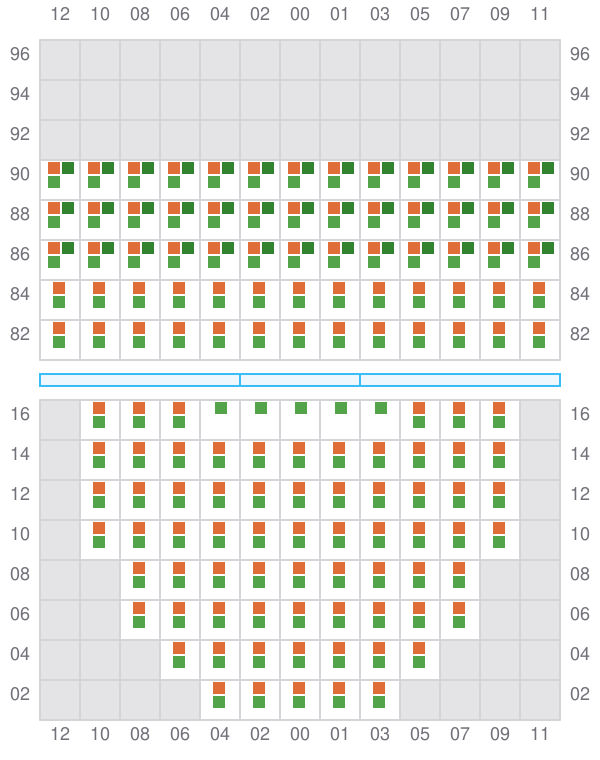

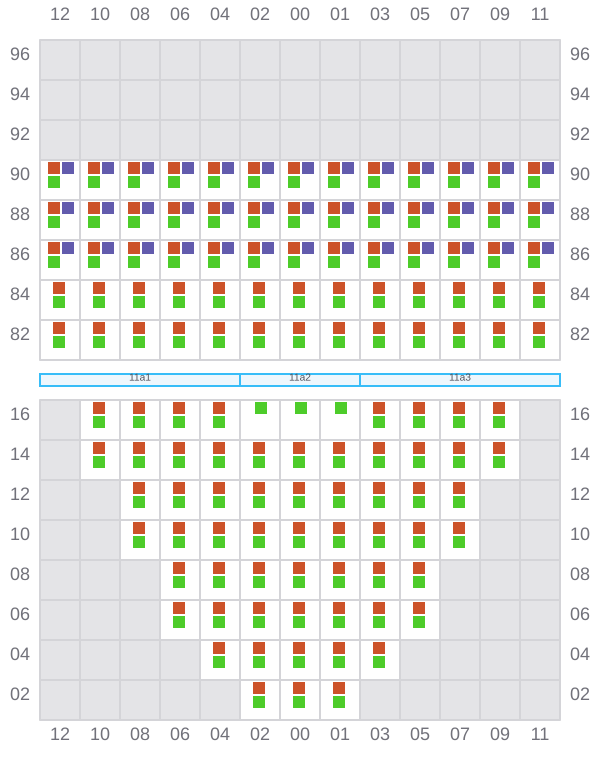

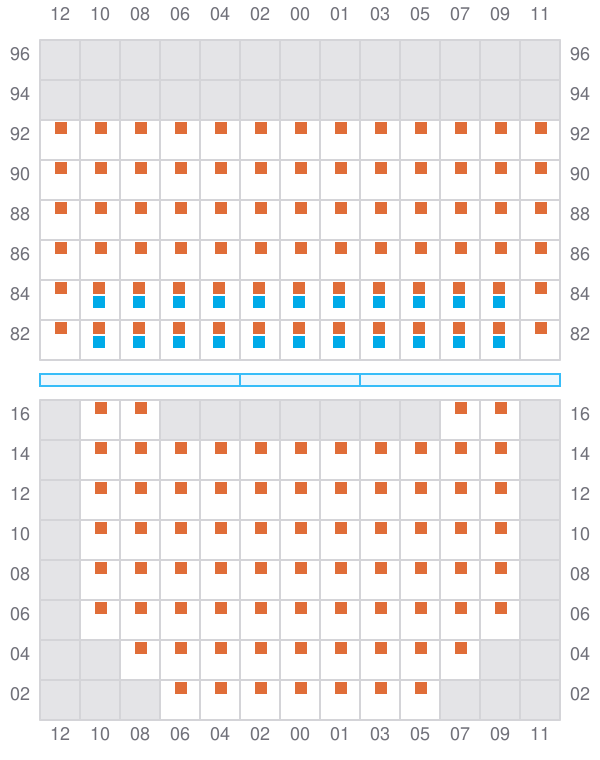

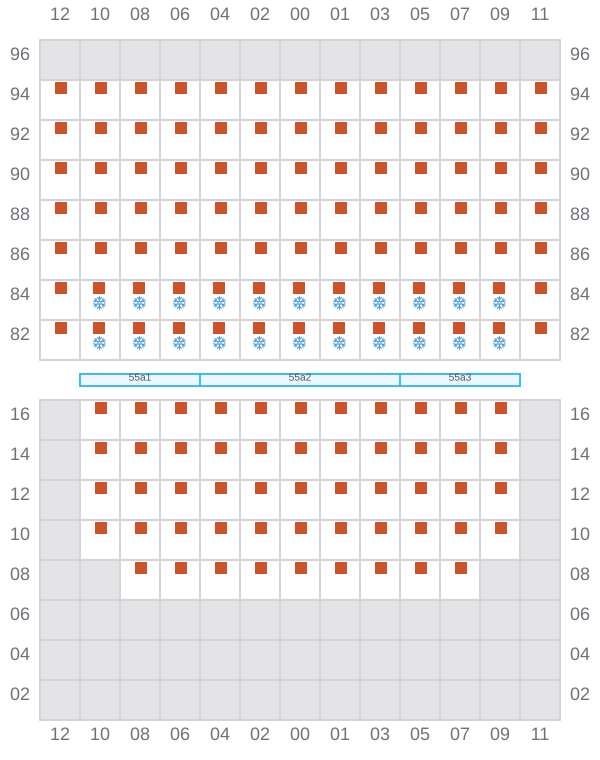

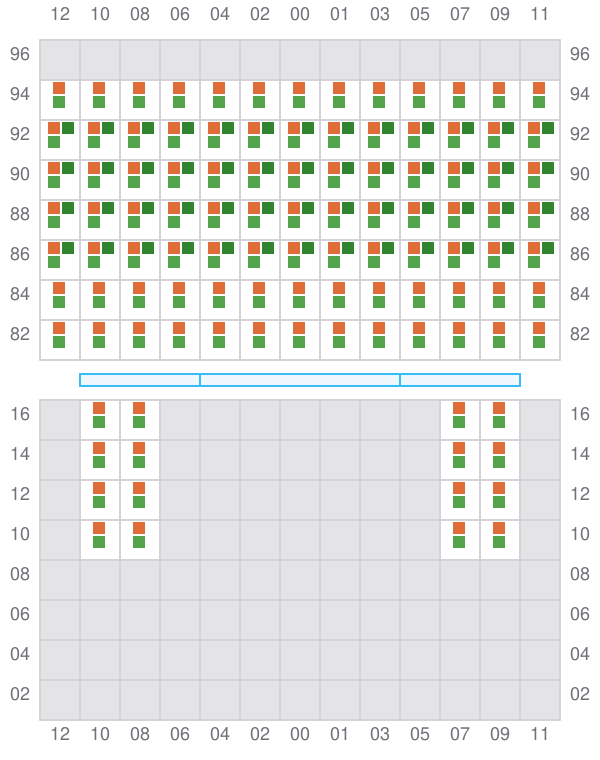

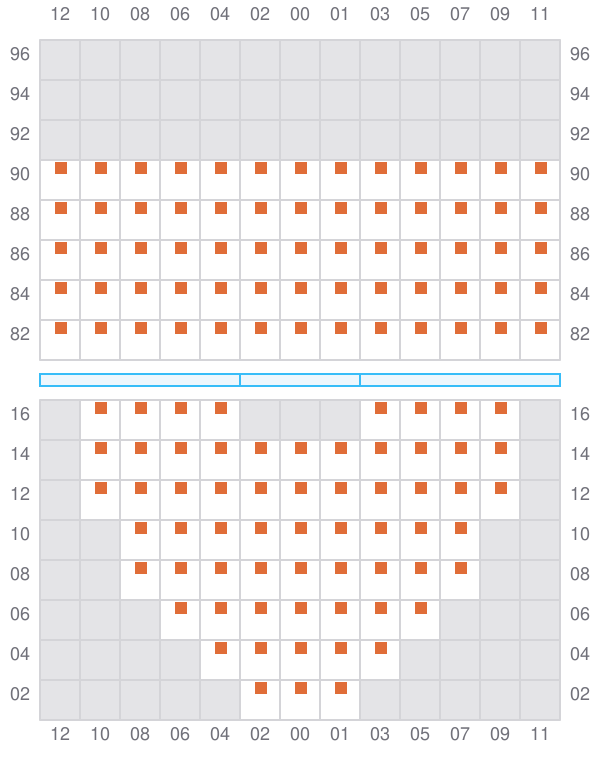

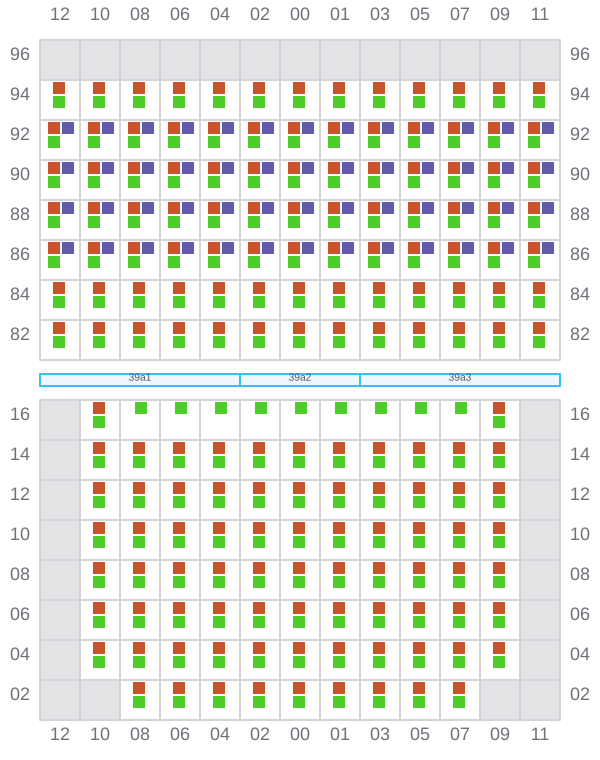

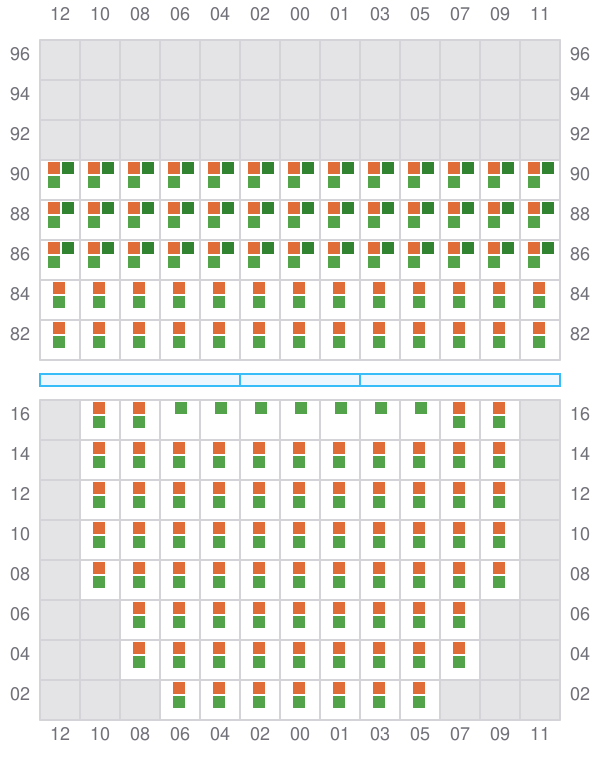

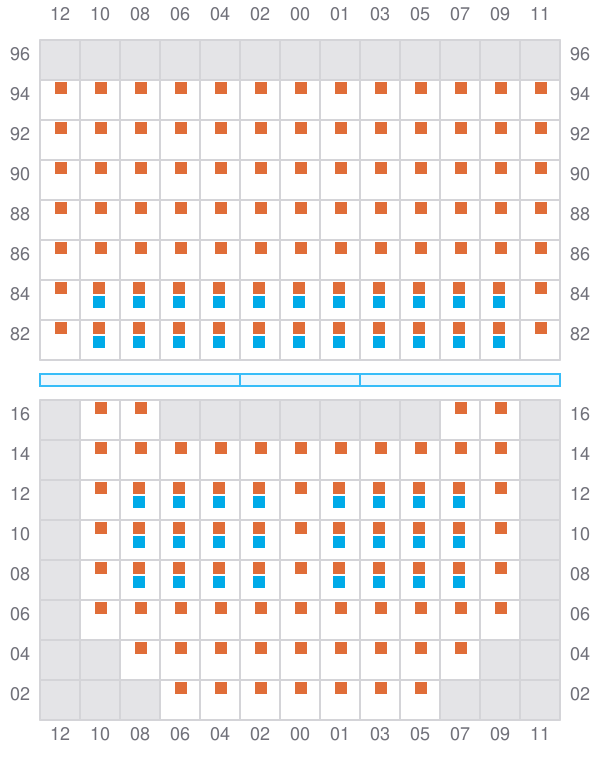

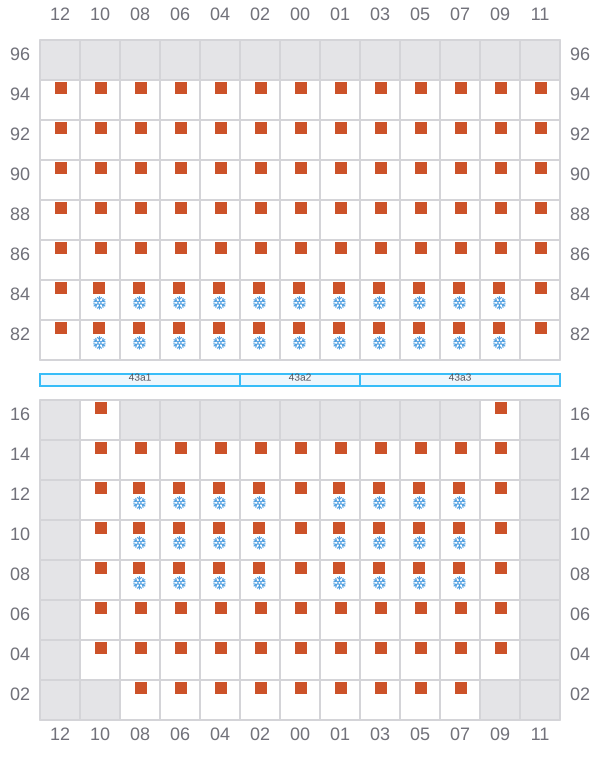

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
003 (004)
- →

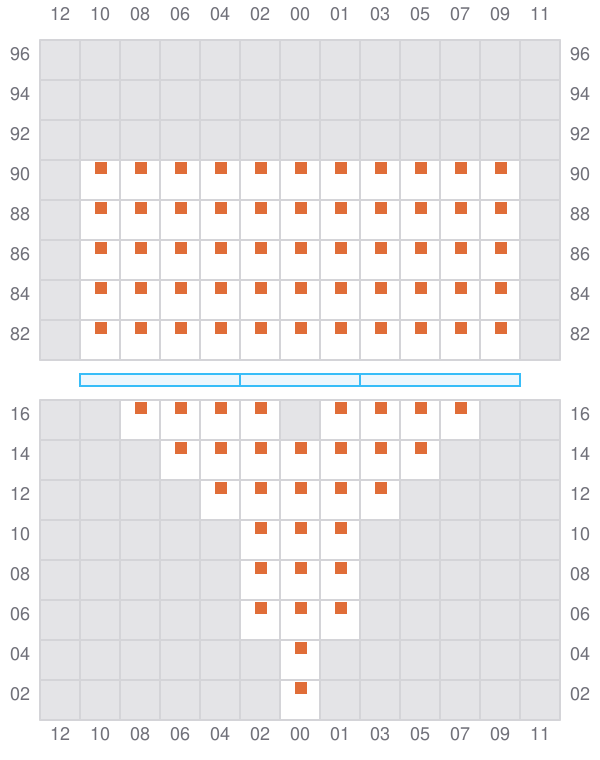

005
- ←

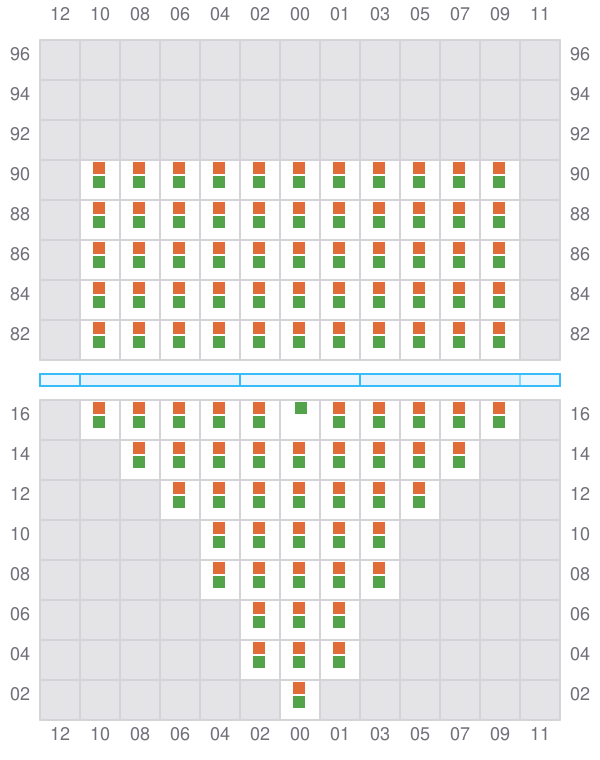

007 (008)
- →
009
- ←
011 (012)
- →
013
- ←

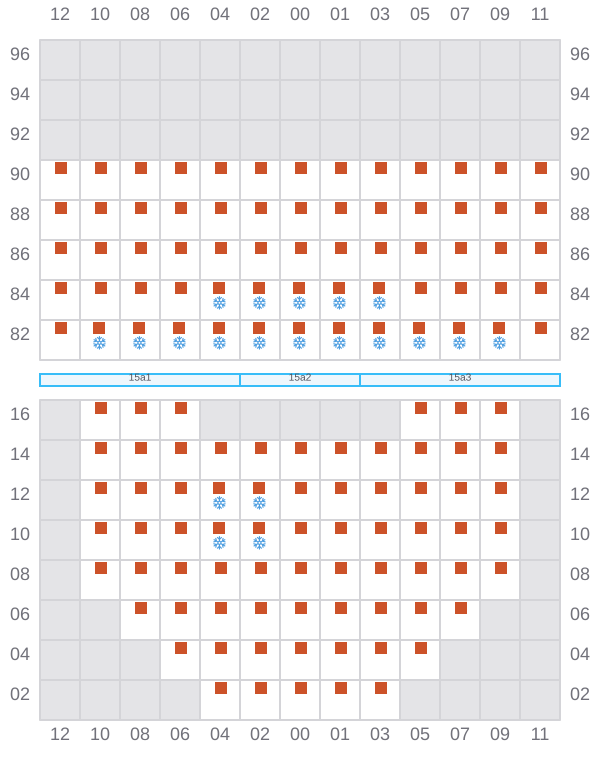

015 (016)
- →
017
- ←
- →
019 (020)
- →
021
- ←
- → / ?

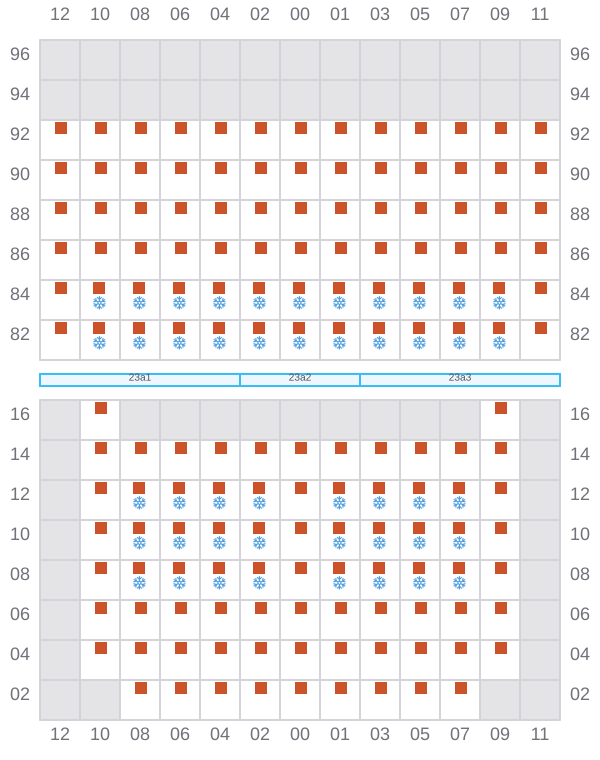

023 (024)
- →
025
- ←
- →

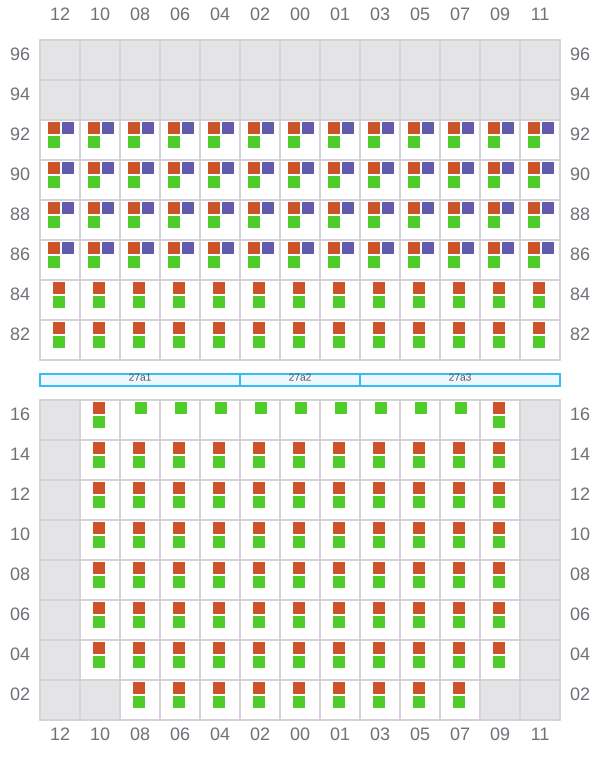

027 (028)
- →
029
- ←
- → / ?
031 (032)
- →
033
- ←
- →

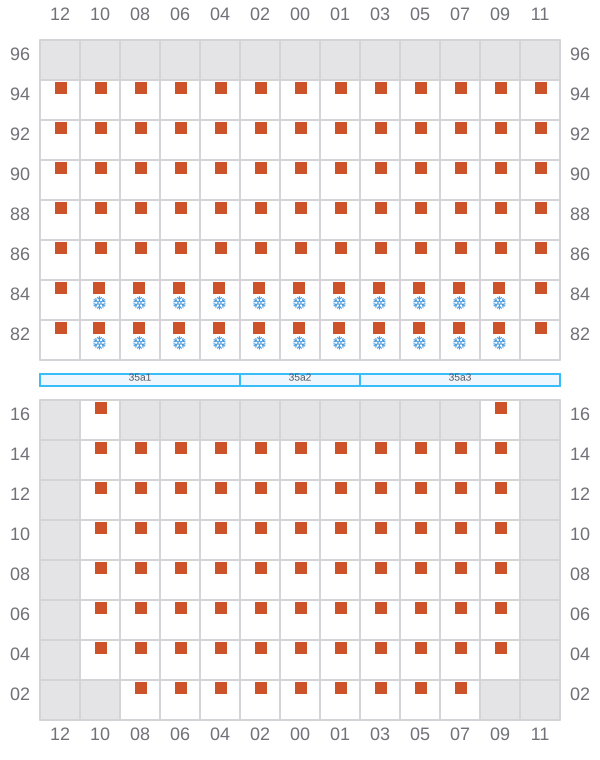

035 (036)
- →
037
- ←
- → / ?
039 (040)
- →
041
- ←
- → / ?
043 (044)
- →
045
- ←
- →
047 (048)
- →
049
- ←
- → / ?
051 (052)
- →
053
- ←
- →

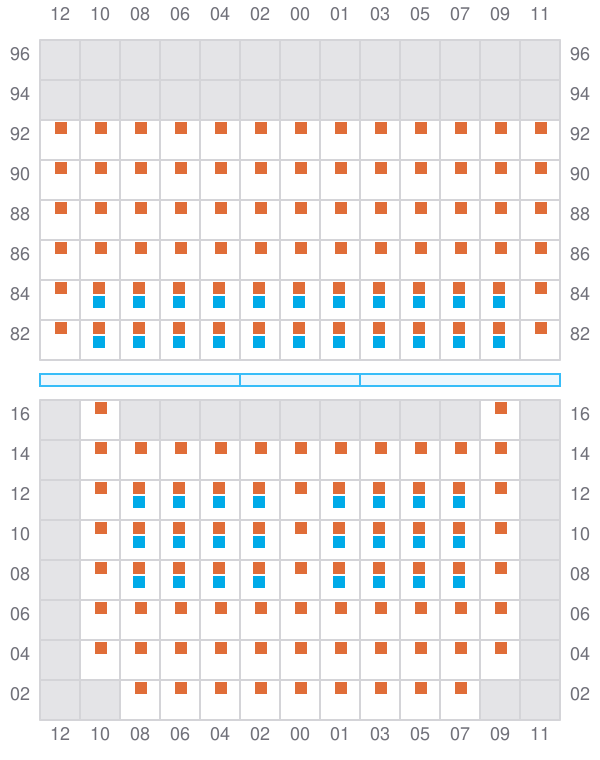

055 (056)
- →
057
- ←
- → / ?
059 (060)
- →
061
- ←
- → / ?
063 (064)
- →
065
- ←
- → / ?
067 (068)
- → / ?
- ← / ?
