MOANA
9292151 | 5LDK2 | MSC by ************* Last update: Fri Jun 16 2023
General Info
Ship Name:MOANA
IMO Code:9292151
Call Sign:5LDK2
Line Operator:MSC
Class Name for Sister Ships:HUM
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,975
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-sideView.png?v=1686939612443)
Hatch-Covers View
![Deck view of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-deckView.png?v=1686939612443)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

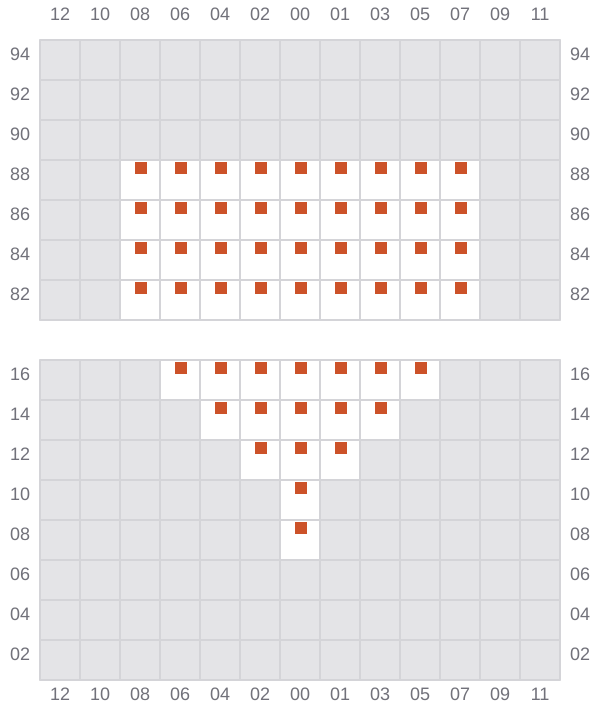

001
- → / ?
![Bay 001 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b001.png?v=1686939612443)

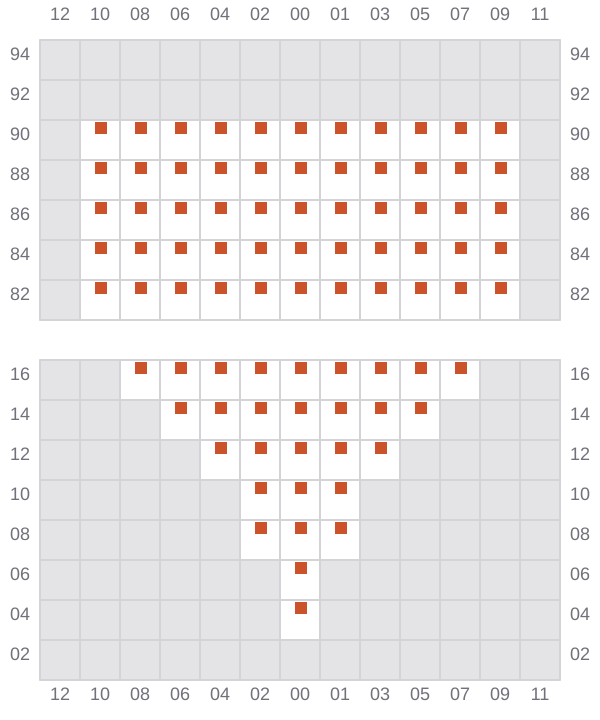

003
- →
![Bay 003 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b003.png?v=1686939612443)
005 (004)
- ←
![Bay 005 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b005.png?v=1686939612443)
007
- →
![Bay 007 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b007.png?v=1686939612443)
009 (008)
- ←
![Bay 009 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b009.png?v=1686939612443)

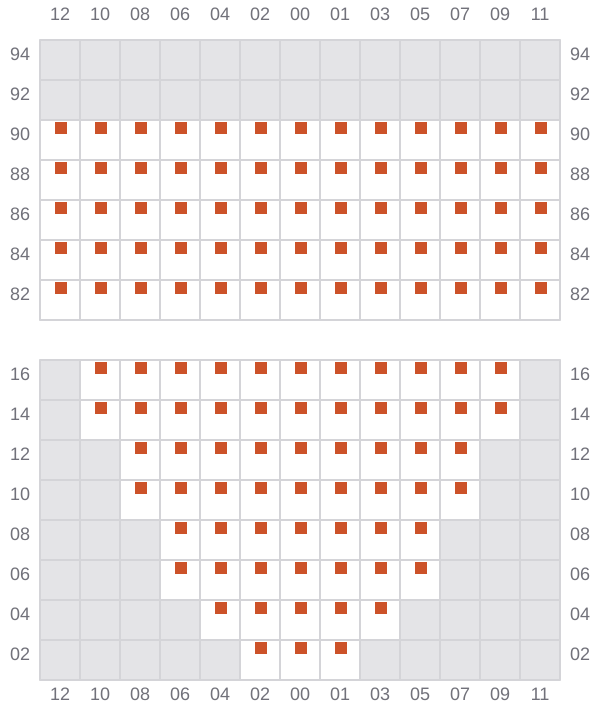

011
- →
![Bay 011 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b011.png?v=1686939612443)

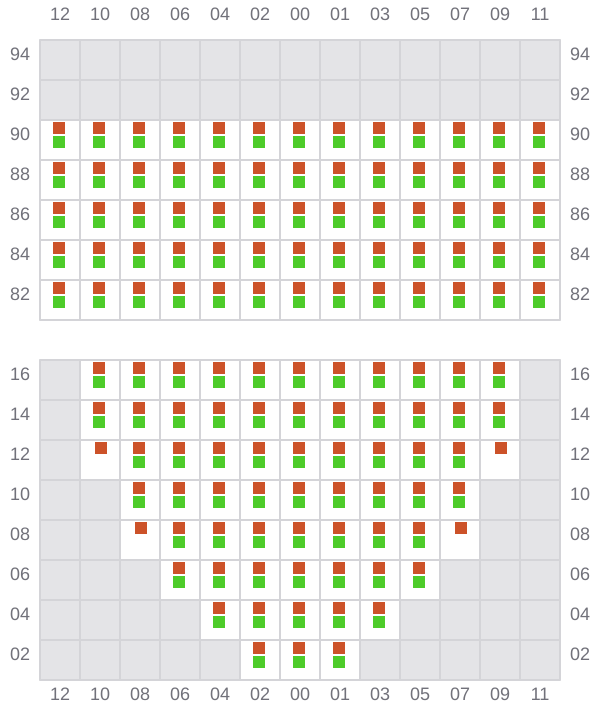

013 (012)
- ←
![Bay 013 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b013.png?v=1686939612443)
015
- →
![Bay 015 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b015.png?v=1686939612443)

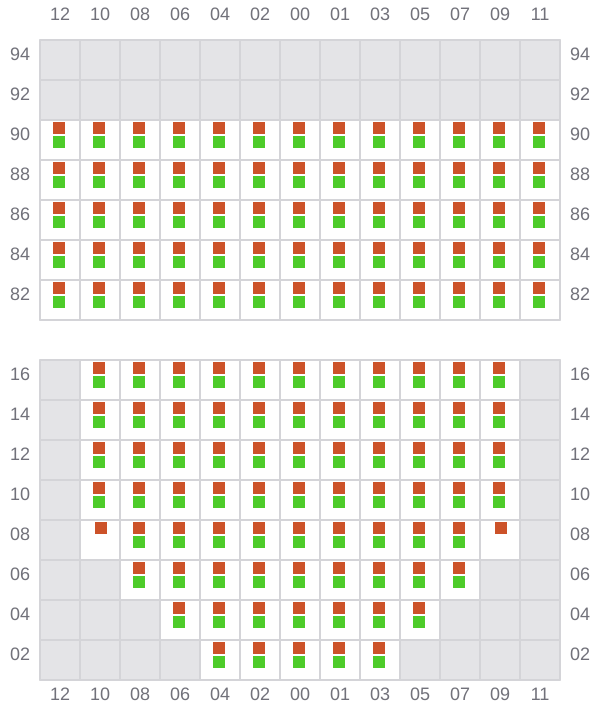

017 (016)
- ←
![Bay 017 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b017.png?v=1686939612443)

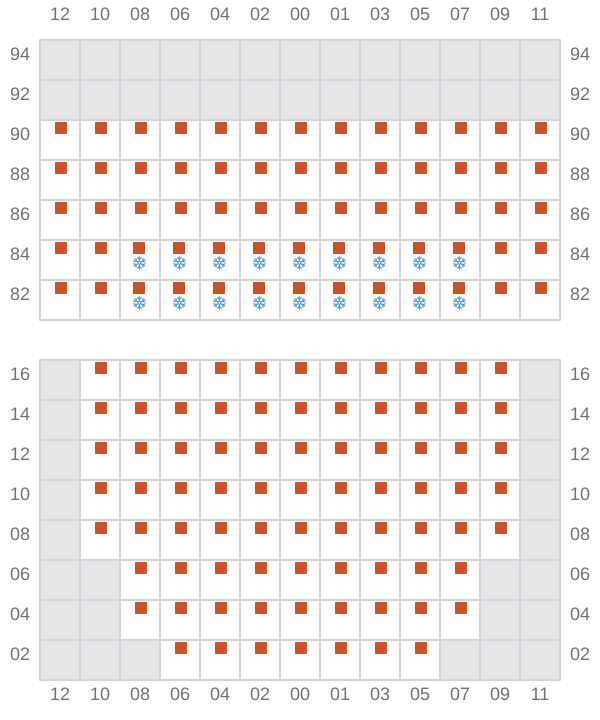

019
- →
![Bay 019 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b019.png?v=1686939612443)

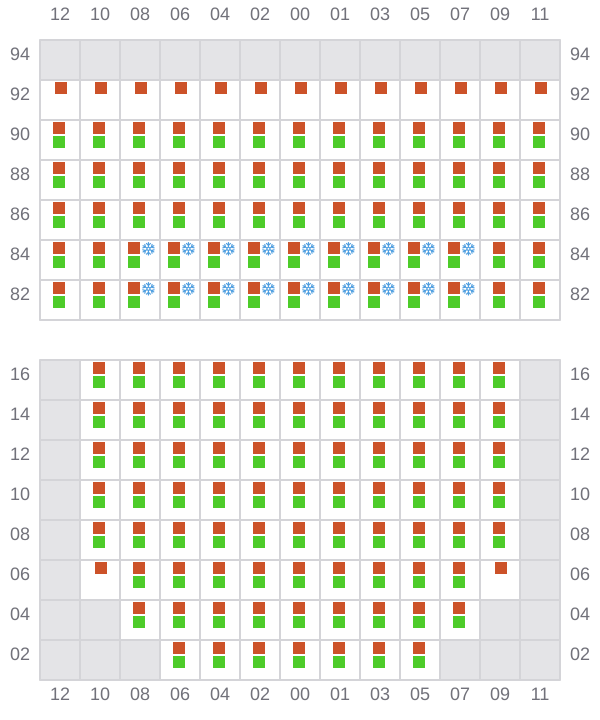

021 (020)
- ←
![Bay 021 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b021.png?v=1686939612443)

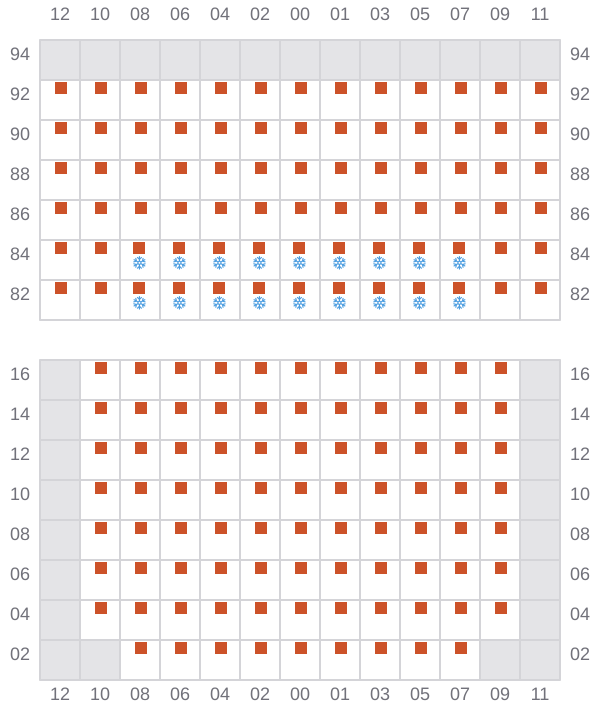

023
- →
![Bay 023 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b023.png?v=1686939612443)

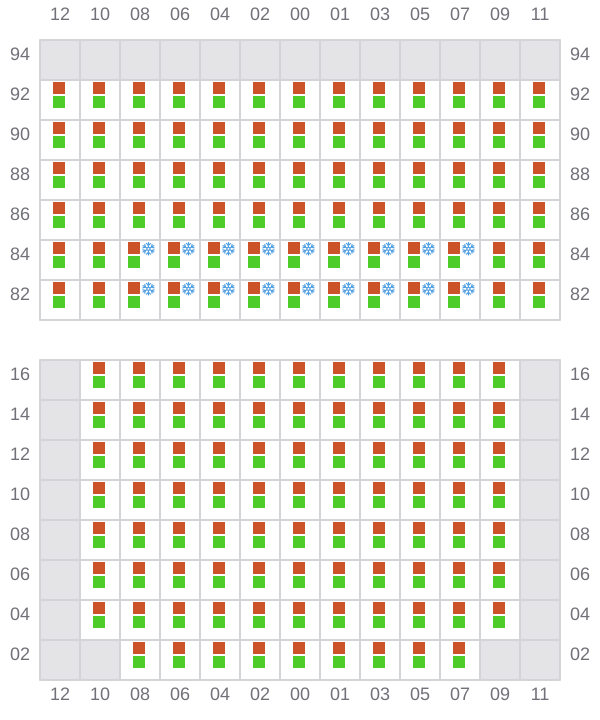

025 (024)
- ←
![Bay 025 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b025.png?v=1686939612443)
027
- →
![Bay 027 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b027.png?v=1686939612443)
029 (028)
- ←
![Bay 029 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b029.png?v=1686939612443)
031
- →
![Bay 031 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b031.png?v=1686939612443)
033 (032)
- ←
![Bay 033 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b033.png?v=1686939612443)
035
- →
![Bay 035 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b035.png?v=1686939612443)
037 (036)
- ←
![Bay 037 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b037.png?v=1686939612443)
039
- →
![Bay 039 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b039.png?v=1686939612443)

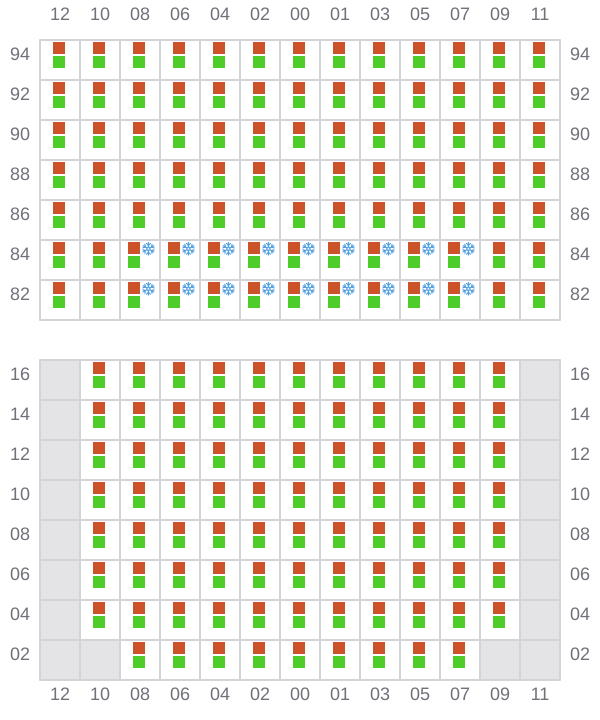

041 (040)
- ←
![Bay 041 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b041.png?v=1686939612443)
043
- →
![Bay 043 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b043.png?v=1686939612443)
045 (044)
- ←
![Bay 045 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b045.png?v=1686939612443)

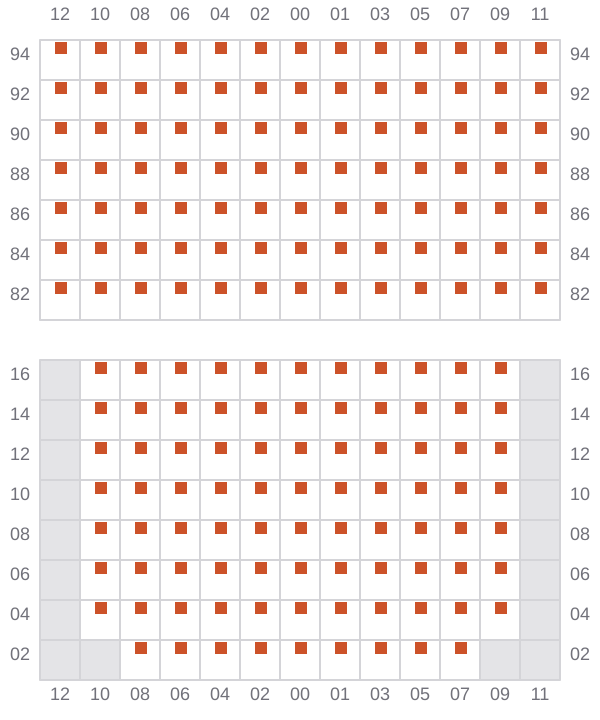

047
- →
![Bay 047 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b047.png?v=1686939612443)

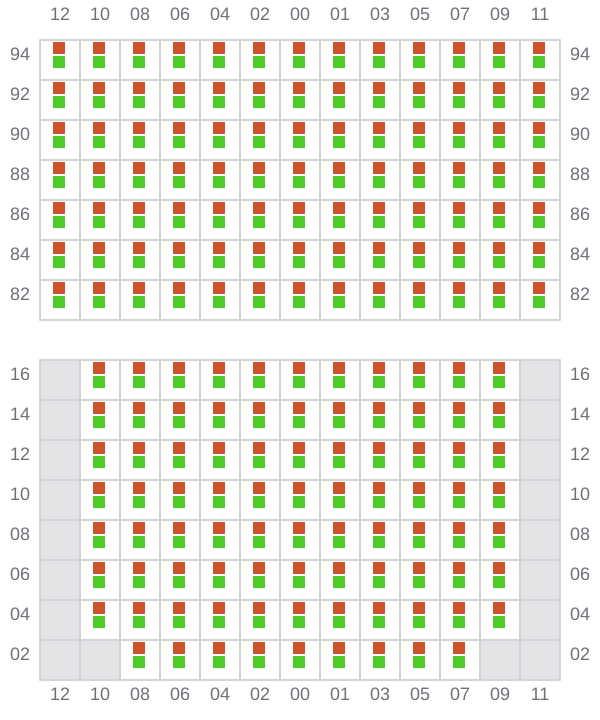

049 (048)
- ←
![Bay 049 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b049.png?v=1686939612443)
051
- →
![Bay 051 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b051.png?v=1686939612443)

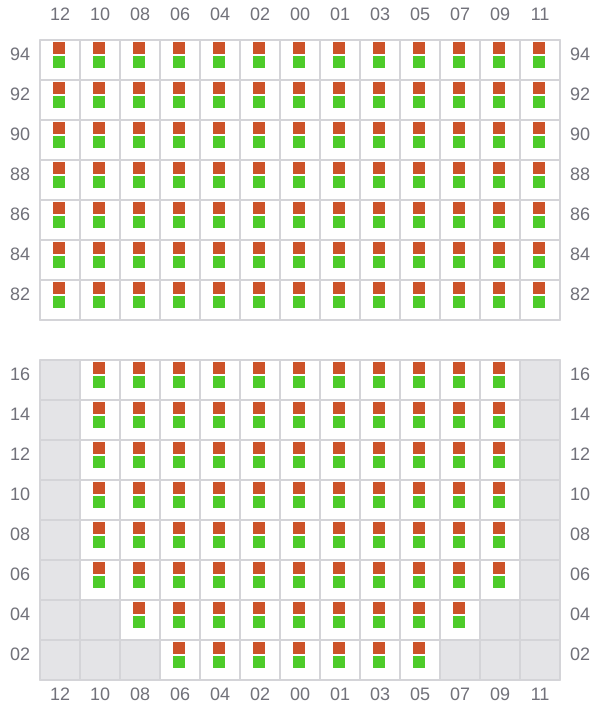

053 (052)
- ←
![Bay 053 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b053.png?v=1686939612443)

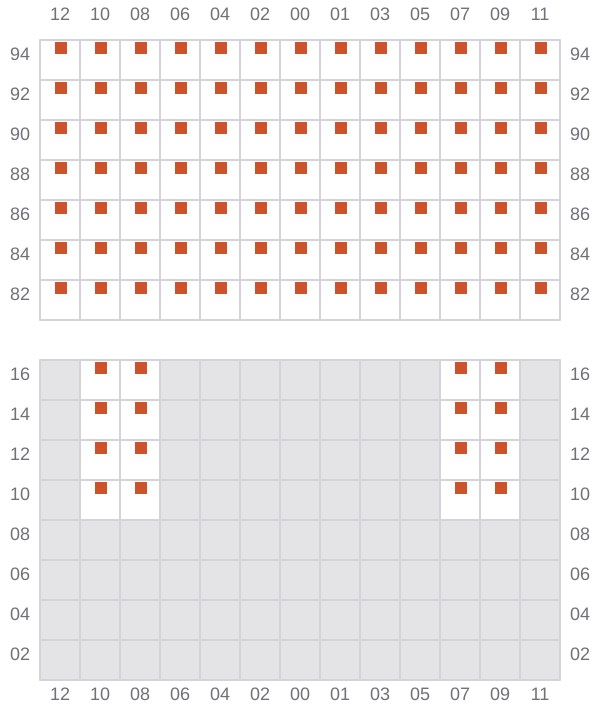

055
- →
![Bay 055 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b055.png?v=1686939612443)

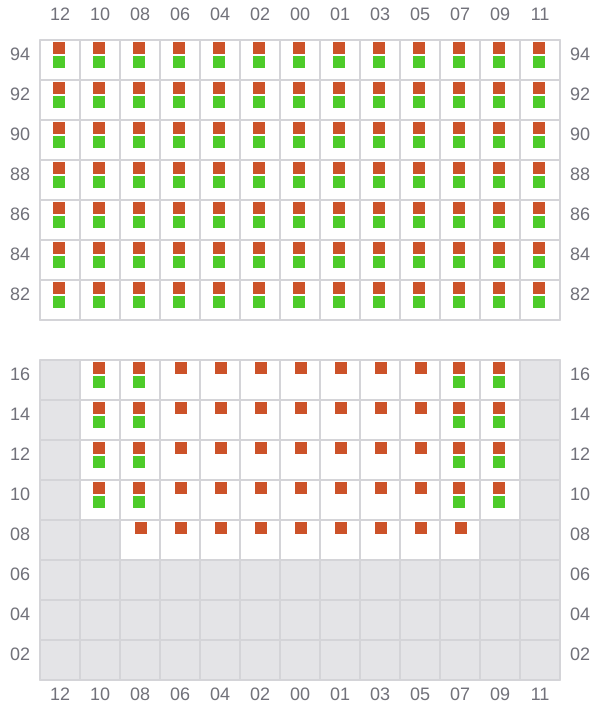

057 (056)
- ←
![Bay 057 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b057.png?v=1686939612443)
059
- →
![Bay 059 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b059.png?v=1686939612443)
061 (060)
- ←
![Bay 061 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b061.png?v=1686939612443)
063
- →
![Bay 063 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b063.png?v=1686939612443)

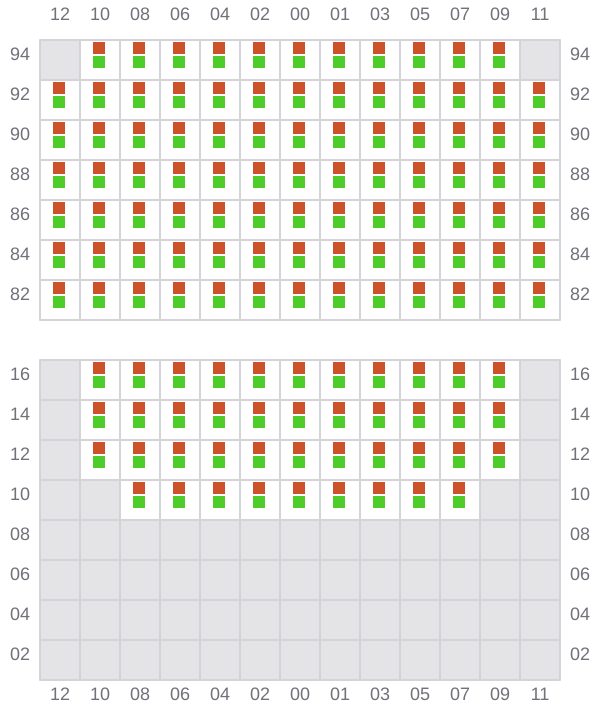

065 (064)
- ←
![Bay 065 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b065.png?v=1686939612443)
067 (068)
- → / ?
![Bay 067 view and slots of MOANA](/vessel-images/ace24d0c-c720-41bd-8c5c-71cae5bebd6d-b067.png?v=1686939612443)
