MOGENS MAERSK
9632090 | OWSC2 | 9632090 by ********* Last update: Tue May 21 2024

General Info

Ship Name:MOGENS MAERSK
IMO Code:9632090
Call Sign:OWSC2
Line Operator:9632090
Class Name for Sister Ships:MOGENSMAERSK
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:78
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:18,740

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

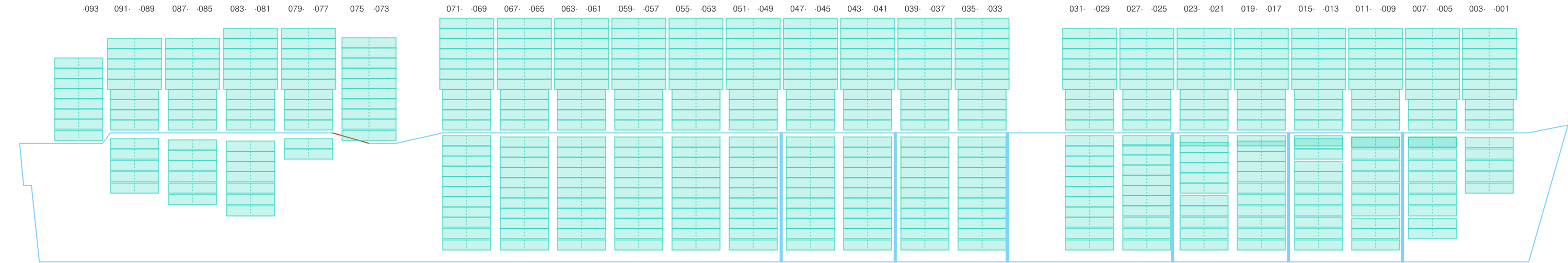

Side view of MOGENS MAERSK

Hatch-Covers View

Deck view of MOGENS MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

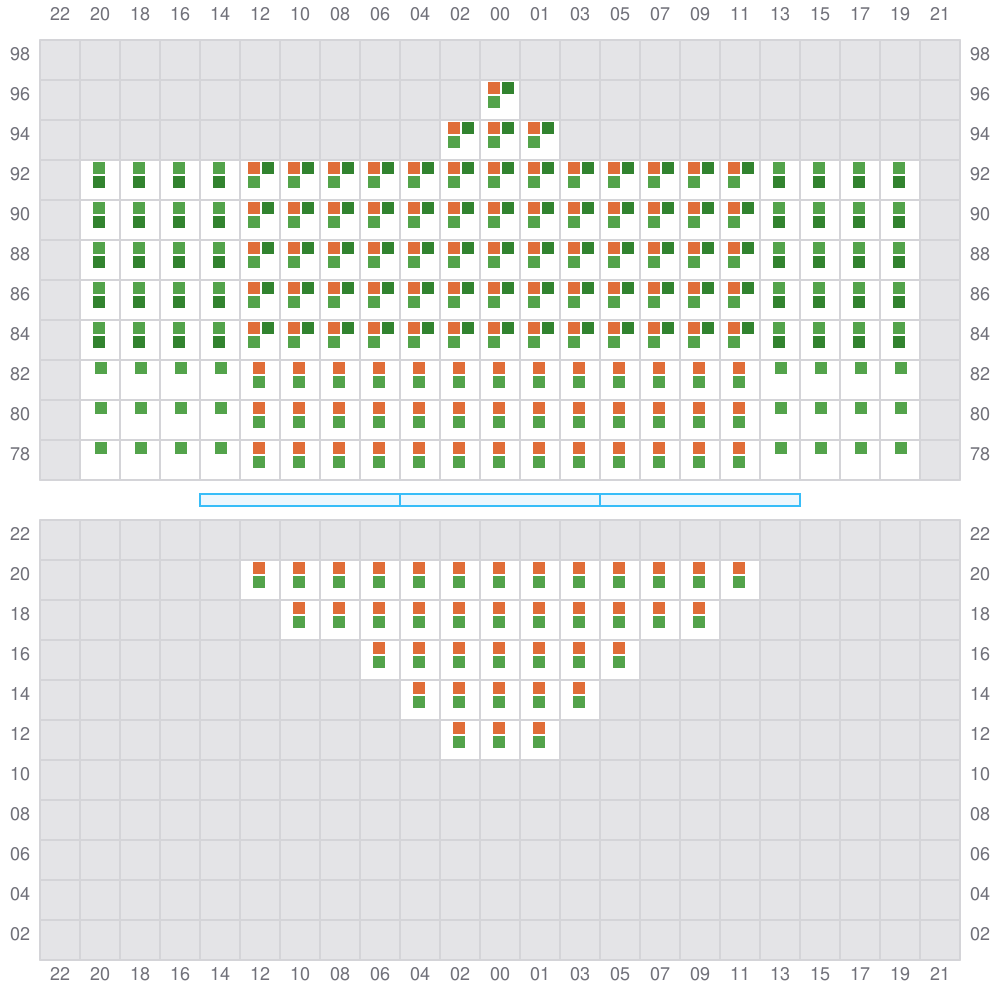

Bay 001 view and slots of MOGENS MAERSK

003

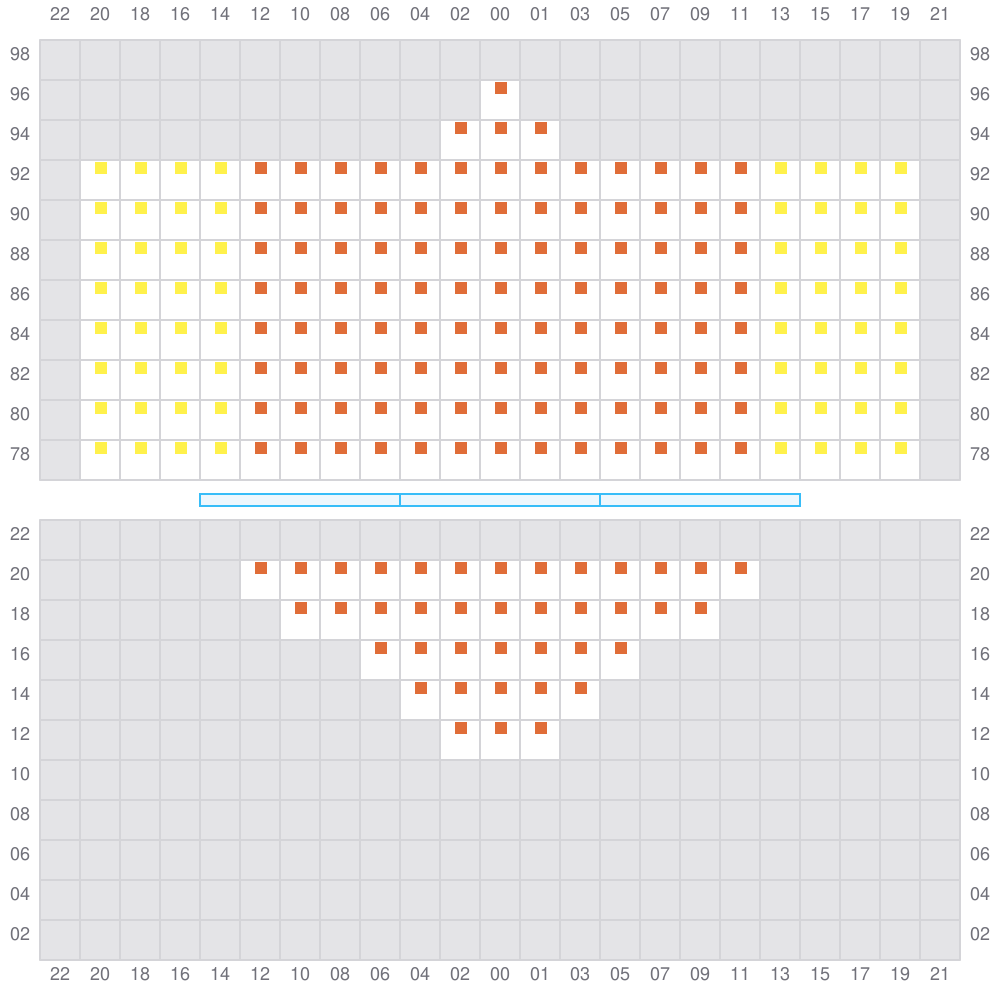

Bay 003 view and slots of MOGENS MAERSK

005 (006)

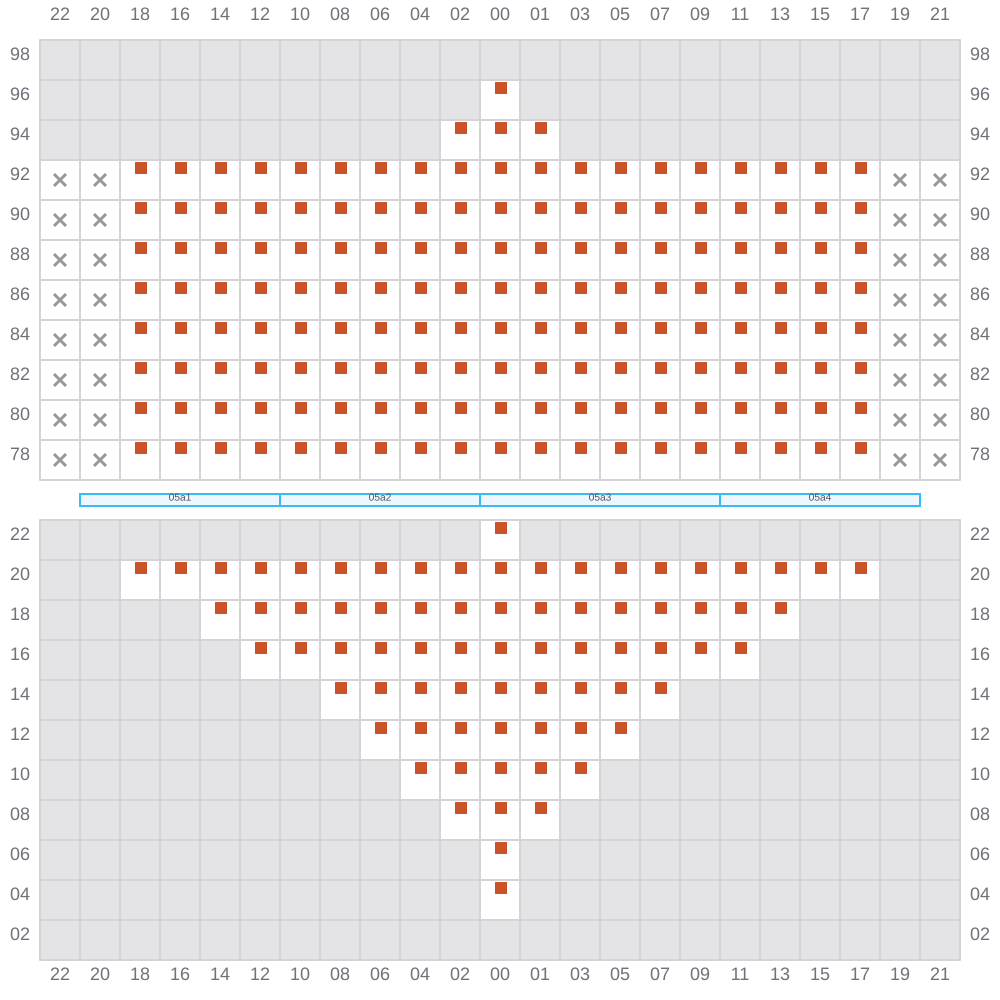

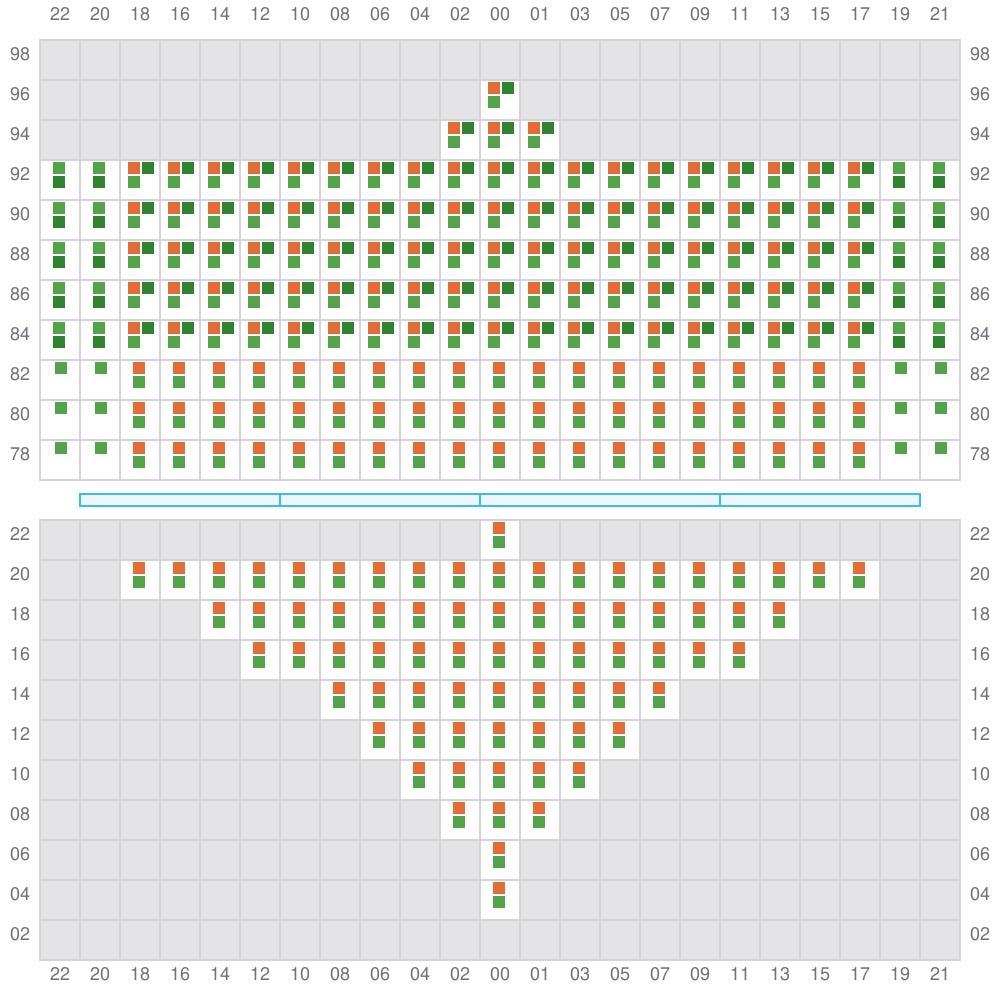

Bay 005 view and slots of MOGENS MAERSK

007

Bay 007 view and slots of MOGENS MAERSK

009 (010)

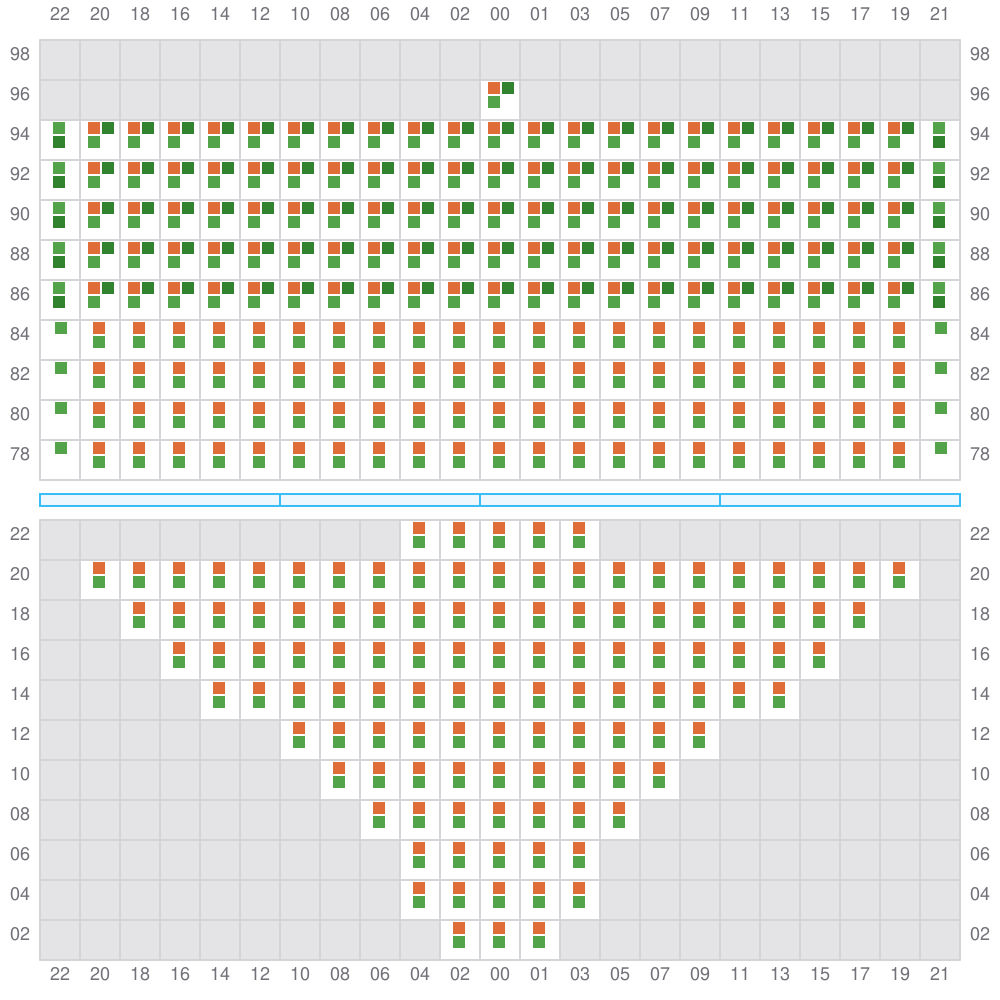

Bay 009 view and slots of MOGENS MAERSK

011

  • / ?

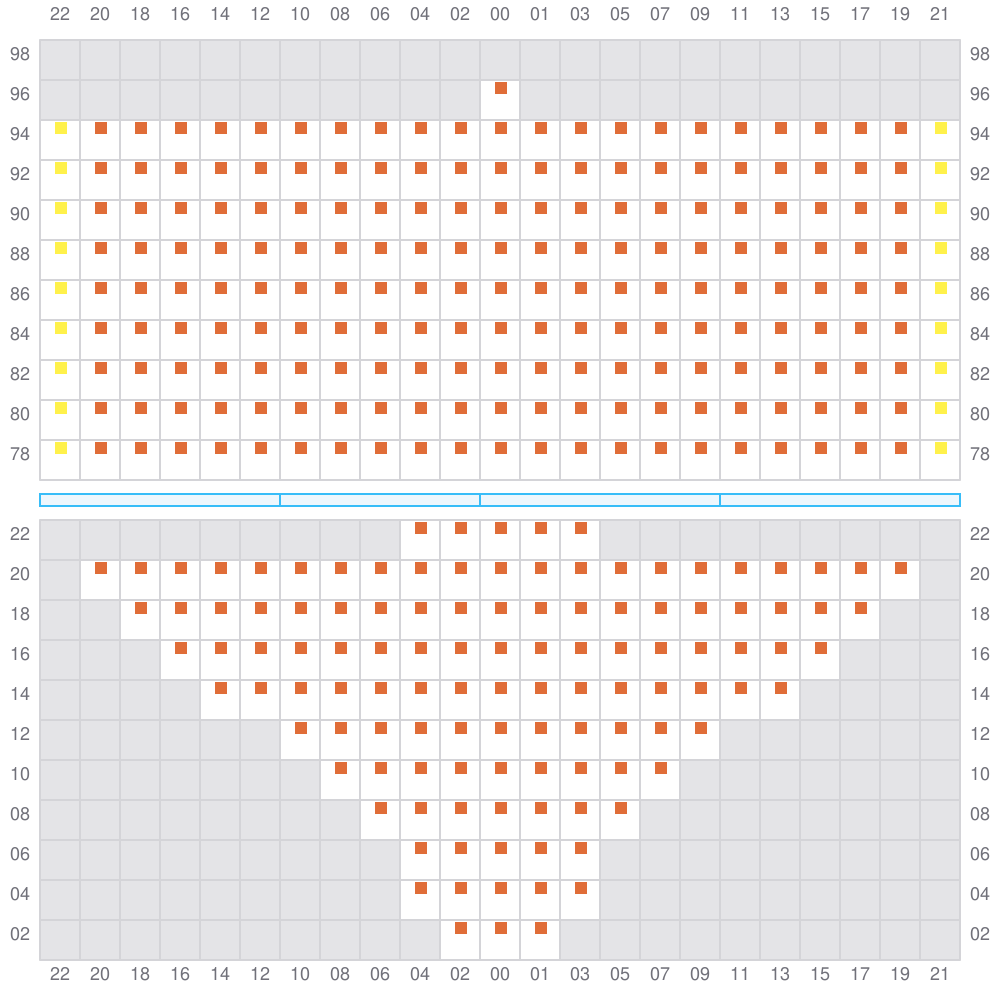

Bay 011 view and slots of MOGENS MAERSK

013 (014)

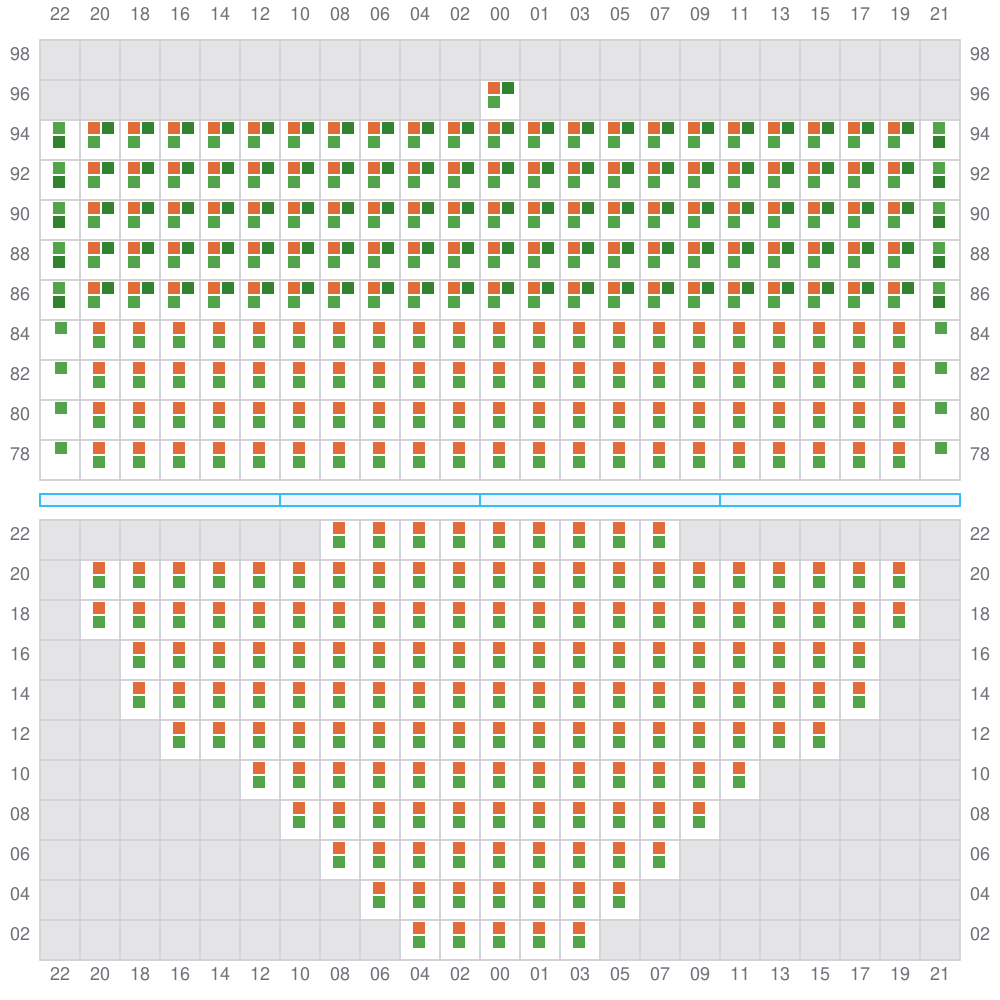

Bay 013 view and slots of MOGENS MAERSK

015

  • / ?

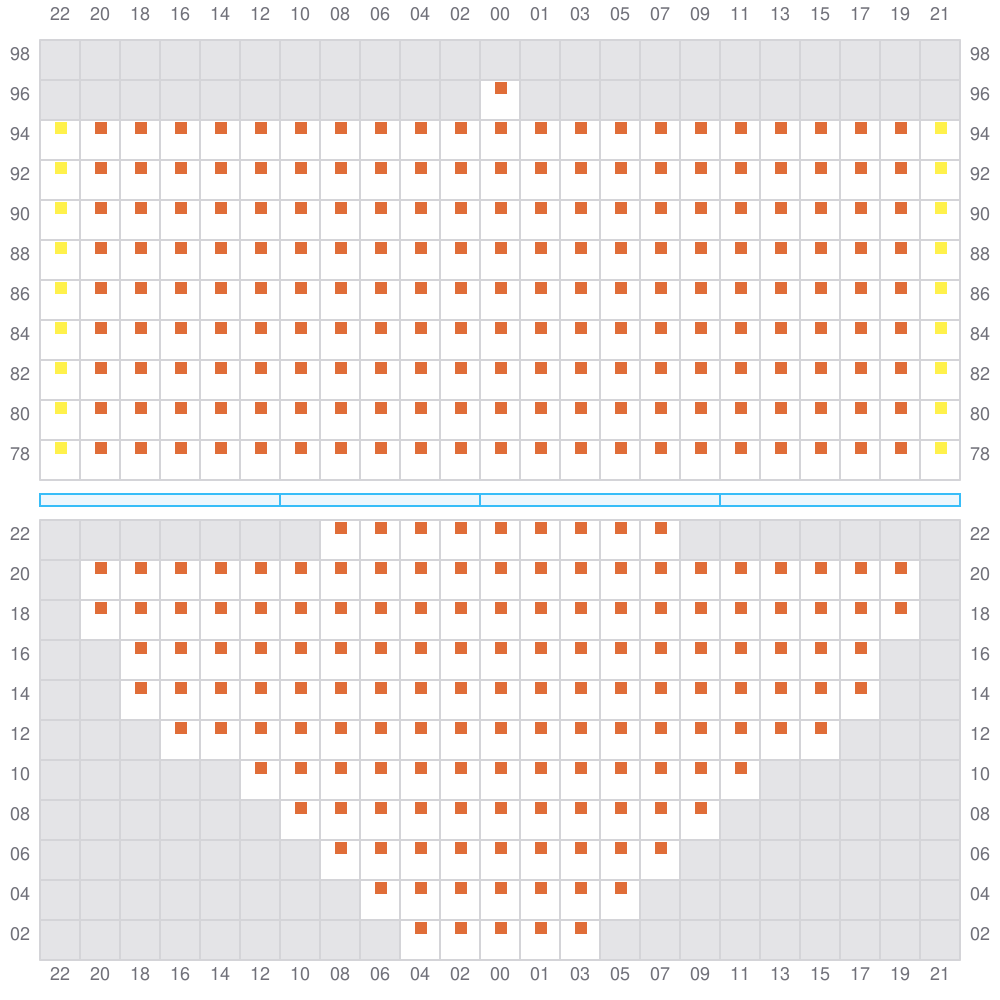

Bay 015 view and slots of MOGENS MAERSK

017 (018)

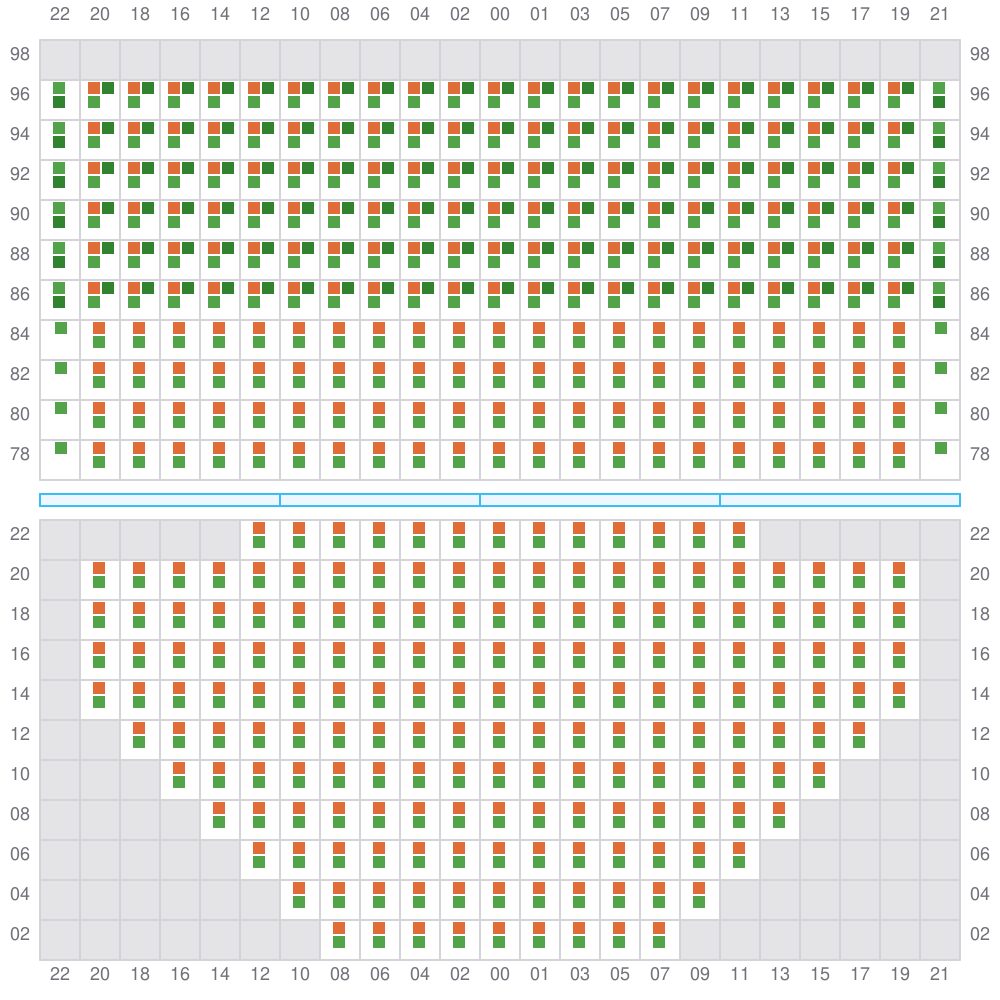

Bay 017 view and slots of MOGENS MAERSK

019

  • / ?

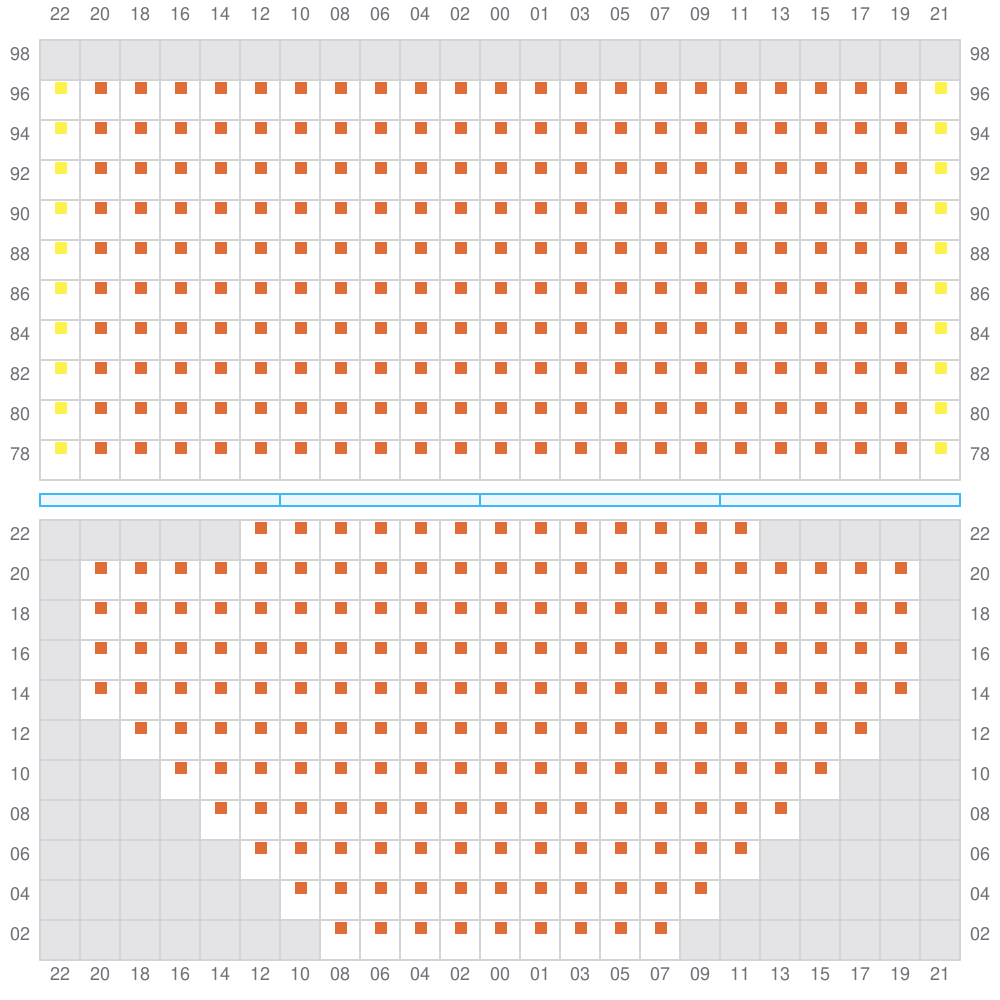

Bay 019 view and slots of MOGENS MAERSK

021 (022)

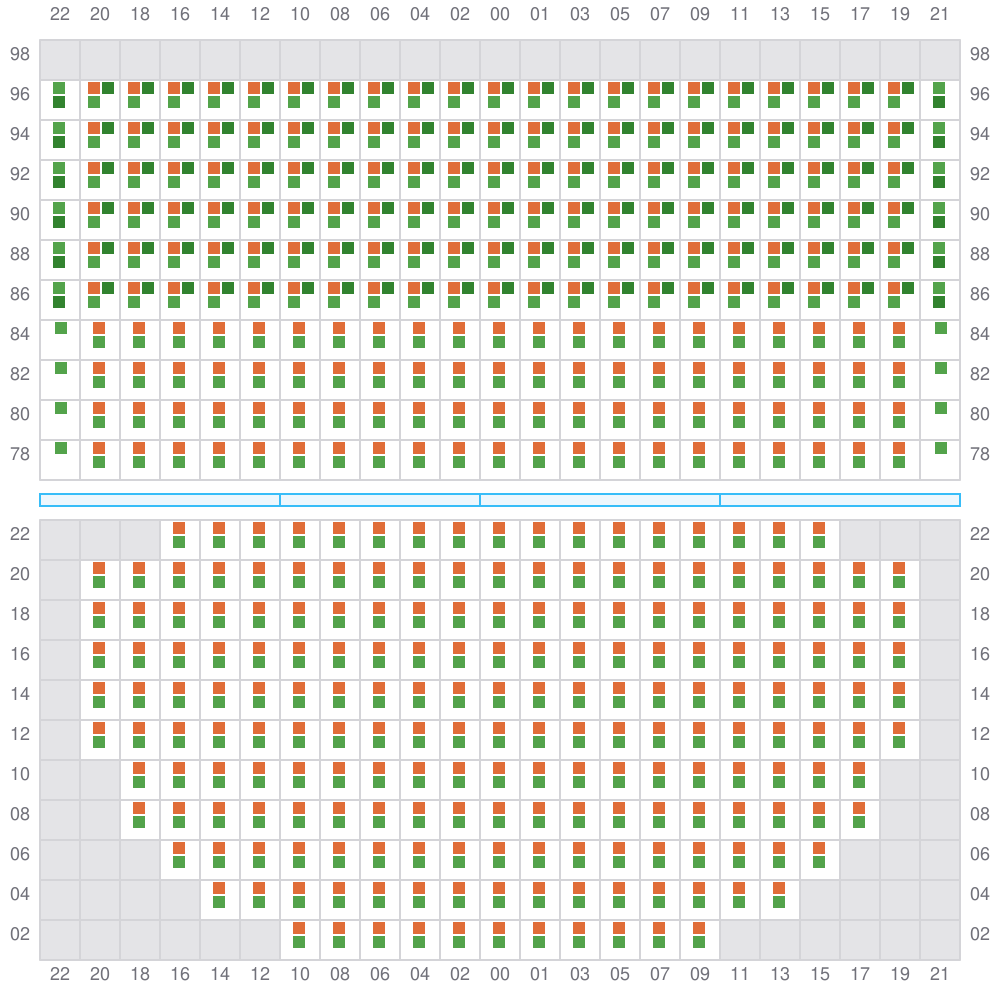

Bay 021 view and slots of MOGENS MAERSK

023

  • / ?
Bay 023 view and slots of MOGENS MAERSK

025 (026)

Bay 025 view and slots of MOGENS MAERSK

027

  • / ?

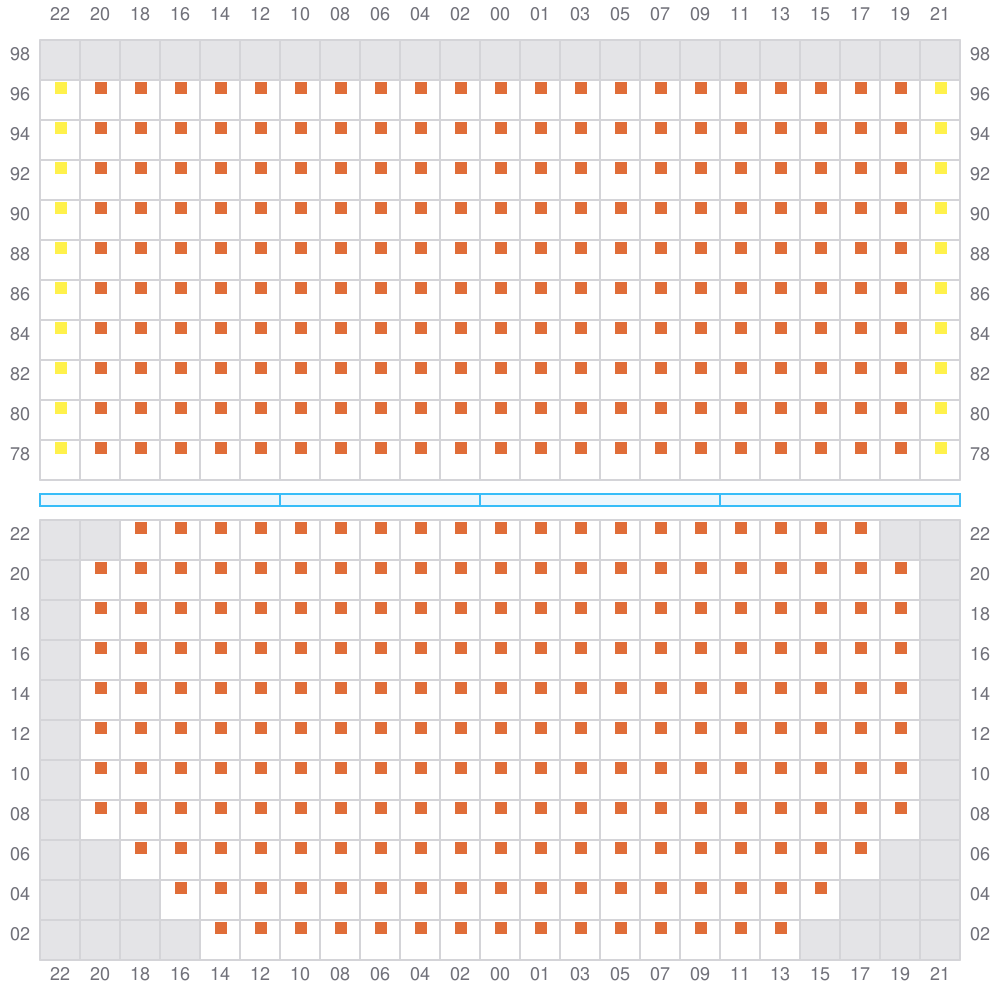

Bay 027 view and slots of MOGENS MAERSK

029 (030)

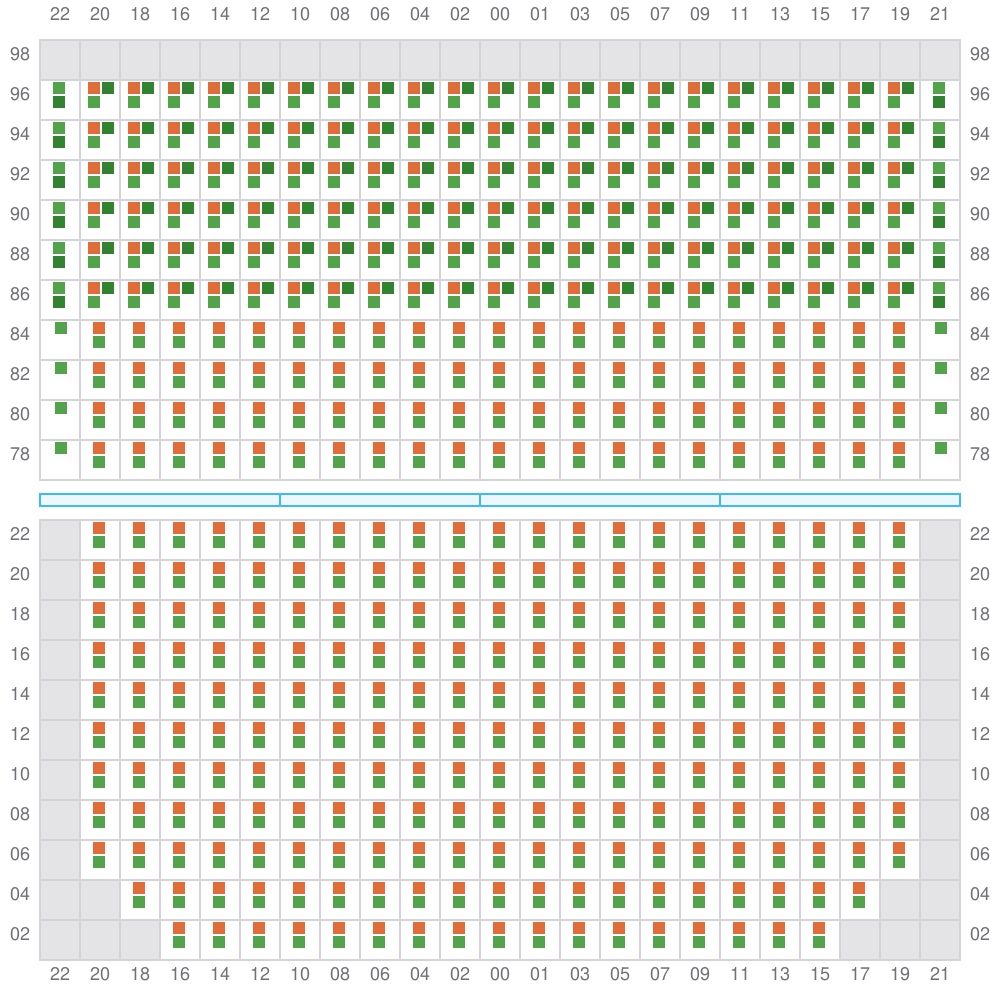

Bay 029 view and slots of MOGENS MAERSK

031

  • / ?

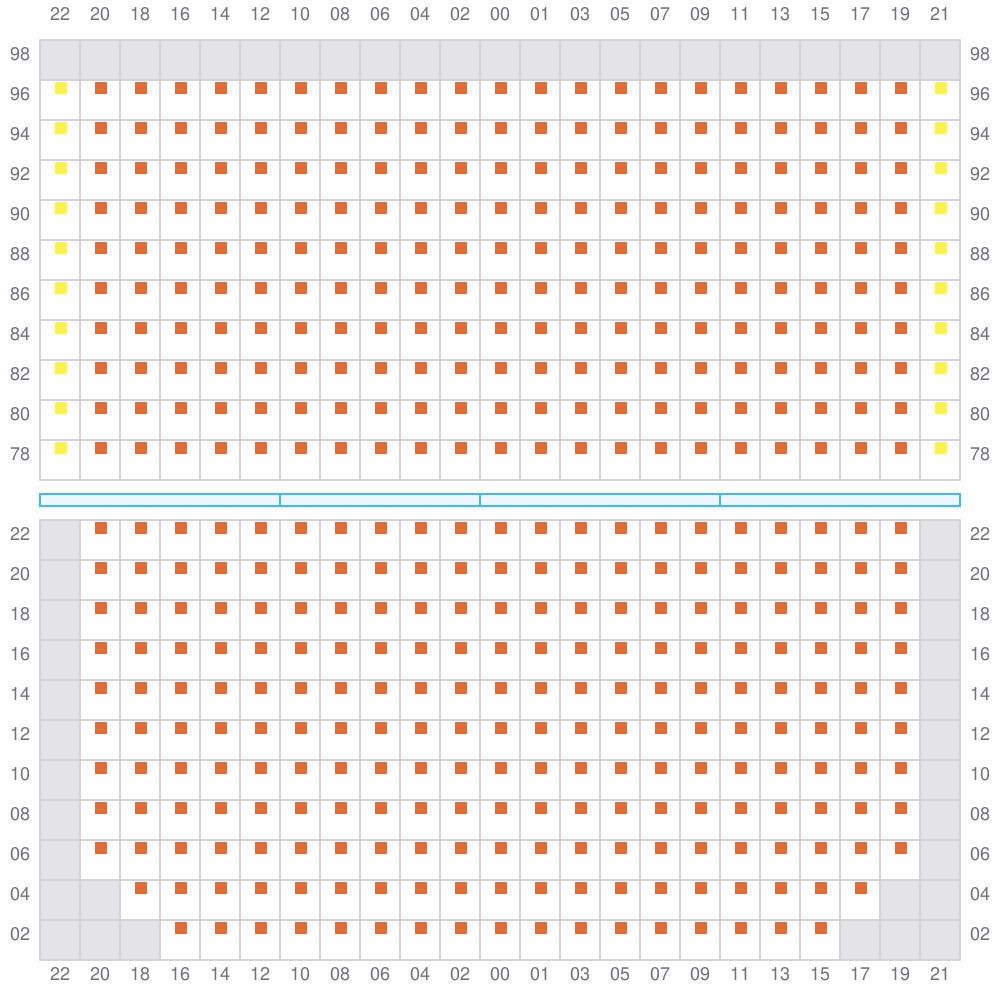

Bay 031 view and slots of MOGENS MAERSK

033 (034)

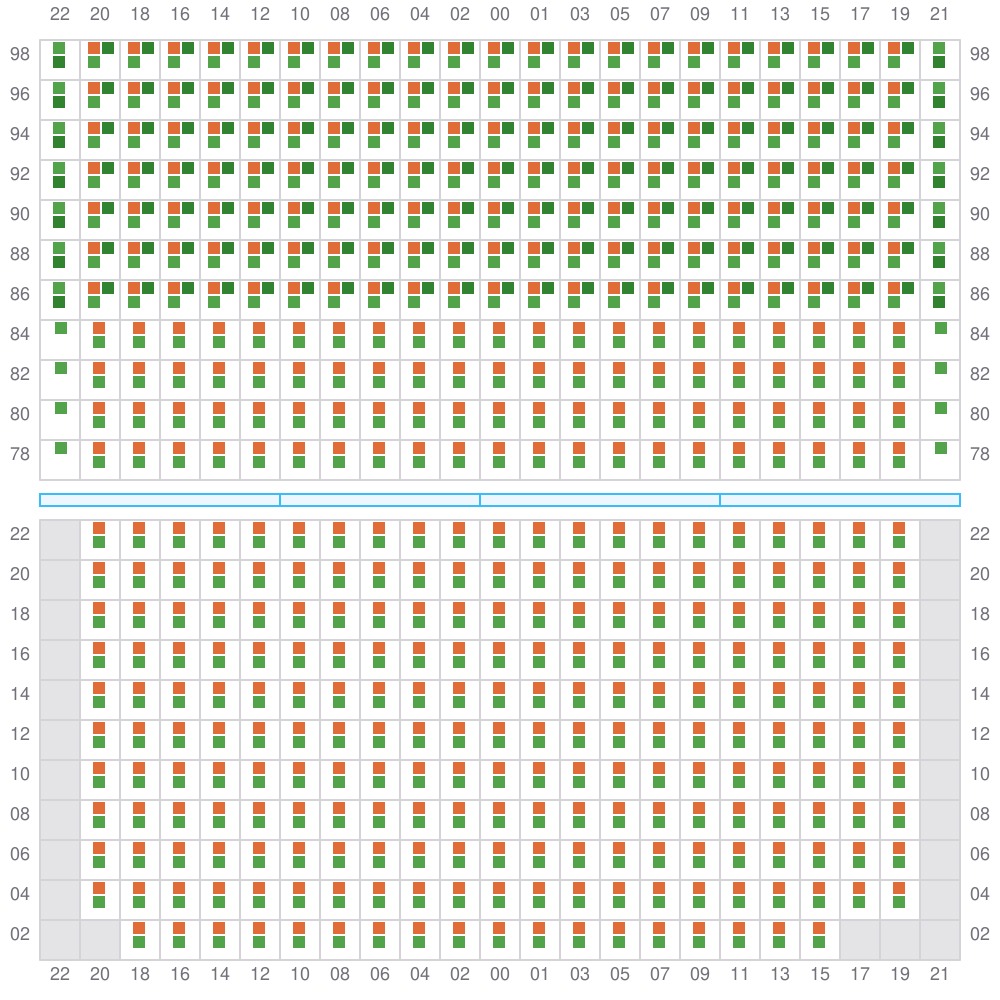

Bay 033 view and slots of MOGENS MAERSK

035

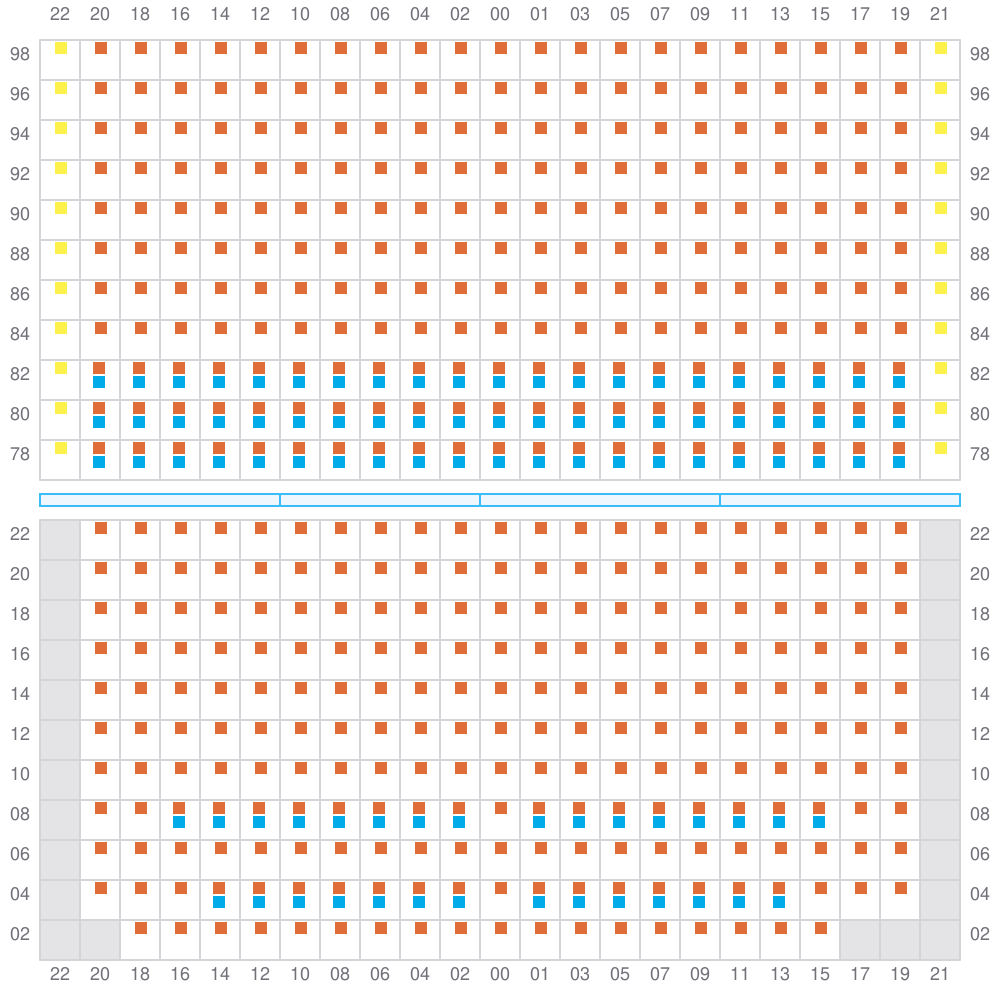

Bay 035 view and slots of MOGENS MAERSK

037 (038)

Bay 037 view and slots of MOGENS MAERSK

039

  • / ?
Bay 039 view and slots of MOGENS MAERSK

041 (042)

Bay 041 view and slots of MOGENS MAERSK

043

  • / ?
Bay 043 view and slots of MOGENS MAERSK

045 (046)

Bay 045 view and slots of MOGENS MAERSK

047

  • / ?

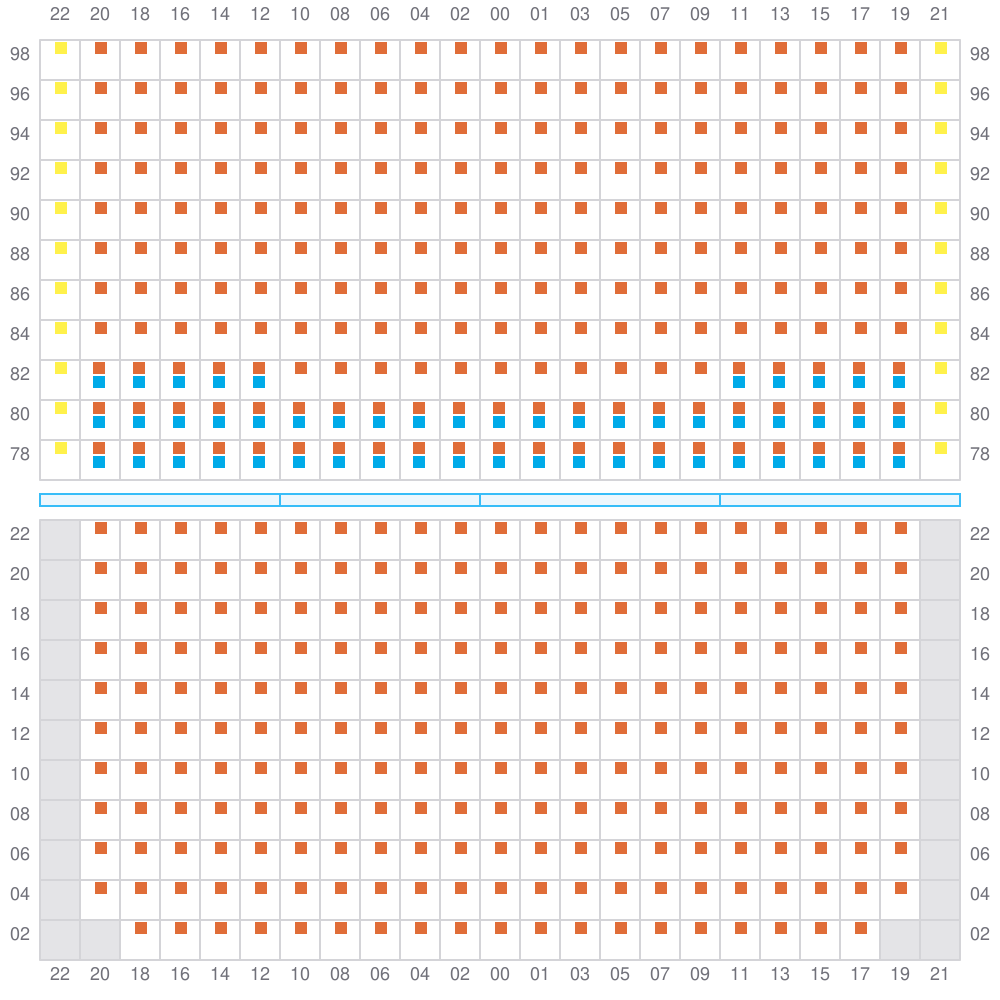

Bay 047 view and slots of MOGENS MAERSK

049 (050)

Bay 049 view and slots of MOGENS MAERSK

051

  • / ?
Bay 051 view and slots of MOGENS MAERSK

053 (054)

Bay 053 view and slots of MOGENS MAERSK

055

  • / ?

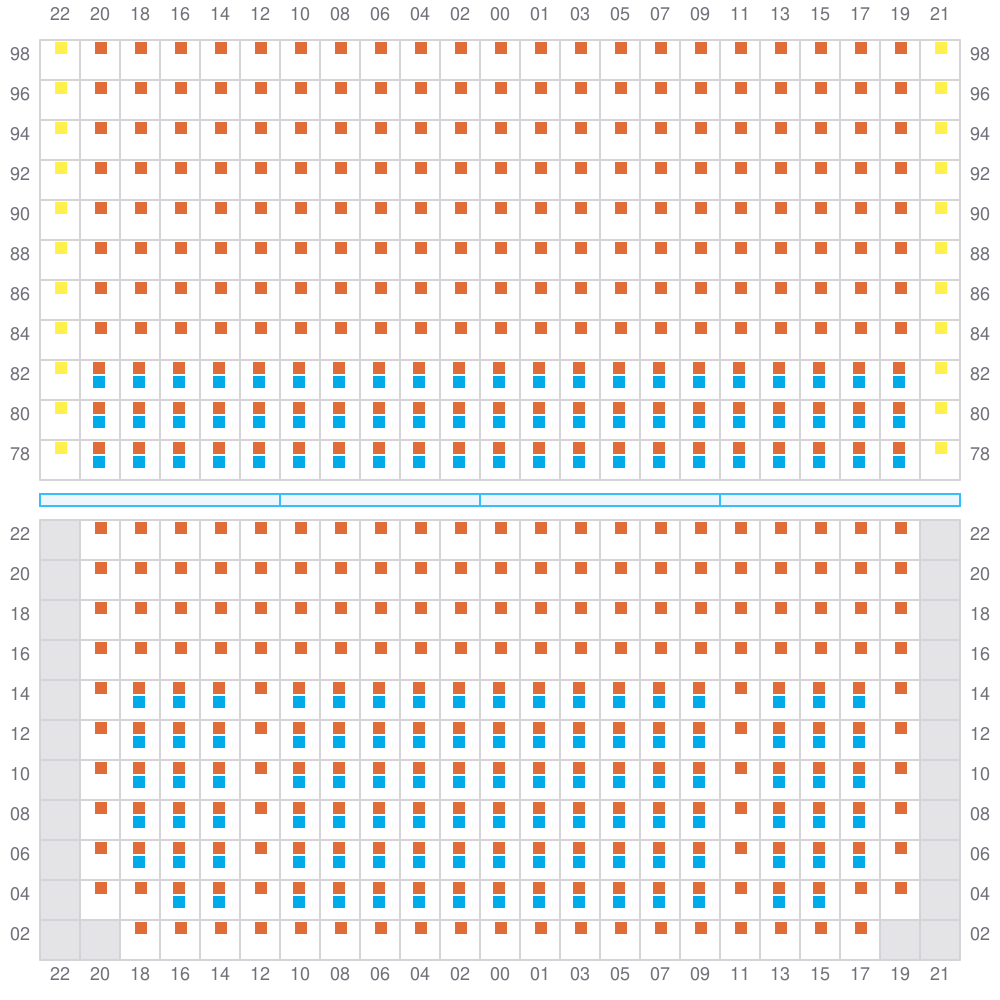

Bay 055 view and slots of MOGENS MAERSK

057 (058)

Bay 057 view and slots of MOGENS MAERSK

059

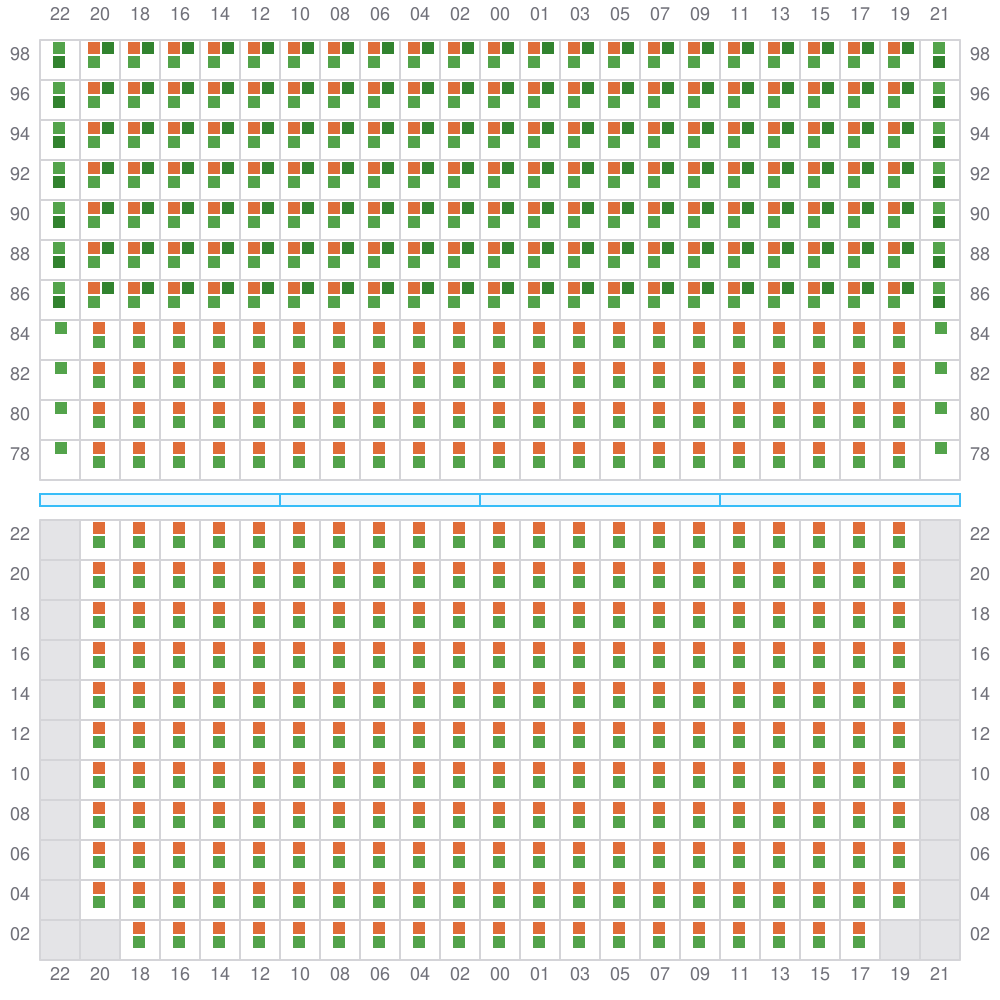

Bay 059 view and slots of MOGENS MAERSK

061 (062)

Bay 061 view and slots of MOGENS MAERSK

063

  • / ?
Bay 063 view and slots of MOGENS MAERSK

065 (066)

Bay 065 view and slots of MOGENS MAERSK

067

Bay 067 view and slots of MOGENS MAERSK

069 (070)

Bay 069 view and slots of MOGENS MAERSK

071

  • / ?

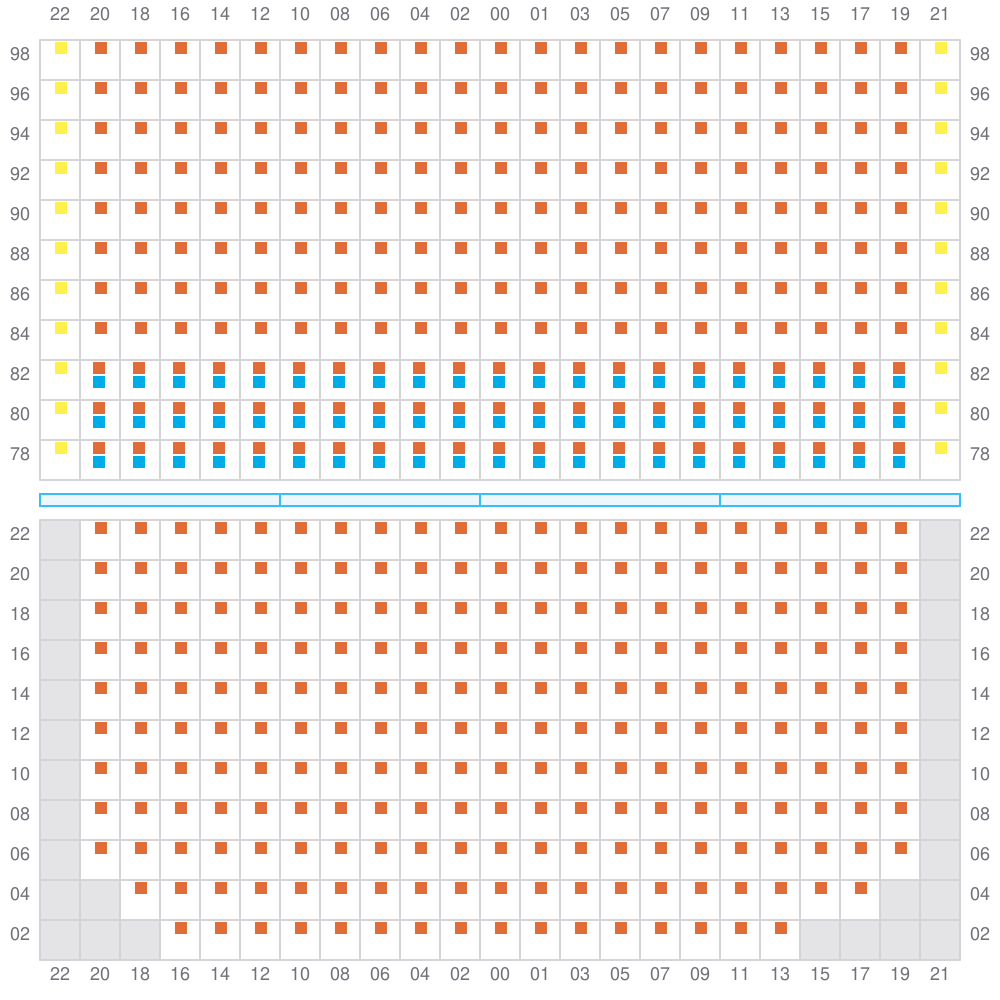

Bay 071 view and slots of MOGENS MAERSK

073 (074)

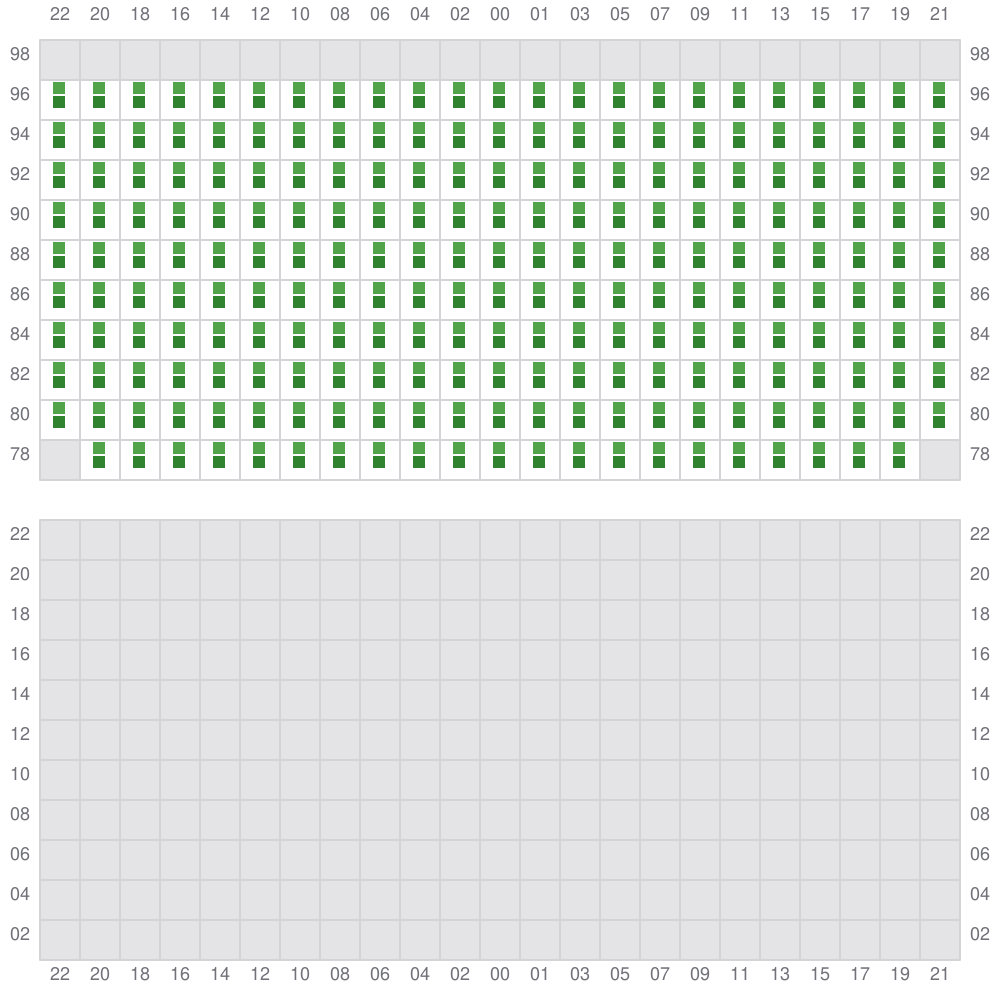

Bay 073 view and slots of MOGENS MAERSK

075

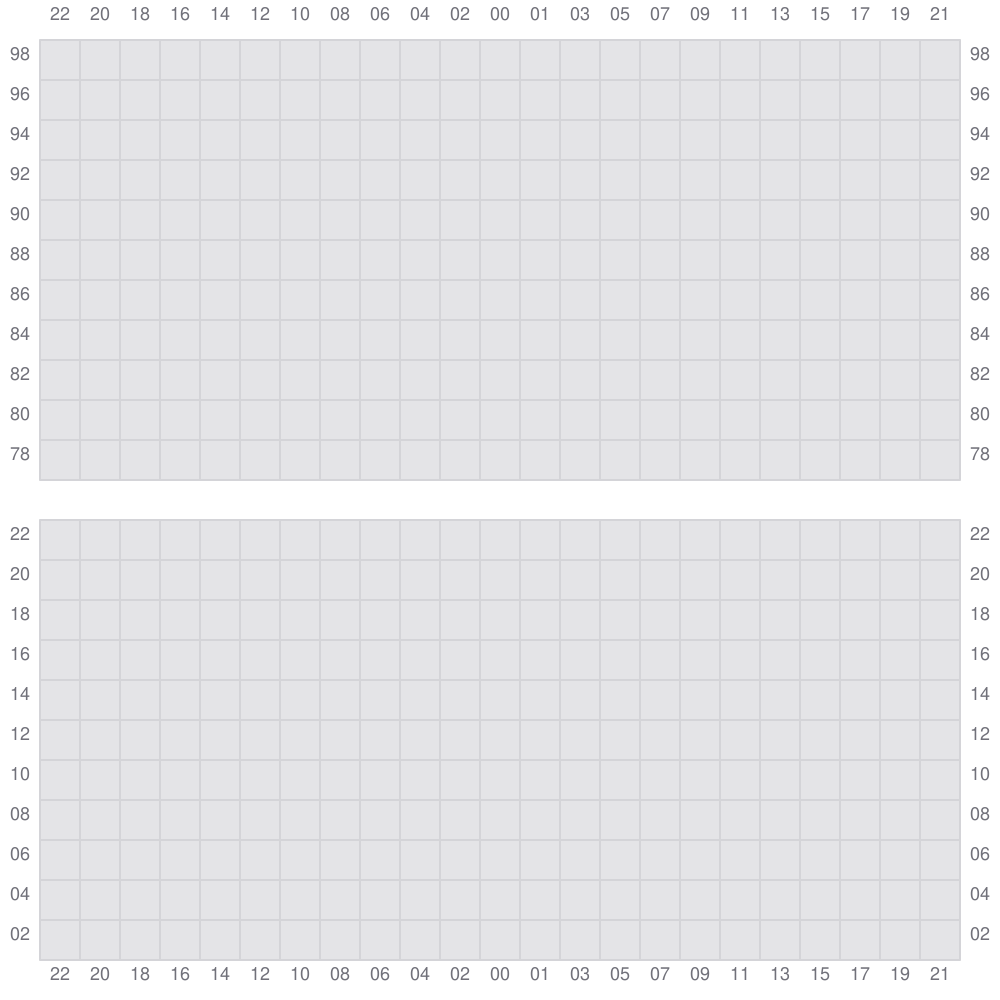

Bay 075 view and slots of MOGENS MAERSK

077 (078)

  • / ?
Bay 077 view and slots of MOGENS MAERSK

079

Bay 079 view and slots of MOGENS MAERSK

081 (082)

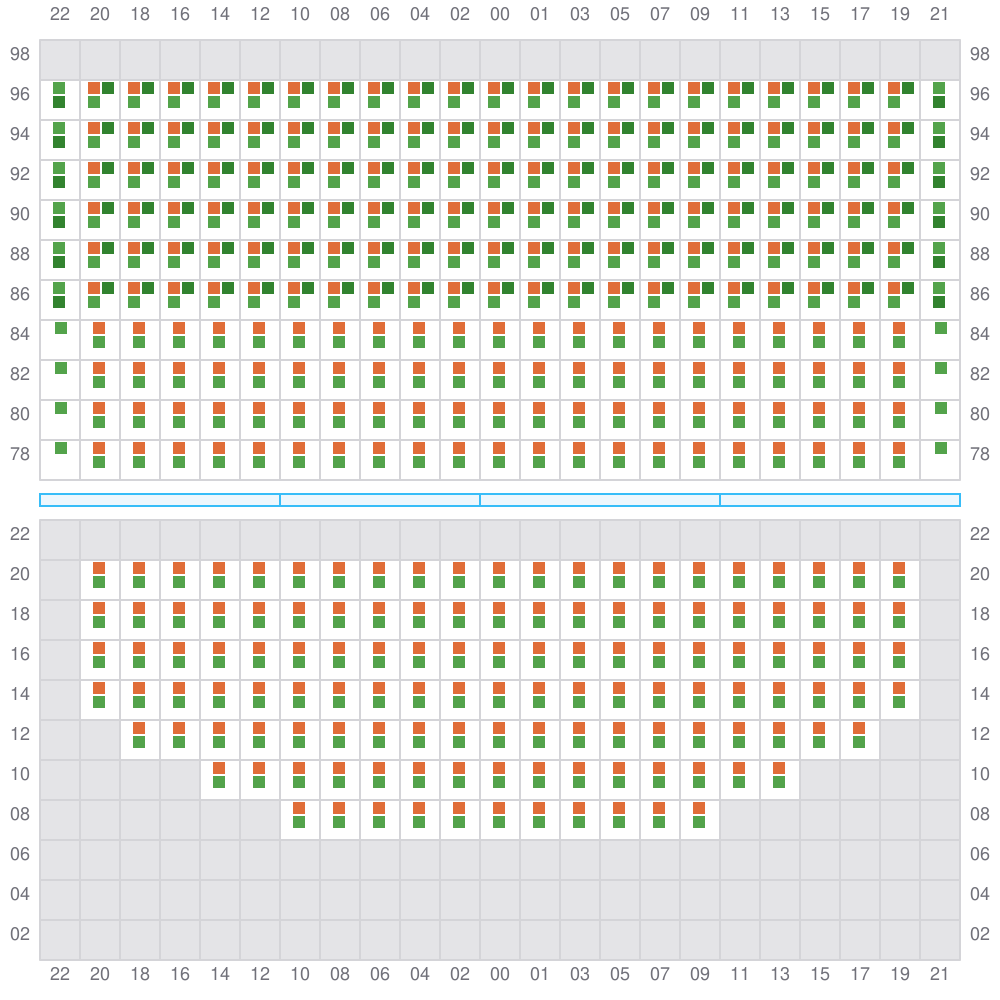

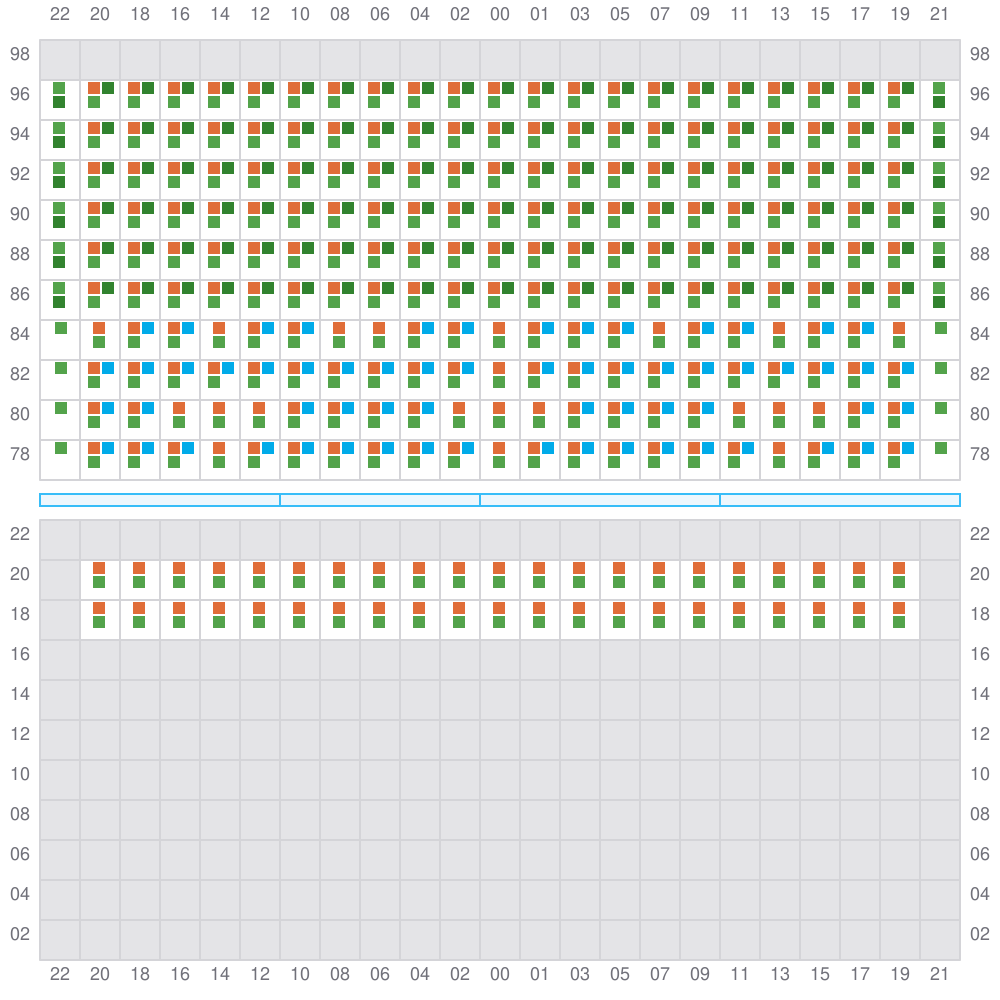

Bay 081 view and slots of MOGENS MAERSK

083

Bay 083 view and slots of MOGENS MAERSK

085 (086)

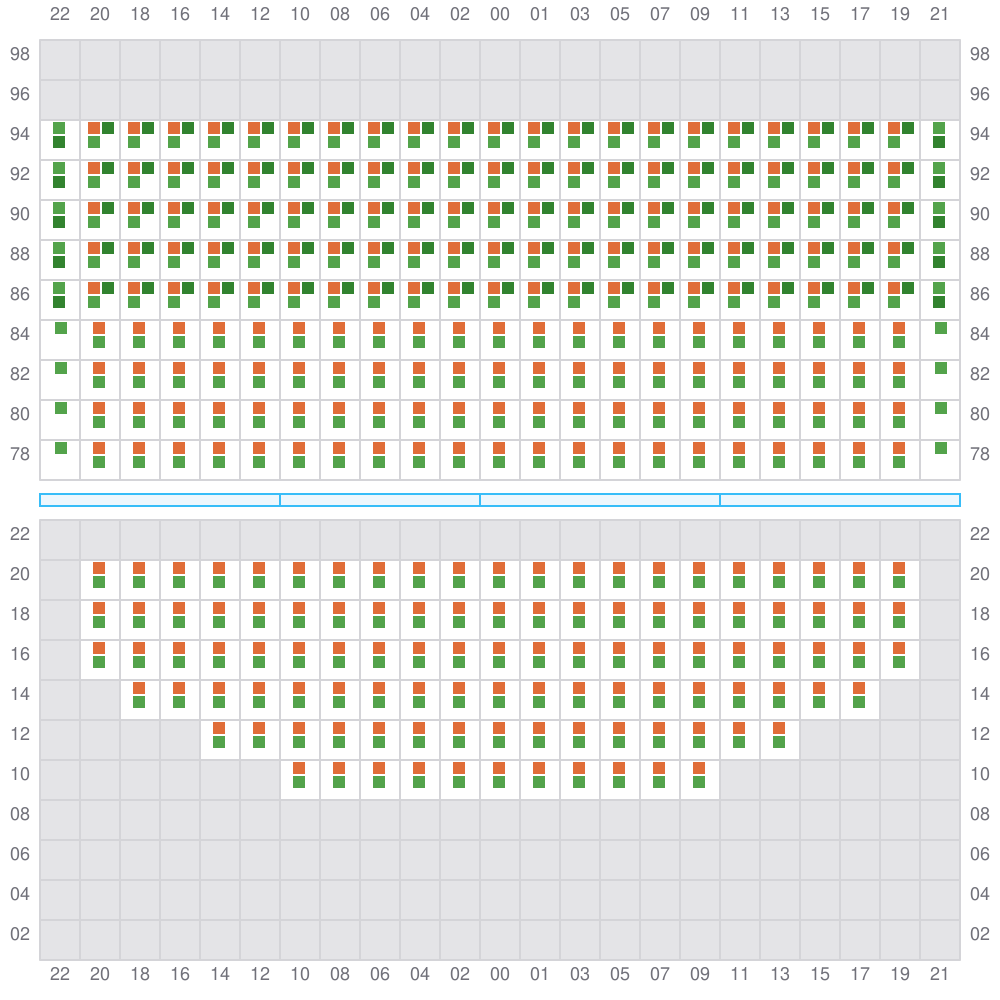

Bay 085 view and slots of MOGENS MAERSK

087

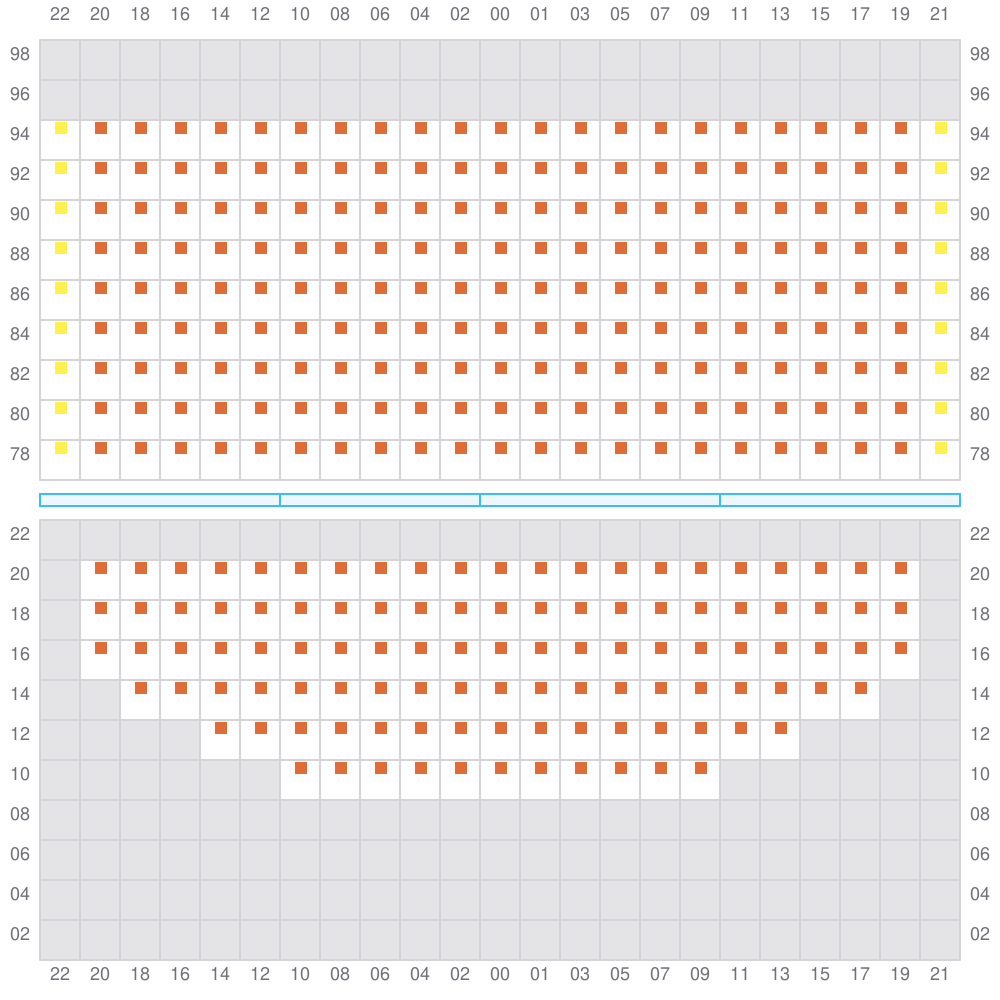

Bay 087 view and slots of MOGENS MAERSK

089 (090)

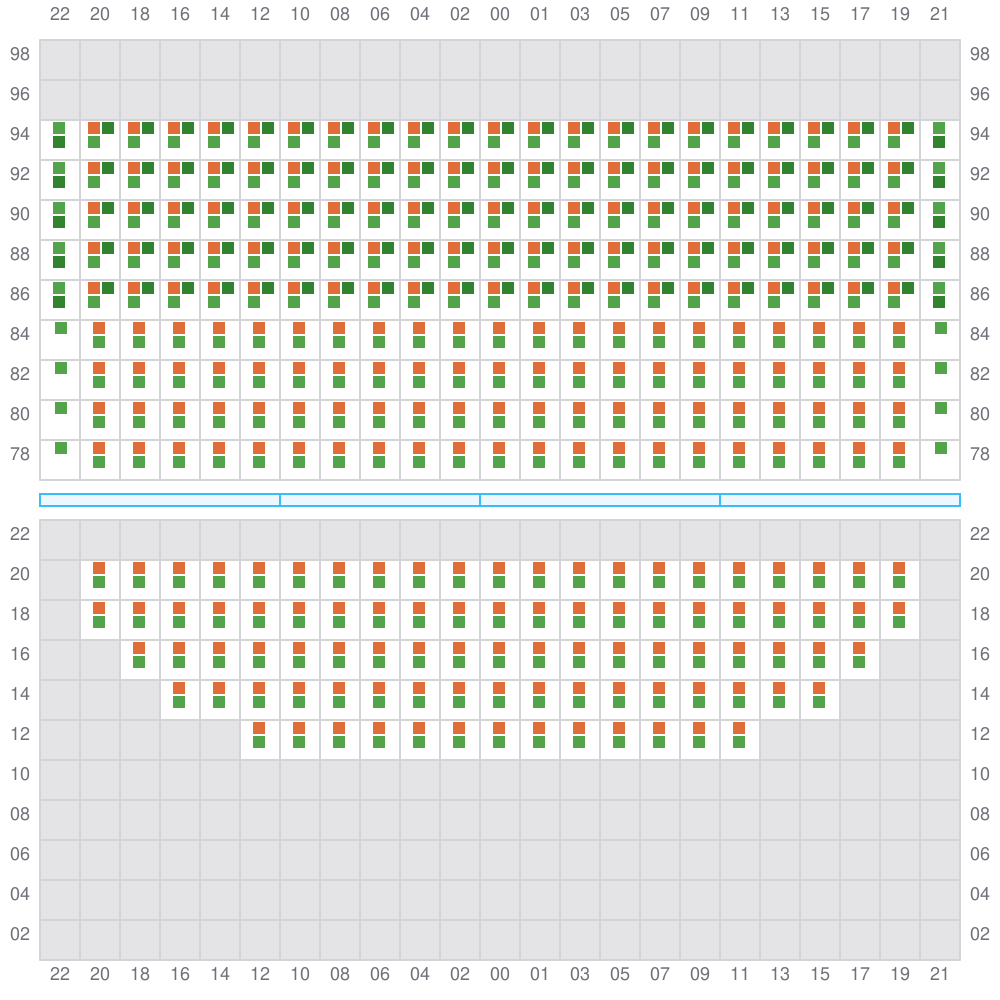

Bay 089 view and slots of MOGENS MAERSK

091

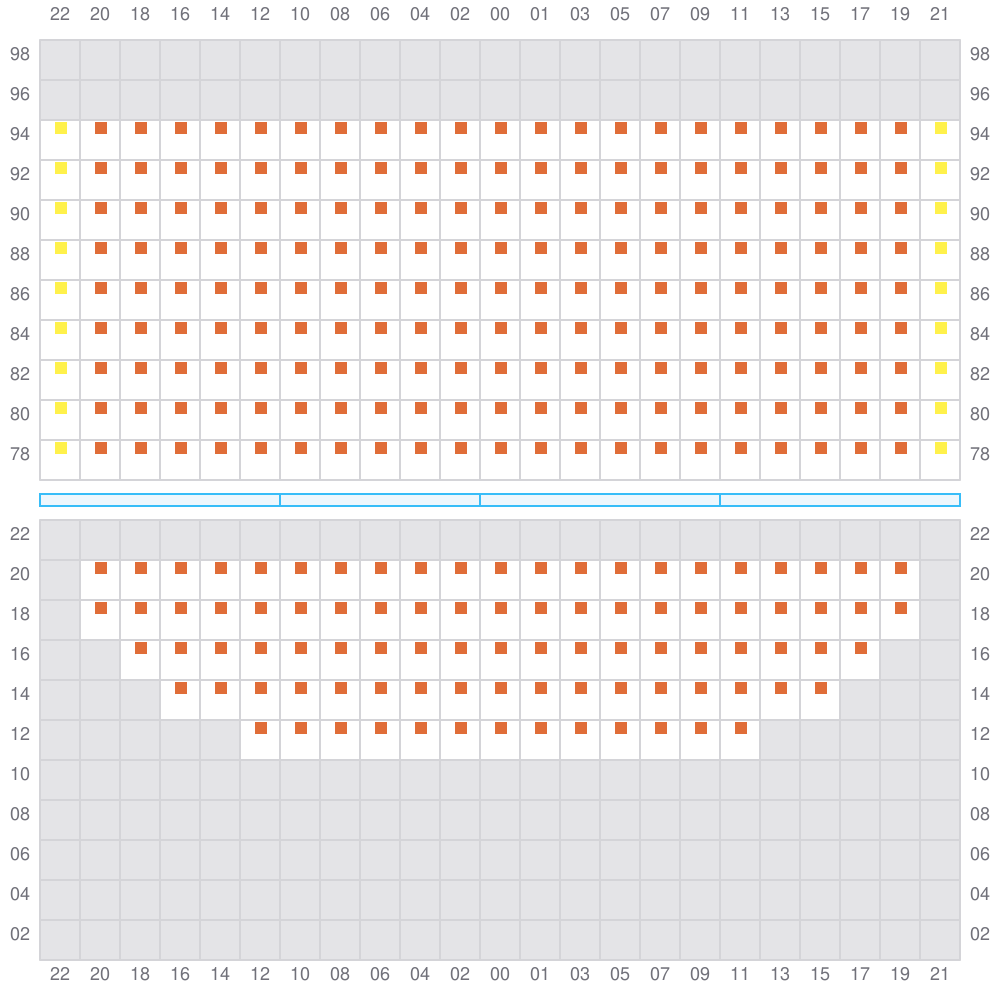

Bay 091 view and slots of MOGENS MAERSK

093 (094)

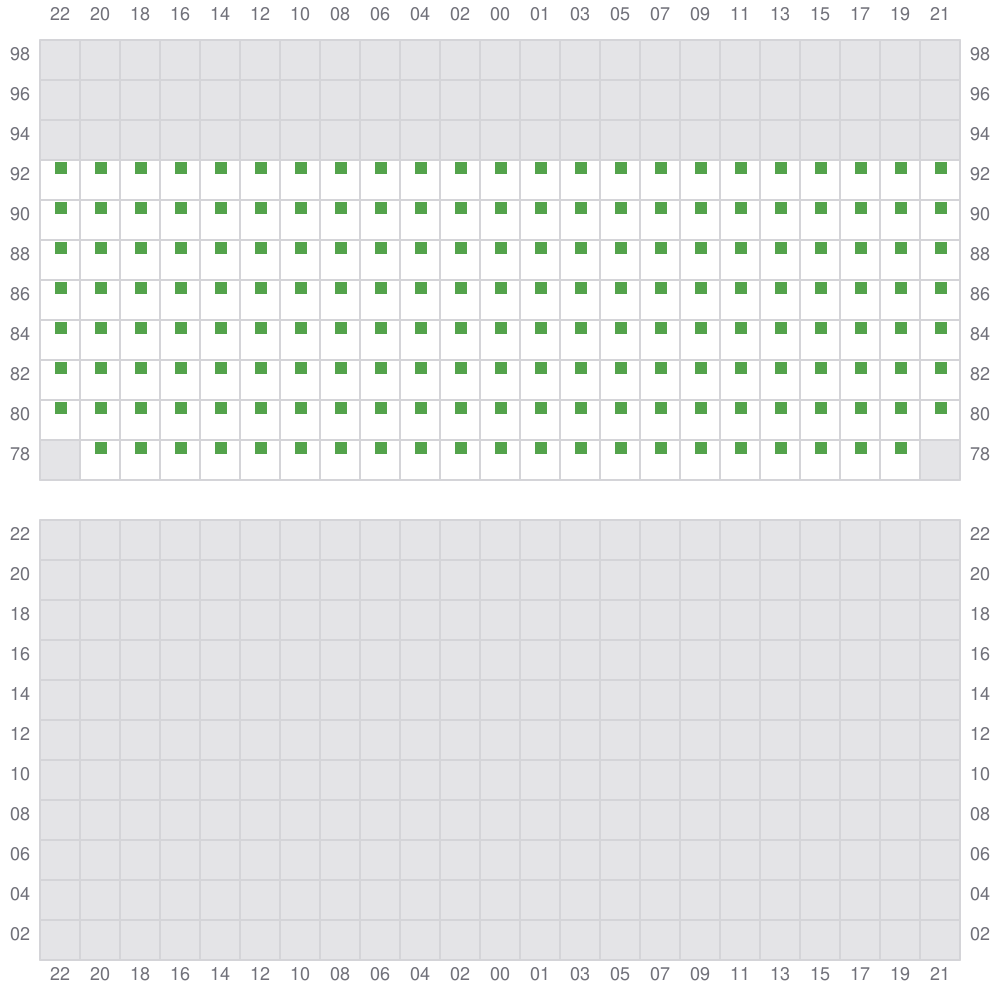

Bay 093 view and slots of MOGENS MAERSK
