MOGRAL
9169495 | AWZB | YML by ************************** Last update: Sun Jul 02 2023
General Info
Ship Name:MOGRAL
IMO Code:9169495
Call Sign:AWZB
Line Operator:YML
Class Name for Sister Ships:YMN
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,328
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

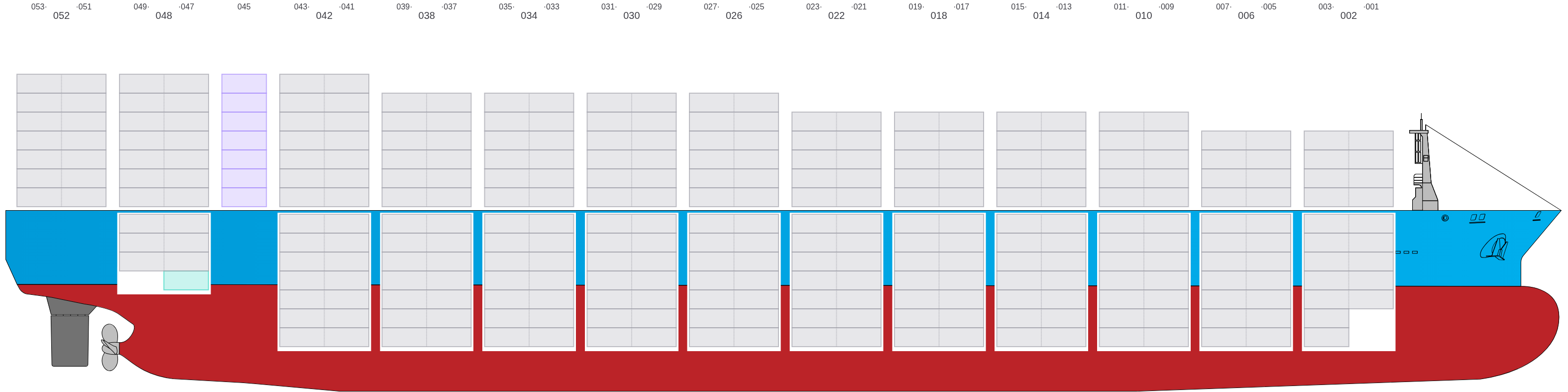

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

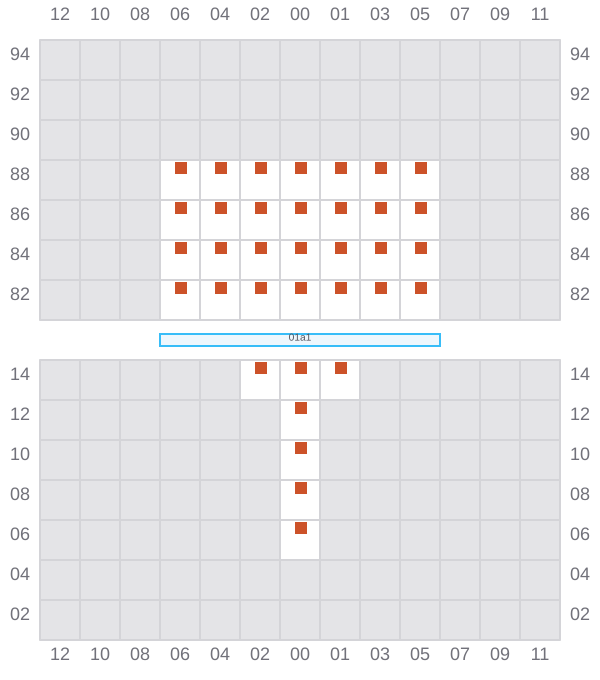

001
- →

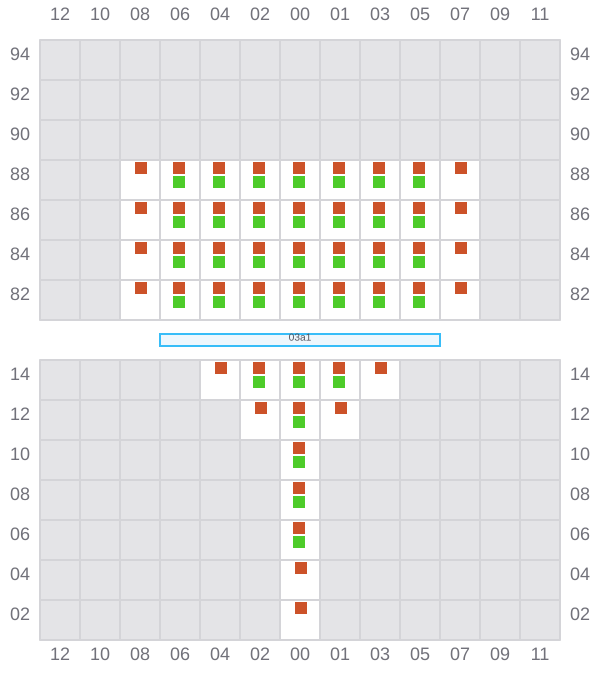

003 (002)
- ←

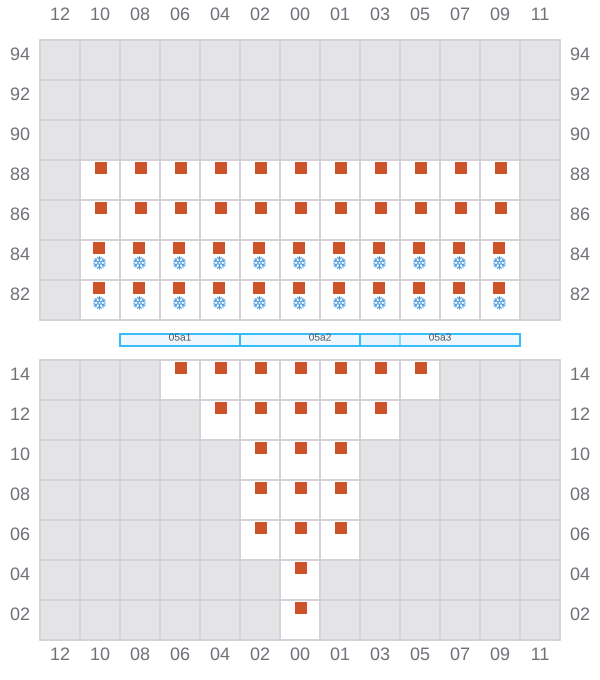

005
- →

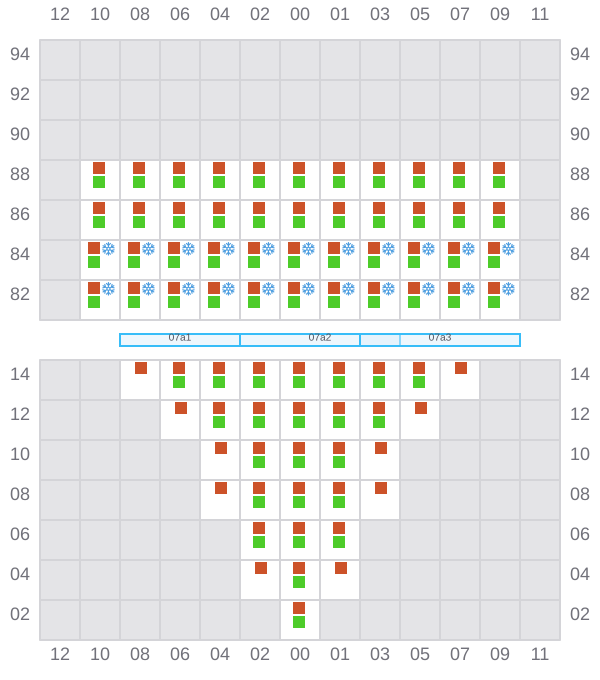

007 (006)
- ←

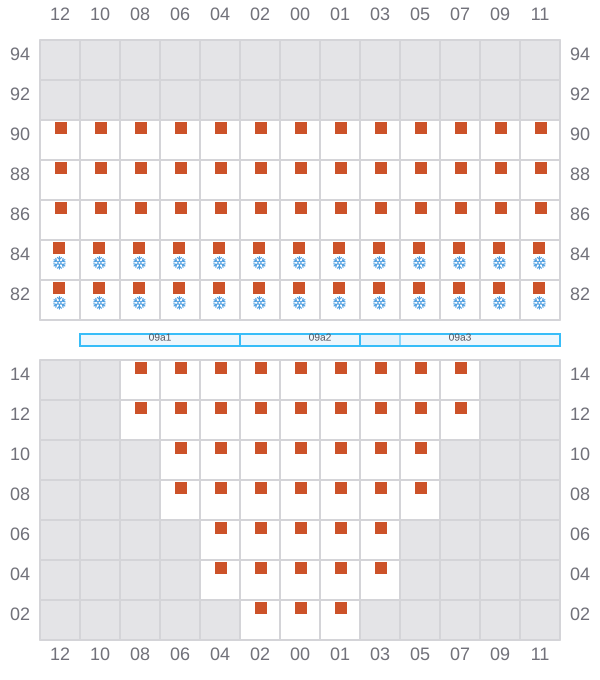

009
- →

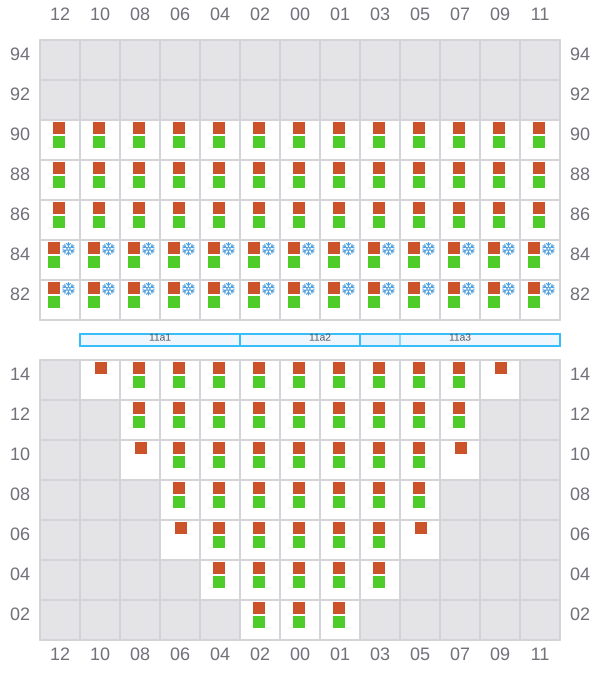

011 (010)
- ←

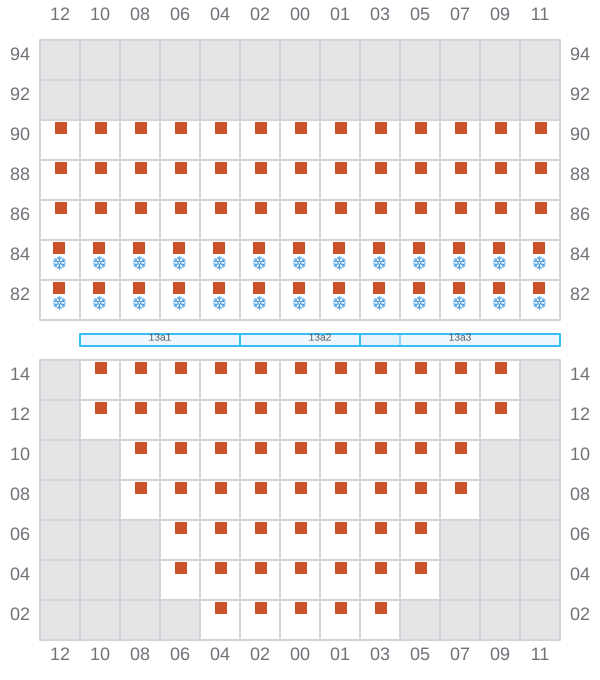

013
- →

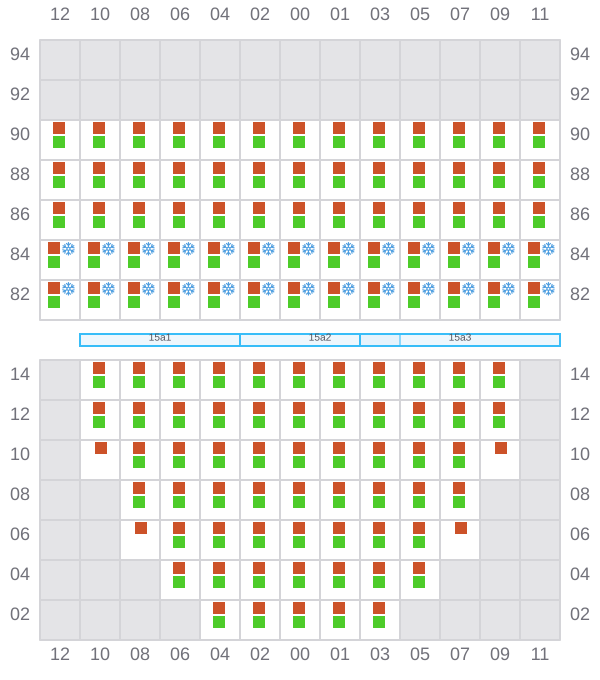

015 (014)
- ←

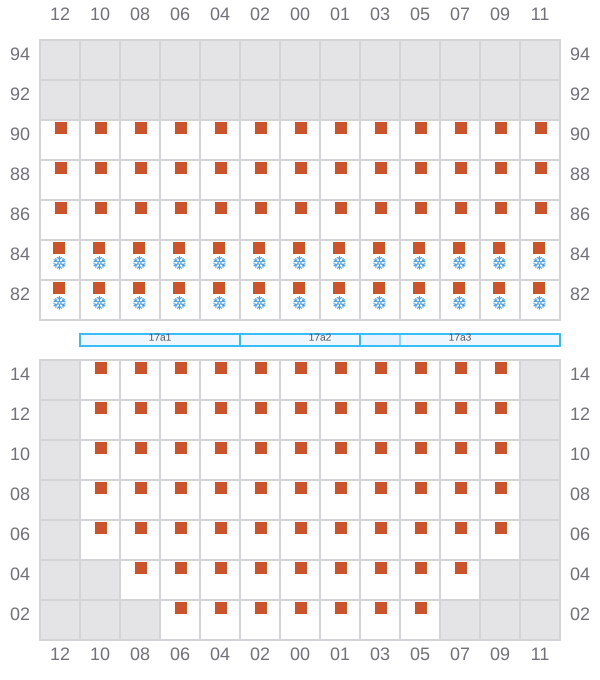

017
- →

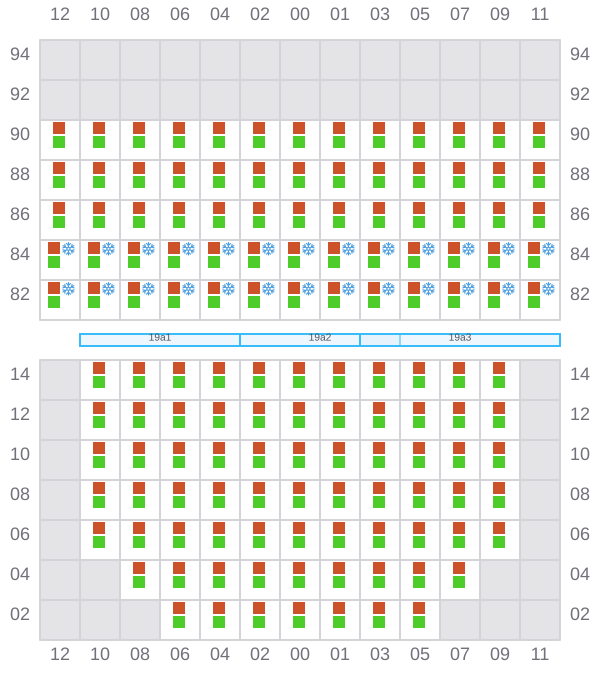

019 (018)
- ←
021
- →

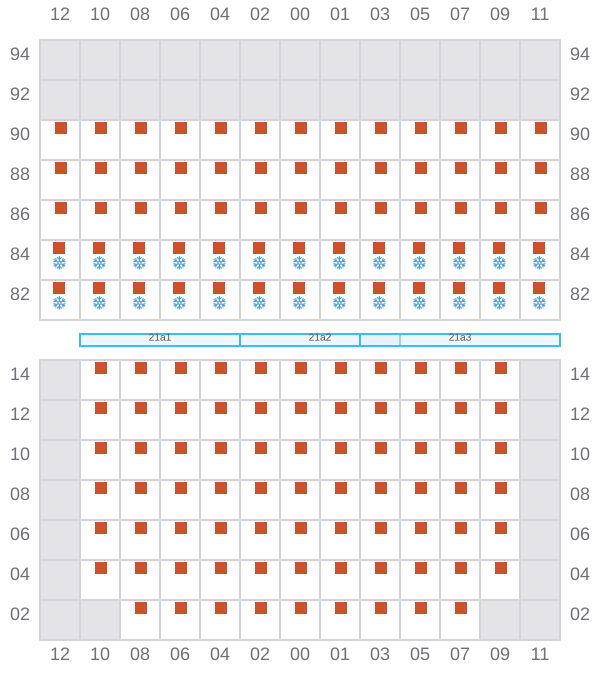

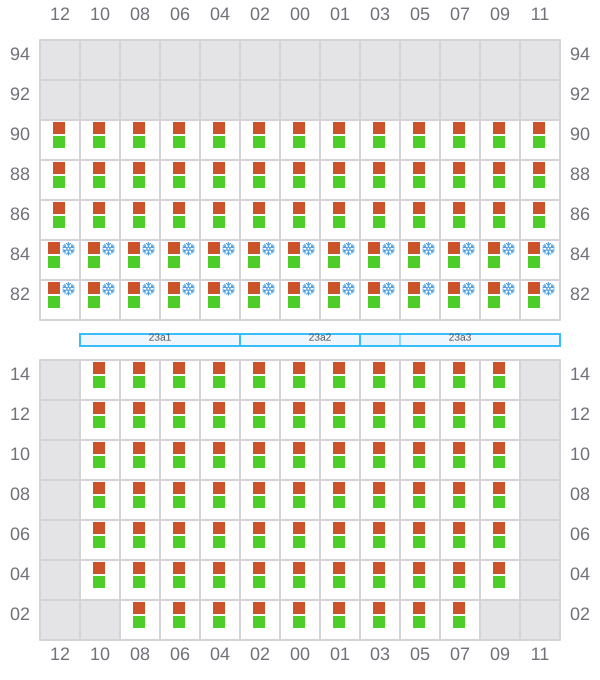

023 (022)
- ←
025
- →
027 (026)
- ←

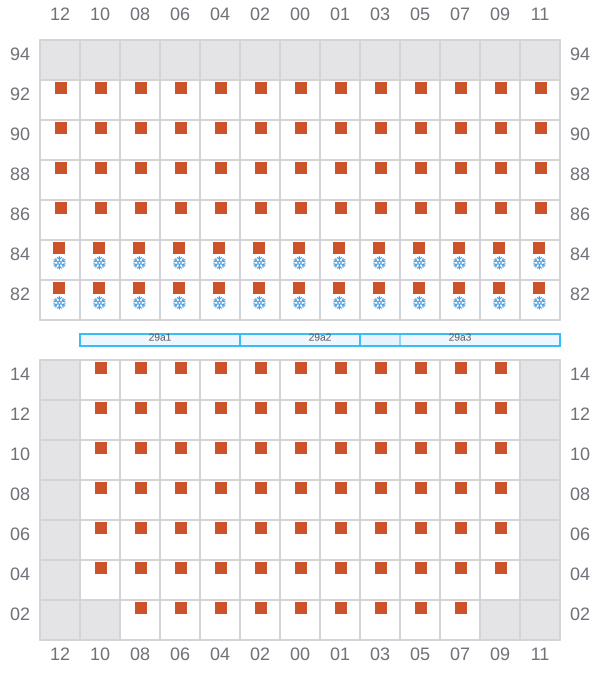

029
- →
031 (030)
- ←

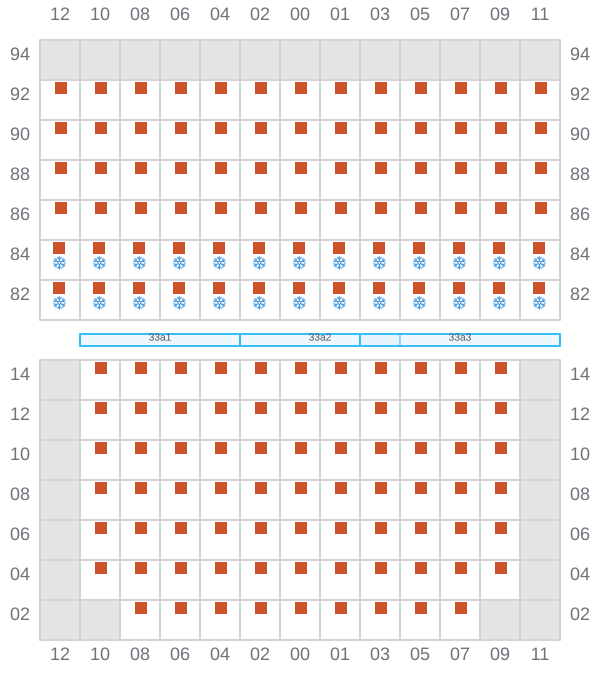

033
- →

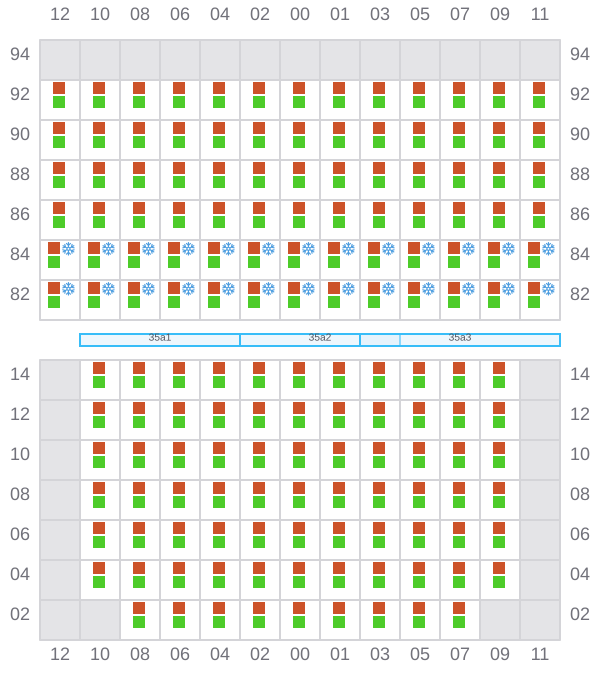

035 (034)
- ←
037
- →

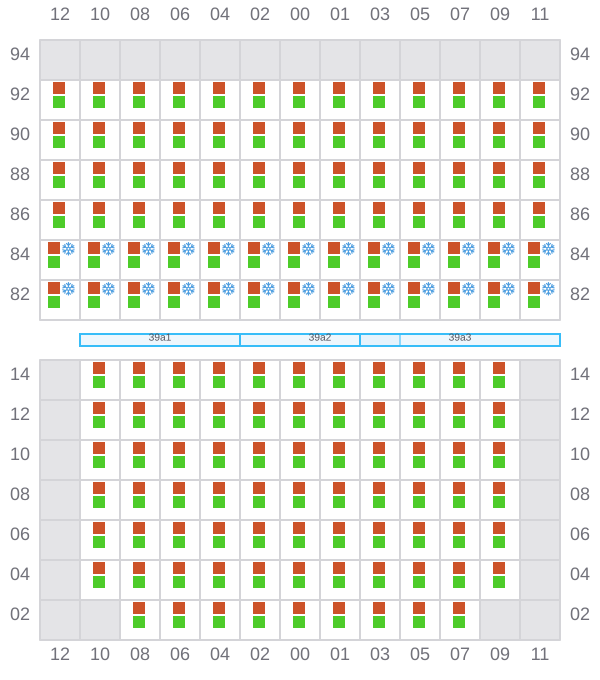

039 (038)
- ←
041
- →

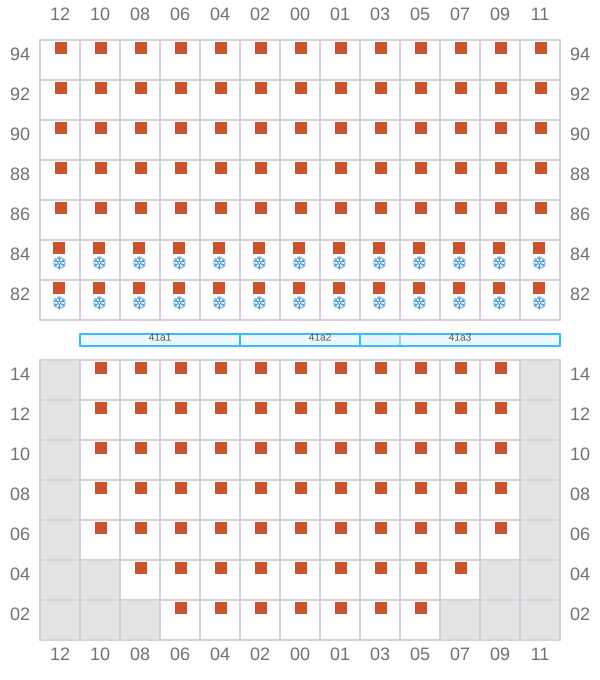

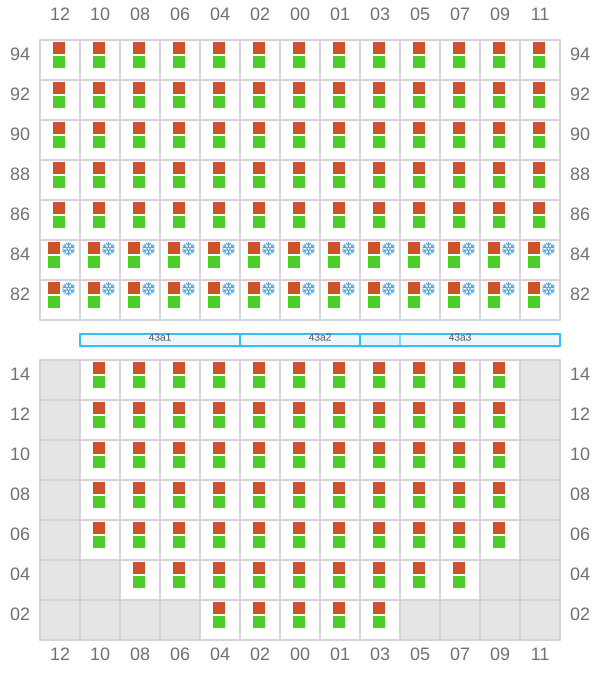

043 (042)
- ←

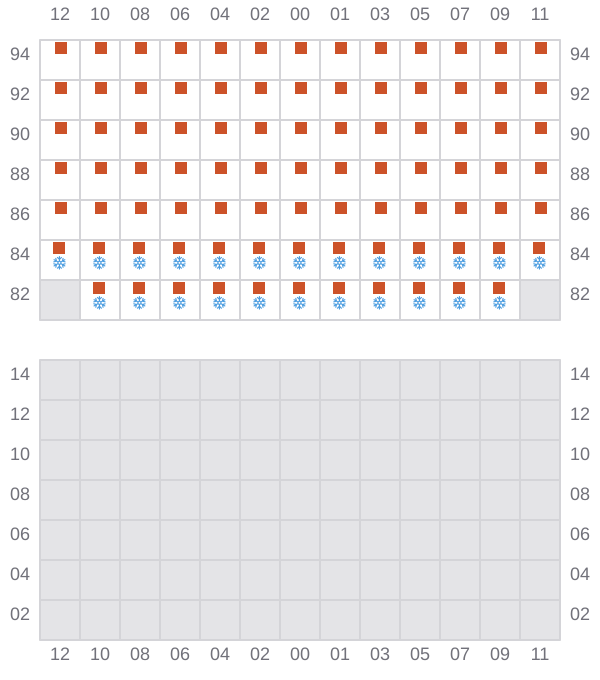

045

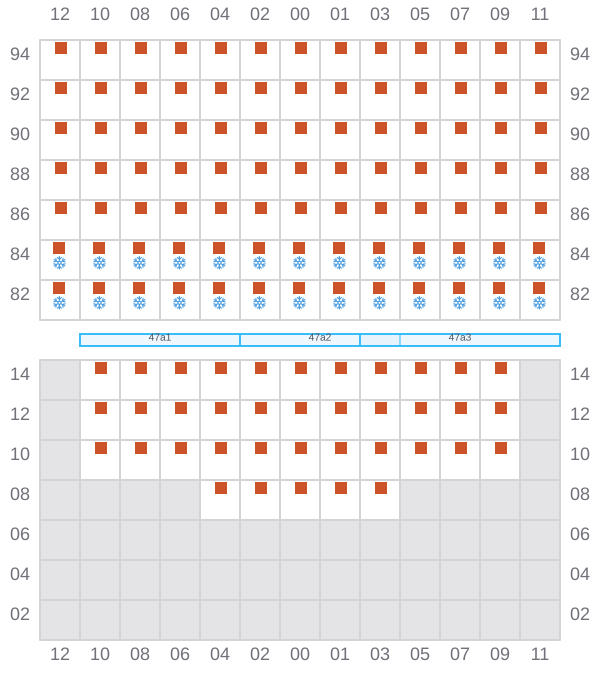

047
- →

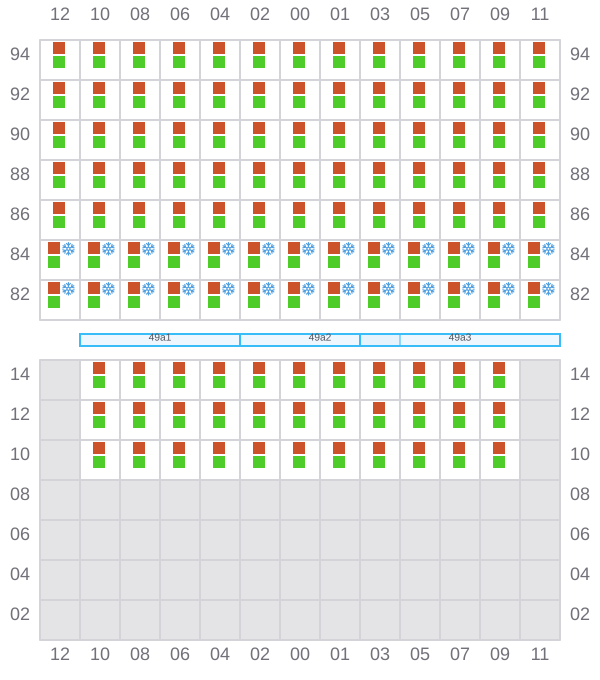

049 (048)
- ←

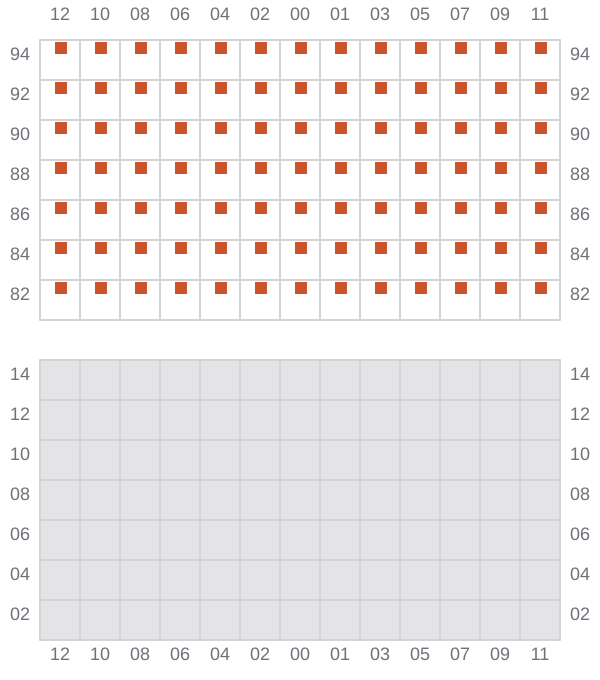

051
- → / ?

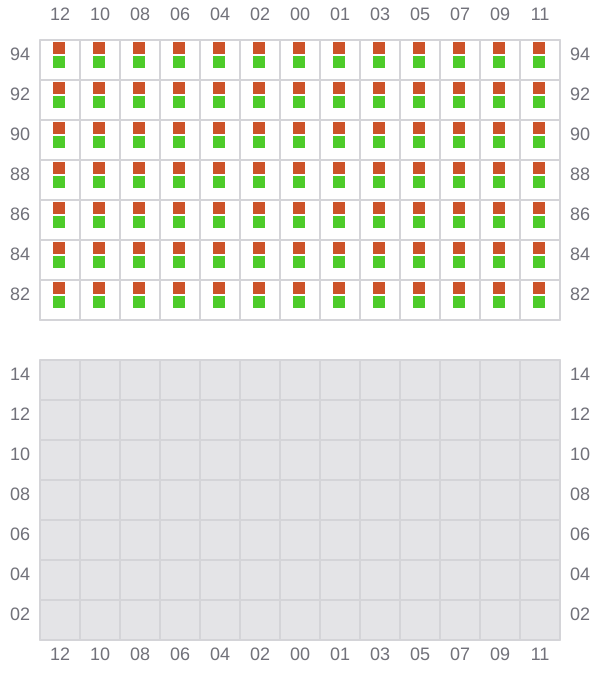

053 (052)
- ← / ?
