MOL ENDOWMENT
9333852 | 3EMV4 | ONE by *********************** Last update: Thu Jan 23 2025

General Info

Ship Name:MOL ENDOWMENT
IMO Code:9333852
Call Sign:3EMV4
Line Operator:ONE
Class Name for Sister Ships:OMEN
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.82
LOA (Length Overall):294.12
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,835

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MOL ENDOWMENT

Hatch-Covers View

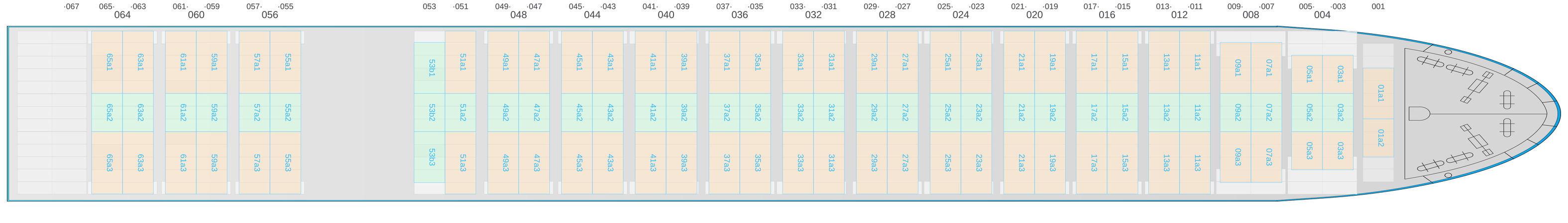

Deck view of MOL ENDOWMENT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
Bay 001 view and slots of MOL ENDOWMENT

003 (004)

  • →
  • → / ?
  • →
Bay 003 view and slots of MOL ENDOWMENT

005

  • ←
  • → / ?
  • →

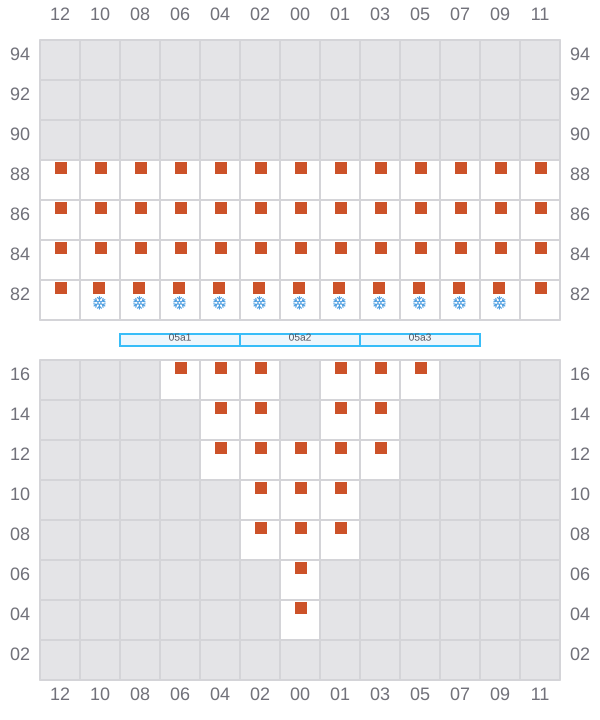

Bay 005 view and slots of MOL ENDOWMENT

007 (008)

  • →
  • → / ?
  • →

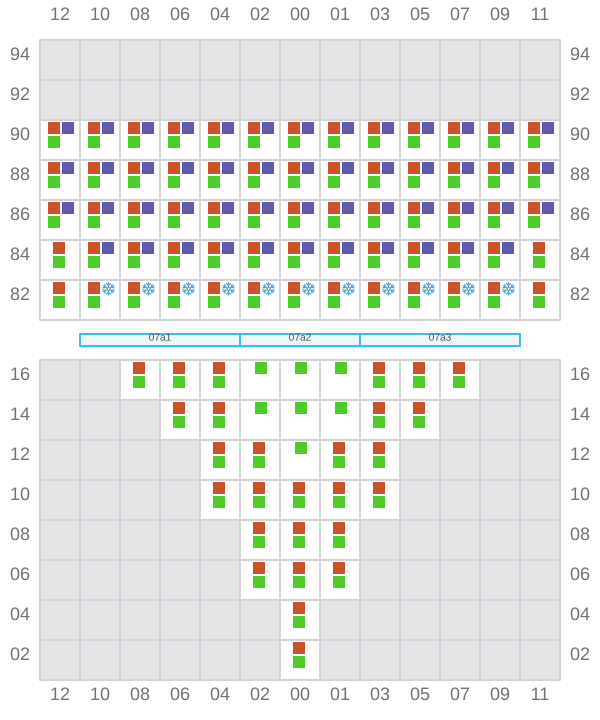

Bay 007 view and slots of MOL ENDOWMENT

009

  • ←
  • → / ?
  • →
Bay 009 view and slots of MOL ENDOWMENT

011 (012)

  • →
  • → / ?
  • →

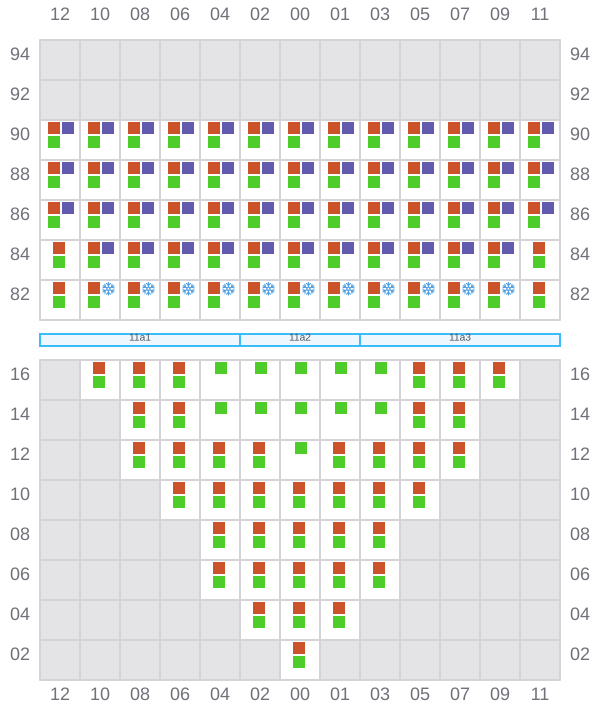

Bay 011 view and slots of MOL ENDOWMENT

013

  • ←
  • → / ?
  • →

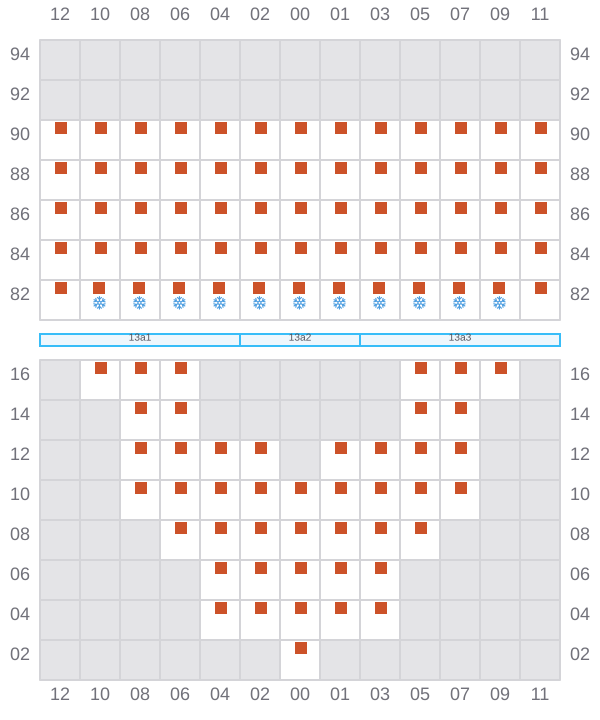

Bay 013 view and slots of MOL ENDOWMENT

015 (016)

  • →
  • → / ?
  • →
Bay 015 view and slots of MOL ENDOWMENT

017

  • ←
  • → / ?
  • →

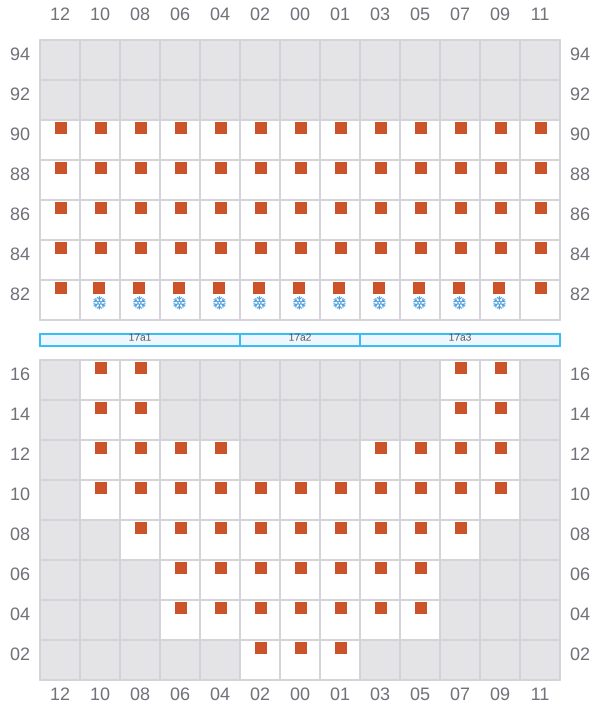

Bay 017 view and slots of MOL ENDOWMENT

019 (020)

  • →
  • → / ?
  • →
Bay 019 view and slots of MOL ENDOWMENT

021

  • ←
  • → / ?
  • →
Bay 021 view and slots of MOL ENDOWMENT

023 (024)

  • →
  • → / ?
  • →
Bay 023 view and slots of MOL ENDOWMENT

025

  • ←
  • → / ?
  • →
Bay 025 view and slots of MOL ENDOWMENT

027 (028)

  • →
  • → / ?
  • →
Bay 027 view and slots of MOL ENDOWMENT

029

  • ←
  • → / ?
  • →
Bay 029 view and slots of MOL ENDOWMENT

031 (032)

  • →
  • → / ?
  • →

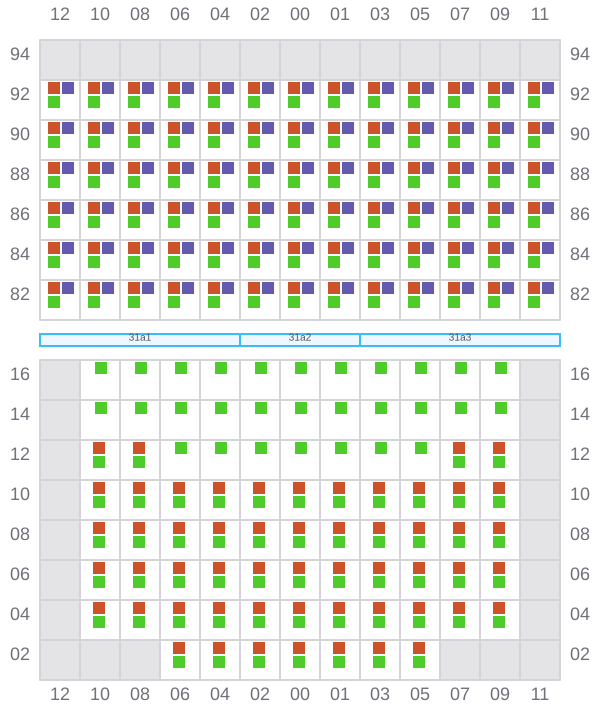

Bay 031 view and slots of MOL ENDOWMENT

033

  • ←
  • → / ?
  • →
Bay 033 view and slots of MOL ENDOWMENT

035 (036)

  • →
  • → / ?
  • →

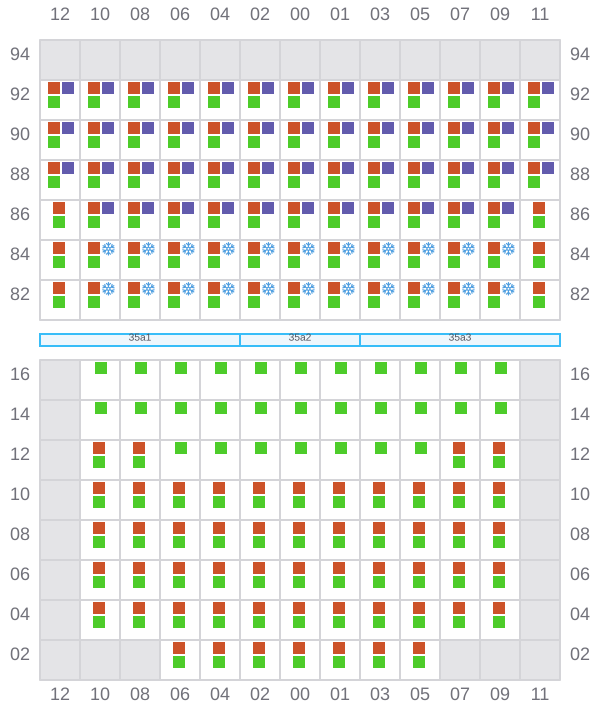

Bay 035 view and slots of MOL ENDOWMENT

037

  • ←
  • → / ?
  • →
Bay 037 view and slots of MOL ENDOWMENT

039 (040)

  • →
  • → / ?
  • →
Bay 039 view and slots of MOL ENDOWMENT

041

  • ←
  • → / ?
  • →
Bay 041 view and slots of MOL ENDOWMENT

043 (044)

  • →
  • → / ?
  • →

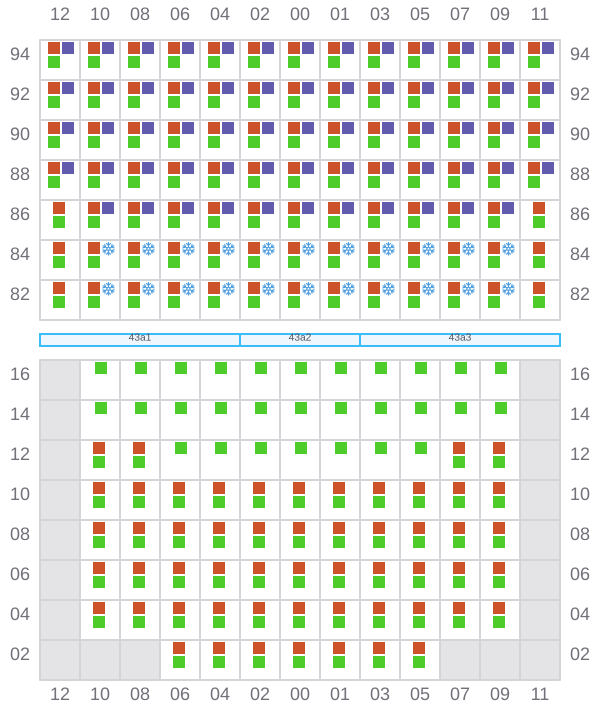

Bay 043 view and slots of MOL ENDOWMENT

045

  • ←
  • → / ?
  • →

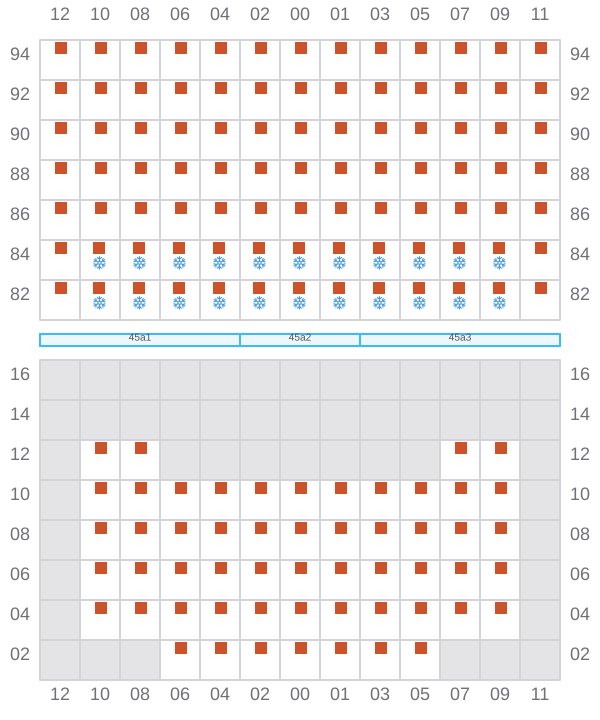

Bay 045 view and slots of MOL ENDOWMENT

047 (048)

  • →
  • → / ?
  • →
Bay 047 view and slots of MOL ENDOWMENT

049

  • ←
  • → / ?
  • →
Bay 049 view and slots of MOL ENDOWMENT

051 (052)

  • →
  • → / ?
  • →
Bay 051 view and slots of MOL ENDOWMENT

053

  • ? / ←
  • ? / →

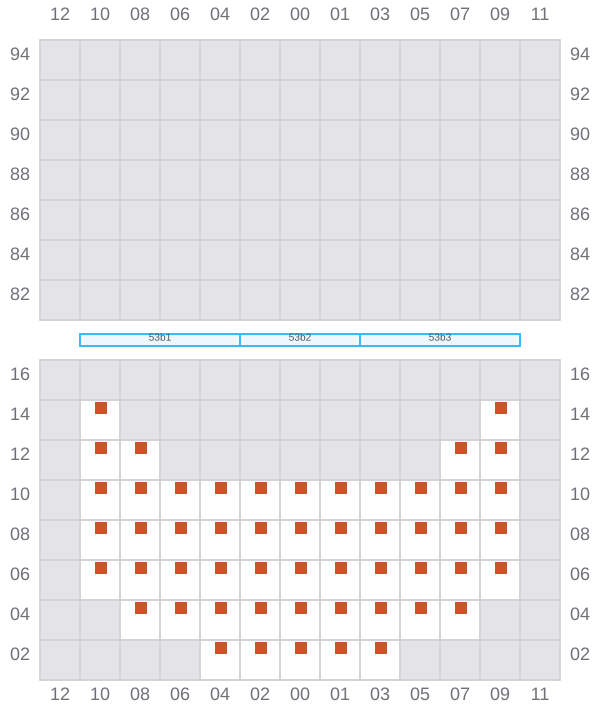

Bay 053 view and slots of MOL ENDOWMENT

055 (056)

  • →
  • → / ?
  • →
Bay 055 view and slots of MOL ENDOWMENT

057

  • ←
  • → / ?
  • →
Bay 057 view and slots of MOL ENDOWMENT

059 (060)

  • →
  • → / ?
  • →
Bay 059 view and slots of MOL ENDOWMENT

061

  • ←
  • → / ?
  • →
Bay 061 view and slots of MOL ENDOWMENT

063 (064)

  • →
  • → / ?
  • →
Bay 063 view and slots of MOL ENDOWMENT

065

  • ←
  • → / ?
  • ? / →

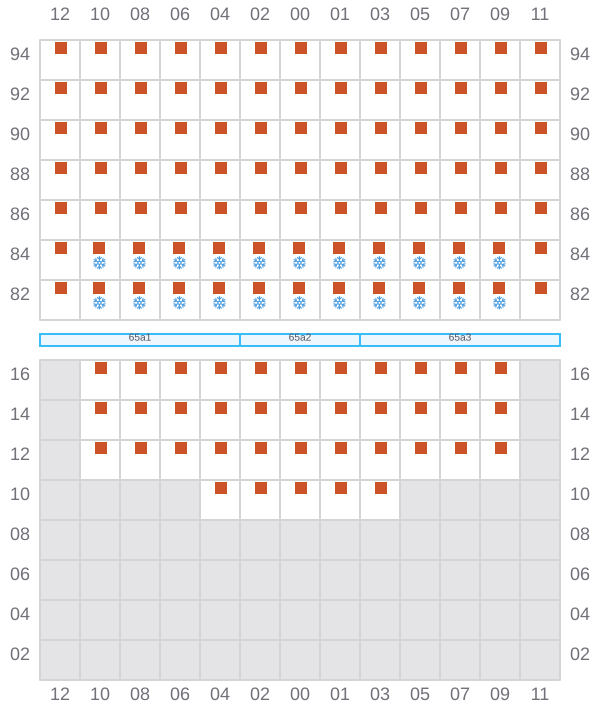

Bay 065 view and slots of MOL ENDOWMENT

067 (068)

  • → / ?
  • ← / ?
  • → / ?
Bay 067 view and slots of MOL ENDOWMENT
