MOL EXPLORER
9333826 | 3EKT8 | MOL by ********* Last update: Wed May 01 2024
General Info
Ship Name:MOL EXPLORER
IMO Code:9333826
Call Sign:3EKT8
Line Operator:MOL
Class Name for Sister Ships:MOL_EXPLORER
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.12
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,842
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

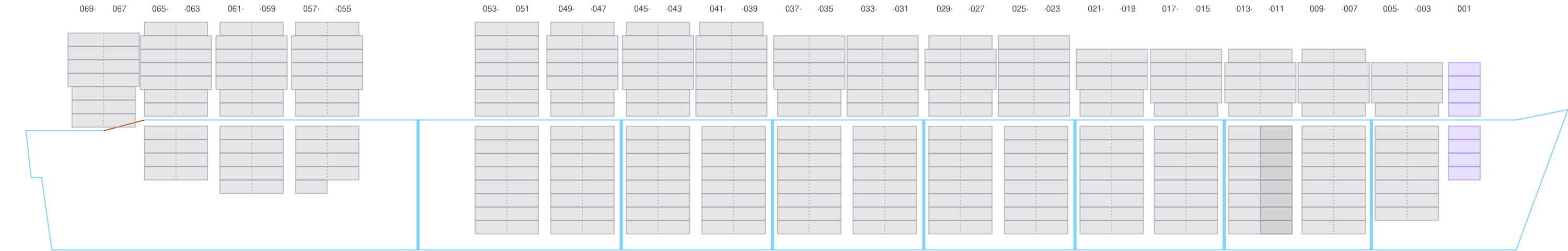

Side View

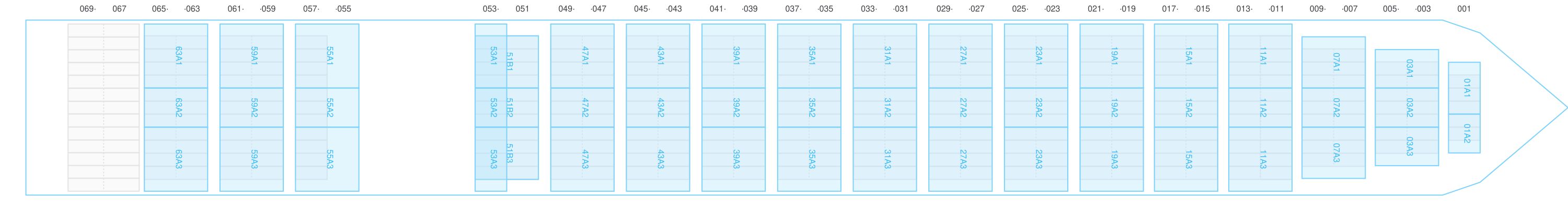

Hatch-Covers View

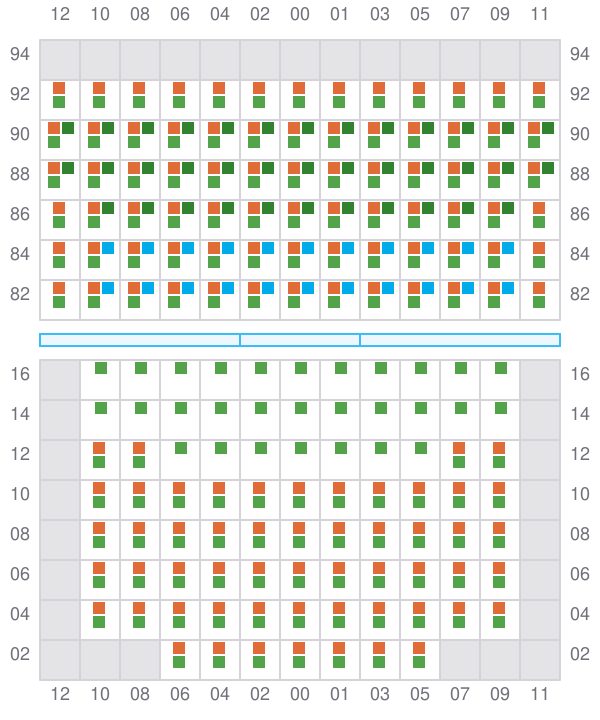

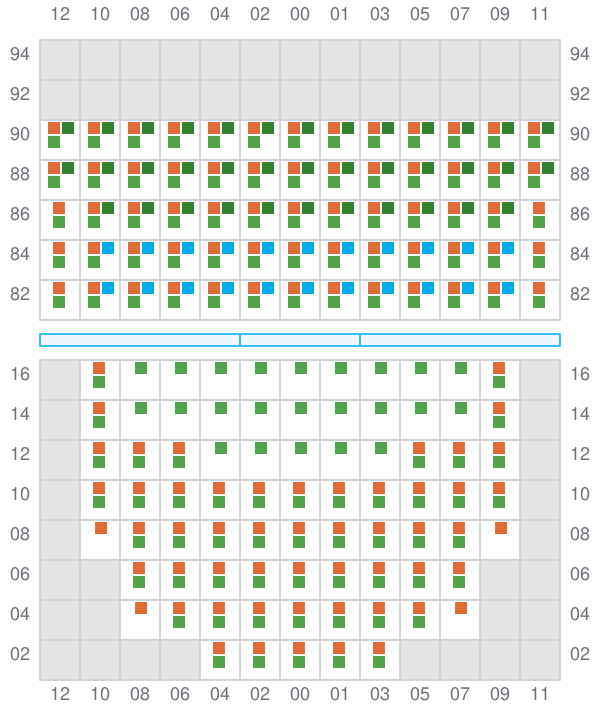

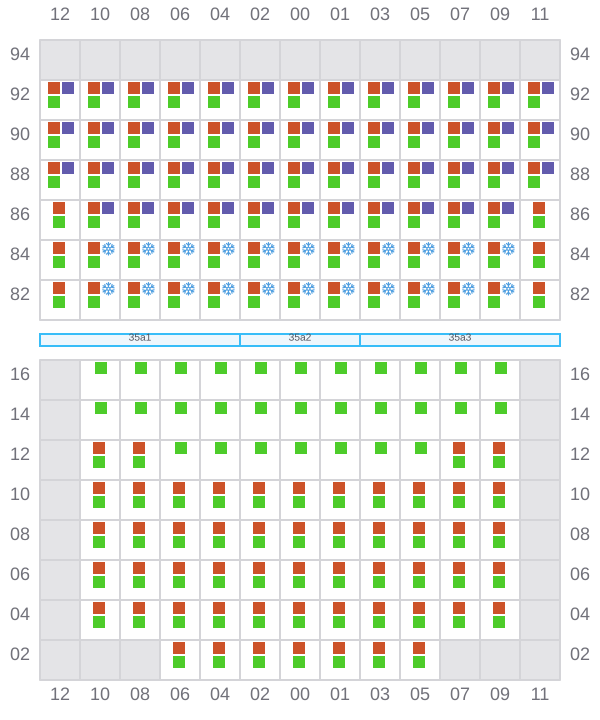

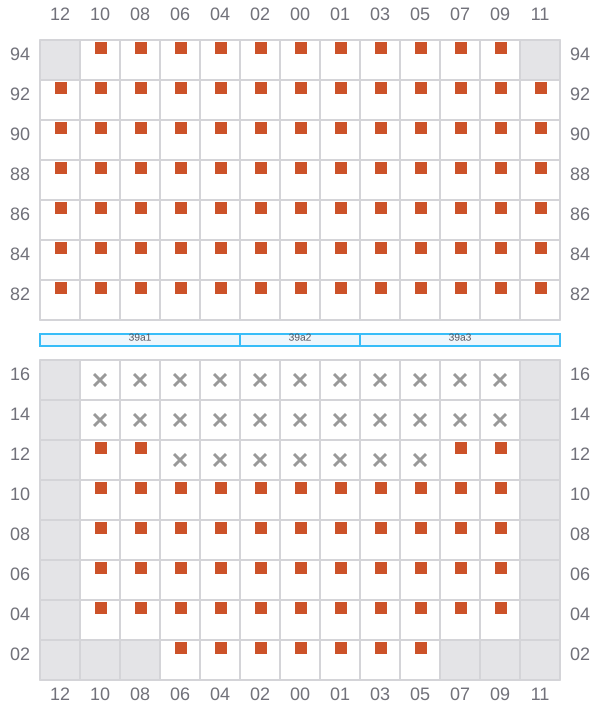

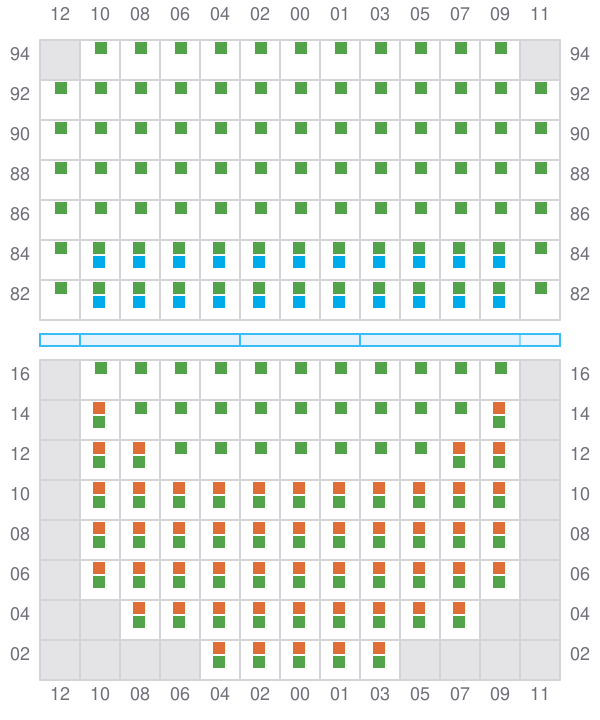

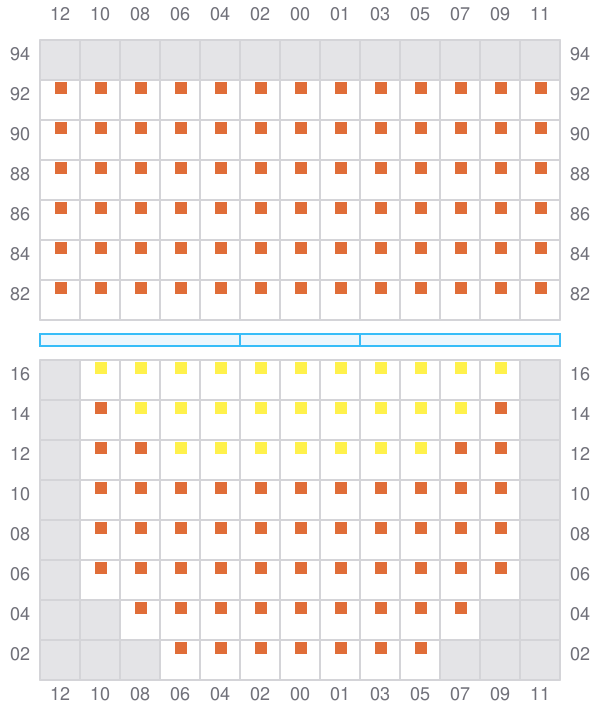

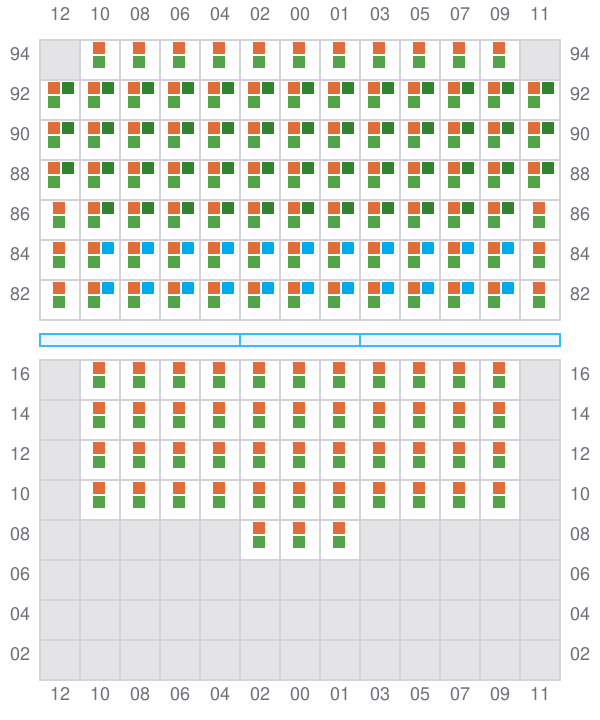

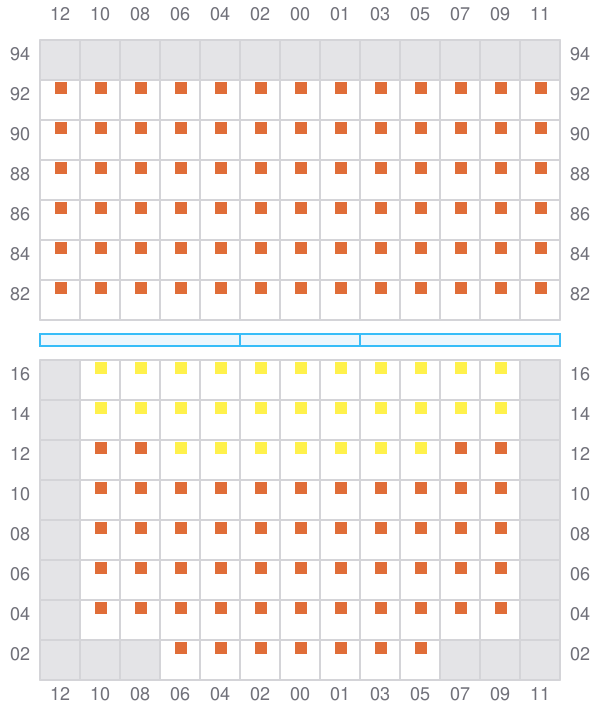

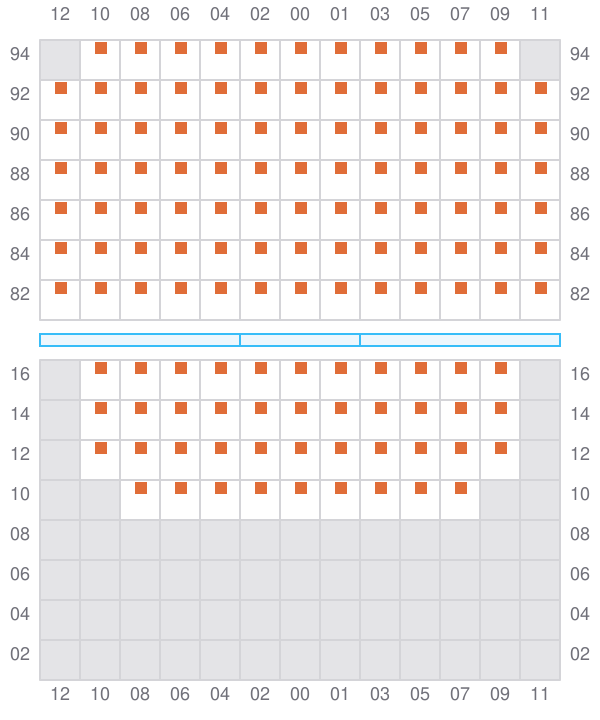

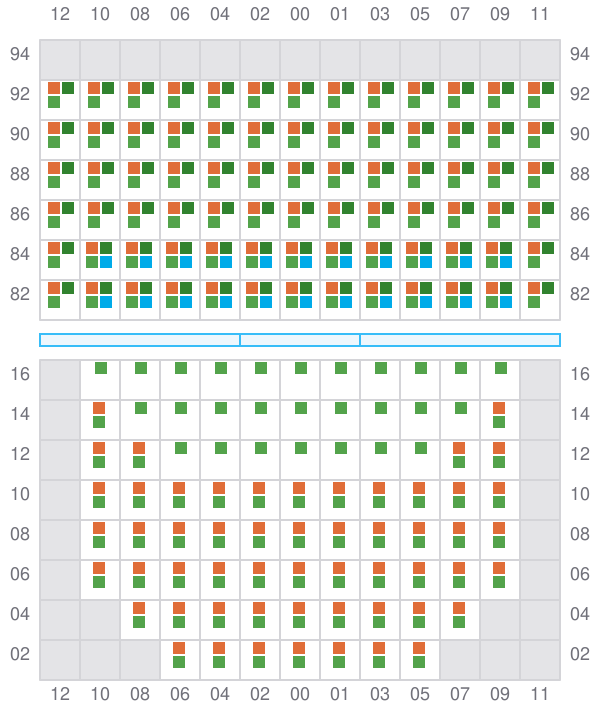

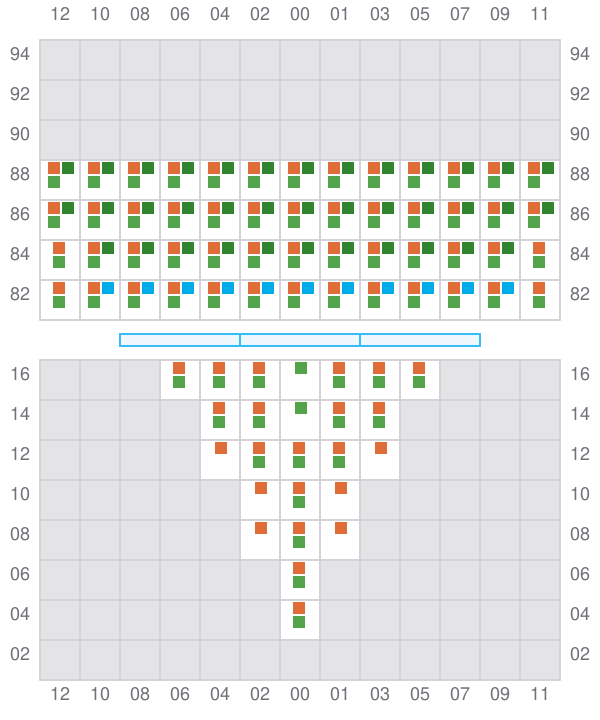

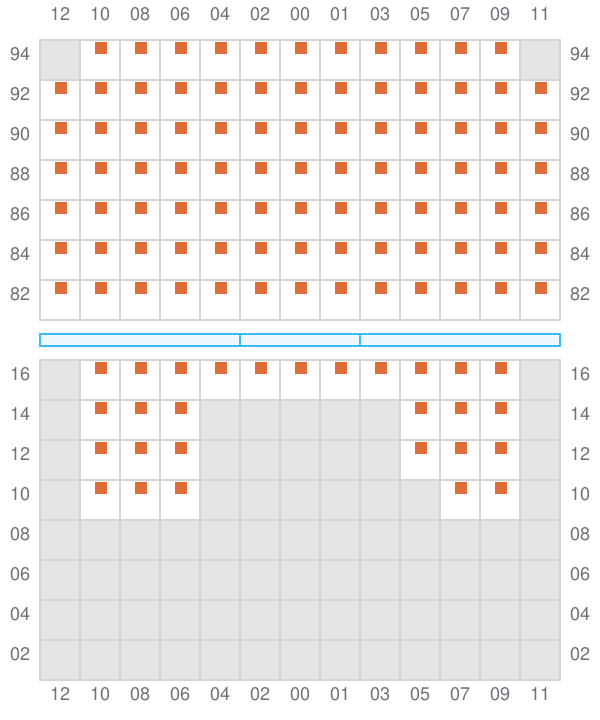

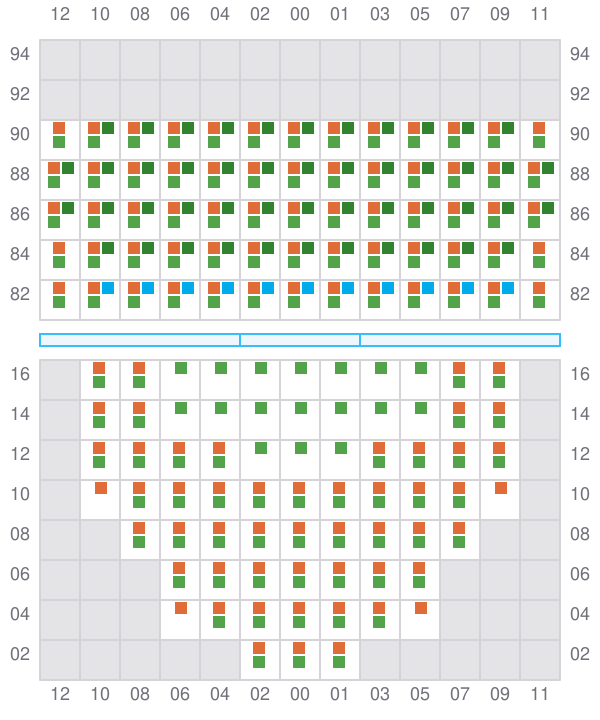

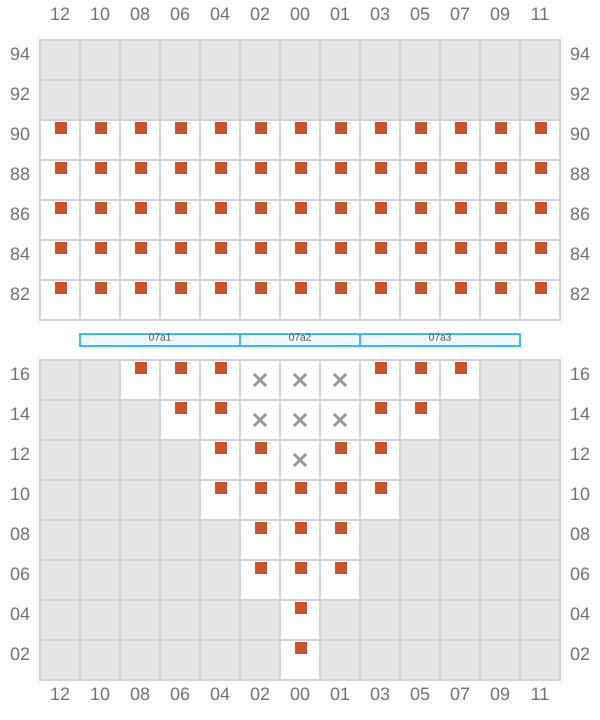

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

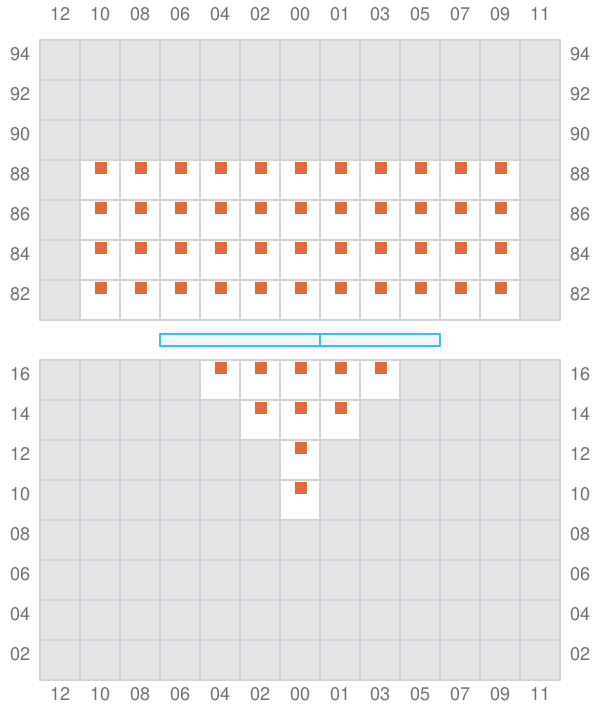

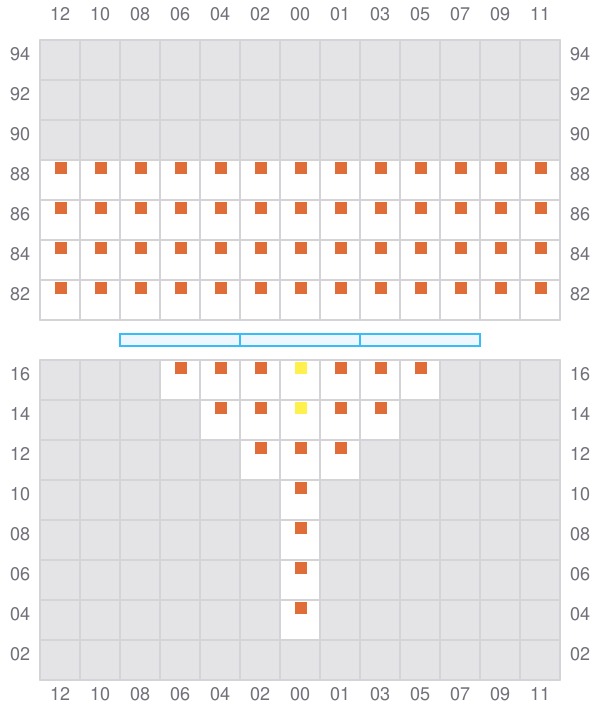

001
- →
003
- →
- →
005 (004)
- ←
- → / ?
- →
007
- →
- →
009 (008)
- ←
- → / ?
- →
011
- → / ←
- →

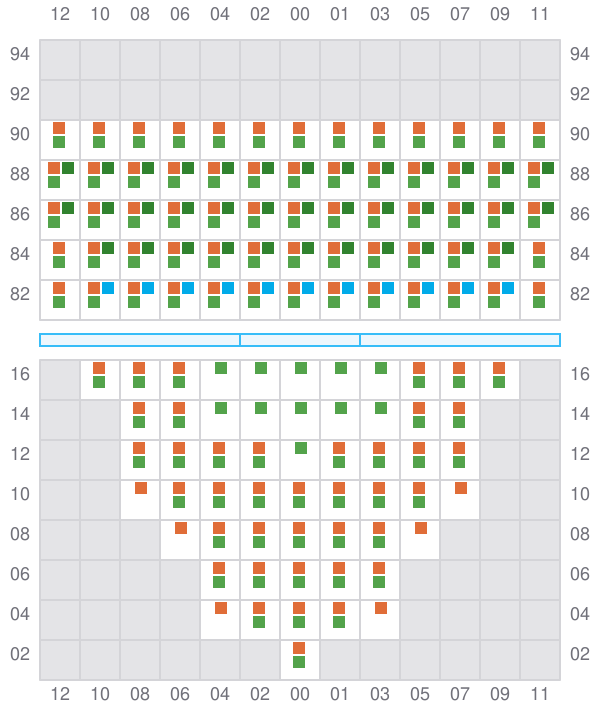

013 (012)
- ←
- → / ?
- →

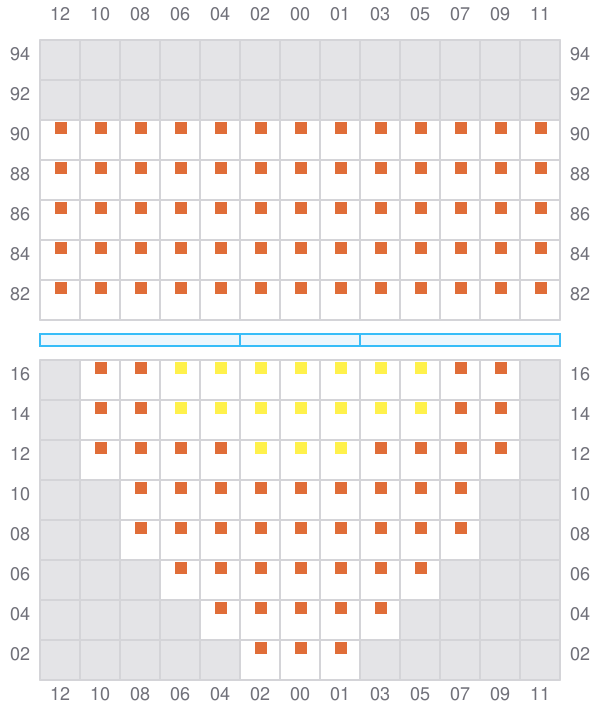

015
- →
- →
017 (016)
- ←
- → / ?
- →

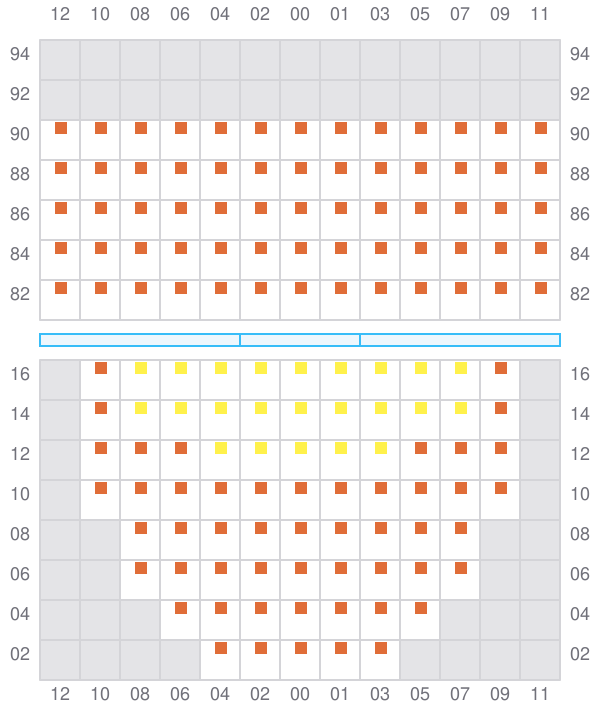

019
- →
- →
021 (020)
- ←
- → / ?
- →
023
- →
- →
025 (024)
- ←
- → / ?
- →
027
- →
- →
029 (028)
- ←
- → / ?
- →
031
- →
- →

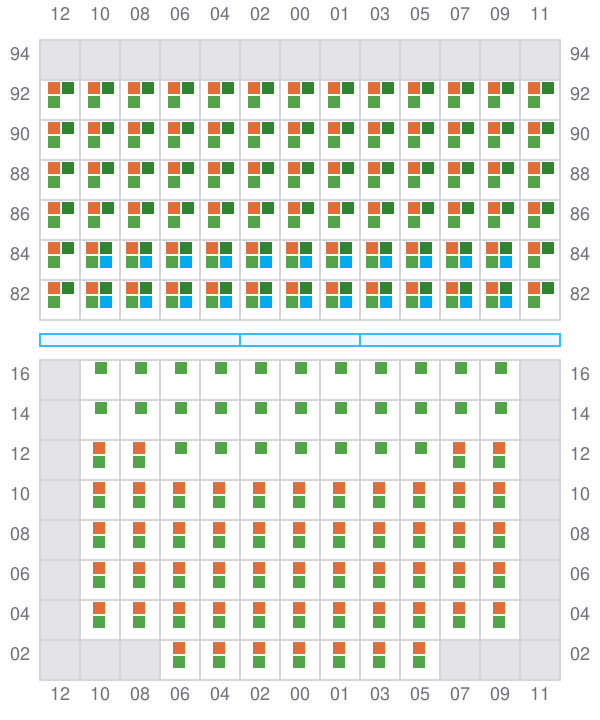

033 (032)
- ←
- → / ?
- →
035
- →
- →
037 (036)
- ←
- → / ?
- →
039
- →
- →

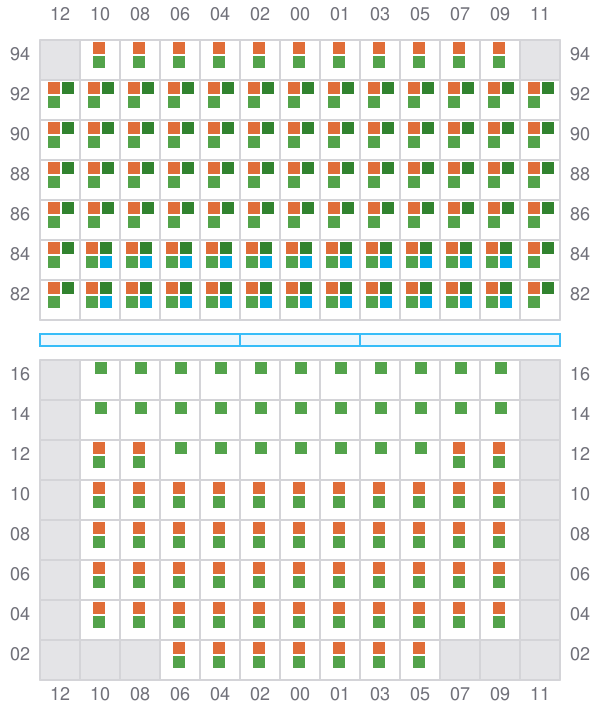

041 (040)
- ←
- → / ?
- →
043
- →
- →
045 (044)
- ←
- → / ?
- →

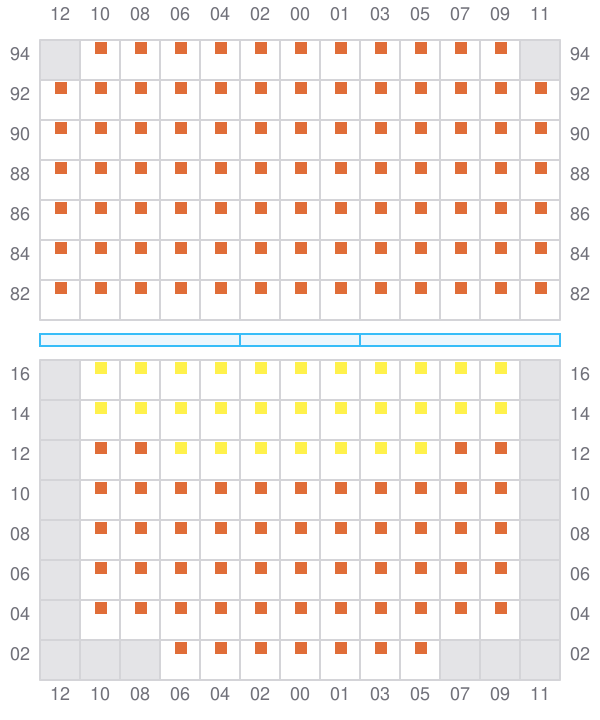

047
- →
- →

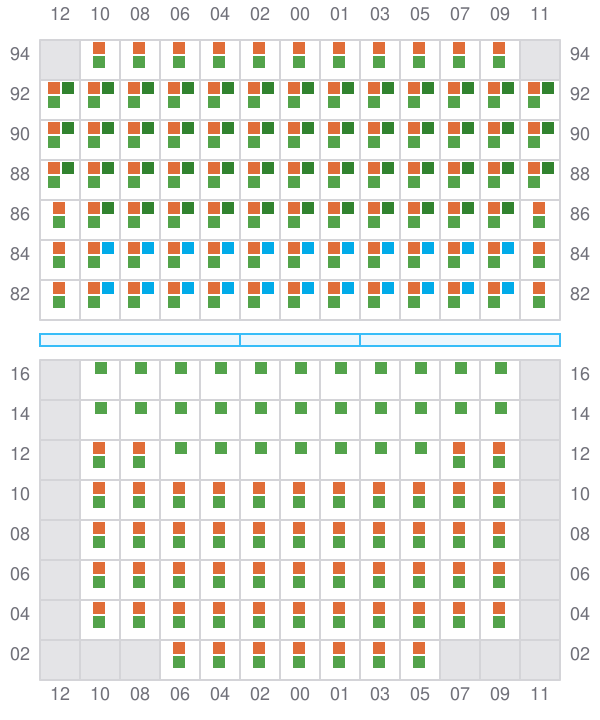

049 (048)
- ←
- → / ?
- →
051
- ? / →
- ? / →

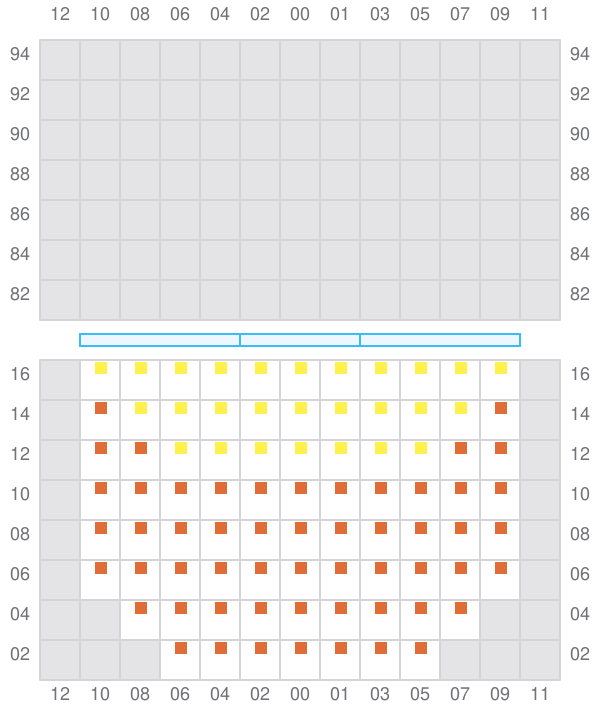

053 (052)
- ←
- → / ?
- →
055
- →
- →

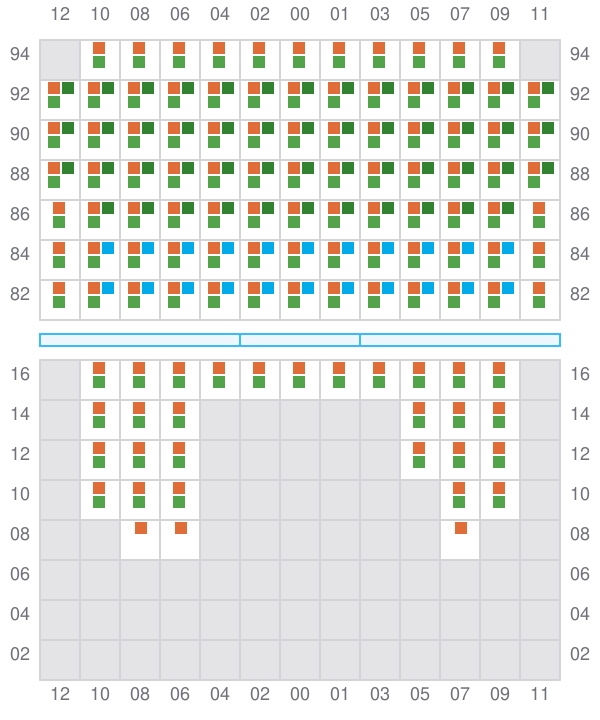

057 (056)
- ←
- → / ?
- →

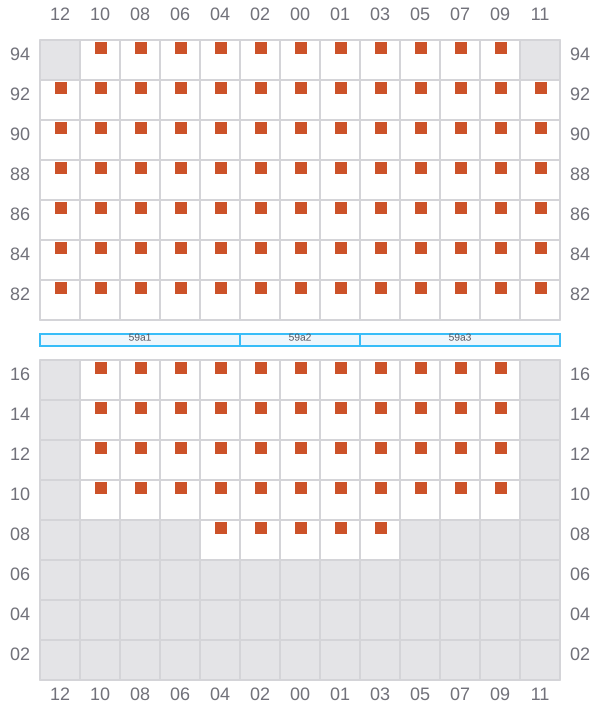

059
- →
- →
061 (060)
- ←
- → / ?
- →
063
- →
- →
065 (064)
- ←
- → / ?
- →

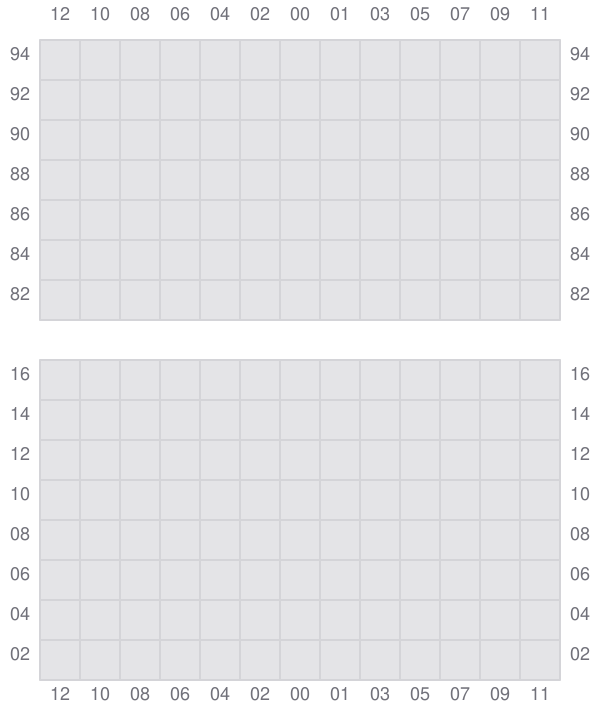

067

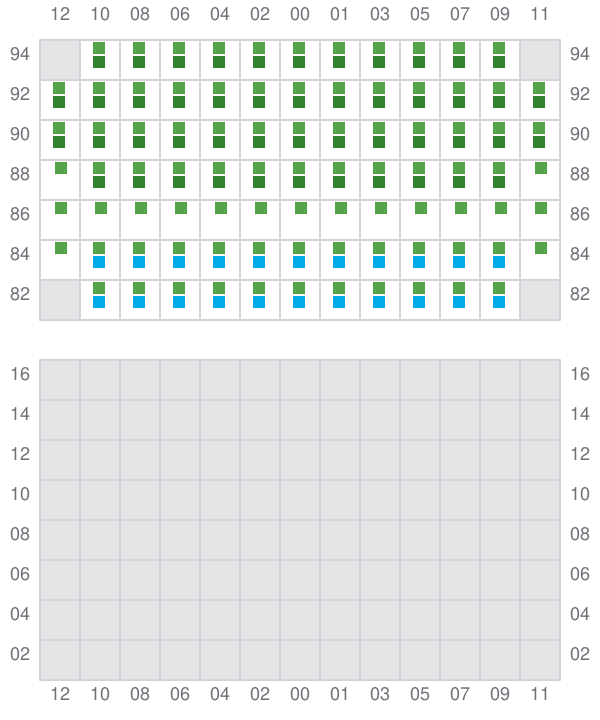

069 (068)
- ← / ?
- ← / ?
- → / ?
