MONACO MAERSK
9778832 | OWNL2 | 9778832 by ********* Last update: Tue Jun 25 2024

General Info

Ship Name:MONACO MAERSK
IMO Code:9778832
Call Sign:OWNL2
Line Operator:9778832
Class Name for Sister Ships:MAE
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:20,200

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

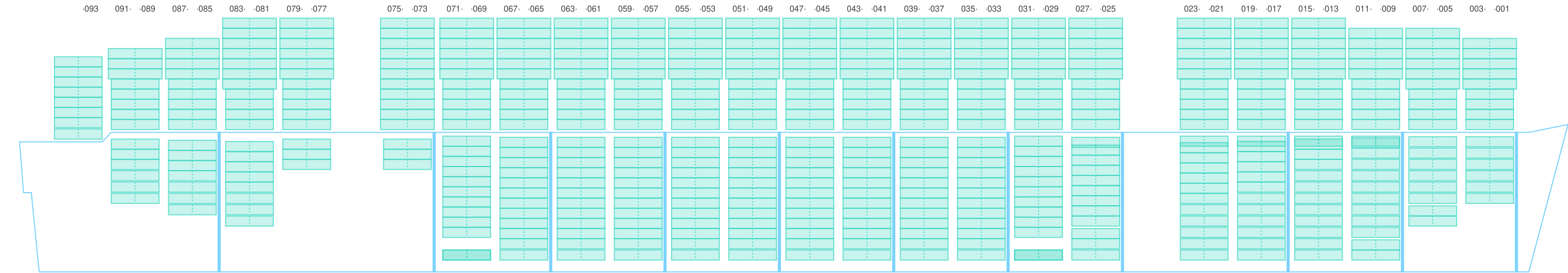

Side view of MONACO MAERSK

Hatch-Covers View

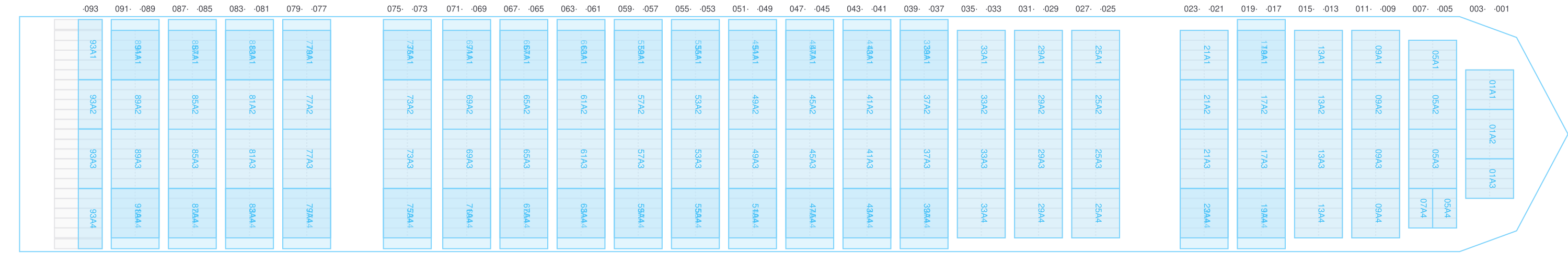

Deck view of MONACO MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

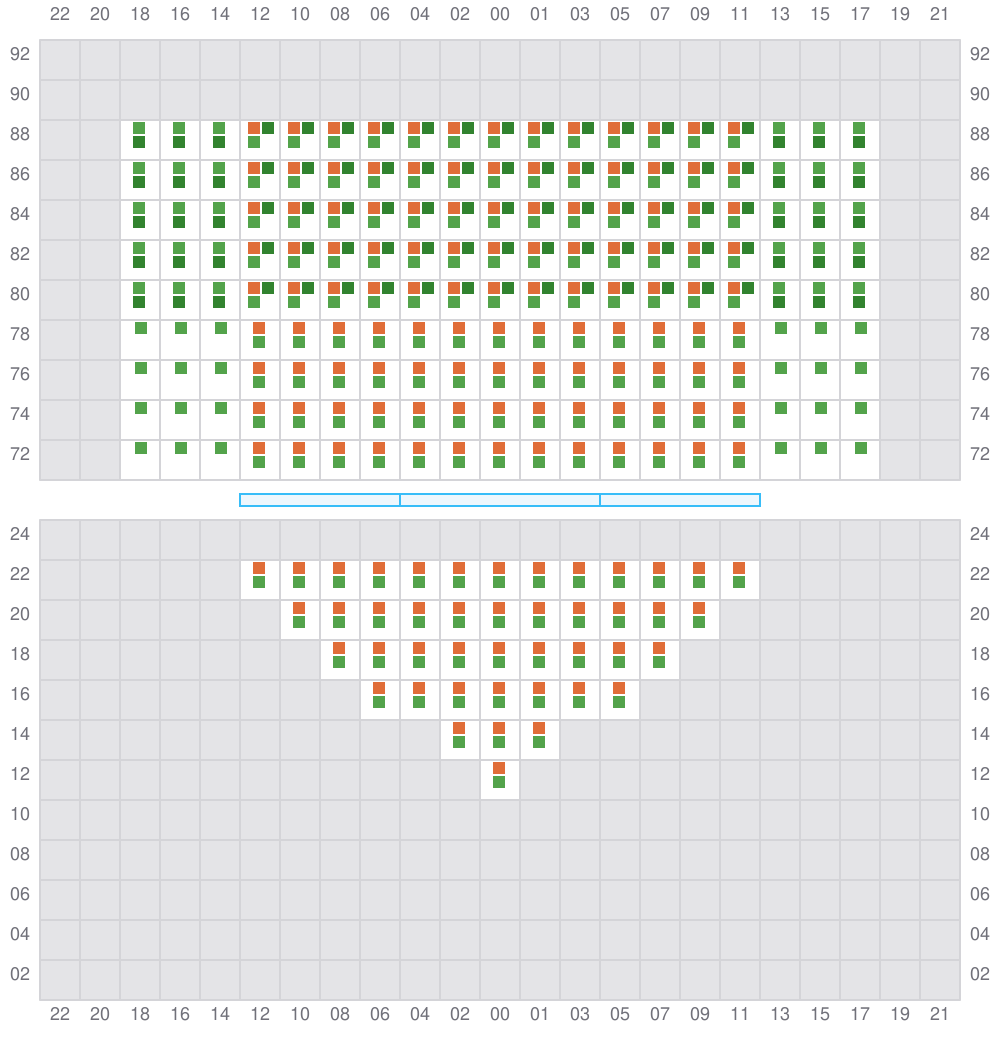

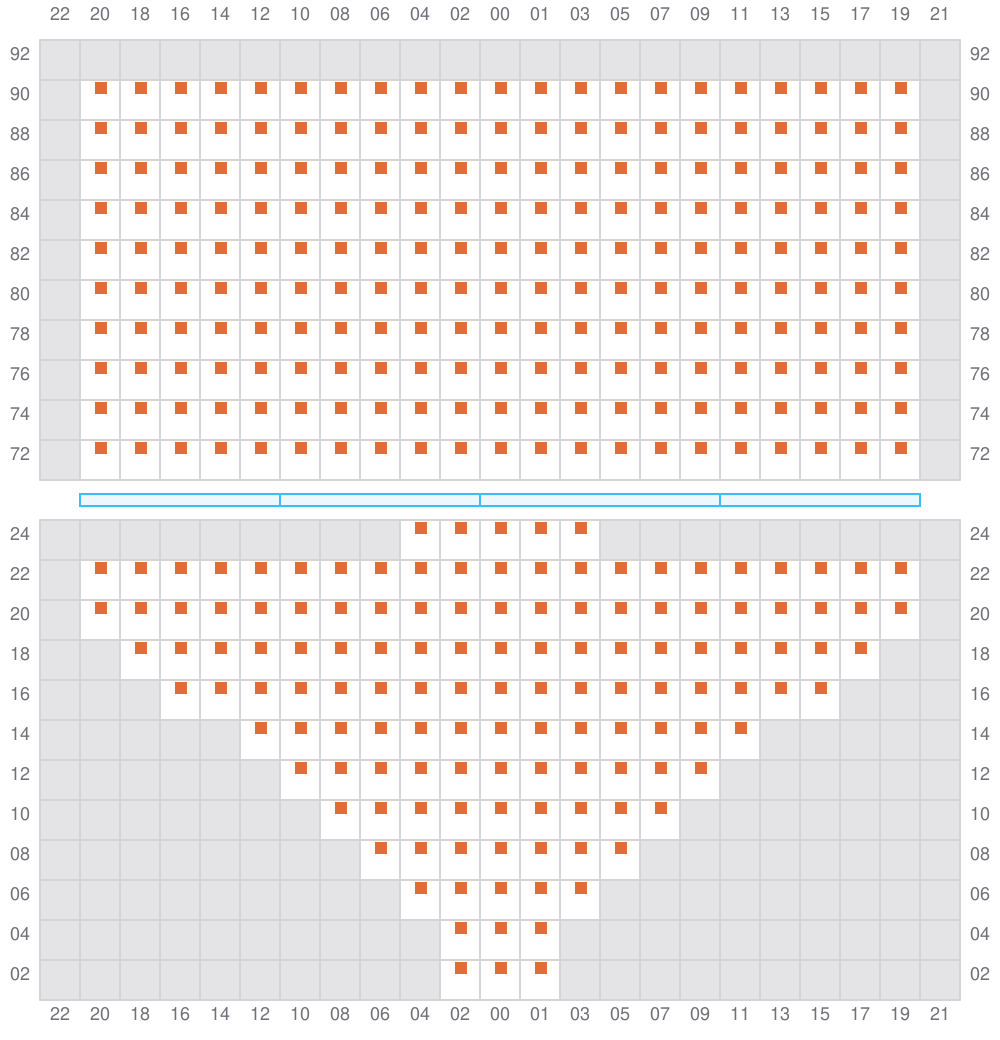

Bay 001 view and slots of MONACO MAERSK

003

  • ←

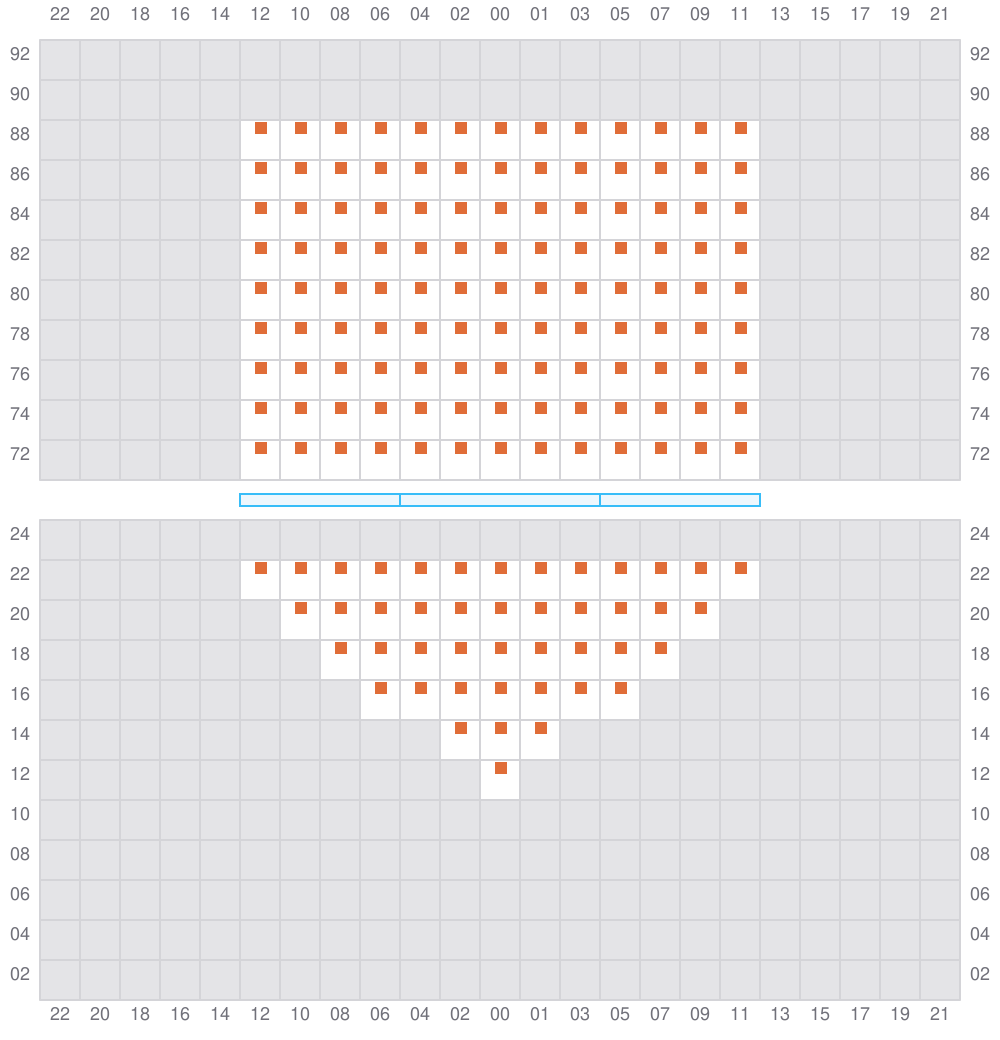

Bay 003 view and slots of MONACO MAERSK

005 (006)

  • →

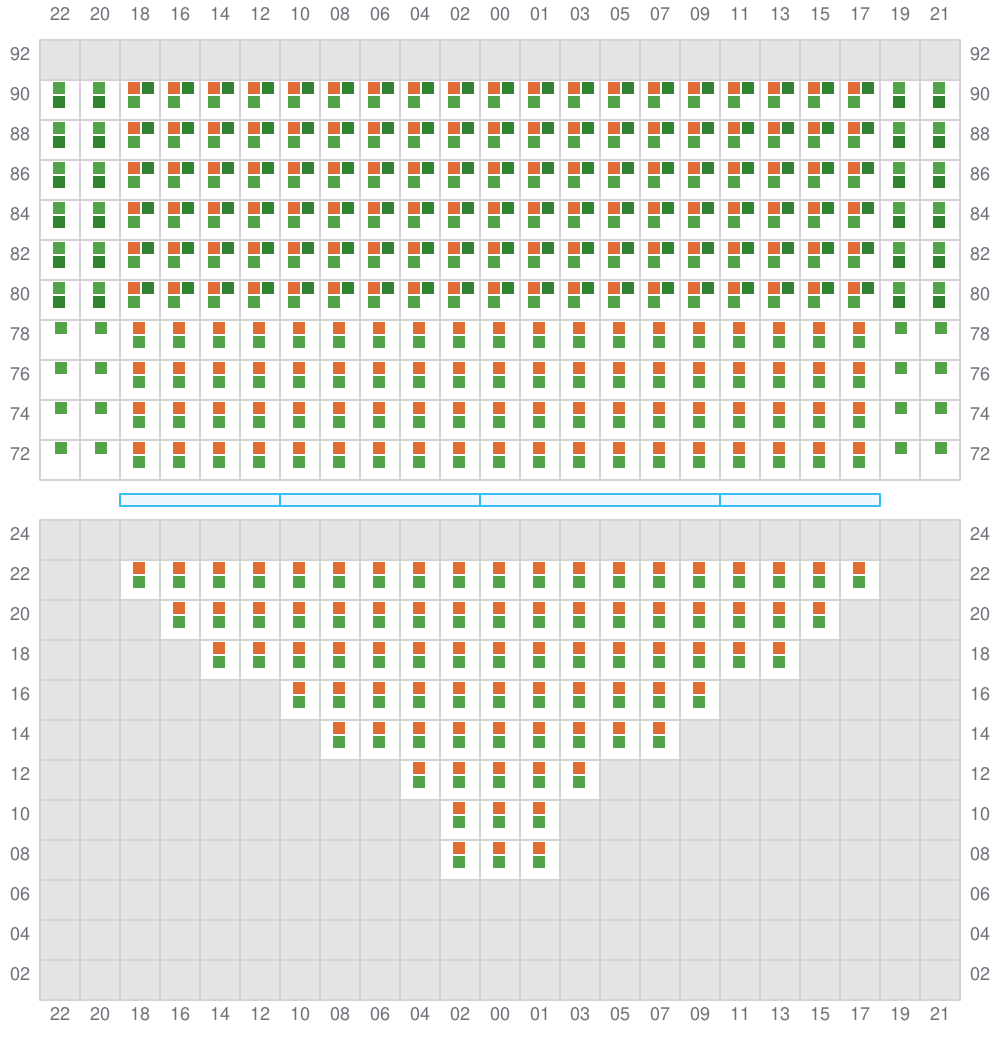

Bay 005 view and slots of MONACO MAERSK

007

  • ←

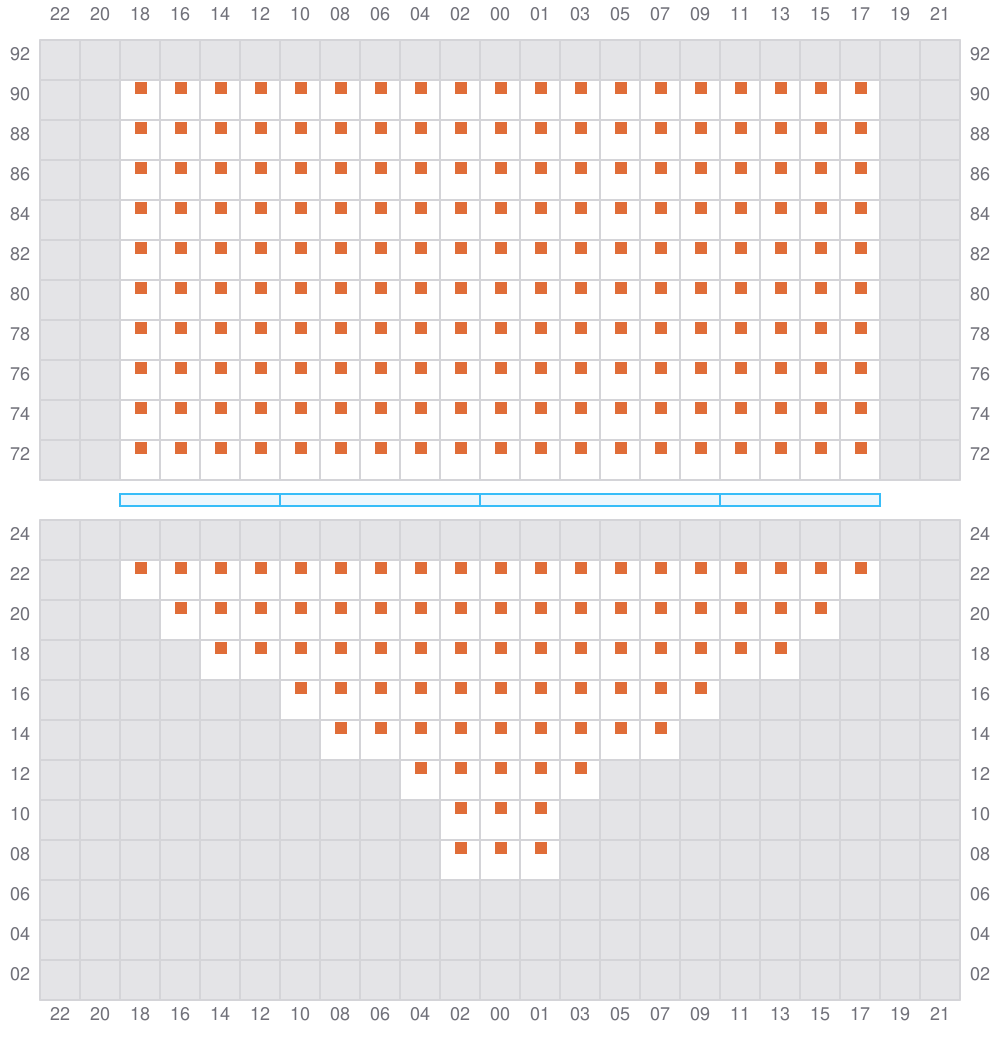

Bay 007 view and slots of MONACO MAERSK

009 (010)

  • →

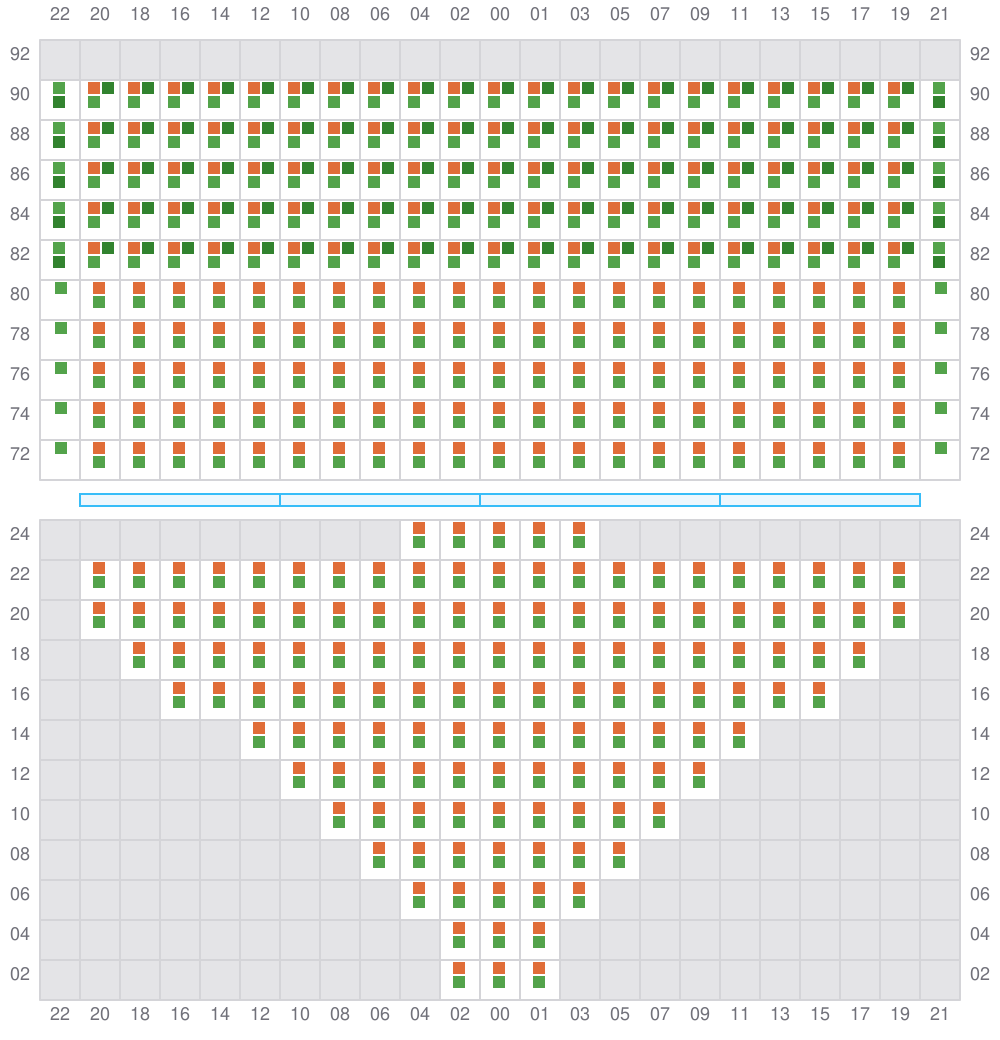

Bay 009 view and slots of MONACO MAERSK

011

  • ←
Bay 011 view and slots of MONACO MAERSK

013 (014)

  • →

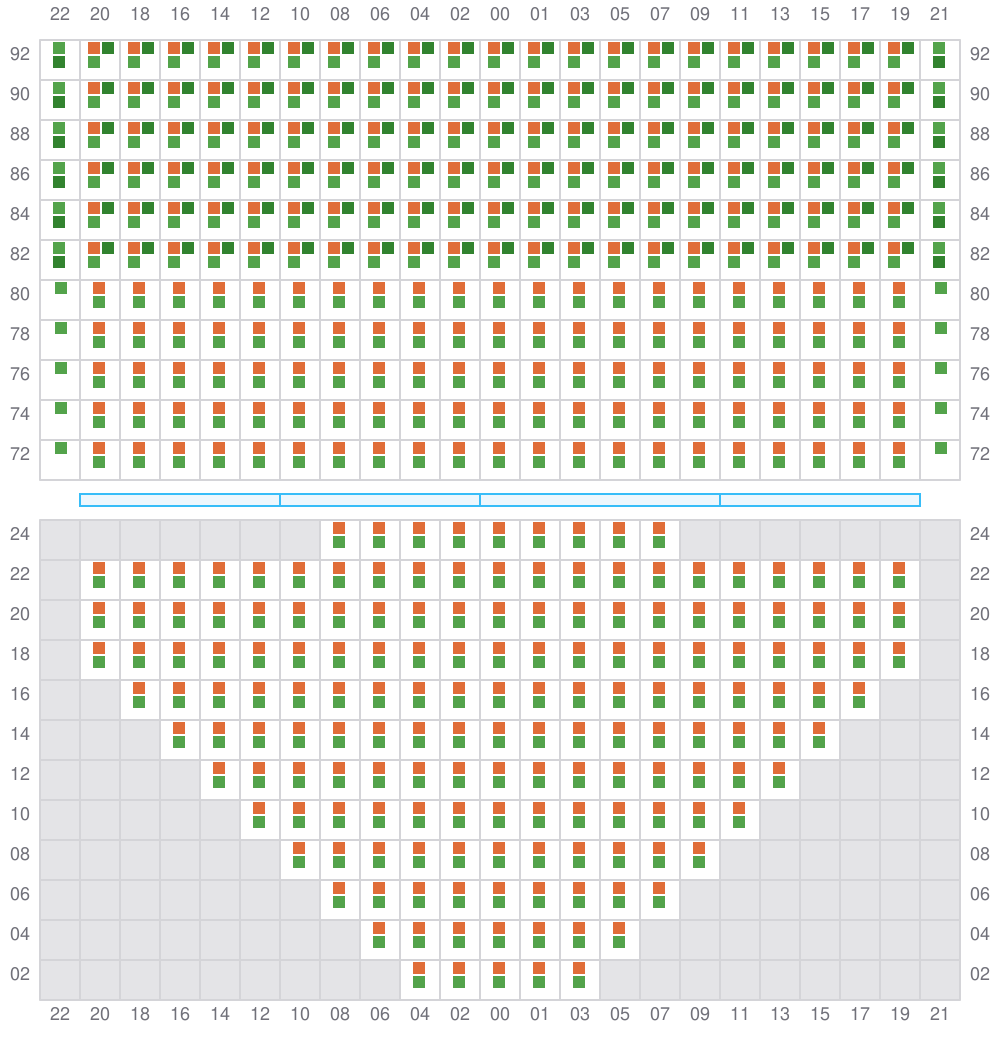

Bay 013 view and slots of MONACO MAERSK

015

  • ←

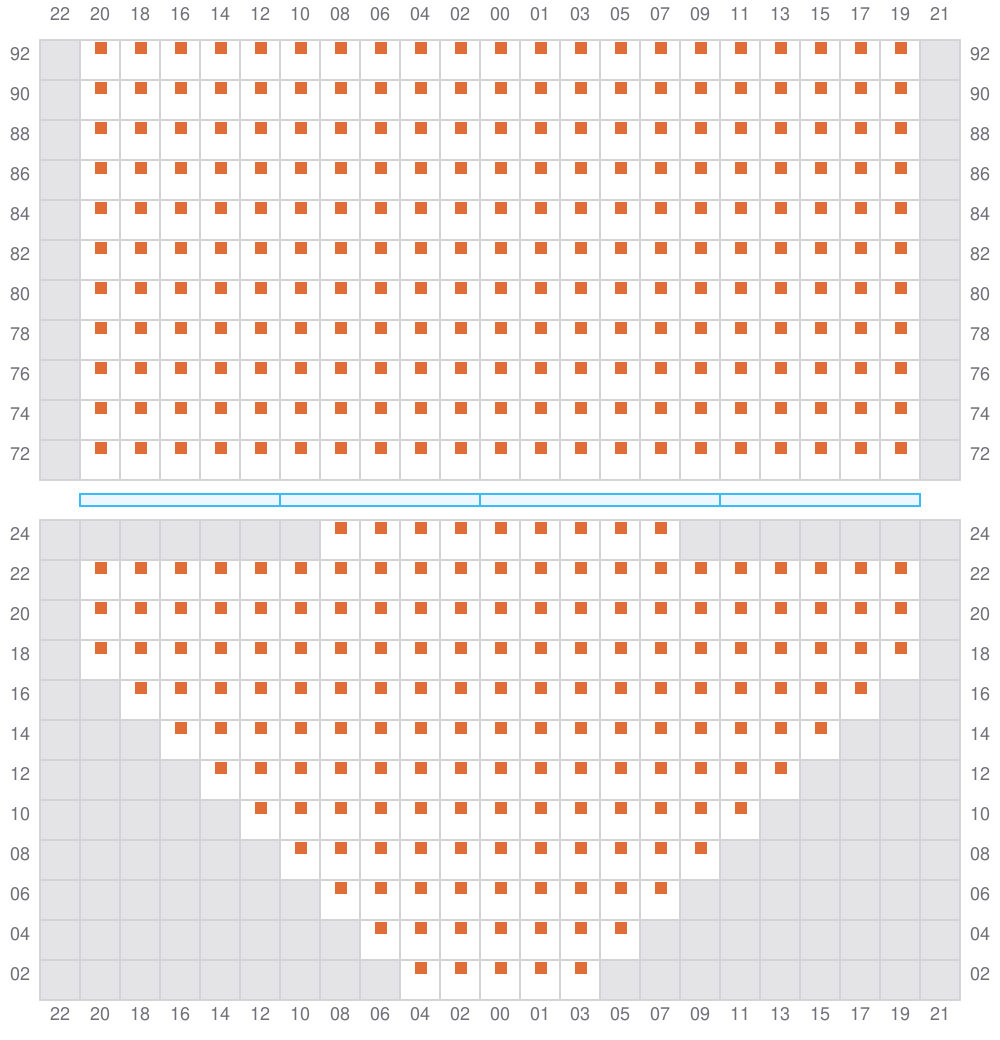

Bay 015 view and slots of MONACO MAERSK

017 (018)

  • →

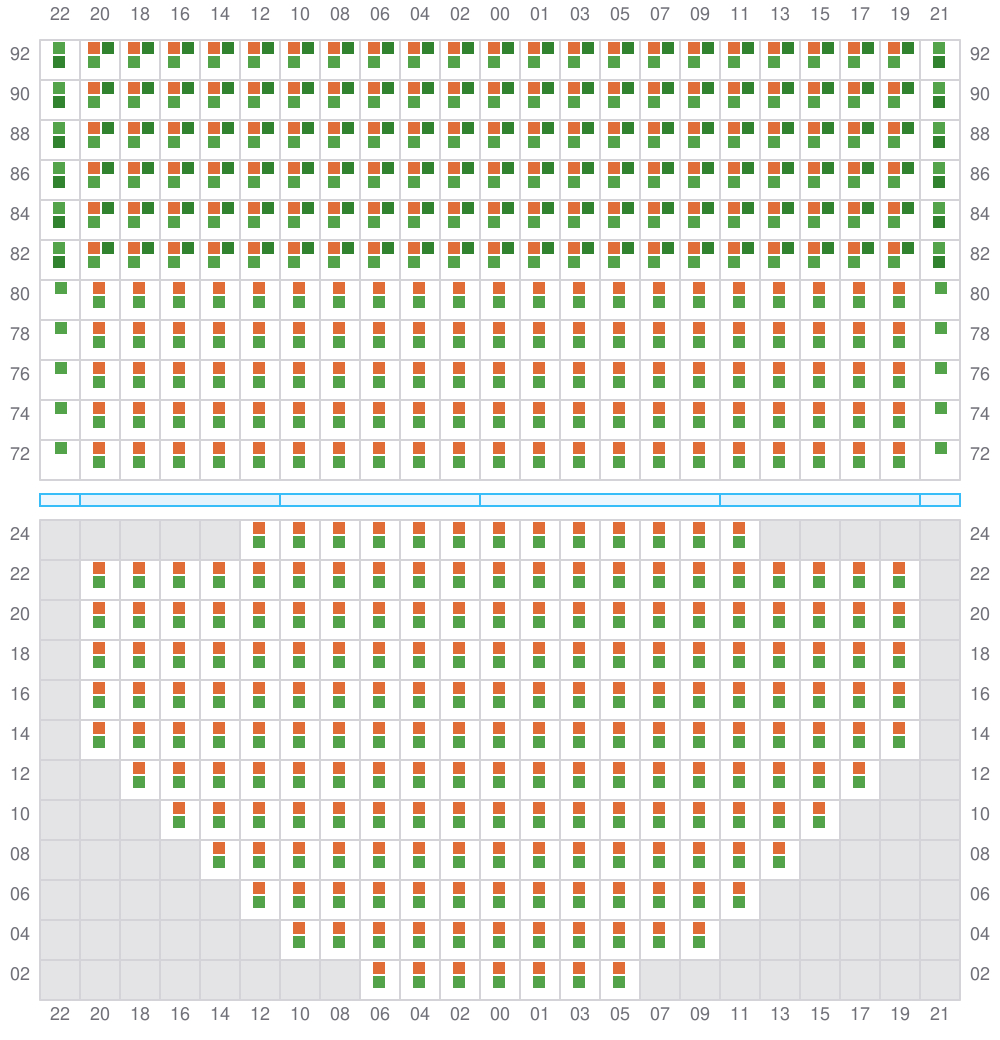

Bay 017 view and slots of MONACO MAERSK

019

  • ←

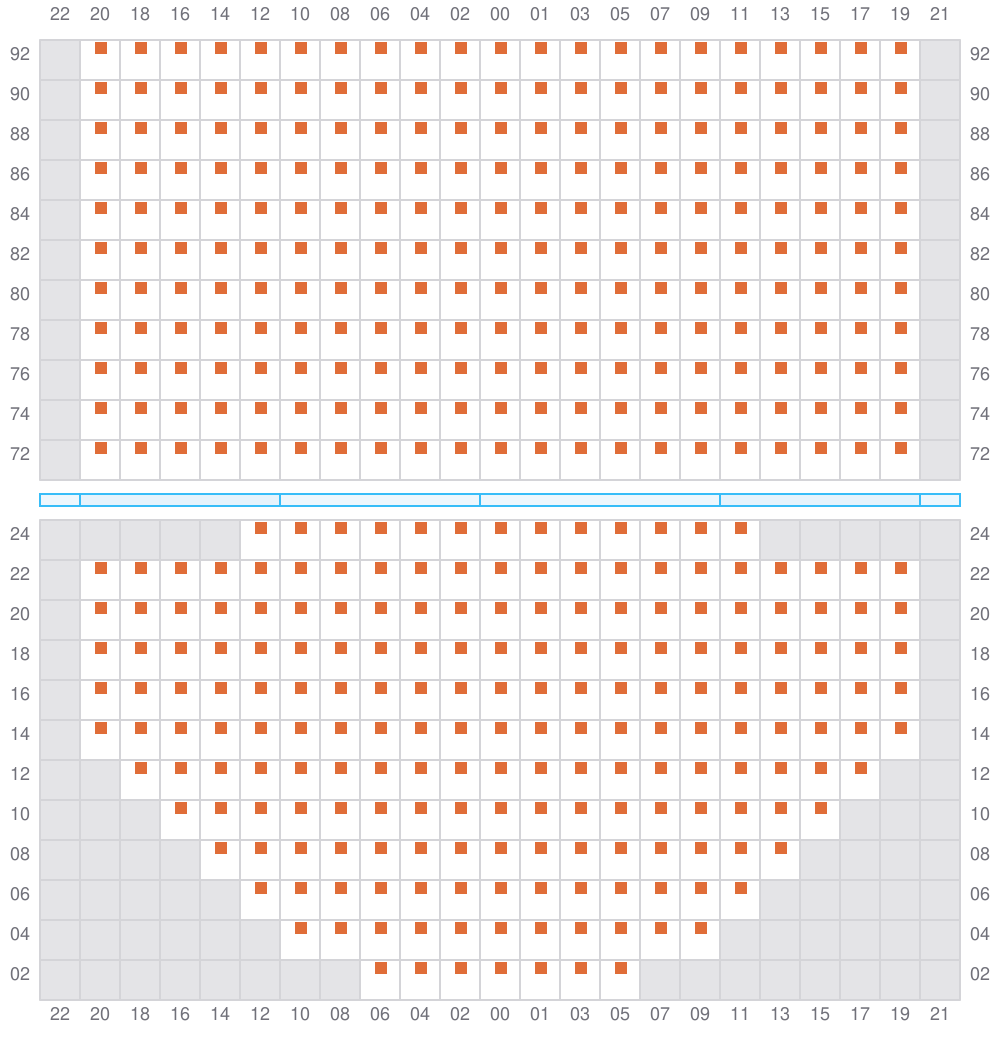

Bay 019 view and slots of MONACO MAERSK

021 (022)

  • →

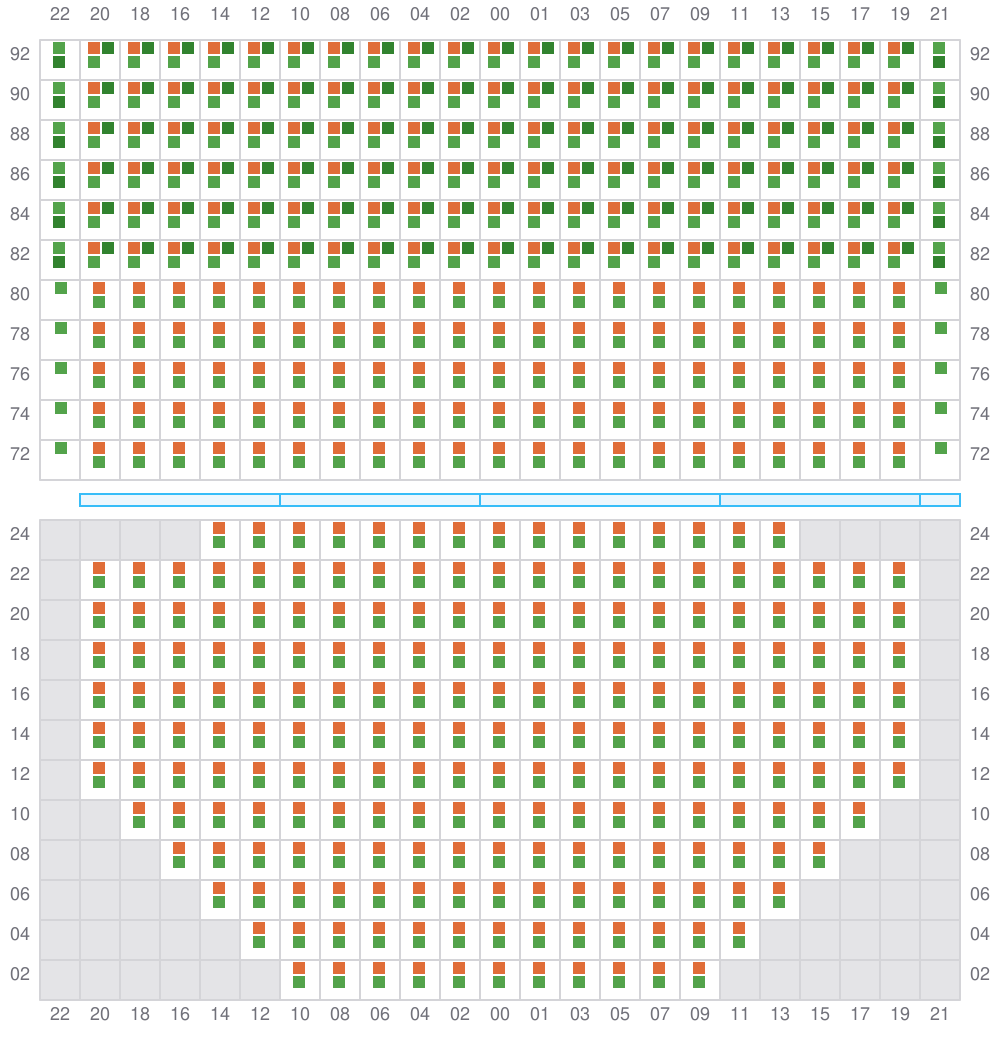

Bay 021 view and slots of MONACO MAERSK

023

  • ←

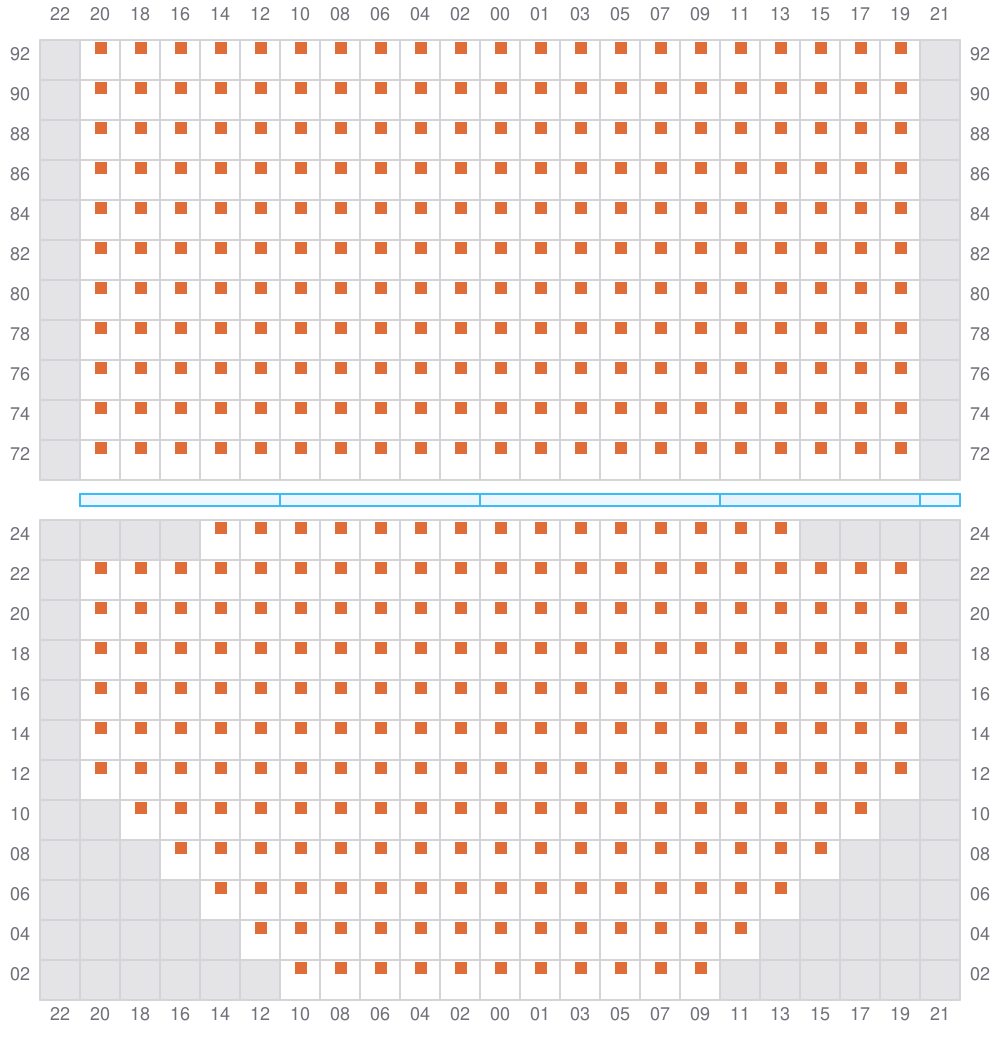

Bay 023 view and slots of MONACO MAERSK

025 (026)

  • →

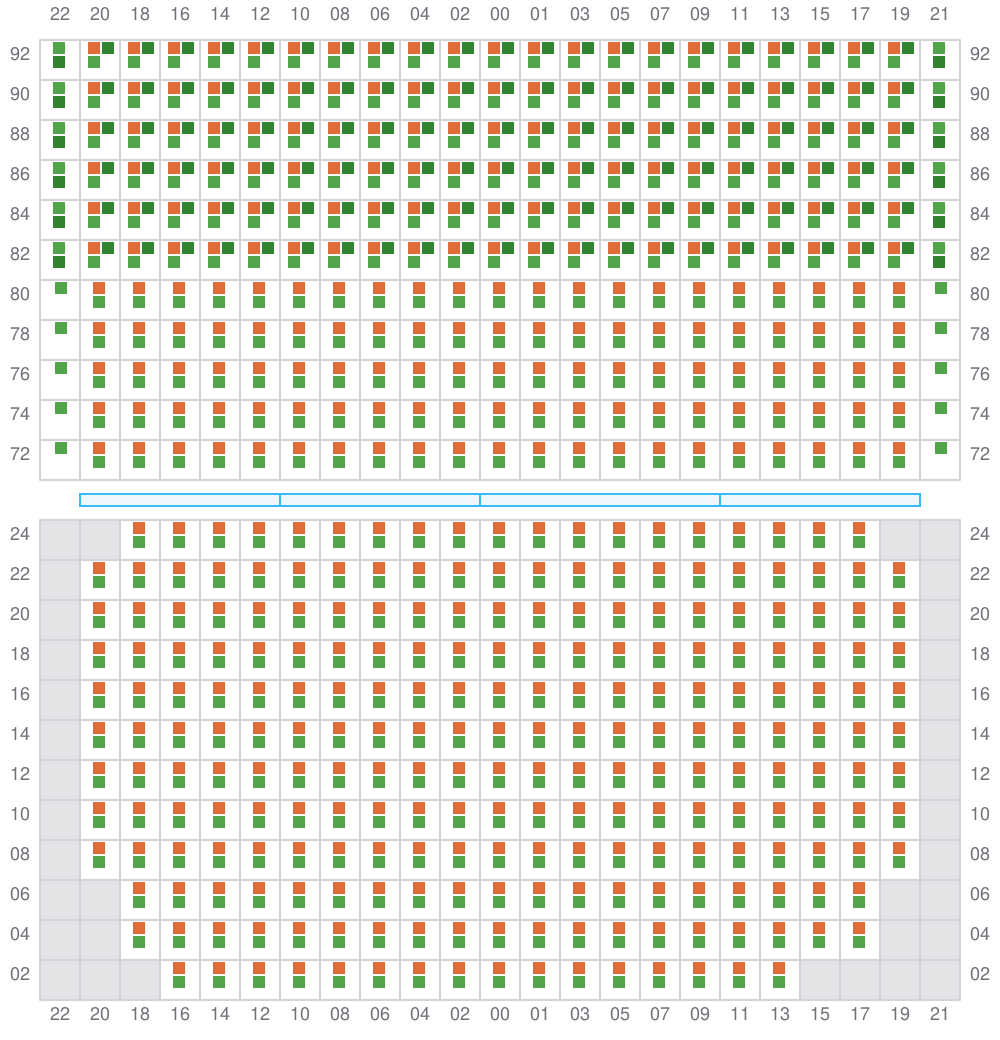

Bay 025 view and slots of MONACO MAERSK

027

  • ←
  • → / ?

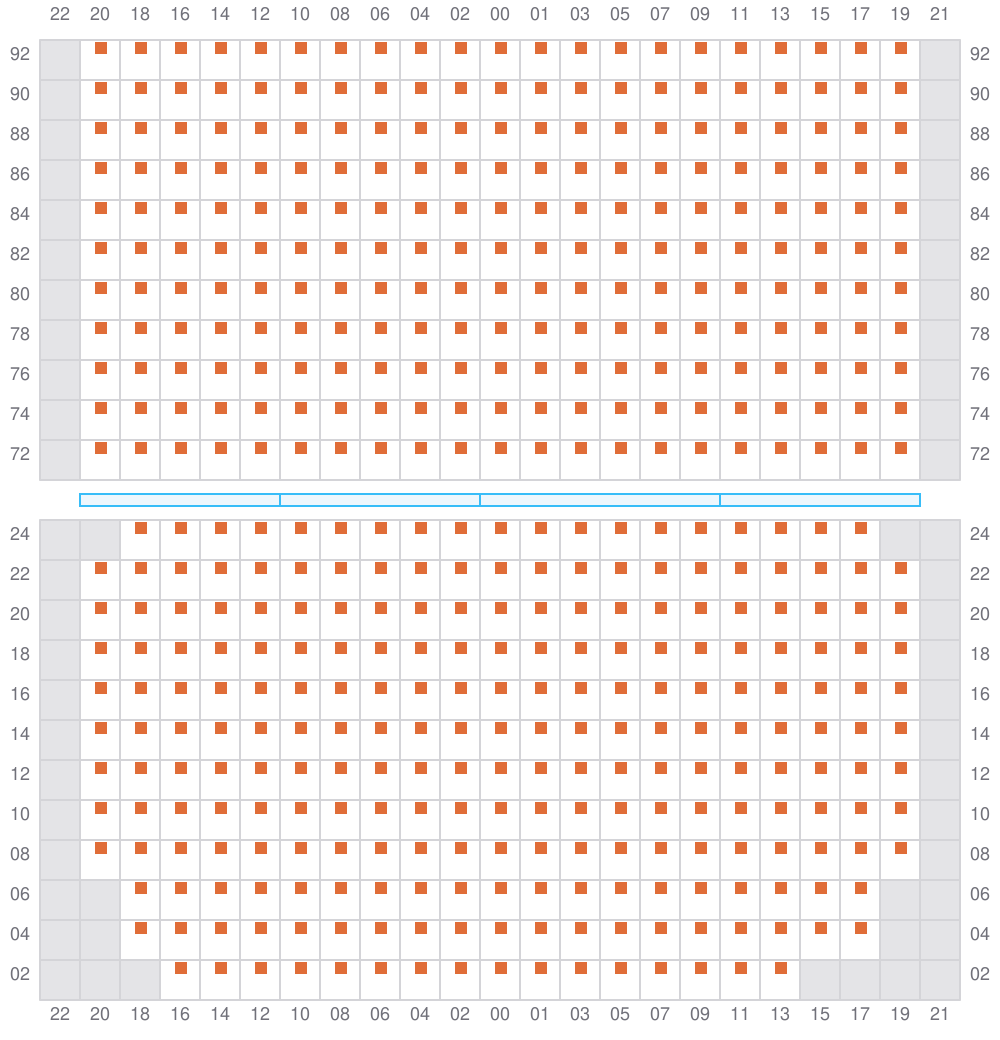

Bay 027 view and slots of MONACO MAERSK

029 (030)

  • →
Bay 029 view and slots of MONACO MAERSK

031

  • ←
  • → / ?

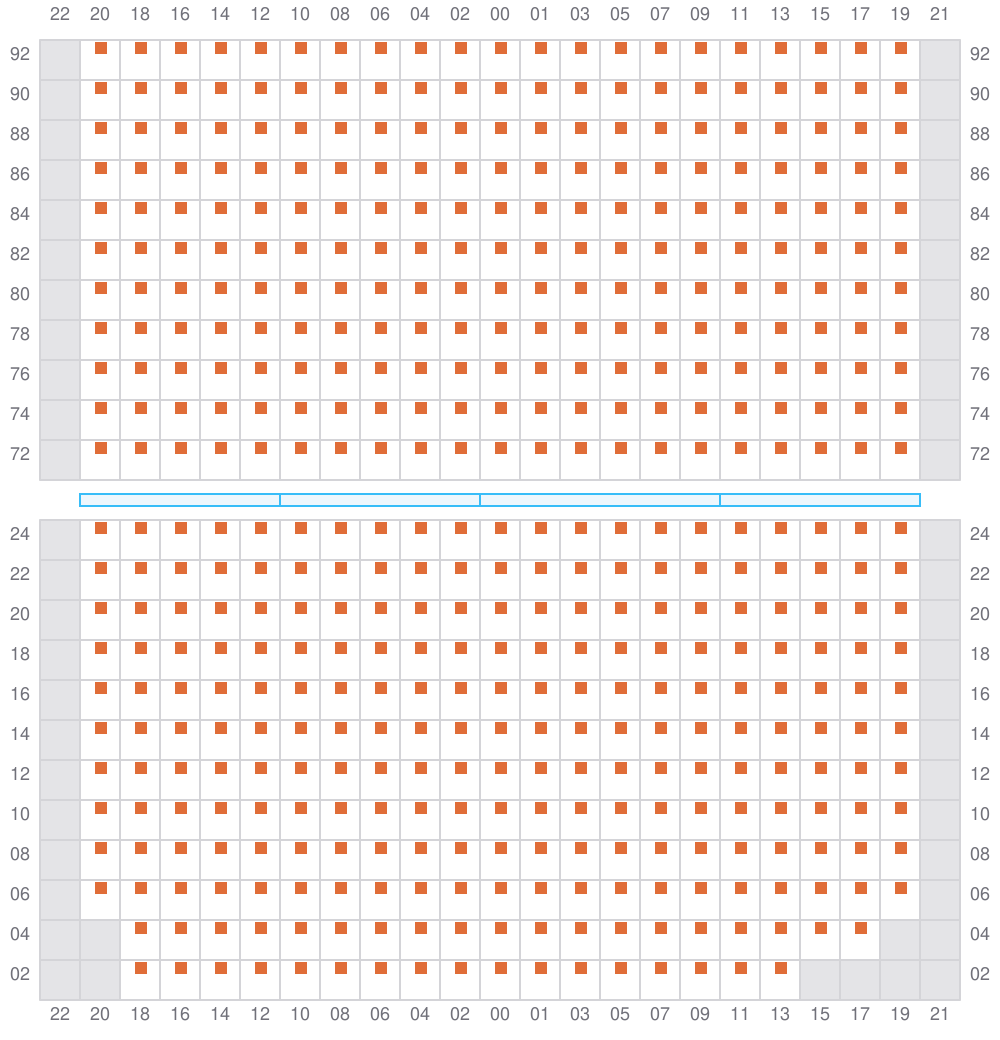

Bay 031 view and slots of MONACO MAERSK

033 (034)

  • →

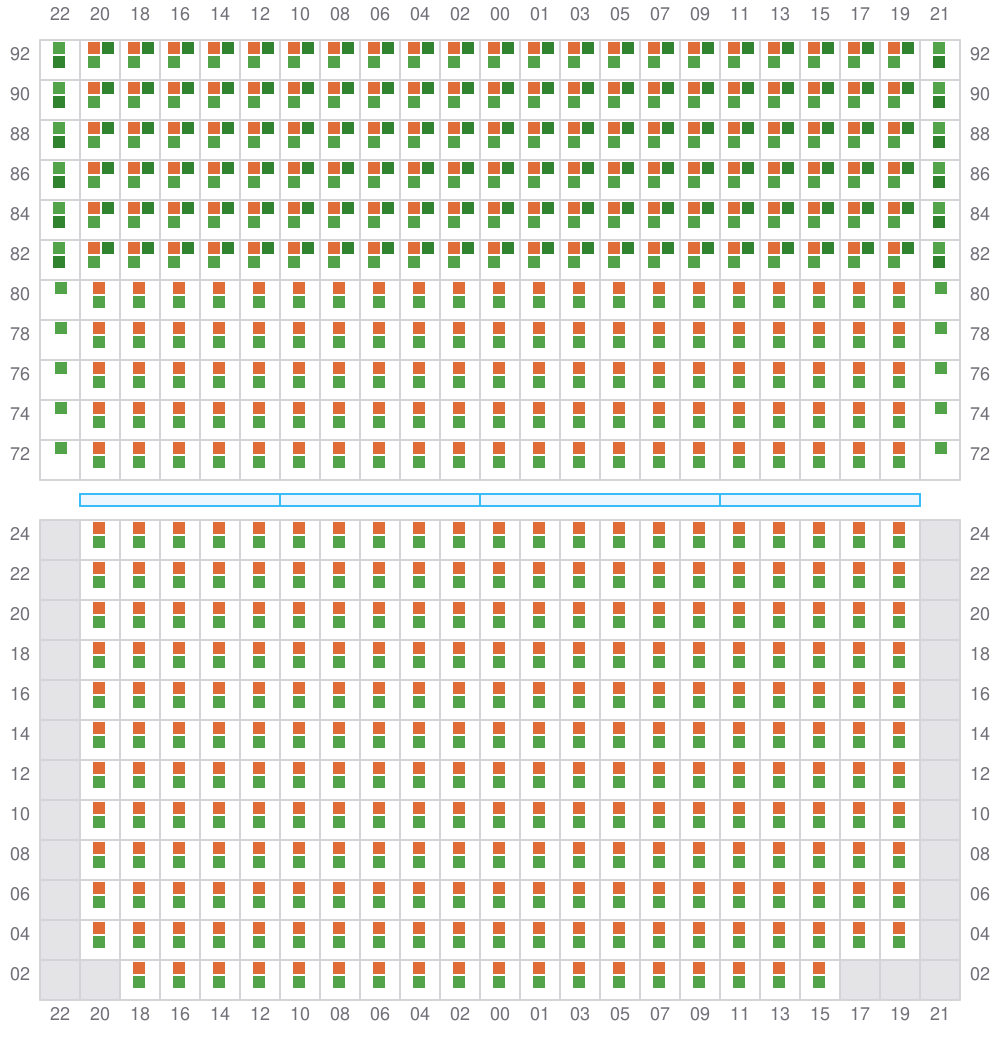

Bay 033 view and slots of MONACO MAERSK

035

  • ←
  • → / ?

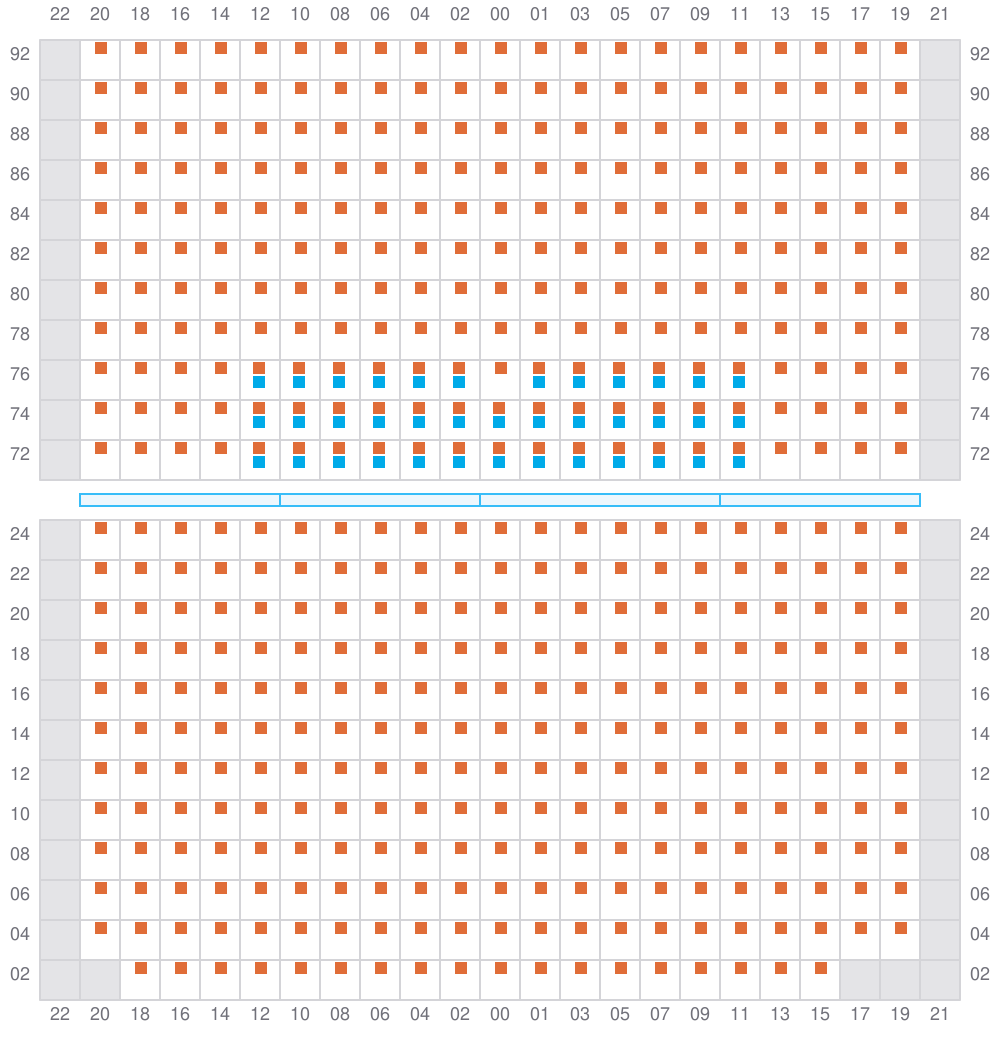

Bay 035 view and slots of MONACO MAERSK

037 (038)

  • →
Bay 037 view and slots of MONACO MAERSK

039

  • ←
  • → / ?
Bay 039 view and slots of MONACO MAERSK

041 (042)

  • →
Bay 041 view and slots of MONACO MAERSK

043

  • ←
  • →
Bay 043 view and slots of MONACO MAERSK

045 (046)

  • →
Bay 045 view and slots of MONACO MAERSK

047

  • ←
  • → / ?
Bay 047 view and slots of MONACO MAERSK

049 (050)

  • →

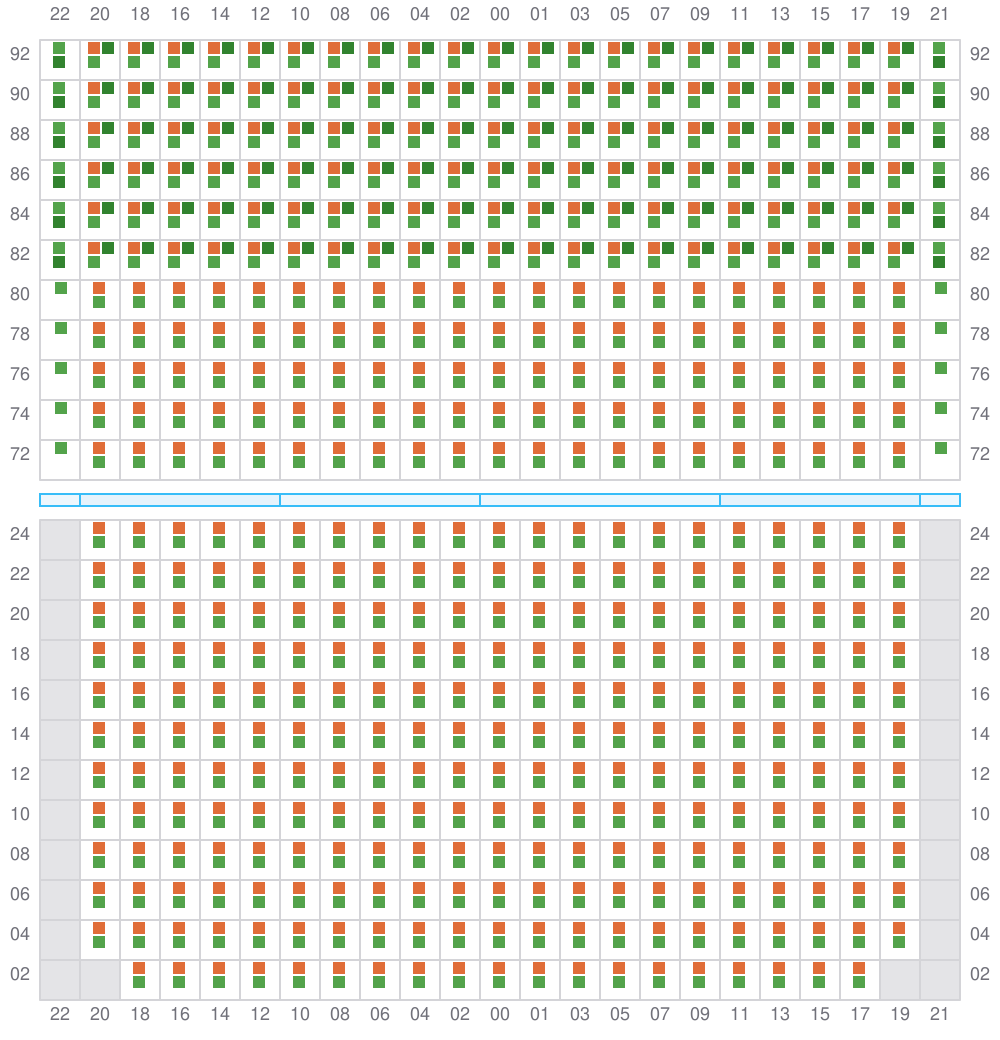

Bay 049 view and slots of MONACO MAERSK

051

  • ←
  • →
Bay 051 view and slots of MONACO MAERSK

053 (054)

  • →
Bay 053 view and slots of MONACO MAERSK

055

  • ←
  • → / ?
Bay 055 view and slots of MONACO MAERSK

057 (058)

  • →
Bay 057 view and slots of MONACO MAERSK

059

  • ←
  • →

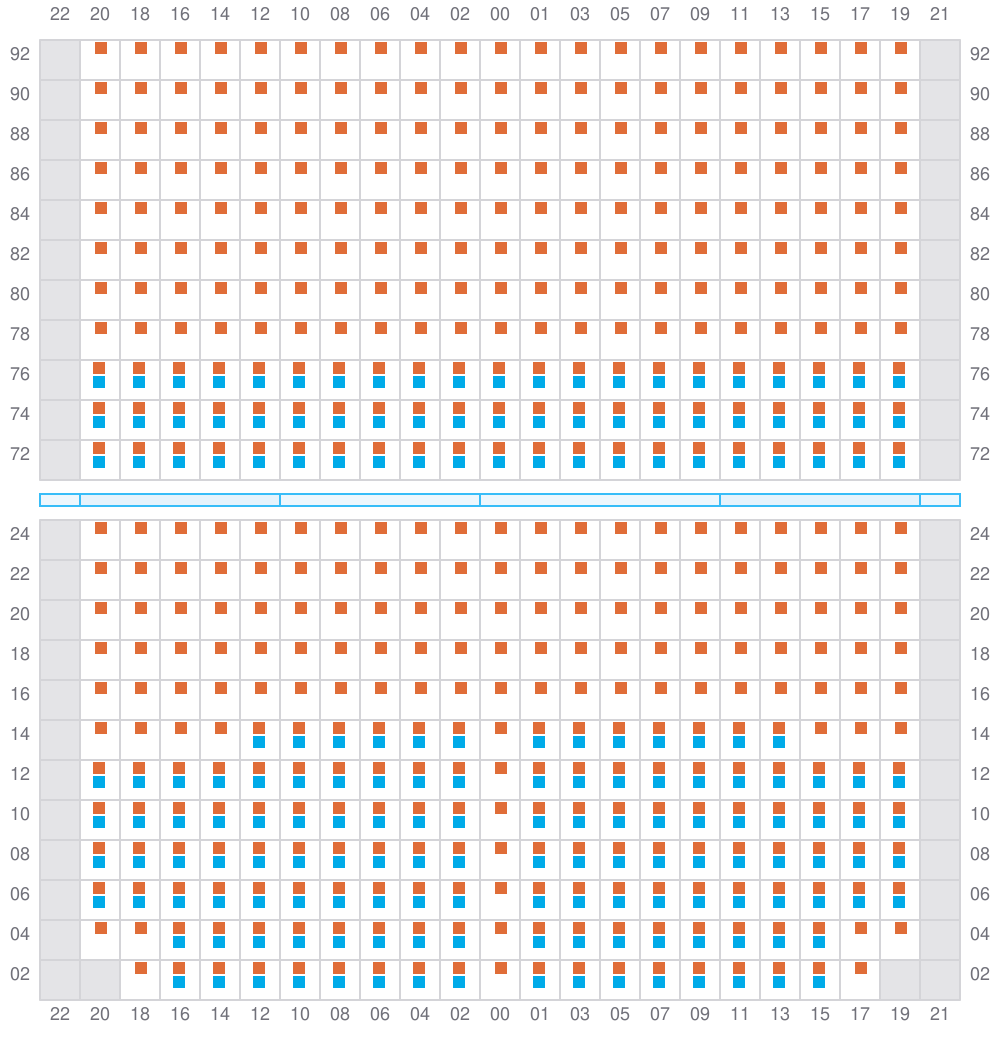

Bay 059 view and slots of MONACO MAERSK

061 (062)

  • →
Bay 061 view and slots of MONACO MAERSK

063

  • ←
  • → / ?

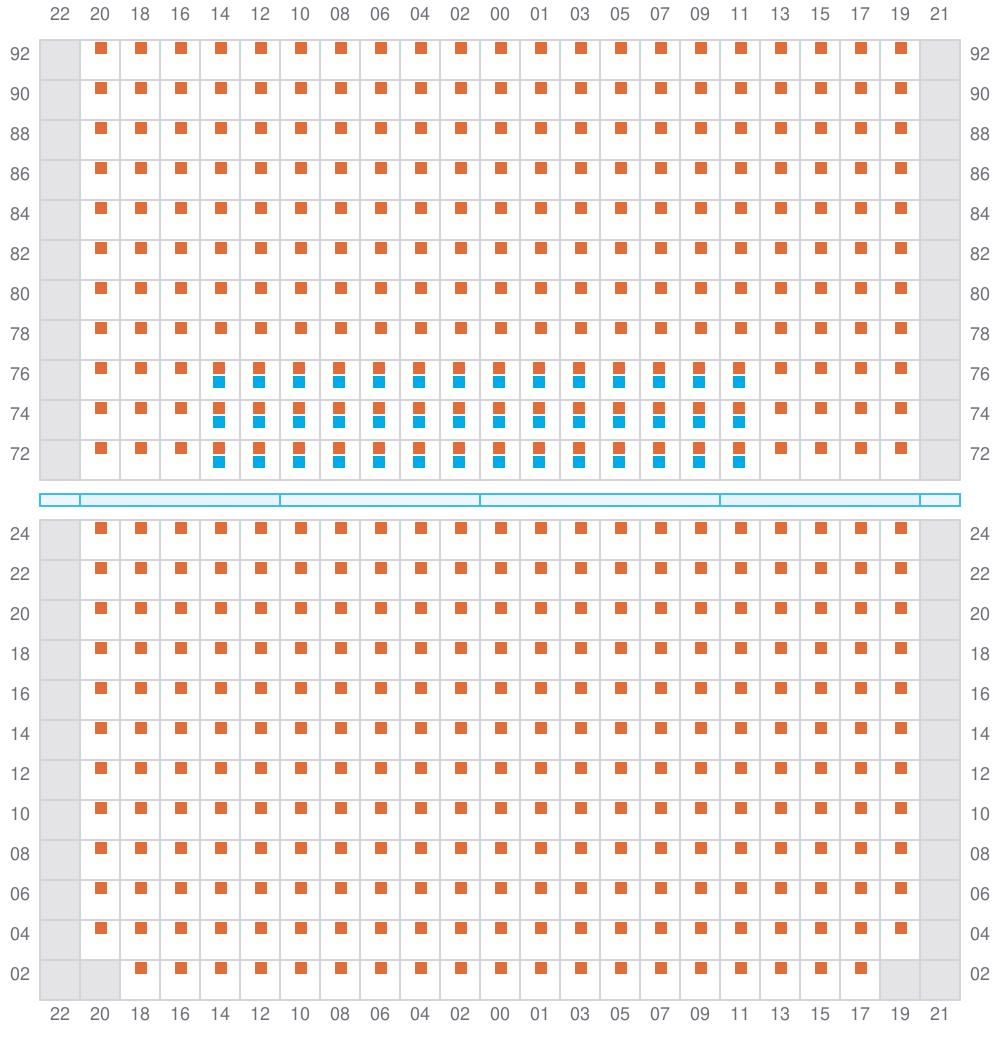

Bay 063 view and slots of MONACO MAERSK

065 (066)

  • →

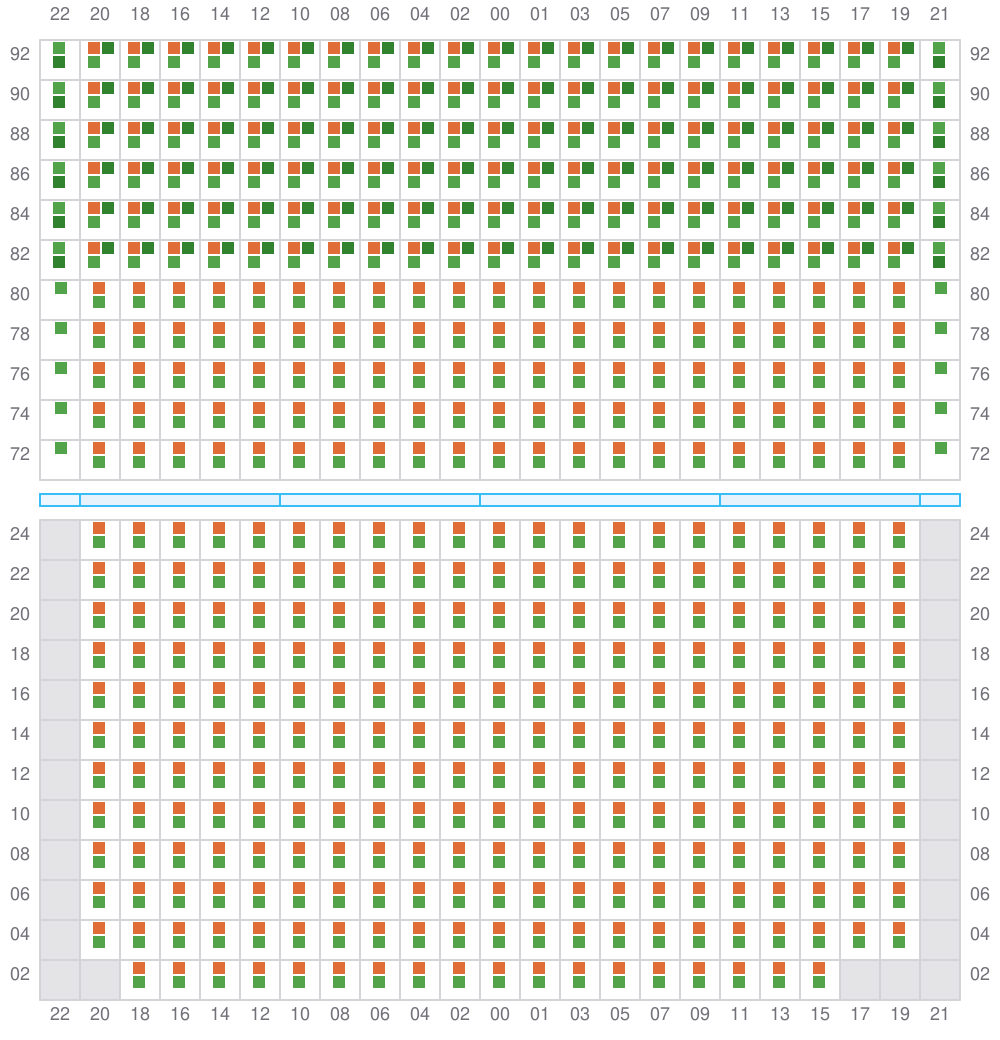

Bay 065 view and slots of MONACO MAERSK

067

  • ←
  • →

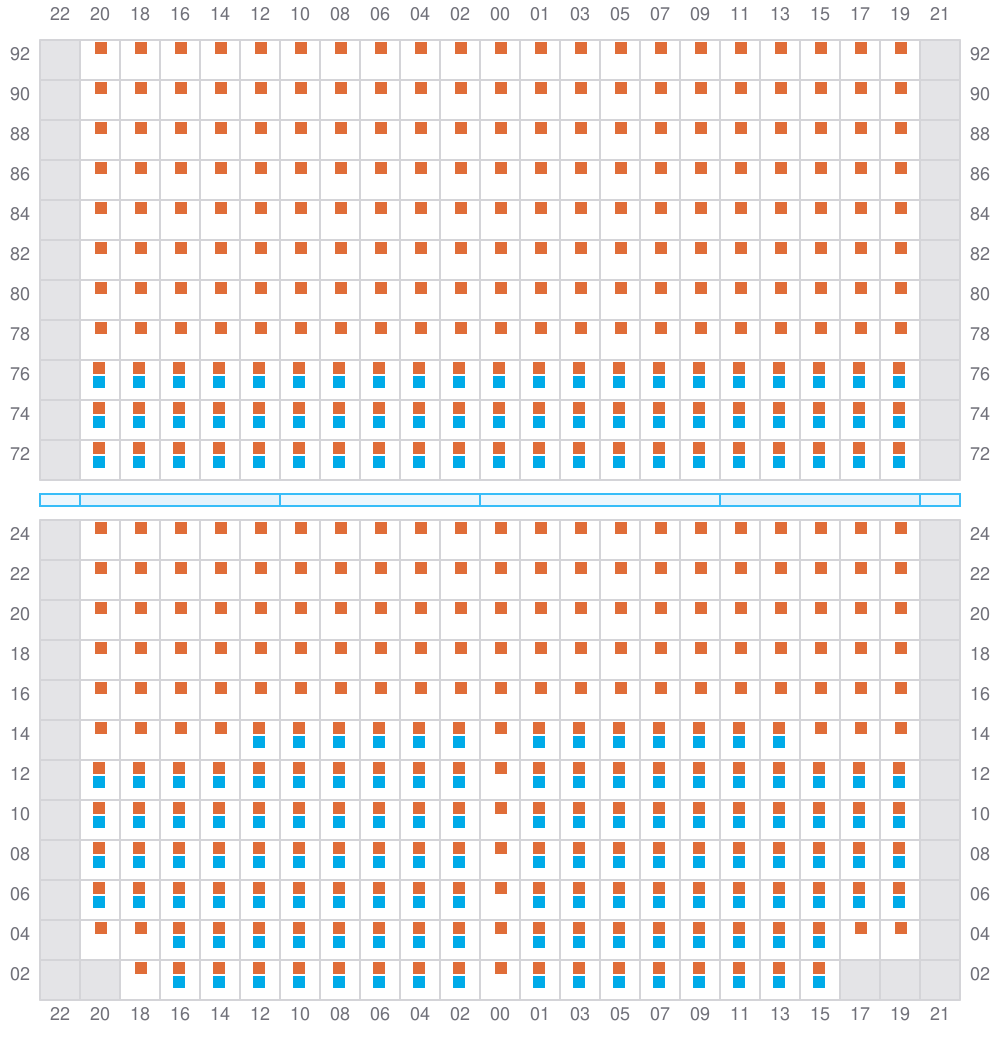

Bay 067 view and slots of MONACO MAERSK

069 (070)

  • →

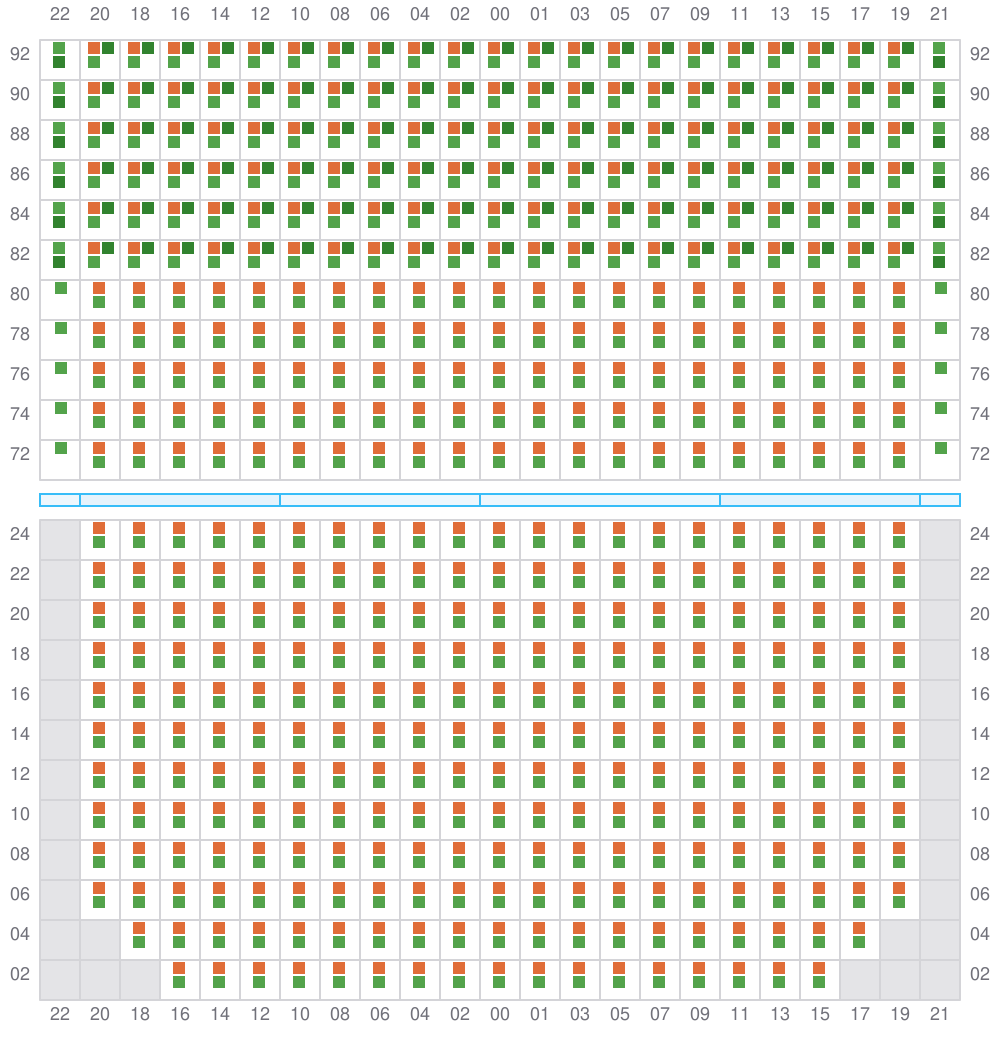

Bay 069 view and slots of MONACO MAERSK

071

  • ←
  • → / ?

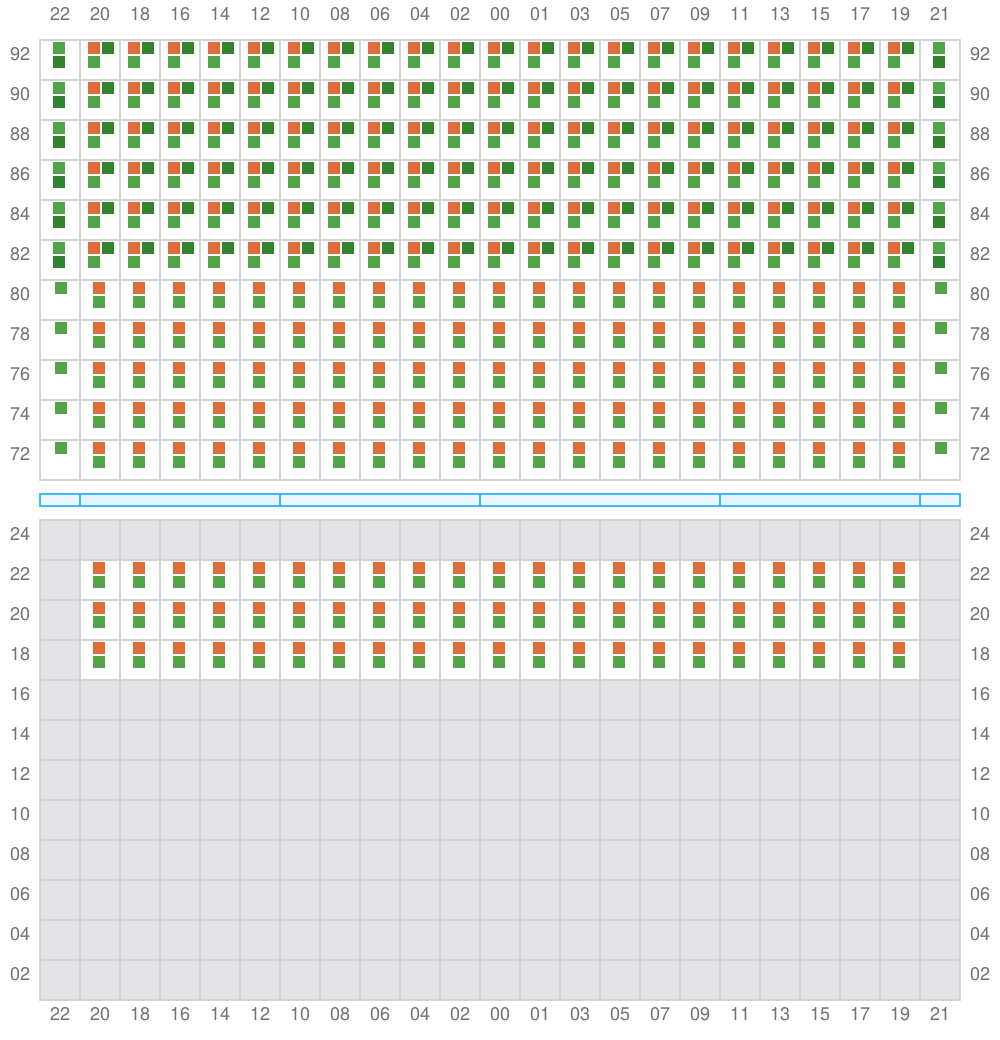

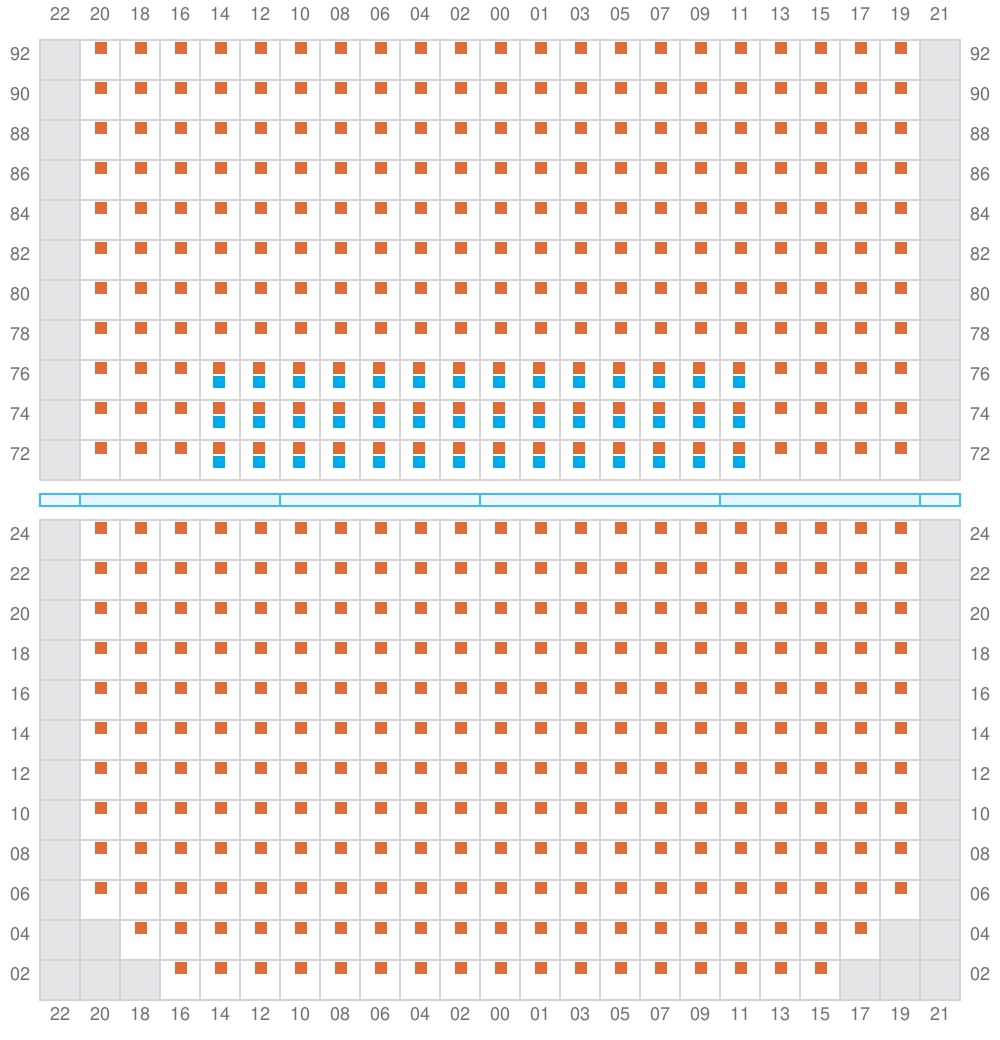

Bay 071 view and slots of MONACO MAERSK

073 (074)

  • →

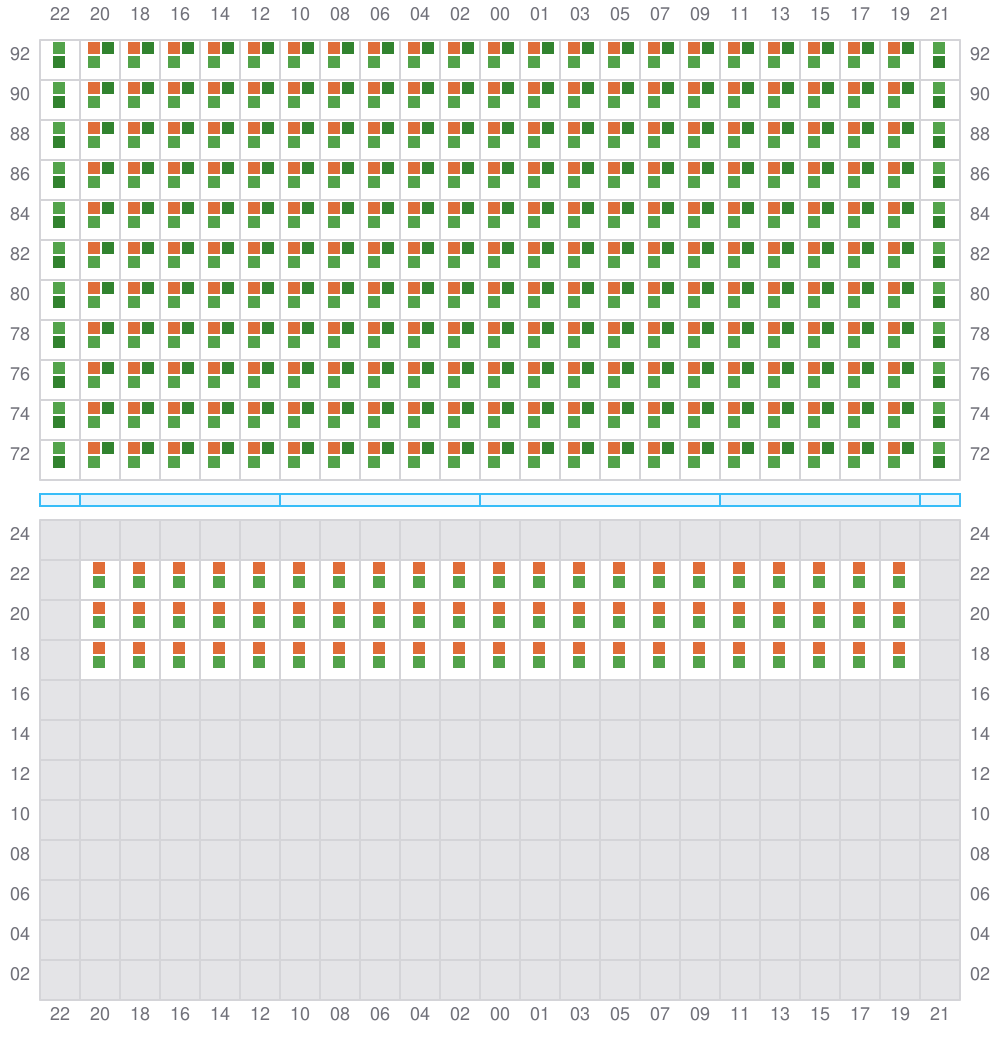

Bay 073 view and slots of MONACO MAERSK

075

  • ←
Bay 075 view and slots of MONACO MAERSK

077 (078)

  • →
  • ← / ?
Bay 077 view and slots of MONACO MAERSK

079

  • ←

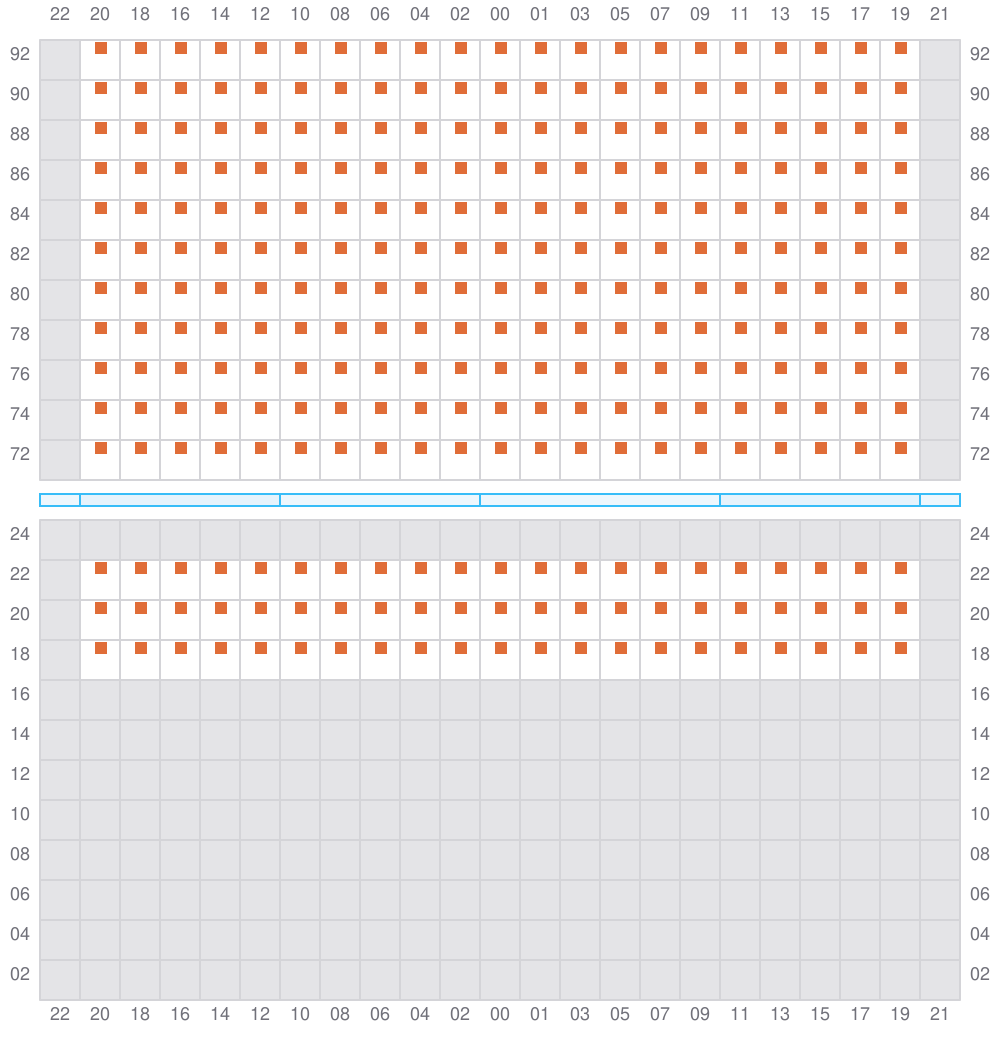

Bay 079 view and slots of MONACO MAERSK

081 (082)

  • →

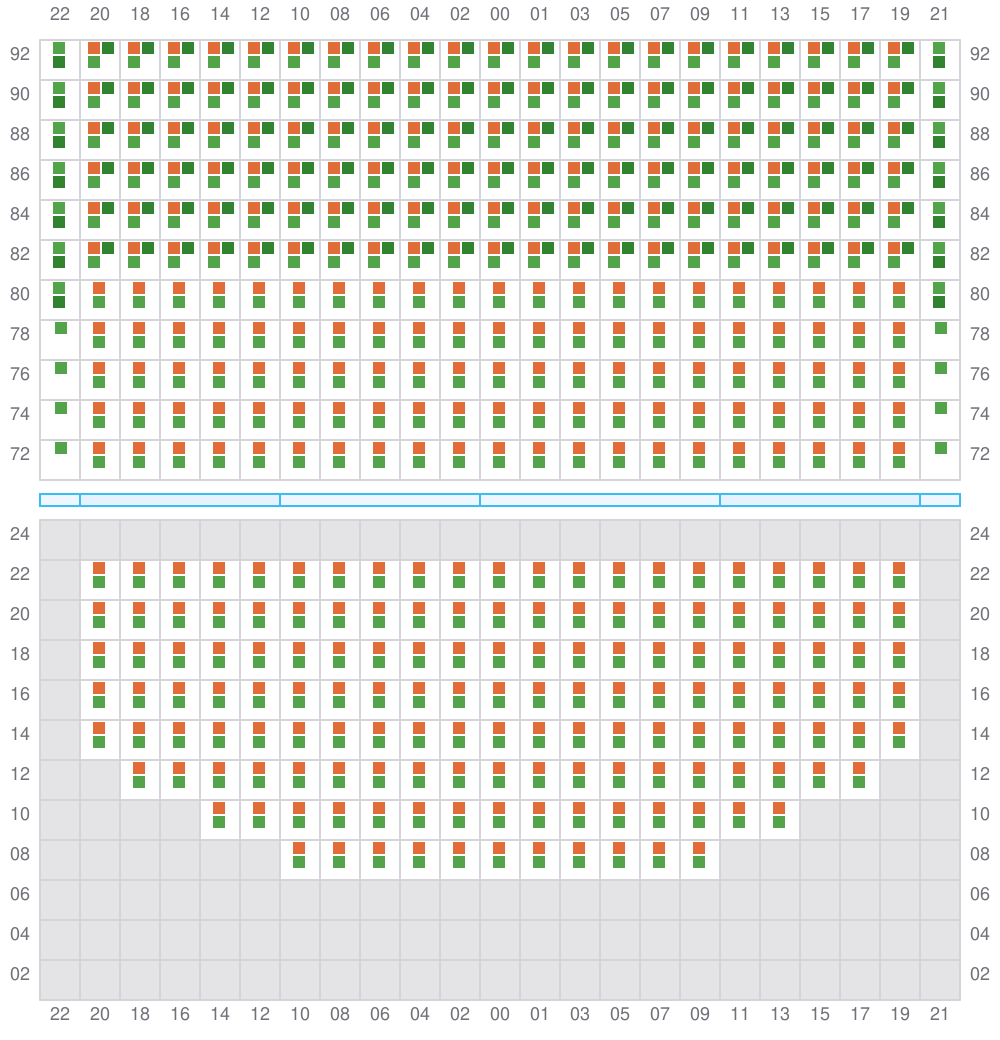

Bay 081 view and slots of MONACO MAERSK

083

  • ←

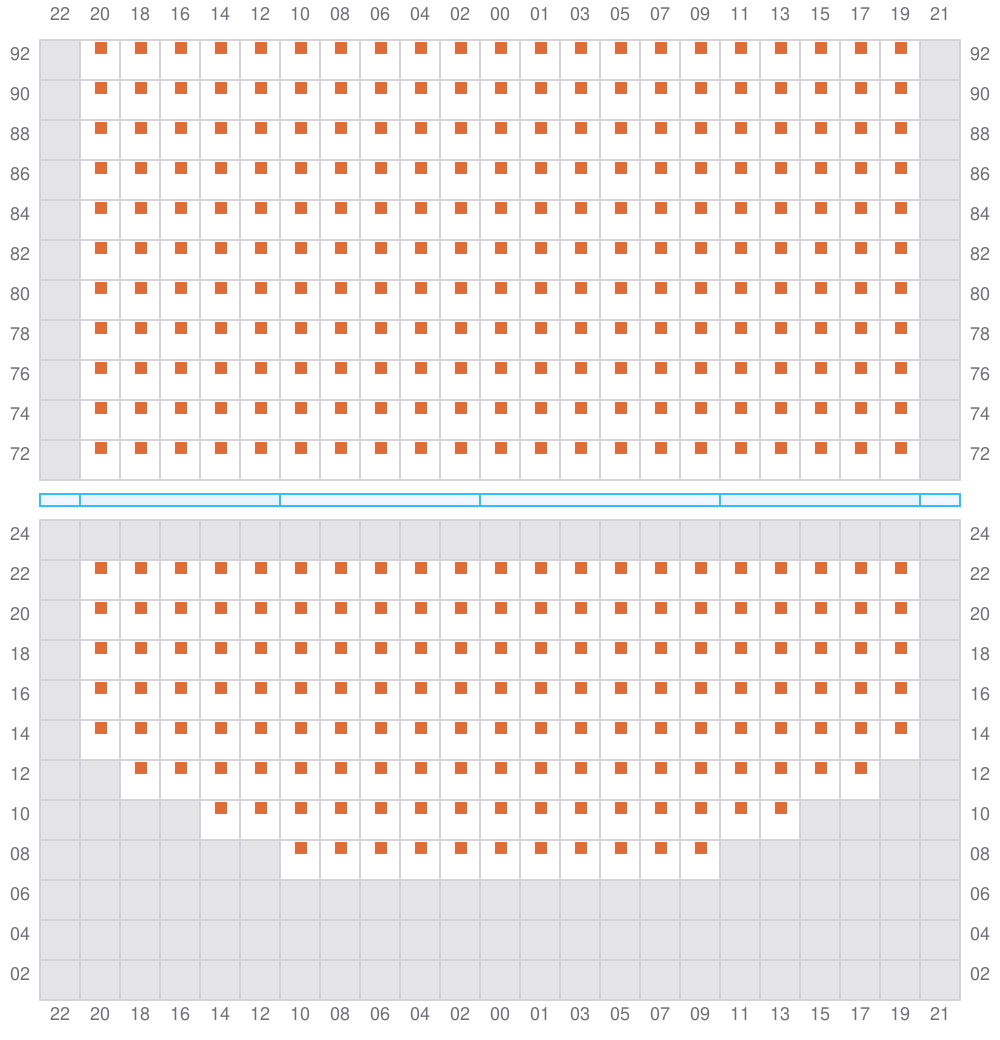

Bay 083 view and slots of MONACO MAERSK

085 (086)

  • →

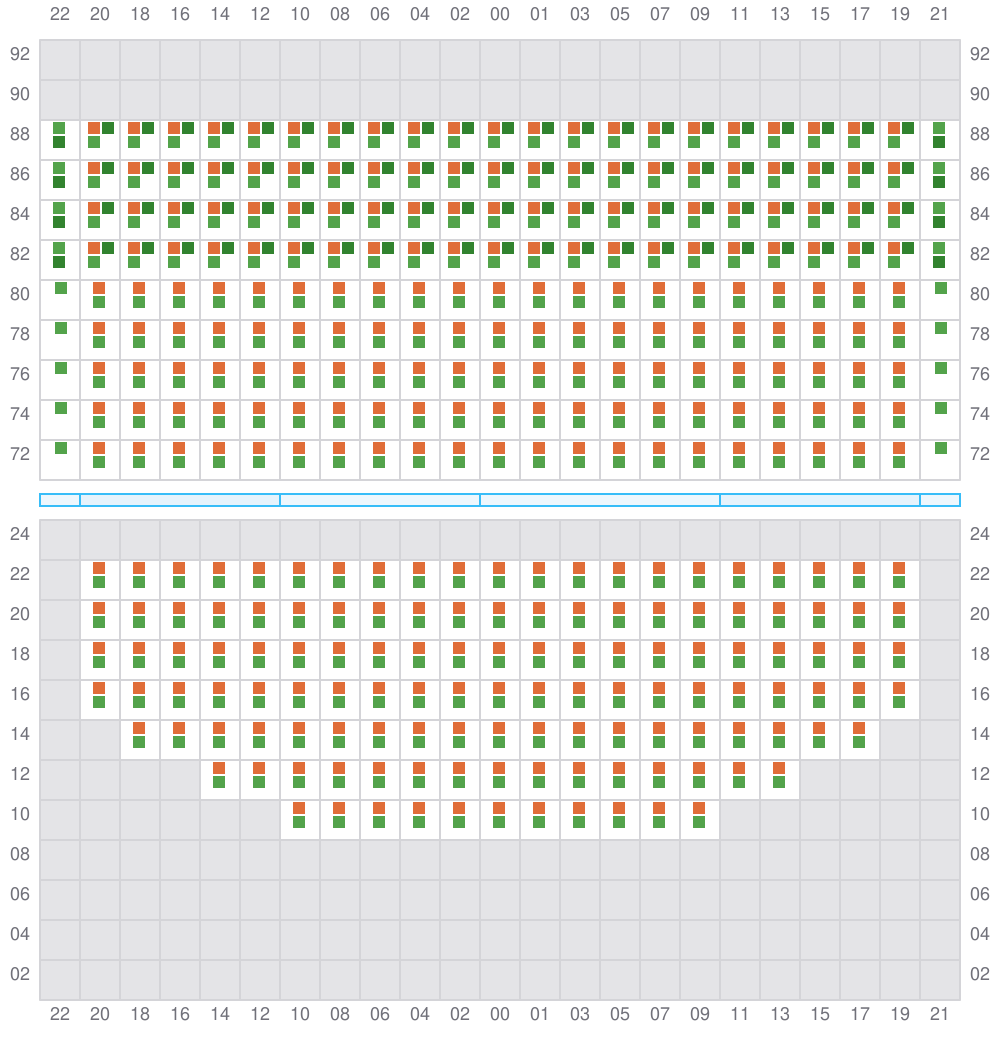

Bay 085 view and slots of MONACO MAERSK

087

  • ←

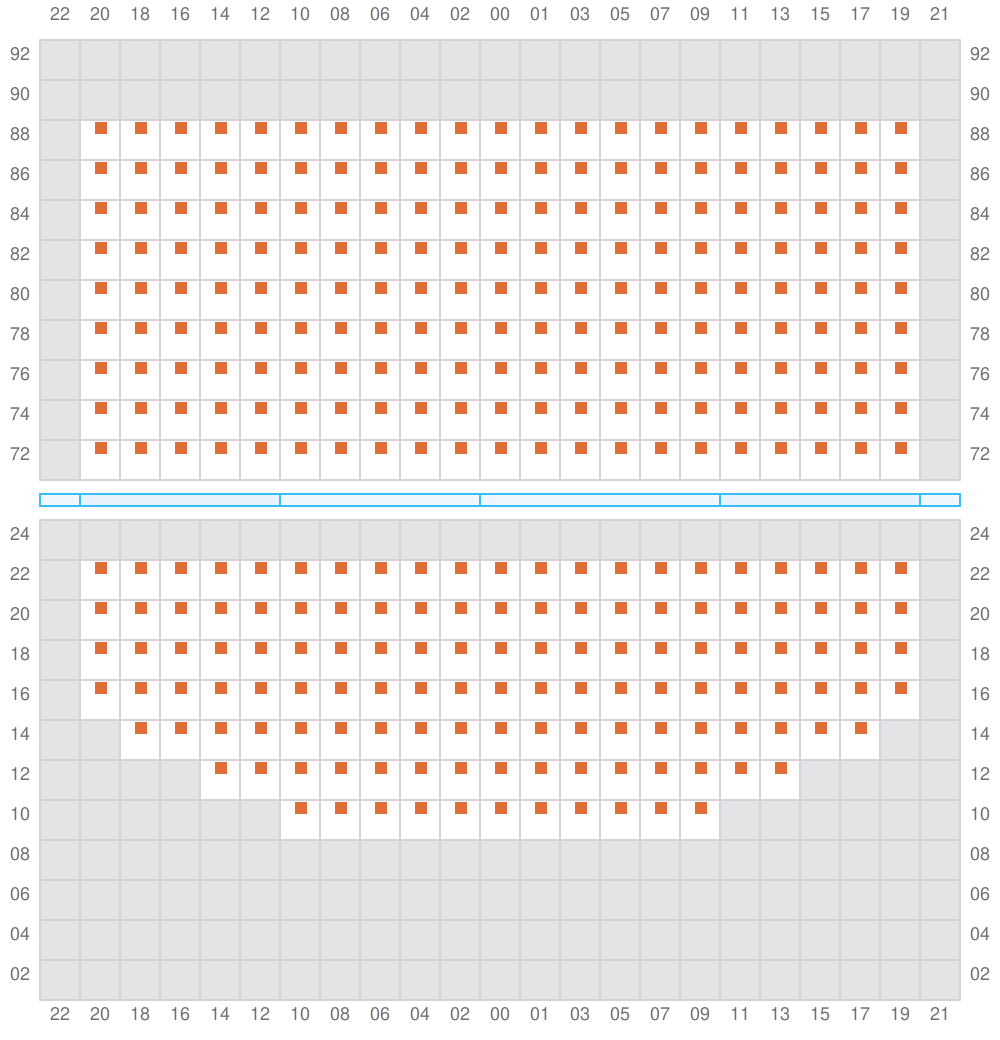

Bay 087 view and slots of MONACO MAERSK

089 (090)

  • →

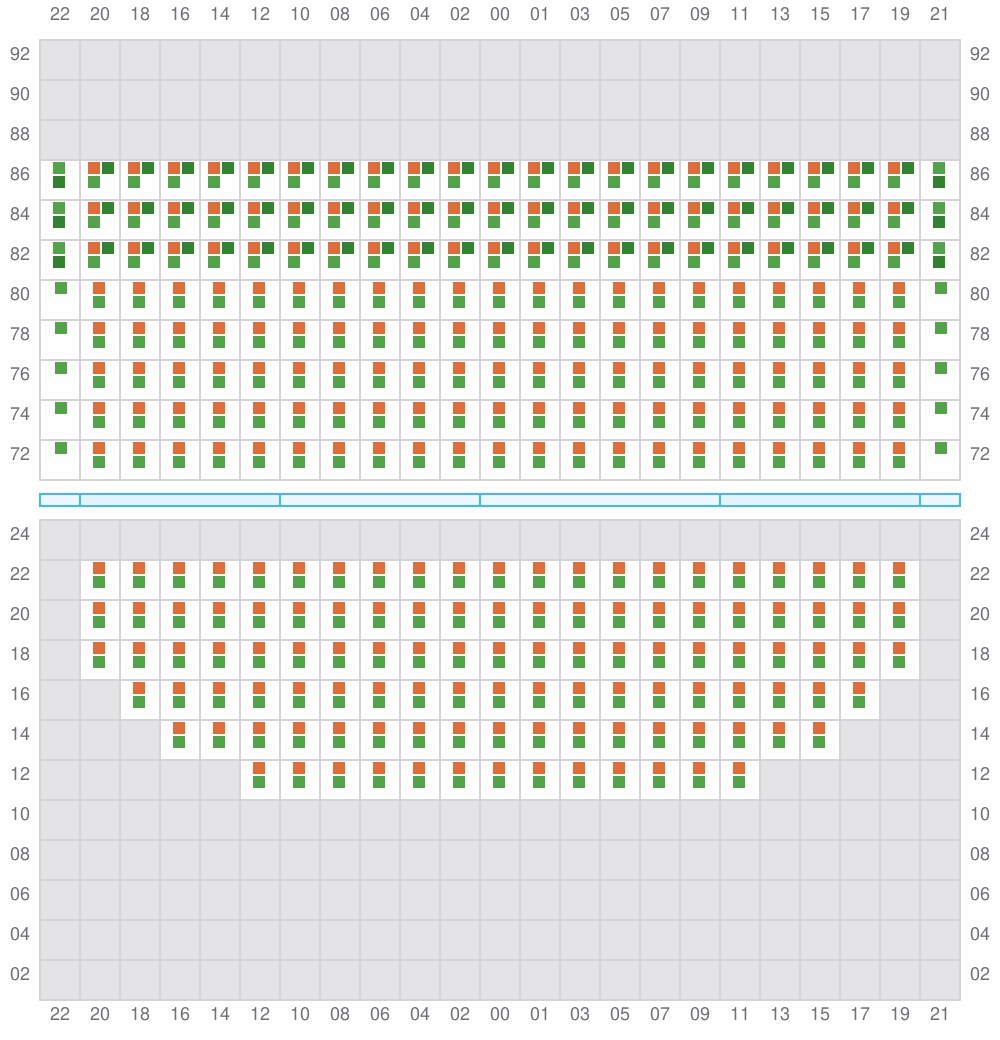

Bay 089 view and slots of MONACO MAERSK

091

  • ←

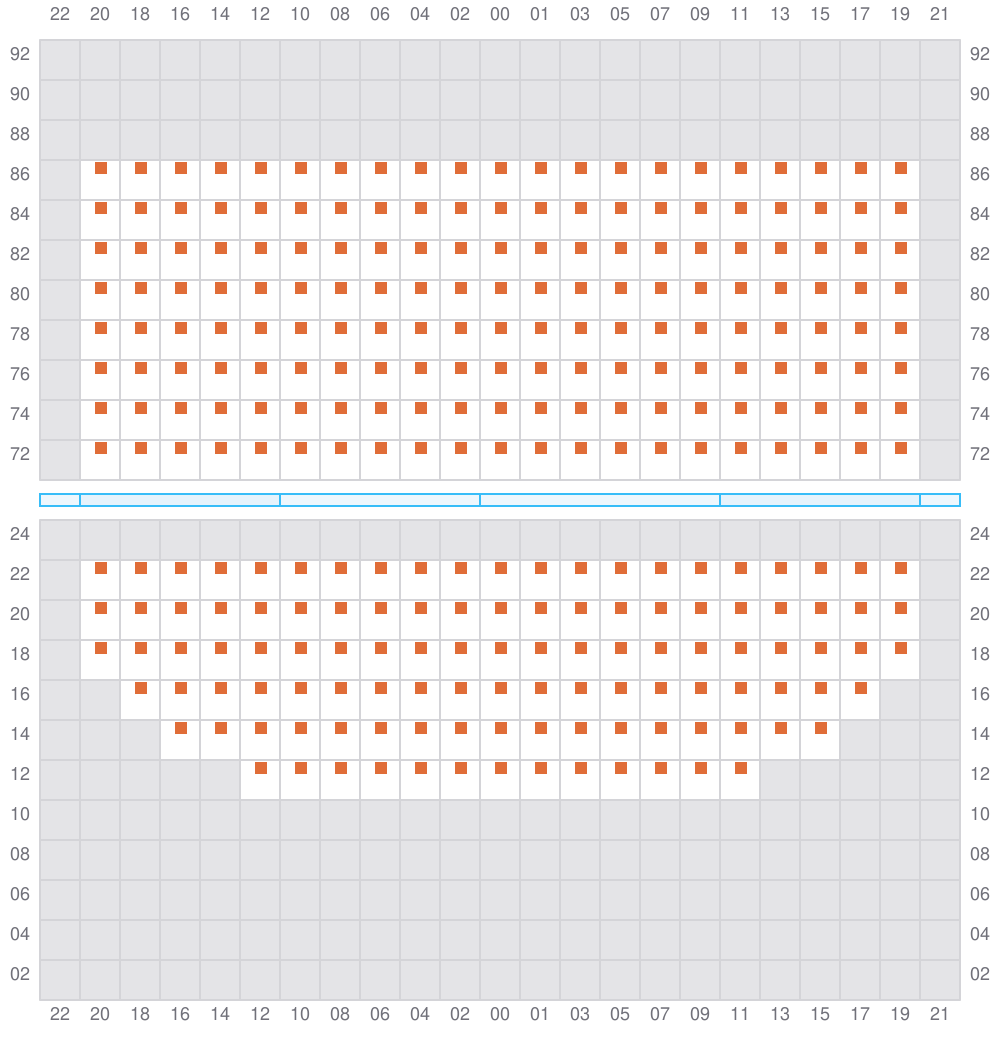

Bay 091 view and slots of MONACO MAERSK

093 (094)

  • → / ?

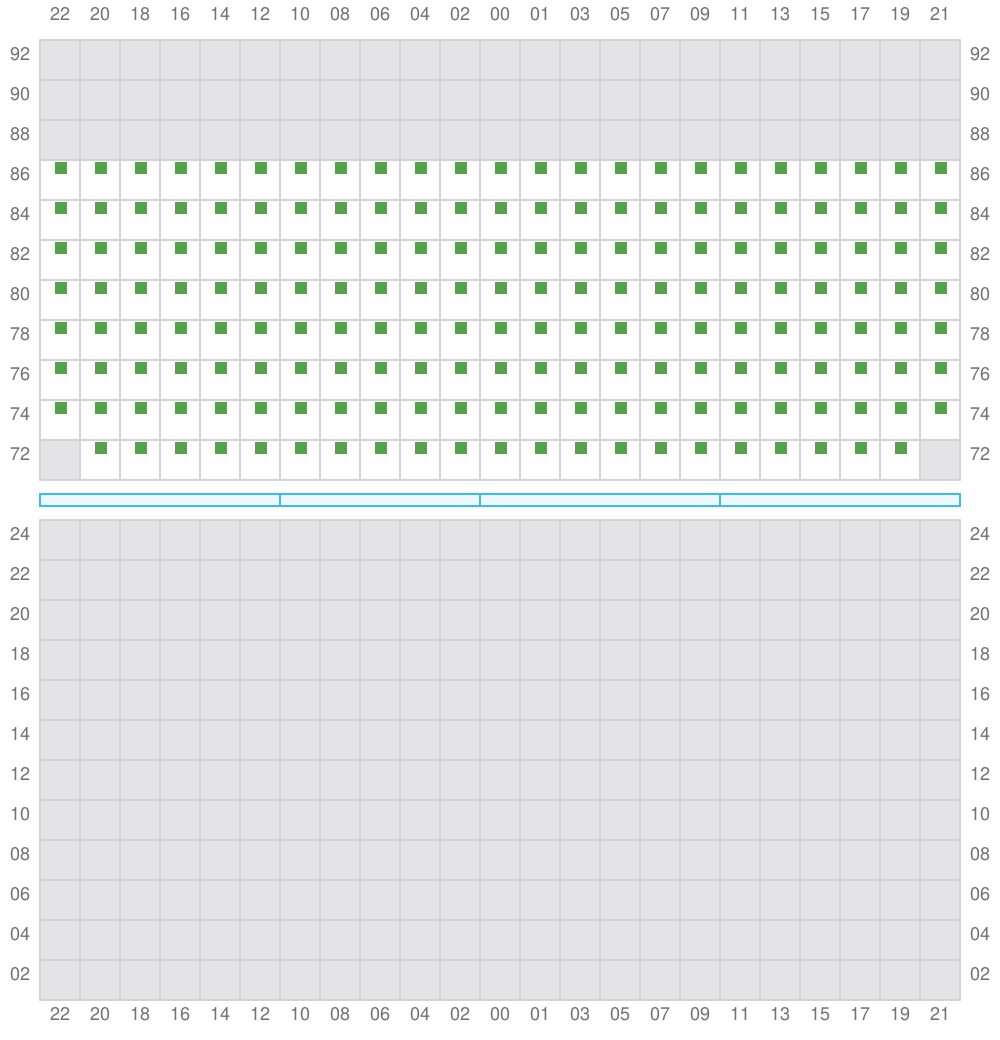

Bay 093 view and slots of MONACO MAERSK
