MSC ABY
9166778 | 5LAK7 | MSC by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:MSC ABY
IMO Code:9166778
Call Sign:5LAK7
Line Operator:MSC
Class Name for Sister Ships:ABY
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:081
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,732
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

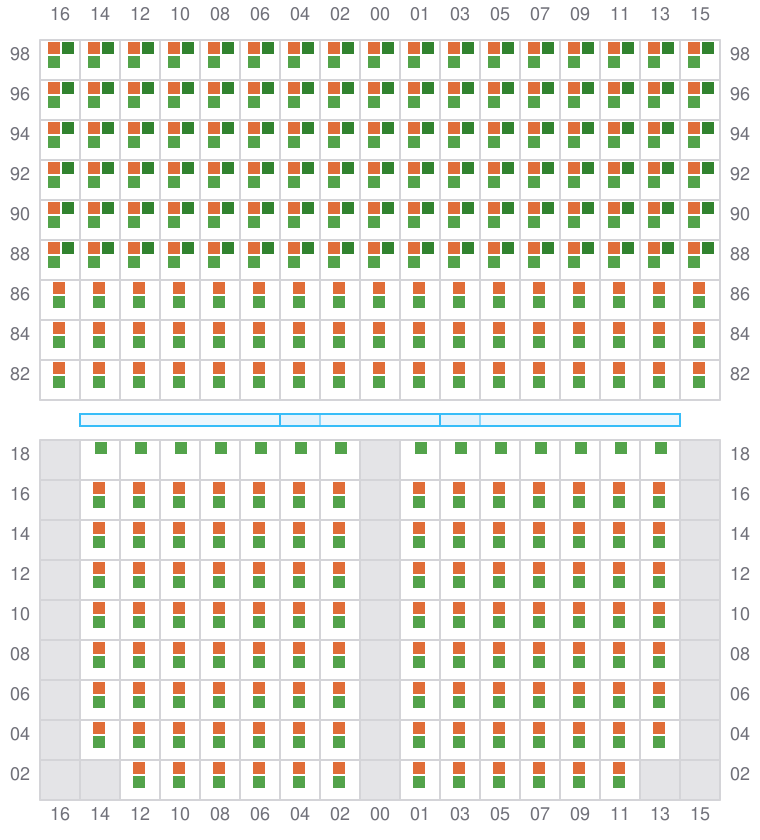

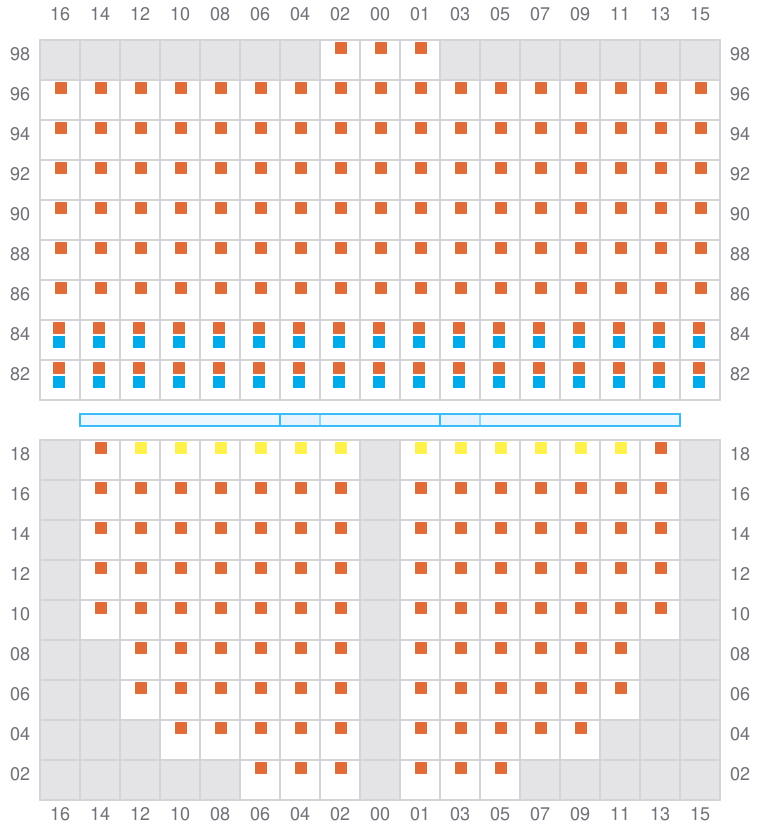

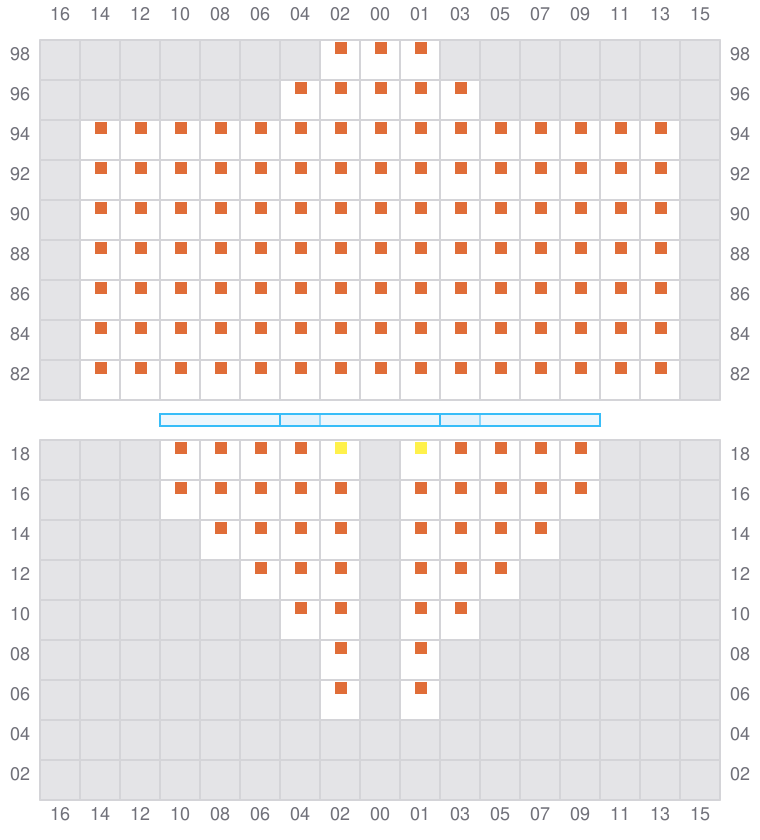

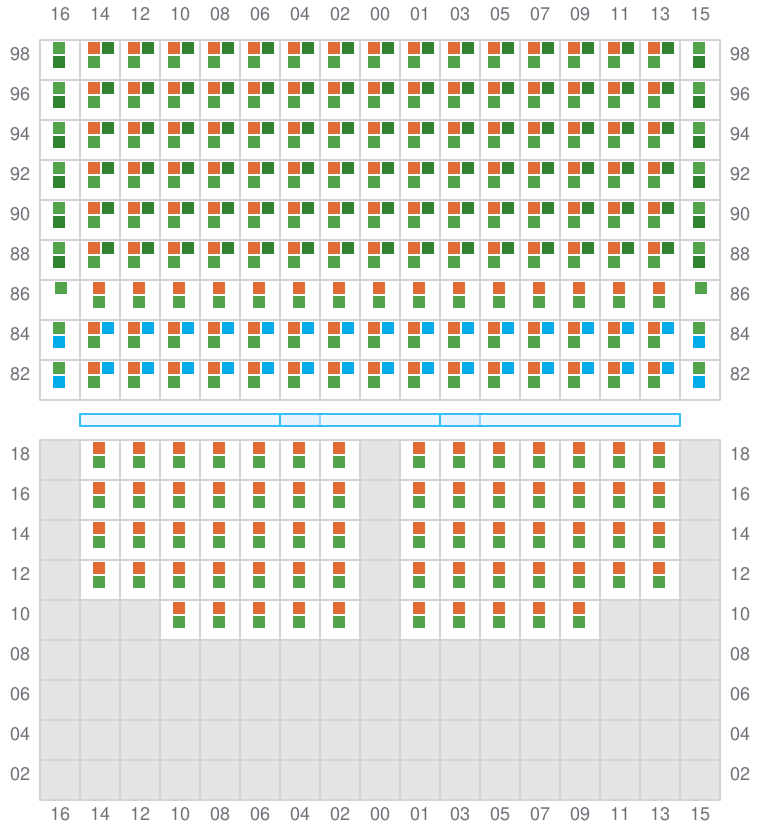

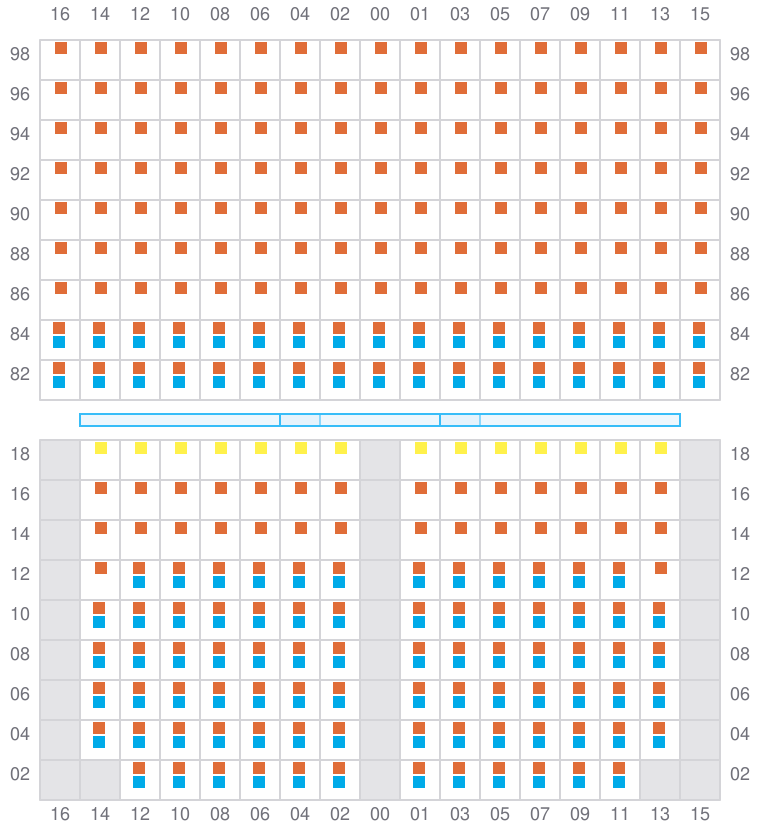

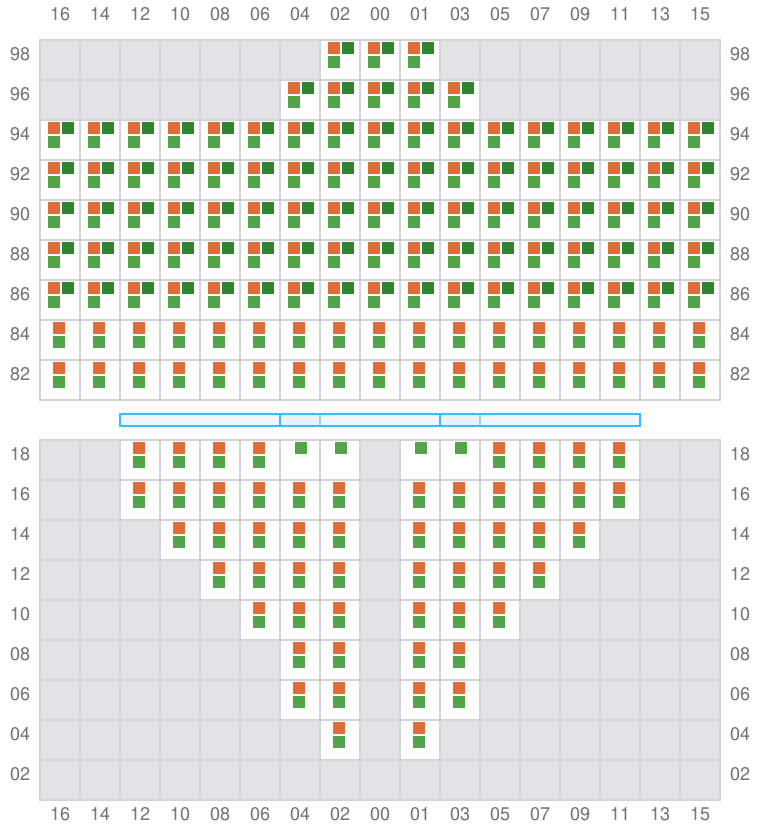

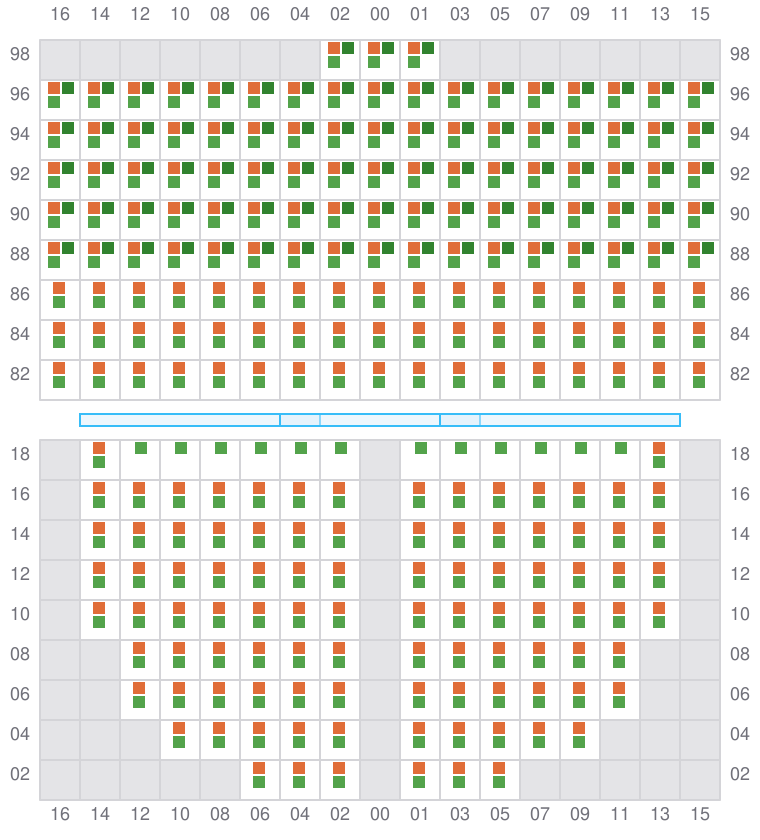

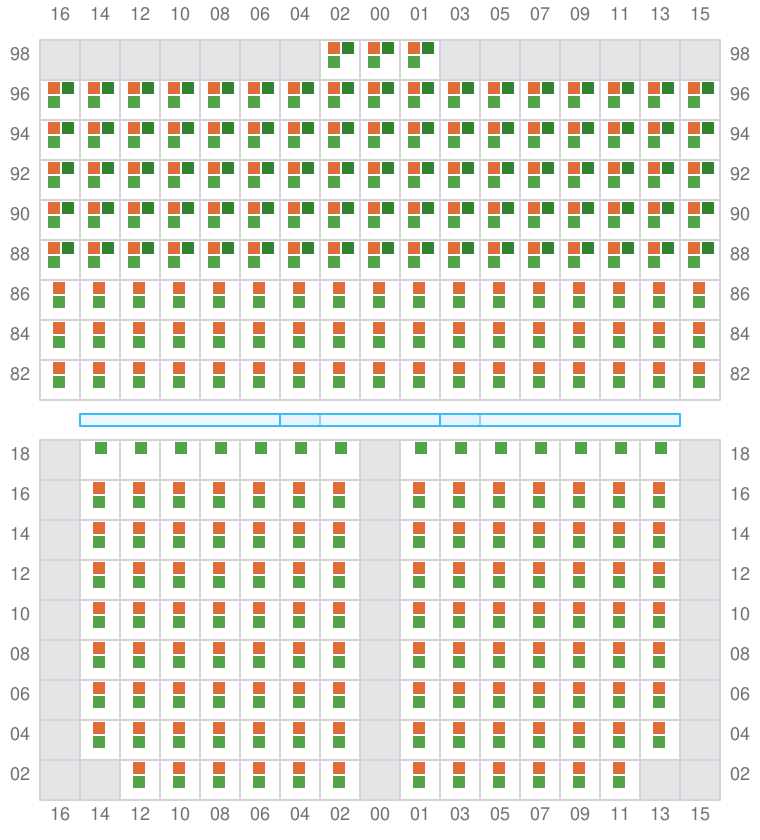

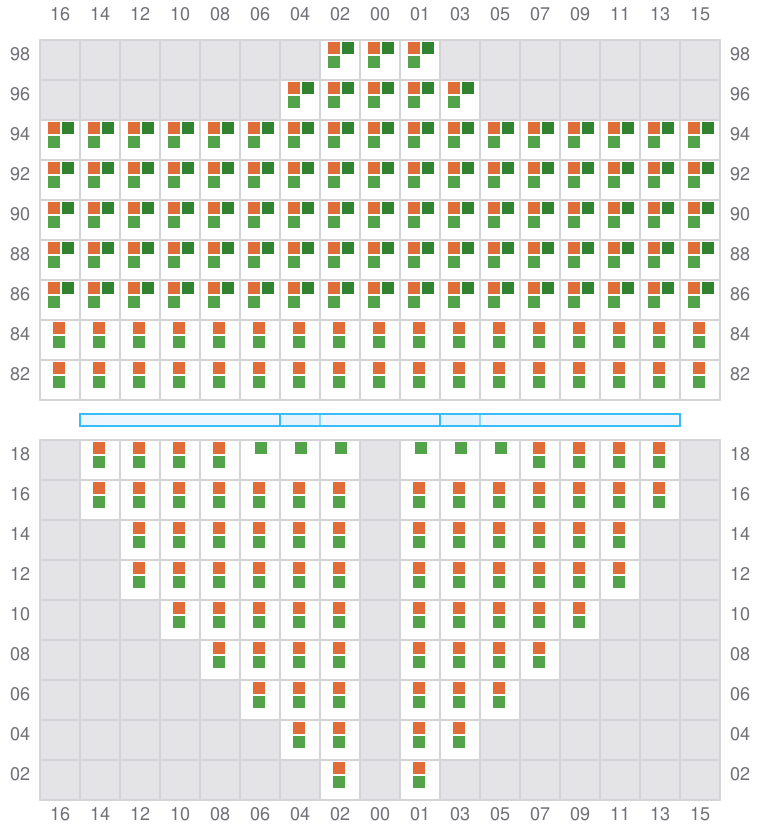

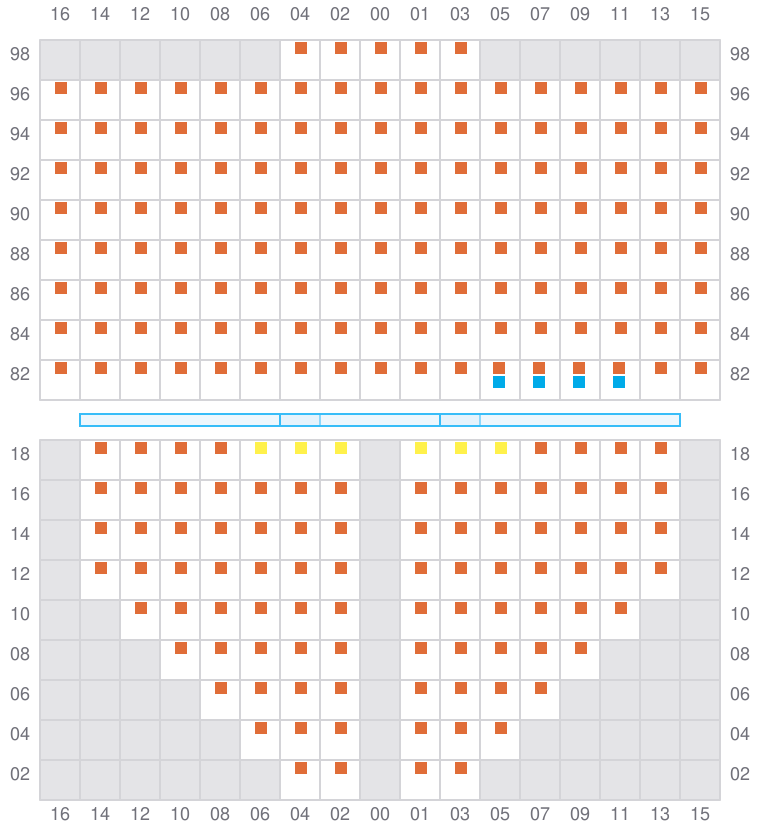

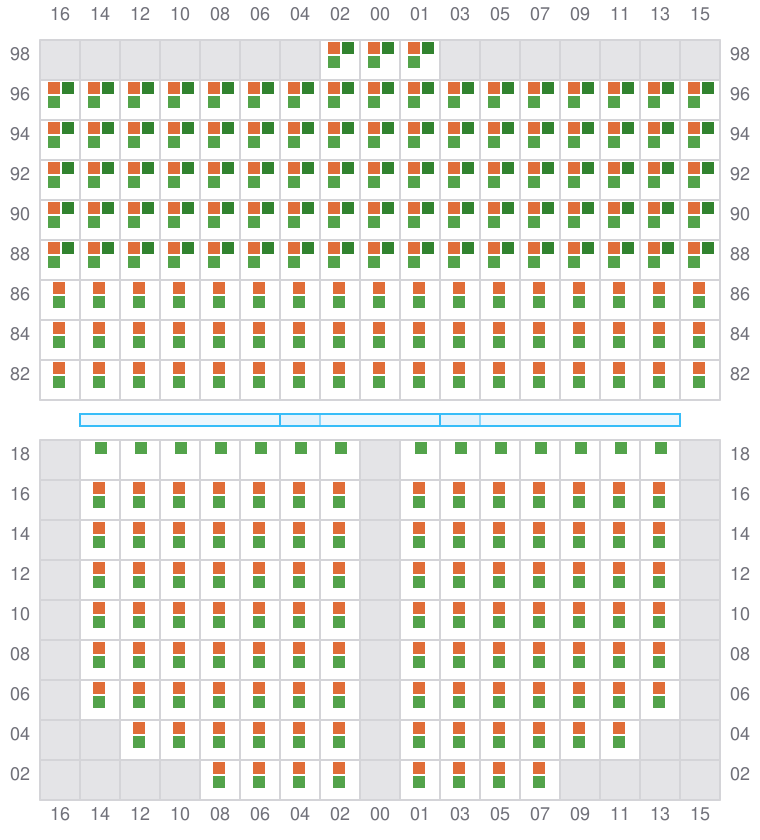

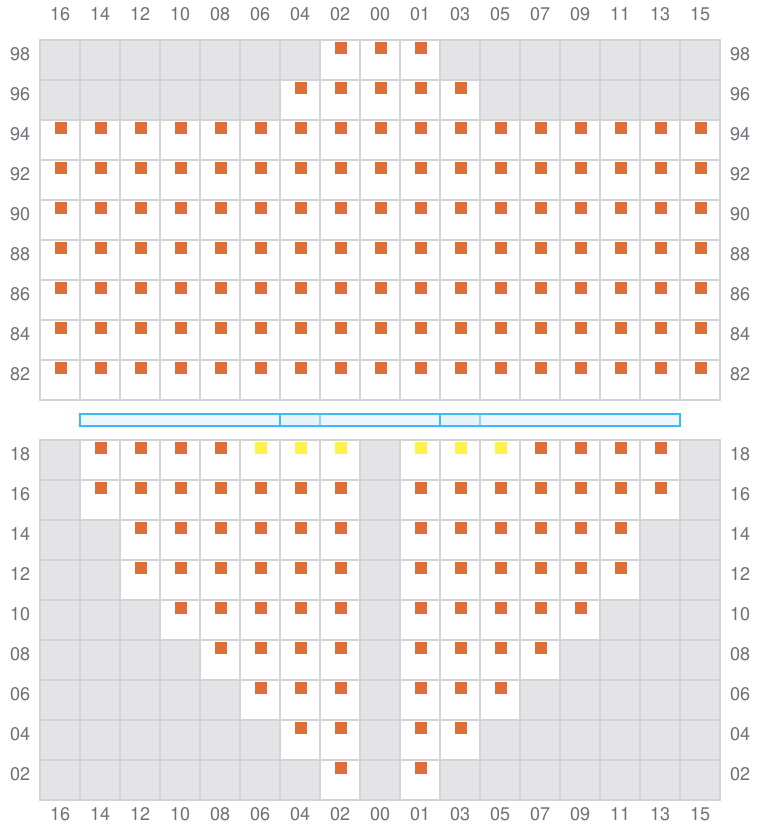

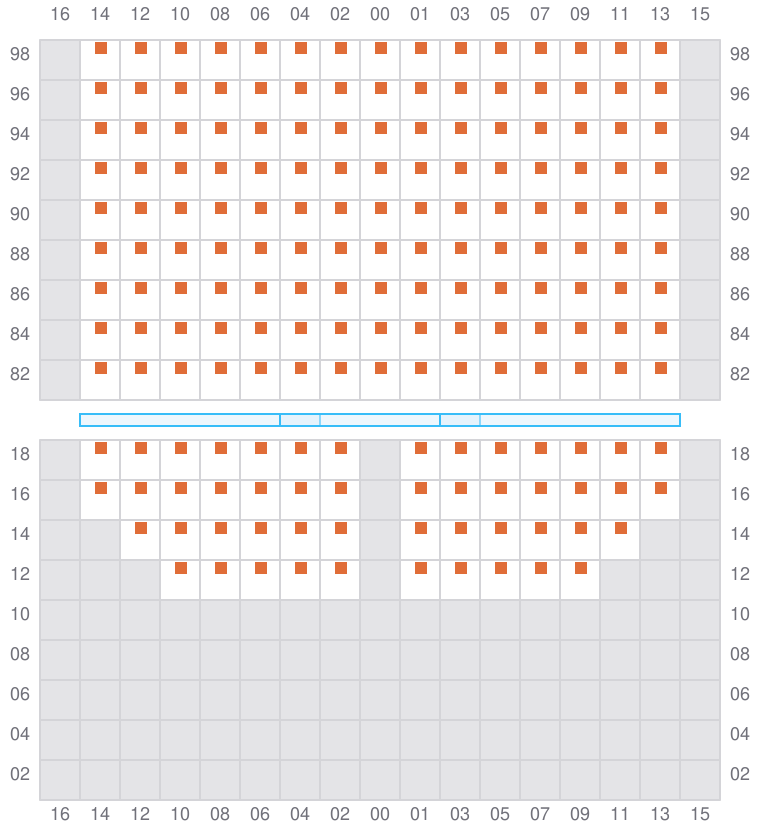

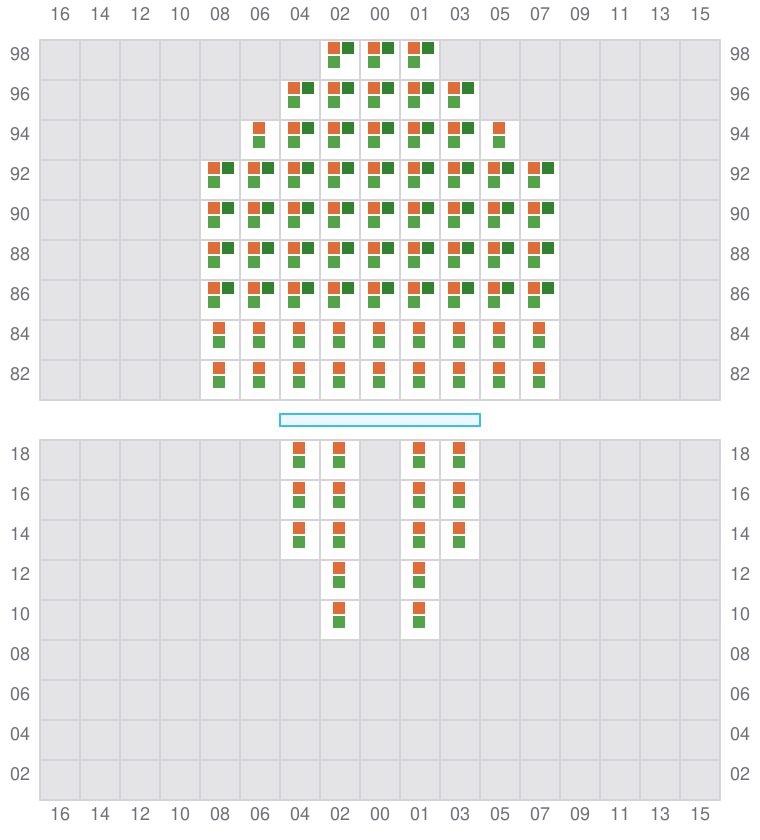

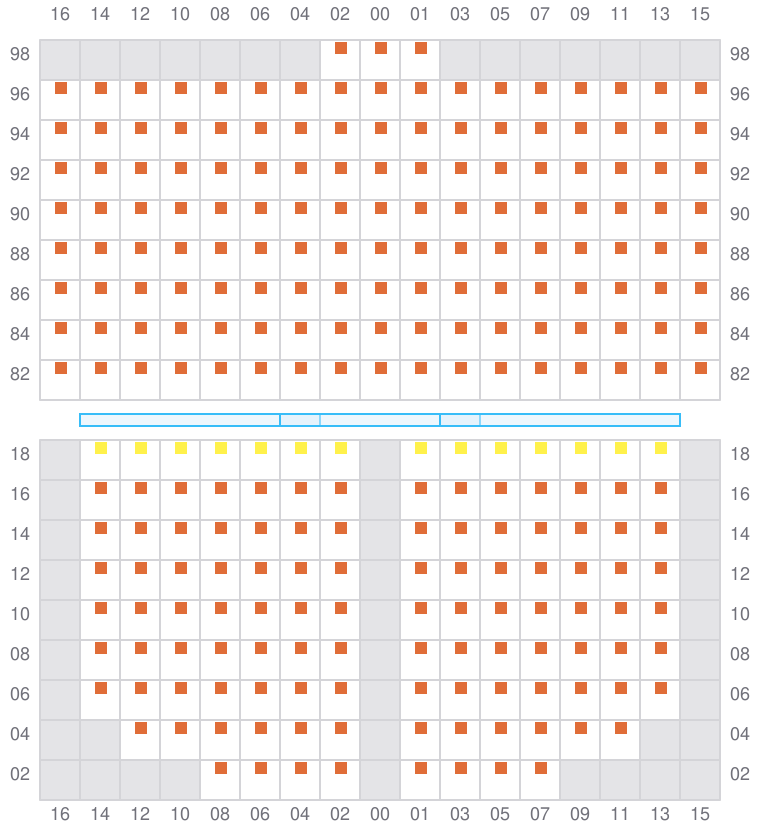

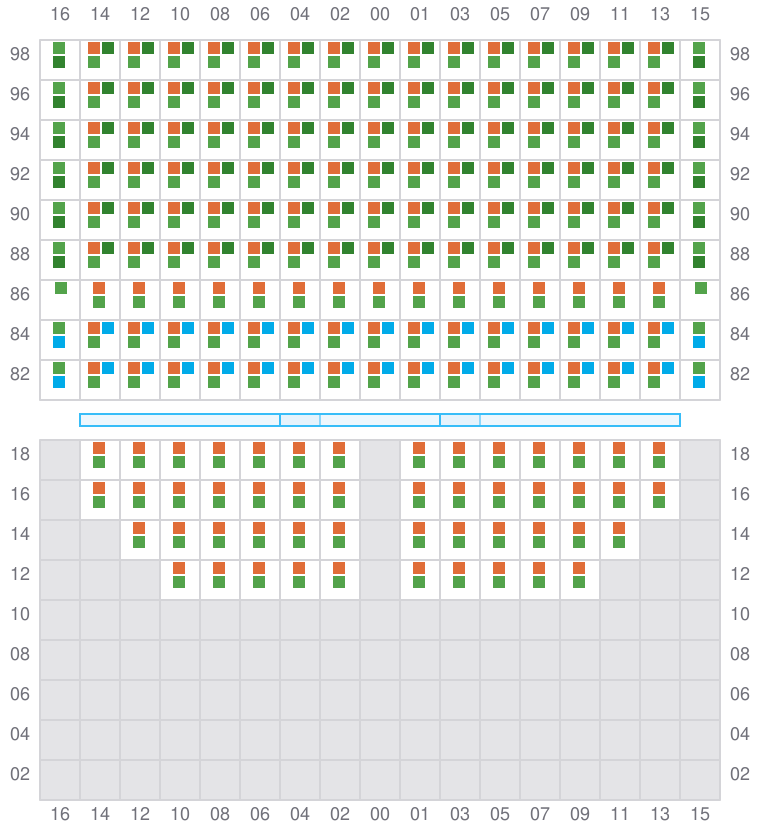

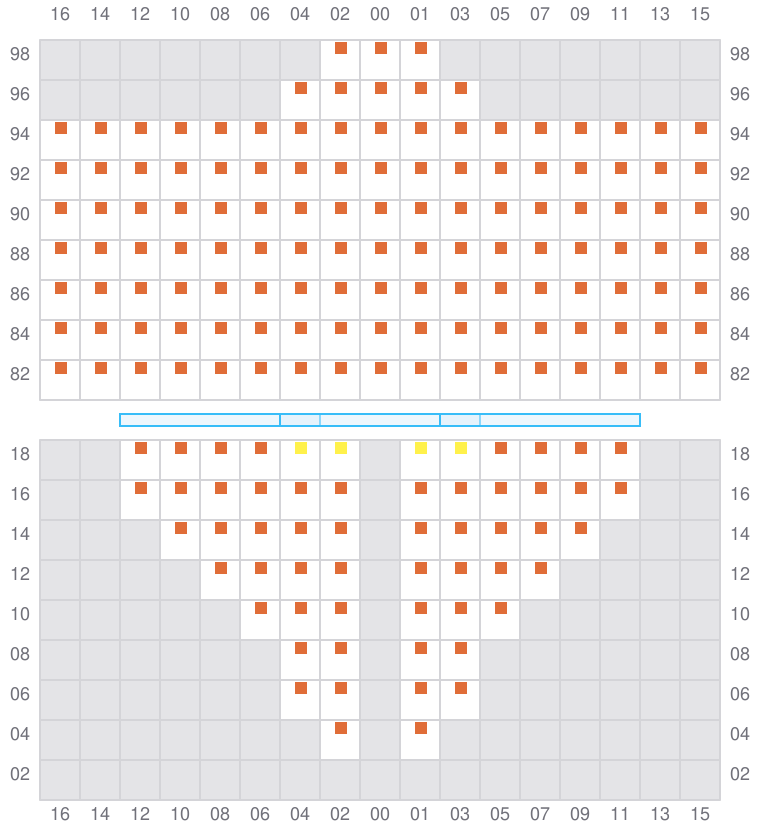

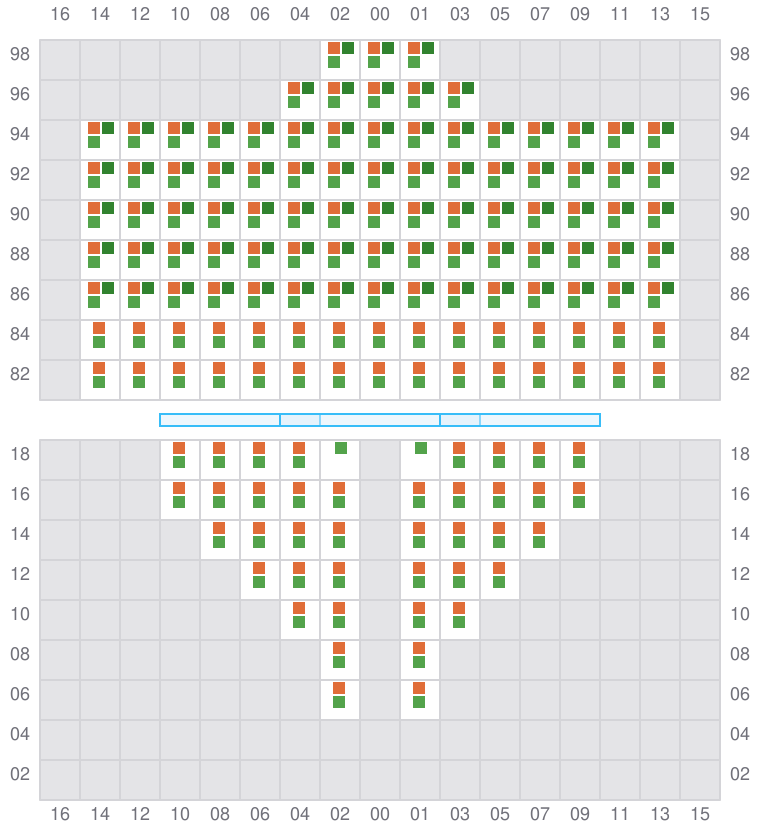

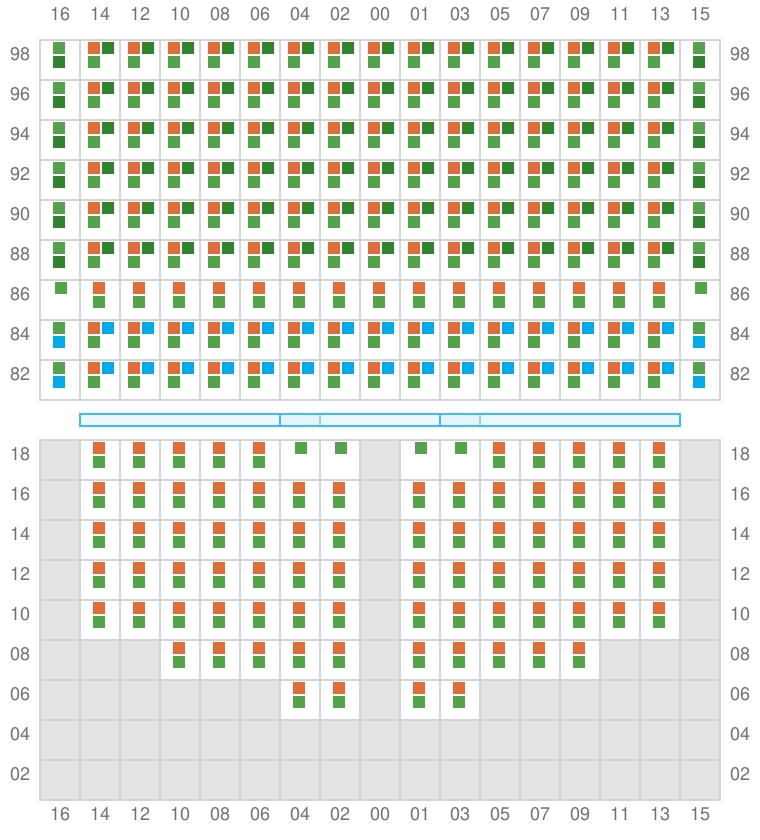

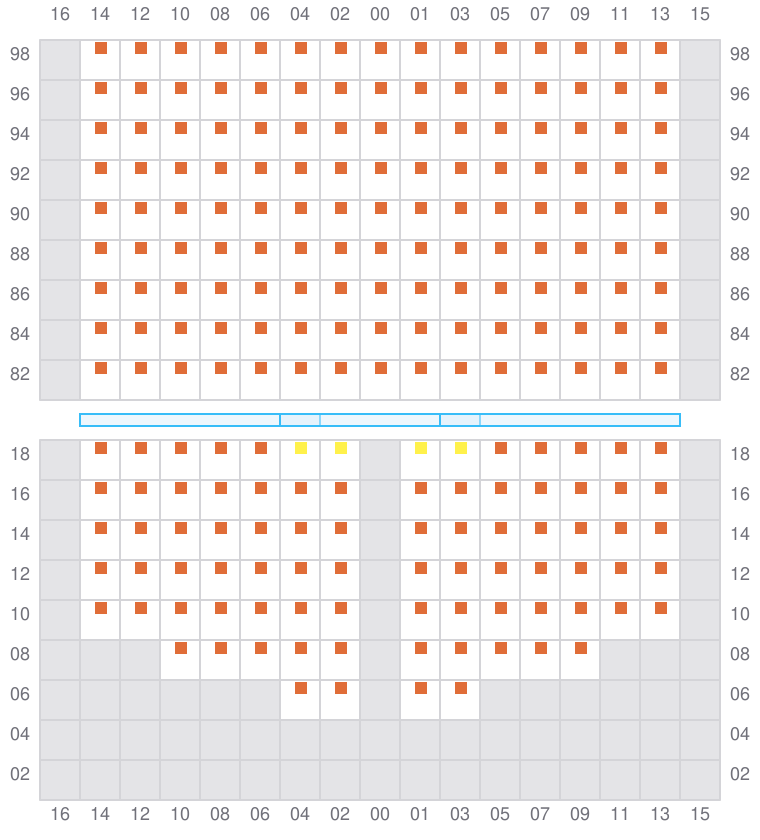

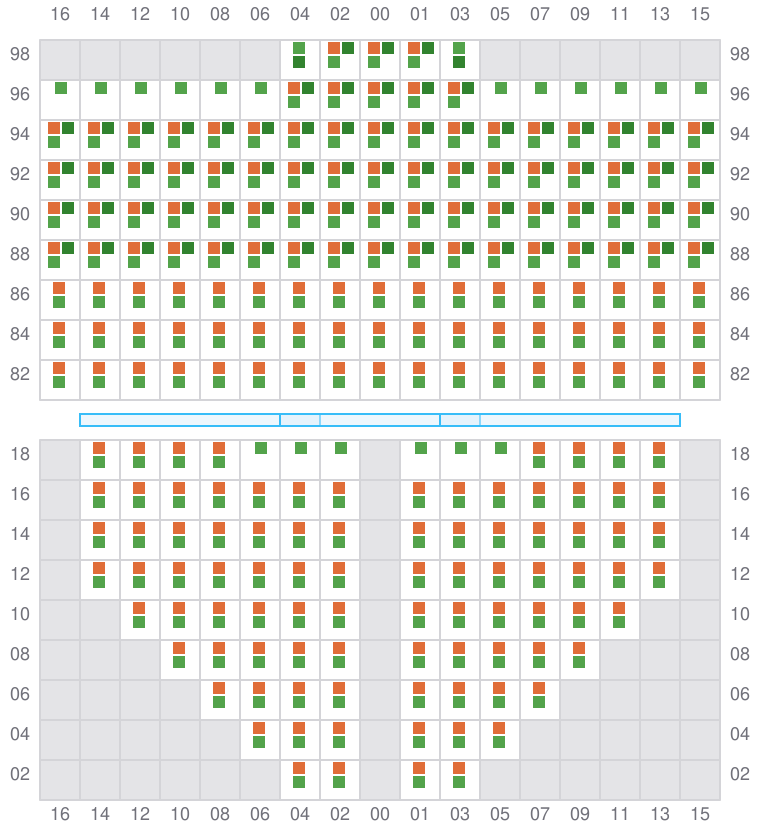

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

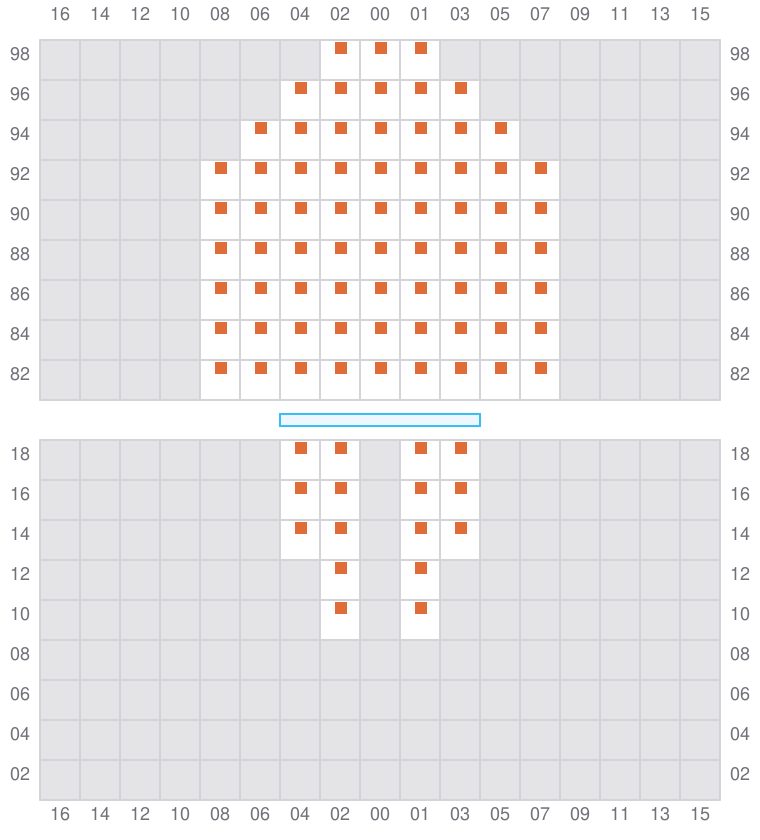

003
- ←
005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
013 (014)
- →
015
- ←
017 (018)
- →
019
- ←
- → / ?
021 (022)
- →
023
- ←
- → / ?
025 (026)
- →
027
- ←
029 (030)
- →
- ? / →
031
- ←
- →
033 (034)
- →
035
- ←
037 (038)
- →
- ? / →
039
- ←
- →
041 (042)
- →

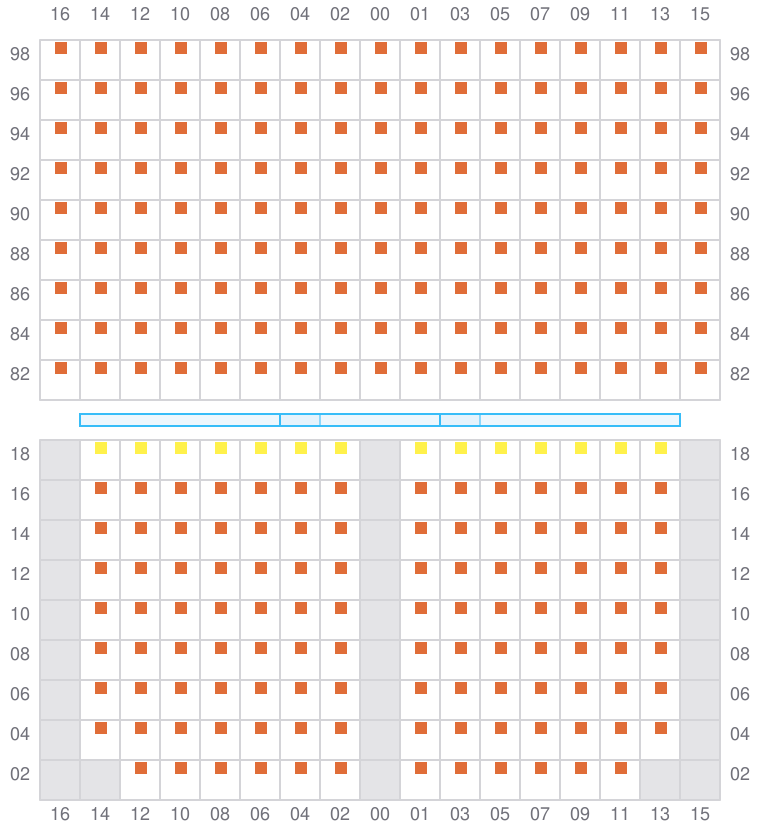

043
- ←
045 (046)
- →
- ? / →
047
- ←
- →
049 (050)
- →
051
- ←
053 (054)
- →
- ? / →
055
- ←
- →

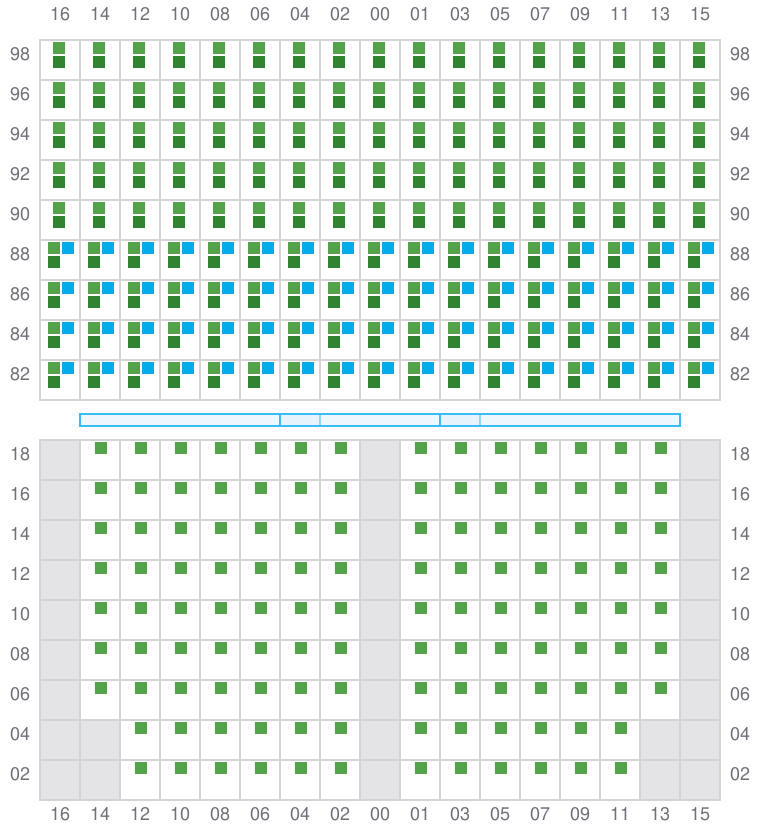

057 (058)
- →
- → / ?
059

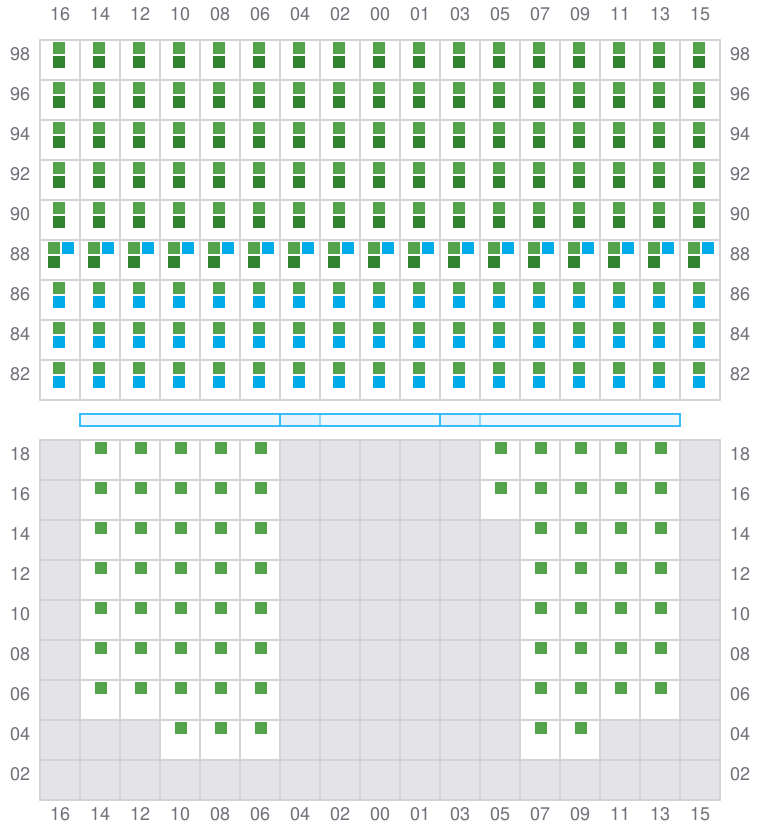

061 (062)
- →
- ← / ?
063

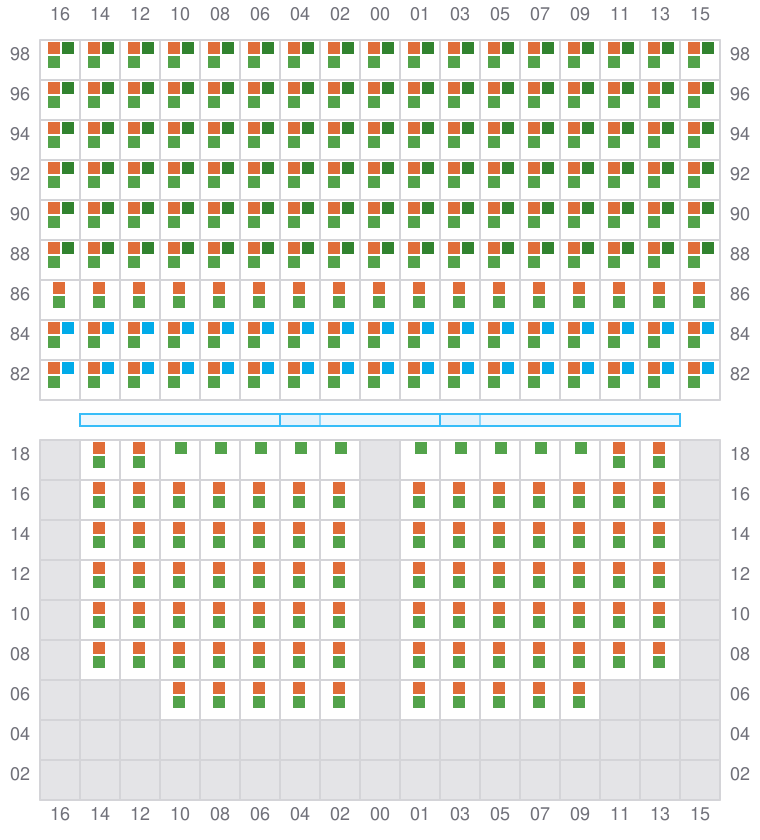

065 (066)
- →
- ← / →

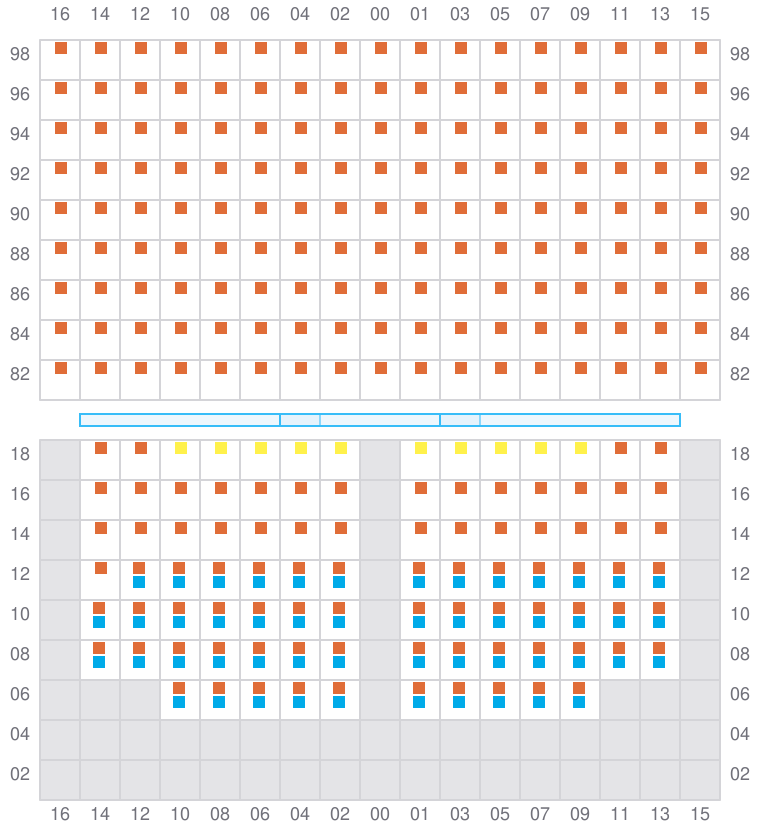

067
- ←
- ? / →
069 (070)
- →
- ← / ?
071
- ←
073 (074)
- →
- ← / ?

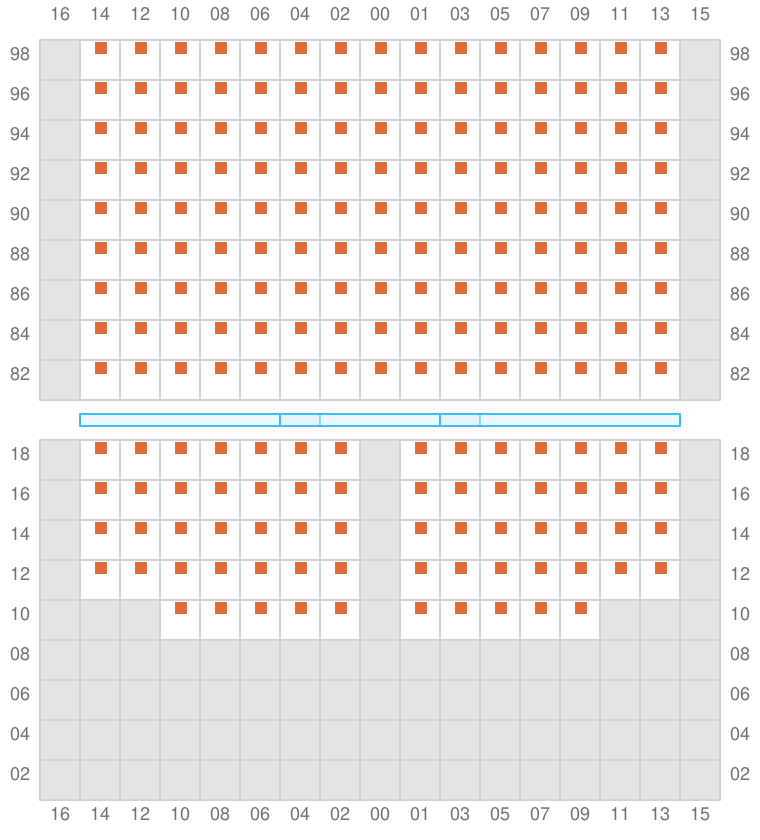

075
- ←
077 (078)
- →
- ← / ?
079
- ←

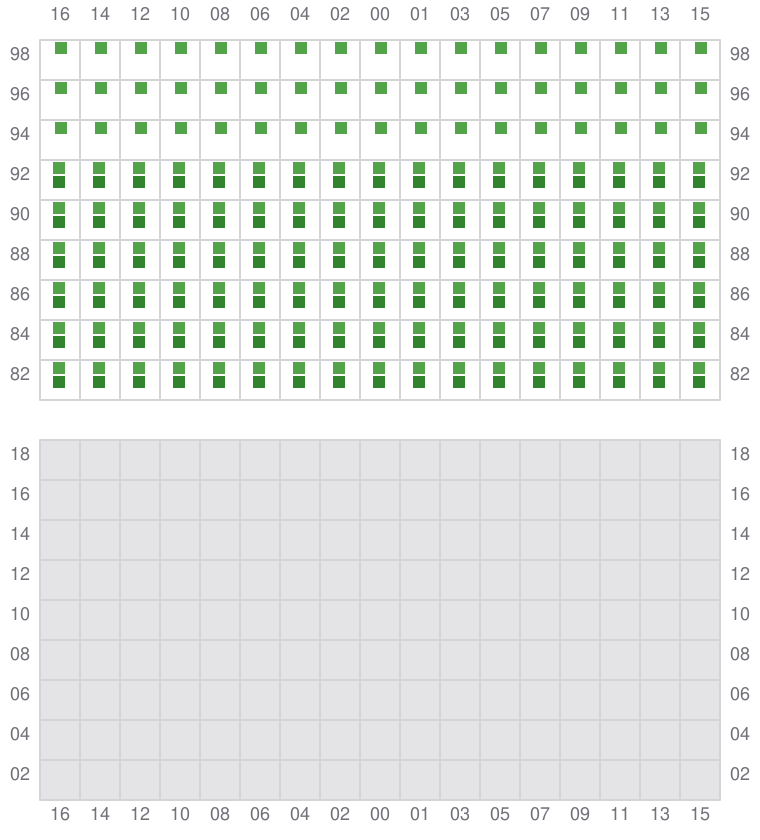

081 (082)
- → / ?
