MSC ADITI
9235581 | D5OA6 | 9235581 by ********* Last update: Tue Jun 04 2024
General Info
Ship Name:MSC ADITI
IMO Code:9235581
Call Sign:D5OA6
Line Operator:9235581
Class Name for Sister Ships:MSC ADITI
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:051
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,818
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

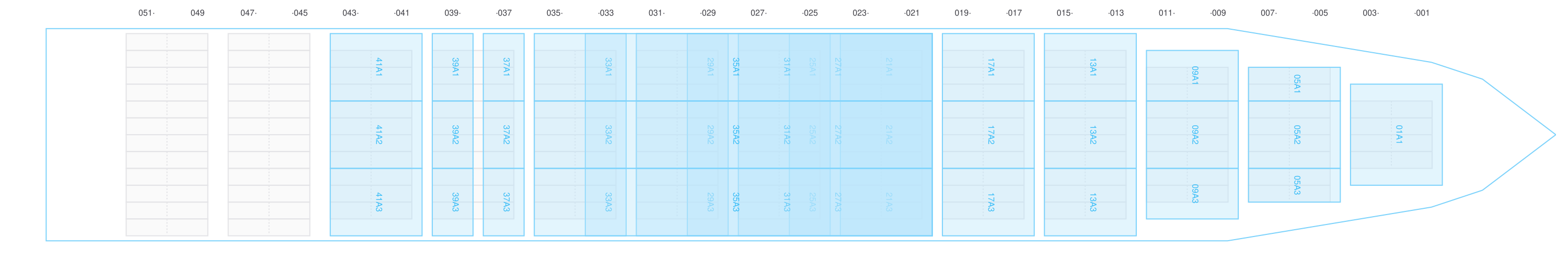

Hatch-Covers View

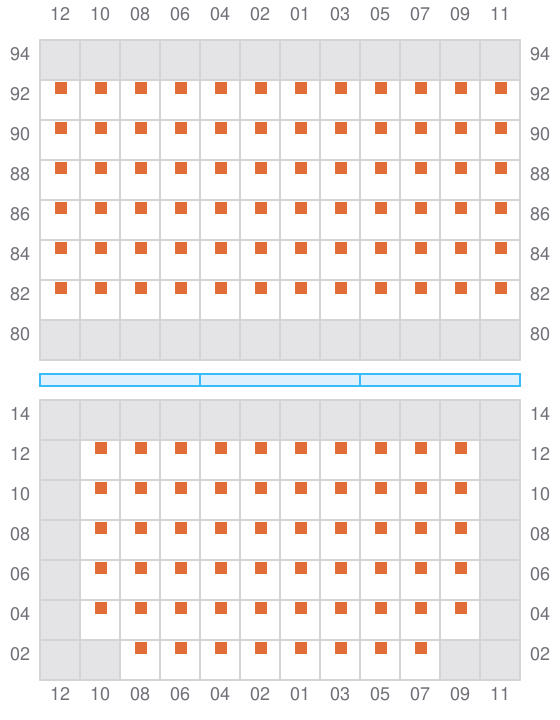

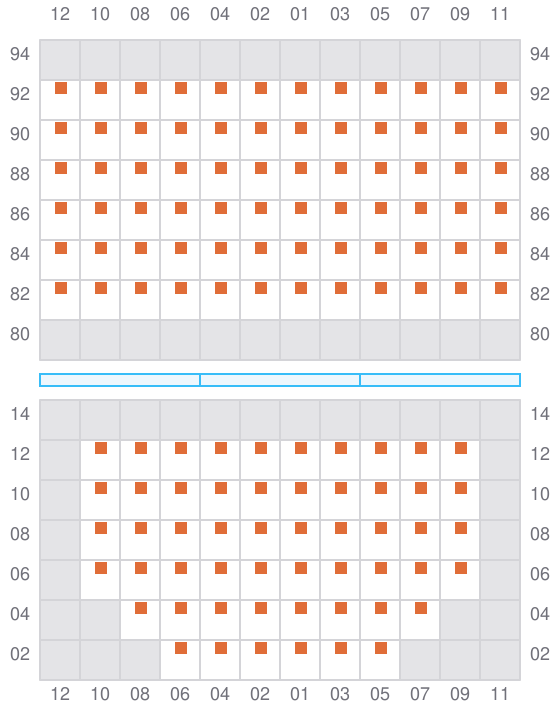

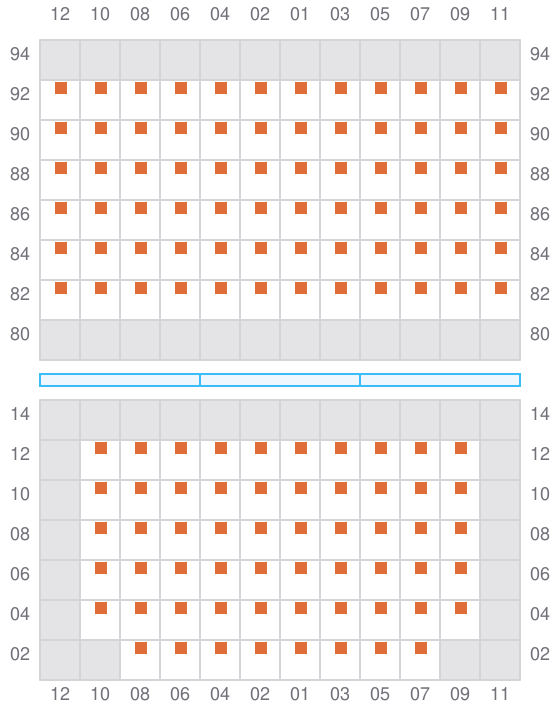

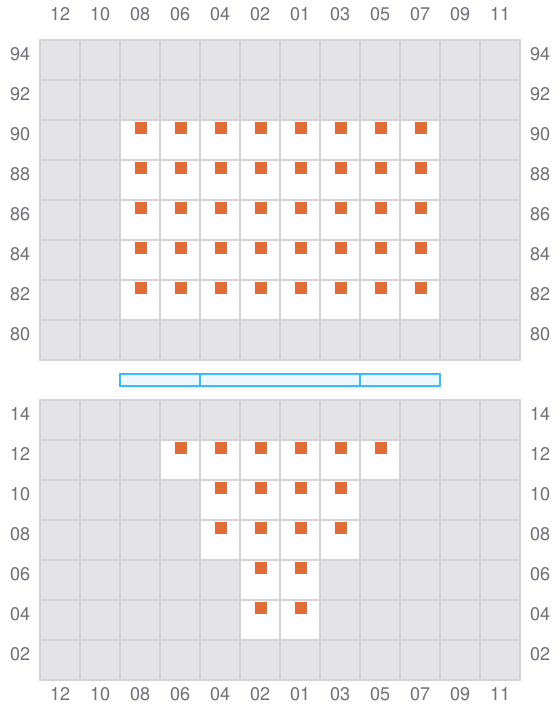

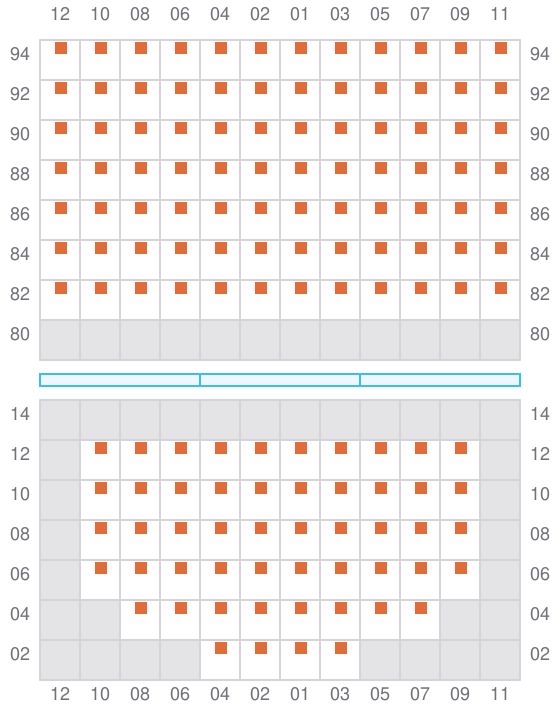

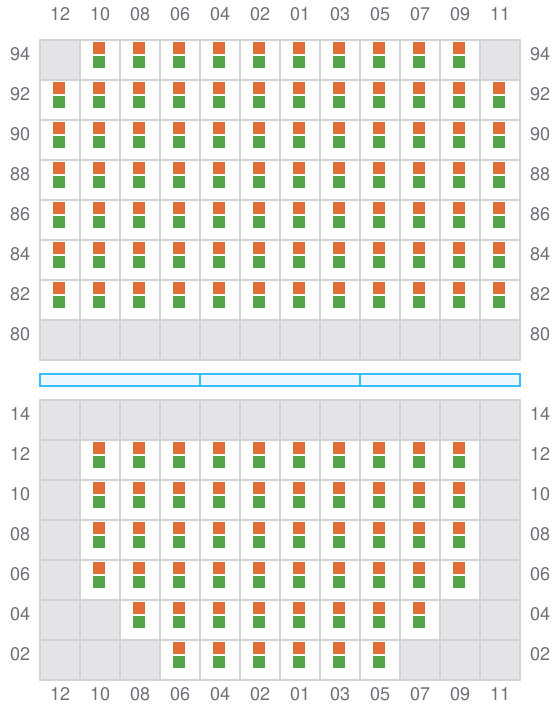

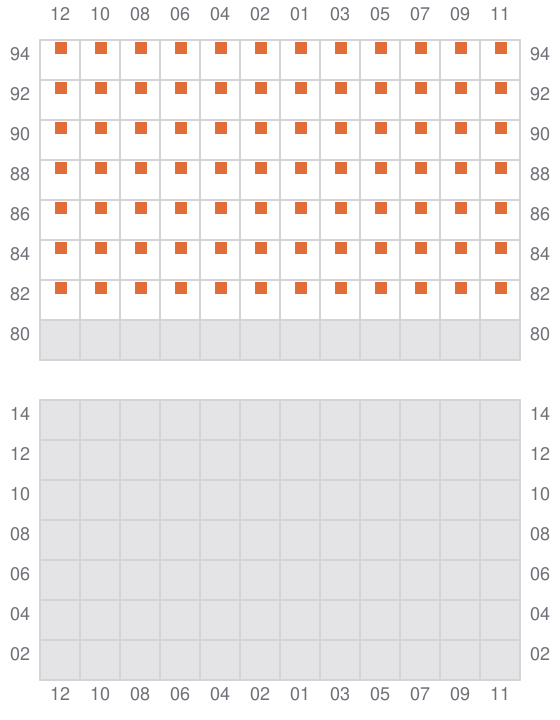

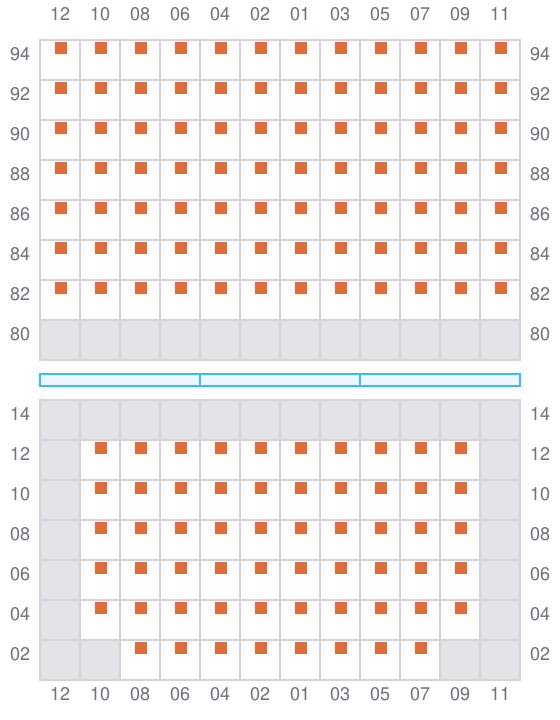

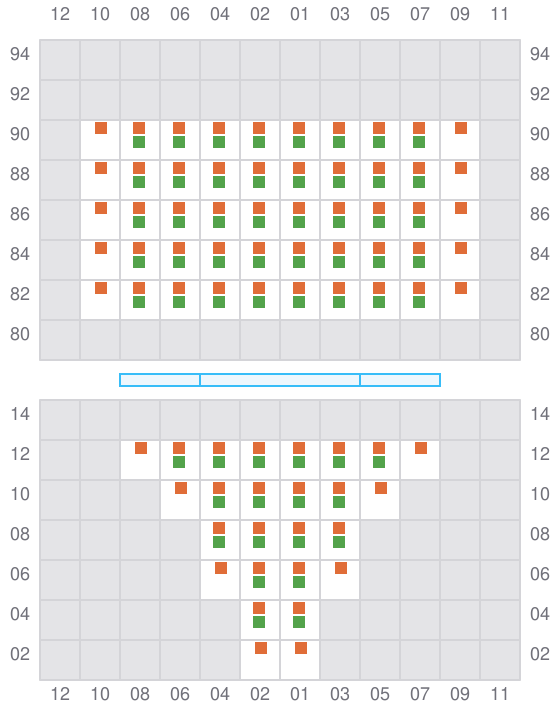

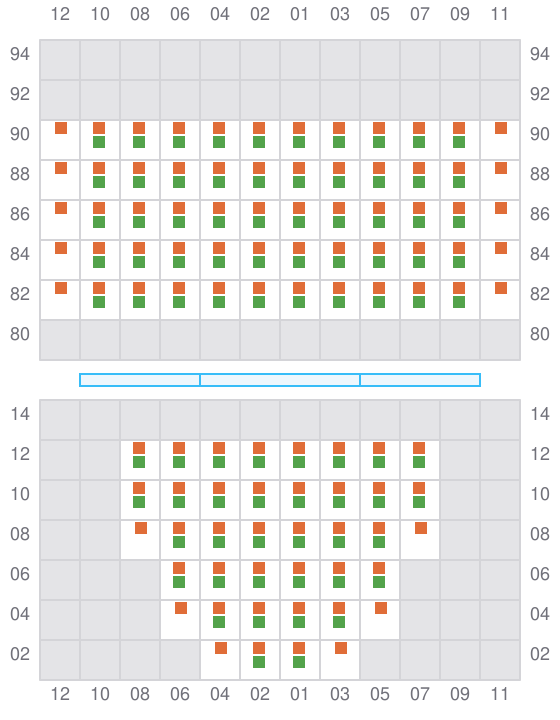

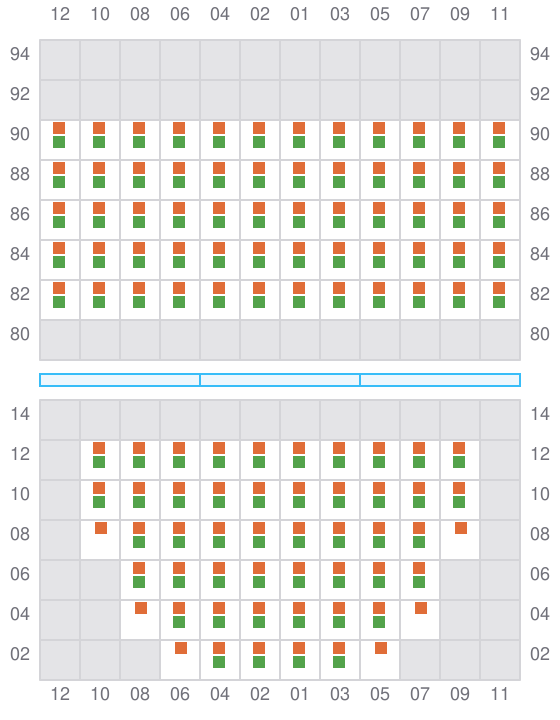

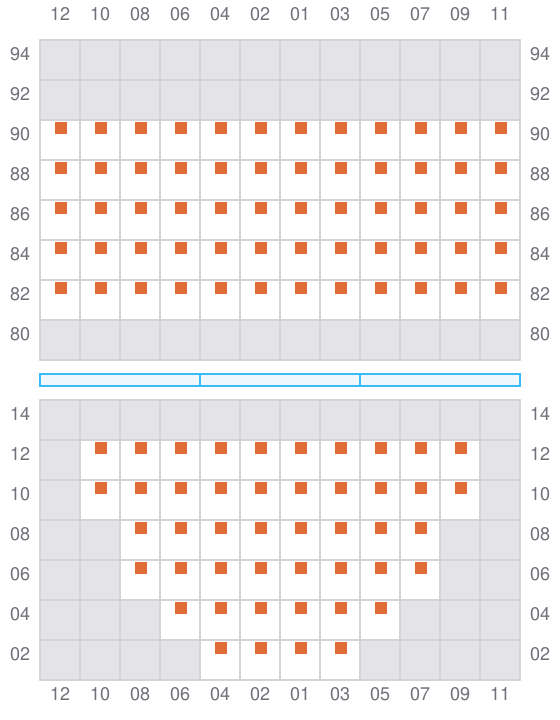

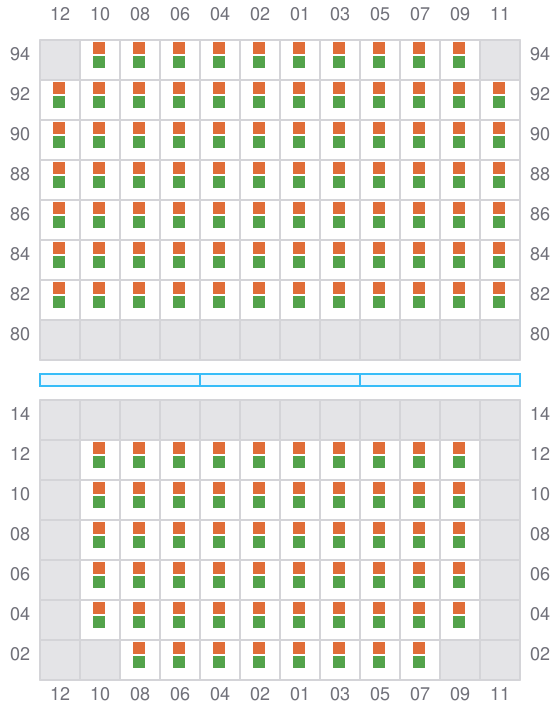

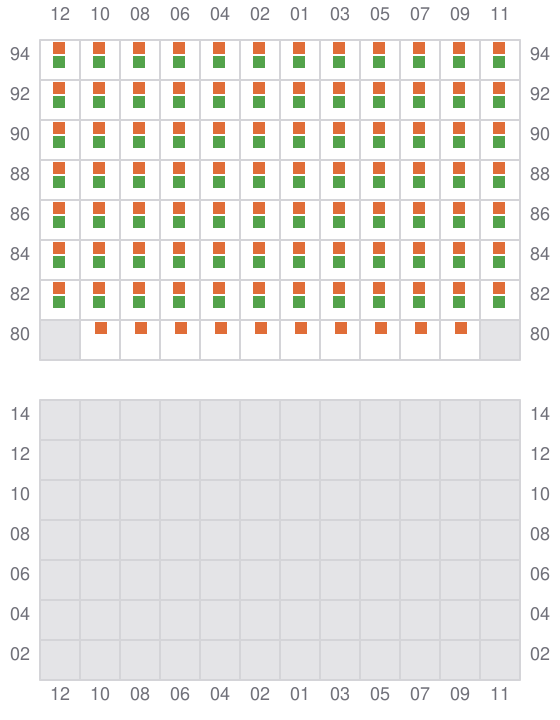

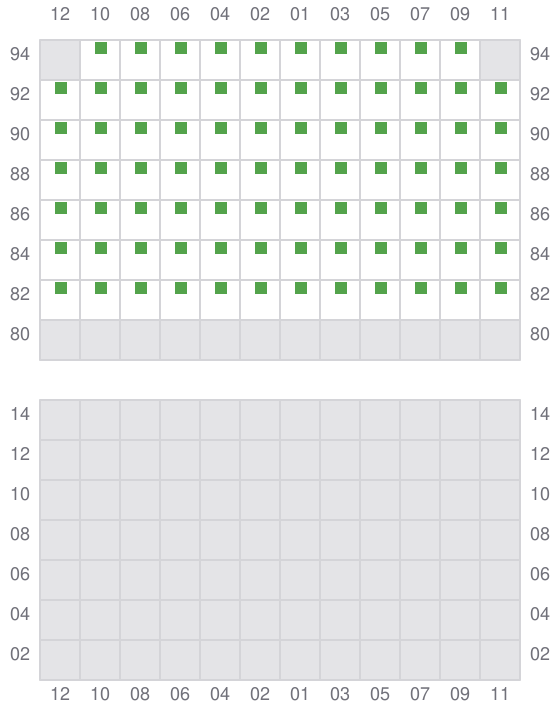

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

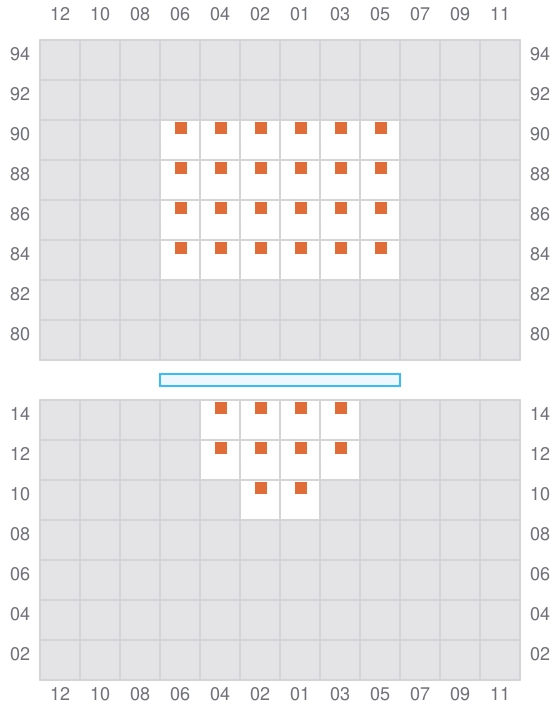

001
- →

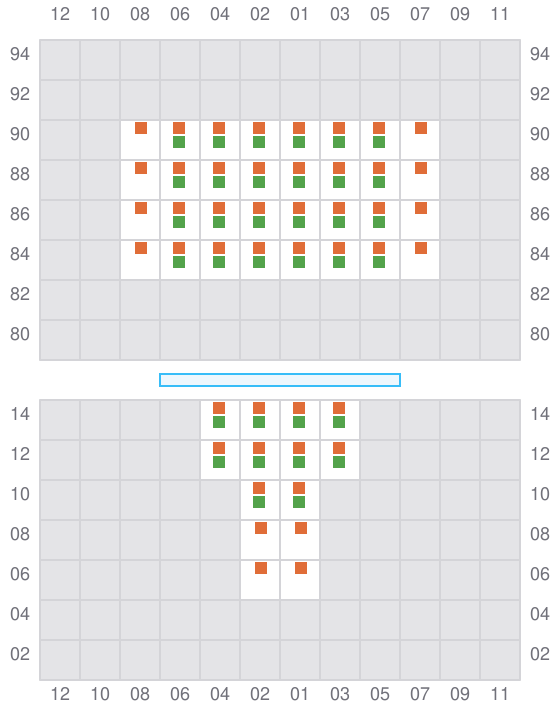

003 (002)
- ←
005
- →
007 (006)
- ←

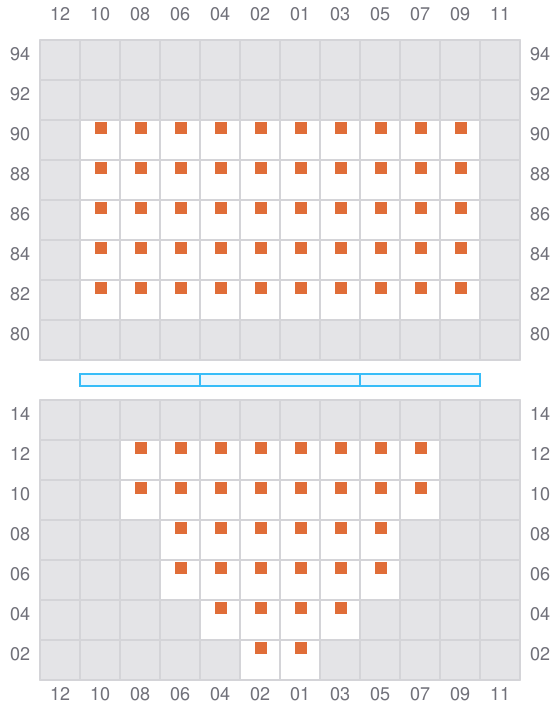

009
- →
011 (010)
- ←
013
- →
015 (014)
- ←
017
- →

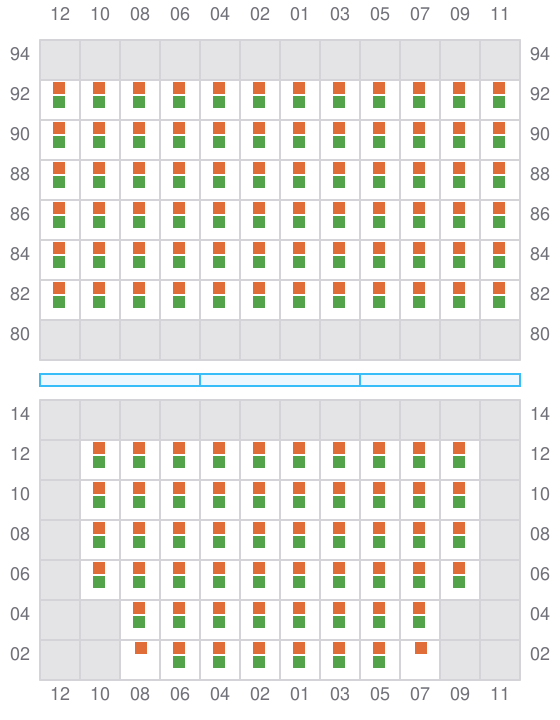

019 (018)
- ←
021
- →

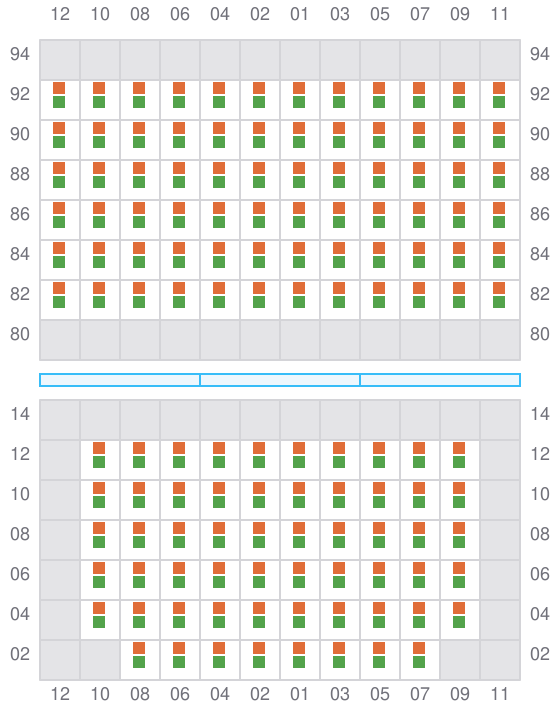

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →

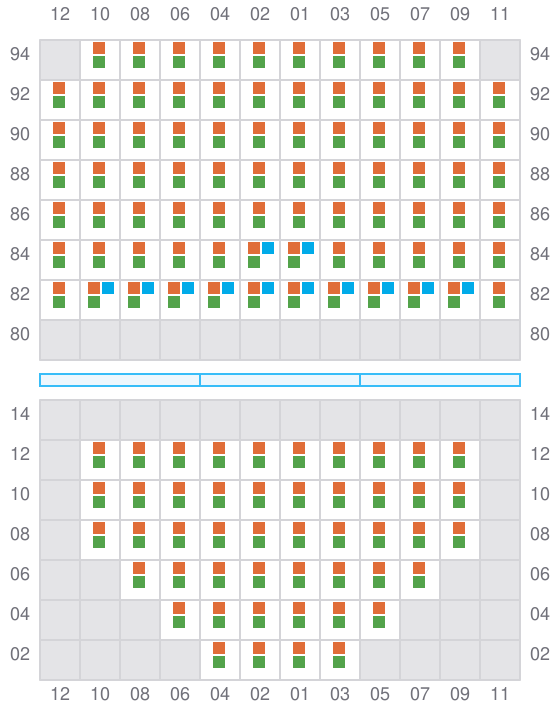

043 (042)
- ←
045
- → / ?
047 (046)
- ← / ?

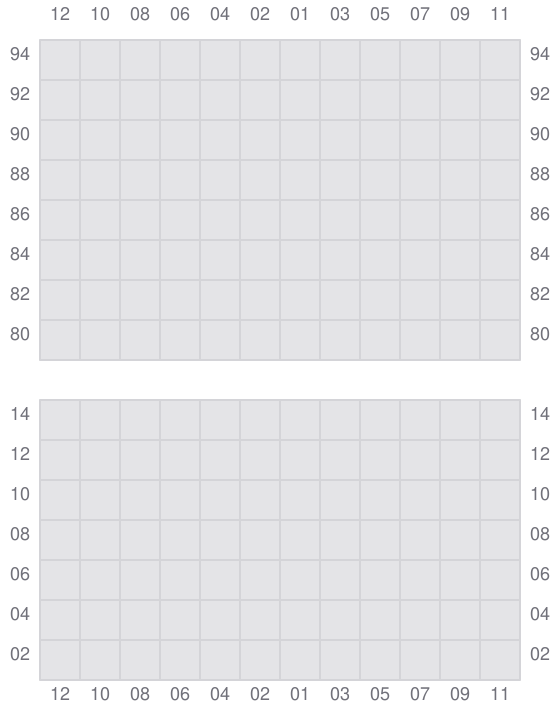

049
051 (050)
- ← / ?
