MSC ADU V
9293466 | 5LKV4 | 9293466 by ********* Last update: Wed May 08 2024

General Info

Ship Name:MSC ADU V

IMO Code:9293466

Call Sign:5LKV4

Line Operator:9293466

Class Name for Sister Ships:CSLSOPHIE

Year Built:2005

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):283.83

LOA (Length Overall):294.12

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:067

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:92

Min Above ISO Tier:82

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:4,738

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

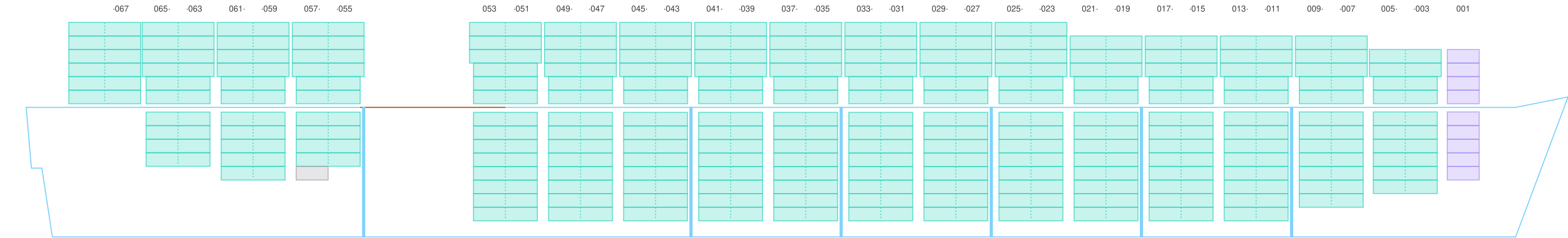

Side view of MSC ADU V

Hatch-Covers View

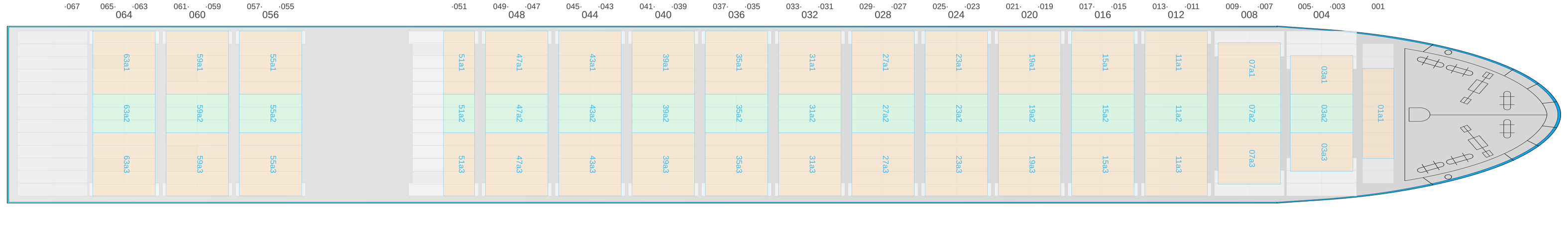

Deck view of MSC ADU V

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

Bay 001 view and slots of MSC ADU V

003 (004)

→

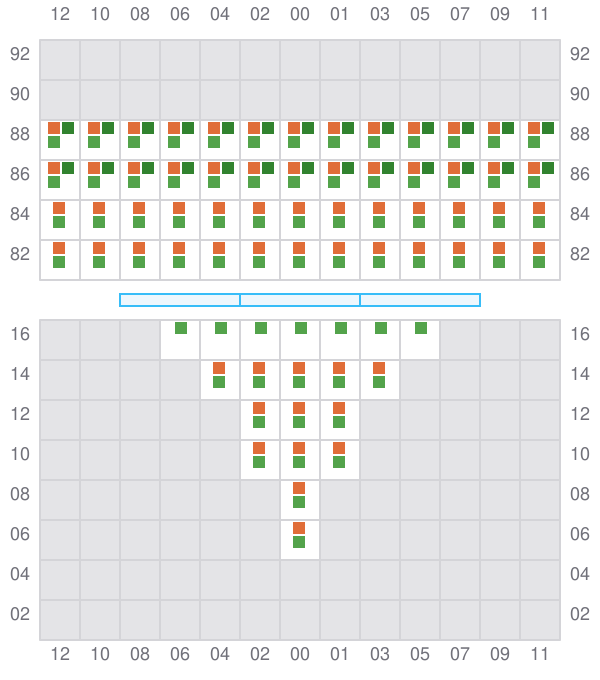

Bay 003 view and slots of MSC ADU V

005

←
^→ / _?

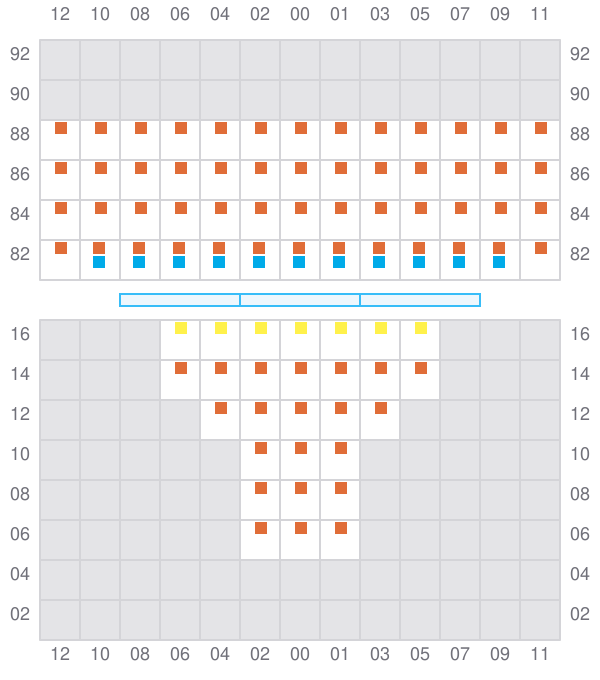

Bay 005 view and slots of MSC ADU V

007 (008)

→

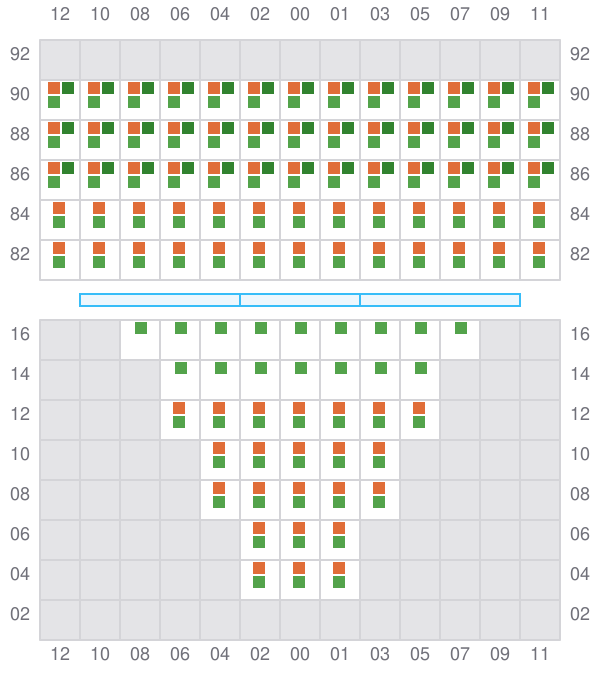

Bay 007 view and slots of MSC ADU V

009

←
^→ / _?

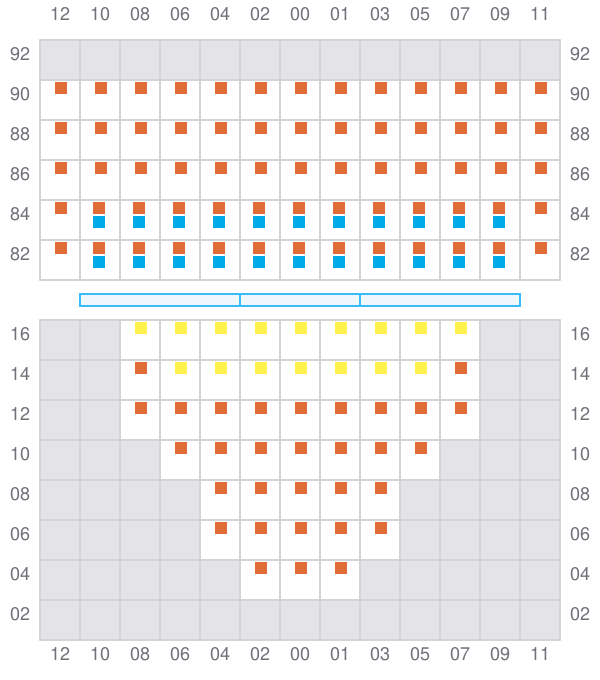

Bay 009 view and slots of MSC ADU V

011 (012)

→

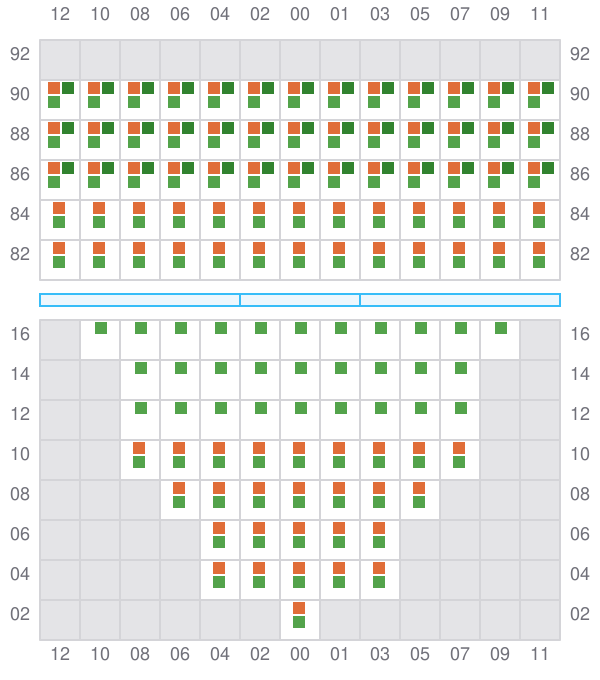

Bay 011 view and slots of MSC ADU V

013

←
^→ / _?

Bay 013 view and slots of MSC ADU V

015 (016)

→

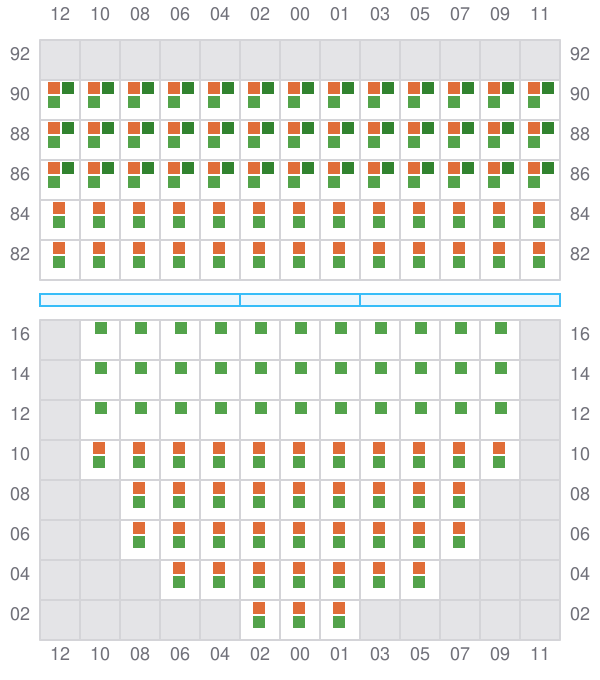

Bay 015 view and slots of MSC ADU V

017

←
^→ / _?

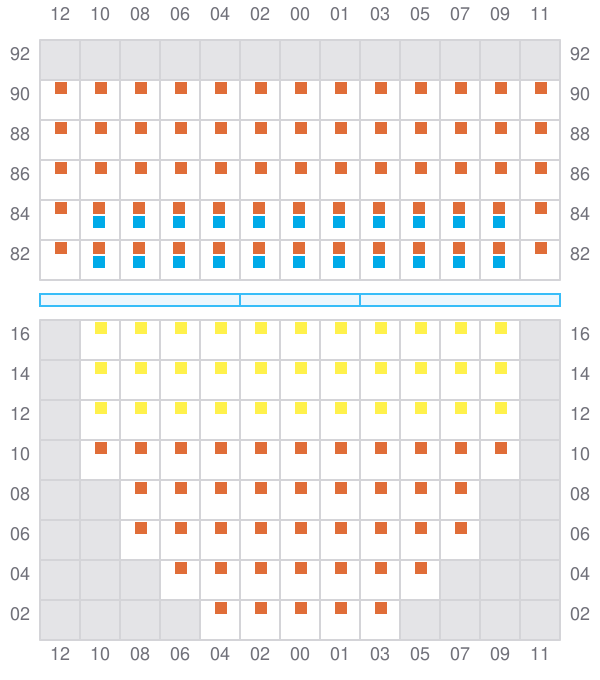

Bay 017 view and slots of MSC ADU V

019 (020)

→

Bay 019 view and slots of MSC ADU V

021

←
^→ / _?

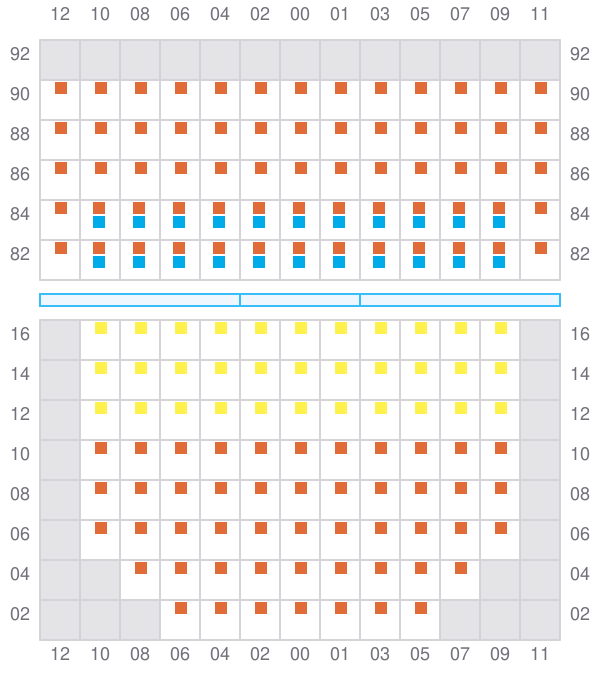

Bay 021 view and slots of MSC ADU V

023 (024)

→

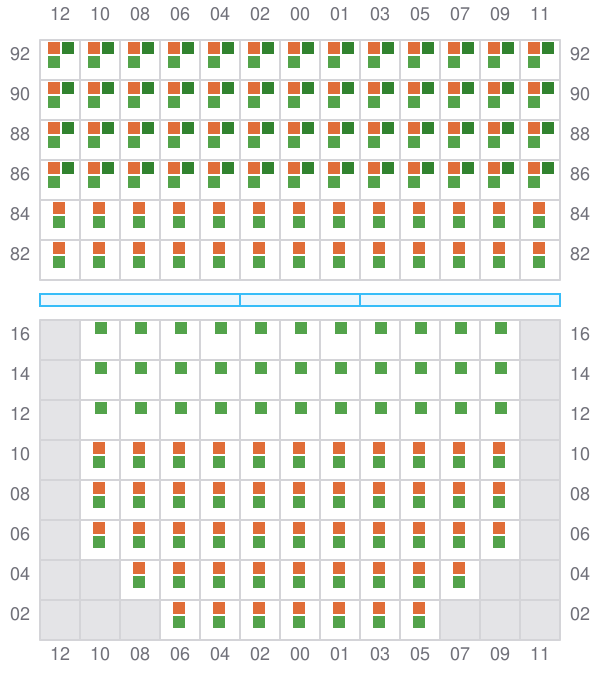

Bay 023 view and slots of MSC ADU V

025

←
^→ / _?

Bay 025 view and slots of MSC ADU V

027 (028)

→

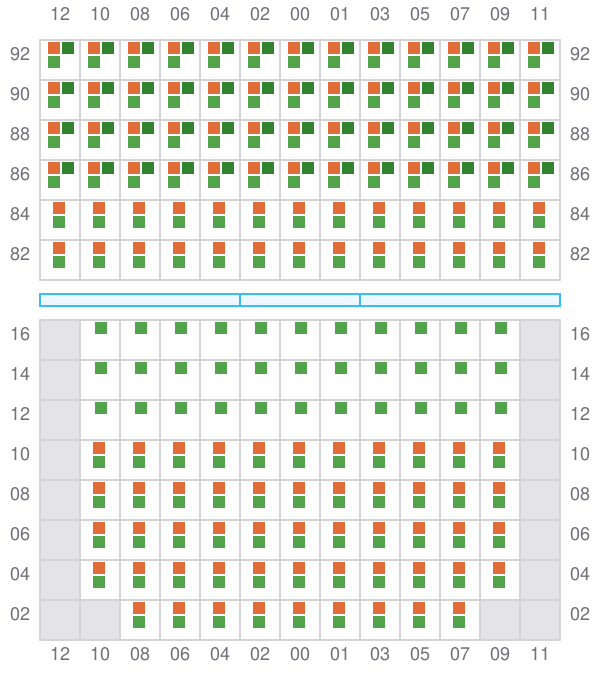

Bay 027 view and slots of MSC ADU V

029

←
^→ / _?

Bay 029 view and slots of MSC ADU V

031 (032)

→

Bay 031 view and slots of MSC ADU V

033

←
^→ / _?

Bay 033 view and slots of MSC ADU V

035 (036)

→

Bay 035 view and slots of MSC ADU V

037

←
→

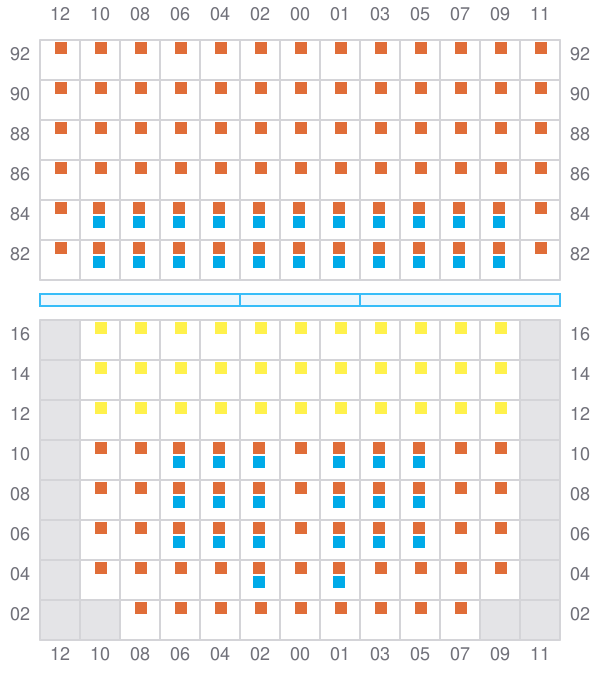

Bay 037 view and slots of MSC ADU V

039 (040)

→

Bay 039 view and slots of MSC ADU V

041

←
^→ / _?

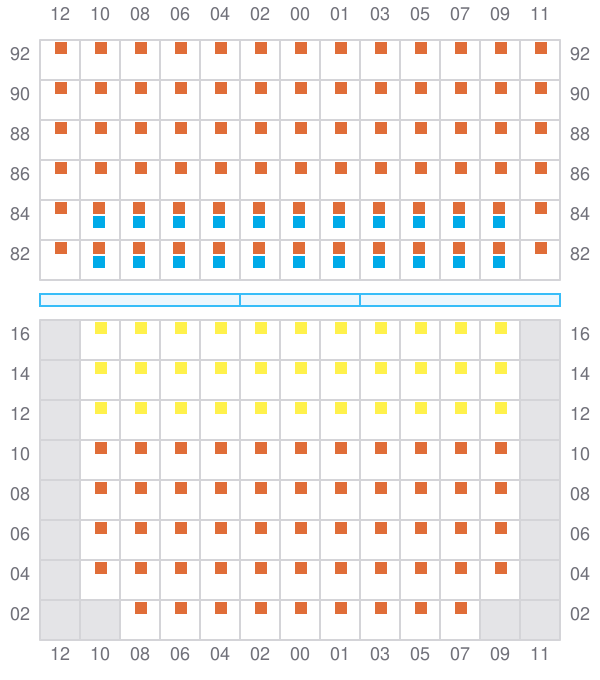

Bay 041 view and slots of MSC ADU V

043 (044)

→

Bay 043 view and slots of MSC ADU V

045

←
^→ / _?

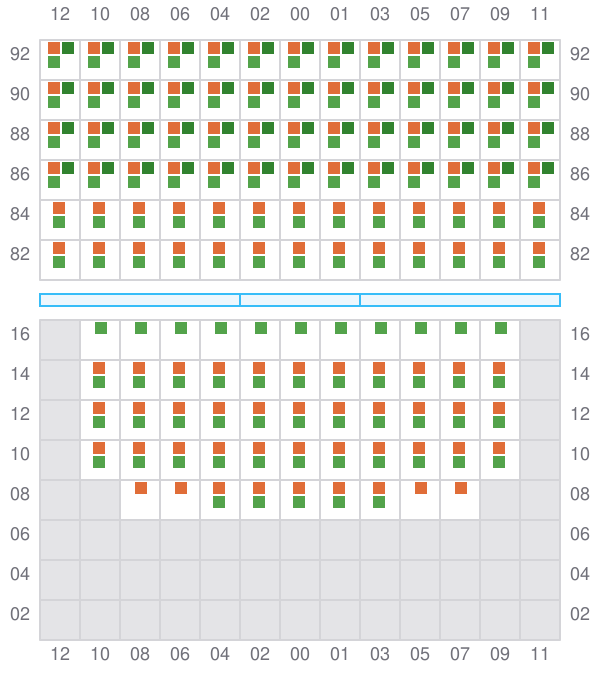

Bay 045 view and slots of MSC ADU V

047 (048)

→

Bay 047 view and slots of MSC ADU V

049

←
^→ / _?

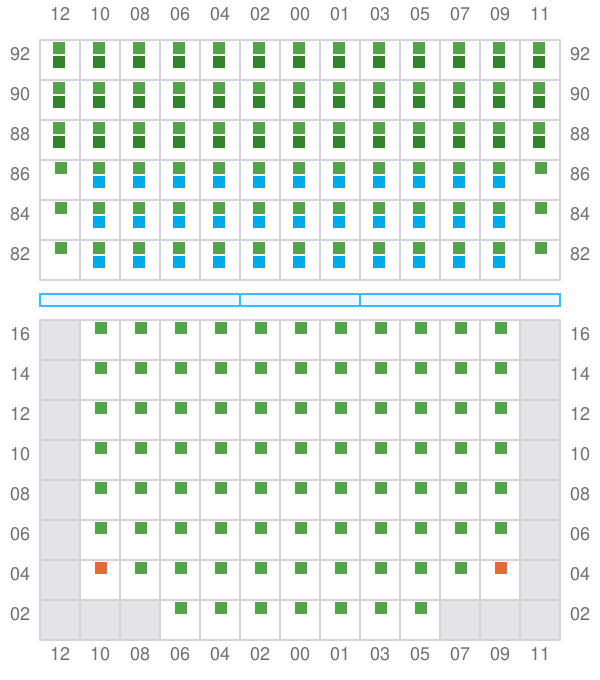

Bay 049 view and slots of MSC ADU V

051 (052)

→
^← / _?

Bay 051 view and slots of MSC ADU V

053

Bay 053 view and slots of MSC ADU V

055 (056)

→

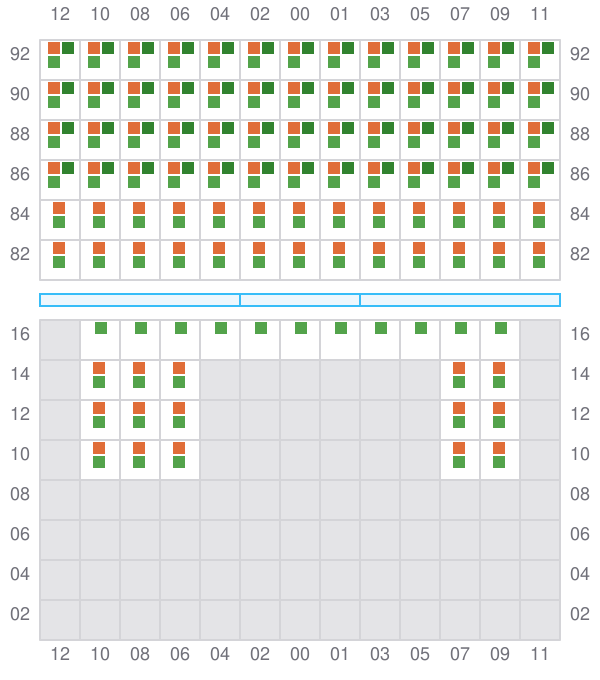

Bay 055 view and slots of MSC ADU V

057

←
^→ / _?

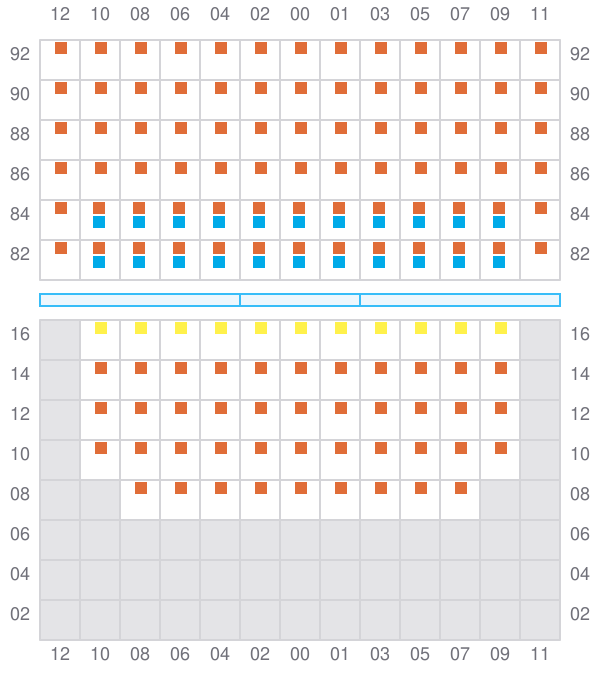

Bay 057 view and slots of MSC ADU V

059 (060)

→

Bay 059 view and slots of MSC ADU V

061

←
^→ / _?

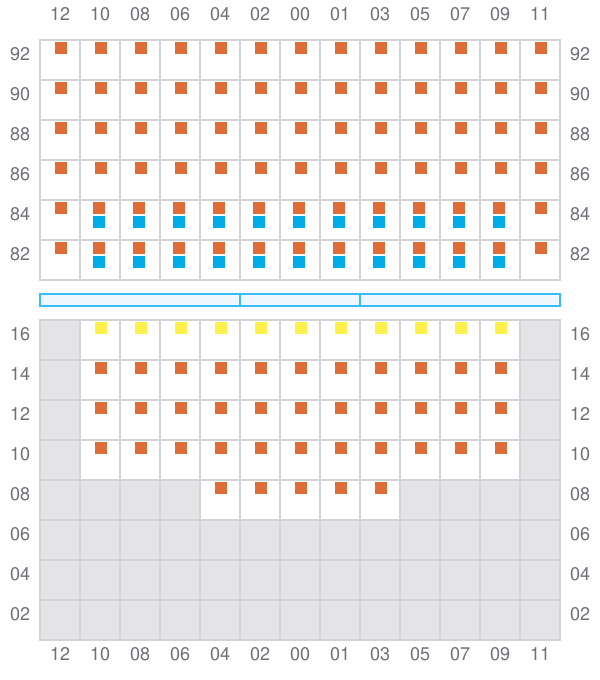

Bay 061 view and slots of MSC ADU V

063 (064)

→

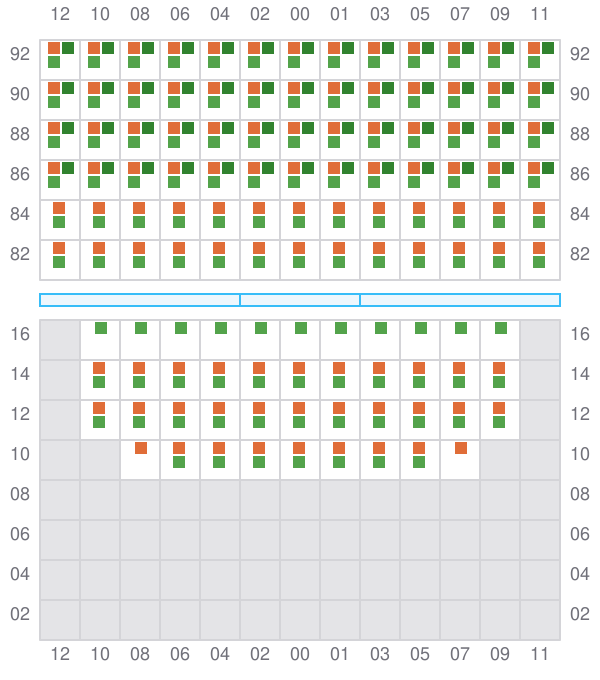

Bay 063 view and slots of MSC ADU V

065

←
^→ / _?

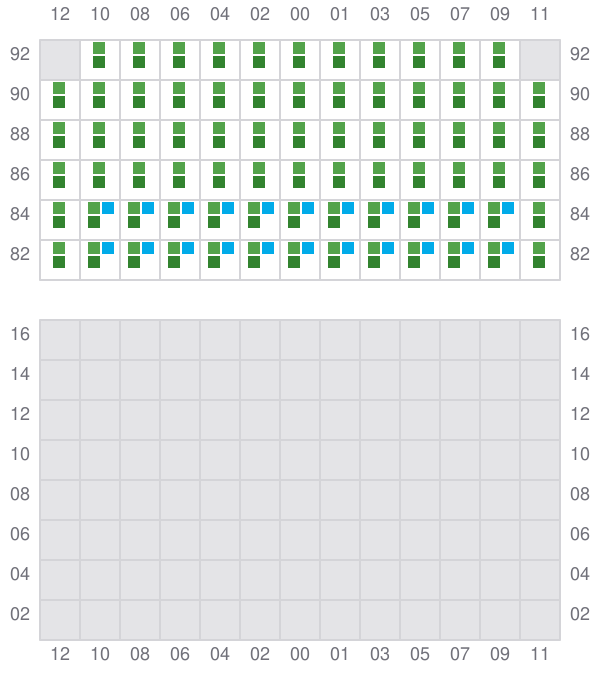

Bay 065 view and slots of MSC ADU V

067 (068)

^→ / _?
^← / _?

Bay 067 view and slots of MSC ADU V
