MSC AGADIR
9619464 | VRLC2 | MSC by ************************** Last update: Wed Jun 14 2023
General Info
Ship Name:MSC AGADIR
IMO Code:9619464
Call Sign:VRLC2
Line Operator:MSC
Class Name for Sister Ships:AGA
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,958
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

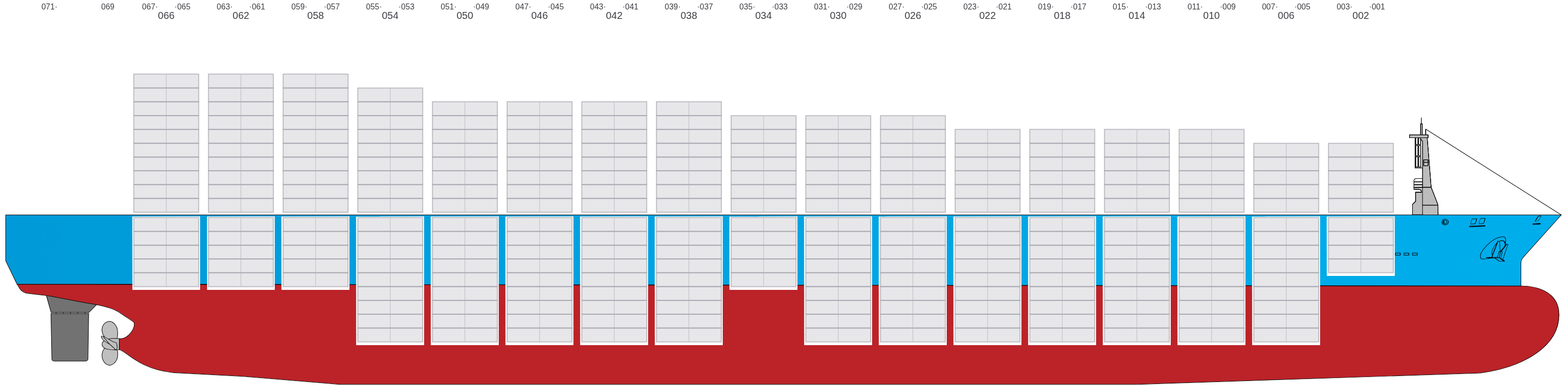

Side View

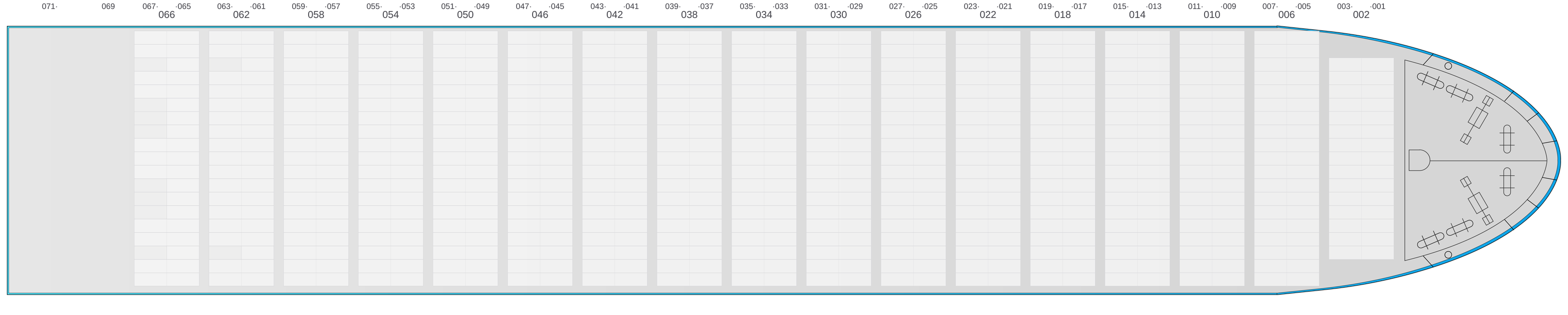

Hatch-Covers View

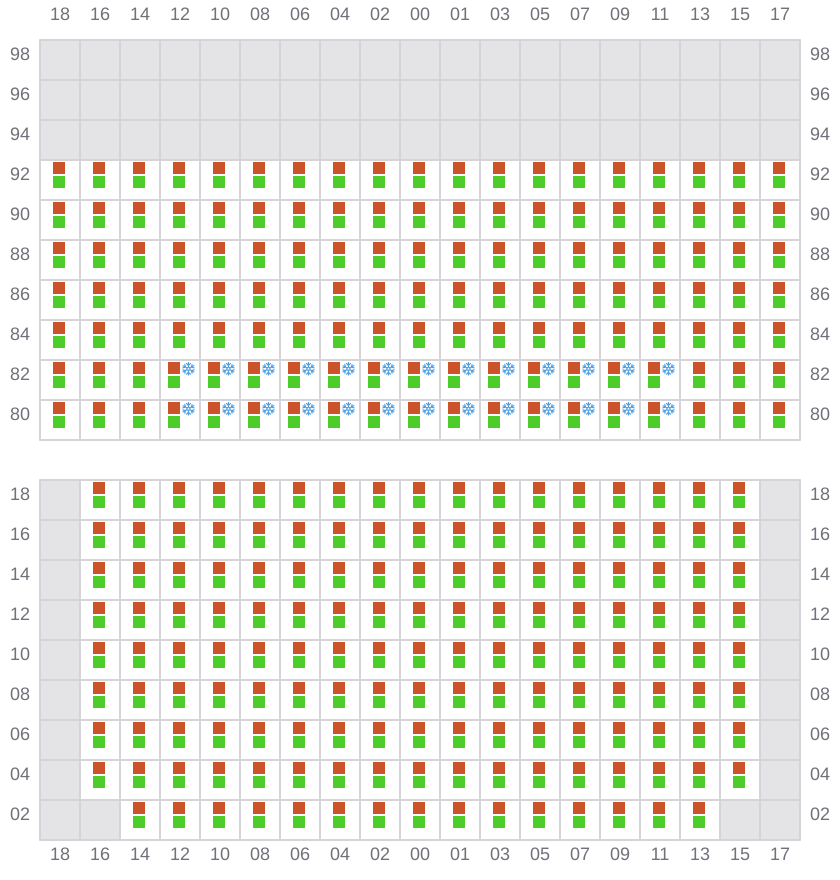

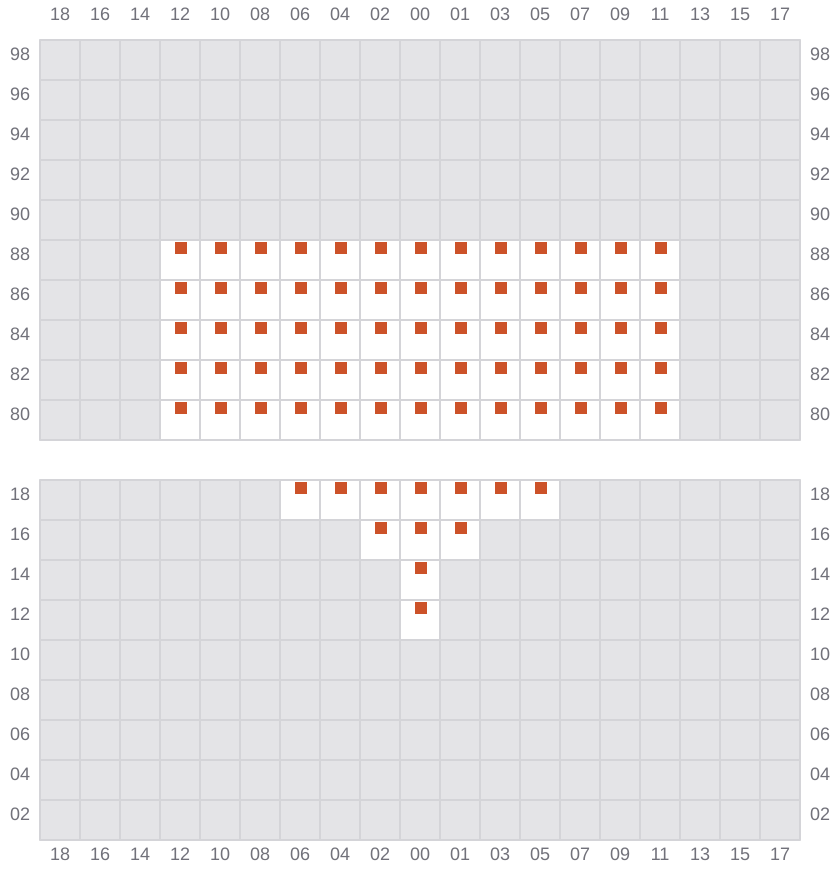

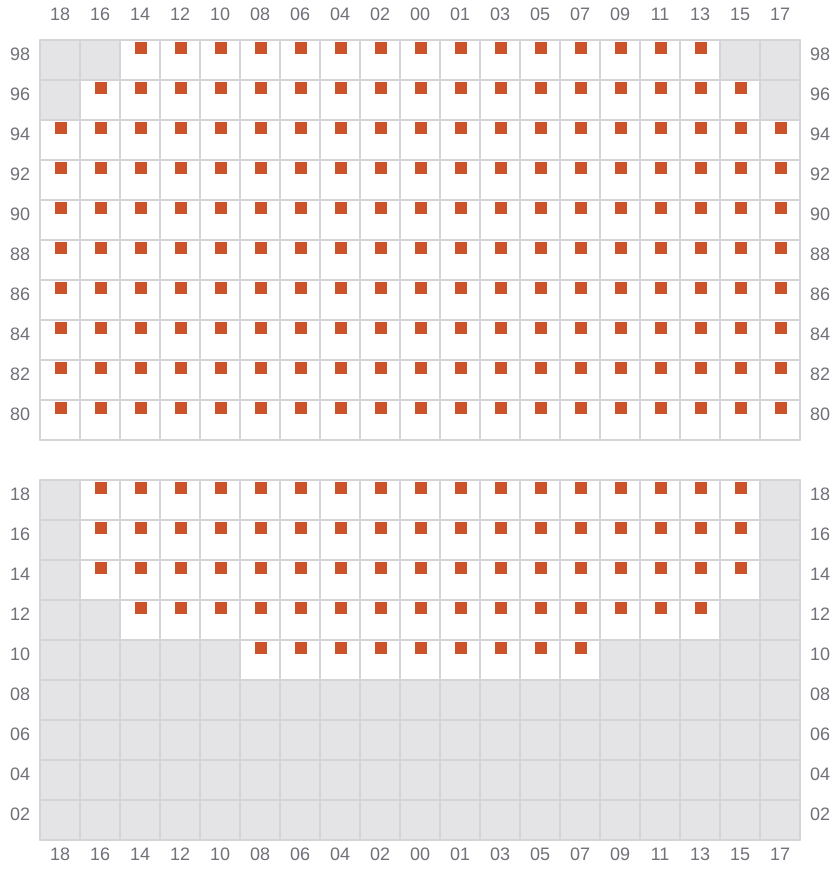

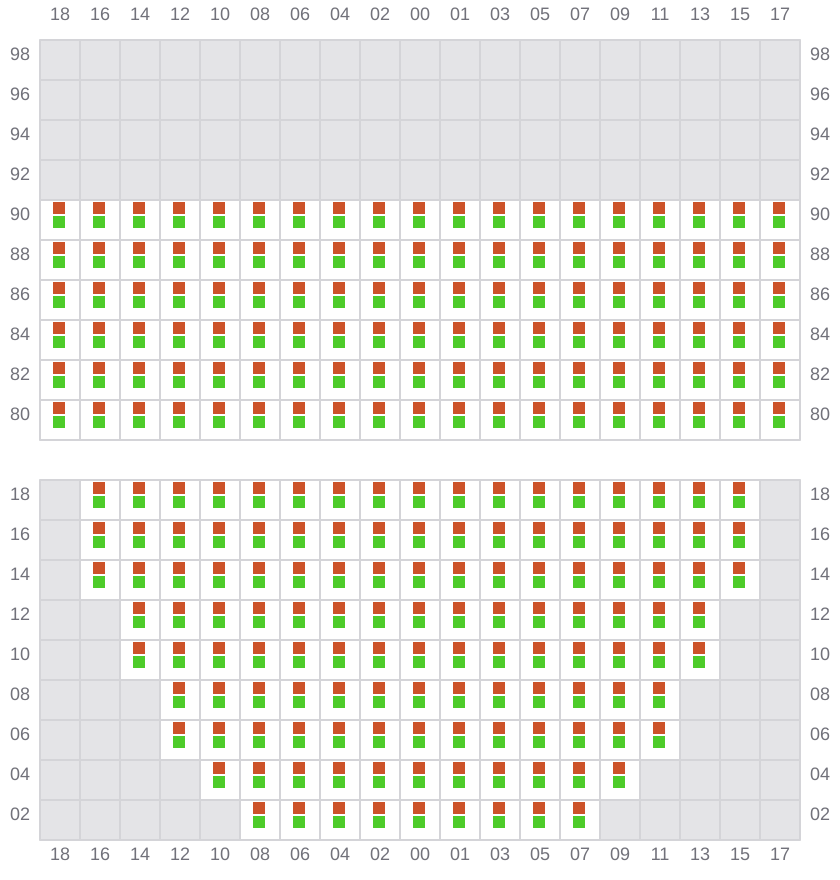

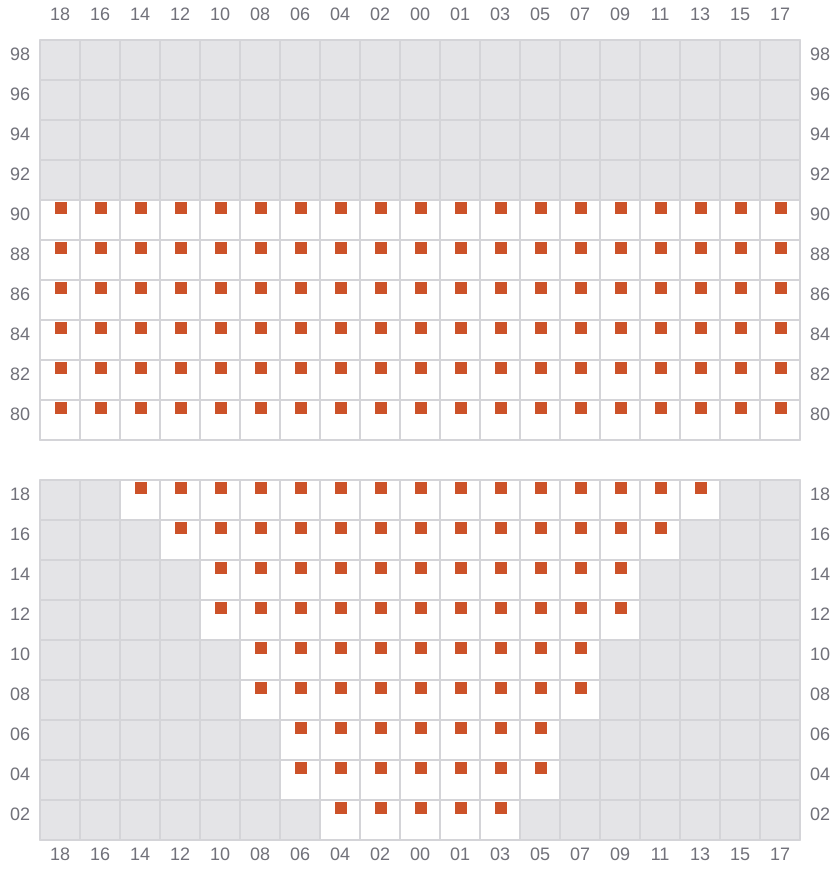

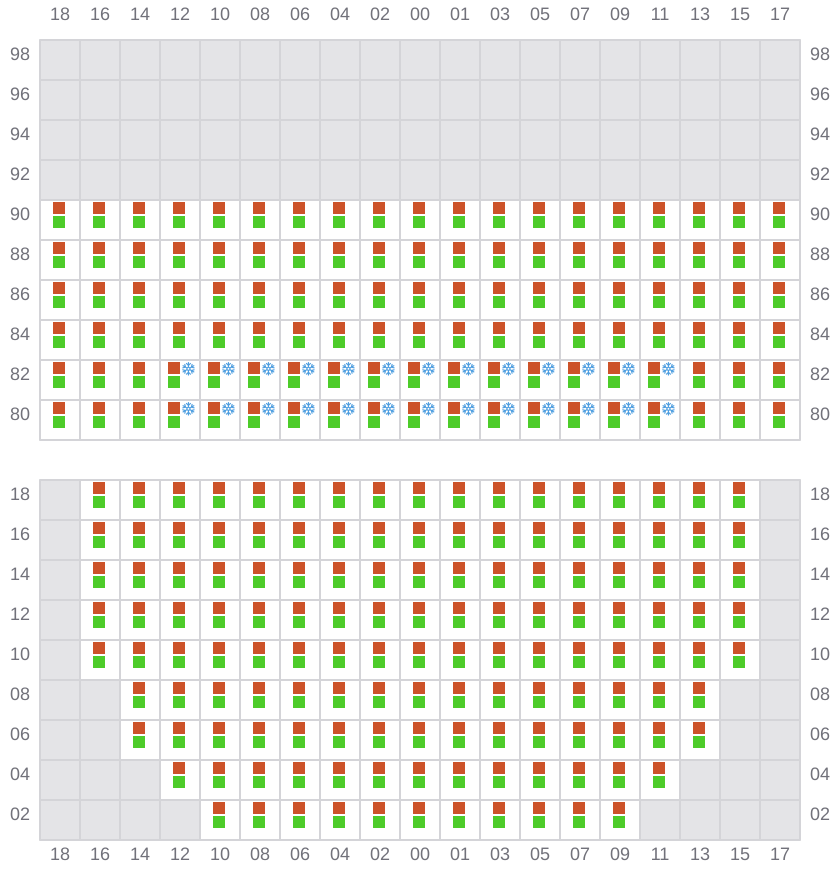

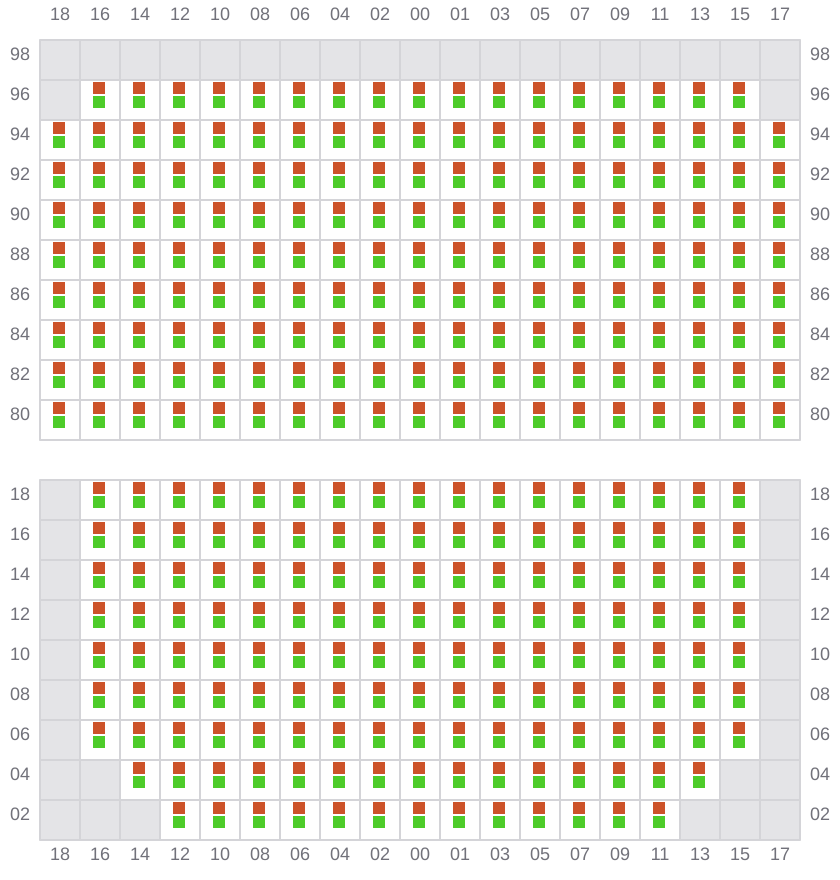

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

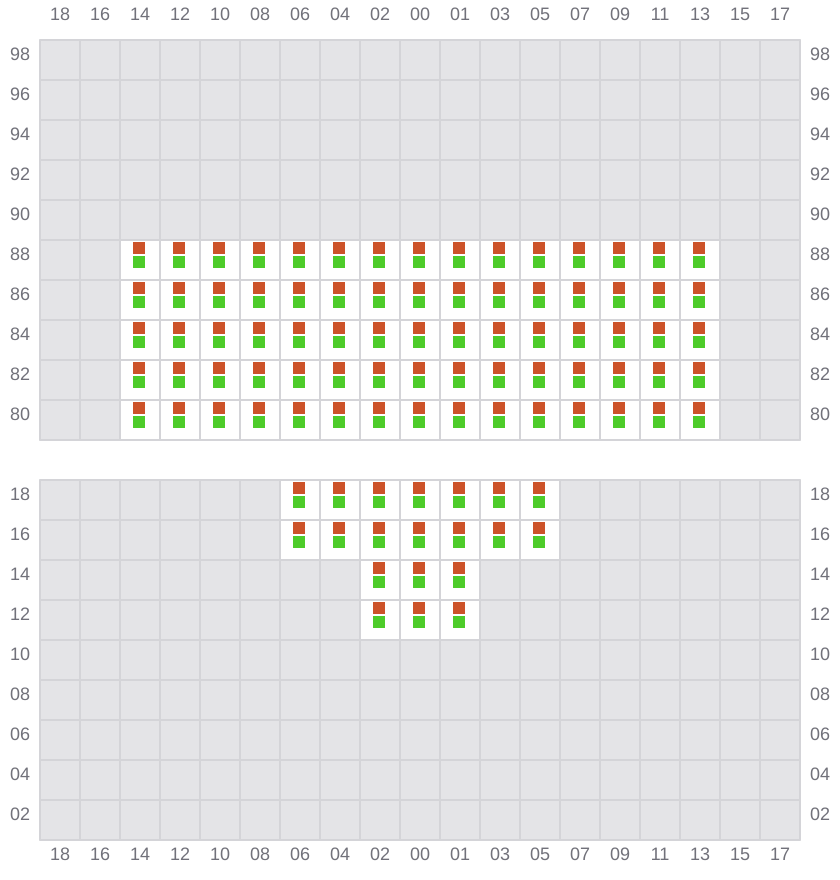

001
- →

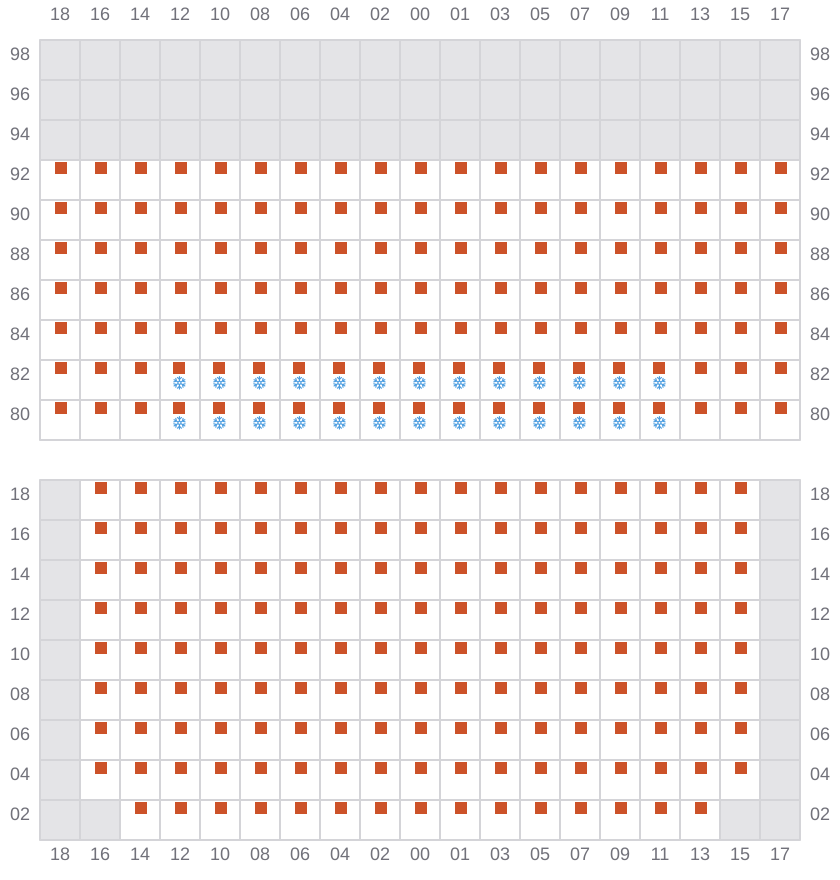

003 (002)
- ←

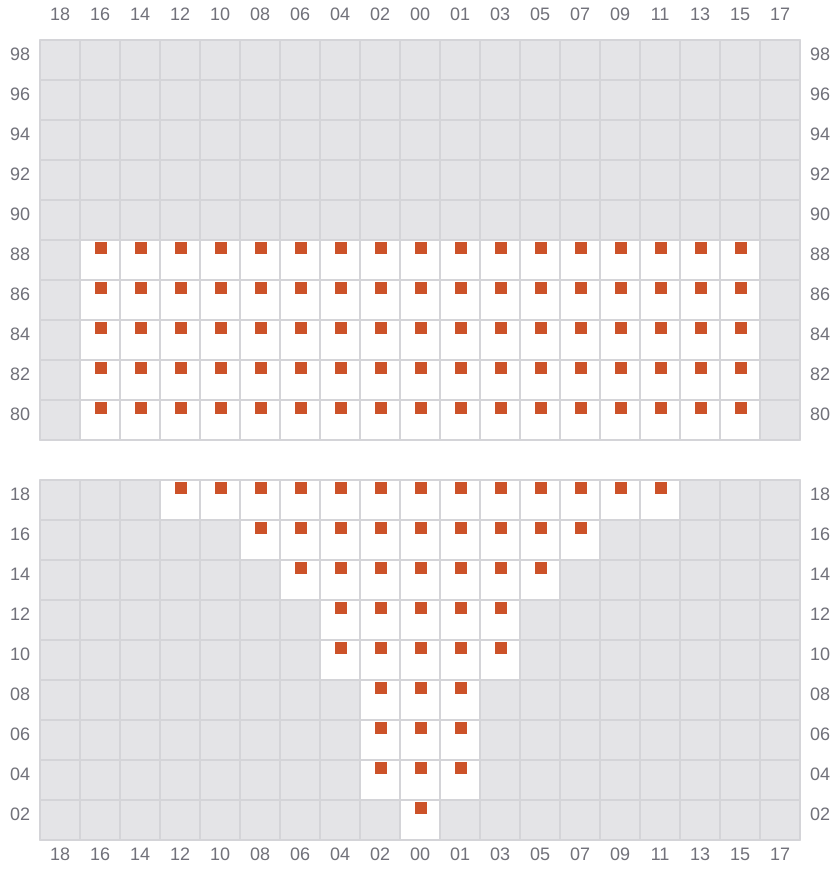

005
- →

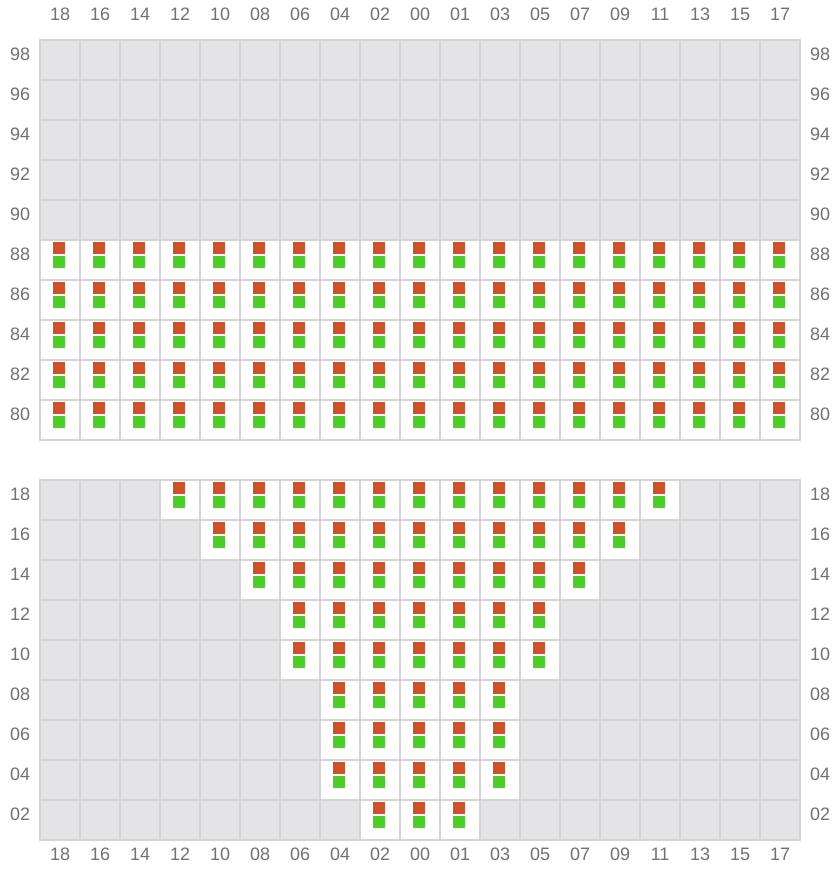

007 (006)
- ←

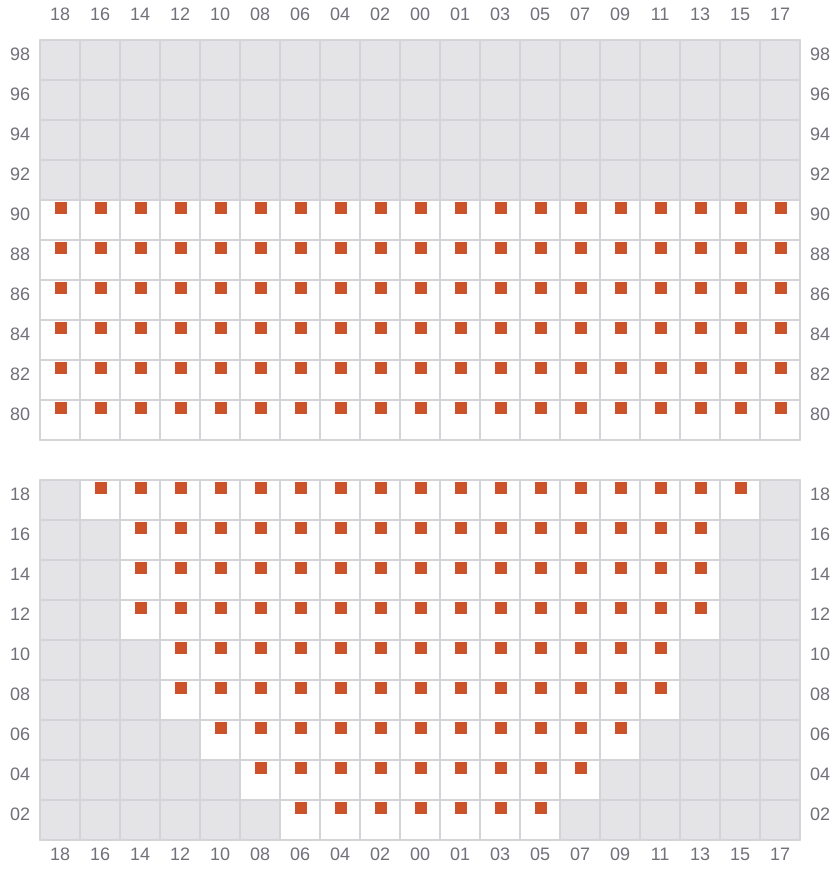

009
- →

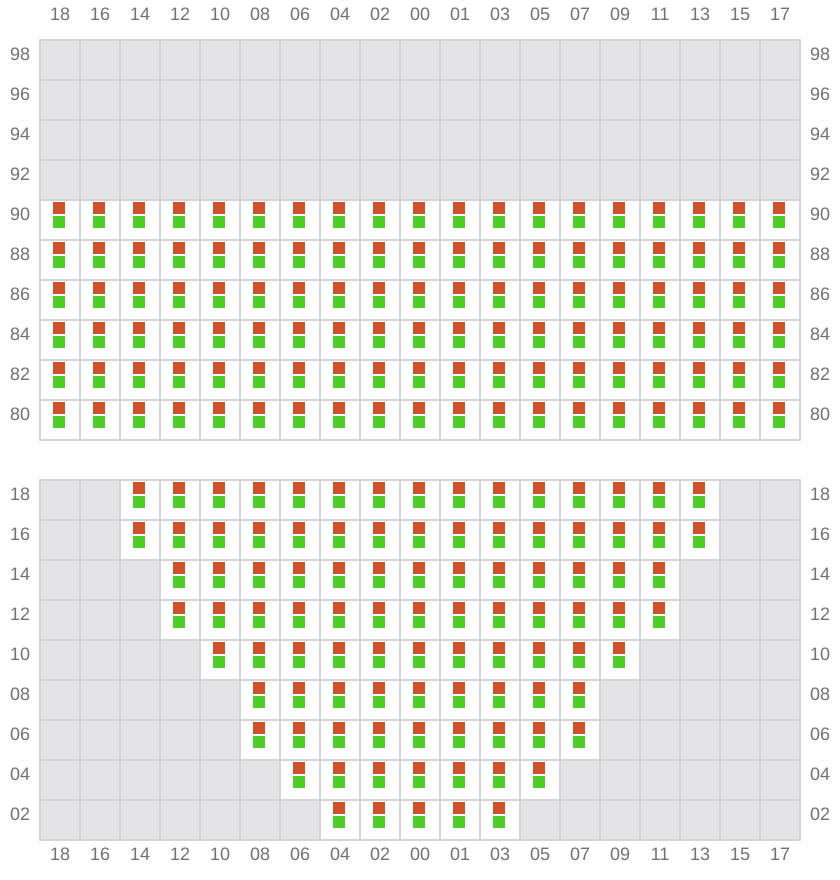

011 (010)
- ←
013
- →
015 (014)
- ←

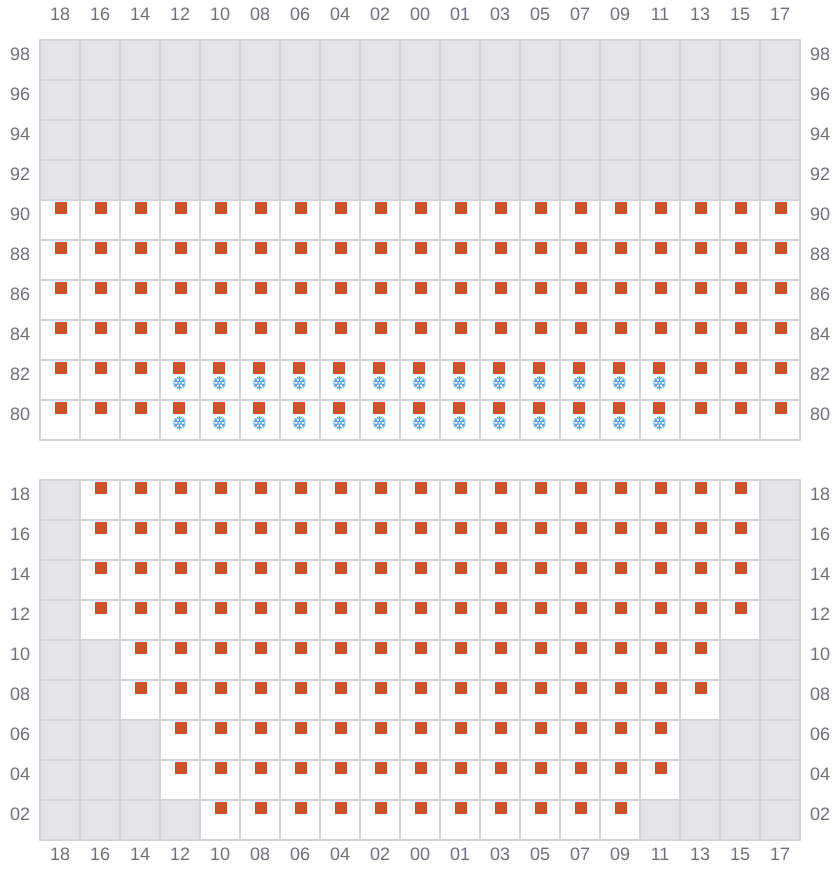

017
- →
019 (018)
- ←

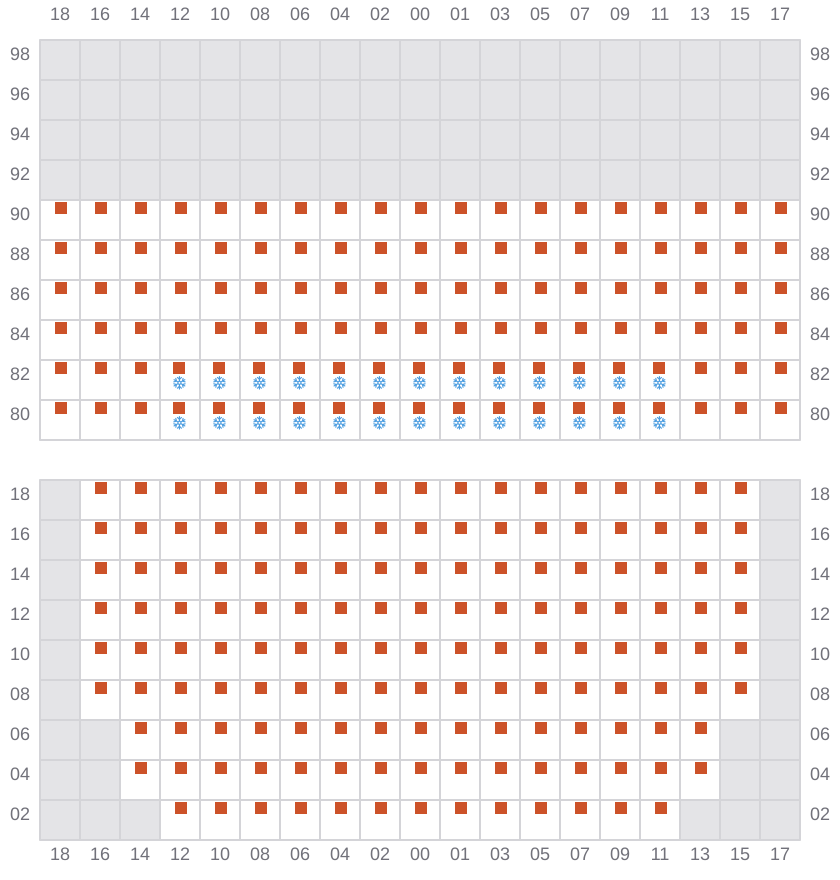

021
- →

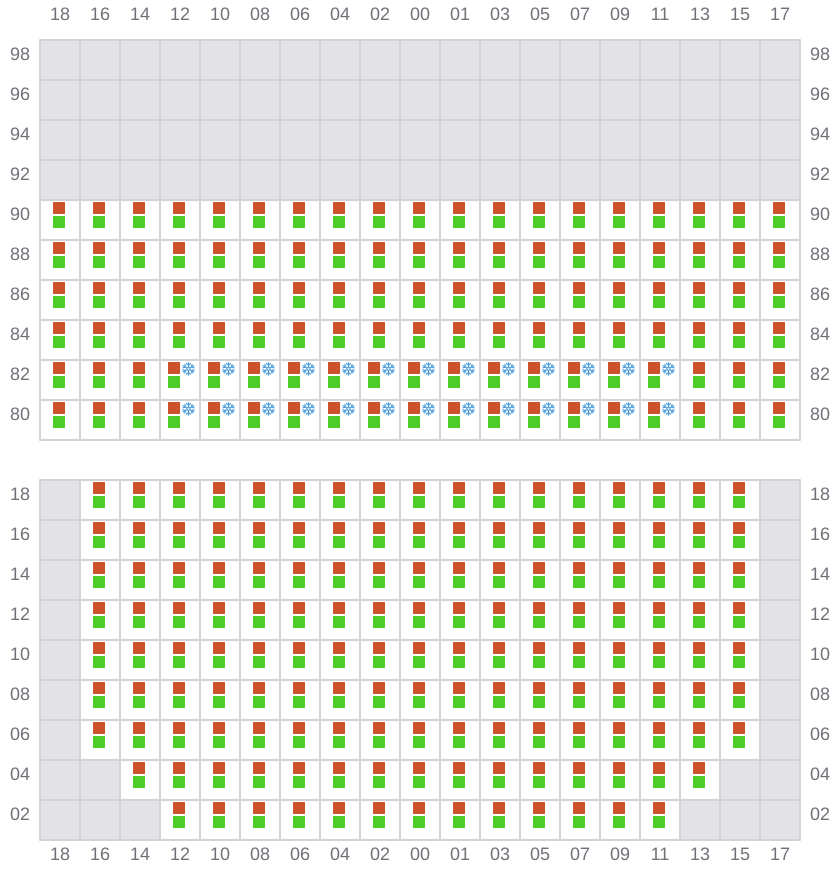

023 (022)
- ←
025
- →

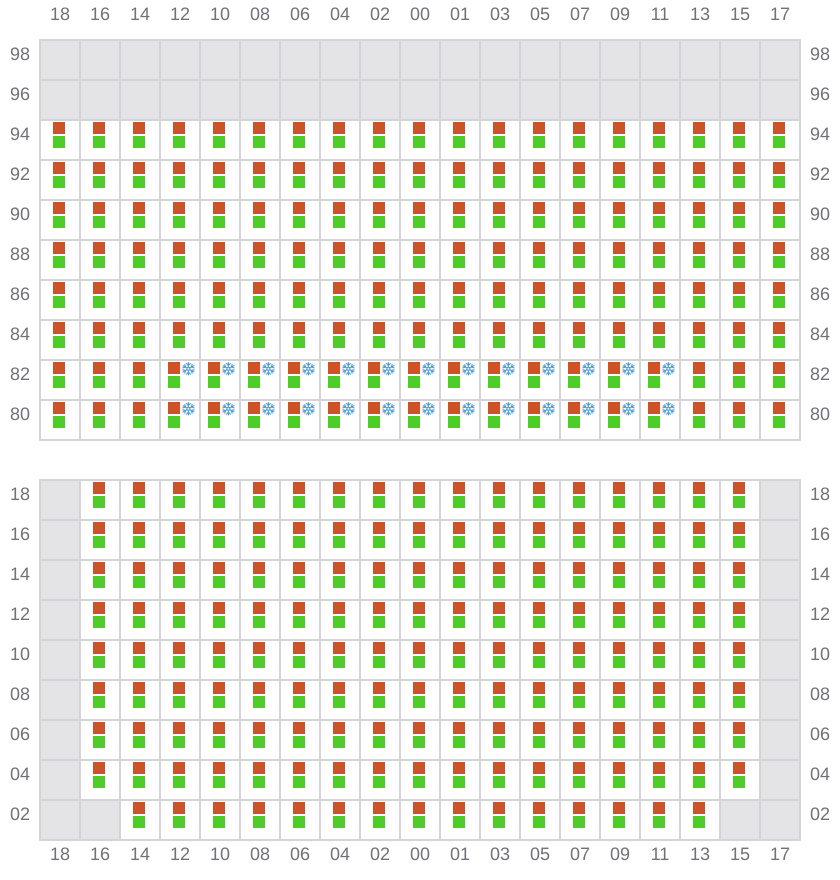

027 (026)
- ←
029
- →
031 (030)
- ←

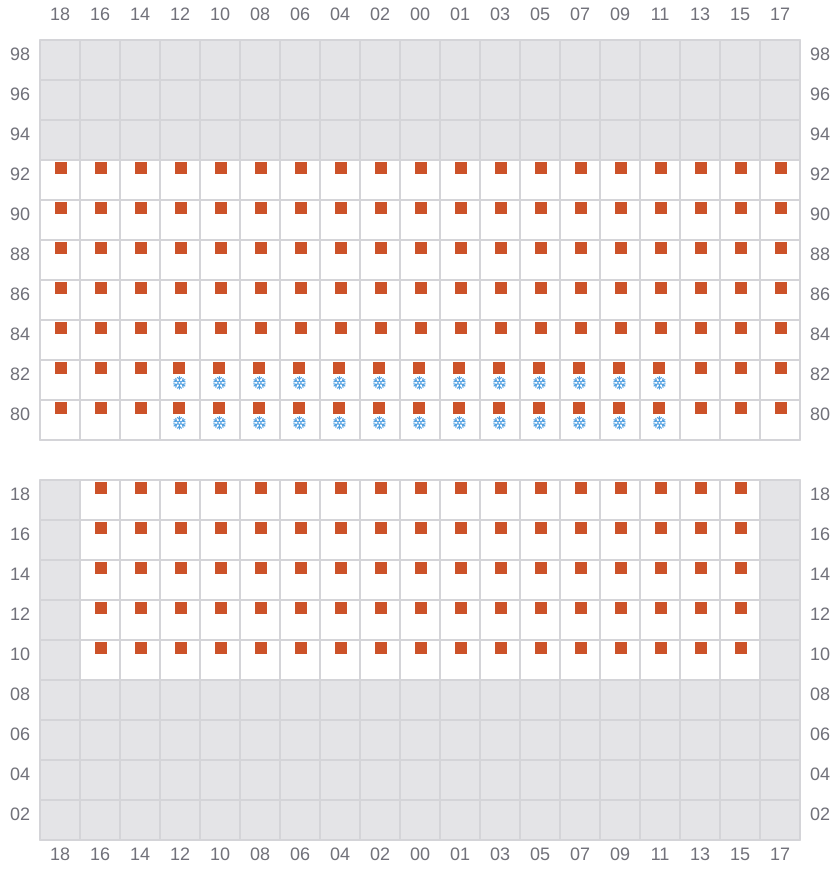

033
- →

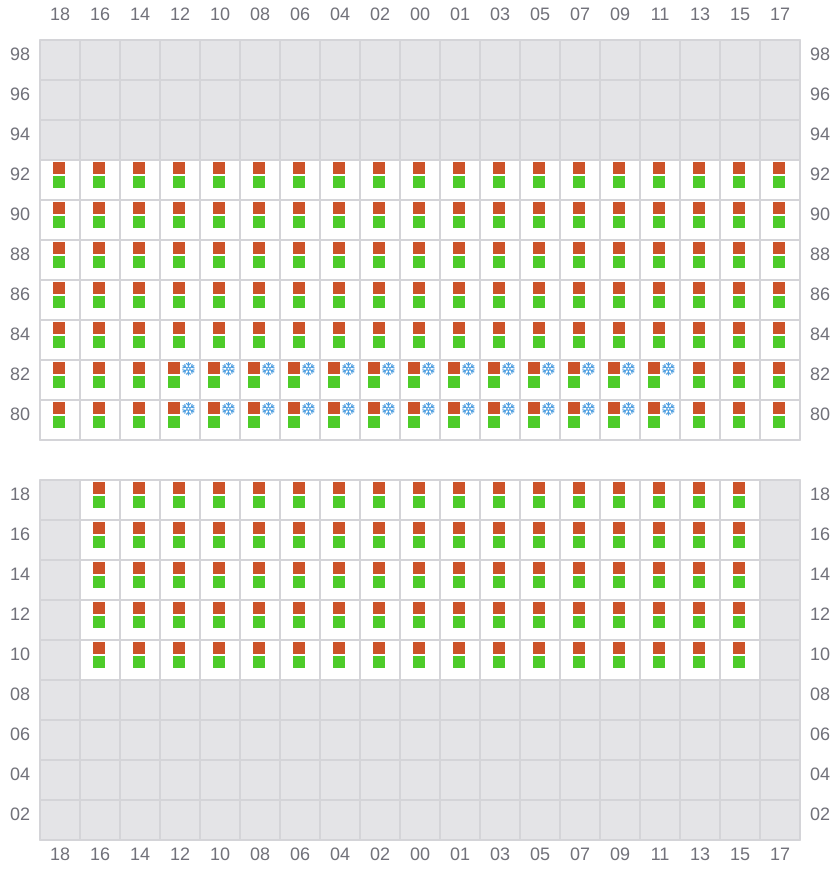

035 (034)
- ←

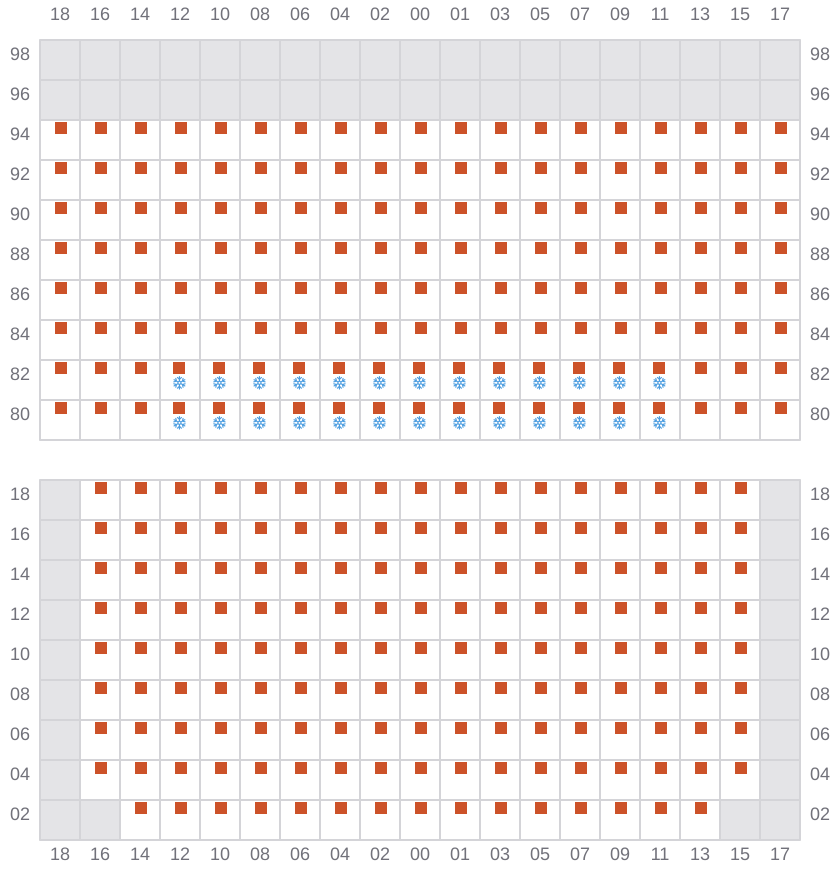

037
- →
039 (038)
- ←
041
- →
043 (042)
- ←
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←
053
- →
055 (054)
- ←
057
- →
059 (058)
- ←

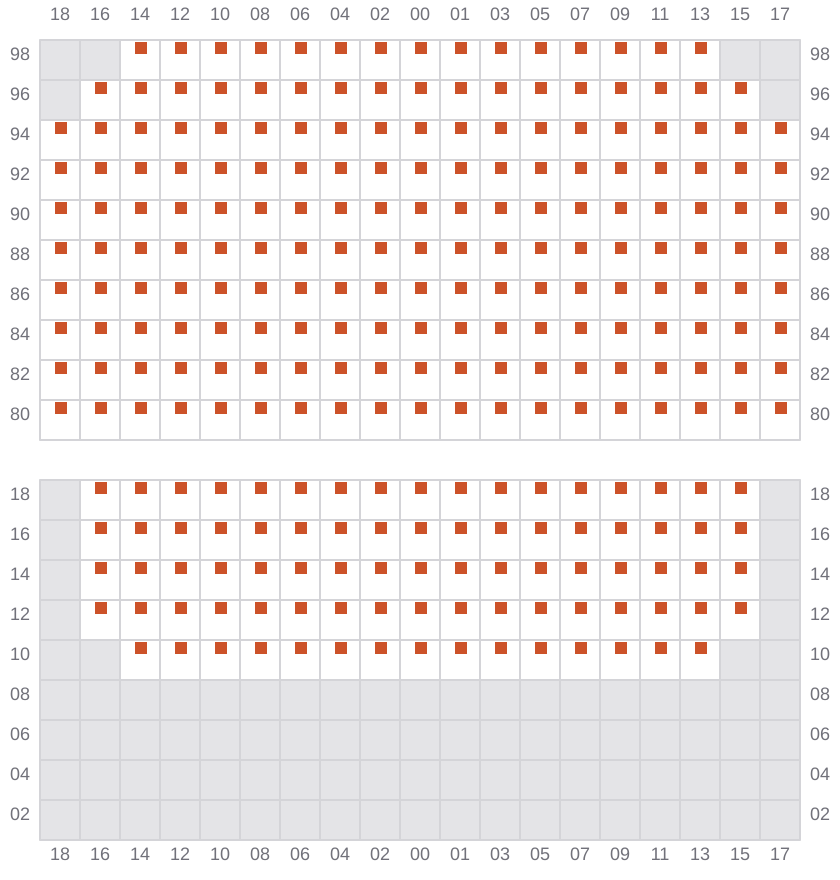

061
- →

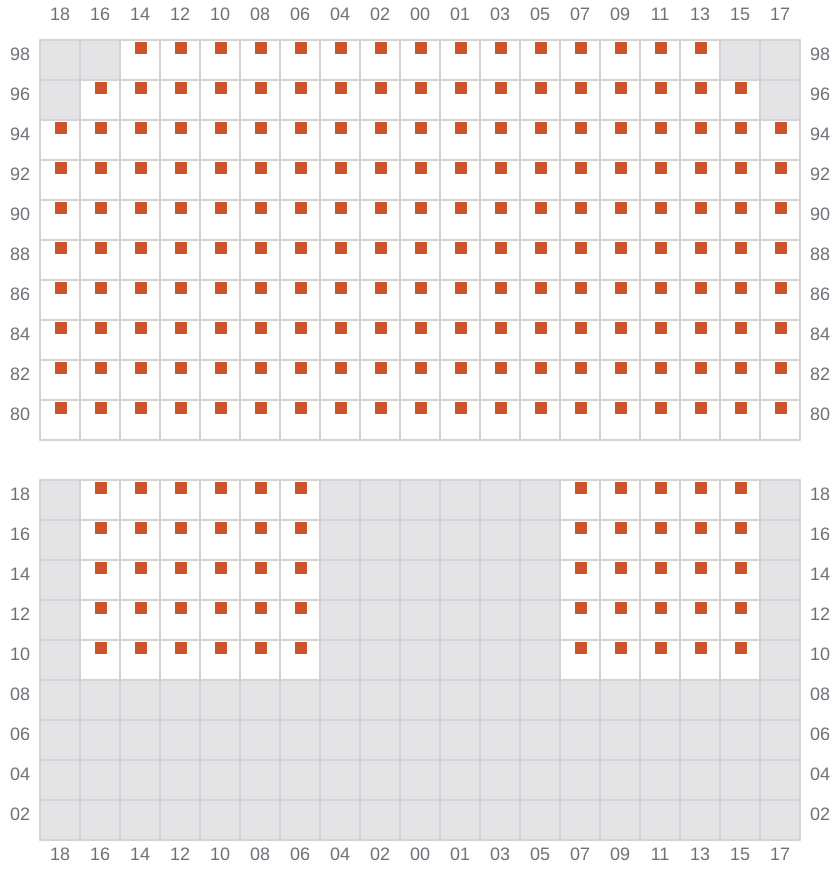

063 (062)
- ←

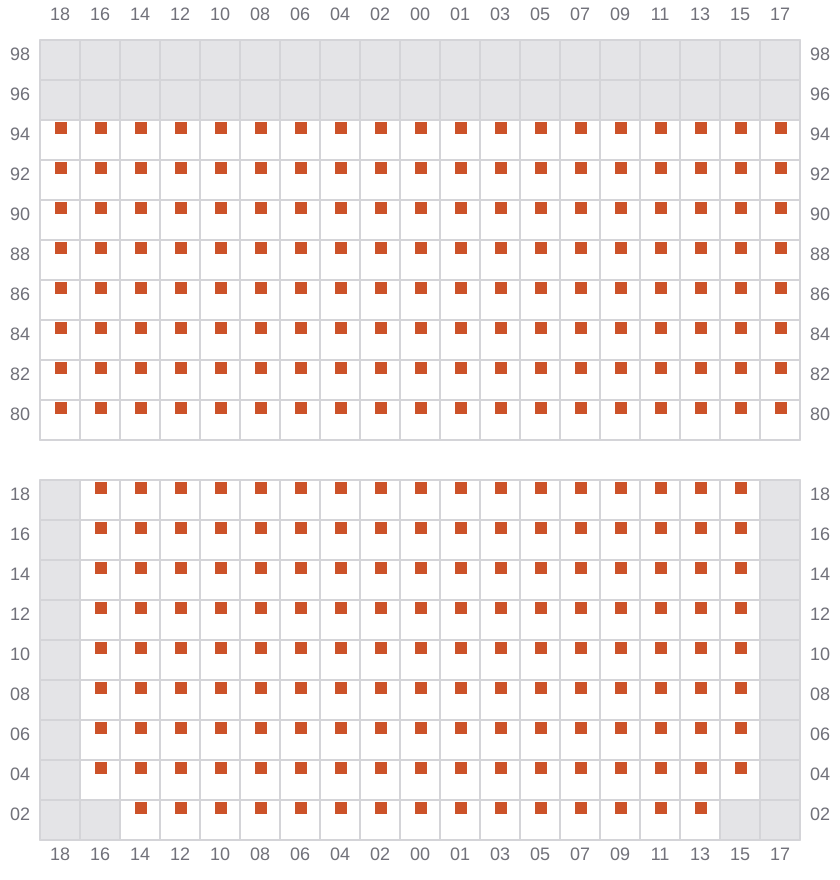

065
- →

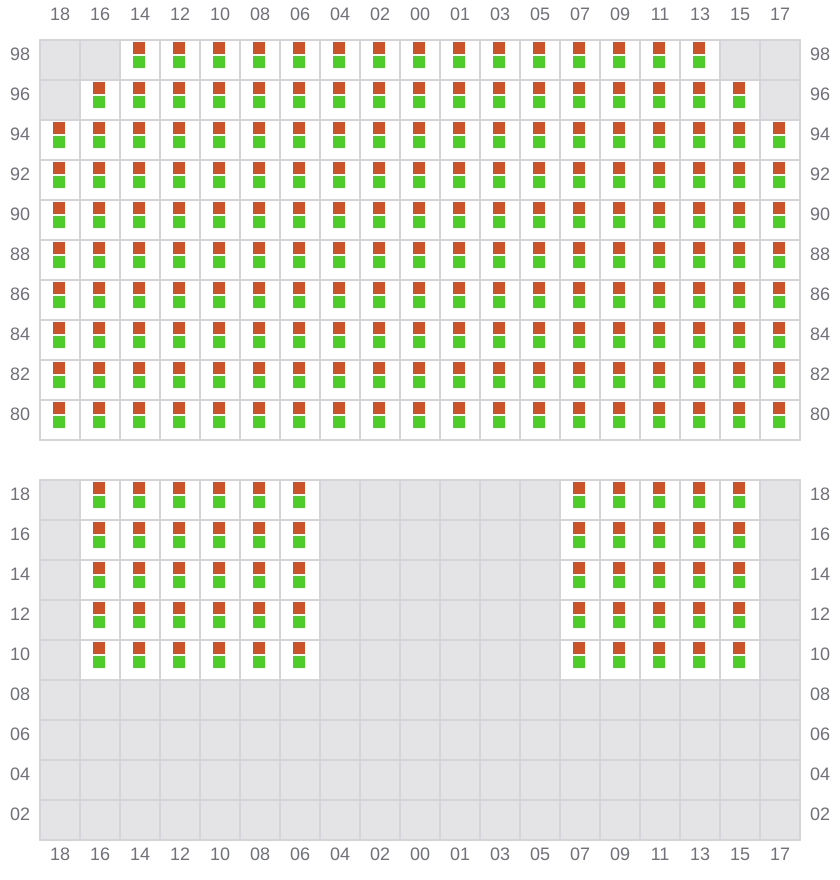

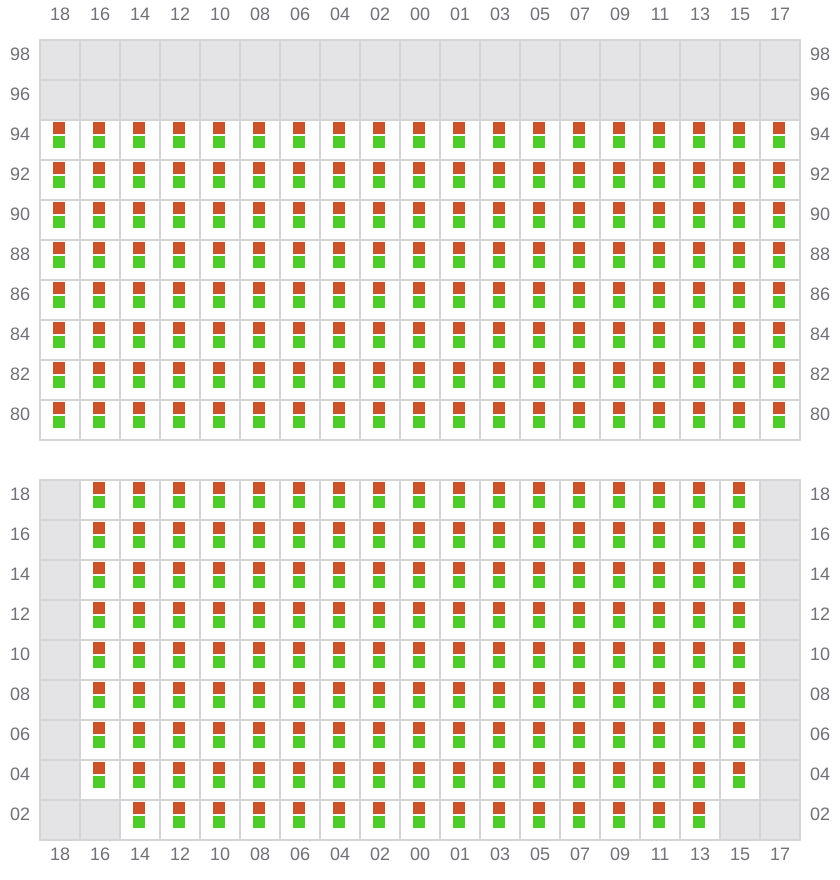

067 (066)
- ←

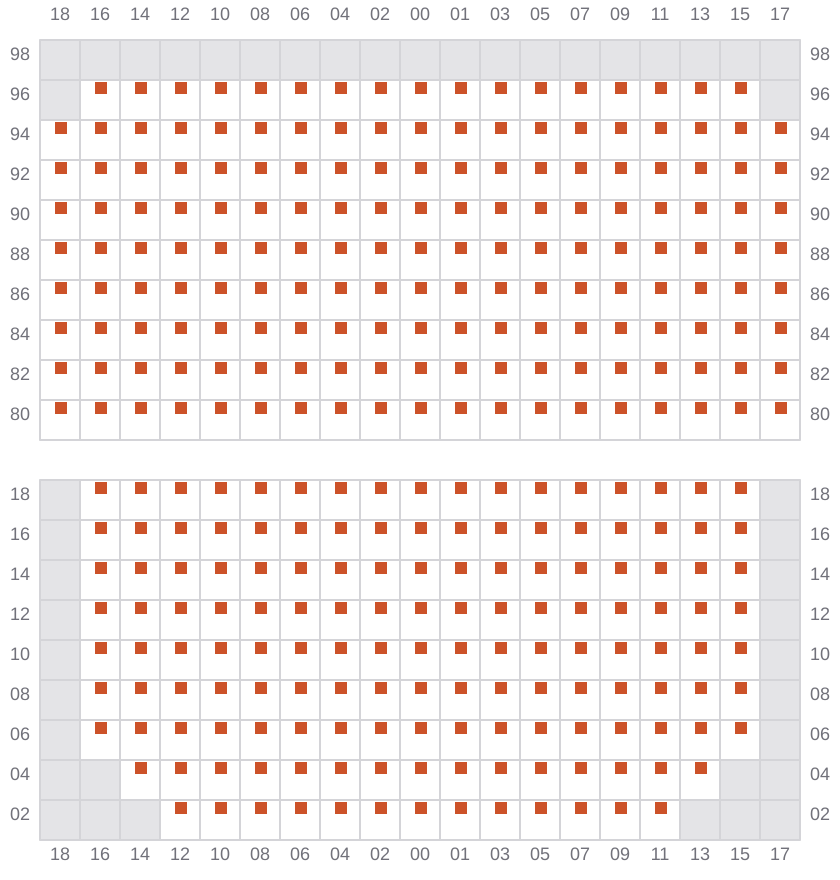

069

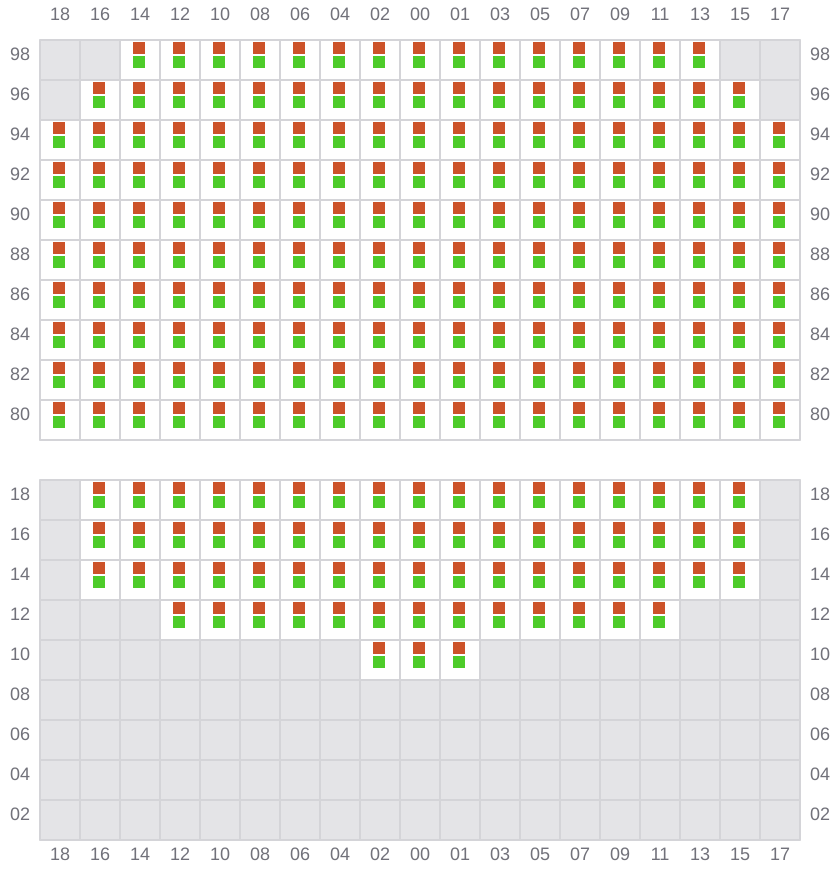

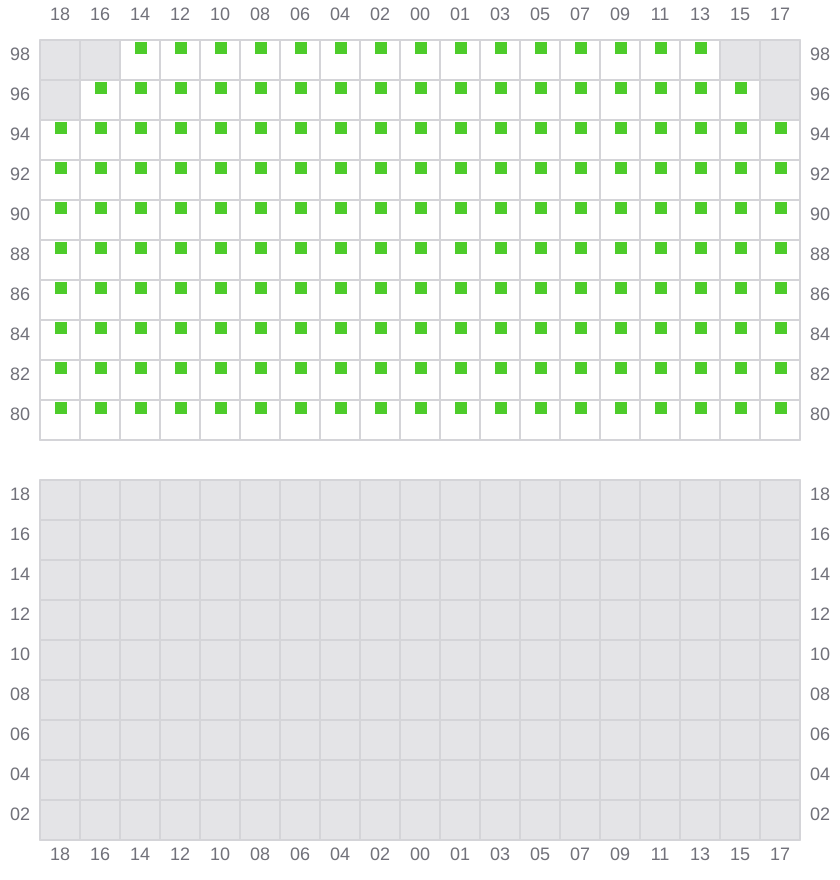

071 (070)
- ← / ?
- → / ?
