MSC AGAMEMNON
9315381 | CQQR | 9315381 by ********* Last update: Thu Aug 15 2024

General Info

Ship Name:MSC AGAMEMNON
IMO Code:9315381
Call Sign:CQQR
Line Operator:9315381
Class Name for Sister Ships:MSL
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:073
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,909

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

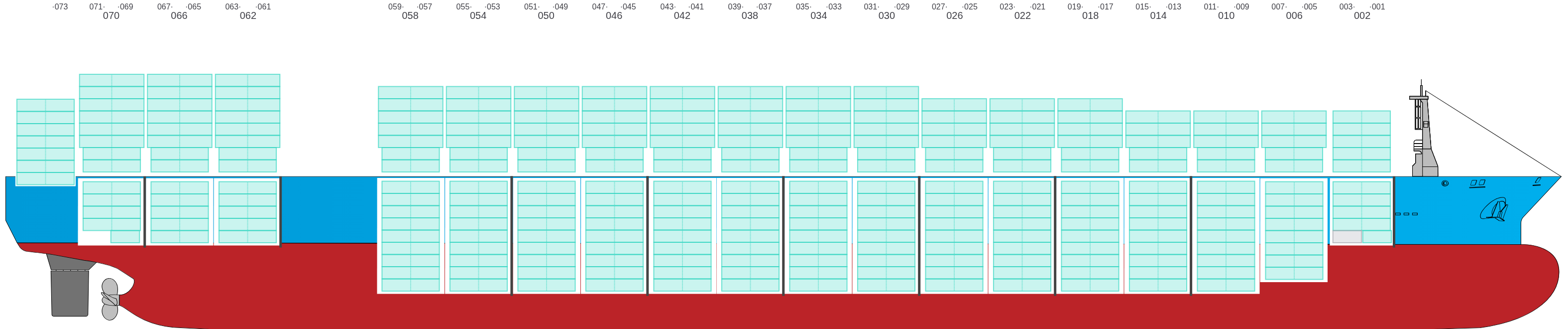

Side View

Side view of MSC AGAMEMNON

Hatch-Covers View

Deck view of MSC AGAMEMNON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

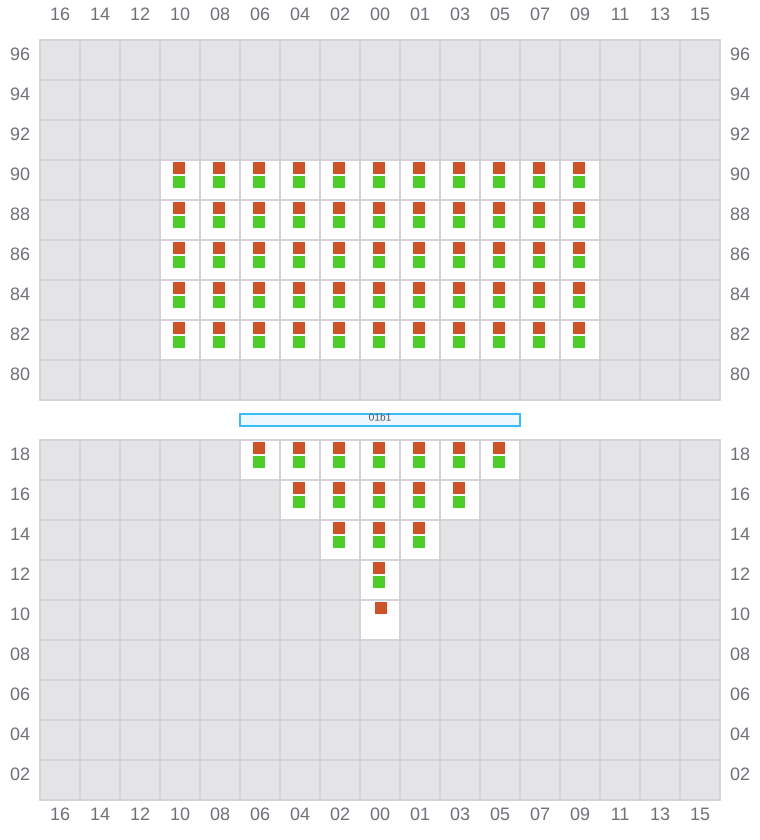

001 (002)

  • →
Bay 001 view and slots of MSC AGAMEMNON

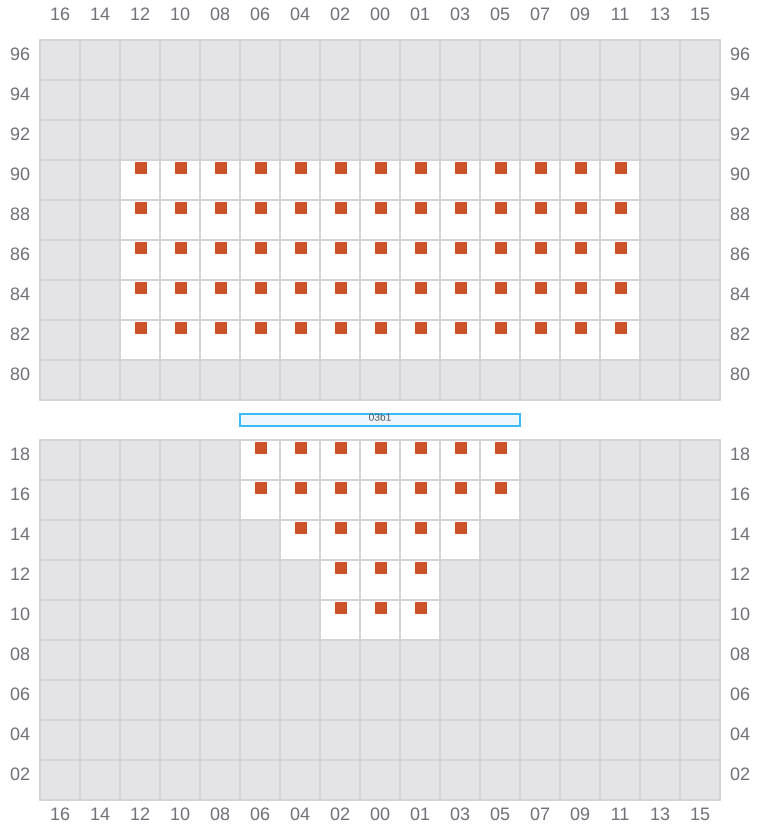

003

  • ←
Bay 003 view and slots of MSC AGAMEMNON

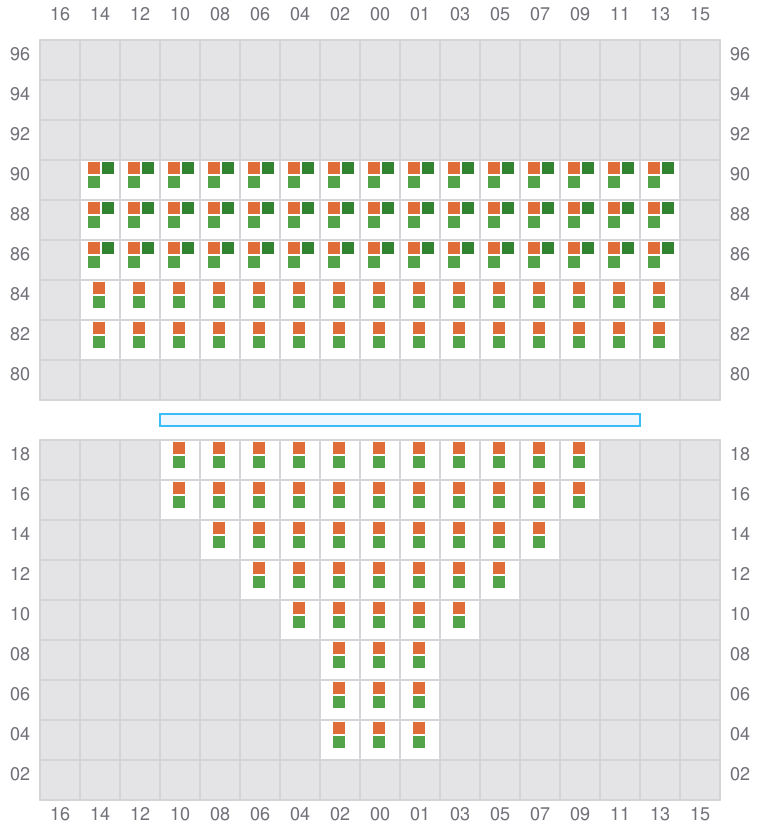

005 (006)

  • →
Bay 005 view and slots of MSC AGAMEMNON

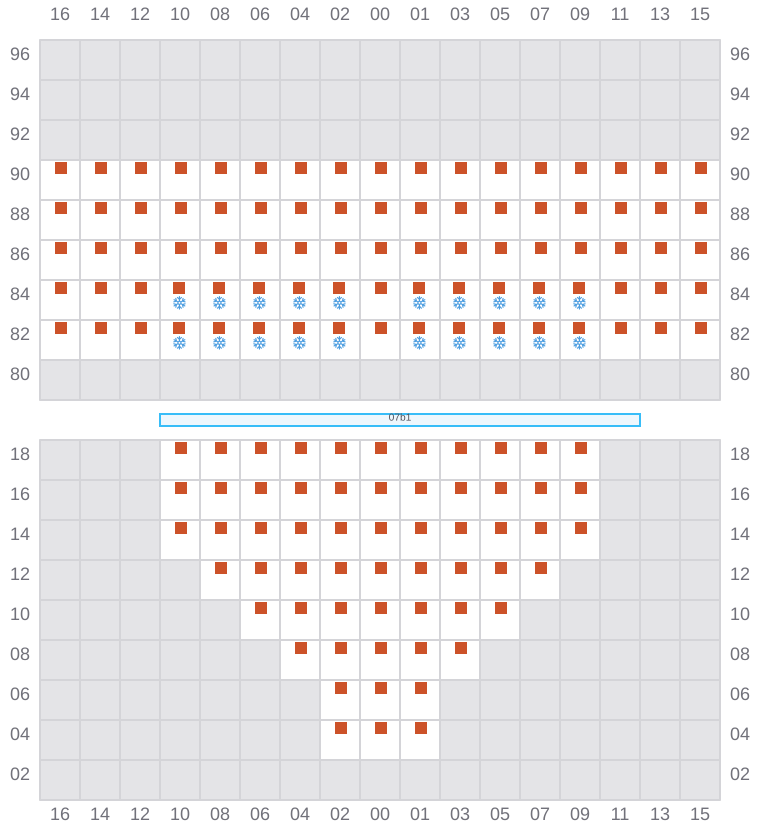

007

  • ←
  • → / ?
Bay 007 view and slots of MSC AGAMEMNON

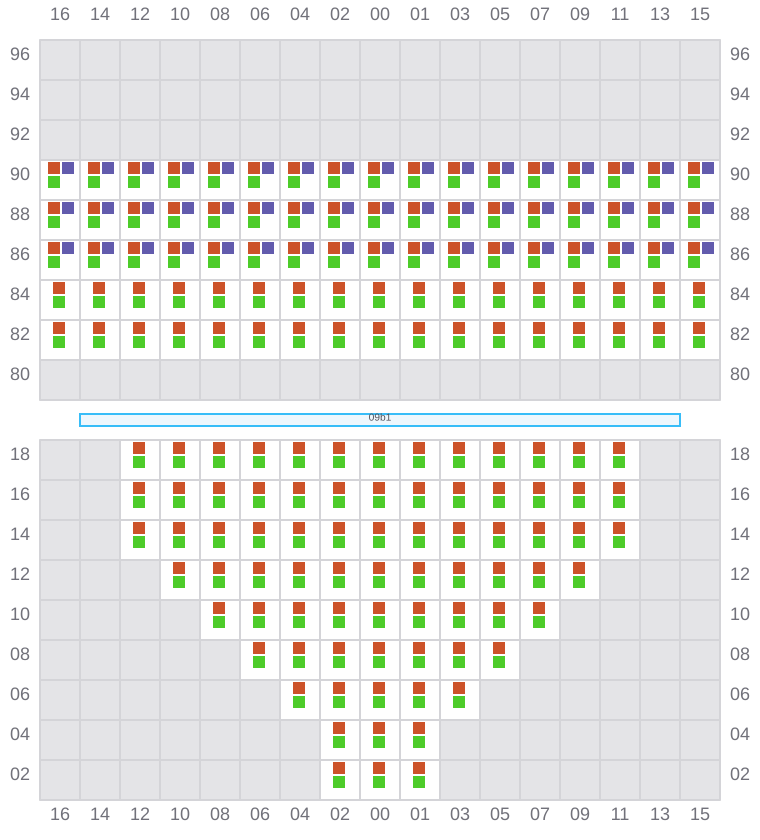

009 (010)

  • →
Bay 009 view and slots of MSC AGAMEMNON

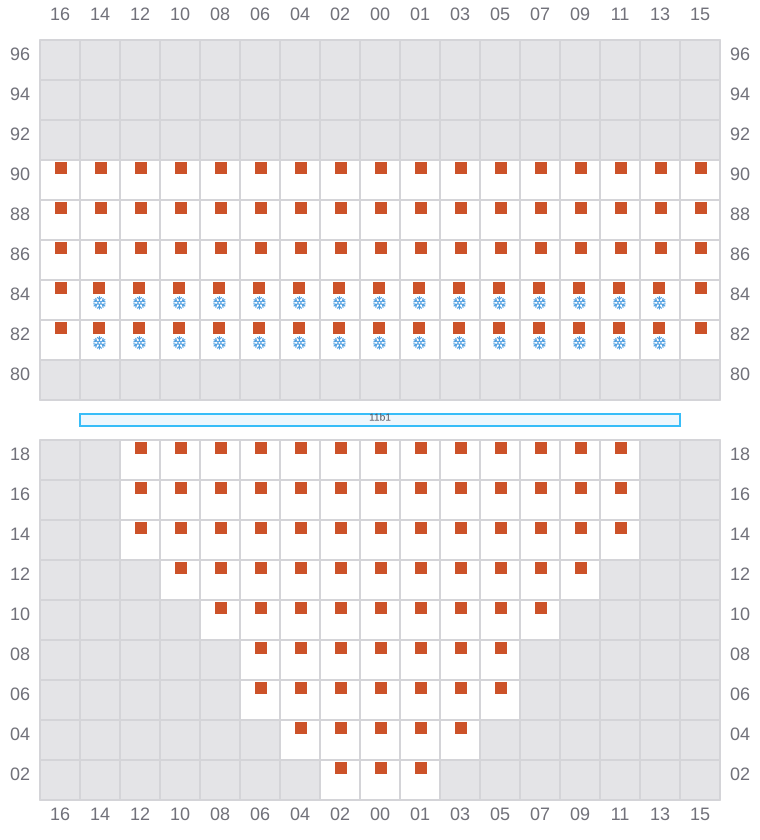

011

  • ←
  • → / ?
Bay 011 view and slots of MSC AGAMEMNON

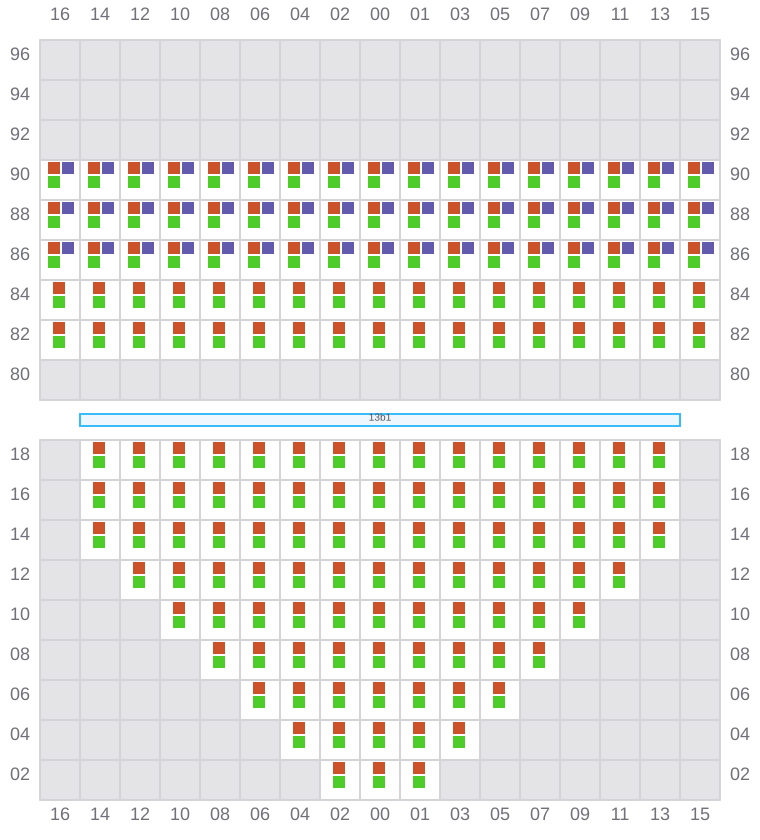

013 (014)

  • →
Bay 013 view and slots of MSC AGAMEMNON

015

  • ←
  • → / ?

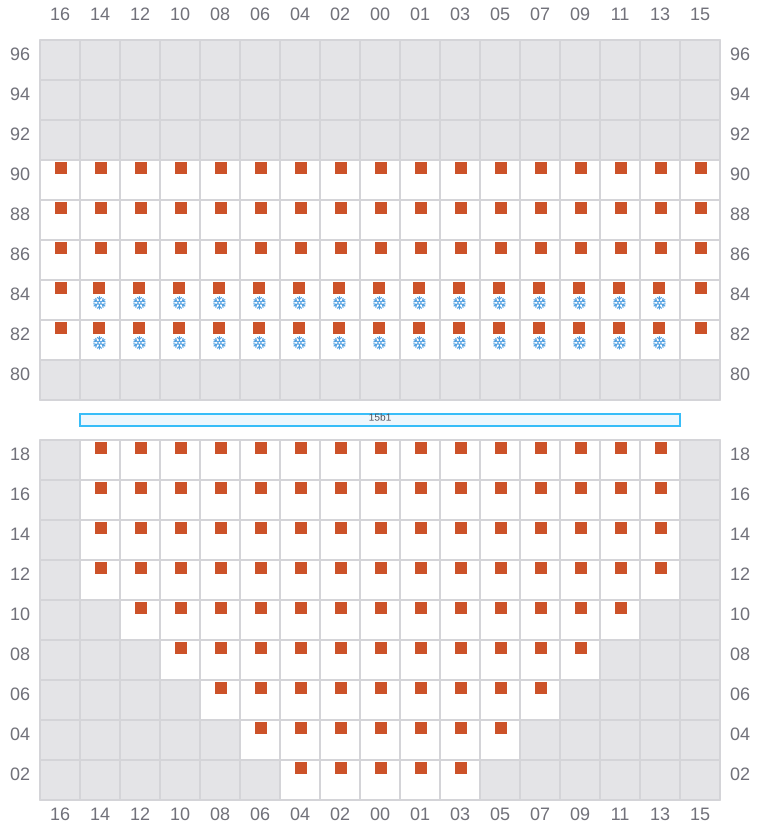

Bay 015 view and slots of MSC AGAMEMNON

017 (018)

  • →

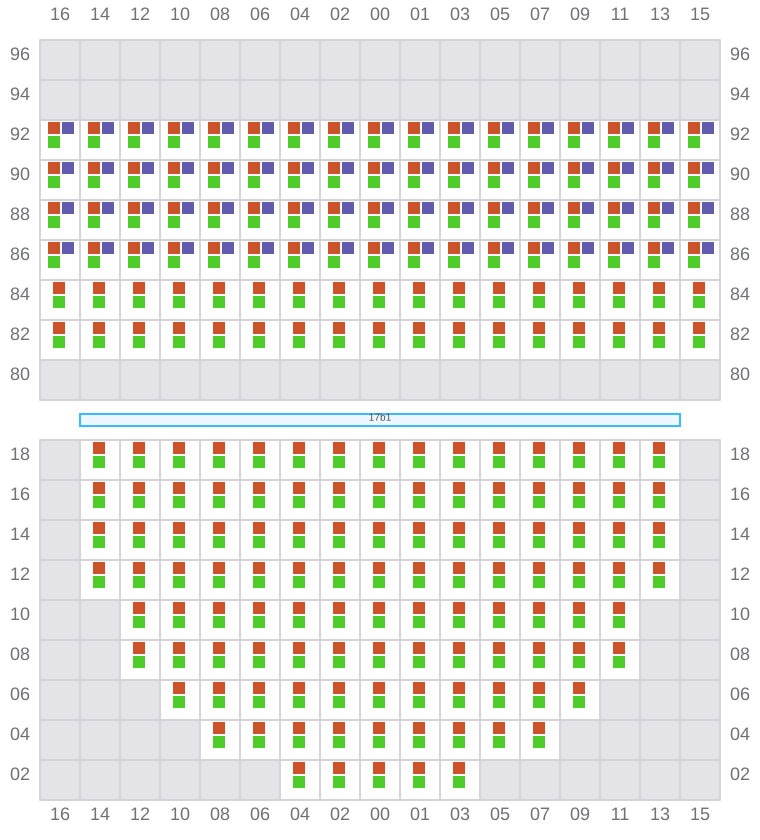

Bay 017 view and slots of MSC AGAMEMNON

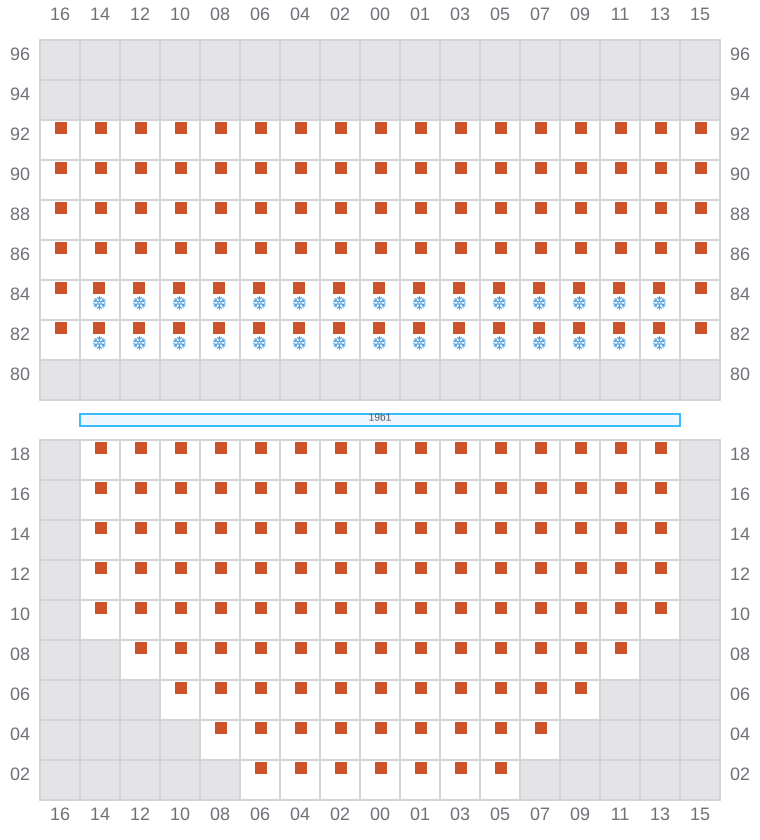

019

  • ←
  • → / ?
Bay 019 view and slots of MSC AGAMEMNON

021 (022)

  • →

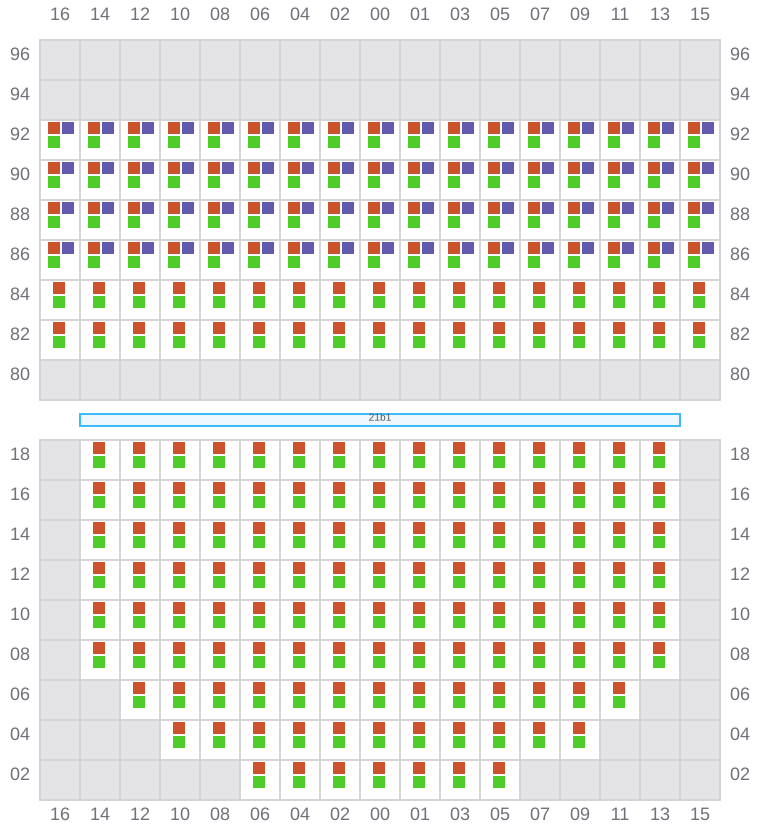

Bay 021 view and slots of MSC AGAMEMNON

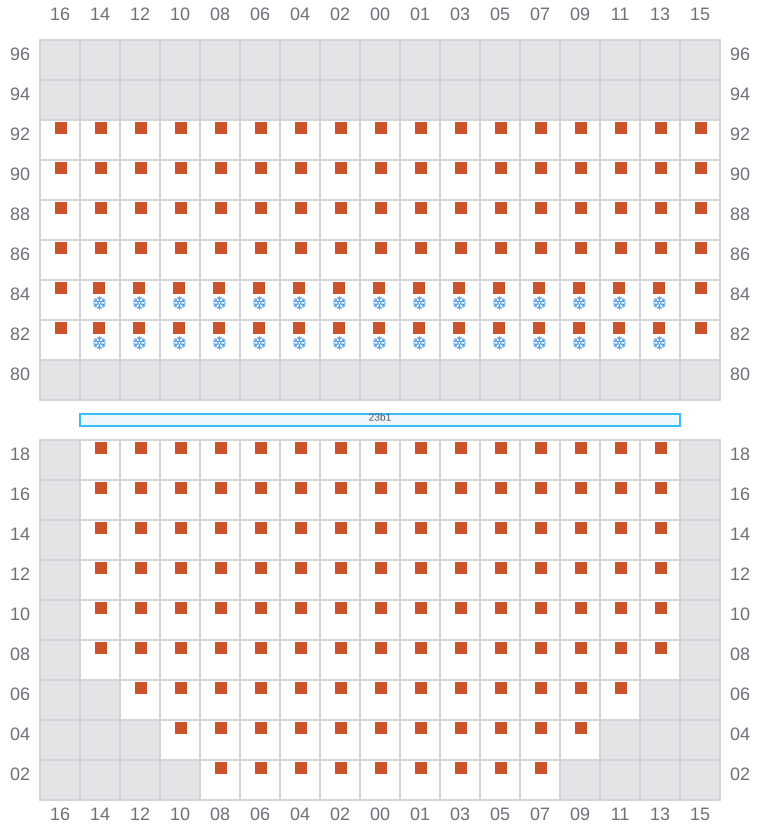

023

  • ←
  • → / ?
Bay 023 view and slots of MSC AGAMEMNON

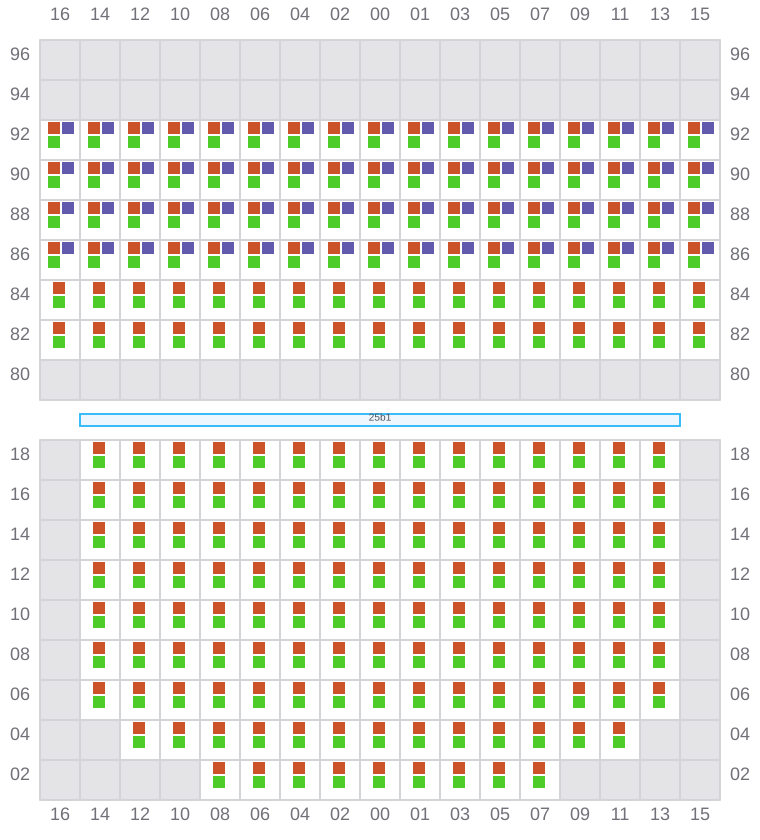

025 (026)

  • →
Bay 025 view and slots of MSC AGAMEMNON

027

  • ←
  • → / ?
Bay 027 view and slots of MSC AGAMEMNON

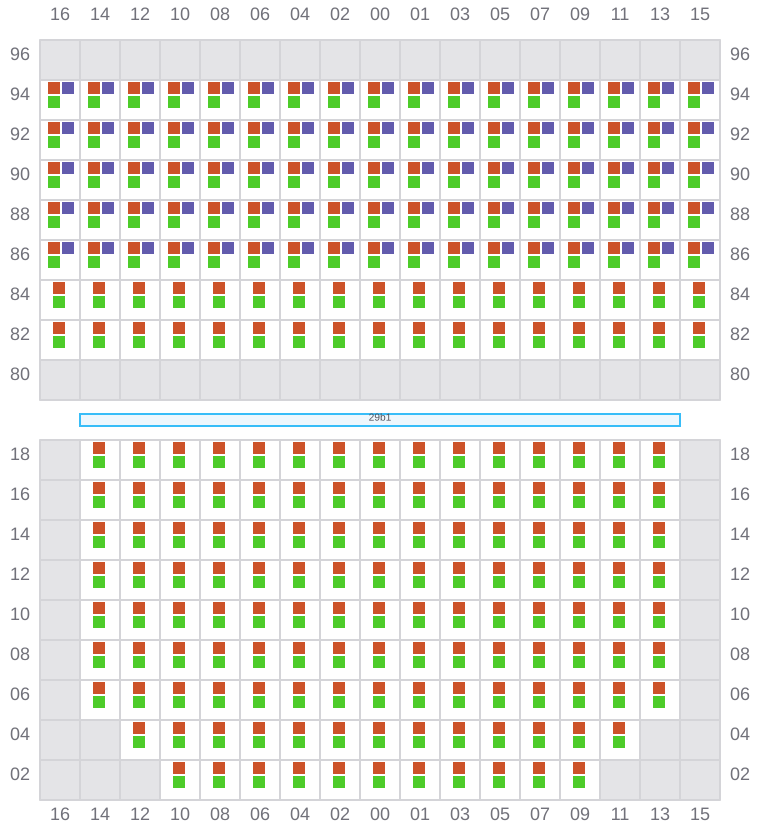

029 (030)

  • →
Bay 029 view and slots of MSC AGAMEMNON

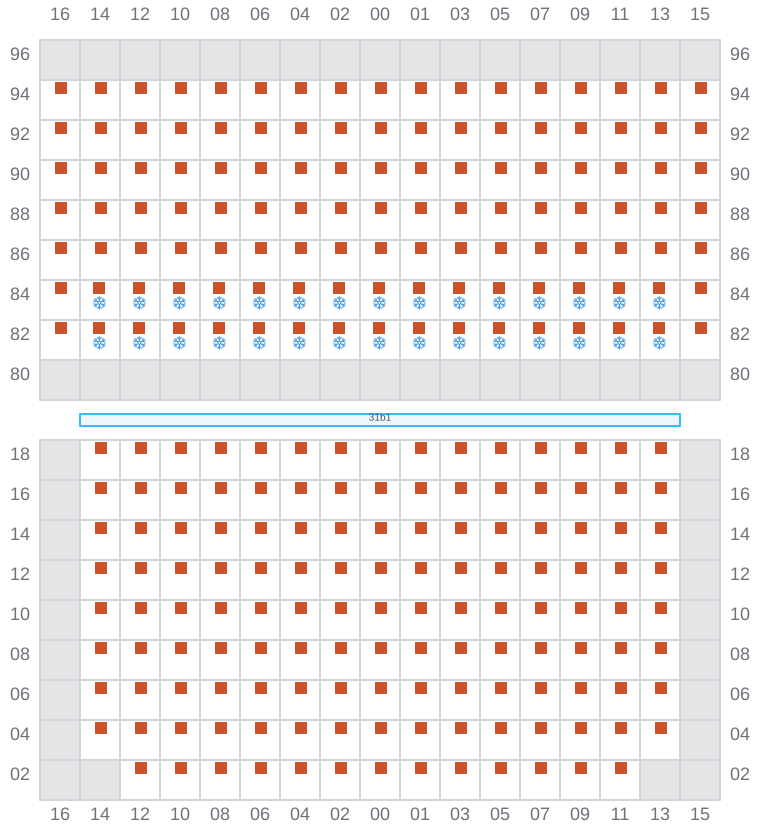

031

  • ←
  • → / ?
Bay 031 view and slots of MSC AGAMEMNON

033 (034)

  • →
Bay 033 view and slots of MSC AGAMEMNON

035

  • ←
  • → / ?
Bay 035 view and slots of MSC AGAMEMNON

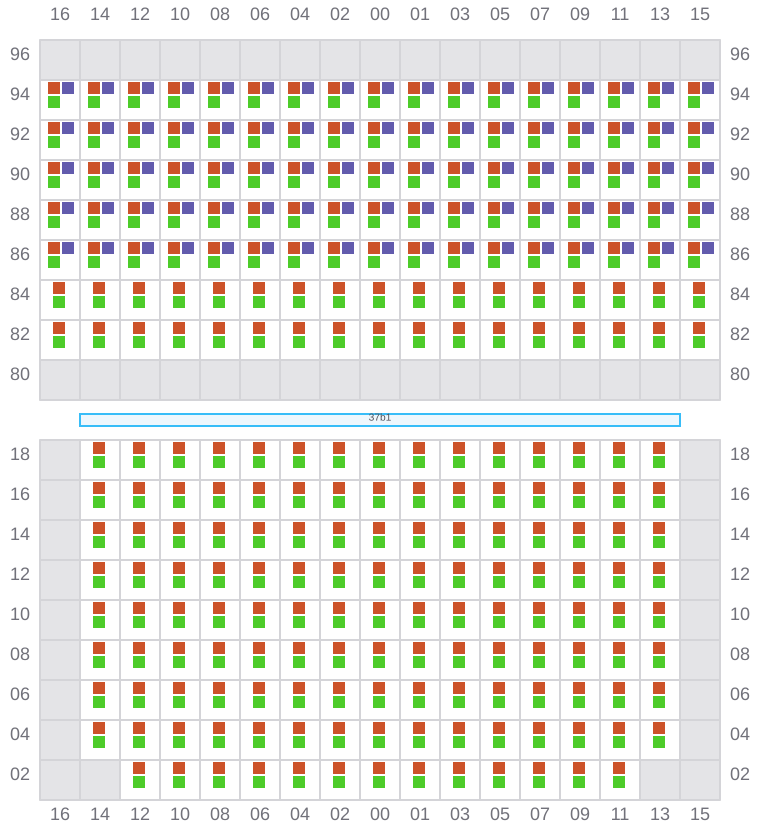

037 (038)

  • →
Bay 037 view and slots of MSC AGAMEMNON

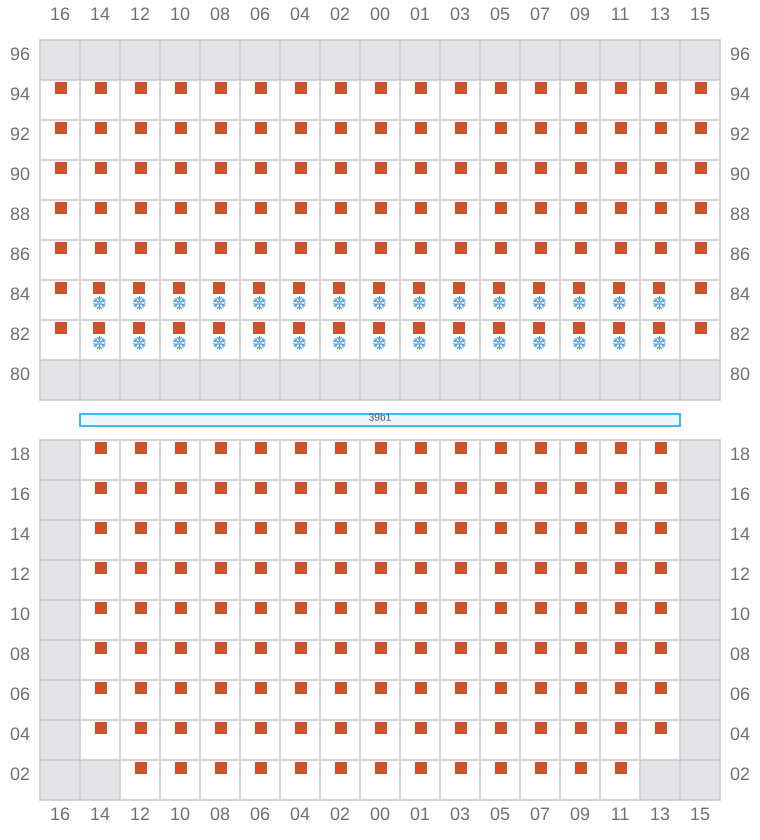

039

  • ←
  • → / ?
Bay 039 view and slots of MSC AGAMEMNON

041 (042)

  • →
Bay 041 view and slots of MSC AGAMEMNON

043

  • ←
  • → / ?
Bay 043 view and slots of MSC AGAMEMNON

045 (046)

  • →
Bay 045 view and slots of MSC AGAMEMNON

047

  • ←
  • →

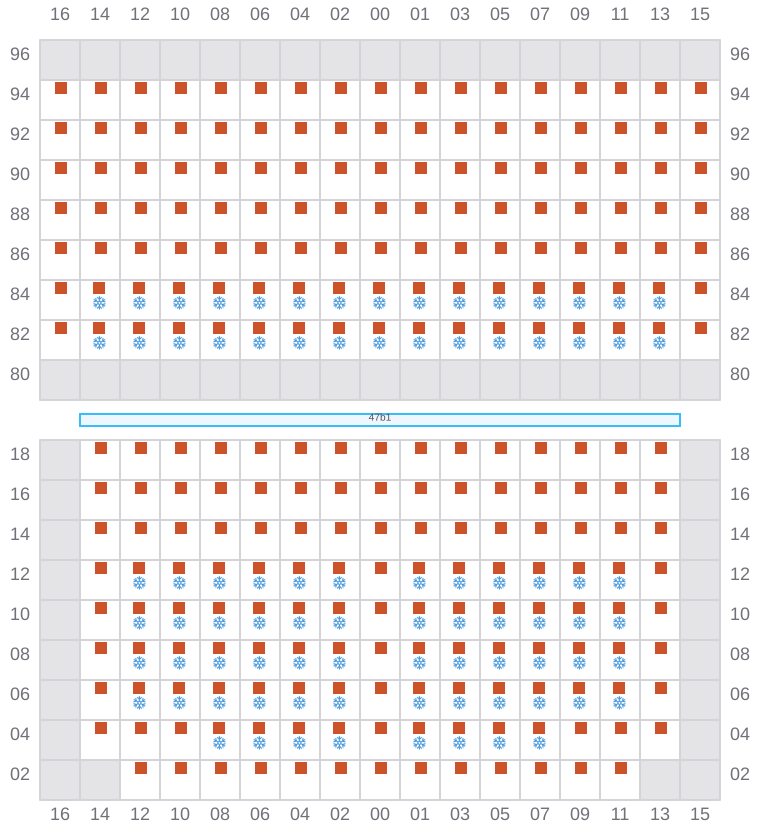

Bay 047 view and slots of MSC AGAMEMNON

049 (050)

  • →
Bay 049 view and slots of MSC AGAMEMNON

051

  • ←
  • →
Bay 051 view and slots of MSC AGAMEMNON

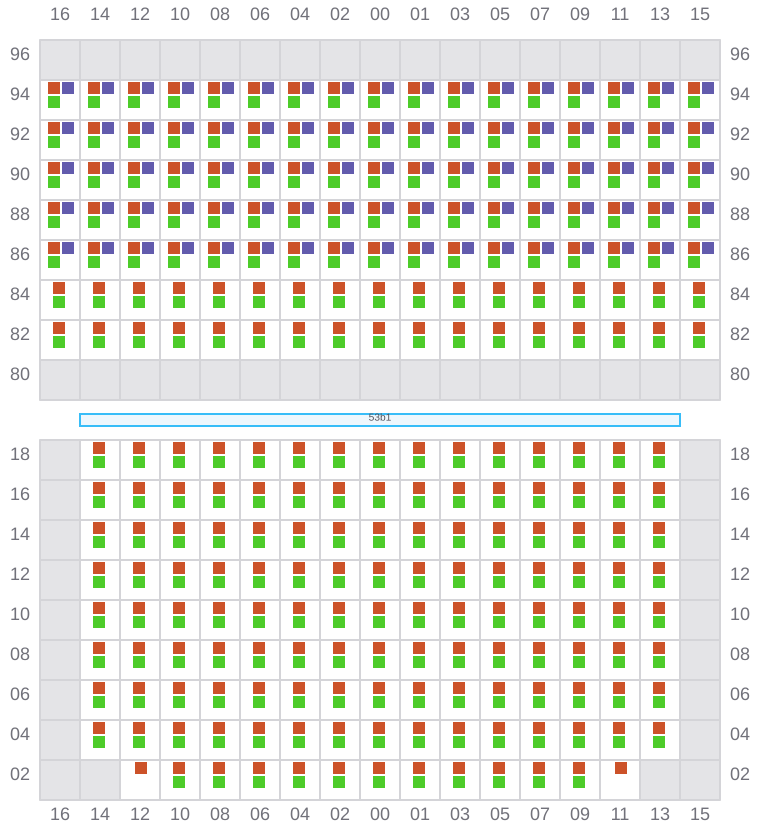

053 (054)

  • →
Bay 053 view and slots of MSC AGAMEMNON

055

  • ←
  • →

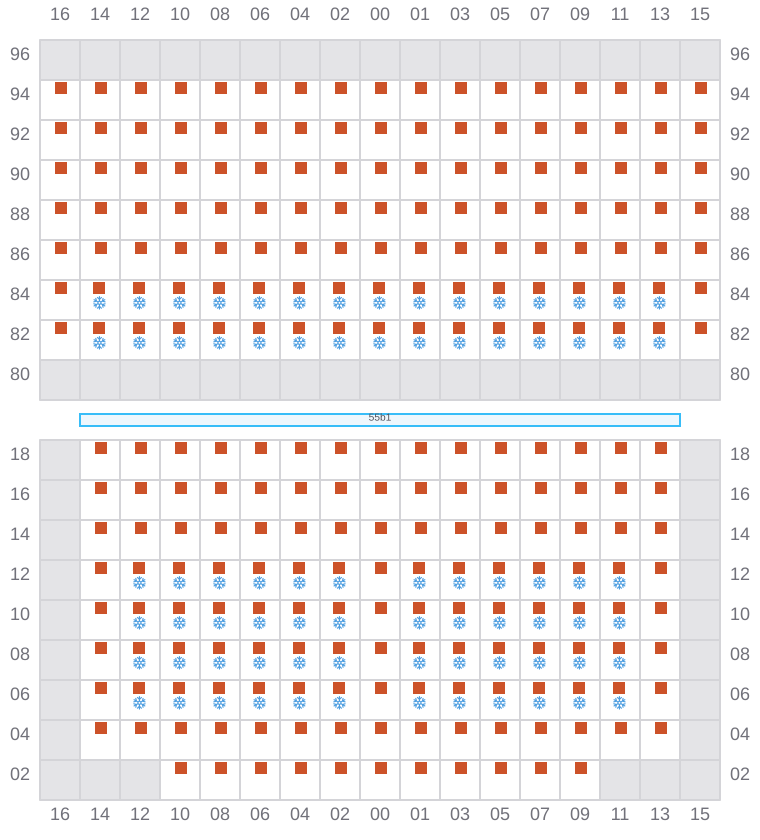

Bay 055 view and slots of MSC AGAMEMNON

057 (058)

  • →

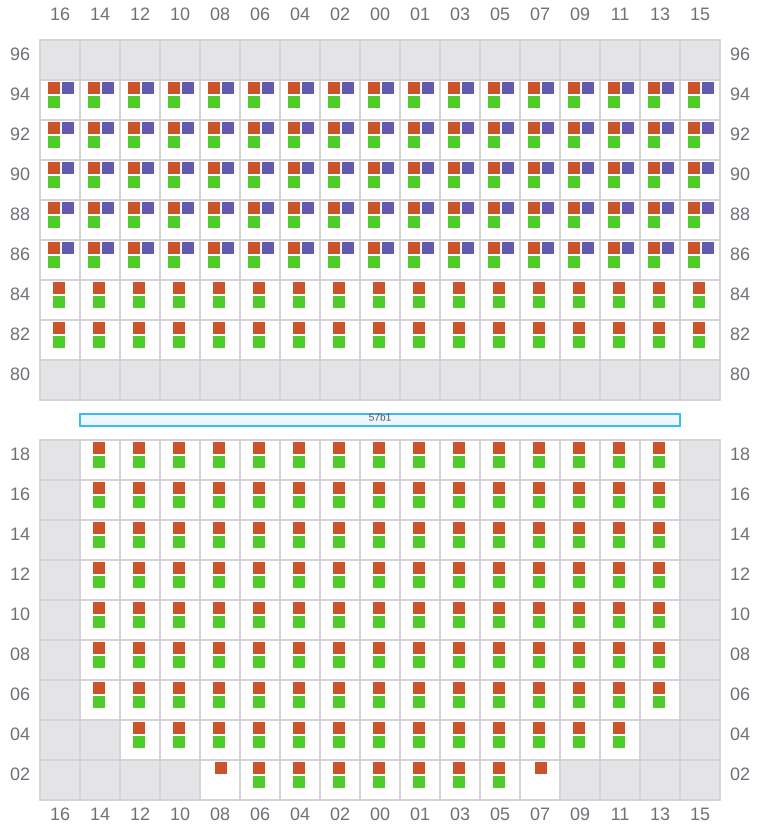

Bay 057 view and slots of MSC AGAMEMNON

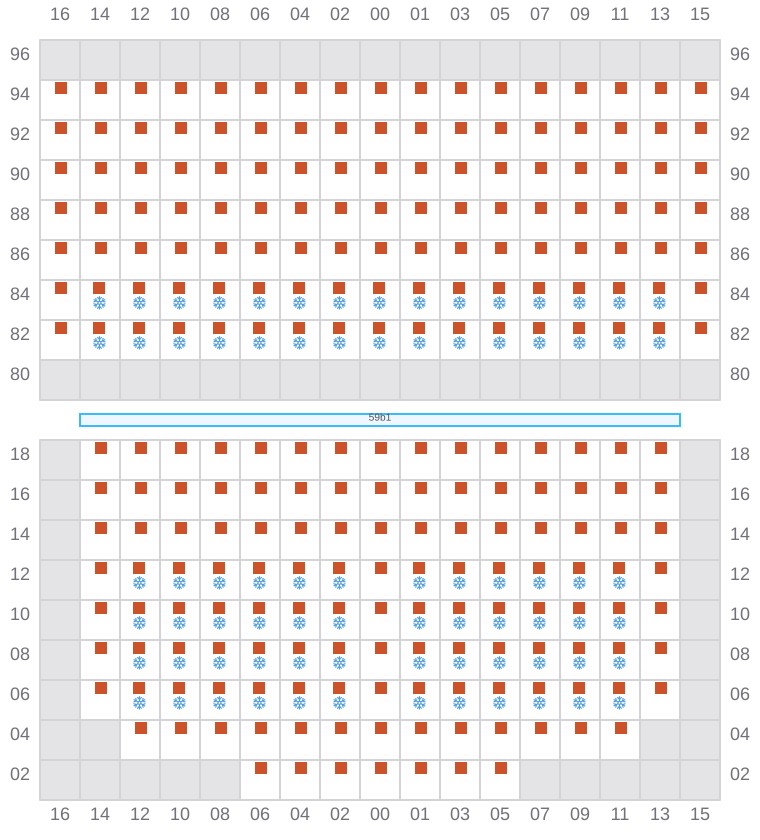

059

  • ←
  • →
Bay 059 view and slots of MSC AGAMEMNON

061 (062)

  • →
Bay 061 view and slots of MSC AGAMEMNON

063

  • ←
  • → / ?

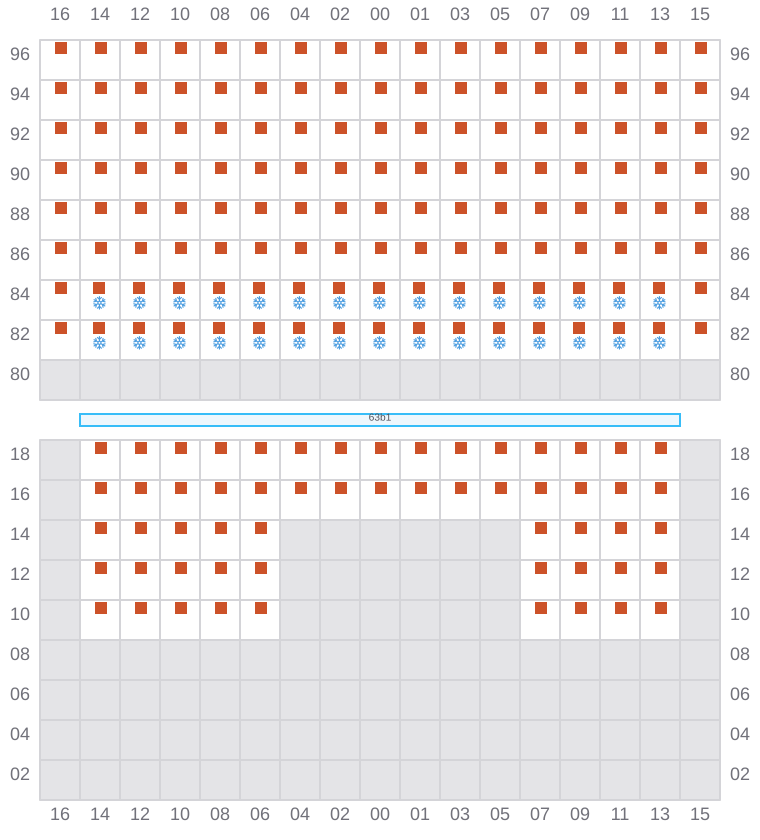

Bay 063 view and slots of MSC AGAMEMNON

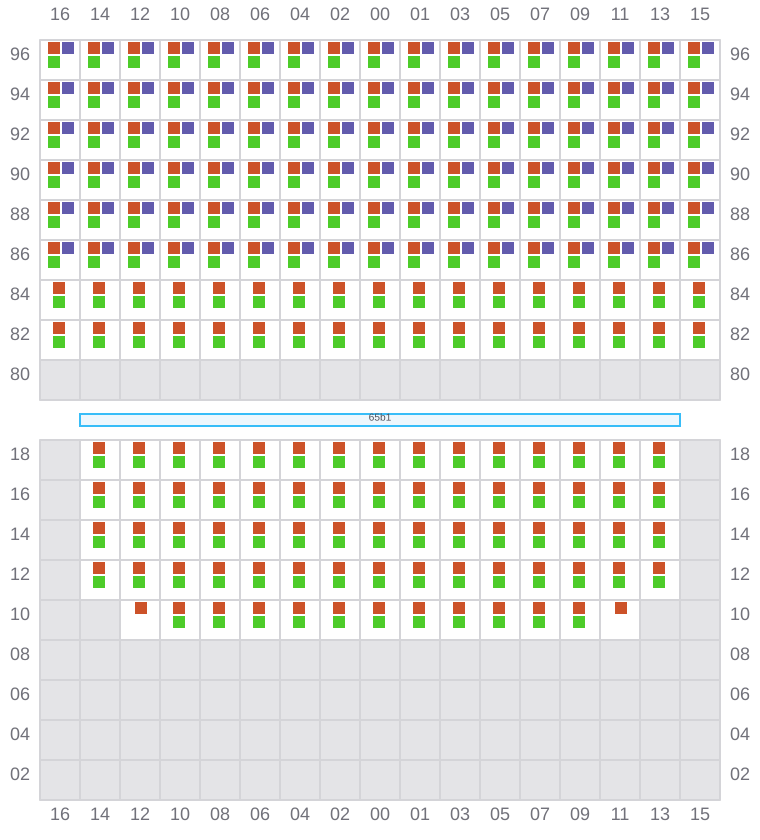

065 (066)

  • →
Bay 065 view and slots of MSC AGAMEMNON

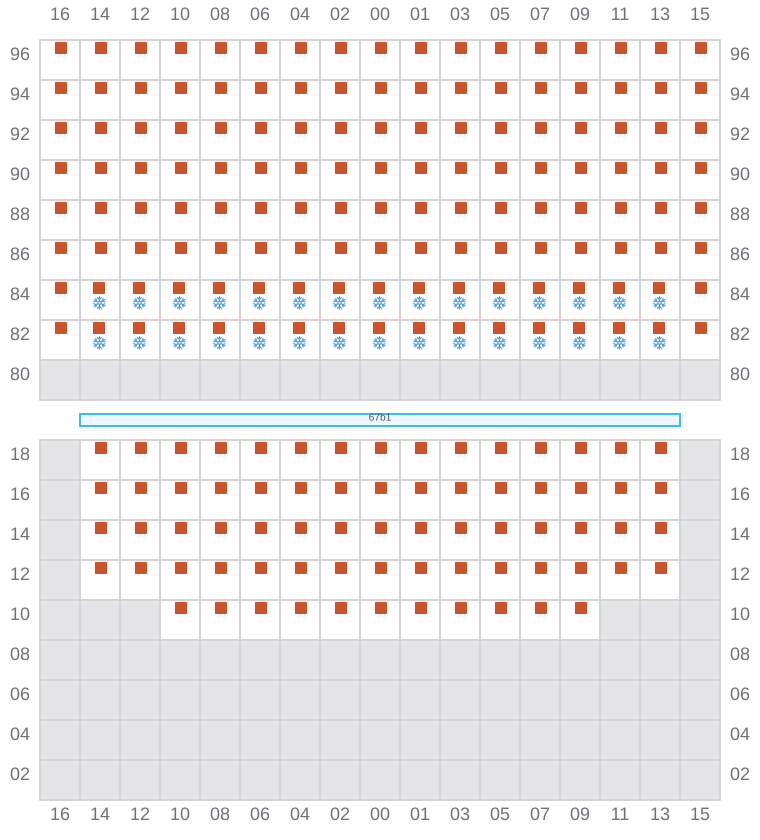

067

  • ←
  • → / ?
Bay 067 view and slots of MSC AGAMEMNON

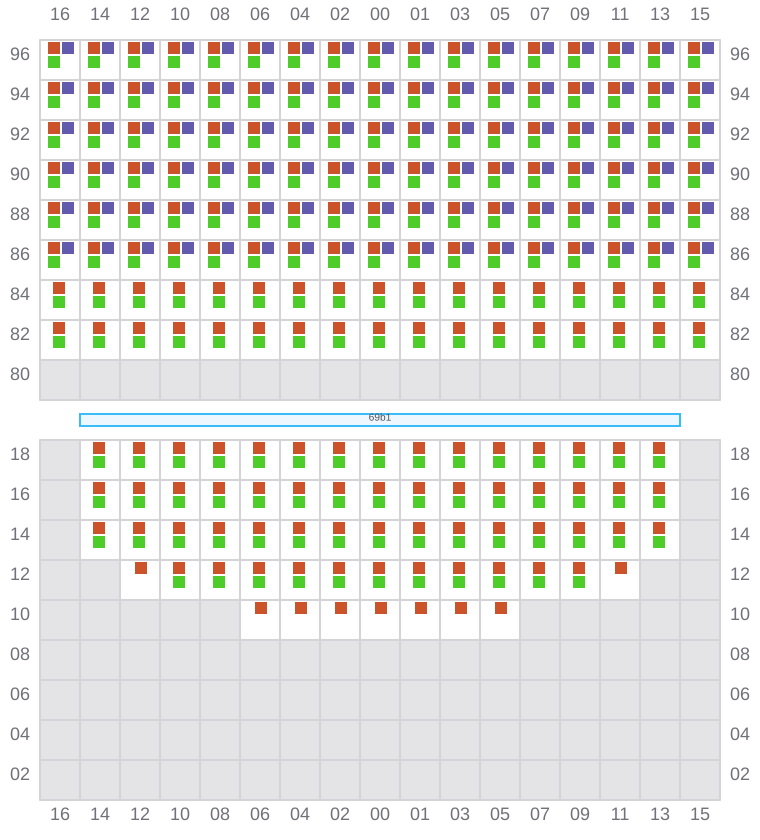

069 (070)

  • →
Bay 069 view and slots of MSC AGAMEMNON

071

  • ←
  • → / ?
Bay 071 view and slots of MSC AGAMEMNON

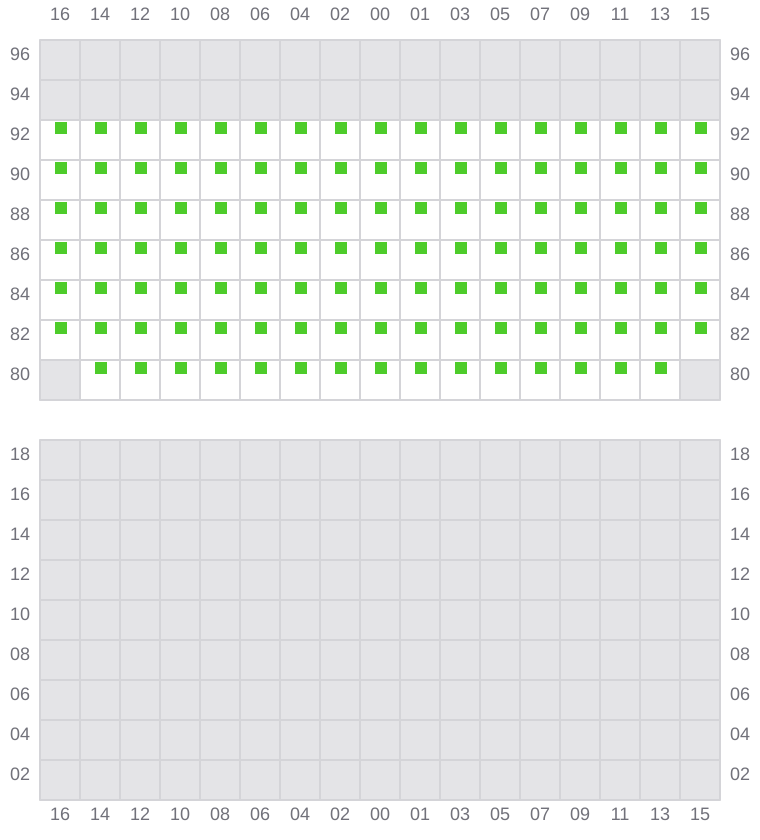

073 (074)

  • → / ?
Bay 073 view and slots of MSC AGAMEMNON
