MSC AGATA II
9057173 | D5LM5 | 9057173 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:MSC AGATA II
IMO Code:9057173
Call Sign:D5LM5
Line Operator:9057173
Class Name for Sister Ships:4J6
Year Built:1994
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,524
Centers of Gravity
LCG Values:Known
LCG Data:0%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

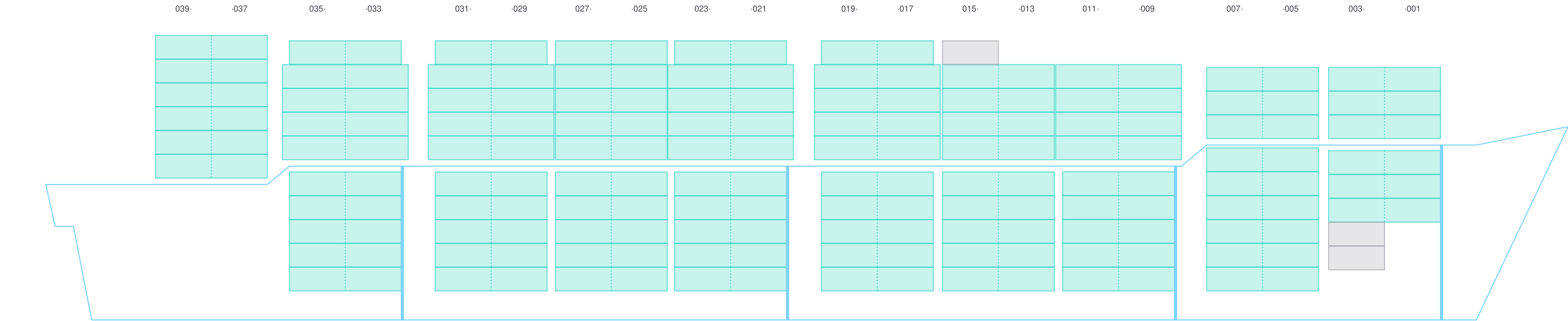

Side View

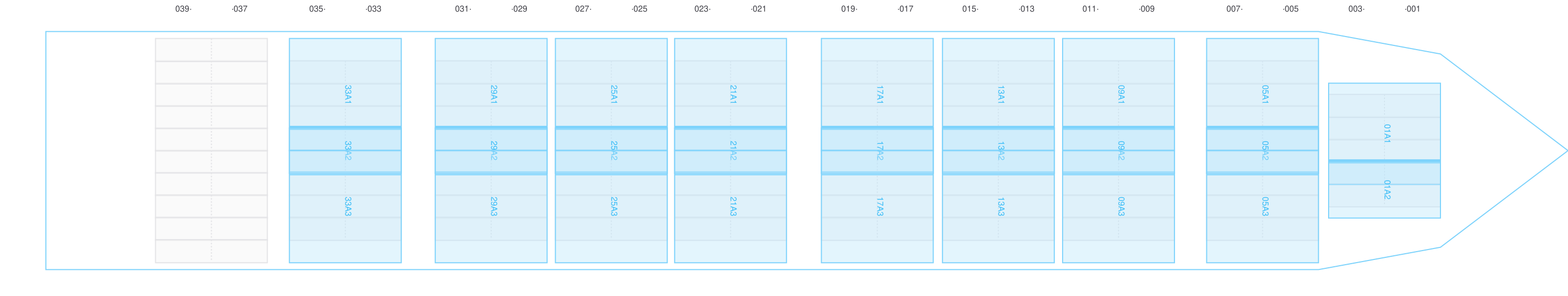

Hatch-Covers View

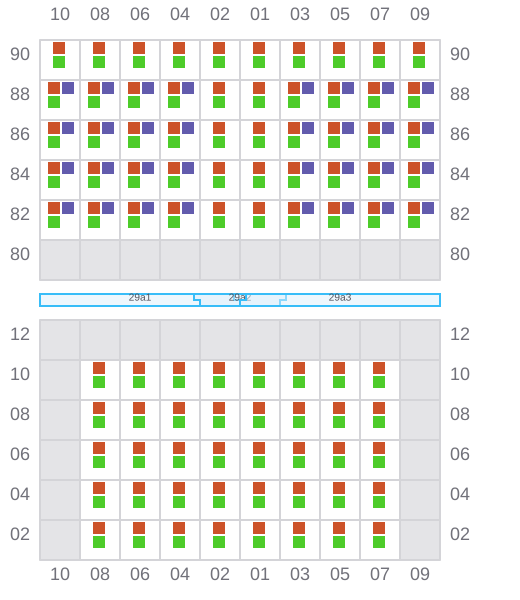

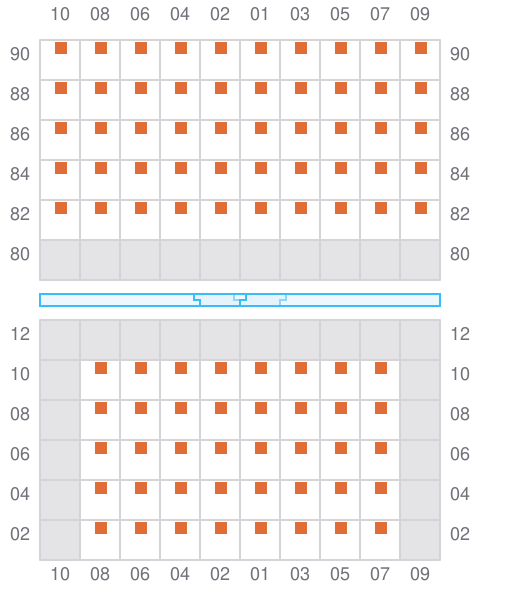

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

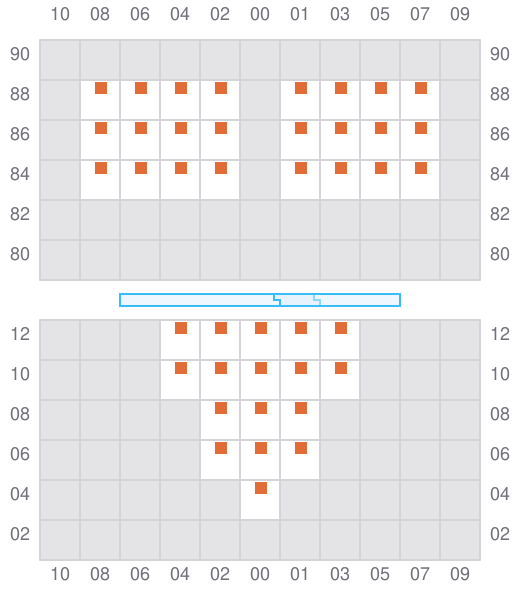

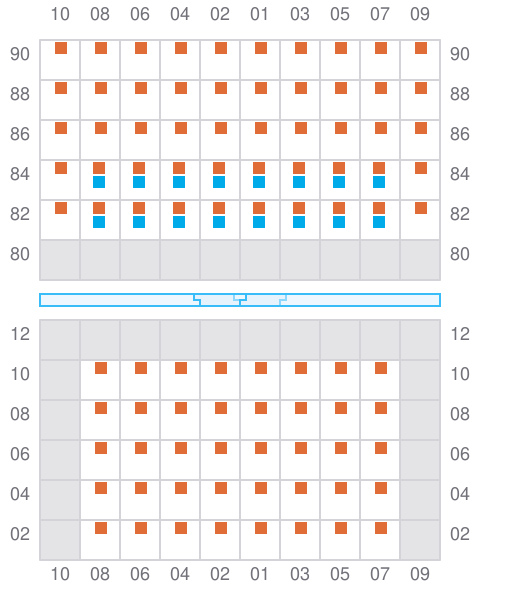

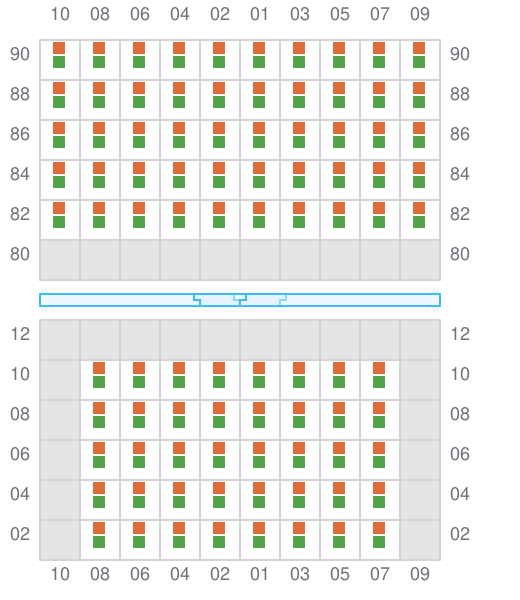

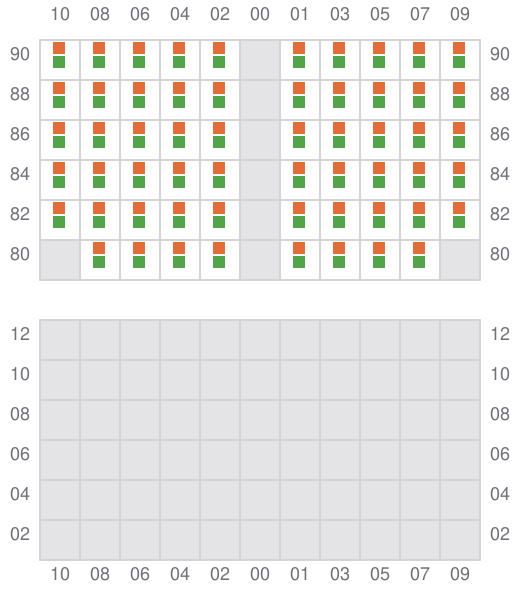

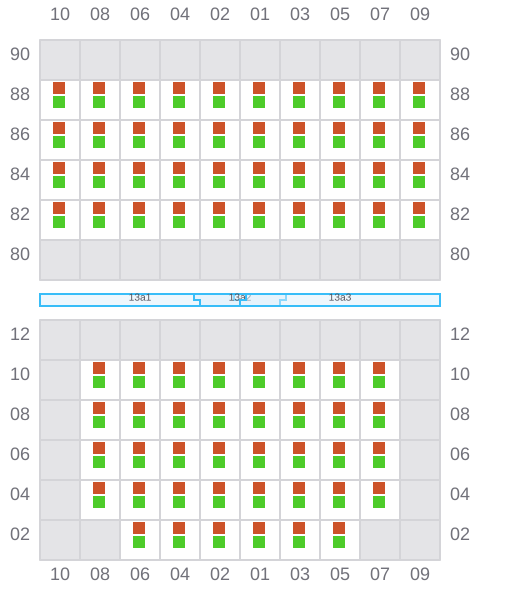

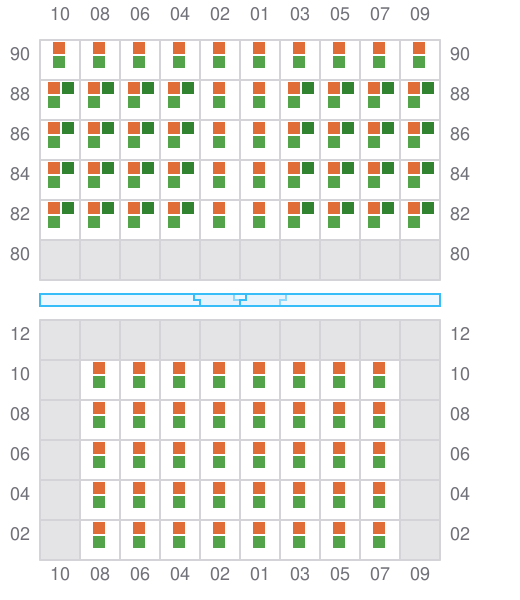

001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
- → / ?
009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
015
- ←
- → / ?
017 (018)
- →
019
- ←
- → / ?
021 (022)
- →
- ← / ?
023
- ←
025 (026)
- →
027
- ←
- → / ?
029 (030)
- →
- ← / ?
031
- ←
- → / ?
033 (034)
- →
- ← / ?
035
- ←
- → / ?
037 (038)
- → / ?
- ← / ?
039
- ← / ?
- → / ?
