MSC AJACCIO
9605267 | 9HA3461 | MSC by ******************** Last update: Tue Mar 25 2025
General Info
Ship Name:MSC AJACCIO
IMO Code:9605267
Call Sign:9HA3461
Line Operator:MSC
Class Name for Sister Ships:MSC AJACCIO
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.30
LOA (Length Overall):299.84
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,441
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

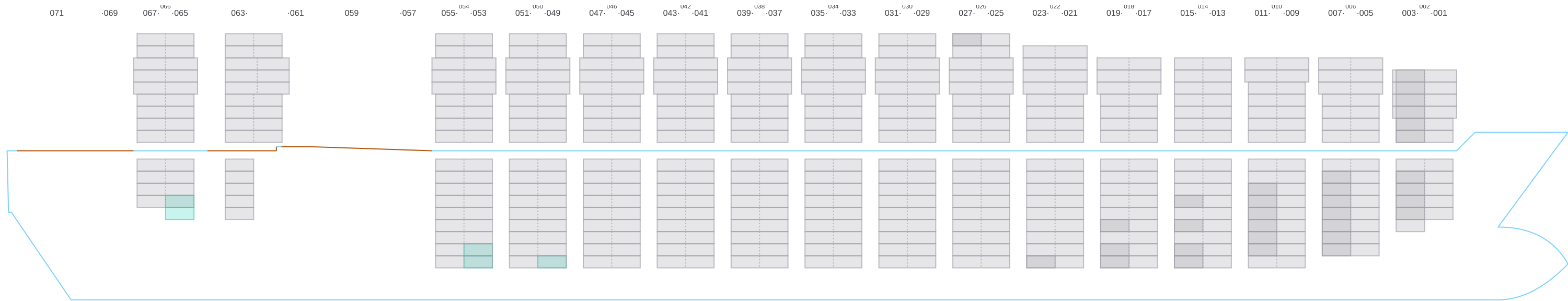

Side View

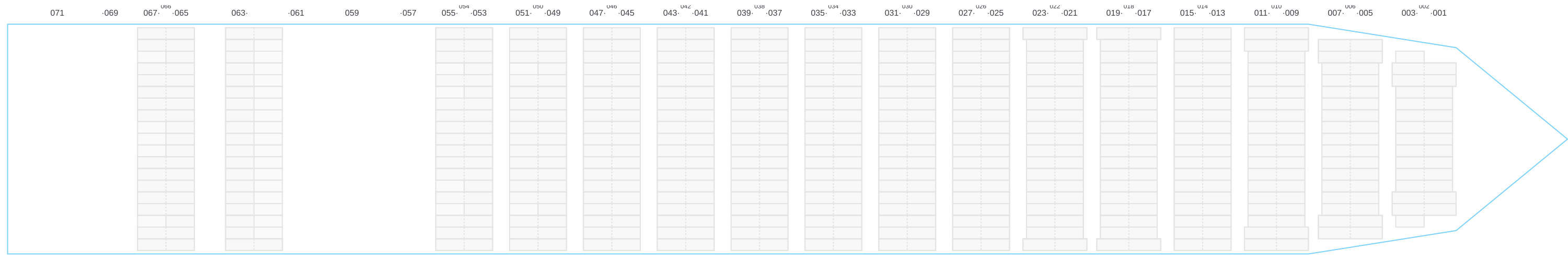

Hatch-Covers View

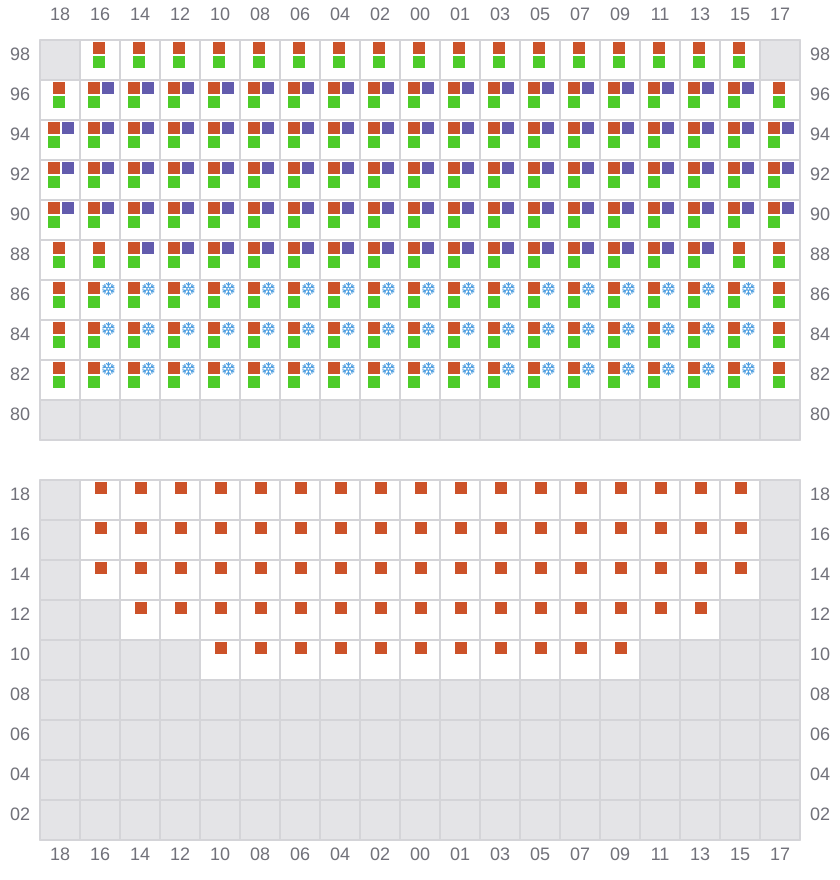

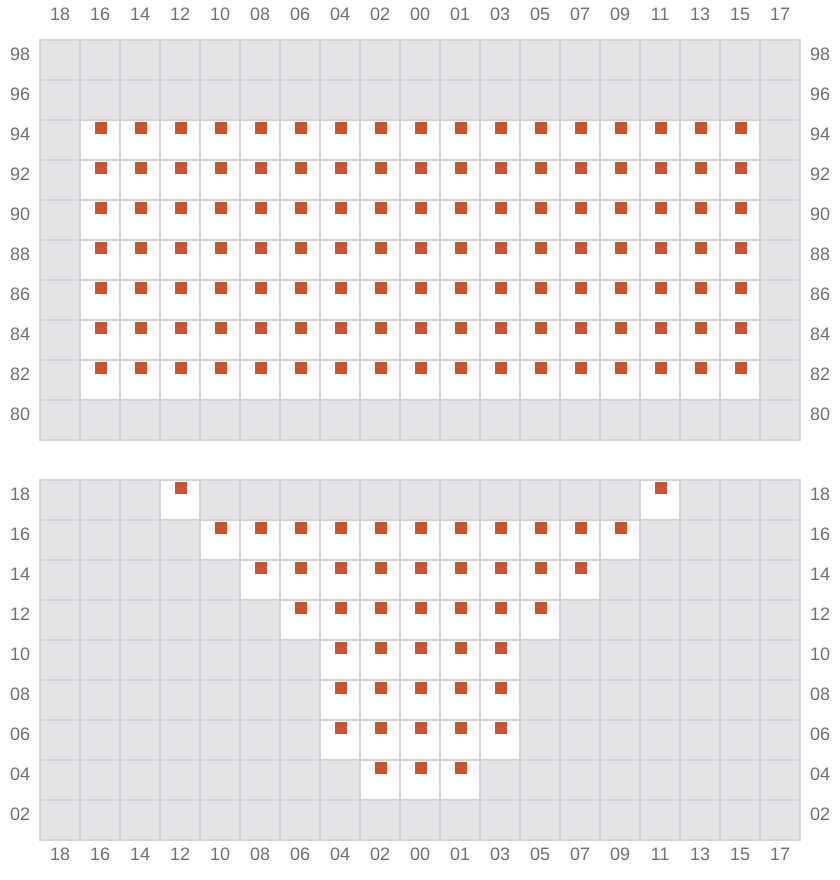

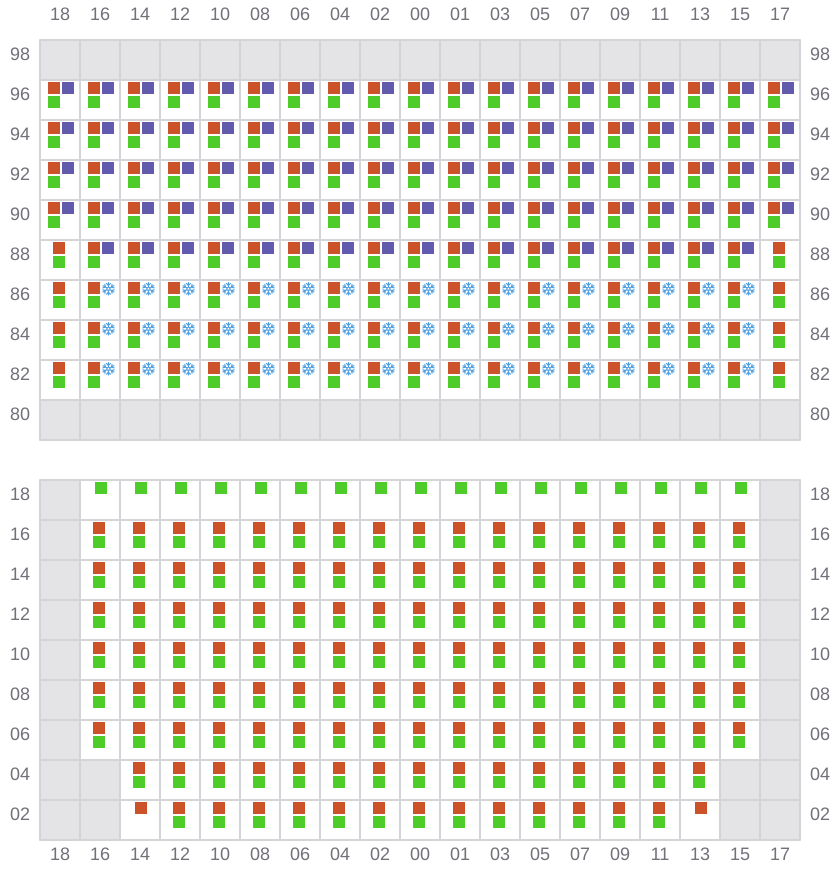

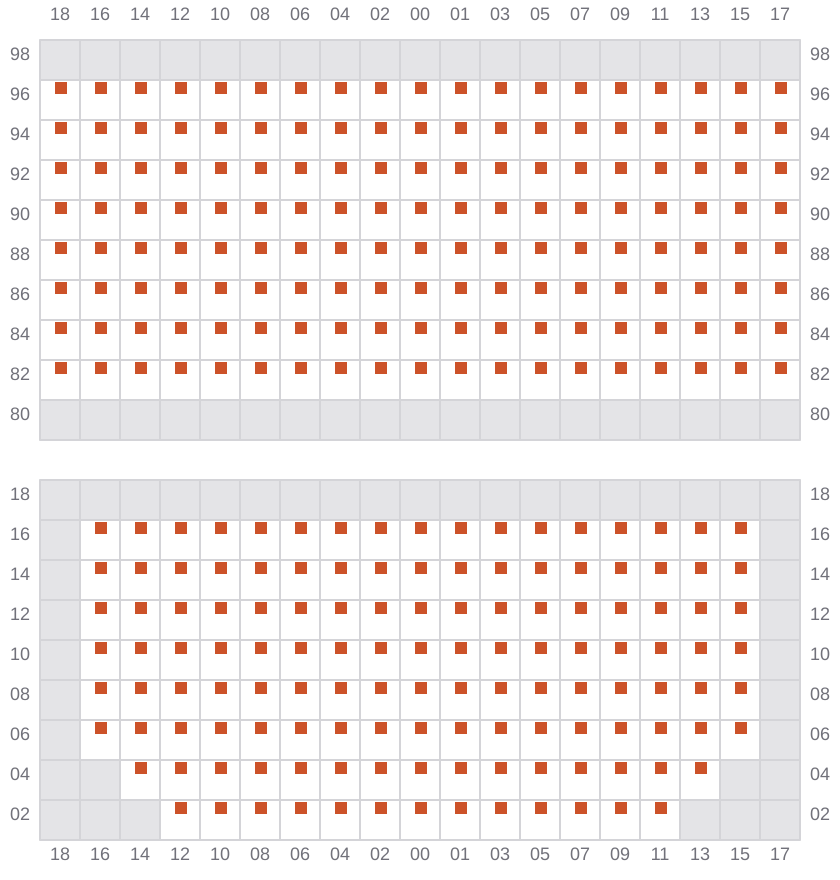

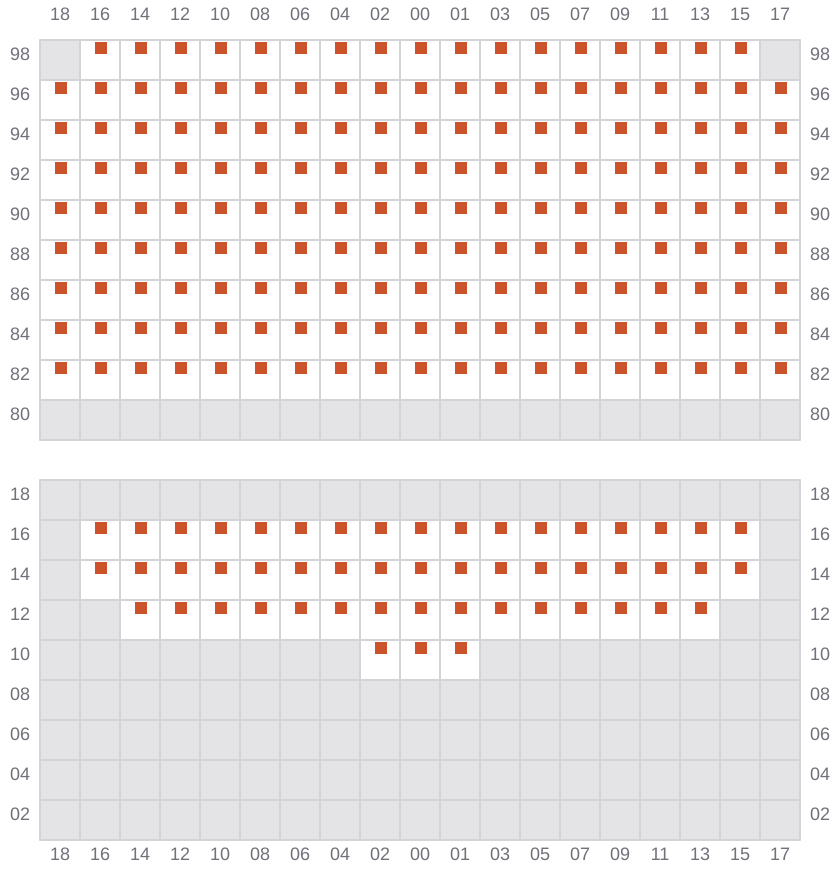

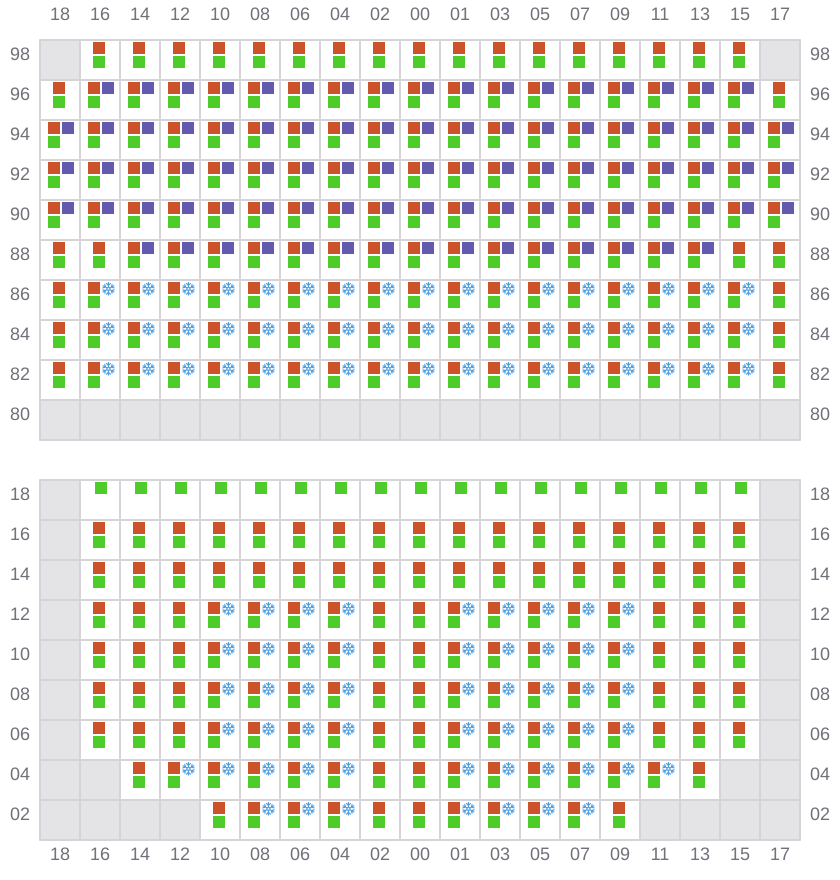

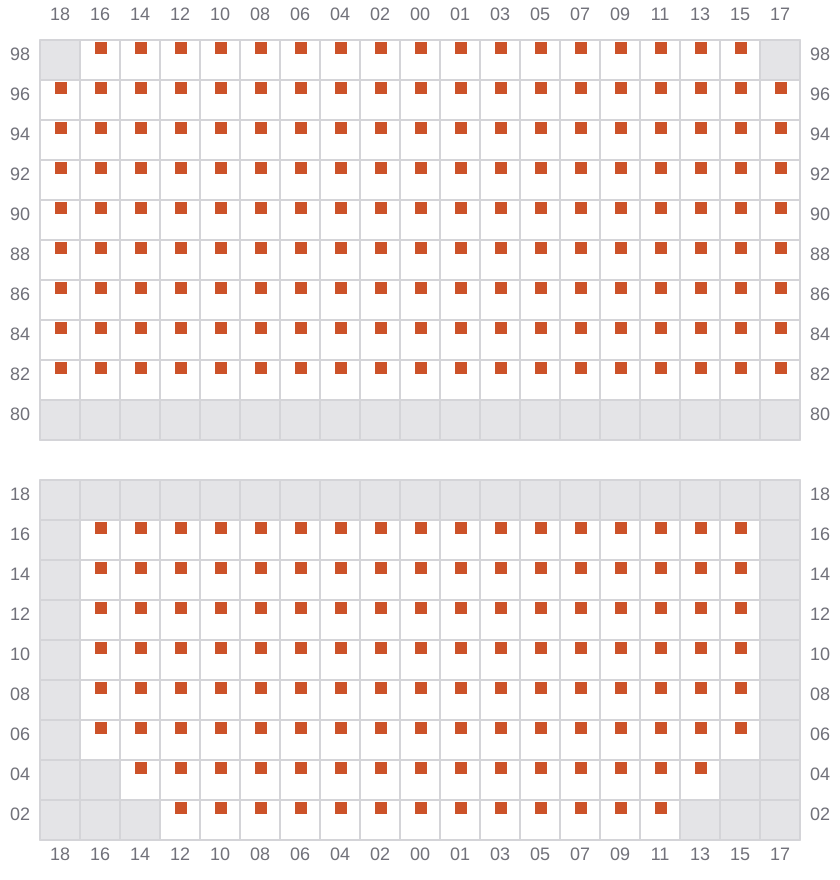

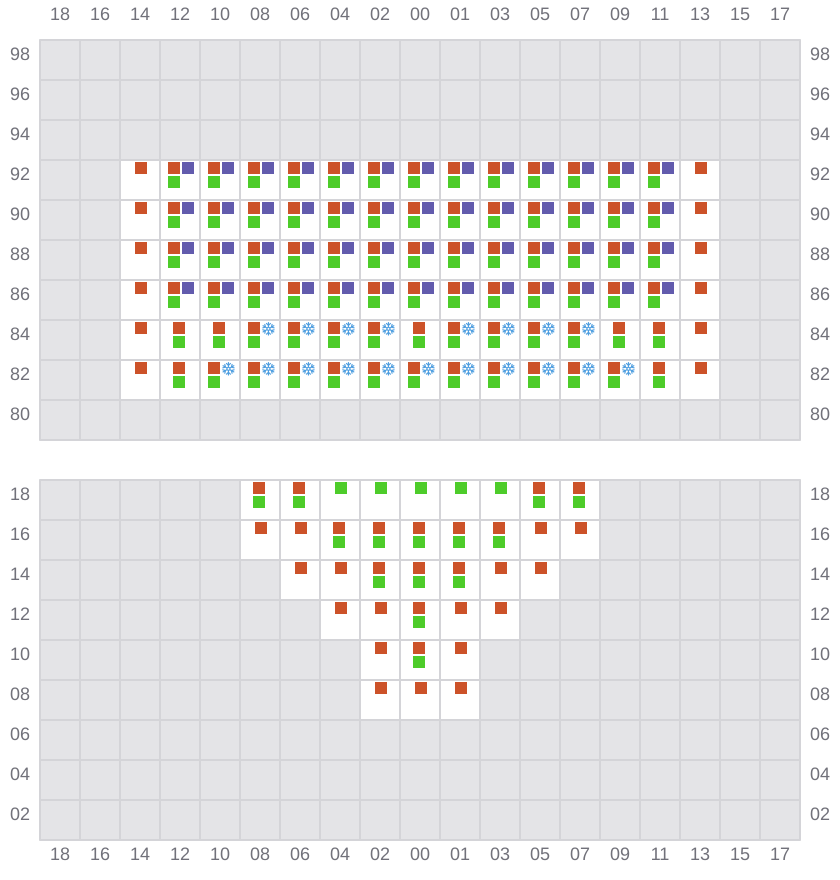

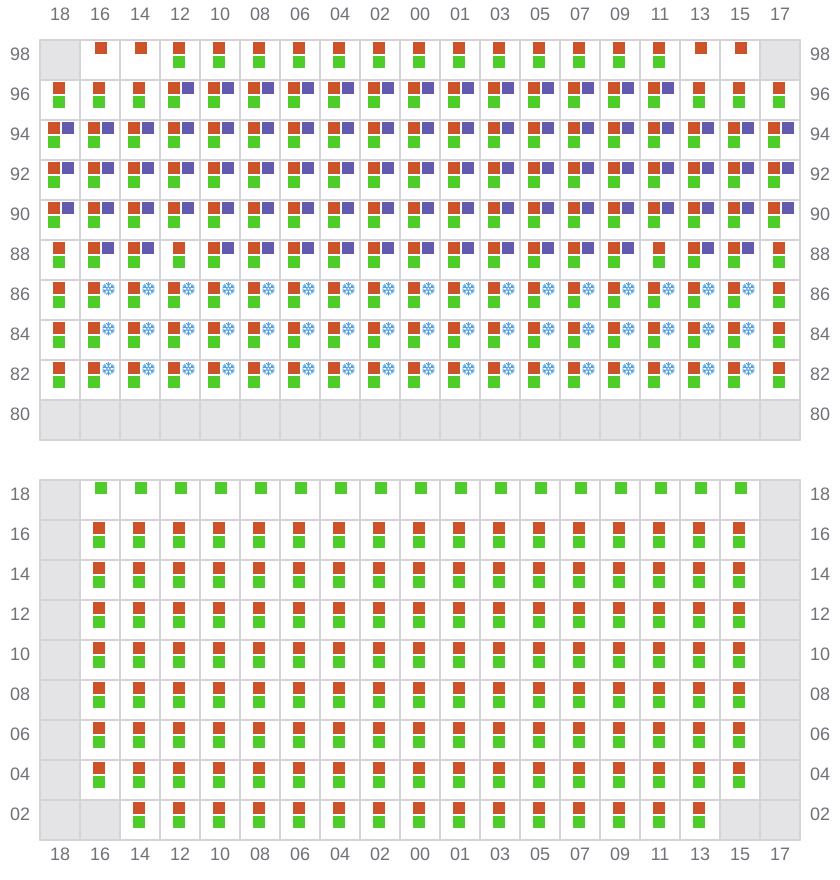

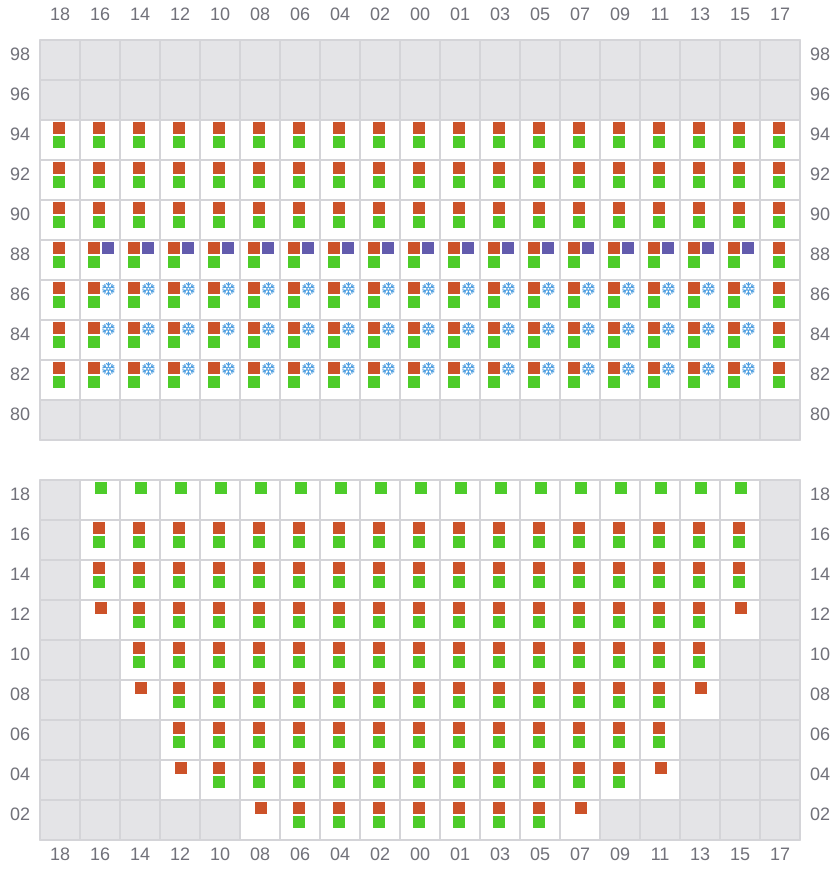

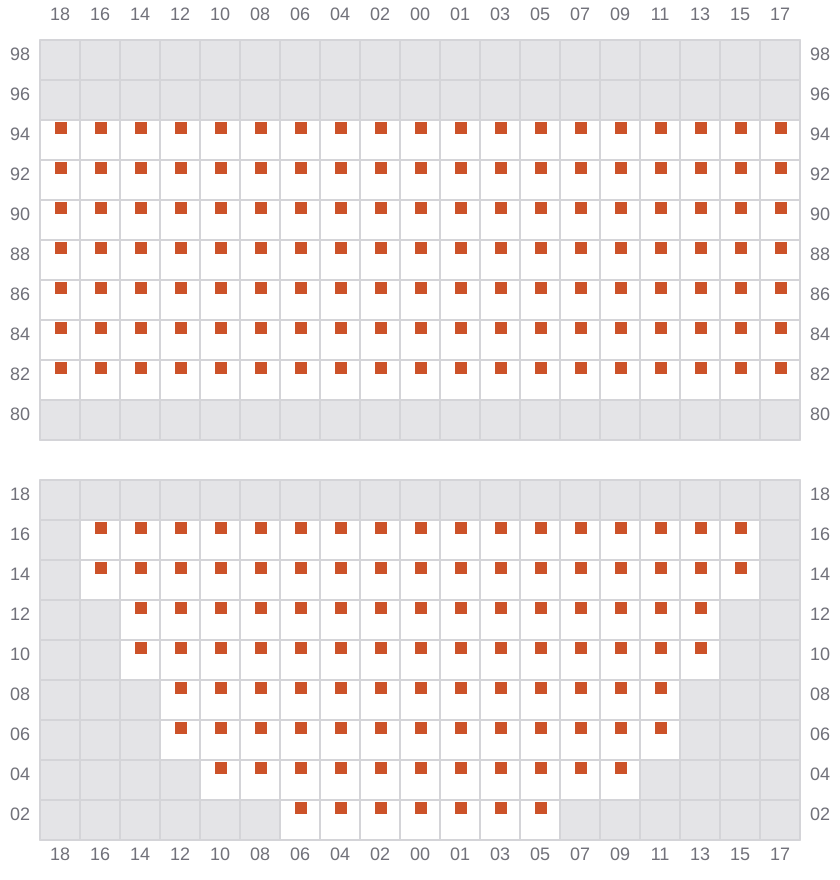

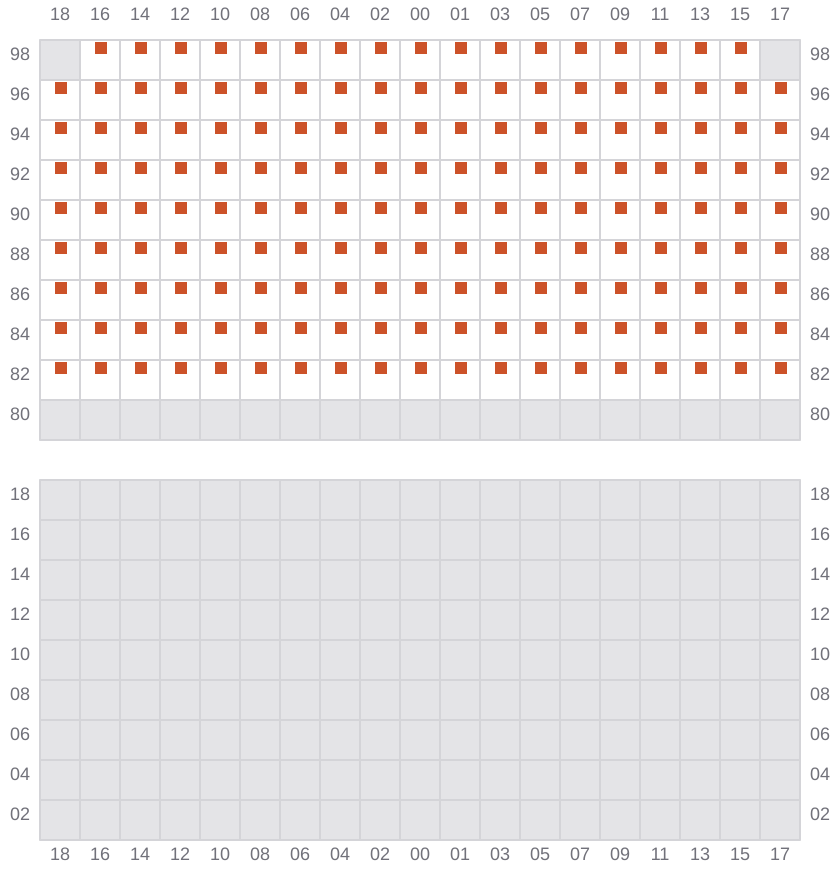

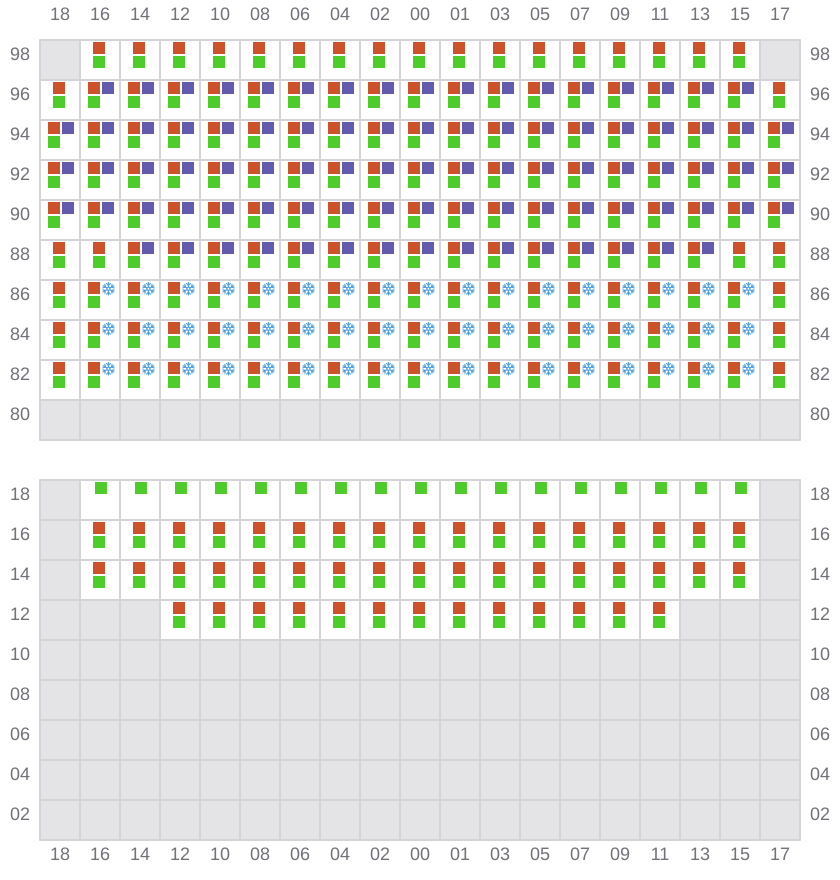

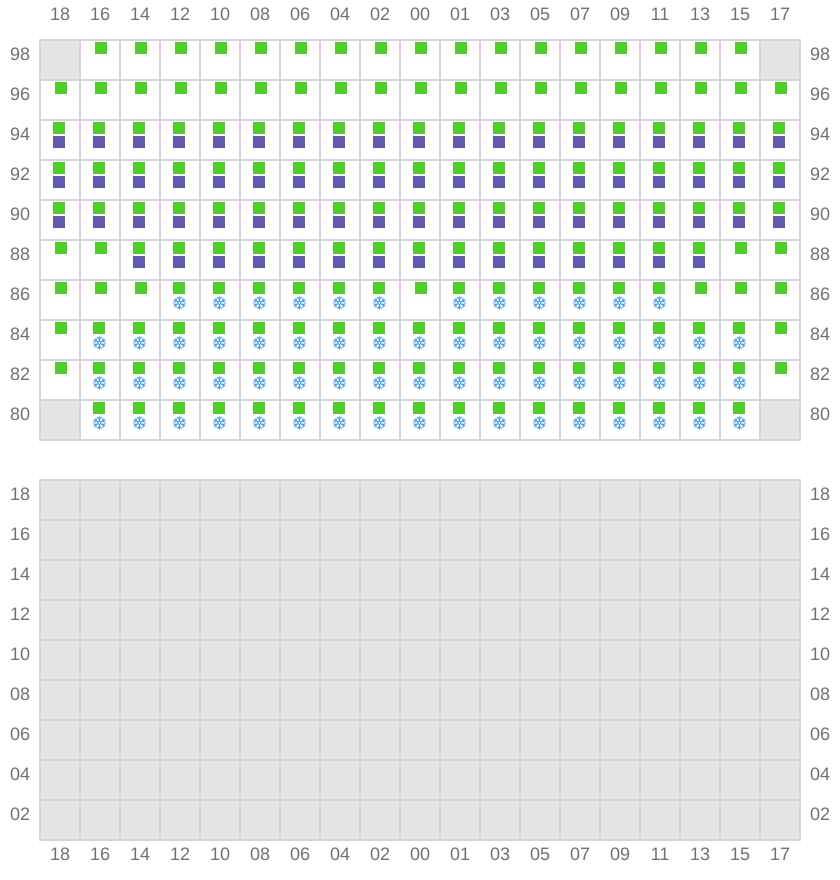

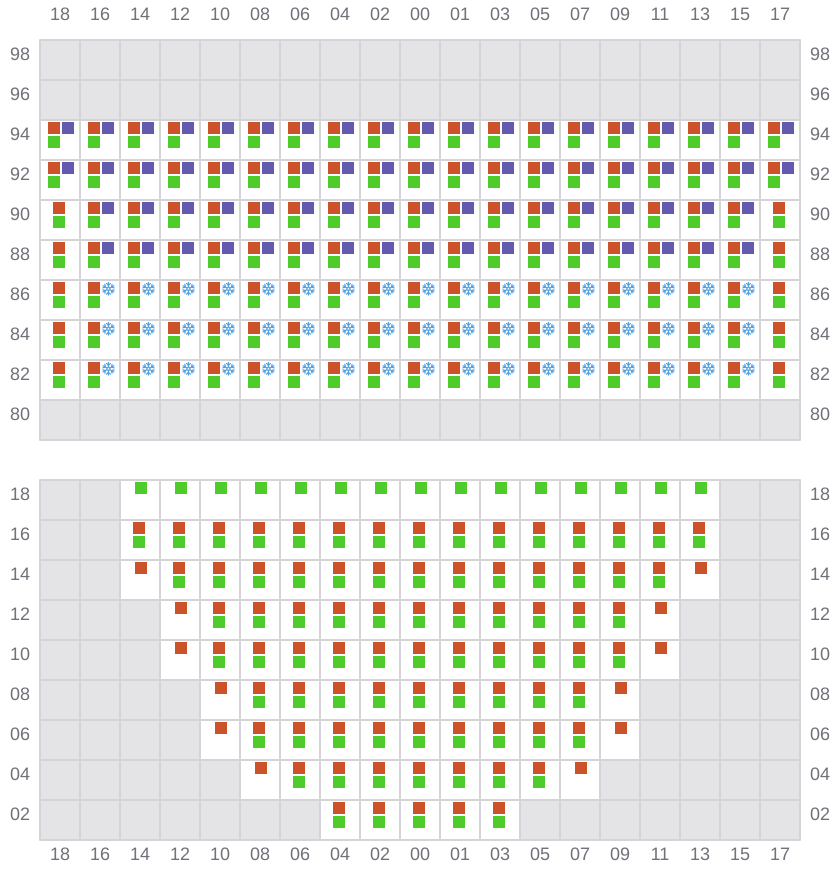

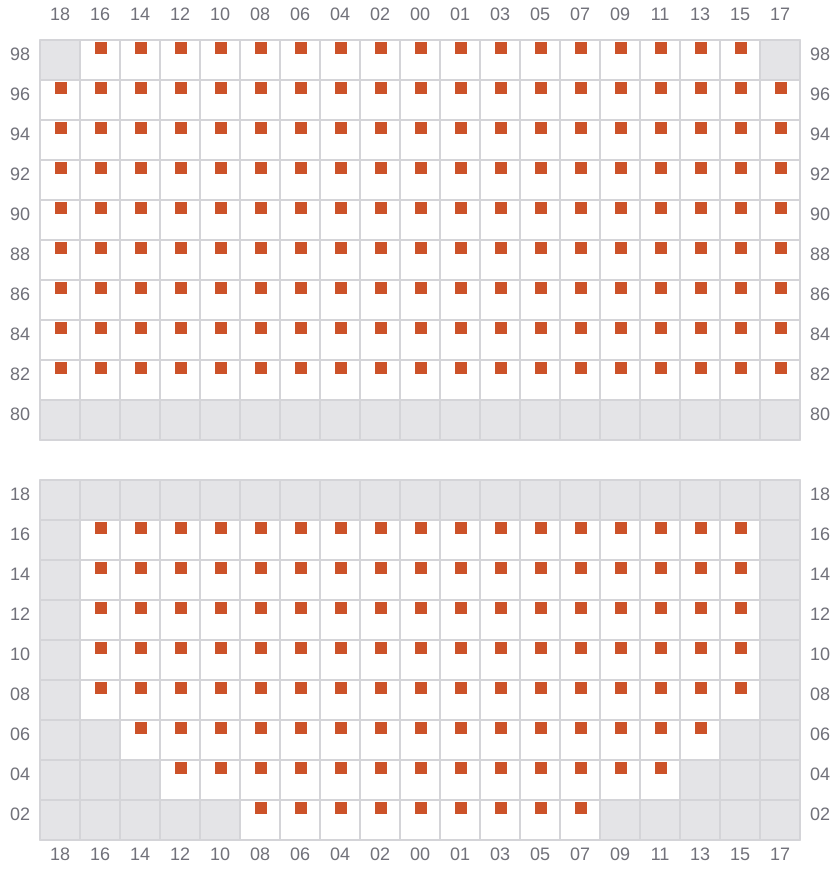

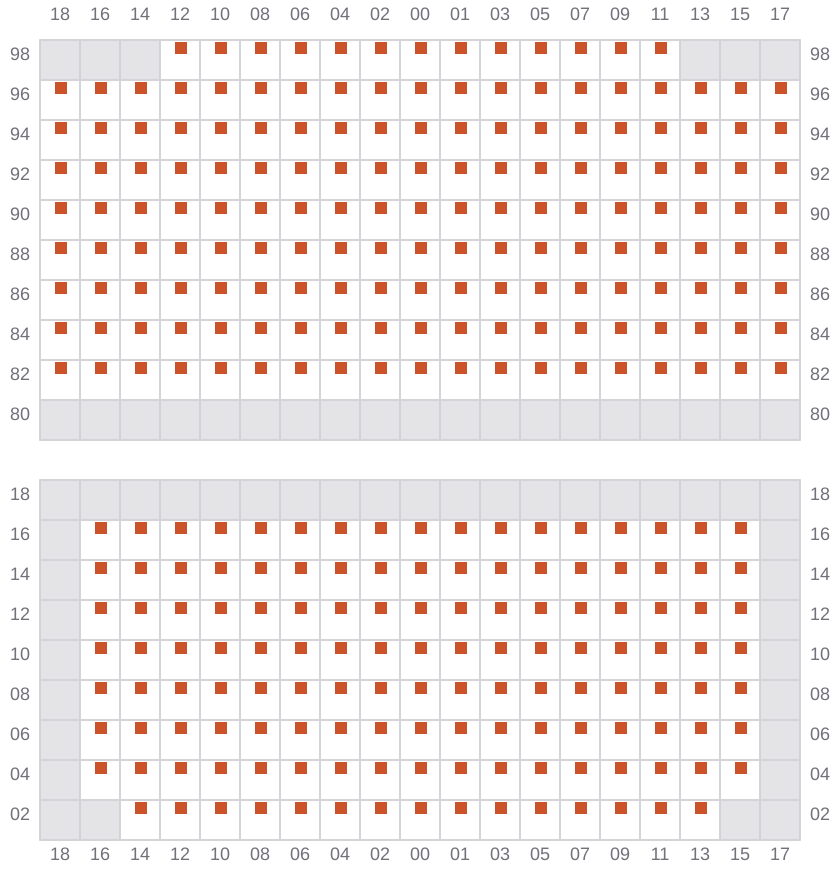

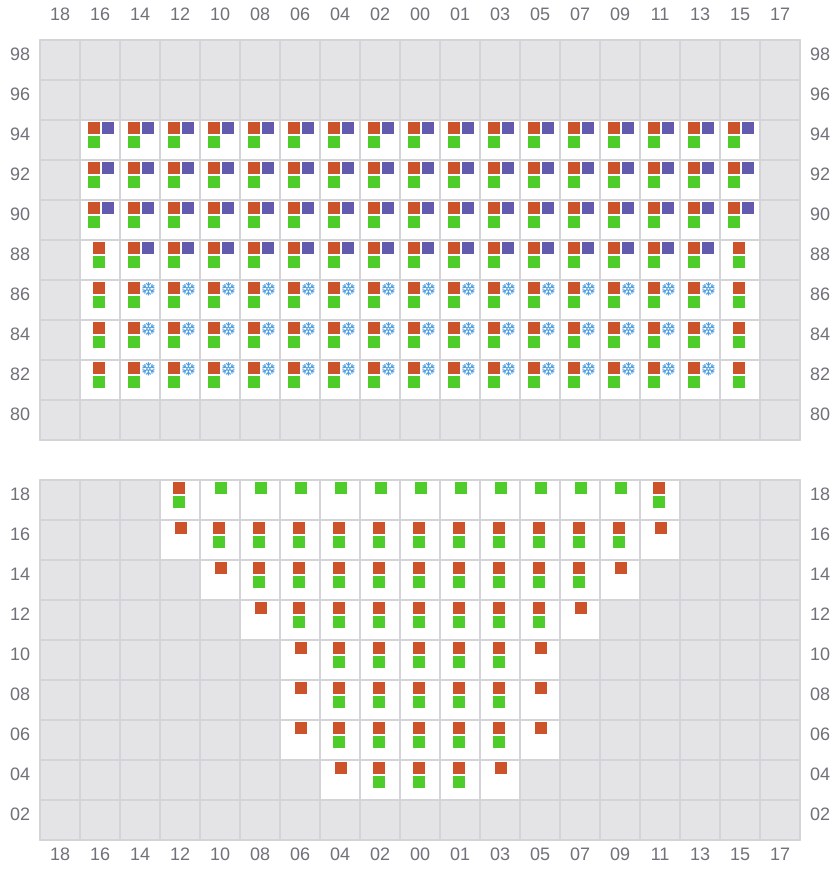

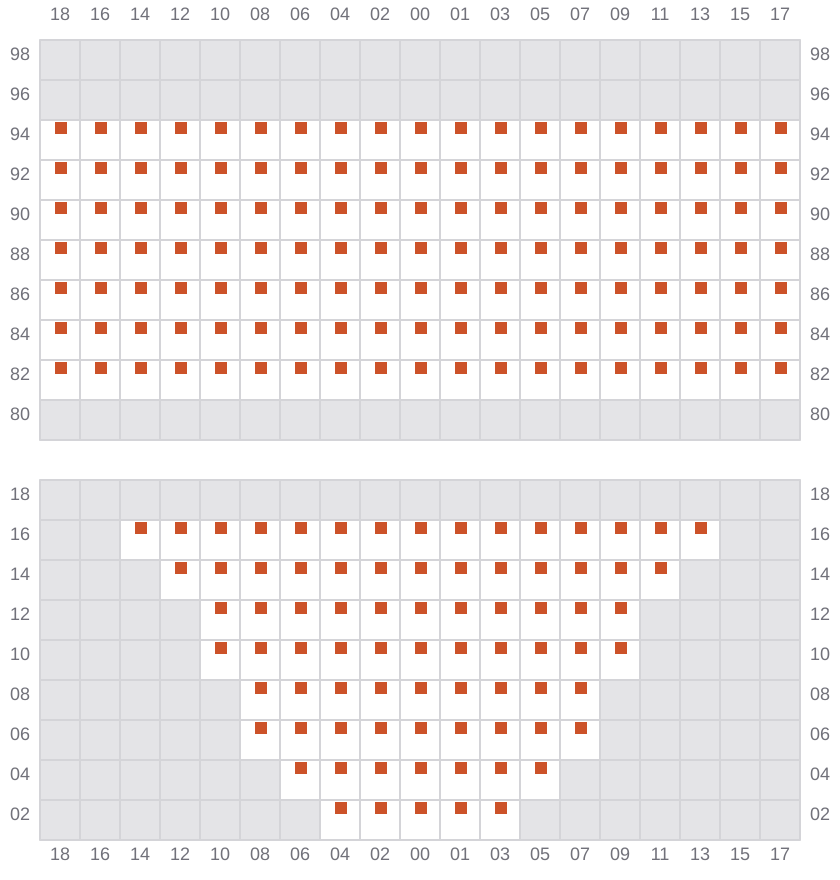

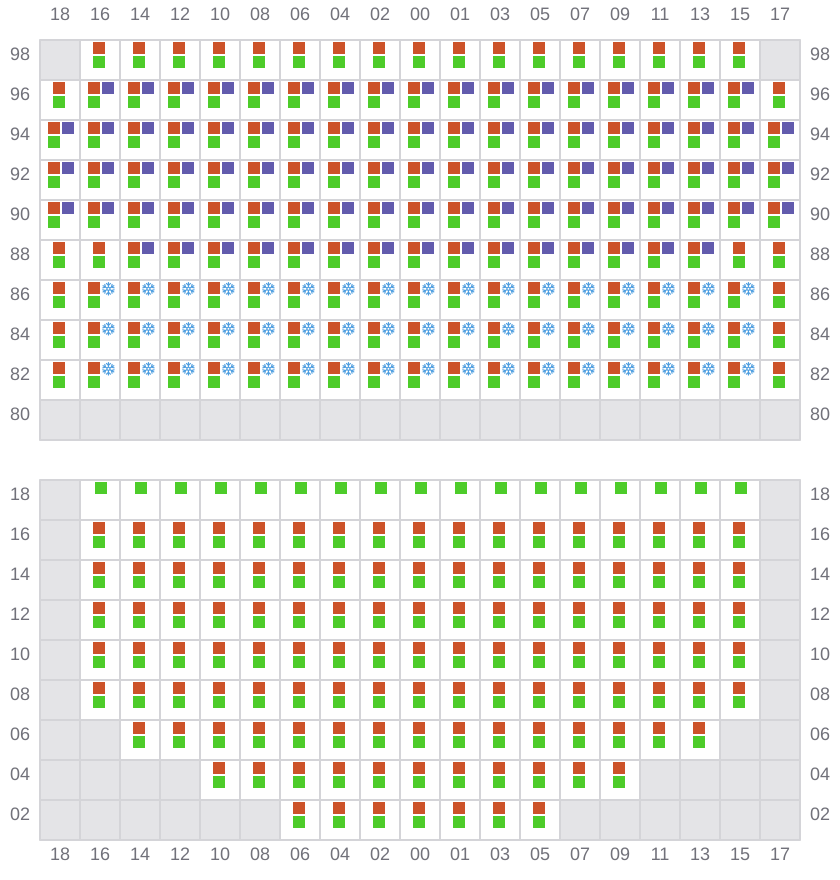

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

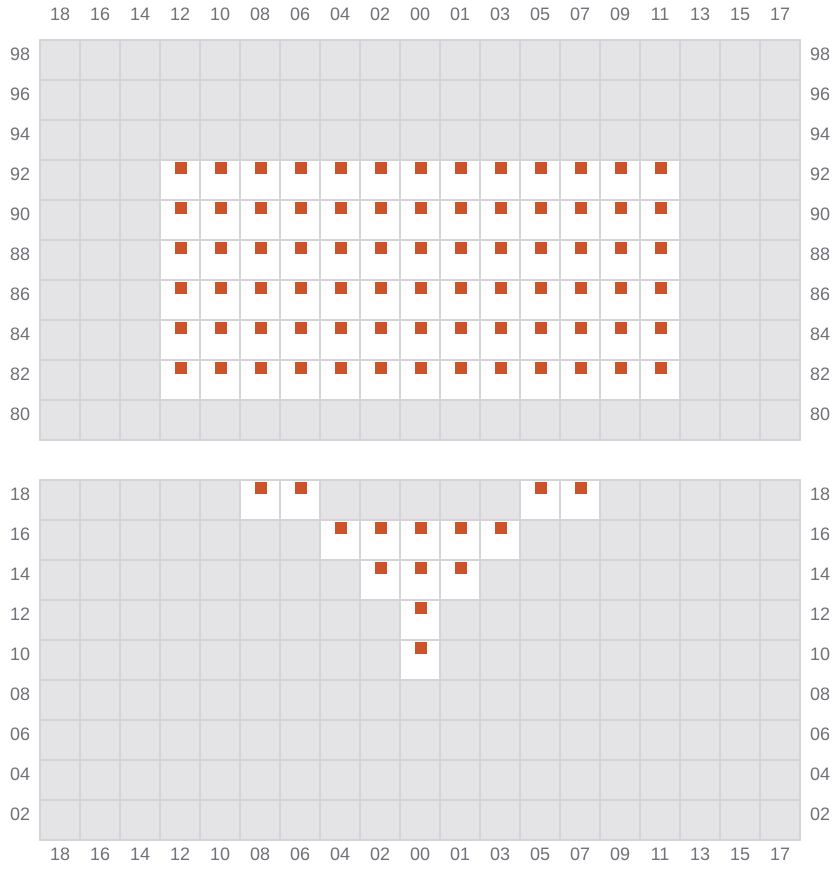

001
- →
003 (002)
- ←
005
- →
- ? / →
007 (006)
- ←
- ? / ←
009
- →
011 (010)
- ←
013
- →
015 (014)
- ←

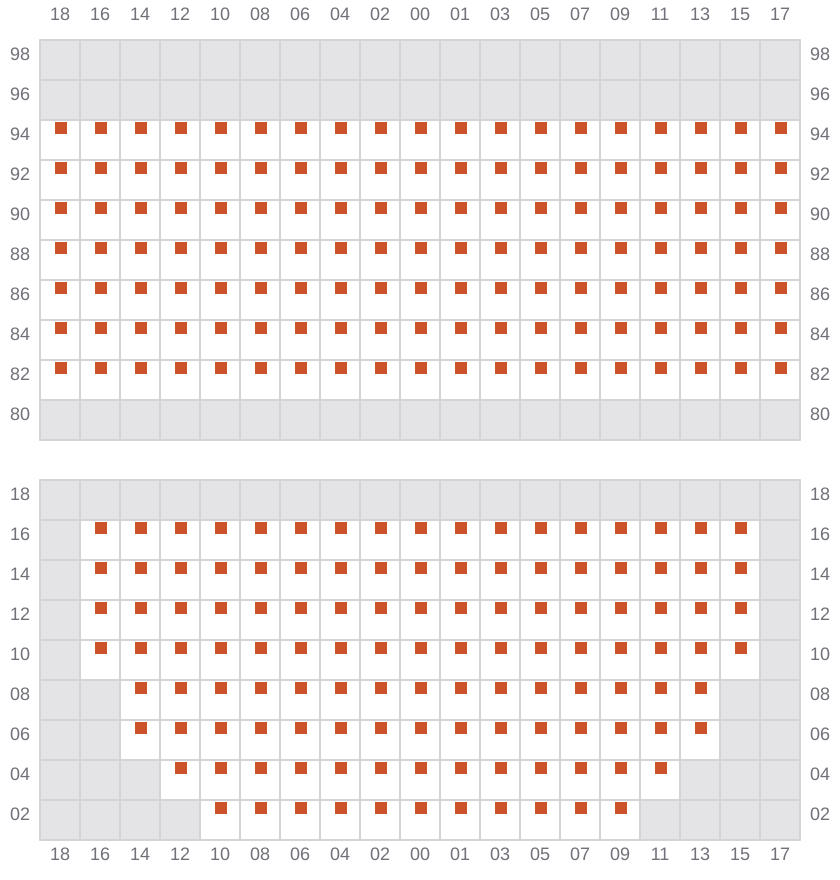

017
- →
019 (018)
- ←
021
- →
023 (022)
- ←
025
- →
027 (026)
- ←
029
- →

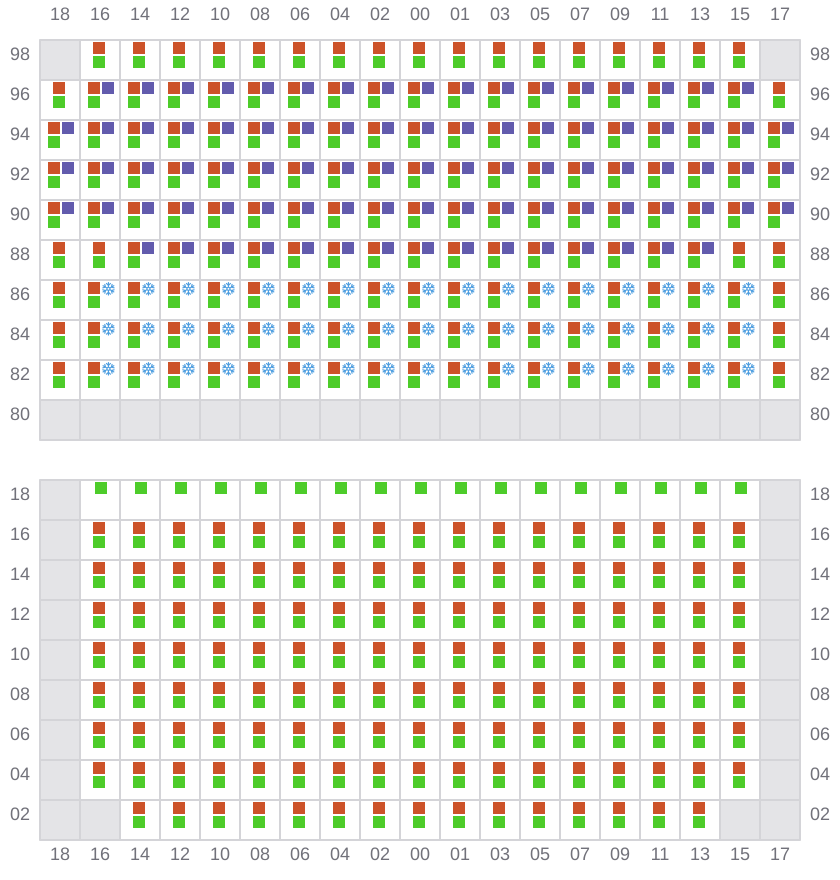

031 (030)
- ←

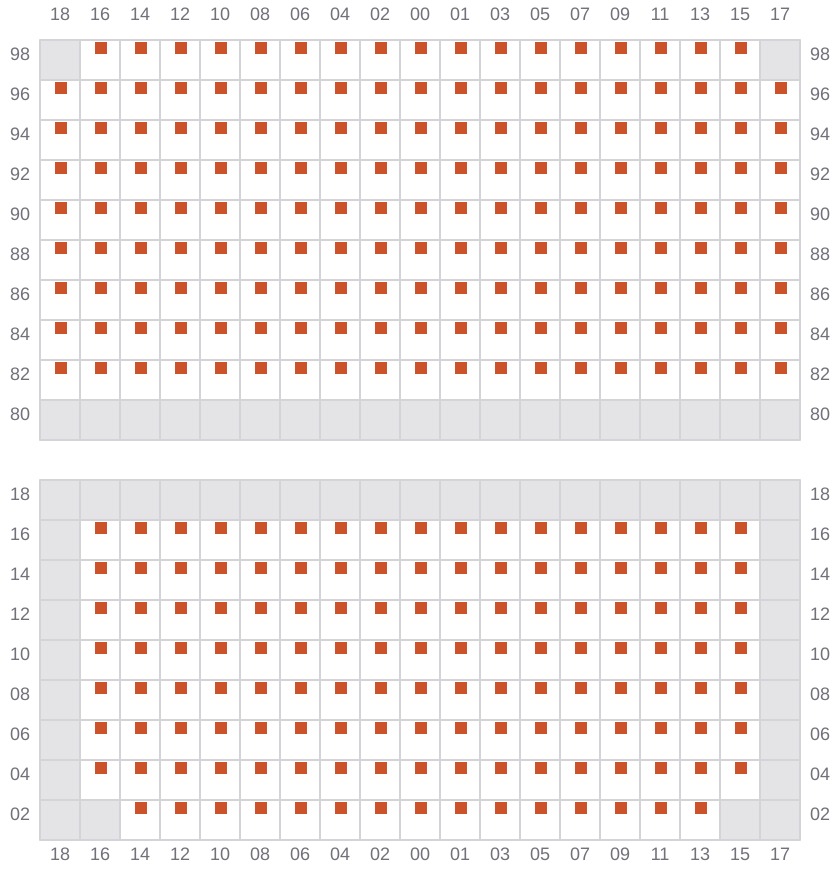

033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →

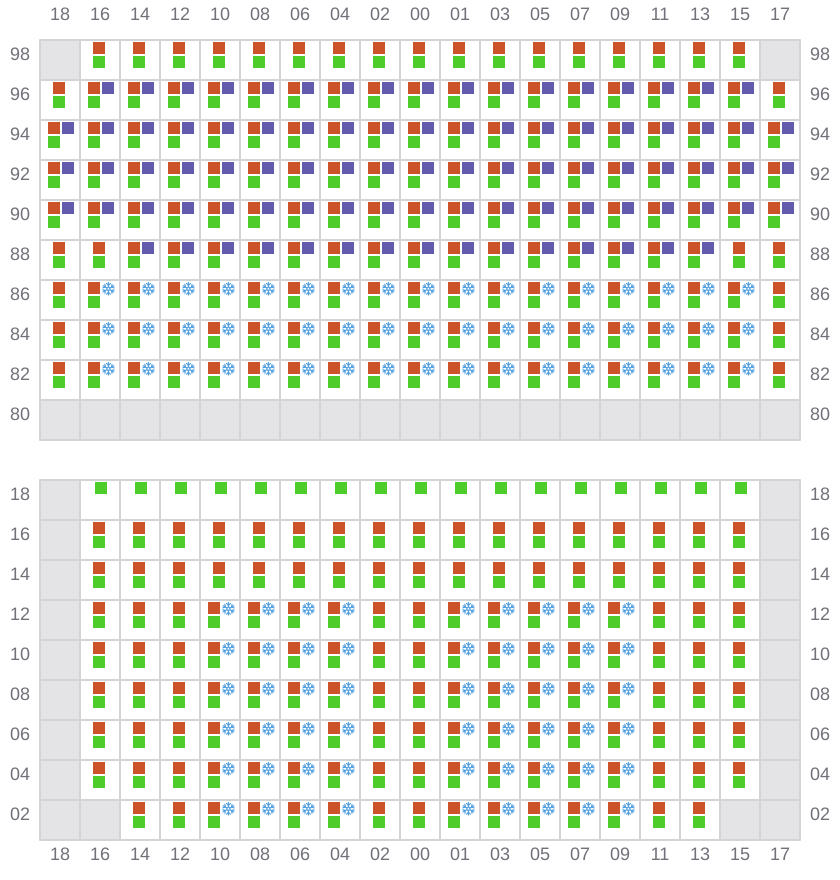

043 (042)
- ←
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←
053
- →
055 (054)
- ←

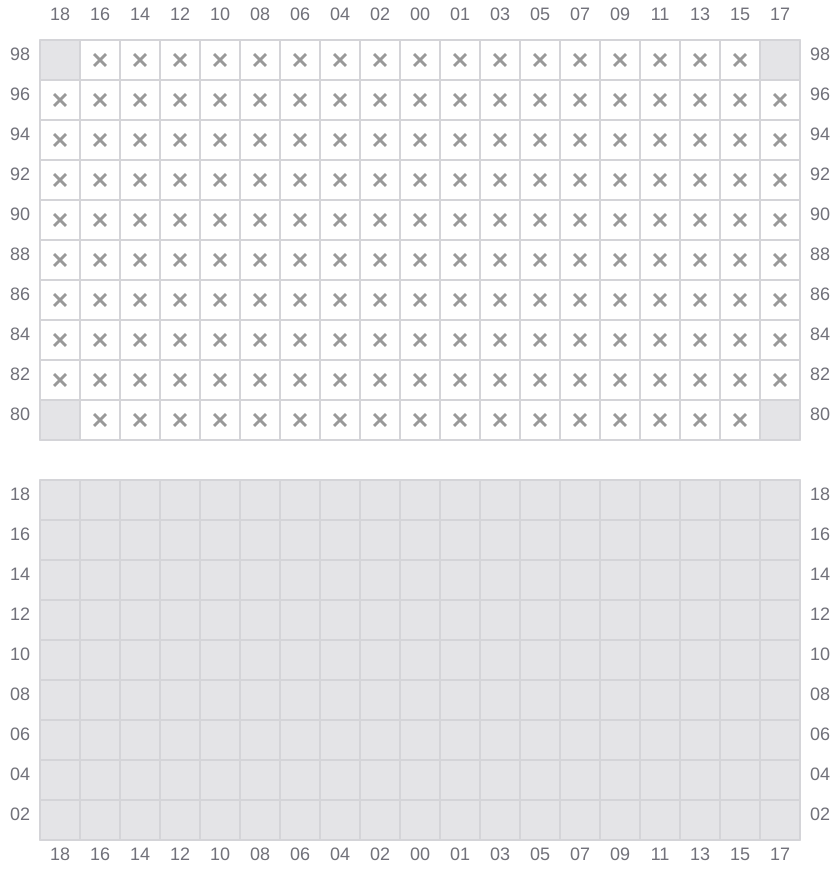

057
- →
059
061
- → / ?
063 (062)
- ←
065
- →
067 (066)
- ←
069
- → / ?
071
