MSC ALBANY
9619438 | D5CC8 | 9619438 by ********* Last update: Thu Mar 28 2024
General Info
Ship Name:MSC ALBANY
IMO Code:9619438
Call Sign:D5CC8
Line Operator:9619438
Class Name for Sister Ships:6HG
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:100
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,910
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

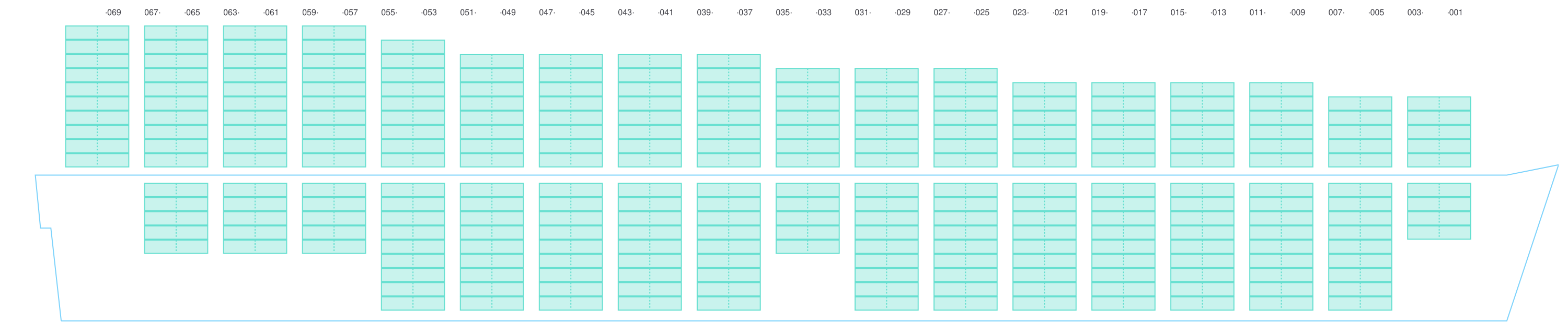

Side View

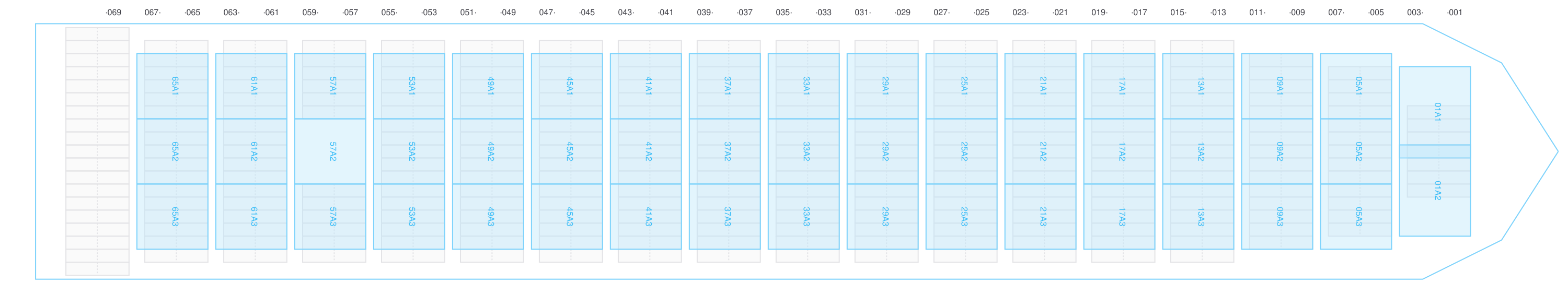

Hatch-Covers View

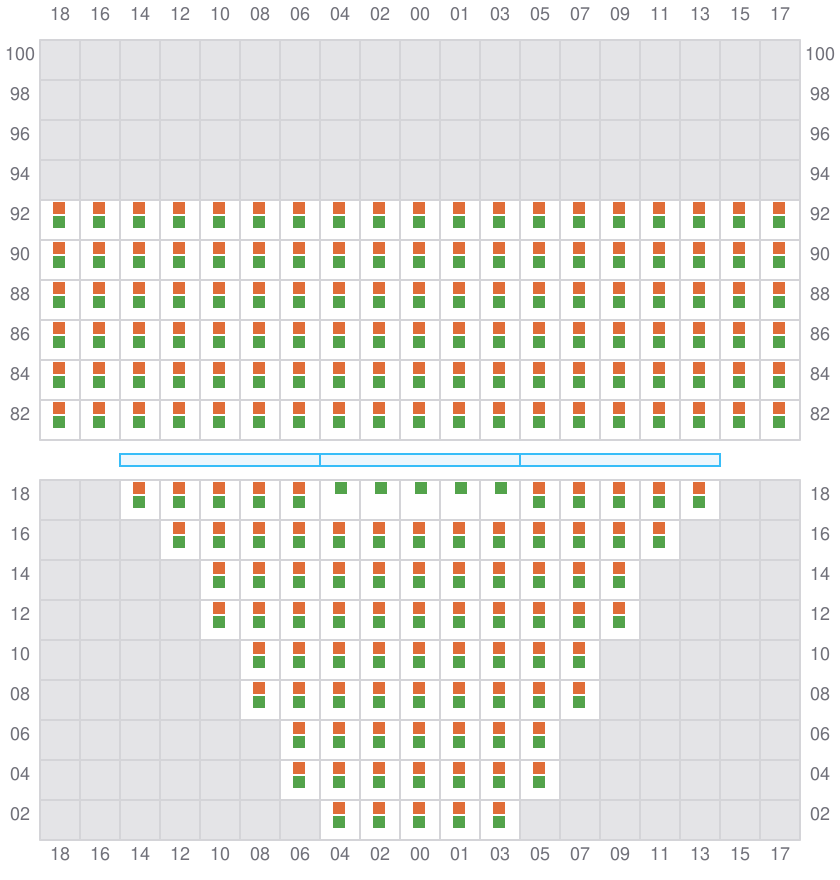

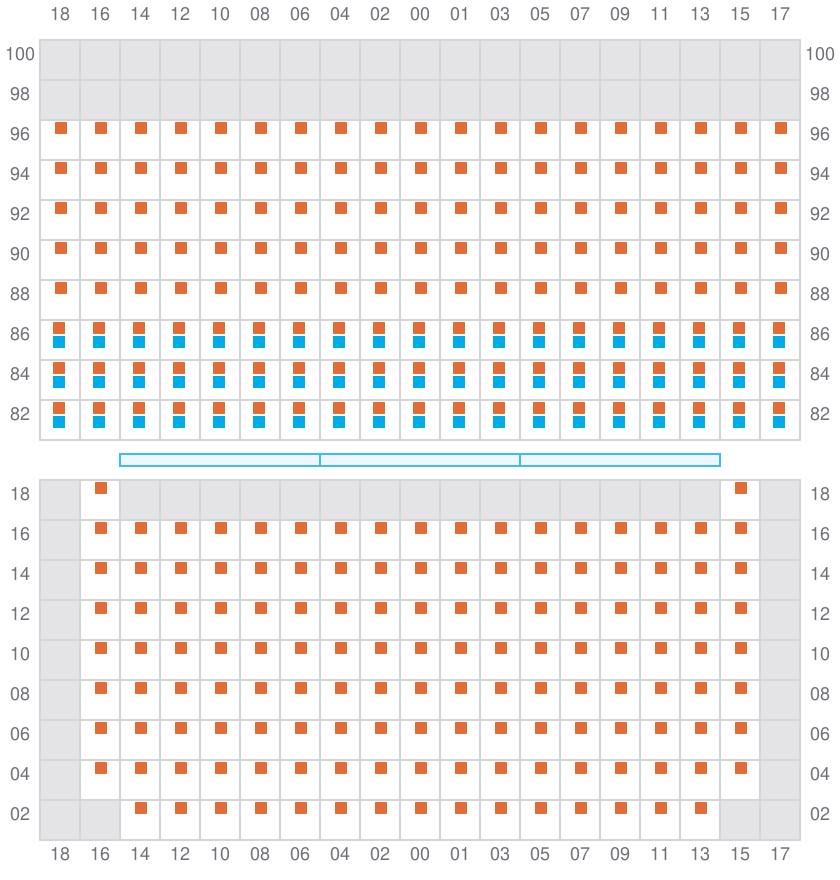

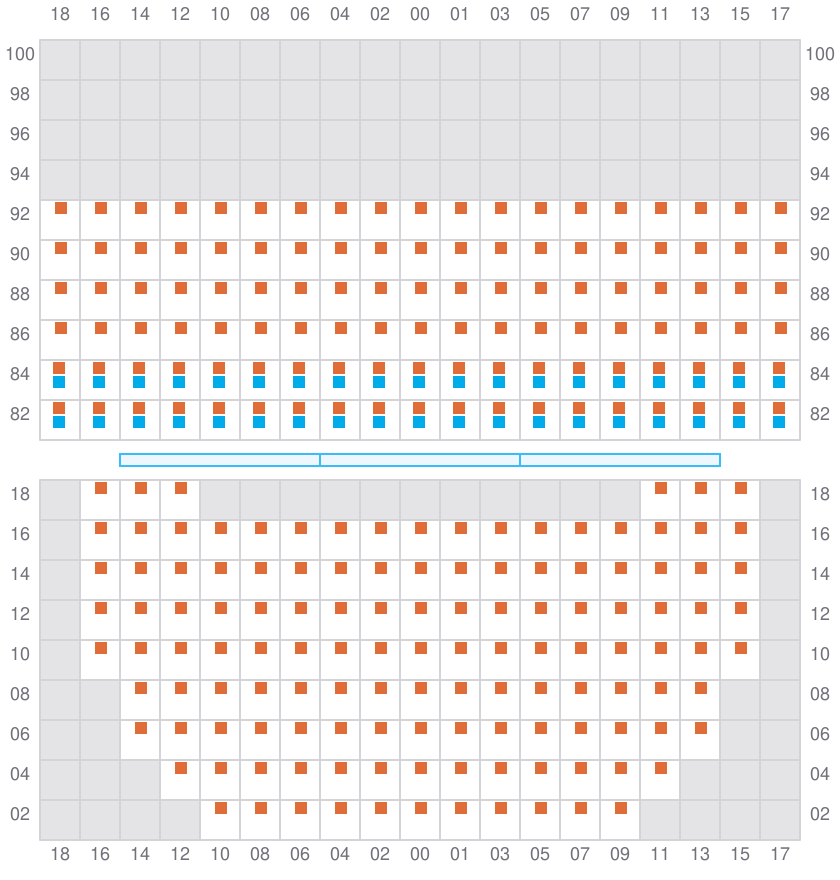

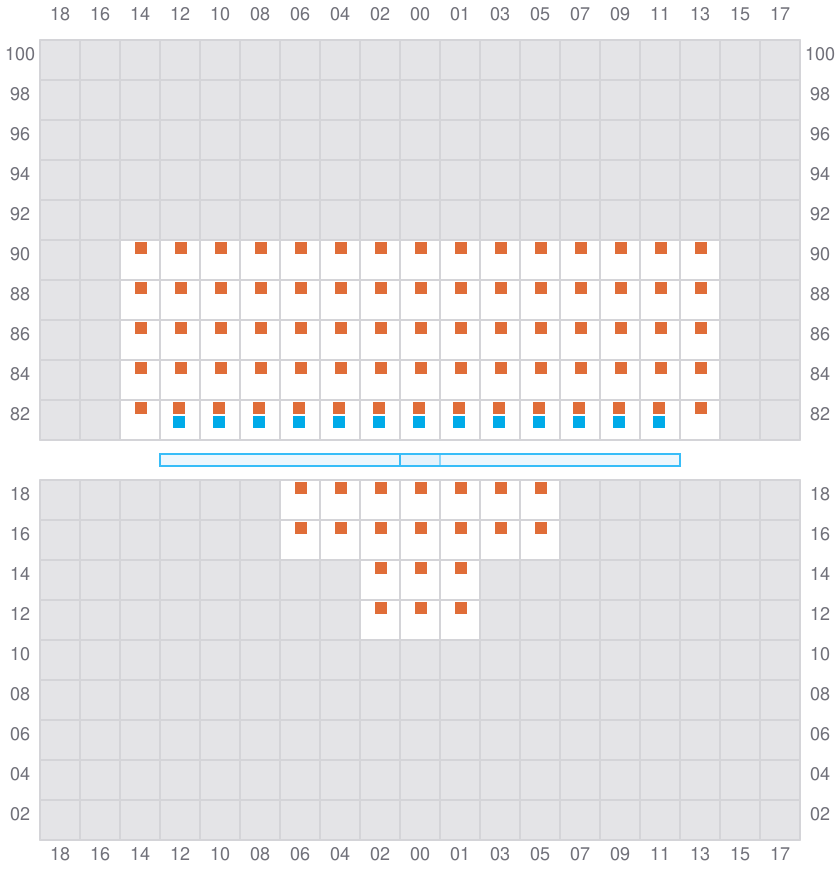

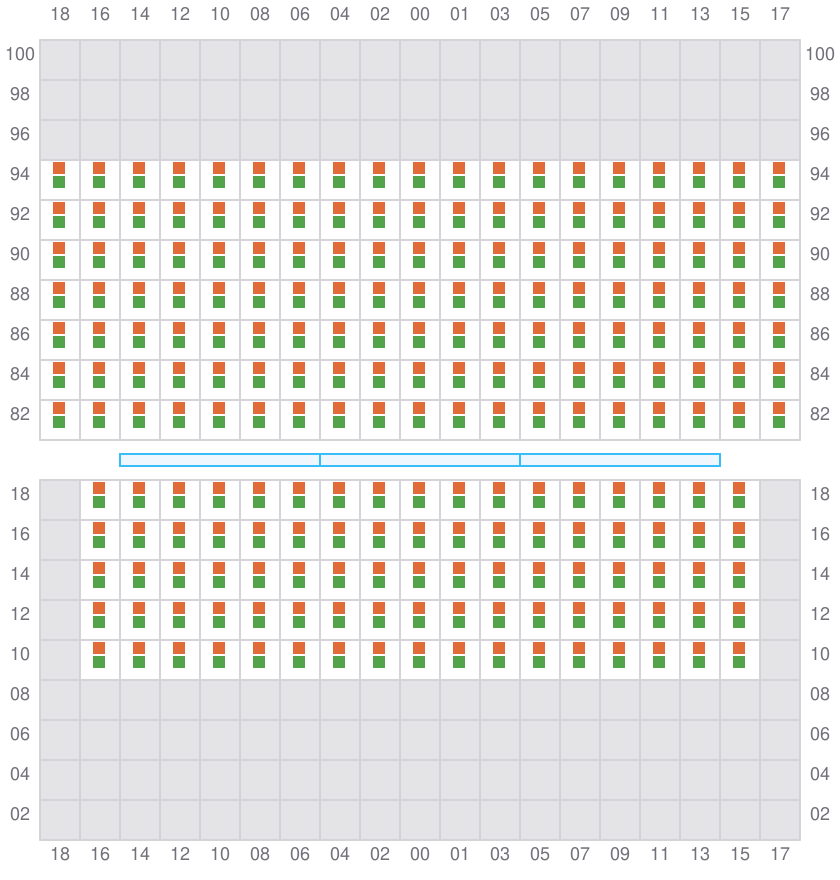

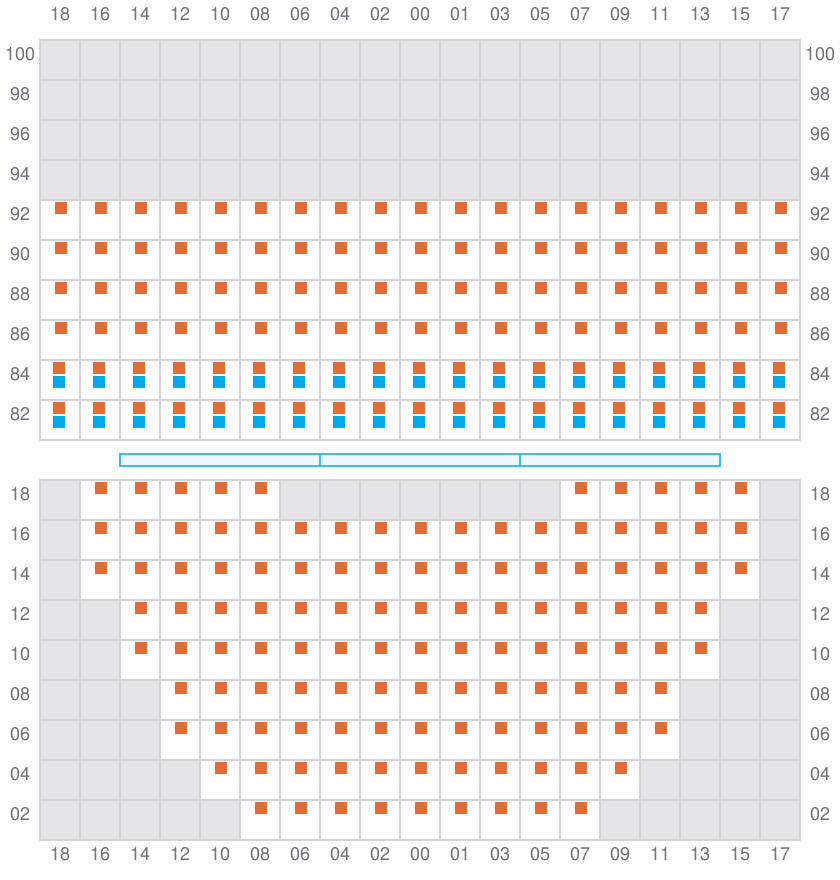

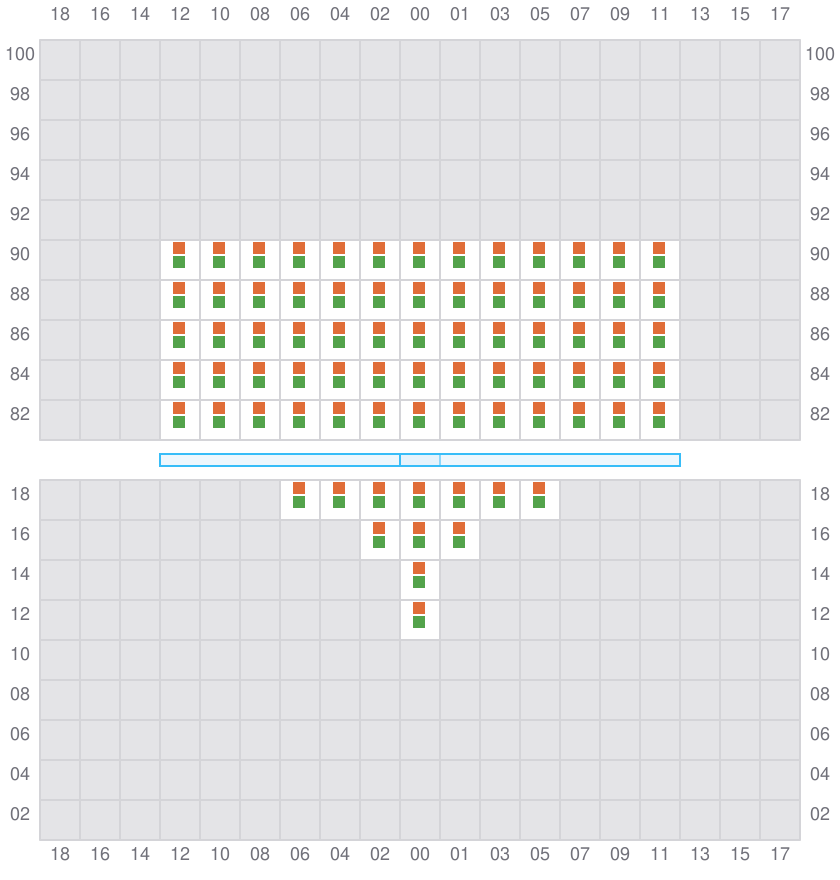

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←

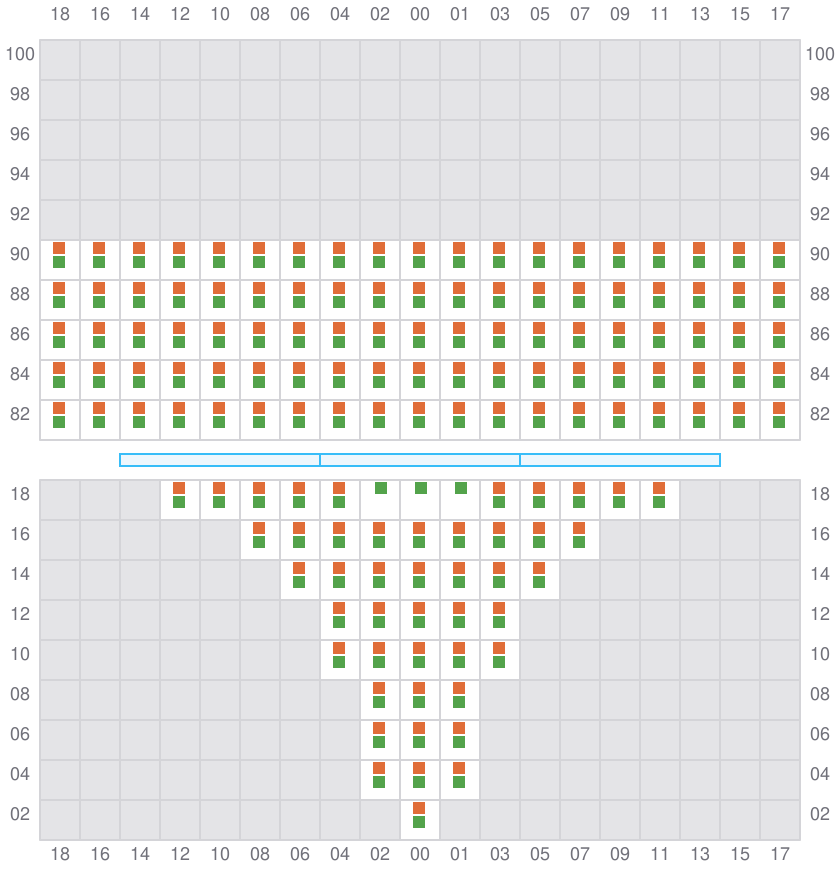

005 (006)
- →

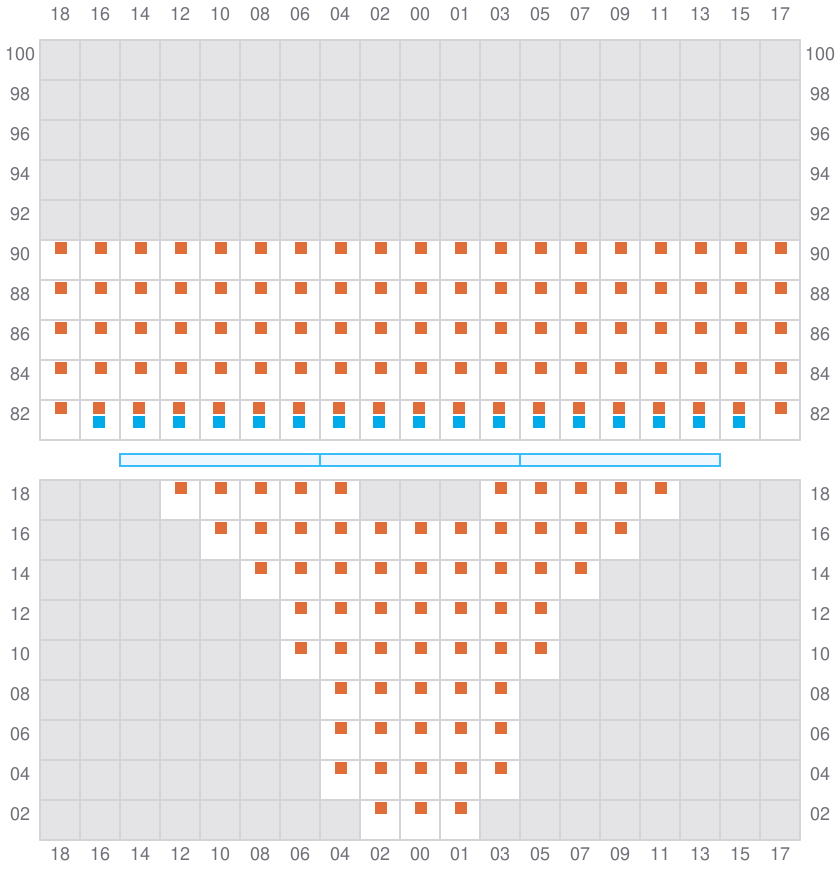

007
- ←
009 (010)
- →
011
- ←

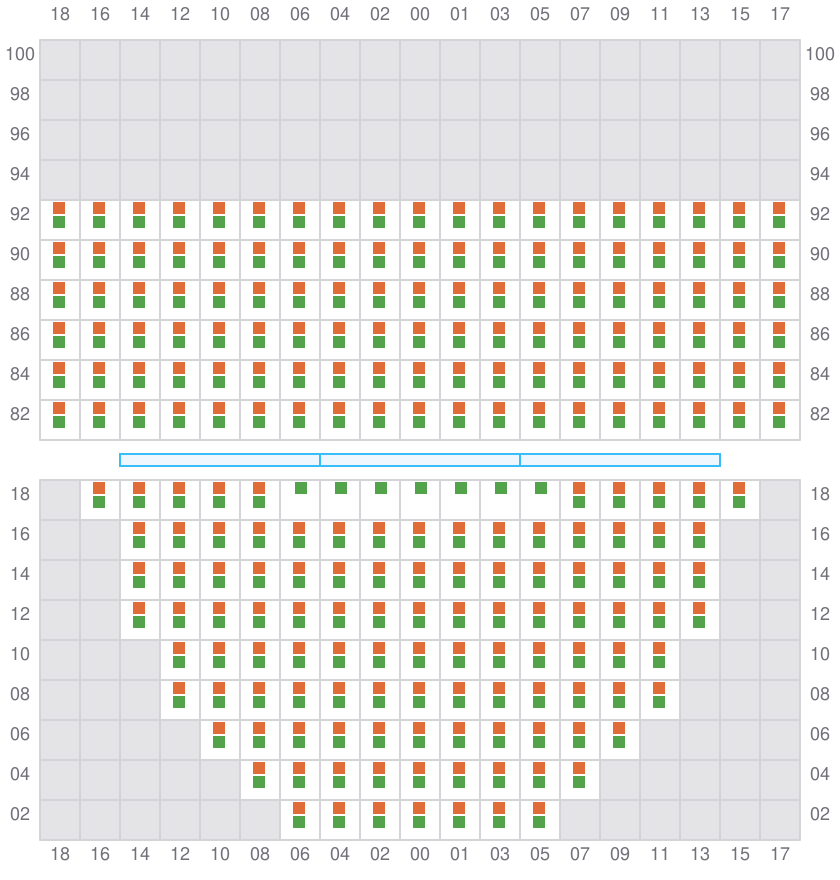

013 (014)
- →
015
- ←

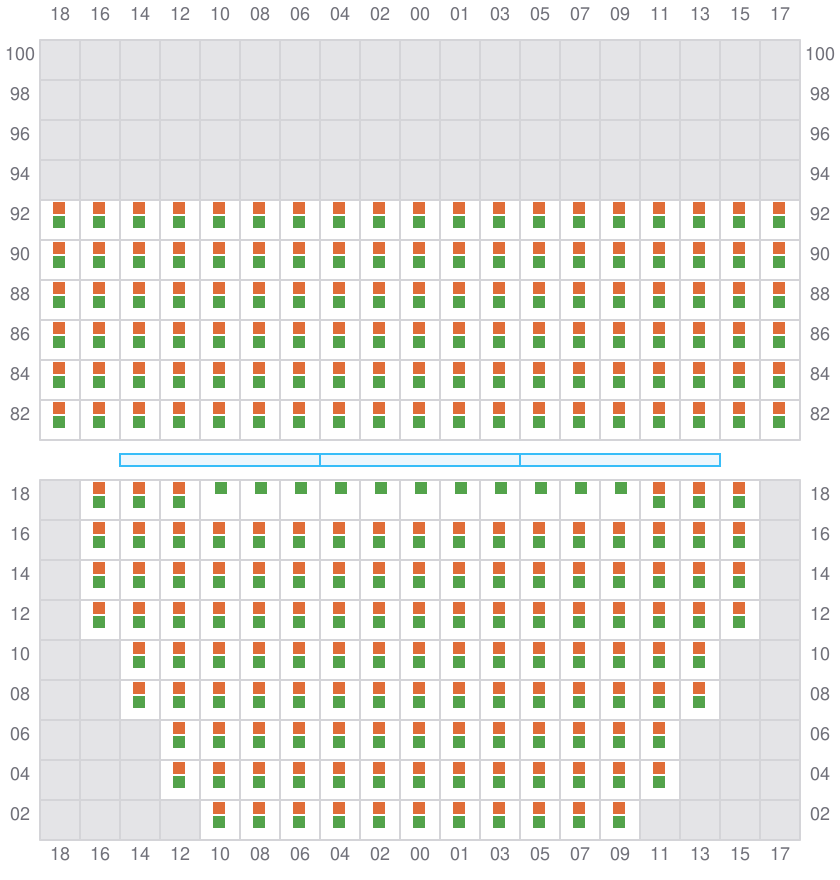

017 (018)
- →
019
- ←

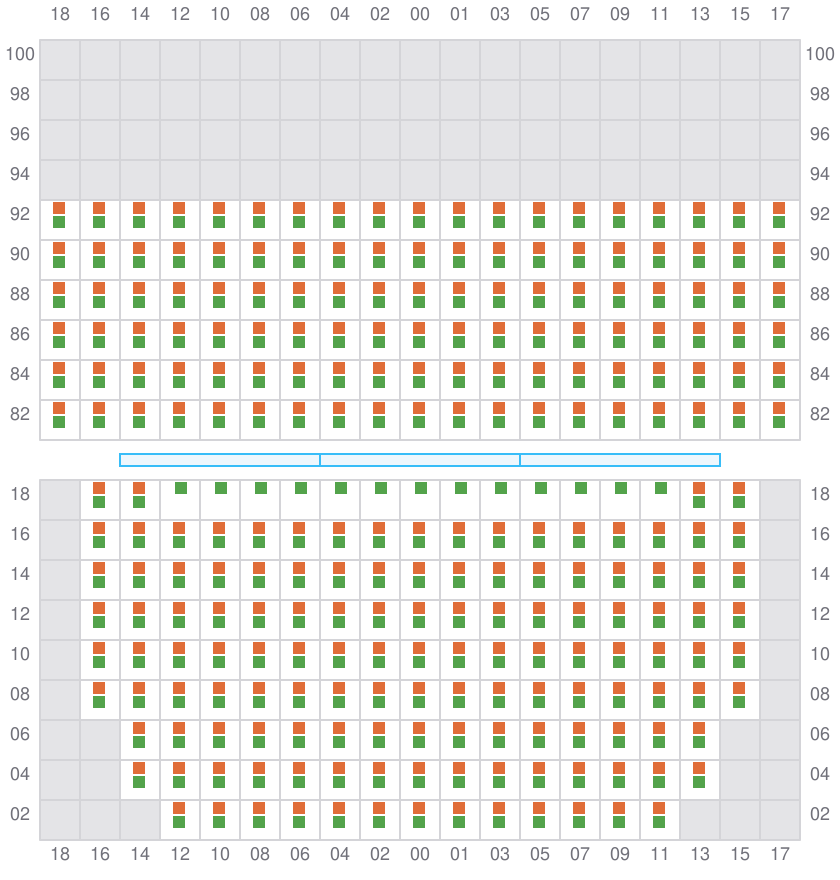

021 (022)
- →

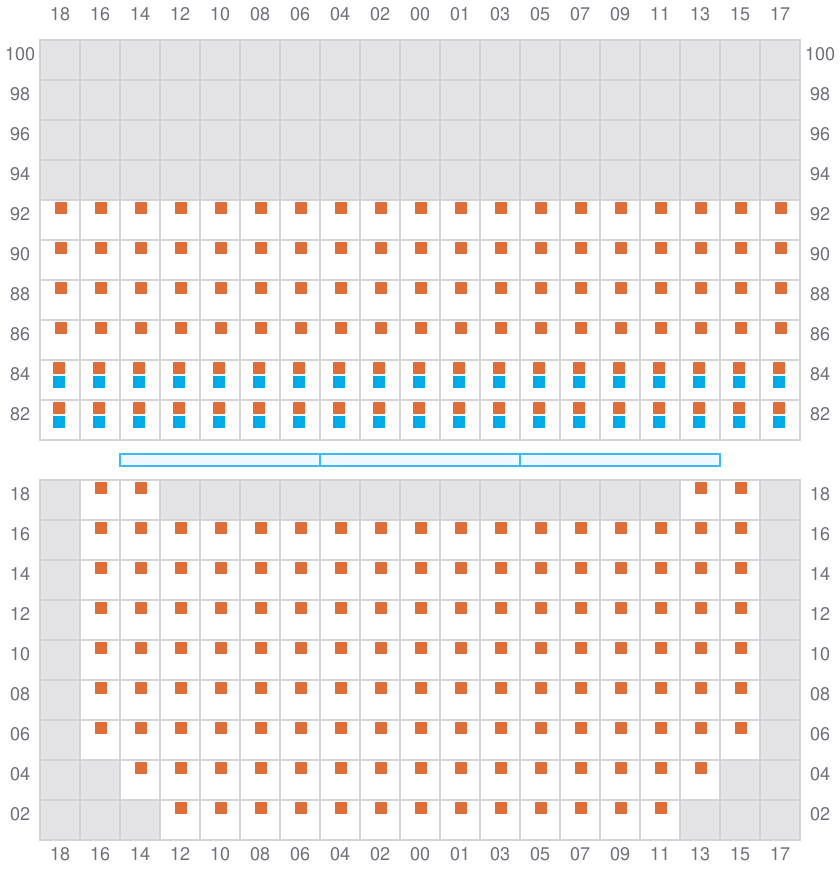

023
- ←

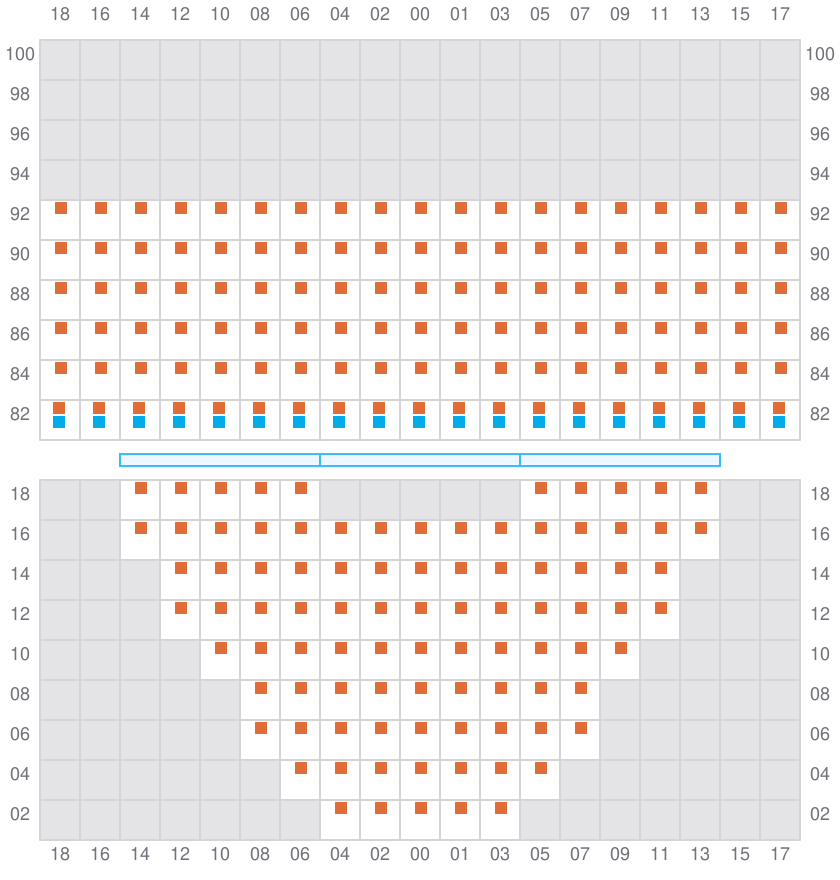

025 (026)
- →

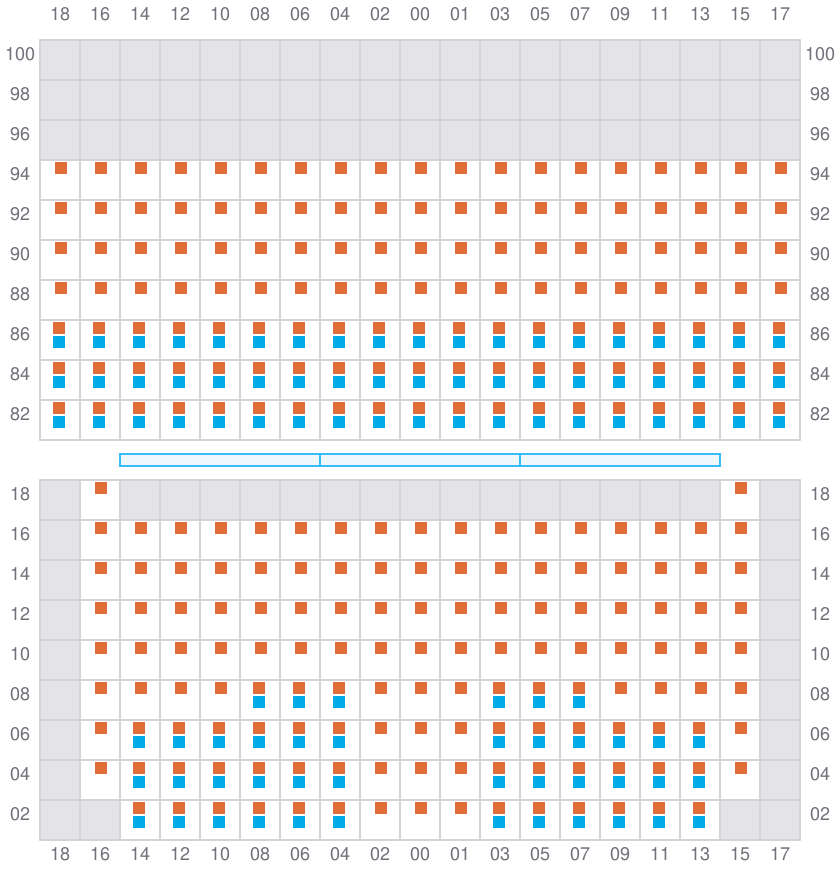

027
- ←
029 (030)
- →
031
- ←

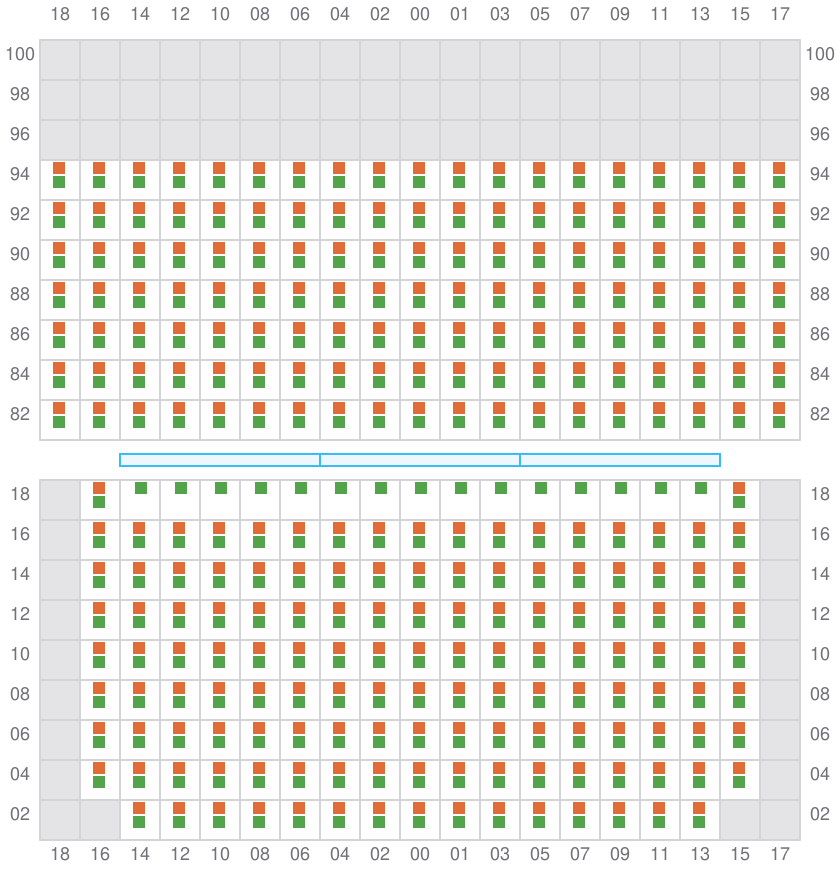

033 (034)
- →

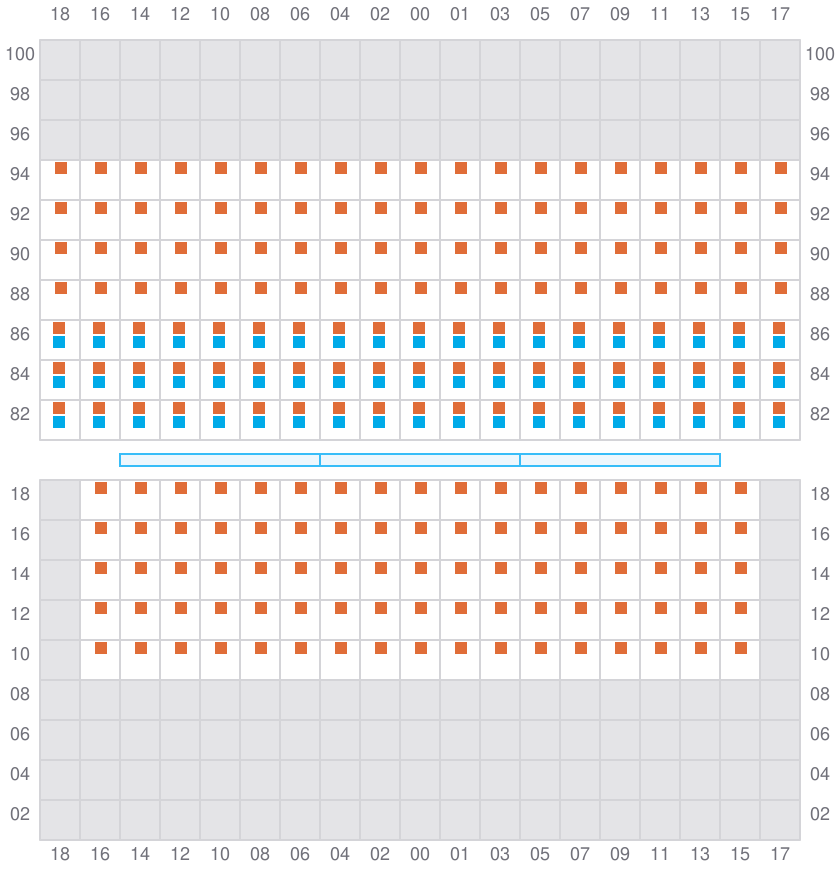

035
- ←

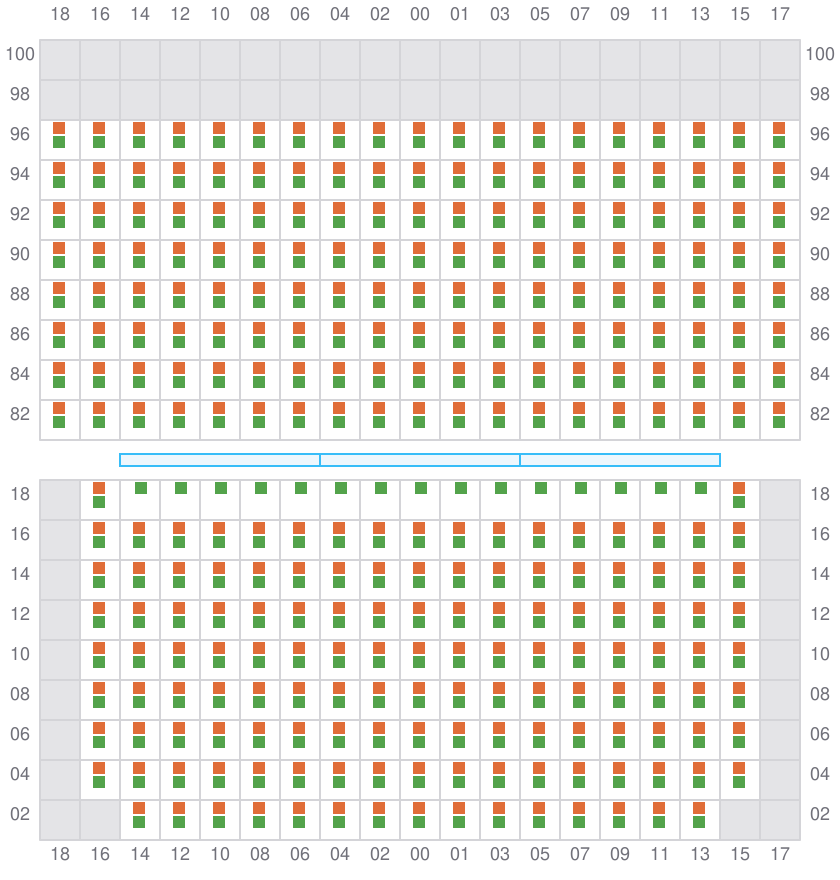

037 (038)
- →
039
- ←
041 (042)
- →

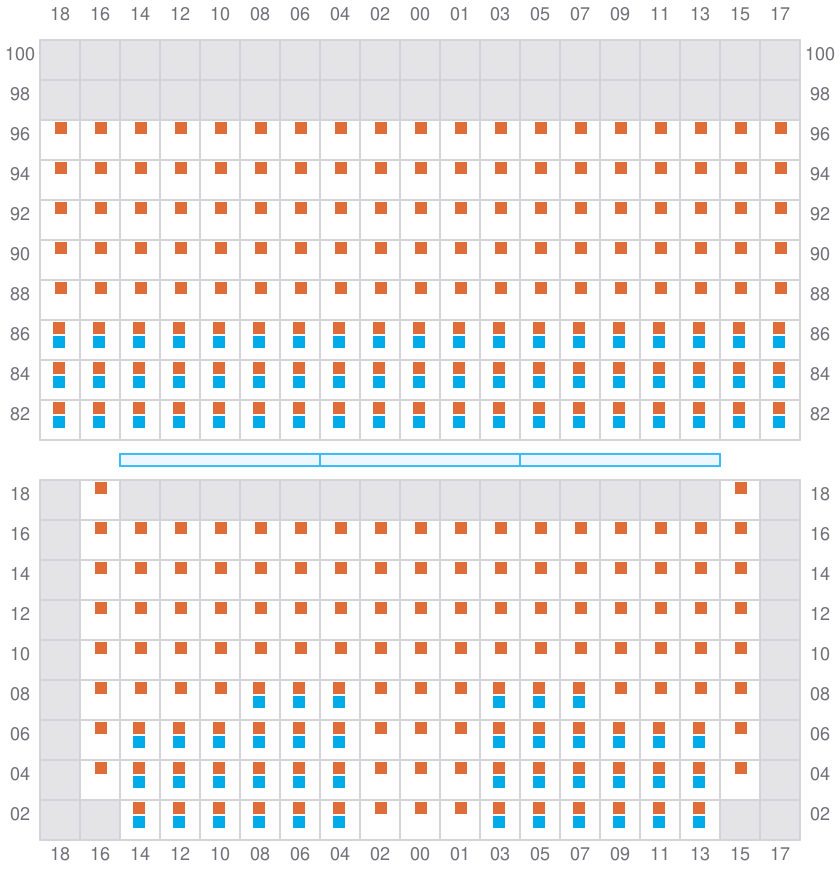

043
- ←
045 (046)
- →
047
- ←

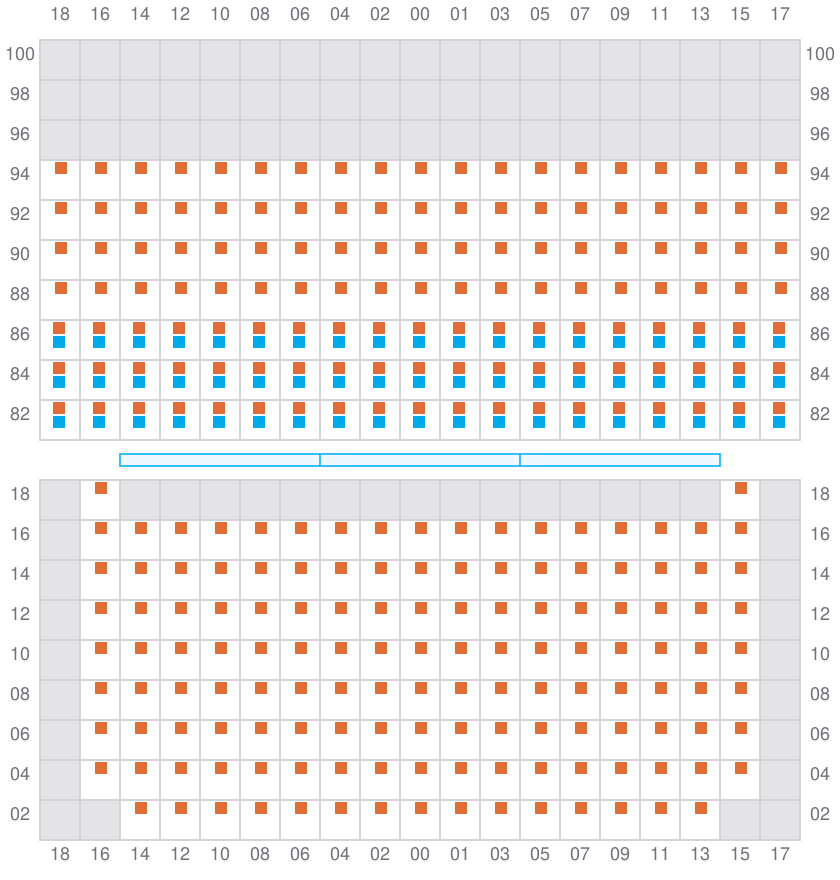

049 (050)
- →
051
- ←

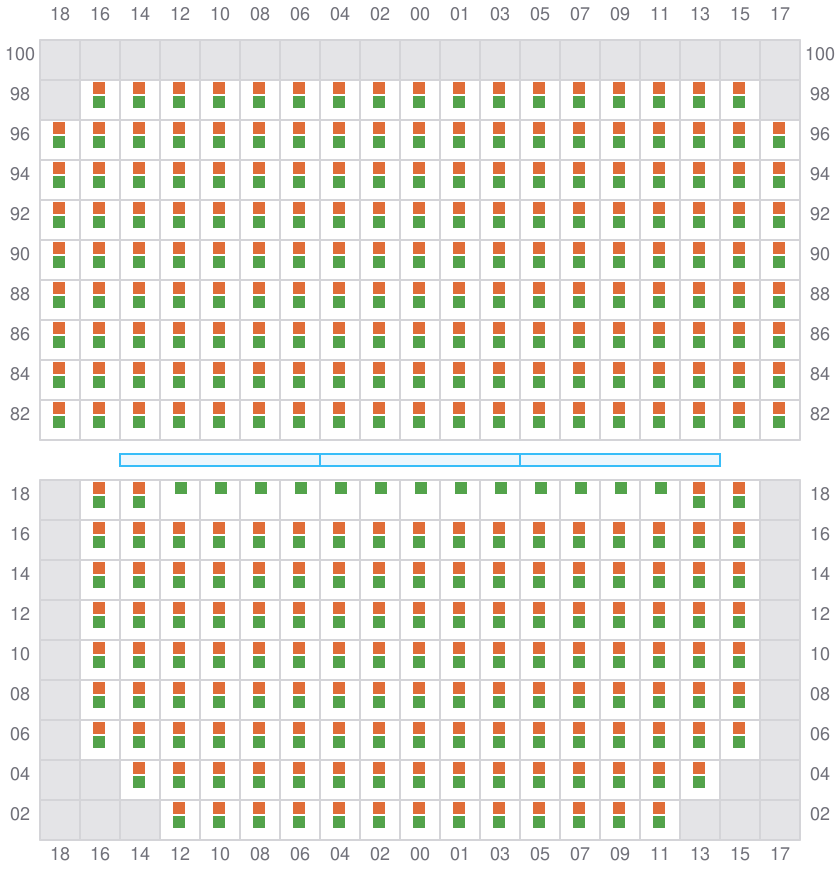

053 (054)
- →

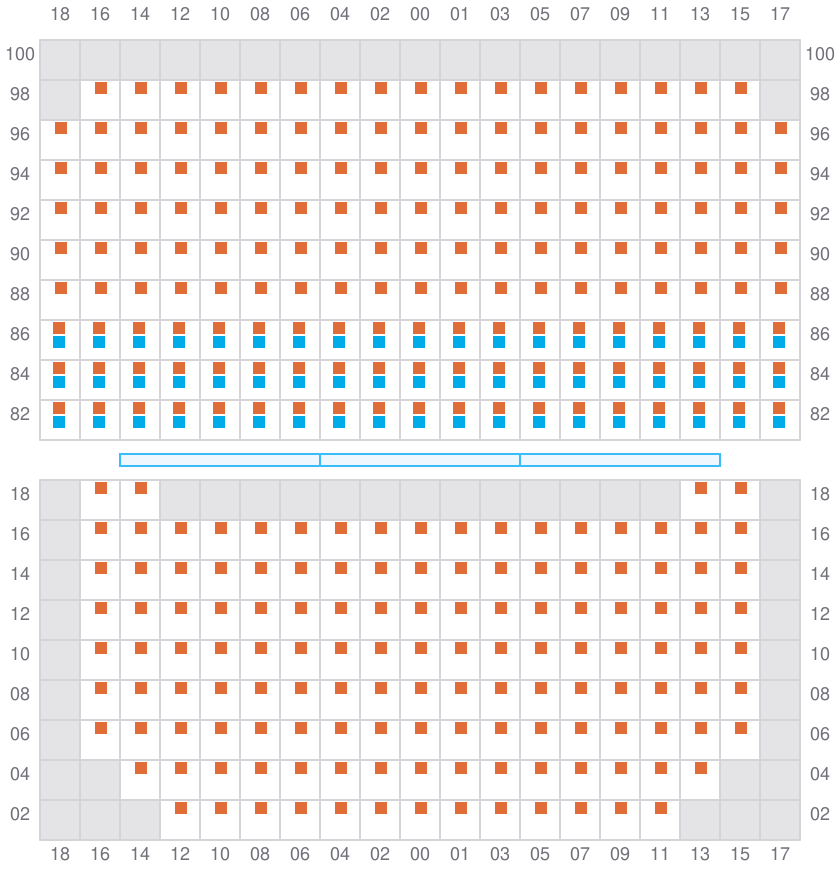

055
- ←

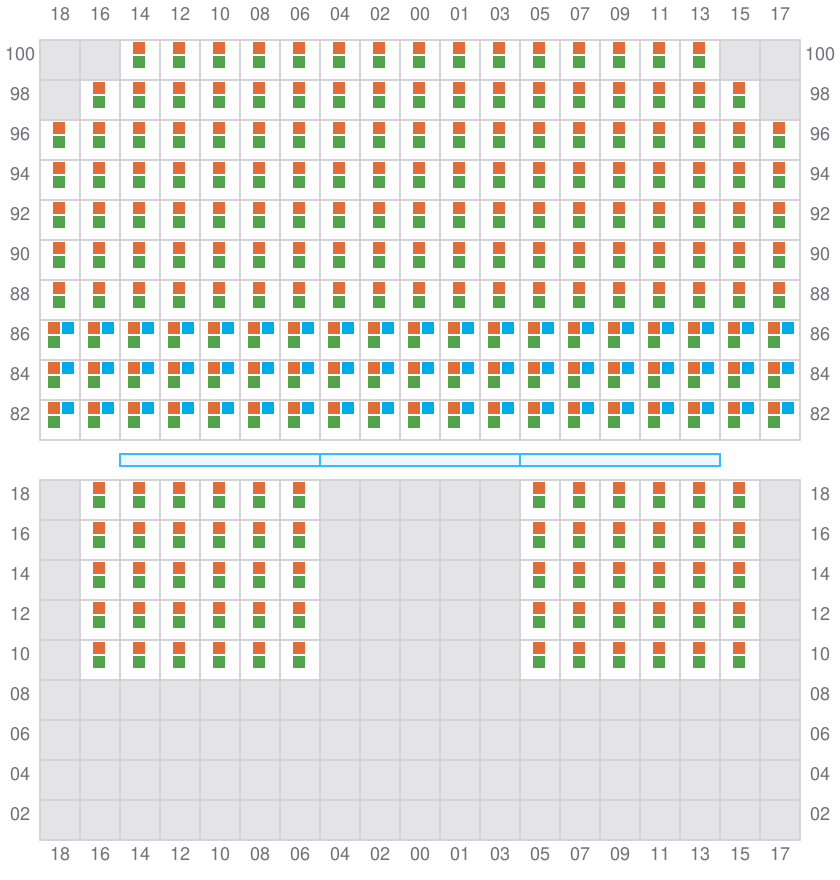

057 (058)
- →

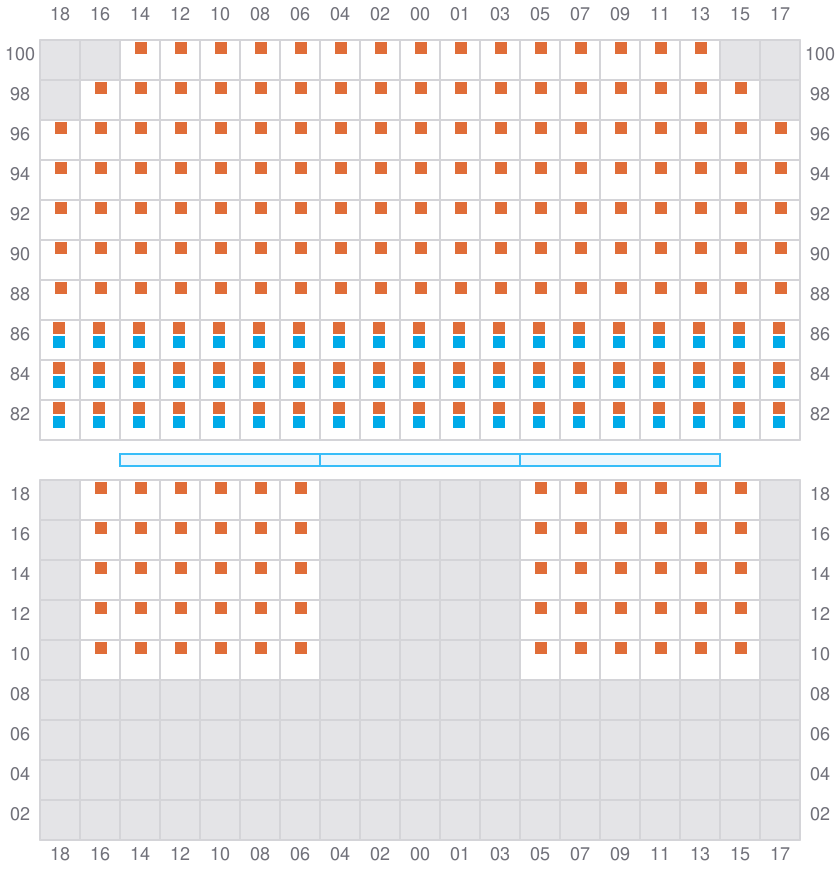

059
- ←

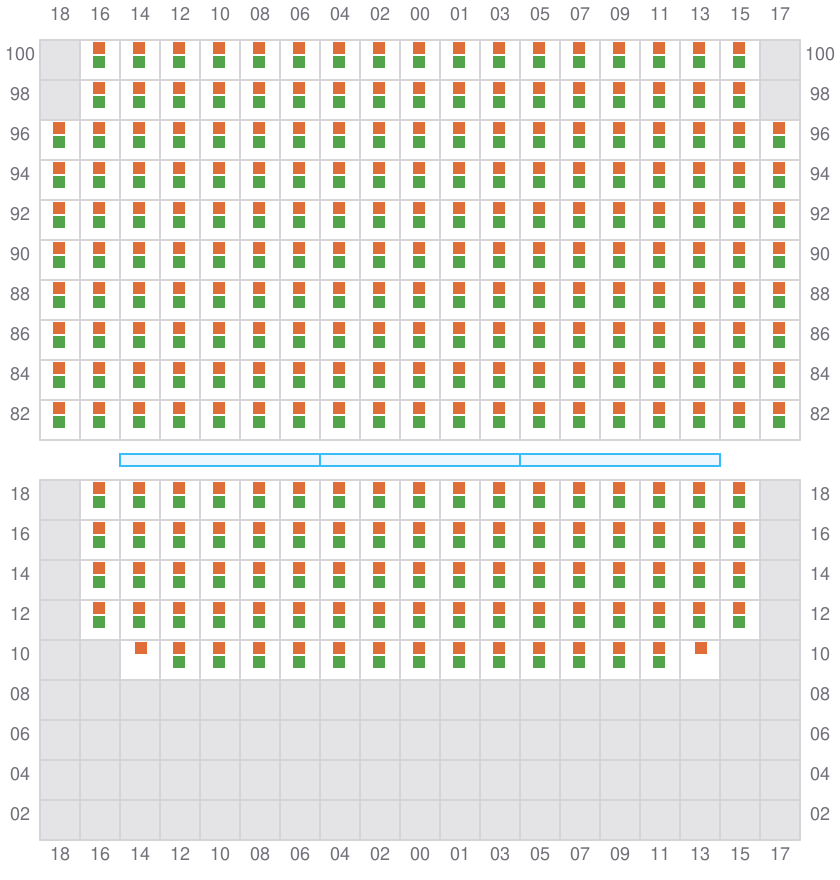

061 (062)
- →

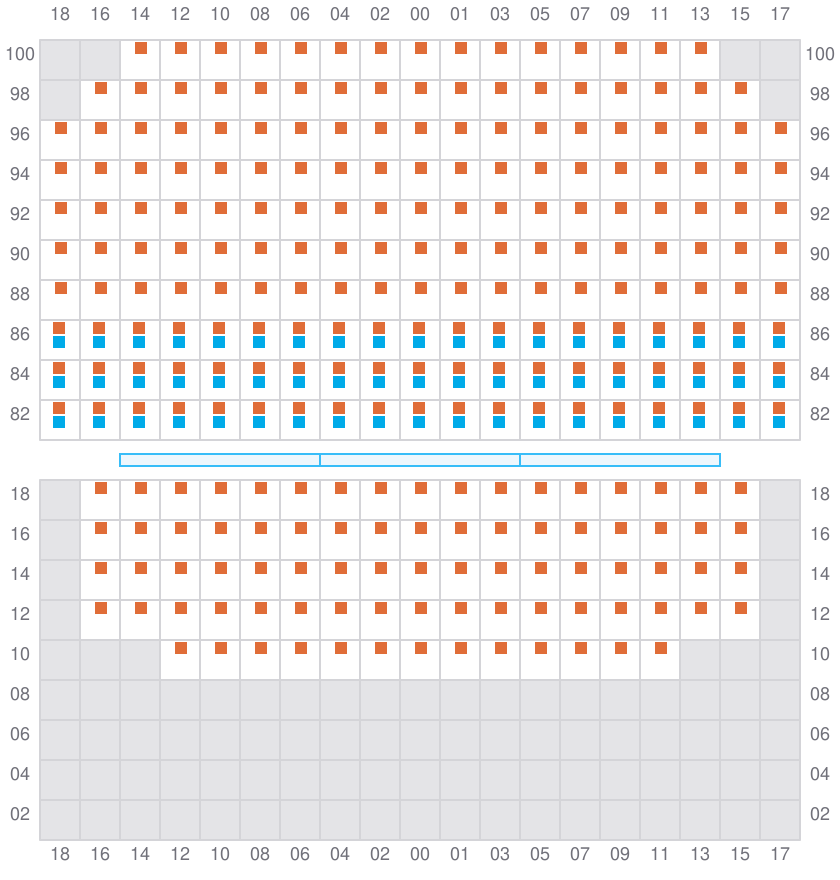

063
- ←

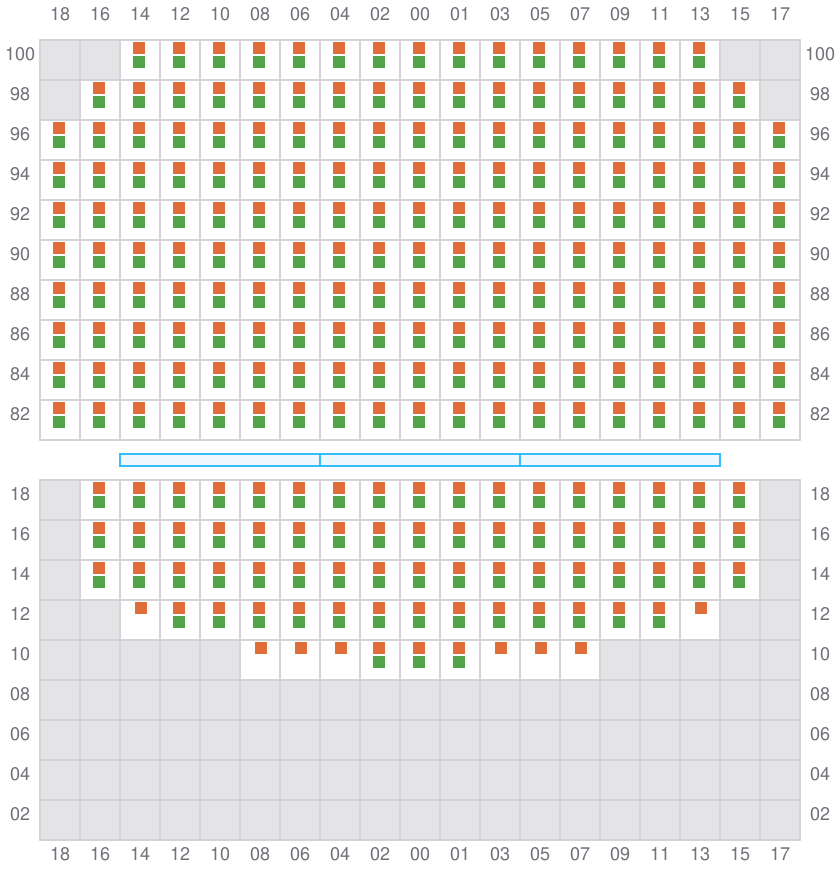

065 (066)
- →

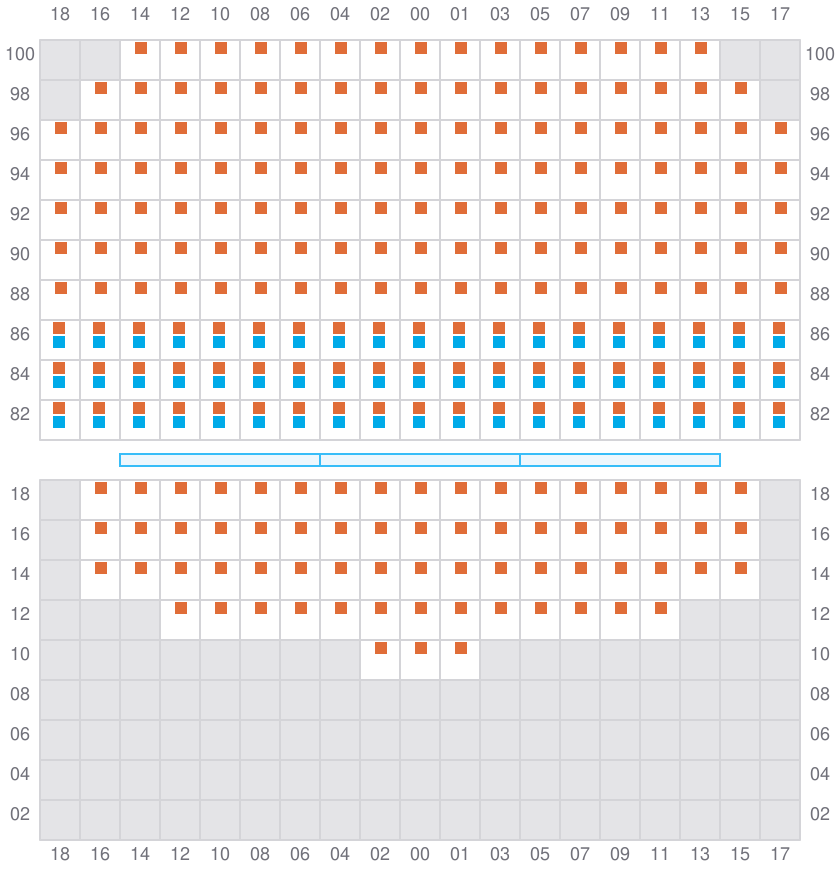

067
- ←

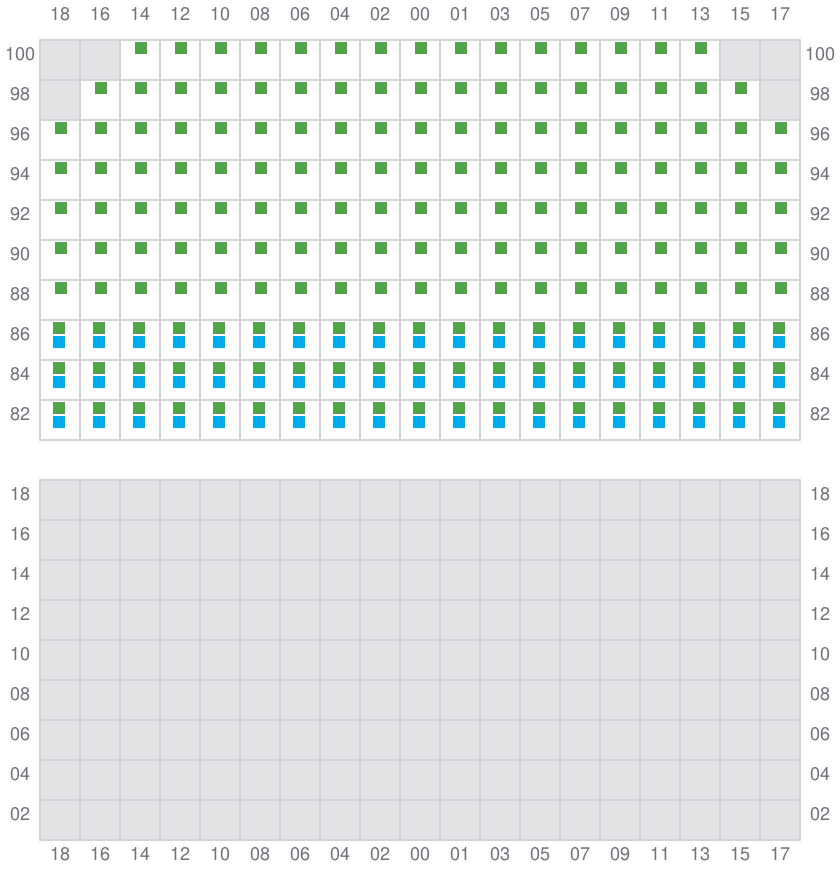

069 (070)
- → / ?
