MSC ALDEBARAN III
9301990 | D5YM3 | 9301990 by ********* Last update: Sun Mar 17 2024

General Info

Ship Name:MSC ALDEBARAN III
IMO Code:9301990
Call Sign:D5YM3
Line Operator:9301990
Class Name for Sister Ships:A87
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:2,785

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

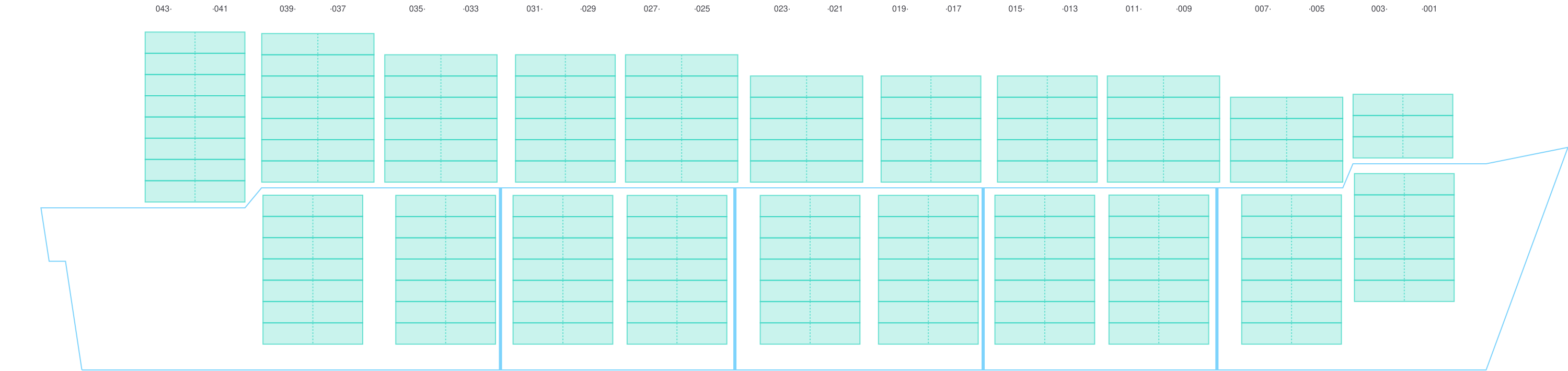

Side View

Side view of MSC ALDEBARAN III

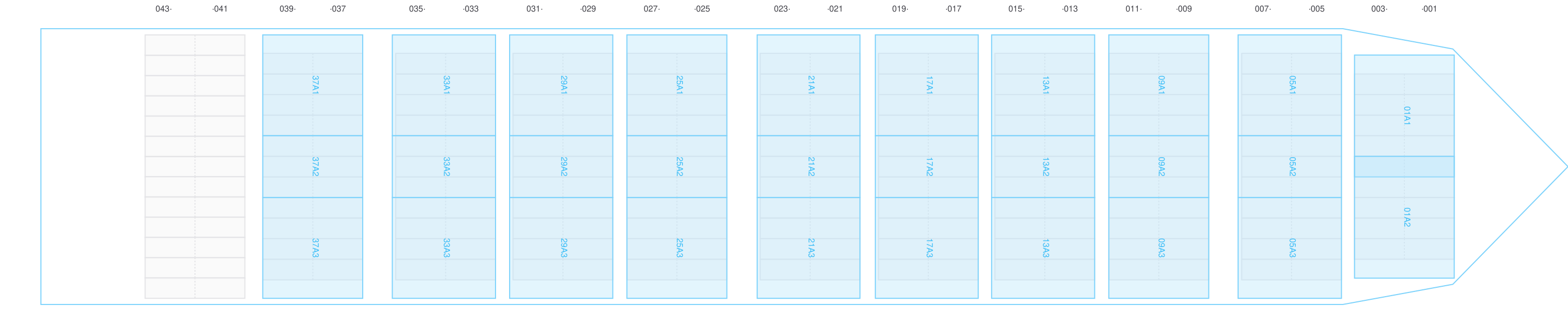

Hatch-Covers View

Deck view of MSC ALDEBARAN III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

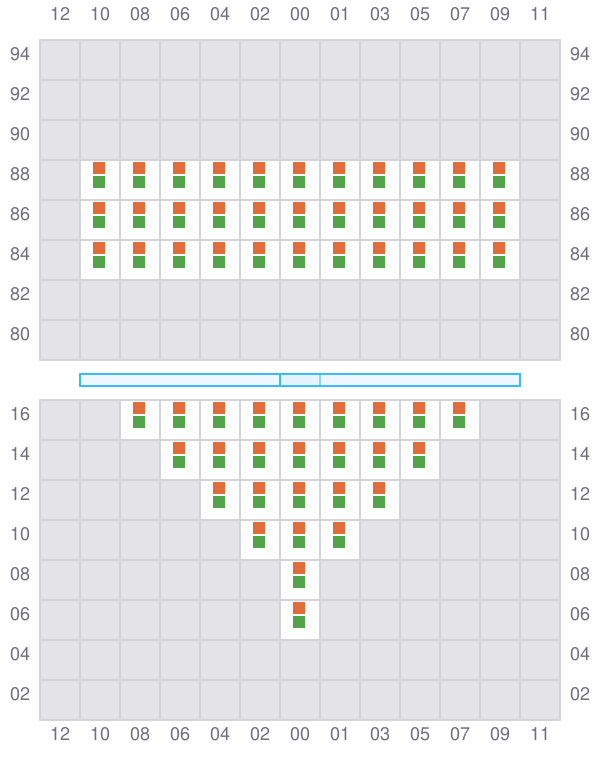

001 (002)

  • →
Bay 001 view and slots of MSC ALDEBARAN III

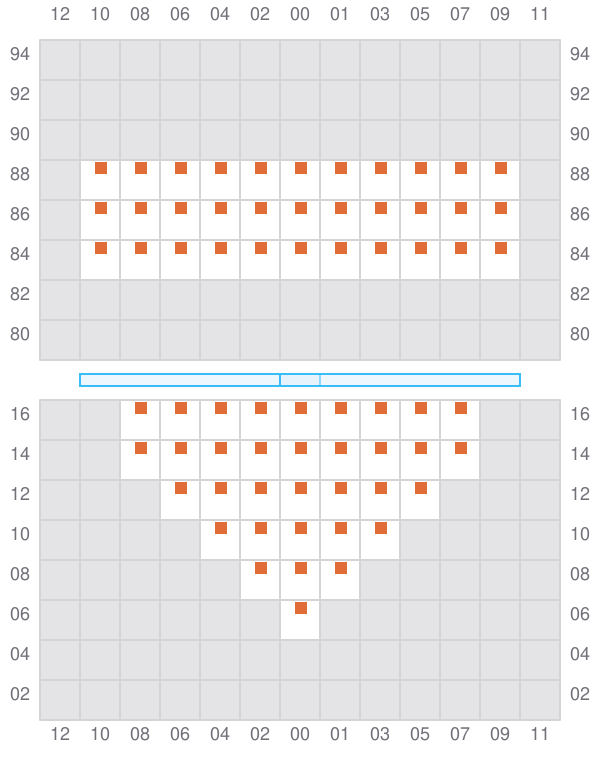

003

  • ←
Bay 003 view and slots of MSC ALDEBARAN III

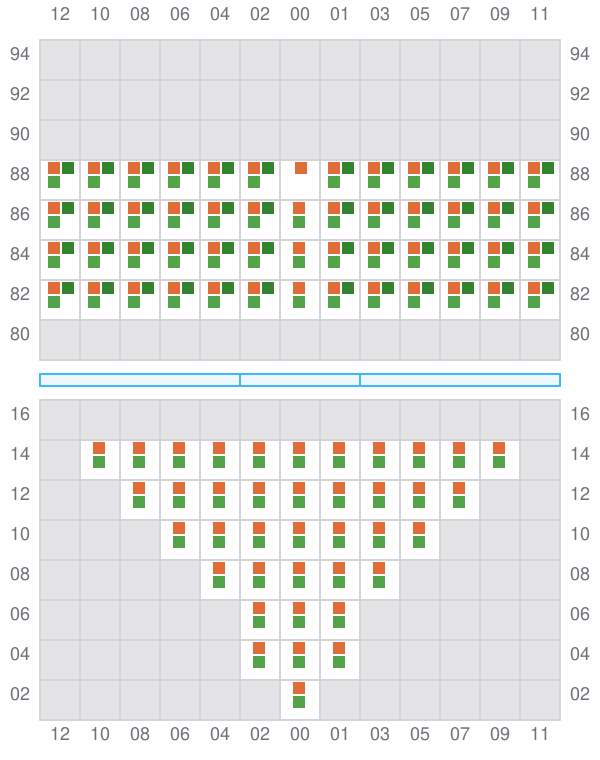

005 (006)

  • →
Bay 005 view and slots of MSC ALDEBARAN III

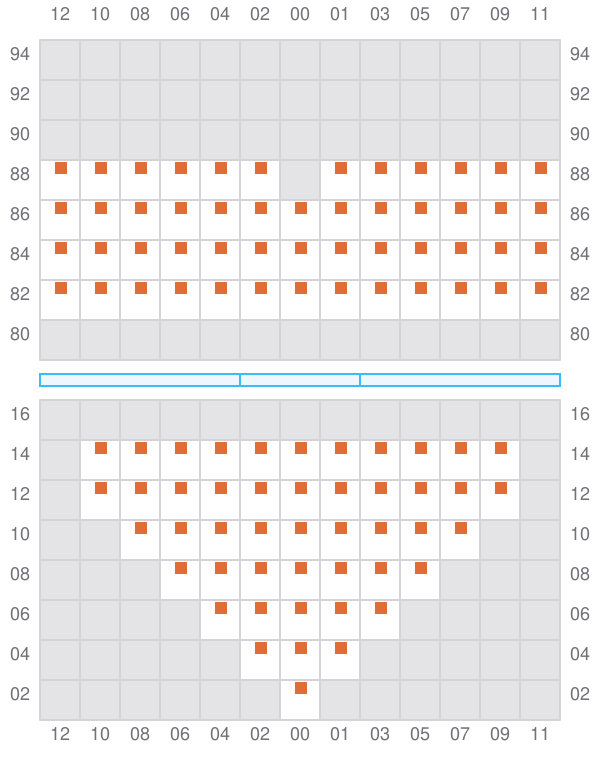

007

  • ←
Bay 007 view and slots of MSC ALDEBARAN III

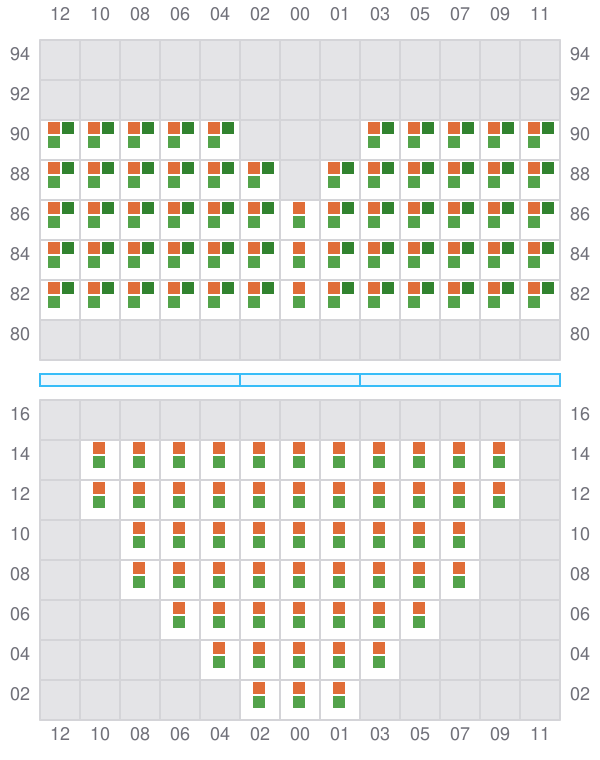

009 (010)

  • →
Bay 009 view and slots of MSC ALDEBARAN III

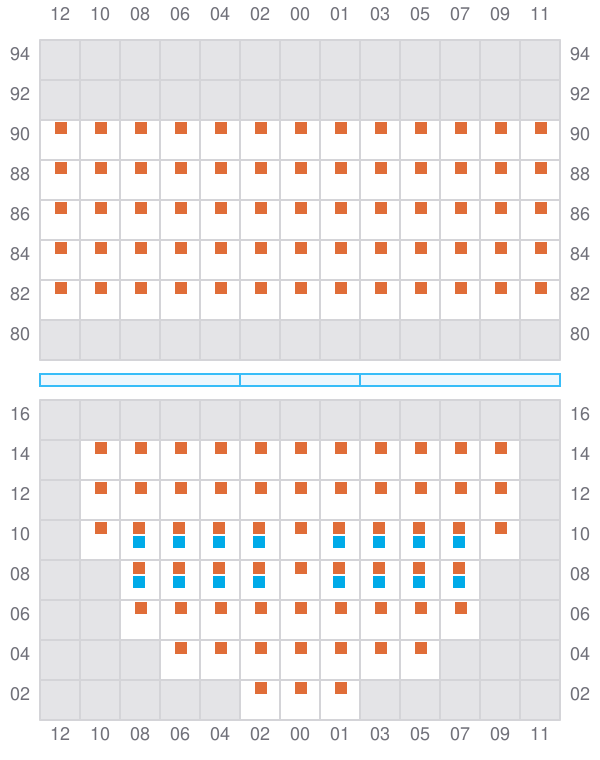

011

  • ←
  • ? / →
Bay 011 view and slots of MSC ALDEBARAN III

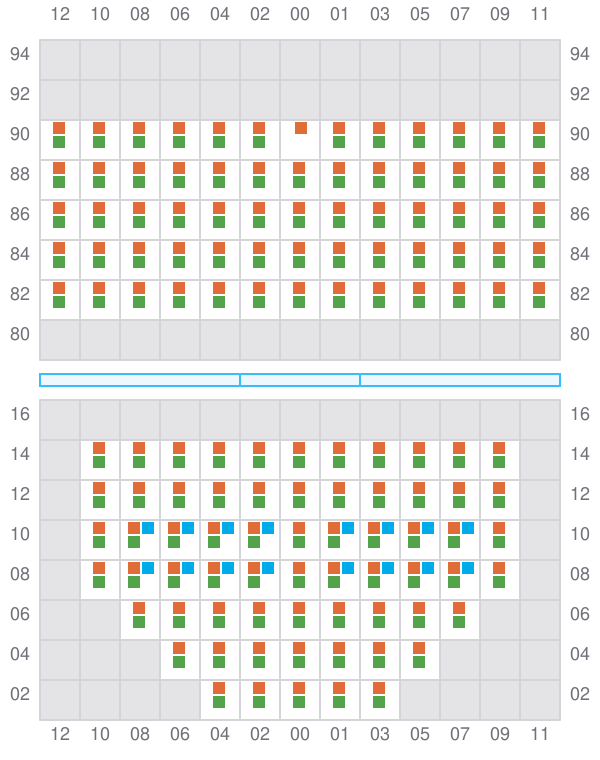

013 (014)

  • →
  • ? / ←
Bay 013 view and slots of MSC ALDEBARAN III

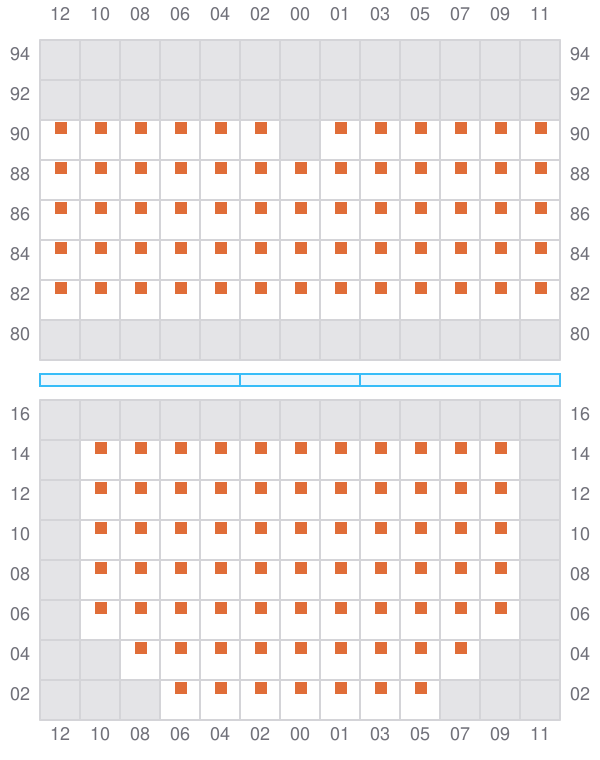

015

  • ←
Bay 015 view and slots of MSC ALDEBARAN III

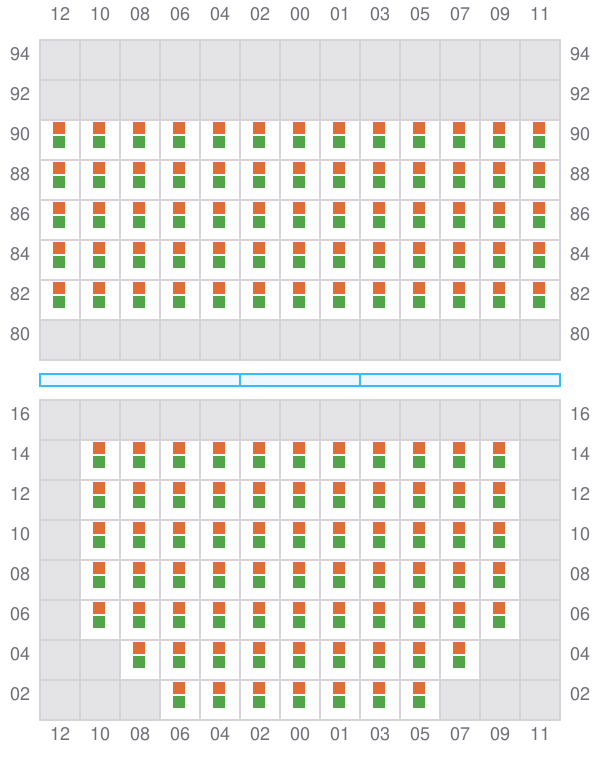

017 (018)

  • →
Bay 017 view and slots of MSC ALDEBARAN III

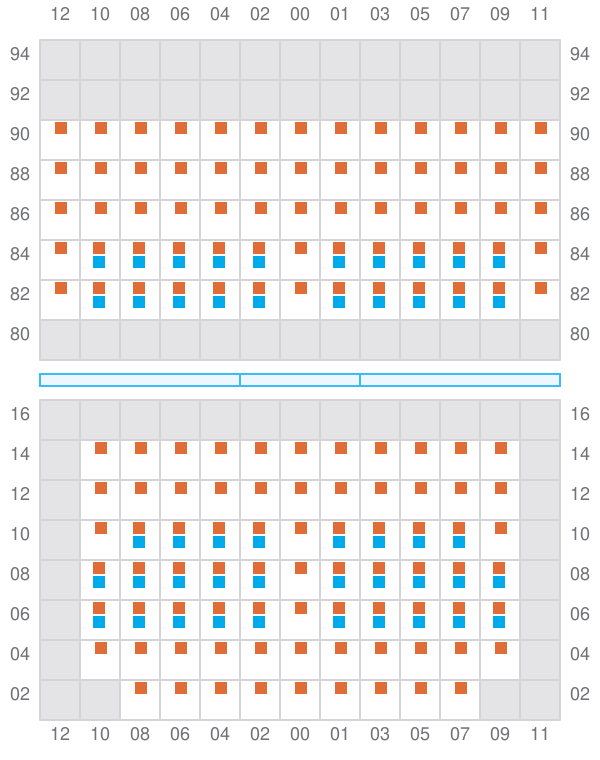

019

  • ←
  • →
Bay 019 view and slots of MSC ALDEBARAN III

021 (022)

  • →
  • ←
Bay 021 view and slots of MSC ALDEBARAN III

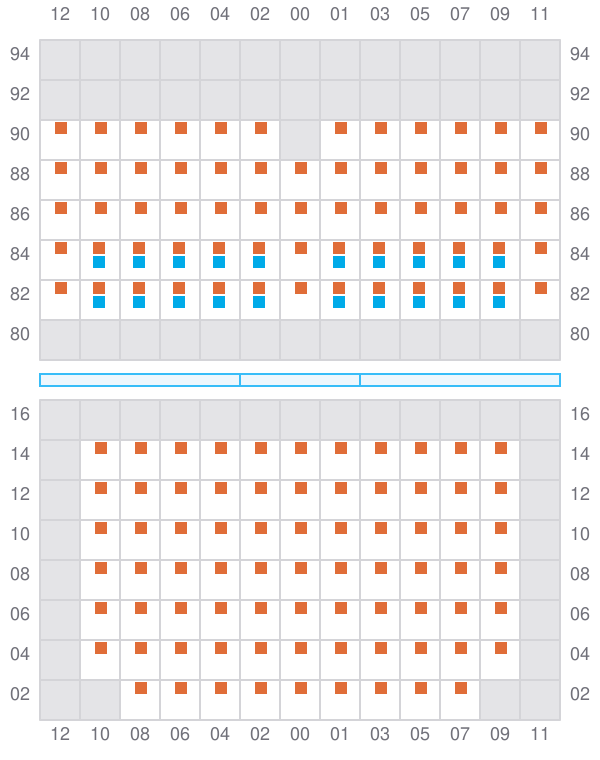

023

  • ←
  • → / ?
Bay 023 view and slots of MSC ALDEBARAN III

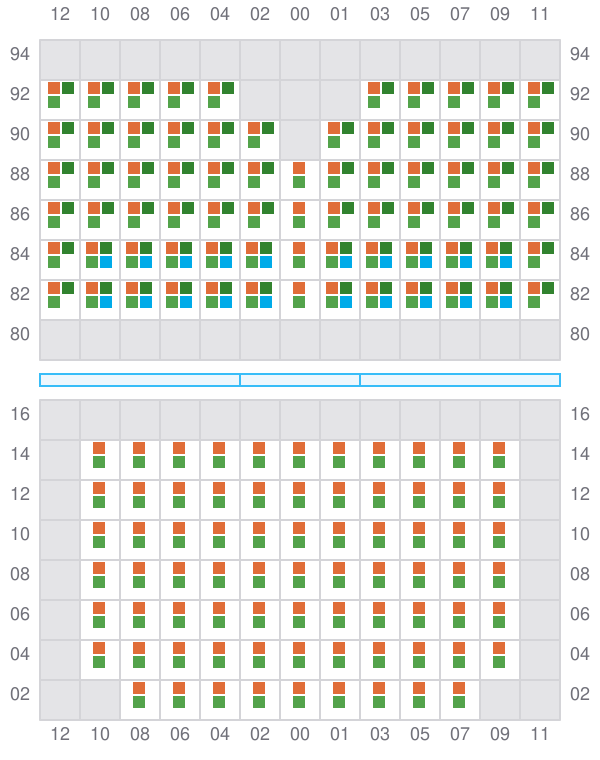

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of MSC ALDEBARAN III

027

  • ←
  • →
Bay 027 view and slots of MSC ALDEBARAN III

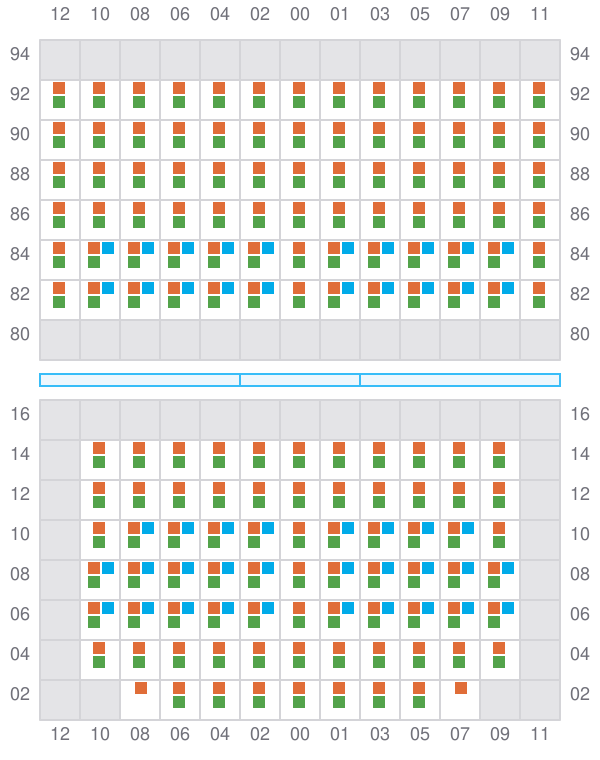

029 (030)

  • →
  • ←
Bay 029 view and slots of MSC ALDEBARAN III

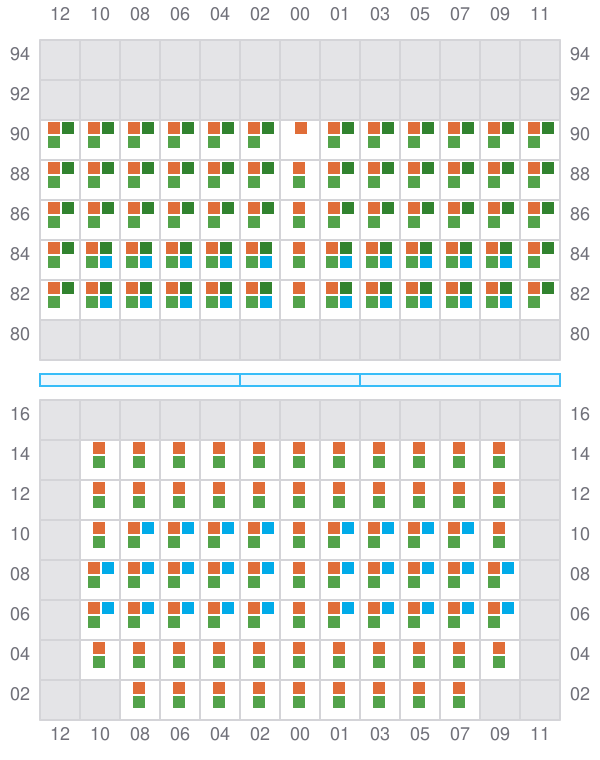

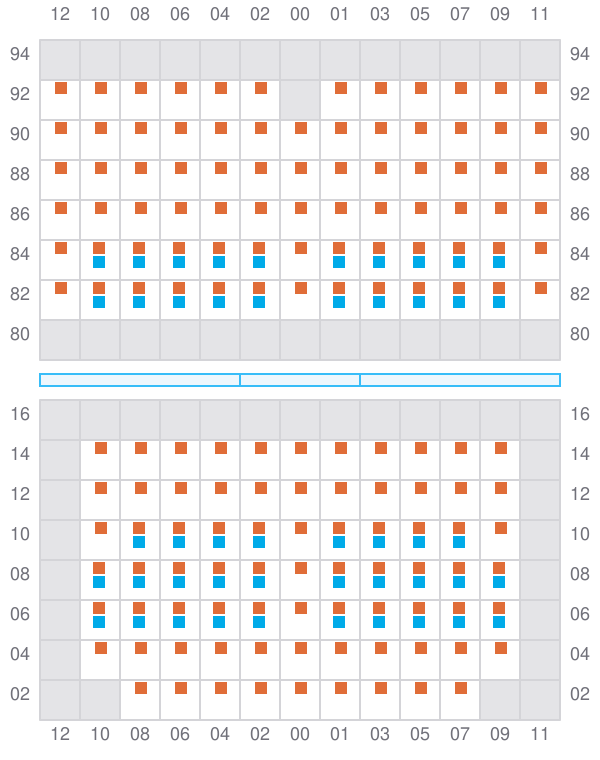

031

  • ←
  • → / ?
Bay 031 view and slots of MSC ALDEBARAN III

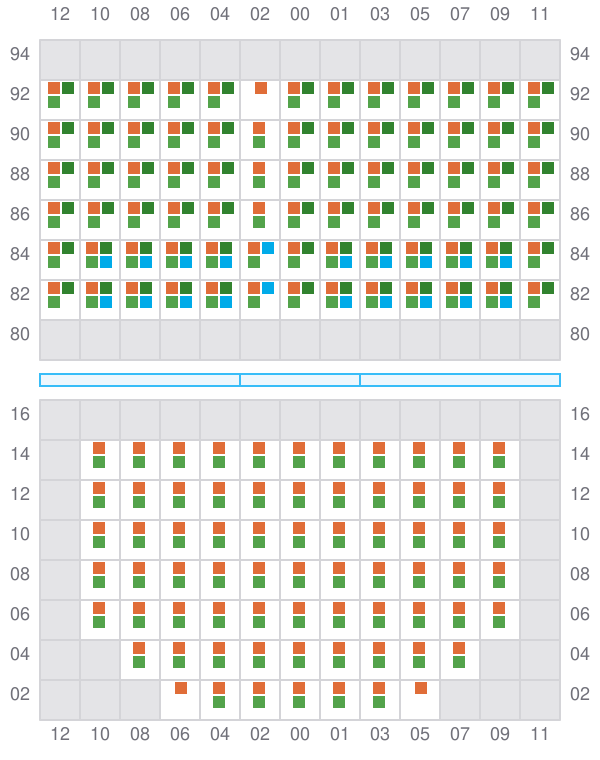

033 (034)

  • →
  • ← / ?
Bay 033 view and slots of MSC ALDEBARAN III

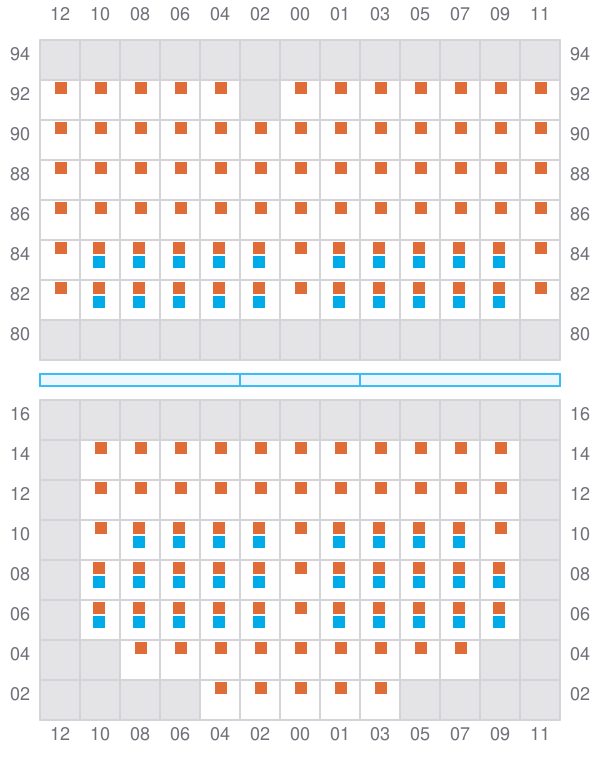

035

  • ←
  • →
Bay 035 view and slots of MSC ALDEBARAN III

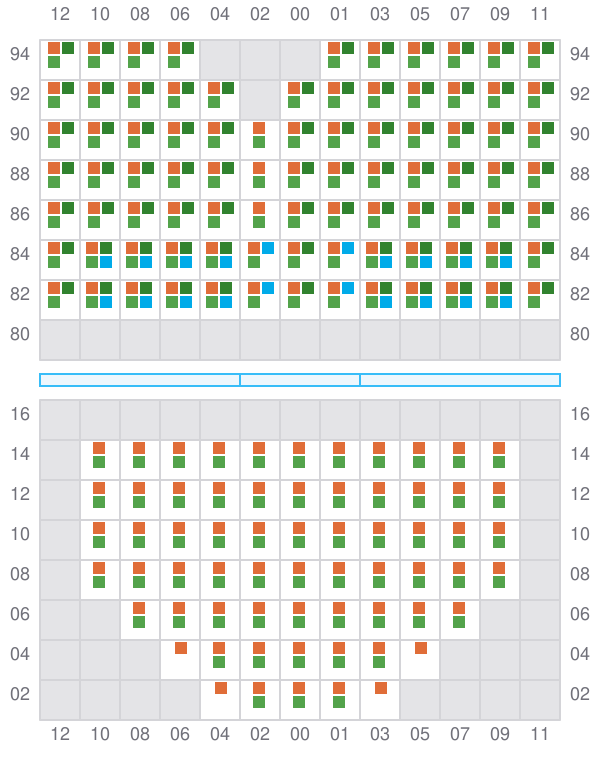

037 (038)

  • →
  • ← / ?
Bay 037 view and slots of MSC ALDEBARAN III

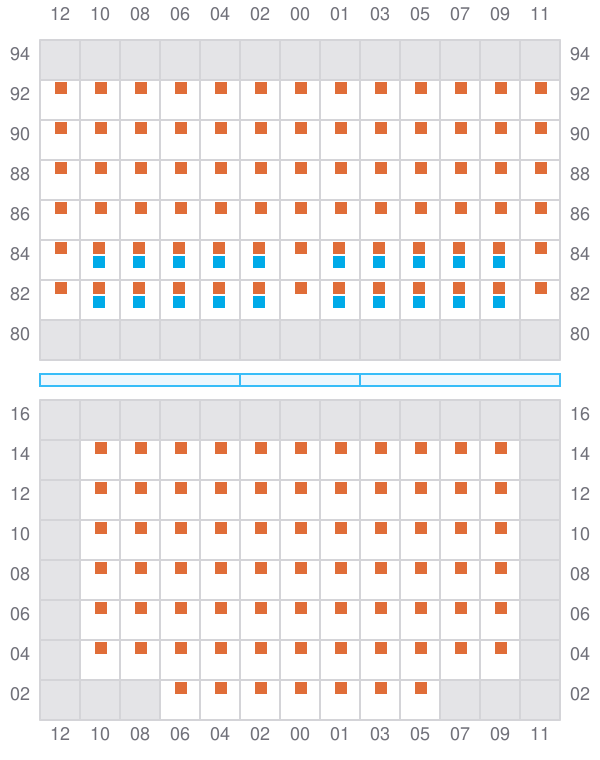

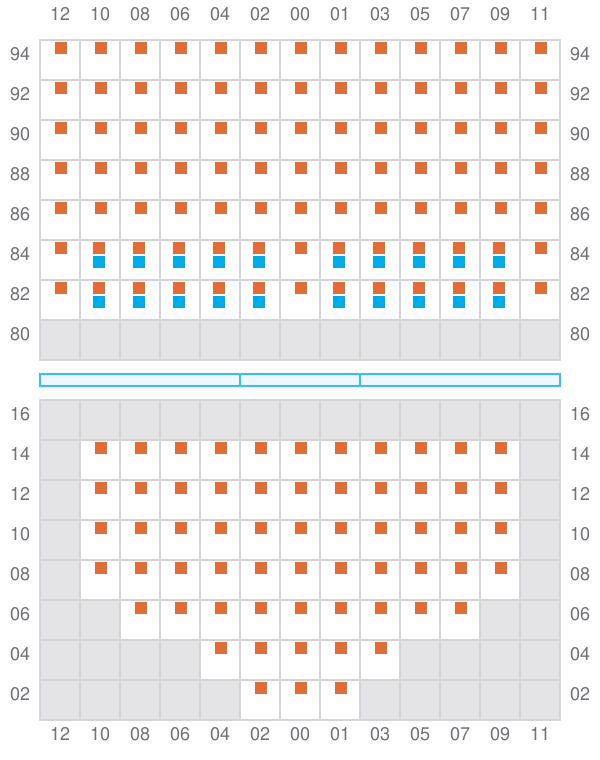

039

  • ←
  • → / ?
Bay 039 view and slots of MSC ALDEBARAN III

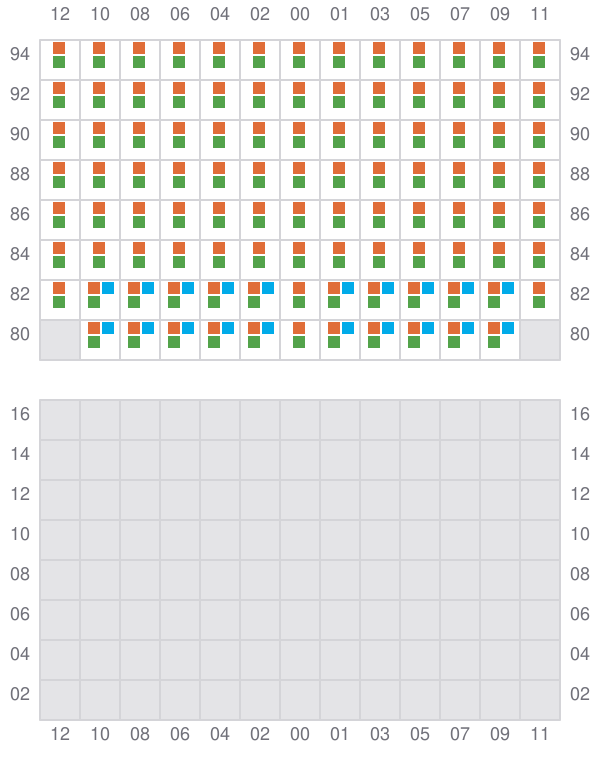

041 (042)

  • → / ?
  • ← / ?
Bay 041 view and slots of MSC ALDEBARAN III

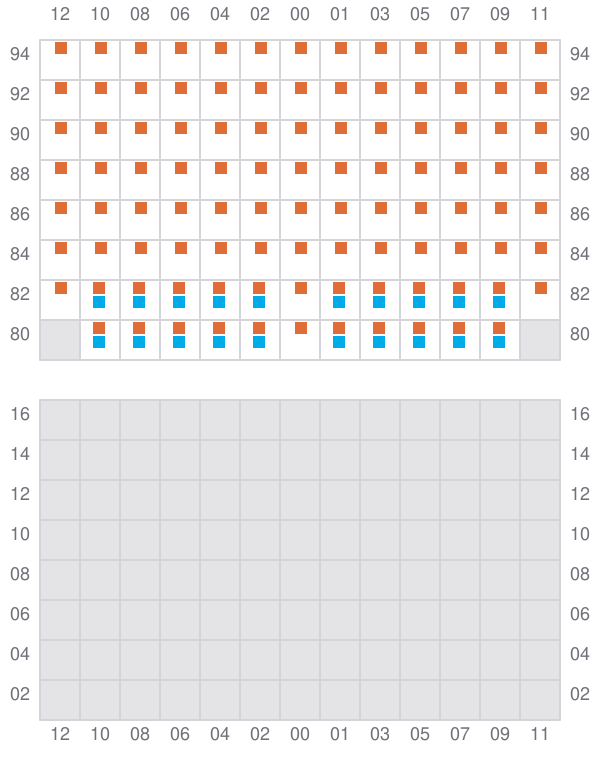

043

  • ← / ?
  • → / ?
Bay 043 view and slots of MSC ALDEBARAN III
