MSC ALICE II
9232632 | D5NV6 | NEPTUNE PACIFIC LINE by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:MSC ALICE II
IMO Code:9232632
Call Sign:D5NV6
Line Operator:NEPTUNE PACIFIC LINE
Class Name for Sister Ships:B170
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):171.94
LOA (Length Overall):184.70
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,730
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

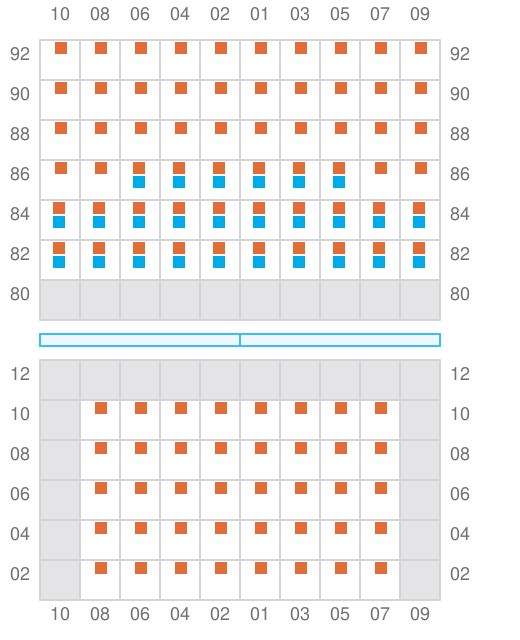

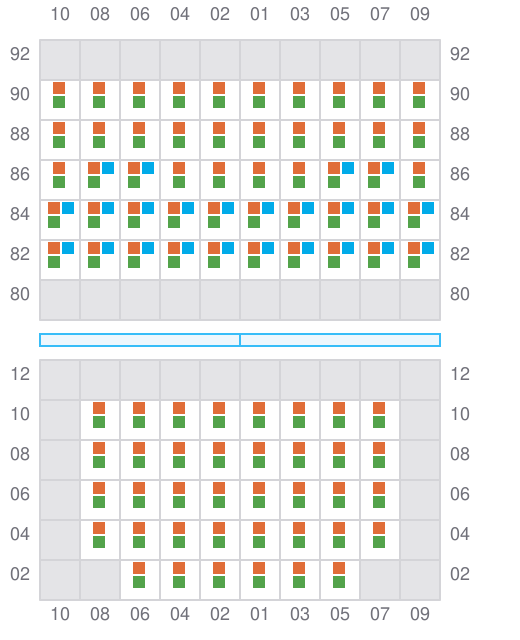

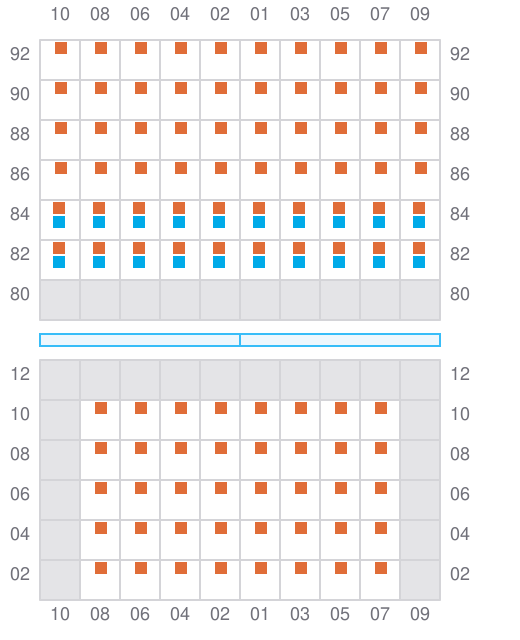

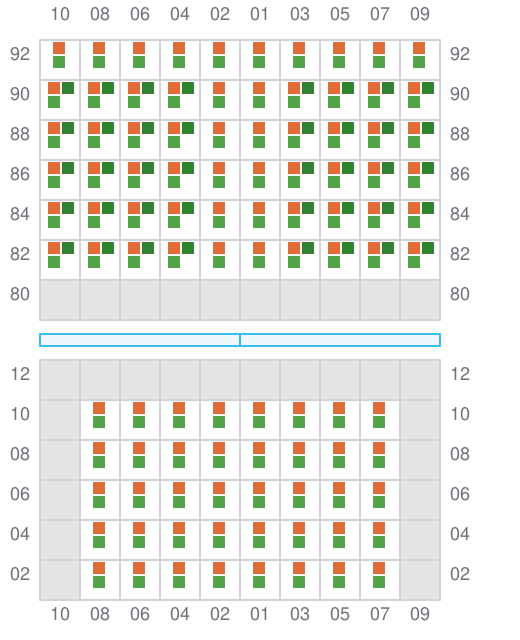

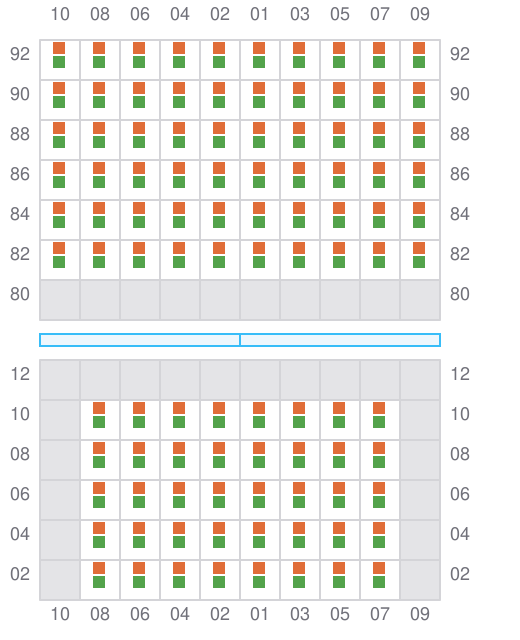

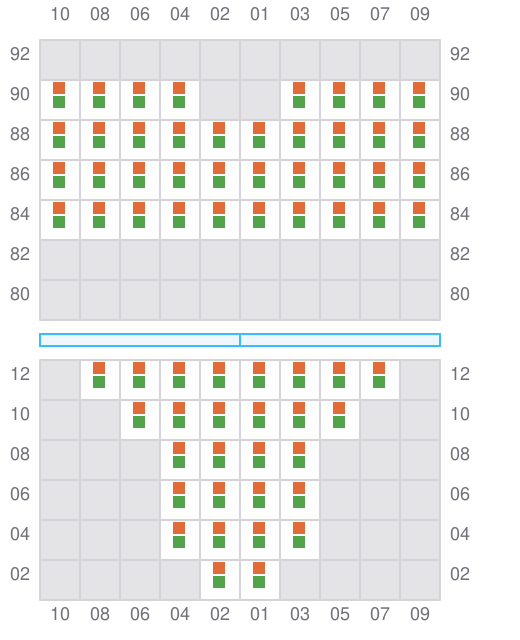

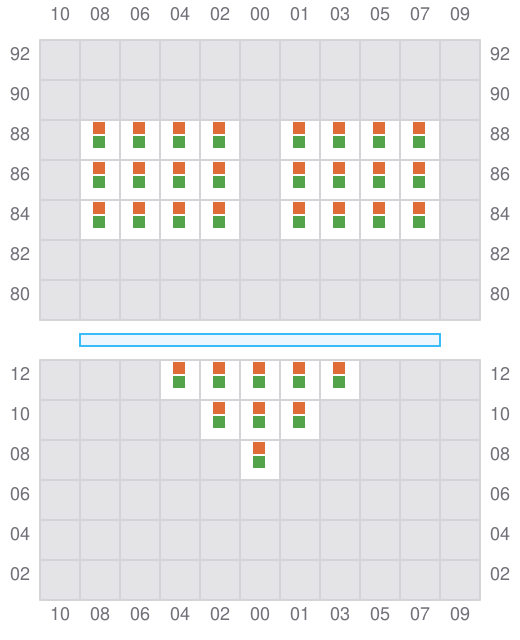

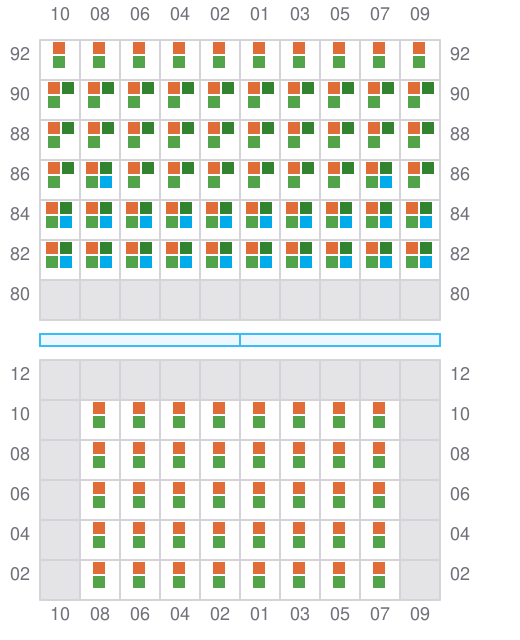

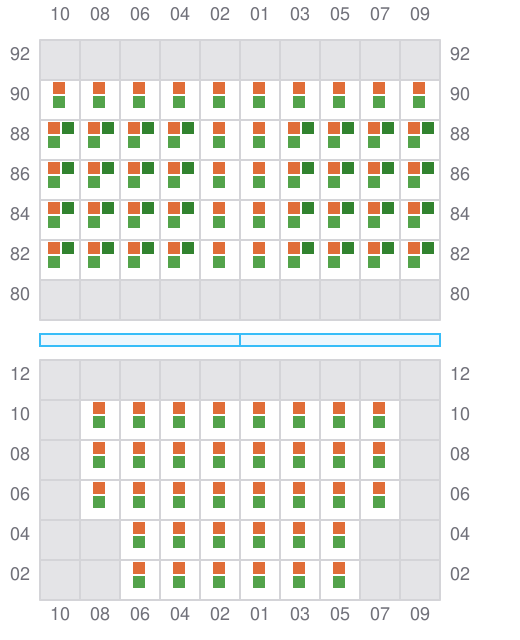

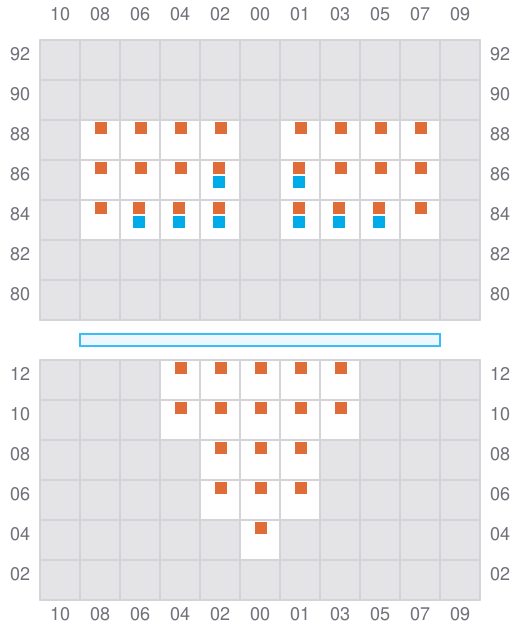

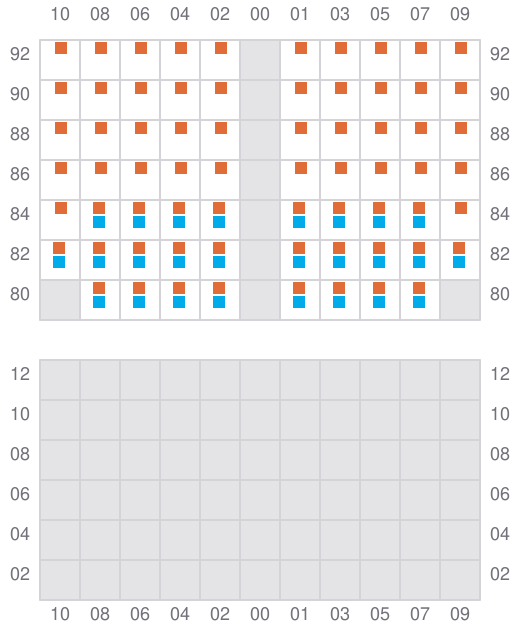

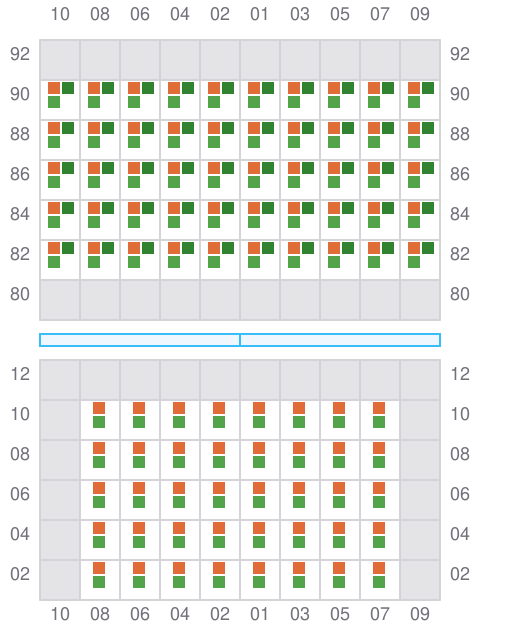

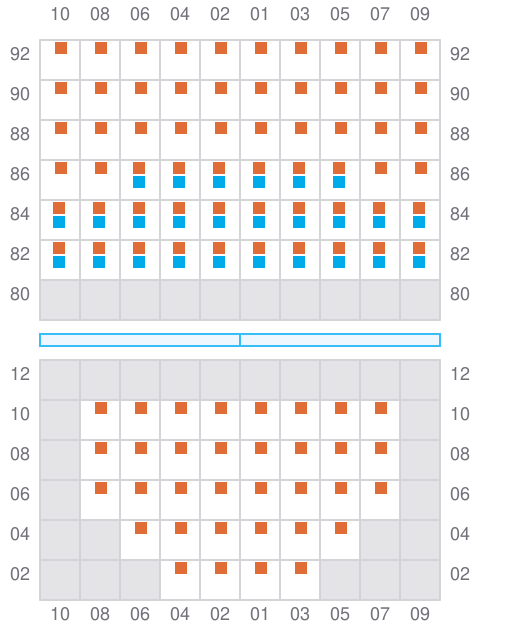

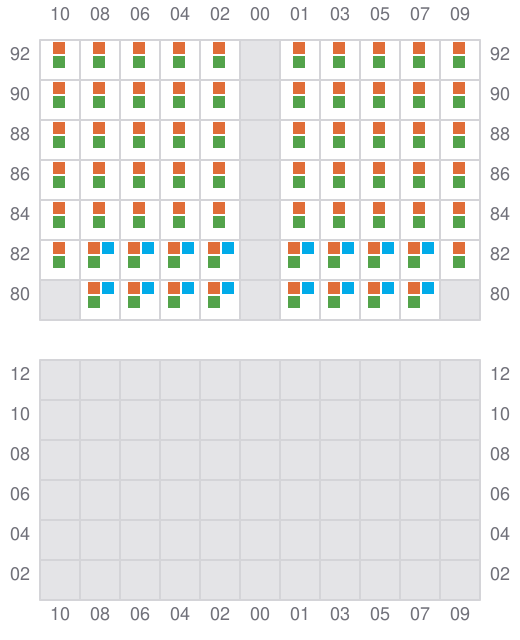

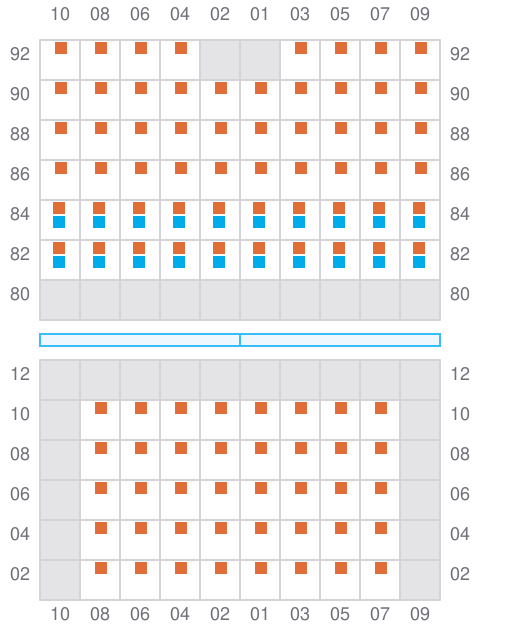

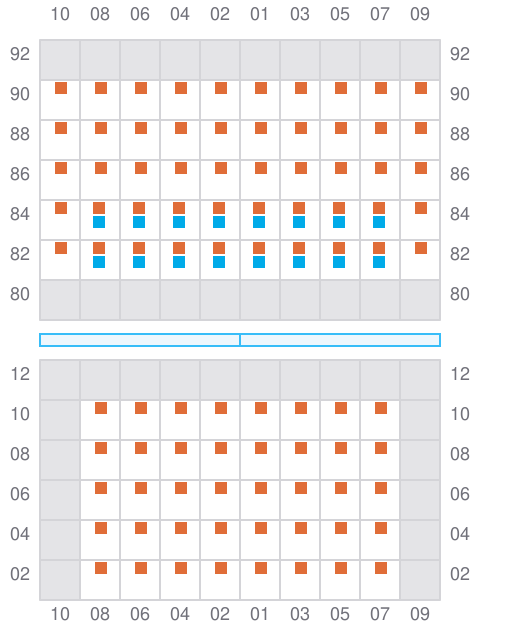

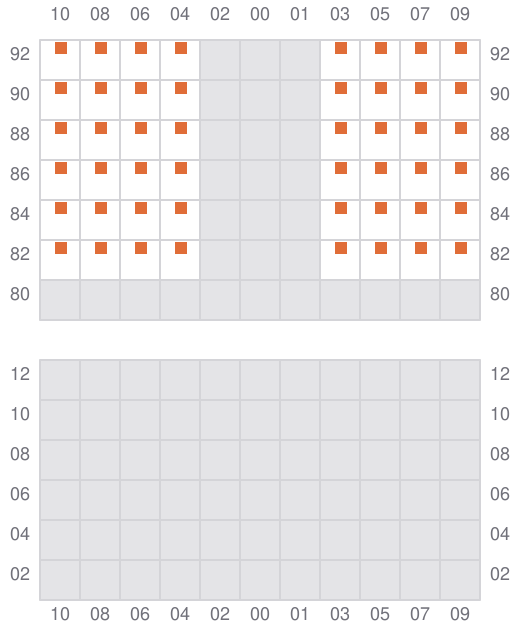

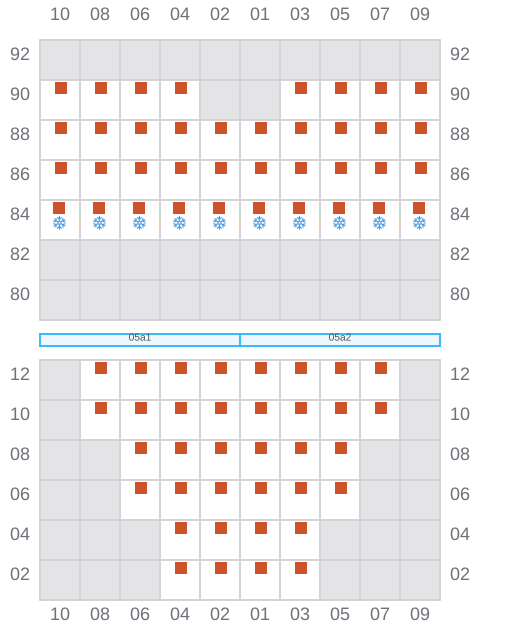

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
- → / ?
005 (006)
- →
- ← / ?
007
- ←
- → / ?
009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
015
- ←
- → / ?
017 (018)
- →
019
- ←
- → / ?
021
- → / ?
023 (024)
- →
- ← / ?
025
- ←
- → / ?
027 (028)
- →
029
- ←
- → / ?
031 (032)
- →
033
- ←
- → / ?
035 (036)
- →
037
- ←
- → / ?
039 (040)
- → / ?
041
- ← / ?
- → / ?
