MSC ALICE II
9232632 | D5NV6 | MSC by ************************** Last update: Wed Jun 14 2023
General Info
Ship Name:MSC ALICE II
IMO Code:9232632
Call Sign:D5NV6
Line Operator:MSC
Class Name for Sister Ships:ALC
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:055
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,858
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

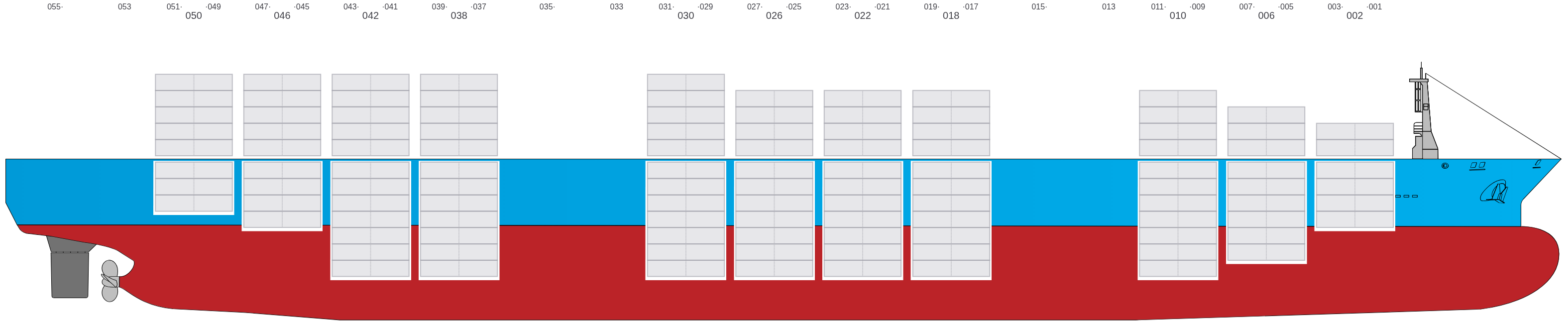

Side View
![Side view of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-sideView.png?v=1686767420484)
Hatch-Covers View
![Deck view of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-deckView.png?v=1686767420484)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

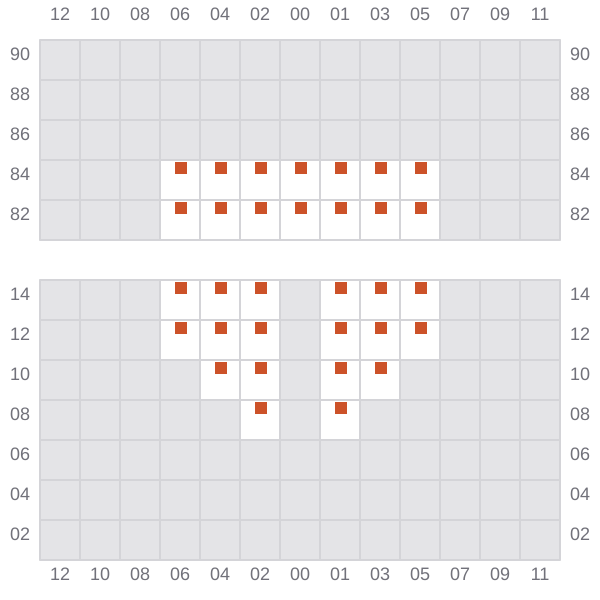

001
- →
![Bay 001 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b001.png?v=1686767420484)

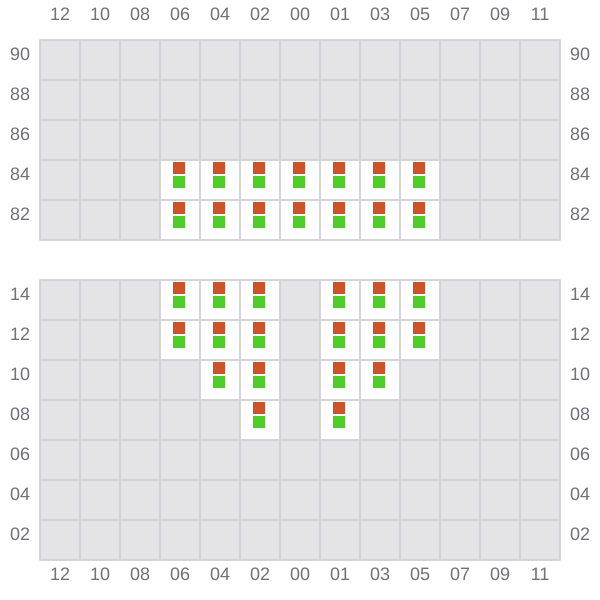

003 (002)
- ←
![Bay 003 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b003.png?v=1686767420484)

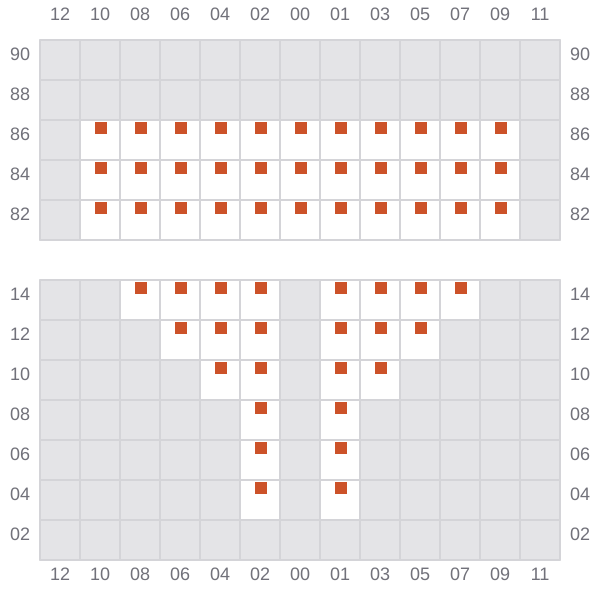

005
- →
![Bay 005 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b005.png?v=1686767420484)

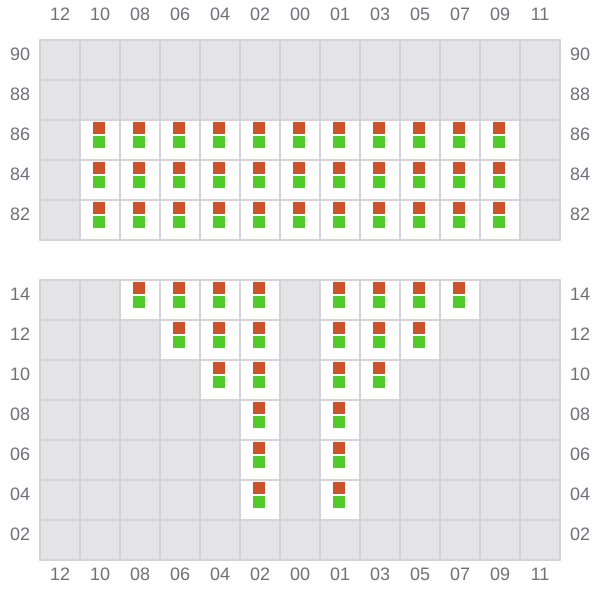

007 (006)
- ←
![Bay 007 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b007.png?v=1686767420484)

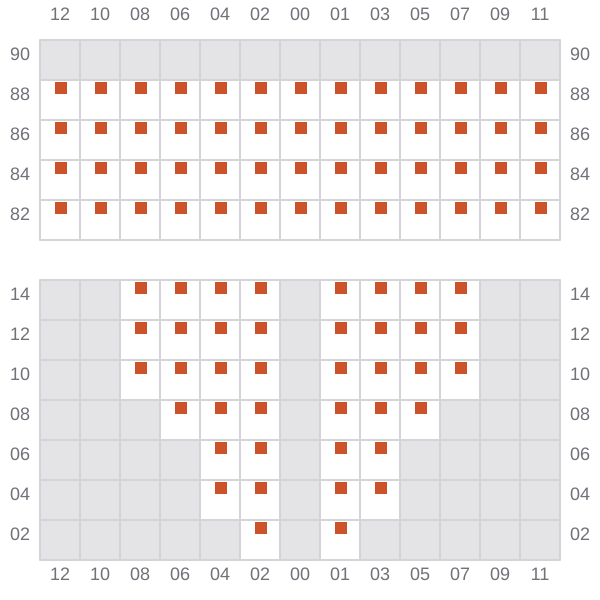

009
- →
![Bay 009 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b009.png?v=1686767420484)

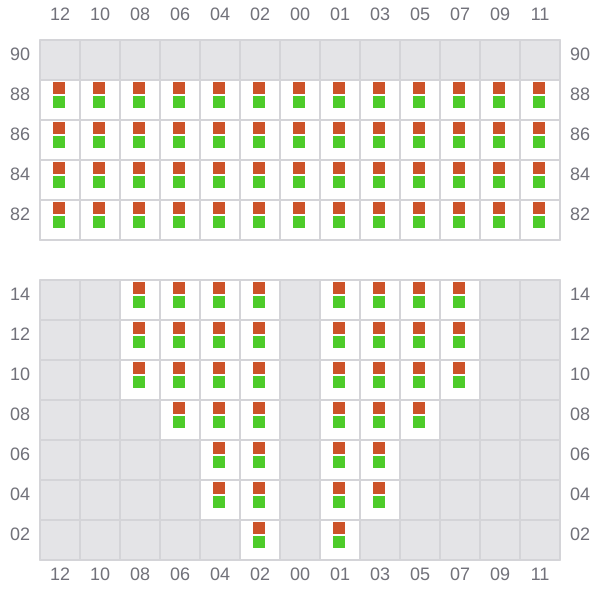

011 (010)
- ←
![Bay 011 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b011.png?v=1686767420484)

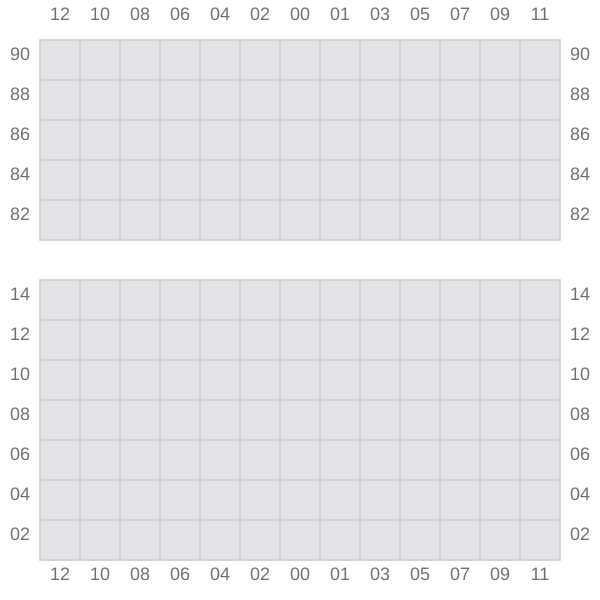

013
![Bay 013 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b013.png?v=1686767420484)

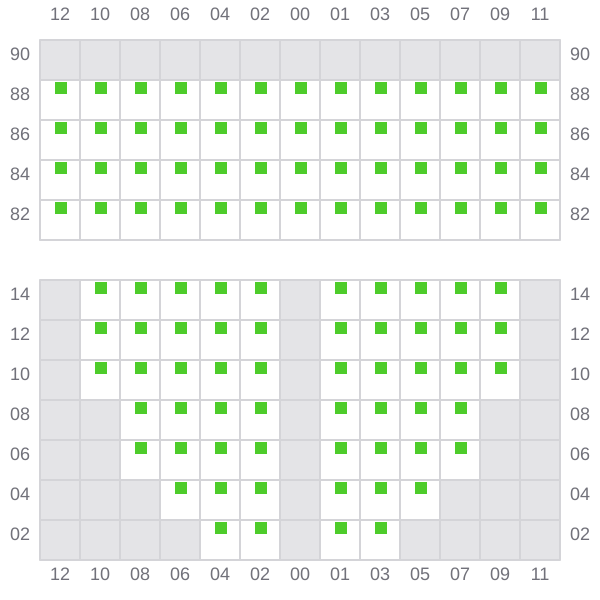

015 (014)
- ←
![Bay 015 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b015.png?v=1686767420484)

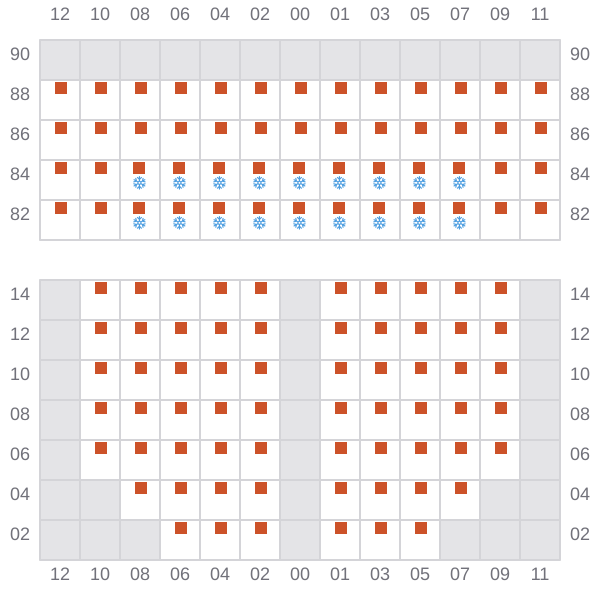

017
- →
![Bay 017 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b017.png?v=1686767420484)

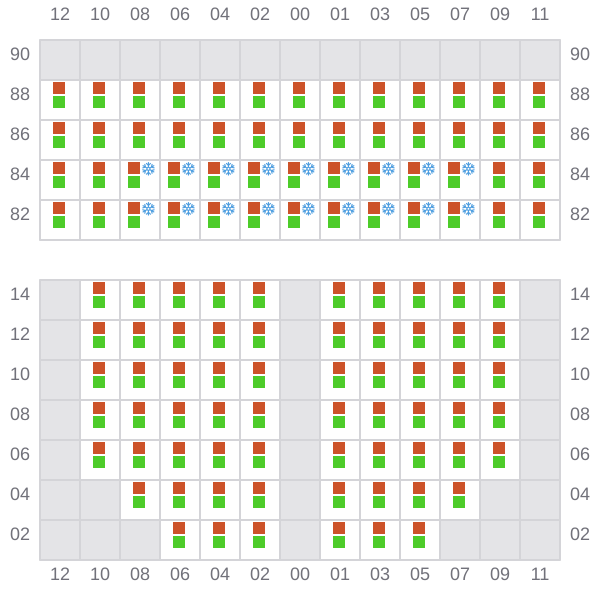

019 (018)
- ←
![Bay 019 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b019.png?v=1686767420484)
021
- →
![Bay 021 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b021.png?v=1686767420484)
023 (022)
- ←
![Bay 023 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b023.png?v=1686767420484)

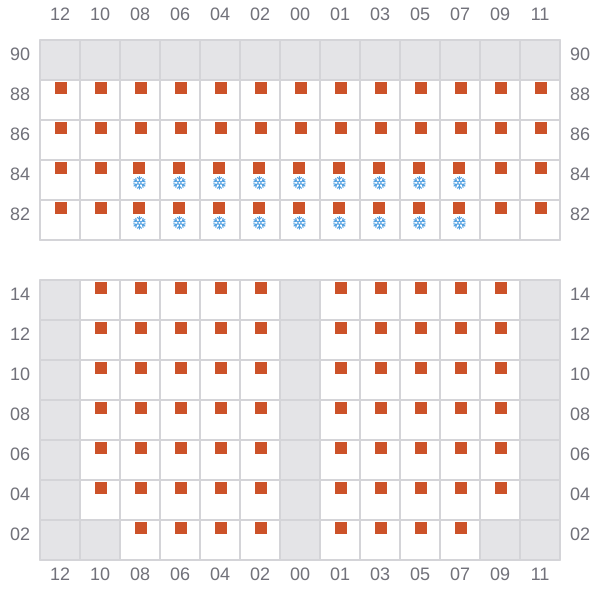

025
- →
![Bay 025 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b025.png?v=1686767420484)

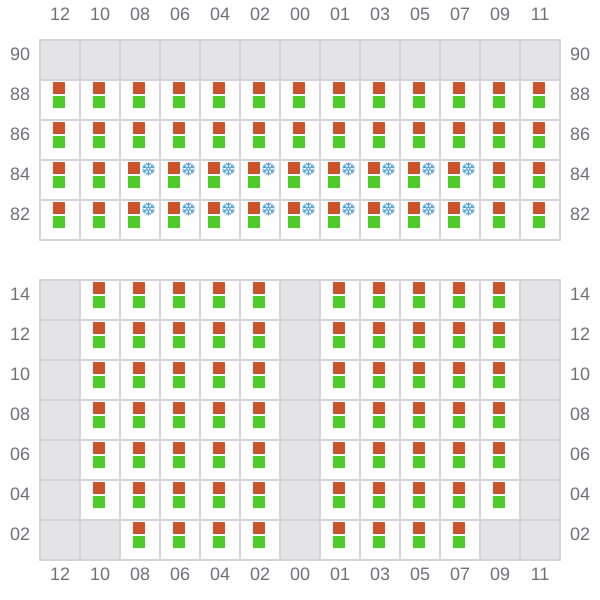

027 (026)
- ←
![Bay 027 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b027.png?v=1686767420484)

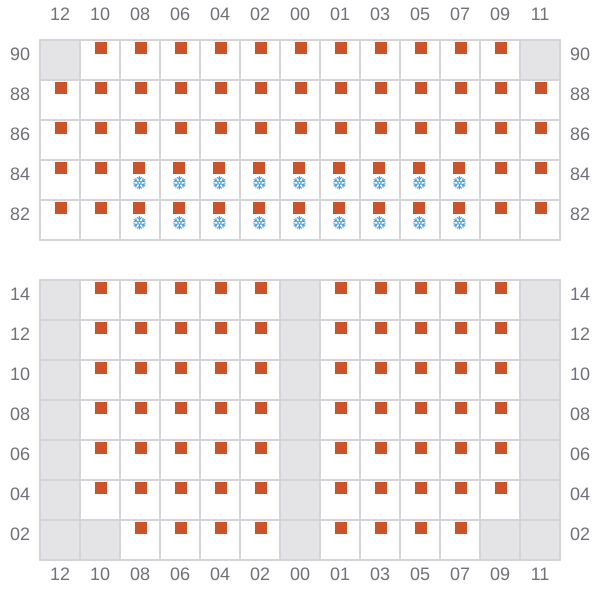

029
- →
![Bay 029 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b029.png?v=1686767420484)

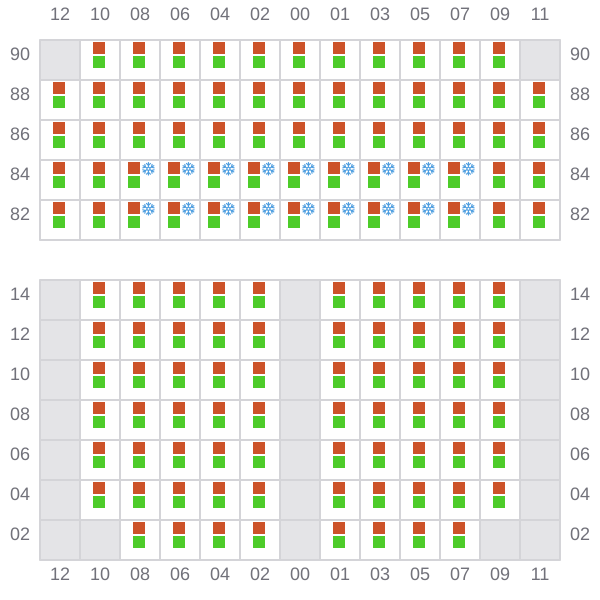

031 (030)
- ←
![Bay 031 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b031.png?v=1686767420484)
033
![Bay 033 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b033.png?v=1686767420484)

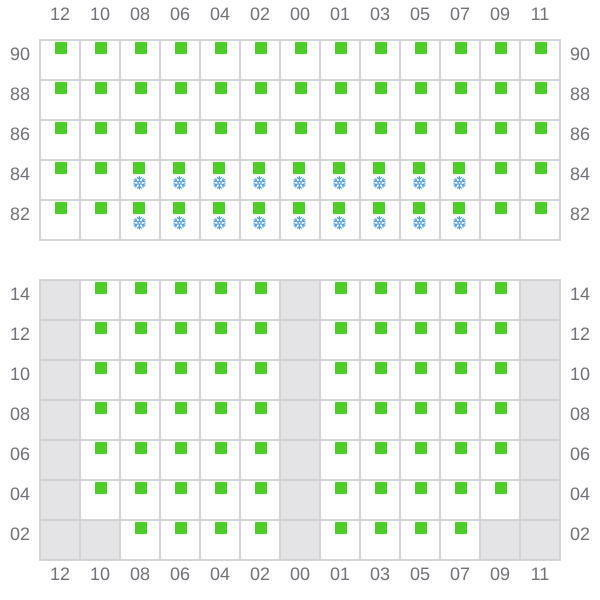

035 (034)
- ←
![Bay 035 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b035.png?v=1686767420484)

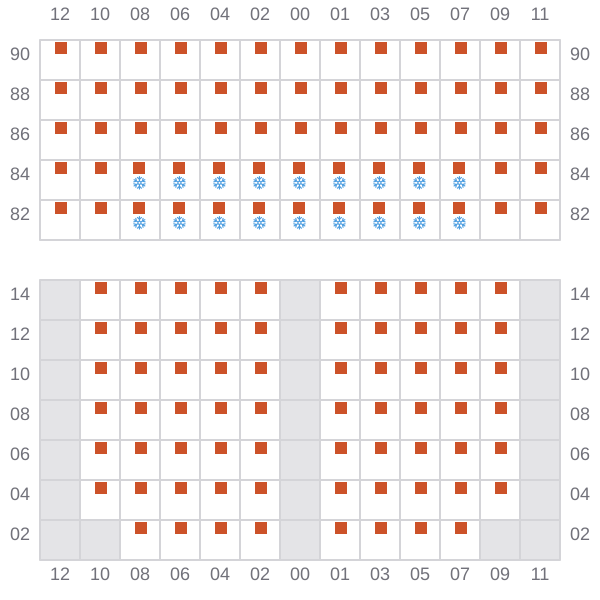

037
- →
![Bay 037 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b037.png?v=1686767420484)

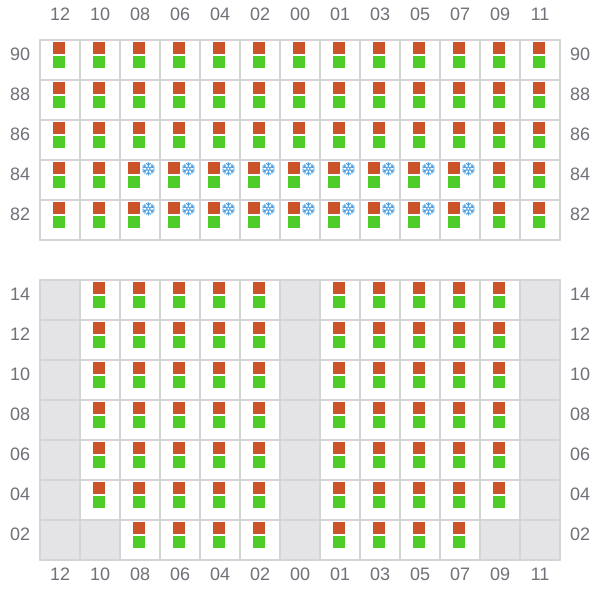

039 (038)
- ←
![Bay 039 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b039.png?v=1686767420484)

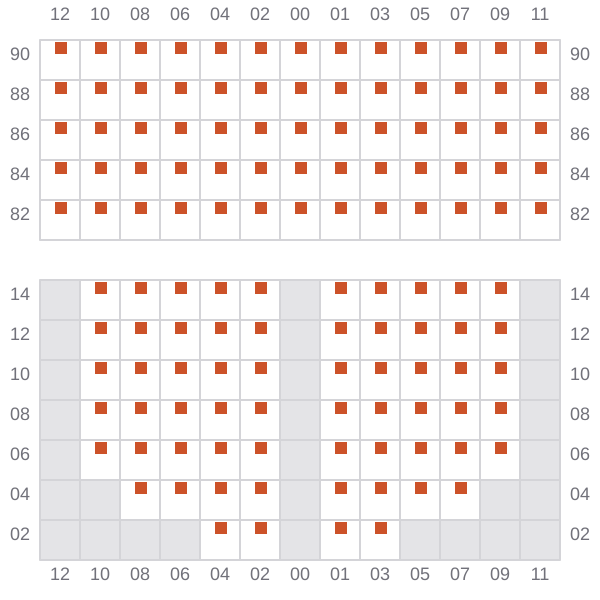

041
- →
![Bay 041 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b041.png?v=1686767420484)

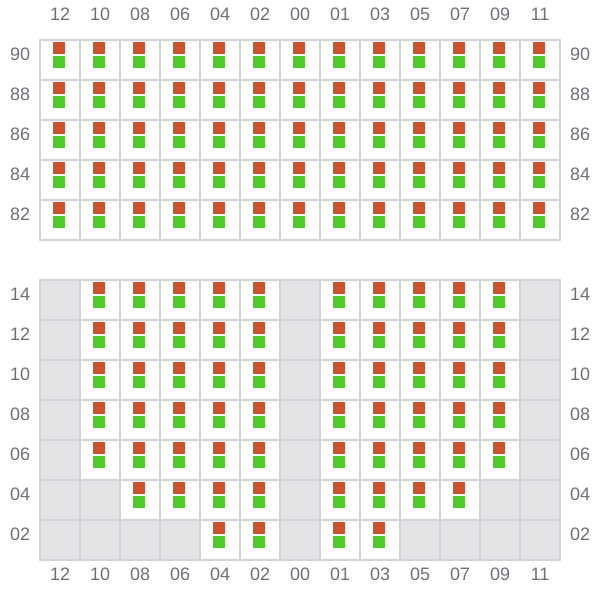

043 (042)
- ←
![Bay 043 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b043.png?v=1686767420484)

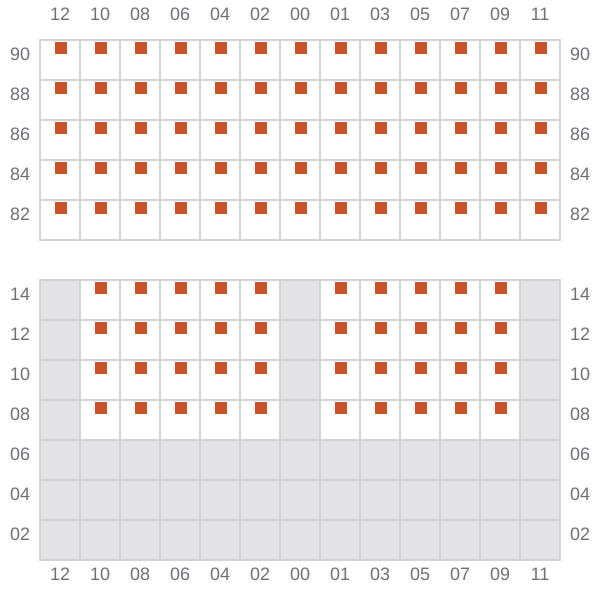

045
- →
![Bay 045 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b045.png?v=1686767420484)
047 (046)
- ←
![Bay 047 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b047.png?v=1686767420484)

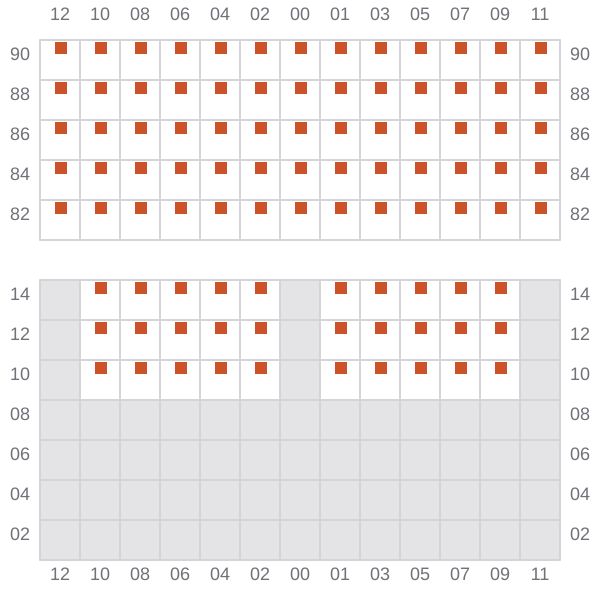

049
- →
![Bay 049 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b049.png?v=1686767420484)

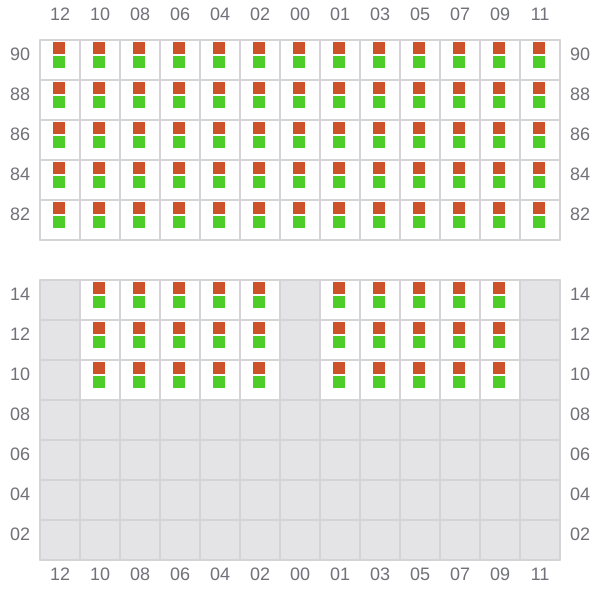

051 (050)
- ←
![Bay 051 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b051.png?v=1686767420484)
053
![Bay 053 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b053.png?v=1686767420484)

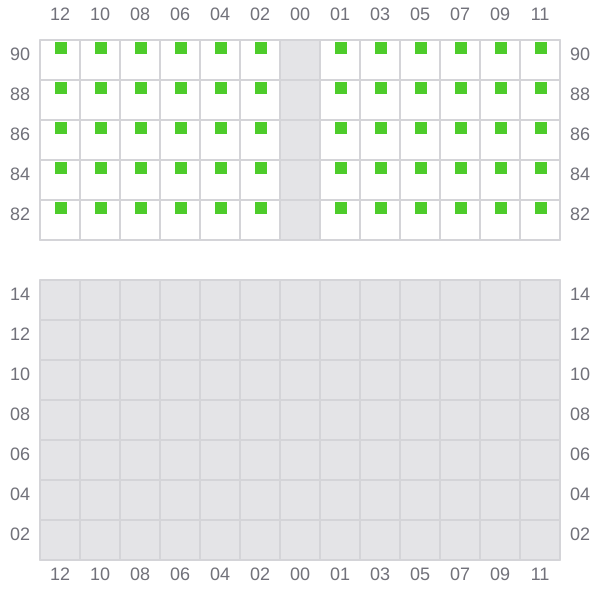

055 (054)
- ← / ?
![Bay 055 view and slots of MSC ALICE II](/vessel-images/fb45916b-81a4-41b9-b757-fc7fe72596f7-b055.png?v=1686767420484)
