MSC ALIX 3
9166651 | A8CQ5 | CAT by ************************** Last update: Wed Jun 28 2023

General Info

Ship Name:MSC ALIX 3
IMO Code:9166651
Call Sign:A8CQ5
Line Operator:CAT
Class Name for Sister Ships:ALS
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:043
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,458

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

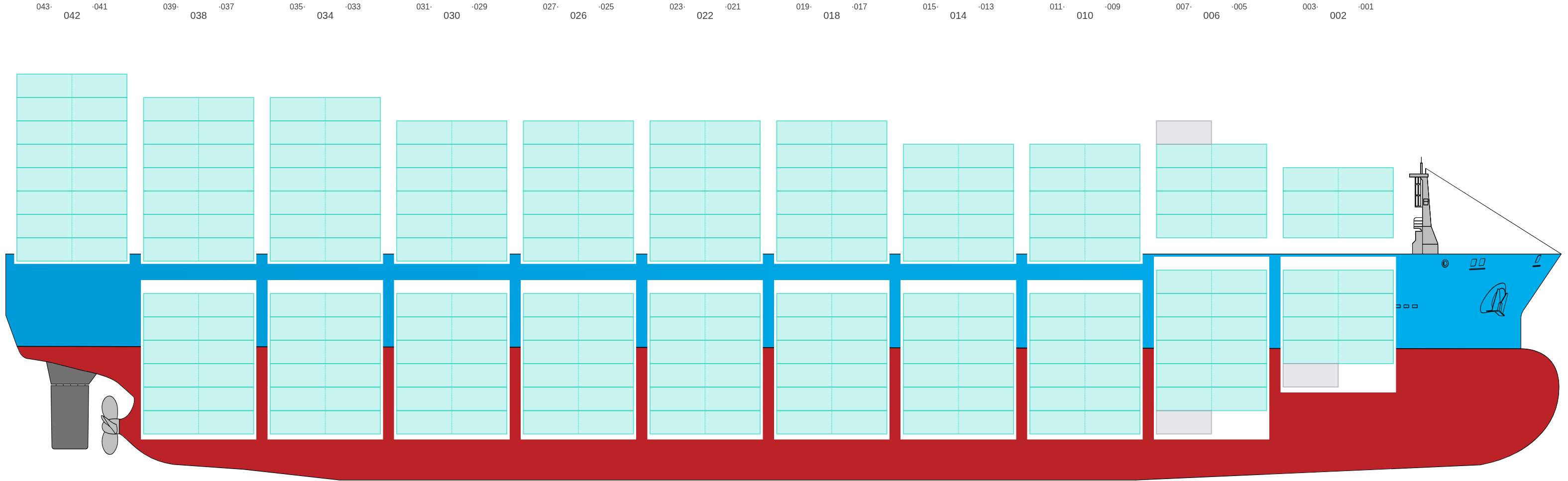

Side view of MSC ALIX 3

Hatch-Covers View

Deck view of MSC ALIX 3

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

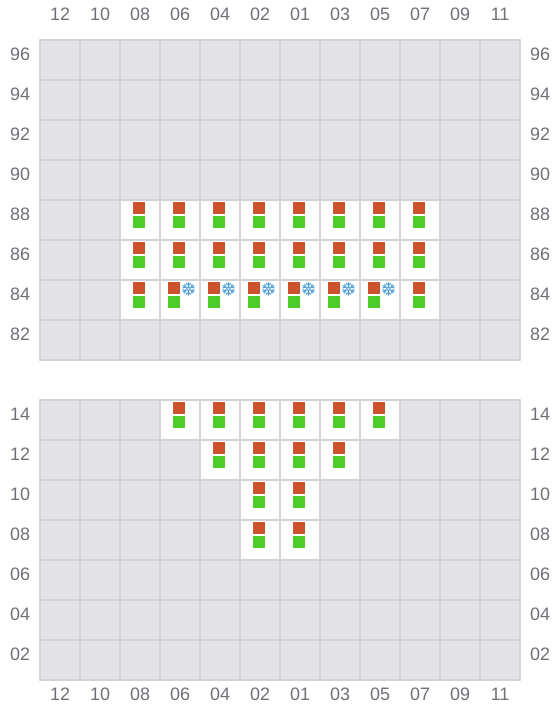

Bay 001 view and slots of MSC ALIX 3

003 (002)

  • ←

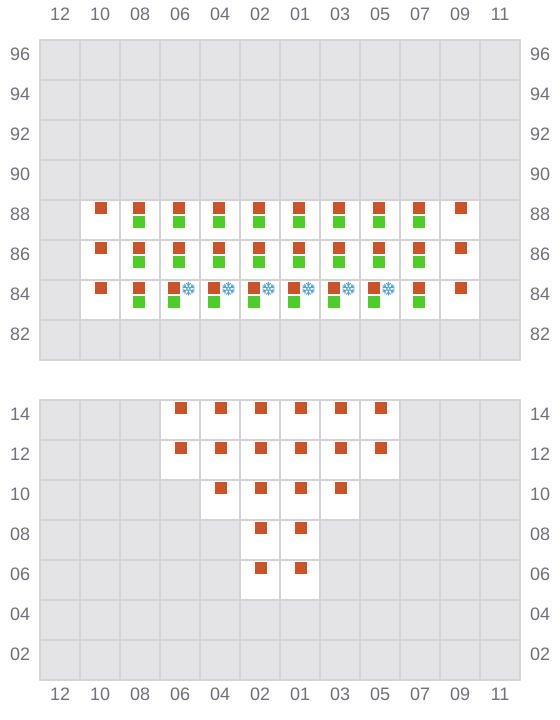

Bay 003 view and slots of MSC ALIX 3

005 (006)

  • →

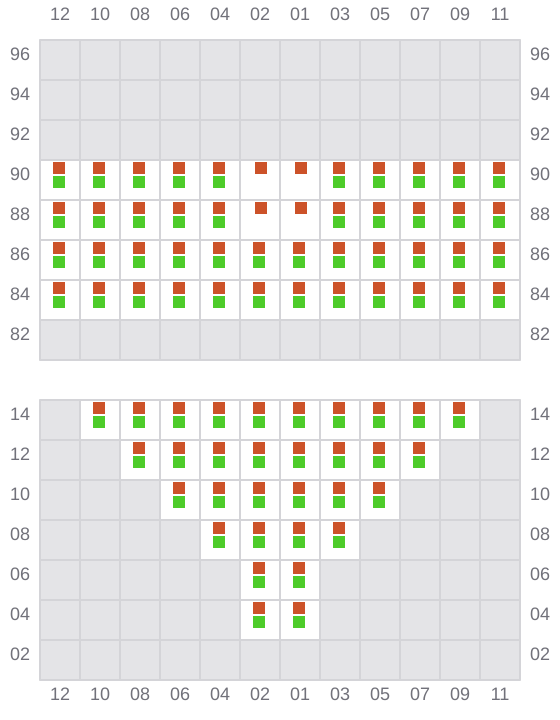

Bay 005 view and slots of MSC ALIX 3

007

  • ←

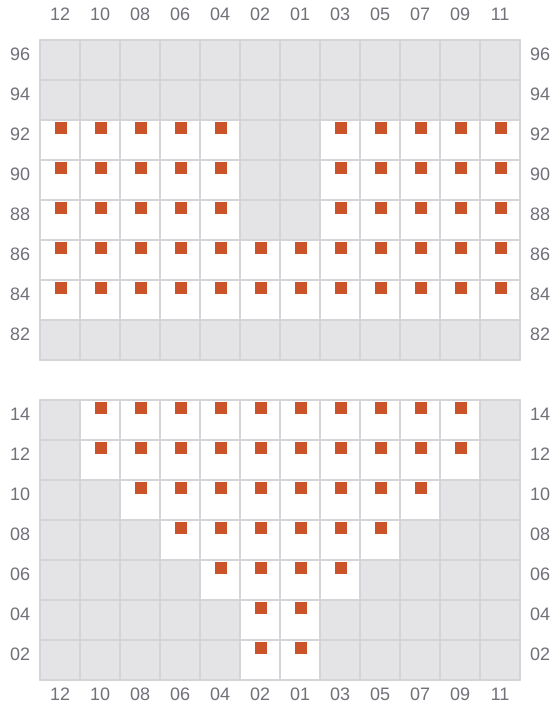

Bay 007 view and slots of MSC ALIX 3

009 (010)

  • →

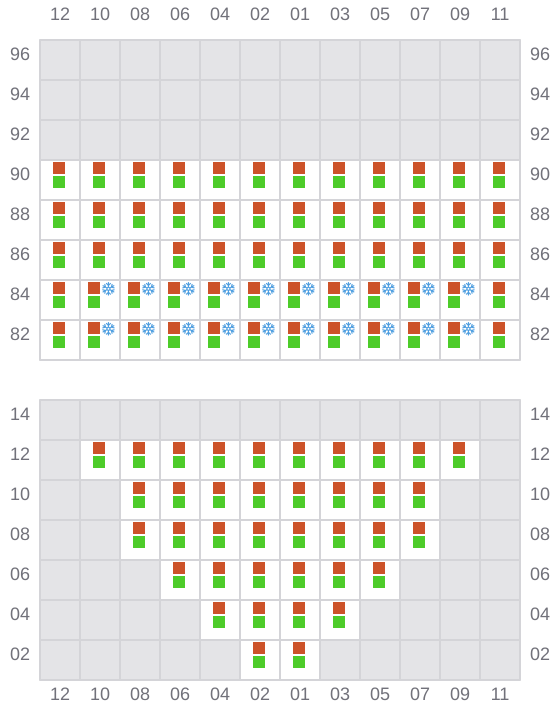

Bay 009 view and slots of MSC ALIX 3

011

  • ←

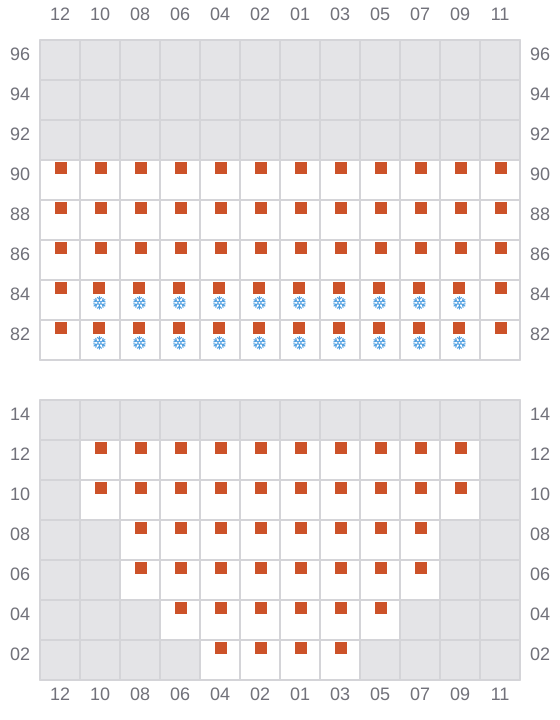

Bay 011 view and slots of MSC ALIX 3

013 (014)

  • →

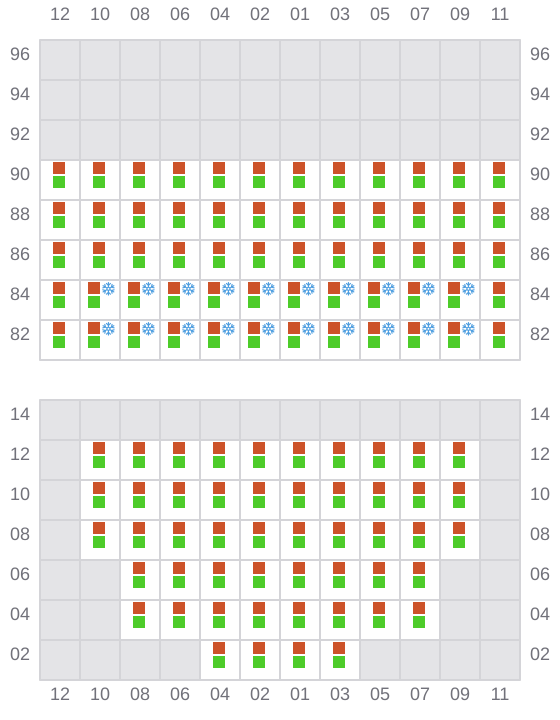

Bay 013 view and slots of MSC ALIX 3

015

  • ←

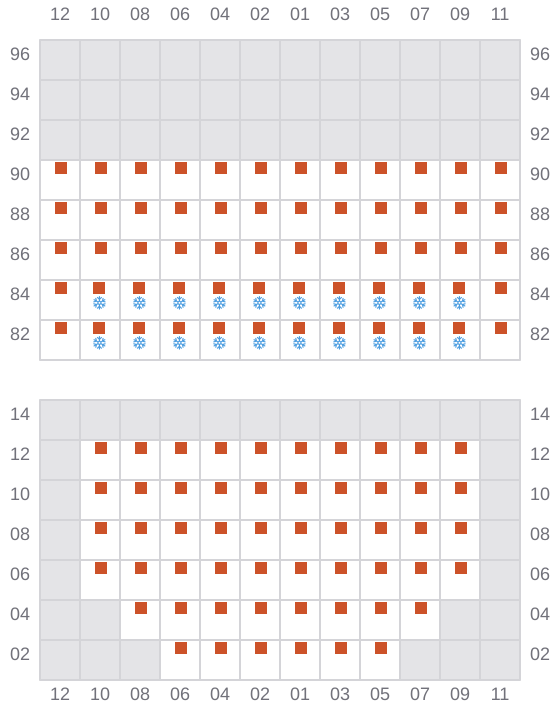

Bay 015 view and slots of MSC ALIX 3

017 (018)

  • →
Bay 017 view and slots of MSC ALIX 3

019

  • ←

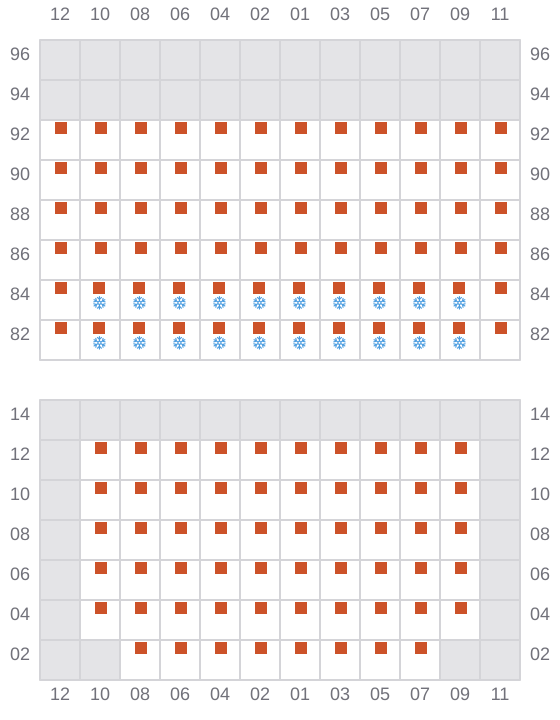

Bay 019 view and slots of MSC ALIX 3

021 (022)

  • →
Bay 021 view and slots of MSC ALIX 3

023

  • ←
Bay 023 view and slots of MSC ALIX 3

025 (026)

  • →

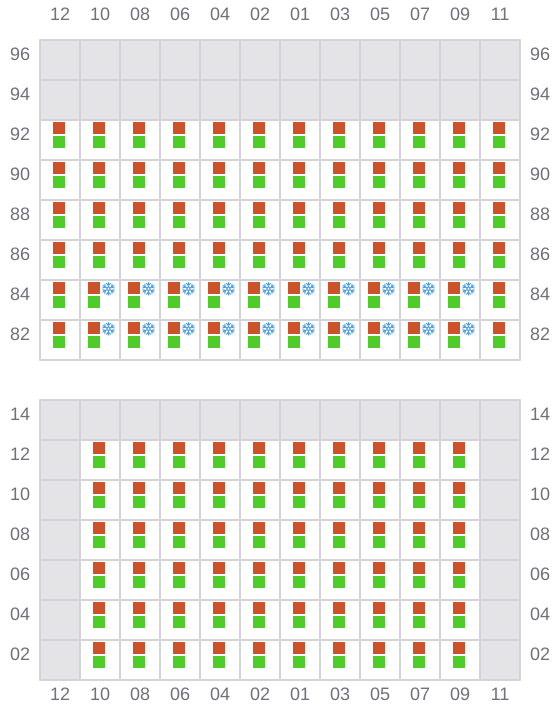

Bay 025 view and slots of MSC ALIX 3

027

  • ←
Bay 027 view and slots of MSC ALIX 3

029 (030)

  • →

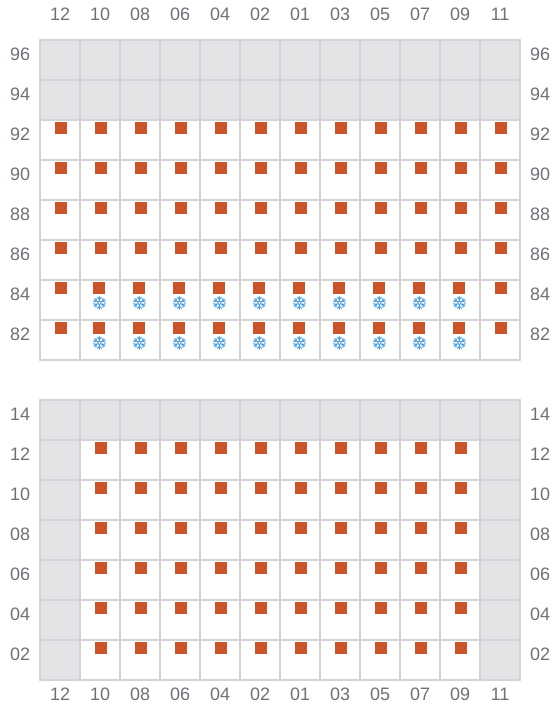

Bay 029 view and slots of MSC ALIX 3

031

  • ←
Bay 031 view and slots of MSC ALIX 3

033 (034)

  • →

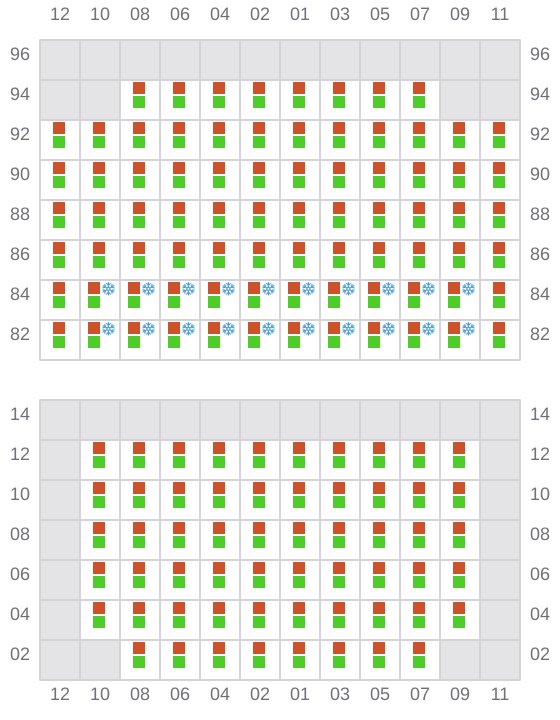

Bay 033 view and slots of MSC ALIX 3

035

  • ←

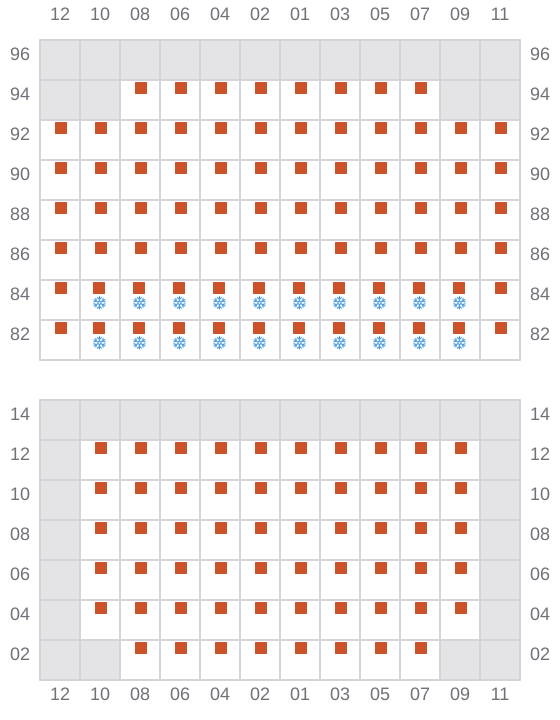

Bay 035 view and slots of MSC ALIX 3

037 (038)

  • →

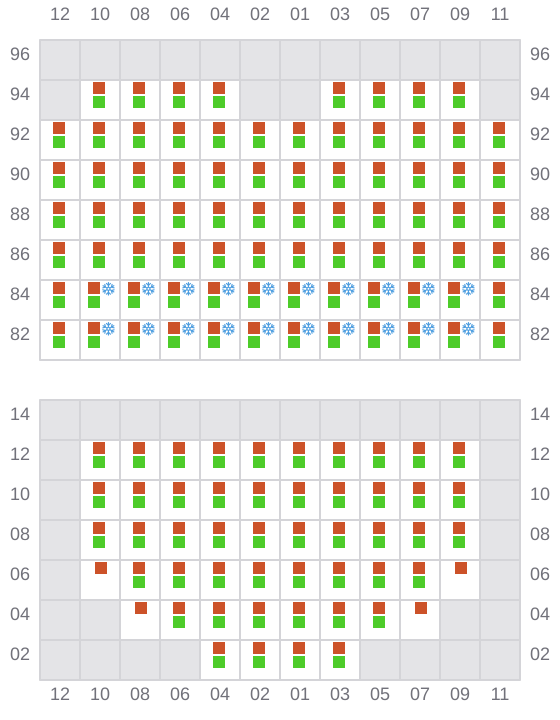

Bay 037 view and slots of MSC ALIX 3

039

  • ←

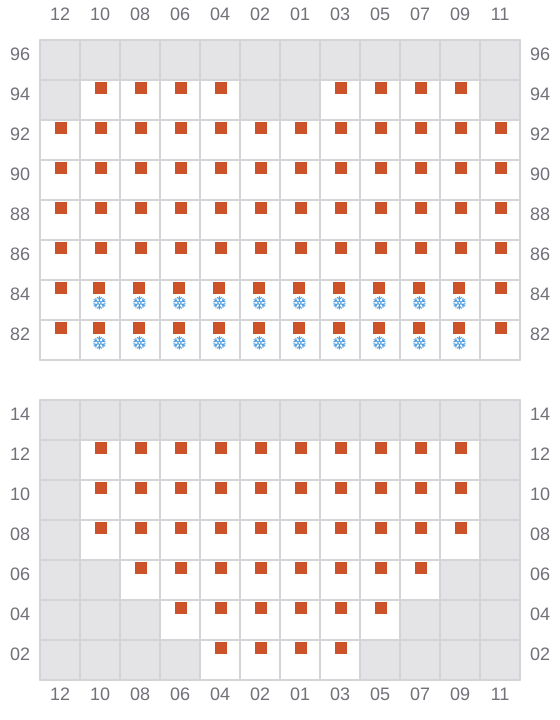

Bay 039 view and slots of MSC ALIX 3

041 (042)

  • → / ?

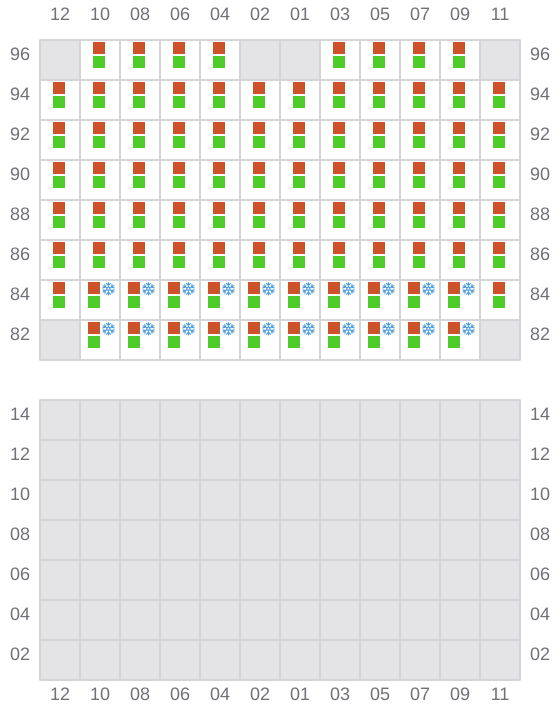

Bay 041 view and slots of MSC ALIX 3

043

  • ← / ?

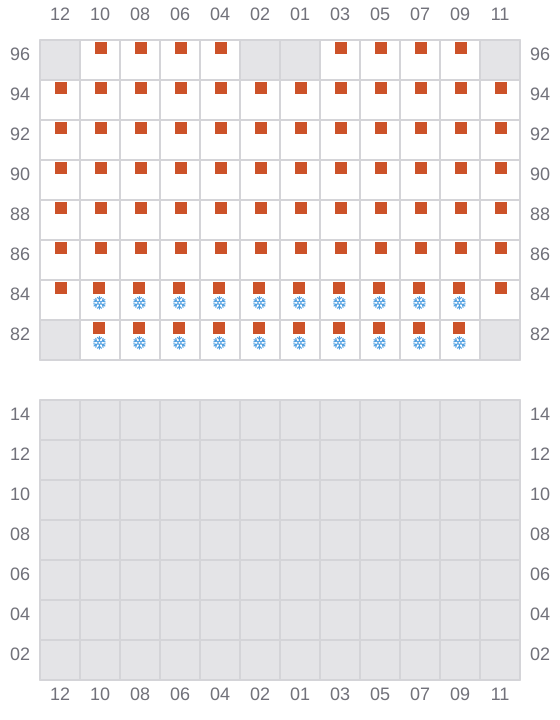

Bay 043 view and slots of MSC ALIX 3
