MSC ALIZEE III
9243239 | H9IG | CHI by ************************** Last update: Fri Jun 30 2023
General Info
Ship Name:MSC ALIZEE III
IMO Code:9243239
Call Sign:H9IG
Line Operator:CHI
Class Name for Sister Ships:PUE
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,526
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

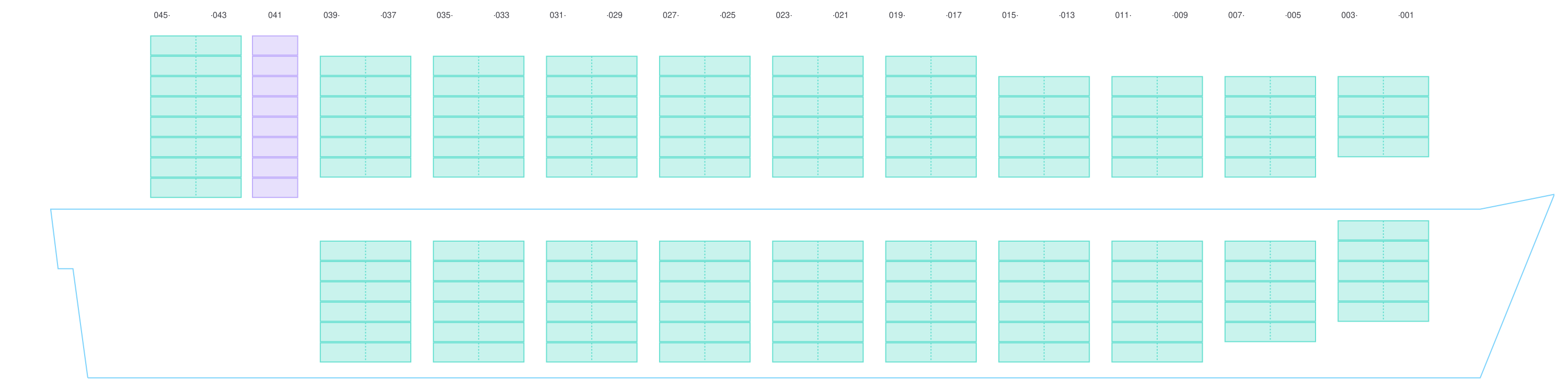

Side View

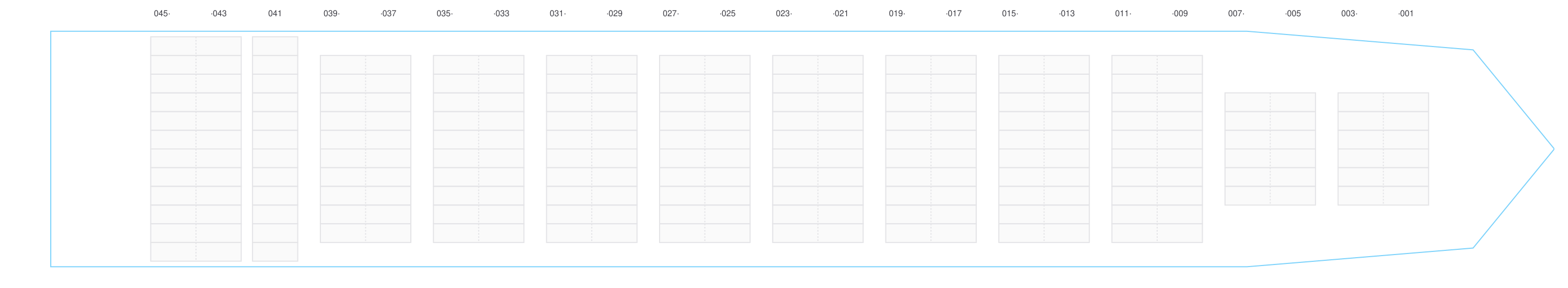

Hatch-Covers View

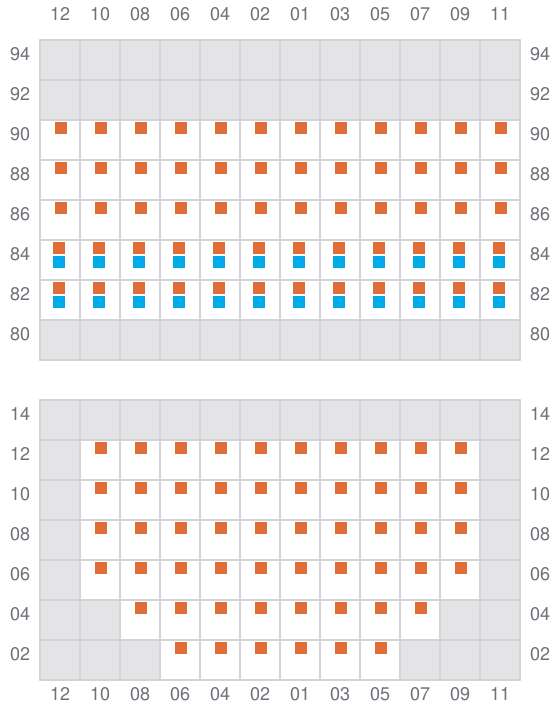

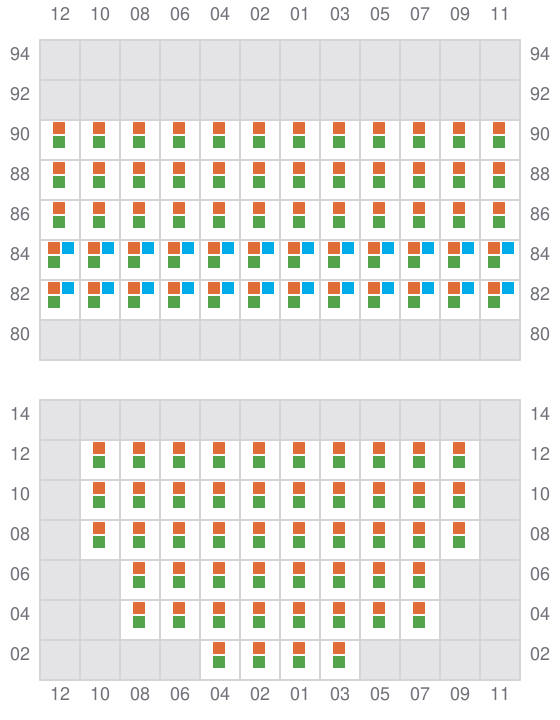

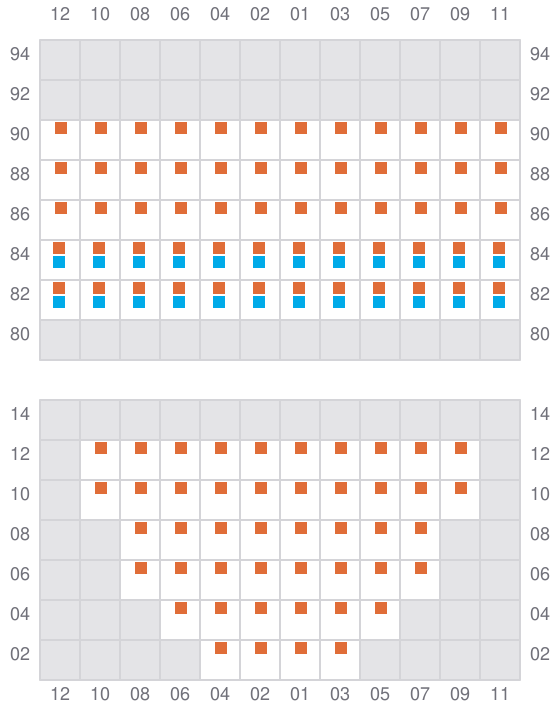

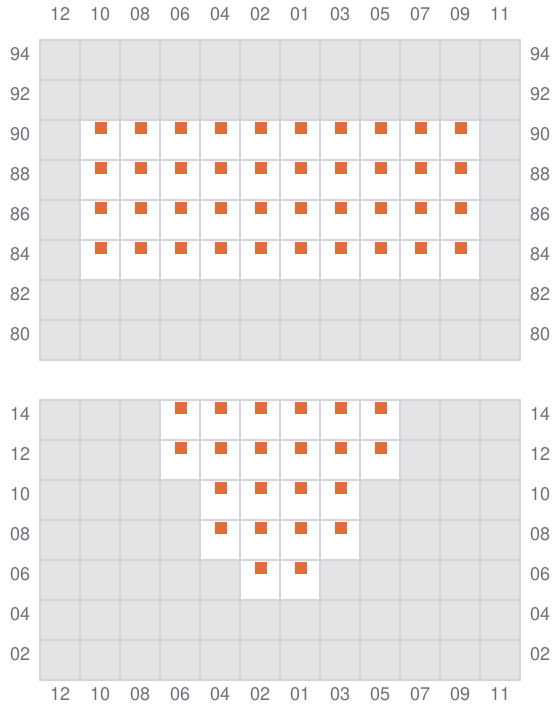

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

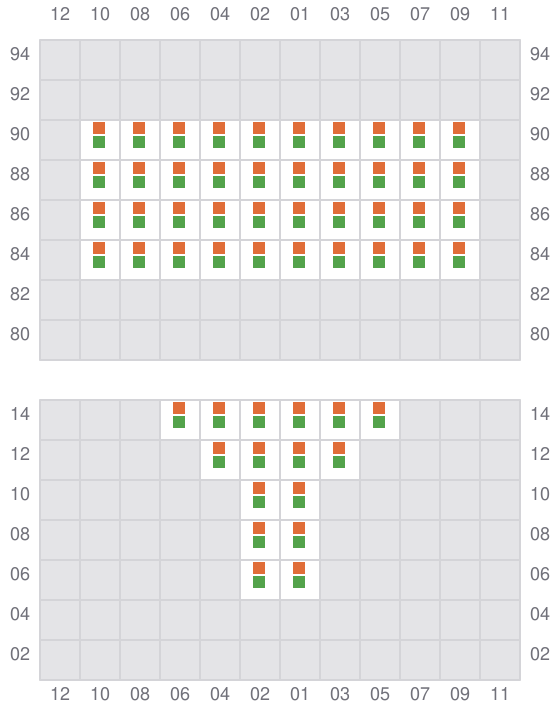

001 (002)
- →
003
- ←
005 (006)
- →

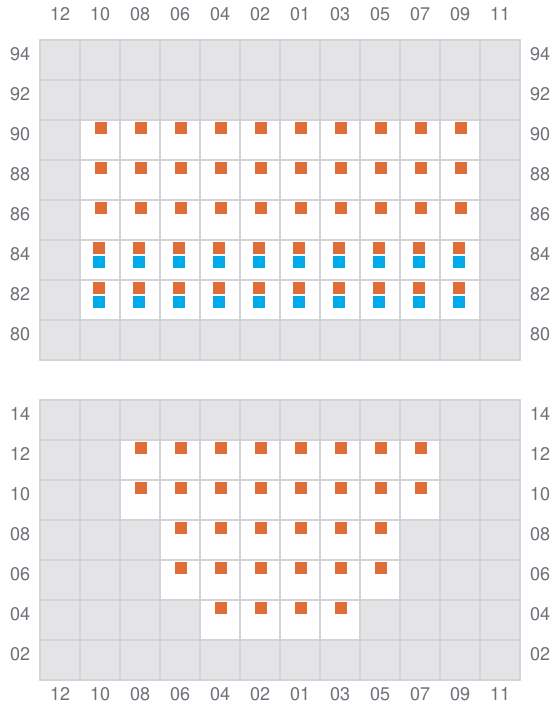

007
- ←
009 (010)
- →
011
- ←
013 (014)
- →
015
- ←

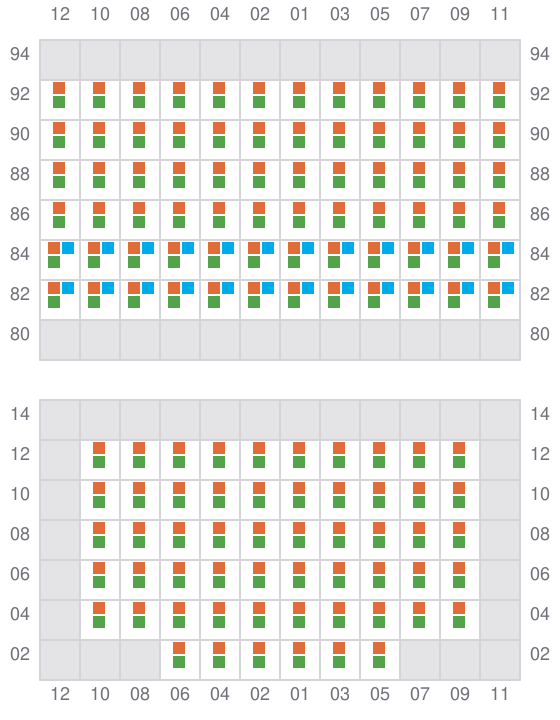

017 (018)
- →
019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←

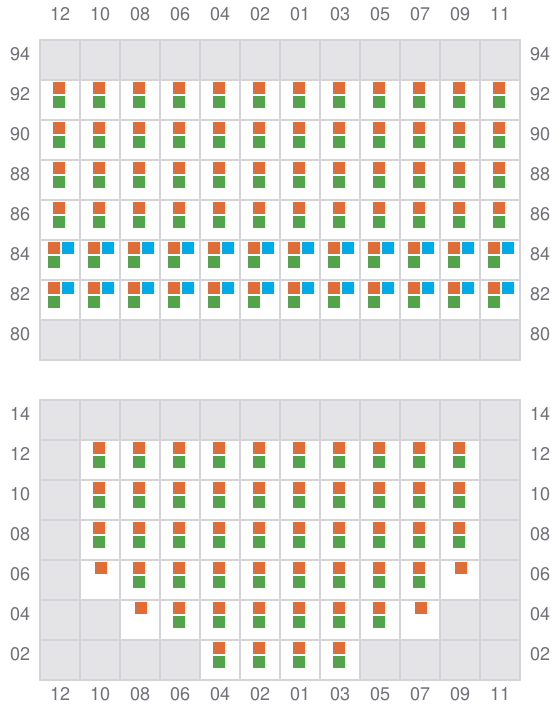

037 (038)
- →

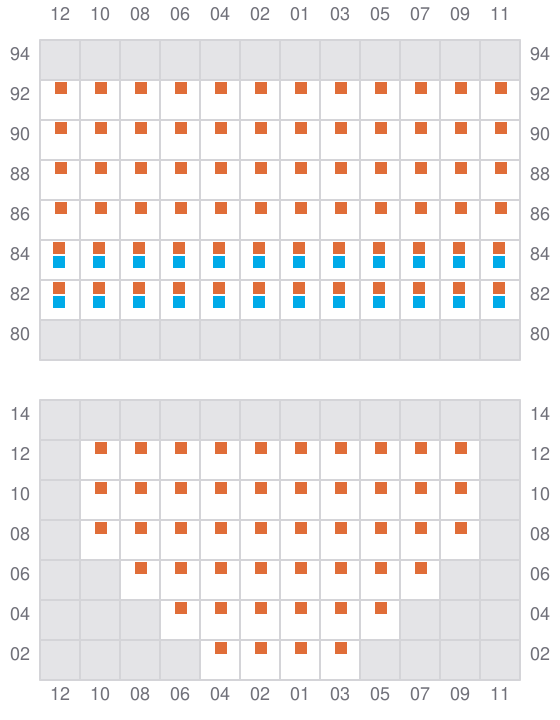

039
- ←
041
043 (044)
- → / ?

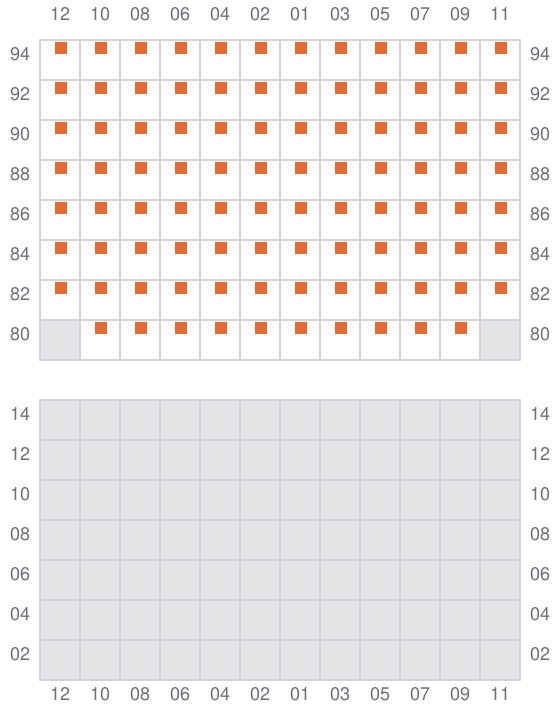

045
- ← / ?
