MSC ALIZEE III
9243239 | H9IG | 9243239 by ********* Last update: Sat Mar 16 2024

General Info

Ship Name:MSC ALIZEE III
IMO Code:9243239
Call Sign:H9IG
Line Operator:9243239
Class Name for Sister Ships:17X
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,526

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

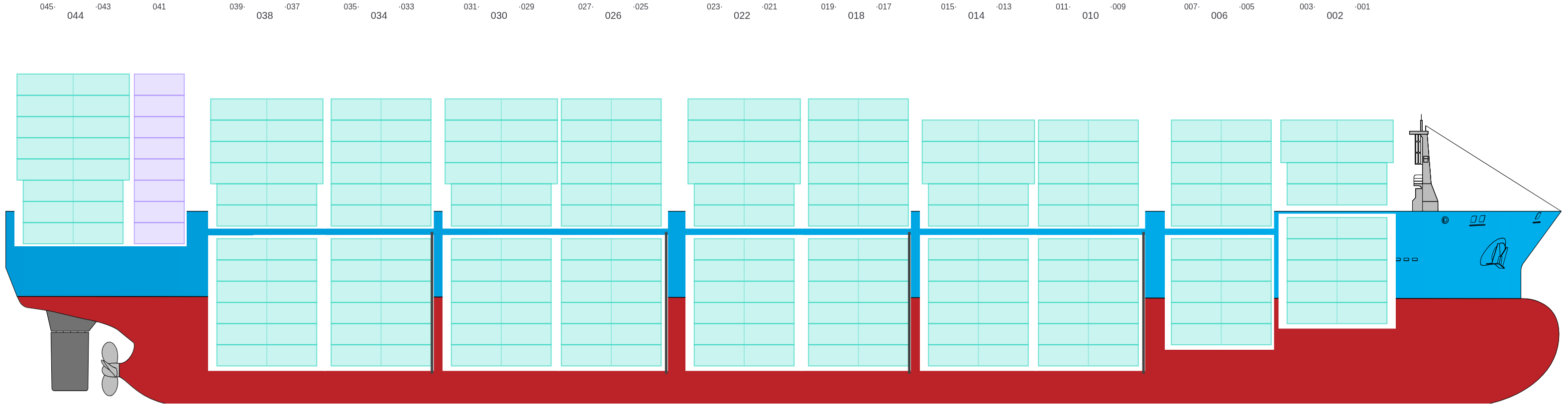

Side View

Side view of MSC ALIZEE III

Hatch-Covers View

Deck view of MSC ALIZEE III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →

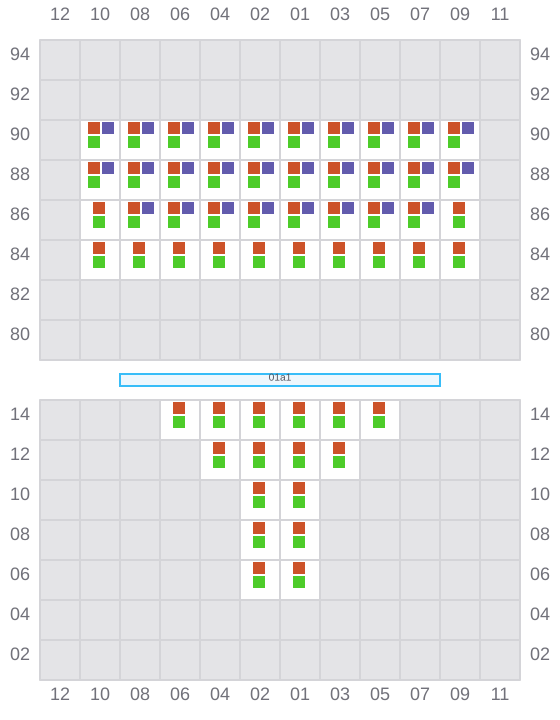

Bay 001 view and slots of MSC ALIZEE III

003

  • ←
  • → / ?

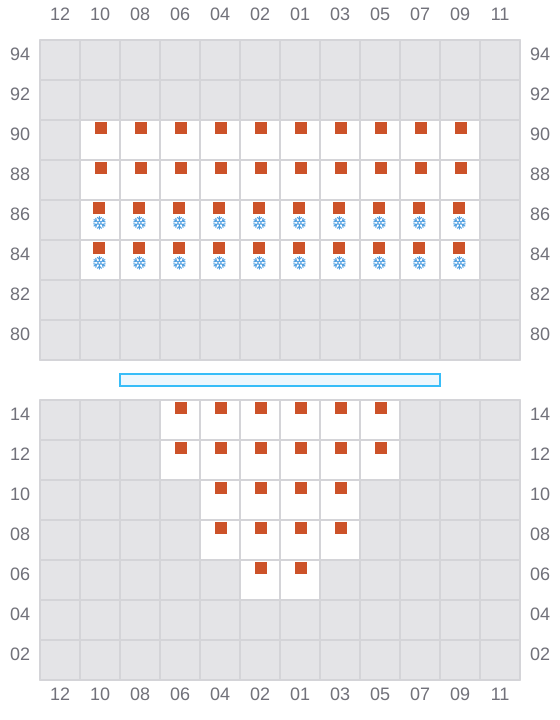

Bay 003 view and slots of MSC ALIZEE III

005 (006)

  • →

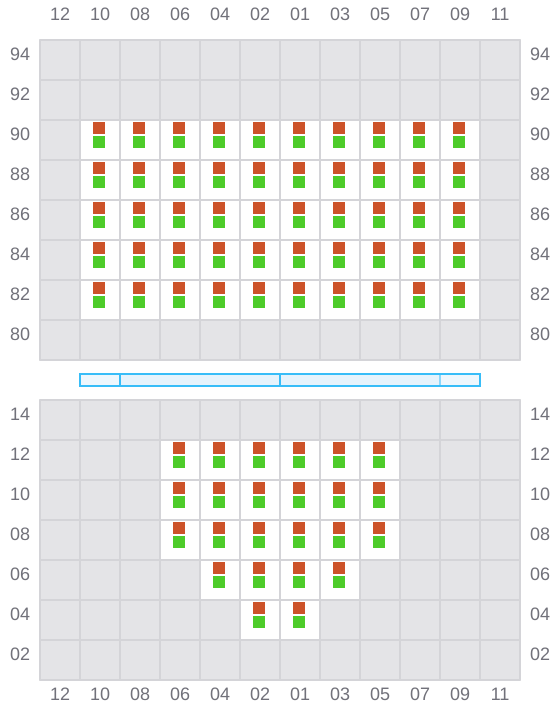

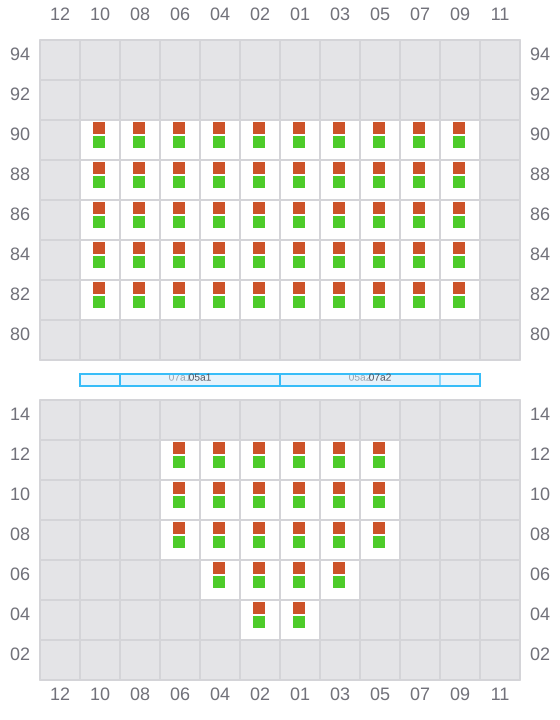

Bay 005 view and slots of MSC ALIZEE III

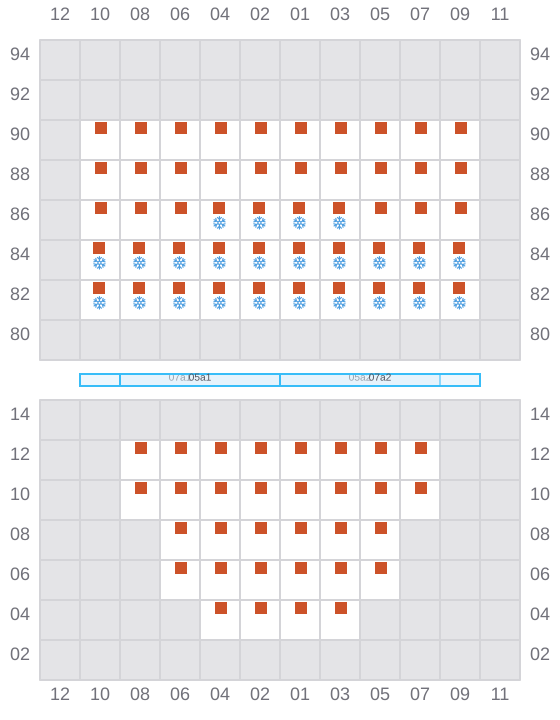

007

  • ←
  • → / ?
Bay 007 view and slots of MSC ALIZEE III

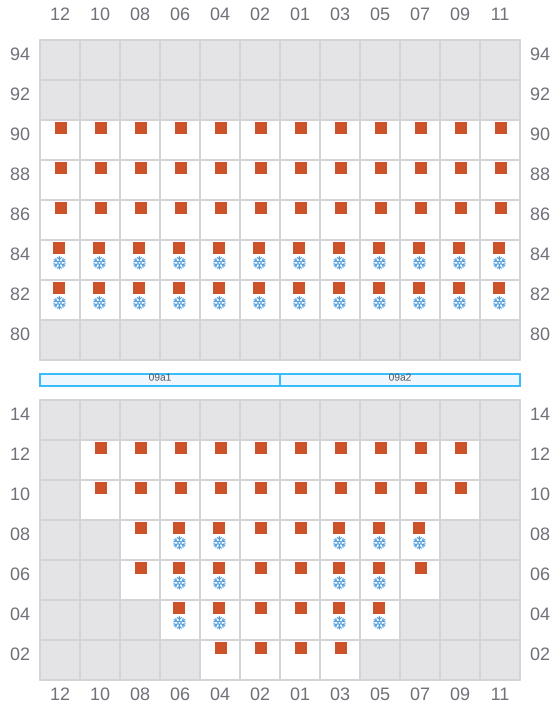

009 (010)

  • →

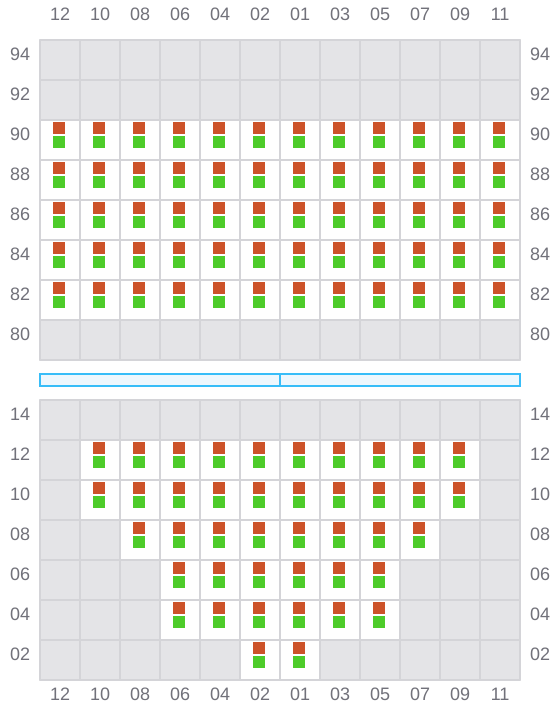

Bay 009 view and slots of MSC ALIZEE III

011

  • ←
  • →

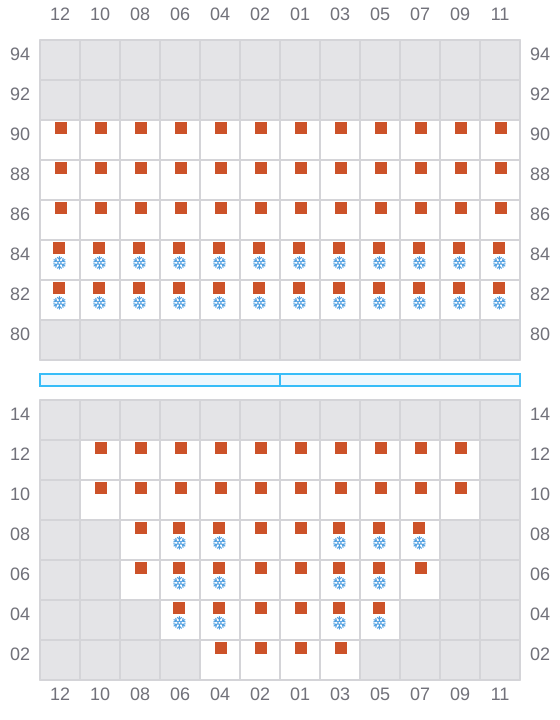

Bay 011 view and slots of MSC ALIZEE III

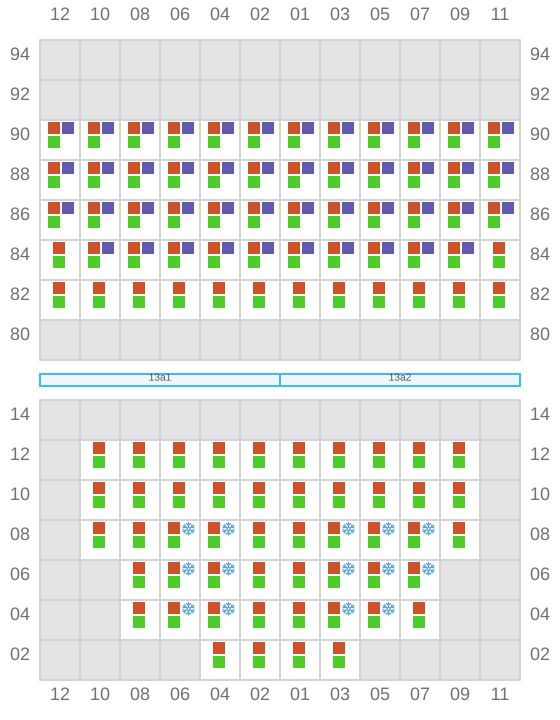

013 (014)

  • →
  • ? / ←
Bay 013 view and slots of MSC ALIZEE III

015

  • ←
  • → / ?

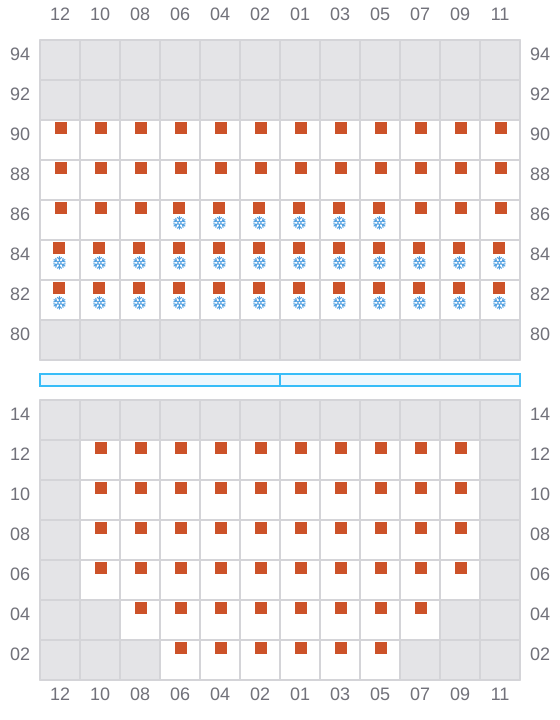

Bay 015 view and slots of MSC ALIZEE III

017 (018)

  • →

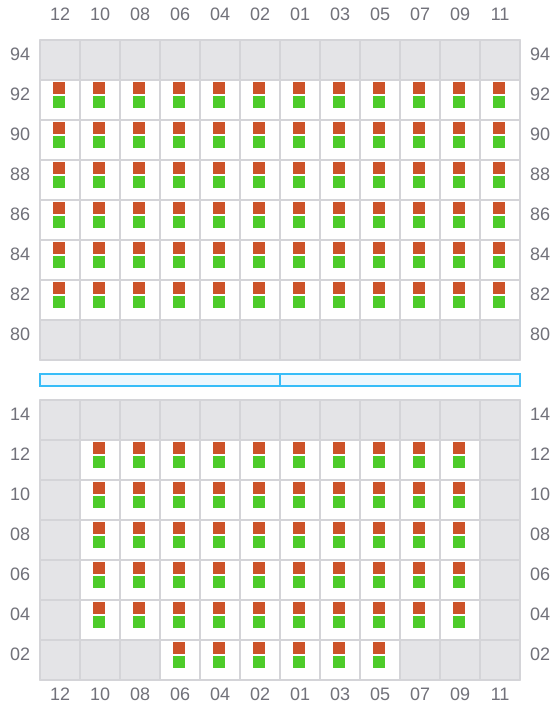

Bay 017 view and slots of MSC ALIZEE III

019

  • ←
  • →

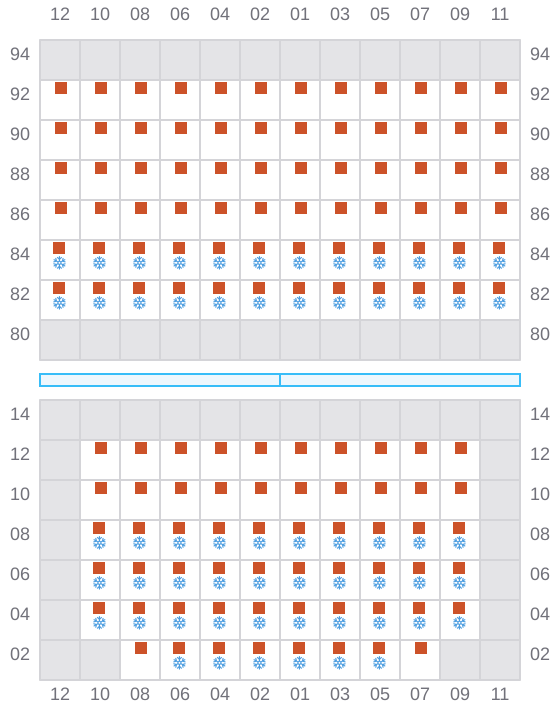

Bay 019 view and slots of MSC ALIZEE III

021 (022)

  • →
  • ? / ←
Bay 021 view and slots of MSC ALIZEE III

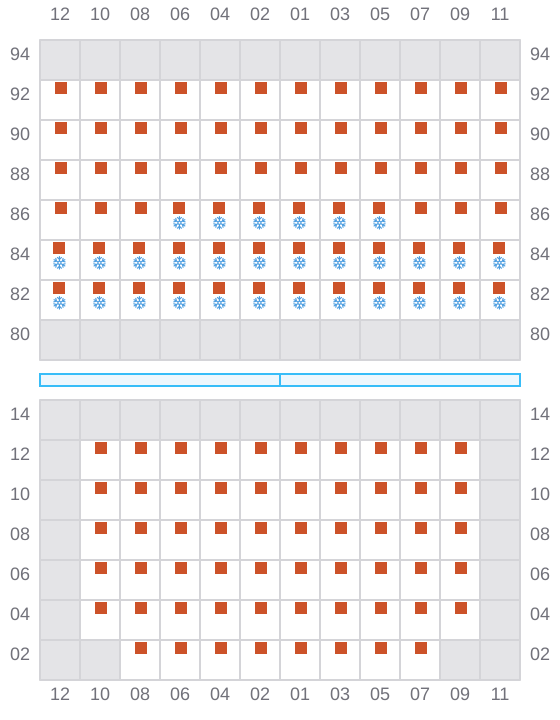

023

  • ←
  • → / ?
Bay 023 view and slots of MSC ALIZEE III

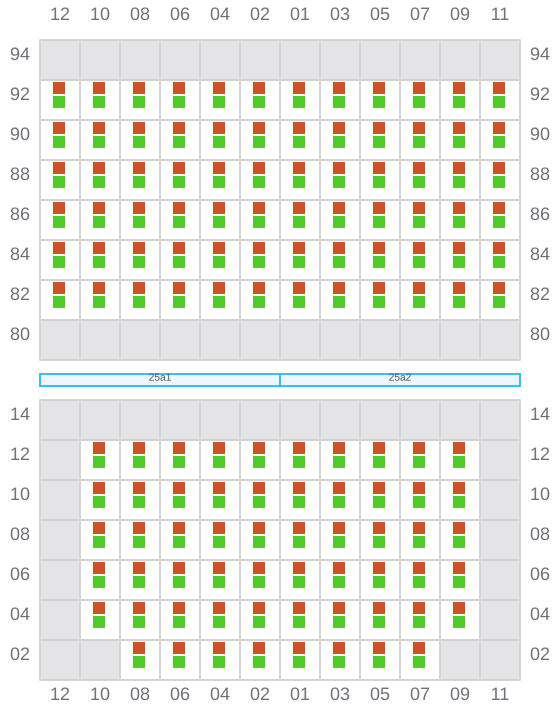

025 (026)

  • →
Bay 025 view and slots of MSC ALIZEE III

027

  • ←
  • →
Bay 027 view and slots of MSC ALIZEE III

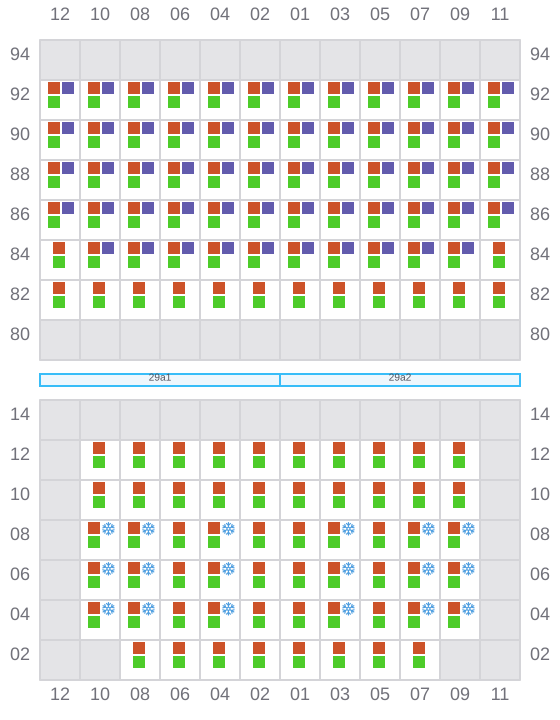

029 (030)

  • →
  • ? / ←
Bay 029 view and slots of MSC ALIZEE III

031

  • ←
  • → / ?

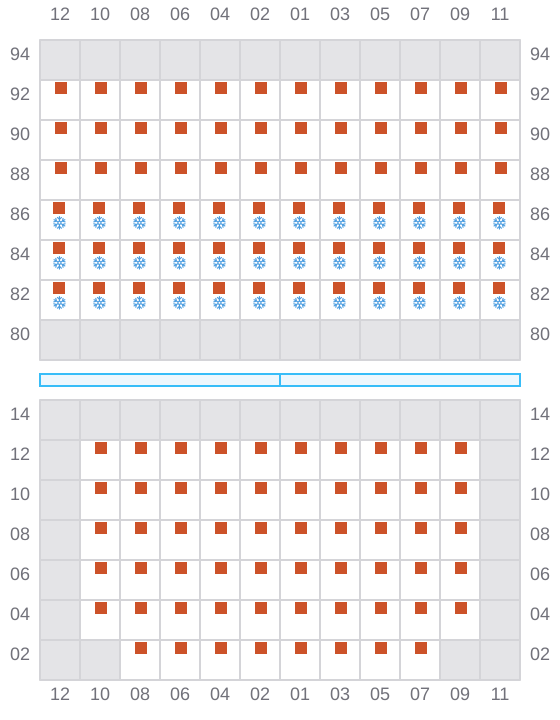

Bay 031 view and slots of MSC ALIZEE III

033 (034)

  • →

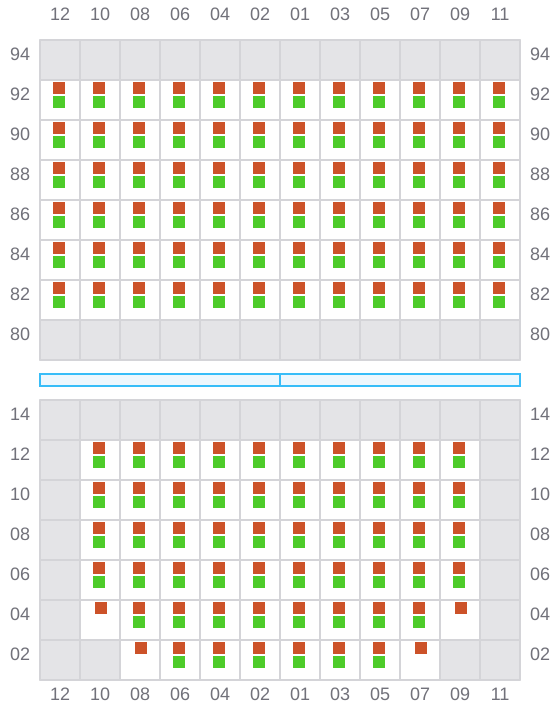

Bay 033 view and slots of MSC ALIZEE III

035

  • ←
  • →

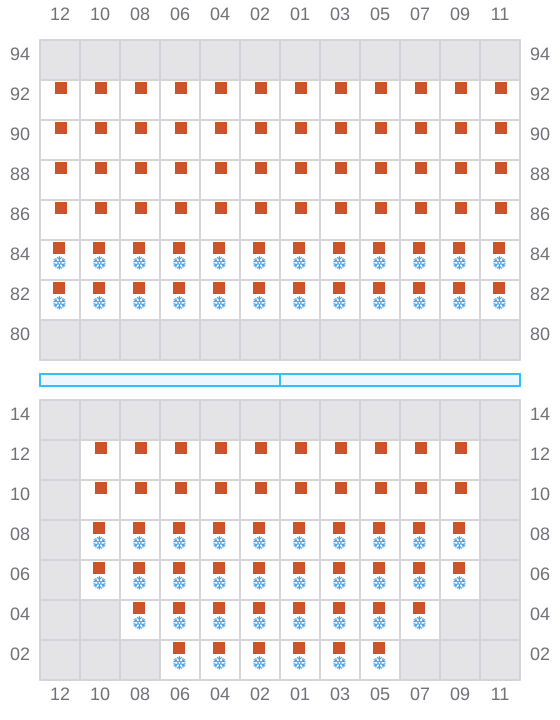

Bay 035 view and slots of MSC ALIZEE III

037 (038)

  • →
  • ? / ←

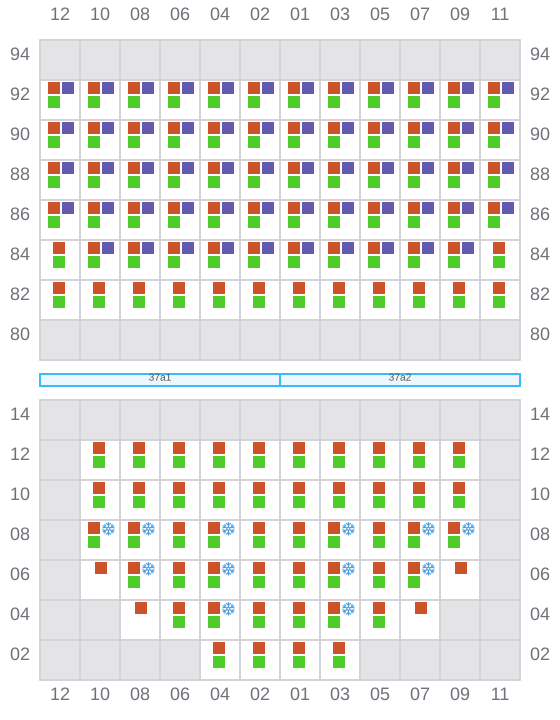

Bay 037 view and slots of MSC ALIZEE III

039

  • ←
  • → / ?

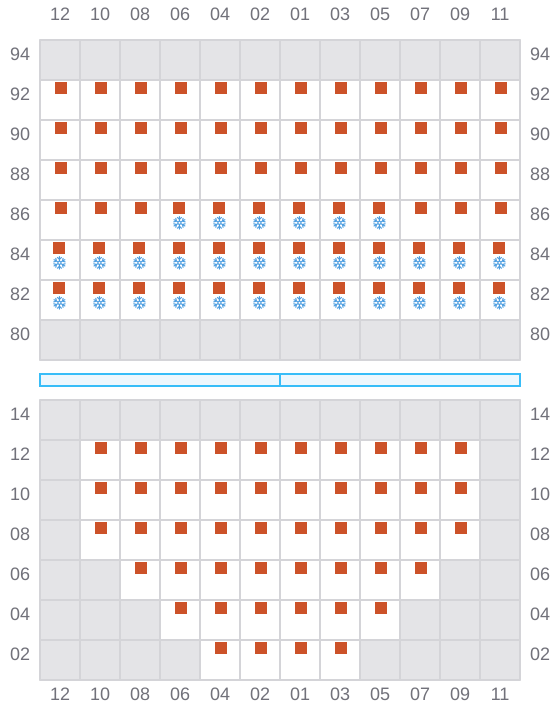

Bay 039 view and slots of MSC ALIZEE III

041

  • → / ?

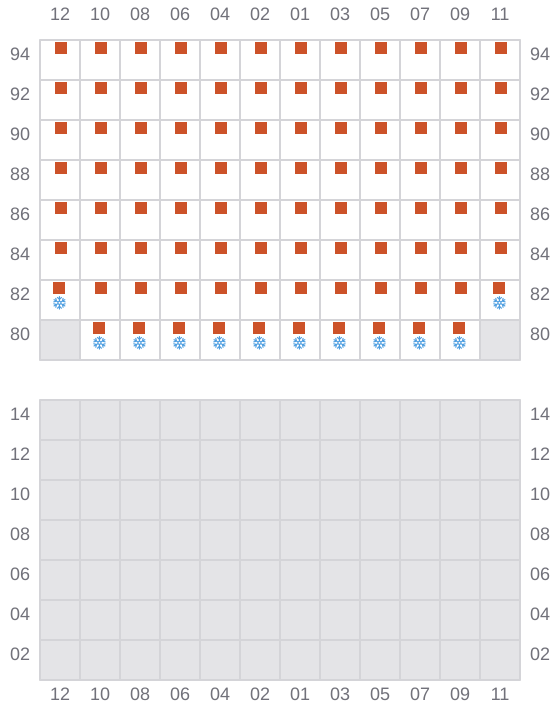

Bay 041 view and slots of MSC ALIZEE III

043 (044)

  • → / ?

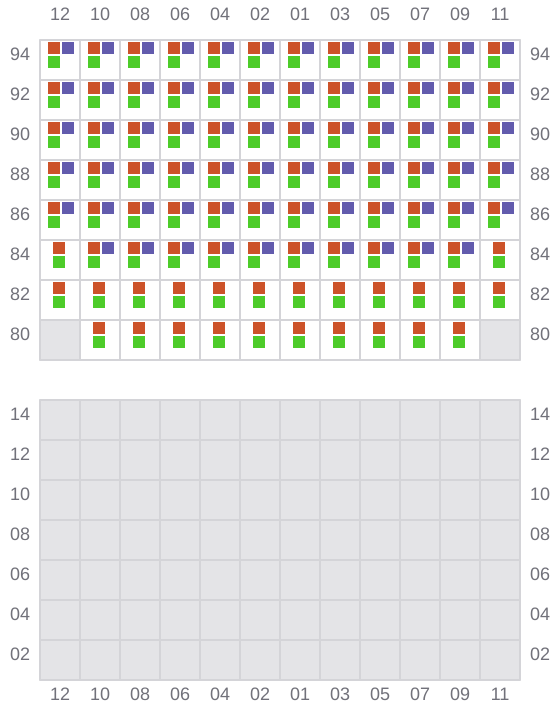

Bay 043 view and slots of MSC ALIZEE III

045

  • ← / ?
  • → / ?

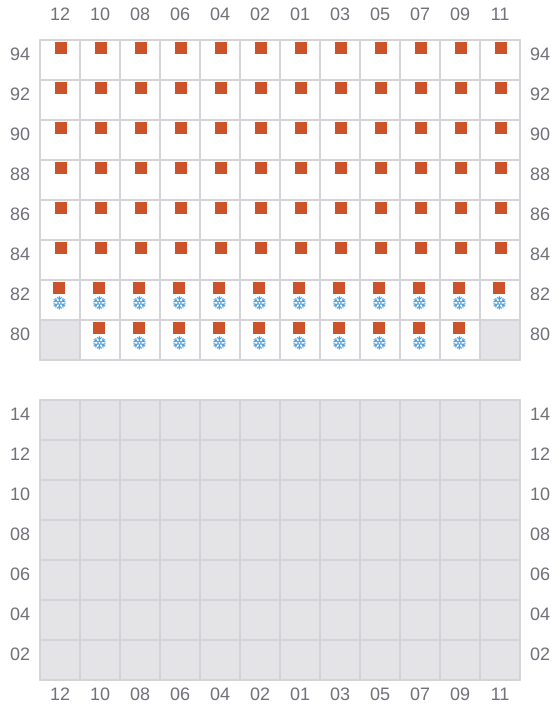

Bay 045 view and slots of MSC ALIZEE III
