MSC ALMA VII
9196852 | 5LHG5 | MSK by ************************** Last update: Fri Oct 13 2023
General Info
Ship Name:MSC ALMA VII
IMO Code:9196852
Call Sign:5LHG5
Line Operator:MSK
Class Name for Sister Ships:SWS
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):292.00
LOA (Length Overall):304.16
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,756
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

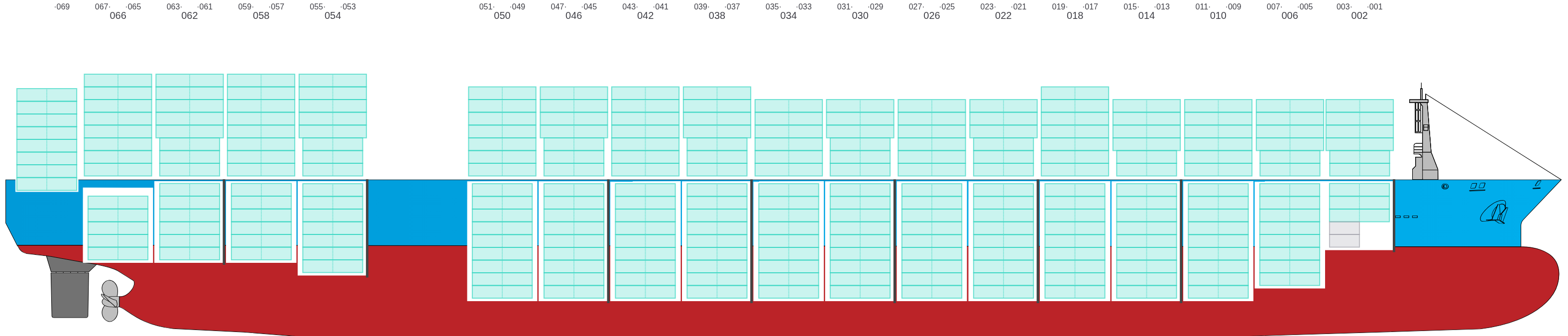

Side View
![Side view of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-sideView.png?v=1697224289855)
Hatch-Covers View
![Deck view of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-deckView.png?v=1697224289855)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

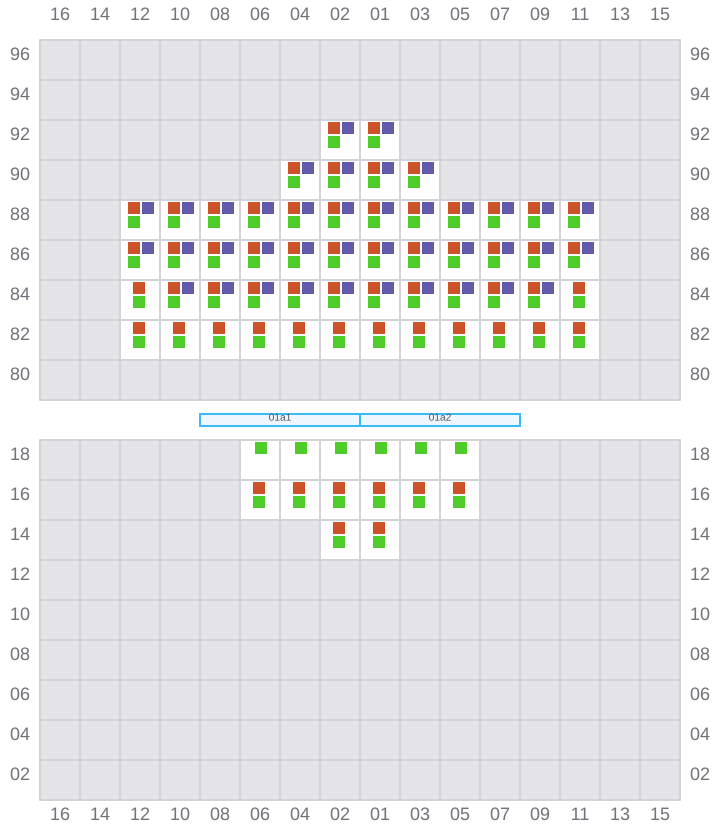

001 (002)
- →
![Bay 001 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b001.png?v=1697224289855)

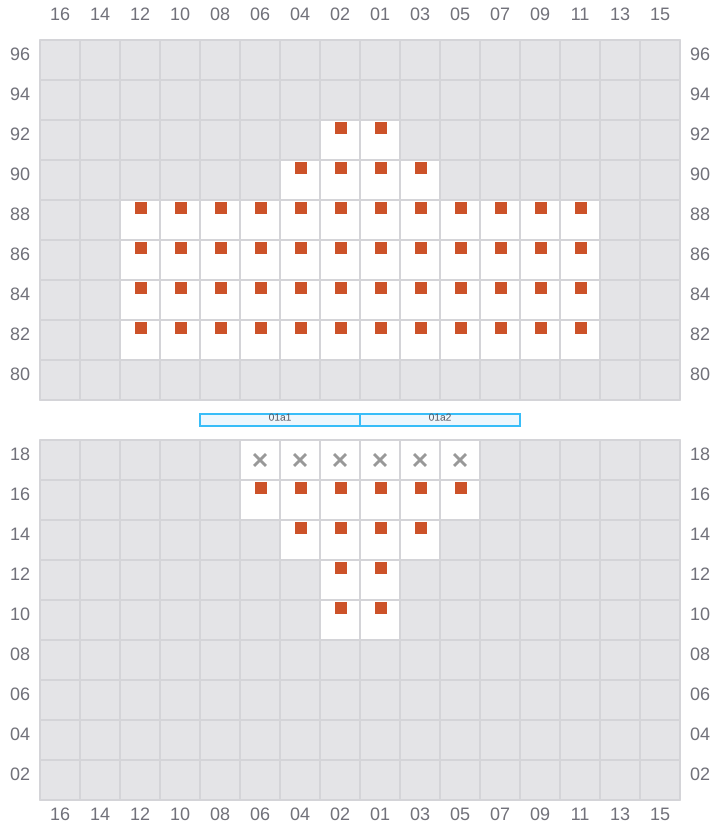

003
- ←
![Bay 003 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b003.png?v=1697224289855)

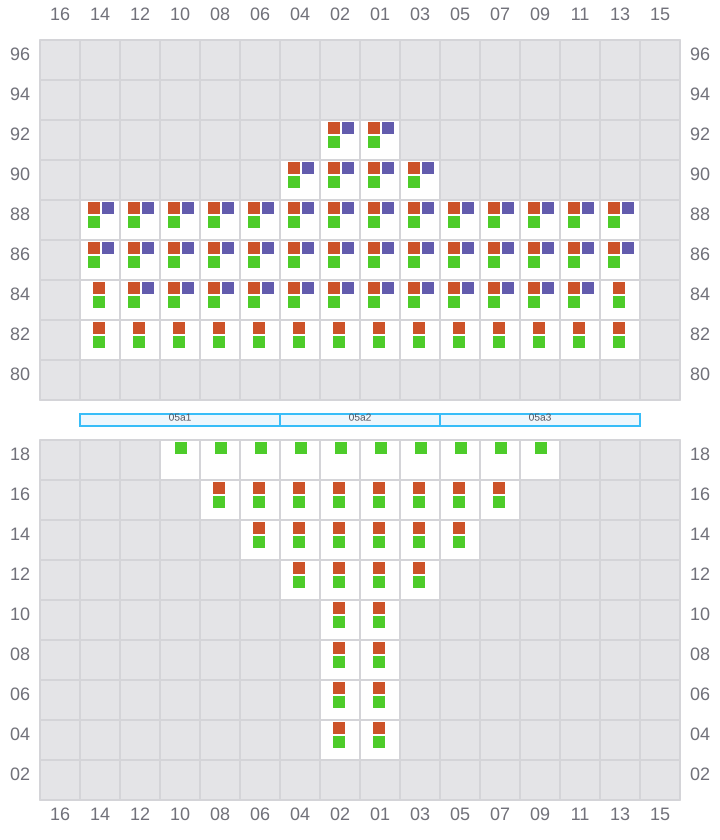

005 (006)
- →
![Bay 005 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b005.png?v=1697224289855)

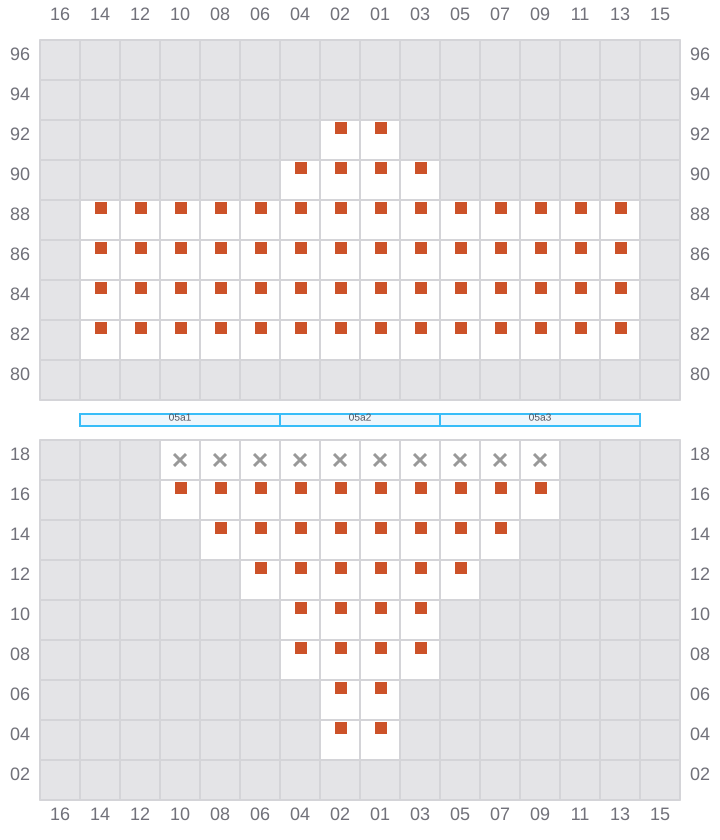

007
- ←
![Bay 007 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b007.png?v=1697224289855)

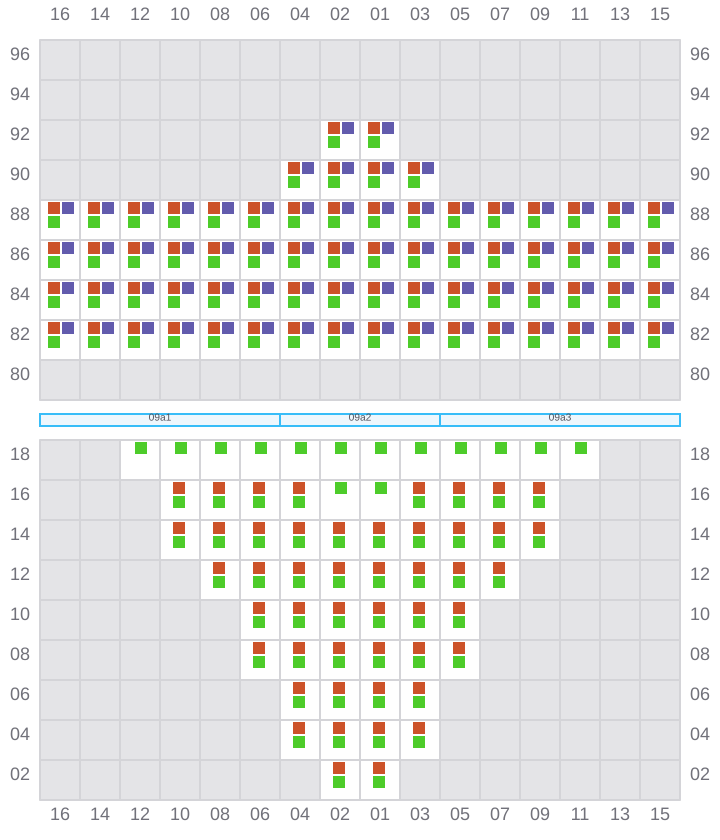

009 (010)
- →
![Bay 009 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b009.png?v=1697224289855)

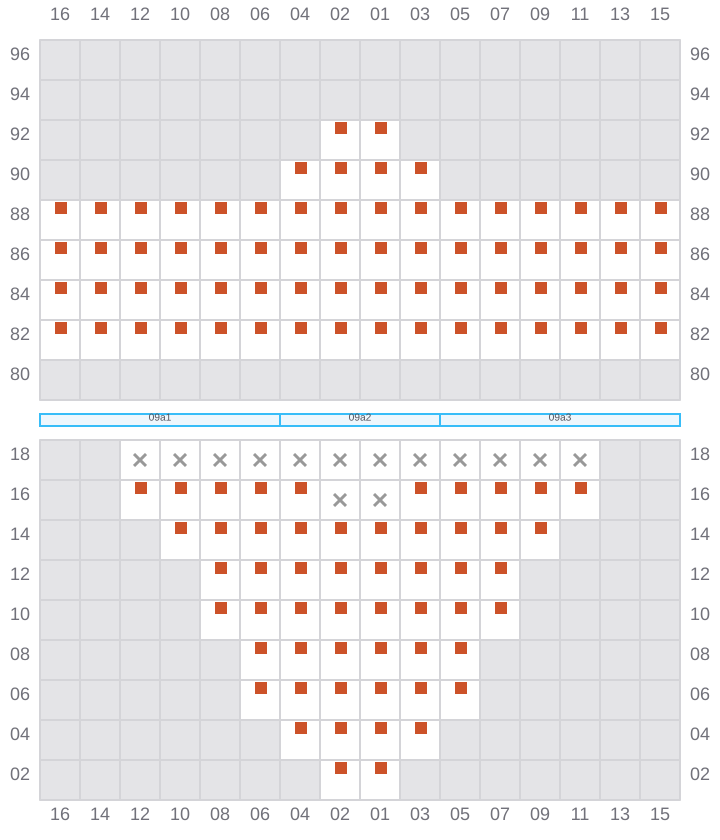

011
- ←
![Bay 011 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b011.png?v=1697224289855)

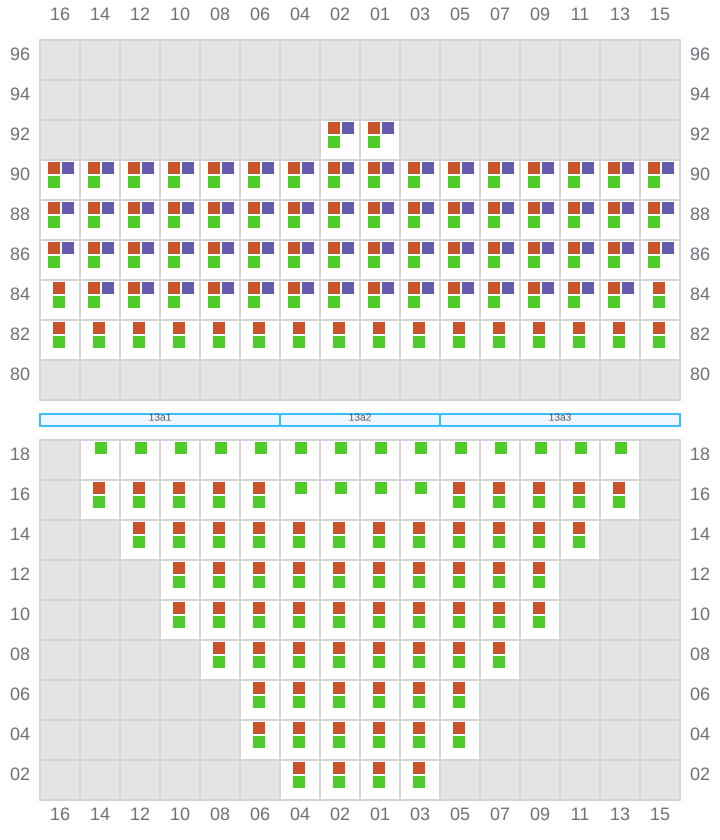

013 (014)
- →
![Bay 013 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b013.png?v=1697224289855)

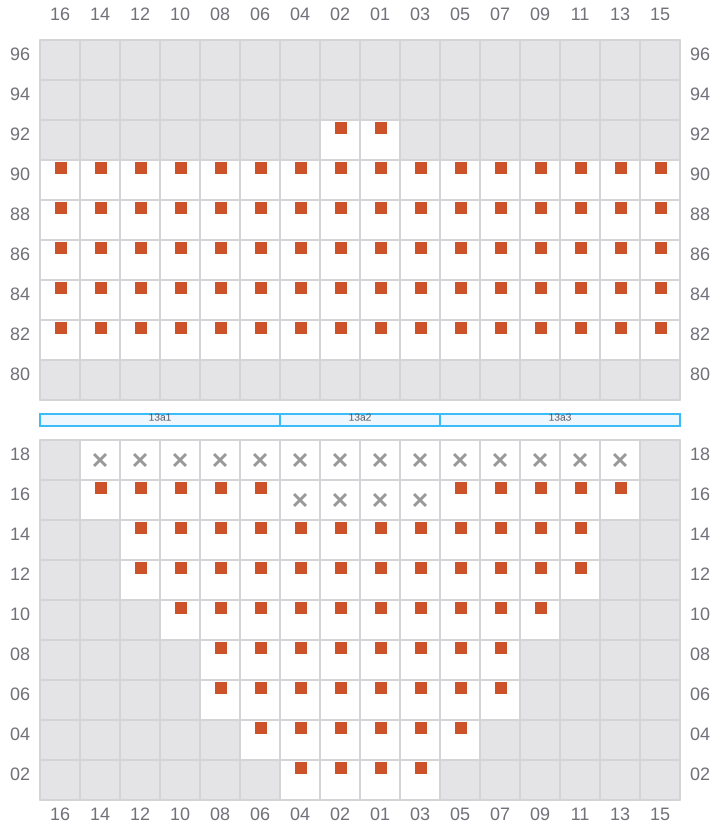

015
- ←
![Bay 015 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b015.png?v=1697224289855)

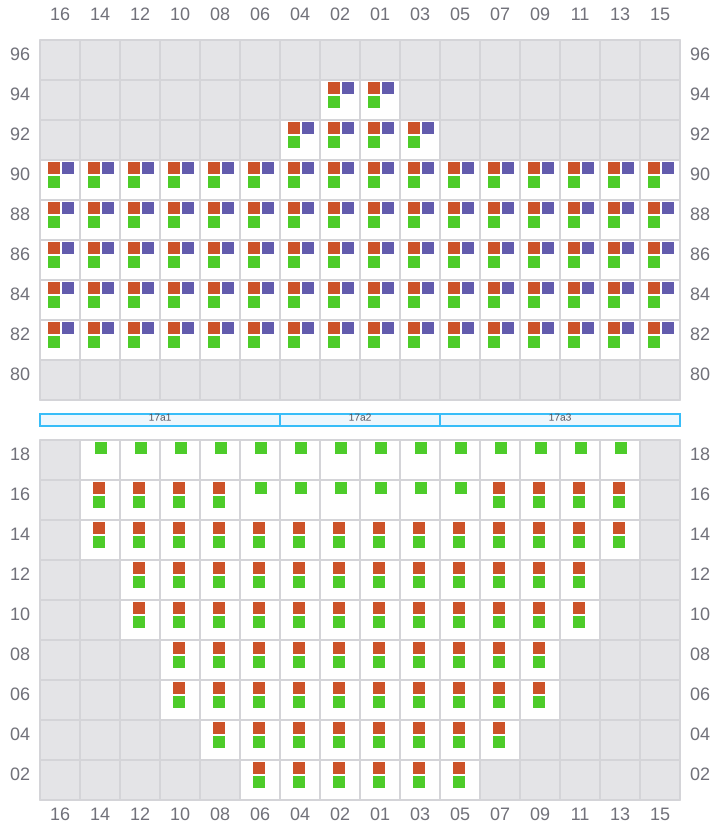

017 (018)
- →
![Bay 017 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b017.png?v=1697224289855)

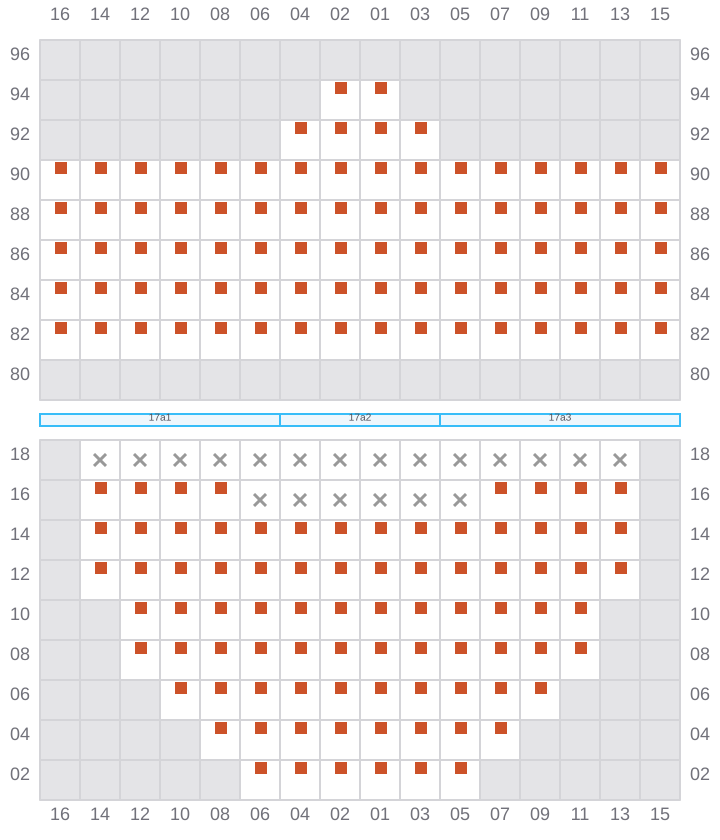

019
- ←
![Bay 019 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b019.png?v=1697224289855)

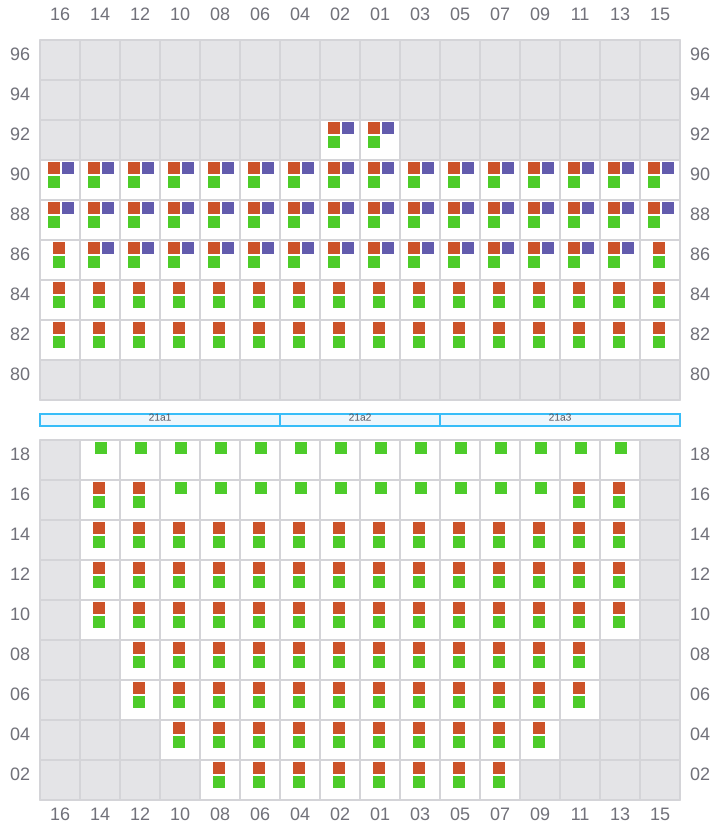

021 (022)
- →
![Bay 021 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b021.png?v=1697224289855)

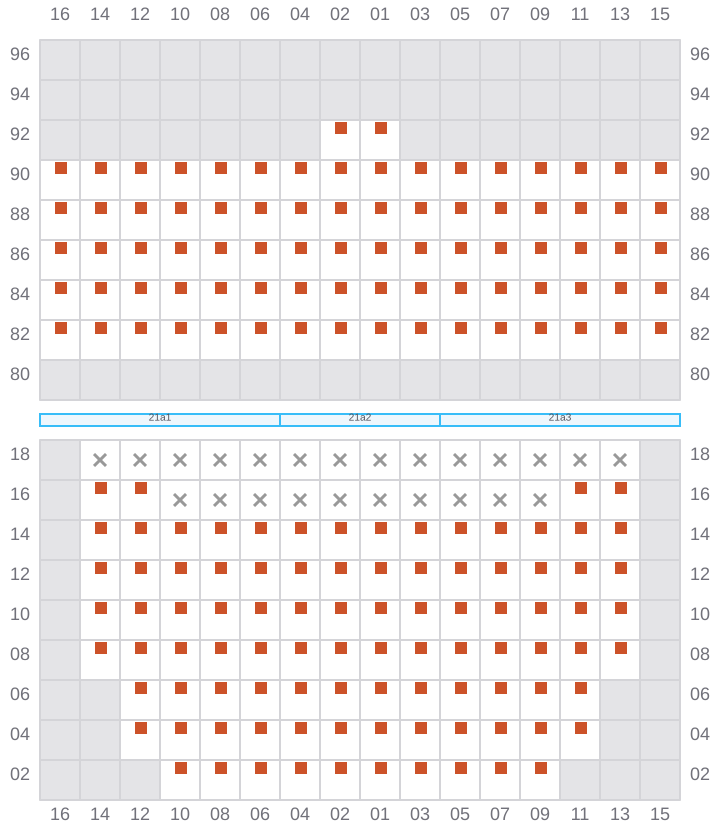

023
- ←
![Bay 023 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b023.png?v=1697224289855)

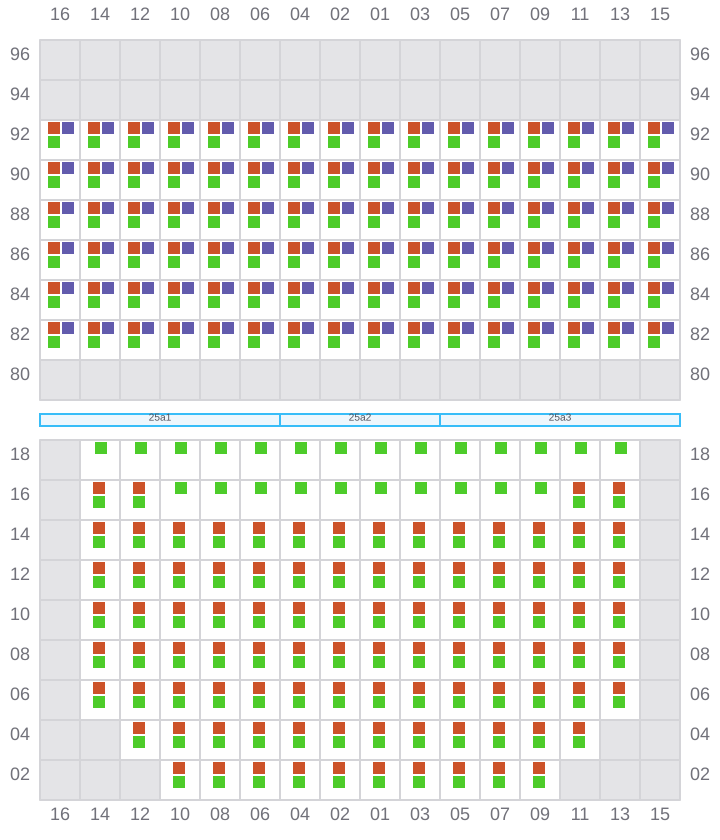

025 (026)
- →
![Bay 025 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b025.png?v=1697224289855)

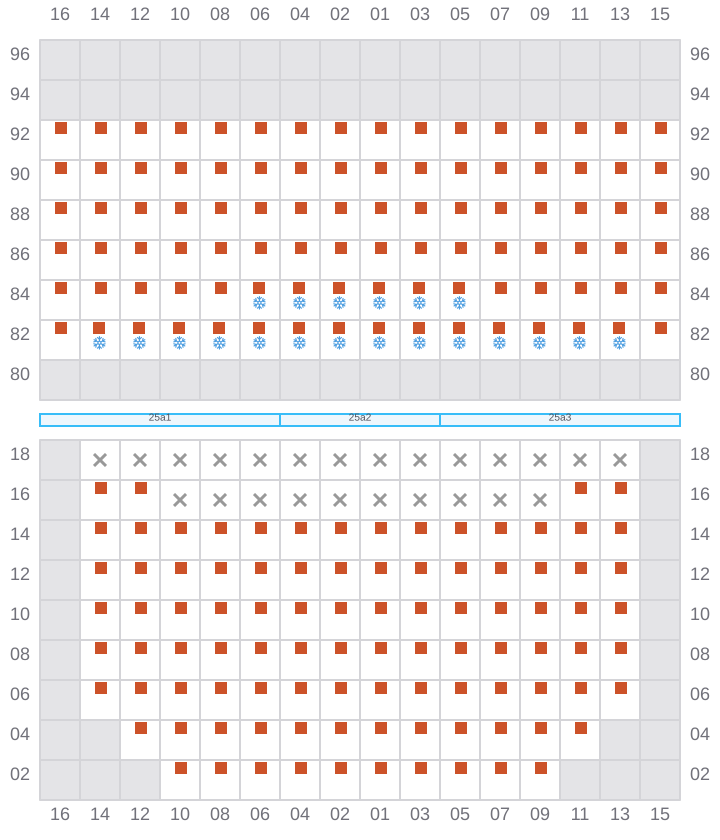

027
- ←
- → / ?
![Bay 027 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b027.png?v=1697224289855)

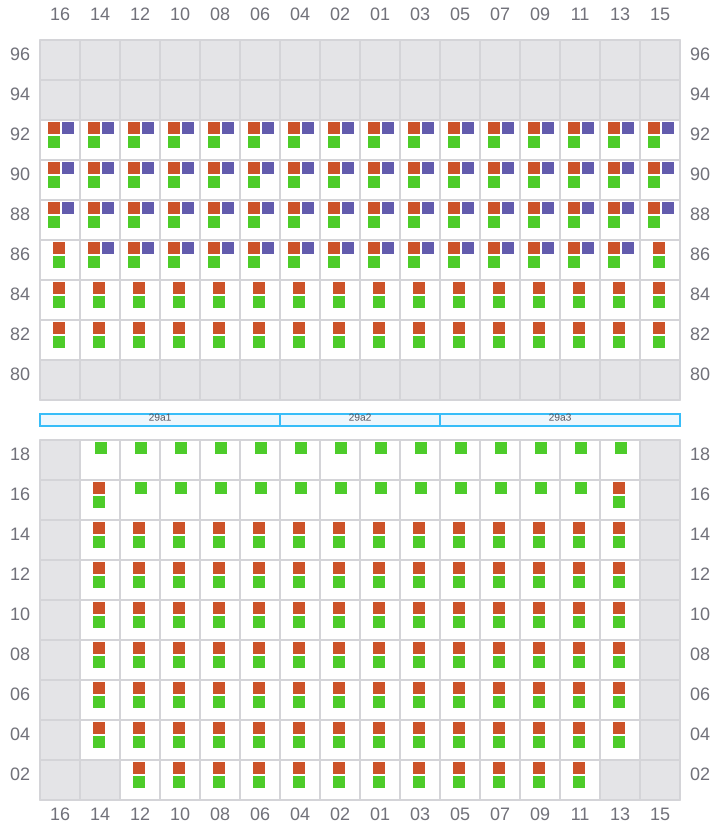

029 (030)
- →
![Bay 029 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b029.png?v=1697224289855)

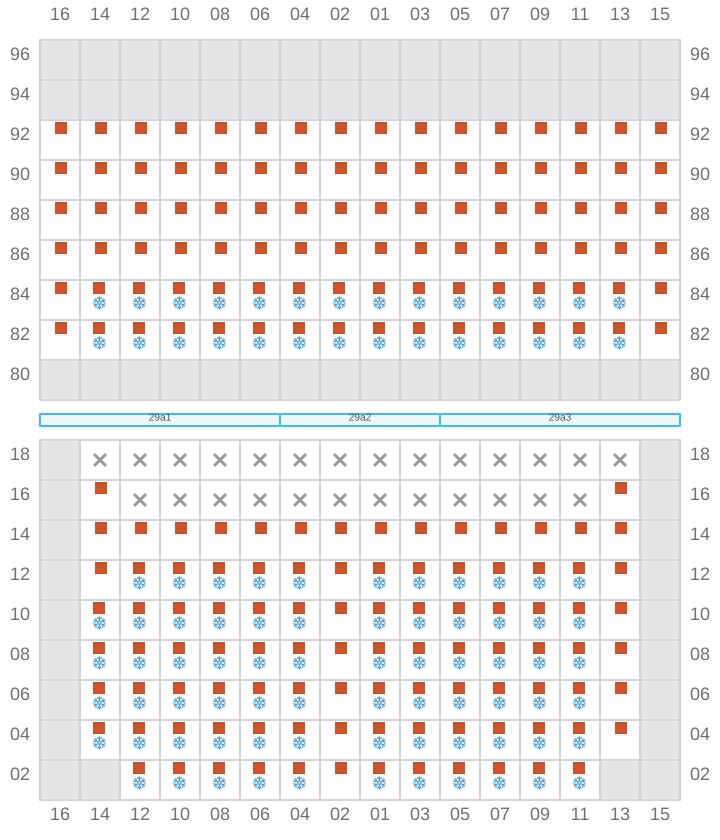

031
- ←
- →
![Bay 031 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b031.png?v=1697224289855)

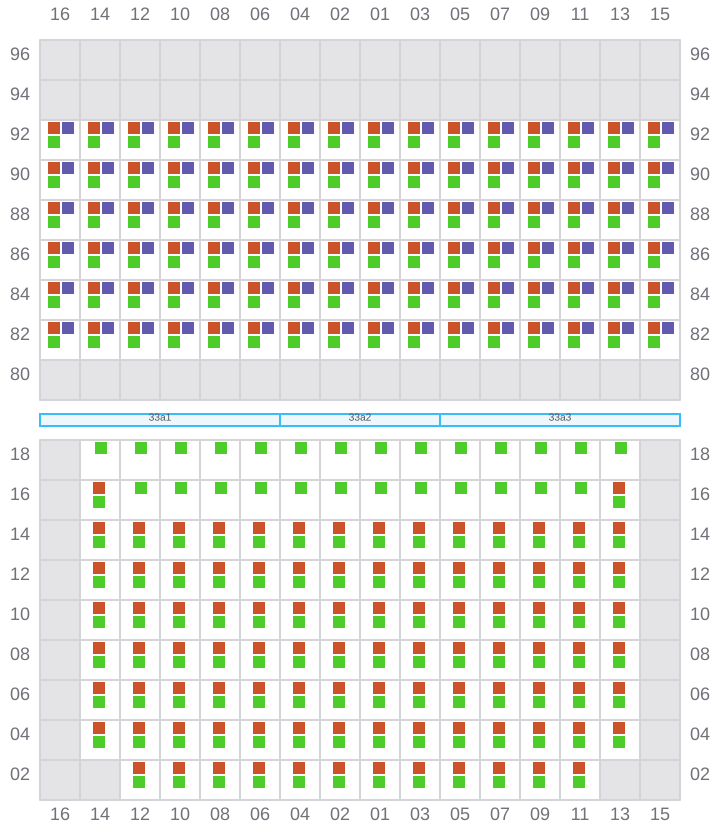

033 (034)
- →
![Bay 033 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b033.png?v=1697224289855)

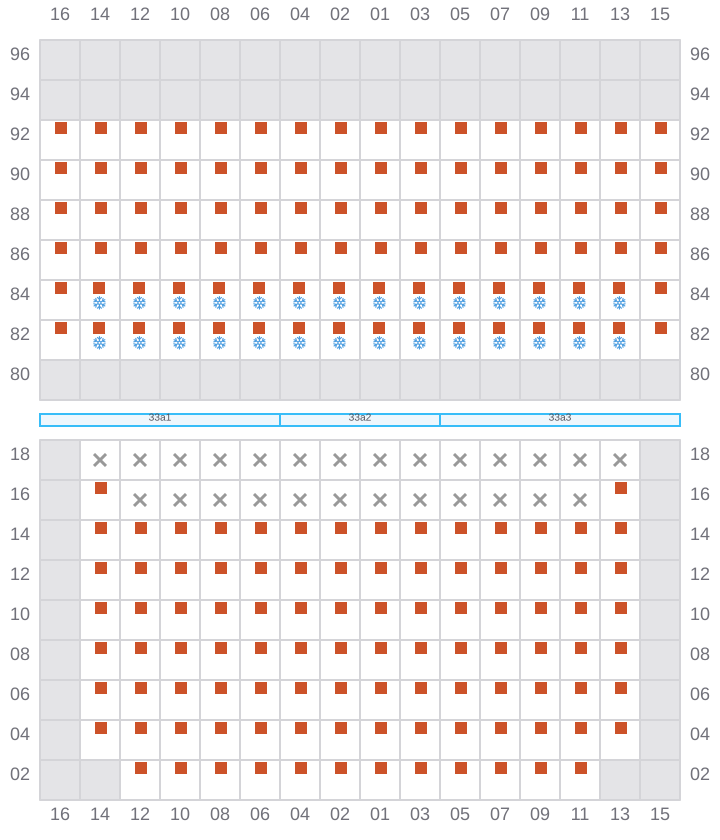

035
- ←
- → / ?
![Bay 035 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b035.png?v=1697224289855)
037 (038)
- →
![Bay 037 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b037.png?v=1697224289855)

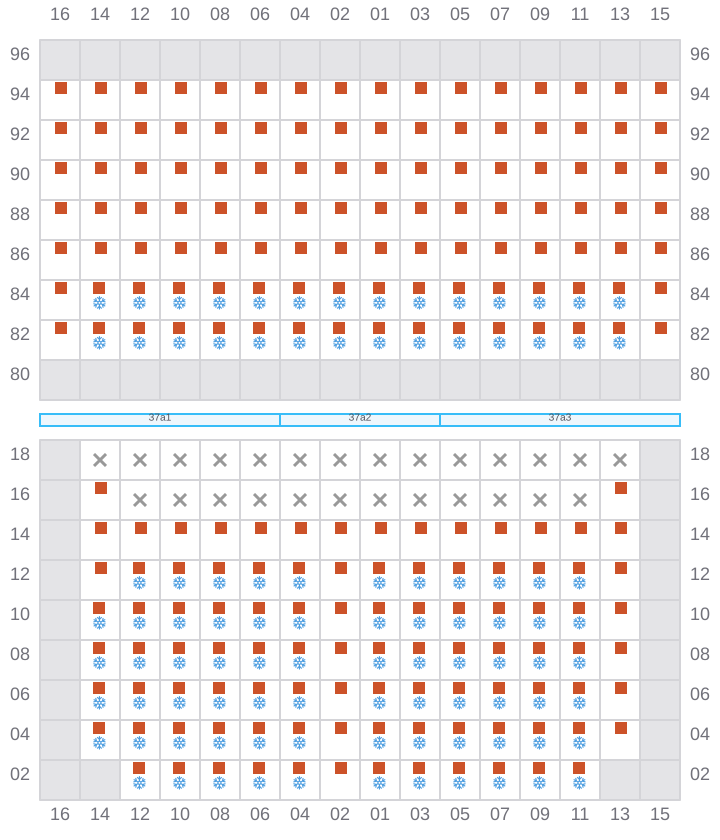

039
- ←
- →
![Bay 039 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b039.png?v=1697224289855)

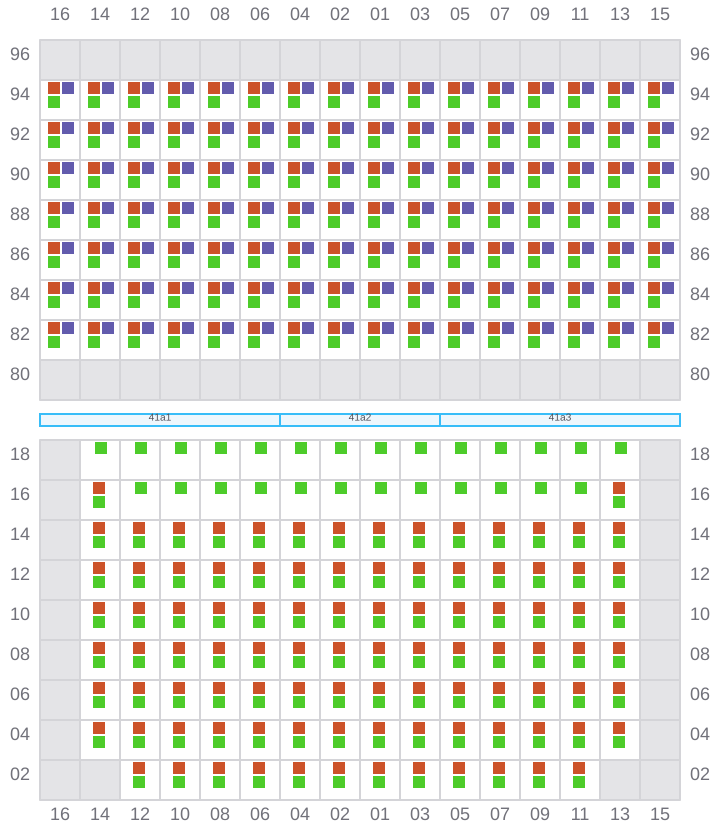

041 (042)
- →
![Bay 041 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b041.png?v=1697224289855)

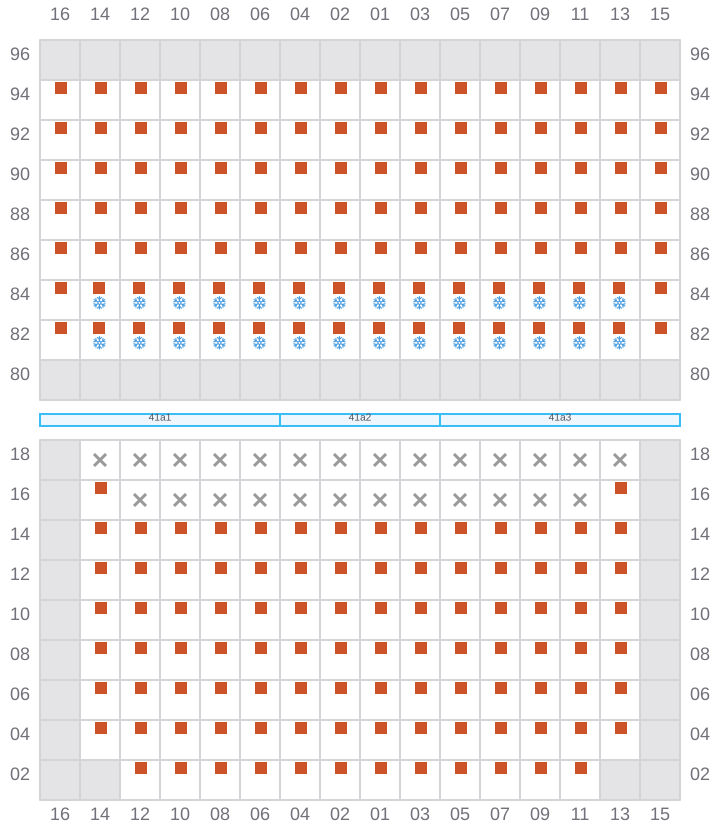

043
- ←
- → / ?
![Bay 043 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b043.png?v=1697224289855)

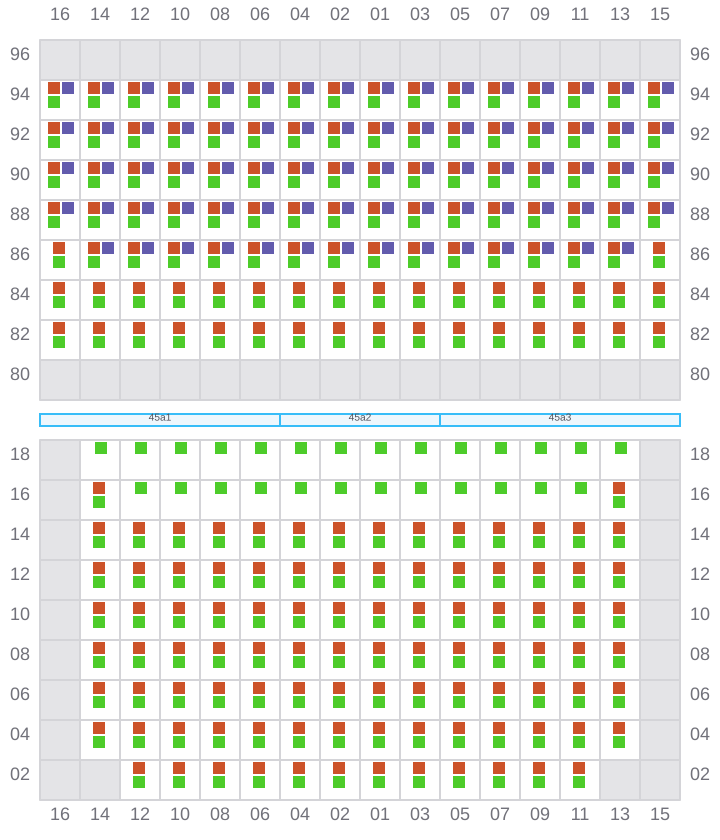

045 (046)
- →
![Bay 045 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b045.png?v=1697224289855)

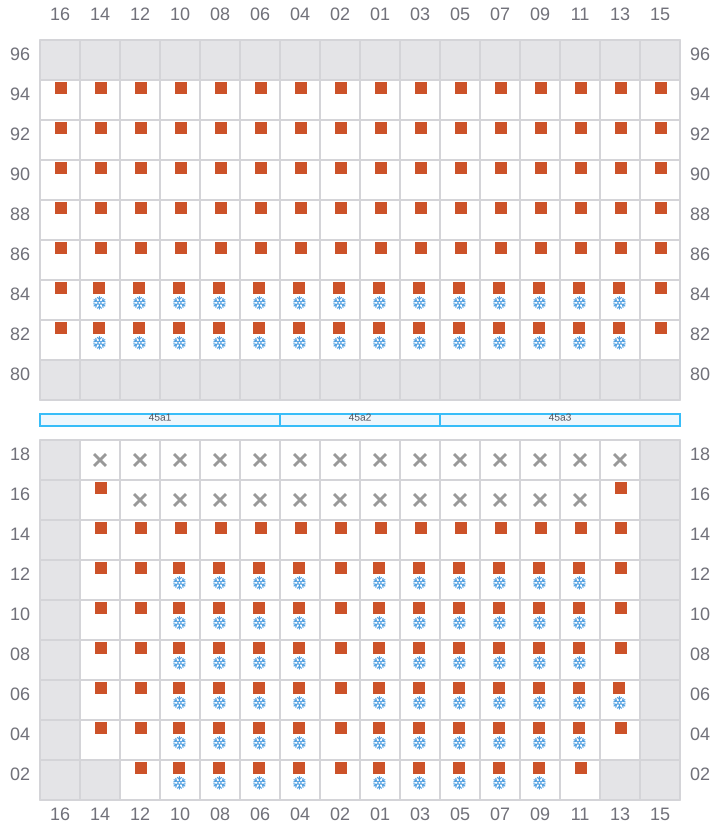

047
- ←
- →
![Bay 047 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b047.png?v=1697224289855)

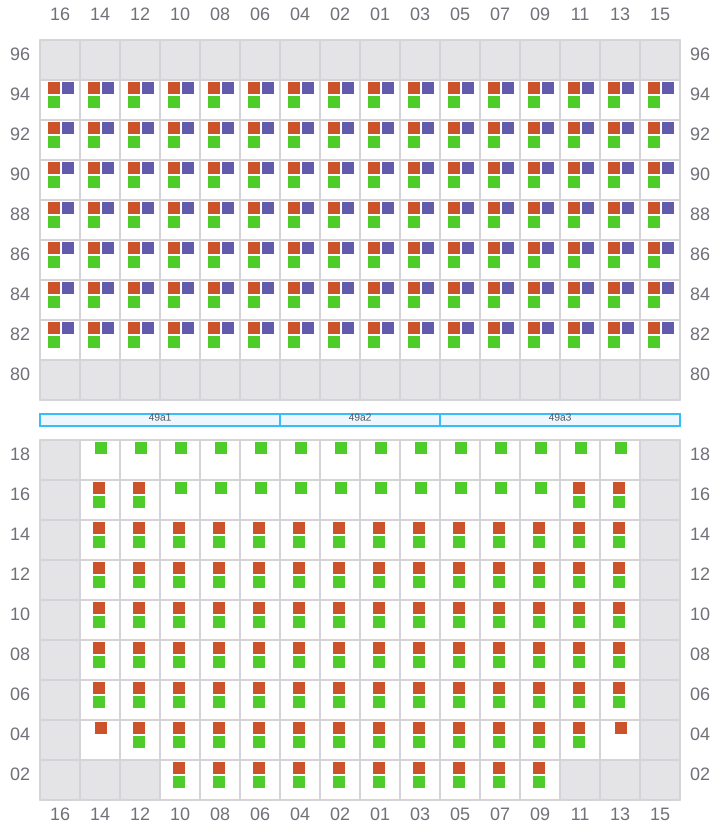

049 (050)
- →
![Bay 049 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b049.png?v=1697224289855)

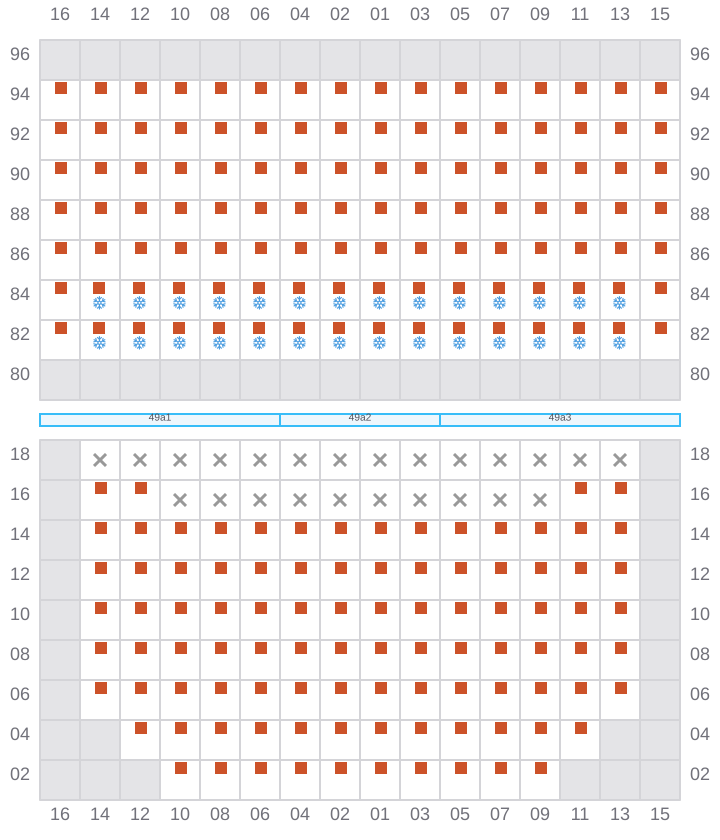

051
- ←
- → / ?
![Bay 051 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b051.png?v=1697224289855)

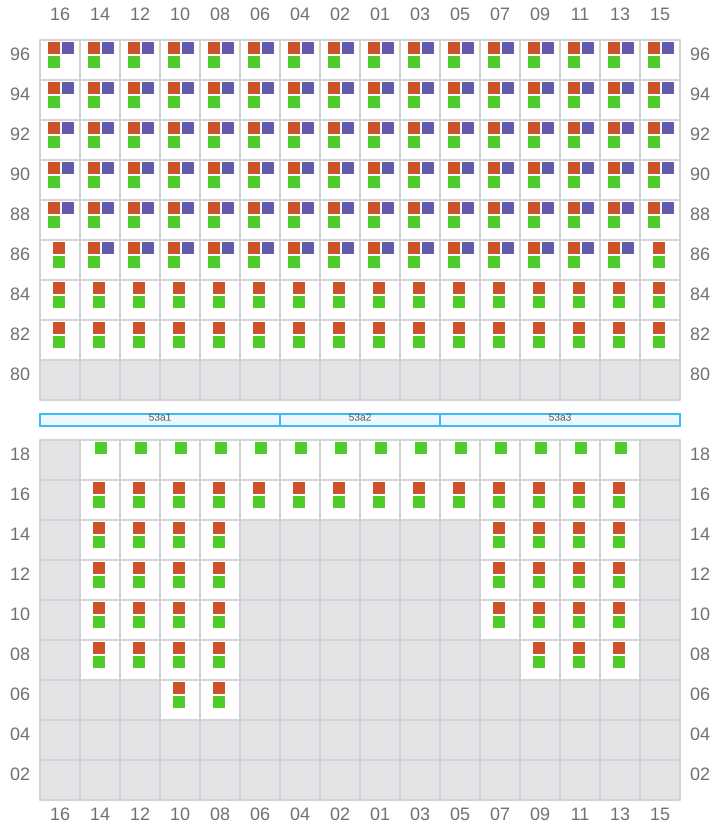

053 (054)
- →
![Bay 053 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b053.png?v=1697224289855)

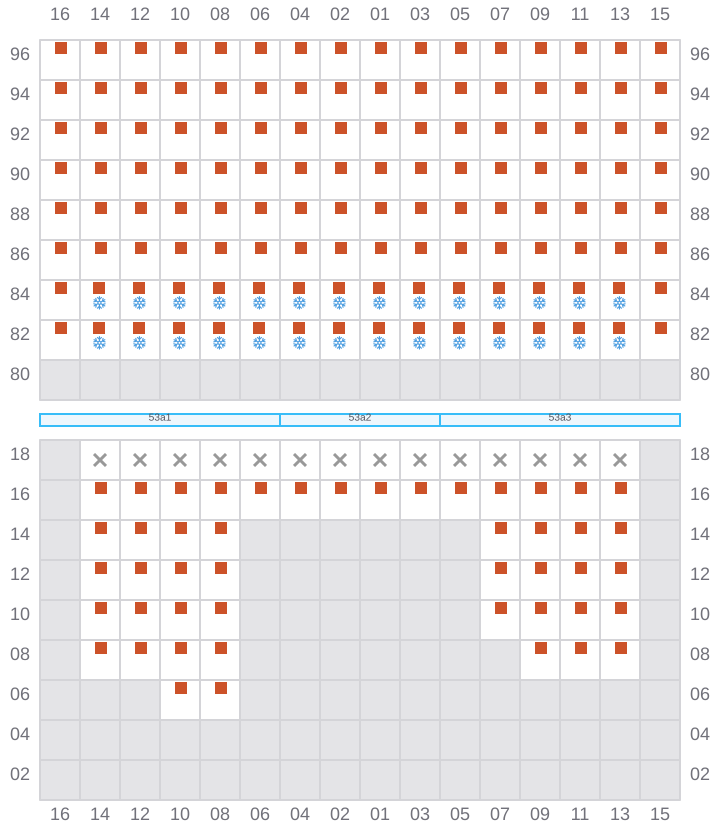

055
- ←
- → / ?
![Bay 055 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b055.png?v=1697224289855)

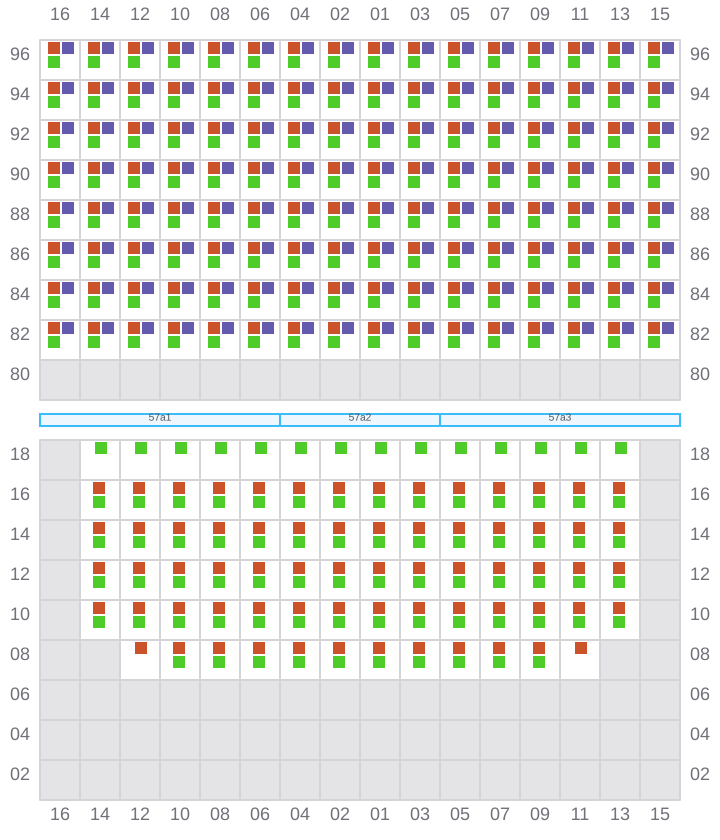

057 (058)
- →
![Bay 057 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b057.png?v=1697224289855)

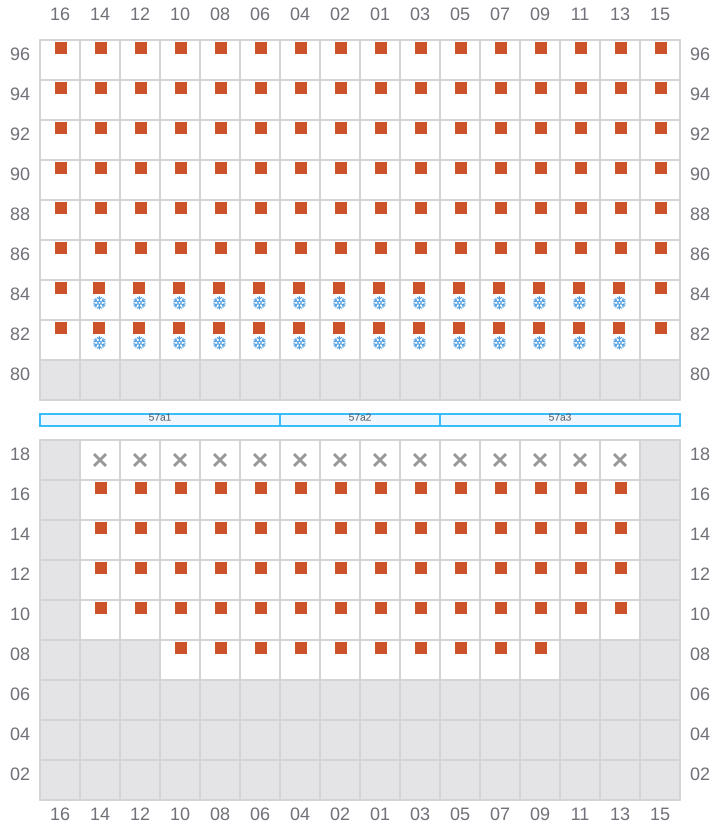

059
- ←
- → / ?
![Bay 059 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b059.png?v=1697224289855)

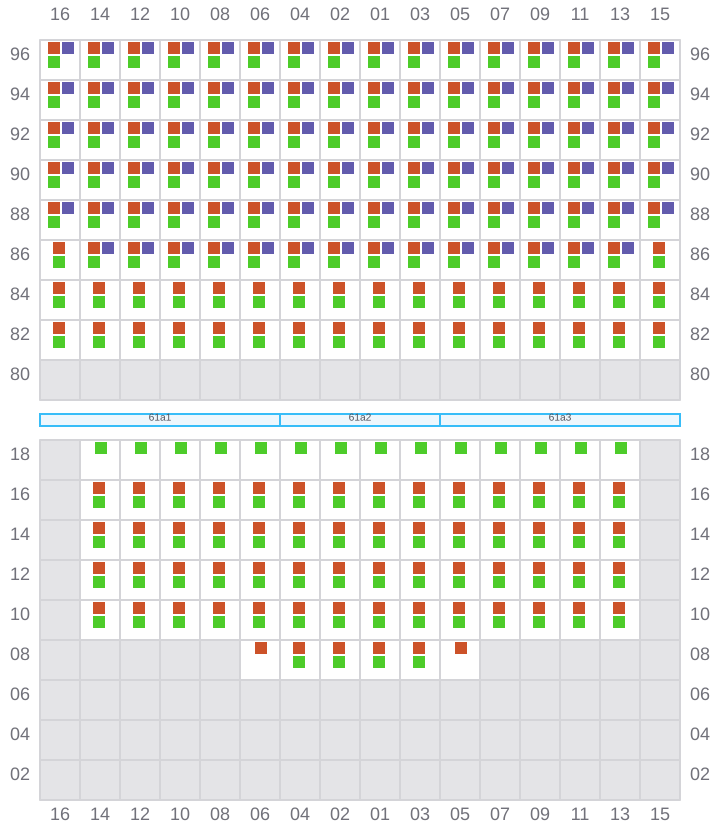

061 (062)
- →
![Bay 061 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b061.png?v=1697224289855)

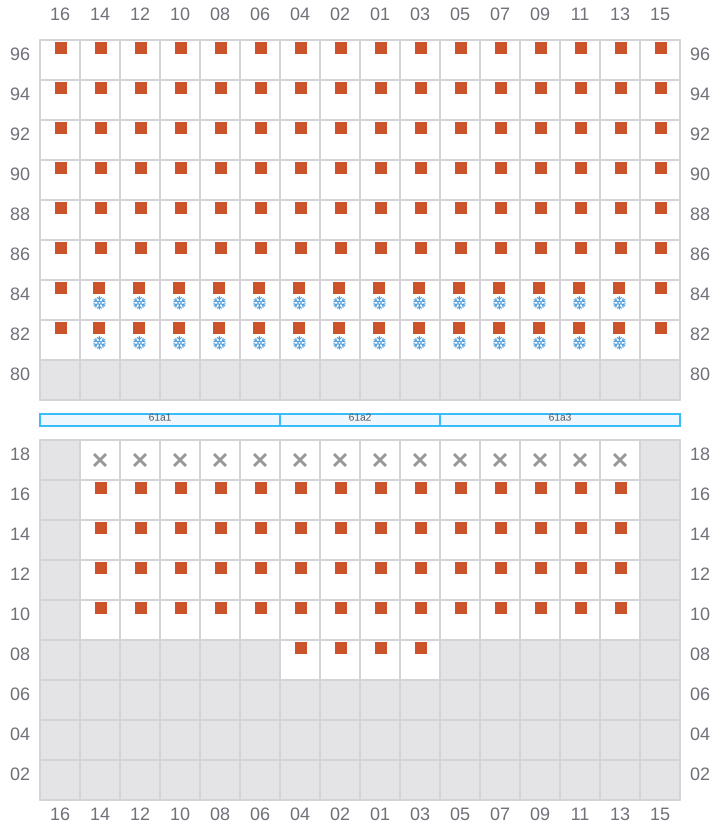

063
- ←
- → / ?
![Bay 063 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b063.png?v=1697224289855)

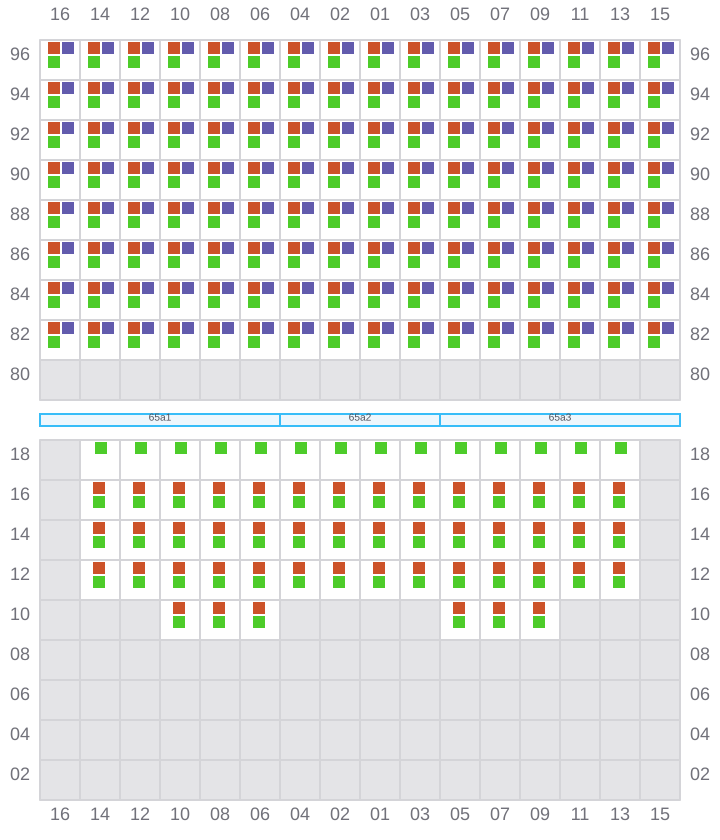

065 (066)
- →
![Bay 065 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b065.png?v=1697224289855)
067
- ←
- → / ?
![Bay 067 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b067.png?v=1697224289855)
069 (070)
- → / ?
![Bay 069 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b069.png?v=1697224289855)

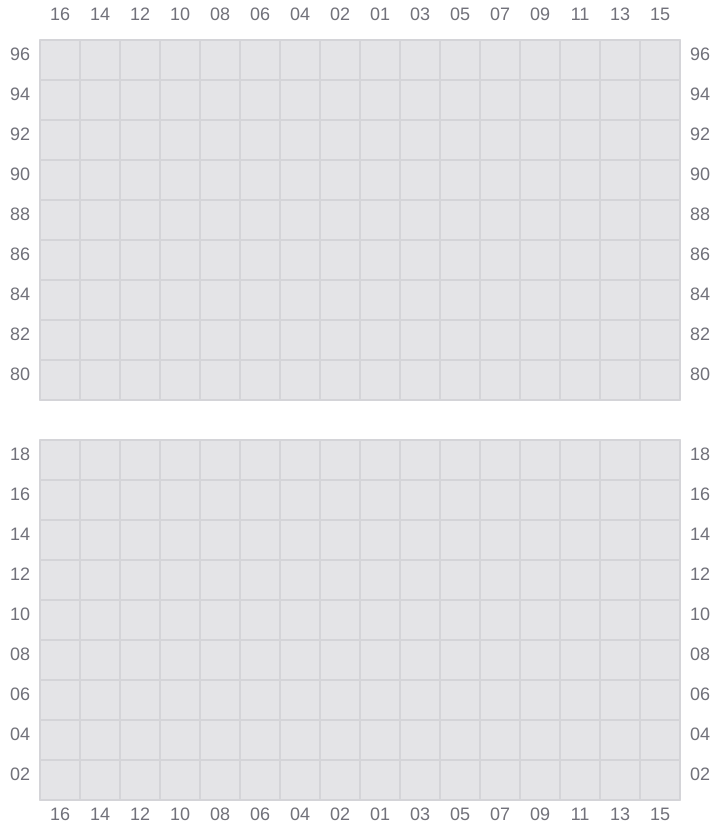

071
- ← / ?
![Bay 071 view and slots of MSC ALMA VII](/vessel-images/dca8717b-f43d-4b6c-9cc3-334636d483e6-b071.png?v=1697224289855)
