MSC ALTAIR
9465277 | A8YN2 | MSC by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:MSC ALTAIR
IMO Code:9465277
Call Sign:A8YN2
Line Operator:MSC
Class Name for Sister Ships:ALR
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):349.96
LOA (Length Overall):366.46
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,119

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MSC ALTAIR

Hatch-Covers View

Deck view of MSC ALTAIR

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

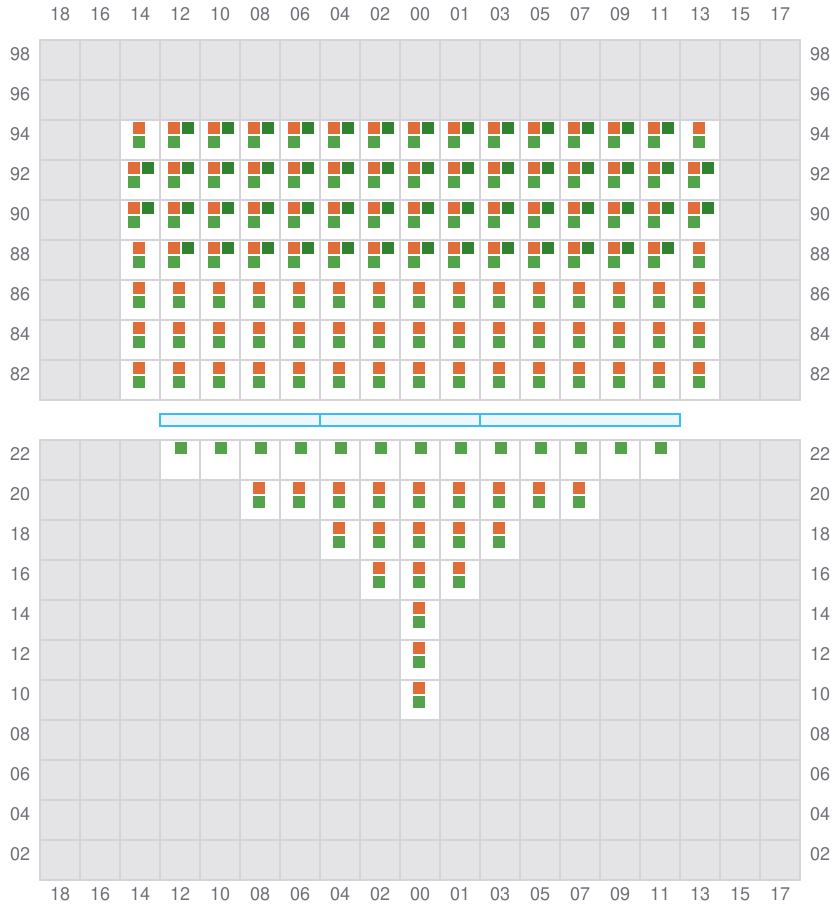

001 (002)

  • →
Bay 001 view and slots of MSC ALTAIR

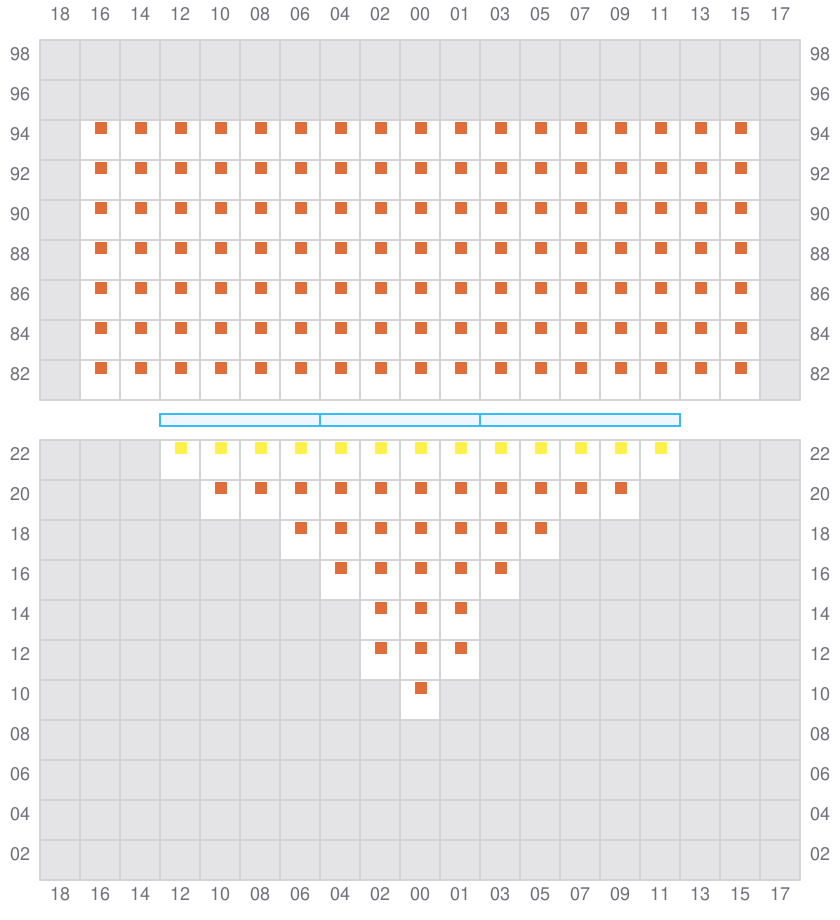

003

  • ←
Bay 003 view and slots of MSC ALTAIR

005 (006)

  • →

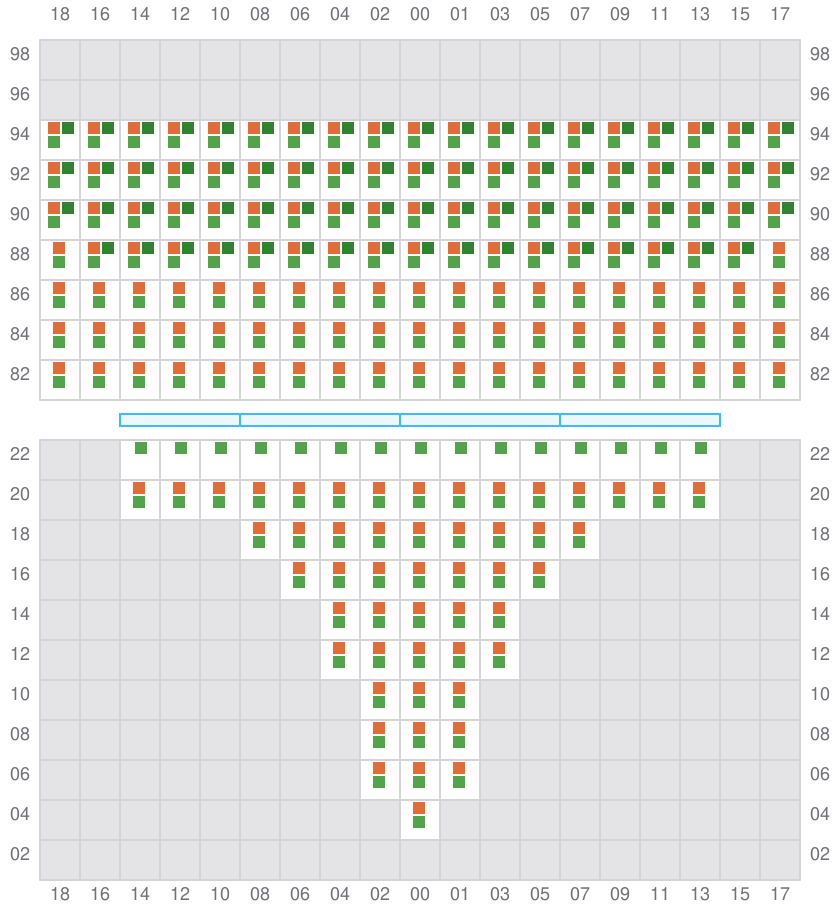

Bay 005 view and slots of MSC ALTAIR

007

  • ←
  • → / ?

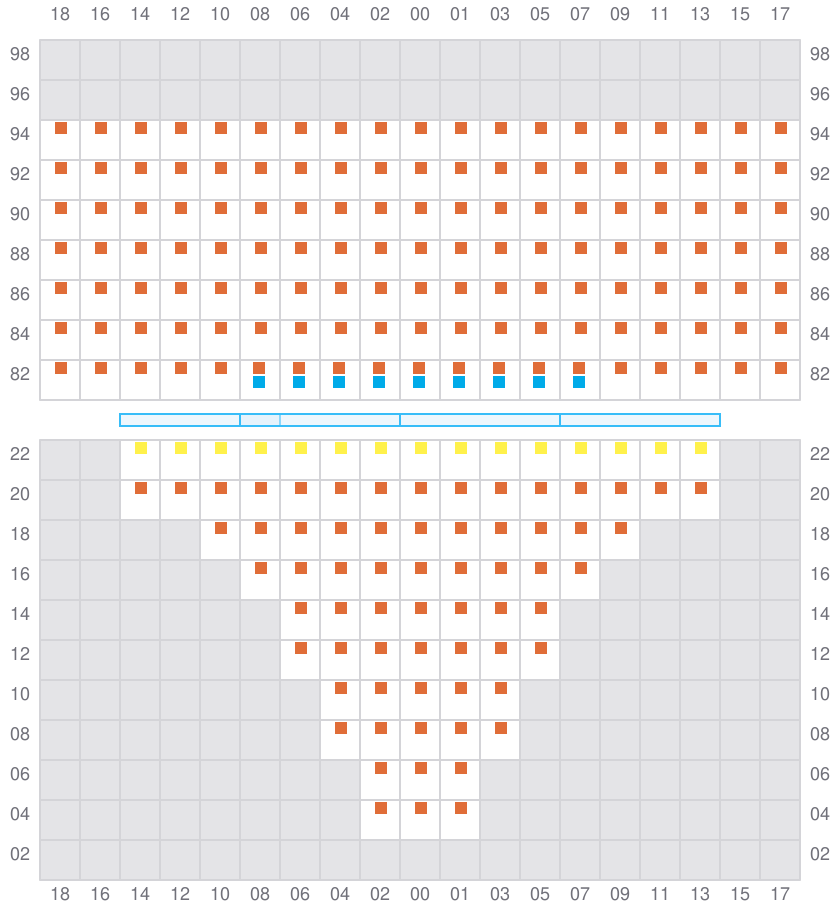

Bay 007 view and slots of MSC ALTAIR

009 (010)

  • →

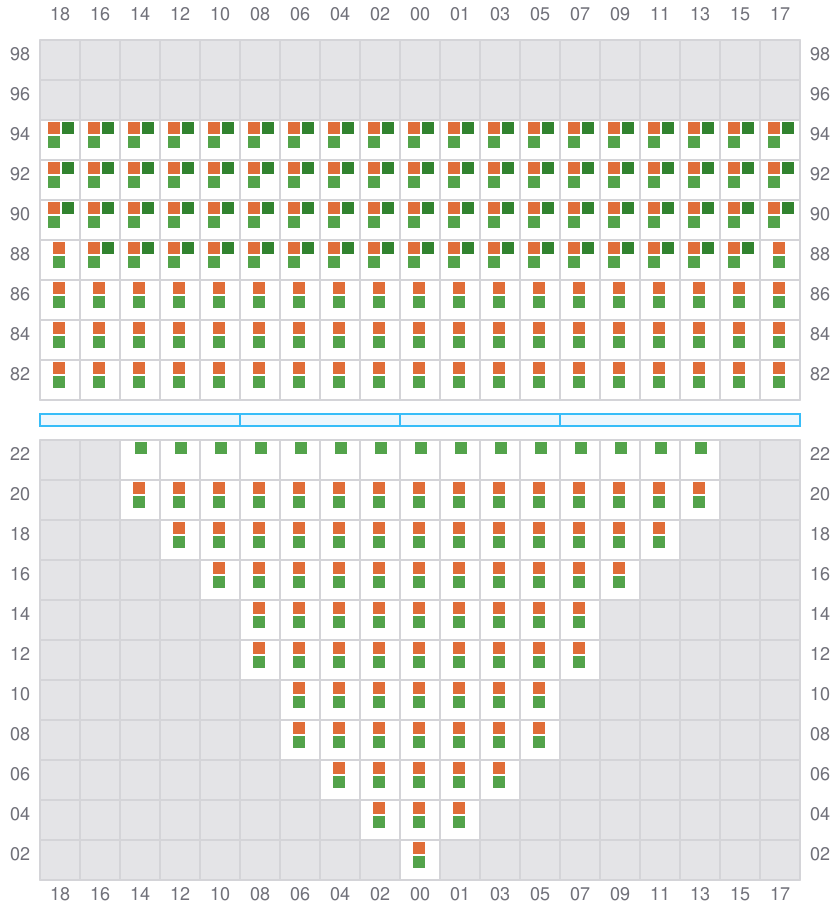

Bay 009 view and slots of MSC ALTAIR

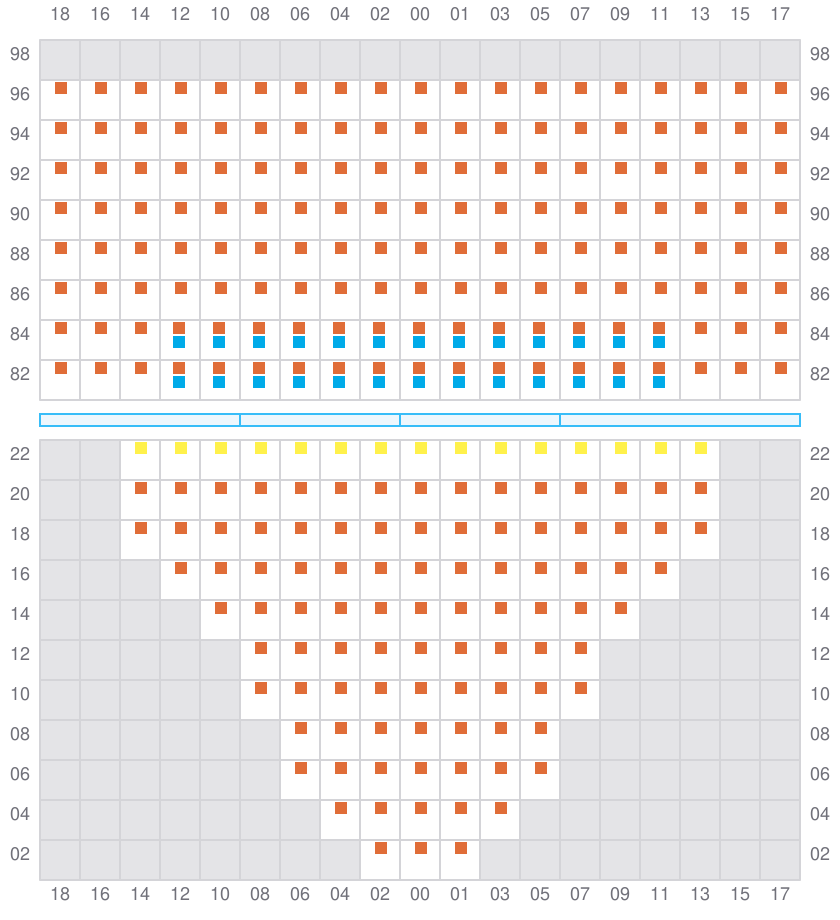

011

  • ←
  • → / ?
Bay 011 view and slots of MSC ALTAIR

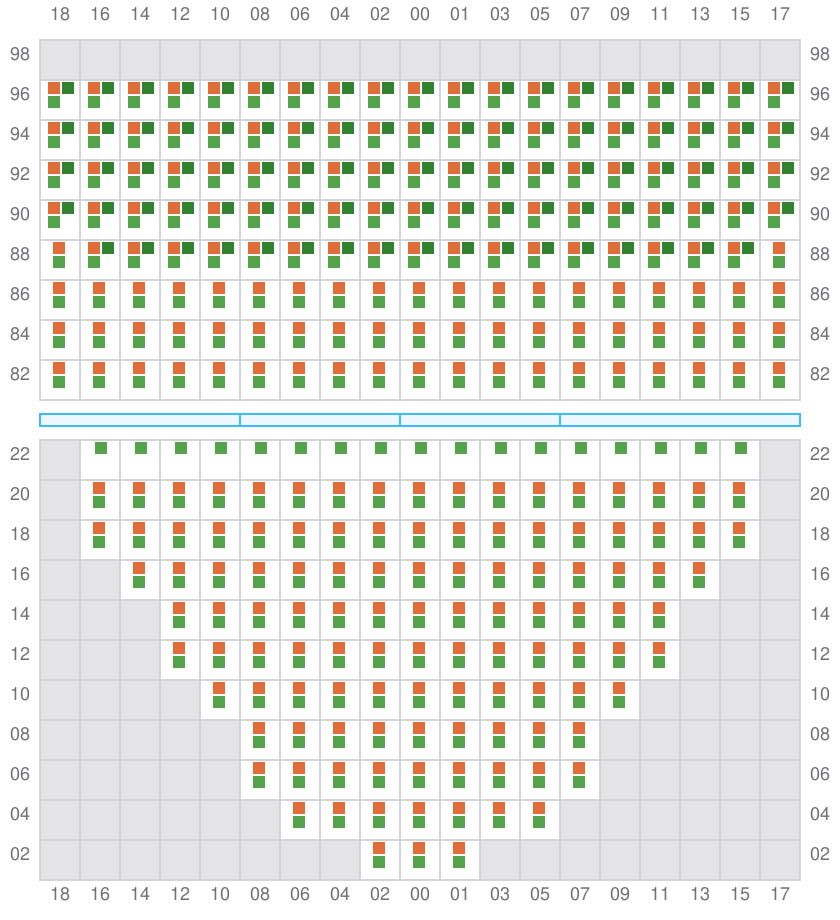

013 (014)

  • →
Bay 013 view and slots of MSC ALTAIR

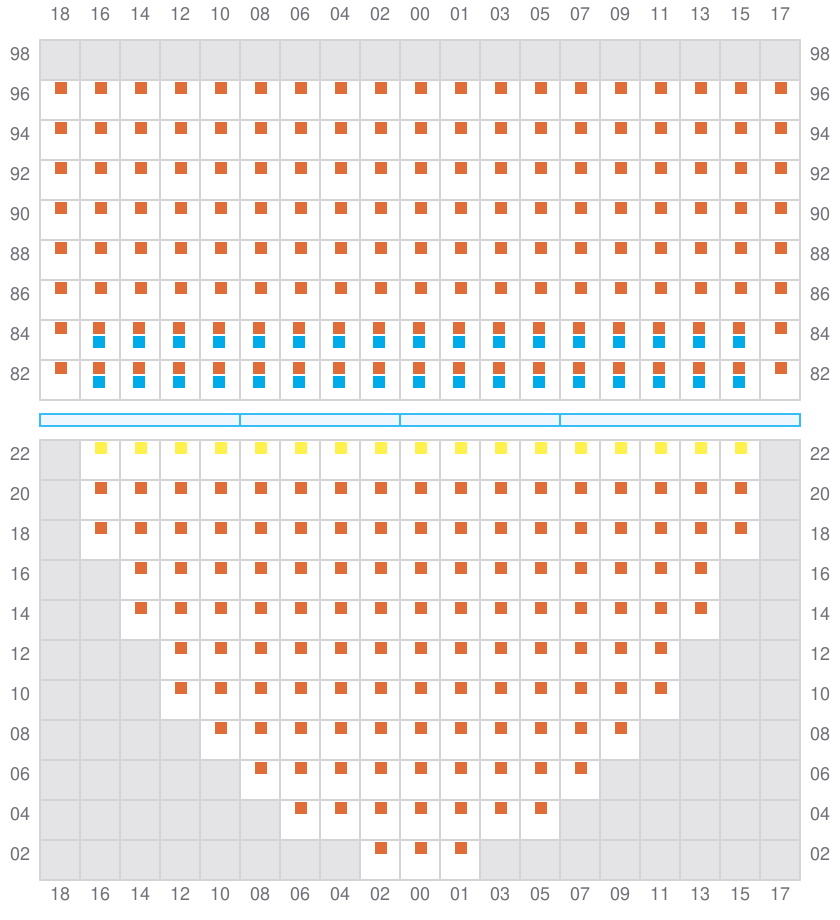

015

  • ←
  • → / ?
Bay 015 view and slots of MSC ALTAIR

017 (018)

  • →
Bay 017 view and slots of MSC ALTAIR

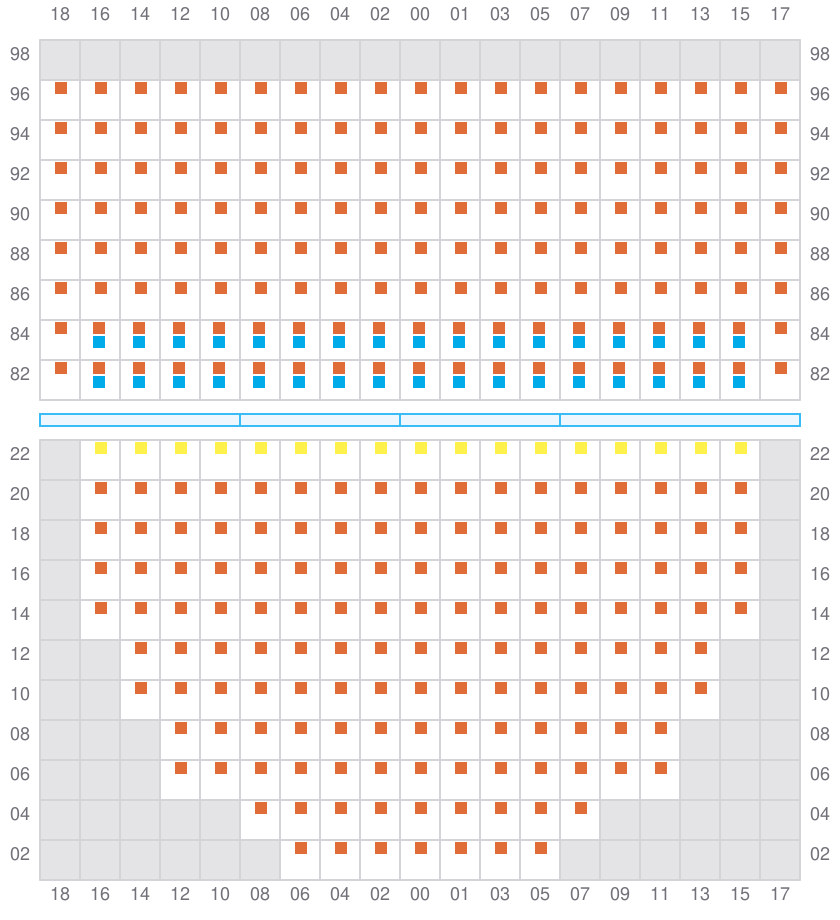

019

  • ←
  • → / ?
Bay 019 view and slots of MSC ALTAIR

021 (022)

  • →
Bay 021 view and slots of MSC ALTAIR

023

  • ←
  • → / ?
Bay 023 view and slots of MSC ALTAIR

025 (026)

  • →

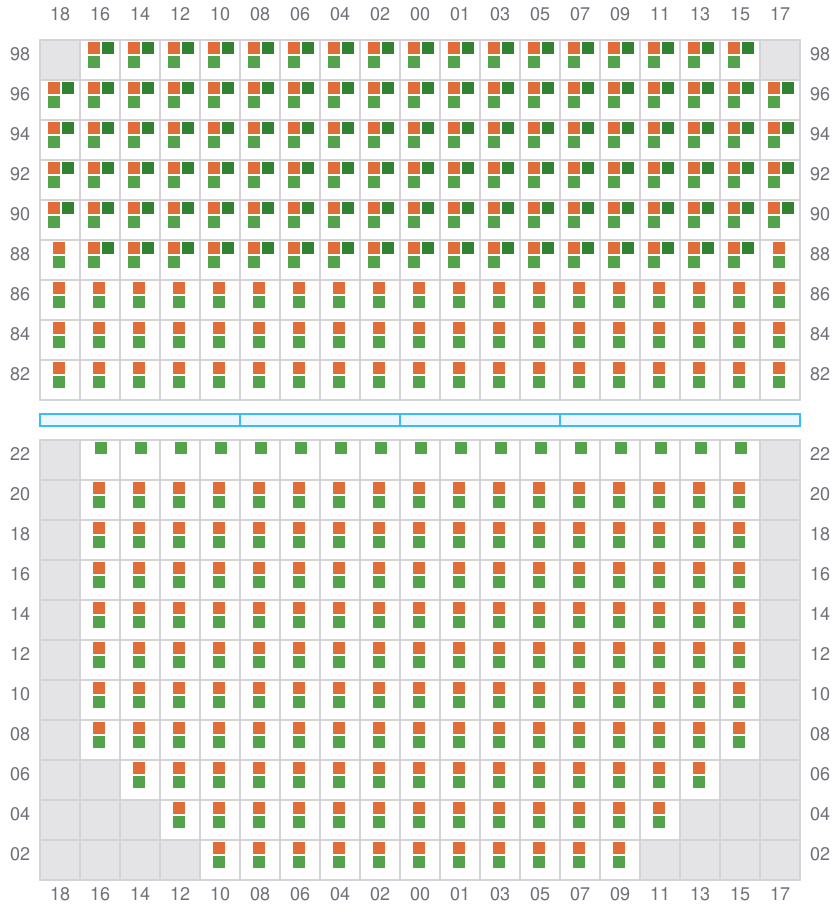

Bay 025 view and slots of MSC ALTAIR

027

  • ←
  • → / ?
Bay 027 view and slots of MSC ALTAIR

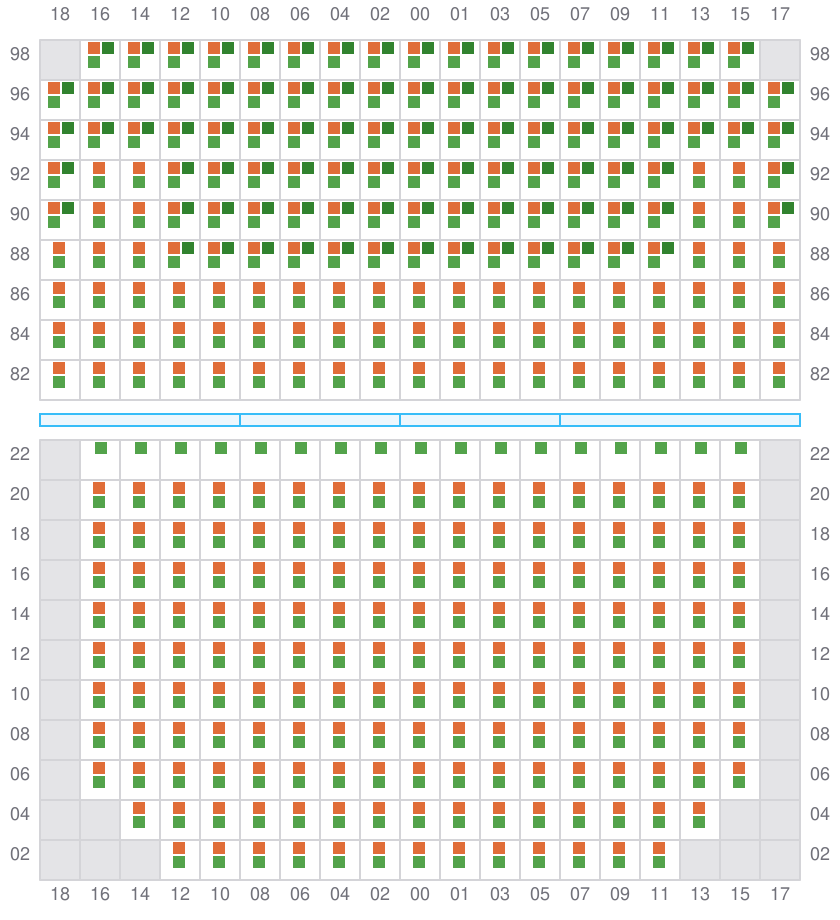

029 (030)

  • →
Bay 029 view and slots of MSC ALTAIR

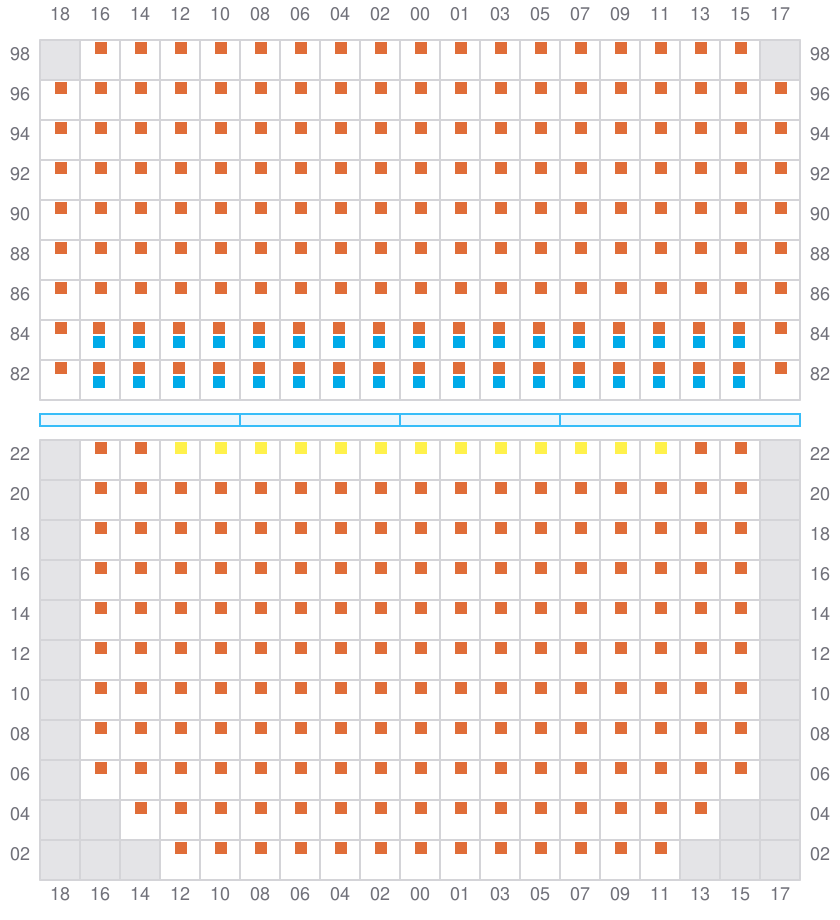

031

  • ←
  • → / ?
Bay 031 view and slots of MSC ALTAIR

033 (034)

  • →
Bay 033 view and slots of MSC ALTAIR

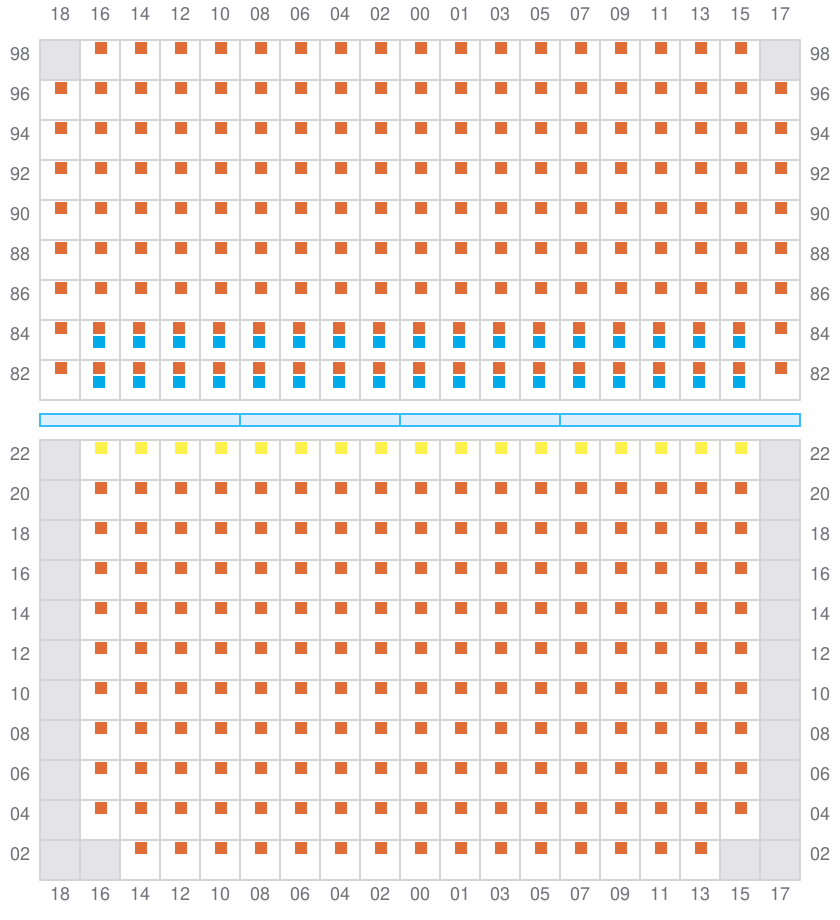

035

  • ←
  • → / ?
Bay 035 view and slots of MSC ALTAIR

037 (038)

  • →
Bay 037 view and slots of MSC ALTAIR

039

  • ←
  • → / ?
Bay 039 view and slots of MSC ALTAIR

041 (042)

  • →
Bay 041 view and slots of MSC ALTAIR

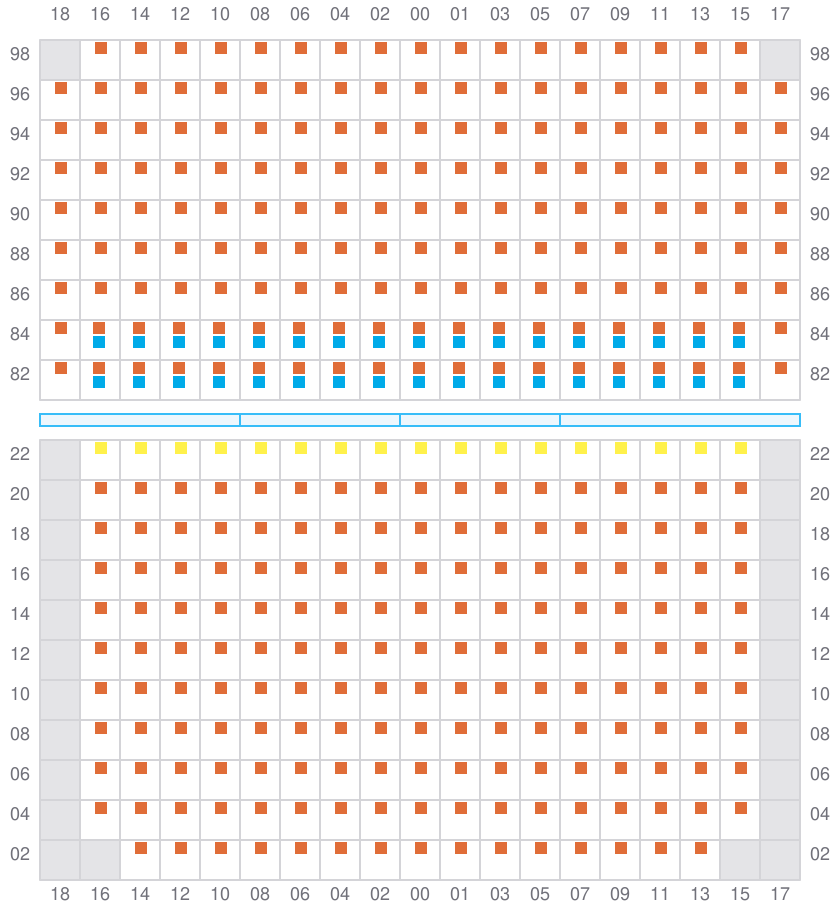

043

  • ←
  • → / ?
Bay 043 view and slots of MSC ALTAIR

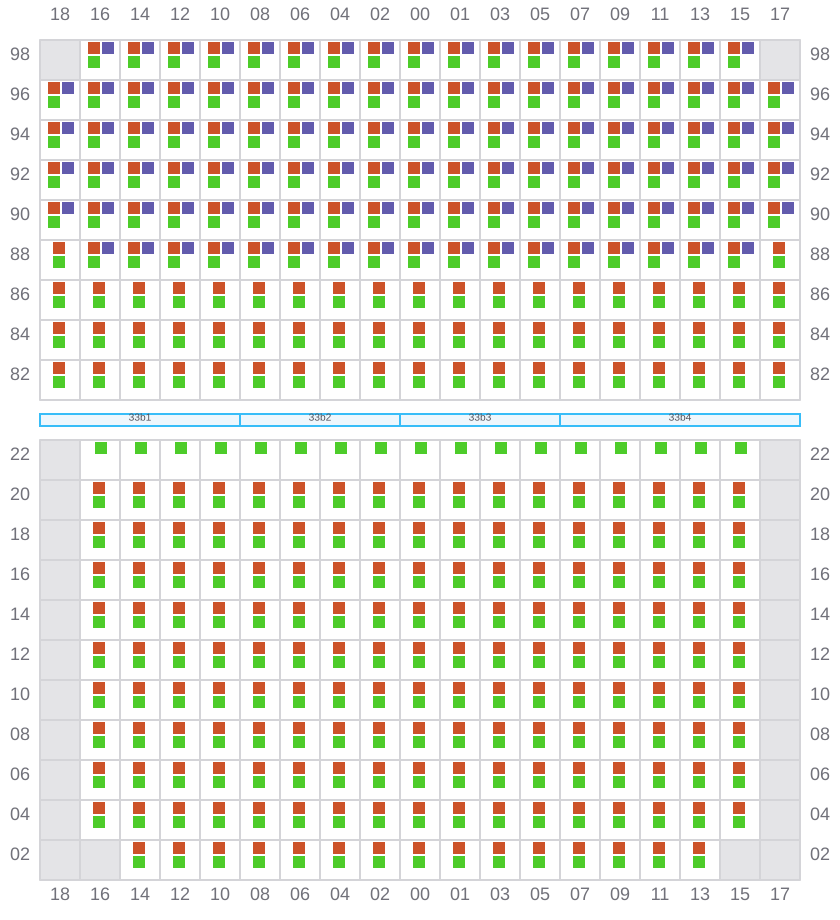

045 (046)

  • →
Bay 045 view and slots of MSC ALTAIR

047

  • ←
  • → / ?
Bay 047 view and slots of MSC ALTAIR

049 (050)

  • →
Bay 049 view and slots of MSC ALTAIR

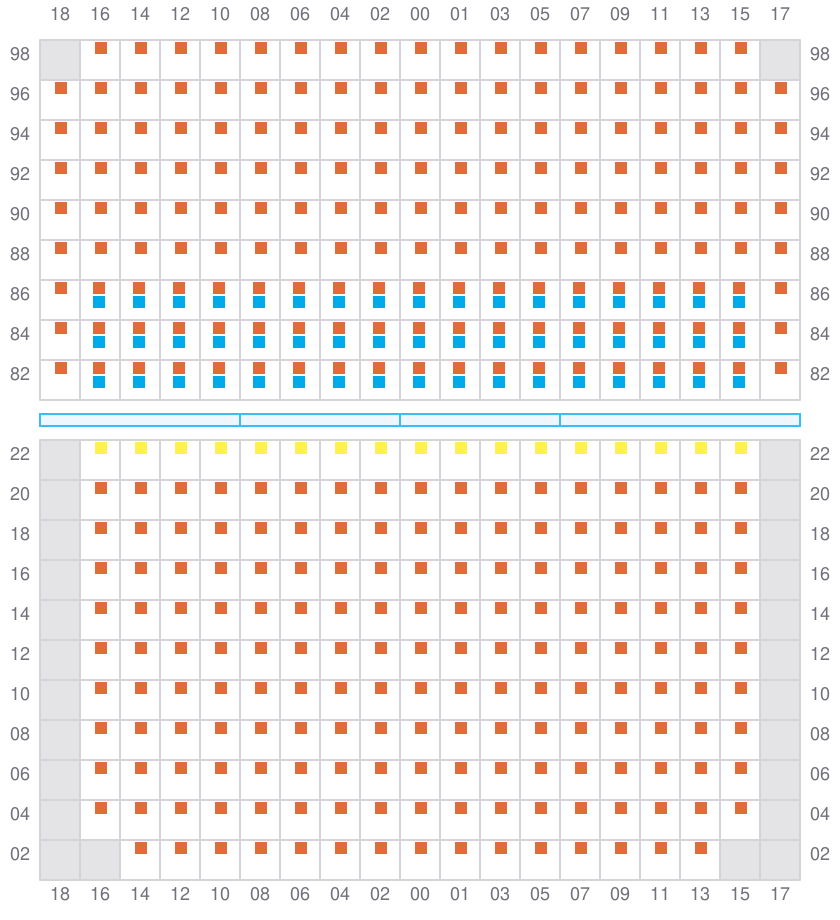

051

  • ←
  • → / ?
Bay 051 view and slots of MSC ALTAIR

053 (054)

  • →
Bay 053 view and slots of MSC ALTAIR

055

  • ←
  • → / ?
Bay 055 view and slots of MSC ALTAIR

057 (058)

  • →

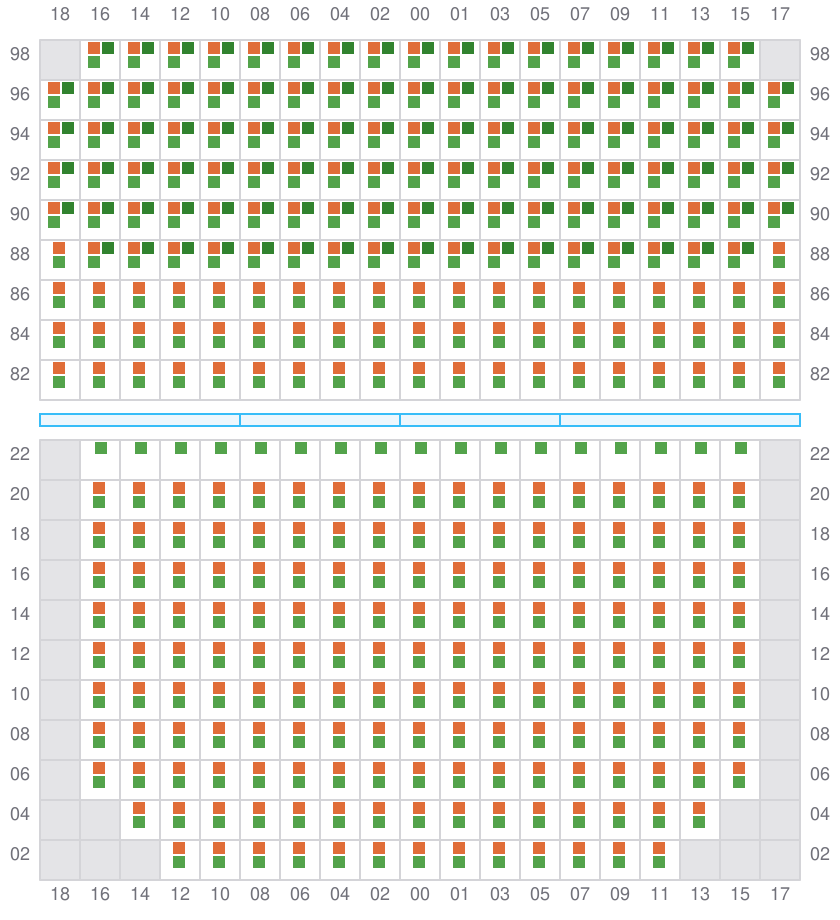

Bay 057 view and slots of MSC ALTAIR

059

  • ←
  • → / ?
Bay 059 view and slots of MSC ALTAIR

061 (062)

  • →
Bay 061 view and slots of MSC ALTAIR

063

  • ←
  • → / ?

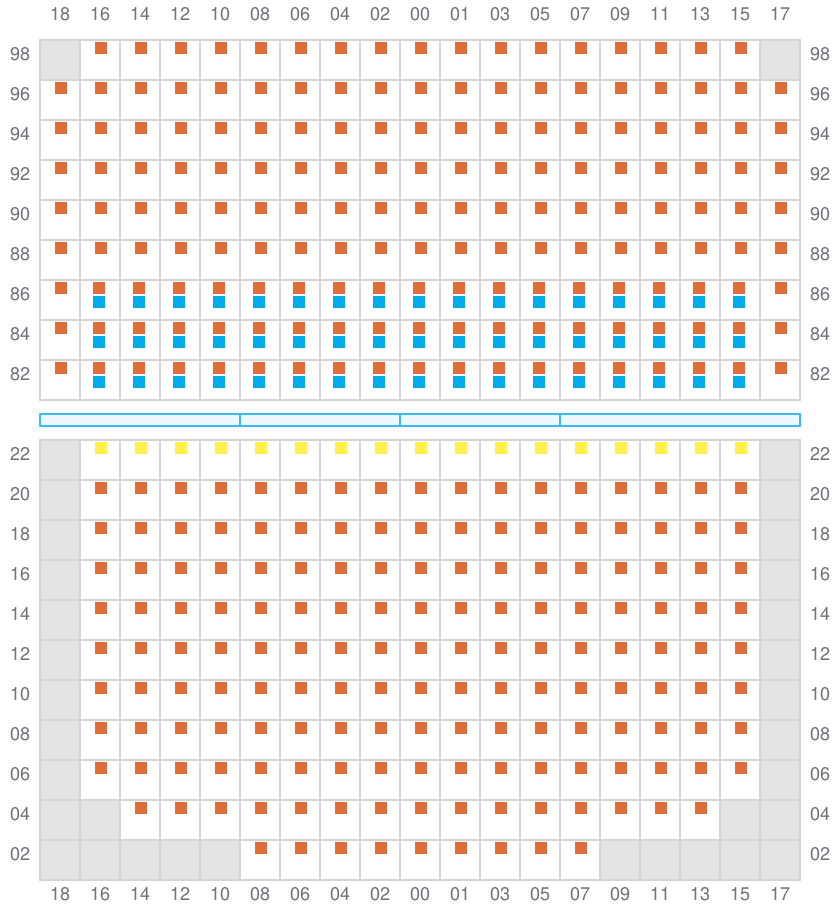

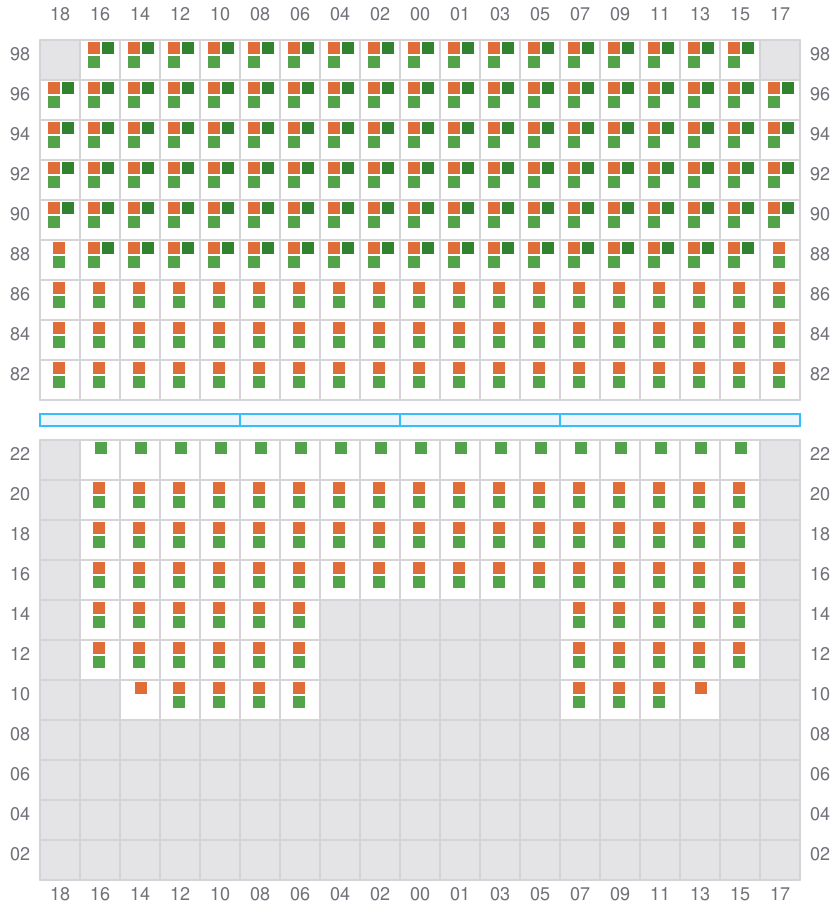

Bay 063 view and slots of MSC ALTAIR

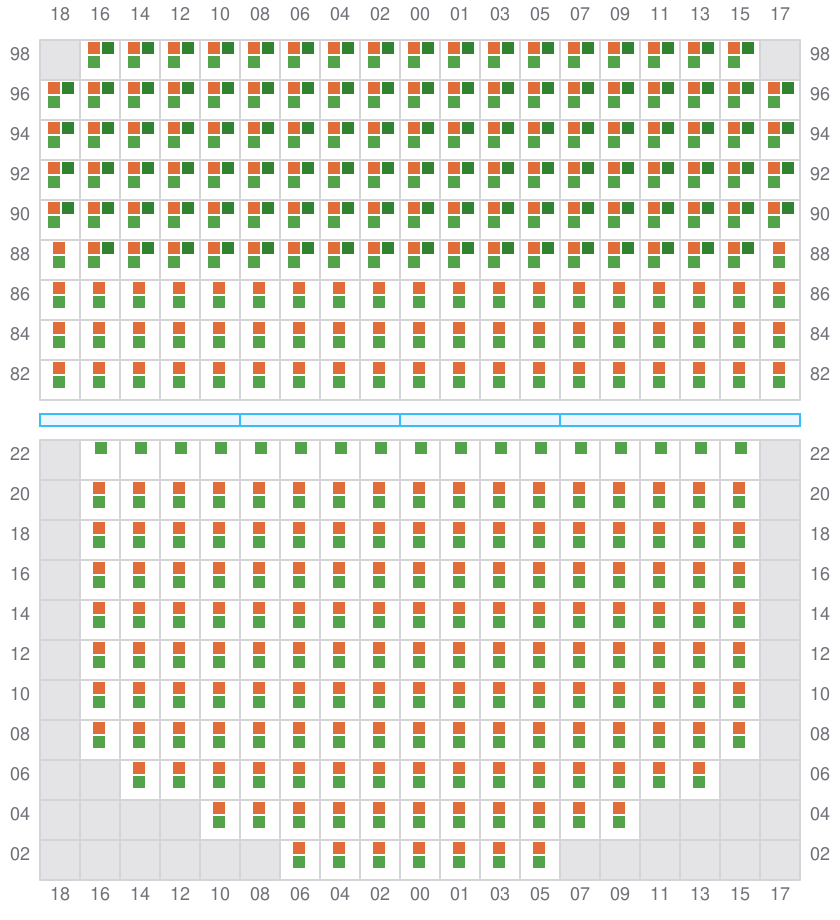

065 (066)

  • →

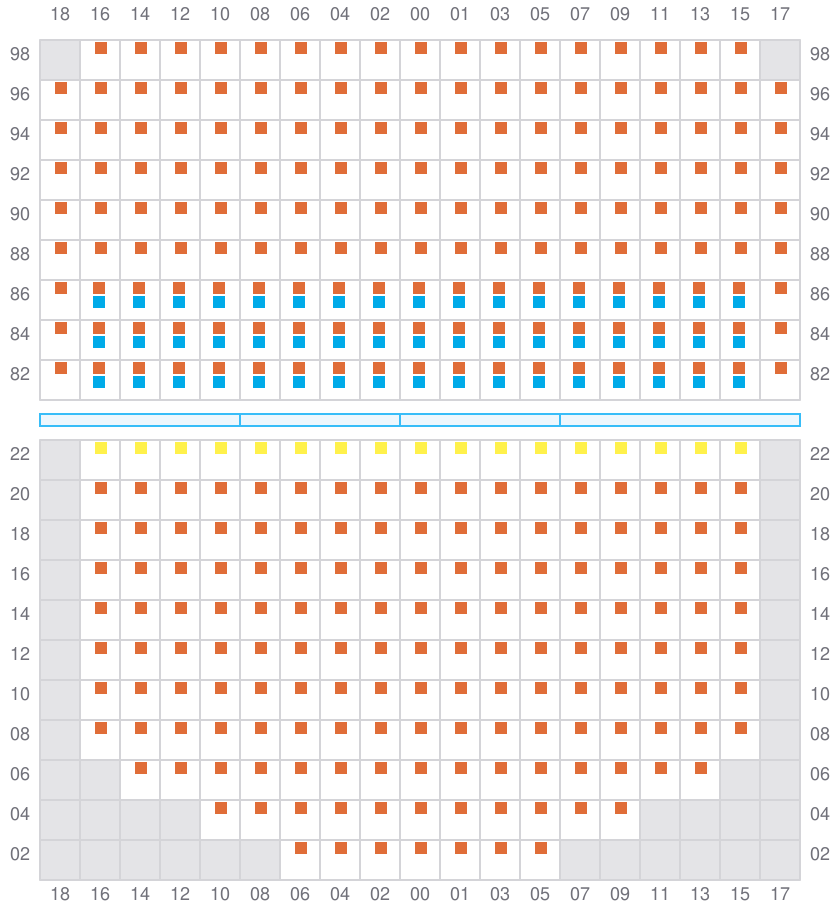

Bay 065 view and slots of MSC ALTAIR

067

  • ←
  • → / ?
Bay 067 view and slots of MSC ALTAIR

069 (070)

  • →

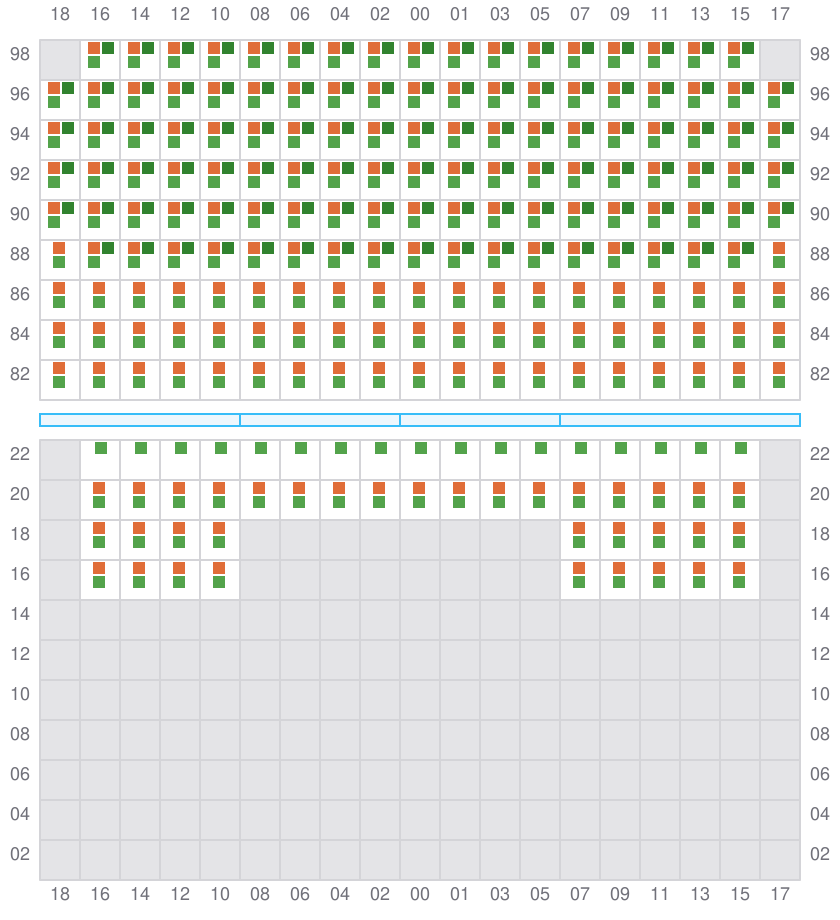

Bay 069 view and slots of MSC ALTAIR

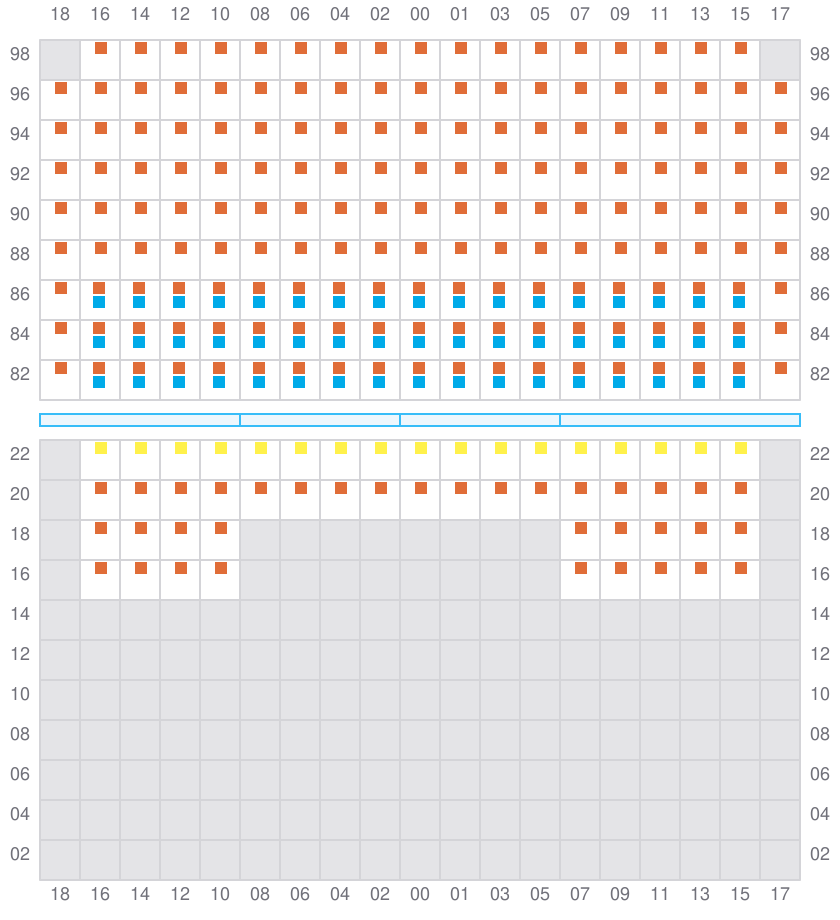

071

  • ←
  • → / ?
Bay 071 view and slots of MSC ALTAIR

073 (074)

  • →
Bay 073 view and slots of MSC ALTAIR

075

  • ←
  • → / ?

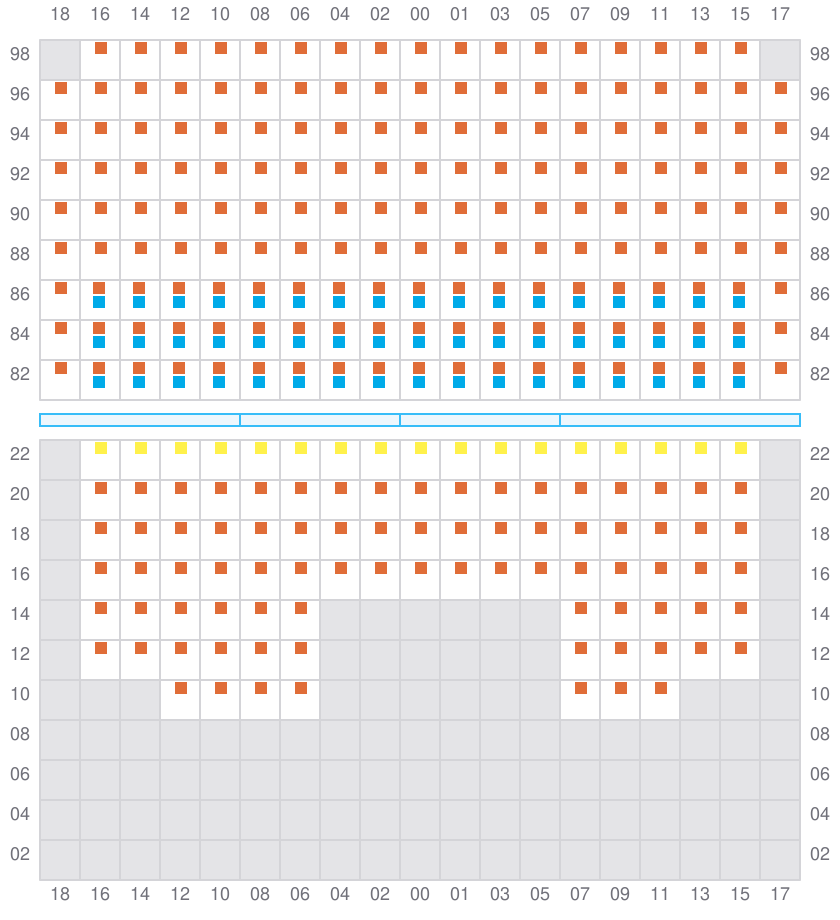

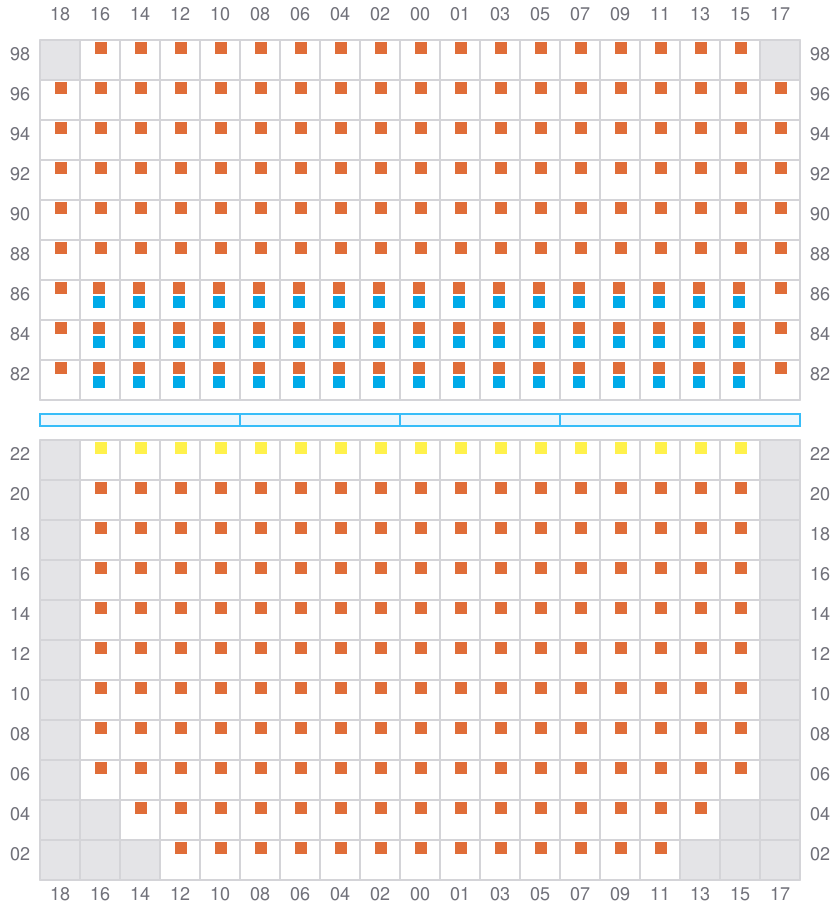

Bay 075 view and slots of MSC ALTAIR

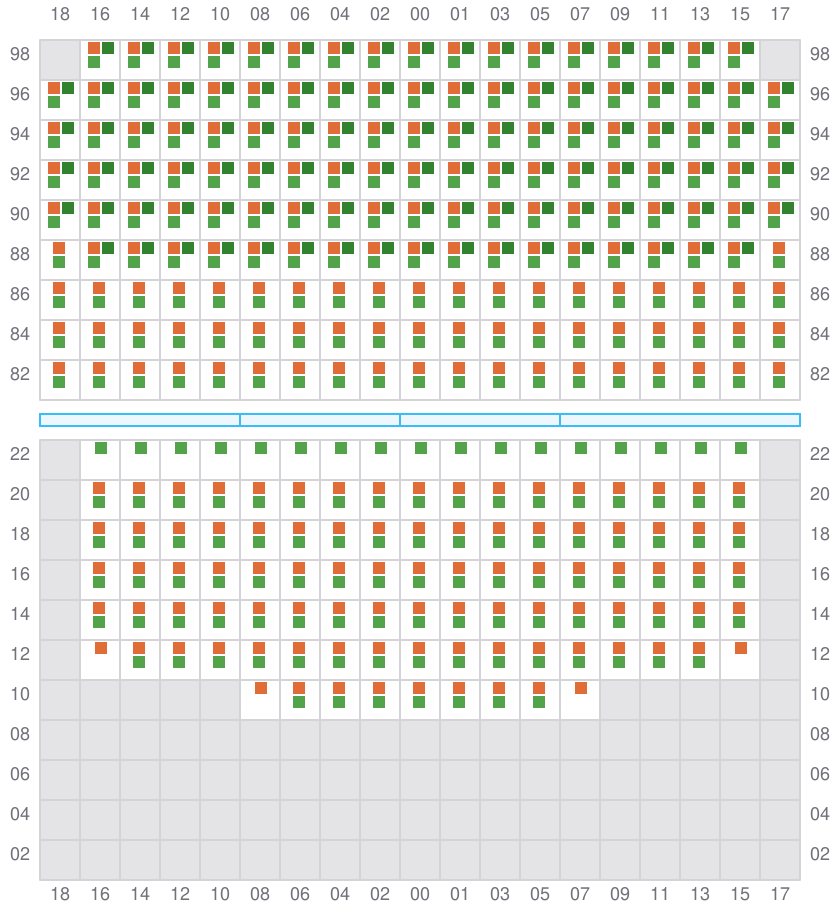

077 (078)

  • →
Bay 077 view and slots of MSC ALTAIR

079

  • ←
  • → / ?

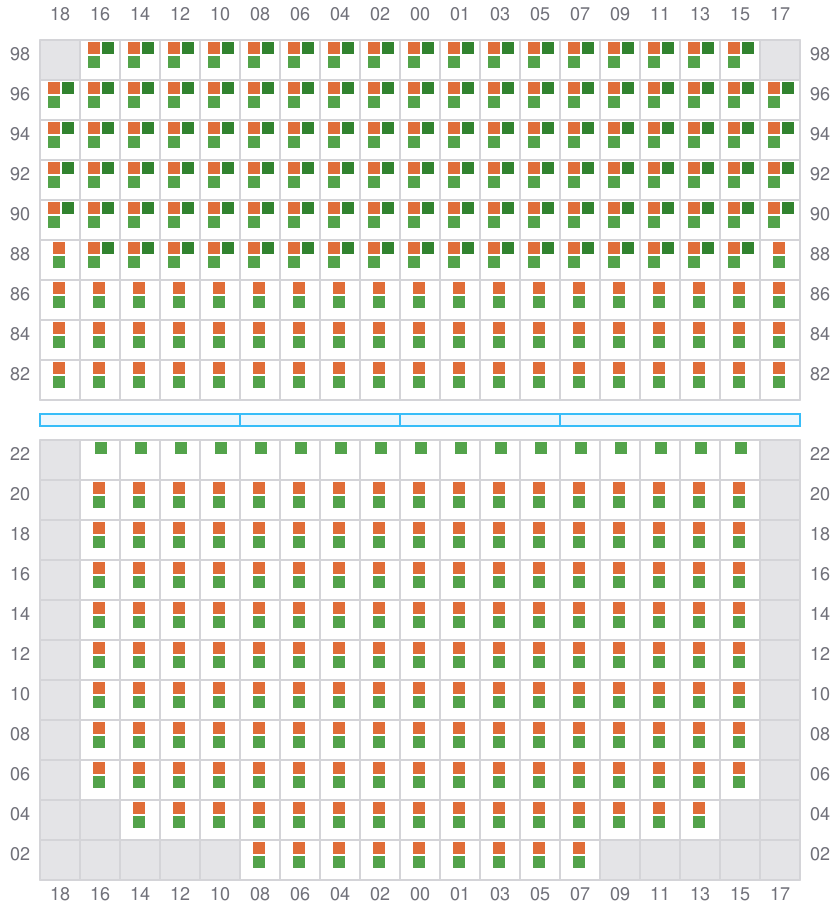

Bay 079 view and slots of MSC ALTAIR

081 (082)

  • →

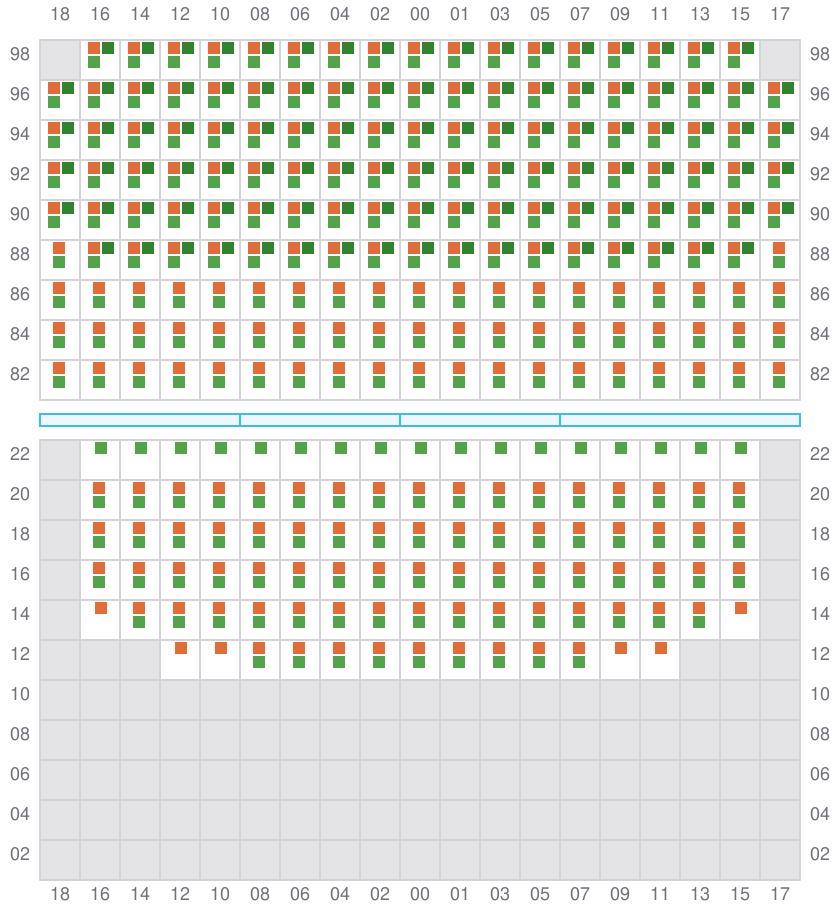

Bay 081 view and slots of MSC ALTAIR

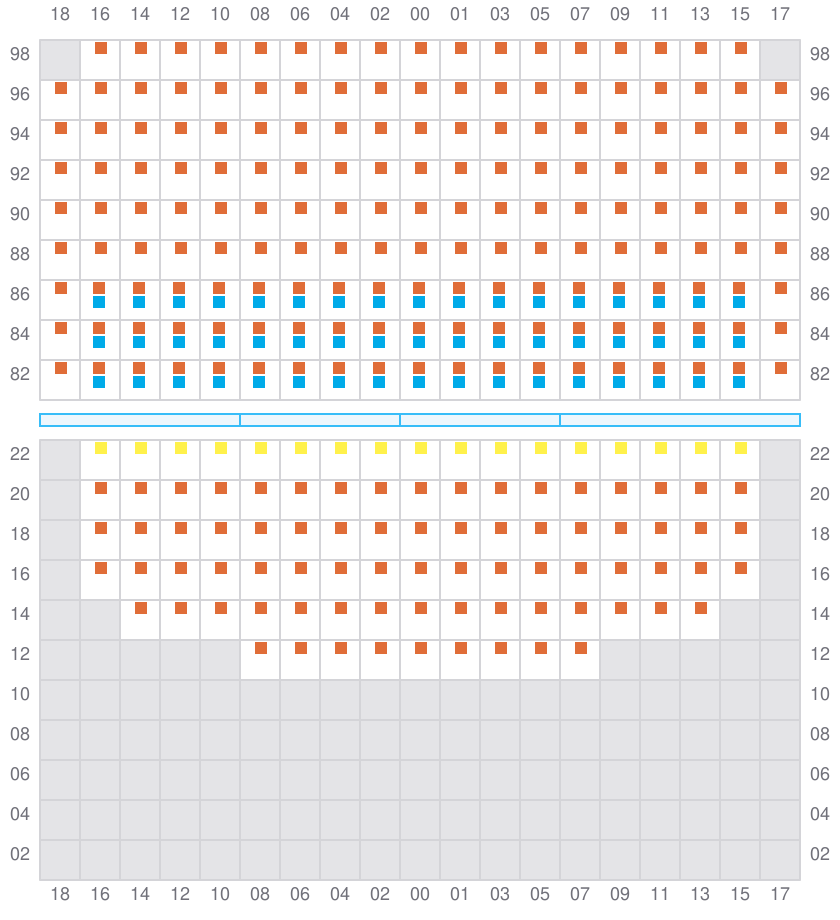

083

  • ←
  • → / ?
Bay 083 view and slots of MSC ALTAIR

085 (086)

  • → / ?

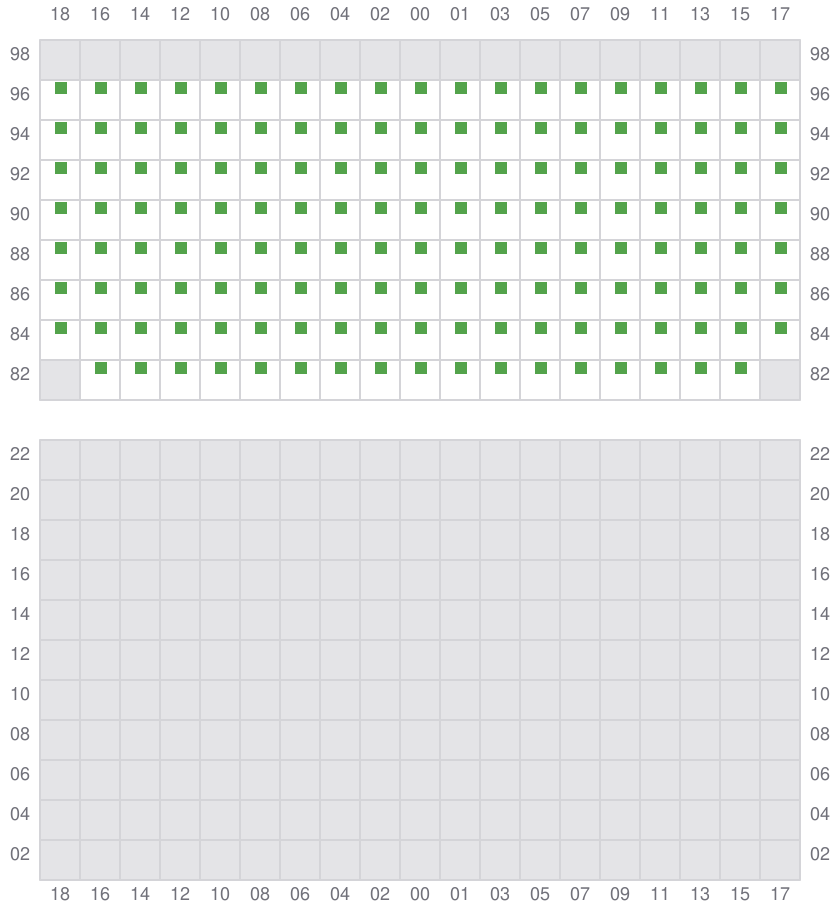

Bay 085 view and slots of MSC ALTAIR
