MSC ALTAMIRA
9619426 | D5CC7 | MSC by ******** Last update: Thu Aug 08 2024

General Info

Ship Name:MSC ALTAMIRA
IMO Code:9619426
Call Sign:D5CC7
Line Operator:MSC
Class Name for Sister Ships:MIR
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):48.00
LOA (Length Overall):299.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,682

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MSC ALTAMIRA

Hatch-Covers View

Deck view of MSC ALTAMIRA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

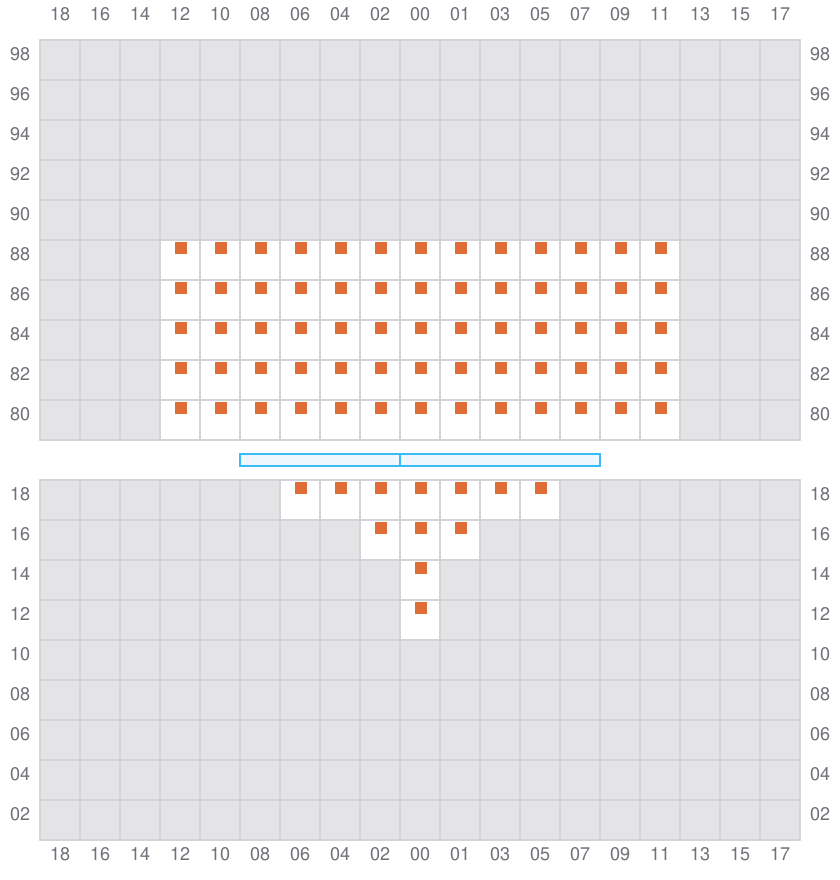

Bay 001 view and slots of MSC ALTAMIRA

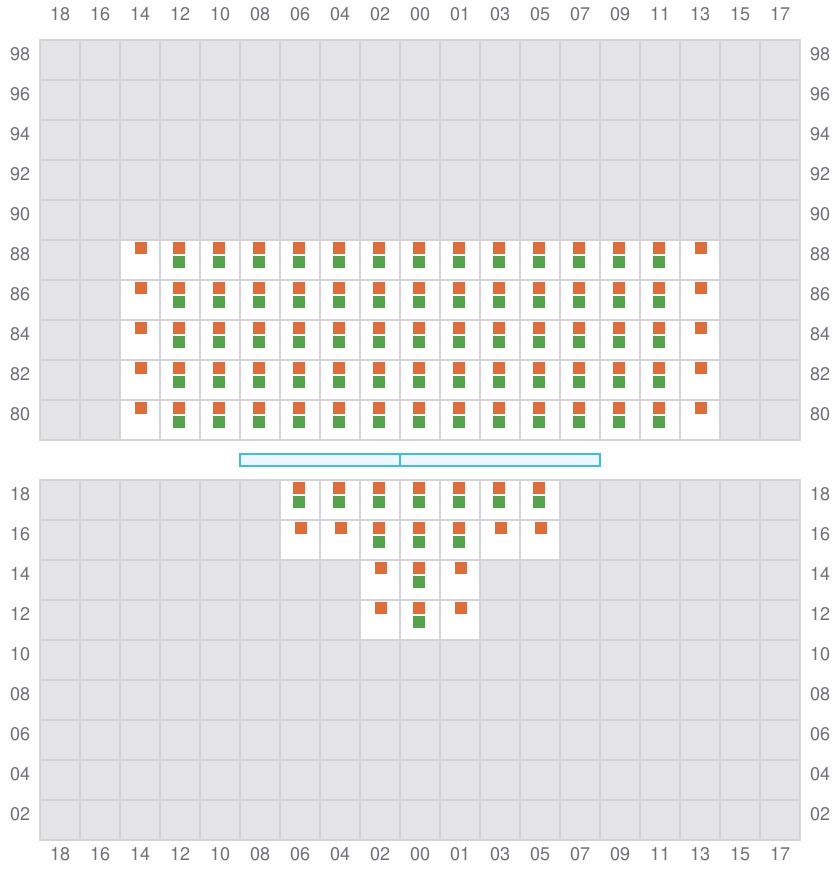

003 (002)

  • ←
  • ✓
Bay 003 view and slots of MSC ALTAMIRA

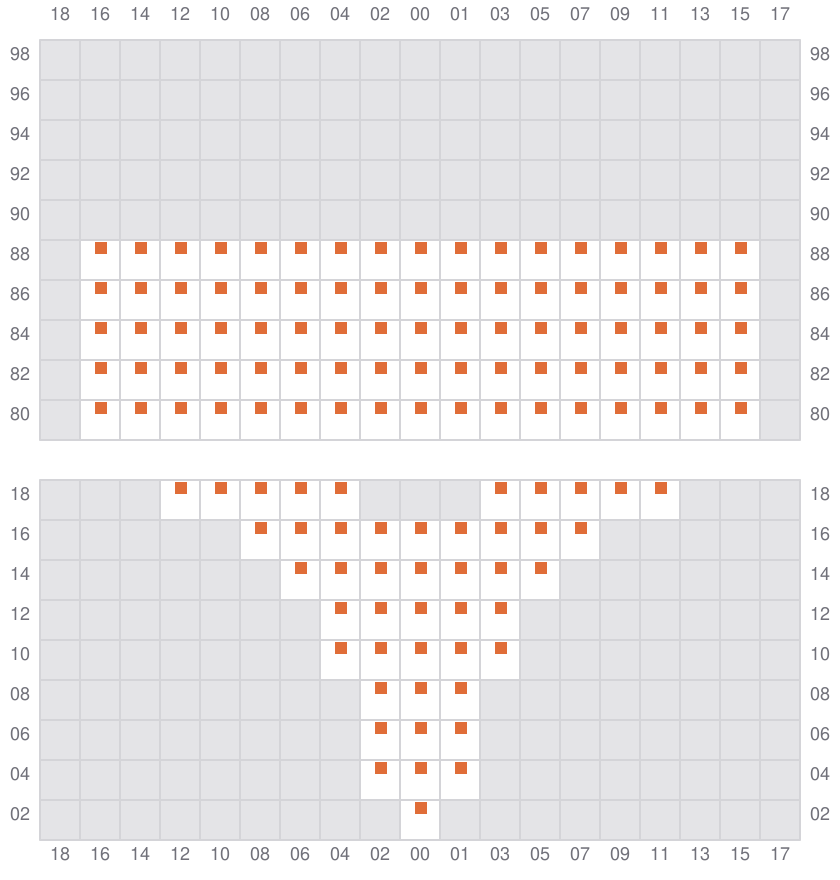

005

  • →
  • ✓
Bay 005 view and slots of MSC ALTAMIRA

007 (006)

  • ←
  • ✓

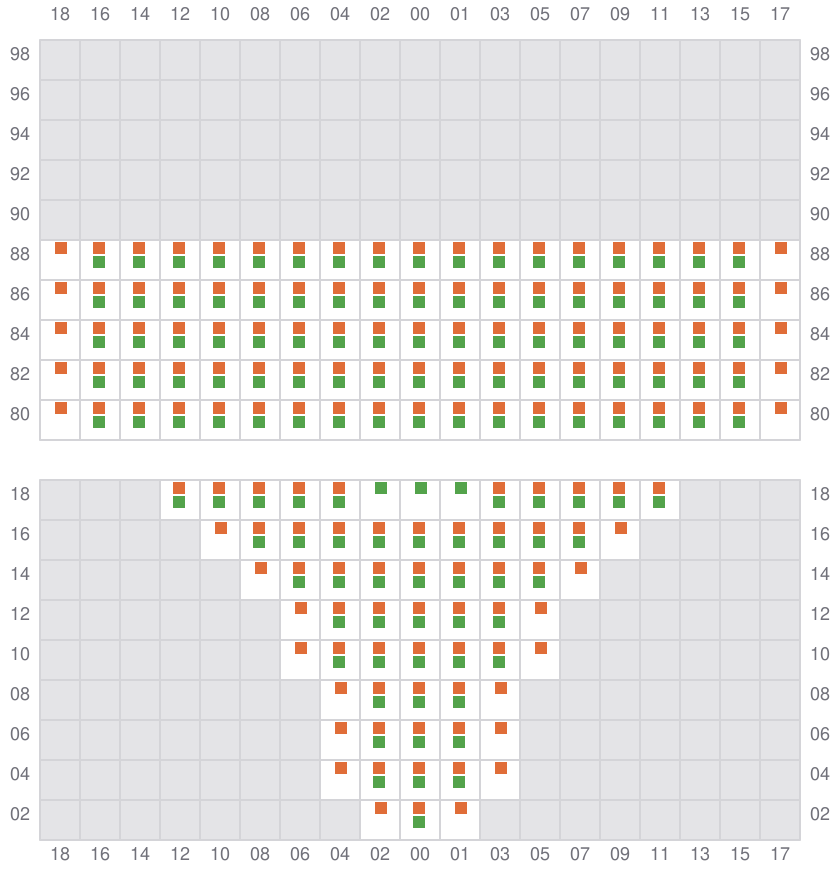

Bay 007 view and slots of MSC ALTAMIRA

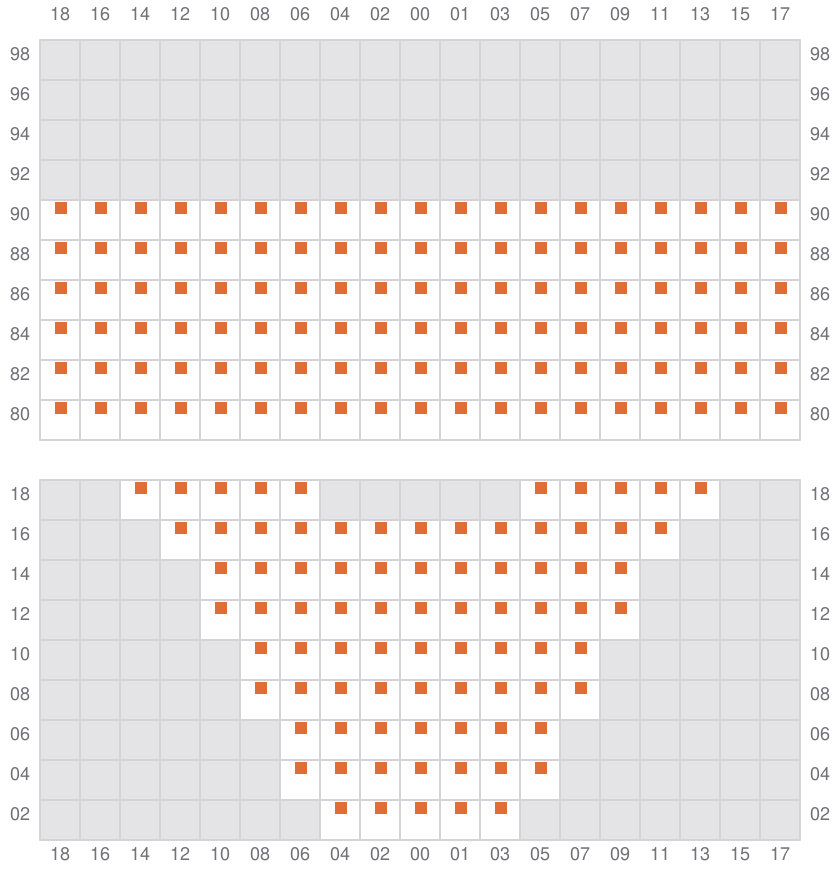

009

  • →
  • ✓
Bay 009 view and slots of MSC ALTAMIRA

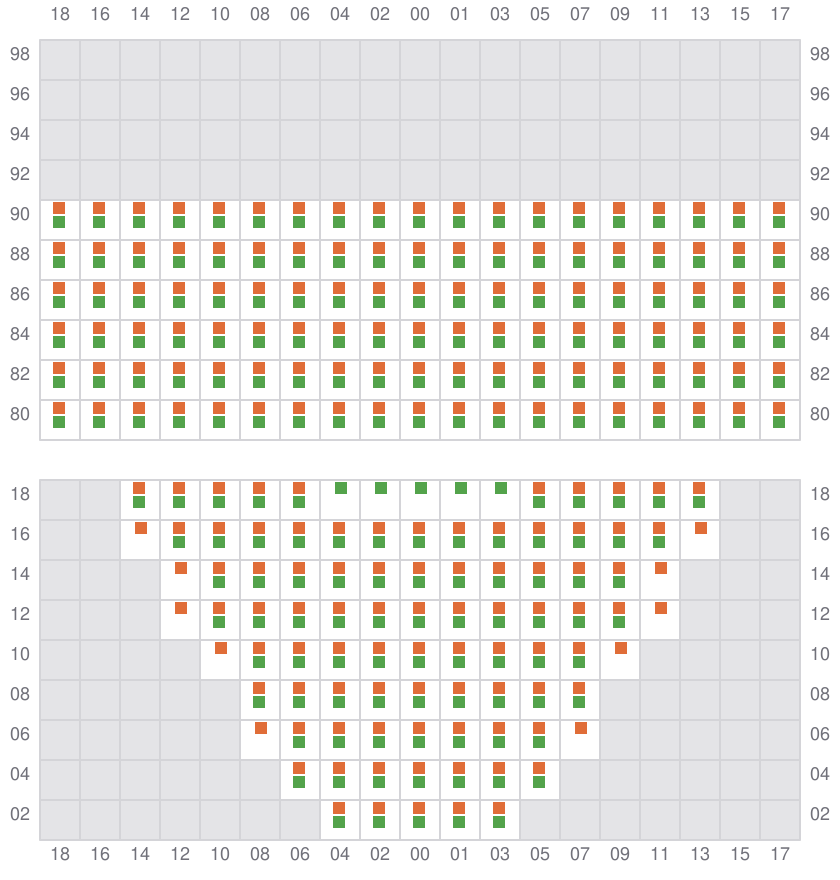

011 (010)

  • ←
  • ✓
Bay 011 view and slots of MSC ALTAMIRA

013

  • →
  • ✓
Bay 013 view and slots of MSC ALTAMIRA

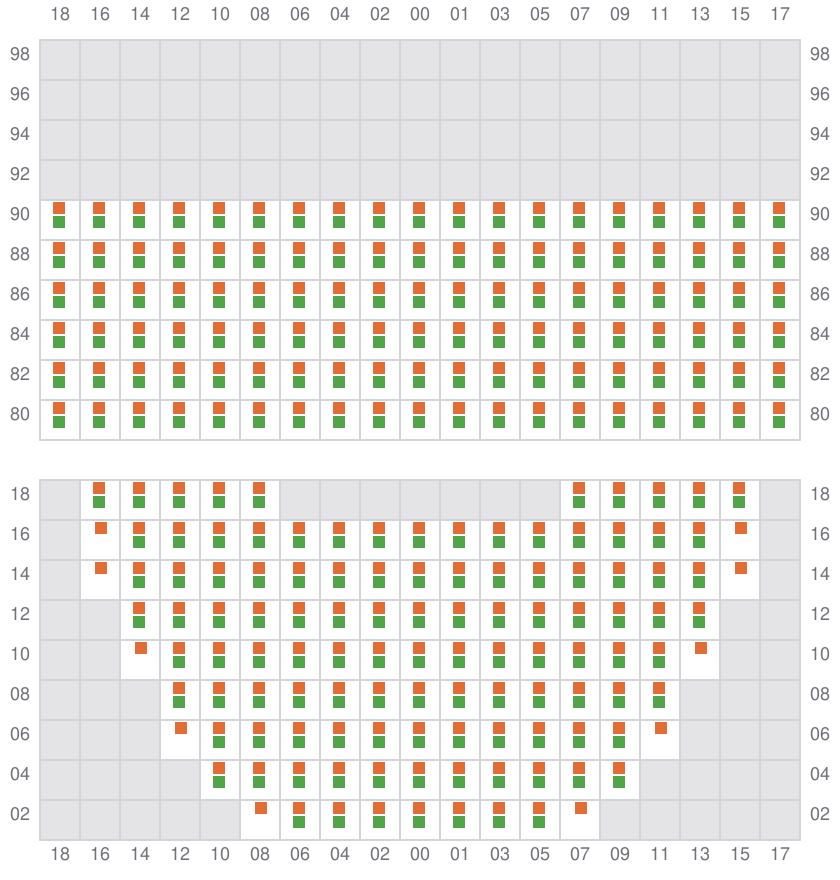

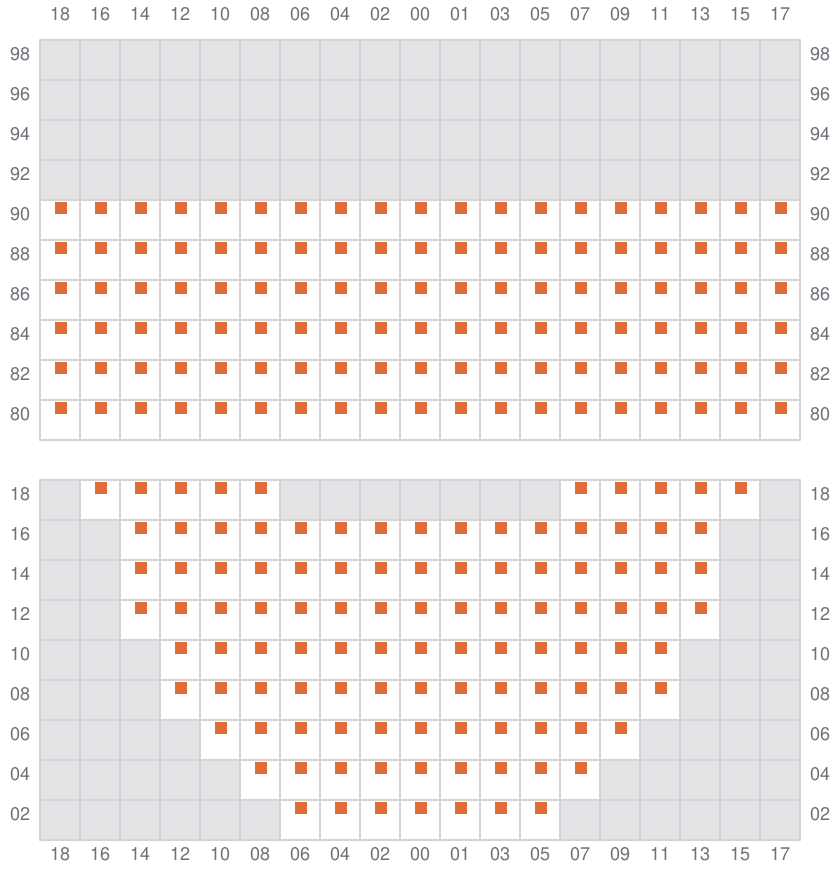

015 (014)

  • ←
  • ✓
Bay 015 view and slots of MSC ALTAMIRA

017

  • →
  • ✓
Bay 017 view and slots of MSC ALTAMIRA

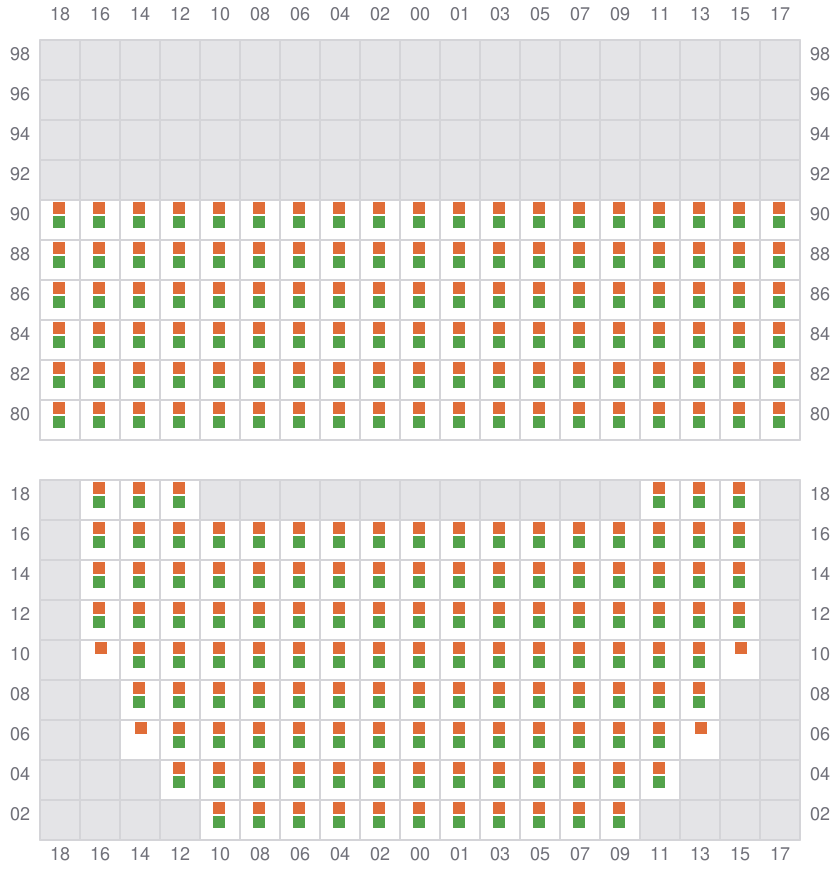

019 (018)

  • ←
  • ✓
Bay 019 view and slots of MSC ALTAMIRA

021

  • →
  • ✓
Bay 021 view and slots of MSC ALTAMIRA

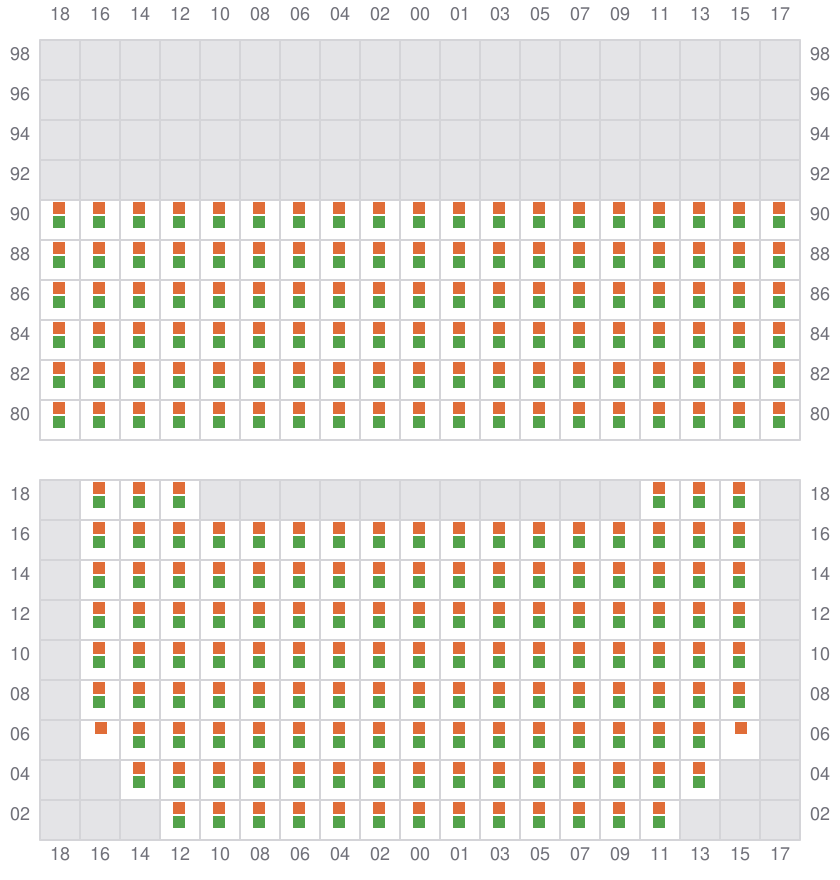

023 (022)

  • ←
  • ✓
Bay 023 view and slots of MSC ALTAMIRA

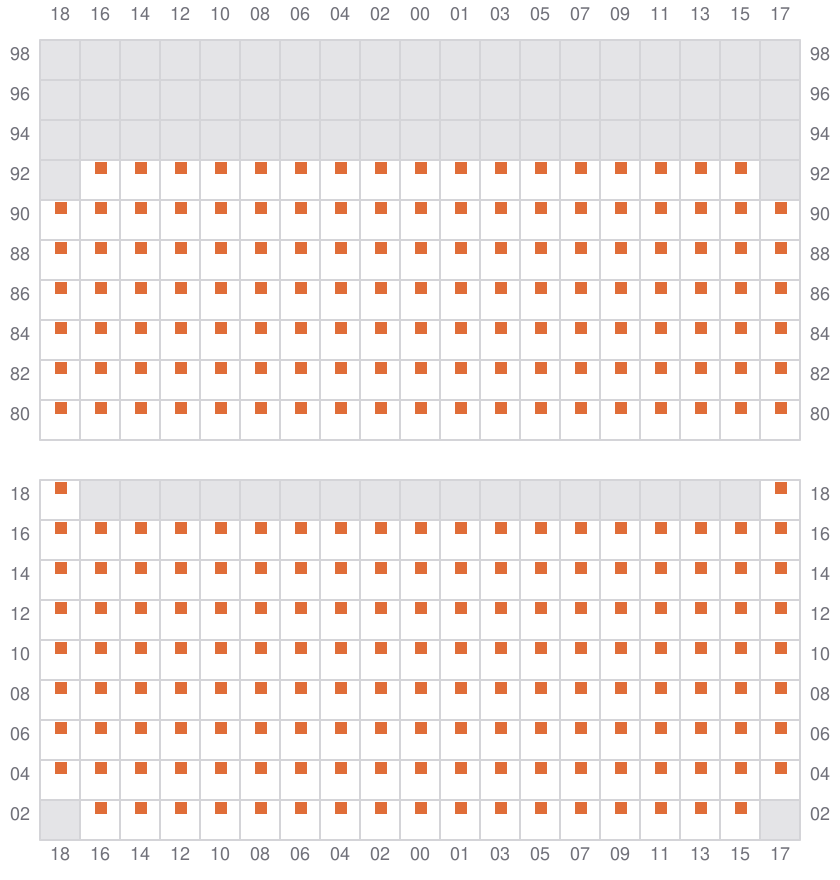

025

  • →
  • ✓
Bay 025 view and slots of MSC ALTAMIRA

027 (026)

  • ←
  • ✓
Bay 027 view and slots of MSC ALTAMIRA

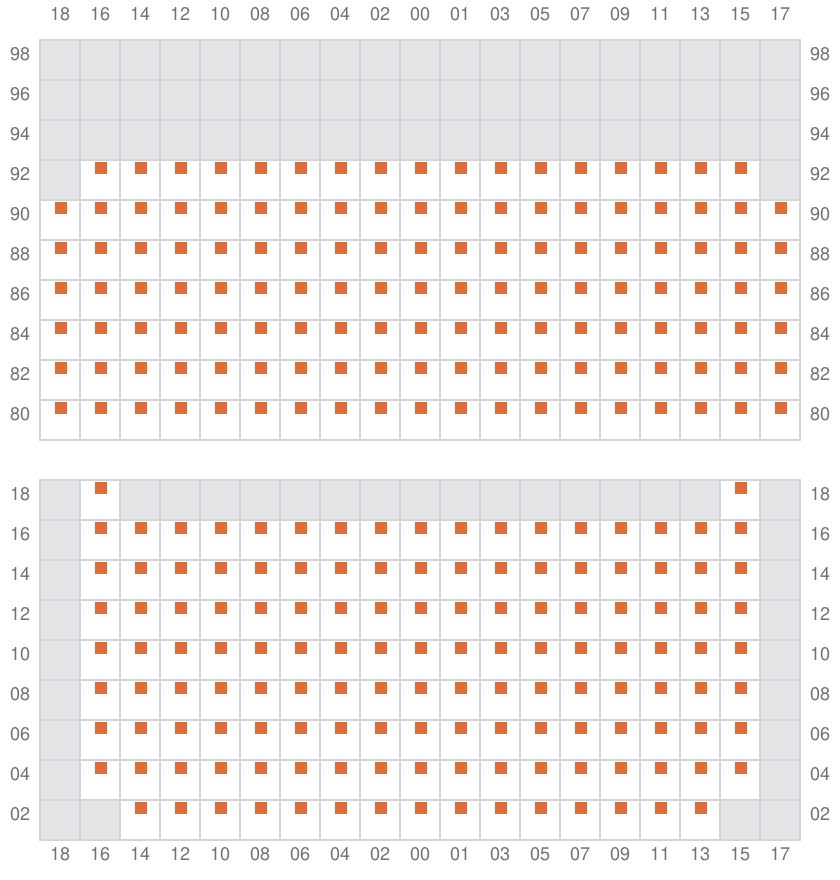

029

  • →
  • ✓
Bay 029 view and slots of MSC ALTAMIRA

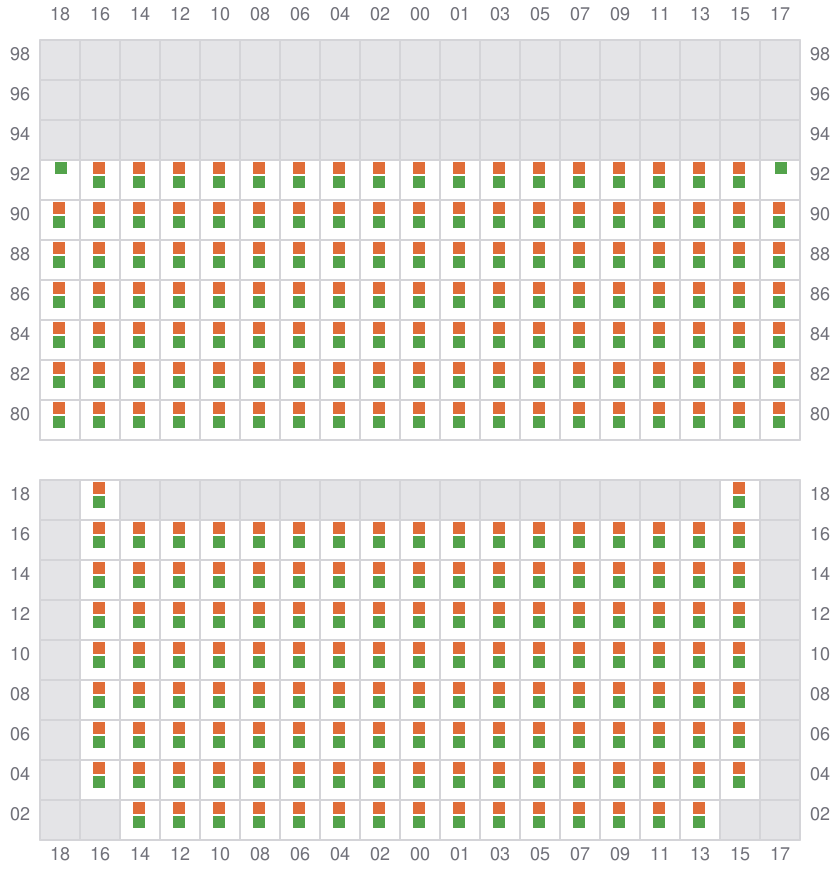

031 (030)

  • ←
  • ✓

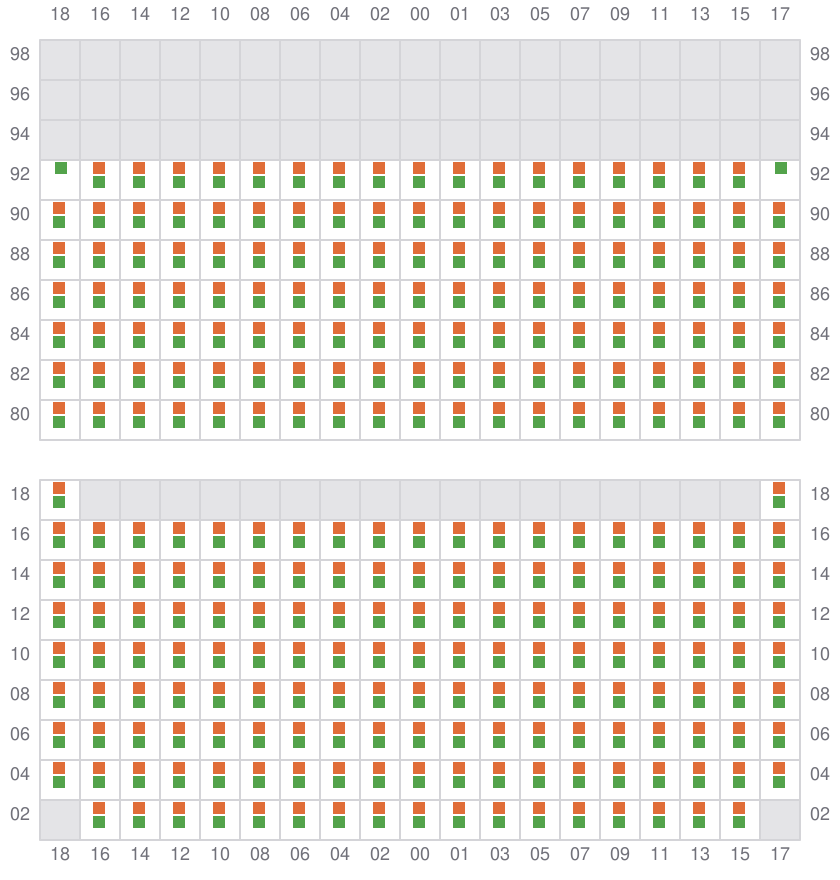

Bay 031 view and slots of MSC ALTAMIRA

033

  • →
  • ✓
Bay 033 view and slots of MSC ALTAMIRA

035 (034)

  • ←
  • ✓
Bay 035 view and slots of MSC ALTAMIRA

037

  • →
  • ✓

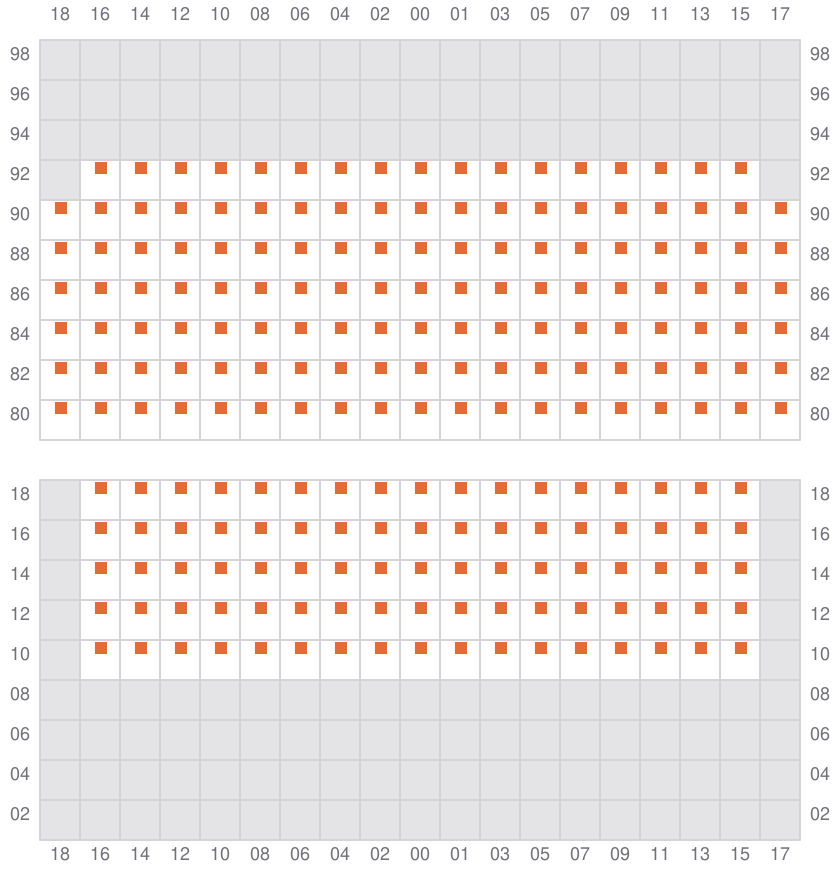

Bay 037 view and slots of MSC ALTAMIRA

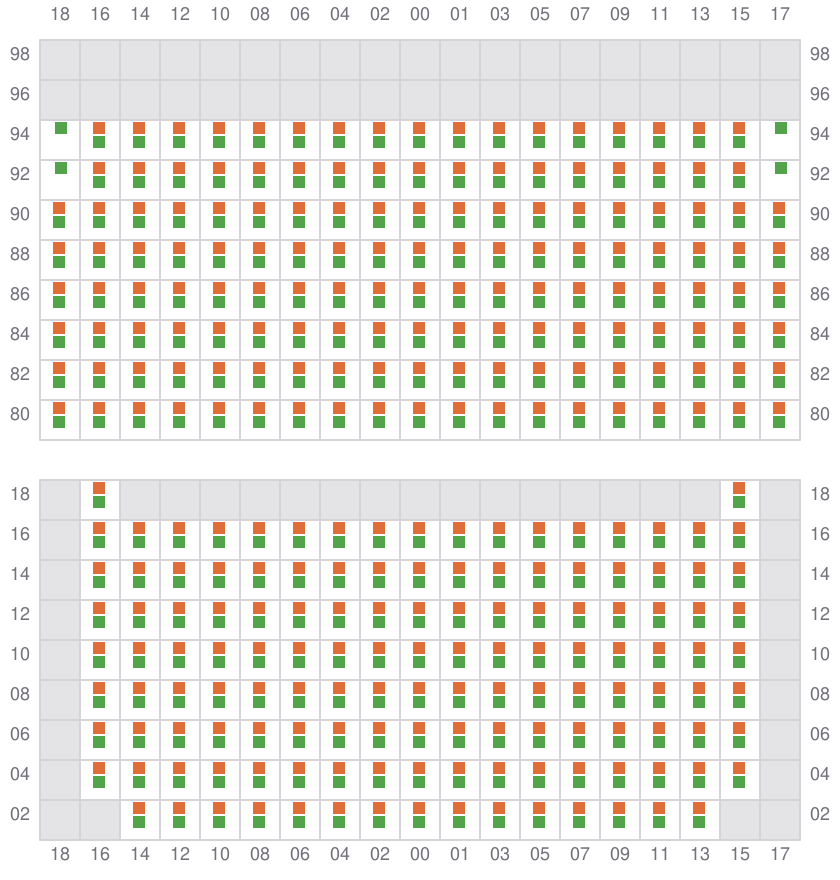

039 (038)

  • ←
  • ✓

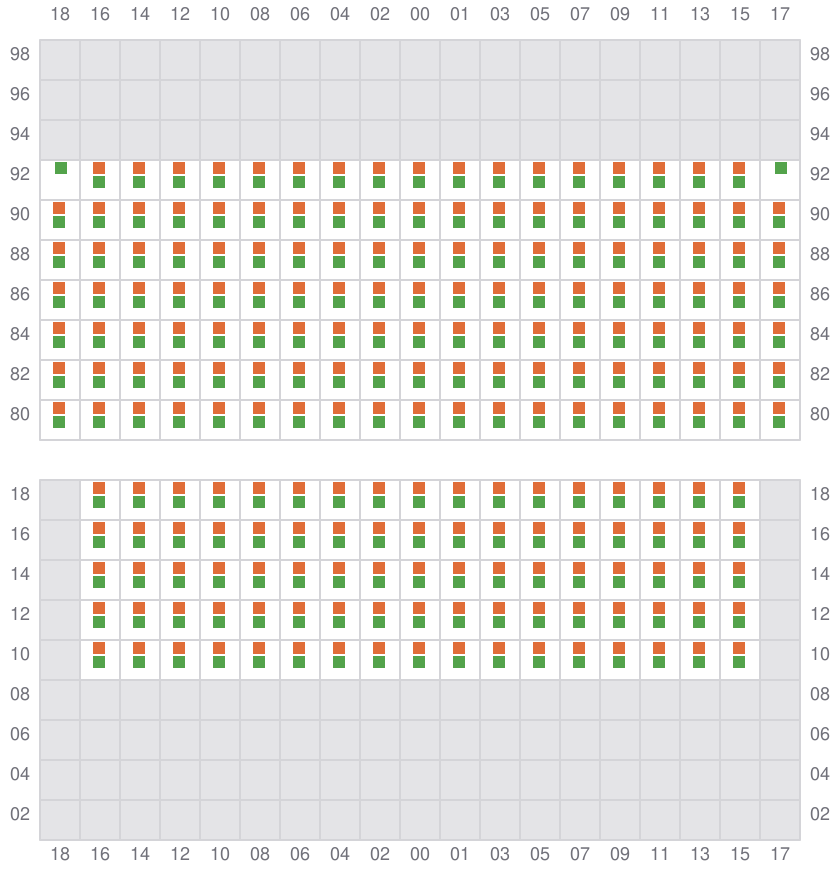

Bay 039 view and slots of MSC ALTAMIRA

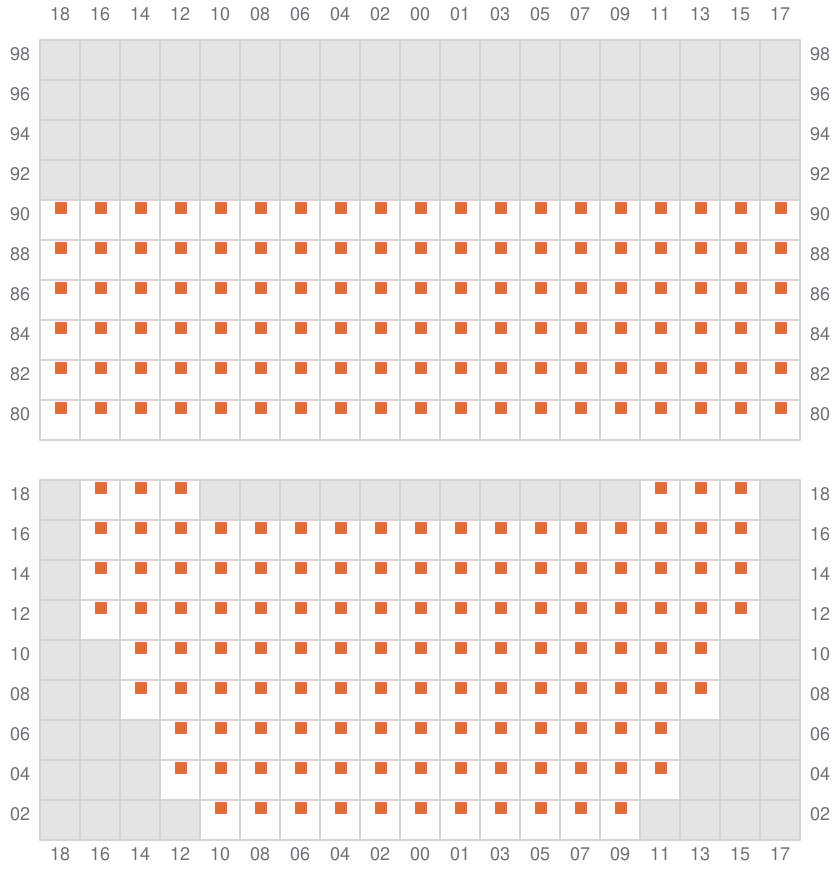

041

  • →
  • ✓
Bay 041 view and slots of MSC ALTAMIRA

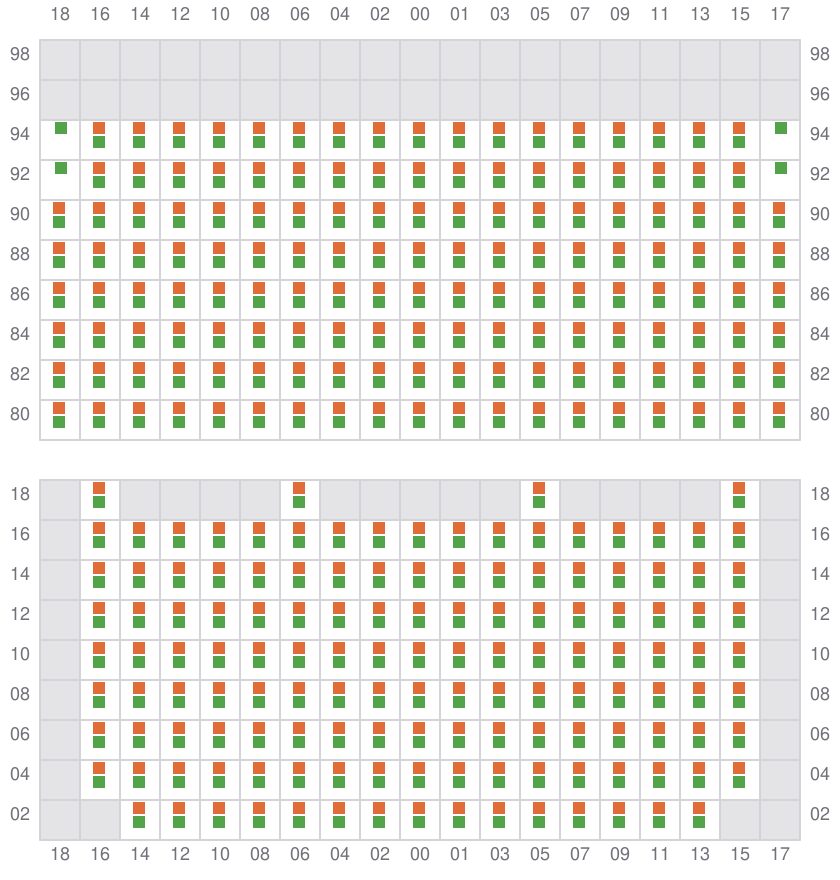

043 (042)

  • ←
  • ✓
Bay 043 view and slots of MSC ALTAMIRA

045

  • →
  • ✓

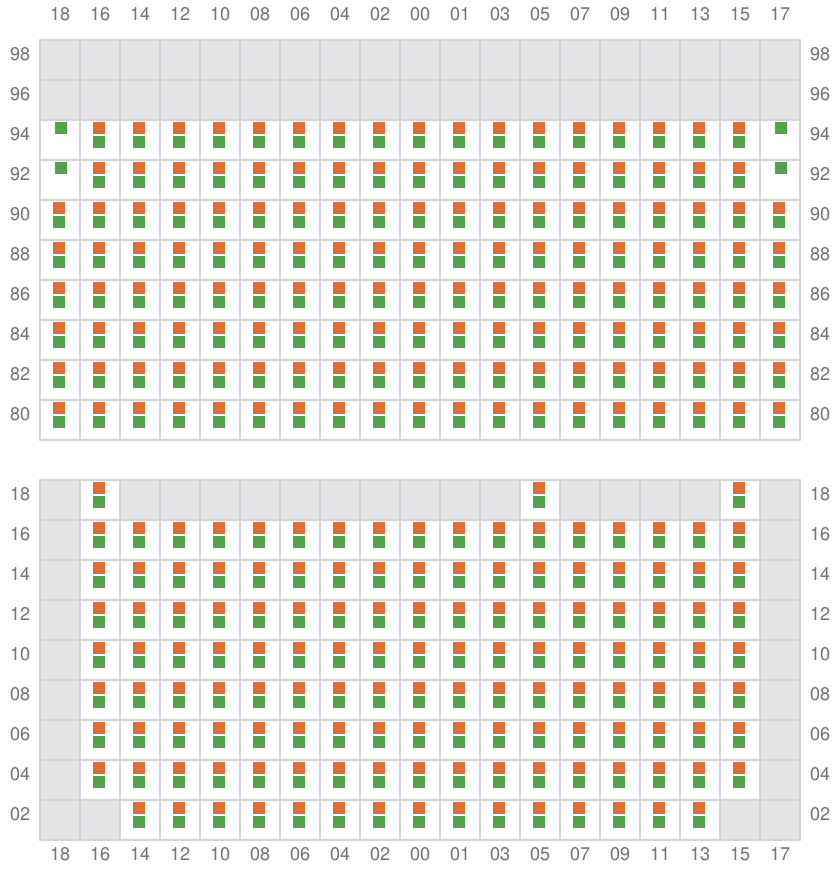

Bay 045 view and slots of MSC ALTAMIRA

047 (046)

  • ←
  • ✓
Bay 047 view and slots of MSC ALTAMIRA

049

  • →
  • ✓
Bay 049 view and slots of MSC ALTAMIRA

051 (050)

  • ←
  • ✓
Bay 051 view and slots of MSC ALTAMIRA

053

  • →
  • ✓
Bay 053 view and slots of MSC ALTAMIRA

055 (054)

  • ←
  • ✓
Bay 055 view and slots of MSC ALTAMIRA

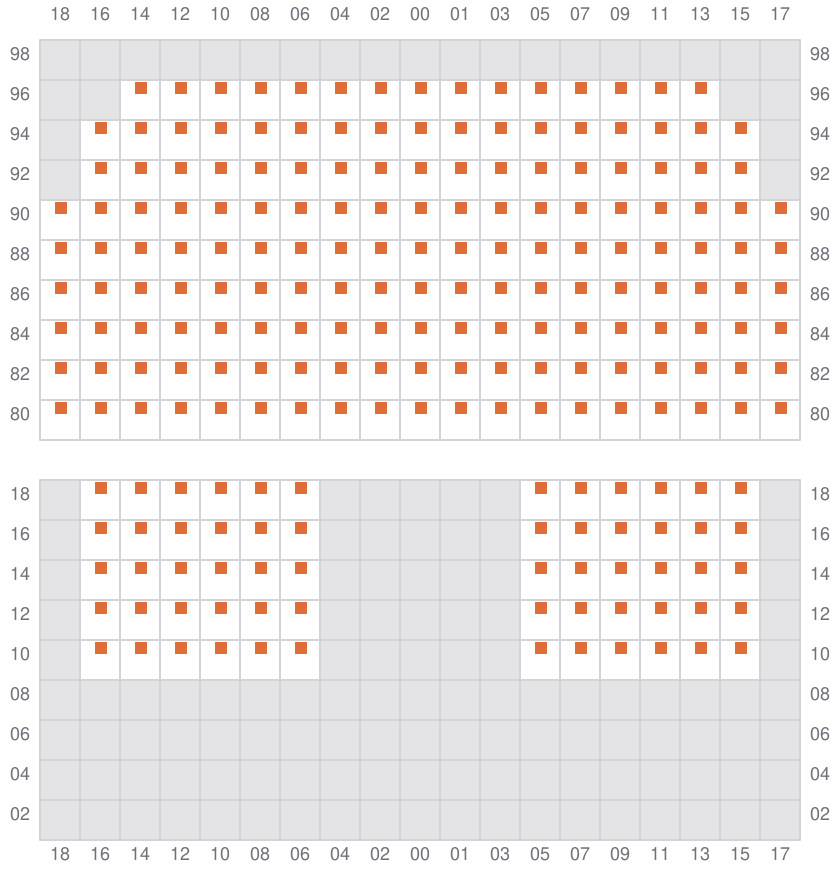

057

  • →
  • ✓

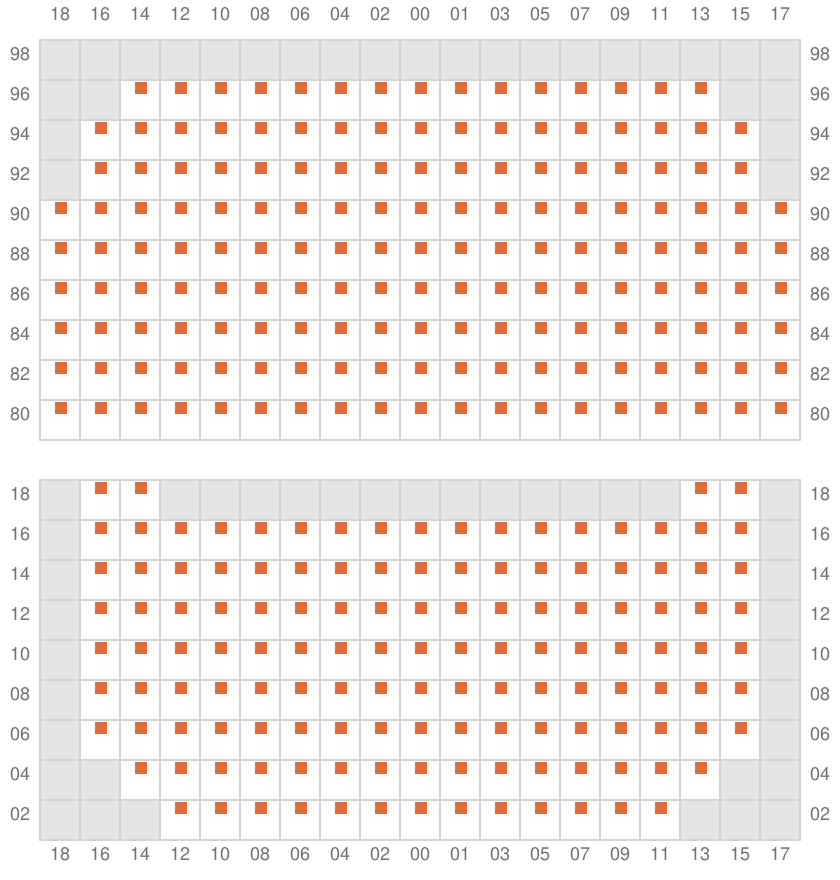

Bay 057 view and slots of MSC ALTAMIRA

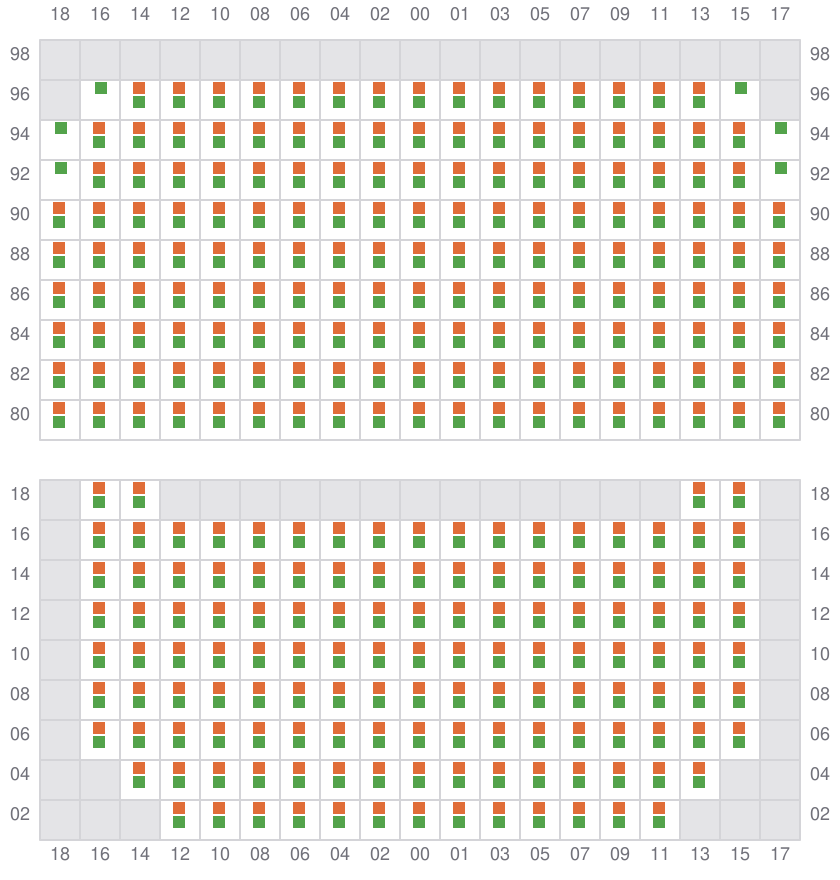

059 (058)

  • ←
  • ✓
Bay 059 view and slots of MSC ALTAMIRA

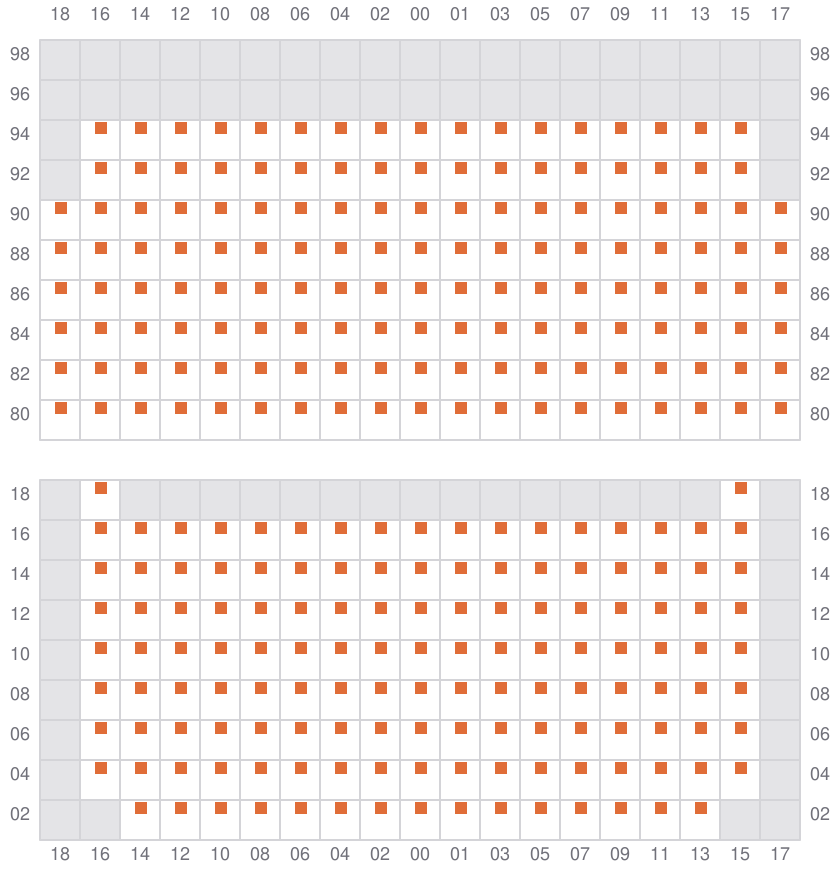

061

  • →
  • ✓
Bay 061 view and slots of MSC ALTAMIRA

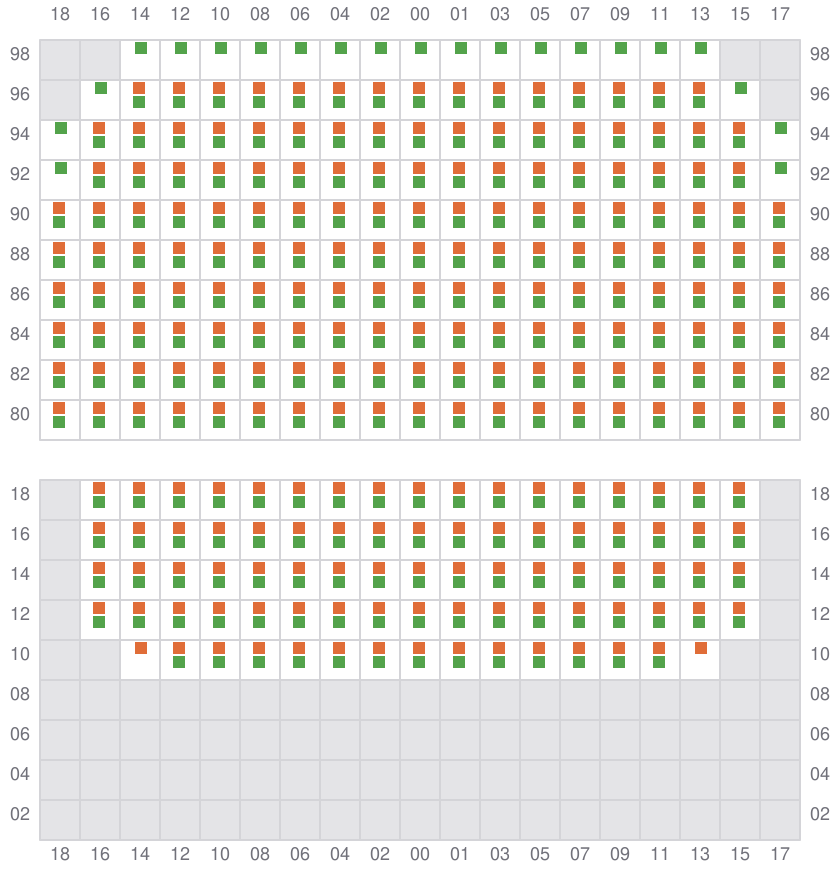

063 (062)

  • ←
  • ✓
Bay 063 view and slots of MSC ALTAMIRA

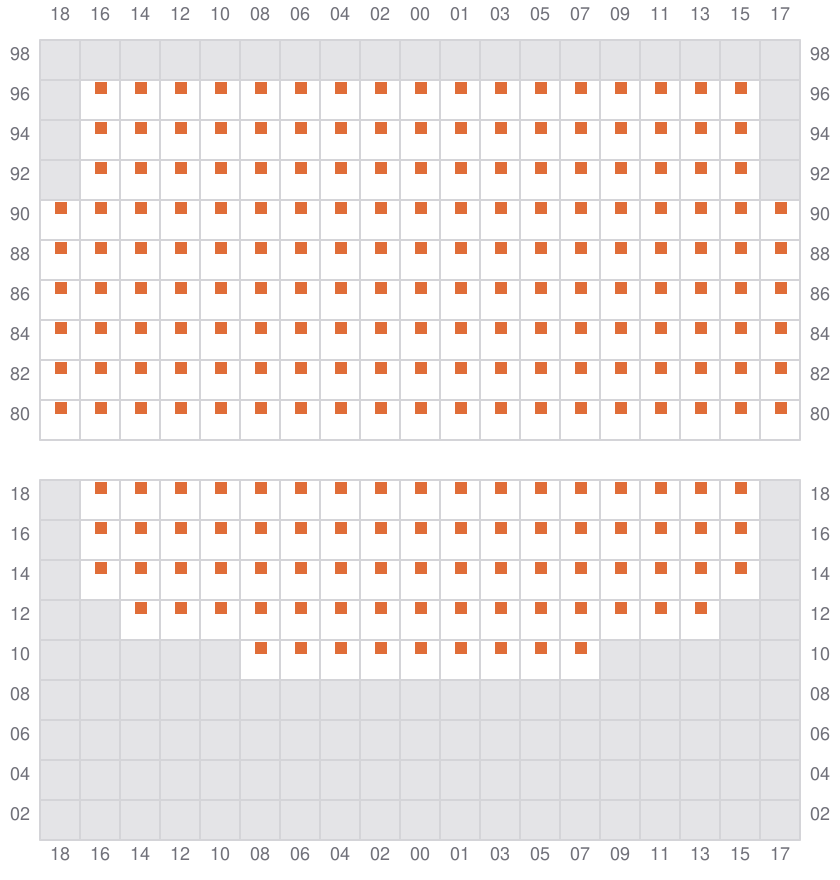

065

  • →
  • ✓
Bay 065 view and slots of MSC ALTAMIRA

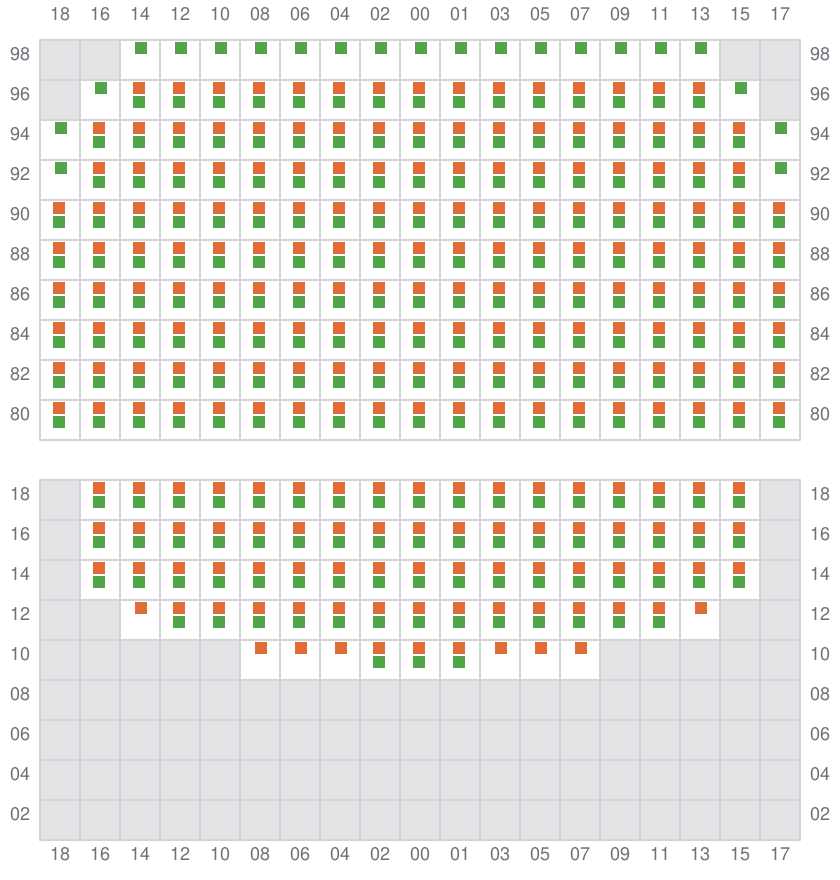

067 (066)

  • ←
  • ✓
Bay 067 view and slots of MSC ALTAMIRA

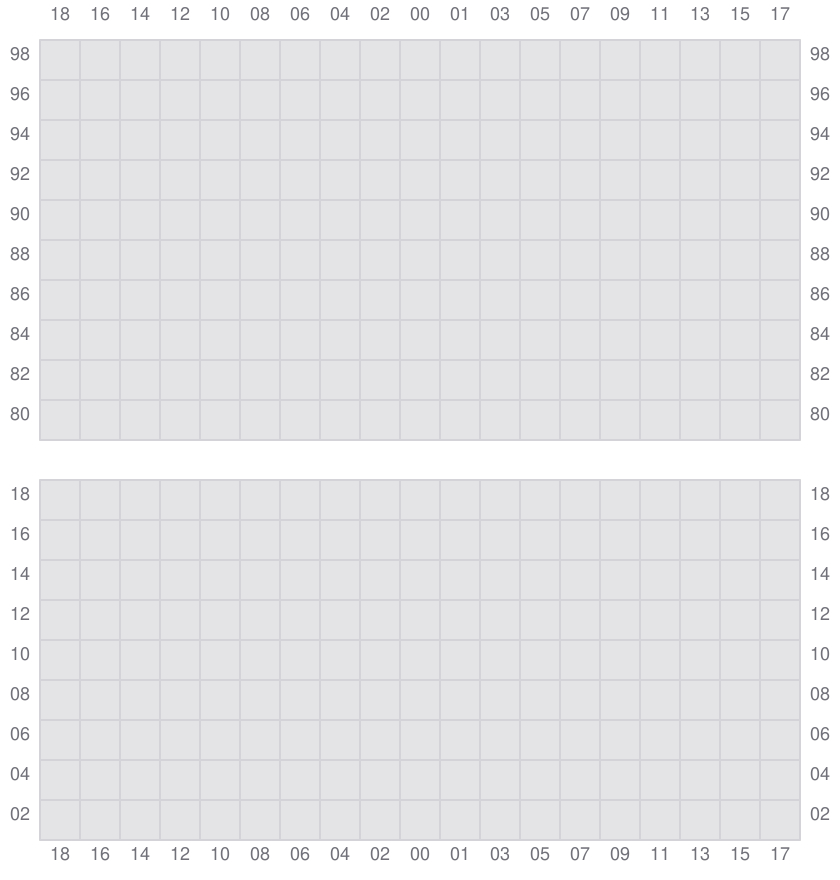

069

  • →
  • ✓

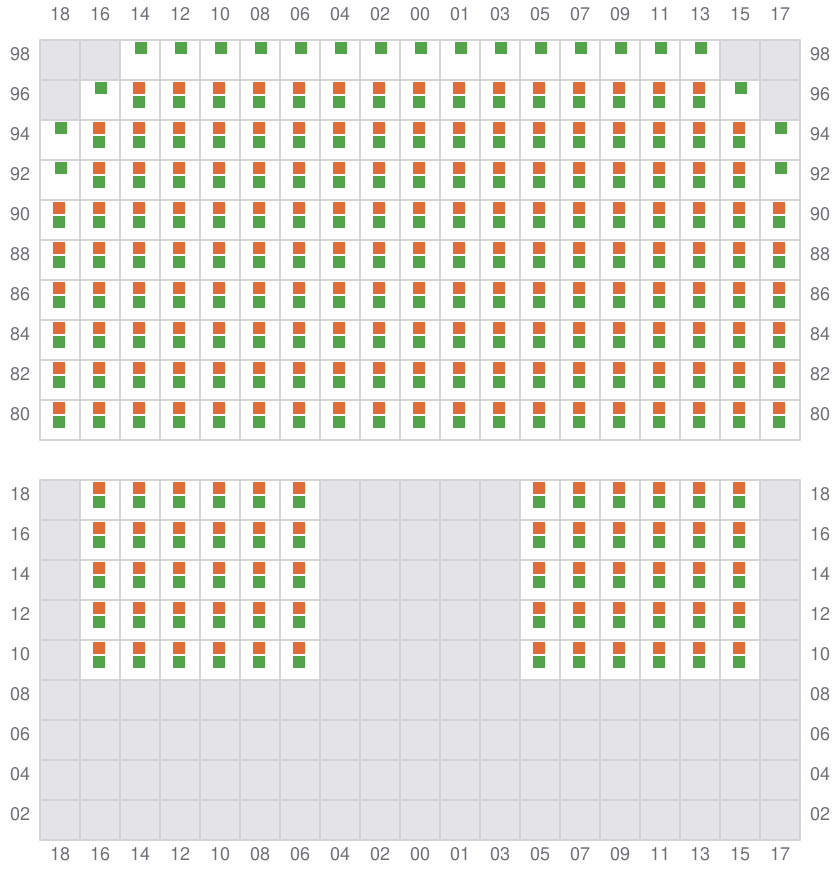

Bay 069 view and slots of MSC ALTAMIRA

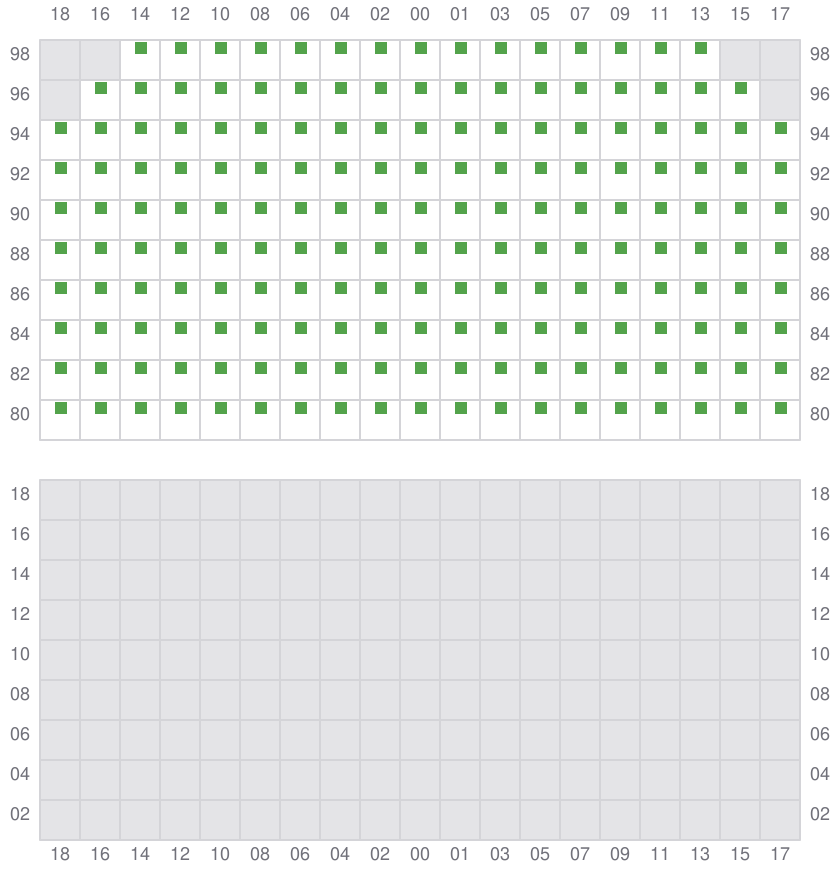

071 (070)

  • ←
  • ? / ?
  • ? / ?
  • ✓
Bay 071 view and slots of MSC ALTAMIRA
