MSC AMEERA III
9346017 | A8PA8 | CSAV by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:MSC AMEERA III
IMO Code:9346017
Call Sign:A8PA8
Line Operator:CSAV
Class Name for Sister Ships:RUP
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,534

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

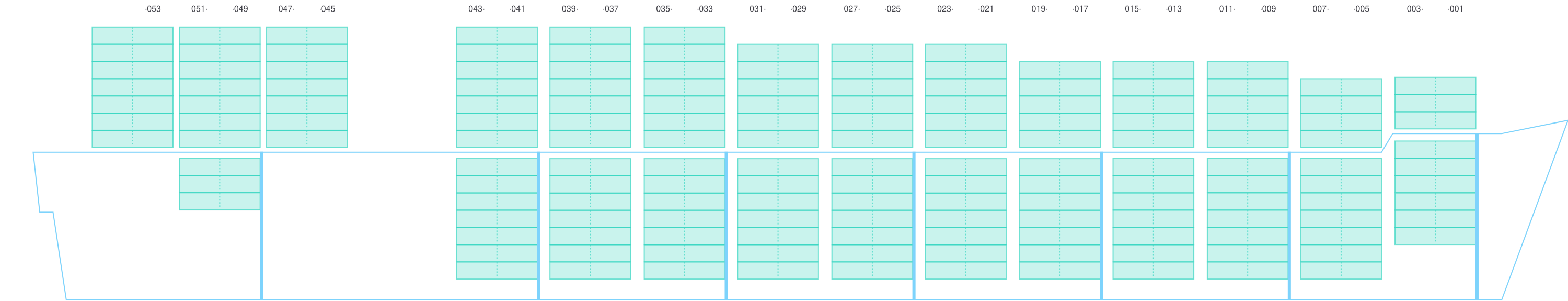

Side view of MSC AMEERA III

Hatch-Covers View

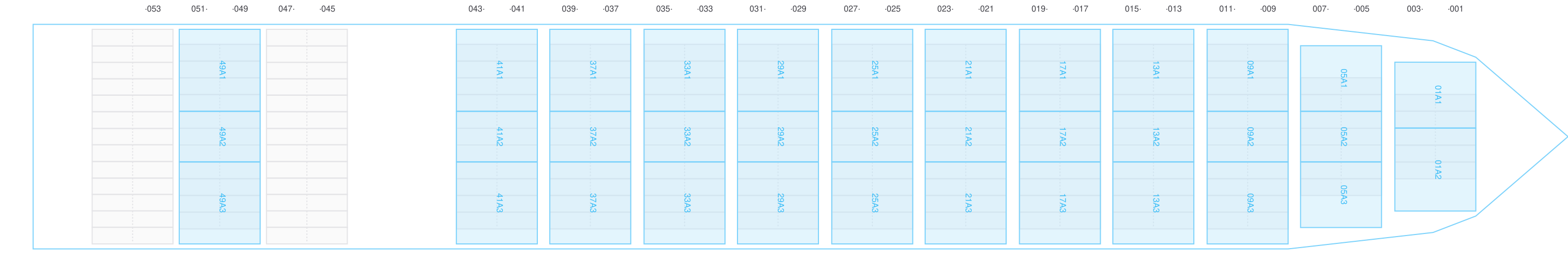

Deck view of MSC AMEERA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

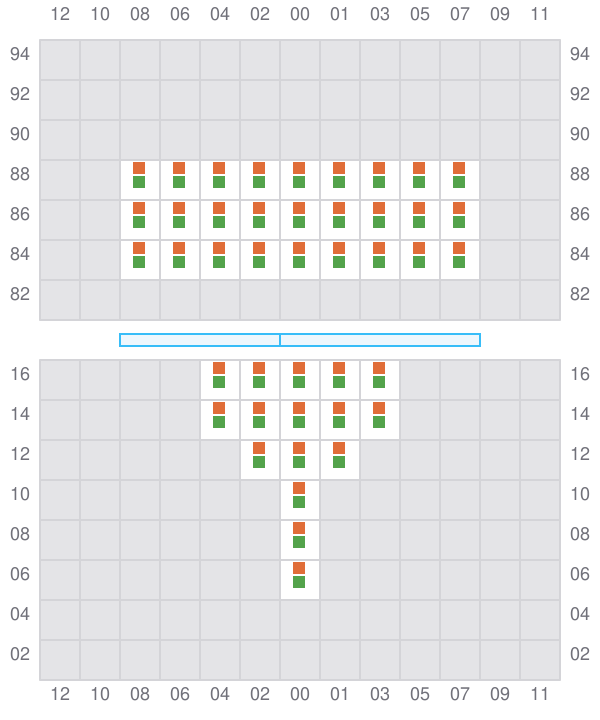

Bay 001 view and slots of MSC AMEERA III

003

  • ←

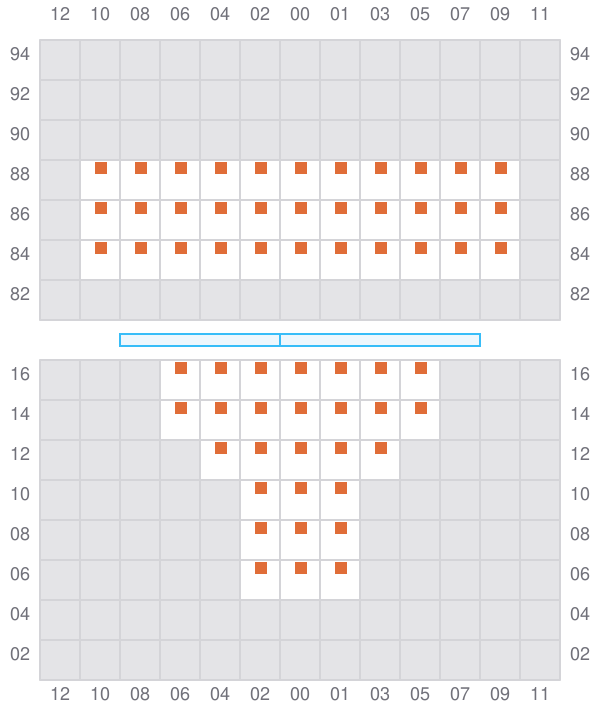

Bay 003 view and slots of MSC AMEERA III

005 (006)

  • →

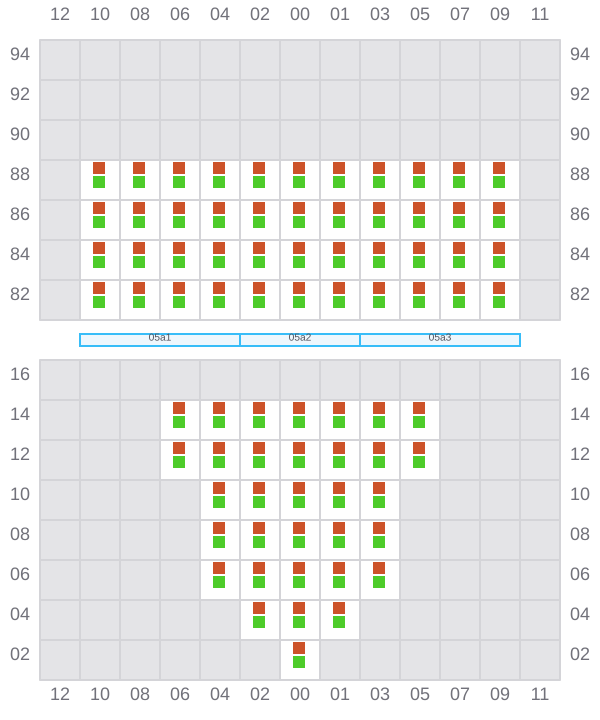

Bay 005 view and slots of MSC AMEERA III

007

  • ←

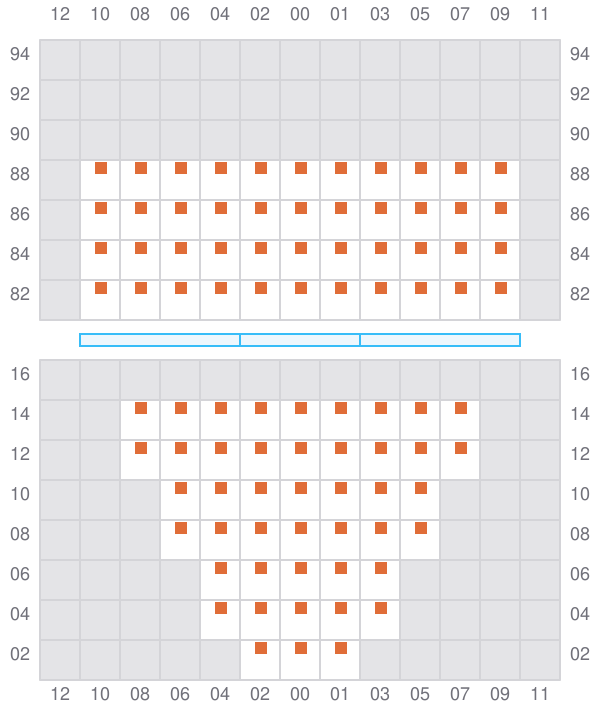

Bay 007 view and slots of MSC AMEERA III

009 (010)

  • →

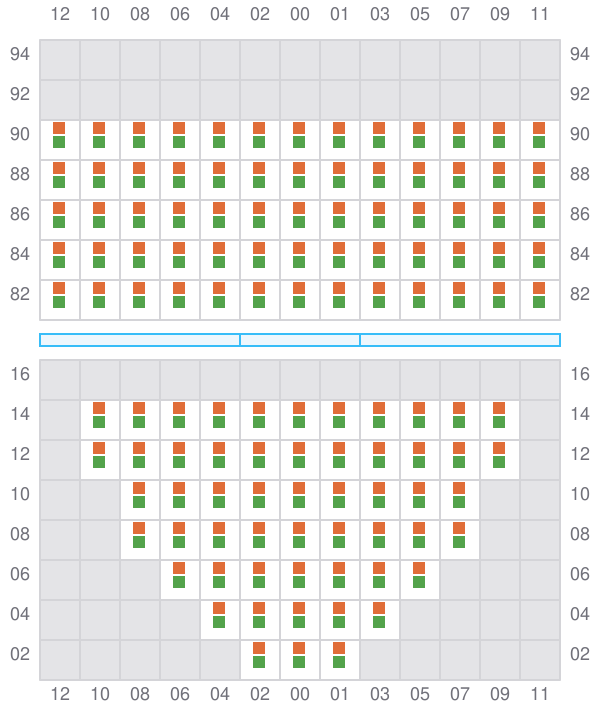

Bay 009 view and slots of MSC AMEERA III

011

  • ←
  • → / ?

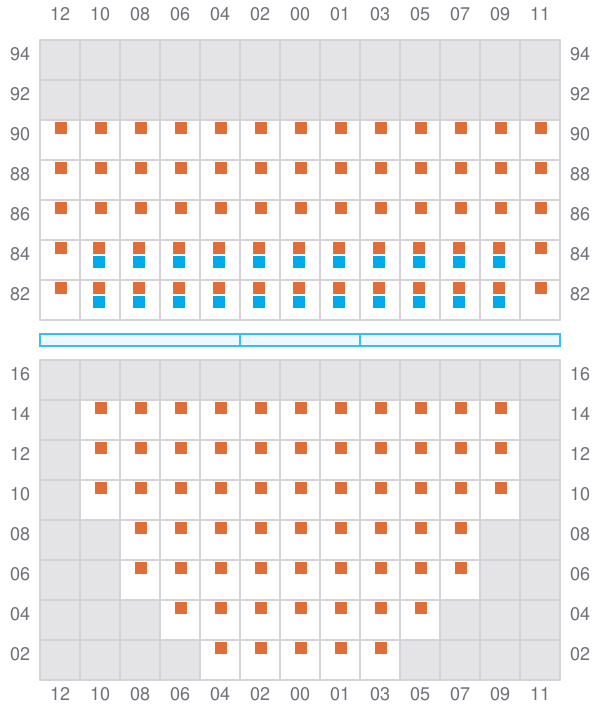

Bay 011 view and slots of MSC AMEERA III

013 (014)

  • →
  • ←

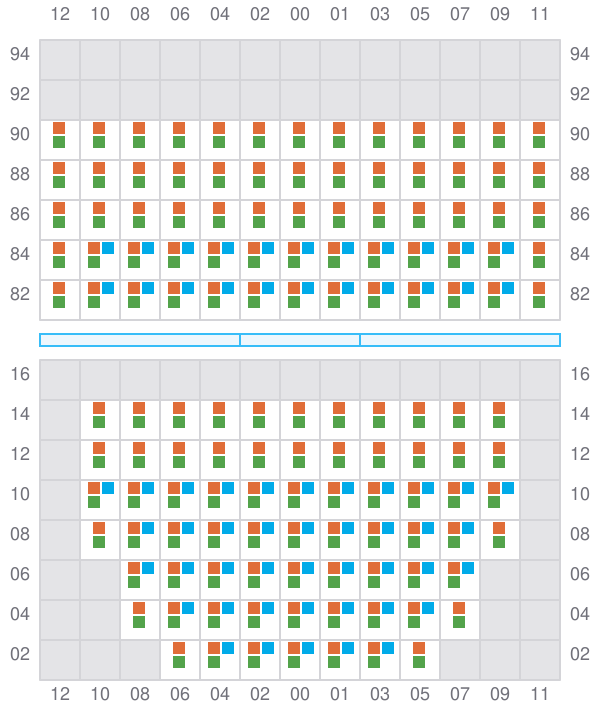

Bay 013 view and slots of MSC AMEERA III

015

  • ←

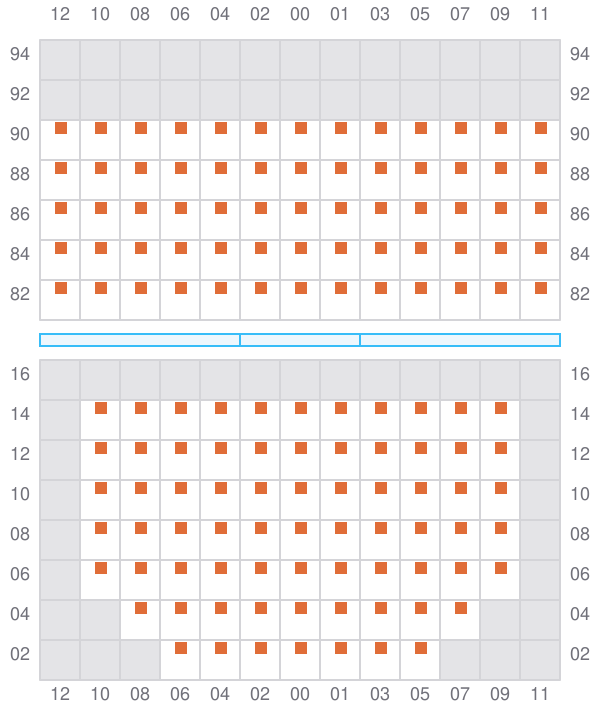

Bay 015 view and slots of MSC AMEERA III

017 (018)

  • →
Bay 017 view and slots of MSC AMEERA III

019

  • ←
  • → / ?

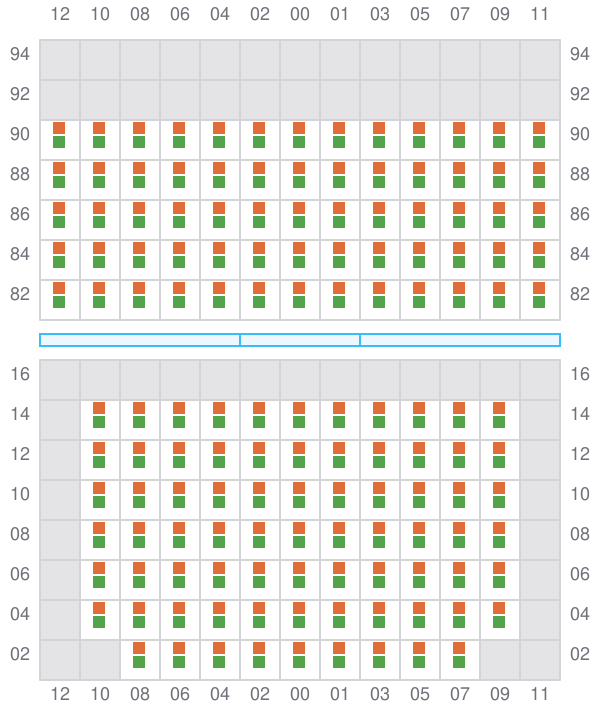

Bay 019 view and slots of MSC AMEERA III

021 (022)

  • →
  • ←
Bay 021 view and slots of MSC AMEERA III

023

  • ←

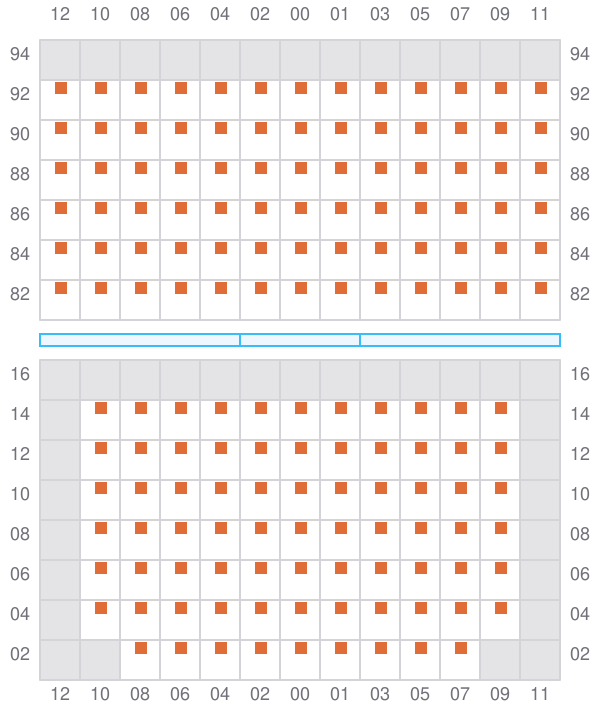

Bay 023 view and slots of MSC AMEERA III

025 (026)

  • →
Bay 025 view and slots of MSC AMEERA III

027

  • ←
  • → / ?

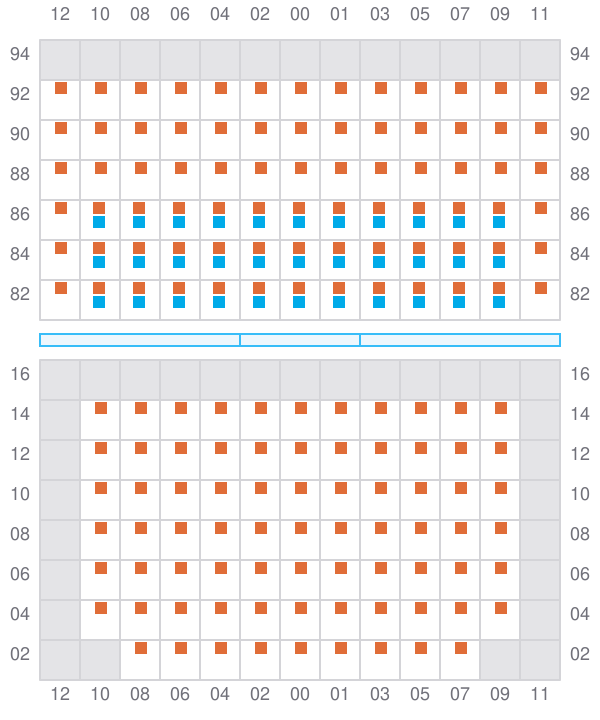

Bay 027 view and slots of MSC AMEERA III

029 (030)

  • →
  • ←
Bay 029 view and slots of MSC AMEERA III

031

  • ←
Bay 031 view and slots of MSC AMEERA III

033 (034)

  • →

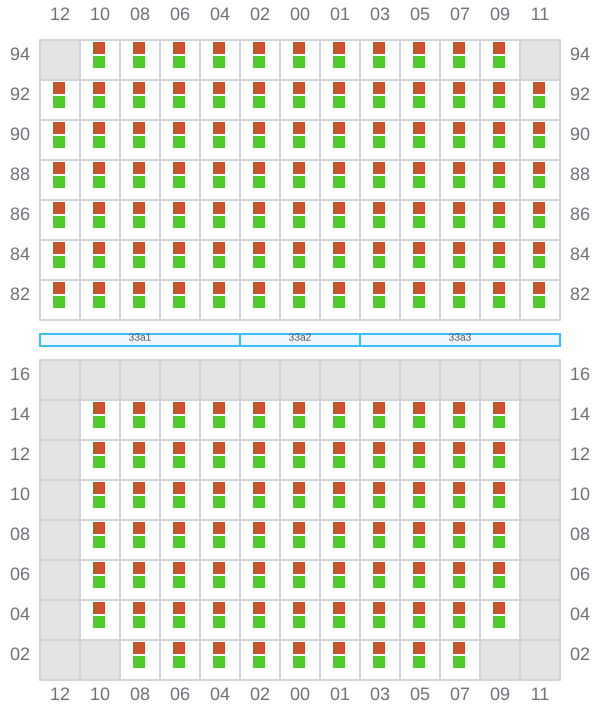

Bay 033 view and slots of MSC AMEERA III

035

  • ←
  • →

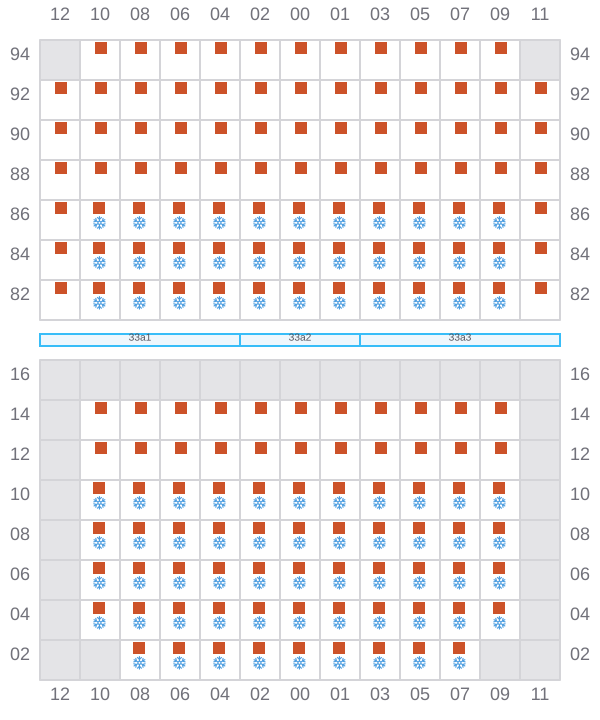

Bay 035 view and slots of MSC AMEERA III

037 (038)

  • →
  • ← / ?

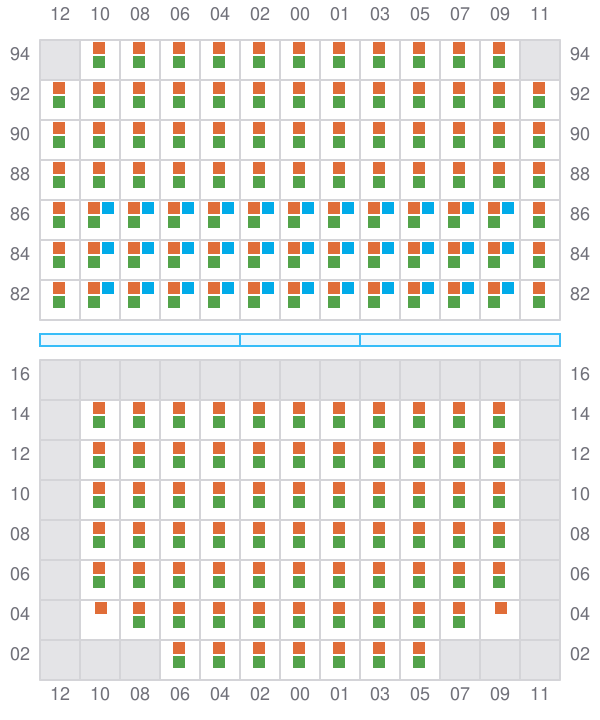

Bay 037 view and slots of MSC AMEERA III

039

  • ←

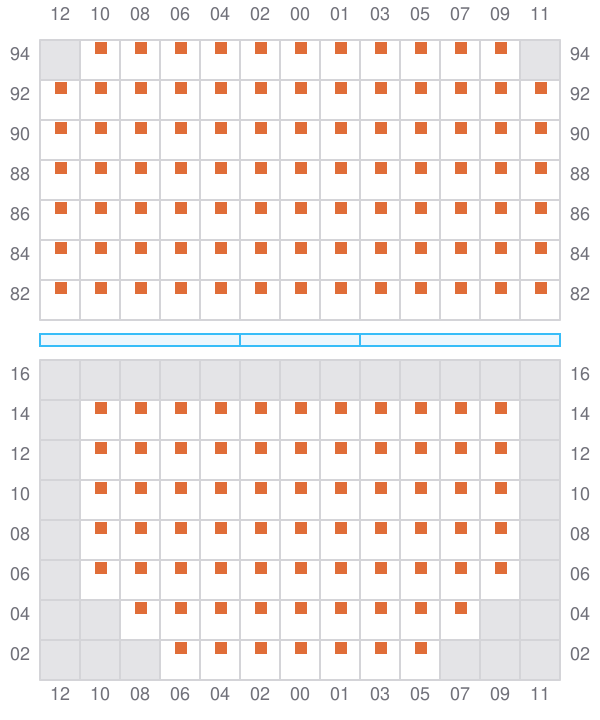

Bay 039 view and slots of MSC AMEERA III

041 (042)

  • →

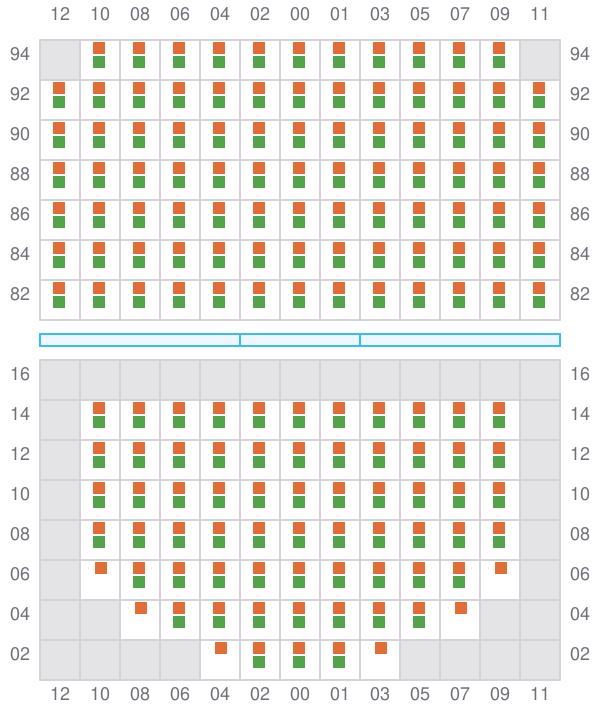

Bay 041 view and slots of MSC AMEERA III

043

  • ←
  • → / ?
Bay 043 view and slots of MSC AMEERA III

045 (046)

  • → / ?

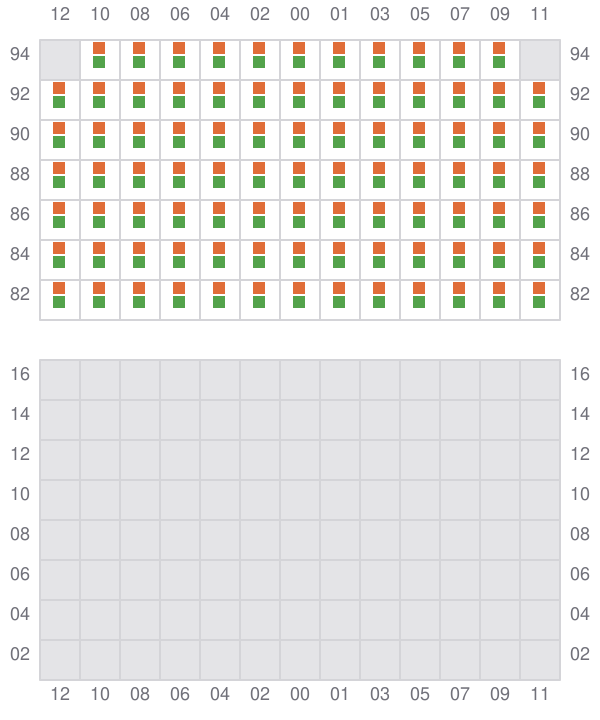

Bay 045 view and slots of MSC AMEERA III

047

  • ← / ?
  • → / ?

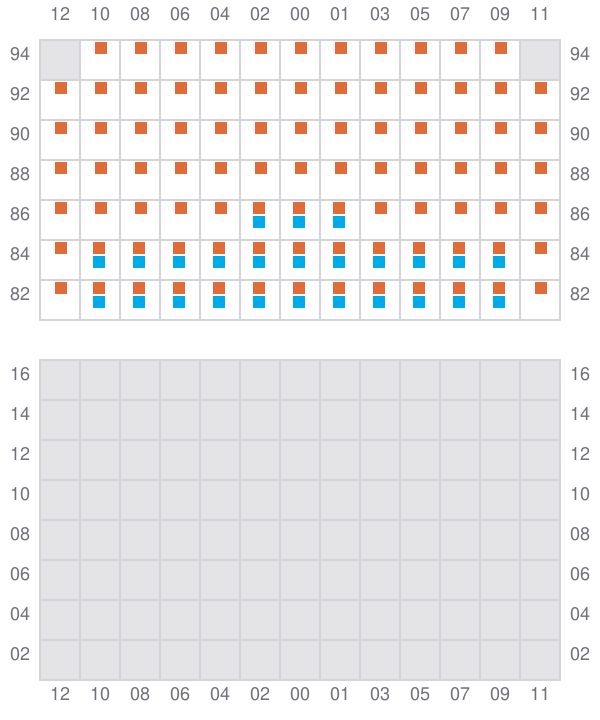

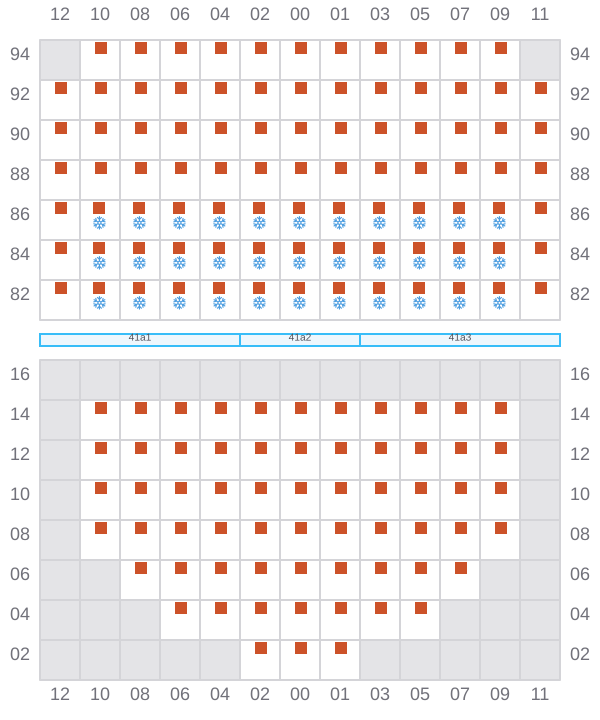

Bay 047 view and slots of MSC AMEERA III

049 (050)

  • →

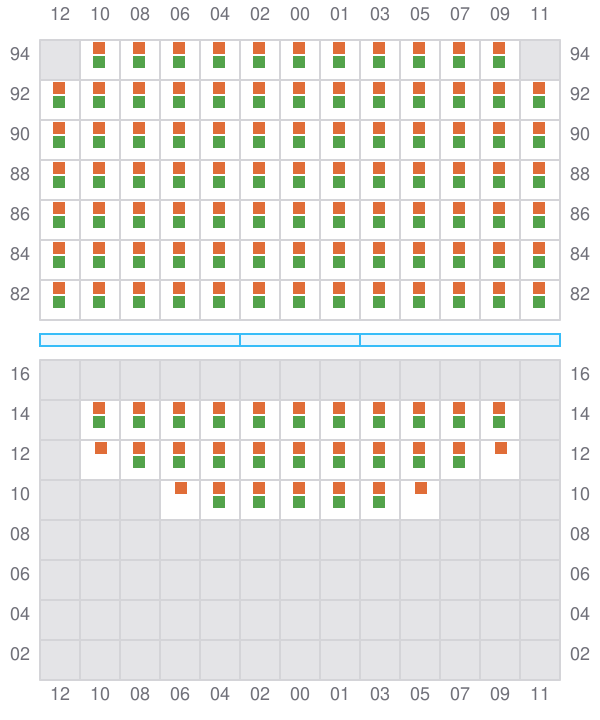

Bay 049 view and slots of MSC AMEERA III

051

  • ←

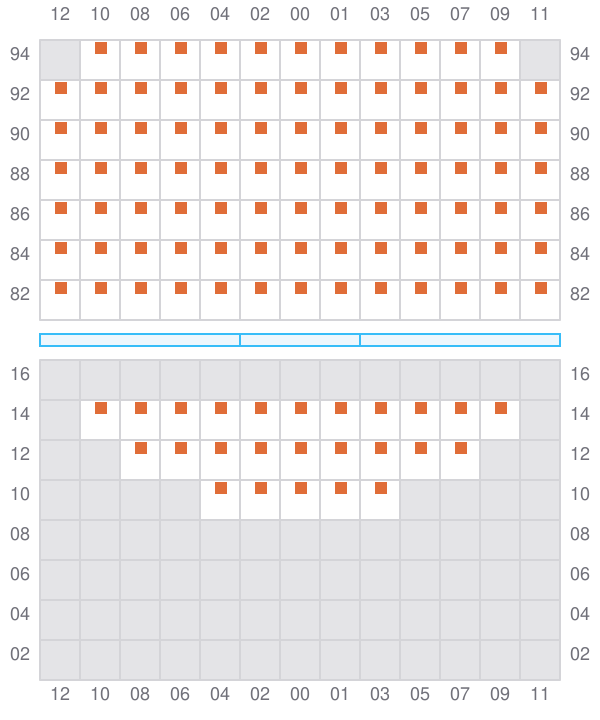

Bay 051 view and slots of MSC AMEERA III

053 (054)

  • → / ?

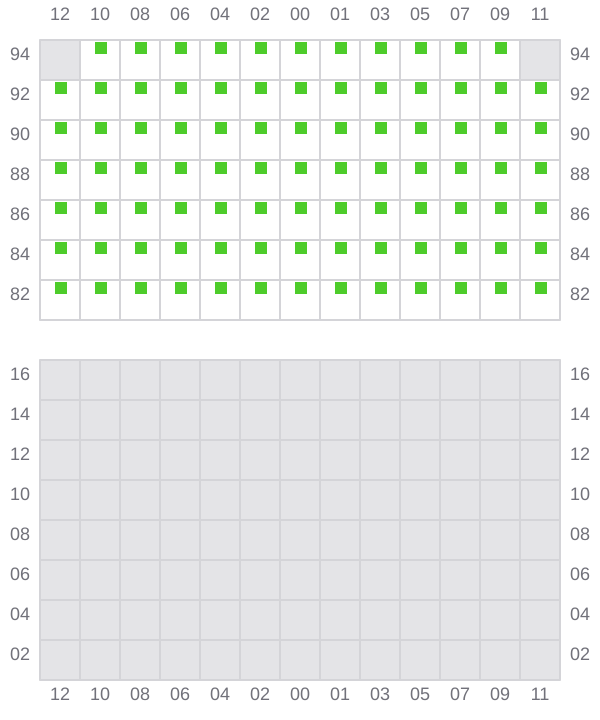

Bay 053 view and slots of MSC AMEERA III
