MSC AMERICA III
9008603 | HOYZ | 9008603 by ********* Last update: Mon Jun 03 2024

General Info

Ship Name:MSC AMERICA III
IMO Code:9008603
Call Sign:HOYZ
Line Operator:9008603
Class Name for Sister Ships:MSC AMERICA
Year Built:1993
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:78
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,690

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MSC AMERICA III

Hatch-Covers View

Deck view of MSC AMERICA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

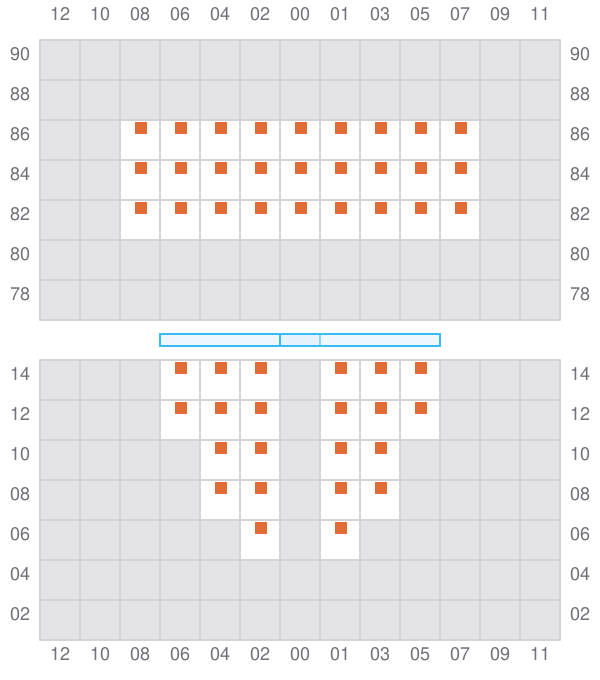

Bay 001 view and slots of MSC AMERICA III

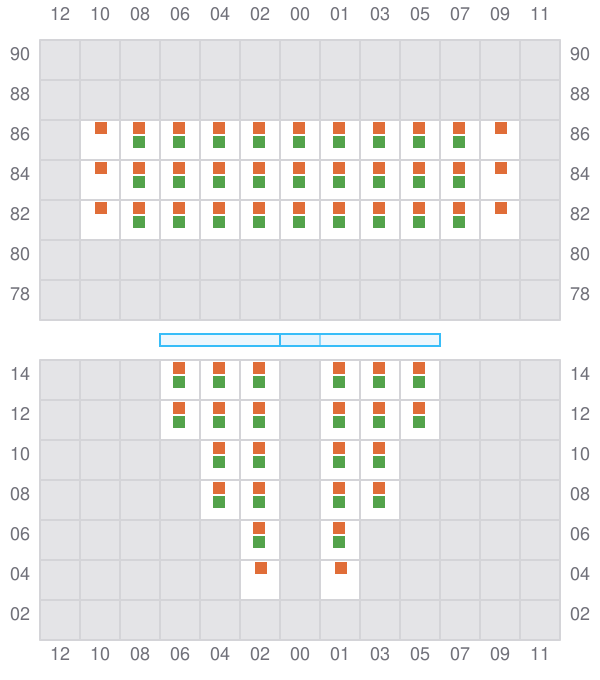

003 (002)

  • ←
Bay 003 view and slots of MSC AMERICA III

005

  • →

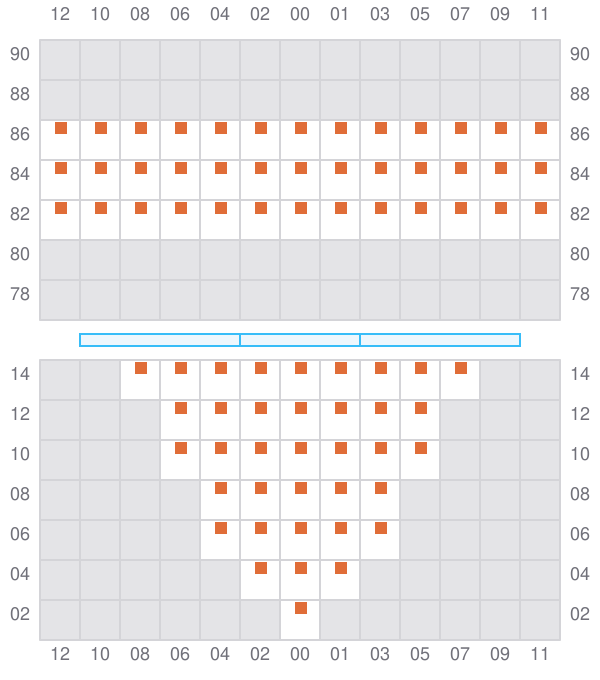

Bay 005 view and slots of MSC AMERICA III

007 (006)

  • ←

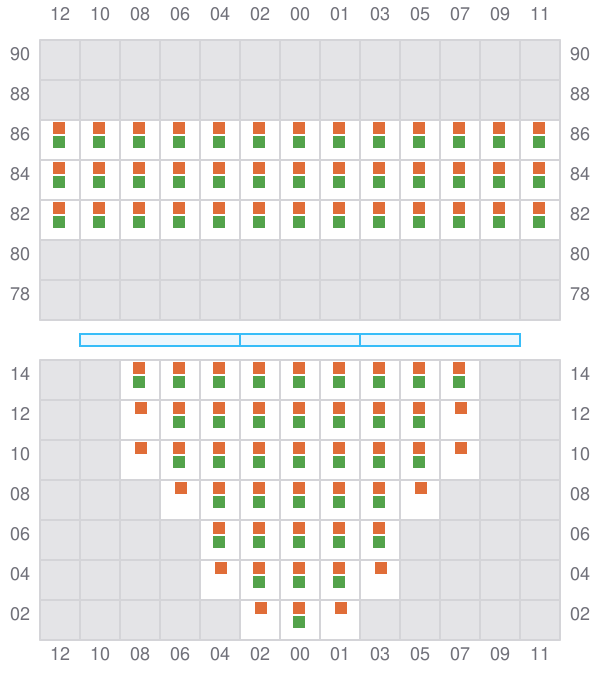

Bay 007 view and slots of MSC AMERICA III

009

  • →

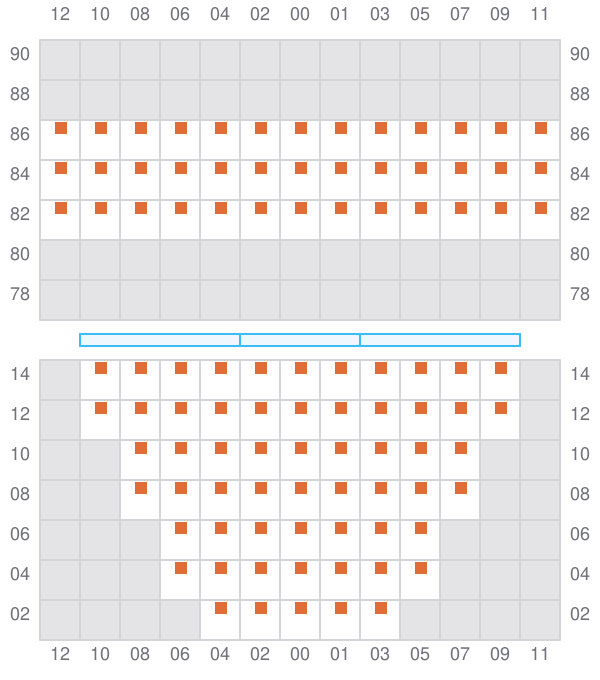

Bay 009 view and slots of MSC AMERICA III

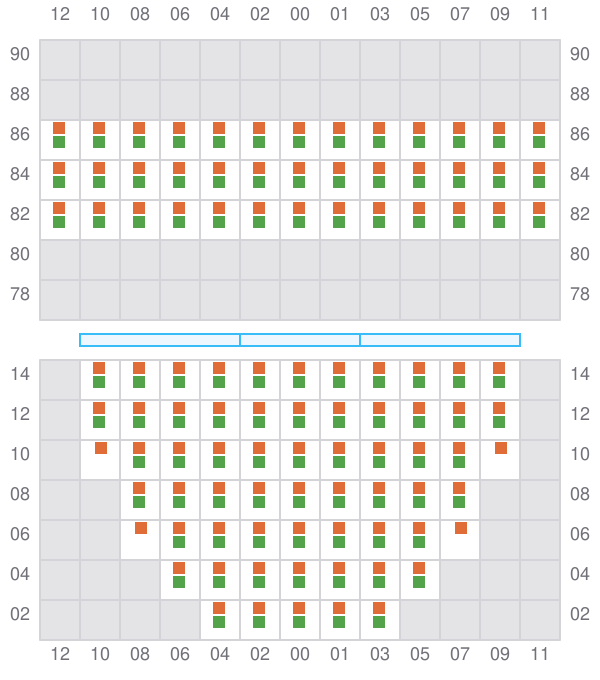

011 (010)

  • ←
Bay 011 view and slots of MSC AMERICA III

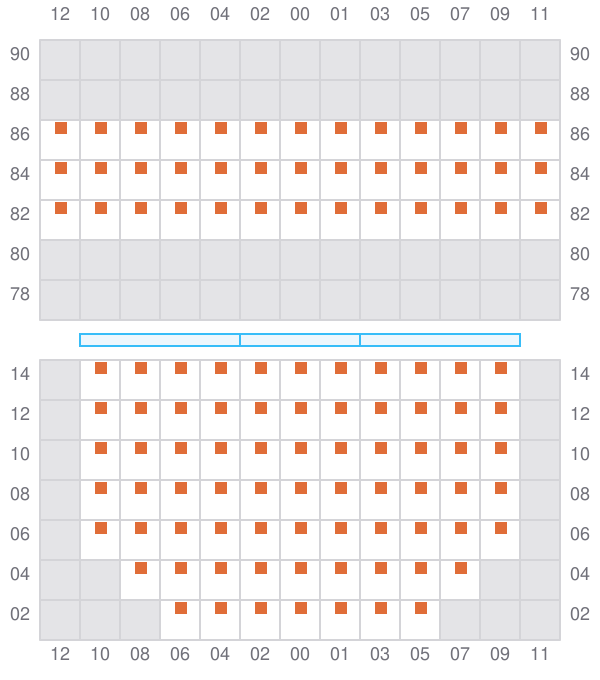

013

  • →
Bay 013 view and slots of MSC AMERICA III

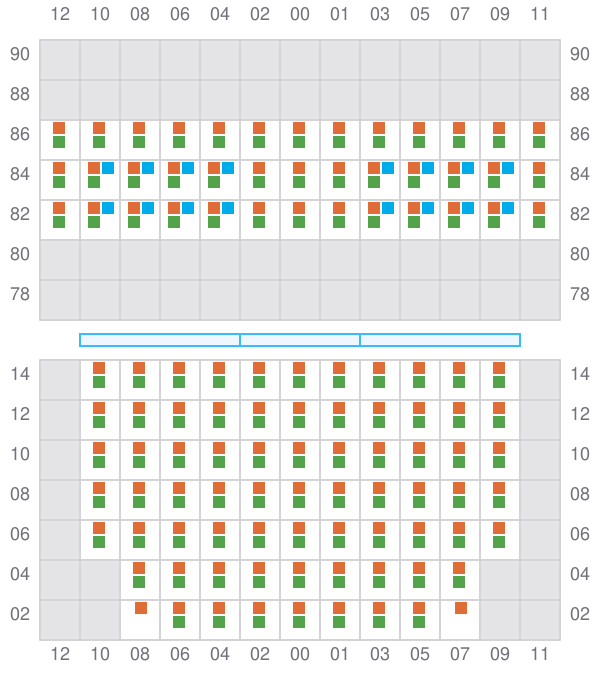

015 (014)

  • ←
Bay 015 view and slots of MSC AMERICA III

017

  • →
Bay 017 view and slots of MSC AMERICA III

019 (018)

  • ←
Bay 019 view and slots of MSC AMERICA III

021

  • →
Bay 021 view and slots of MSC AMERICA III

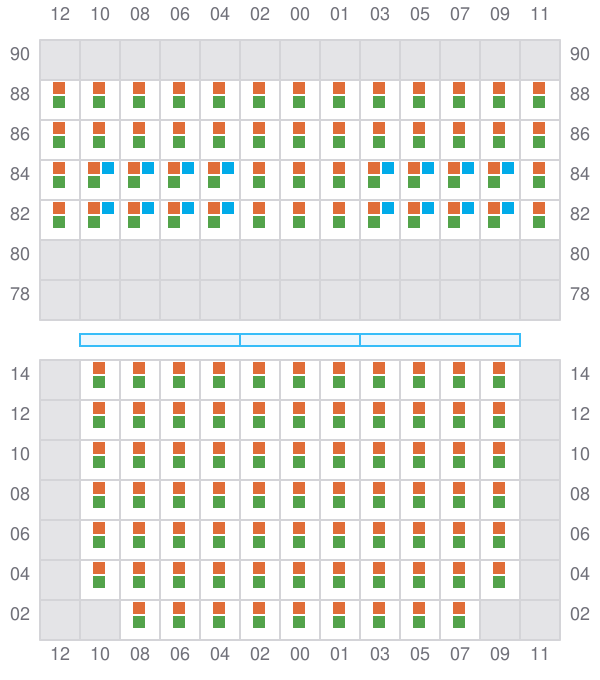

023 (022)

  • ←
Bay 023 view and slots of MSC AMERICA III

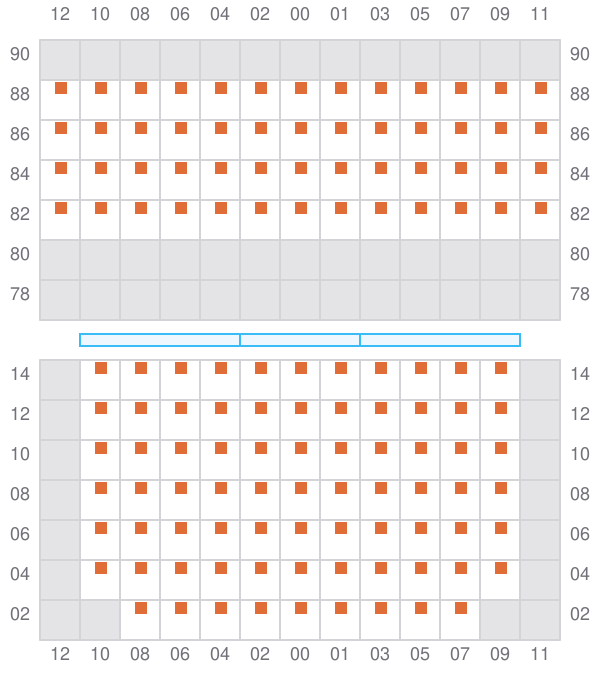

025

  • →
Bay 025 view and slots of MSC AMERICA III

027 (026)

  • ←
Bay 027 view and slots of MSC AMERICA III

029

  • →
Bay 029 view and slots of MSC AMERICA III

031 (030)

  • ←
Bay 031 view and slots of MSC AMERICA III

033

  • →

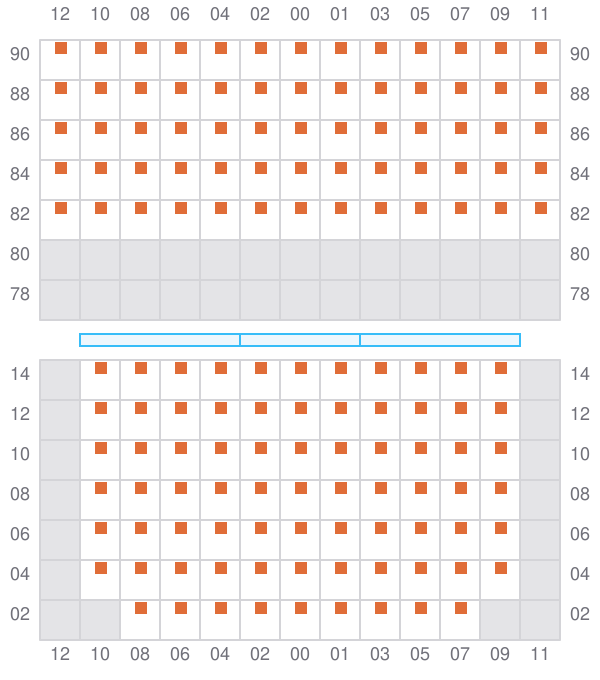

Bay 033 view and slots of MSC AMERICA III

035 (034)

  • ←

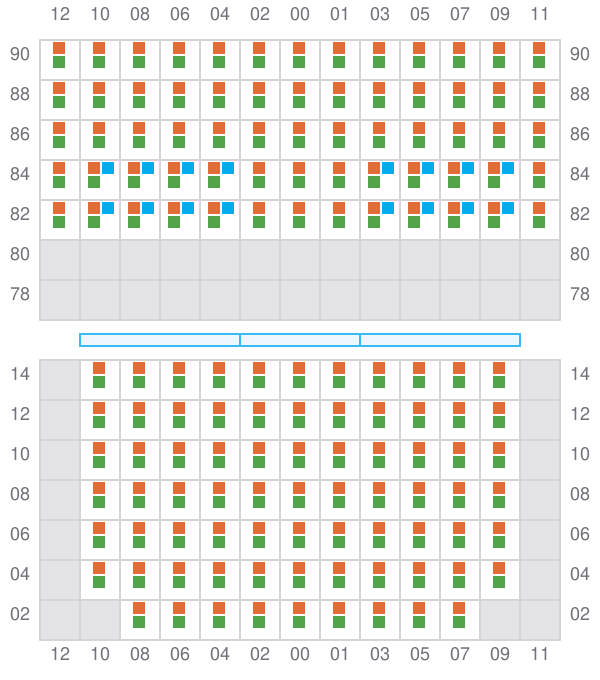

Bay 035 view and slots of MSC AMERICA III

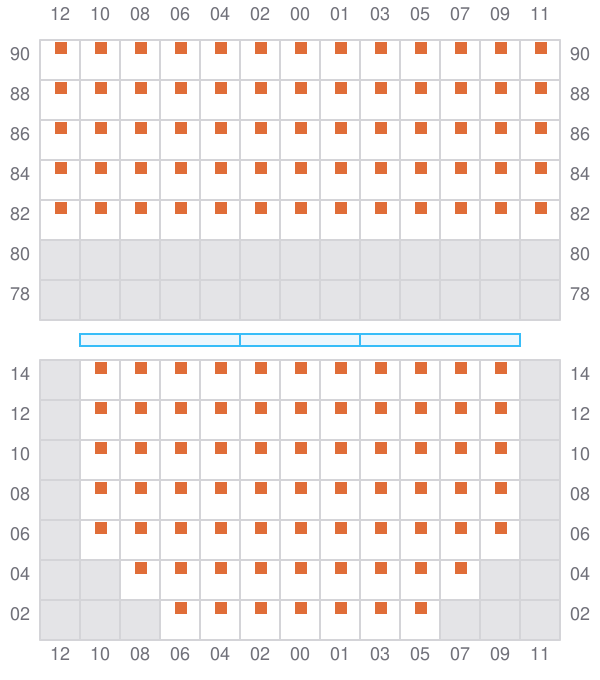

037

  • →
Bay 037 view and slots of MSC AMERICA III

039 (038)

  • ←

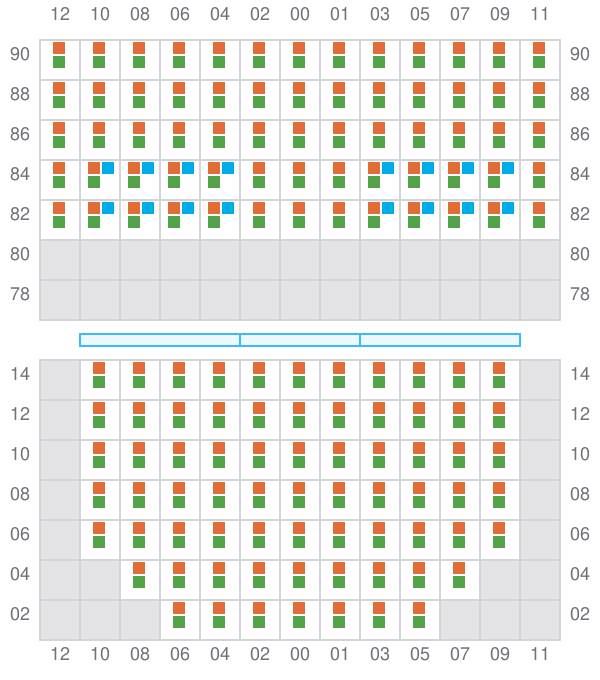

Bay 039 view and slots of MSC AMERICA III

041

  • →

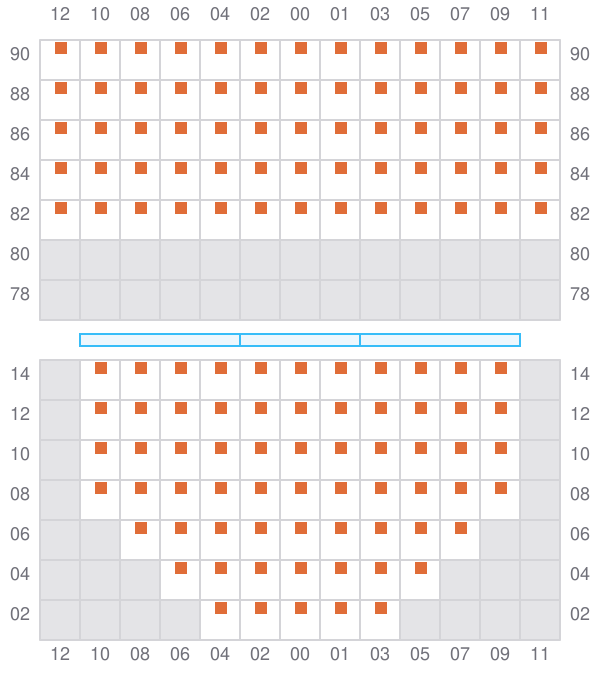

Bay 041 view and slots of MSC AMERICA III

043 (042)

  • ←

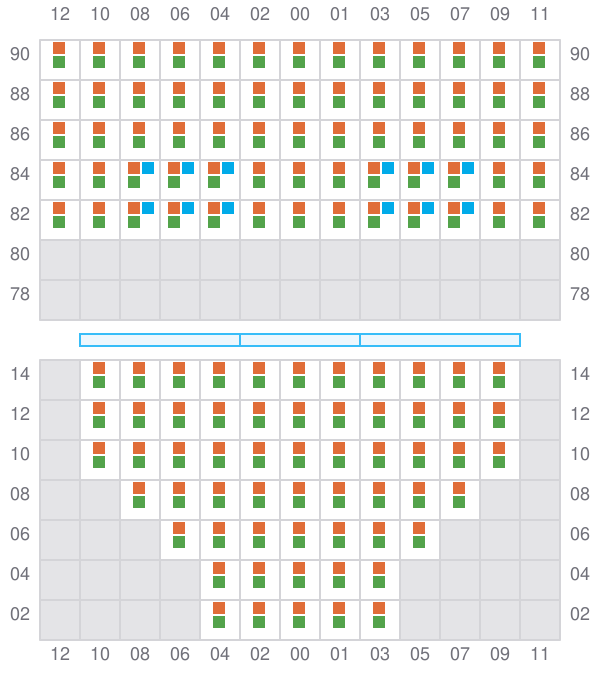

Bay 043 view and slots of MSC AMERICA III

045

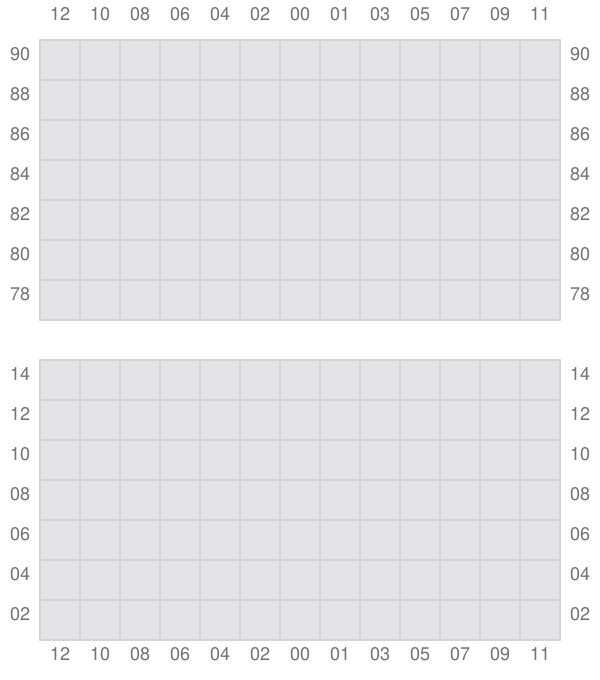

Bay 045 view and slots of MSC AMERICA III

047 (046)

  • ← / ?

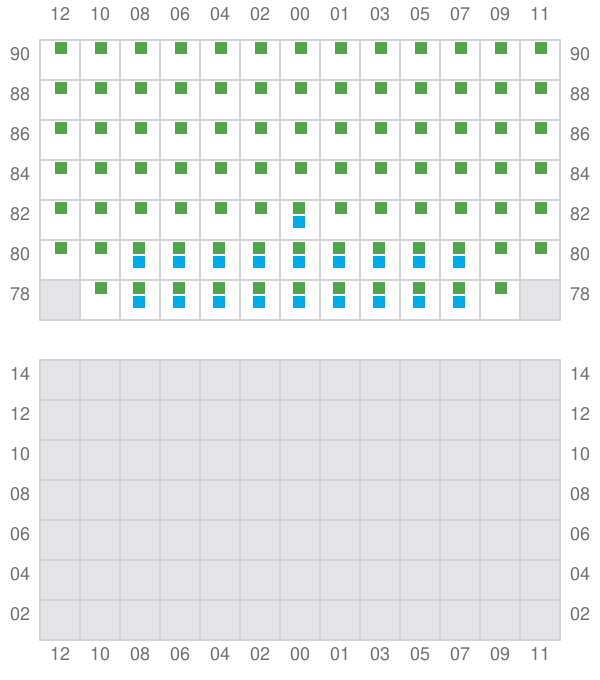

Bay 047 view and slots of MSC AMERICA III
