MSC AMERICA
9963580 | 5LXA3 | MSC MEDITERRANEAN SHIPPING CO by ************** Last update: Thu Nov 06 2025
General Info
Ship Name:MSC AMERICA
IMO Code:9963580
Call Sign:5LXA3
Line Operator:MSC MEDITERRANEAN SHIPPING CO
Class Name for Sister Ships:
Year Built:2025
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.37
Stern to AFT PP:0.00
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:68
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,946
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

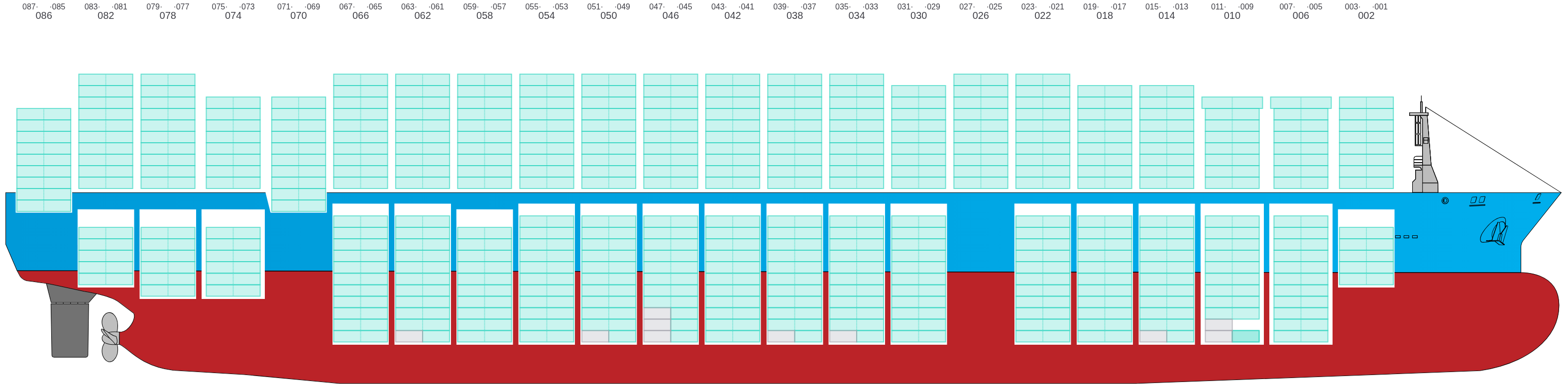

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

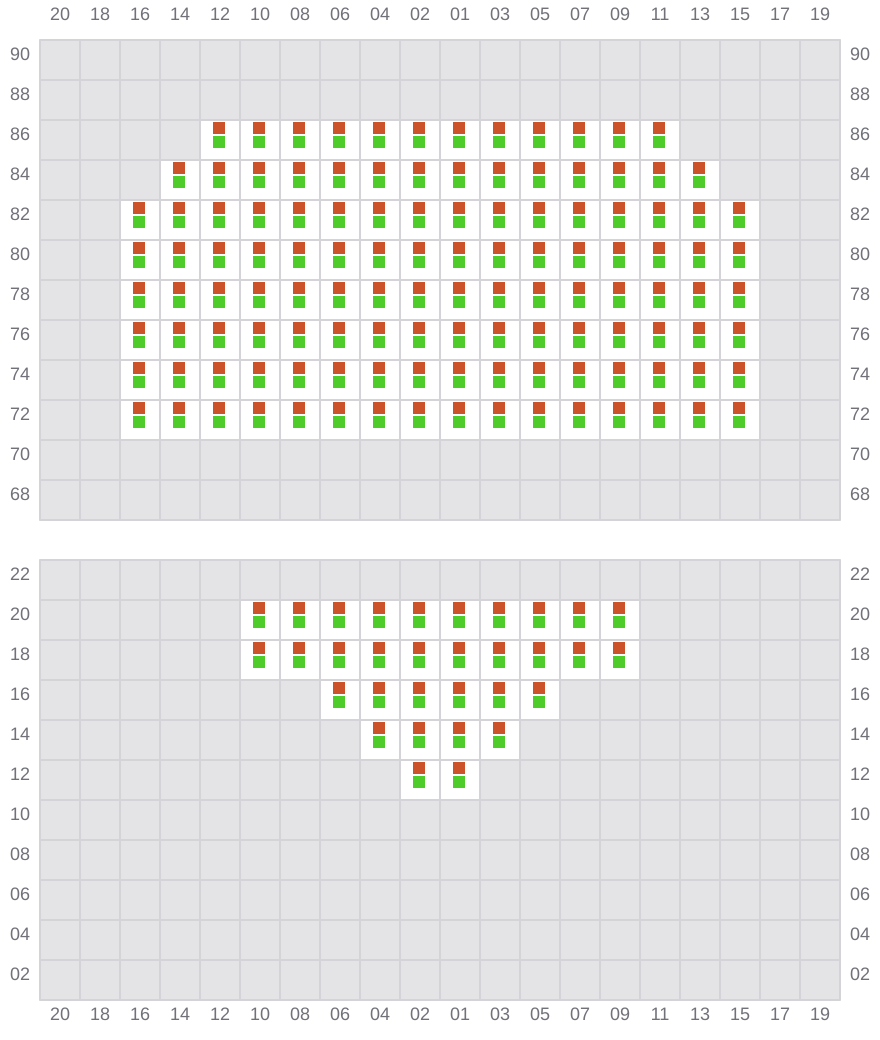

001 (002)
- →

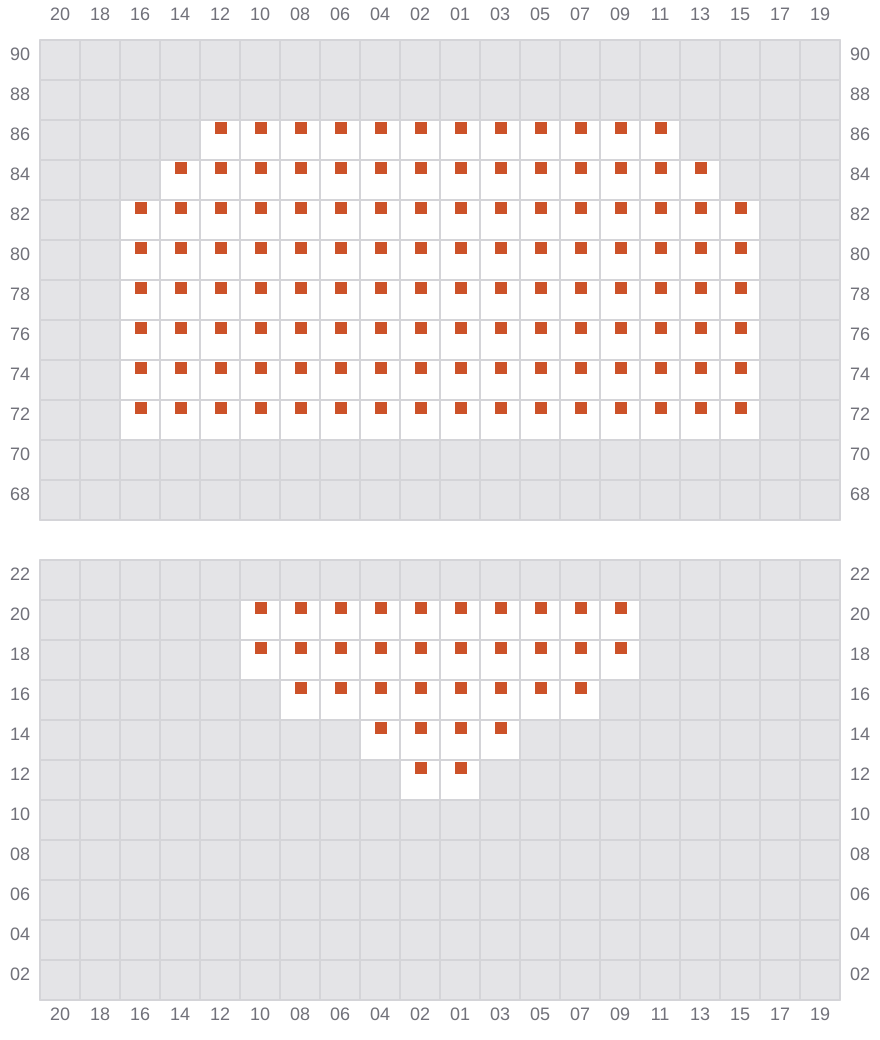

003
- ←

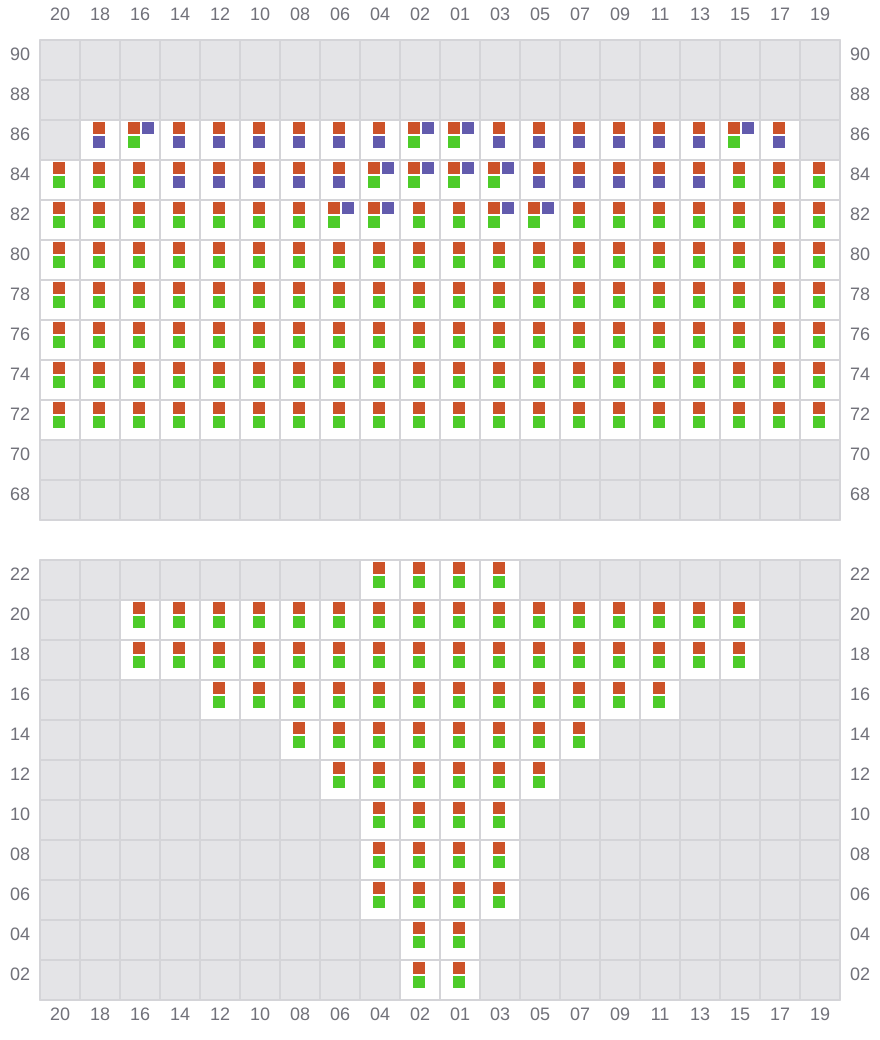

005 (006)
- →

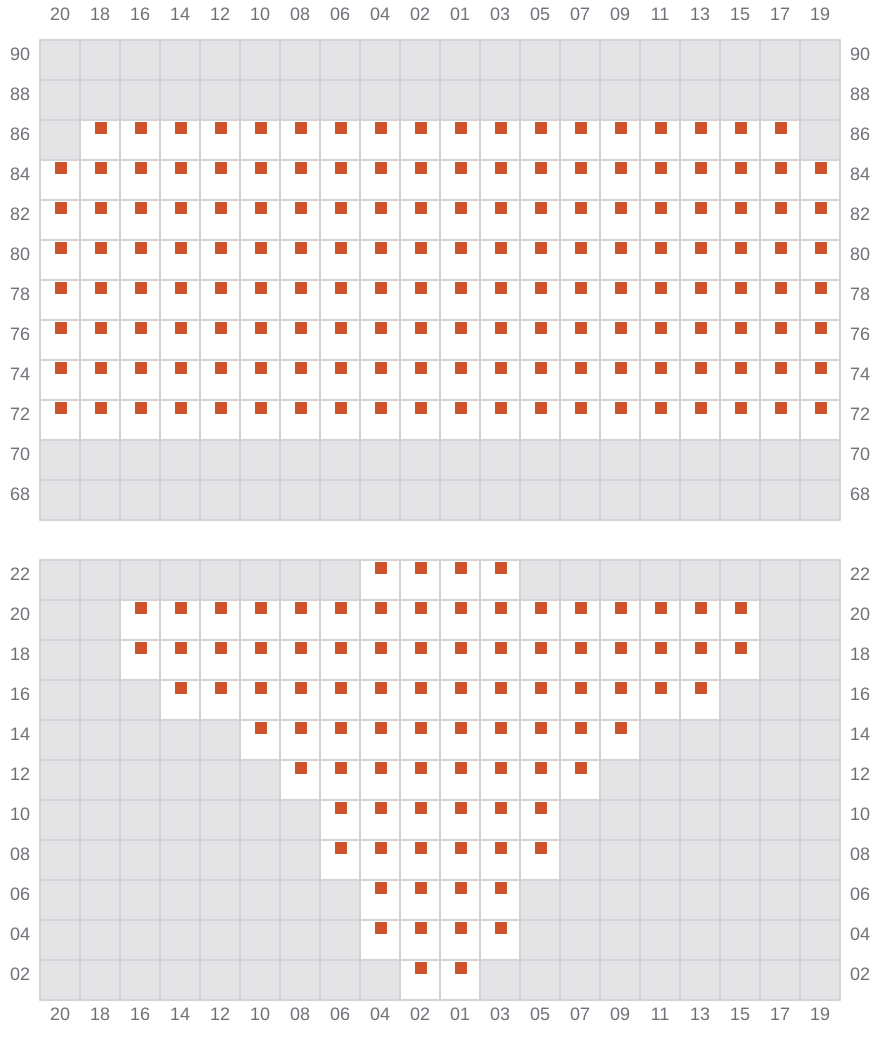

007
- ←

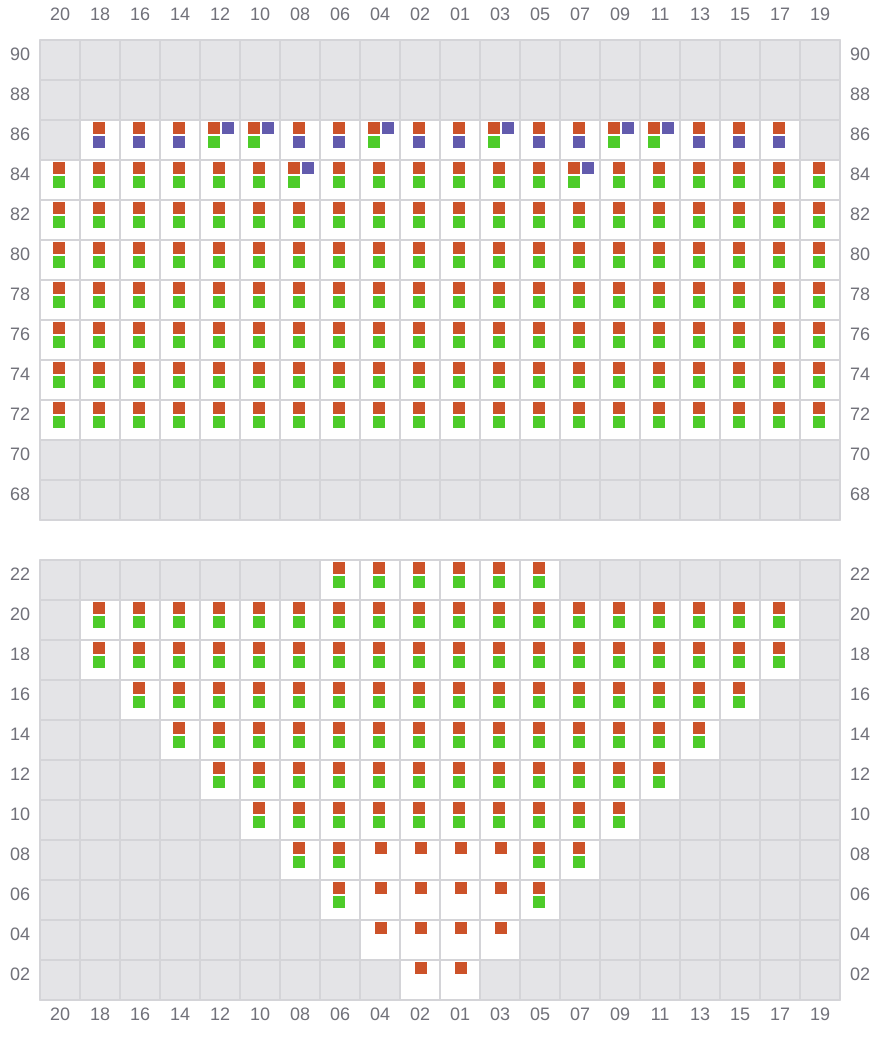

009 (010)
- →

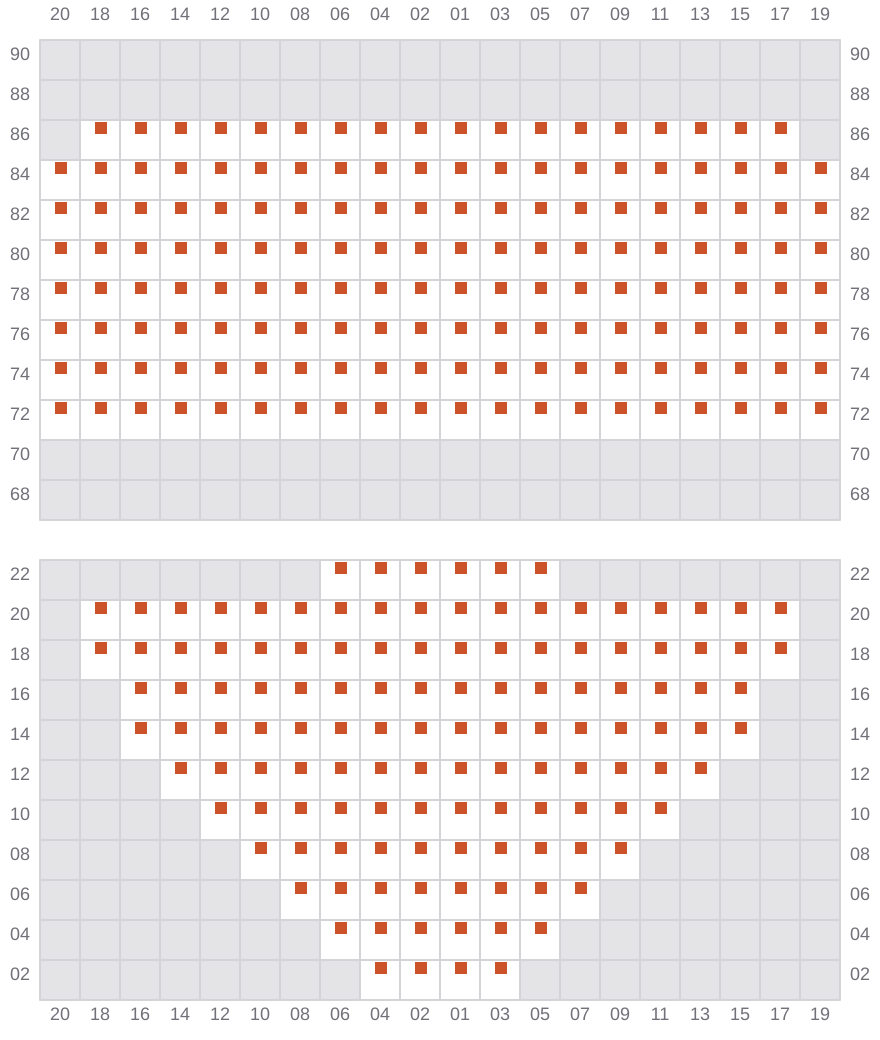

011
- ←

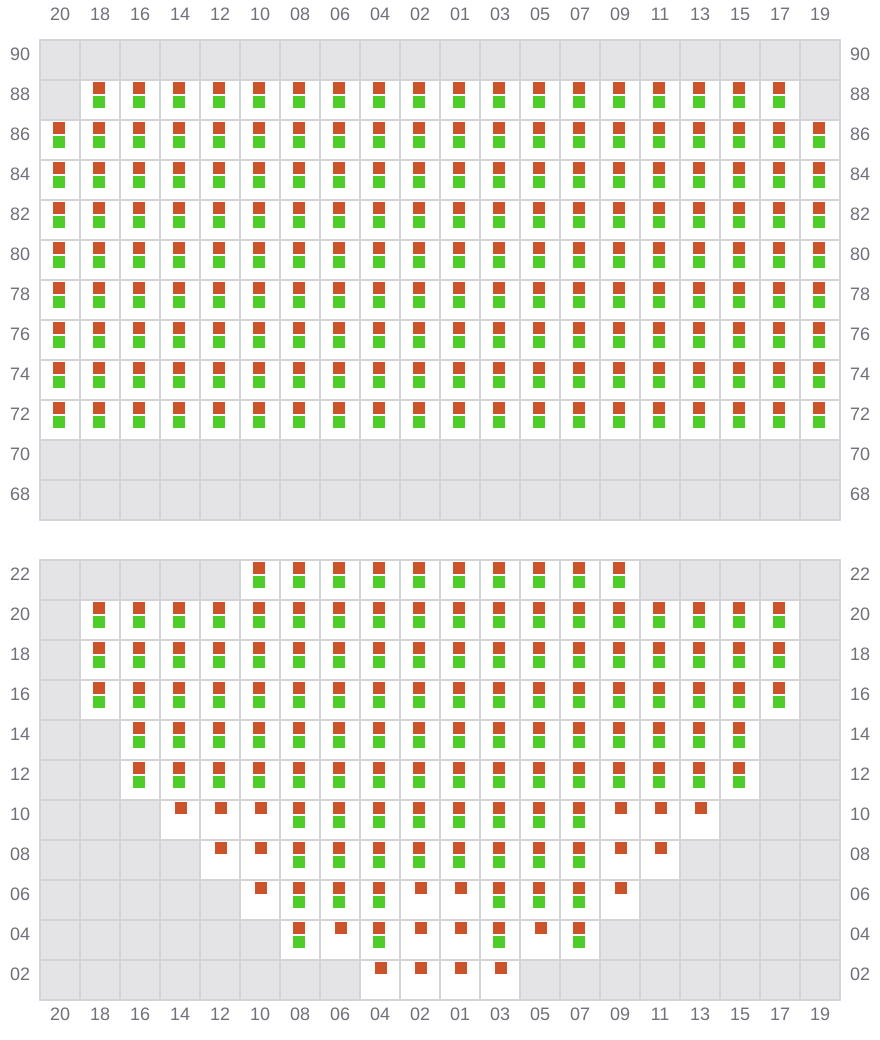

013 (014)
- →

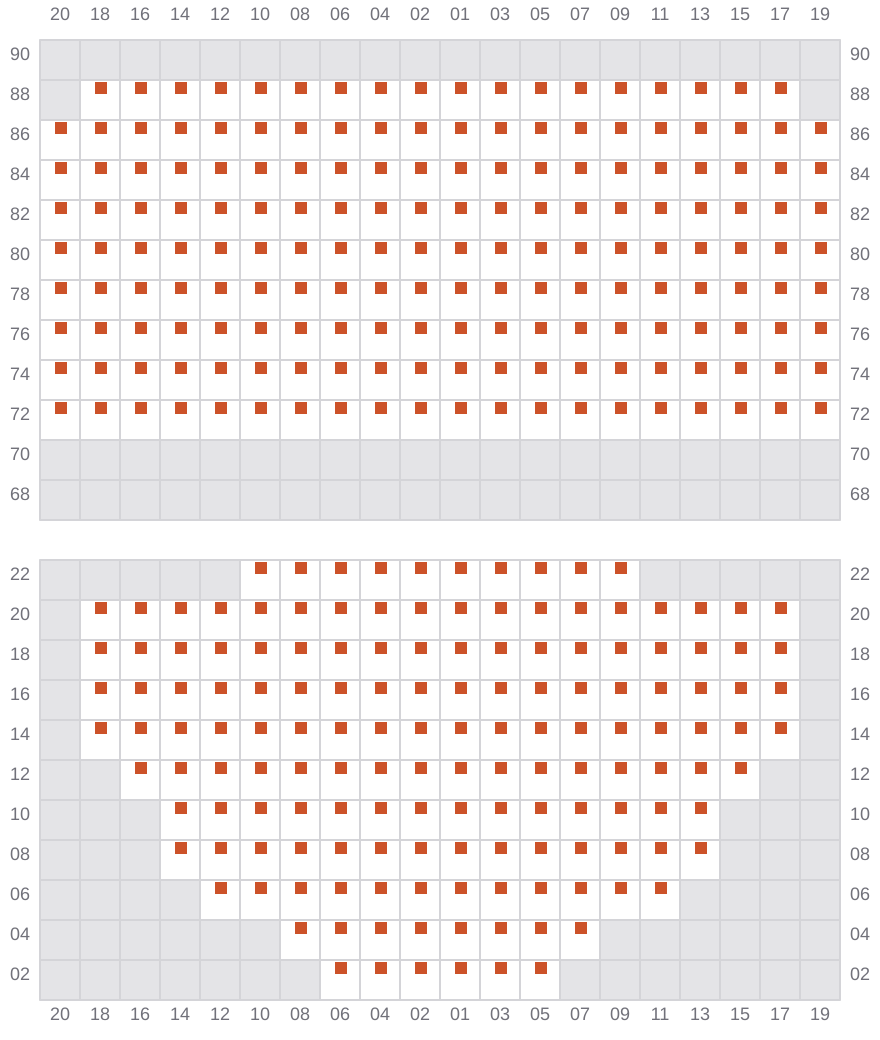

015
- ←

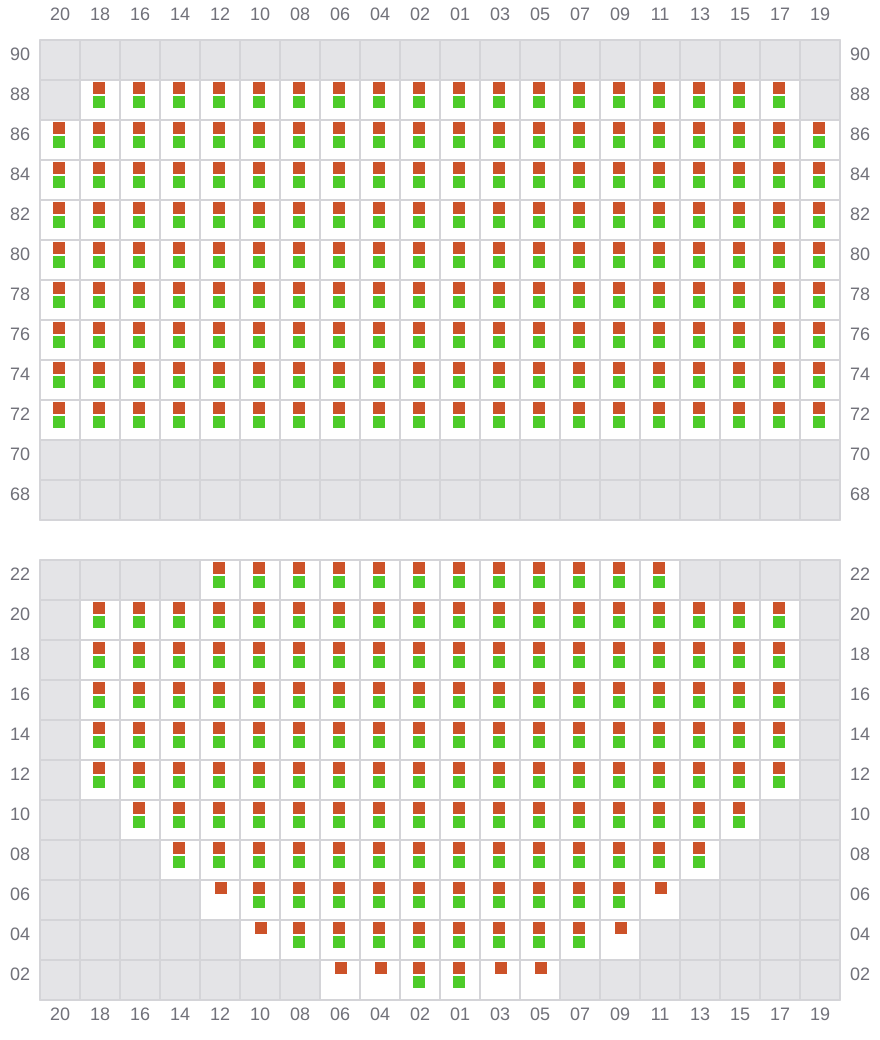

017 (018)
- →

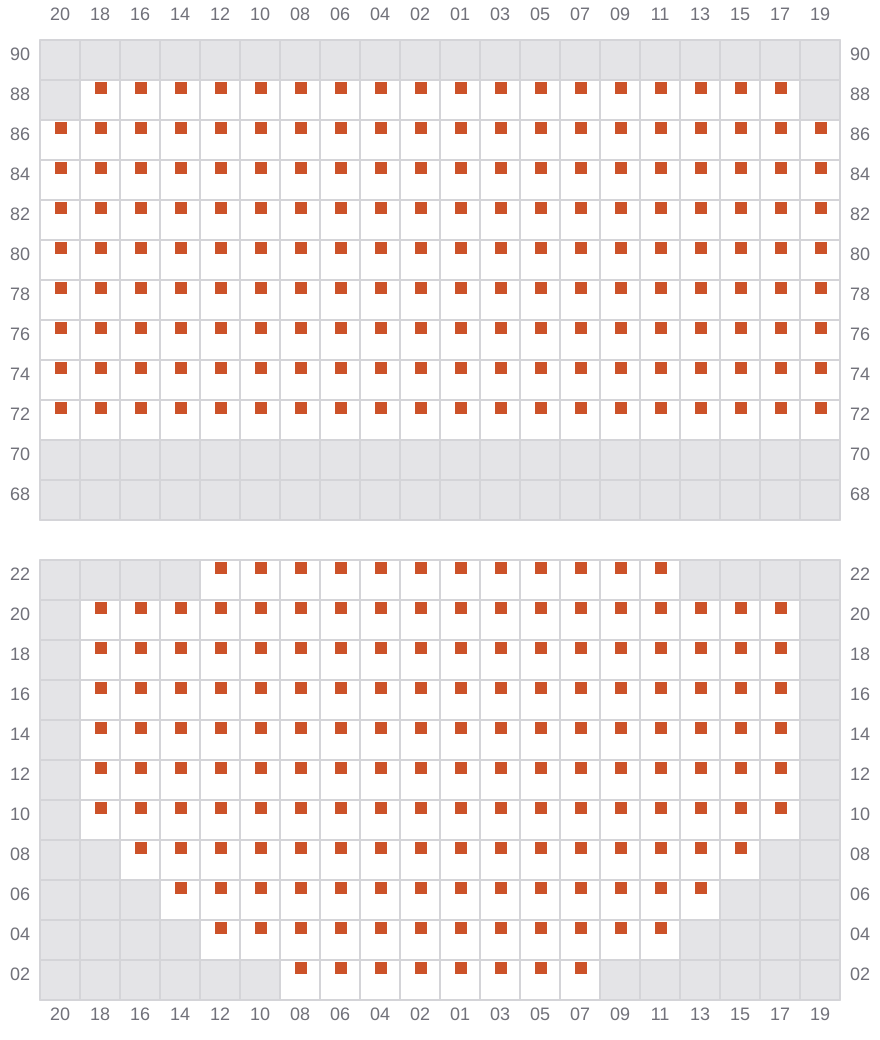

019
- ←

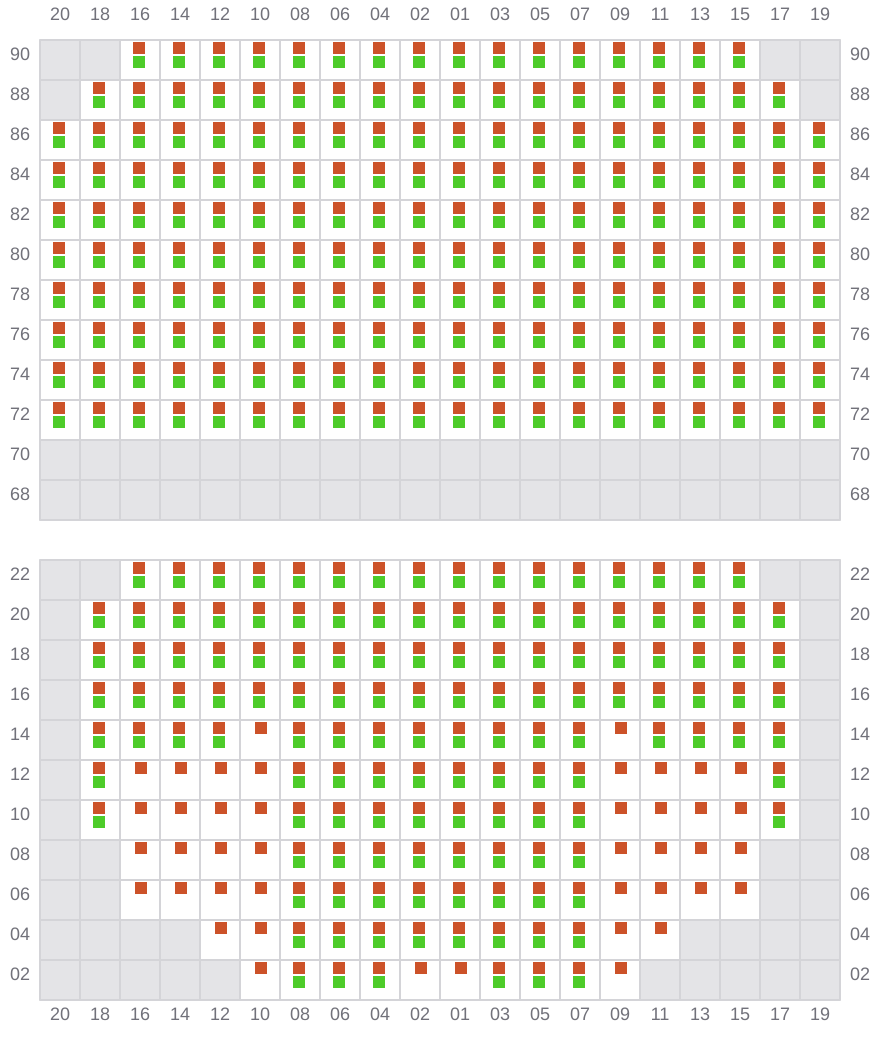

021 (022)
- →

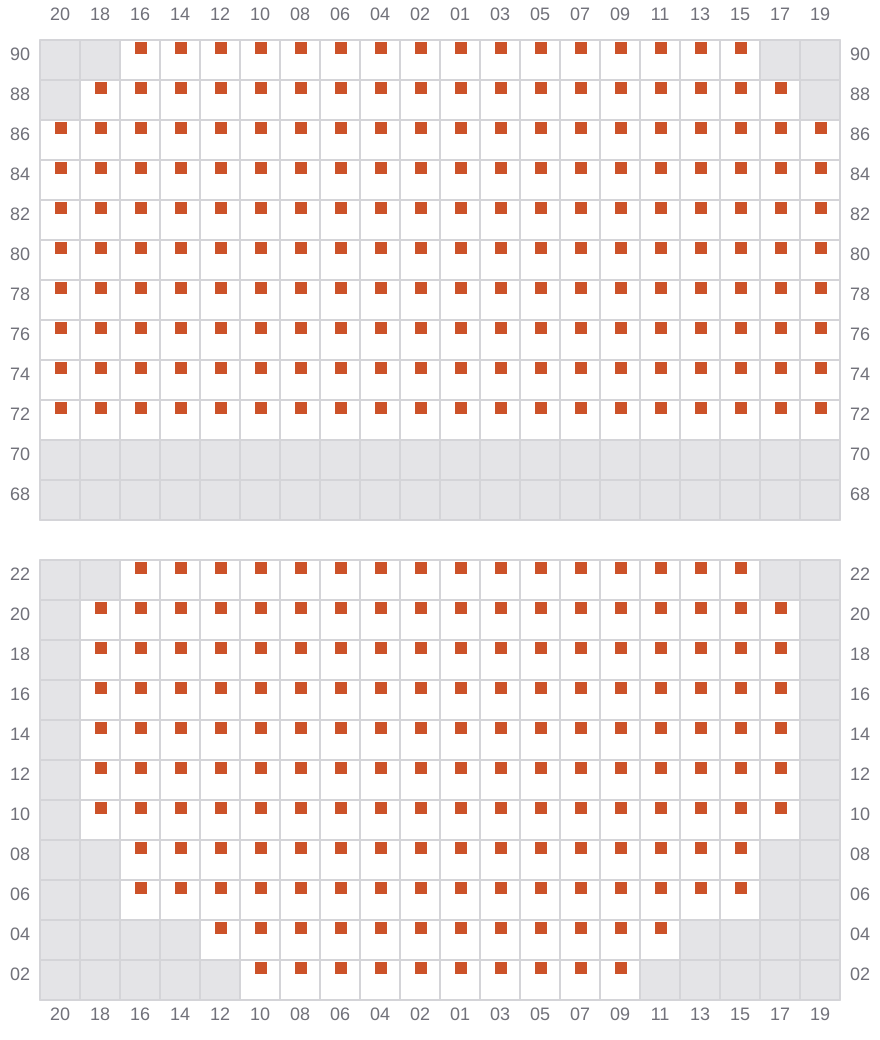

023
- ←

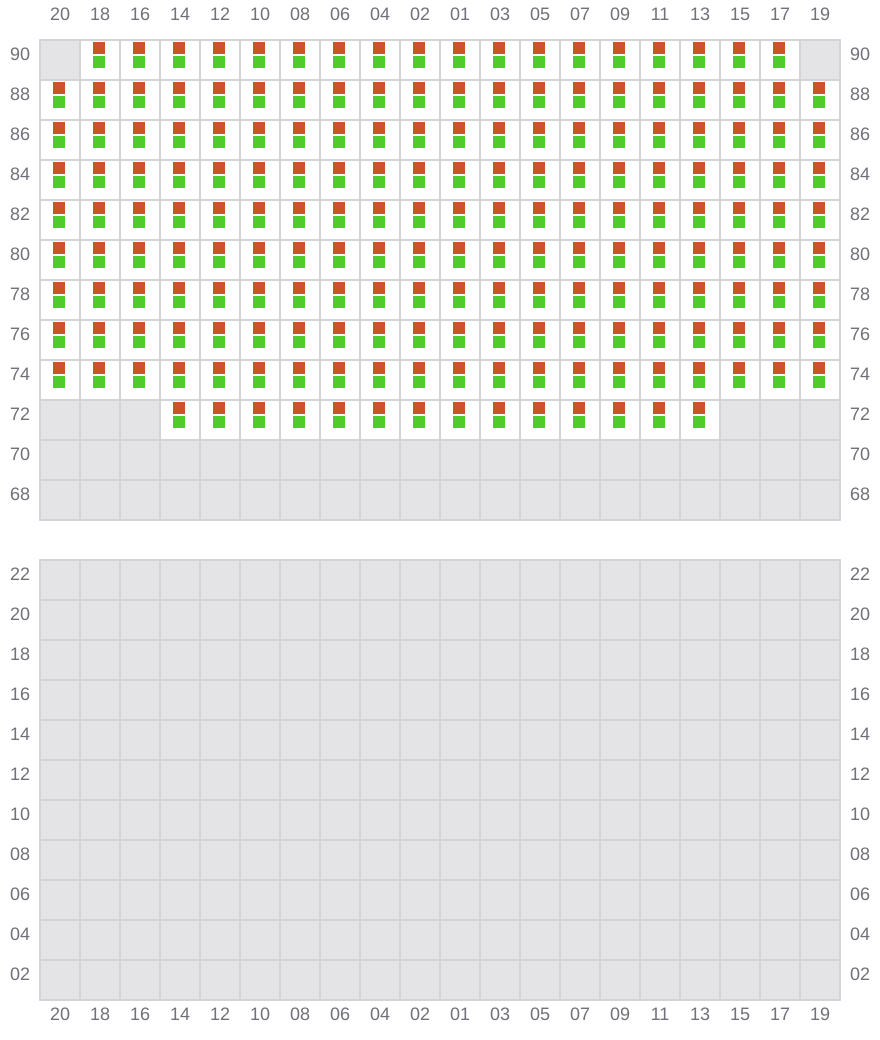

025 (026)
- → /

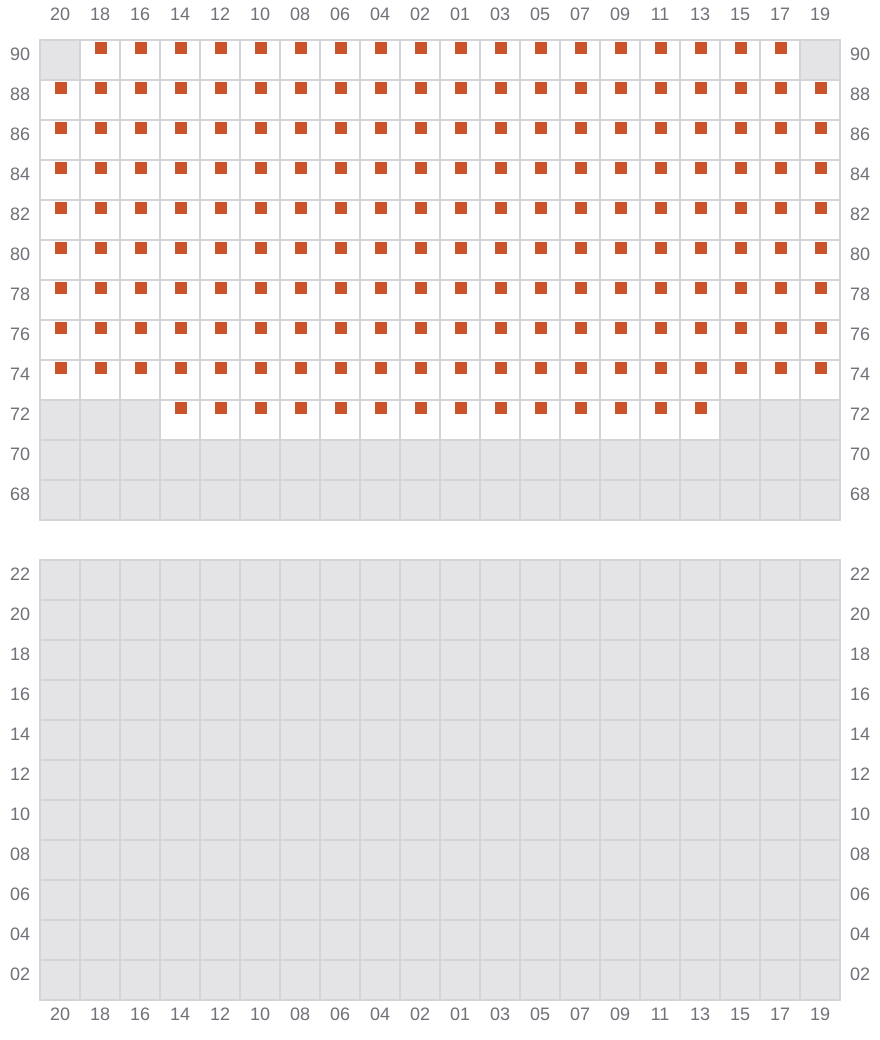

027
- ← /

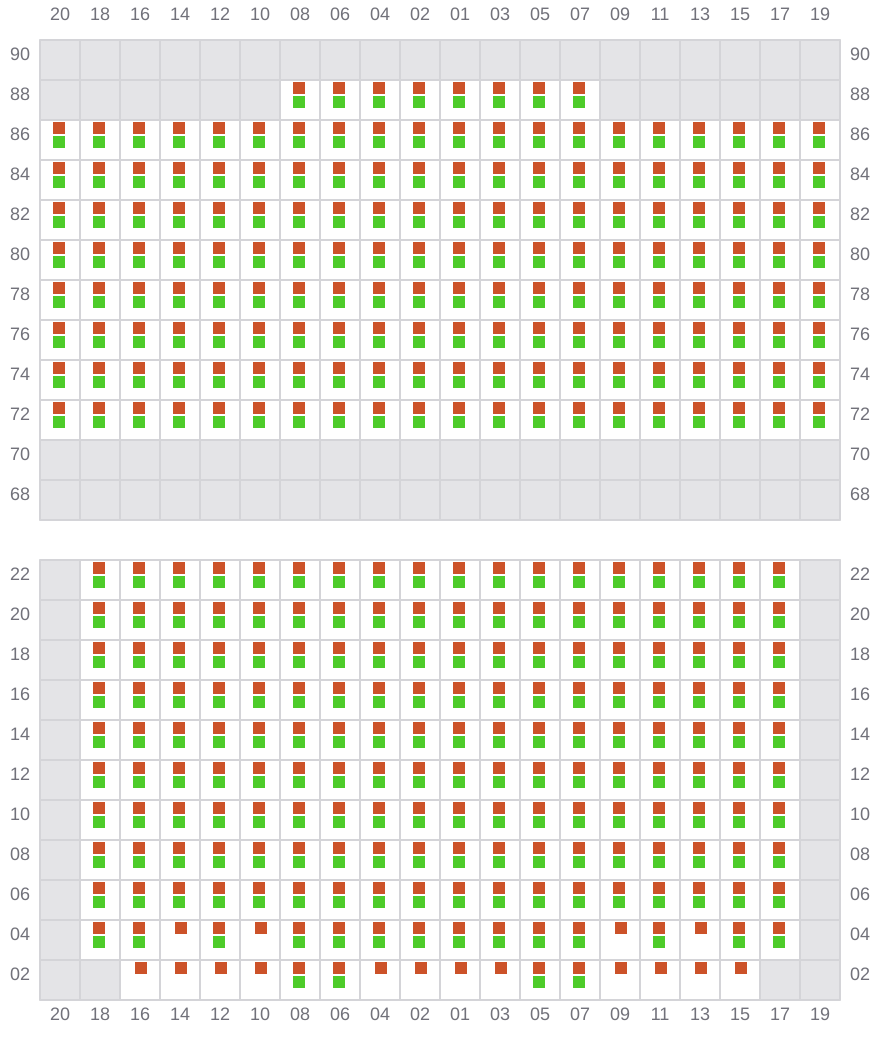

029 (030)
- →

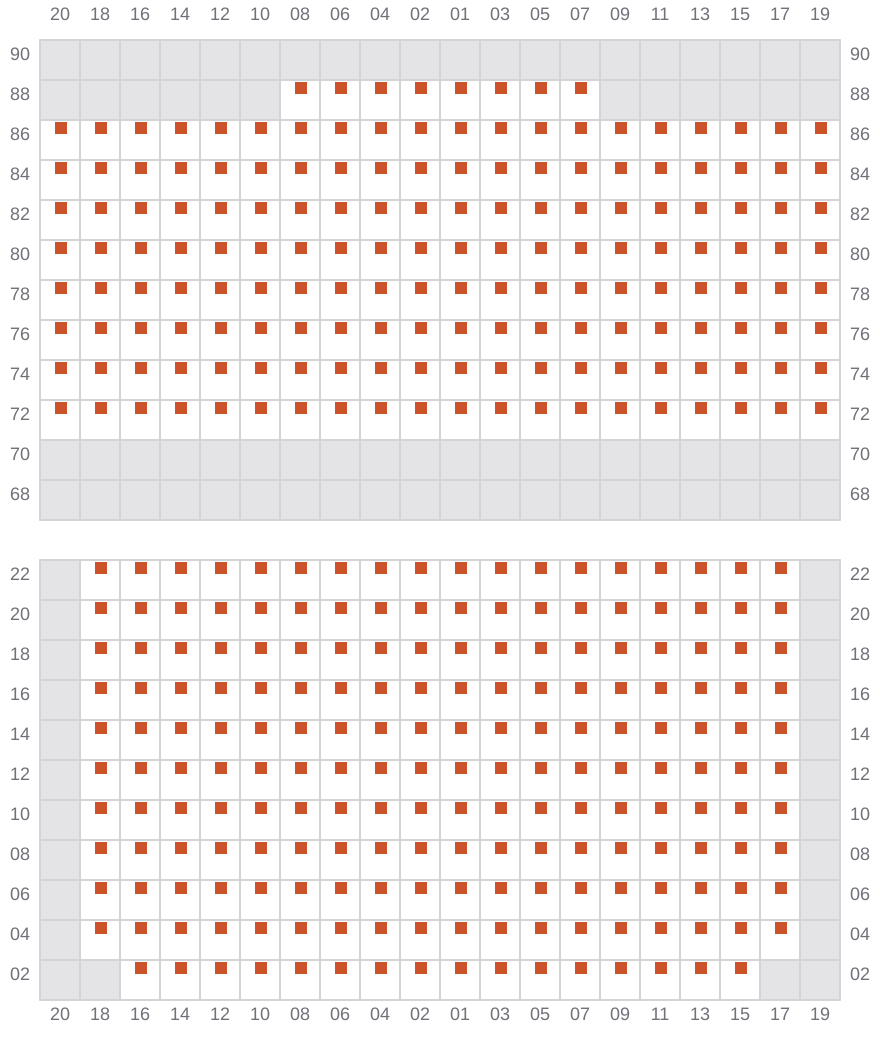

031
- ←

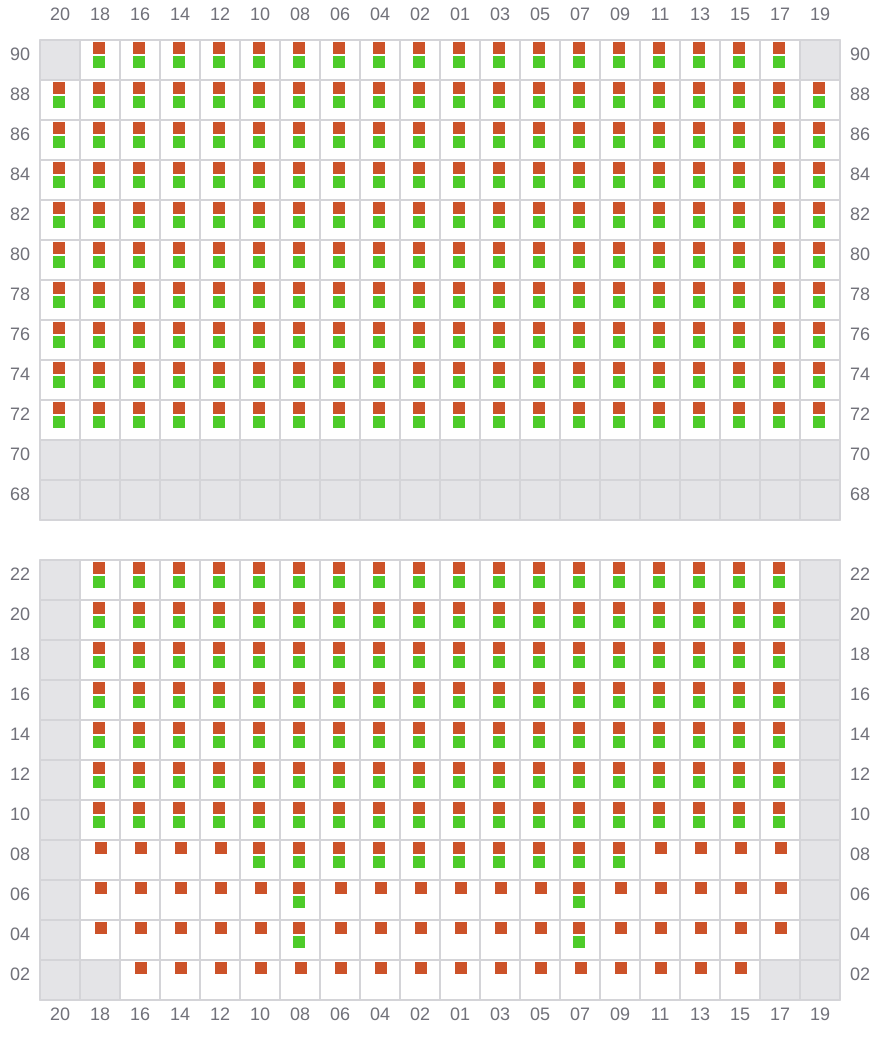

033 (034)
- →

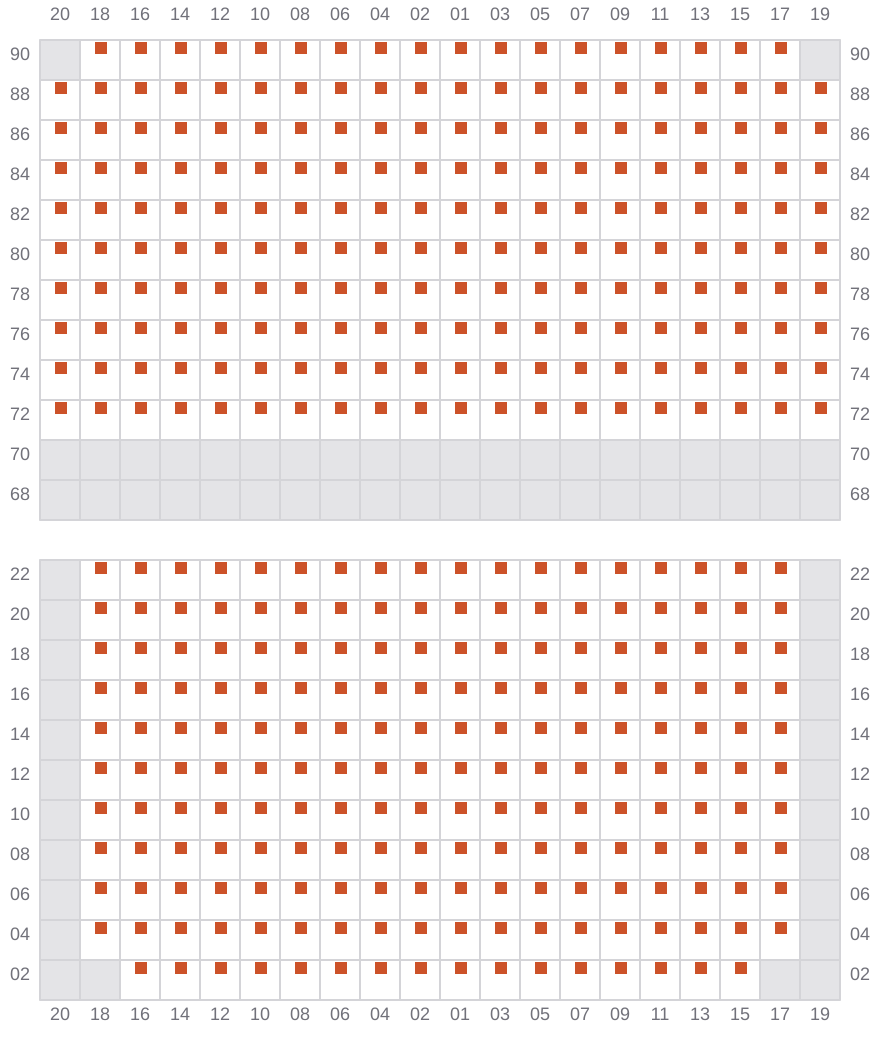

035
- ←

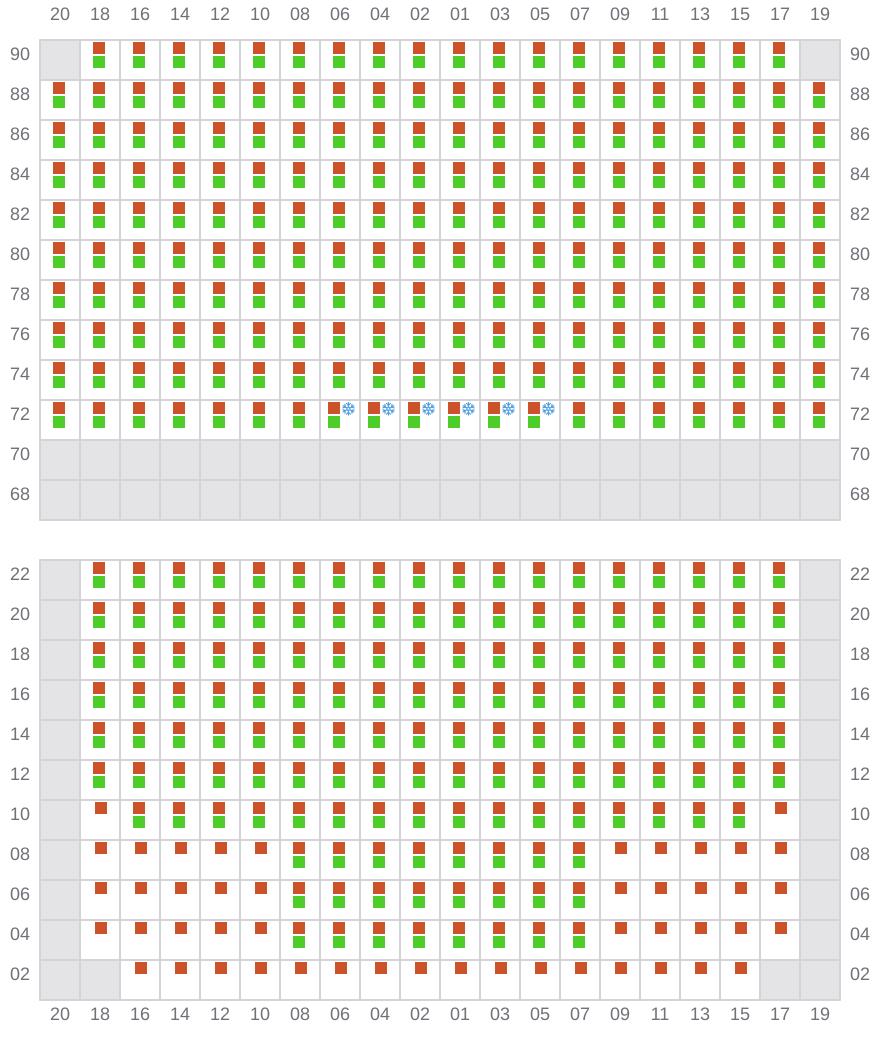

037 (038)
- →

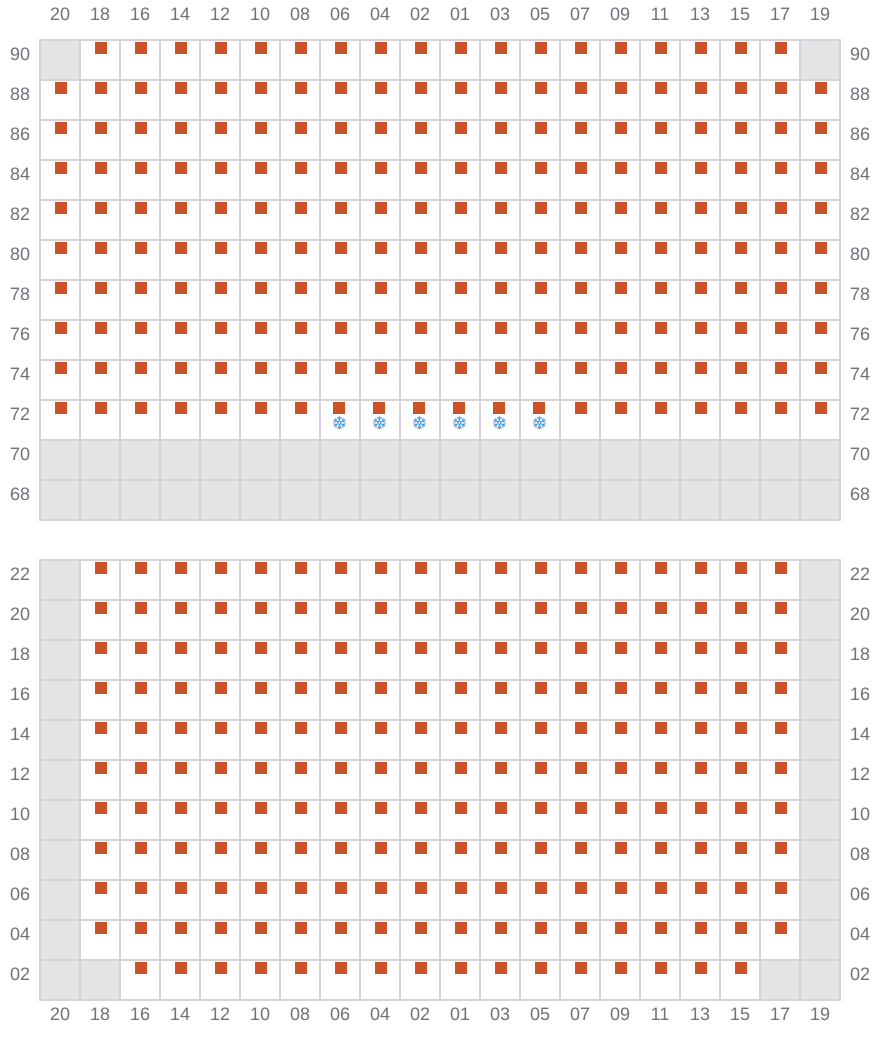

039
- ←

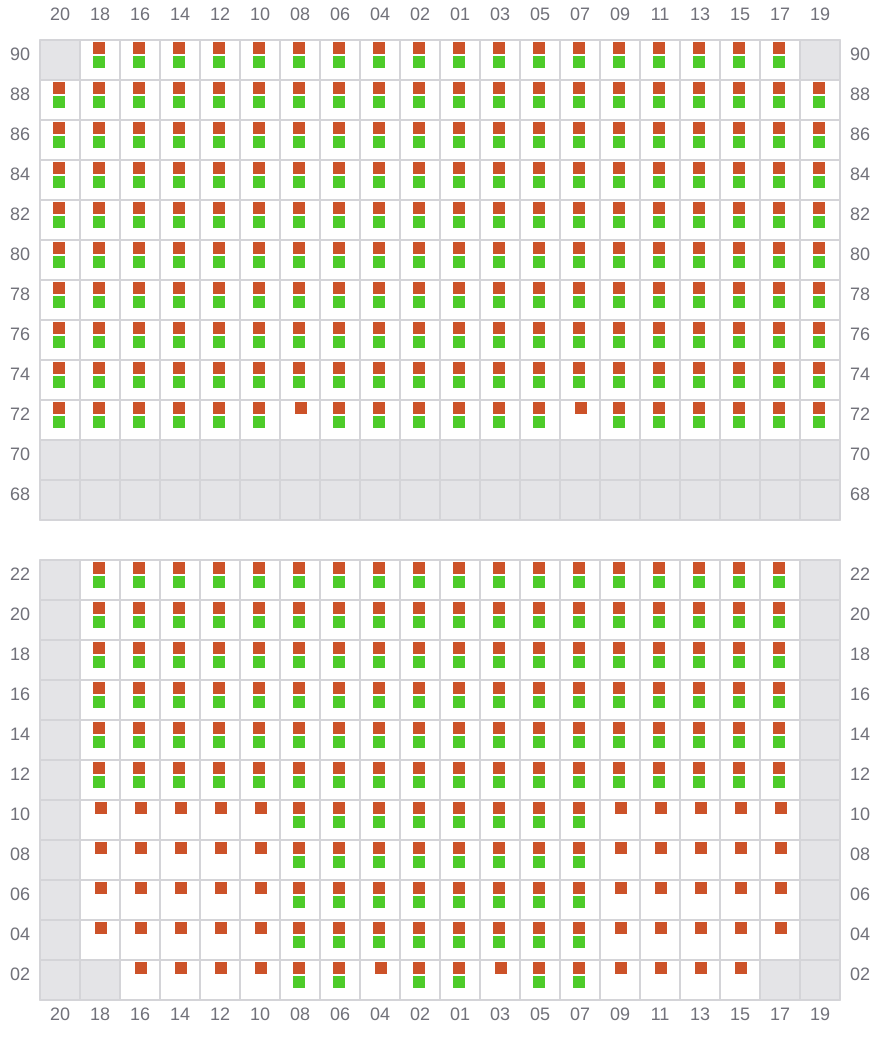

041 (042)
- →

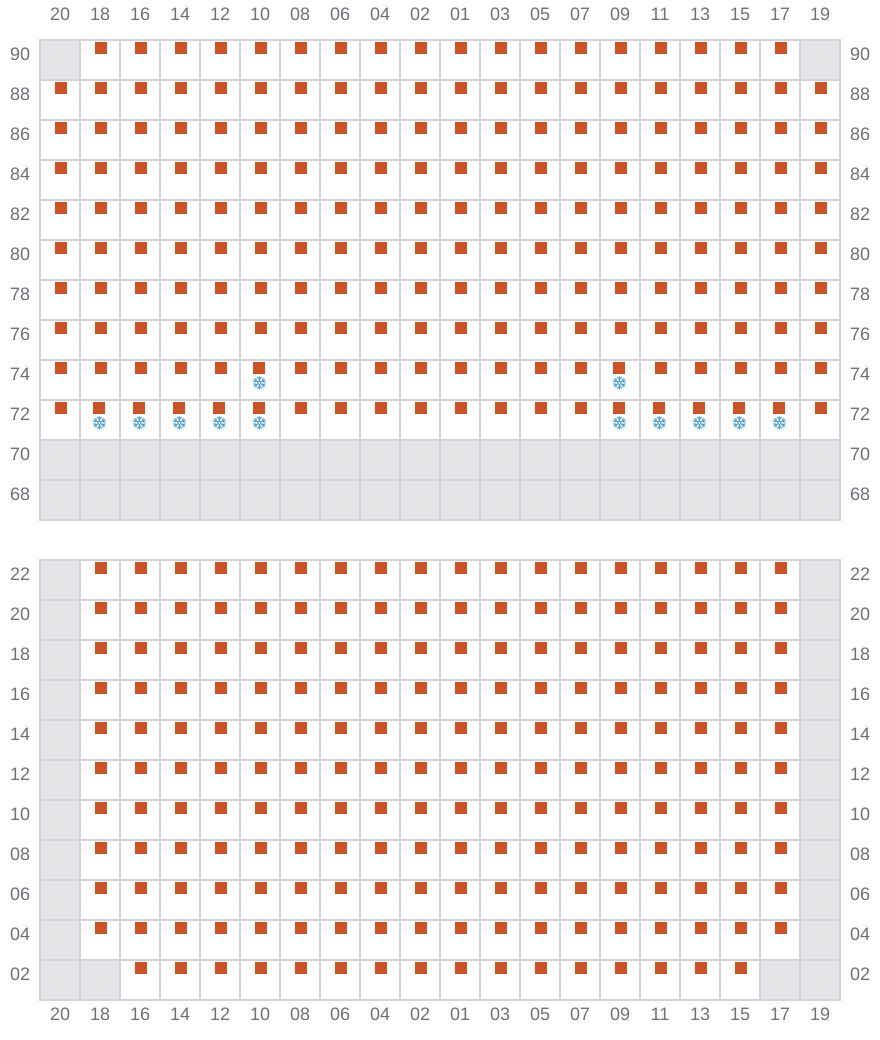

043
- ←

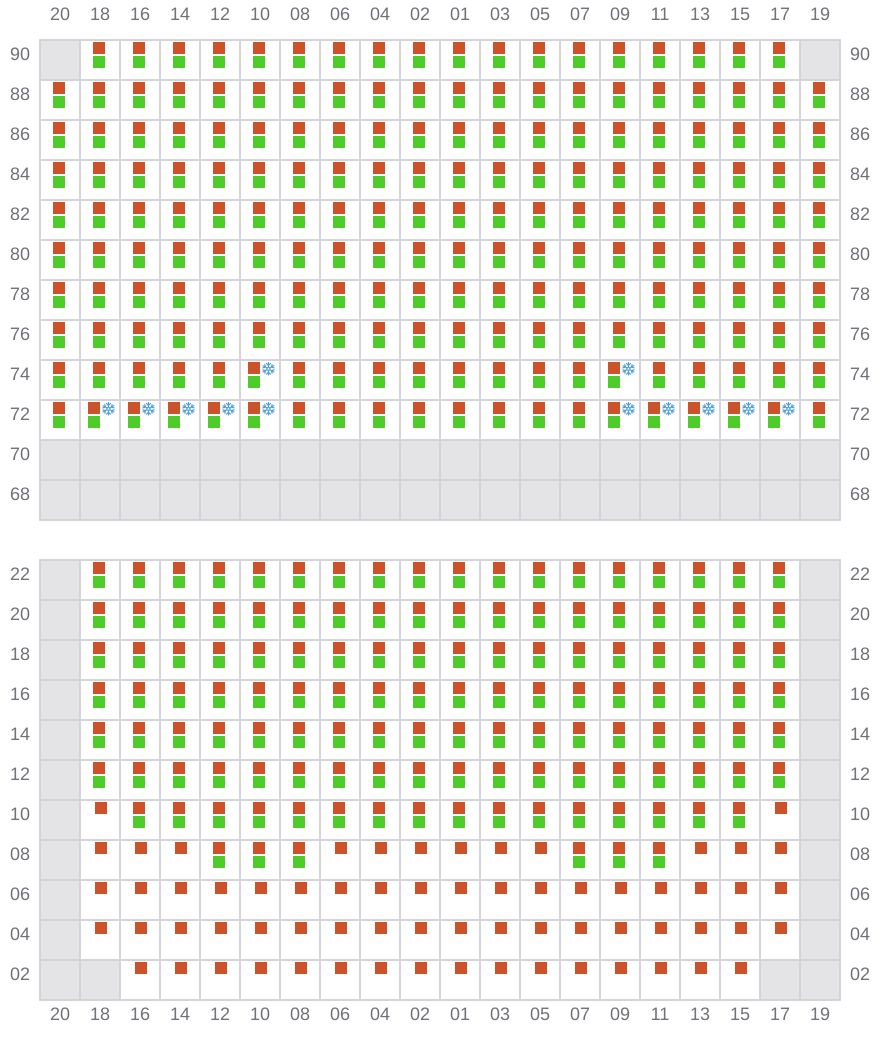

045 (046)
- →
047
- ←

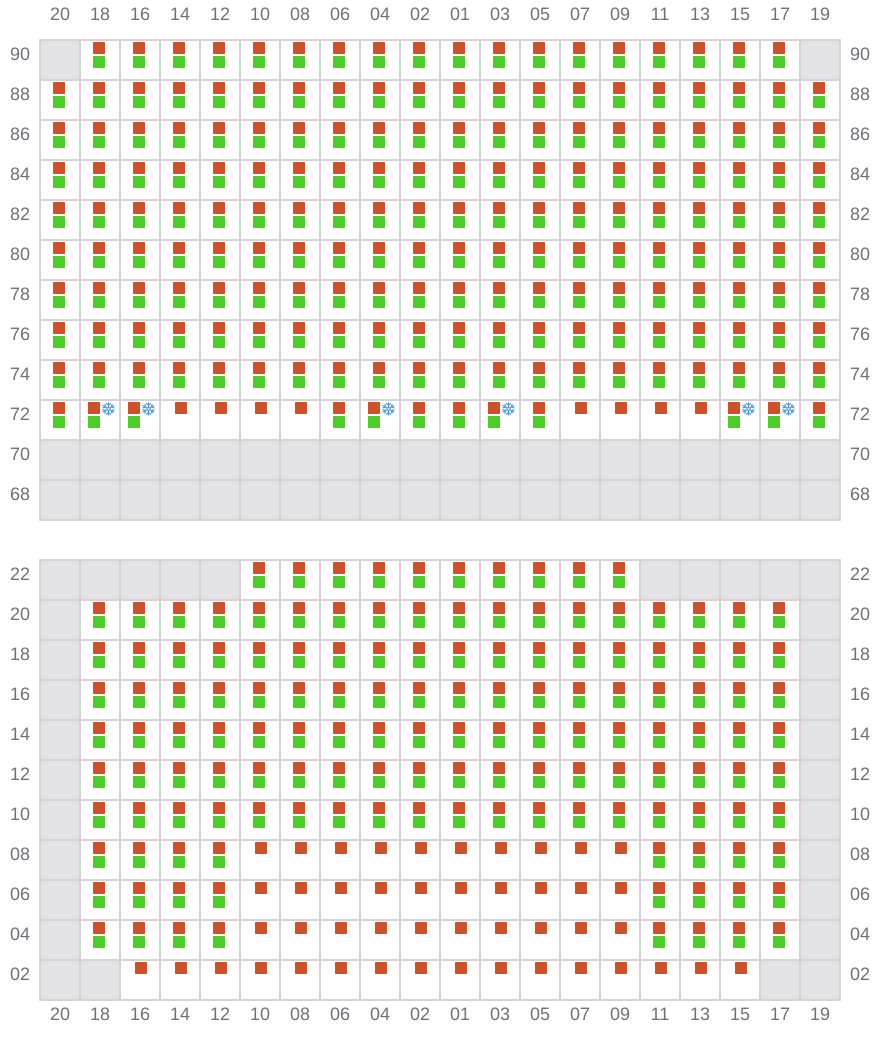

049 (050)
- →

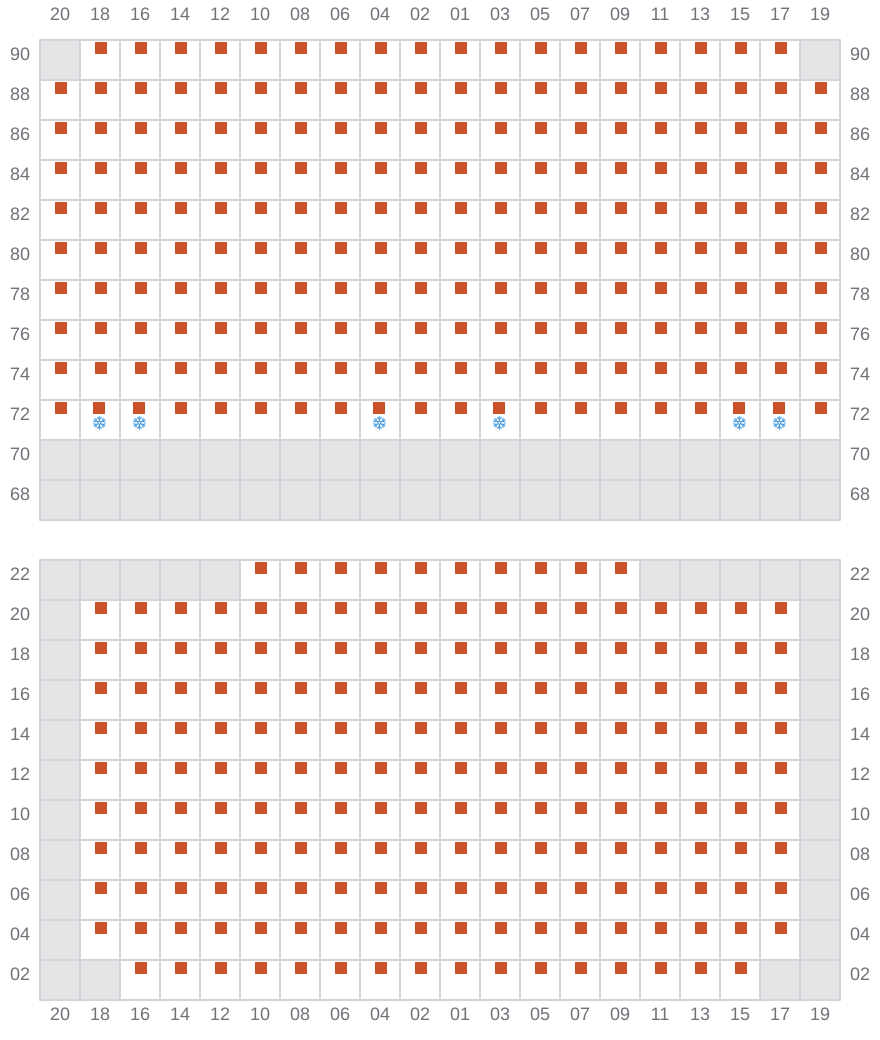

051
- ←

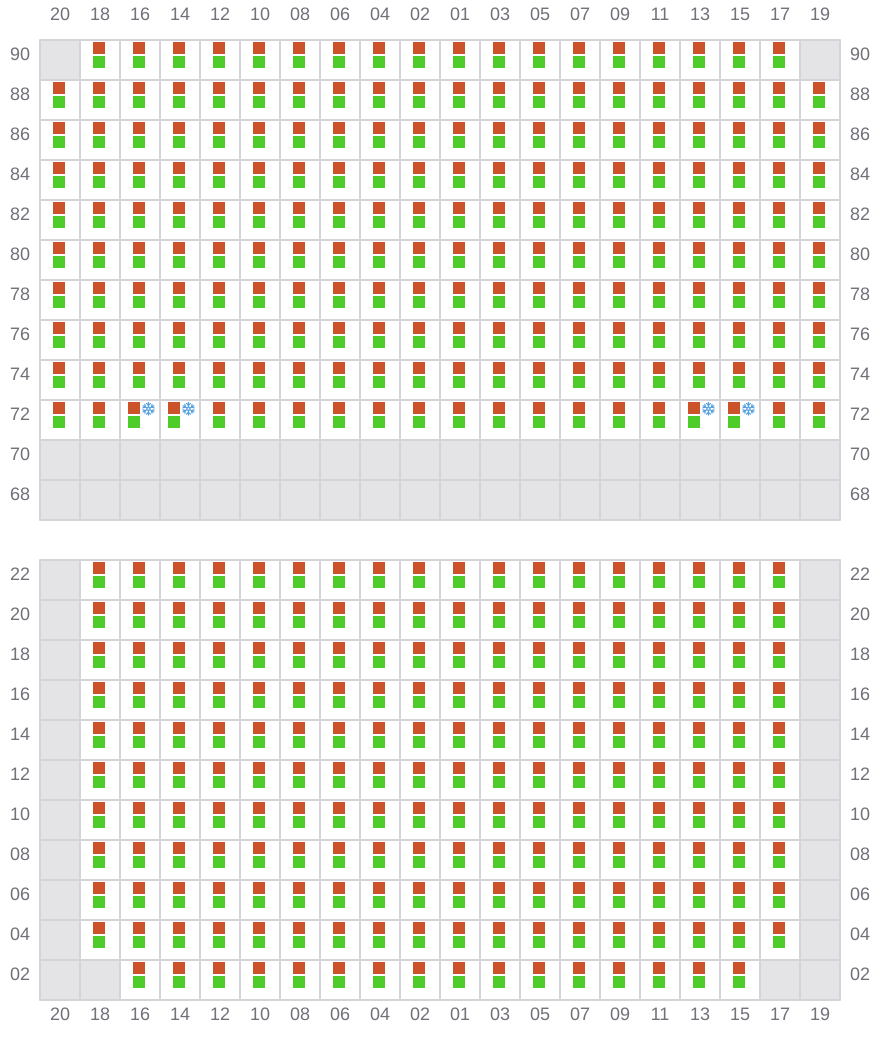

053 (054)
- →

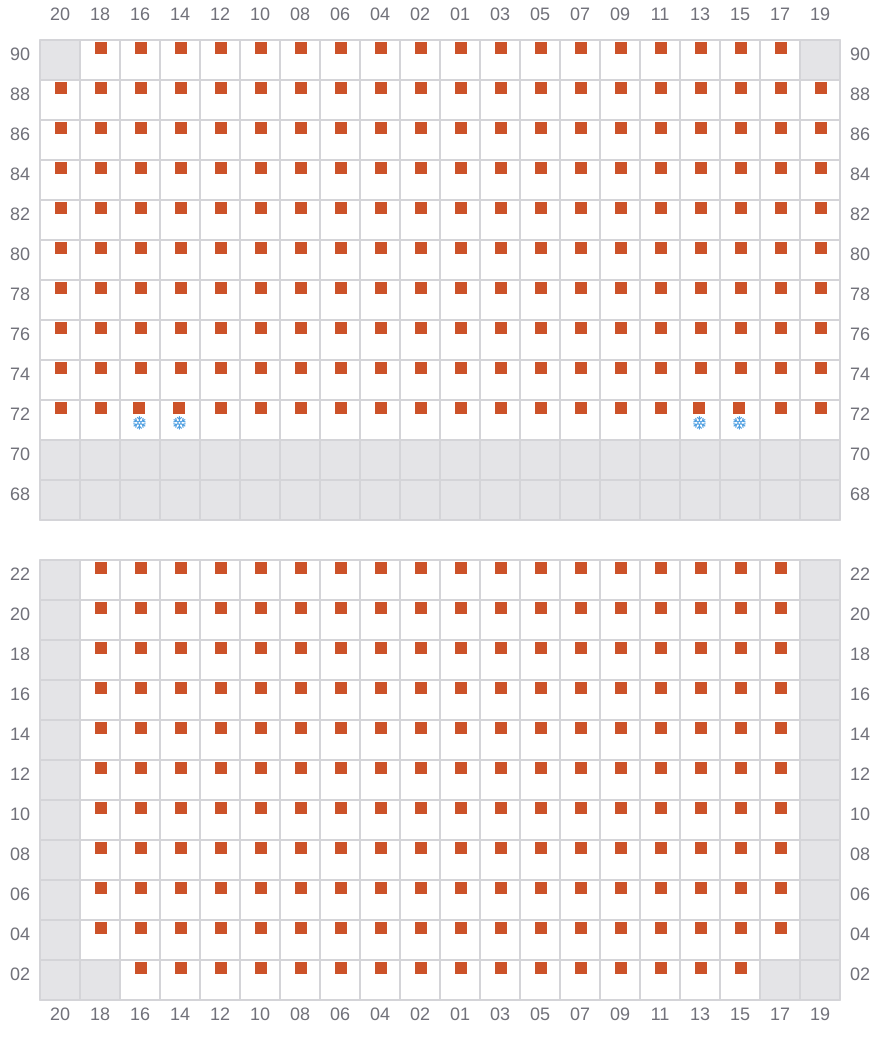

055
- ←
057 (058)
- →

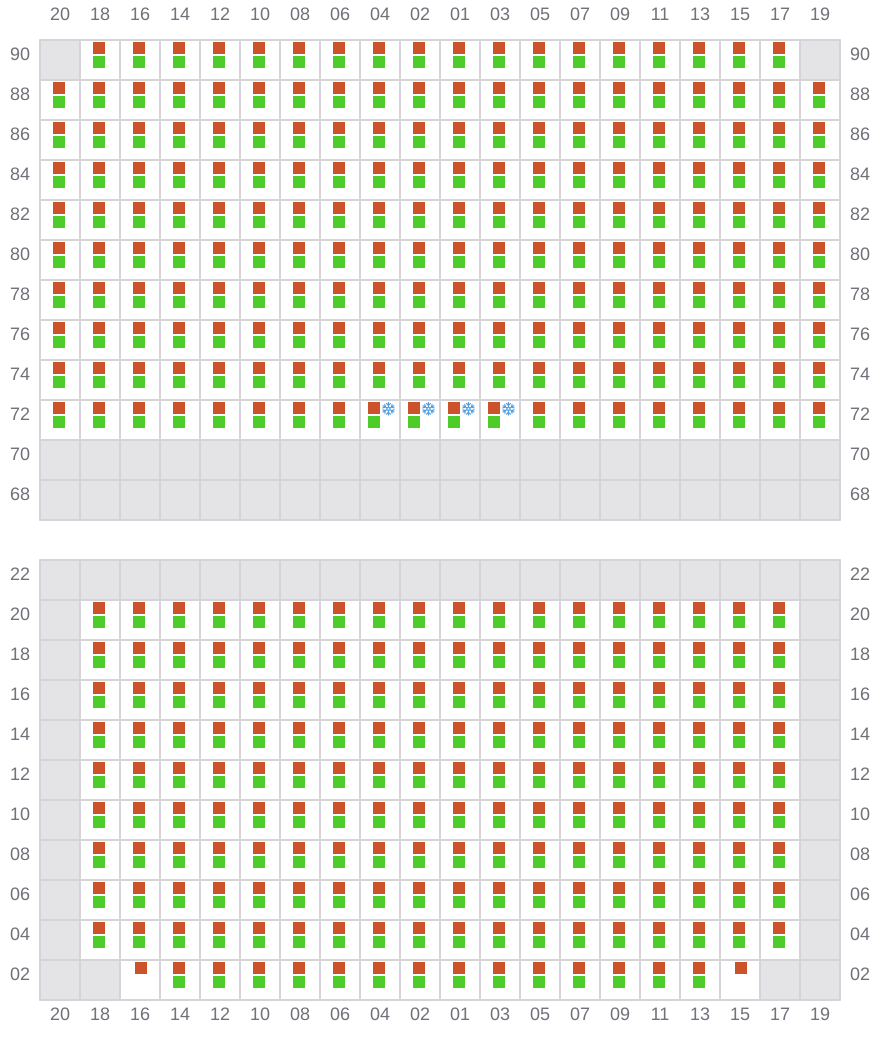

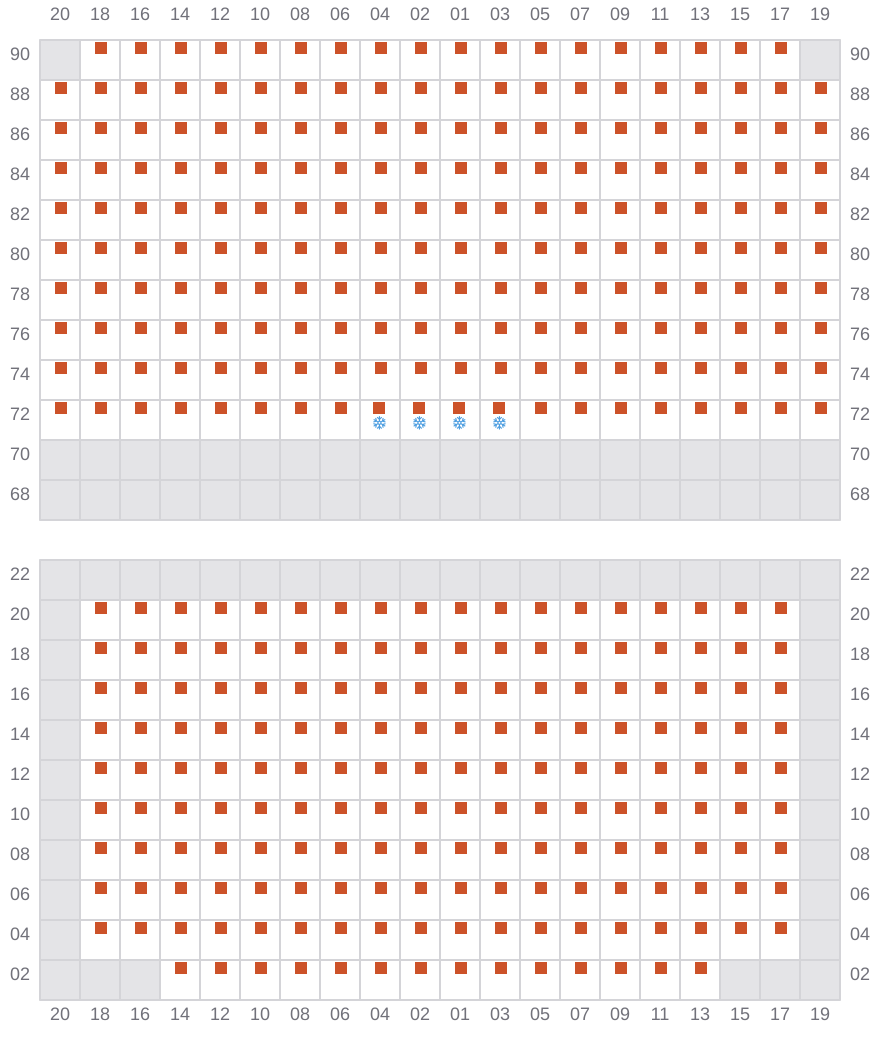

059
- ←

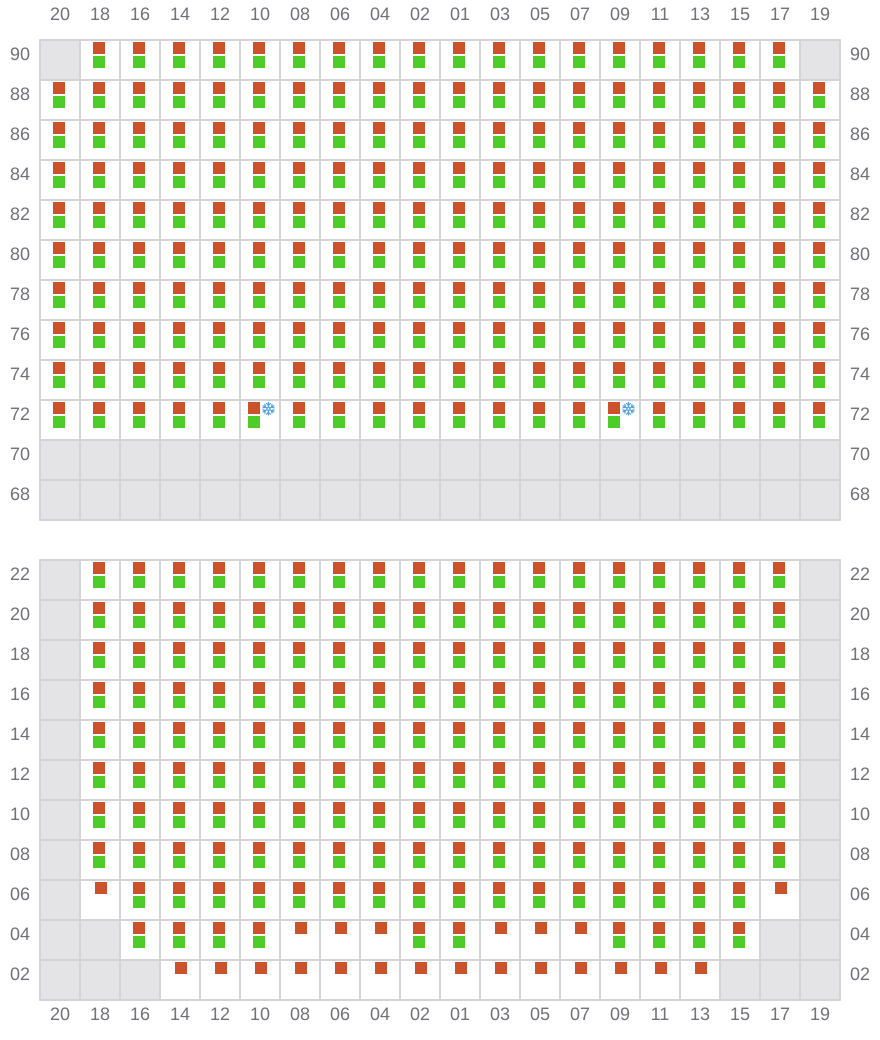

061 (062)
- →

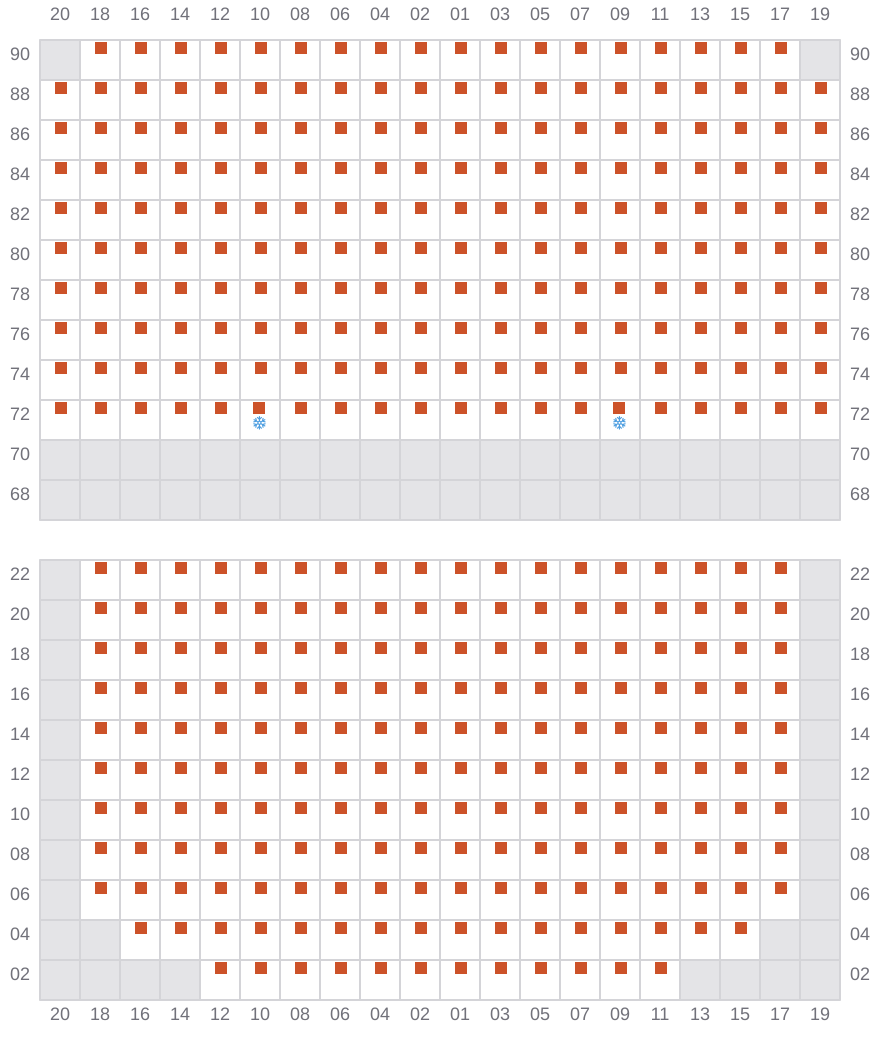

063
- ←

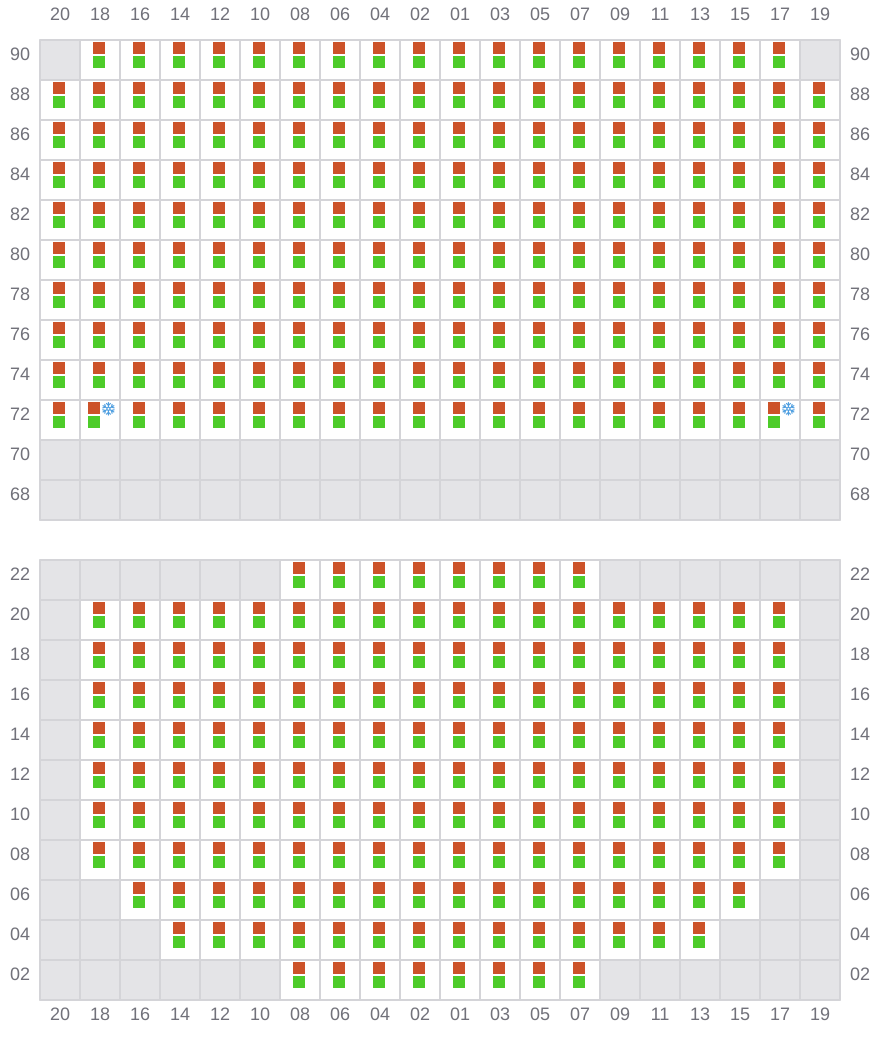

065 (066)
- →

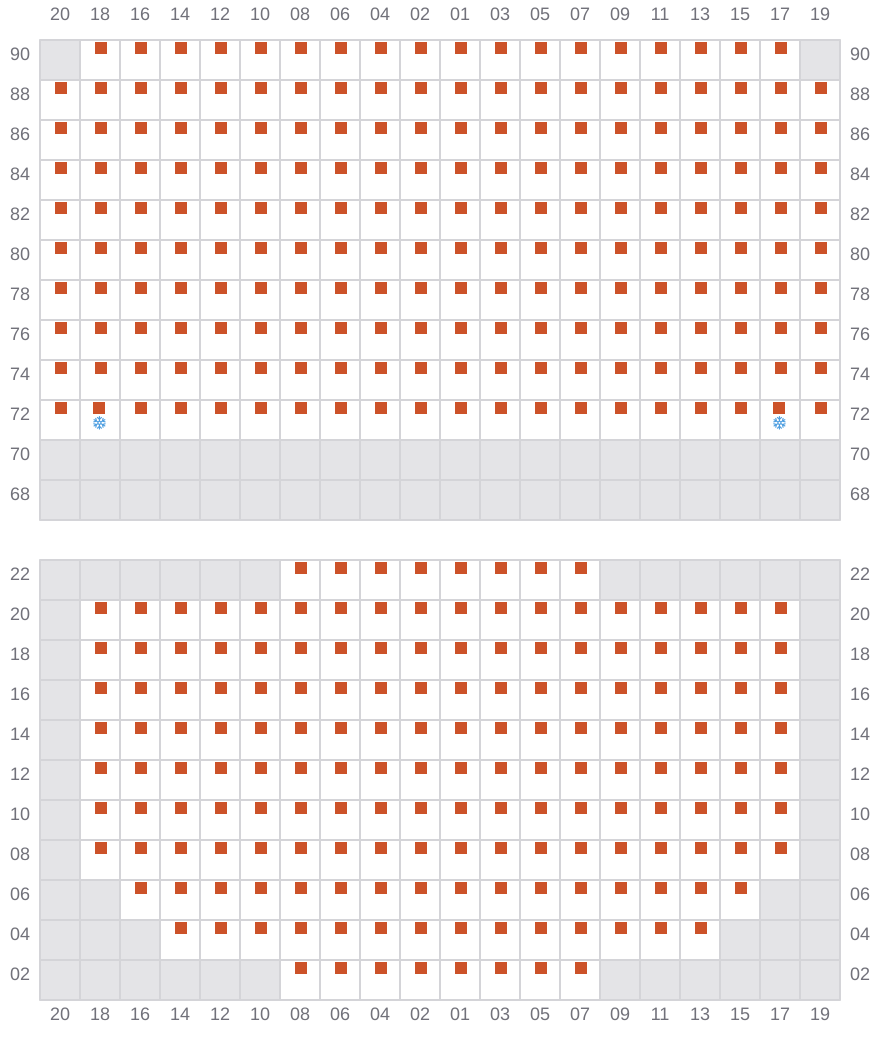

067
- ←

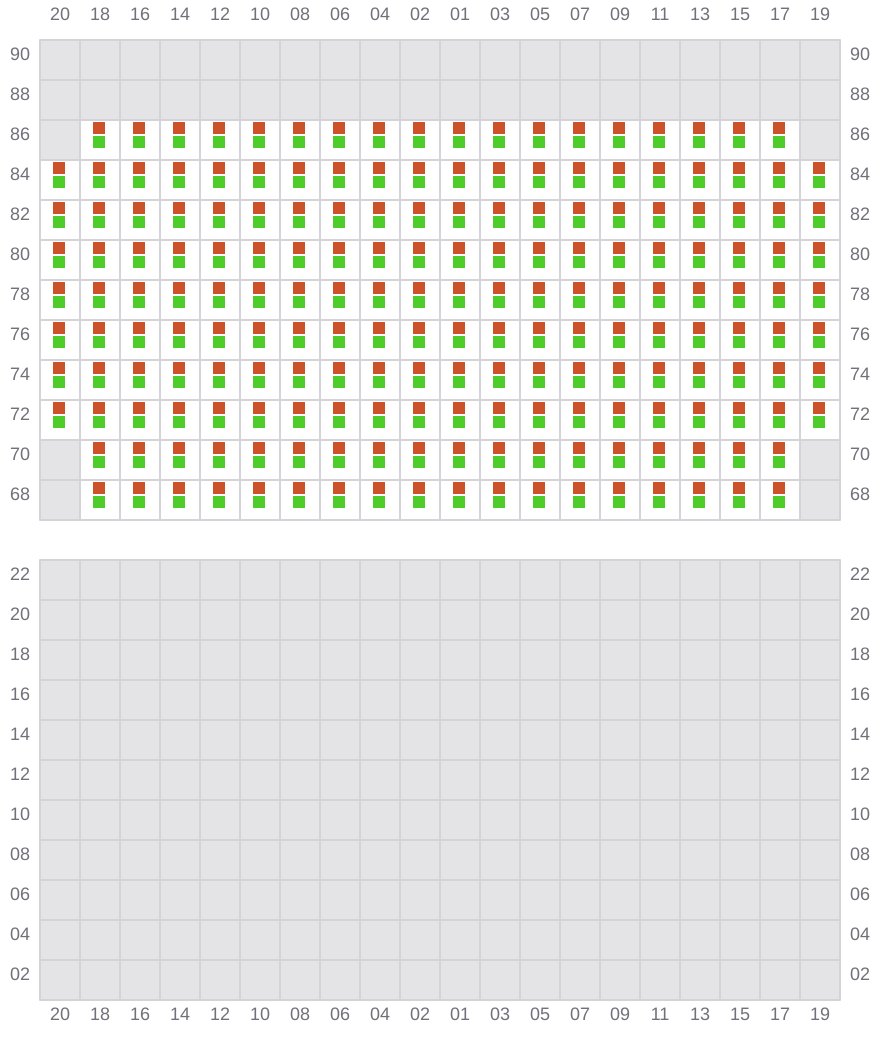

069 (070)
- → /

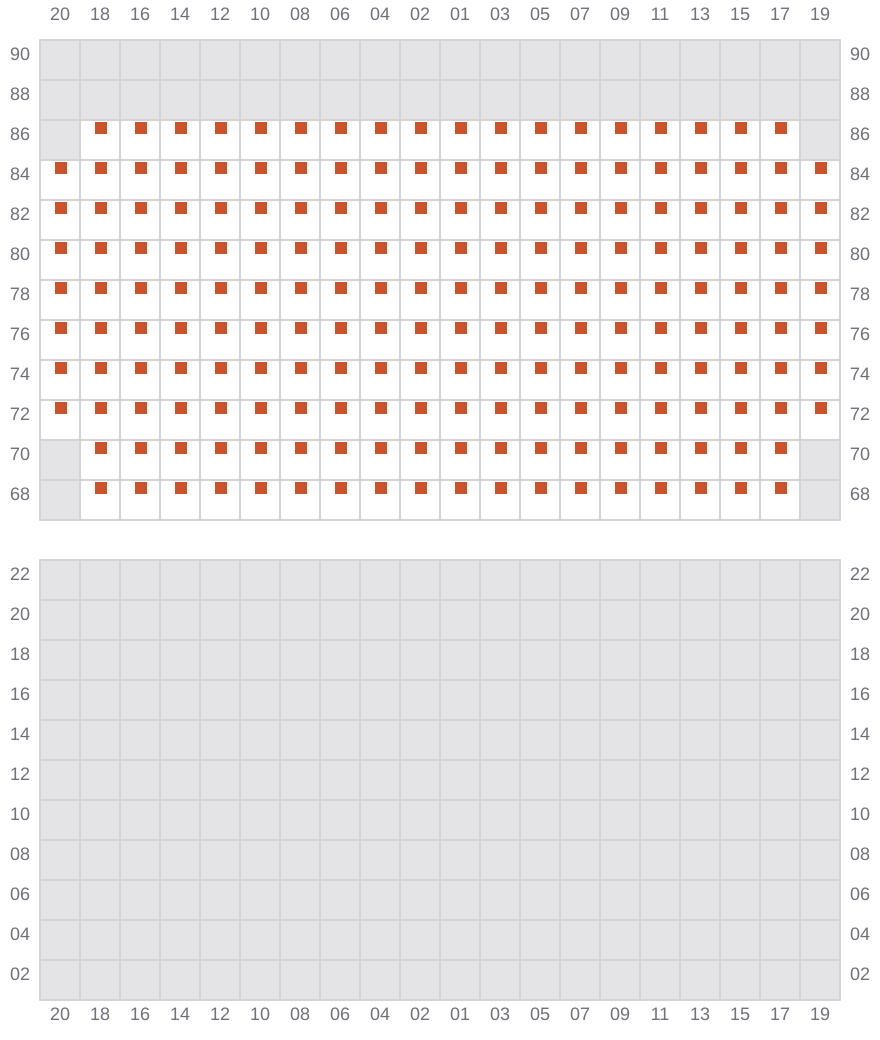

071
- ← /
073 (074)
- →

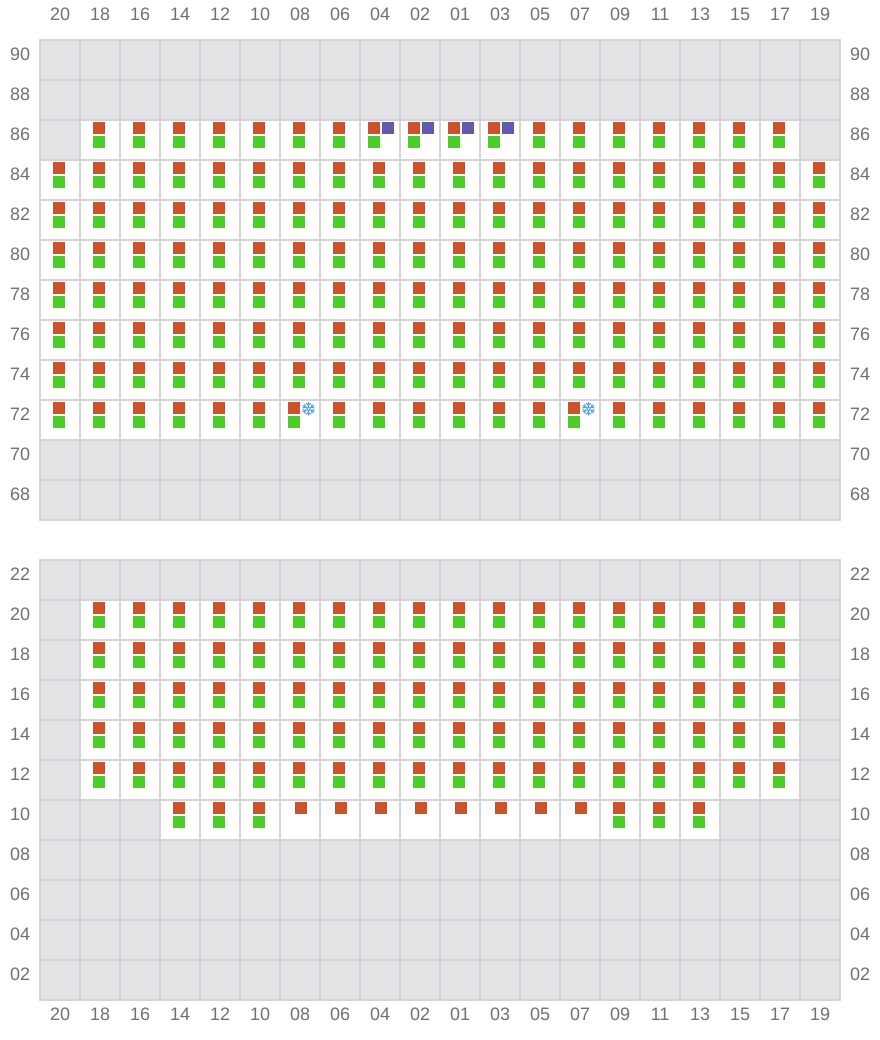

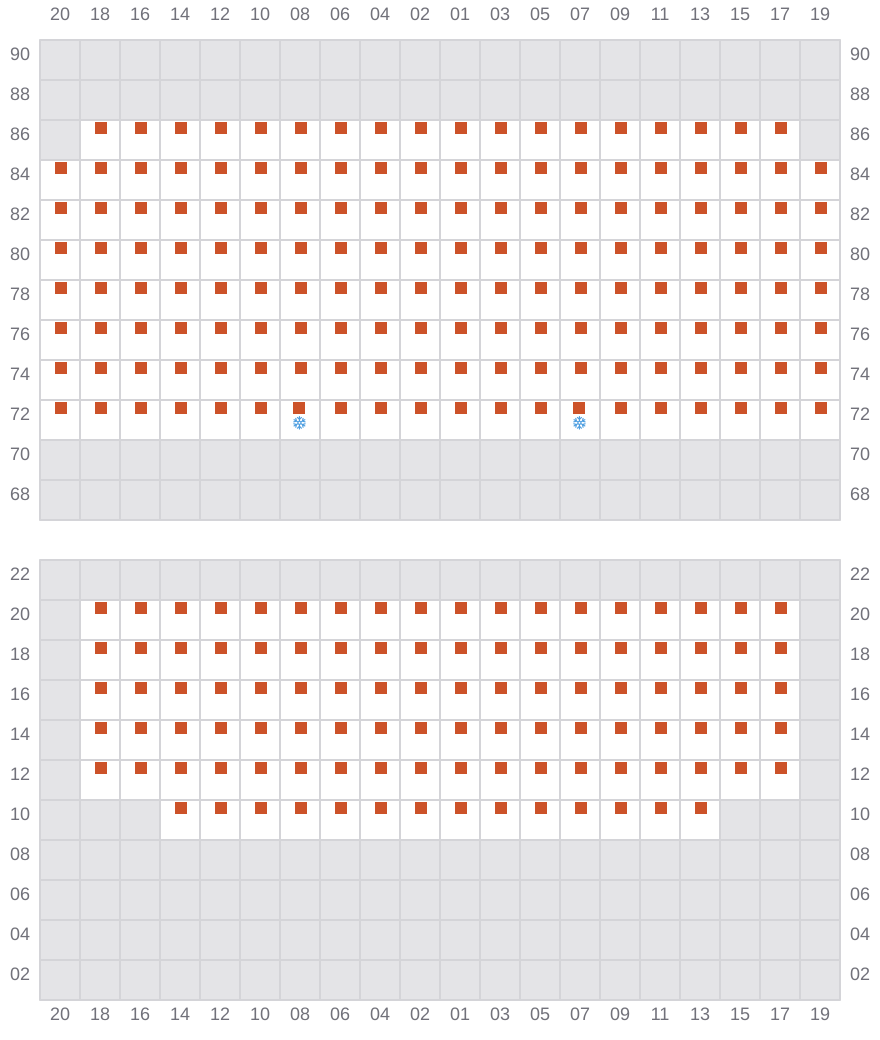

075
- ←

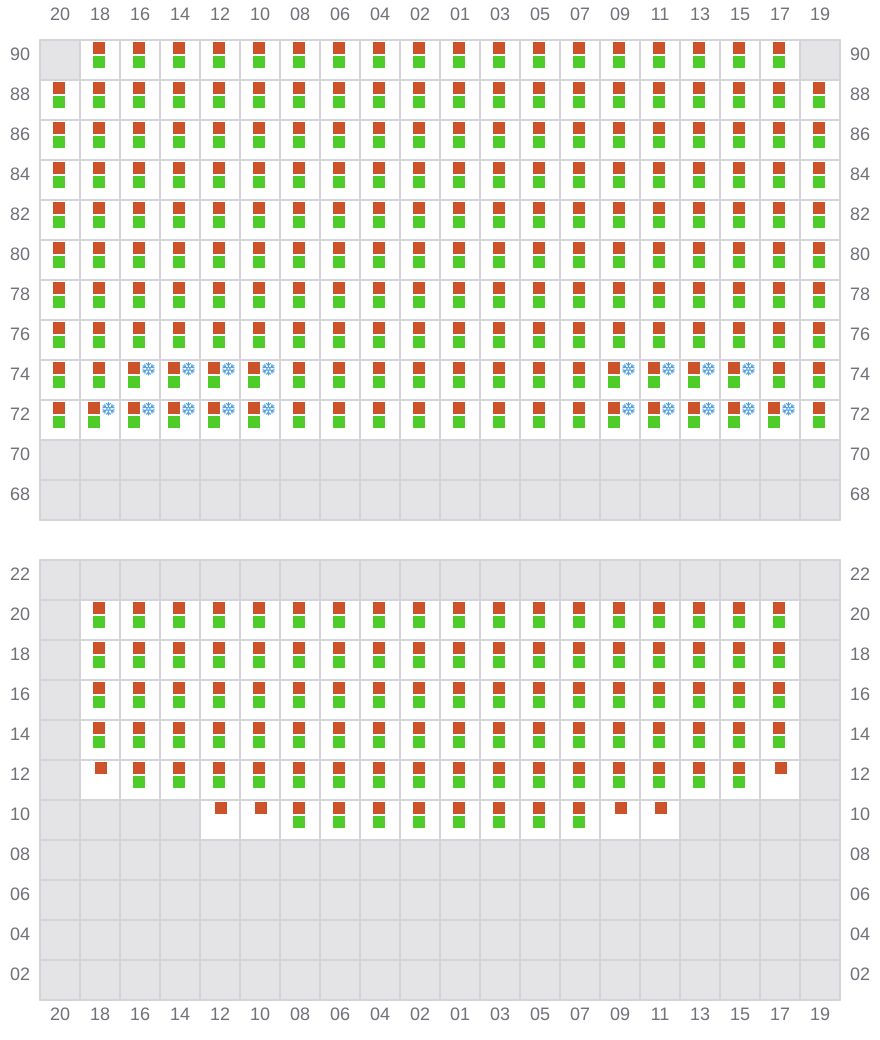

077 (078)
- →

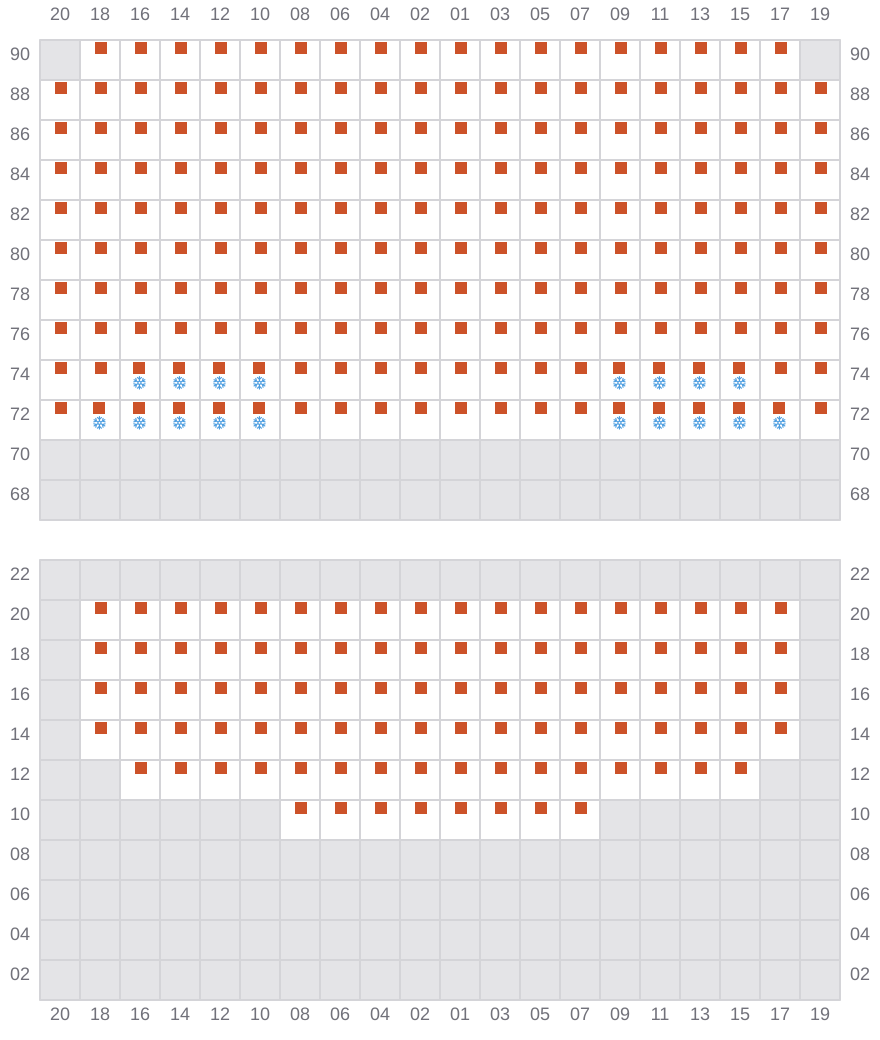

079
- ←

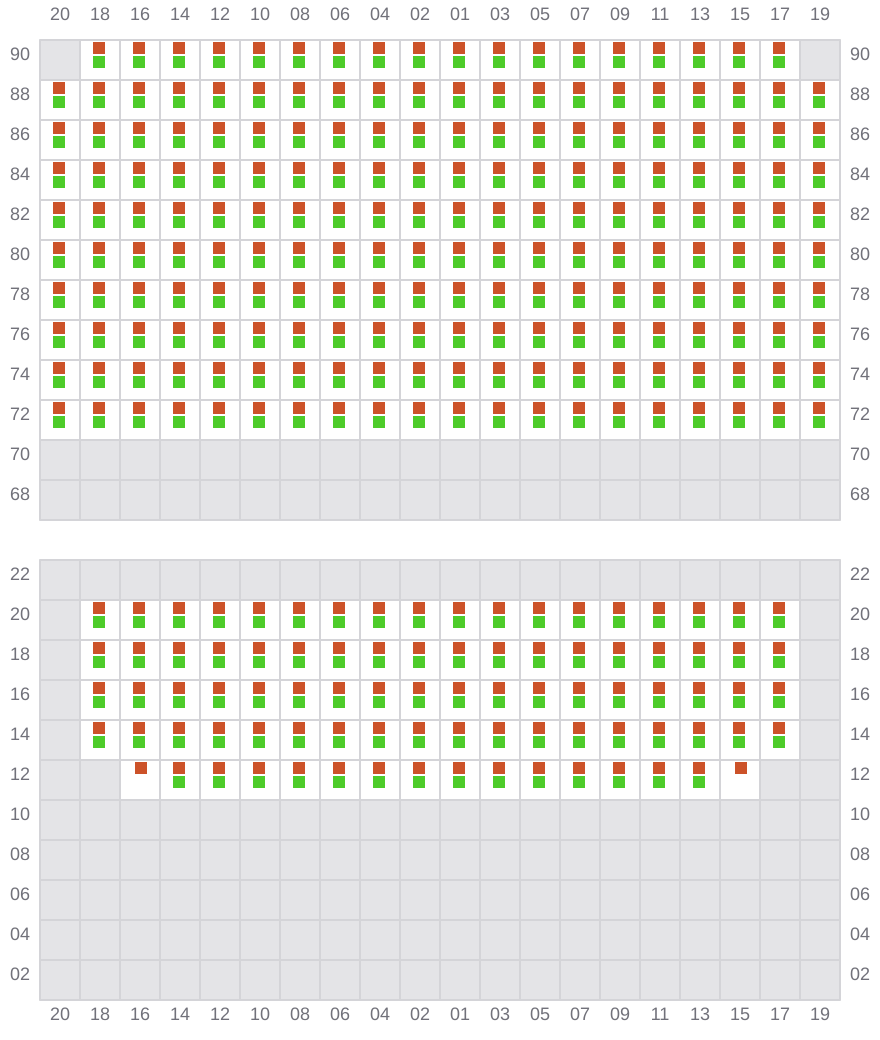

081 (082)
- →

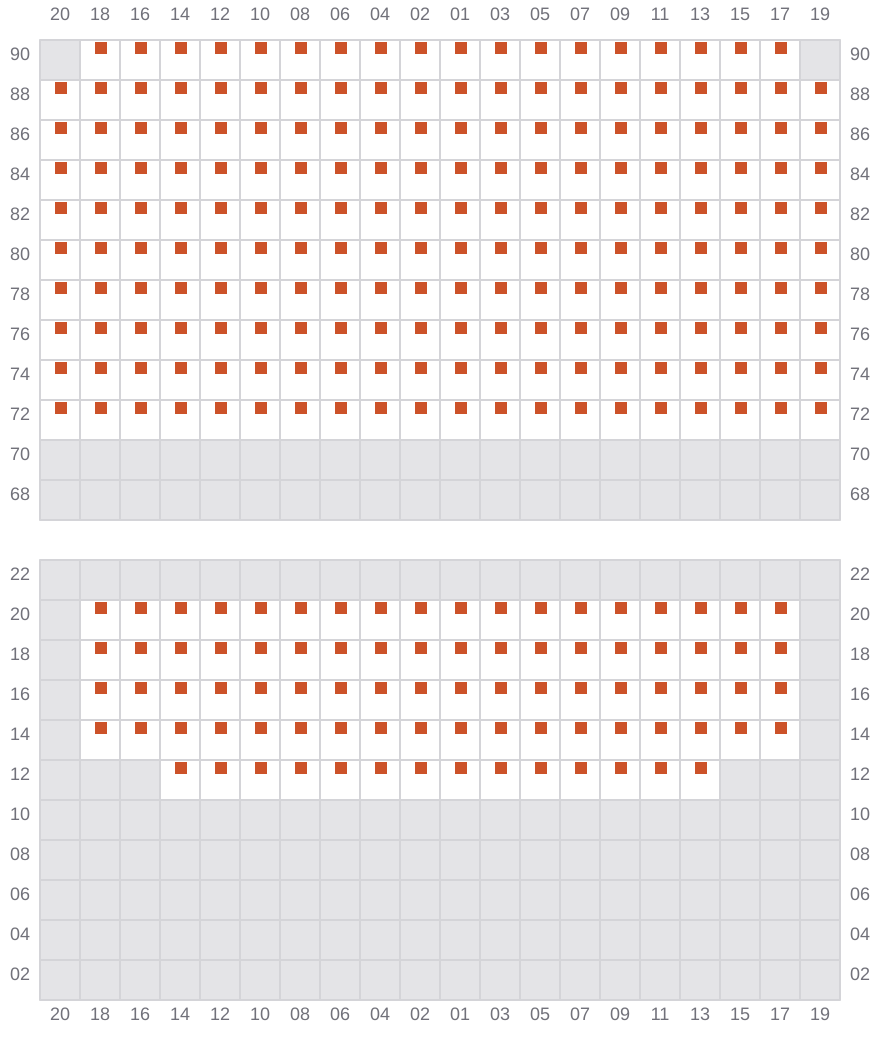

083
- ←

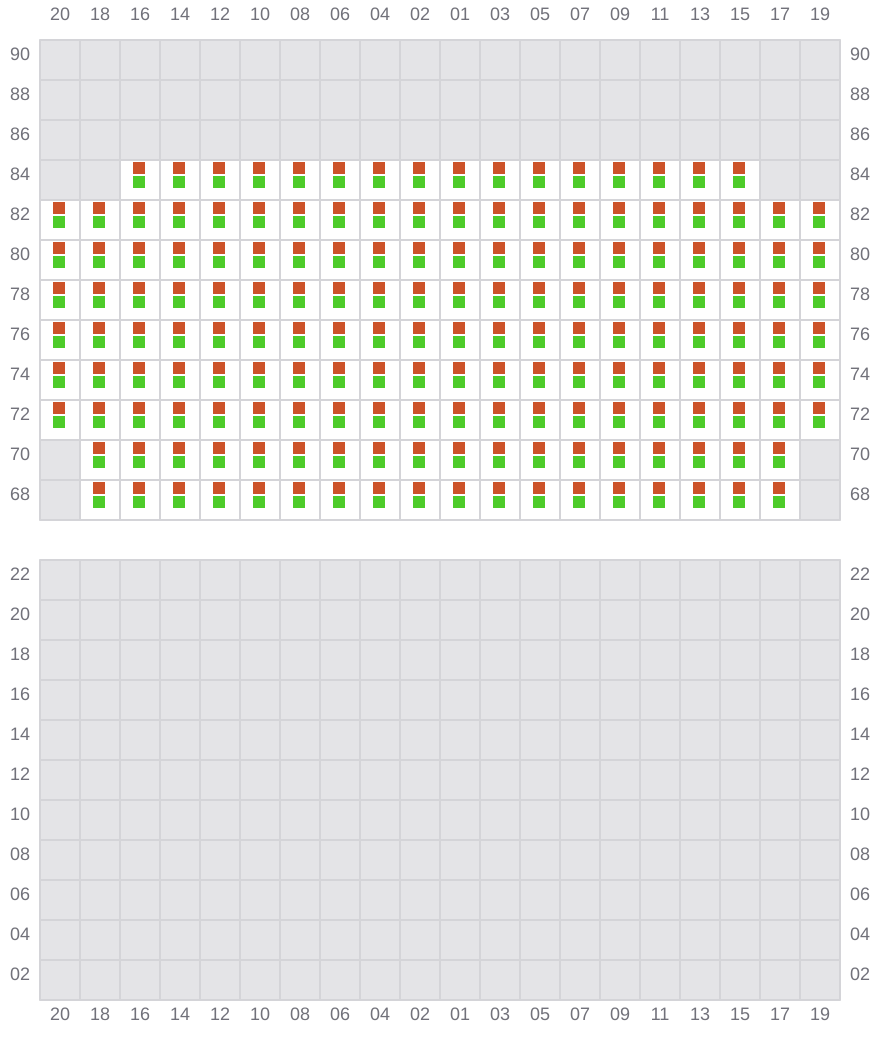

085 (086)
- → /

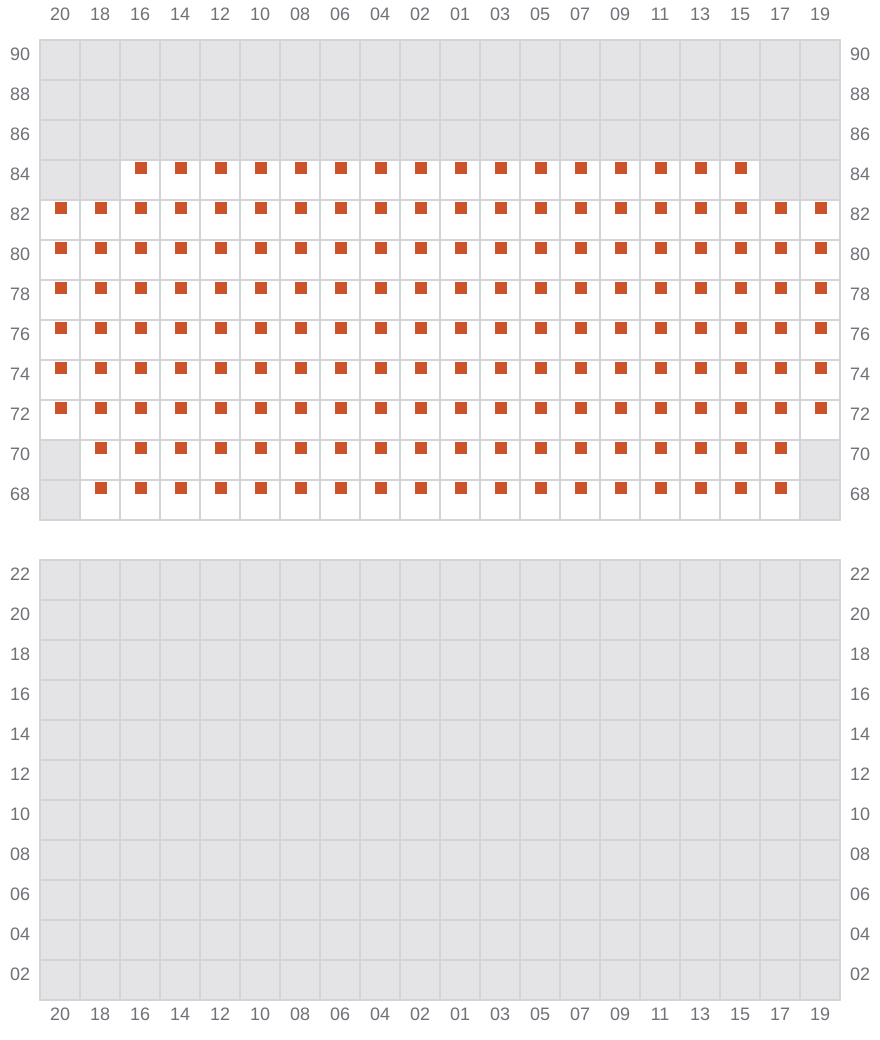

087
- ← /
