MSC ANCHORAGE
9619440 | D5CC9 | 9619440 by ********* Last update: Thu Mar 28 2024
General Info
Ship Name:MSC ANCHORAGE
IMO Code:9619440
Call Sign:D5CC9
Line Operator:9619440
Class Name for Sister Ships:78Z
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,886
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

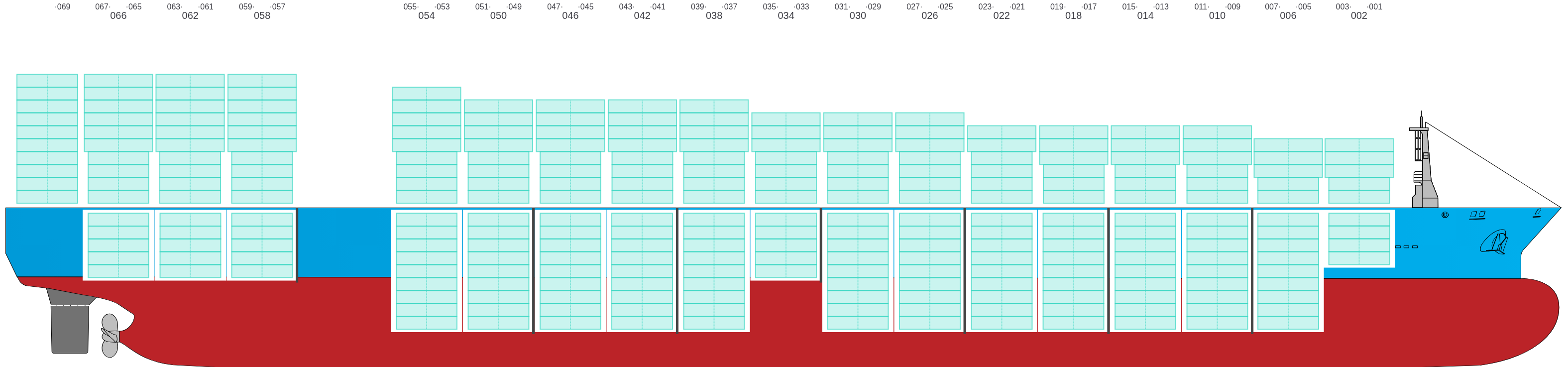

Side View

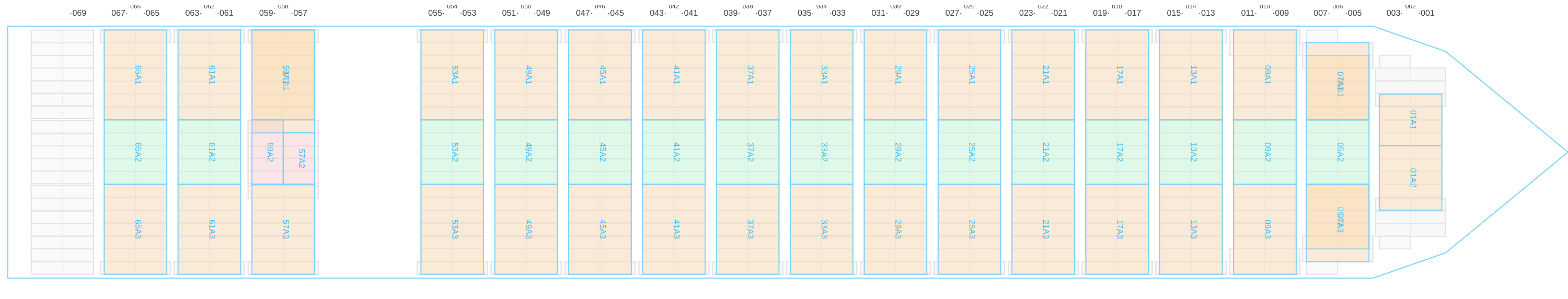

Hatch-Covers View

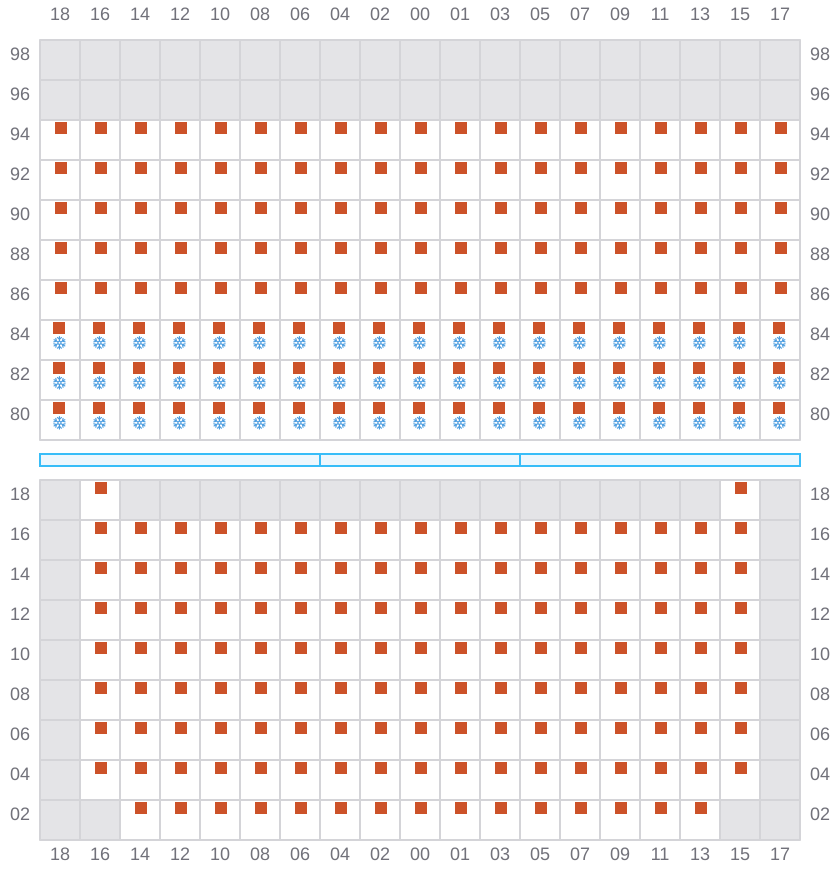

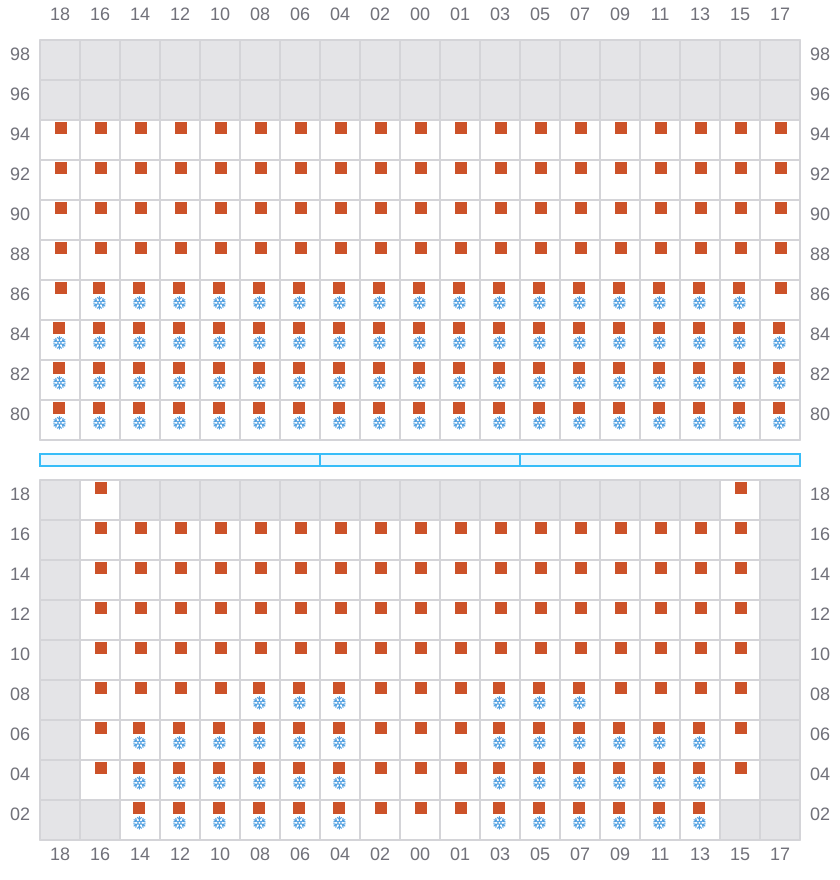

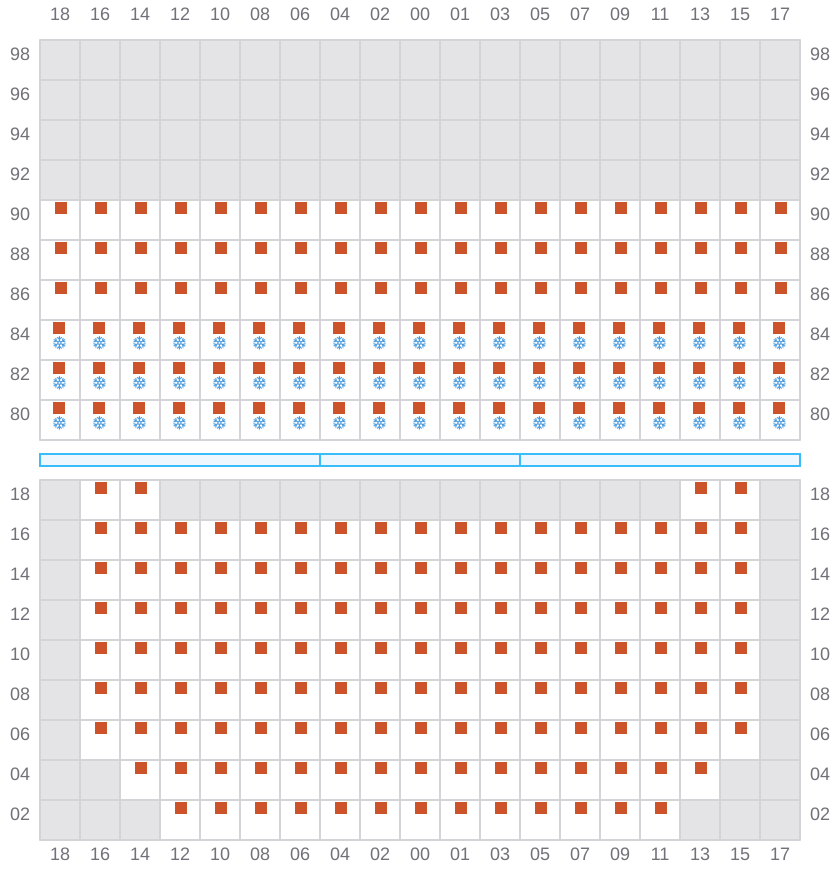

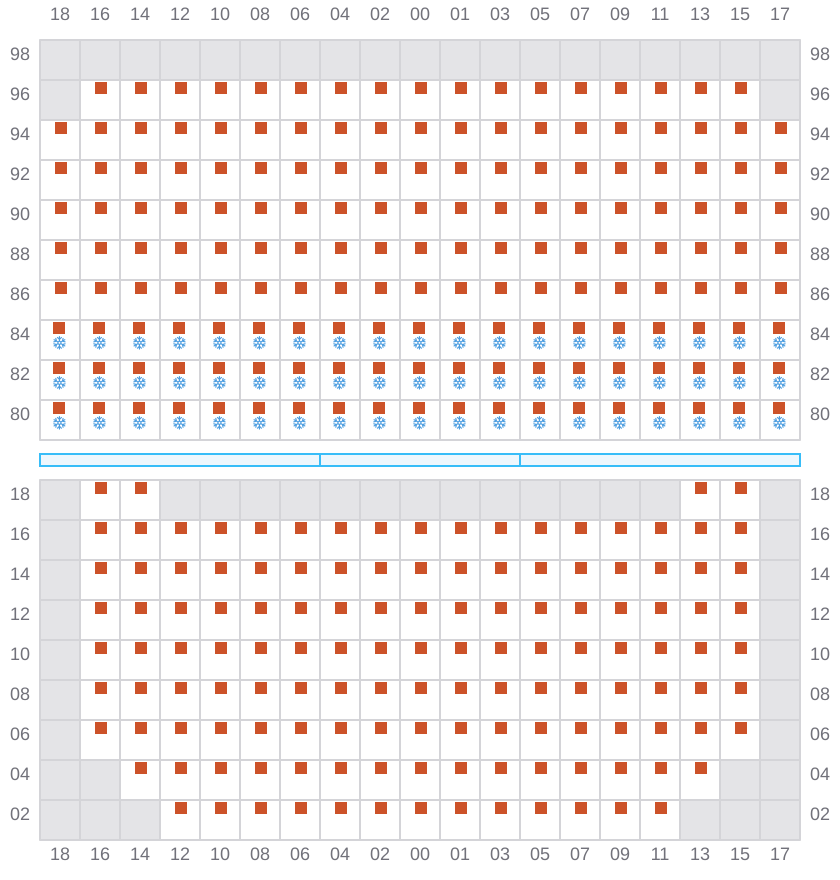

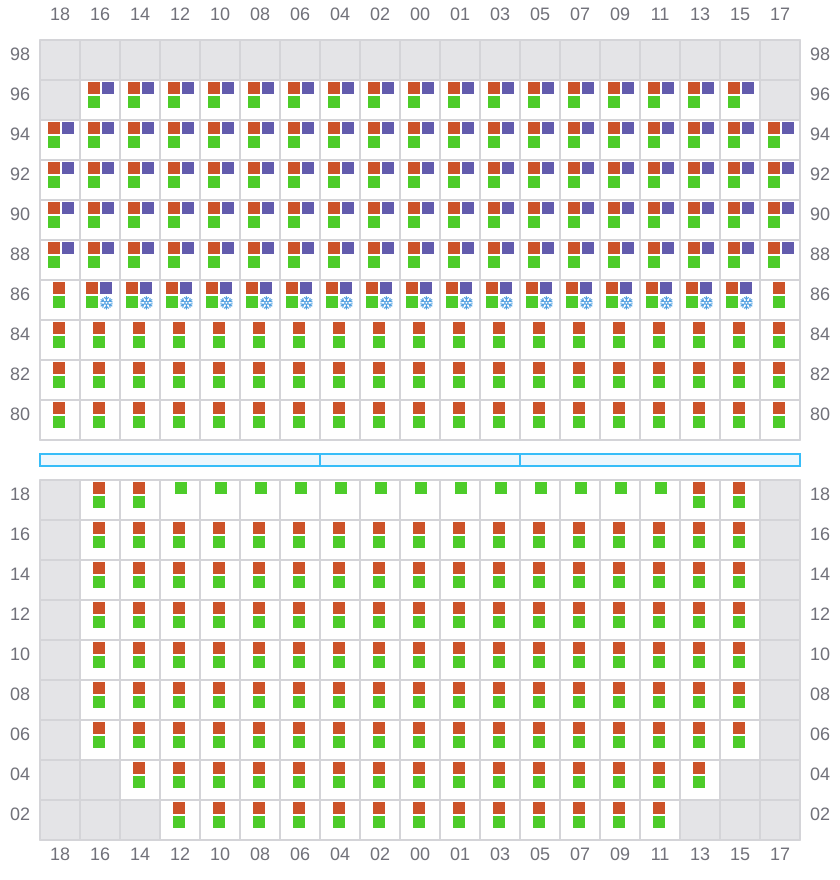

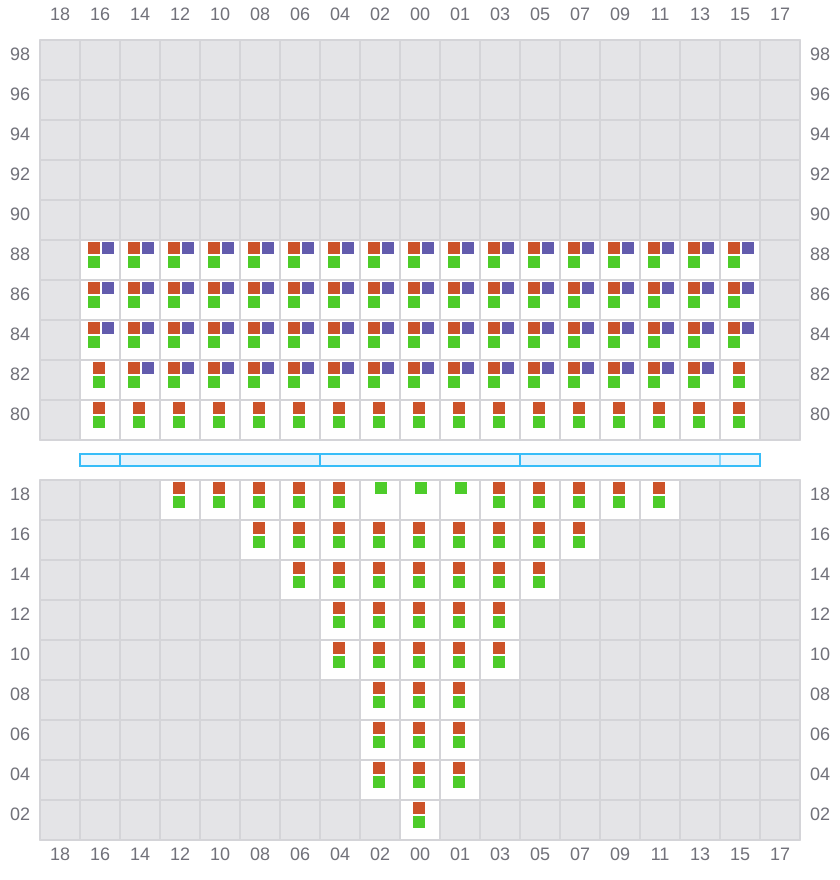

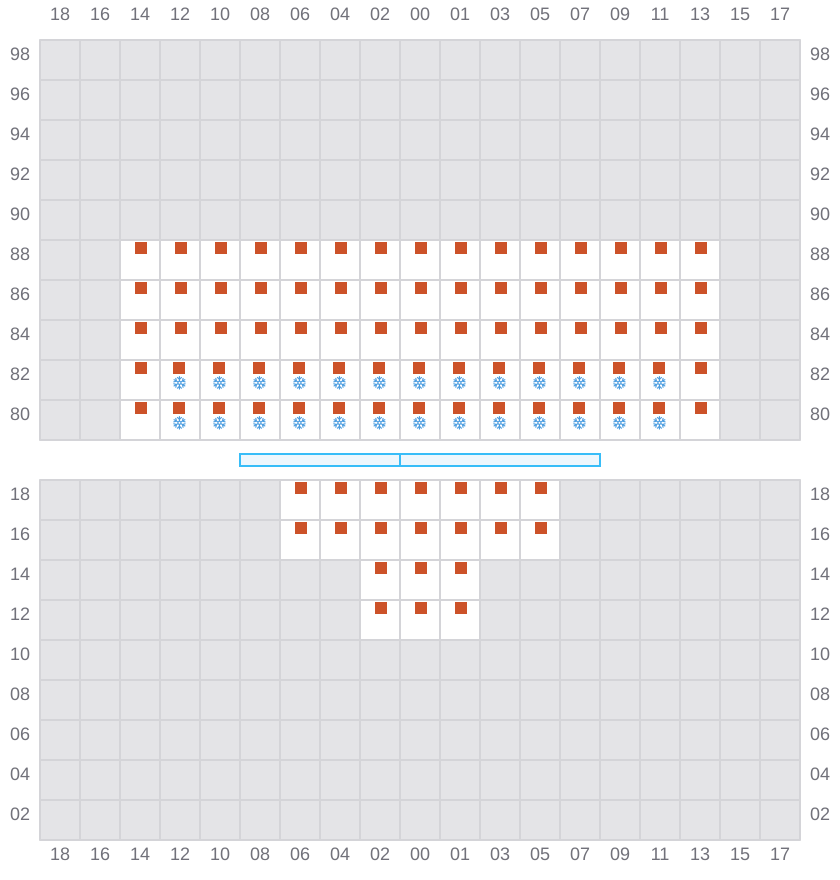

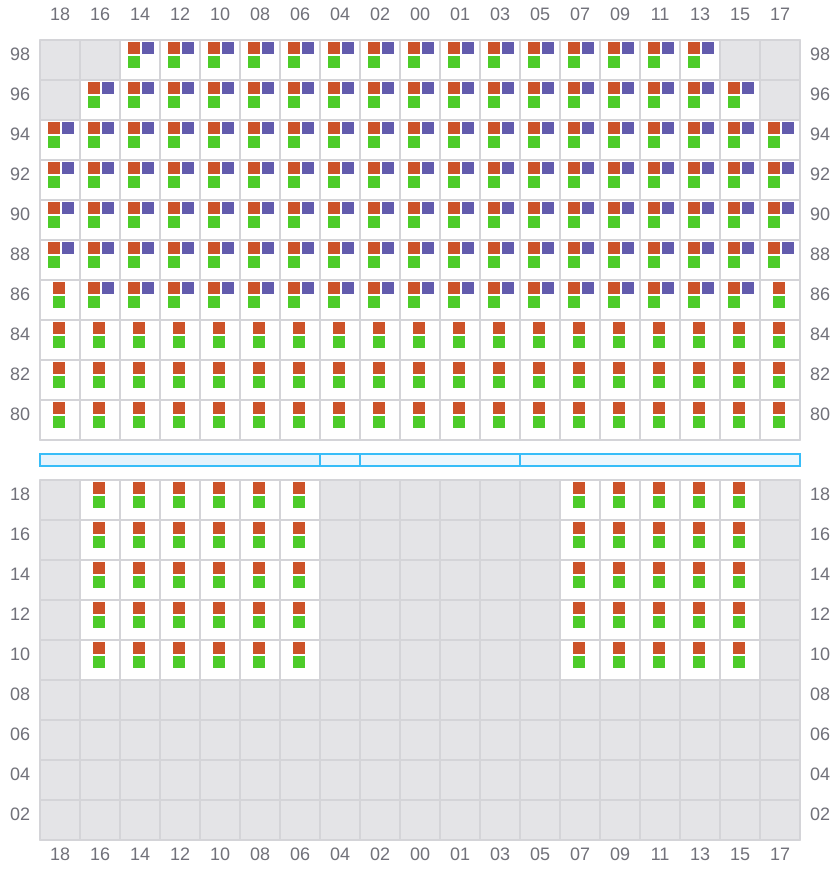

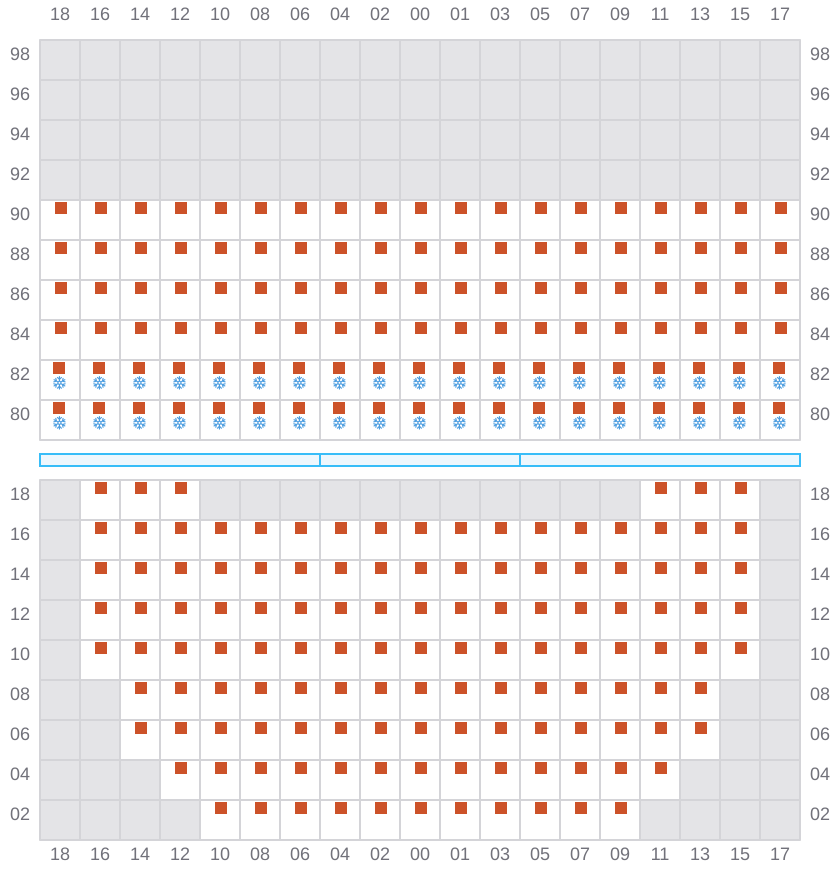

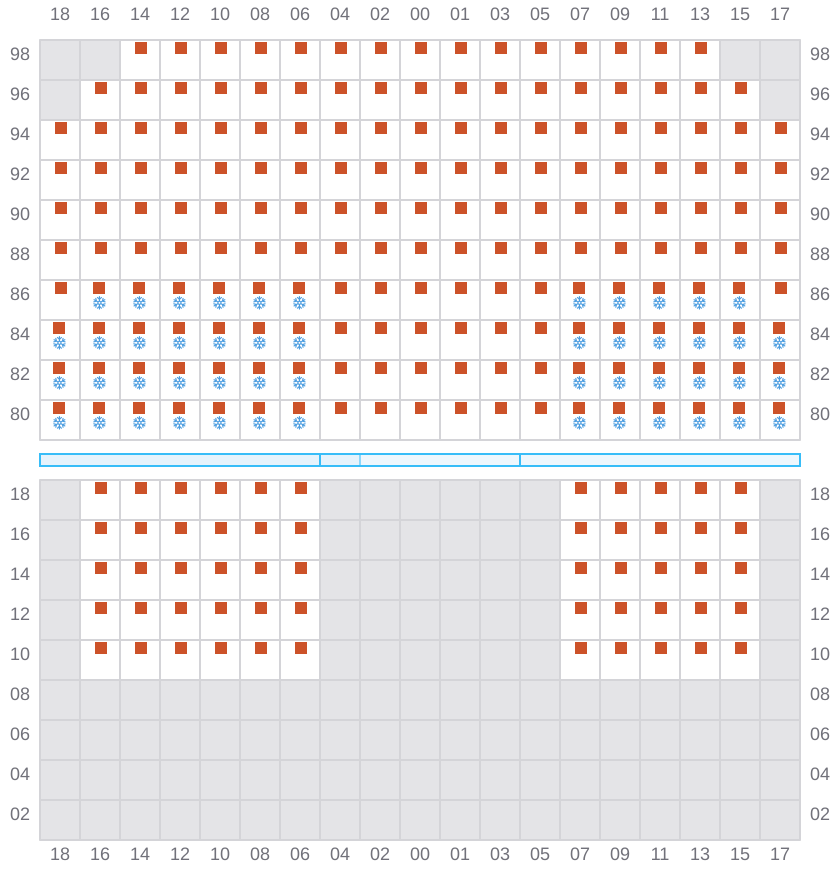

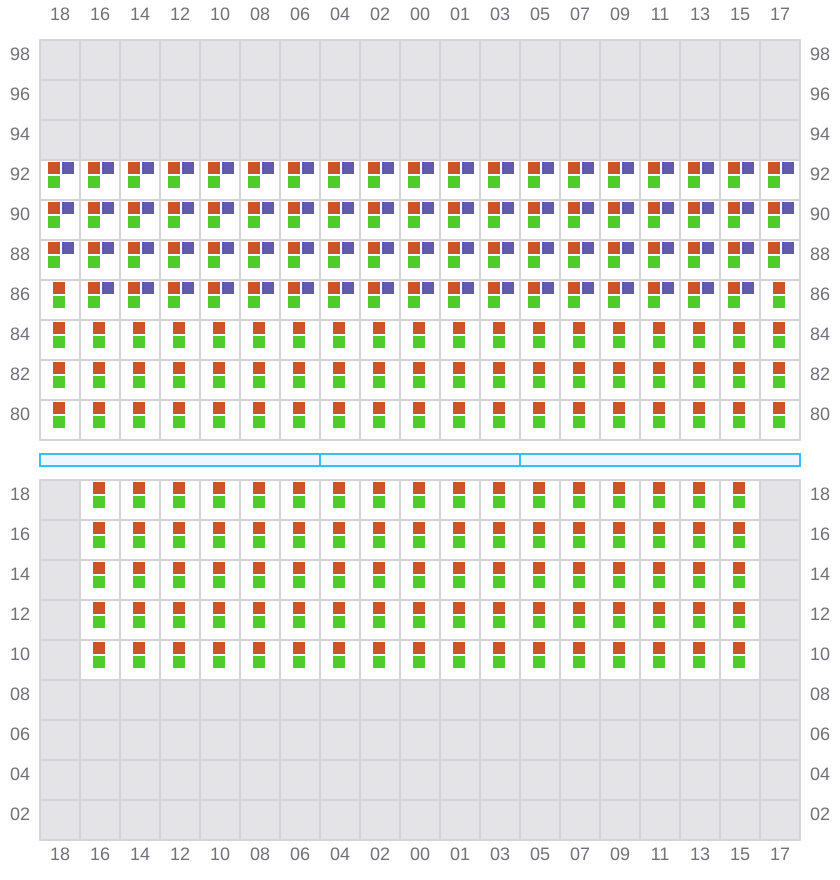

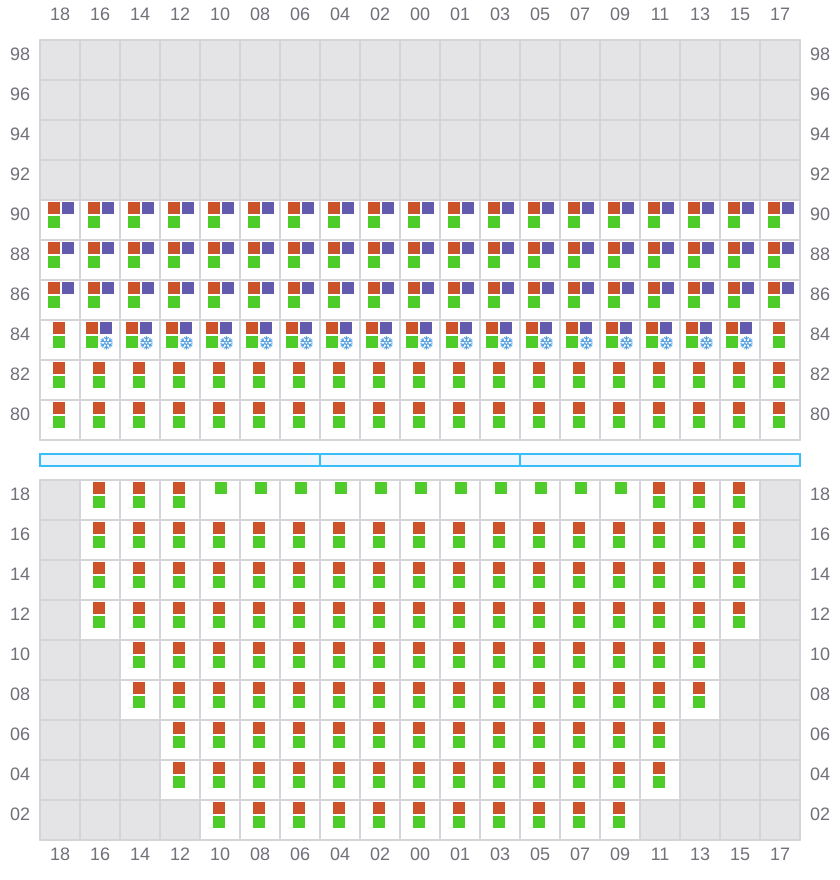

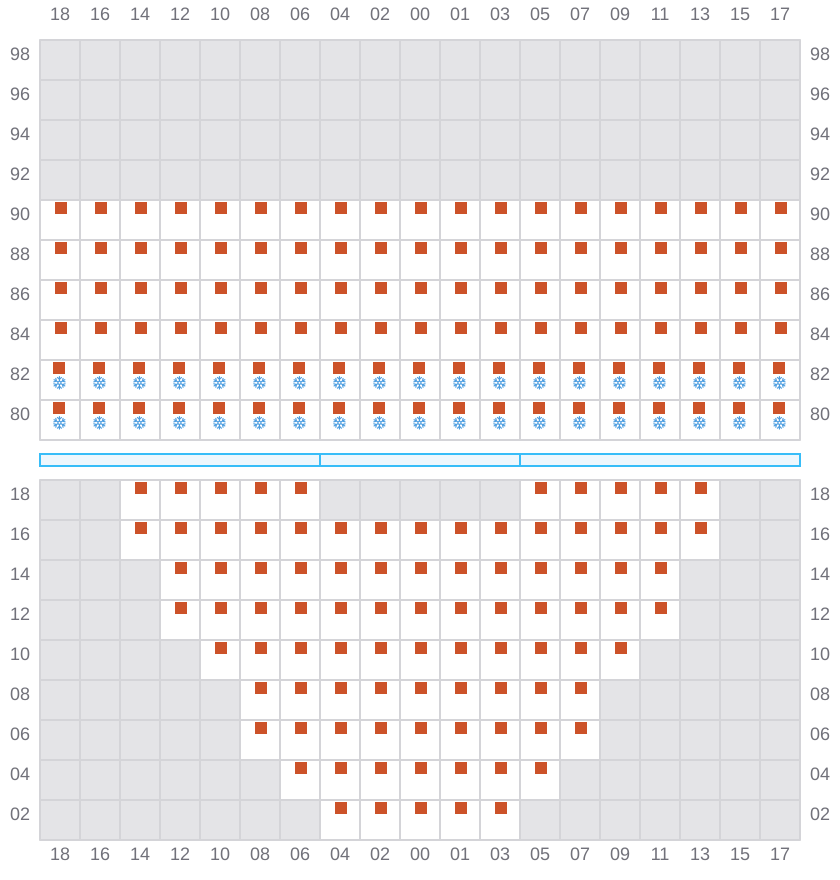

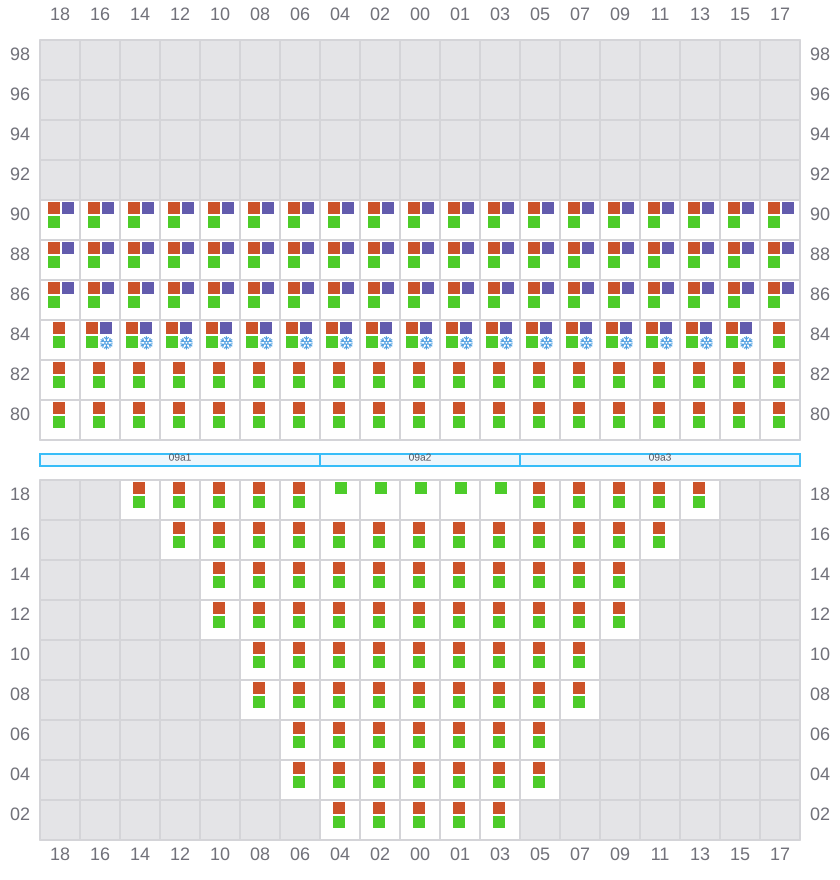

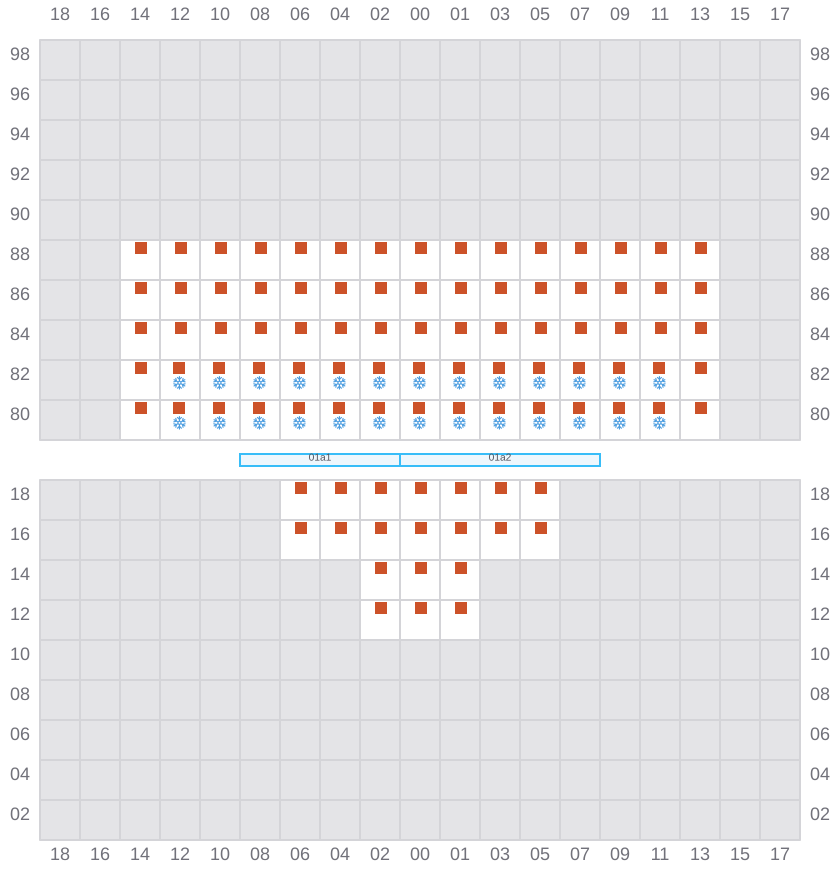

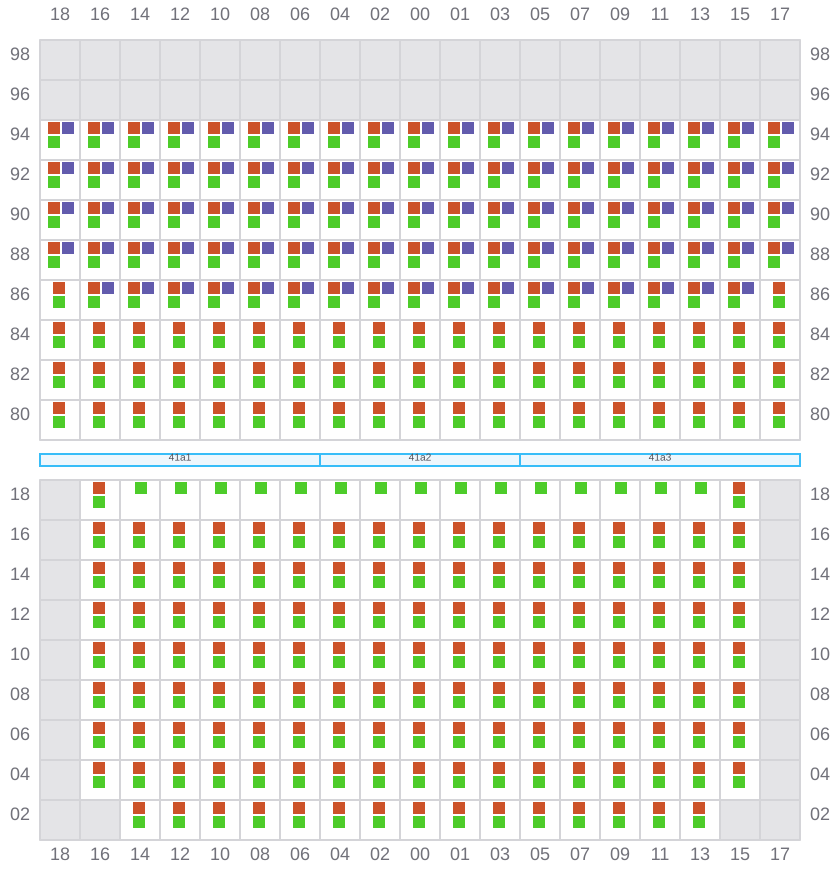

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

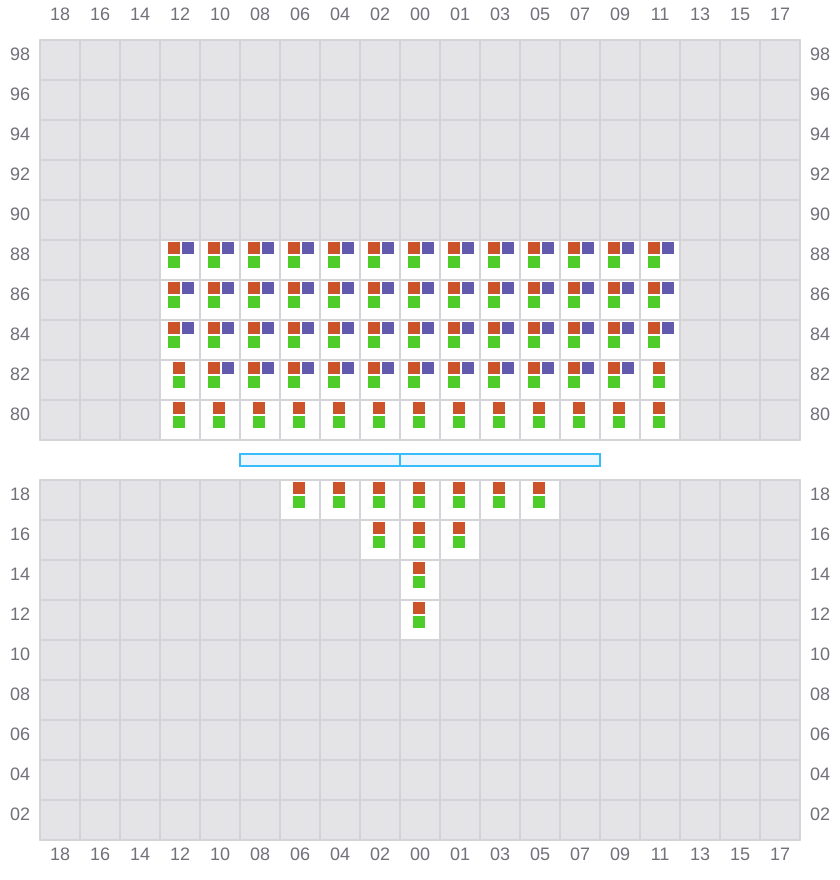

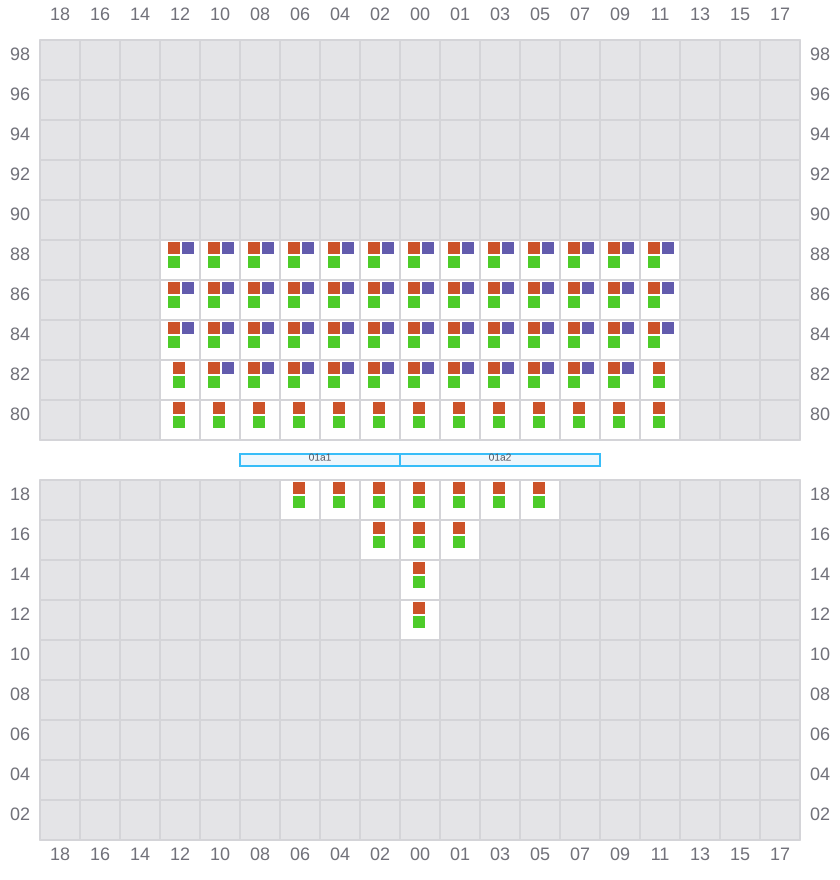

001 (002)
- →
- ← / ?
003
- ←
- → / ?
005 (006)
- →
- ← / ?

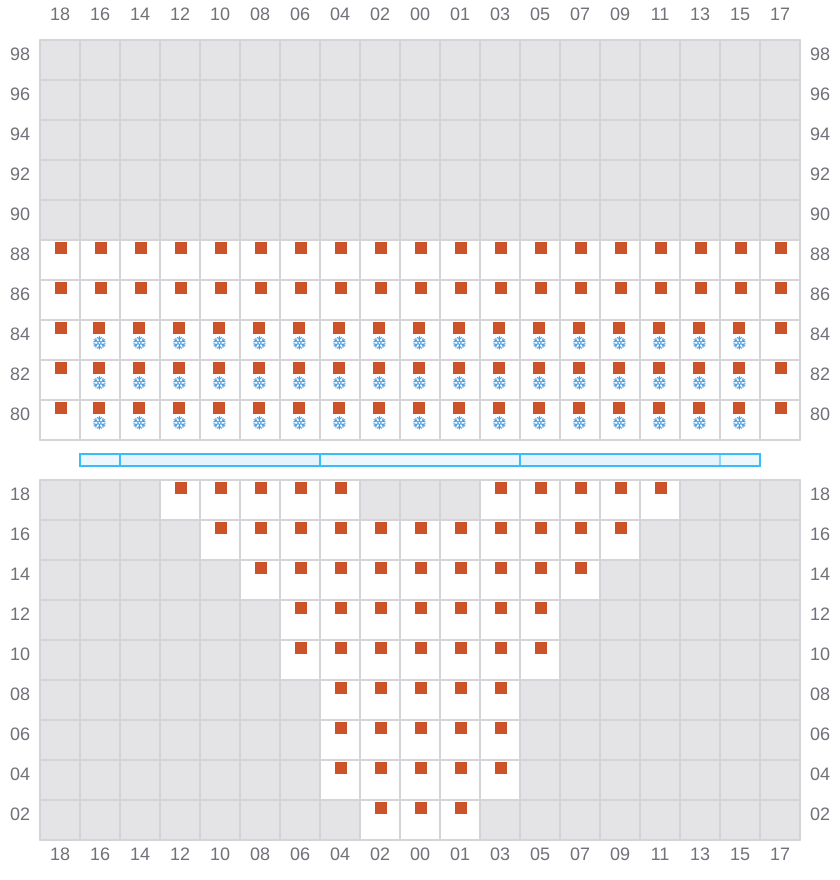

007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←
- → / ?

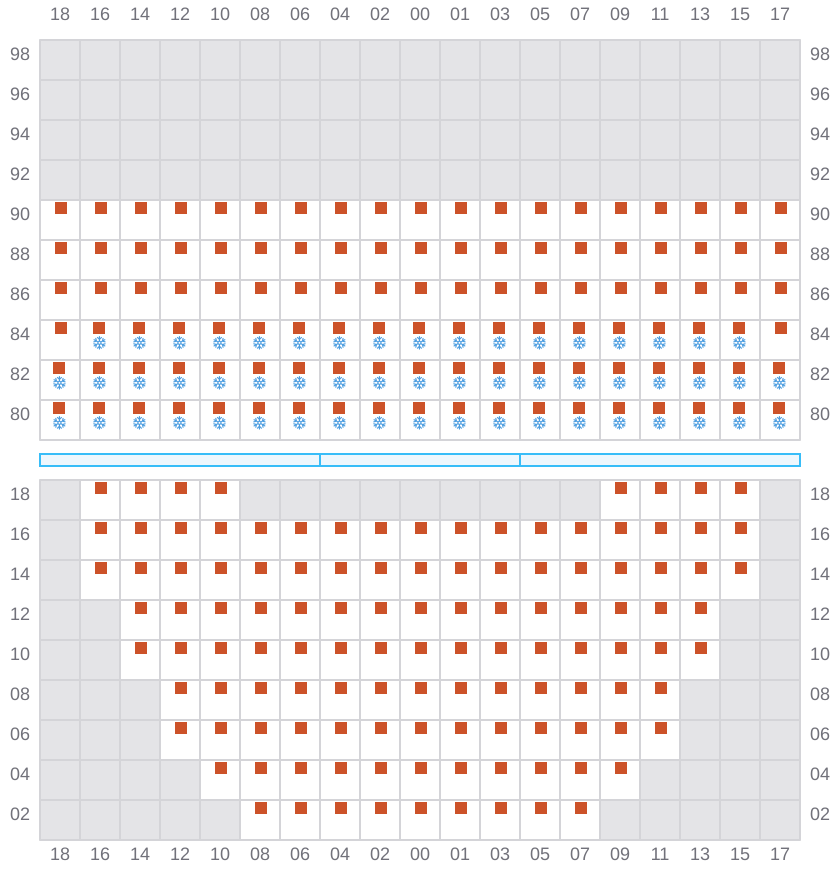

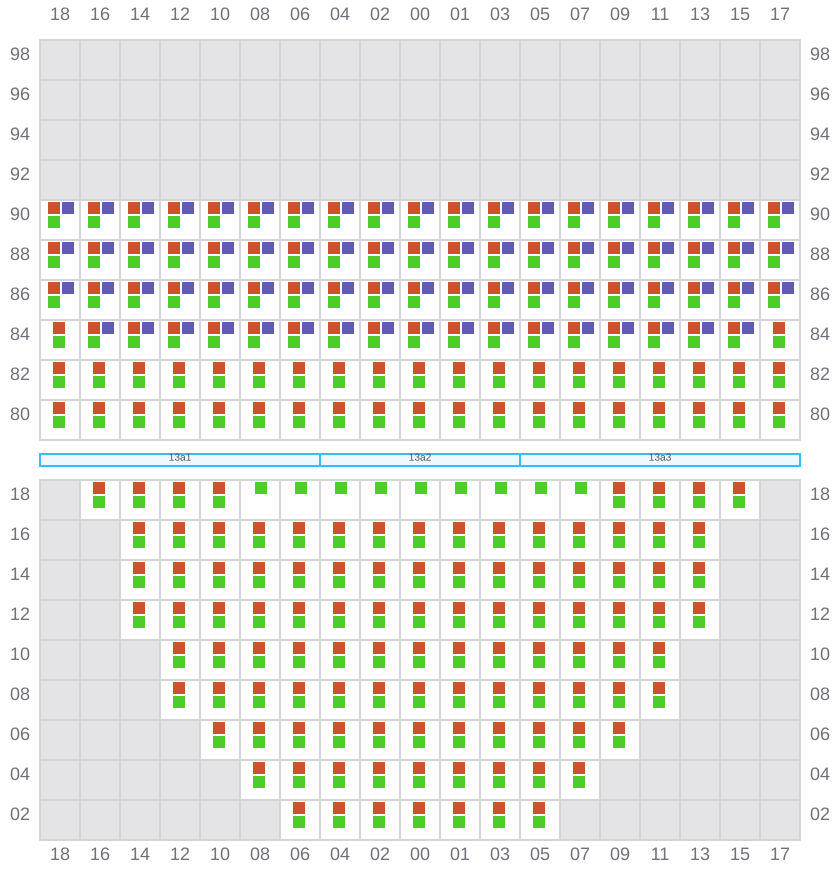

013 (014)
- →
- ← / ?
015
- ←
- → / ?

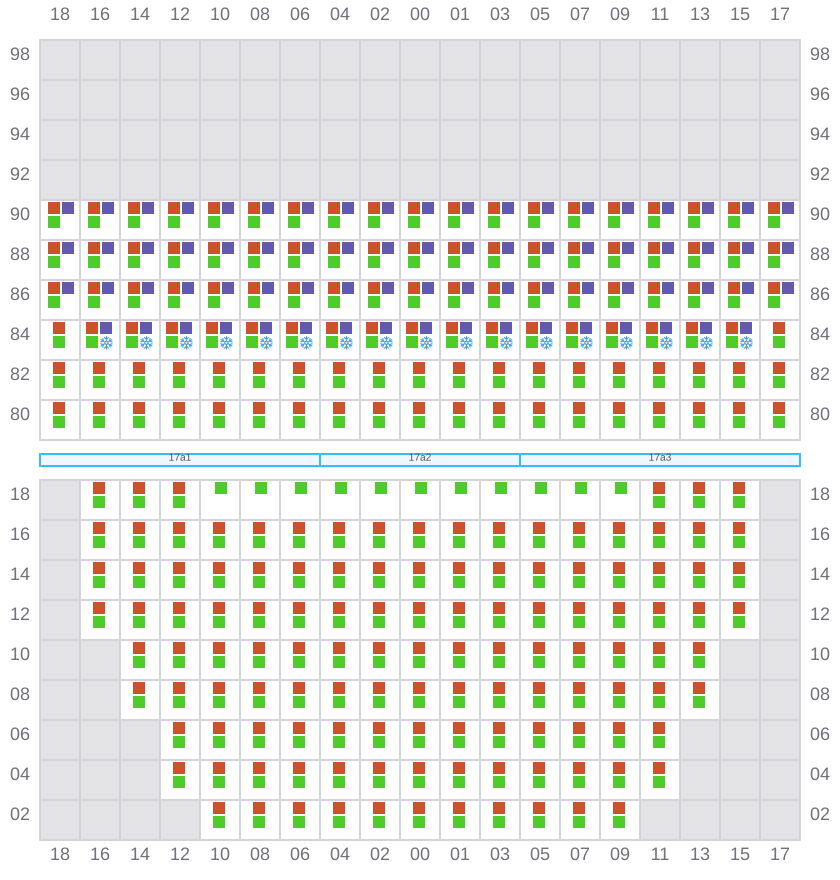

017 (018)
- →
- ← / ?
019
- ←
- → / ?
021 (022)
- →
- ← / ?
023
- ←
- → / ?

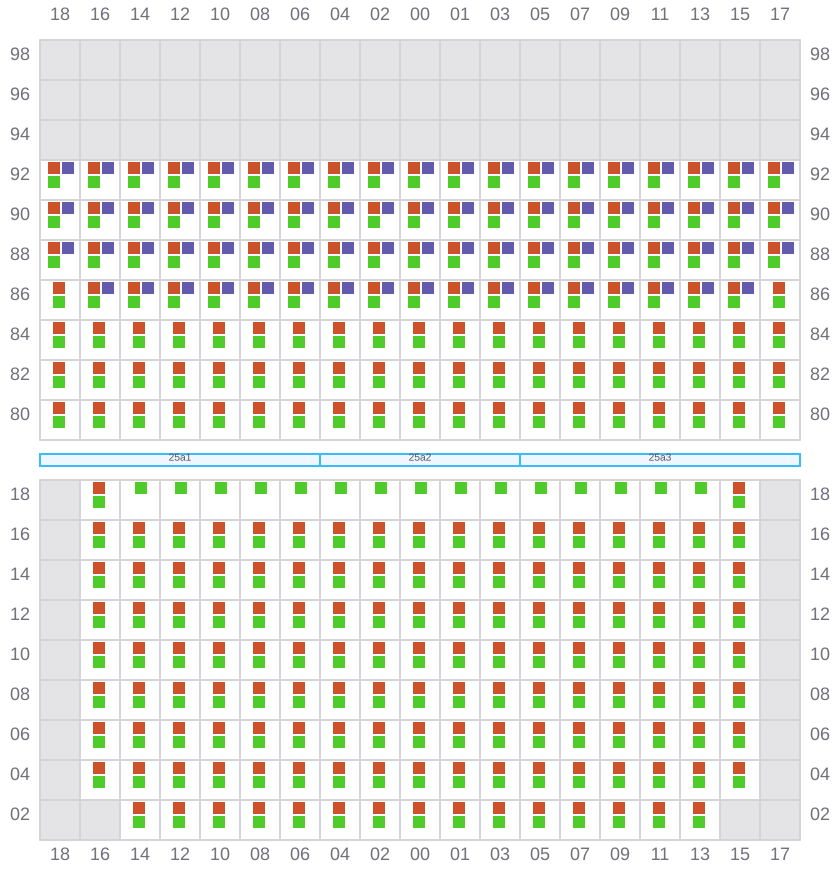

025 (026)
- →
- ←

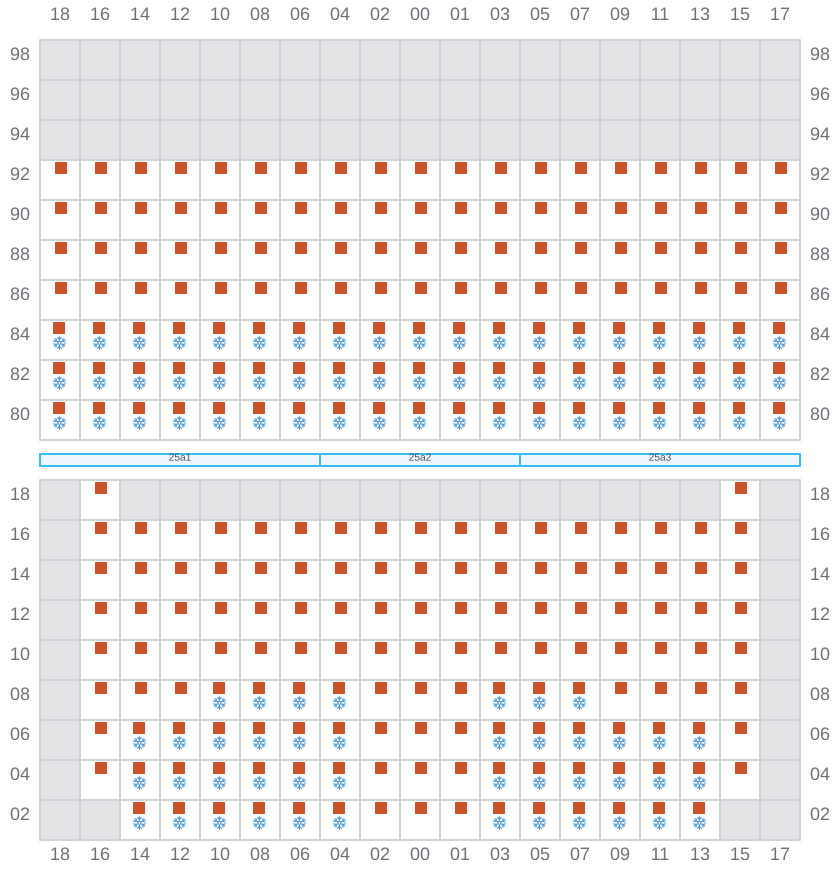

027
- ←
- →

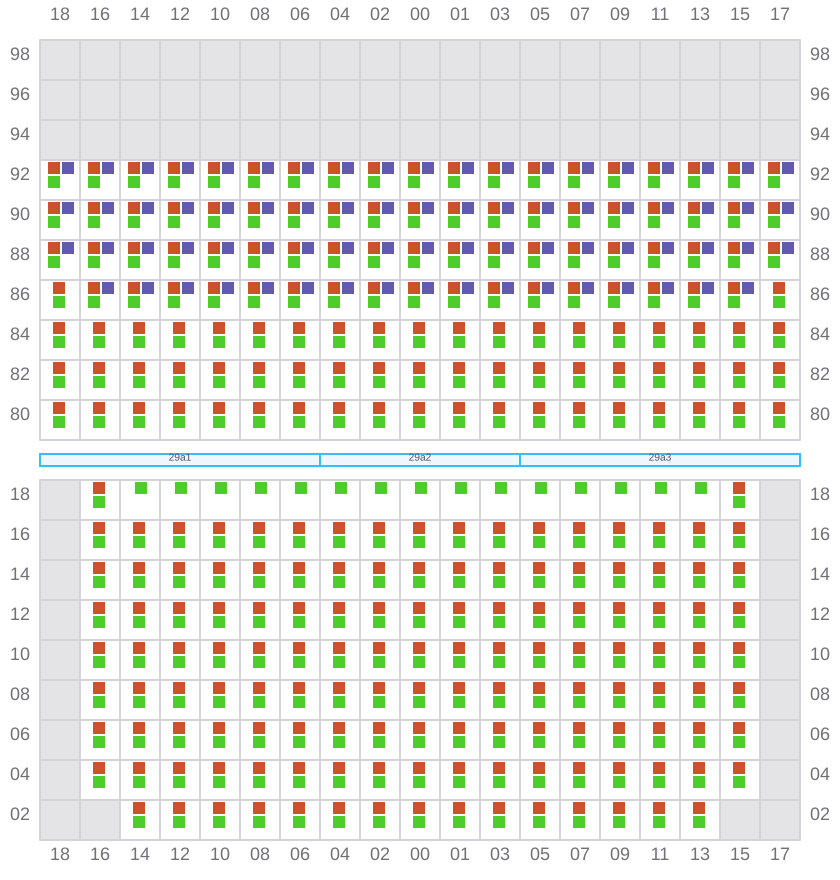

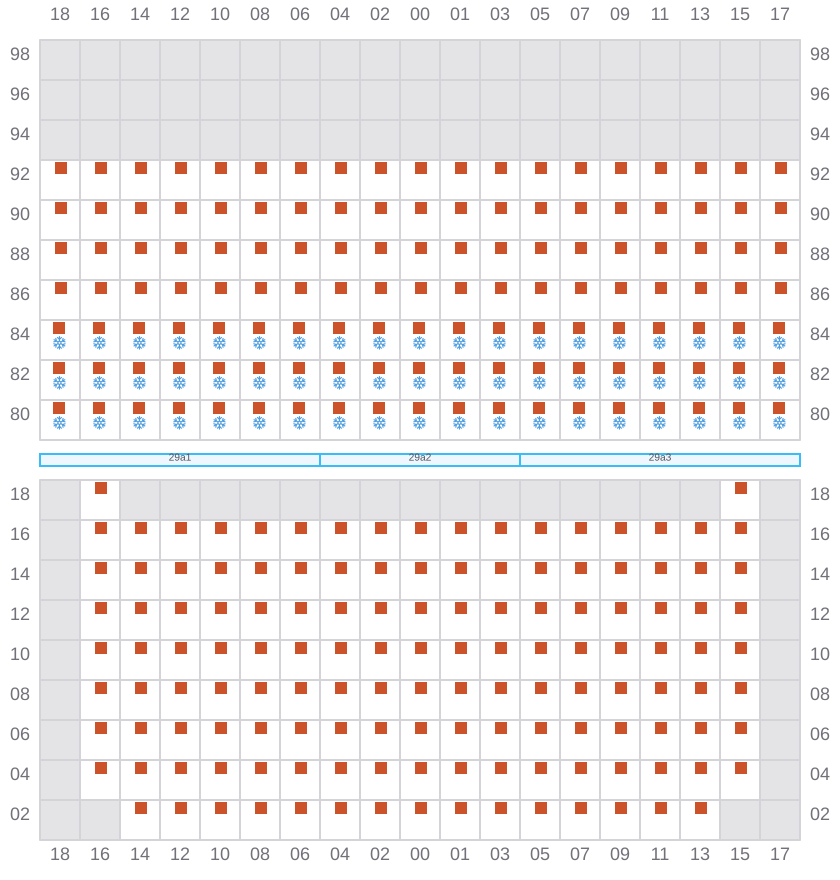

029 (030)
- →
- ← / ?
031
- ←
- → / ?

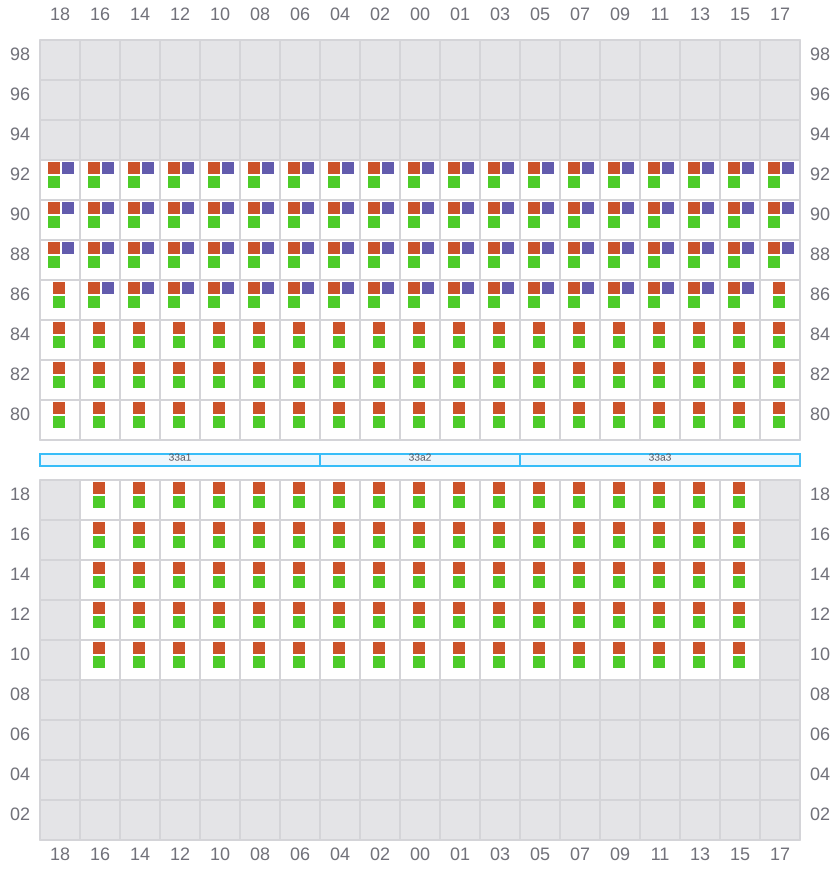

033 (034)
- →
- ← / ?

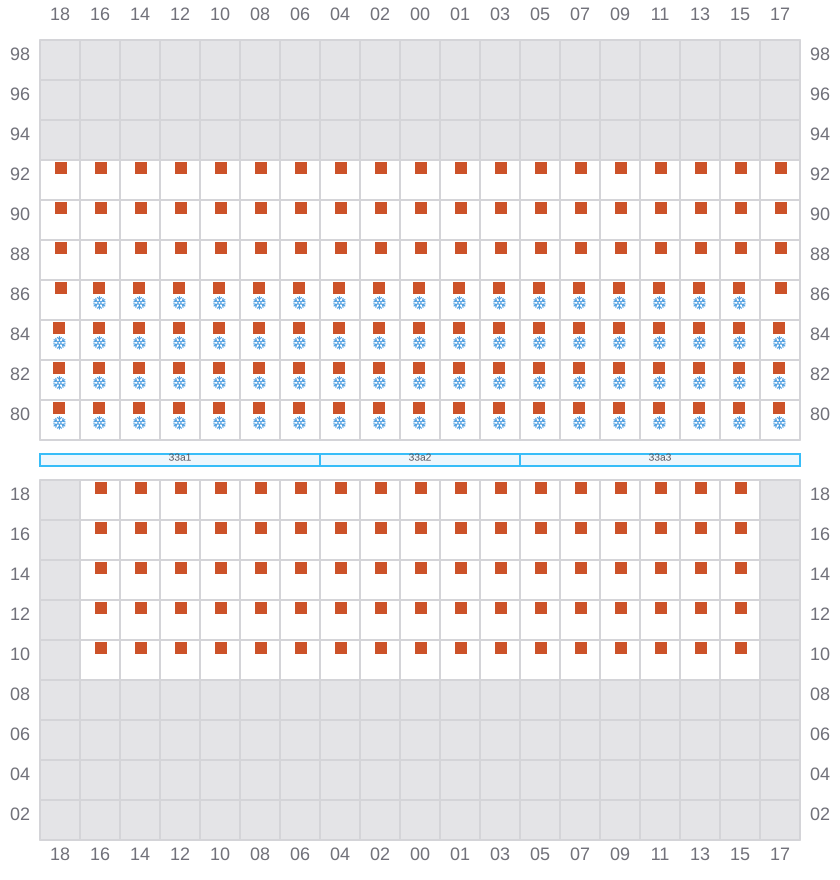

035
- ←
- → / ?
037 (038)
- →
- ← / ?
039
- ←
- → / ?
041 (042)
- →
- ←
043
- ←
- →

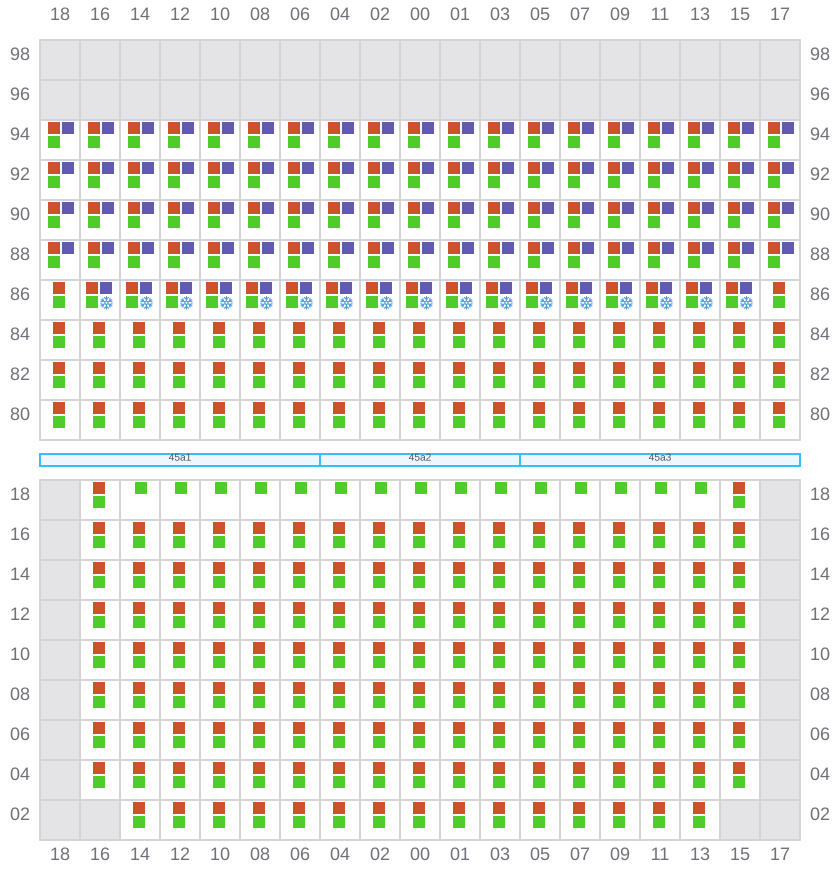

045 (046)
- →
- ← / ?

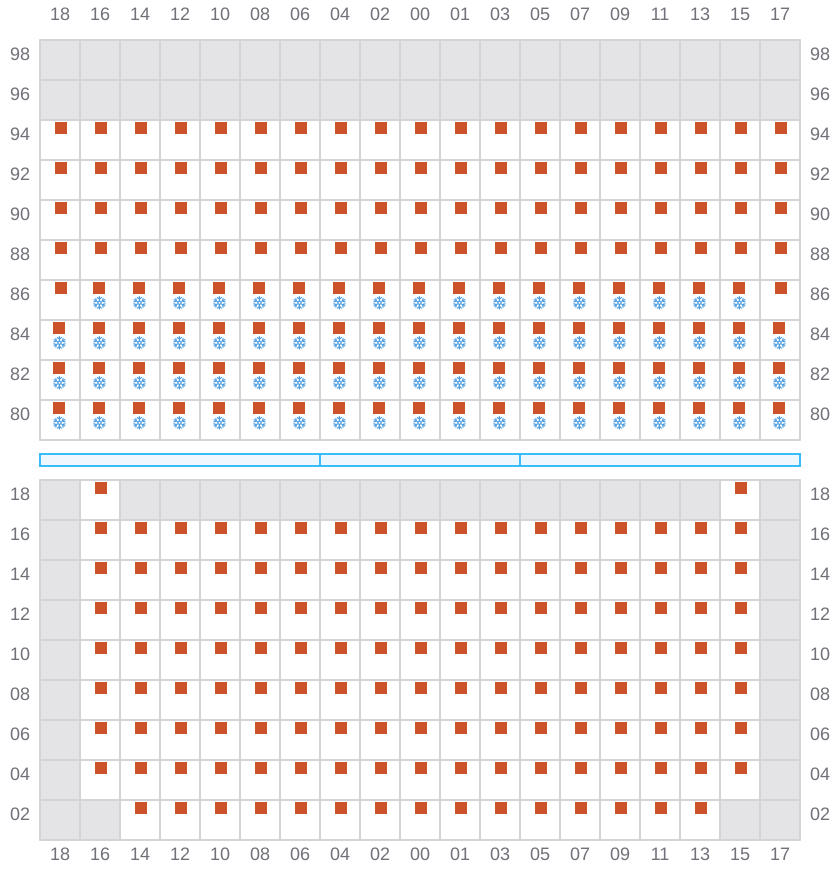

047
- ←
- → / ?

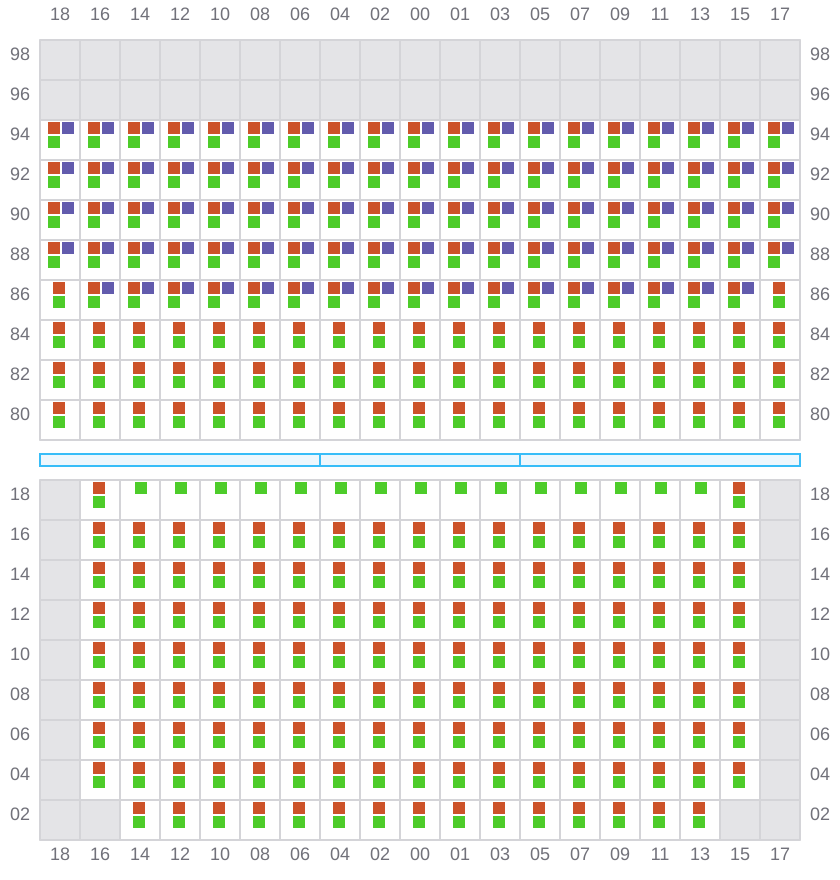

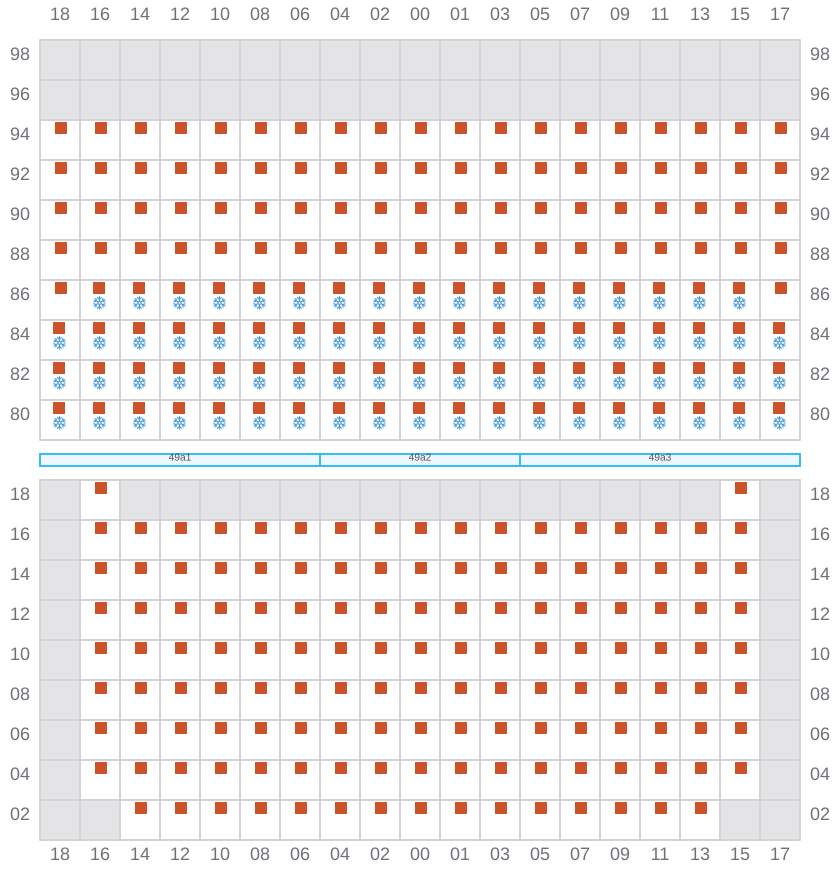

049 (050)
- →
- ← / ?
051
- ←
- → / ?
053 (054)
- →
- ← / ?
055
- ←
- → / ?

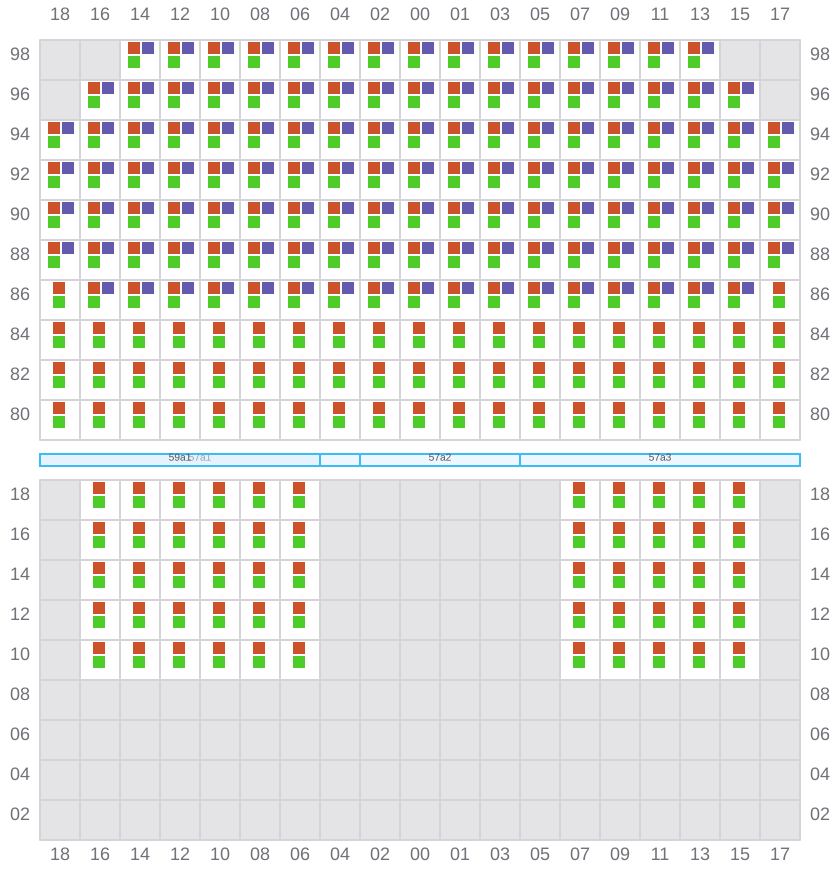

057 (058)
- →
- ← / ?

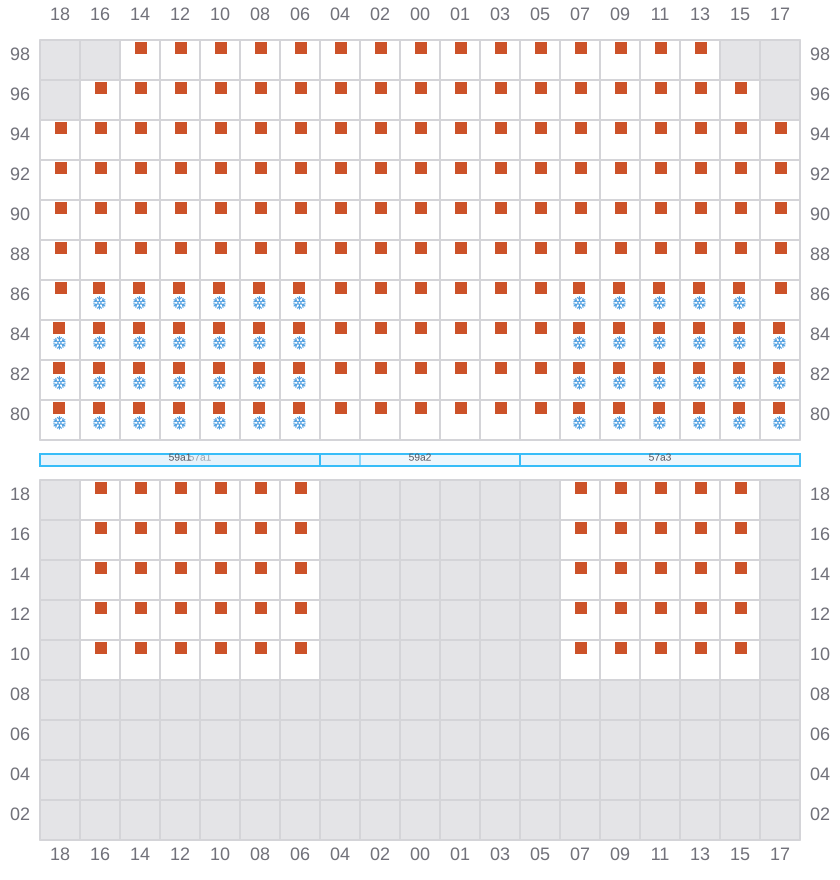

059
- ←
- → / ?

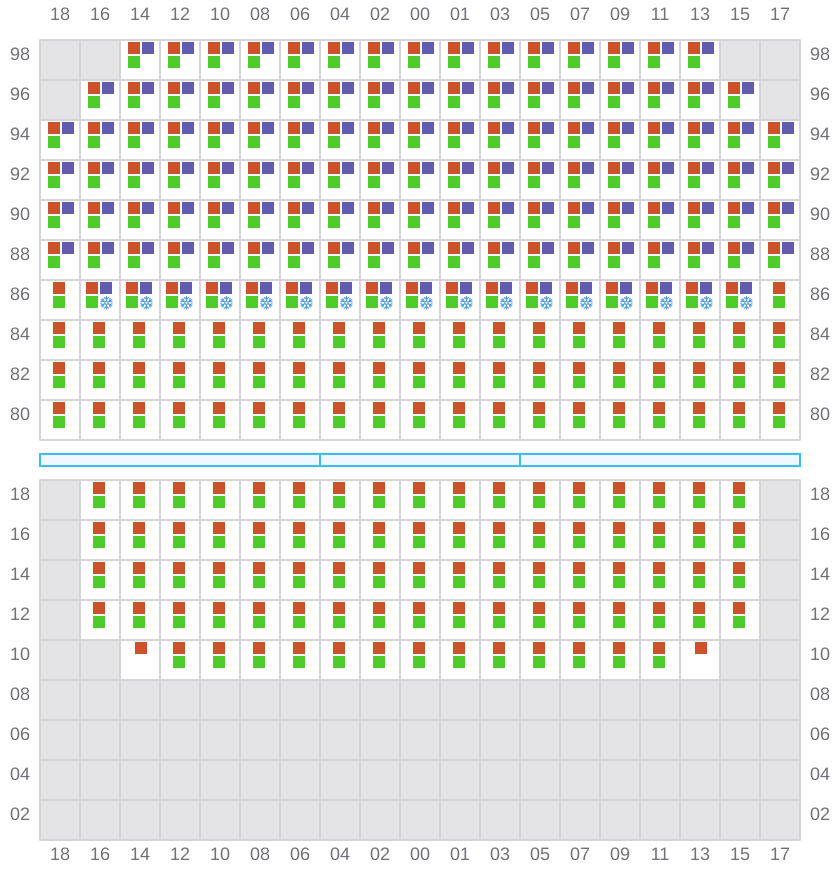

061 (062)
- →
- ← / ?

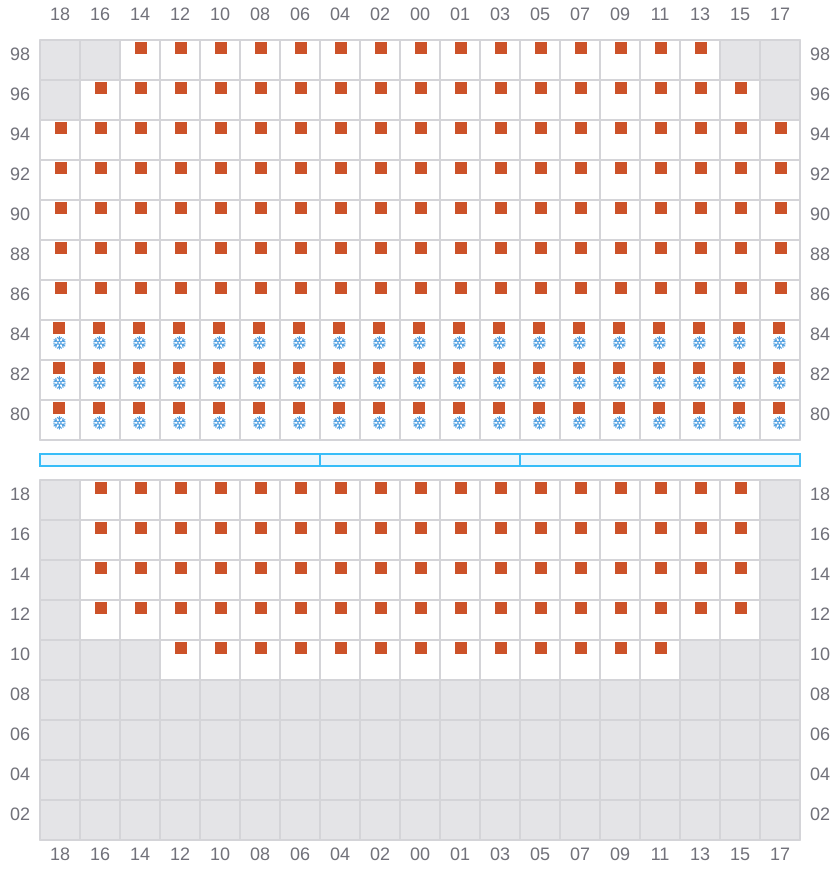

063
- ←
- → / ?

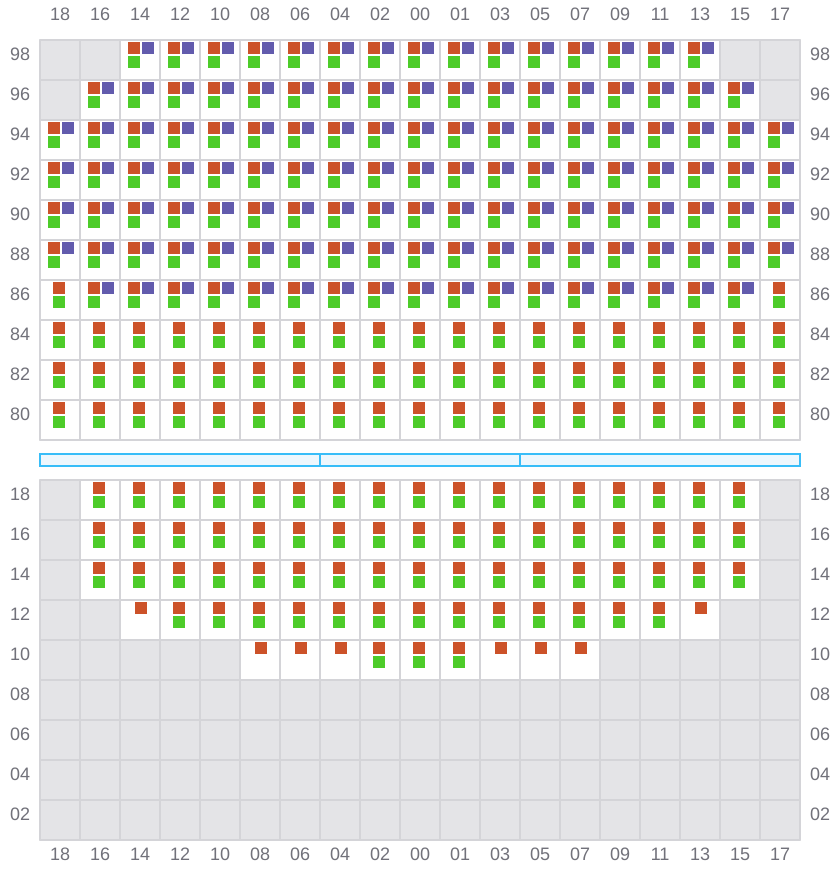

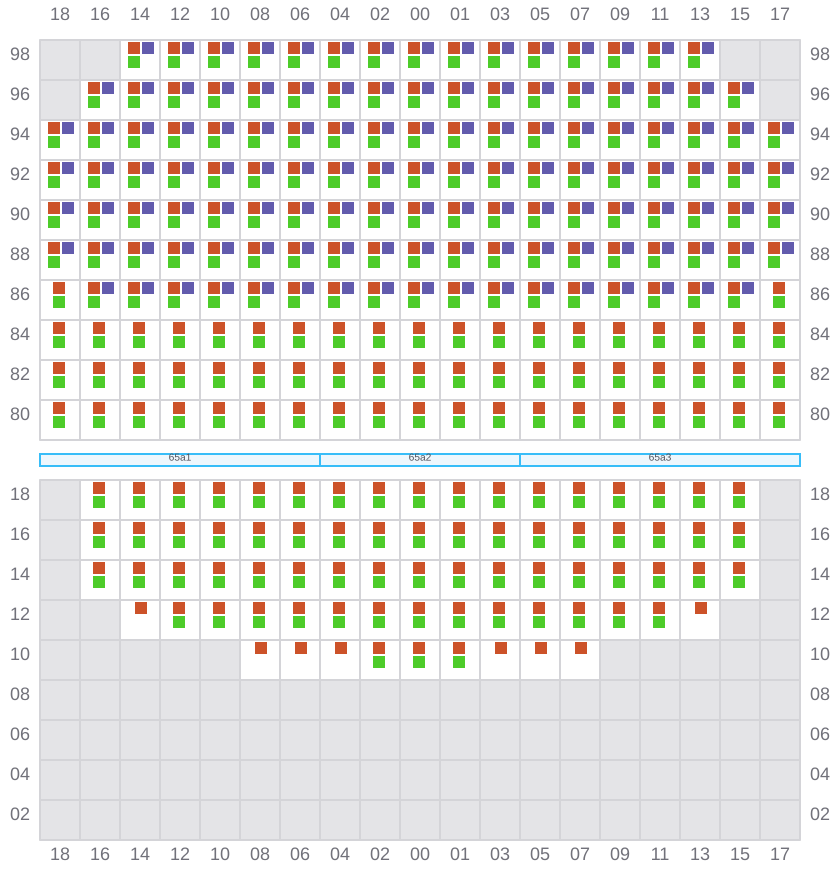

065 (066)
- →
- ← / ?

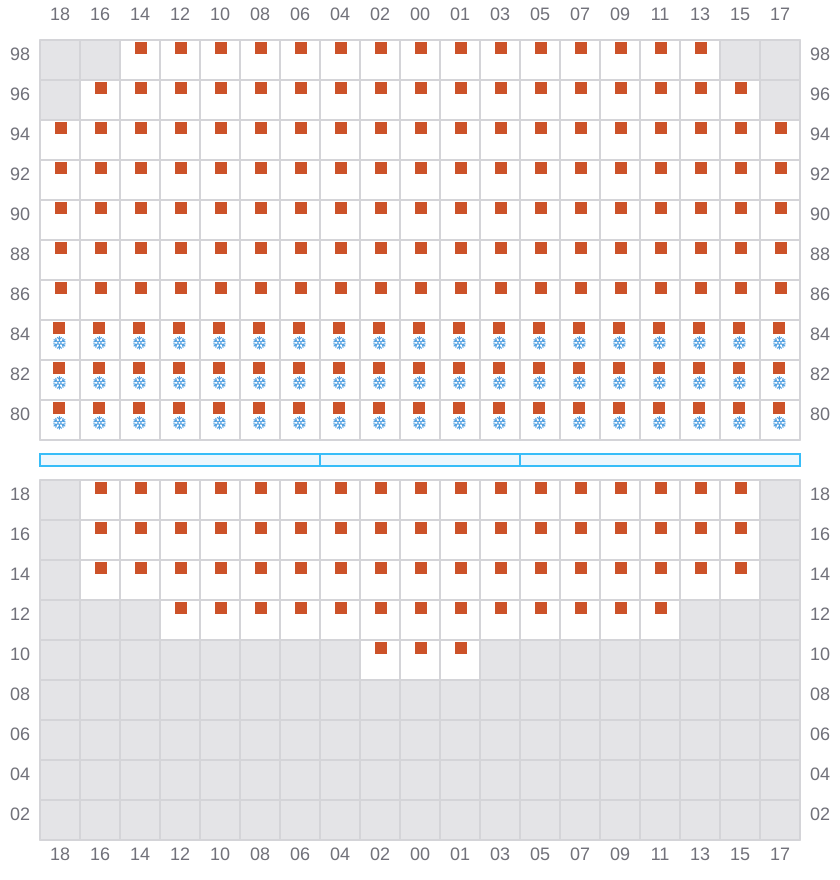

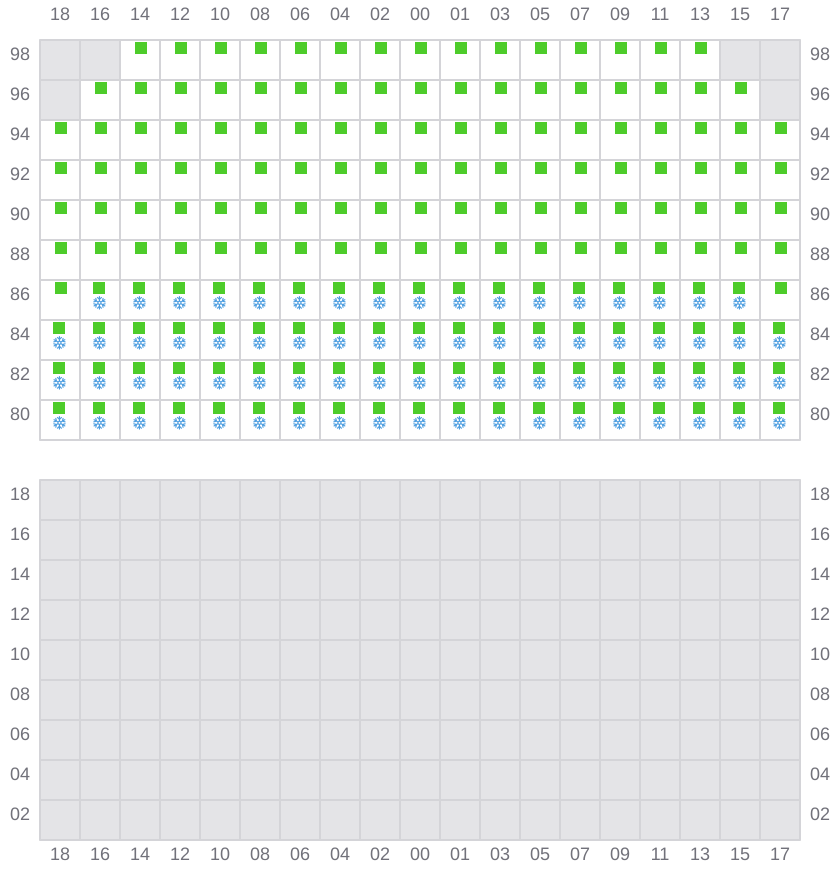

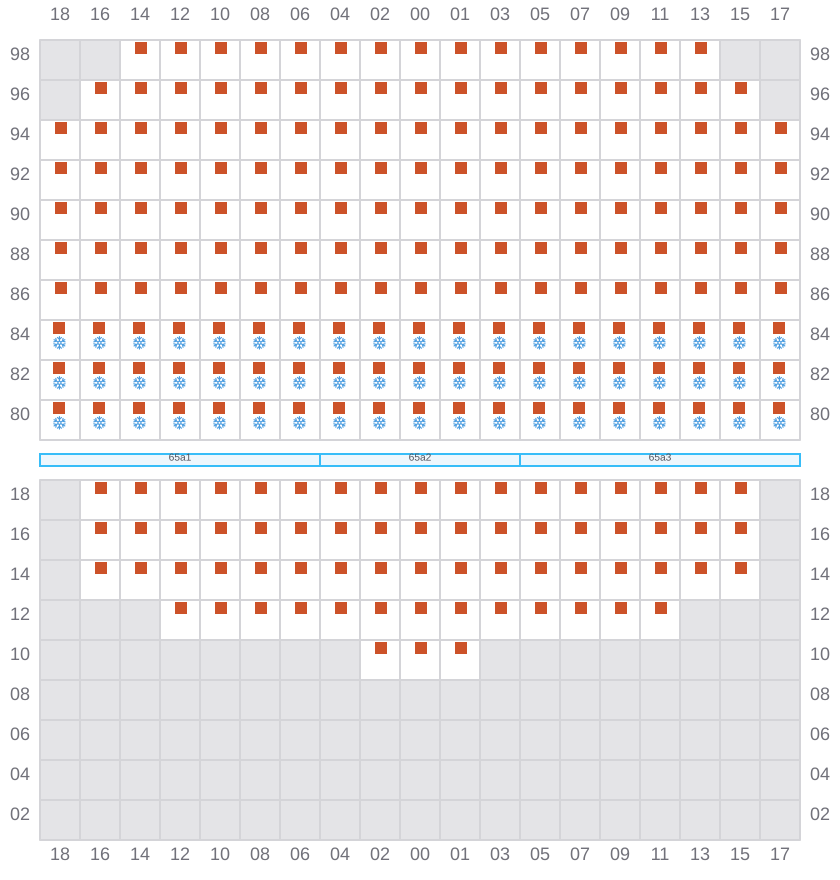

067
- ←
- → / ?
069 (070)
- → / ?
