MSC ANCONA III
9259379 | 5LMH4 | 9259379 by ********* Last update: Wed May 01 2024

General Info

Ship Name:MSC ANCONA III
IMO Code:9259379
Call Sign:5LMH4
Line Operator:9259379
Class Name for Sister Ships:EM ANDROS
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):189.51
LOA (Length Overall):199.93
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,624

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

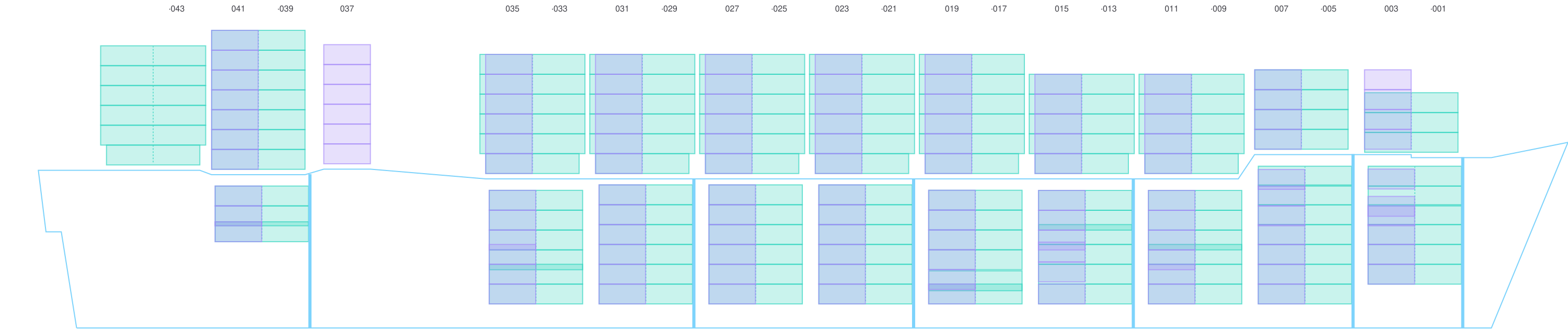

Side view of MSC ANCONA III

Hatch-Covers View

Deck view of MSC ANCONA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

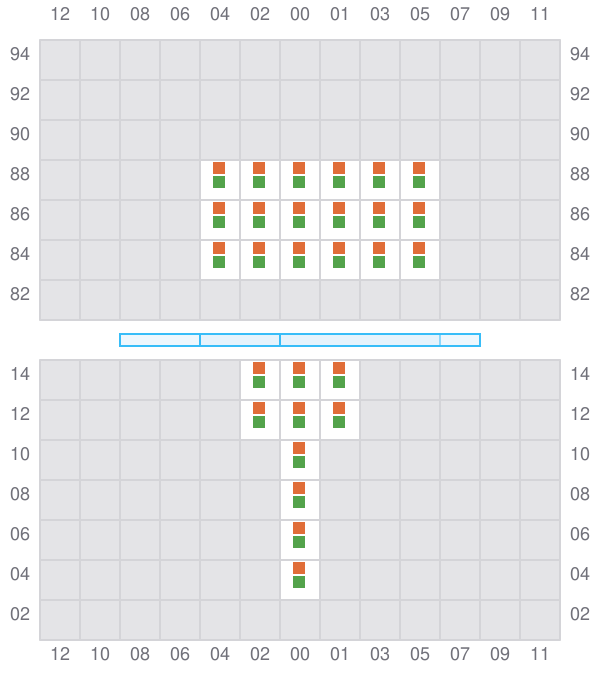

Bay 001 view and slots of MSC ANCONA III

003

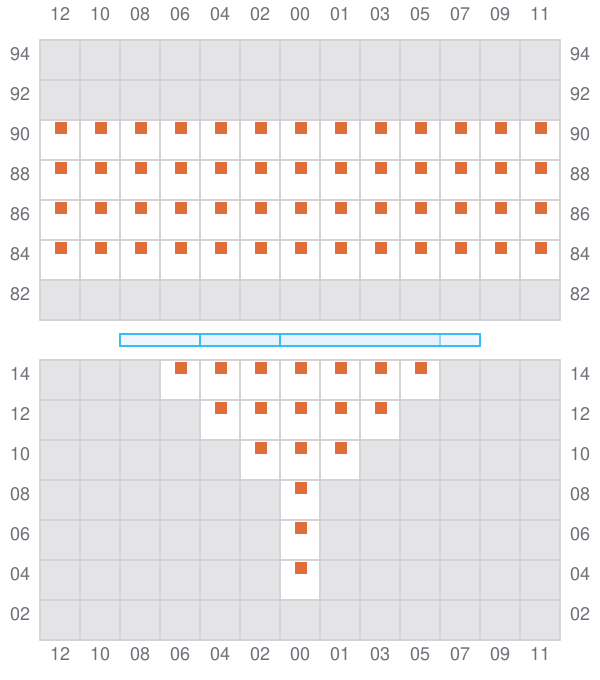

Bay 003 view and slots of MSC ANCONA III

005 (006)

  • →

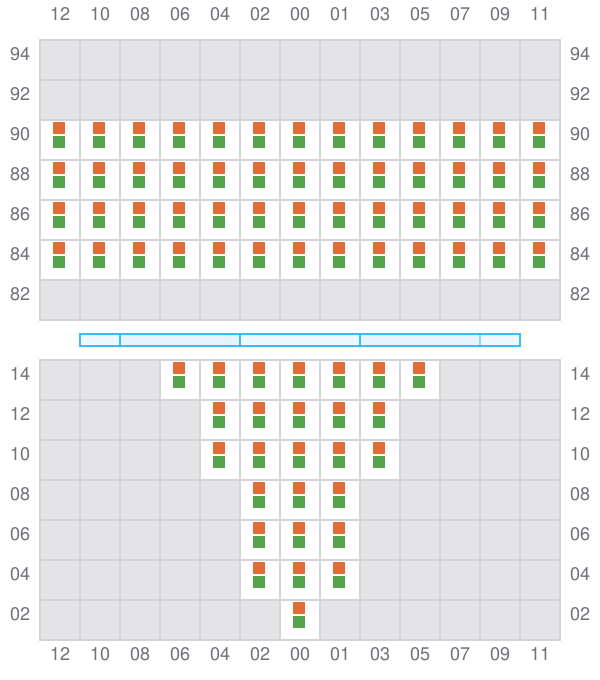

Bay 005 view and slots of MSC ANCONA III

007

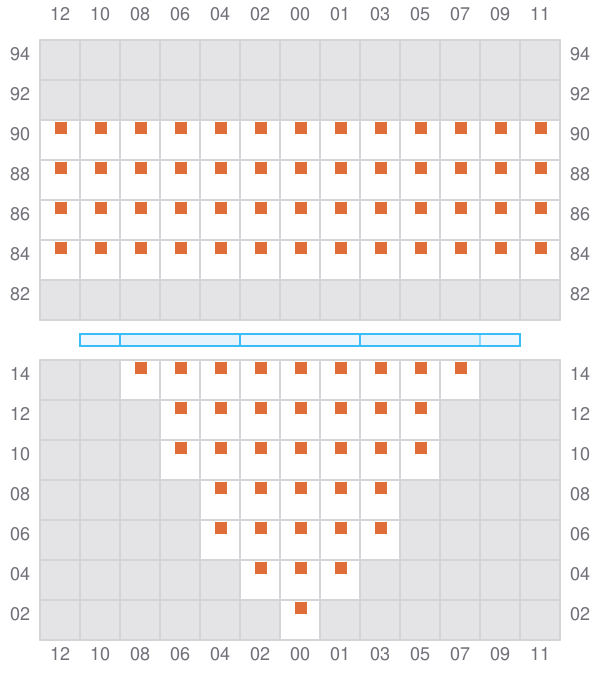

Bay 007 view and slots of MSC ANCONA III

009 (010)

  • →

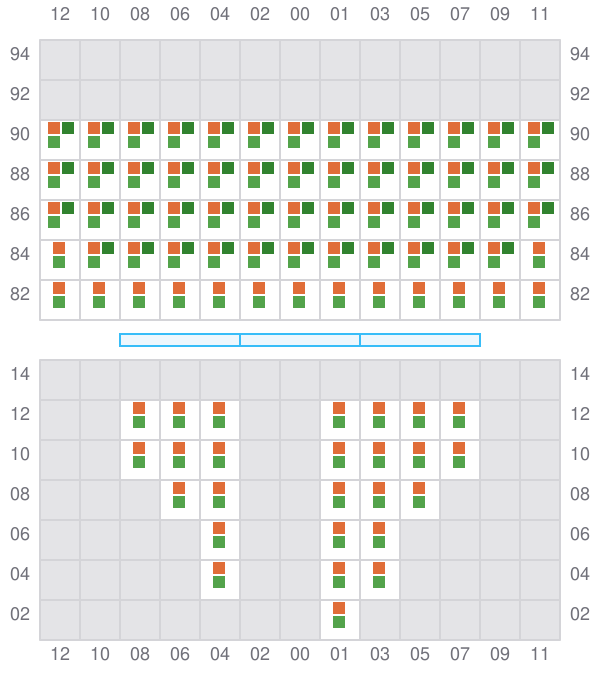

Bay 009 view and slots of MSC ANCONA III

011

Bay 011 view and slots of MSC ANCONA III

013 (014)

  • →
  • →

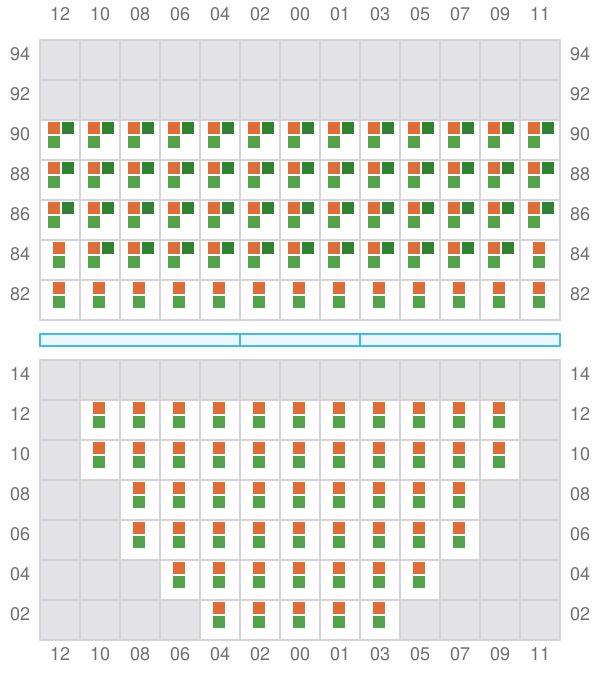

Bay 013 view and slots of MSC ANCONA III

015

  • →

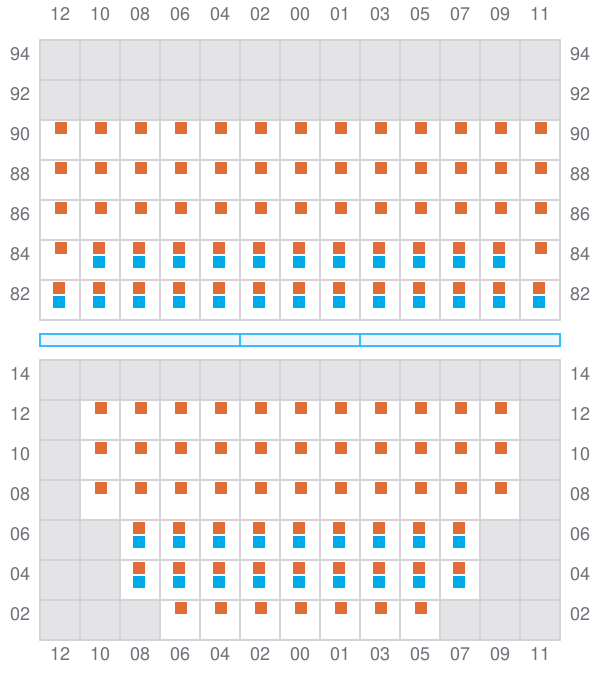

Bay 015 view and slots of MSC ANCONA III

017 (018)

  • →
  • →

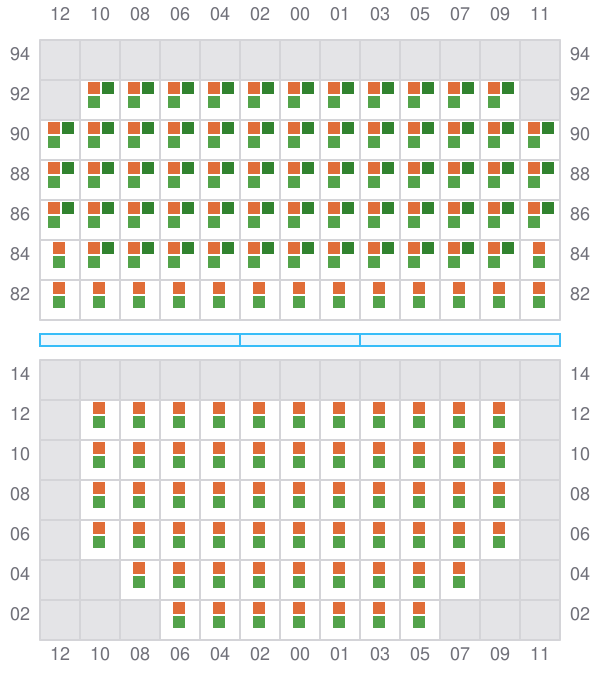

Bay 017 view and slots of MSC ANCONA III

019

  • →

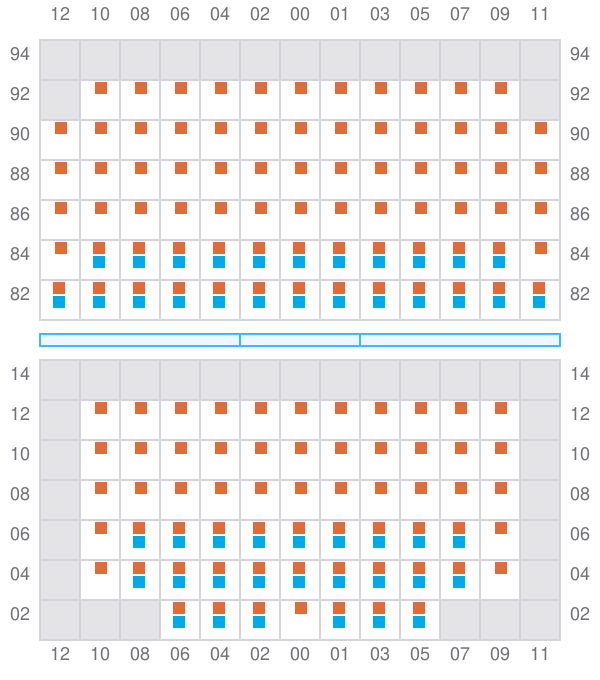

Bay 019 view and slots of MSC ANCONA III

021 (022)

  • →
  • →

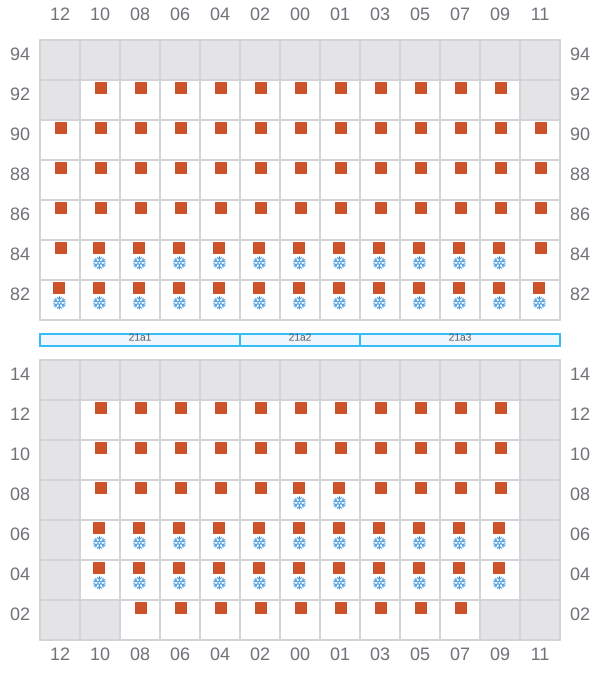

Bay 021 view and slots of MSC ANCONA III

023

  • →
Bay 023 view and slots of MSC ANCONA III

025 (026)

  • →
  • →

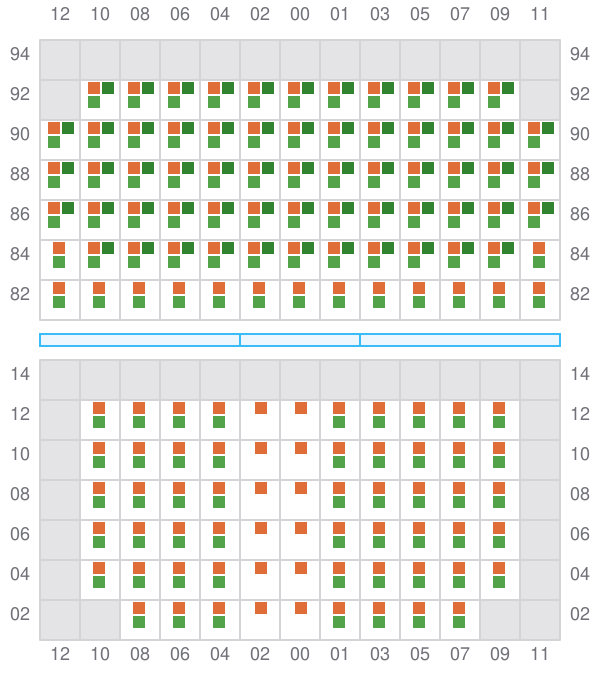

Bay 025 view and slots of MSC ANCONA III

027

  • →

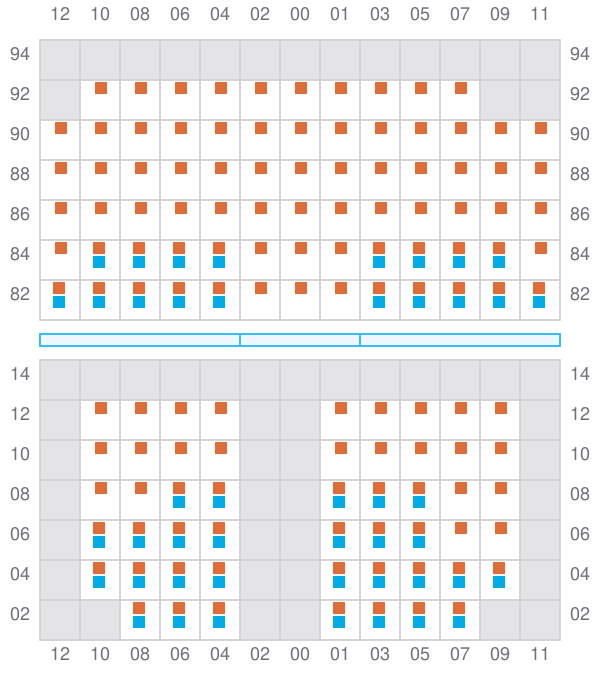

Bay 027 view and slots of MSC ANCONA III

029 (030)

  • →
  • →

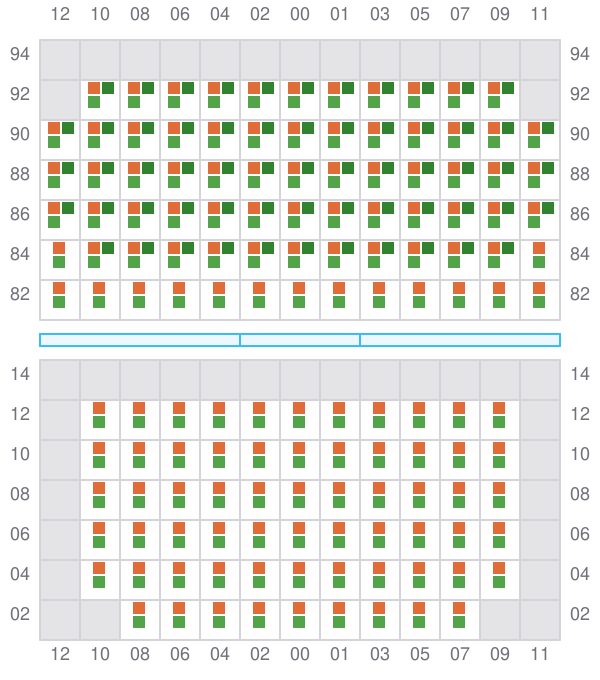

Bay 029 view and slots of MSC ANCONA III

031

  • →

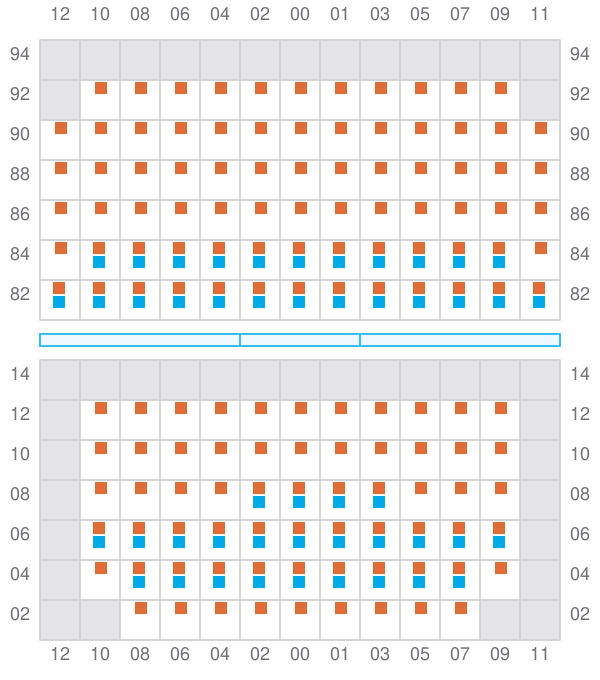

Bay 031 view and slots of MSC ANCONA III

033 (034)

  • →
  • →

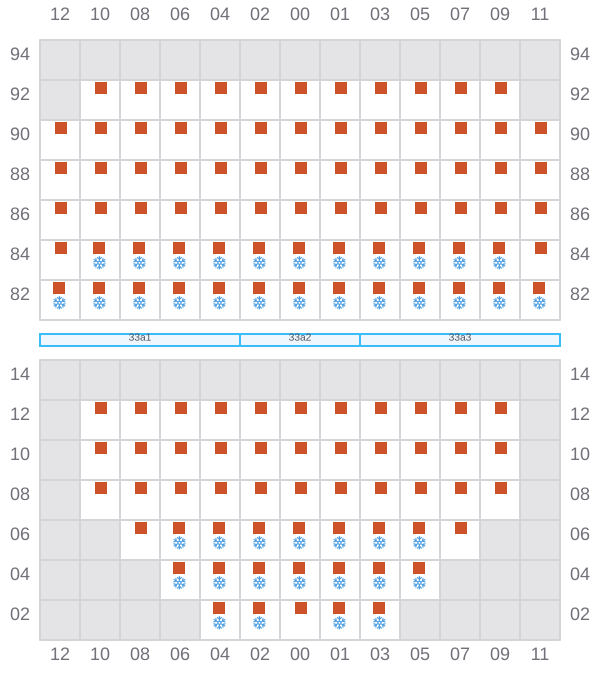

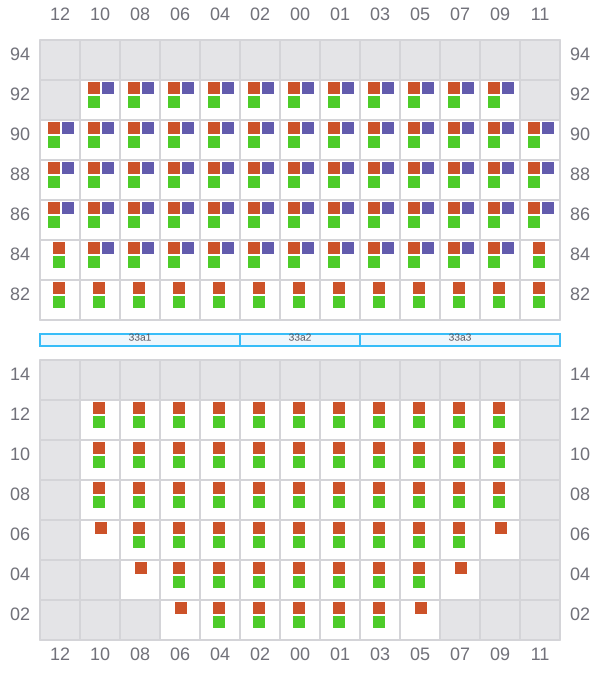

Bay 033 view and slots of MSC ANCONA III

035

  • →
Bay 035 view and slots of MSC ANCONA III

037

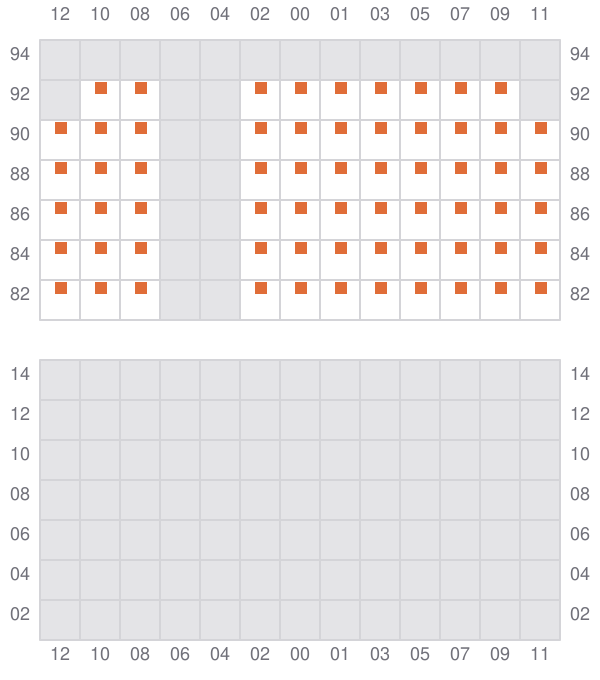

Bay 037 view and slots of MSC ANCONA III

039 (040)

  • →
  • ← / ?

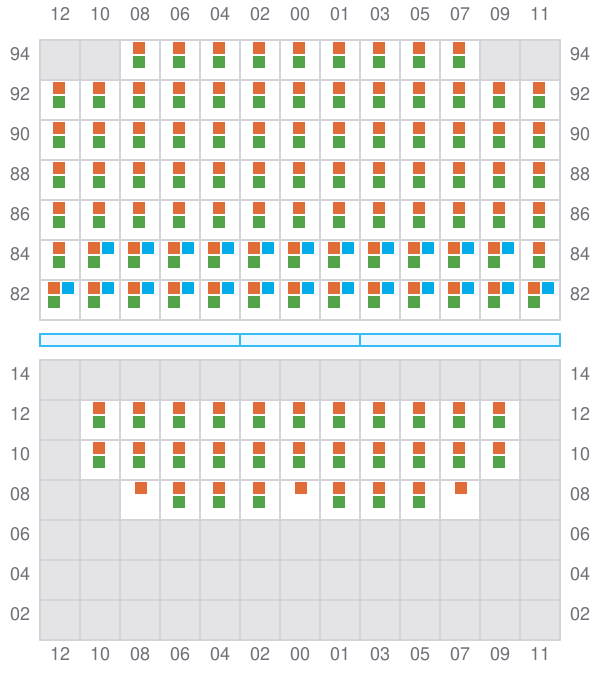

Bay 039 view and slots of MSC ANCONA III

041

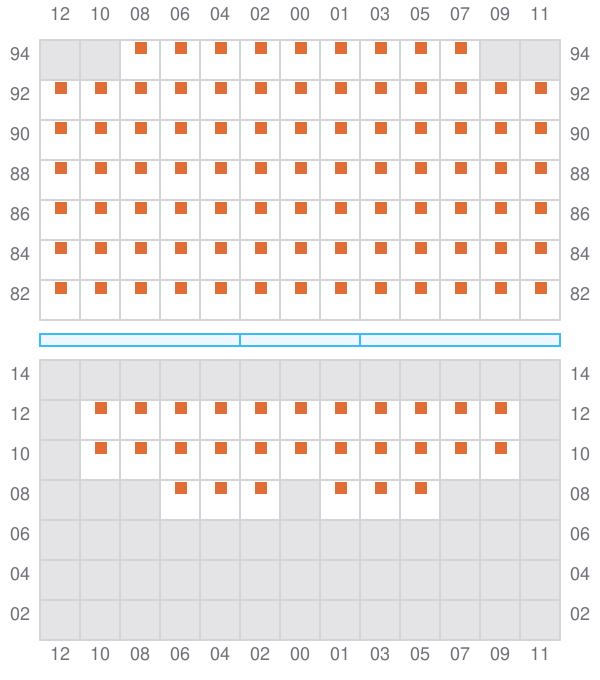

Bay 041 view and slots of MSC ANCONA III

043 (044)

  • → / ?

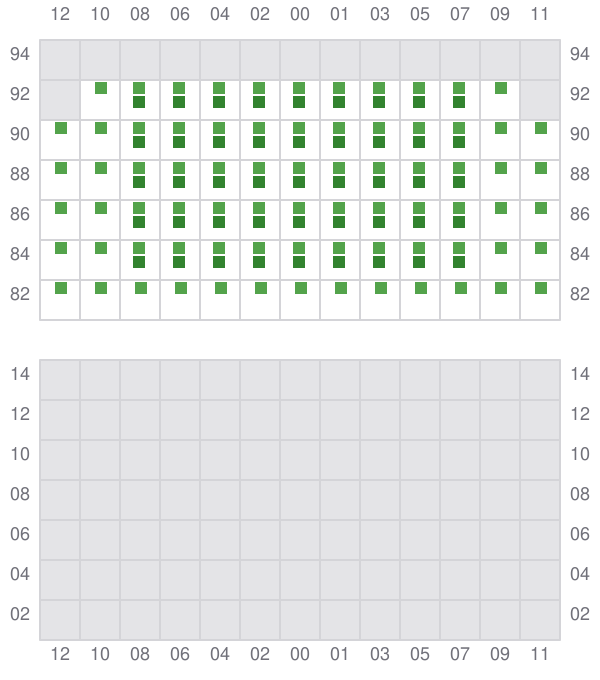

Bay 043 view and slots of MSC ANCONA III
